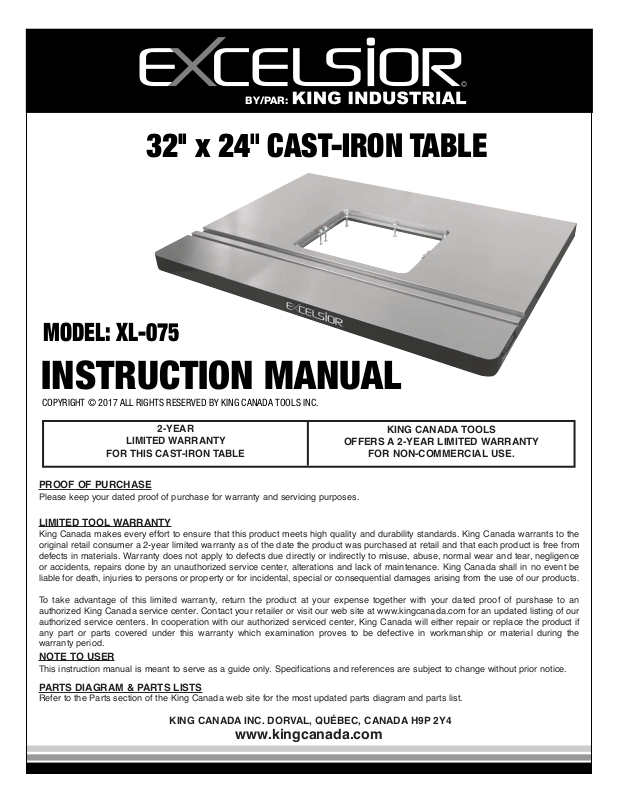

King Industrial EXCELSIOR XL-075 Instruction Manual
32ıı x 24ıı CAST-IRON TABLE
MODEL: XL-075
BY/PAR:
INSTRUCTION MANUAL
COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
LIMITED WARRANTY
FOR THISCAST-IRON TABLE
2-YEAR
OFFERS A 2-YEAR LIMITED WARRANTY
FOR NON-COMMERCIAL USE.
KING CANADA TOOLS
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
LIMITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the
original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from
defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence
or accidents, repairs done by an unauthorized service center, alterations and lack of maintenance. King Canada shall in no event be
liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your dated proof of purshase to an
authorized King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our
authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if
any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the
warranty period.
NOTE TO USER
This instruction manual is meant to serve as a guide only. Specifications and references are subject to change without prior notice.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
KING CANADA INC. DORVAL, QUÉBEC, CANADA H9P 2Y4
www.kingcanada.com
& PARTS DIAGRAM/PARTS LIST
CLEANING
This Cast-Iron Table comes with a protective coating to prevent the table
from rusting during transport. Carefully remove table from the box. Clean
table using a rag soaked in kerosene or paint thinner, discard rag once
cleaning is done.
To further prevent rust, it is recommended to apply a light coating of paste
wax or rust inhibitor.
ASSEMBLY
MOUNTING LEVELING SCREWS AND HEX. NUTS
1) Install the 10 countersunk head screws (A) Fig.1 from underneath the
table as shown, then thread on the hex. nuts (B).
CLEANING, ASSEMBLY
2) The hex. nuts (B) will act as leveling hardware for the Router Lift (mod.
XL-125) or the PhenolicRouter Insert Plate (mod. XL-114).
MOUNTING CAST-IRON TABLE TO FLOOR STAND (MOD. XL-085)
1) Position the Cast-Iron Table (A) Fig.2 upside down (facing down) so the
underneath of the table is exposed.
2) Position the completely assembled Floor Stand (mod. XL-085) upside
down onto the table as shown. Make sure the front of the Floor Stand
faces the front of the Cast-Iron Table.
3) Align the 6 mounting holes in the Floor Stand with those of the Cast-Iron
Table, secure the Floor Stand to the Cast-Iron Table using 6 cap screws,
spring washers and washers (B).
FIGURE 1
FIGURE 2
