T-1 (3mm) SOLID STATE LAMP
L-934GD GREEN
Features
LOW POWER CONSUMPTION.
POPULAR T-1 DIAMETER PACKAGE.
GENERAL PURPOSE LEADS
RELIABLE AND RUGGED.
LONG LIFE - SOLID STATE RELIABILITY.
AVAILABLE ON TAPE AND REEL.
RoHS COMPLIANT.

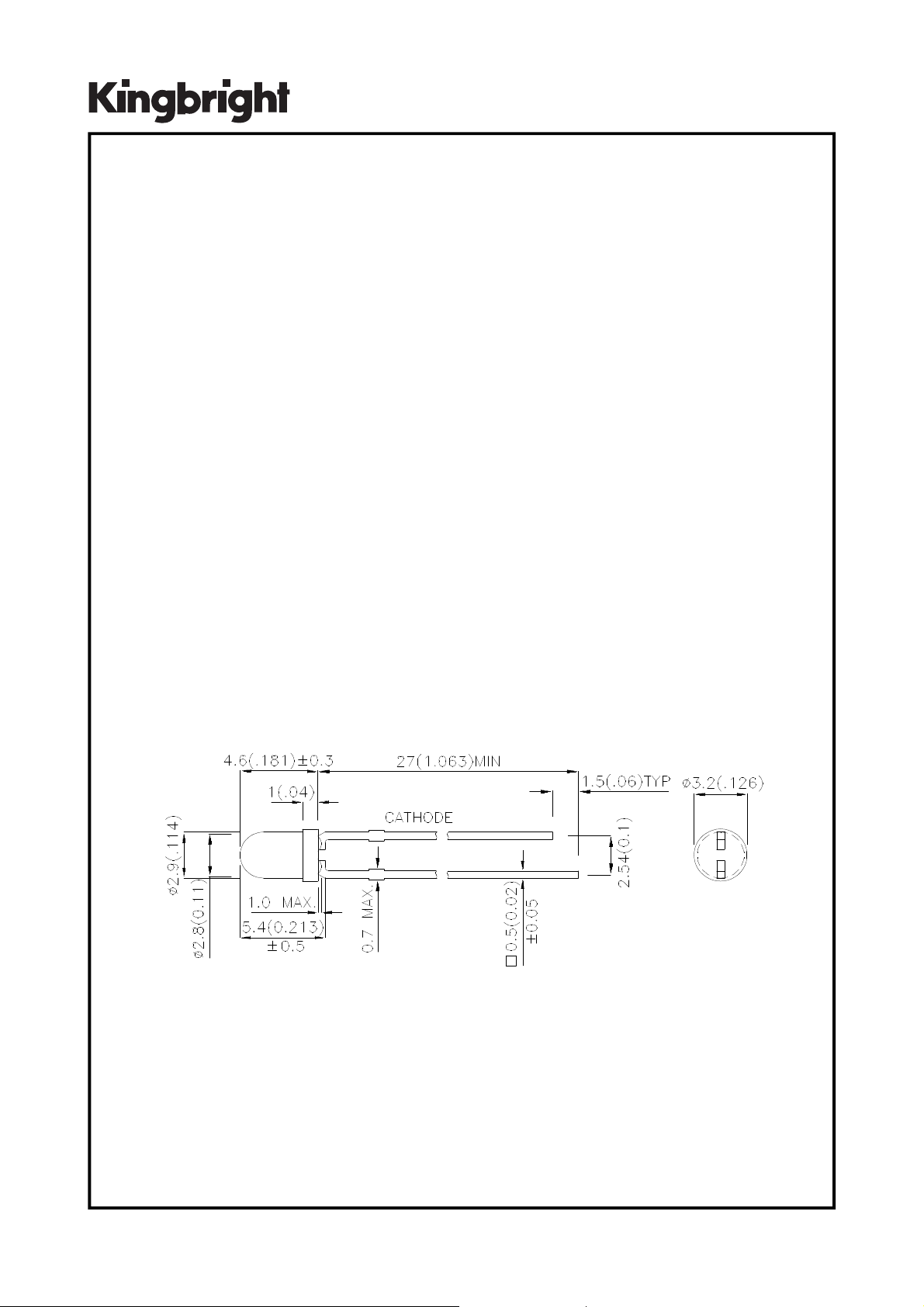

Package Dimensions
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA6381 REV NO: V.8 DATE: APR/05/2005 PAGE: 1 OF 3
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI
Selection Guide
Viewing
Iv (mcd)
Part No. Dice Lens Type
@ 10mA
Min. Typ. 2 θ
L-934GD GREEN (GaP) GREEN DIFFUSED 8 20
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Test ConditionsUnits
λpeak
Peak Wavelength Green 565 nm IF=20mA
Angle
θ 1/2
θ θ
60°
λD
∆λ1/2
Dominant Wavelength Green 568 nm IF=20mA
Spectral Line Half-width Green 30 nm IF=20mA
C Capacitance Green 15 pF VF=0V;f=1MHz
VF Forward Voltage Green 2.2 2.5 V IF=20mA
IR Reverse Current Green 10 uA VR = 5V
Absolute Maximum Ratings at T
A=25°C
Parameter Green Units
Power dissipation 105 mW
DC Forward Current 25 mA
Peak Forward Current [1] 140 mA
Reverse Voltage 5 V
Operating/Storage Temperature -40°C To +85°C
Lead Solder Temperature [2] 260°C For 3 Seconds
Lead Solder Temperature [3] 260°C For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
SPEC NO: DSAA6381 REV NO: V.8 DATE: APR/05/2005 PAGE: 2 OF 3
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI
