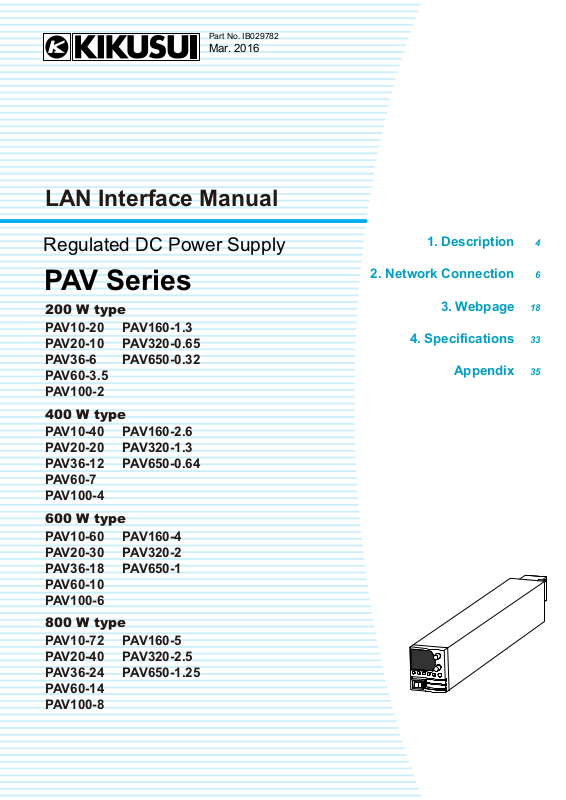

Page 1
200 W type
PAV10-20 PAV160-1.3
PAV20-10 PAV320-0.65
PAV36-6 PAV650-0.32
PAV60-3.5
PAV100-2
400 W type
PAV10-40 PAV160-2.6
PAV20-20 PAV320-1.3
PAV36-12 PAV650-0.64
PAV60-7
PAV100-4
600 W type
PAV10-60 PAV160-4
PAV20-30 PAV320-2
PAV36-18 PAV650-1
PAV60-10
PAV100-6
800 W type
PAV10-72 PAV160-5
PAV20-40 PAV320-2.5
PAV36-24 PAV650-1.25
PAV60-14
PAV100-8
Regulated DC Power Supply
PAV Series
LAN Interface Manual
art No. IB029782
P
Mar. 2016
1. Description 4
2. Network Connection 6
3. Webpage 18
4. Specifications 33
Appendix 35
Page 2
The manuals are intended for users of the PAV series and
About PAV manual
Notations used in this manual
their instructors. Explanations are given under the presumption that the reader has knowledge of power supplies.
Manual construction
•Setup Guide
This manual is intended for first-time users of the product. It
gives an overview of the product, connecting procedures,
safety precautions, etc. Please read this manual before you
operate the product.
• Quick Reference
The quick reference briefly explains the control panel and
the basic operation of it.
• Safety Information
This document contains general safety precautions for this
product. Keep them in mind and make sure to observe
them.
• User’s manual (PDF)
This manual is intended for first-time users of this product. It
provides an overview of the product, notes on usage, and
specifications. It also explains how to connect the product,
configure the product, operate the product, perform maintenance on the product, and so on.
• USB/RS232/RS485 Communication Interface Manual
(PDF)
This manual explains how to control the product remotely
using SCPI commands.
The interface manual is written for readers with sufficient
basic knowledge of how to control measuring instruments
using a PC.
• LAN Interface Manual (PDF)
This manual explains how to control the product remotely
for users of the PAV series with the optional LAN interface.
The interface manual is written for readers with sufficient
basic knowledge of how to control measuring instruments
using a PC.
• The PAV series is categorized into four types according to
the output capacity. This manual contains sections that
describe each type separately or several types collectively.
The type categories are provided on the front cover.
• The PAV series with a LAN interface is also referred to as
the “PAV with LAN” or simply PAV.
• The term “PC” is used to refer generally to both personal
computers and workstations.
• The following markings are used in the explanations in this
manual.
Indicates information that you should know.
Copyright© 2015 Kikusui Electronics Corporation
You can download the most recent version of these manuals
from the Kikusui Electronics Corporation website (http://
www.kikusui.co.jp/en/download/).
You can view the PDF files using Adobe Reader 10 or later.
Before reading this manual
First read the User’s Manual, which includes information on
the product's hardware, to avoid connecting or operating the
product incorrectly.
Trademarks
Microsoft, Windows, and Internet Explorer are registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
All company names and product names used in this manual
are trademarks or registered trademarks of their respective
companies.
Copyrights
The contents of this manual may not be reproduced, in whole
or in part, without the prior consent of the copyright holder.
The specifications of this product and the contents of this manual are subject to change without prior notice.
2 PAV L AN
Page 3
Contents
About PAV manual ...................................2
Notations used in this manual ................. 2
Contents ..................................................... 3
1 Description ................................................4
Features........................................................ 4
2 Network Connection ........................6
LAN port ........................................................ 6
LAN configuration.......................................... 7
Network types......................................... 7
Selecting the LAN interface.................... 8
Control functions that can be used
simultaneously with LAN ...................... 10
LAN Connection.......................................... 11
Starting a connection............................ 11
Displaying and changing the IP
address ............................................. 11
Checking the host name....................... 13
Displaying the MAC address................ 13
LAN reset ............................................. 14

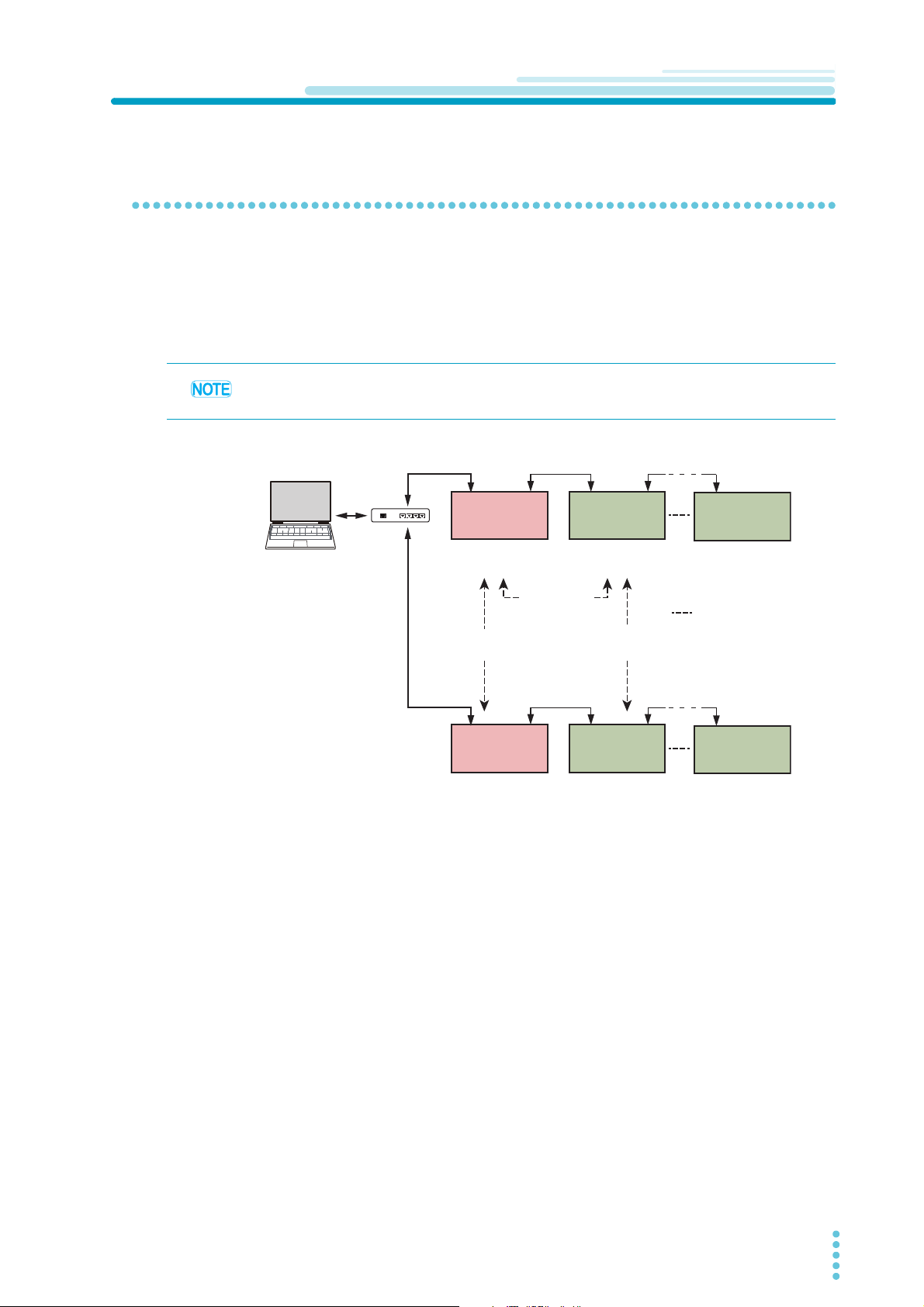

RS485 Multi-Drop Connection .................... 15
Description ........................................... 15
LAN connections .................................. 16
RS485 connection ................................ 17
Socket Communication .............................. 39
Communication using sockets............. 39
WAN Connection........................................ 41
LAN Commands......................................... 42
Global Commands for Multi-Drop
Connection . .............................................. 43
Selecting the PAV ............................... 43
Responses to global commands ......... 43
Index....................................................... 44
3Webpage ....................................................18
Home Page ................................................. 18
Opening the Home page ...................... 18

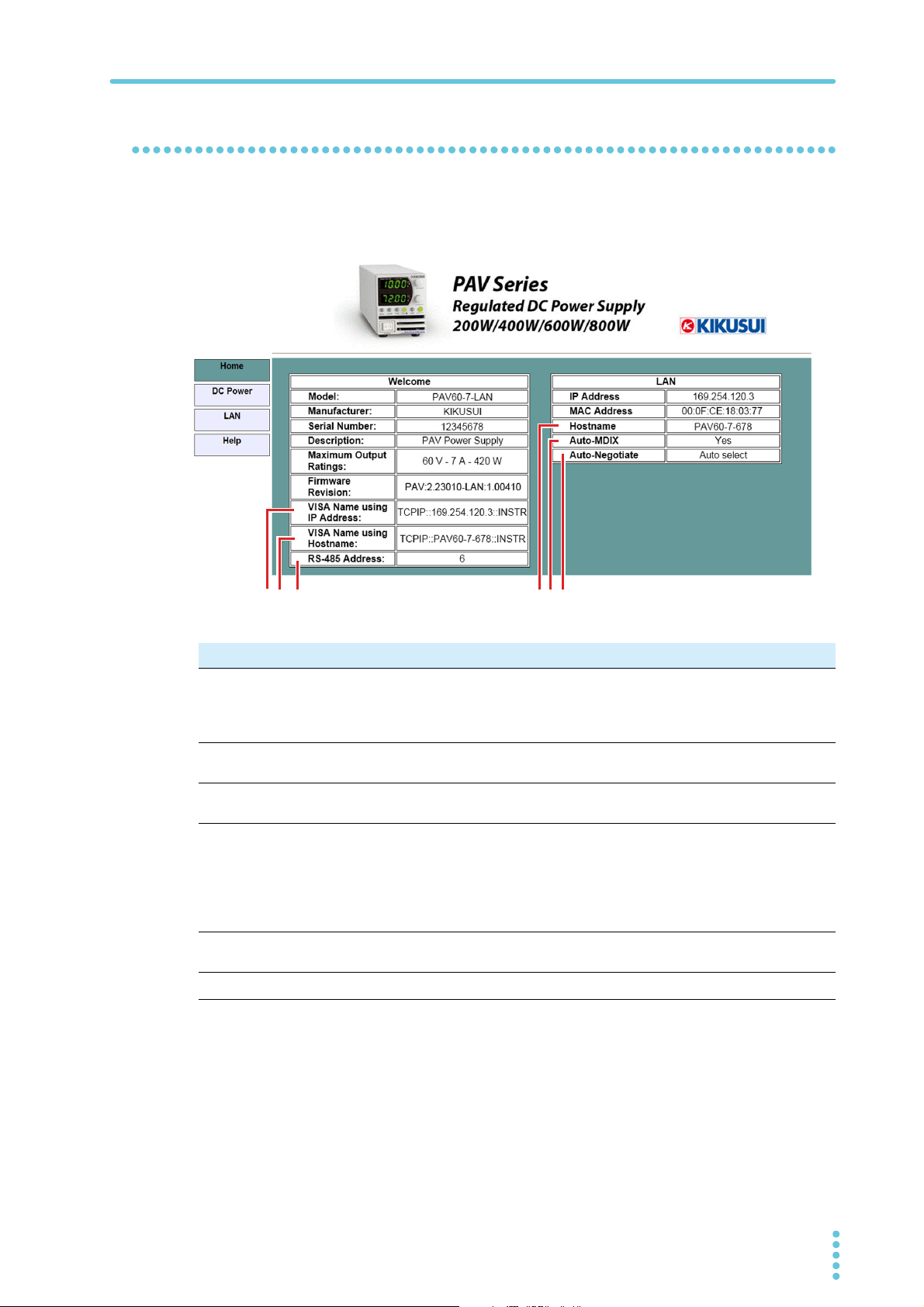

Description of the Home page.............. 19
Logging In and Logging Out........................ 20
Logging in............................................. 20
Logging Out.......................................... 21

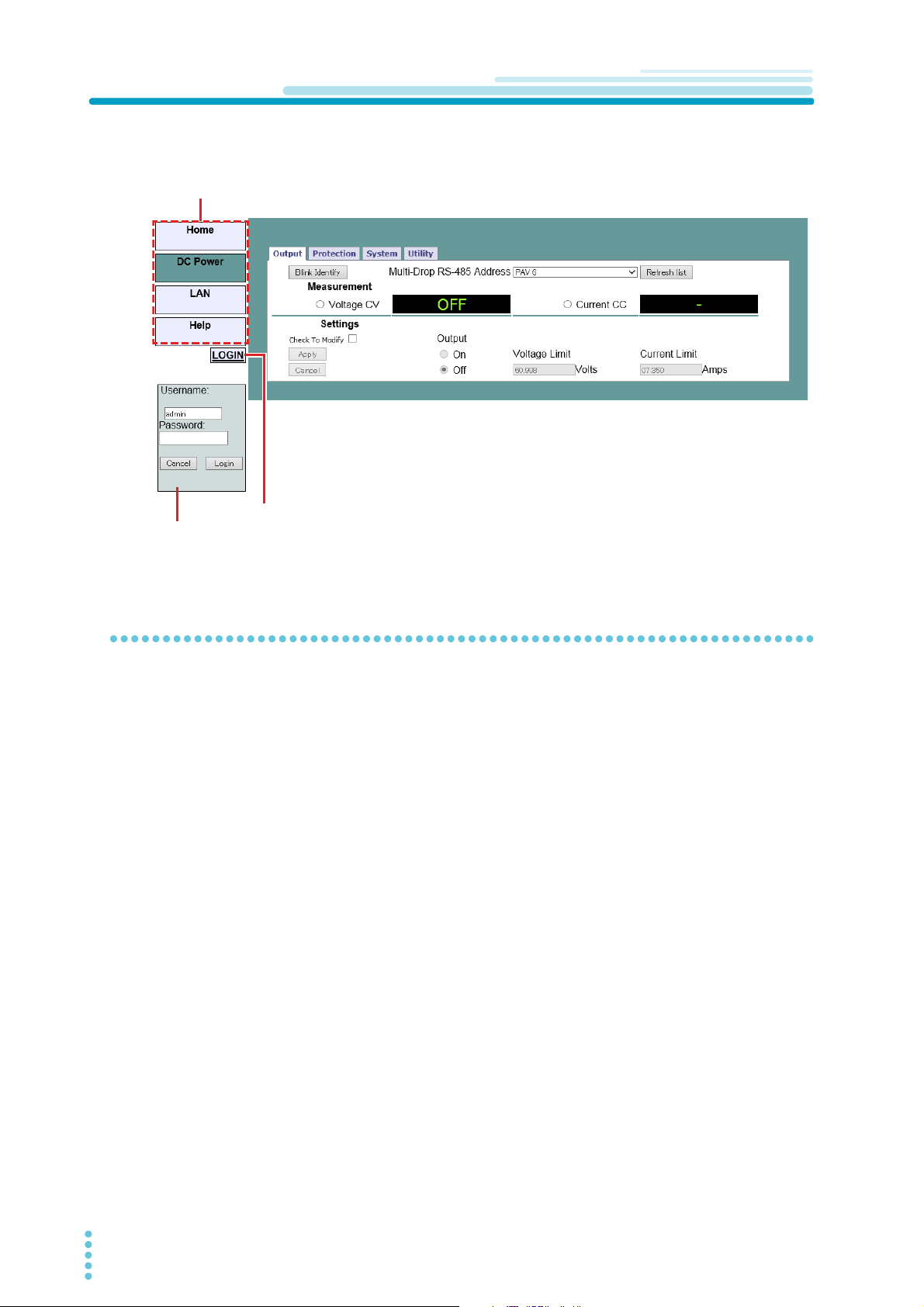

DC Power Page .......................................... 22

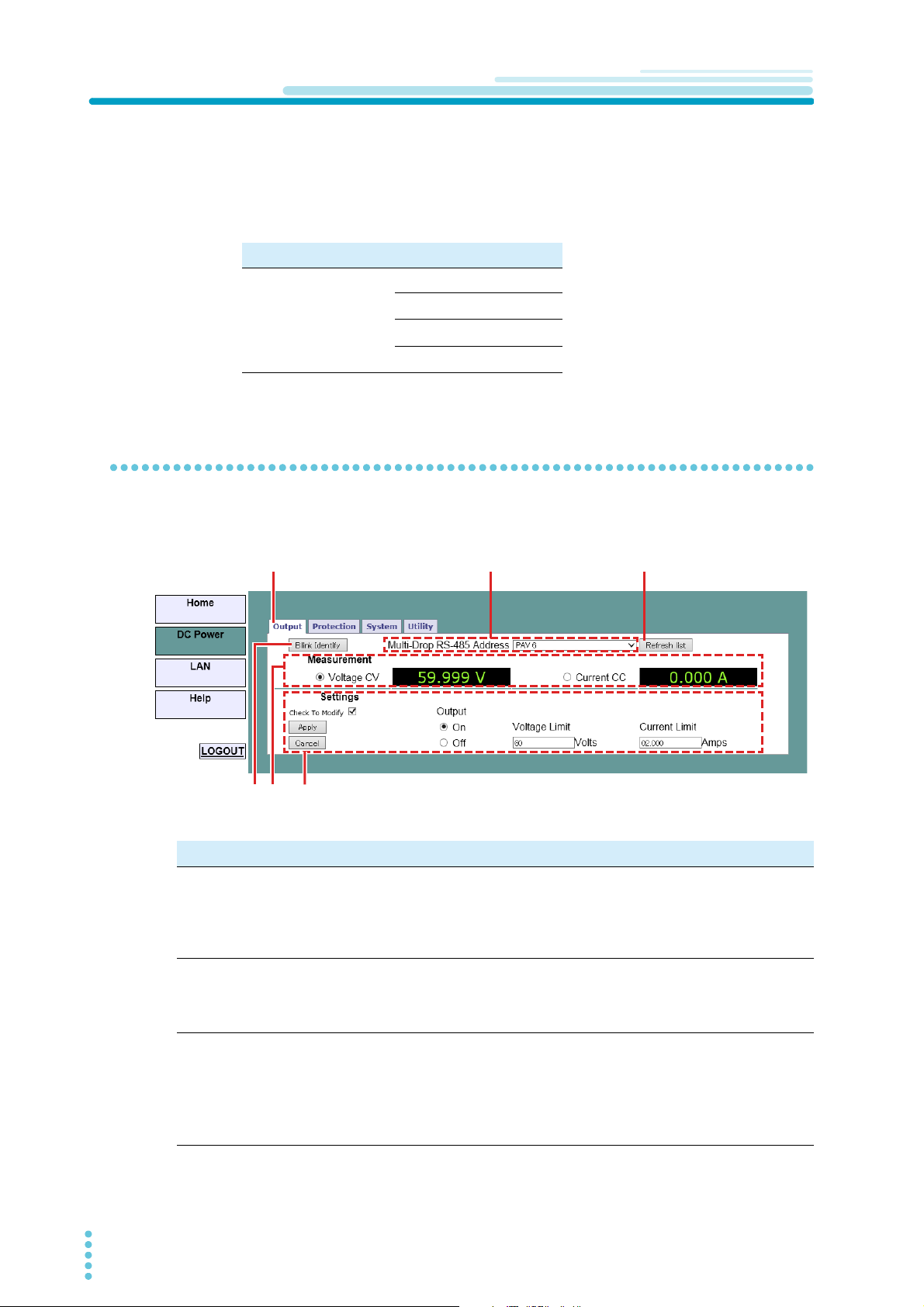

Output tab............................................. 22

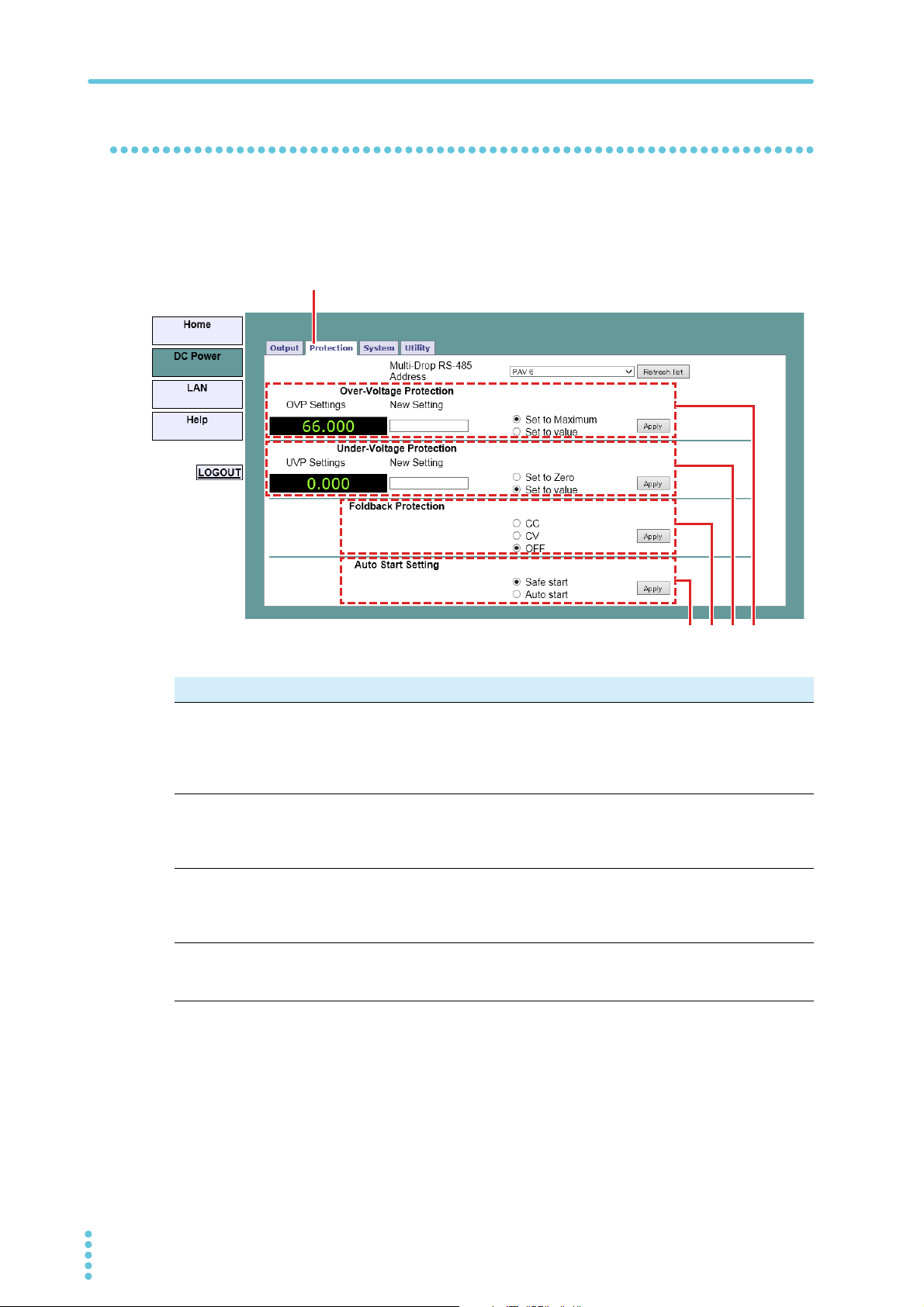

Protection tab ....................................... 24

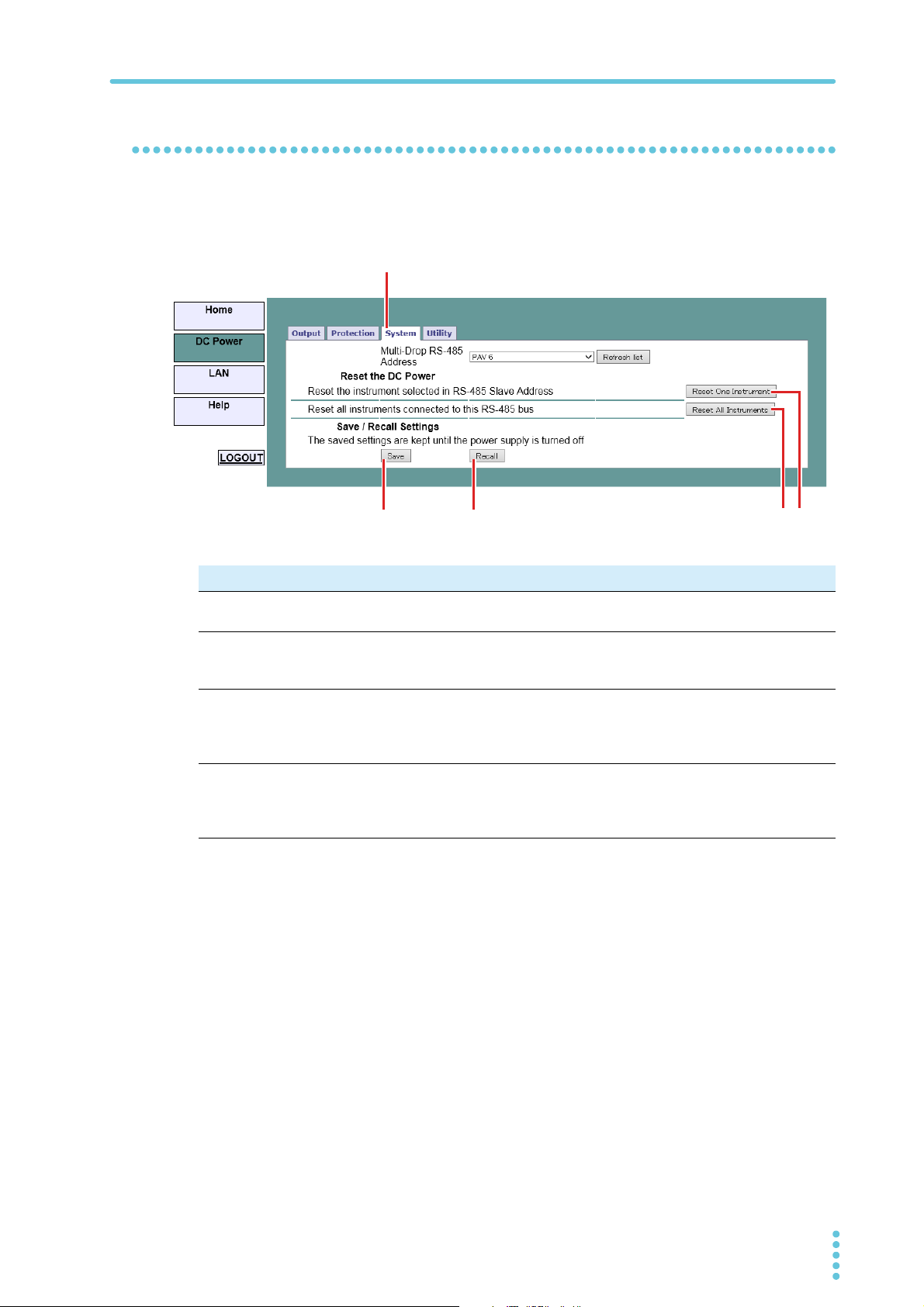

System tab ........................................... 25

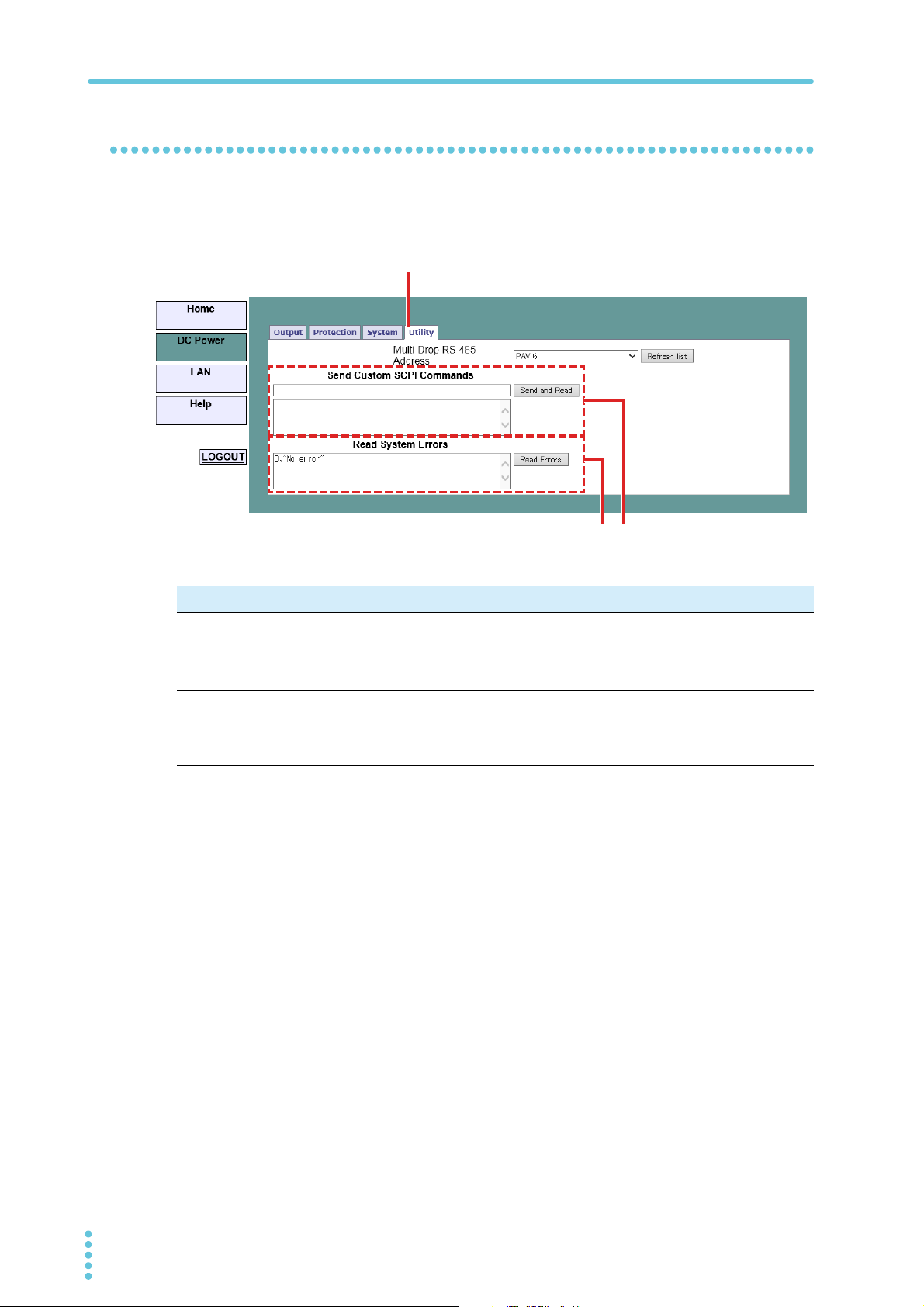

Utility tab............................................... 26
LAN Page.................................................... 27

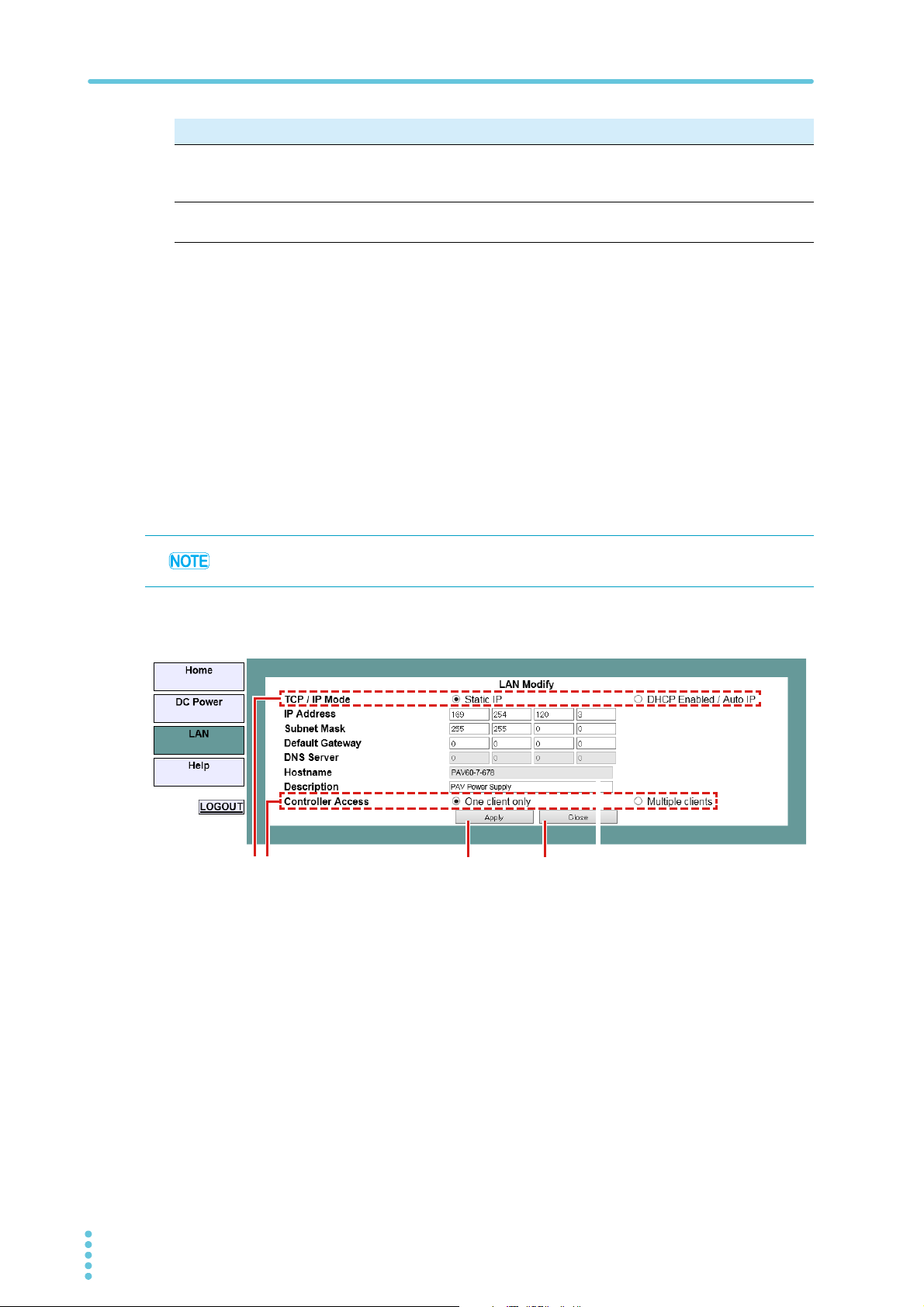

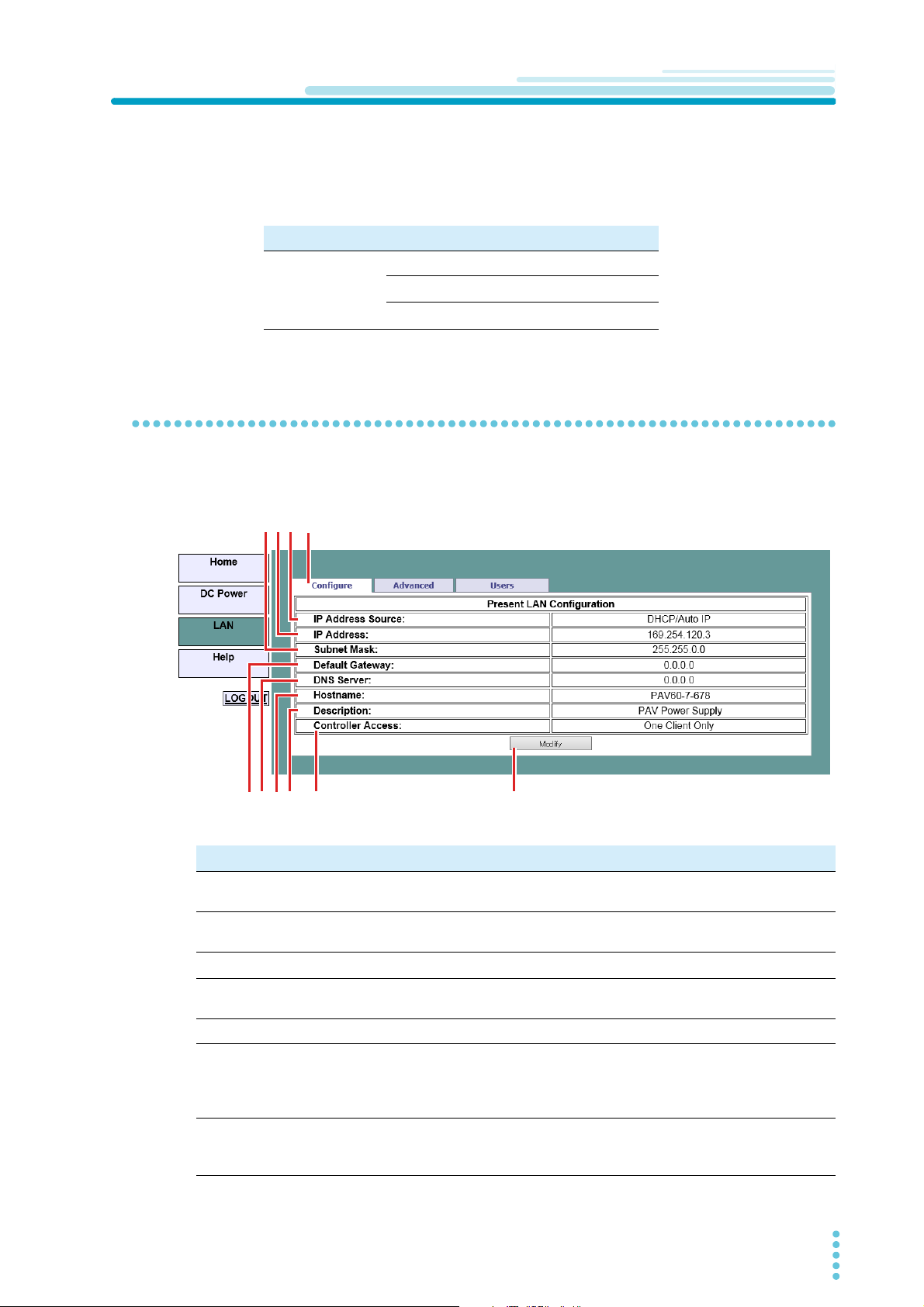

Configure tab........................................ 27

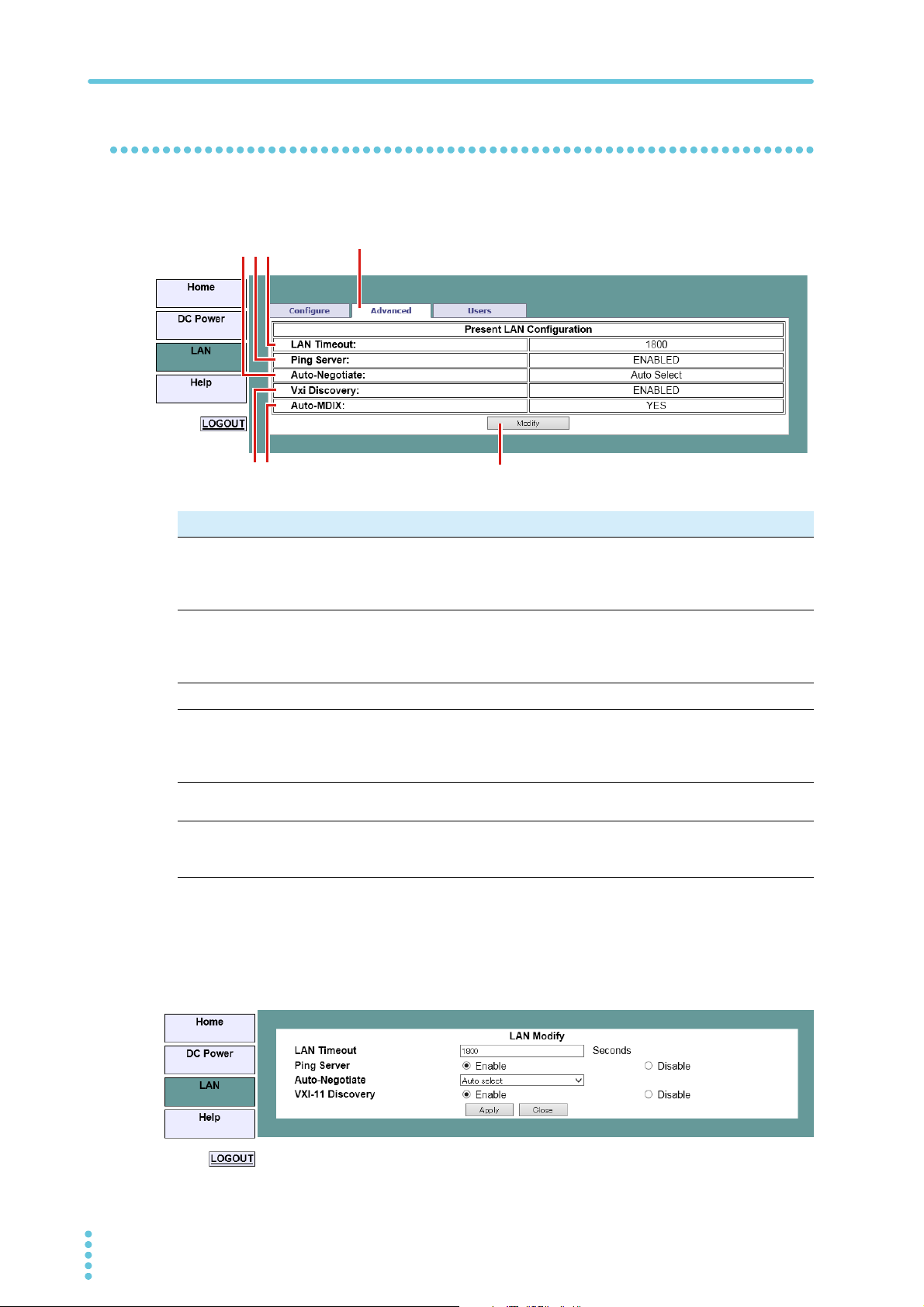

Advanced tab ....................................... 30

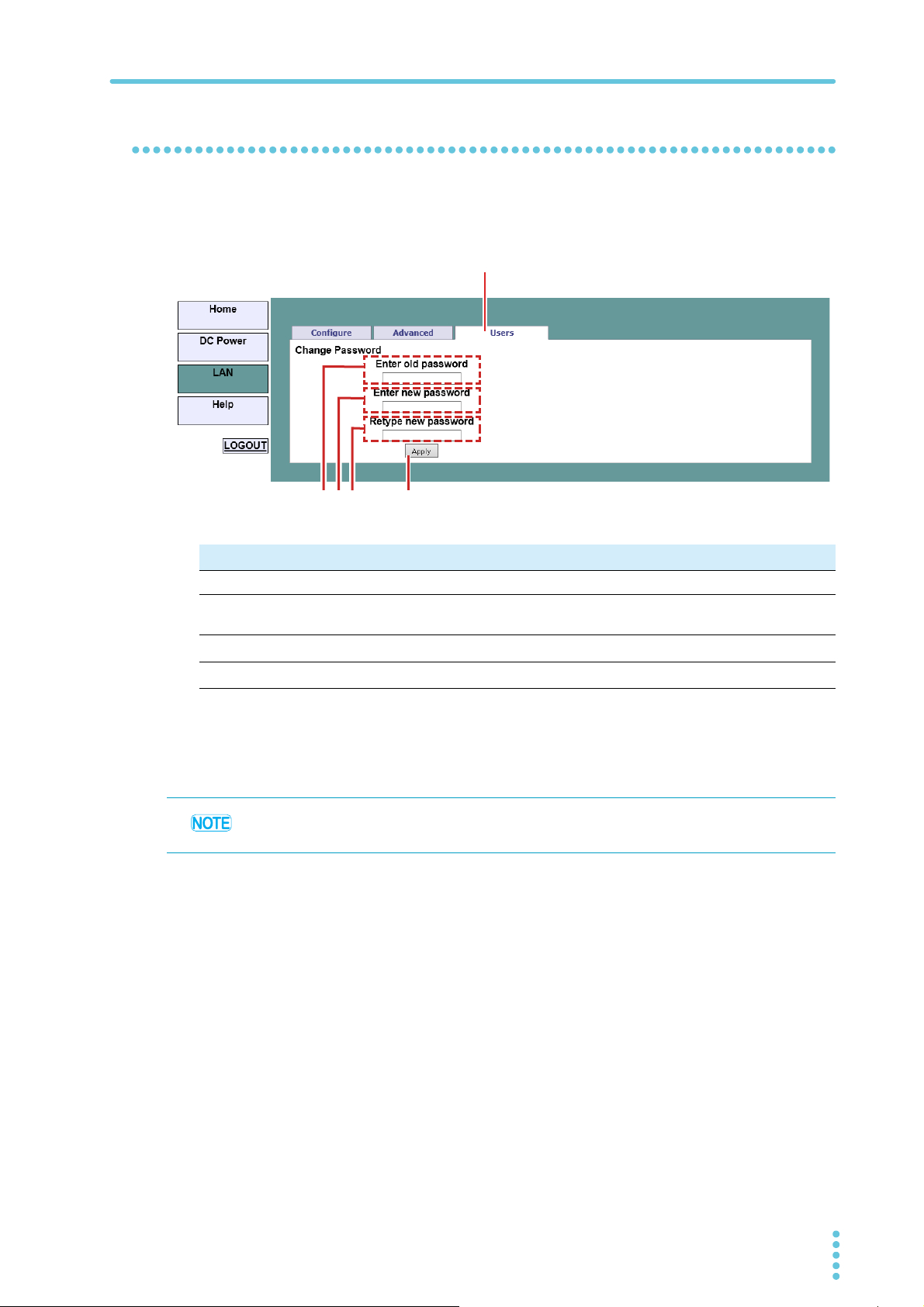

Users tab.............................................. 31

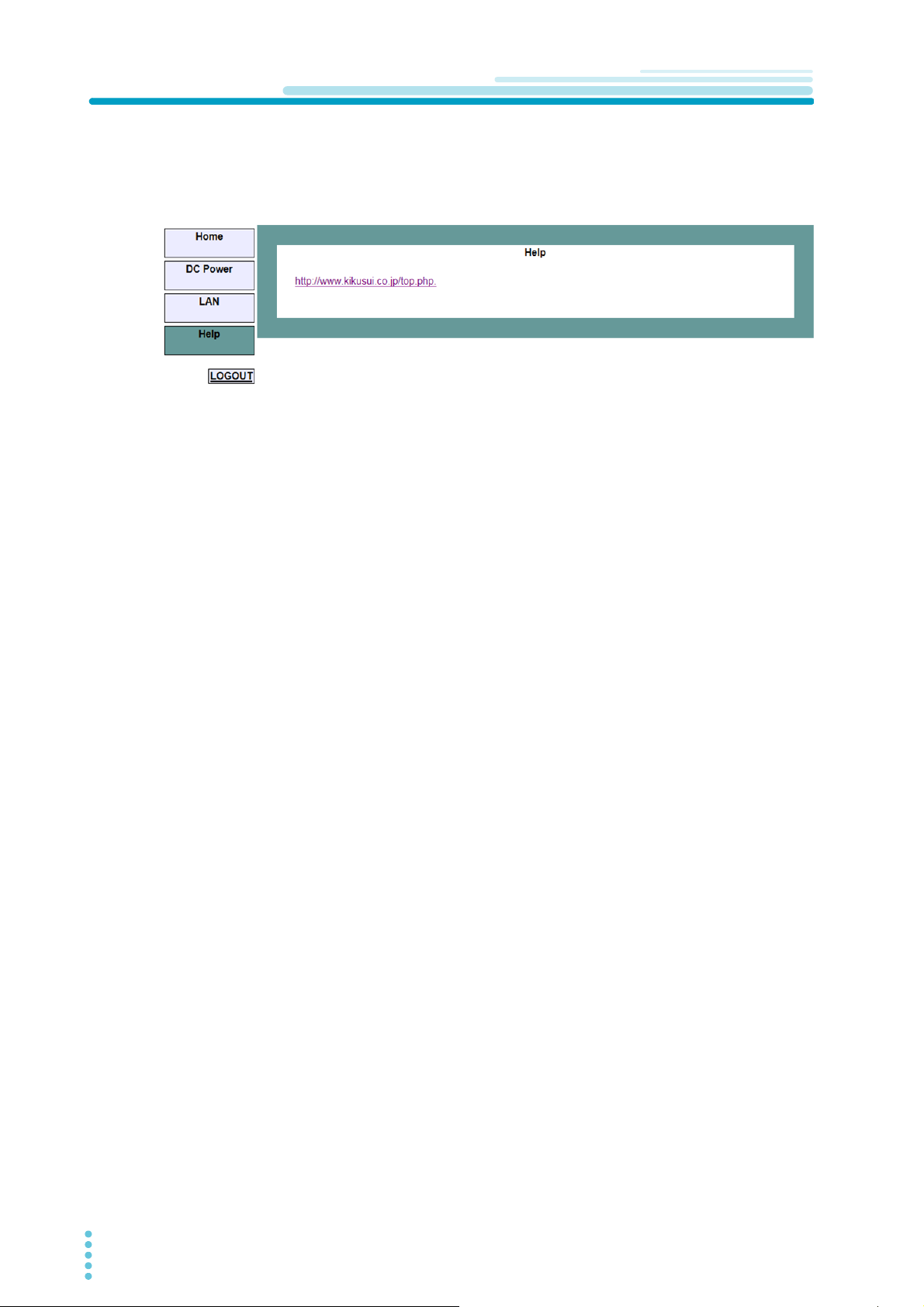

Help Page ................................................... 32
4 Specifications .......................................33
Appendix
Troubleshooting .......................................... 35
Driver Software ........................................... 37
Control using a VISA driver.................. 37
Control using an IVI driver.................... 38
PAV L AN 3
Page 4
1
Description
The local area network (LAN) option can be used to perform remote control, measurement,
and status check on the PAV series.
The PAV can be controlled from a PC web browser through the web interface embedded in
the PAV.
Automatic control and measurement applications can be created using the standard network
protocol and measurement commands.
Features
Standard TCP/IP network communication
• LAN (local area network)
• WAN (wide area network)
• Communication with remote locations using the Internet
Webpage
• Network communication configuration
• Controlling and reading the PAV output and status from a GUI screen.
• Multi-user control and security settings to eliminate dangerous connection procedures
• Password for webpage protection
LAN protocol
• Supports VISA drivers, TCP socket, and UDP socket
• Supports VXI-11 discovery and Ping server
• LAN status indicator LED that lights when a network connection is established
• Simple creation of original auto control programs
Remote programming function
• Standard SCPI command language
• Supports VISA drivers and all test and measurement utilities
• TCP socket and UDP socket support PLCs, Linux, and other non-VISA controllers.
4 PAV LAN
Page 5
1. Description Features
Front panel
• IP address and MAC address can be verified from the front panel.
• IP address can be assigned from the front panel.
• LAN reset can be performed from the front panel.
• Users can remotely control the blinking of the front panel display to identify which PAV is
being controlled in a rack.
Rear panel
• Equipped with an Ethernet RJ-45 port (standard 8-pin jack port for LAN)
• The RJ-45 port is equipped with a link LED and activity LED.
• The LAN status indicator LED on the rear panel shows the LAN communication status.
The LED can be controlled to blink to identify which PAV is being controlled.
RS485 multi-drop connection
• Up to 30 PAVs can be connected using the included RS485 link cables.
• All the PAVs in a RS485 multi-drop connection can be controlled using a single IP
address.
• PAVs in a RS485 multi-drop connection do not require the LAN option (except the master unit).
PAV L AN 5
Page 6
2
1
2
3
4
Network Connection
This chapter describes the LAN port, LAN configuration, and RS485 multi-drop connection.
LAN port
The LAN port is on the rear panel. The following figure is for the 10 V to 100 V rated output
voltage model, but the LAN port is in the same location on the 160 V to 650 V rated output
voltage model.
No. Name Function
1 LAN port RJ-45 port for LAN connection.
2 Link LED
3 Activity LED
Normal operation
LAN sta-
4
tus indicator LED
1 You can use the identification function by accessing the webpage from a PC or the like or by
sending an SCPI command. When used, this LED blinks in sync with the front panel display.
This function is useful to identify which PAV you are controlling when there are several PAVs
mounted in the rack. If the PAVs are connected in a multi-drop configuration, only the LED of
the PAV with LAN (master unit) blinks.
2 To stop this blinking, click Blink Identify (p.22) on the webpage, send an SCPI command
(p.42), or turn or press the setting knob of the front panel.
6 PAV LAN
PAV identification
LAN fault
Green solid: When the PAV is connected to LAN.
Orange blinking: When a message packet is
detected.
Green solid: When the PAV can connect to LAN.
Green blinking
Red solid:
When the PAV is not in LAN remote mode, when a
LAN connection failed to be completed, or when the
LAN connection is disconnected.
1,2
Page 7
2. Network Connection LAN configuration
Ethernet hubNetwork
Server
Category 5 cable
Open the webpage on the PC,
or send an SCPI command.
PAV with LAN
Assign the IP address using a DHCP server
Category 5 cable
(straight or crossover cable)
IP address is automatically assigned.
(169.254.xxx.xxx)
Open the webpage on the PC,
or send an SCPI command.
PAV with LAN
LAN cable
Prepare a category 5 or better straight or crossover LAN cable.
The RS485 link cable included with the PAV cannot be used for LAN connection.
LAN configuration
Network types
Network connection using a server
This is the typical network connection. A LAN is operated with a server under the management of network administrators. The server assigns an IP address and other LAN parameters
to the PAV.
or a fixed IP address to the PAV.
P2P (peer-to-peer) network connection
This is a connection where the PAV and the PC are connected directly. The PC only connects
to the PAV, not to any other network.
In the factory default setting, the PAV automatically assigns its own IP address and other LAN
parameters. To return to the default settings, perform a LAN reset (p.14). In addition, if the PC
is configured for automatic IP address assignment, the PAV assigns an IP address to the PC.
For details on IP addresses, see “Displaying and changing the IP address .” (p.11).
The PC is not connected to another network.
PAV L AN 7
Page 8
LAN configuration 2. Network Connection
Interface
Address
Baud Rate
Language
IP Address
MAC Address
LAN Reset
RS232
RS485
USB
LAN
1...31
1200...
SCPI
IP-1...IP-4
MAC-1...MAC-6
Reset
nnnn
nnnn
Parameter
1200, 2400, 4800, 9600, 19200, 38400, 57600
PAG
Adr
INtF
232
485
USb
LAn
SCPI
PAG
bAUd
LANG
IP
IP1
...
IP4
MAC
MA1
...
MA6
rSt rSt
Legend
Move: Turn the VOLTAGE knob
Move: Turn the CURRENT knob.
CURRENT
Press the knob.
VOLTAGE
Enter:
Subsystem (first menu level)
Function (second menu level)
Parameter (third menu level)
Subsystem Function
Selecting the LAN interface
Use the REM menu to select the LAN interface. This menu is also used to set the IP address,
MAC address and perform LAN reset.
REM menu structure
REM
Enter: Press the CURRENT knob.
8 PAV LAN
Page 9
2. Network Connection LAN configuration
Subsystem and function
The subsystem and function correspond to first and second menu levels.
Subsystem Function
item Panel display item Panel display
Interface INtF
Address Adr
Baudrate
Command language LANG
IP address
MAC address
LAN reset
3
5
5
5
bAUd
IP
MAC
rSt
1
RS232
RS485 485
USB USb
2
LAN
1 to 31
1
6
1200 to 57600
1
9600
1
SCPI
4
PAG
IP1 to IP4
MAC1 to MAC6
Reset
232
LAn
1 to 31
1200 to 57.6
SCPI
PAG
IP1 to IP4
MA1 to MA6
rSt
1 Factory default setting
2 Valid when equipped with LAN
3 The setting is valid when RS232/RS485 is selected.
4 PAG series communication commands, cannot be used when the LAN interface
is selected
5 Displayed on models with LAN installed when LAN is selected
Parameter
The third menu level. It contains the IP address and MAC address items.
LAN remote mode setup procedure
Turn the POWER switch on.
1
Press REM.
2
The REM LED lights, and the voltmeter shows “INtF.”
Press the VOLTAGE knob.
3
The voltmeter shows “INtF,” and the ammeter shows the communication interface
name.
Turn the CURRENT knob to select the communication interface “LAn”.
4
Press the CURRENT knob.
5
When the interface is set, the display blinks and returns to the original screen.
PAV L AN 9
Page 10
LAN configuration 2. Network Connection
Control functions that can be used simultaneously with LAN
On a PAV with LAN, you can use local mode and external control simultaneously with LAN.
However, LAN cannot be used simultaneously with serial communication (USB/RS232/
RS485) remote mode. For the serial communication setup procedure, see the USB/RS232/
RS485 communication interface manual.
Local mode (front panel setup)
Even when connected to LAN, the PAV can be configured using the front panel knobs and
keys.
Switching to local mode
When the PAV is in LAN remote mode, the front panel REM LED is lit. Press REM to turn off
the REM LED and switch to local mode.
If the PAV does not switch to local mode even when you press REM, perform one of the following procedures.
Procedure (switching to local mode) Description
• Stop sending commands.
Press REM.
• SYSTem:REMote[:STAte] LOC/0
Send this command.
• Turn the POWER switch off and then back
on.
Press REM.
If the PAV continuously receives configuration change commands through LAN, the
PAV switches to remote mode each time it
receives a command.
The PAV may be set to local lockout mode
through LAN.
External control
Even when connected to LAN, you can control and monitor the PAV series using external
analog signals through the PAV’s J1 and J3 connectors.
10 PAV L AN
Page 11
LAN Connection
Starting a connection
A PAV with LAN automatically determines whether a network connection is available. Then, it
automatically detects a network server and receives an IP address assignment or assigns an
IP address to itself. Further, it sends its IP address and host name to other devices in the network.
You can connect the LAN cable regardless of whether the PAV is turned on or off.
Turn the POWER switch on.
1
The front panel voltmeter displays “LAn” for about 2 seconds. Then, the PAV proceeds as follows.
In safe start mode, “OFF” is displayed.
In auto start mode, the output is in the state that it was in immediately before the AC
input was turned off.
In a typical network (network server) connection
When the PAV rear panel LAN status indicator LED lights green about 10 seconds
later, the connection is complete.
In a P2P (peer-to-peer) network
When the PAV rear panel LAN status indicator LED lights green about 30 to 40 seconds later, the connection is complete.
When the PAV obtains an IP address, the LAN status indicator LED lights green.
You can check the IP address on the front panel.
If the LAN status indicator LED does not light green, see “Troubleshooting” (p.35).
Displaying and changing the IP address .
Displaying the IP address
To display the IP address on the front panel. follow the procedure below.
Press REM.
1
Turn the VOLTAGE knob until the voltmeter shows “IP.”
2
Press the VOLTAGE knob.
3
Turn th e V OLTAG E k nob.
4
The voltmeter shows “IP1” to “IP4,” and the ammeter displays the corresponding IP
address.
PAV L AN 11
Page 12
LAN Connection 2. Network Connection
Changing the IP address
You can change all four numbers (octets) of the IP address from the front panel. An IP
address has four numbers (e.g., 10.97.4.4). Set each number in the range of 1 to 254.
Turn the CURRENT knob.
5
You can change the IP address.
Press the CURRENT knob.
6
The IP address is confirmed.
The voltmeter shows “LAn”, and the ammeter shows “HOLd” for about 1 second.
If the address that you want to assign is already used by another device, the front
panel LED blinks, and the address returns to the original value.
Press any key to stop the blinking.
• If you change the IP address from the front panel or by performing the procedure on the
Modify page on the Configure tab of the LAN page on the webpage, the PAV’s IP address
becomes static (fixed).
• In this case, address assignment through DHCP and auto IP are invalid.
IP address explained
Network connection is possible by assigning an IP address to the PAV. An IP address is a
group of four numbers delimited by periods. The following three modes are available for IP
address assignment: DHCP, auto IP, and static (fixed) IP.
Item DHCP Auto IP Static (fixed) IP
Mode
setting
Assignment
Range
Valid period
Address
overlapping
After a LAN reset, set to
DHCP.
Network server assignment.
No limitation. 169.254.xxx.xxx No limitation.
Changes when many
devices are connected
to the DHCP server.
Address overlapping is
prohibited by the DHCP
server.
If a DHCP server is not
available, after a LAN
reset, set to auto IP.
PAV self-assignment.
Fixed as long as there is
no address overlapping.
Automatically obtains a
different IP address.
Set using the Modify
page on the Configure
tab of the LAN page on
the webpage or through
IP1 to IP4 address on
the front panel.
Always fixed.
The LAN status indicator LED and front panel
LED blink.
12 PAV L AN
Page 13
2. Network Connection LAN Connection
Checking the host name

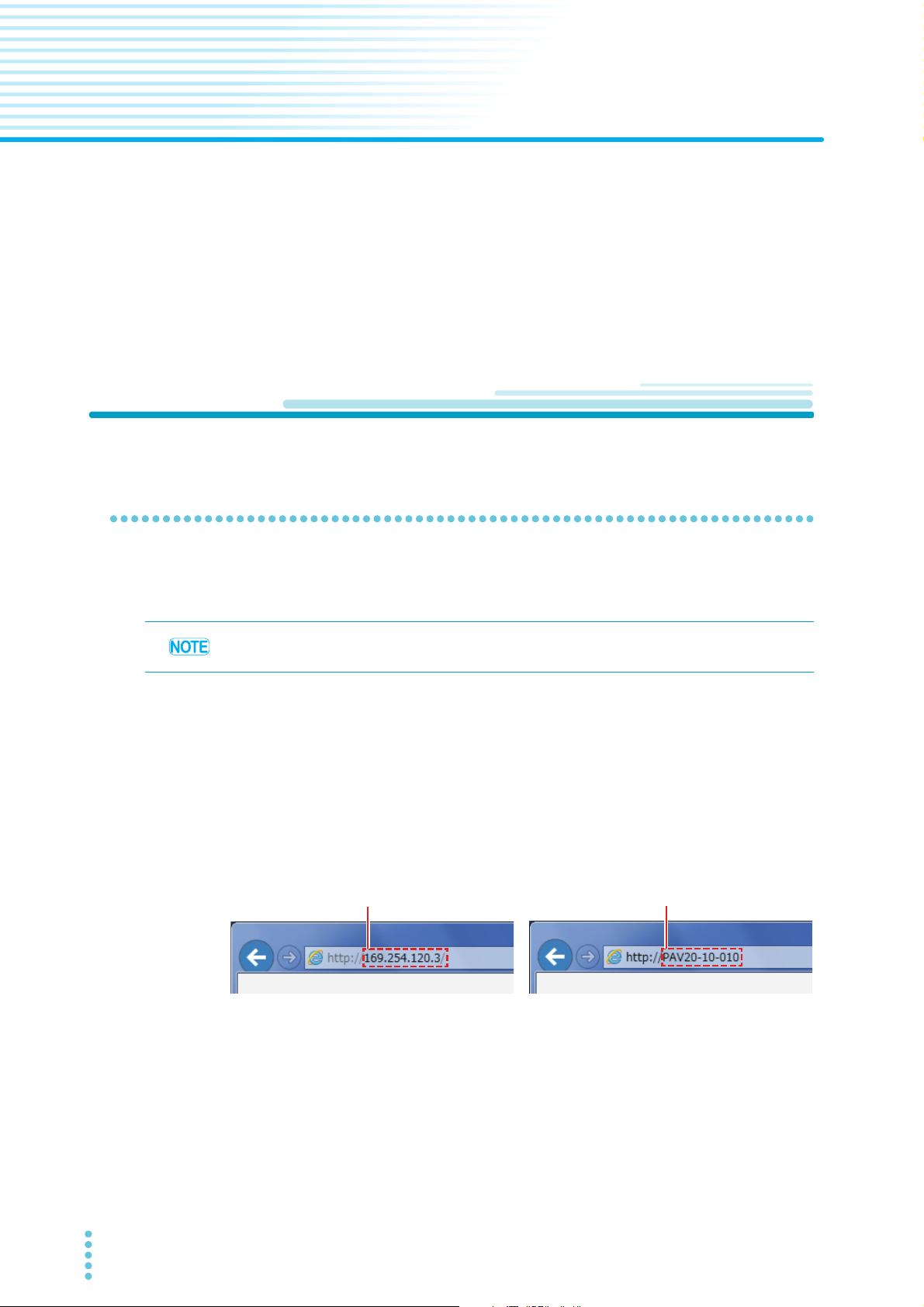

A host name is a text address used in place of a numerical address (e.g., PAV60-7-678).
You cannot view the host name from the PAV front panel. You can view and create a host
name from the webpage. (p.28)
For example, if you set the host name to “KIKUSUI,” you can send commands also to “KIKUSUI.”
After a LAN reset (p.14), the PAV is automatically assigned with a host name made up of a
combination of the model name and serial number.
Example:
Model name Serial number
PAV10-40 WITH LAN VJ000123 PAV10-40-123
PAV160-2.6 WITH LAN
1 <model><rated voltage>–<rated current>–<last three digits of the serial number>
The handling of the host name varies depending on the network connection. See the following table. When using host names for communication, assign unique host names to each
PAV.
VJ000456 PAV160-2P6-456
Automatically generated host name
1
Item DHCP Auto IP Static (fixed) IP
Format PAVvv-aa-nnn PAVvv-aa-nnn Host name not allowed
Host name protocol
Host name on the
webpage
NetBIOS NetBIOS Host name not allowed
The IP address is displayed on the homepage of the webpage and on the
Configure tab of the LAN page.
Displaying the MAC address
To display the MAC address on the front panel. follow the procedure below.
Press REM.
1
Turn the VOLTAGE knob until the voltmeter shows “MAC.”
2
Press the VOLTAGE knob.
3
Turn th e V OLTAG E k nob.
4
The voltmeter shows “MAC1” to “MAC6,” and the ammeter displays the corresponding
MAC address.
PAV L AN 13
Page 14
LAN Connection 2. Network Connection
LAN reset
The LAN reset function returns the LAN parameters to their factory default values.
Press REM.
1
Turn the VOLTAGE knob until the voltmeter shows “rSt.”
2
Press the VOLTAGE knob.
3
The ammeter shows “rSt.”
4
Press the CURRENT knob.
5
The system is reset.
The voltmeter shows “LAn”, and the ammeter shows “HOLd” for about 1 second.
Turn the POWER switch off and then back on.
6
Default LAN settings
Item Default value See
TCP/IP mode
IP address
Subnet mask
Default gateway
Description
Controller access
Ping server
LAN timeout
Auto negotiation
VXI-11 discovery
Password
DHCP enabled (If DHCP setting fails, auto IP
assignment is used.)
169.254.xxx.xxx
(The numbers in “xxx” are automatically assigned.)
255.255.0.0 (p.27)
0.0.0.0
0.0.0.0
PAV Power Supply
One client only (p.29)
Enabled
1800 seconds (30 minutes)
Auto detection of the data rate
Enabled
None (p.31)
(p.29)
(p.27)DNS server
(p.30)
14 PAV L AN
Page 15
RS485 Multi-Drop Connection
IN
OUT
IN
OUT
RS485
link cable
RS485
link cable
IN
OUT
1st PAV 2nd PAV 31st PAV
- J4 -
- J4 -
- J4 -
IN
OUT
IN
OUT
RS485
link cable
RS485
link cable
IN
OUT
1st PAV 2nd PAV 31st PAV
- J4 -
- J4 -
- J4 -
LAN
PAV with LAN
(master unit)
Using different
IP addresses
Using different
RS485 addresses
The same RS485
address can be used.
Slave unit
Slave unit
Up to 30 units
can be connected.
PAV with LAN
(master unit)
Slave unit Slave unit
LAN
PC
Category 5
Cable
Description
Up to 30 PAVs without LAN can be connected to a PAV with LAN. An IP address is assigned
to the PAV with LAN, and the other PAVs without LAN can connect to the LAN through the
PAV with LAN. This scheme is called multi-drop connection. (See the following figure.)
In a multi-drop connection, global commands can be applied to all PAVs connected through
RS485 link cables.
In a multi-drop connection, only a single controller (e.g., PC) can connect to the PAV with
LAN at any given time. Make sure it is a one-to-one connection.
PAV L AN 15
Page 16
RS485 Multi-Drop Connection 2. Network Connection
LAN connections
The PAV connected to LAN is called the master unit.
Configuring the master unit
Connect the master unit to the LAN.
1
Using RS485 link cables, connect J4-OUT to J4-IN on the rear panel of
2
each PAV.
See the connection diagram on the previous page.
Turn on the POWER switch of each PAV.
3
Set the master unit to LAN remote mode.
4
Set the RS485 addresses of each PAV other than the master unit.
5
Setting the RS485 addresses
On PAVs without LAN, set RS485 addresses.
If PAVs without LAN are in analog remote mode, switch to local mode. (p.10)
Press REM on the front panel.
1
The ammeter shows “Adr.”
Press the CURRENT knob.
2
The voltmeter shows “Adr,” and the ammeter shows the address.
Turn the CURRENT knob to select the address.
3
Press the CURRENT knob.
4
The default RS485 address is 6, but you can change it in the range of 1 to 31. The
RS485 address is not related to the IP address. When connecting multiple PAVs
through RS485, be sure to assign a unique address to each PAV.
16 PAV L AN
Page 17
2. Network Connection RS485 Multi-Drop Connection
RS485 connection
PAVs configured for RS485 connection are called slave units.
Each slave unit sends or receive commands independently through the master unit’s LAN
port.
Configuring the RS485 multi-drop connection
Using an RS485 link cable, connect the J4-OUT connector of the master
1
unit to the J4-IN connector of a slave unit.
Turn on the POWER switch of each PAV.
2
Set each PAV to RS485 remote mode.
3
Set each PAV’s address.
4
Setting the data rate (baudrate)
Press REM.
5
Turn the VOLTAGE knob until the voltmeter shows “bAUd.”
6
Press the VOLTAGE knob.
7
The ammeter shows the baudrate.
Turn the CURRENT knob to set the value to “57.6.”
8
Be sure to set the same baudrate (57.6) on each PAV.
Press the CURRENT knob.
9
PAV L AN 17
Page 18
3
IP address
Host name
Webpage
The PAV webpages consists of the Home page, DC Power page, LAN page, and Help page.
They have the following features.
• Model name, model information, firmware version, and LAN settings can be read.
• Configuring the LAN connection is easy.
• Configuring and monitoring the PAV output are easy.
Home Page
Opening the Home page
When the PAV rear panel LAN status indicator LED is lit green, the PAV webpages are available.
When an auto control program is in progress, you cannot open webpages.
Check the IP address from the front panel. (p.11)
1
On the PC, open Internet Explorer or other web browser.
2
Enter the PAV’s IP address or host name as shown in the following fig-
3
ure.
If the PAV is set to DHCP or auto IP and the PC is running a NetBIOS naming service,
you can enter a host name. For the procedure to enter host names, see “Checking the
host name” (p.13).
Press ENTER.
4
The PAV Home page appears. If it does not, see “Troubleshooting” (p.35).
18 PAV L AN
Page 19
3. Webpage Home Page
213 546
Description of the Home page
Click Home to open the Home page.
No. Item Description
In auto control programing, VISA is one of various communication driv-
VISA Name using IP
1
Address
VISA Name using
2
Hostname
3 RS-485 Address
4 Hostname
5 Auto-MDIX
6 Auto-Negotiate
ers.
On LAN devices, the IP address is also used in the VISA resource
name. (p.11)
In auto control programming, a host name can be used in place of a
VISA resource. (p.13)
This address is necessary for multi-drop connection.
The PAV with LAN is the master unit of the multi-drop connection.
A unique name of a device on the network.
For details on default host names, see "“Checking the host name”
(p.13)." For the procedure to change host names, see ““Modify page
(Configure tab > LAN Modify window)” (p.28).”
If a host name is not registered in the network name server, the IP
address is displayed.
When connected with a LAN cable (straight or crossover cable),
devices on the network are automatically detected.
The LAN is automatically adjusted to the maximum speed.
PAV L AN 19
Page 20
Logging In and Logging Out
Login button
Page select button
Login window
Logging in
To change the PAV output settings and LAN settings you must log in.
Click DC Power or LAN.
1
The color of the selected button changes. (The above figure is an example of the DC
Power page.)
Click LOGIN.
2
A login window appears.
In the Username box, enter “admin.”
3
In the Password box, enter the password.
4
The default password is blank. We recommend that you set a password after logging
in.
Click Login in the Login window.
5
The controls become available. The LOGIN button changes to a LOGOUT button.
Password
You can set the password on the Users tab (p.31) of the LAN page. If you perform a LAN
reset from the front panel, the password will be cleared.
20 PAV L AN
Page 21
3. Webpage Logging In and Logging Out
• Only a single user can log in to change the PAV settings.
• The webpages can be viewed by several users simultaneously, but the data rate will be
lower.
• If an auto control program is in progress through a VISA or socket connection, webpages
can be viewed, but login is not possible so settings cannot be changed.
• While logged in, VISA and socket connection by an auto control program is not possible.
• While logged in, you cannot copy the webpage that you are logged in to and open it as a
duplicate.
Logging Out
The following three methods are available for logging out.
• Click LOGOUT.
• Close the web browser.
• Not access the web browser before the LAN timeout period (p.30).
PAV L AN 21
Page 22
DC Power Page
Output tab
12
4
35
Click DC Power to open the DC Power page. You can use the sub menus to control the PAV
and configure the output.
DC Powerpage hierarchy
First level Second level
DC Power page
Output tab
Click the Output tab on the DC Power page.
Output tab
Protection tab
System tab
Utility tab
No. Item Description
Click this button to detect PAVs connected through multi-drop connection.
1 Refresh list button
Multi-Drop RS-485
2
Address
Blink Identify button
3
(blink setting)
Their addresses are displayed in the Multi-Drop RS-485 Address list
box.
This button is available for PAV with LAN. (p.15)
This address is valid when a RS485 multi-drop connection is configured.
If a multi-drop connection is not available, only the address of the PAV
with LAN is displayed.
Clicking this button causes the corresponding PAV’s front panel and
the LAN status indicator LED (green) on the rear panel to blink. This
function enables you to identify the PAV that you are currently controlling when several PAVs are mounted in a rack.
In a multi-drop connection, only the LED of the PAV with LAN (master
unit) blinks.
1
22 PAV L AN
Page 23
3. Webpage DC Power Page
No. Item Description
Displays the selected PAV’s voltmeter, ammeter, and operation mode
Measurement
4
(output status display)
5 Settings
1 To stop the blinking of the PAV’s identification LED (green), execute one of the following steps.
• Click Blink Identify again.
• Turn a setting knob or key on the PAV front panel.
• Send an SCPI command.
(Voltage CV: constant voltage, Constant CC: constant current, or
OFF).
When an error occurs, the voltmeter shows the status.
“Voltage Limit” is for setting the CV voltage, and “Current Limit” is for
setting the CC current. “Output” is for turning the output on and off.
This area shows the present PAV settings.
To change the settings, select the Check To Modify check box, enter
values, and click Apply.
To view the settings, clear the Check To Modify check box.
PAV L AN 23
Page 24
DC Power Page 3. Webpage
Protection tab
4
123
Protection tab
Click the Protection tab on the DC Power page. You can set the four protection functions
shown in the following table. However, in a multi-drop connection, the settings are applied
only to the PAV selected from the Multi-Drop RS-485 Address list box.
No. Item Description
Enter a new value in New Setting and click Apply to change the over-
Over-Voltage
1
Protection
Under-Voltage
2
Protection
3 Foldback Protection
4 Auto Start Setting
voltage protection setting.
Set to Maximum: The value is set to the maximum value that can be
set.
Set to value: The value is set to the value that you enter.
Enter a new value in New Setting and click Apply to change the undervoltage protection setting.
Set to Zero: The value is set to zero.
Set to value: The value is set to the value that you enter.
CV: Activated when switching from CC to CV mode.
CC: Activated when switching from CV to CC mode.
OFF: Not activated regardless of the switching between CV and CC
modes.
Safe start: The output is off when the PAV starts.
Auto start: When the PAV starts, the output is in the state that it was in
immediately before the AC input was turned off.
24 PAV L AN
Page 25
3. Webpage DC Power Page
12
3
4
System tab
Click the System tab on the DC Power page. The following four functions are available.
These functions apply to PAVs in a group connected in a multi-drop configuration.
System tab
No. Item Description
Reset One Instrument
1
button
Reset All Instruments
2
button
(reset entire group)
3 Save button
4 Recall button
Resets the PAV selected in the Multi-Drop RS485 Address list box.
Resets all the PAVs connected in the multi-drop configuration.
Saves the settings of the PAV (single unit) selected in the Multi-Drop
RS485 Address list box.
The PAV has four memory banks, but when saved from the webpage,
the settings are saved to memory number 1.
Recalls the settings of the PAV (single unit) selected in the Multi-Drop
RS485 Address list box.
The PAV has four memory banks, but when recalled from the webpage, the settings are recalled from memory number 1.
PAV L AN 25
Page 26
DC Power Page 3. Webpage
Utility tab
12
Utility tab
Click the Utility tab on the DC Power page. Use this tab to send and receive SCPI commands. From this tab, you can use functions that are not available on the webpages.
No. Item Description
Send Custom SCPI
1
Commands
2 Read System Errors
1 If you send a command using Internet Explorer to output trigger pulses from J3-3 (Trigger Out),
pulses may be output under conditions other than the trigger output conditions (TRIG or FSTR)
specified by the OUTP:TTLT:MODE command or through the front panel. To avoid this problem, use other browsers such as Google Chrome or Mozilla Firefox.
Enter an SCPI command1 in this text box and click Send and Read to
display the response from the PAV in the text box below the command
input text box.
Some commands do not have responses.
Click Read Errors to display system error messages in this text box.
To view system error message, send a SYSTem:ERRor:ENABle in
advance to enable error messages.
If there is no error, “No error” is displayed.
26 PAV L AN
Page 27
LAN Page
Configure tab
3
2
784
1
956
Click LAN to open the LAN page. From the sub menus, you can set the PAV LAN parameters.
LAN page hierarchy
First level Second level Third level
LAN page
Configure tab
Click the Configure tab on the LAN page.
Configure tab Modify page
Advanced tab Modify page
Users tab
-
No. Item Description
1 IP Address Source
2 IP Address
3 Subnet Mask
4 Default Gateway
PAV L AN 27
5 DNS Server
6 Hostname
7 Description
Displays the method in which the IP address was obtained (DHCP/
Auto IP or Static IP).
Displays the IP address assigned to the PAV using DHCP, auto IP, or
static (fixed) IP.
Displays the subnet mask of DHCP, auto IP, or static (fixed) IP.
Displays the address of the network router that the PAV uses to communicate with devices outside the local subnet.
This is used when the PAV is accessed with a host name.
The host name of the PAV can be used in place of the IP address when
establishing a communication link.
The default host name is made up of the model name and serial number. (p.13) You can change the host name. (p.28)
The initial value is PAV Power Supply. You can change it according to
the procedure explained in “Modify page (Configure tab > LAN Modify
window)” (p.28).
Page 28
LAN Page 3. Webpage
1342
If Static IP is selected
No. Item Description
The initial value is One Client Only. You can change it according to the
8 Controller Access
9 Modify button
procedure explained in “Modify page (Configure tab > LAN Modify window)” (p.28).
You can change the parameters on the Configure tab. For details, see
the following explanation.
Modify page (Configure tab > LAN Modify window)
Click Modify on the Configure tab to open the LAN Modify window.
You can change the settings in this window.
Depending on whether you set TCP/IP Mode to Static IP or DHCP Enabled/Auto IP, the
parameters that you can change vary. To apply the changes you make, click Apply.
After changing the LAN settings, you will be asked to close the Web browser. Re-open using
the new address.
If changing the parameters results in a duplicate IP address, the LAN status indicator LED
and the front panel LED blink, and the parameters return to their original values.
To stop the LED blinking, press any key on the front panel.
After you change the LAN parameters, you may need to restart the PAV.
28 PAV L AN
Page 29
3. Webpage LAN Page
No. Item Description
This specifies how IP addresses and the like are assigned to the
TCP/IP Mode
Static IP
1
DHCP Enabled/Auto IP
Controller Access
2
One client only
Multiple clients Uses UDP sockets to allow multiple clients to view the webpages.
3 Apply button
4 Close button
PAV in the network.
Select DHCP Enabled/Auto IP or Static IP.
You can edit the IP Address, Subnet Mask, and Default Gateway
parameters.
Change these parameters only when connecting the PAV to a different LAN. These parameters must meet network server requirements.
You cannot edit the DNS Server and Hostname parameters (they
are unavailable).
Because the parameters are assigned by the network DHCP
server, you cannot edit the IP Address, Subnet Mask, Default Gateway, and DNS Server parameters (they are unavailable).
If these parameters are not assigned by the server, the PAV recovers in Auto IP mode, which is described in “IP address explained”
(p.12). In this mode, you can edit the Hostname and Description
parameters.
Do not click Apply when Hostname or Description is empty.
To control webpage access, select One client only or Multiple clients.
Uses a single TCP socket to provide highly reliable network security.
Only a single client can view the webpages. UDP socket is unavailable.
Multiple TCP sockets can also be used.
Applies the parameter changes and saves them.
Closes the window.
PAV L AN 29
Page 30
LAN Page 3. Webpage
3
21
564
Advanced tab
Click the Advanced tab on the LAN page.
Advanced tab
No. Item Description
After a login, if there is no activity on the webpages for a given period
1LAN Timeout
2Ping Server
3 Auto-Negotiate
4 Vxi Discovery
5 Auto-MDIX
6 Modify button
of time, the user is automatically logged out.
The default value is 1800 seconds (30 minutes). Click Modify and
enter a value for LAN Timeout (unit: seconds).
Ping is used to check the connection to the server from a PAV connected to the LAN through the network utility.
This function is disabled while the LAN Modify window on the
Advanced tab of the LAN page is open.
Indicates the network speed that the LAN card supports.
This protocol is used by the network server to detect devices connected to the LAN.
This function is disabled while the LAN Modify window on the
Advanced tab of the LAN page is open.
This service is always enabled and automatically determines whether
the LAN cable is straight or crossover.
You can change the parameters on the Advanced tab. For details, see
“Modify page (Advanced tab > LAN Modify window)” (p.30) on the next
page.
Modify page (Advanced tab > LAN Modify window)
Click Modify on the Advanced tab to open the LAN Modify window.
You can change the settings in this window. To apply the changes you make, click Apply.
30 PAV L AN
Page 31
3. Webpage LAN Page
12
3
Users tab
6
Users tab
Click the Users tab on the LAN page. You can set a password for the webpages. Password
protection is invalid for auto control programming that uses VISA or sockets.
No. Item Description
1 Enter old password
2 Enter new password
3 Retype new password
4 Apply button
● Resetting the password
To reset the password to its default value (blank), reset it from the front panel (p.14), or send
a SYST:COMM:LAN:RES command (p.42).
• After changing LAN parameters, you may be asked to close the webpage.
• After you change the LAN parameters, you may be asked to restart the PAV.
The default value is blank because there is no set password.
Enter a password using at least four characters. Spaces and special
characters cannot be used in the password.
Enter the same password again.
Applies the changes.
PAV L AN 31
Page 32
Help Page
Click Help to open the Help page.
There is a link to the Kikusui website.
32 PAV L AN
Page 33
4
Specifications
Output specifications
Item Specifications
Rating
Rating and accuracy when LAN is
used
LAN specifications
Item Specifications
Electric specifications
Ethernet Complies with IEEE 802.3u.
Auto MDIX Automatically detects whether the connection uses a straight or crossover
Auto negotiation Automatically detects 10Base-T (10 Mbps) or 100Base-T (100 Mbps).
Network configuration
MAC address KIKUSUI address: 00:0F:CE:xx:xx:xx
IP address Can be viewed or changed from the front panel.
DHCP The PAV obtains the address from a DHCP server on the network.
Auto IP The PAV automatically assigns the IP address to itself. 169.254.xxx.xxx
Static (fixed) IP An IP address of your choice can be set from the PAV front panel.
Host name Complies with the NetBIOS protocol. Can be set from the webpage.
Duplicate IP detection Rejects duplicate IP addresses or disconnects from the network.
Subnet mask Assigned by DHCP or can be set from the webpage.
Default gateway Assigned by DHCP or can be set from the webpage.
DNS server Can be set by DHCP.
LAN reset Reset is possible from the front panel or using an SCPI command.
LAN protocol
TCP LAN packets comply with the Transmission Control Protocol.
IPv4 Internet Protocol version 4
Implemented protocols
VXI-11 Supports core channel.
VISA VXI-11 compliant
TCP socket Sends SCPI commands to port number 8003.
UDP socket Sends SCPI commands to port number 8005.
VXI-11 discovery Detects connected devices.
SNMP Ping server Checks the LAN connection to devices.
HTTP Web server supporting JavaScript and Java applets
Command
SCPI Commands, measurement, and status comply with SCPI 1999.
IEEE 488.2 Supports status and event register tree.
Same as when the PAV is remotely controlled using RS232 or RS485.
cable.
Abort channel and interrupt channel are not supported.
Uses RPC, Portmapper, and SCPI commands.
PAV L AN 33
Page 34
4. Specifications
Item Specifications
Webpages
Multi user Can be viewed by multiple users.
PAV identification Displays the model name, serial number, firmware version, etc.
LAN settings LAN settings can be viewed and changed.
GUI based control Output can be set and read.
Command transmission SCPI commands can be transmitted, and errors can be read.
Help Link to the KIKUSUI website.
LAN and other controls
Local control Front panel control is possible even when the PAV is being monitored through
LAN.
LAN remote control The PAV can be controlled and monitored through LAN.
RS232/RS485 communication When RS232/RS485 communication is in use, LAN is disabled.
External control The PAV can be monitored even while the output is being configured through
external control.
Series/parallel operation Available even when LAN is in use
Advanced Output Programmable
Function
Display function
IP address, MAC address Address can be viewed on the front panel.
Multi-drop address The RS485 address can be viewed on the front panel.
Link LED Lights when an Ethernet cable is connected to the PAV.
Activity LED Lights when LAN packets are detected.
LAN status indicator LED Lights green when the IP connection is normal or red otherwise.
LED blinking for identification The corresponding PAV’s front panel and rear panel LEDs blink.
REM LED Lights when the PAV output is being controlled through LAN.
Switch, encoder
LAN reset LAN reset can be performed from the front panel.
IP address IP address can be changed from the front panel.
Multi-drop address RS485 address can be changed from the front panel.
LAN/RS selection LAN is disabled when RS232/RS485 is in use or when the PAV is a slave in a
Security
Webpage password A password can be set.
One client only Prevents control from multiple controllers.
UDP socket block Prevents attacks through UDP sockets.
VXI-11 discovery invalidation Stops PAV detection.
Ping server invalidation Stops PAV connection verification.
Available even when LAN is in use
multi-drop connection.
(It prevents LAN settings and PAV output settings from being changed without
permission or accidentally.)
LAN command speed
A typical data rate is used. The PAV LAN interface data rate varies depending on the controller or the network path. The data rate specification is subject to change without notice.
Item Specifications
VISA driver, socket
Response speed of typical commands and queries
The PAV returns a response in the range of 45 ms to 50 ms for all commands
and queries.
34 PAV L AN
Page 35
Appendix
Troubleshooting
The IP address cannot be set. The LAN status indicator LED is lit red.
Inspection Remedy
• Turn the PAV’s POWER switch
off and then back on.
Check that the voltmeter shows
“LAn” for a few seconds.
The IP address is all zeros. The LAN status indicator LED is lit red.
Inspection Remedy
• Check that the LAN cable is connected to a valid network.
• Two devices on the network may
be set to the same IP address.
If the PAV is in this condition, an
IP address cannot be assigned.
This may occur when the PAV is
in static (fixed) IP address mode
(p.11).
• If this does not appear, set the PAV to LAN remote mode.
(p.9)
• If IP1 to IP4 do not appear, LAN is disabled. Check that LAN
is selected. (p.9)
• Connect the LAN cable to a valid network. Wait a moment,
and display the IP address again. (p.11)
In auto IP mode, the IP address is generated within 30 seconds of turning on the POWER switch.
• IF the link LED on the rear panel is not lit green, the LAN
cable is not connected properly.
Perform either of the following remedies (1 or 2).
Remedy 1:
• Reset LAN from the front panel. (p.14)
The PAV obtains an address from a DHCP server on the network or generates an address in the 169.254.xxx.xxx subnet.
• If this subnet is different from the address, set an IP address
compatible with the network from the front panel. (p.11)
Remedy 2:
• Remove the LAN device with the same address from the network.
• Turn the front panel POWER switch on and then back on.
After 10 seconds, the PAV assigns a static (fixed) IP address.
Even when I click Refresh list on the webpage, slave PAVs are not detected.
Inspection Remedy
• Check that the master unit is connected to the LAN.
• Check that all slave units are set
to RS485.
• Check that all slave units have
unique addresses and that the
data rate (baudrate) is set to 57.6
kbps.
PAV L AN 35
• Connect the master unit to the LAN.
• Set all slave units to RS485.
• Assign unique addresses to all slave units, and set the data
rate (baudrate) to 57.6 kbps.
Page 36

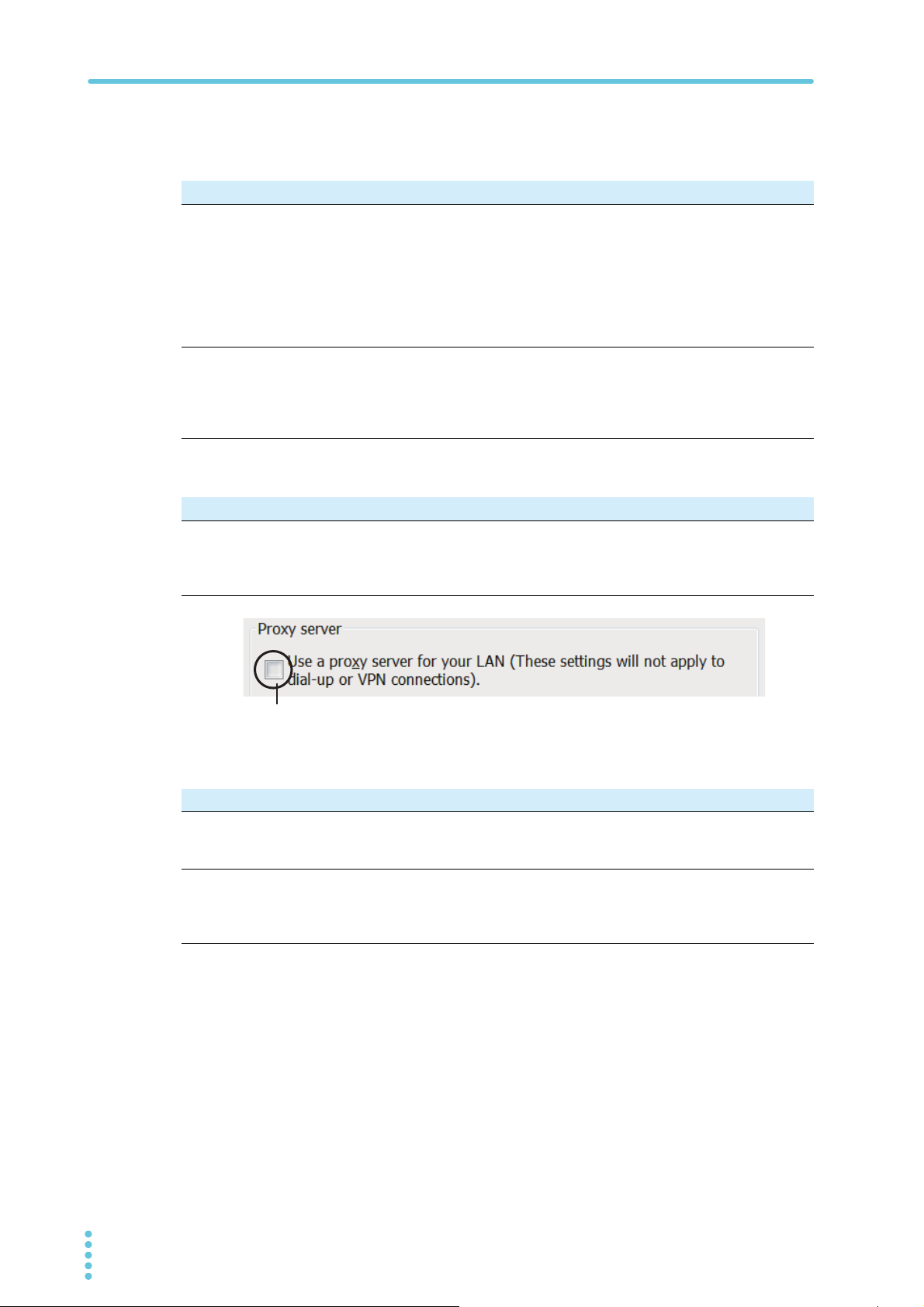

Troubleshooting Appendix
Check that this is not selected.
The LAN status indicator LED is lit green, and the IP address can be verified from the
front panel, but the webpage cannot be opened, or communication using VISA or
socket is not possible.
Inspection Remedy
• Ping the PAV.
The Ping utility enables you to
verify whether messages can be
sent on the network and whether
responses from the PAV can be
received.
• Check whether the ping was successful.
Using the Windows 7 command line:
• 1: Click the Start button.
• 2: Click Programs.
• 3: Click Accessories.
• 4: Click Run.
A Run window opens.
• 5: Enter “ping <IP address>”.
• 6: Click OK.
• If an error occurs, there may be a problem with the LAN set-
tings of the PAV or PC or both, or the PAV’s ping function may
be disabled. (p.30)
If an error occurs, perform a LAN reset on the PAV (p.14), and
send another ping.
The webpage cannot be opened over a P2P network.
Inspection Remedy
• If there is no gateway on the network, check whether the
browser’s proxy server setting is
disabled.
Open Microsoft Internet Explorer,
from the Tools menu, click Internet Options, Connections, LAN
settings, and check that the proxy server check box is not
selected.
The webpage cannot be opened from a PC or a PC with two LAN cards.
Inspection Remedy
• If you are using a PC with two
LAN cards, check that the IP
addresses are not overlapped.
• On a notebook PC, check
whether the Ethernet jack and
wireless LAN are being used
simultaneously.
• Disable the port that you are not using, or disconnect it. The
PC may not know which card to use to open the PAV’s webpage.
• Disable the wireless LAN port.
36 PAV L AN
Page 37
Driver Software
Control using a VISA driver
About VISA
Virtual Instrument Software Architecture (VISA), which consists of a hardware driver, configuration utility, and connection manager, is one of the several typical frameworks used for testing and measurement in manufacturing sites.
VISA supports various types of bus communication. VISA drivers are already used in several
measuring instrument manufacturers. Programming languages that support Windows COM
or DLL libraries can call VISA functions.
Compatibility with VXI-11
VXI-11 is a protocol for connecting measuring instruments to a PC. VISA complies with VXI11 specifications.
The PAV is compatible with the VXI-11 protocol.
• VXI-11 Device_link: Starts a link with a measuring instrument.
• VXI-11 Device_write: Writes text in a measuring instrument.
• VXI-11 Device_read: Reads text from a measuring instrument.
• VXI-11 Destroy_link: Disconnects the link to a measuring instrument.
Starting a VISA connection
Using a VISA library, you can easily create test programs and auto control programs.
The VISA functions that the PAV supports include Open, Read, Write, and Close.
VISA resource assignment is written for each PAV. You can view the PAV LAN descriptor
from the PAV home page. The VISA resource uses the PAV’s IP address or host name.
Communication using VISA
The VISA write function sends SCPI commands to the PAV. The VISA read function reads the
responses of SCPI queries.
Example of PAV LAN VISA resource assignment:
Format: TCPIP[board]::IP address/Host Name[::LAN device name][::INSTR]
[board] is the LAN card number. “0” is optional.
The default value of [::LAN device name] is “inst0”.
[::INSTR] is optional.
Example: TCPIP::10.225.26.60::inst0::INSTR
TCPIP1::PAV10-40-001::INSTR
PAV L AN 37
Page 38
Driver Software Appendix
KI-VISA
KI-VISA is an original VISA library developed by Kikusui Electronics Corporation that supports the VXIplug&play VISA specifications. It is included in the CD-ROM. You can also
download the most recent version of this library from the Kikusui Electronics Corporation
website (http://www.kikusui.co.jp/en/download/).
If NI-VISA or Keysight VISA is already installed on your PC, you do not need to install KIVISA.
Control using an IVI driver
About IVI
Interchangeable Virtual Instrument (IVI) contains specifications used to standardize measuring instrument drivers for testing and measurement in manufacturing sites. IVI is built on the
VISA hardware driver. IVI has an interface that most programming languages, such as .NET,
COM, and DLL libraries, can call in a standard manner.
The IVI instrument can be configured with a management utility such as National Instruments
Measurement and Automation Explorer (MAX) program or the Keysight Technologies I/O
Libraries. It is also possible to configure IVI using option parameters in a program.
The following advantages are available for system designers.
• To save time in learning commands for a new IVI instrument, common functions are
standardized. There is no need to learn SCPI commands for the PAV.
• Designers can run code in simulation mode even when instruments are not connected.
• Status check is performed automatically to see if the settings of each instrument will be
accepted.
• Wrappers allow easy connection to a variety of programming environments on Windows.
• IVI drivers are compatible. Instruments can be switched without changing the program.
IVI support
For information on IVI, visit the following website.
• Explanation for using IVI in various programming languages is provided in the “IVI Getting Started Guide” available at the IVI Foundation homepage.
www.ivifoundation.org
38 PAV L AN
Page 39
Socket Communication
The PAV LAN VISA driver is a typical driver in the testing and measurement field. However,
you may not be able to use VISA due to installation or license issues or because the controller does not support VISA (e.g., industrial PLC).
If you cannot use the VISA driver, you can use the socket communication feature of the PAV.
Socket communication is a low-level LAN protocol available in most operating systems and
programming environments.
Communication using sockets
In socket communication, a connection is established through a socket, and SCPI text commands are exchanged through this socket.
The function that manages sockets in programming languages is called the TCP stack.
Two socket protocols are available: TCP (p.40) and UDP (p.40).
A port number is assigned to each socket.
Controller access (single or multiple clients)
Security settings can be applied to webpages to limit the number of PCs (clients) that connect
to the PAV at any given time.
The performance of webpages through the PAV LAN interface is affected by the number of
simultaneously used webpages, ports, and sockets. We recommend up to three simultaneous uses.
● Limitation to single and multiple clients
Item Single client Multiple clients
Multiple webpages can be
Not logged in to webpages
Logged in to webpage
using “admin”
VISA communication
TCP socket
UDP socket
opened simultaneously. Access
is display only; the PAV cannot
be controlled.
If a VISA or socket port is open,
login is not possible. After log-
ging in, communication from
other devices are shut off.
Only a single VISA port can be
opened.
If a VISA or “admin” webpage is
not open, only a single TCP
socket can be opened. UDP
sockets are shut off.
←
←
←
If a VISA or “admin” webpage is
not open, multiple connections
are possible through TCP and
UDP sockets.
PAV L AN 39
Page 40
Socket Communication Appendix
Input buffer request
In communication with a controller using a TCP or UDP socket, the PAV can receive commands continuously. The commands are processed one by one. To prevent the PAV internal
processing from overloading, design the controller so that it not only sends commands but
also queries from time to time to wait for responses from the PAV.
An acknowledge from the PAV signifies that the processing of all commands have been completed successfully.
When using a socket, keep the number of SCPI instruction commands from exceeding 20 for
every query.
Message terminator
When sending multiple SCPI commands through a TCP socket, the socket driver concatenates all messages in a single long packet. As such, add a terminator at the end of each
SCPI command.
Terminator (ASCII hexadecimal notation)
Commands from the controller Terminators are required.
• Line feed (0x0A)
• Carriage return (0x0D)
Responses from the PAV LAN Line feed (0x0A) and carriage return (0x0D) are
appended.
Using TCP sockets
TCP sockets are the most common type of sockets. It can be used to establish communication, check received messages, and detect and correct transmission errors. To send SCPI
commands, set the TCP socket port number to 8003.
A terminator consisting of a line feed and carriage return is appended automatically to
responses to queries.
If the LAN controller is set to Multiple clients from the webpage (set Controller Access on the
Modify page on the Configure tab of the LAN page to Multiple Clients) (p.29), up to three controllers can open TCP sockets on the corresponding PAV.
Using UDP sockets
UDP sockets are a simple type of socket with reduced network information. It is a connectionless protocol, which does not return acknowledges to received messages. To send SCPI
commands, set the UDP socket port number to 8005.
A terminator consisting of a line feed and carriage return is appended automatically to
responses to queries.
Before opening the UDP socket, open the webpage, and set Controller Access on the Modify
page on the Configure tab of the LAN page to Multiple Clients (p.29).
Up to three controllers can open UDP sockets on the corresponding PAV.
40 PAV L AN
Page 41
WAN Connection
To connect to the Wide Area Network (WAN: global internet), configure the network server as
follows.
Displaying webpages through WAN
PAV with LAN has a server (port number 80) for displaying webpages.
This port is used to connect to the Internet.
Ask your network administrator to assign a global IP address to the PAV with LAN. In addition, configure the port transfer setting of the network server’s port number 80 to allow a WAN
connection.
Socket connection through WAN
Ask your network administrator to assign a global IP address to the PAV with LAN. In addition, configure the port transfer setting of the network server’s port number 8003 for the TCP
socket and 8005 for the UDP socket to allow a WAN connection.
PAV L AN 41
Page 42
LAN Commands
LAN commands are listed below. For details on other commands, see the USB/RS232/
RS485 Communication Interface Manual.
SYST:COMM:LAN:HOST?
Queries the host name.
Command SYSTem:COMMunicate:LAN:HOST?
Ex. SYST:COMM:LAN:HOST?
Response Returns the host name in CRD format in response to SYST:COMM:LAN:HOST?. A host
name can be up to 16 characters in length.
SYST:COMM:LAN:IP?
Queries the IP address.
Command SYSTem:COMMunicate:LAN:IP?
Ex. SYST:COMM:LAN:IP?
Response Returns the IP address in CRD format in response to SYST:COMM:LAN:IP?. An IP address
can be up to 15 characters in length.
SYST:COMM:LAN:MAC?
Queries the MAC address.
Command SYSTem:COMMunicate:LAN:MAC?
Ex. SYST:COMM:LAN:MAC?
Response Returns the MAC address in CRD format in response to SYST:COMM:LAN:MAC?. A MAC
address can be up to 17 characters in length.
SYST:COMM:LAN:RES
Resets the LAN settings to their factory default values. As sending this command also
changes the IP address and host name, the LAN connection will become invalid. Therefore,
use this command only for diagnosis purposes.
After sending this command, you may need to restart the PAV.
Command SYSTem:COMMunicate:LAN:RESet
Ex. SYST:COMM:LAN:RES
SYST:COMM:LAN:IDLE
Sets the PAV identification LED to blinking mode.
Command SYSTem:COMMunicate:LAN:IDELd <bool>
Parameter Value ON (1)
OFF (0)
Ex. SYST:COMM:LAN:IDEL 1
42 PAV L AN
Page 43
Global Commands for Multi-Drop Connection .
Selecting the PAV
To select the PAV you want to control, send
INSTrument:NSELect <address>
A PAV that has been specified by an address (1 to 31) can receive SCPI commands.
Until the above command is received again, all commands and queries are applied only to
the specified PAV.
At power-on, the LAN master unit is automatically selected.
After sending the INSTrument:NSELect<address> command, send an INSTrument:NSELect? query or SYSTem:ERRor? query to check that the specified RS485 address is correct.
Command example
The PAV status that has been specified by INSTrument:NSELect <address> command is
valid even when a global command is sent until the address is changed.
INST:nSEL 4
:VOLT 50
GLOB:VOLT 70
(Wait 20 ms before sending the next command.)
:VOLT 90
After the command is sent, the output voltage setting of PAVs other than that with address 4
is 70 V.
The output voltage setting of the PAV with address 4 is 90 V. There is no need to send the
INSTrument:NSELect <address> command again.
Responses to global commands
When you send a global command, the command is applied to all PAVs in the multi-drop connection and the PAV with LAN.
As global commands cannot be used to control error and status registers, it must be performed for each PAV separately. Global commands do not comply with SCPI. For details on
global commands, see the USB/RS232/RS485 Communication Interface Manual.
Checking the responses
Check that when you send a SYSTem:ERRor? query to each PAV, none of them returns an
error message. PAVs that return error messages cannot respond to global commands.
Command transmission interval
After sending a global command, wait at least 20 ms before sending the next global command. If you want to send global command consecutively, allow at least 20 ms between each
global command. Otherwise, commands may not be accepted.
Query syntax
There is no query syntax for global commands. To check the settings of each PAV after sending a global command, you must select the PAV individually and query the settings.
PAV L AN 43
Page 44
Index
A
activity LED ...............................................................6
....................................................................12
Auto IP
Auto-MDIX ........................................................ 19, 30
Auto-Negotiate .................................................19, 30
B
Blink Identify button .................................................22
C
Controller Access ....................................................28
D
default gateway .......................................................27
Description
DHCP
DHCP Enabled/Auto IP
DNS server
G
global commands ....................................................43
H
host name ...............................................................13
Hostname
hostname ................................................................19
.............................................................. 27
......................................................................12
...........................................29
..............................................................27
................................................................27
R
Recall button ...........................................................25
Refresh list button
Reset All Instruments button ...................................25
Reset One Instrument button ..................................25
RS-485 Address
RS485 link cable .......................................................7
S
Save button ............................................................. 25
Static (fixed) IP ....................................................... 12
static IP
subnet mask
TCP socket .............................................................40
two LAN cards
UDP socket ............................................................. 40
VISA ........................................................................ 37
Vxi Discovery
VXI-11 ..................................................................... 37
...................................................................29
T
U
V
...................................................22
..................................................... 19
........................................................... 27
........................................................ 36
.......................................................... 30
I
IP address ........................................................11, 27
IP Address Source ..................................................27
IVI ............................................................................38
L
LAN cable ........................................................... 7, 35
LAN port
LAN reset
LAN status indicator LED
LAN Timeout
link LED
login .........................................................................20
logout ......................................................................21
MAC address ..........................................................13
Multi-drop connection ..............................................15
Multiple clients
One client only ........................................................29
P2P (peer-to-peer) .............................................7, 11
password
ping server ..............................................................30
proxy server ............................................................36
....................................................................6
................................................................14
..........................................6
...........................................................30
.....................................................................6
M
.........................................................29
O
P
.................................................................20
44 PAV L AN
Page 45
Page 46
KIKUSUI ELECTRONICS CORP.
http://www.kikusui.co.jp/en
1-1-3 Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
Tel: +81-45-593-7570 Fax: +81-45-593-7571
Website
If you find any misplaced or missing pages in the manuals, they will be replaced. If the
manual gets lost or soiled, a new copy can be provided for a fee. In either case, please
contact your Kikusui agent or distributor. At that time, inform your agent or distributor of
the “Part No.” written on the front cover of this manual.
Every effort has been made to ensure the accuracy of this manual. However, if you have
any questions or find any errors or omissions, please contact your Kikusui agent or
distributor.
After you have finished reading this manual, store it so that you can use it for reference
at any time.
46 PAG
Loading...
