Kidde PI2000CA User Manual

120 V AC and 9 V Battery Backup

Dual Sensor

Smoke Alarm

Photoelectric / Ionization with Hush®Control Feature

Alarm Manual

Model PI2000CA

Manual P/N 820-1020 Rev. B

SINGLE AND/ OR

MULTIPLE STATION

SMOKE ALARM

Ionization sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionization alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionization and Photoelectric alarms be installed.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . 1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–16

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 17–18

Fire Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 19–22

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

Introduction

Model PI2000CA

Thank you for purchasing this smoke alarm. It is an important part of your family’s home safety plan. You can trust this product to provide the highest quality safety protection. We know you expect nothing less when the lives of your family are at stake.

Please take a few minutes to thoroughly read this alarm manual, and save it for future reference. Teach children how to respond to the alarms, and that they should never play with the unit.

If you have any questions about the operation or installation of your alarm, please call our toll-free Consumer Hotline at 1-800-880-6788.

Image 1C will help you determine the correct location of safety products that will help make your home a safer place.

Made in China. Patents Pending

130 Esna Park Drive, Markham, ON L3R 1E3

Consumer Hotline: 1-800-880-6788

www.kidde.ca

This unit is suitable as a single station and/or multiple station alarm (interconnects with up to 24 devices), and has a five-year limited warranty.

IMPORTANT:This unit is only approved to interconnect with the Kidde line of products. It is not approved to interconnect with any other manufacturer’s products.

This alarm is interconnect compatible with the following alarms and accessories:

Smoke alarms: 1235CA, 1275CA, 1276CA, 1285CA,

i12020CA, i12040CA, i12060CA, PE120CA, PI2000CA

Smoke/CO alarms: KN-COSM-IBCA, KN-COSM-ICA CO alarms: KN-COB-ICB-CA, KN-COB-IC-CA Relay modules: 120X, SM120X, CO120X Heat alarm: HD135FCA Strobe Light: SL177I

Refer to respective manuals for specific application information.

This product is designed to detect products of combustion using both an ionization sensor and a photoelectric sensor. The ionization sensor contains 0.9 microcurie of Americium 241, a radioactive material. Distributed under U.S. NRC License No. 32-23858-01E. Manufactured in compliance with U.S. NRC safety criteria in 10 CFR 32.27. The purchaser is exempt from any regulatory requirements. Do not try to repair the smoke alarm yourself. Refer to the instructions in Warranty for service.

ELECTRICAL RATING: 120 V AC, 60 HZ, 80 mA maximum per alarm (maximum 80 mA for originating unit with 24 devices interconnected).

WARNING! Battery door will not close unless battery is present. Removal of the smoke alarm battery and disconnecting or loss of A.C power will render the smoke alarm inoperative.

IMPORTANT! Read all instructions before installation and keep this manual near the alarm for future reference.

Installation

Recommended Locations

• Locate the first alarm in the immediate area of the bedrooms. Try to monitor the exit path, as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area (Image 1A).

• Locate additional alarms to monitor any stairway as stairways act like chimneys for smoke and heat.

• Locate at least one alarm on every floor level (Image 1B).

• Locate an alarm in every bedroom.

• Locate an alarm in every room where electrical appliances are operated (i.e. portable heaters or humidifiers).

• Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent an alarm not located in that room from waking the sleeper.

• Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the smoke alarm on the ceiling in the centre of the room places it closest to all points in the room. Ceiling mounting is preferred in ordinary residential construction.

• When mounting an alarm on the ceiling, locate it at a minimum of 10 cm (4") from the side wall (Image 2A).

• When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a minimum of 10 cm (4") and a maximum of 30.5 cm (12") below the ceiling (Image 2A).

• Put smoke alarms at both ends of a bedroom hallway or large room if the hallway or room is more than 9.1 m (30') long.

• For mobile home installation, select locations carefully to avoid thermal barriers that may form at the ceiling. For more details, see Mobile Homes.

Installation

• Install smoke alarms on sloped, peaked or cathedral ceilings at or within 0.9 m (3') of the highest point (measured horizontally). NFPA Standard 72 states: “Smoke alarms in rooms with ceiling slopes greater than 0.3 m in

2.4 m (1' in 8') horizontally shall be located on the high side of the room.” NFPA Standard 72 states: “A row of detectors shall be spaced and located within 0.9 m (3') of the peak of the ceiling measured horizontally” (Image 2B and Image 2C).

Installation

DINING

ROOM

LIVING

ROOM

Smoke Alarms for Minimum Protection

Ionization Type Smoke Alarm with Hush

or Photoelectric Type

Smoke Alarms for Additional Protection

KITCHEN BEDROOM

BEDROOM

LIVING ROOM

KITCHEN

BEDROOMBEDROOM HALL

BASEMENT

IMAGE 1A

IMAGE 1C

IMAGE 1B

SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN

BEDROOM

FAMILY ROOM

WORKSHOPBASEMENT

KITCHEN

HALL

GARAGE

MASTER

BEDROOM

FIRE EXTINGUISHERS

SMOKE ALARMS

CARBON MONOXIDE ALARMS

TALKING SMOKE/CO ALARM

TOTAL HOME PROTECTION

Locations to Avoid

• Do not install within 0.9 m (3') of the following: The door to a kitchen, or a bathroom that contains a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high, air-flow areas.

• Do not place the alarm where drapes or other objects will block the sensor. Smoke must be able to reach the sensor to accurately detect conditions.

• Do not install in peaks of vaulted ceilings, “A” frame ceilings or gabled roofs. (Less than 10 cm (4") from the peak of an “A” frame type ceiling.)

• Install at least 30.5 cm (12") away from fluorescent lights as electronic noise may cause nuisance alarms.

• Keep out of insect infested areas. Avoid excessively dusty, dirty or greasy areas. Dust particles may cause nuisance alarms or failure to alarm.

• Extreme temperatures may effect the sensitivity of the alarm. Do not install in areas where the temperature is colder than 4.4°C (40°F) or hotter than 37.8°C (100°F), such as garages or unfinished attics.

• Do not install in areas where the relative humidity (RH) is greater than 85%. Very humid areas, with moisture or steam, can cause nuisance alarms.

• Avoid placing ionization smoke alarms in kitchen areas. Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have Hush

control

feature or be a photoelectric type.

• Do not place in the garage. Particles of combustion are present when you start your automobile.

• Smoke alarms are not to be used with detector guards unless the combination (alarm and guard) has been evaluated and found suitable for that purpose.

Installation

IMAGE 2A

IMAGE 2C

IMAGE 2B

HORIZONTAL DISTANCE FROM PEAK

CEILING

10 cm (4”)

MINIMUM

10 cm (4”)

MINIMUM

30.5 cm (12”)

MAXIMUM

SIDE WALL

BEST

PLACEMENT

ACCEPTABLE

PLACEMENT

NEVER HERE

STAGNANT

AIR

10 cm (4”)

0.9 m (3’) 0.9 m (3’)

NOT IN

THIS AREA

ANYWHERE IN THIS

AREA

10 cm (4”)

NOT IN

THIS AREA

ANYWHERE IN THIS

AREA

0.9 m (3’)

Mobile Homes

Modern mobile homes have been designed to be energy efficient. Install smoke alarms as recommended in Recommended Locations and Image 2A.

In older mobile homes that are not well-insulated compared to present standards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof. This may create a thermal barrier that can prevent the smoke from reaching an alarm mounted on the ceiling. In such units, install the smoke alarm on an inside wall with the top edge of the alarm at a minimum of 10 cm (4") and a maximum of 30.5 cm (12") below the ceiling (Image 2A).

If you are not sure about the insulation in your mobile home, or if you notice that the outer walls and ceiling are either hot or cold, install the alarm on an inside wall. For minimum protection, install at least one alarm close to the bedrooms. For additional protection, see Image 1A.

WARNING: Test your smoke alarm operation after R.V. or mobile home vehicle has been in storage, before each trip and at least once a week during use.

Wiring Requirements

• This smoke alarm should be installed on a CSA listed or recognized junction box. All connections should be made by a qualified electrician and all wiring used shall be in accordance with articles 210 and 300.3(B) of the U.S. National Electrical Code ANSI/NFPA 70, NFPA 72 and/or any other codes having jurisdiction in your area. The multiple station interconnect wiring must be run in the same raceway or cable as the AC power wiring to the alarms. In addition, the resistance of the interconnect wiring shall be a maximum of 10 ohms.

• The appropriate power source is 120 Volt AC Single Phase supplied from a non-switchable circuit which is not protected by a ground fault interrupter.

• WARNING: The alarm should not be operated on power derived from a square wave, modified square wave or modified sine wave inverter. These power sources produce high peak voltages that will damage the alarm. These types of inverters are sometimes used to supply power to the structure in off grid installations, such as solar or wind derived power sources.

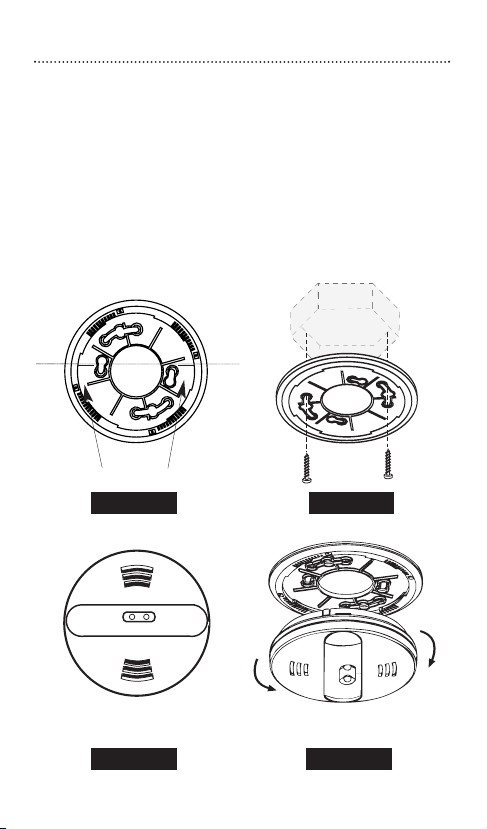

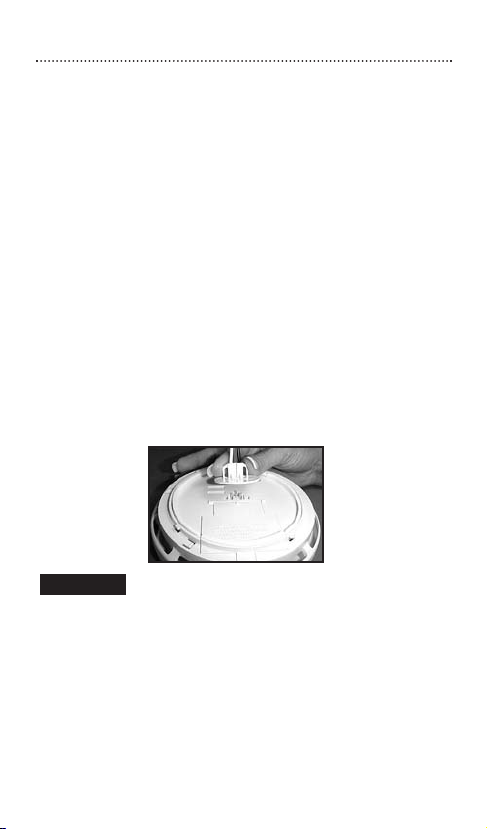

Installation
