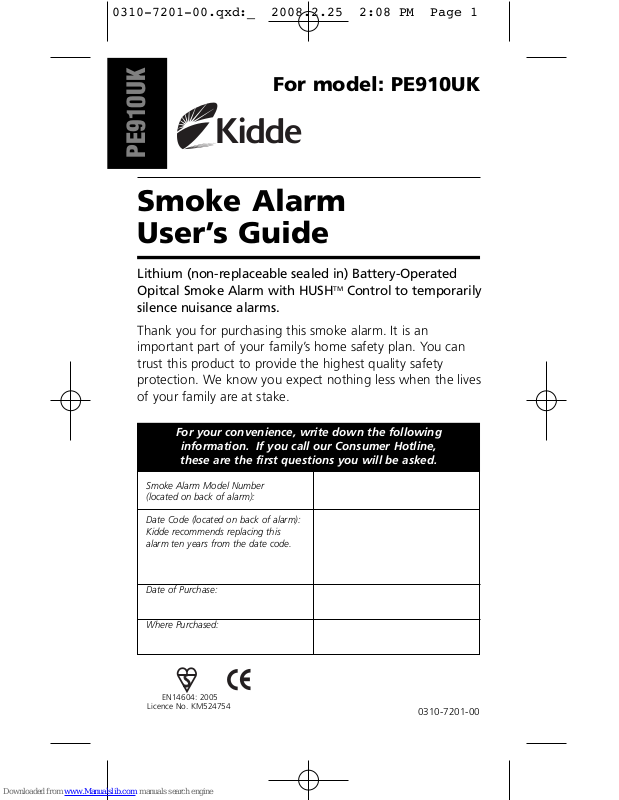

Kidde PE910UK User Manual

Page 1

For your convenience, write down the following

information. If you call our Consumer Hotline, these are the first questions you will be asked.

Lithium (non-replaceable sealed in) Battery-Operated Opitcal Smoke Alarm with HUSHTMControl to temporarily silence nuisance alarms.

Thank you for purchasing this smoke alarm. It is an important part of your family’s home safety plan. You can trust this product to provide the highest quality safety protection. We know you expect nothing less when the lives of your family are at stake.

PE910UK

Smoke Alarm User’s Guide

For model: PE910UK

Smoke Alarm Model Number (located on back of alarm):

Date Code (located on back of alarm): Kidde recommends replacing this alarm ten years from the date code.

Date of Purchase:

Where Purchased:

0310-7201-00

EN14604: 2005

Licence No. KM524754

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 1

Page 2

Ionisation sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionisation alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionisation and Photoelectric alarms be installed.

IMPORTANT! READ ALL INSTRUCTIONS BEFORE INSTALLATION AND KEEP THIS MANUAL NEAR THE ALARM FOR FUTURE REFERENCE.

CONTENTS OF THIS MANUAL

1 -- RECOMMENDED LOCATIONS FOR ALARMS 2 -- LOCATIONS TO AVOID 3 -- INSTALLATION INSTRUCTIONS 4 -- OPERATION AND TESTING 5 -- NUISANCE ALARMS 6 -- MAINTENANCE 7 -- LIMITATIONS OF SMOKE ALARMS 8 -- GOOD SAFETY HABITS 9 -- KIDDE RECOMMENDATIONS

10 -- SERVICE AND WARRANTY

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or Supplier for recycling advice.

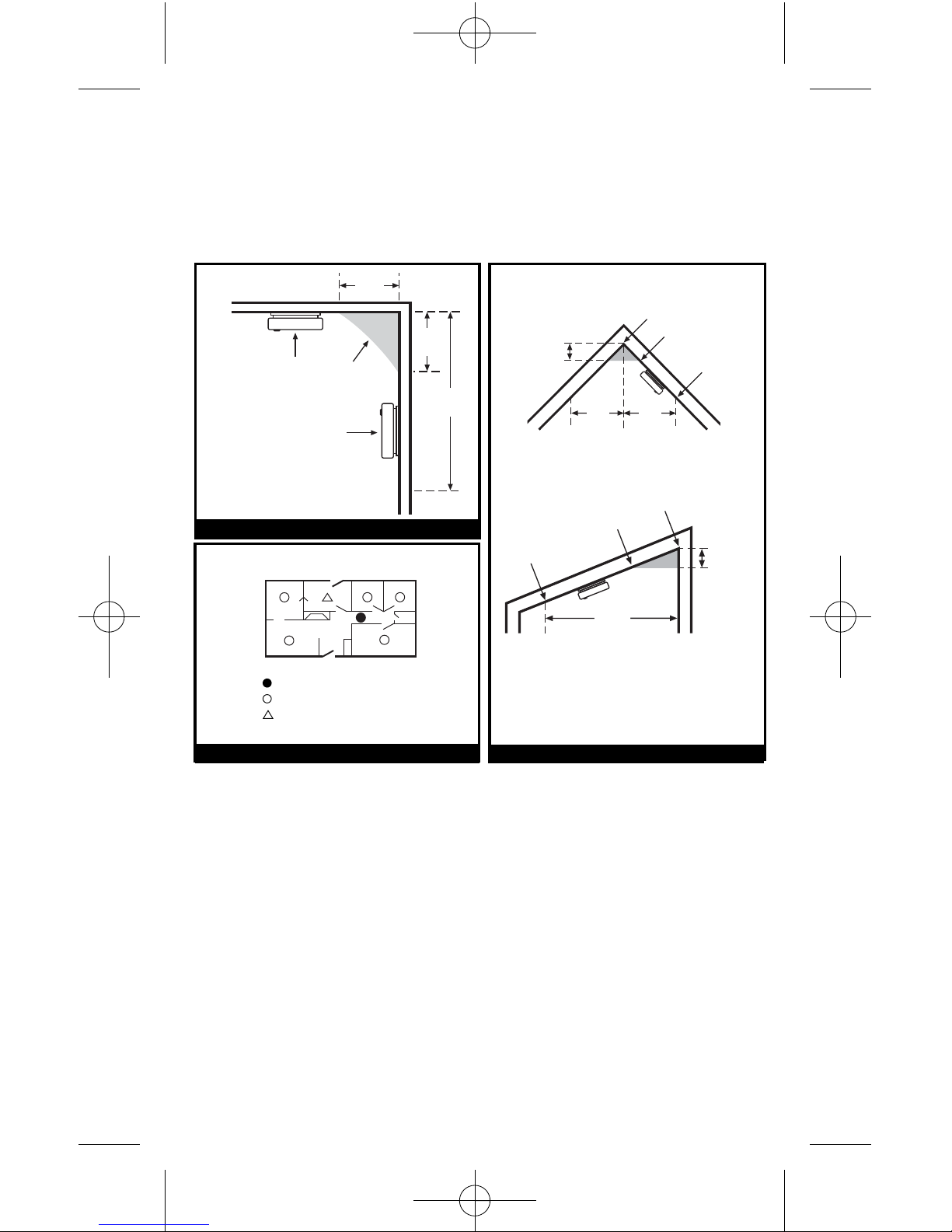

1. RECOMMENDED LOCATIONS FOR ALARMS

• Locate the first alarm in the immediate area of the bedrooms. Try to monitor the exit path as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area.

• Locate additional alarms to monitor any stairway as stairways act like chimneys for smoke and heat.

• Locate at least one alarm on every floor level.

• Locate an alarm in every bedroom.

• Locate an alarm in every room where electrical appliances are operated (i.e. portable heaters or humidifiers).

• Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent an alarm not located in that room from waking the sleeper.

• Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the smoke alarm on the ceiling in the center of the room places it closest to all points in the room. Ceiling mounting is preferred in ordinary residential construction.

• For mobile home installation, select locations carefully to avoid thermal barriers that may form at the ceiling. For more details, see MOBILE HOME INSTALLATION below.

• When mounting an alarm on the ceiling, locate it at a minimum of 10 cm (4”) from the side wall. (see Figure 1).

• When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a minimum of 10 cm (4”) and a maximum of 30.5 cm (10”) below the ceiling. (see Figure 1).

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 2

Page 3

• Put smoke alarms at both ends of a bedroom hallway or large room if the hallway or room is more than 9.1 m (30 feet) long.

• Install Smoke Alarms on sloped, peaked or cathedral ceilings at or within 0.9 m (3 ft) of the highest point (measured horizontally). Smoke alarms in rooms with ceiling slopes greater than .3 m in 2.4 m (1 foot in 8 feet) horizontally shall be located on the high side of the room. A row of detectors shall be spaced and located within 0.9 m (3 ft) of the peak of the ceiling measured horizontally (see Figure 3).

MOBILE HOME INSTALLATION

Modern caravans and mobile homes have been designed and built to be energy efficient. Install smoke alarms as recommended above (see Figures 1 and 2).

In older caravans and mobile homes that are not well insulated compared to present standards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof. This may create a thermal barrier which can prevent the smoke from reaching an alarm mounted on the ceiling. In such units, install the smoke alarm on an inside wall with the top edge of the alarm at a minimum of 10 cm (4”) and a maximum of 30.5 cm (12”) below the ceiling (see Figure 1).

If you are not sure about the insulation in your caravan or mobile home, or if you notice that the outer walls and ceiling are either hot or cold, install the alarm on an inside wall. For minimum protection, install at least one alarm close to the bedrooms. For additional protection, see SINGLE FLOOR PLAN in Figure 2.

WARNING: TEST YOUR SMOKE ALARM OPERATION AFTER MOBILE HOME HAS BEEN IN STORAGE OR UNOCCUPIED AND AT LEAST ONCE A WEEK DURING USE.

BEDROOM KITCHEN

LIVING ROOM

BEDROOM

SINGLE FLOOR PLAN

NOT

IN THIS

(4”)

10 cm

MINIMUM

CEILING

DEAD AIR

SPACE

SIDE WALL

MINIMUM

(12”)

30.5 cm

MAXIMUM

BEST HERE

NEVER

HERE

ACCEPTABLE

HERE

(4”)

10 cm

Smoke Alarmsfor Minimum Protection Smoke Alarmsfor Additional Protection Ionisation Type S moke Al arms wi th

Hush

Control or PhotoelectricType

FIGURE 2

FIGURE 3

FIGURE 1

(3’)

0.9 m

(3’)

0.9 m

(4”)

102 mm

NOT

IN THIS

AREA

ANYWHERE

IN THIS

AREA

(3’)

0.9 m

(102 mm)

NOT

IN THIS

AREA

ANYWHERE

IN THIS AREA

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 3

Page 4

2.LOCATIONS TO AVOID

• In the garage. Products of combustion are present when you start your motor vehicle.

• Less than 10 cm (4”) from the peak of an “A” frame type ceiling.

• In an area where the temperature may fall below 4ºC (40ºF) or rise above38ºC (100ºF), such as garages and unfinished attics.

• In dusty areas. Dust particles may cause nuisance alarm or failure to alarm.

• In very humid areas. Moisture or steam can cause nuisance alarms.

• In insect-infested areas.

• Smoke alarms should not be installed within 3 ft (.9m) of the following: the door to a kitchen, the door to a bathroom containing a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air flow areas.

• Kitchens. Normal cooking may cause nuisance alarms.

• Near fluorescent lights. Electronic “noise” may cause nuisance alarms.

• Smoke alarms are not to be used with detector guards unless the combination (alarm and guard) has been evaluated and found suitable for that purpose.

3.INSTALLATION INSTRUCTIONS

CAUTION: THIS UNIT IS SEALED (INCLUDING THE BATTERIES). THE COVER IS NOT REMOVABLE!

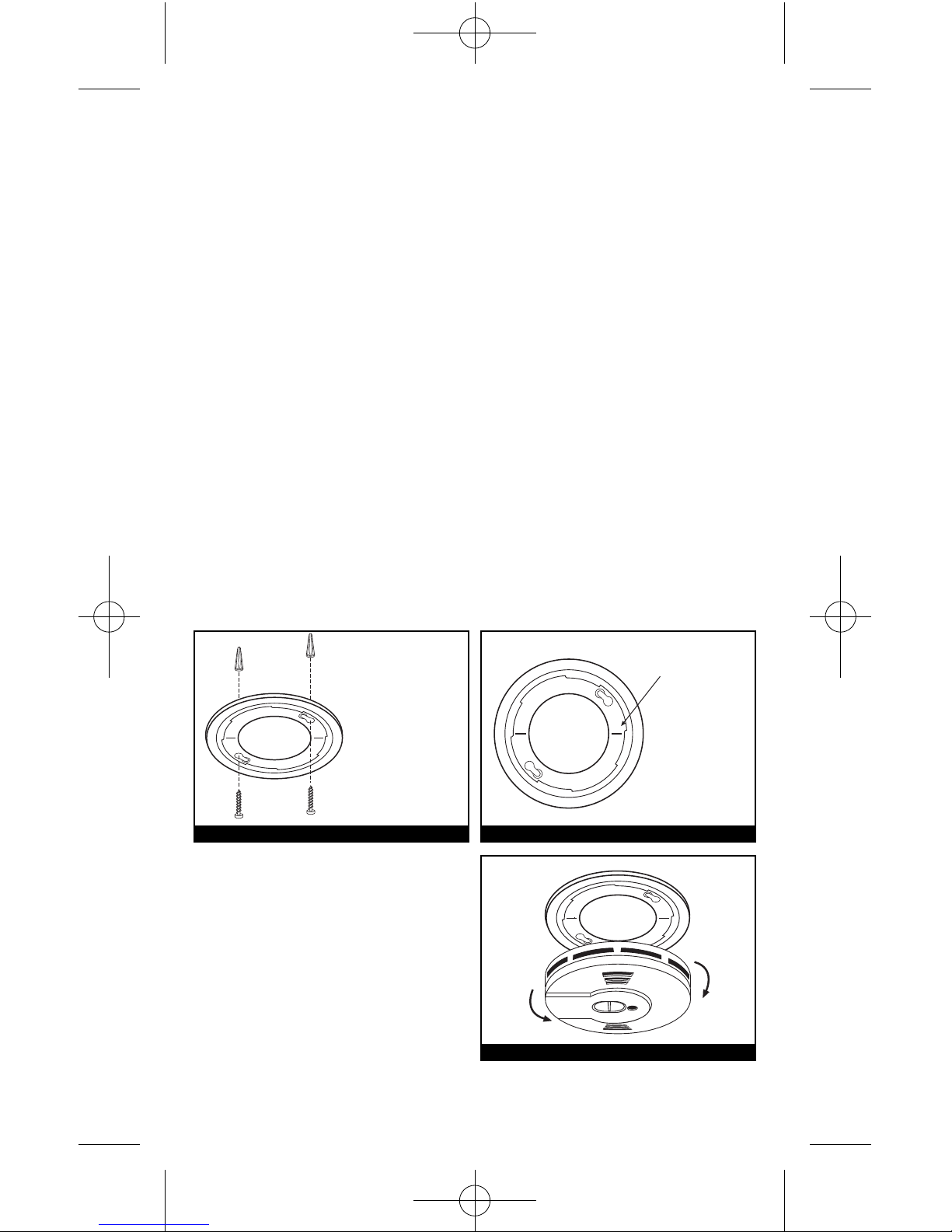

FIGURE 4

When mounting in a hallway, the “A” line should be parallel with the hallway.

Alignment Marks

(”A” Line) on

Mounting

Bracket

FIGURE 5

When wall mounting, the “A” line should be horizontal.

1. To insure aesthetic alignment of the alarm with the hallway or wall, the “A” line on the mounting bracket should be parallel with the hallway when ceiling mounting or horizontal when wall mounting.

FIGURE 6

Remove

Install

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 4

Page 5

2. After selecting the proper smoke alarm location as described in Section 1, attach the mounting bracket to the ceiling as shown in Figure 3. For wall mounting see Figure 4. Place the mounting plate on the wall; be sure the “A” line is horizontal (parallel to the floor). Use the screws and wall plugs provided to secure the mounting bracket (use 3/16” drill bit for wall plugs).

3. This alarm has batteries permanently sealed inside the alarm no battery installation or maintenance is necessary.

ACTIVATING THE ALARM

This model is equipped with a feature that automatically activates the alarm when the alarm is mounted to the mounting bracket for the first time. Once activated, the batteries will supply power to the alarm for the life of the alarm (10 years). Be sure that the mounting bracket is mounted correctly before installing the alarm on the mounting bracket.

1. To activate the alarm, install the alarm on the mounting bracket (Figure 6) and rotate the alarm clockwise (as indicated on the alarm cover) until the alarm ratchets into place (the ratcheting function allows for aesthetic alignment). NOTE: The alarm will mount to the bracket in four (4) positions (every 90 degrees).

The alarm is now activated!

2. After installation/activation, test your alarm by depressing and holding down the test button for a minimum of 5 seconds (or until the alarm sounds). This should sound the alarm. CAUTION: Due to the loudness (85 decibels) of the alarm,

always stand an arms length away from the unit when testing.

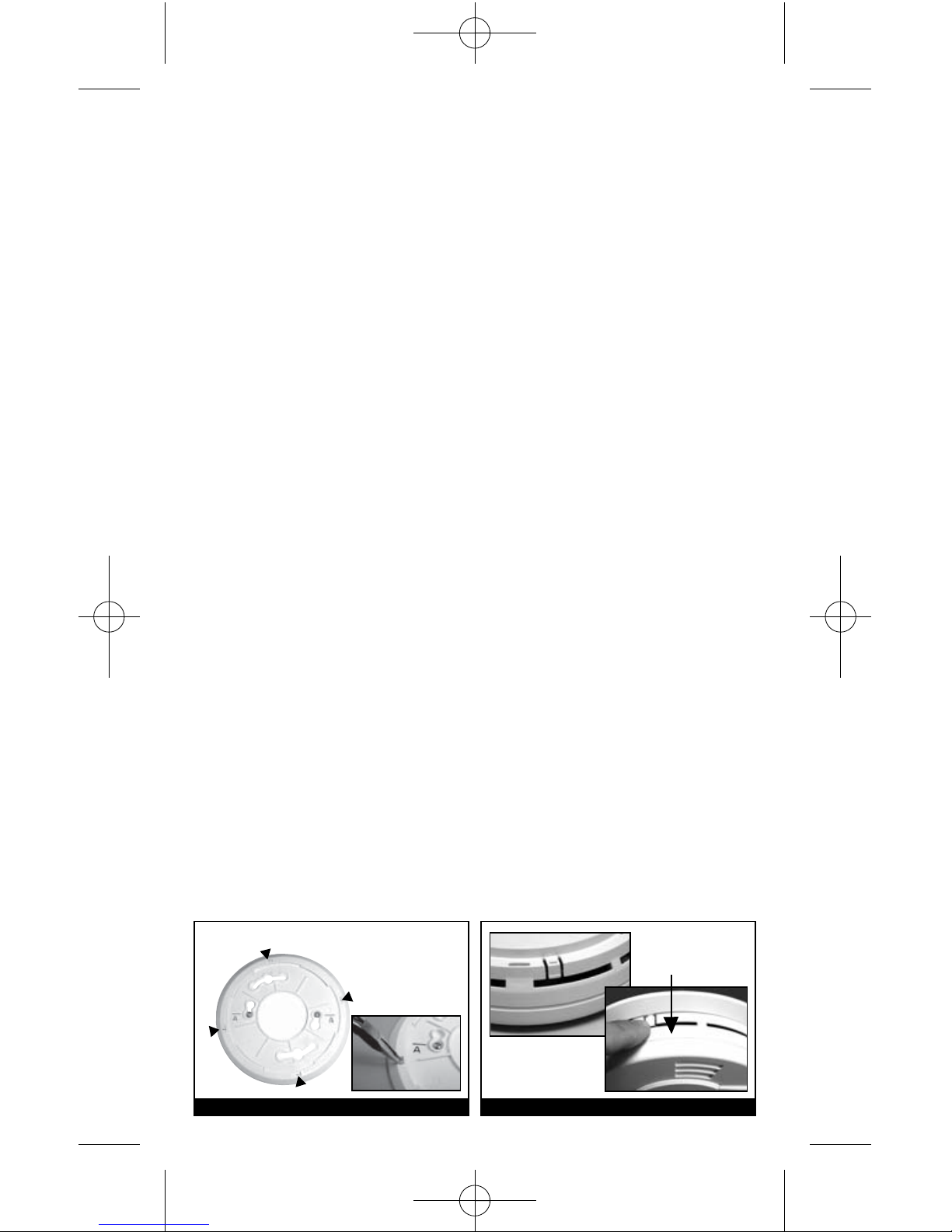

TAMPER RESIST FEATURE

Smoke Alarm Tamper Resist Feature

This alarm is equipped with a tamper resist feature that helps prevent someone from removing the unit from the mounting bracket. When activated, it can be very effective in preventing smoke alarm removal or tampering.

Activate the smoke alarm tamper resist feature by breaking off the four posts in the square holes in the mounting bracket (see Figure 7). When the posts are broken off, the tamper resist on the base is allowed to engage the mounting bracket. Rotate the alarm onto the mounting bracket until you hear the tamper resist tab snap into place, locking the alarm on the mounting bracket. Using the tamper resist feature will help deter children and others from removing the alarm from the bracket. NOTE: To remove the alarm when the tamper resist tab is engaged, press down on the tamper resist tab and rotate the alarm in the direction indicated by the arrows on the cover of the alarm (see Figure 8).

FIGURE 7 FIGURE 8

Location of Posts:

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 5

Page 6

4.OPERATION AND TESTING

OPERATION: The smoke alarm is operating once the alarm is activated (see Section 3) and testing is complete. When products of combustion are sensed, the unit sounds a loud 85db pulsating alarm until the air is cleared. If there is any question as to the cause of the alarm, it should be assumed that the alarm is due to an actual fire and the dwelling should be evacuated immediately.

HUSH

CONTROL: The HUSHTMfeature has the capability of temporarily ditto desensitising the alarm circuit for approximately 10 minutes. This feature is to be used only when a known alarm condition, such as smoke from cooking, activates the alarm. The smoke alarm is desensitised by pushing the HUSH

button on the smoke alarm cover. The alarm will silence immediately and the horn will chirp every 45 seconds for 10 minutes. This indicates that the alarm is in a temporarily desensitised condition. The smoke alarm will automatically reset after approximately 10 minutes and sound the alarm if particles of combustion are still present. The HUSH

feature can be used repeatedly until the air has been cleared of the condition causing the alarm. Pushing the test/reset button on the alarm will end the temporarily desensitised period.

NOTE: DENSE SMOKE WILL OVERRIDE THE HUSH

CONTROL FEATURE.

CAUTION: BEFORE USING THE ALARM HUSH

FEATURE, IDENTIFY THE

SOURCE OF THE SMOKE AND BE CERTAIN A SAFE CONDITION EXISTS.

FLASHING LED LIGHT: This smoke alarm is equipped with a flashing red indicator light with four modes of operation:

• The LED will flash every 40-45 seconds in the standby mode signifying that the

alarm is receiving power.

• The LED will flash every 0.5 seconds when the alarm is sounding. The flashing LED

and pulsating alarm will continue until the air is cleared.

TESTING: Test by pushing the test button on the cover and holding it down for a minimum of 5 seconds (or until the alarm sounds). This will sound the alarm if the electronic circuitry, horn, and batteries are working. If no alarm sounds, the unit has defective batteries or other failure. DO NOT use an open flame to test your alarm, you could damage the alarm or ignite combustible materials and start a structure fire.

SMOKE SENSING CHAMBER OPERATION: This alarm will "chirp" if it detects a problem with the smoke sensing chamber. This chirp will occur approximately 20 seconds after the flash of the LED.

NOTE: WEEKLY TESTING IS REQUIRED.

TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION. Erratic or low sound coming from your alarm may indicate a defective alarm, and it should be returned for service.

If your alarm regularly nuisance alarms (See Section 5) when cooking,

this indicates the alarm may be mounted too close to the source e.g..

kitchen. However, by pressing the Hush button prior to cooking, you can

densisitise the alarm for approximately 10 minutes.

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 6

Page 7

5.NUISANCE ALARMS

Smoke alarms are designed to minimise nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area. Large quantities of combustible particles are generated from spills or when broiling. Using the fan on a range hood which vents to the outside (non-recirculating type) will also help remove these combustible products from the kitchen.

This model PE910UK has a HUSH

control that is extremely useful in areas prone to

nuisance alarms. For more information refer to Section 4, OPERATION AND TESTING.

If the alarm does sound, check for fires first. If a fire is discovered, get out and call the fire service. If no fire is present, check to see if one of the reasons listed in Section 2 may have caused the alarm.

6.MAINTENANCE

BATTERY ACTIVATION AND DEACTIVATION

NOTE: Three Lithium-Ion batteries, permanently sealed inside the alarm, power this unit; no battery installation or replacement is necessary for the life of the alarm.

WARNING! DO NOT ATTEMPT TO OPEN THE ALARM FOR ANY REASON!

To activate the alarm, attach the alarm to the mounting bracket by rotating in the direction of the arrows on the cover, see ACTIVATING ALARM in Section 3 (INSTALLATION INSTRUCTIONS).

This alarm has a low battery monitor circuit which will cause the alarm to “chirp” approximately every 40-45 seconds, for a minimum of thirty (30) days, at the end of the life of the alarm to indicate that the alarm needs replacement. To deactivate the alarm remove the alarm from the mounting bracket by rotating the alarm in the direction indicated by the arrows on the cover of the alarm and locate the crosshatched area on product label. NOTE: If the tamper resist feature has been activated, see TAMPER RESIST FEATURE in Section 3 (INSTALLATION INSTRUCTIONS).

WARNING! DO NOT DEACTIVATE THE ALARM UNTIL THE END OF THE ALARM LIFE, WHEN A “CHIRP” IS HEARD EVERY 40-45 SECONDS. ONCE THE ALARM IS DEACTIVATED THE BATTERIES WILL BE DEPLEATED AND THE ALARM WILL NO LONGER FUNCTION.

WARNING! ONCE THE ALARM HAS BEEN DEACTIVATED, IT CANNOT BE REACTIVATED!

WARNING! ONCE THE ALARM HAS BEEN DEACTIVATED, IT CANNOT BE MOUNTED ONTO THE MOUNTING BRACKET!

Break out the crosshatched area with a screwdriver or similar tool. Using a screwdriver or similar tool slide the exposed piece towards the center of the alarm. This will deactivate the alarm, stop the low battery “chirp” and render the alarm safe for disposal by draining the batteries.

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 7

Page 8

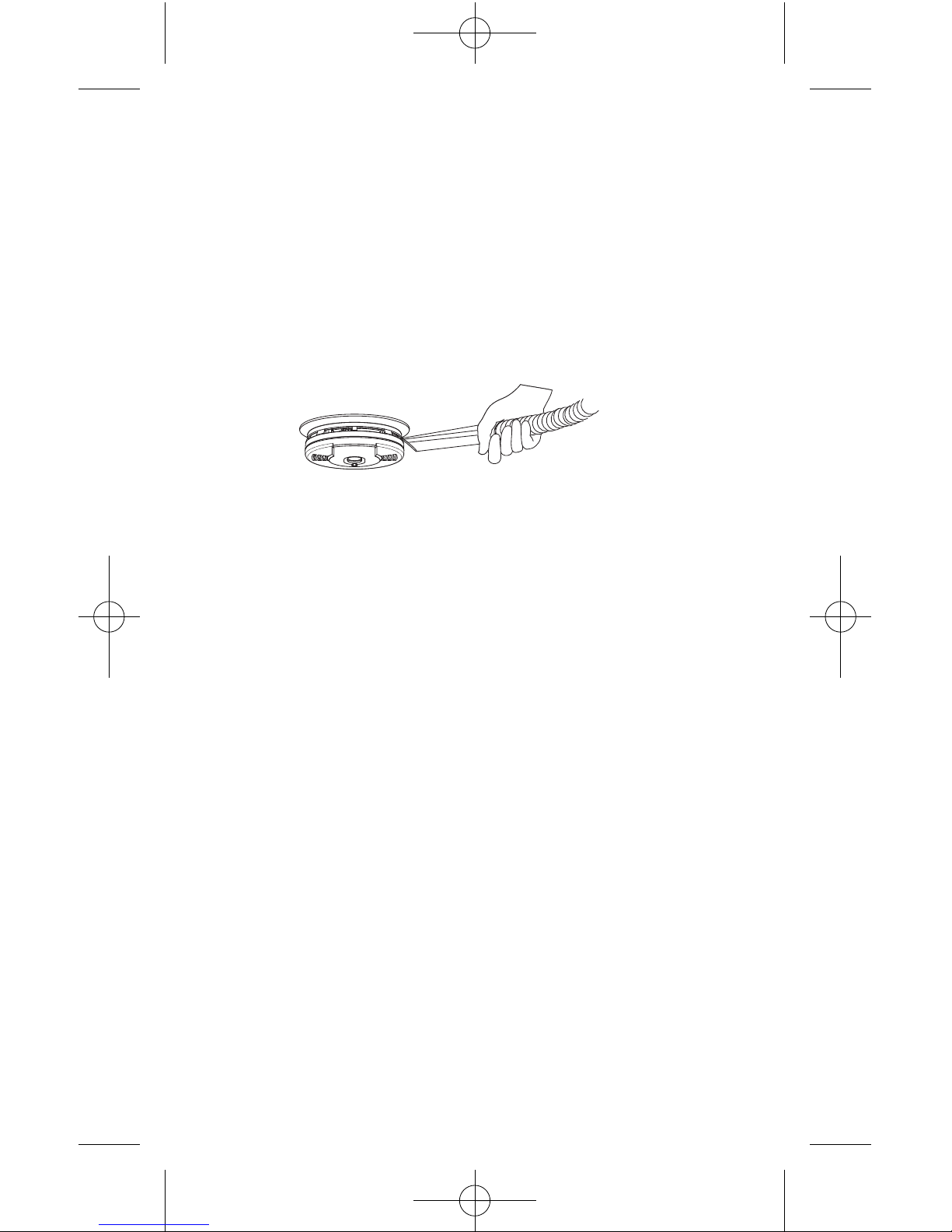

CLEANING YOUR ALARM

YOUR ALARM SHOULD BE VACUUMED ONCE A MONTH

If the tamper resist feature has been activated you will need to follow the instructions in Section 3 to remove your alarm for maintenance.

To clean your alarm, remove it from the mounting bracket as outlined in the beginning of this section. You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth.

After cleaning, reinstall your alarm and test your alarm by using the test button. If cleaning does not restore the alarm to normal operation the alarm should be replaced.

7.LIMITATIONS OF SMOKE ALARMS

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

• Life safety from fire in residential occupancies is based primarily on early notification

to occupants of the need to escape, followed by the appropriate actions by those occupants. Fire warning systems for dwelling units are capable of protecting about half of the occupants in potentially fatal fires. Victims are often intimate with the fire, too old or young, or physically or mentally impaired such that they cannot escape even when warned early enough that escape should be possible. For these people, other strategies such as protection-in-place or assisted escape or rescue are necessary.

• Smoke alarms are devices that can provide early warning of possible fires at a

reasonable cost; however, alarms have sensing limitations. Ionisation sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionisation alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionisation and Photoelectric alarms be installed.

• A battery powered alarm must have a battery of the specified type, in good condition

and installed properly.

• Smoke alarms must be tested regularly to make sure the batteries and the alarm

circuits are in good operating condition.

• Smoke alarms cannot provide an alarm if smoke does not reach the alarm.

Therefore, smoke alarms may not sense fires starting in chimneys, walls, on roofs, on the other side of a closed door or on a different floor.

• If the alarm is located outside the bedroom or on a different floor, it may not wake

up a sound sleeper.

• The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm.

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 8

Page 9

For maximum protection, a smoke alarm should be installed in each sleeping area on every level of a home.

• Although smoke alarms can help save lives by providing an early warning of a fire,

they are not a substitute for an insurance policy. Home owners and renters should have adequate insurance to protect their lives and property.

8. GOOD SAFETY HABITS

DEVELOP AND PRACTICE A PLAN OF ESCAPE

• Install and maintain Fire extinguishers on every level of the home and in the

kitchen, basement and garage. Know how to use a fire extinguisher prior to an emergency.

• Make a floor plan indicating all doors and windows and at least two (2) escape

routes from each room. Second story windows may need a rope or chain ladder.

• Have a family meeting and discuss your escape plan, showing everyone what to do

in case of fire.

• Determine a place outside your home where you all can meet if a fire occurs.

• Familiarize everyone with the sound of the smoke alarm and train them to leave

your home when they hear it.

• Practice a fire drill at least every six months, including fire drills at night. Ensure

that small children hear the alarm and wake when it sounds. They must wake up in order to execute the escape plan. Practice allows all occupants to test your plan before an emergency. You may not be able to reach your children. It is important they know what to do.

WHAT TO DO WHEN THE ALARM SOUNDS

• Alert small children in the home.

• Leave immediately by your escape plan. Every second counts, so don’t waste time get-

ting dressed or picking up valuables.

• In leaving, don’t open any inside door without first feeling its surface. If hot, or if you

see smoke seeping through cracks, don’t open that door! Instead, use your alternate exit. If the inside of the door is cool, place your shoulder against it, open it slightly and be ready to slam it shut if heat and smoke rush in.

• Stay close to the floor if the air is smoky. Breathe shallowly through a cloth, wet if

possible.

• Once outside, go to your selected meeting place and make sure everyone is there.

• Call the Fire Brigade by dialling 999 from your neighbour’s home - not from yours!

• Don’t return to your home until the fire officials say that it is all right to do so.

There are situations where a smoke alarm may not be effective to protect against fire. For instance:

a) smoking in bed

b) leaving children home alone

c) cleaning with flammable liquids, such as gasoline

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 9

Page 10

Photoelectric, also known as Optical alarms, are more likely to affected by dust contamination. This is why regular vacuuming of the alarm is necessary to prevent dust build up, and possible nuisance alarms.

9. KIDDE RECOMMENDATIONS

Smoke alarms shall be installed outside each separate sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family living unit, including basements and excluding crawl spaces and unfinished attics. In new construction, a smoke alarm also shall be installed in each sleeping room.

Smoke Detection - Are More Smoke Alarms Desirable? The required number of smoke alarms might not provide reliable early warning protection for those areas separated by a door from the areas protected by the required smoke alarms. For this reason, it is recommended that the householder consider the use of additional smoke alarms for those areas for increased protection. The additional areas include the basement, bedrooms, dining room, utility room, and hallways not protected by the required smoke alarms. The installation of the smoke alarms in the kitchen, attic (or unfinished), or garage is normally not recommended, as these locations occasionally experience conditions that can result in improper operation.

10. SERVICE AND WARRANTY

If after reviewing this manual you feel that your smoke alarm is defective in any way, do not tamper with the unit. Return it for servicing to: Kidde Safety Europe,, Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB. (See Warranty for in-warranty returns).

0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 10

Page 11

QUESTIONS OR FOR MORE INFORMATION

Call our Consumer Hotline at 01753 685148 or contact us at

our website at www.kiddesafetyeurope.co.uk

Kidde Safety Europe, Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB, UK

TEN YEAR WARRANTY

Kidde Safety warrants to the original purchaser that the enclosed smoke alarm will be free from defects in material and workmanship or design under normal use and service for a period of ten years from the date of purchase. The obligation of Kidde Safety under this warranty is limited to repairing or replacing the smoke alarm or any part which we find to be defective in material, workmanship or design, free of charge to the customer, upon sending the smoke alarm with proof of date of purchase, postage and return postage prepaid, to Warranty Service Department, Kidde Safety Europe, Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB

This warranty shall not apply to the smoke alarm if it has been damaged, modified, abused or altered after the date of purchase or if it fails to operate due to improper maintenance or incorrect siting.

THE LIABILITY OF KIDDE SAFETY OR ANY OF ITS PARENT OR SUBSIDIARY CORPORATIONS ARISING FROM THE SALE OF THIS SMOKE ALARM OR UNDER THE TERMS OF THIS LIMITED WARRANTY SHALL NOT IN ANY CASE EXCEED THE COST OF REPLACEMENT OF SMOKE ALARM AND, IN NO CASE, SHALL Kidde safety OR ANY OF ITS PARENT OR SUBSIDIARY CORPORATIONS BE LIABLE FOR CONSEQUENTIAL LOSS OR DAMAGES RESULTING FROM THE FAILURE OF THE SMOKE ALARM OR FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE COMPANY’S NEGLIGENCE OR FAULT.

This Warranty does not affect your statutory rights.
