Kidde P4010ACLEDSCA User Manual
1318-7202-01 EN
NOTE: Battery backup supplies power to the smoke alarm portion only.
Strobe will not work without AC power.
ATTENTION: Please take a few minutes to thoroughly read this user
guide which should be saved for future reference and passed on to any
subsequent owner.

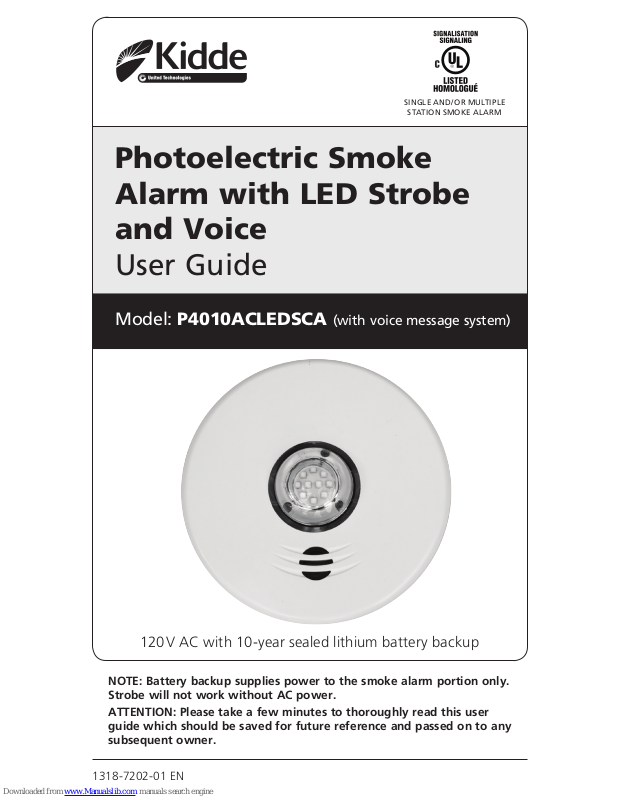

Photoelectric Smoke
Alarm with LED Strobe
and Voice
User Guide
SINGLE AND/OR MULTIPLE
STATION SMOKE AL ARM
120 V AC with 10-year sealed lithium battery backup
Model: P4010ACLEDSCA (with voice message system)
NEVER IGNORE THE SOUND OF THE ALARM!
Smoke alarms are designed to minimize false alarms. Cigarette
smoke will not normally set off the alarm, unless the smoke is
blown directly into the alarm. This unit contains nuisance alarm
protection, which will reduce the impact of cooking particles.
However, large quantities of combustible particles from spills
or broiling could still cause the unit to alarm. Careful location
of the unit away from the kitchen area will give the maximum
nuisance alarm protection. Combustion particles from cooking
may set off the alarm if located too close to the cooking area.
Large quantities of combustible particles are generated from
spills or when broiling. Using the fan on a range hood which
vents to the outside (non- recirculating type) will also help
remove these combustible products from the kitchen.If the
alarm sounds, check for fires first.
If a fire is discovered follow these steps. Become thoroughly
familiar with these items, and review with all family members!
• Alert small children in the home as well as anyone else
that might have difficulty recognizing the importance of
the alarm sounding or that might have difficulty leaving
the area without help.
• Leave immediately by your escape plan. Every second
counts, so don’t waste time getting dressed or picking
up valuables.
• In leaving, don’t open any inside door without first
feeling its surface. If hot, or if you see smoke seeping
through cracks, don’t open that door! Instead, use your
alternate exit. If the inside of the door is cool, place your
shoulder against it, open it slightly and be ready to slam
it shut if heat and smoke rush in.
Smoke alarm pattern is 3 long beeps, repeating, followed
by “Fire! Feu!”. Strobe will flash once per second.
SMOKE ALARM ACTIVATION
What to do When the Alarm Sounds!
Smoke alarm pattern is 3 long beeps, repeating, followed
by “Fire! Feu!”. Strobe will flash once per second.
SMOKE ALARM ACTIVATION
What to do When the Alarm Sounds!
• If the escape route requires you to go through smoke, stay
close to the floor where the air is cleaner. Crawl if necessary,
and breathe shallowly through a cloth, wet if possible.
• Once outside, go to your selected meeting place and make
sure everyone is there.
• Call the fire department from your cell phone outside, or
from your neighbor’s home-not from yours!
• Don’t return to your home until the fire officials say that it is
all right to do so.
• Do not reenter under any circumstance until fire officials say
that it is safe to do so.
• There are situations where a smoke alarm may not be
effective to protect against fire as stated in the NFPA
Standard 72. For instance:
a) smoking in bed
b) leaving children home alone
c) cleaning with flammable liquids, such as gasoline
d) fires where the victim is intimate with a flaming initiated
fire; for example, when a person’s clothes catch fire
while cooking
Carbon Monoxide Alarm Procedure
WARNING:
Activation of the CO Alarm
indicates the presence of Carbon Monoxide (CO)
which can kill you.
1) Immediately move to fresh air – outdoors or by an open
door/window. Do a head count to check that all persons are
accounted for. Do not re-enter the premises nor move away from
the open door/window until the emergency services responders
have arrived, the premises have been aired out, and your alarm
remains in its normal condition.
2) Call your local emergency service.
(fire department or 911)
Never restart the source of a CO problem until it has been
corrected. Never ignore the sound of the alarm!
If the unit is sounding a CO alarm signal, pressing the Test/
Hush button on this unit will do nothing. Pressing the Test/
Hush button on the initiating CO or Combination alarm unit
will terminate the CO alarm on all interconnected units. If
the CO condition that caused the alarm in the first place
continues, the initiating alarm unit will reactivate in alarm
mode. If the unit goes into alarm mode again within six
minutes, it is sensing high levels of CO which can quickly
become a dangerous situation.
PHONE NUMBER
What to do When the Alarm Sounds!
WARNING:
This alarm DOES NOT detect
Carbon Monoxide (CO) and is not a substitute
for owning a Carbon Monoxide Alarm.
If CO is detected from any other unit in an interconnected
system, the carbon monoxide (CO) alarm pattern will sound
4 quick beeps in time with red LED flashes, repeating every
5 seconds, followed by “Warning! Carbon Monoxide! Monoxyde
de carbone!” The strobe will flash 4 times every 5 seconds.
The smoke alarm takes precedence when both smoke
and carbon monoxide are present.
CARBON MONOXIDE ALARM ACTIVATION
Model P4010ACLEDSCA AC wire-in photoelectric smoke alarm and LED
strobe light can be directly interconnected with Kidde 3-wire smoke,
heat and CO alarms. This alarm is acceptable for use in all residential
applications where smoke alarms are required, and can be used as a
Single Alarm or in a Multiple Alarm system, (up to 24 devices).
Thank you for purchasing this integrated smoke/strobe alarm. It is an
important part of your family’s home safety plan. You can trust Kidde to
provide the highest quality safety products. We know you expect nothing
less when the lives of your family are at stake.
Please take a few minutes to thoroughly read this user guide, and save it
for future reference. Teach children how to respond to the alarms, and
that they should never play with the unit.
If you have any questions about the operation or installation of your
alarm, please call our toll free Consumer Hotline at 1-800-880-6788.
Contents of This User Guide
1. Introduction
1. Introduction
2. Product Features and Specifications
3. Limitations of Smoke Alarms
4. Recommended Locations
5. Locations To Avoid
6. Installation / Mounting Instructions
7. Operation And Testing
8. Visual And Audible Indications
9. Nuisance And Hush
10. Battery
11. Deactivation Of Alarm
12. Maintenance
13. Good Safety Habits
14. Warranty
1. Introduction
IMPORTANT: Read all instructions before installation and keep this
user guide near the alarm for future reference.
Do not try to repair the smoke alarm yourself. Refer to the
instructions in Warranty section for service.
WARNING! Do not try to repair this unit yourself.
WARNING! Disconnection or loss of AC and depleted
batteries will render this signaling device inoperative.
WARNING! The strobe light is extremely bright. Do not look
directly at the light when the light is flashing.
This alarm detects products of combustion using photoelectric
technology. After ten (10) years of cumulative power up, this unit will
“chirp” two times every 30 seconds. This is an “operational end of life”
feature which will indicate that it is time to replace the alarm.
To help identify the date to replace the unit, a label has been affixed to
the side of the alarm. Write the “Replace by” date (10 years from initial
power up) in permanent marker on the label prior to installing the unit.
Model Number:
P4010ACLEDSCA (3 wire interconnect unit)
Power:
120 V AC (60 Hz, 863 mA max) wire-in connector with sealed lithium
battery backup

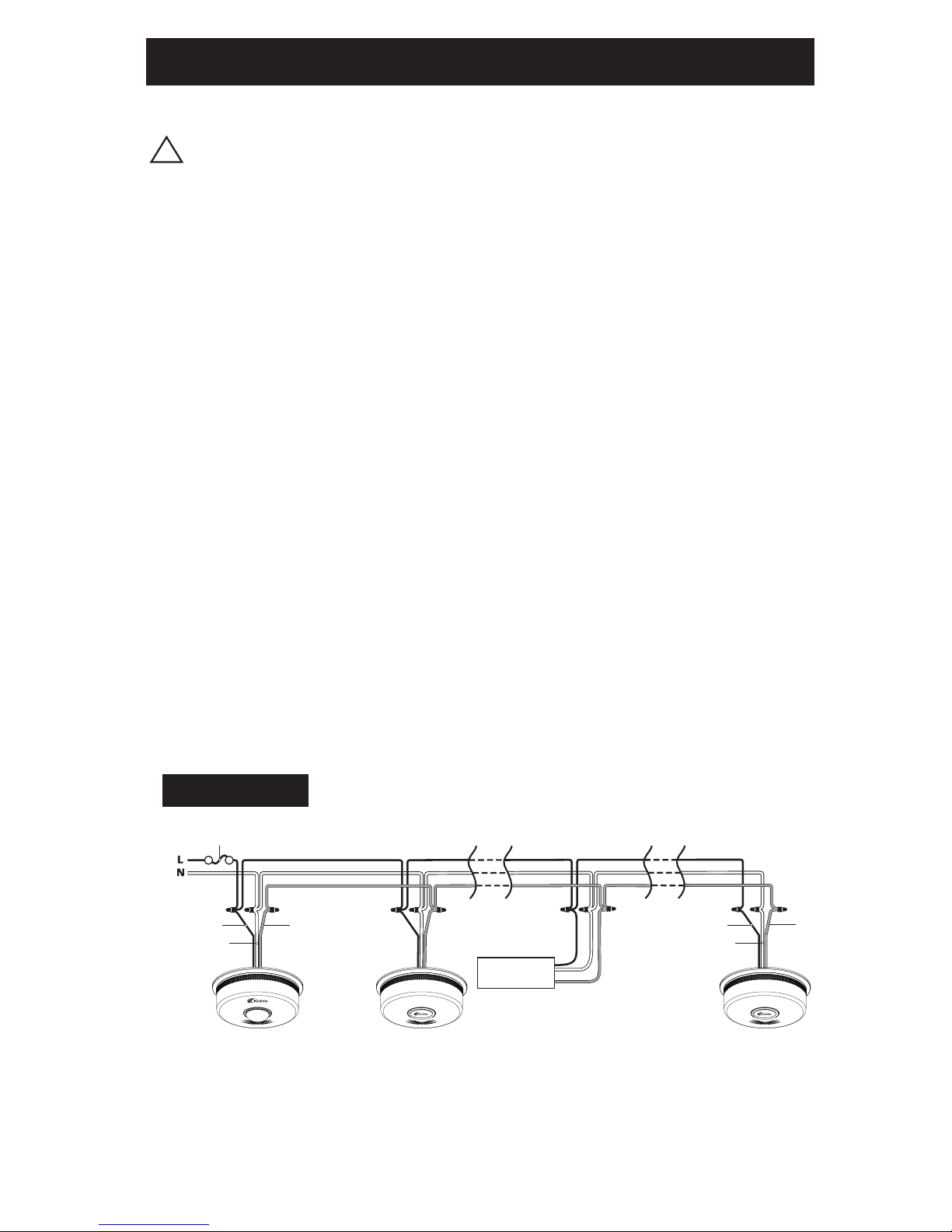

Interconnectable to other compatible alarms (see Installation /
Mounting Instructions section for details).
Note: If more than one P4010ACLEDSCA strobe is in the interconnected
system, all other P4010ACLEDSCA strobes will synchronize within
20 seconds of an initiating alarm.
Alarm events:
Smoke Alarm: Repeating pattern of 3 long beeps in time with red LED blinks,
followed by “Fire! Feu!” Strobe flashes once every second continuously.
WARNING: This alarm DOES NOT detect Carbon Monoxide (CO)
and is not a substitute for owning a Carbon Monoxide Alarm.
CO Alarm: If CO is detected from any other unit in an interconnected
system, alarm will sound a repeating pattern of 4 quick beeps in
time with red LED blinks, followed by “Warning! Carbon Monoxide!
Monoxyde de carbone!” Strobe will flash 4 times every 5 seconds.
2. Product Features and Specifications
Temperature:
Operating Range: 4.4°C (40°F) to 37.8°C (100°F)
Humidity:
Operating range: 0-95% relative humidity, non-condensing
Audible Alarm:
85+ dB at 10’ @ 3.2±0.5 KHz pulsing alarm, with voice messages “Fire!
Feu!” NOTE: This is not a CO alarm, but it will receive and transmit a CO
alarm signal (with voice message “Warning! Carbon Monoxide. Monoxide
de carbone!”) from an interconnected CO or combination smoke/CO alarm.
Sensor:
Photoelectric
Mounting:
Wall or ceiling
Applications:
Primary Direct or Indirect and Supplementary
Light Output:
177 Candela minimum (on axis measurement)
The following diagrams show that the light intensity gradually decreases
as the viewing angle is increased. Use this information to determine the
best location for the strobe light.
2. Product Features and Specifications
CEILING
90° 90°
0°
45° 45°
SOURCE
LIGHT
CEILING
90° 90°
0°
45° 45°
SOURCE
LIGHT
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
90° 60 55 50 45 40 35 30
0
ZERO AXIS
WALL
FLOOR
5
10
15
20
25
WARNING: PLEASE READ CAREFULLY AND THOROUGHLY
•NFPA72states:Lifesafetyfromfireinresidentialoccupanciesisbased
primarily on early notification to occupants of the need to escape,
followed by the appropriate egress actions by those occupants.
•Firewarningsystemsfordwellingunitsarecapableofprotectingabout
half of the occupants in potentially fatal fires. Victims are often intimate
with the fire, too old or young, or physically or mentally impaired such
that they cannot escape even when warned early enough that escape
should be possible. For these people, other strategies such as protectionin-place or assisted escape or rescue are necessary.
•Leadingauthoritiesrecommendthatbothionizationandphotoelectric
smoke alarms be installed to help ensure maximum detection of
the various types of fires that can occur within the home. Ionization
sensing alarms may detect invisible fire particles (associated with
fast flaming fires) sooner than photoelectric alarms. Photoelectric
sensing alarms may detect visible fire particles (associated with slow
smouldering fires) sooner than ionization alarms.
•Abatterypoweredalarmmusthaveabatteryofthespecifiedtype,
in good condition and installed properly. This model is AC powered
with a sealed backup battery.
•Smokealarmsmustbetestedregularlytomakesurethebatteryand
the alarm circuits are in good operating condition.
•Smokealarmscannotprovideanalarmifsmokedoesnotreach
the alarm. Therefore, smoke alarms may not sense fires starting in
chimneys, walls, on roofs, on the other side of a closed door or on a
different floor.
•Ifthealarmislocatedoutsidethebedroomoronadifferentfloor,it
may not wake up a sound sleeper.
•Theuseofalcoholordrugsmayalsoimpairone’sabilitytohearthe
smoke alarm. For maximum protection, a smoke alarm should be
installed in each sleeping area on every level of a home.
•Althoughsmokealarmscanhelpsavelivesbyprovidinganearly
warning of a fire, they are not a substitute for an insurance policy.
Home owners, landlords and tenants should have adequate insurance
to protect their lives and property.
3. Limitations of Smoke Alarms
Loading...
