Manual P/N 820-1496 Rev. A 04/08
ATTENTION: Please take a few minutes to thoroughly read this
user’s guide, which should be saved for future reference and
passed on to any subsequent owner.
Smoke Alarm
User’s Guide
i9060CA and i9080CA
i9060CA
with Safety Light
i9080CA
9 V Battery Operated
SINGLE STATION
S
MOKE ALARM
Introduction . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 12-15
Fire Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Contents
Introduction
Thank you for purchasing this smoke alarm. It is an important
part of your family’s home safety plan. You can trust this
product to provide the highest quality safety protection. We
know you expect nothing less when the lives of your family are
at stake.
Please take a few minutes to thoroughly read this alarm manual,
and save it for future reference. Teach children how to respond
to the alarms, and that they should never play with the unit.
If you have any questions about the operation or installation of
your alarm, please call our toll free Consumer Hotline at
1-800-880-6788.
Image 1C will help you determine the correct location of safety
products that will help make your home a safer place.
1
Made in China. Patents Pending
Kidde Canada Inc.
P.O. Box 40, Apsley, ON K0L 1A0
www.kiddecanada.com
Models i9060CA and i9080CA are designed to detect products
of combustion using the ionization technique. They contain 0.9
microcurie of Americium 241, a radioactive material. Distributed
under U.S. NRC License No. 32-23858-01E. Manufactured in
compliance with U.S. NRC safety criteria in 10 CFR 32.27. The
purchaser is exempt from any regulatory requirements. Do not
try to repair the smoke alarm yourself. Refer to the instructions
in Warranty section for service.
WARNING: Battery door will not close unless battery is present.
Removal of battery will render the smoke alarm inoperative.
NOTE: Any statements referring to a battery, applies to both
batteries used with the i9080CA.
IMPORTANT: Read all instructions before installation and keep
this manual near the alarm for future reference.
Do not try to repair the smoke alarm yourself. Refer to the
instructions in Warranty section for service.

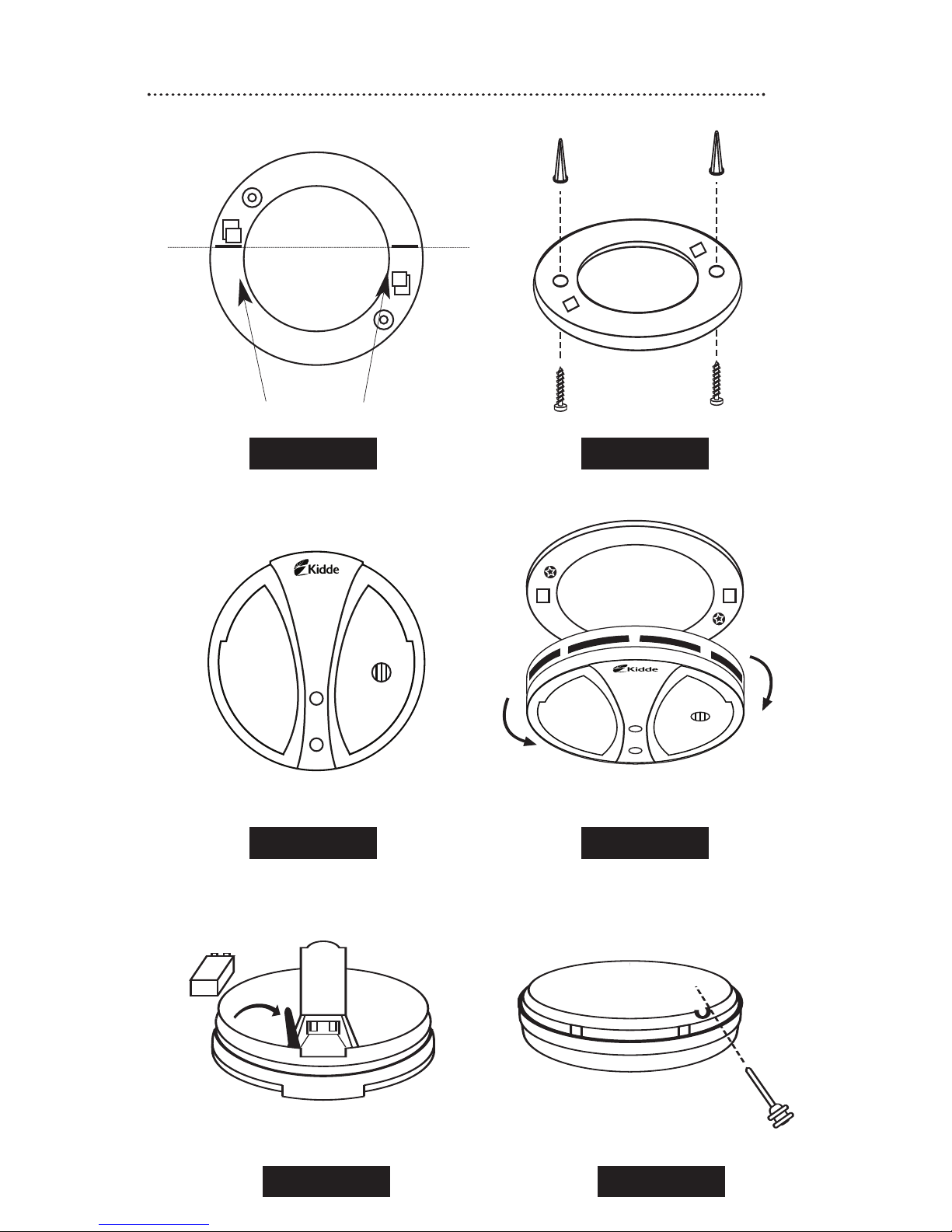

Installation
2
Recommended Locations
• Locate the first alarm in the immediate area of the sleeping
rooms. Try to monitor the exit path, as the sleeping rooms are
usually farthest from the exit. If more than one sleeping area
exists, locate additional alarms in each sleeping area (Image 1A).
• Locate additional alarms to monitor any stairway as stairways act
like chimneys for smoke and heat.
• Locate at least one alarm on every floor level (Image 1B).
• Locate an alarm in every sleeping room.
• Locate an alarm in every room where electrical appliances are
operated (i.e. portable heaters or humidifiers).
• Locate an alarm in every room where someone sleeps with the
door closed. The closed door may prevent an alarm not located in
that room from waking the sleeper.
• Smoke, heat, and combustion products rise to the ceiling and
spread horizontally. Mounting the smoke alarm on the ceiling in
the center of the room places it closest to all points in the room.
Ceiling mounting is preferred in ordinary residential construction.
• For mobile home installation, select locations carefully to avoid
thermal barriers that may form at the ceiling. For more details, see
Mobile Homes.
• When mounting an alarm on the ceiling, locate it at a minimum of
10 cm (4") from the side wall (Image 2A).
• When mounting the alarm on the wall, use an inside wall with the
top edge of the alarm at a minimum of 10 cm (4") and a
maximum of 30.5 cm (12") below the ceiling (Image 2A and 2B).
• Put smoke alarms at both ends of a hallway or large room if the
hallway or room is more than 9.1 m (30 ft) long. For large rooms,
one smoke alarm is recommended for every 500 square feet of
floor space.
• Install smoke alarms on sloped, peaked or cathedral ceilings at or
within 0.9 m (3') of the highest point (measured horizontally).
NFPA 72 states: “Smoke alarms in rooms with ceiling slopes
greater than 0.3 m in 2.4 m (1 foot in 8 feet) horizontally shall be
located on the high side of the room.” NFPA 72 states: “A row of
detectors shall be spaced and located within 0.9 m (3') of the peak
of the ceiling measured horizontally” (Image 2B and 2C).
Installation
3
Installation
DINING
ROOM
LIVING
ROOM
Smoke Alarms for Minimum Protection
Ionization Type Smoke Alarm with
Hush
®
Control or Photoelectric Type
Smoke Alarms for Additional Protection
KITCHEN BEDROOM
BEDROOM
BEDROOM
L
IVING
R
OOM
KITCHEN
B
EDROOMBEDROOM HALL
BASEMENT
IMAGE 1A
IMAGE 1C
IMAGE 1B
SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN
BEDROOM
FAMILY ROOM
WORKSHOPBASEMENT
KITCHEN
HALL
GARAGE
MASTER
BEDROOM
FIRE
EXTINGUISHERS
SMOKE
ALARMS
CARBON
MONOXIDE
ALARMS
TALKING
SMOKE/CO
ALARM
TOTAL HOME PROTECTION
4
• In homes that are not well insulated, extreme heat or cold can
be transferred from the outside to the inside through poorly
insulated walls and roof. This may create a thermal barrier
which can prevent the smoke from reaching an alarm mounted
on the ceiling. If you are not sure about the insulation in your
home, or if you notice that the outer walls and ceiling are either
hot or cold, install the alarm on an inside wall. In such homes,
install the smoke alarm with the top edge of the alarm at a
minimum of 10 cm (4") and a maximum of 30.5 cm (12")
below the ceiling (Image 2A).
5
Installation

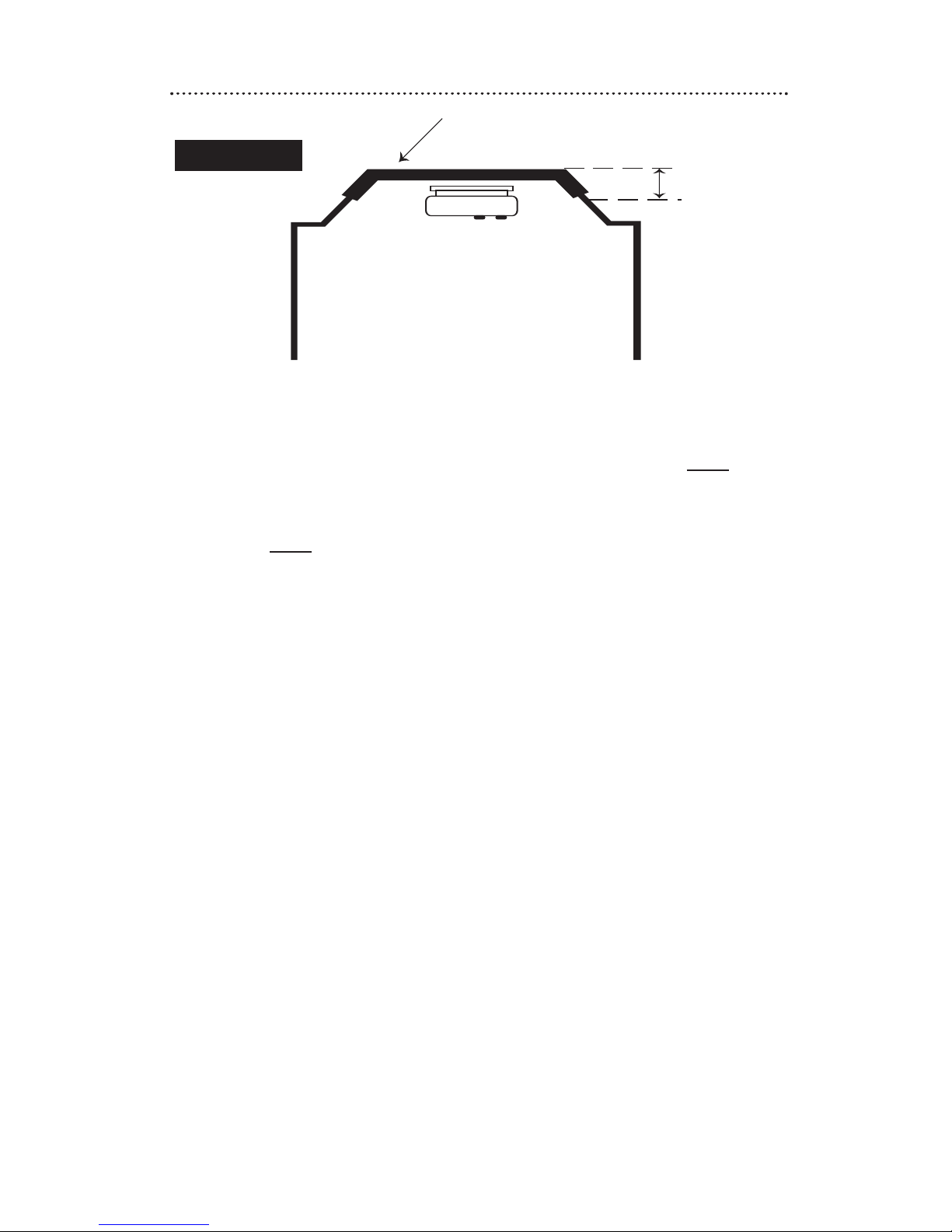

• Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on
the highest portion of the ceiling or on the sloped portion of the
ceiling within 12” (305mm) vertically down from the highest point
(Image 2D).
Locations to Avoid
• Do not install within 0.9 m (3') of the following: The door to a
kitchen, or a bathroom that contains a tub or shower, forced
air supply ducts used for heating or cooling, ceiling or whole
house ventilating fans, or other high air-flow areas.
• Do not place the alarm where drapes or other objects will
block the sensor. Smoke must be able to reach the sensor to
accurately detect conditions.
• Do not install in peaks of vaulted ceilings, “A” frame ceilings
or gabled roofs. (Less than 10 cm (4") from the peak of an “A”
frame type ceiling.)
• Install at least 30.5 cm (12") away from fluorescent lights as
electronic noise may cause nuisance alarms.
• Keep out of insect infested areas. Avoid excessively dusty, dirty
or greasy areas. Dust particles may cause nuisance alarms or
failure to alarm.
• Extreme temperatures may effect the sensitivity of the alarm.
Do not install in areas where the temperature is colder than
4.4°C (40°F) or hotter than 37.8°C (100°F), such as garages
and unfinished attics.
• Do not install in areas where the relative humidity (RH) is
greater than 85%. Very humid areas, with moisture or steam,
can cause nuisance alarms.
• Avoid placing ionization smoke alarms in kitchen areas.
Normal cooking may cause nuisance alarms. If a kitchen alarm
is desired, it should have an alarm silence feature or be a
photoelectric type.
• Do not place in the garage. Particles of combustion are
present when you start your automobile.
• Smoke alarms are not to be used with detector guards unless
the combination (alarm and guard) has been evaluated and
found suitable for that purpose.
6
Installation
IMAGE 2A
IMAGE 2C
HORIZONTAL DISTANCE FROM PEAK
CEILING
10 cm (4”)
MINIMUM
10 cm (4”)
MINIMUM
30.5 cm (12”)
MAXIMUM
SIDE WALL
BEST
PLACEMENT
ACCEPTABLE
PLACEMENT
NEVER HERE
STAGNANT
AIR
10 cm (4”)
0.9 m (3’) 0.9 m (3’)
NOT IN
THIS AREA
ANYWHERE IN THIS
AREA
10 cm (4”)
NOT IN
THIS AREA
ANYWHERE IN THIS
AREA
0.9 m (3’)
IMAGE 2B
