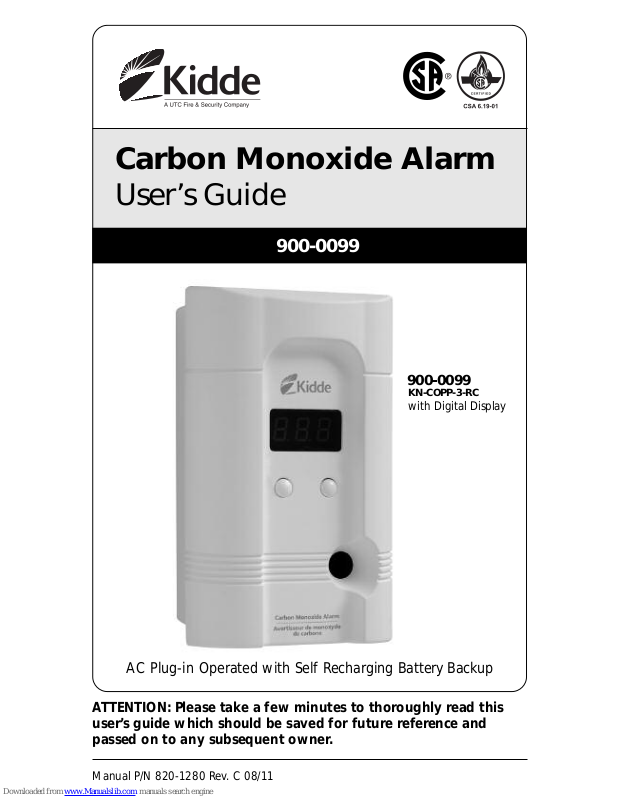

Manual P/N 820-1280 Rev. C 08/11
ATTENTION: Please take a few minutes to thoroughly read this
user’s guide which should be saved for future reference and
passed on to any subsequent owner.
900-0099
KN-COPP-3-RC
with Digital Display
900-0099
AC Plug-in Operated with Self Recharging Battery Backup
Carbon Monoxide Alarm
User’s Guide
Carbon Monoxide Alarm Procedure
If the alarm sounds 4 quick “beeps”, 5 seconds off:
1)
Immediately move to fresh air – outdoors. Check that all
persons are accounted for. Do not re-enter the premises
until the emergency services responders have arrived, the
premises have been aired out, and your alarm remains in
its normal operating condition.
2) Call your local emergency service.
(fire department or 911)
If the alarm is sounding, pressing the test/reset button
will terminate the alarm. If the CO condition that caused
the alert in the first place continues, the alarm will
reactivate. If the unit alarms again within six minutes, it
is sensing high levels of CO which can quickly become a
dangerous situation.
WARNING:
Activation of the CO
Alarm indicates the presence of Carbon
Monoxide (CO) which can kill you.
PHONE NUMBER:
What to do When the Alarm Sounds!
Welcome
Note: Many times throughout this User’s Guide, we will refer to
Carbon Monoxide as “CO”.
This Kidde carbon monoxide (CO) alarm is an important part of your
family’s home safety plan. This alarm has been designed and tested to
detect CO buildup in a residential environment. Your alarm is for use
specifically in the home. As an owner of a CO alarm, there are some
basic facts you should know about for your protection.
Many people think that CO alarms operate like smoke alarms. Like
smoke alarms, CO alarms monitor the air in your home and sound a
loud alarm to warn you of trouble. The way you respond to a CO alarm
is quite different than a smoke alarm. That’s because a house fire and a
CO problem are two distinctly different situations. If your smoke alarm
were to alarm, you would quickly be able to judge the level of danger
you were in with your senses. You can see and smell the smoke, feel the
heat, see, and possibly hear the fire burning. You can also readily see if
your smoke alarm is alarming in a non-emergency situation. Because
your sense of sight, smell, hearing and touch give you information, you
can almost instantly judge what action to take if you hear your smoke
alarm.
CO is an invisible, odorless, tasteless and non-irritating gas – completely
undetectable to your senses. That’s why it is important to your safety
that you have a CO alarm.
Important Warning Statements
IMPORTANT: This carbon monoxide alarm is designed to detect
carbon monoxide from ANY source of combustion. It is NOT
designed to detect smoke, fire, or any other gas.
WARNING: Carbon monoxide alarms are not smoke alarms. This
carbon monoxide alarm is not a substitute for installing and
maintaining an appropriate number of smoke alarms in your home.
This carbon monoxide alarm will not sense smoke, fire, or any
poisonous gas other than carbon monoxide even though carbon
monoxide can be generated by fire. For this reason you must install
smoke alarms to provide early warning of fire and to protect you
and your family from fire and its related hazards.
CAUTION: This alarm will only indicate the presence of carbon
monoxide at the sensor. Carbon monoxide may be present in other
areas.
Important Warning Statements
WARNING: This product is intended for use in ordinary indoor
locations of family living units. It is not designed to measure
compliance with commercial or industrial standards. It is not
suitable for installation in hazardous locations as defined in the
National Electric Code.
The installation of this device should not be used as a substitute
for proper installation, use and maintenance of fuel burning
appliances, including appropriate ventilation and exhaust systems.
It does not prevent CO from occurring, nor can it solve and
existing CO problem.
WARNING: This device is designed to protect individuals from
acute effects of carbon monoxide exposure. It may not fully
safeguard individuals with specific medical conditions. If in doubt,
consult a medical practitioner.
Individuals with medical problems may consider using warning
devices which provide audible and visual signals for carbon
monoxide concentrations under 30 PPM.
This carbon monoxide alarm requires a continuous supply of
electrical power – it will not work without power. Models without
battery backup will not operate during power failure.
This alarm has not been investigated for carbon monoxide
detection below 70 PPM.
Contents of This User’s Guide
1. Information About Carbon Monoxide
2. Product Features and Specifications
3. Installation Locations
4. Installation Instructions
5. Alarm Characteristics
6. Operating Characteristics
7. Maintenance
8. Limited Warranty
1. Information About Carbon Monoxide
General Carbon Monoxide Information
Carbon monoxide is a colorless, odorless and tasteless poison gas that
can be fatal when inhaled. CO inhibits the blood’s capacity to carry
oxygen.
Periodically review this alarm manual and discuss your CO alarm
emergency procedure with all the members of your family. Never ignore
a CO alarm. A true alarm is an indication of potentially dangerous levels
of CO. CO alarms are designed to alert you to the presence of CO
before an emergency – before most people would experience symptoms
of CO poisoning, giving you time to resolve the problem calmly.
Determine if anyone in the household is experiencing symptoms of CO
poisoning. Many cases of reported CO poisoning indicate that while
victims are aware they are not well, they become so disoriented they are
unable to save themselves by either exiting the building or calling for
assistance. Also, young children and household pets may be the first
affected. You should take extra precautions to protect high-risk persons
from CO exposure because they may experience ill effects from CO at
levels that would not ordinarily affect a healthy adult.
Symptoms of CO Poisoning
The following common symptoms are related to CO poisoning and
should be discussed with ALL members of the household.
Mild Exposure:
Slight headache, nausea, vomiting, fatigue (often described as
“flu-like” symptoms)
Medium Exposure:
Severe throbbing headache, drowsiness, confusion, fast heart rate
Extreme Exposure:
Unconsciousness, convulsions, cardio-respiratory failure, death
If you experience even mild symptoms of CO poisoning, consult your
doctor immediately!
Carbon Monoxide PPM Levels
The 900-0099 is equipped with a digital display that shows levels of CO
(displayed in PPM – parts per million). Learn the difference between
dangerous, high, mid and low levels.
1. Information About Carbon Monoxide
Dangerous Levels:
When someone is experiencing symptoms of CO poisoning and CO
readings are generally above 100 PPM. Anytime someone is experiencing
the symptoms of CO poisoning this should be treated as an emergency.
See “What to do When the Alarm Sounds” (inside front cover).
High Levels:
Generally above 100 PPM, with no one experiencing symptoms. This
should be treated as an urgent situation. See “What to do When the
Alarm Sounds” (inside front cover).
Mid Levels:
Generally between 50 PPM to 100 PPM. This should be cause for
concern and should not be ignored or dismissed. See “What to do
When the Alarm Sounds” (inside front cover).
Low Levels:
Generally below 50 PPM. Kidde recommends you take action to
eliminate the source of CO. See “What to do When the Alarm Sounds”
(inside front cover).
Possible Sources of Carbon Monoxide
Inside your home, appliances used for heating and cooking are the most
likely sources of CO. Vehicles running in attached garages can also
produce dangerous levels of CO.
CO can be produced when burning any fossil fuel, such as gasoline,
propane, natural gas, oil and wood. It can be produced by any fuelburning appliance that is malfunctioning, improperly installed, or not
ventilated correctly, such as:
• Automobiles, fur naces, gas ranges/stoves, gas clothes dryers, water
heaters, portable fuel burning space heaters and generators,
fireplaces, wood-burning stoves and certain swimming pool heaters.
• Blocked chimneys or flues, back drafts and changes in air pressure,
corroded or disconnected vent pipes, loose or cracked furnace
exchangers.
• Vehicles and other combustion engines running in an open or closed
garage, attached or near a home.
• Bur ning charcoal or fuel in grills and hibachis in an enclosed area.
1. Information About Carbon Monoxide
Conditions That Can Produce Carbon Monoxide
The following conditions can result in transient CO situations:
• Excessive spillage or reverse venting of fuel-burning appliances caused
by outdoor ambient conditions, such as, wind direction and/or
velocity, including high gusts of wind, heavy air in the vent pipes
(cold/humid air with extended periods between cycles).
• Negative pressure resulting from the use of exhaust fans.
• Simultaneous operation of several fuel-bur ning appliances competing
for limited internal air.
• Vent pipe connections vibrating loose from clothes dryers, furnaces, or
water heaters.
• Obstructions in, or unconventional, vent pipe designs which can
amplify the above situations.
• Extended operation of unvented fuel-bur ning devices (range, oven,
fireplace, etc.).
• Temperature inversions which can trap exhaust gases near the ground.
• Vehicle idling in an open or closed garage, or near a home.
To be safe, know the possible sources of CO in your home. Keep fuelburning appliances and their chimneys and vents in good working
condition. Learn the early symptoms of exposure, and if you suspect CO
poisoning, move outside to fresh air and get emergency help. Your first
line of defense is an annual inspection and regular maintenance of your
appliances. Contact a licensed contractor or call your local utility
company for assistance.
Information About Carbon Monoxide Alarms –
What They Can and Cannot Do:
CO alarms provide early warning of the presence of CO, usually before a
healthy adult would experience symptoms. This early warning is possible,
however, only if your CO alarm is located, installed and maintained as
described in this guide.
Because carbon monoxide is a cumulative poison, long-term exposures
to low levels may cause symptoms, as well as short-term exposures to
high levels. This Kidde unit has a time-weighted alarm – the higher the
level of CO present, the sooner the alarm will be triggered.
