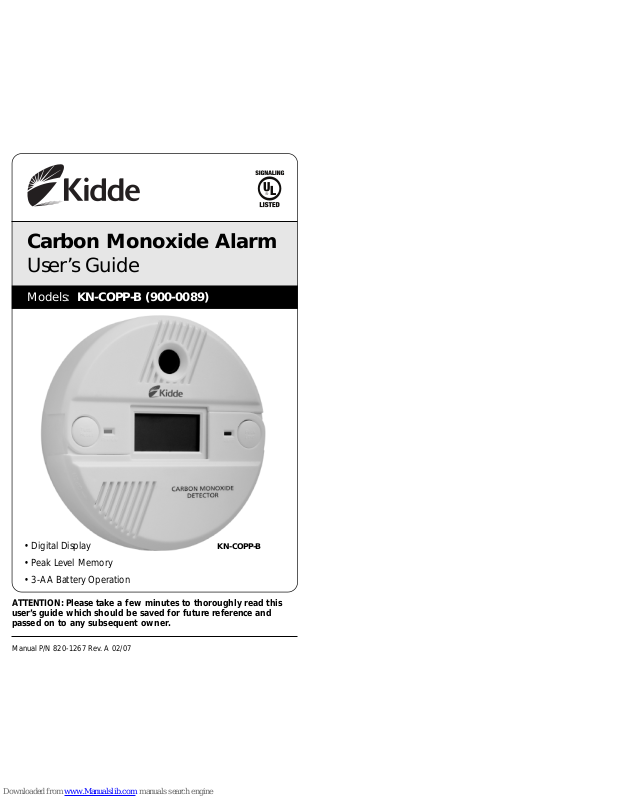

Manual P/N 820-1267 Rev. A 02/07
ATTENTION: Please take a few minutes to thoroughly read this
user’s guide which should be saved for future reference and
passed on to any subsequent owner.
Carbon Monoxide Alarm
User’s Guide
Models: KN-COPP-B (900-0089)
• Digital Display
• Peak Level Memory
• 3-AA Battery Operation
KN-COPP-B
Welcome
Note: Many times throughout this User’s Guide, we will refer to
Carbon Monoxide as “CO”.
This Kidde carbon monoxide (CO) alarm is an important part of your
family’s home safety plan. This alarm has been designed and tested to
detect CO buildup in a residential environment. Your alarm is for use
specifically in the home. As an owner of a CO alarm, there are some
basic facts you should know about for your protection.
Many people think that CO alarms operate like smoke alarms. Like
smoke alarms, CO alarms monitor the air in your home and sound a
loud alarm to warn you of trouble. The way you respond to a CO alarm
is quite different than a smoke alarm. That’s because a house fire and a
CO problem are two distinctly different situations. If your smoke alarm
were to alarm, you would quickly be able to judge the level of danger
you were in with your senses. You can see and smell the smoke, feel the
heat, see, and possibly hear the fire burning. You can also readily see if
your smoke alarm is alarming in a non-emergency situation. Because
your sense of sight, smell, hearing and touch give you information, you
can almost instantly judge what action to take if you hear your smoke
alarm.
CO is an invisible, odorless, tasteless and non-irritating gas – completely
undetectable to your senses. That’s why it is important to your safety
that you have a CO alarm.
Important Warning Statements
IMPORTANT: This carbon monoxide alarm is designed to detect carbon monoxide from ANY source of combustion. It is NOT designed
to detect smoke, fire, or any other gas.
WARNING: Carbon monoxide alarms are not smoke alarms. This
carbon monoxide alarm is not a substitute for installing and maintaining an appropriate number of smoke alarms in your home.
This carbon monoxide alarm will not sense smoke, fire, or any
poisonous gas other than carbon monoxide even though carbon
monoxide can be generated by fire. For this reason you must install
smoke alarms to provide early warning of fire and to protect you
and your family from fire and its related hazards.
CAUTION: This alarm will only indicate the presence of carbon
monoxide at the sensor. Carbon monoxide may be present in other
areas.
Carbon Monoxide Alarm Procedure
1) Operate the Test/Reset button;
2) Call your emergency services (Fire Department or 911);
3) Immediately move to fresh air - outdoors or by an open
door/window. Do a head count to check that all persons are
accounted for. Do not reenter the premises nor move away
from the open door/window until the emergency services
responders have arrived, the premises have been aired out, and
your alarm remains in its normal condition.
4) After following steps 1-3, if the alarm reactivates within a 24
hour period, repeat steps 1-3 and call a qualified appliance
technician to investigate sources of CO from fuel burning
equipment and appliances, and to inspect for proper operation
of equipment.
If problems are identified during this inspection, have the equipment serviced immediately. Note any combustion equipment not
inspected by the technician and consult the manufacturer’s instructions, or contact the manufacturer’s directly for more information
about CO safety and the equipment. Make sure that motor vehicles
are not, or have not been, operating in a garage attached or adjacent to the residence.
Never restart the source of a CO problem until it has been
corrected. Never ignore the sound of the alarm!
If the alarm is sounding, pressing the test/reset button will
terminate the alarm. If the CO condition that caused the alert
in the first place continues, the alarm will reactivate. If the
unit alarms again within six minutes, it is sensing high levels
of CO which can quickly become a dangerous situation.
WARNING:
Activation of the CO
Alarm indicates the presence of Carbon
Monoxide (CO) which can kill you.
PHONE NUMBER:
PHONE NUMBER:
What to do When the Alarm Sounds!
Important Warning Statements
WARNING: This product is intended for use in ordinary indoor locations of family living units. It is not designed to measure compliance with Occupational Safety and Health Administration (OSHA),
commercial or industrial standards. It is not suitable for installation
in hazardous locations as defined in the National Electric Code.
The installation of this device should not be used as a substitute
for proper installation, use and maintenance of fuel burning appliances, including appropriate ventilation and exhaust systems. It
does not prevent CO from occurring, nor can it solve and existing
CO problem.
WARNING: This device is designed to protect individuals from acute
effects of carbon monoxide exposure. It may not fully safeguard
individuals with specific medical conditions. If in doubt, consult a
medical practitioner.
Individuals with medical problems may consider using warning
devices which provide audible and visual signals for carbon monoxide concentrations under 30 PPM.
This carbon monoxide alarm requires a continuous supply of electrical power – it will not work without power.
This alarm has not been investigated for carbon monoxide detection below 70 PPM.
Contents of This User’s Guide
1. Information About Carbon Monoxide
2. Product Features and Specifications
3. Installation Locations
4. Installation Instructions
5. Operating Characteristics
6. Alarm Characteristics
7. Maintenance
8. Limited Warranty
1. Information About Carbon Monoxide
General Carbon Monoxide Information
Carbon monoxide is a colorless, odorless and tasteless poison gas that
can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen.
Periodically review this alarm manual and discuss your CO alarm emergency procedure with all the members of your family. Never ignore a CO
alarm. A true alarm is an indication of potentially dangerous levels of
CO. CO alarms are designed to alert you to the presence of CO before
an emergency – before most people would experience symptoms of CO
poisoning, giving you time to resolve the problem calmly.
Determine if anyone in the household is experiencing symptoms of CO
poisoning. Many cases of reported CO poisoning indicate that while
victims are aware they are not well, they become so disoriented they are
unable to save themselves by either exiting the building or calling for
assistance. Also, young children and household pets may be the first
affected. You should take extra precautions to protect high-risk persons
from CO exposure because they may experience ill effects from CO at
levels that would not ordinarily affect a healthy adult.
Symptoms of CO Poisoning
The following common symptoms are related to CO poisoning and
should be discussed with ALL members of the household.
Mild Exposure:
Slight headache, nausea, vomiting, fatigue (often described as
“flu-like” symptoms)
Medium Exposure:
Severe throbbing headache, drowsiness, confusion, fast heart rate
Extreme Exposure:
Unconsciousness, convulsions, cardio-respiratory failure, death
If you experience even mild symptoms of CO poisoning, consult your
doctor immediately!
Carbon Monoxide PPM Levels
Model KN-COPP-B is equipped with a digital display that shows levels of
CO (displayed in PPM – parts per million). Learn the difference between
dangerous, high, mid and low levels.
