Kidco G151 User Manual [en, es, fr]
User Guide
Patents
6,370,823
6,301,832
6,308,462
6,347,483
5,396,732
G150
Premier Gateway Series
Premier Gateway
For openings 29” to 37”
Optional extension kits available
Premier Gateway
Pour des overtures de 73 a 94 cm
Ensembles de rallonges facultatifs disponibles
Reja Premier Gateway
Hay disponibles juegos de extension opcionales
Para aberturas de 29” – 37”
G151
INDEX
ENG
FRE
SPA
User Guide
Parts Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly and Installation . . . . . . . . . . . . . . . . . . . . . . . 4-6
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts Price List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Method of Payment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Guide d’utilisation
Liste de Contrôle des Pièces . . . . . . . . . . . . . . . . . . . . . 2
Montage et installation. . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Liste des prix des piéces . . . . . . . . . . . . . . . . . . . . . . . . 15
Mode de Paiement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Guía del usuario
Lista de Verificación de Piezas . . . . . . . . . . . . . . . . . . . 3
Instalación y montaje . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Garantía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lista de precious de las piezas . . . . . . . . . . . . . . . . . . . 15
Metodo de Pago . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ilustraciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
2
Parts Check List
Liste de des pièces
Lista de verificación de piezas
Pressure Hinge (p)
Charnière à pression (p)
Bisagra de presión (p)
Buttons (r)
Boutons (r)
Botones (r)
Lower Indicator (t)
Indicateur inférieur (t)
Indicador inferior (t)
Stopper (q)
Butée (q)
Tope (q)
Pressure plate (o)
Plaque de pression (o)
Placa de presión (o)
Locator (l)
Repère (l)
Localizador (l)
Upper Indicator (s)
Indicateur supérieur (s)
Indicador superior (s)
Gate
Barrière
Reja
Handle (n)
Poignée (n)
Asa (n)
Hinge (m)
Charnière (m)
Bisagra (m)
Note: To prevent over extension
of spindles, notches have
intentionally been cut into the
threads approximately 1
the pad ends.
3
/
” from
8
Remarque: Pour empêcher la
surextension des axes, des crans
ont été intentionnellement
découpés dans les filets, à 3,5 cm
environ des extrémités
rembourrées.
(b) - 2 (c) - 4 (h) - 2 (i) - 2
(j) - 4 (k) - 2
(s) - 2
Nota: Para evitar la extensión
excesiva de los pivotes,
intencionalmente se han hecho
ranuras en las roscas a
aproximadamente 1
extremos de las almohadillas.
3
/
8
” de los
3
Important Information
ENG
FOLLOW THESE
INSTRUCTIONS
CAREFULLY AND
KEEP THEM FOR
FUTURE
REFERENCE
WARNING
• Intended for use with children
from 6 months through 24
months.
• Check the stability of the gate
and tighten all hardware and
mountings regularly.
• To prevent serious injury or death,
securely install gate or enclosure
and use according to
manufacturer’s instructions.
• Never use with a child able to
climb over or dislodge/open the
gate or enclosure.
• Never use if gate is less than 3/4
of child’s height.
• Do not use if any part of the gate is
broken or missing.
This gate is designed for children from 6 months to 24
months. Since each child’s skills develop at different
ages, these parameters should be monitored against
your child’s own development.
When installed as instructed, between two clean
structurally sound surfaces, this gate conforms to:
ASTM F-1004-09 United States Standards
• This product will not necessarily
prevent all accidents. Never leave
child unattended.
• Use only spare parts available
from KidCo.
• Never allow child to climb or
swing on gate.
• Use only with the locking/latching
mechanism securely engaged.
• Never use gate at top of stairs.
• Discontinue use if any part of
gate is damaged.
• Never climb over the gate.
• Never hang or tie toys etc. to any
part of the gate.
Product Information
• No part of gate requires lubrication.
• Clean using warm, soapy water or a damp cloth.
• Do not use abrasive cleaners or bleach.
• If using outdoors, and to help prevent rust, treat gate
with a rust inhibitor.
Some rusting may still occur.
4
• Once installed the gate should be checked
periodically to ensure a safe and secure fit and to
maintain proper working order.
Extension Placement Guide
Extension Placement Guide for Premier Gateway Models G150 and G151
Note: Each G5.5 Kit contains two extensions Note: Each G12.5 Kit contains one extension
Width Opening Extensions What You Need Placement
29” – 31 ½” Basic Gate No extensions
31 ½” - 34 ½” Included with Gate Gate + 1 extension -on one end
34 ½” – 37” Gate + 2 extensions -1 on each end
37” – 40” 1 G5.5 Kit Gate + 3 extensions -2 on one end; 1 on other end
40” – 42 ½” Gate + 4 extensions -3 on one end; 1 on other end
42 ½” – 45” 2 G5.5 Kits Gate + 5 extensions -3 on one end; 2 on other end
45” – 47 ½” Gate + 6 extensions -3 on each end
47 ½” – 49 ½” 1 G12.5 Gate + 3 extensions -G12.5 on either end; 1 extension on each end
49 ½” – 52” 1 G12.5 + 1 G5.5 Kit Gate + 4 extensions - 1 G12.5 + 2 extensions on one end;
52” – 55” Gate + 5 extensions - 1 G12.5 + 2 extensions on one end;
55” – 57” 2 G12.5 Gate + 2 extensions -1 G12.5 on each end
57” – 60” Gate + 3 extensions -1 G12.5 on each end; 1 extension on one end
60” – 62” Gate + 4 extensions -1 G12.5 + 1 extension on each end
62” – 65” 2 G12.5 + 1 G5.5 Kit Gate + 5 extensions - 1 G12.5 + 1 extension on each end;
65” – 68” Gate + 6 extensions -1 G12.5 + 2 extensions on each end
68” – 70” 2 G12.5 + 2 G5.5 Kits Gate + 7 extensions -
70” – 73 ½” Gate + 8 extensions -1 G12.5 + 3 extensions on each end
Each end may have no more than 4 extensions.
Extensions must be added as shown.
1 extension on other end
2 extensions on other end
1 exten
sion on one end
1 G12.5 + 2 extensions on each end;
1 extension on other end

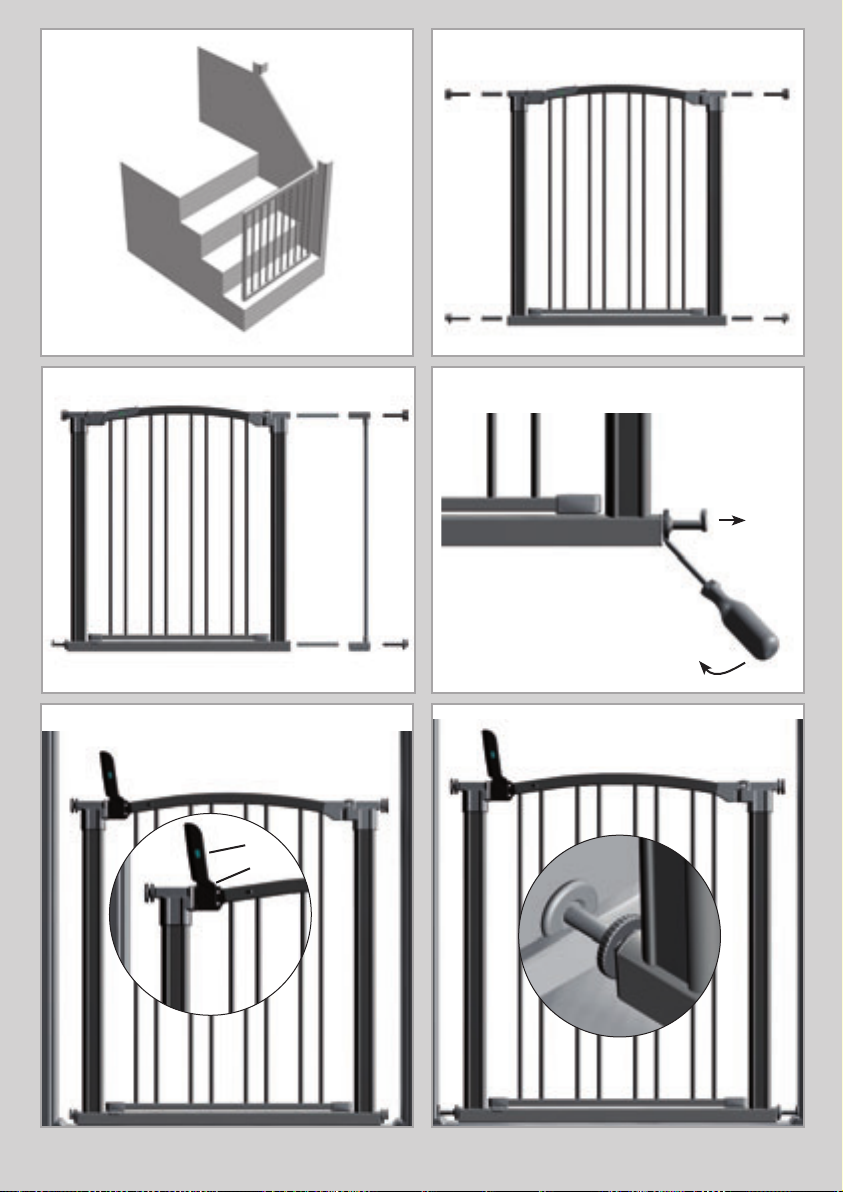

Installation
For further clarification, please see back of user
guide for corresponding drawings.
1. The gate must be installed in a structurally sound
opening. Never install between two railings or two stair
posts.
Ensure mounting surface (wall, doorframe, stair post,
etc.) is strong, rigid and is smooth, clean and grease
free.
If mounting onto brick, drywall or other surfaces,
an optional gate installation kit, wooden board
mounted to the surface or additional hardware may
be necessary to provide a solid, smooth surface.
Measure opening to determine if extensions are
needed. Correct width will be reached by adjusting all
4 corner spindles. Each spindle adjusts individually
and may be extended to varying lengths (up to 1¾”
each) to allow for molding, uneven walls, etc.
If using gate on a stairway, it must be placed on the
lowest stair on bottom.
2. Spindle attachment is different when using
extensions and when not using extensions.
If no extension/s are used, slide top spindles (b) and
bottom spindles (s) into spindle housing end with out
tab (c). Push assembly into gate corners.
3. If using extension/s, (see Extension Placement
Guide) insert square extension tubes (j) into gate ends.
Connect the bar (k) to one upper extension housing (h)
and one lower extension housing (i). Push assembly
over extension tubes.
There should be no metal showing from extension
tubes. It may be necessary to apply pressure to tubes
to ensure they are fully inserted into gate ends. Slide
top spindles (b) and bottom spindles (s) into extension
tubes.
4. Note:
Spindle housings are not used if square extension
tubes are necessary. If the housings have been
inserted, remove with a screwdriver.
5. Center the gate in opening with bottom rail resting
on floor. Gaps on each side should be equal.
Open the handle to the raised position by pressing the
buttons (r) and lifting the handle (n) at the same time.
BUTTONS MUST ALWAYS BE PRESSED IN WHEN
LIFTING HANDLE.
FAILURE TO DO SO WILL RESULT IN HANDLE
MECHANISM BREAKING.
5
Installation

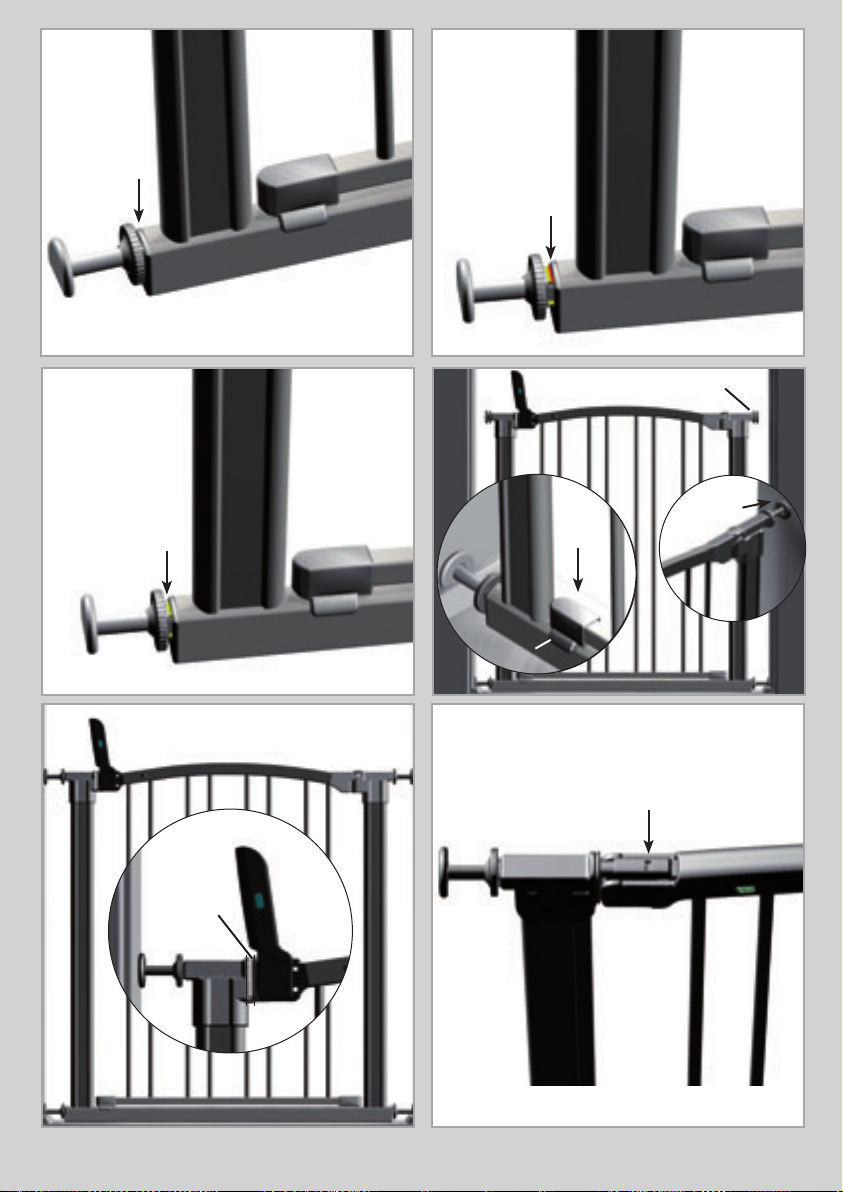

6. Pull out the two bottom spindles (s) until they touch
mounting surface and rest on top of floor molding
(if applicable). Tighten handwheels TOWARD GATE
FRAME as tightly as possible. Each spindle adjusts
individually and may be extended to varying lengths to
allow for molding, uneven walls, etc.
IMPORTANT: If gate is properly tightened the yellow
and red pressure indicators will be absent (6a). If the
RED pressure indicator is present further tightening is
required (6b). If yellow is still present, gate installation
is acceptable but additional tightening is encouraged
(6c).
7. Close walk through door so locator (l) is aligned
directly above bottom gate rail. Do not lower handle.
Pull out the top spindle (b) on the hinge side (m) until
it touches the mounting surface. Tighten handwheel
TOWARD GATE FRAME until locator drops and rests
on bottom gate rail.
Operation
10. To Open Gate.
Release locking mechanism by pressing buttons (r)
in while lifting handle. BUTTONS MUST ALWAYS
BE PRESSED IN WHEN LIFTING HANDLE. Lift walk
through door so hinge is raised and door will swing
open in either direction.
To Close Gate.
Lift walk through door. Position locator (l) until it is
above the bottom rail. Make sure hinge has dropped
down. Push handle down to lock.
Gate should always be in locked position when in
use.
8. Pull out spindle (b) in the handle side until it touches
mounting surface and tighten handwheel TOWARD
GATE FRAME so the distance between pressure plate
(o) and pressure hinge (area A) is sufficient for walk
through door to open in either direction.
9. IMPORTANT: There is a pressure indicator on the
handle. If gate is properly tightened yellow and red
indicators will be absent (9a). If RED is present further
tightening is required (9b). If yellow is still present, gate
installation is acceptable but additional tightening is
encouraged (9c).
11. Installation aid
KidCo has available OPTIONAL Y spindles (Model GY-1)
to assist in installation when the mounting surface has
a round baluster. These spindles are used in place of
the spindles included with the basic gate. They may be
ordered through your local KidCo dealer or direct from
KidCo.
No more than 2 Y spindles may be used per gate
and both must be used on the same side.
Warranty
Your KidCo product is warranted to be free from manufacturing defects for a period of one year from date of
purchase under normal non commercial use and in compliance with the operating instructions. This warranty
extends only to the original retail purchaser and is only valid when supplied with proof of purchase.
KidCo will either repair, or at our option replace, free of charge, any parts necessary to correct defects in
material or workmanship during the warranty period. This warranty is complete and exclusive. The warranty
expressly disclaims liability for incidental, special and consequential damages of any nature. Any implied
warranty arising by operation of law shall be limited in operation to the terms of this warranty. Some states
do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above may not apply to you. This warranty gives you specific legal rights, and
you may have other rights which vary from state to state.
Should a repair be needed during the warranty period, ship the gate in the original carton or similar protective
container (check any retail store or purchase from UPS) and send freight prepaid (we suggest UPS) to:
KidCo, Inc., 1013 Technology Way, Libertyville, IL 60048-5349.
Include a note with your return address, day-time telephone number, and specify what is wrong with the product.
Repairs can normally be made within 48 hours after receipt at KidCo. For additional information CALL our
customer service department at (800) 553-5529.
KIDCO LIMITED WARRANTY
SHOULD REPAIR OR PARTS BE NECESSARY
6
Loading...
