KS Tweeters Owner’s Manual

MODEL: KS13 / KS20 / KS25

Authorized KICKER Dealer:

Purchase Date:

Speaker Model Number:

KS TWEETERS

The KICKER KS series tweeters are specifi cally designed to bring out the high frequency defi nition of your
vehicle’s audio system. The KS tweeters can easily replace stock tweeters in factory locations and offer
several mounting options to deliver a wide range of applications for custom installations.

PERFORMANCE

Model: KS13 KS20 KS25

Tweeter Size, in (mm) 1/2 (13) 3/4 (20) 1 (25)
Dome Material PEI Aluminum Titanium
Magnet Type Neodymium Neodymium Neodymium
Impedance, (Rated DC Resistance) ohms 4 (3) 4 (3) 4 (3)
Power Handling Watts, Peak (RMS) 150 (75) 190 (95) 300 (150)
Sensitivity [SPLo], dB @ 1W, 1m 92 92 94
Effective Frequency Range, Hz 4,500-21k 4,500-21k 3,500-21k
Flush Mount Tweeter Depth, in (mm) 9/16 (14) 9/16 (14) 13/16 (21)
Flush Mount Tweeter Hole Diameter, in (mm) 1 9/16 (40) 1 9/16 (40) 1 15/16 (49)
High Pass, dB, @ Hz 12, 4,500 12, 4,500 18, 3,500

WIRING

We recommend using 16 gauge (or larger) wire. The KS Tweeters are rated at 4 ohms and work with
any source unit or amplifi er designed to operate at a 4 ohm load. Make sure your source unit or

amplifi er is rated for 4 ohm operation.

source unit / amplifi er

-

OUTPUT

+

2

2011 KS Tweeters Multilingual f01.indd 22011 KS Tweeters Multilingual f01.indd 2 9/15/2010 8:52:55 AM9/15/2010 8:52:55 AM

KS Tweeter Crossover KS Tweeter

-

+

KS Tweeters

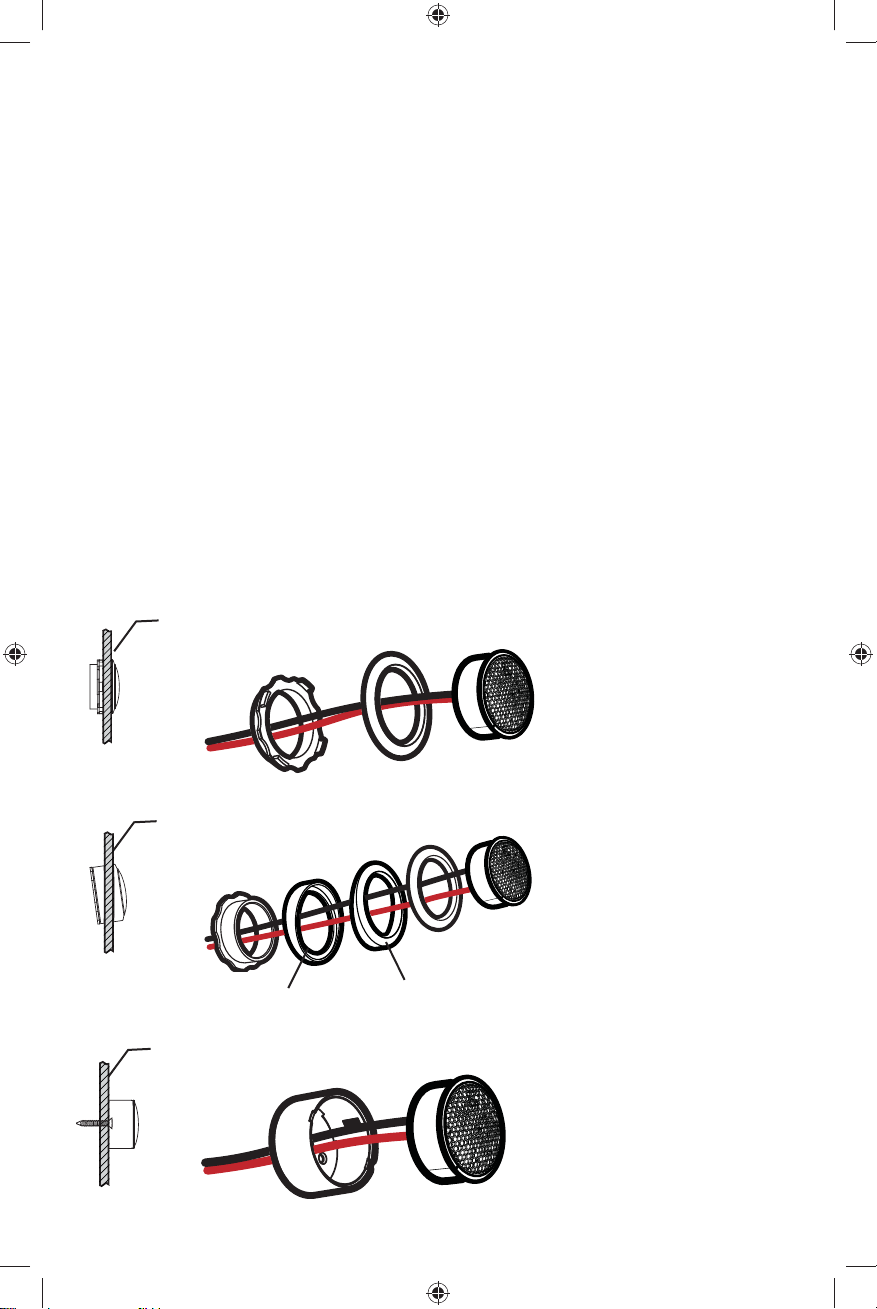

TWEETER MOUNTING

The tweeter can be mounted one of three ways: fl ush, angled and surface. For fl ush mounting
applications, see Fig. 2. Choose a fl at location on the panel with space behind the panel to allow room
for the short mounting nut, motor structure, and tweeter. After checking the clearances, cut a 1-3/4”
(44mm) diameter mounting hole in the panel. Position the short mounting nut behind the panel. Feed the
wire through the optional fl ush ring, the hole in the panel, and the mounting nut. Mount the tweeter by
screwing the mounting nut onto the tweeter.

For angled mounting applications choose a fl at location on the panel with space behind the panel to allow
room for the long mounting nut, motor structure, tweeter post, and back angle ring. After checking the
clearances, cut a 1-3/4” (44mm) diameter mounting hole in the panel. Place the front angle ring in front of
the panel. Then place the wire and tweeter through the front angle ring and into the panel. Next, place the
wire through the back angle ring, place the back angle ring over the rear of the tweeter, and line-up the
narrow part of the front angle ring for the preferred angle of operation. Place the wire through the mounting
nut and loosely tighten the mounting nut around the tweeter. Rotate all the parts in unison until the tweeter
is angled in the desired direction. Secure the assembly by tightening the mounting nut. See Fig. 3.

For surface mounting applications use the surface mount cup as a template and pre-drill one 7/64”
(2.5mm) screw hole (using two holes is optional) for attaching the surface mount cup to the panel and
a 5/16” (8mm) hole for the wires. An M3 pan-cross head wood screw is supplied to attach the surface
mount cup to the panel. Position the tweeter over the surface mount cup and screw it into position. See
Fig. 4.

panel

short mounting nut

panel

long mounting nut

panel

front angle ring

back angle ring

inset surface

surface mount cup

fl ush ring

rounded surface

tweeter

Fig. 2
Flush Mounting

tweeter

Fig. 3
Angle Mounting

fl ush ring

tweeter

Fig. 4
Surface Mounting

3

2011 KS Tweeters Multilingual f01.indd 32011 KS Tweeters Multilingual f01.indd 3 9/15/2010 8:52:55 AM9/15/2010 8:52:55 AM

ACOUSTICS LIMITED WARRANTY

KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of
THREE (3) MONTHS from date of original purchase with receipt. When purchased from an Authorized KICKER Dealer it
is warranted for ONE (1) YEAR from date of original purchase with receipt. In all cases you must have the original receipt.
Should service be necessary under this warranty for any reason due to manufacturing defect or
malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise
with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blemishes.
Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original
purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied
warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the
original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some
states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty
gives you specifi c legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty
service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs
directly. You can confi rm that a dealer is authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER
Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package only
the defective items in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband St, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective Coaxs. The return
of functioning items increases your return freight charges. Non-defective items will be returned freightcollect to you. For
example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the
original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing the Customer’s name,
Dealer’s name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will
be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or
COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:
o Damage due to improper installation
o Subsequent damage to other Coaxs
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be
considered abuse
o Any cost or expense related to the removal or reinstallation of product
o Speakers damaged due to amplifi er clipping or distortion
o Items previously repaired or modifi ed by any unauthorized repair facility
o Return shipping on non-defective items
o Products with tampered or missing barcode labels
o Products returned without a Return Merchandise Authorization (RMA) number
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of 48-hour service for all acoustics (subwoofers, midrange drivers, tweeters,
crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to
follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department
at [phone]. Contact your International KICKER dealer or distributor concerning specifi c procedures for your
country’s warranty policies.

Note: All specifi cations and performance fi gures are subject to change. Please visit www.kicker.com for the
most current information. To get the best performance from your new KICKER speakers, we recommend using
genuine KICKER accessories and wiring. Please allow two weeks of break-in time for the speakers to reach optimum
performance.
