Installation Note
11884D 6 GHz Operation Upgrade Kit for
the 8752C Network Analyzer
Part Number: 08752-90145
Printed in USA
August 2001
Supersedes June 1995
© Copyright 1995, 2001 Agilent Technologies, Inc

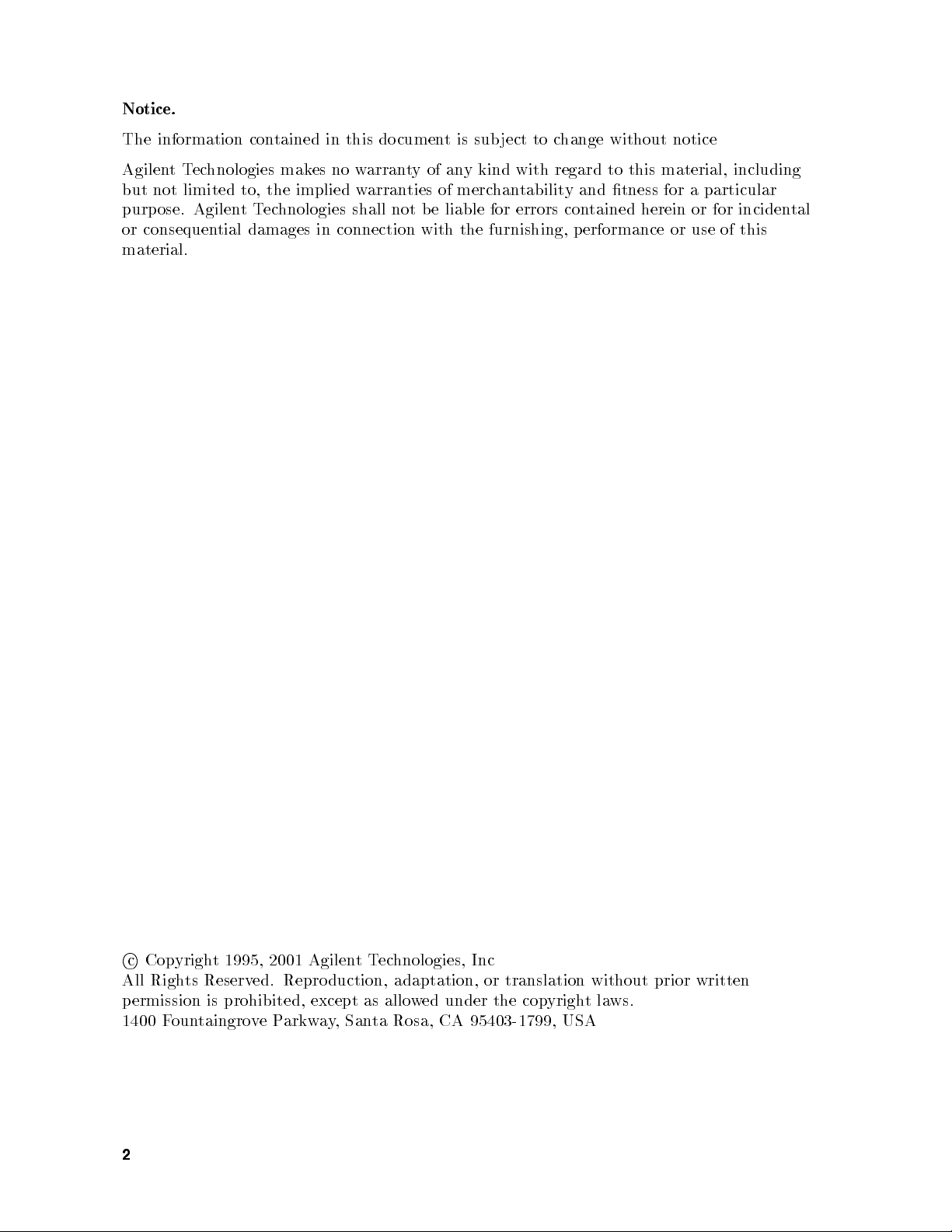

Notice.
The information contained in this do cument is sub ject to change without notice
AgilentTechnologies makes no warrantyofany kind with regard to this material, including
but not limited to, the implied warranties of merchantability and tness for a particular
purpose. AgilentTechnologies shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance or use of this
material.
c
Copyright 1995, 2001 AgilentTechnologies, Inc
All Rights Reserved. Reproduction, adaptation, or translation without prior written
permission is prohibited, except as allowed under the copyrightlaws.
1400 FountaingroveParkway, Santa Rosa, CA 95403-1799, USA
2

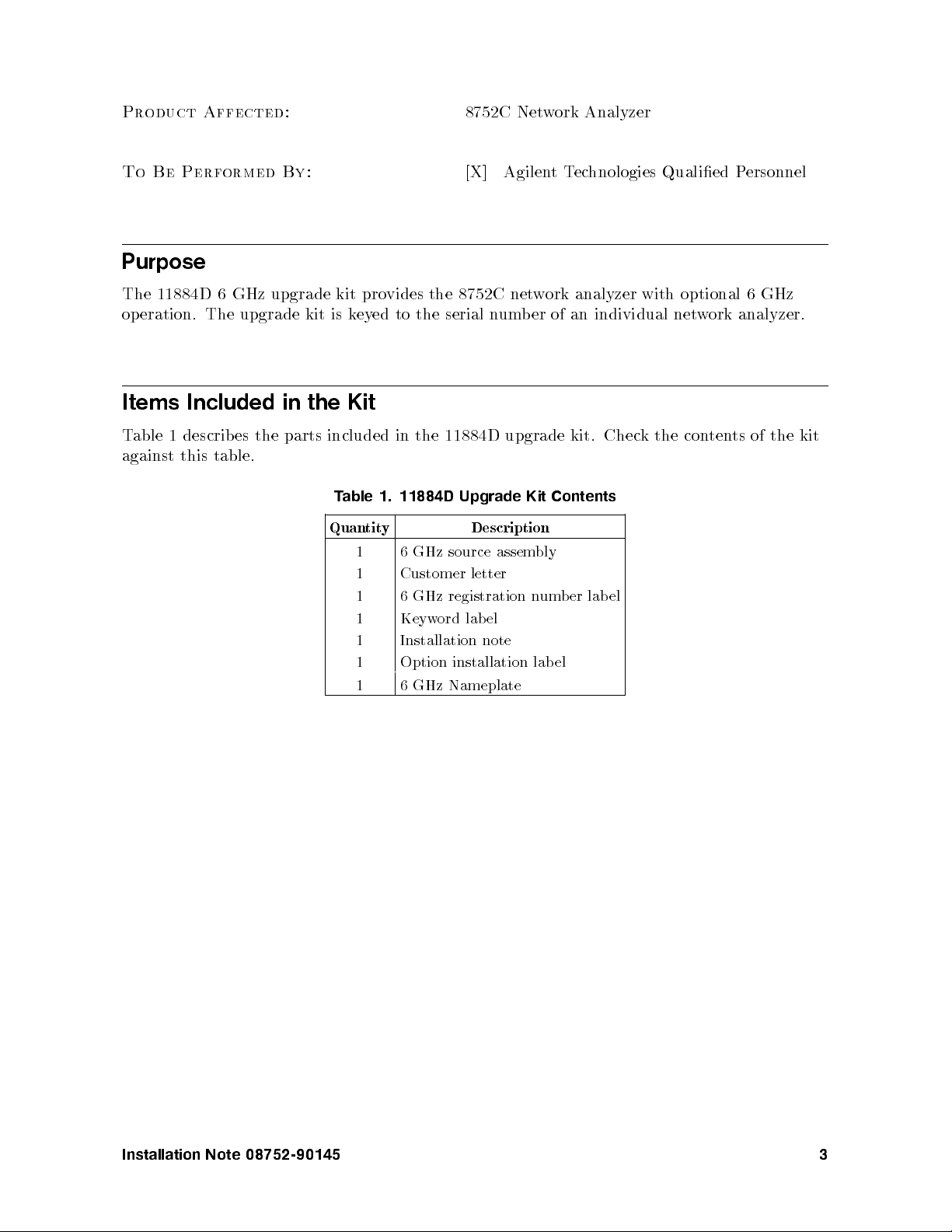

Product Affected:
8752C Network Analyzer
To Be Performed By:
Purpose
The 11884D 6 GHz upgrade kit provides the 8752C network analyzer with optional 6 GHz
operation. The upgrade kit is keyed to the serial number of an individual network analyzer.
Items Included in the Kit
Table 1 describes the parts included in the 11884D upgrade kit. Check the contents of the kit
against this table.
Table 1. 11884D Upgrade Kit Contents
Quantity Description
1 6 GHz source assembly
1 Customer letter
1 6 GHz registration number label
1 Keyword label
1 Installation note
1 Option installation lab el
1 6 GHz Nameplate
[X] AgilentTechnologies Qualied Personnel
Installation Note 08752-90145 3

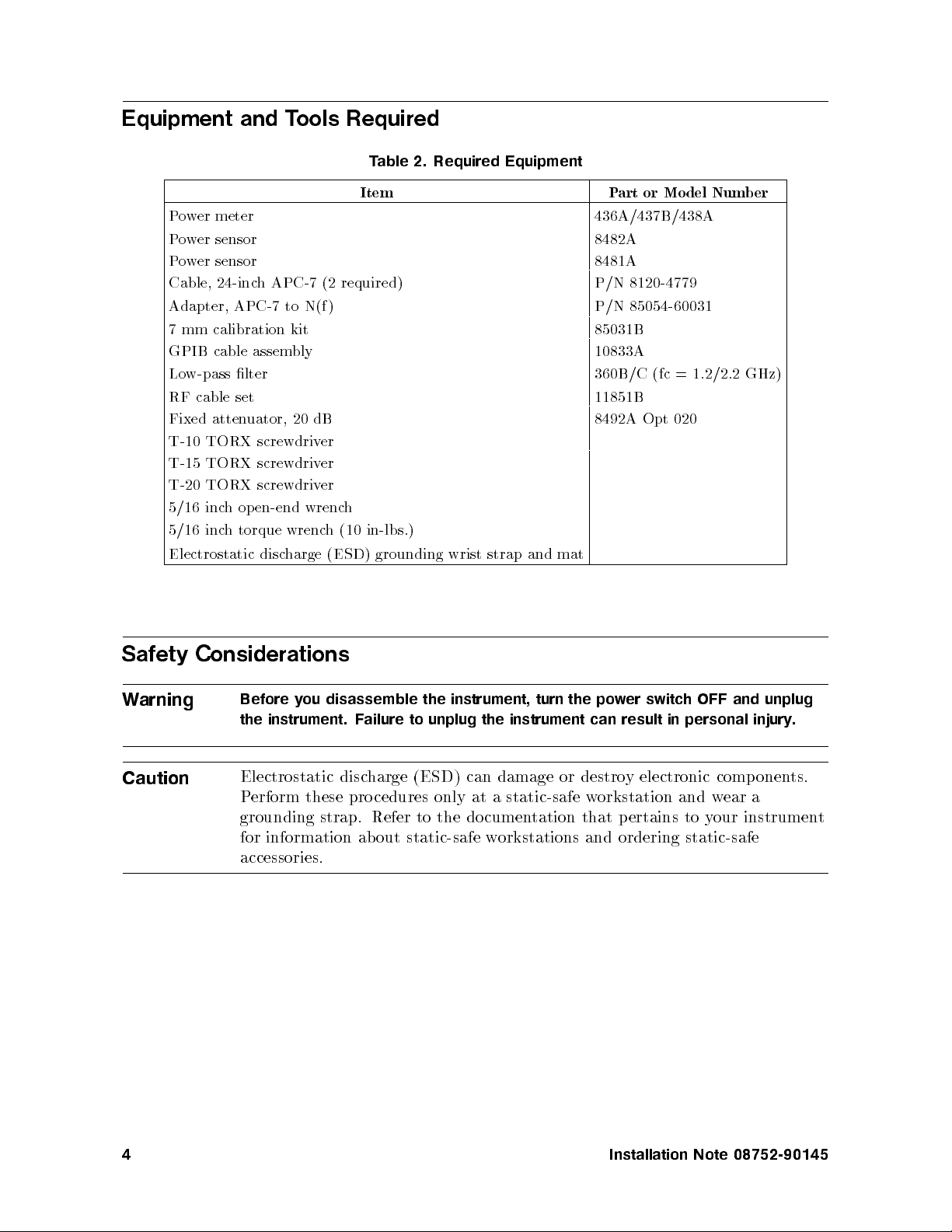

Equipment and Tools Required
Table 2. Required Equipment
Item Part or Model Number
Power meter 436A/437B/438A
Power sensor 8482A
Power sensor 8481A
Cable, 24-inch APC-7 (2 required) P/N 8120-4779
Adapter, APC-7 to N(f ) P/N 85054-60031
7 mm calibration kit 85031B
GPIB cable assembly 10833A
Low-pass lter 360B/C (fc = 1.2/2.2 GHz)
RF cable set 11851B
Fixed attenuator, 20 dB 8492A Opt 020
T-10 TORX screwdriver
T-15 TORX screwdriver
T-20 TORX screwdriver
5/16 inch op en-end wrench
5/16 inch torque wrench (10 in-lbs.)
Electrostatic discharge (ESD) grounding wrist strap and mat
Safety Considerations
Warning
Before you disassemble the instrument, turn the power switch OFF and unplug
the instrument. Failure to unplug the instrument can result in personal injury
Caution
Electrostatic discharge (ESD) can damage or destroy electronic comp onents.
Perform these procedures only at a static-safe workstation and wear a
grounding strap. Refer to the do cumentation that pertains to your instrument
for information ab out static-safe workstations and ordering static-safe
accessories.
.
4 Installation Note 08752-90145
