Page 1

Vector Network Analyzer

SELECTION GUIDE

Page 2

Table of Contents

Gain Deeper Confidence 3

Keysight VNA Solutions 4

Active Component Evaluation and Test 6

Passive Component Evaluation and Test 8

General Purpose, Education 10

Manufacturing 13

High-Speed Serial Interconnect Analysis 15

Installation and Maintenance 16

Related Network Analyzer Products and Accessories 17

Key Performances and Functions Comparison 19

Migration and Upgrades 23

Related Literature 24

Web Resources 25

Find us at www.keysight.com

Page 2

Page 3

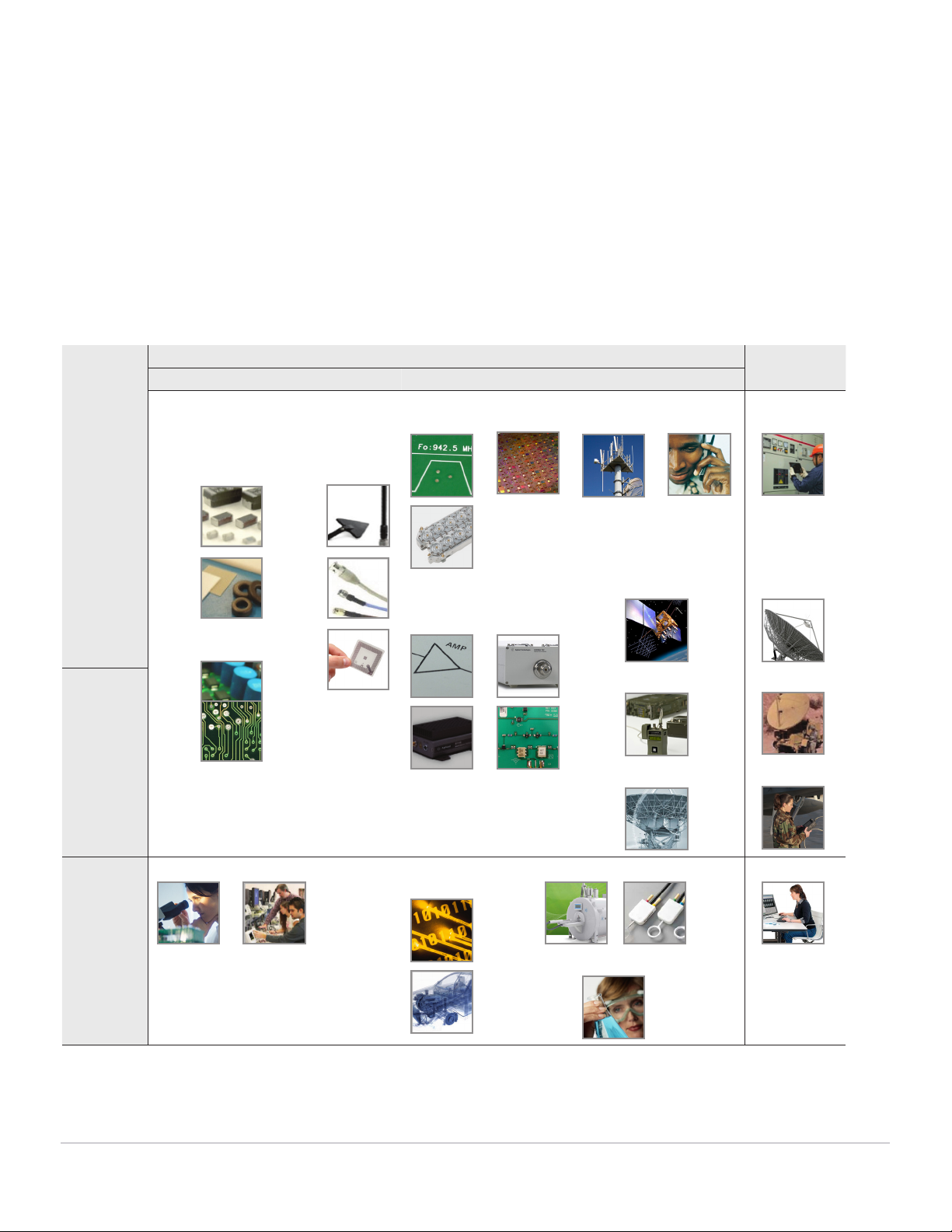

Gain Deeper Confidence

Whether you’re testing active or passive components, the right mix of speed and performance gives you an edge. In R&D, our vector network analyzers (VNAs) provide a level of measurement integrity that helps you transform deeper understanding into better designs. On the production line, our cost-effective VNAs provide the throughput and repeatability you need to transform parts into competitive components. Every Keysight Technologies, Inc. VNA is the ultimate expression of our expertise in linear and nonlinear device characterization. On the bench, in a rack or in the field, we can help you gain deeper confidence.

Physical measurement ecosystem

Wireless

Aerospace and Defense

Manufacturer

Device/Material Component Module/Sub-System Set/System

Capacitors

Inductors

Ferrite beads Registers

PCB

Material

Antenna

Cable

Connector

Adapter

Oscillator

Filter BTS Filter

Front End

Module

BTS

Amplifiers

LNA

Mixer

Frequency

Converter

Satellite Ground Station

P2P Comm.

Radar

Handset

Operator

Backhaul Comm.

Ground Station

Military Comm.

BTS

Radar

Research

Industry Science Medical

Find us at www.keysight.com

Teachin g

HSD Comm.

Component

Diagnosis System & Component

Medical & Industrial Process

Diagnosis

Page 3

Page 4

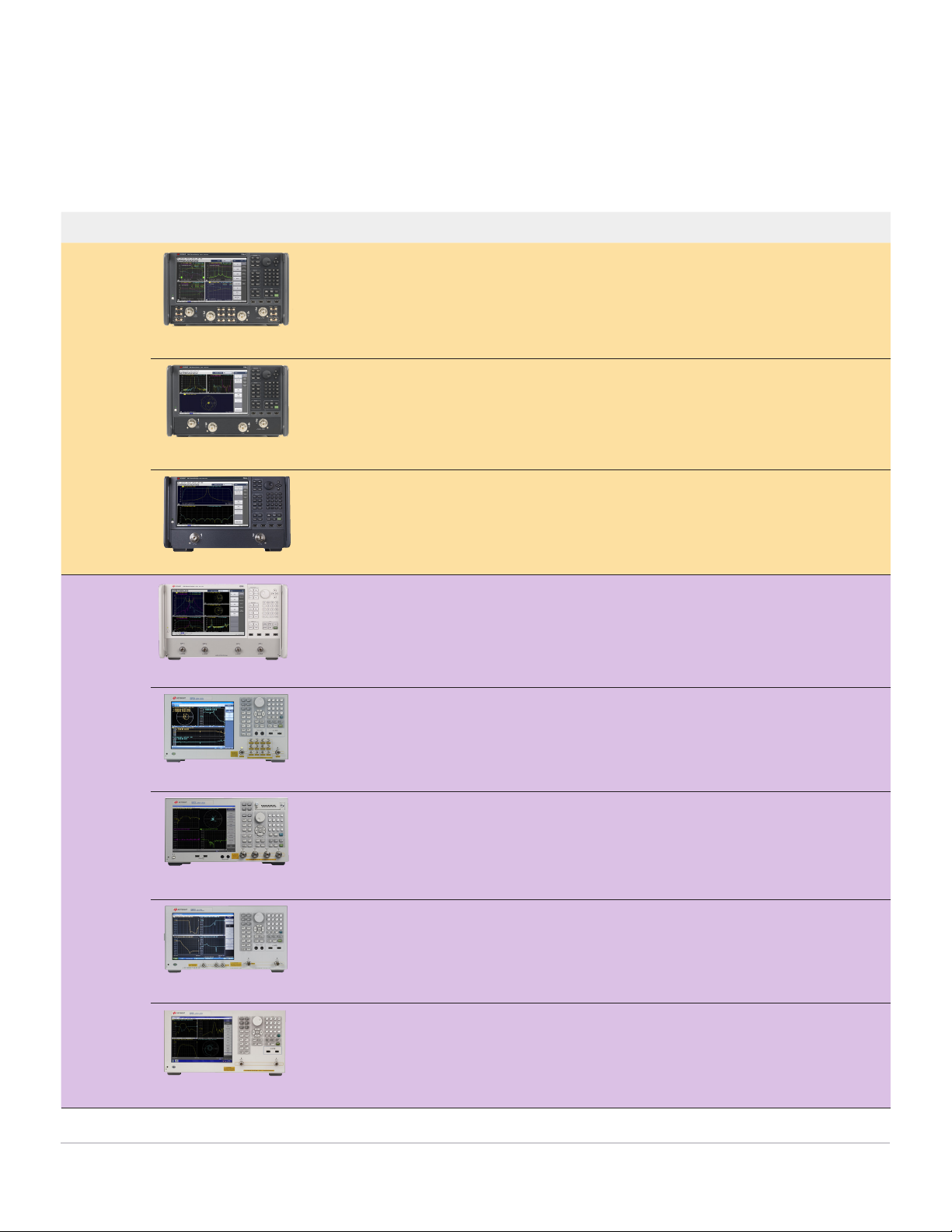

Keysight VNA Solutions

Keysight of fers a variety of vector network analyzers with frequency, performance, and versatility to meet your measurement needs.

To help you determine which solution is right for you, this selection guide provides an overview and side-by-side comparison of all our network analyzers. In addition, you will find typical network analyzer applications, the measurement needs for those applications, and how Keysight’s network analyzers meet those needs.

Model Typical application Frequency range

PNA Family

Reach for unrivaled excellence

N524xB PNA-X Series

Most advanced and flexible VNA

N522xB PNA Series

High performance microwave VNA

– Replace an entire rack

of equipment with one instrument

– Complete linear

and nonlinear active device characterization

– Highest performance passive

component analysis

– Active components

characterization

– Metrology and cal lab

– 10 MHz to 8.5/13.5/26.5/

43.5/50/67 GHz – Up to 1.5 THz with extenders – 900 Hz start frequency avail-

able on N5242B/45B/47B

– 10 MHz to 13.5/26.5/

43.5/50/67 GHz – Up to 1.5 THz with extenders – 900 Hz start frequency

available on N5222B/27B

ENA

Drive down the cost of test

N523xB PNA-L Series

Economy microwave VNA

E5080A ENA

High performance RF VNA with modern GUI

E5072A ENA

High performance RF VNA with configurable test set

E5 071C EN A

High performance RF VNA

E5 061B ENA

LF-RF VNA with impedance analysis function Low cost RF VNA

– Microwave S-parameter test – Signal integrity – Material measurements

– RF component test – High-rejection filter test – Multiport module test

– RF amplifier test – High-power RF component

test

– PIM measurements

– RF component test – Multiport module test – Material measurements – Signal integrity

– LF component/circuit test – Component Z evaluation – RF component test – CATV component test

– 300 kHz to 8.5/13.5/ 20 GHz – 10 MHz to 43.5/50 GHz

– 9 kHz to 4.5/6.5/9 GHz

– 30 kHz to 4.5/ 8.5 GHz

– 9 kHz to 4.5/6.5/ 8.5 GHz – 300 kHz to 14/20 GHz

– 5 Hz to 0.5/1.5/3 GHz – 100 kHz to 1.5/3 GHz

Find us at www.keysight.com

E5063A ENA

Low-cost RF VNA for passive component test

– Antenna manufacturing test – RF passive component test – Material measurements – PCB manufacturing test

– 100 kHz to 0.5/1.5/3/4.5/6.5/

8.5/14/18 GHz

Page 4

Page 5

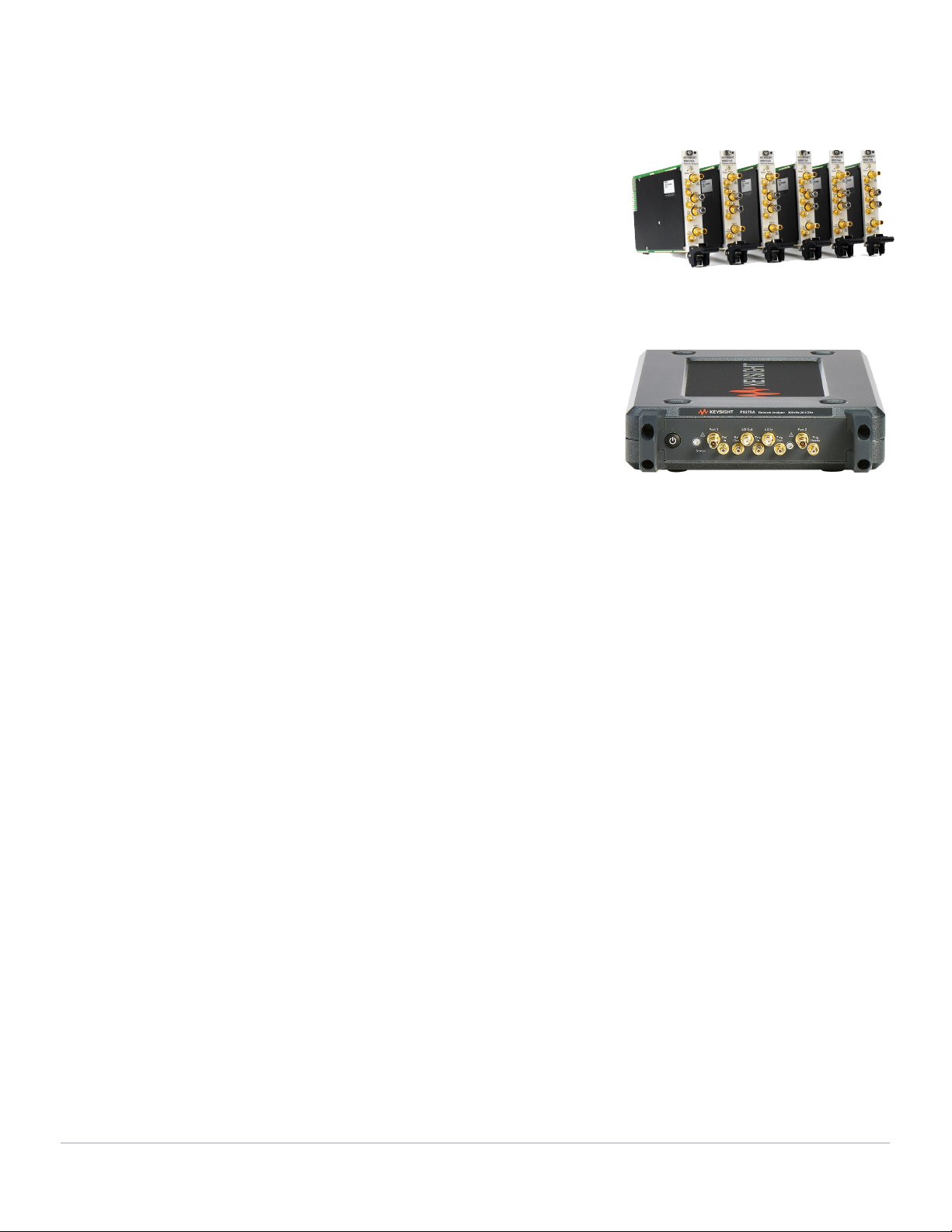

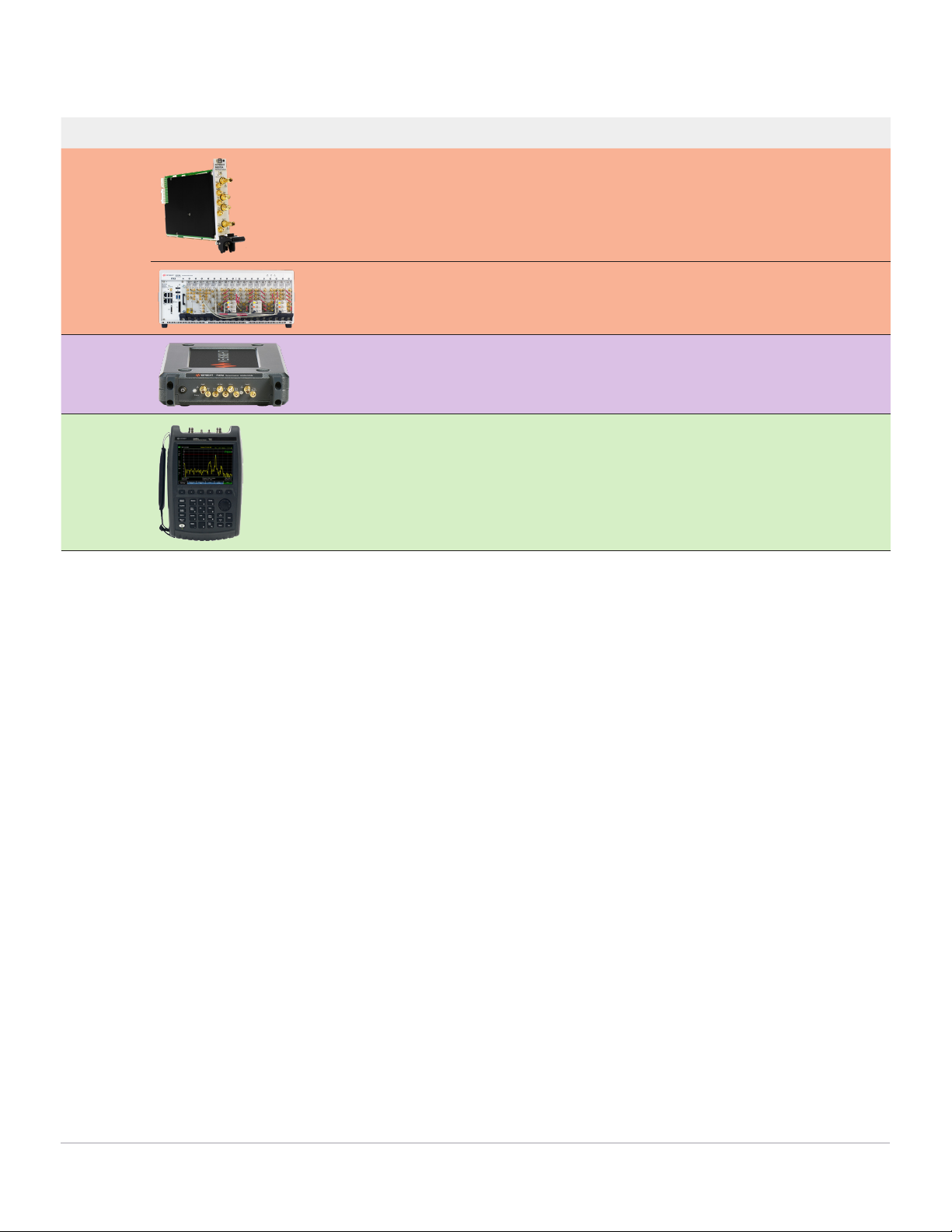

Keysight VNA Solutions (continued)

Model Typical application Frequency range

M937xA

Full 2-port VNA that fits in just one-slot

PXI VNA

Drive down the size of test

M9485A

High-performance multiport VNA

– Multiport module test – Multi-site (parallel) manufac-

– 300 kHz to

4/6.5/9/14/20/26.5 GHz

turing test

– Multiport module test – 1 MHz to 9 GHz

USB VNA

Compact Form. Zero Compromise

FieldFox

Carr y precision with you

P937xA

Compact 2-port USB VNA

Handheld RF and Microwave Analyzers

Handheld analyzer

– Manual test of passive

components

– General purpose manufactur-

ing test

– Wireless installation and

maintenance

– Interference detection

– 300 kHz to

4.5/6.5/9/14/20/26.5 GHz

– 30 kHz to

4/6.5/9/14/18/26.5 GHz

– 300 kHz to 32/44/50 GHz

Find us at www.keysight.com

Page 5

Page 6

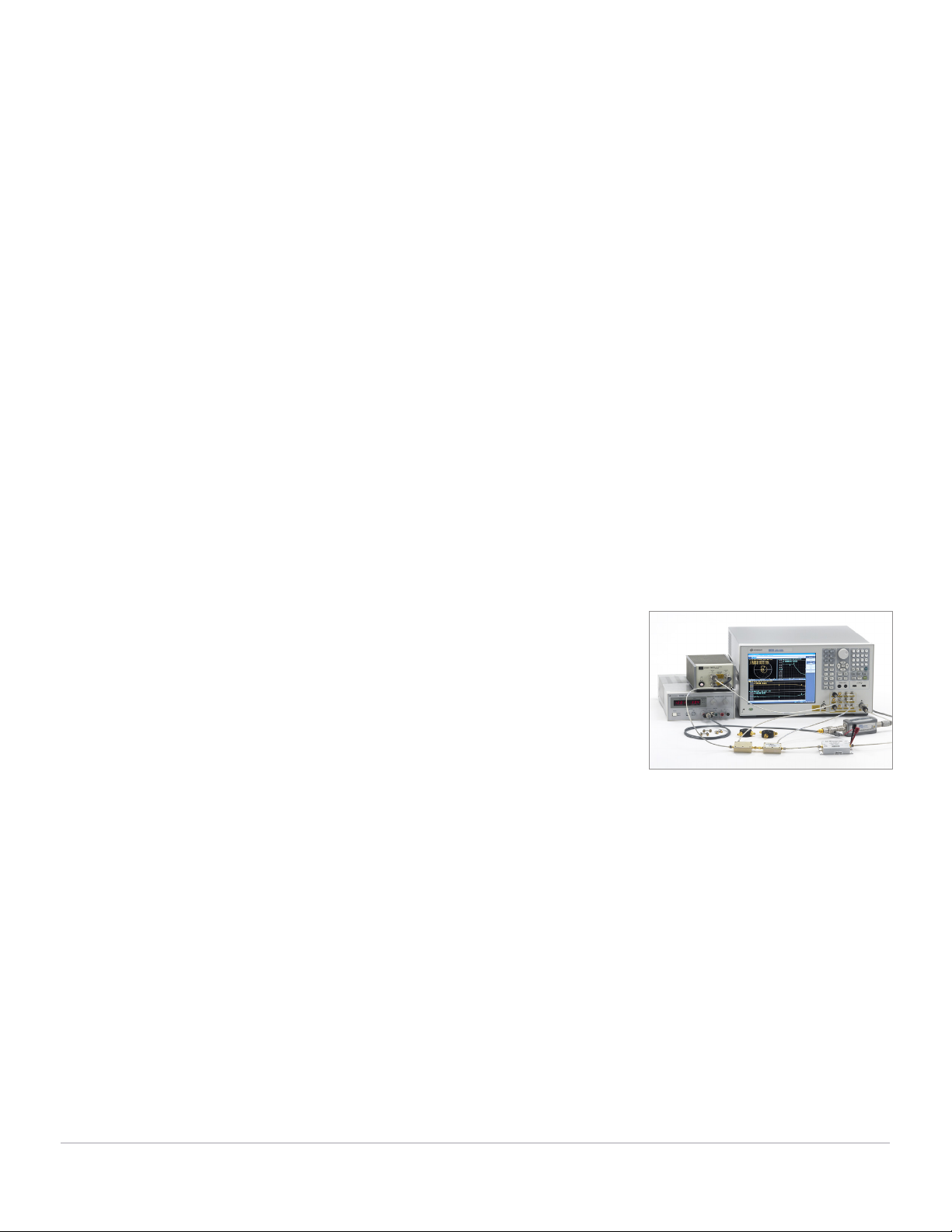

Active Component Evaluation and Test

Measurement challenges

Keysight vector network analyzers can be used to characterize and test active components, such as amplifiers, mixers, and frequency converters. They can easily measure commonly specified amplifier parameters such as gain, gain and phase compression, isolation, return loss, and group delay. Harmonic distortion is often used to understand an amplifier’s nonlinear behavior, and requires the receiver to be tuned at a different frequency from the source. Frequency-translating devices, such as mixers and frequency converters present unique measurement challenges because their input and output frequencies are dif ferent. Network analyzers used for testing these devices need to have a frequency-of fset mode (FOM) to detect output frequencies different from the input. Additional instruments and signal conditioning devices may be required for testing with two-tone, higher input and output power, or for other types of measurements including noise figure, ACPR, and EVM. As a result, the test system becomes complicated or requires multiple stations.

Our solutions

Keysight of fers a wide range of flexible and af fordable test solutions for vector network analysis of active components. Keysight’s VNAs are designed for linear and nonlinear characterization with the highest accuracy. In addition to high performance, a variety of measurement applications simplifies setup, reduce test time, and improve measurement accuracy.

Key features

– Amplifier gain, match and isolation:

S-parameter measurements

– AM-AM and AM-PM conversion: power

sweep, source and receiver calibration

– High power/pulse configurability:

configurable test set, high output power, source and receiver attenuators, internal pulse generators, external pulse generator control, internal pulse modulators

– Frequency-converter conversion

gain/loss: FOM, source and receiver calibration, scalar mixer calibration

– Frequency-converter conversion

phase/group delay: FOM, magnitude and phase calibration, vector mixer calibration

– LO drive/measurements: second

internal source, external RF source control, 3-port calibration and measurements, LO power calibration

– Mixer topology: swept-RF, swept/

fixed- LO (fixed-IF/swept-IF), dual-stage converter, converter with embedded LO

– Accurate source power output and

absolute power measurements: source and receiver calibration, power-sensormismatch correction, receiver leveling

– Harmonic distortion: FOM, source

and receiver calibration, low source harmonics, receiver attenuator

– Intermodulation-distortion (IMD):

FOM, second internal source, external source control, internal combining

network, swept-IMD – Noise figure measurements – Hot-S22 measurements: FOM, second

internal source, internal combining

network – Power-added efficiency: DC inputs

and/or DC meter control – DC bias: internal DC bias source/DC

source control/internal bias-tee – Active hot parameters: removal of

system-to-system correlation problem – Nonlinear vector network analysis

(NVNA): waveform analysis,

X-parameters

Find us at www.keysight.com

Page 6

Page 7

Active Component Evaluation and Test (continued)

Models Features

Amplifier gain, match, isolation

PNA-X

PNA

PNA-L

E5080A

E5072A

E507 1C

E5061B LF

E5061B RF

M9485A

FieldFox

1. Includes configurable test set, high-output power, source at tenuator, and receiver attenuator

2. Includes swept-frequency gain compression, two-tone IMD, pulse, noise figure measurements for amplifiers and frequency conver ters

3. Receiver attenuator not available

4. Requires external pulse generators and modulators

Amplifier AM-AM, AM-PM conversion

High-power configure-ability

Pulse DC bias/

DC input

FOM, conversion gain/loss/ phase/group delay

Setup wizard/ Quick start

           

         

  



  



 

       

 



5. Built-in DC bias source, no bias tee

6. Conversion phase/group delay not available

7. Requires 4-port PNA

8. Scalar FOM using USB power sensor or spectrum analyzer functionality

Active measurement applications

Spectrum Analysis

Two internal sources

Internal combiner/ path switches

NVNA

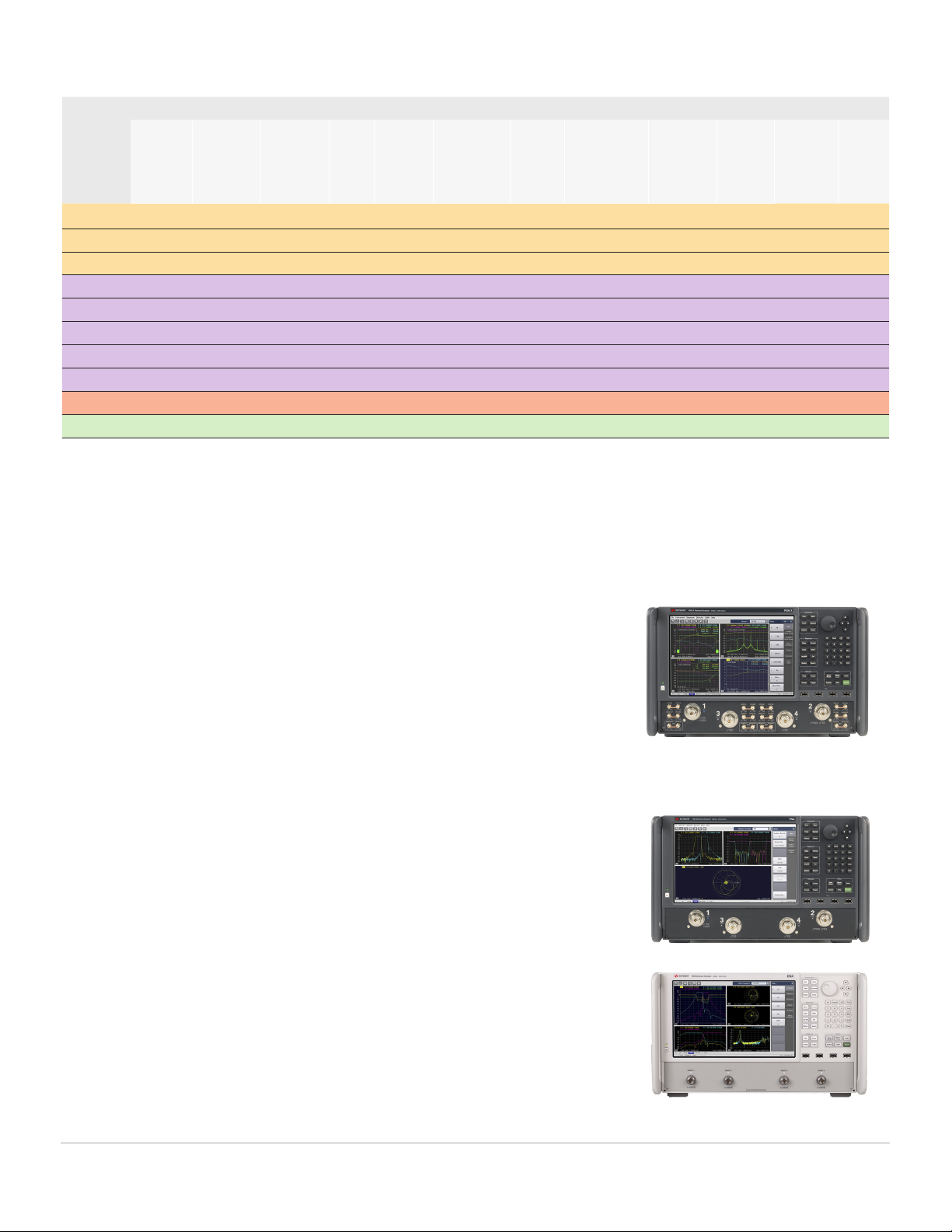

Typical solutions

Most integrated and flexible

N524xB PNA-X Series microwave network analyzer

– 10 MHz to 8.5/13.5/26.5/43.5/50/67 GHz, 2- or 4-ports

(900 Hz star t frequency available on N5242B/45B/47B)

– Two internal sources with low harmonics, combining network, pulse

generators/modulators, and low-noise receiver

– Internal path configuration switches for multiple measurements with a single

connection

– Amplifier and converter applications for simple setup, faster measurements and

improved accuracy

Highest performance

N522xB PNA Series microwave network analyzer

– 10 MHz to 13.5/26.5/43.5/50/67 GHz, 2- or 4-ports

(900 Hz star t frequency available on N5222B/27B) – Two internal sources (4-port only) and pulse generators/modulators – Highest RF performance and accuracy – Amplifier and converter applications for simple setup, faster measurements and

improved accuracy

RF standard with flexibility

E5080A ENA vector network analyzer

– 9 kHz to 4.5/6.5/9 GHz, 2- or 4-port – Wide power sweep range (-90 to +15 dBm) – Frequency Of fset Mode, Scalar Mixer measurement, and Vector Mixer

Characterization

Find us at www.keysight.com

Page 7

Page 8

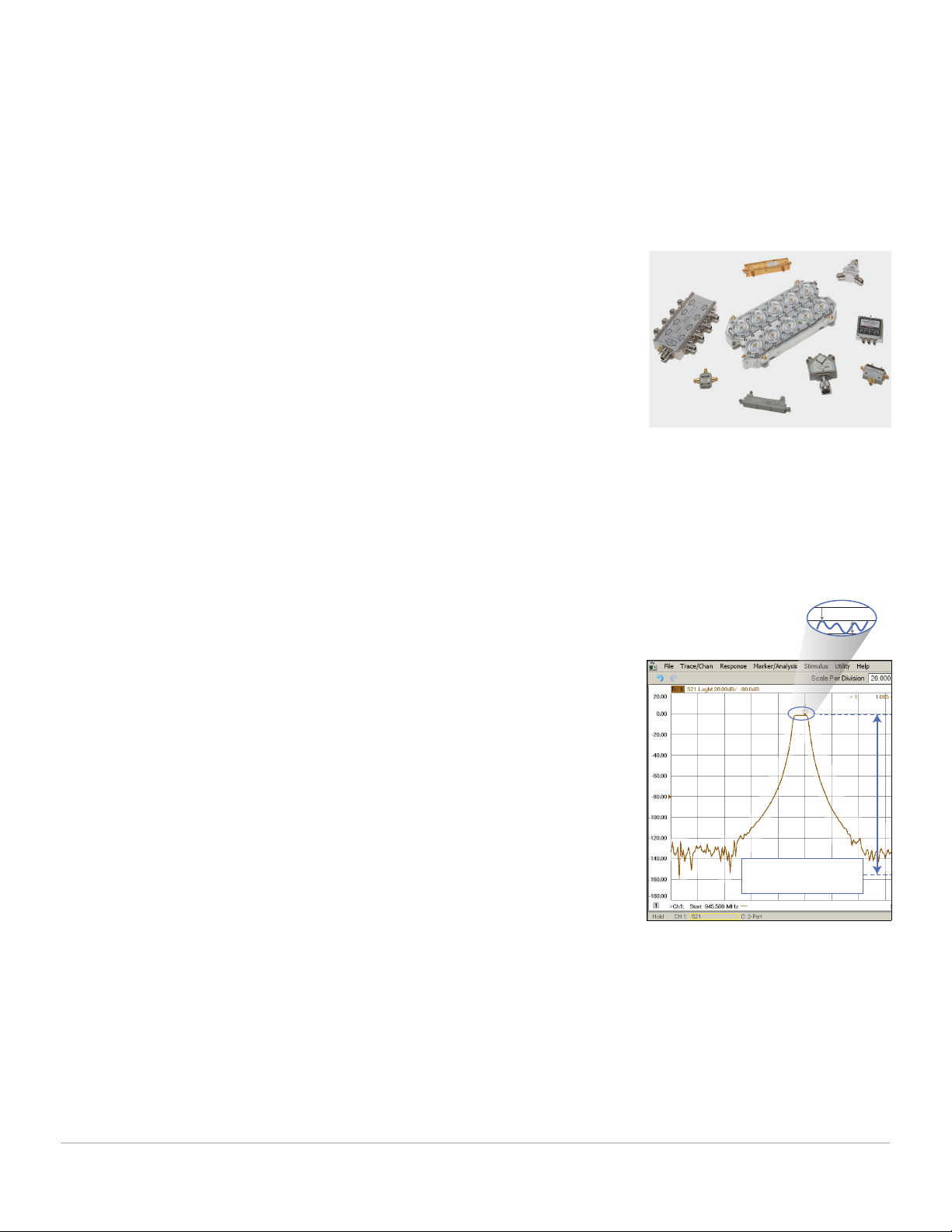

Passive Component Evaluation and Test

Measurement challenges

For quality communications systems, high performance passive devices such as filters, combiners, switches, and transmission lines often require low ripple and low insertion loss in the pass band, and high rejection ratios in the stop band. Devices are sometimes used in balanced circuits and therefore have multiple input and output ports that complicate measurement-system configurations. For these devices, the key measurement challenge is to easily get accurate data, as fast as possible. Wide measurement-frequency range is required to characterize multi-band operation.

Our solutions

Keysight VNAs have a broad frequency range; from 5 Hz to 1.5 THz. Low trace noise, advanced calibration techniques, and good stability help evaluate your passive components with the required accuracy. VNAs with a configurable test set allow direct receiver access, improving system dynamic range for more accurate and faster device measurements. Multiple traces can be displayed in different formats, and various marker searches including filter parameters and trace-math functions are available for easy analysis.

Key features

– Wide dynamic range: fast and

accurate filter measurements

– Wide frequency range: covers in-

and out-of-band characteristics

– Direct receiver access: obtain widest

possible dynamic range

– Low-cost solution: just enough

performance and function for your test

– Low trace noise and high stability:

high quality device measurements

– Unknown-thru calibration: easy

and accurate non-insertable device measurements

– Adapter removal/characterization:

accurate mixed-connector device measurements

– Balanced S-parameter measurements:

accurate measurements without balun

– Multiport/Multi-site solutions: easy

multiport or multiple DUT evaluation

– Full N-port calibration: mismatch-

corrected accurate multiport measurements

– Metrology option: highest accuracy

and stability for metrology-grade component evaluation

– Time domain analysis/gating

function: troubleshooting and simple simulation

– Trace analysis functions using marker

and trace math

Accurate measurements of low insertion loss and low ripple require a VNA with low trace noise and high stability.

High rejection requires large dynamic range

Find us at www.keysight.com

Page 8

Page 9

Passive Component Evaluation and Test (continued)

Models Features

MIN/MAX frequency in the series

PNA-X 10 MHz/67 GHz > 130

PNA 10 MHz/67 GHz > 130

PNA-L 300 kHz/50 GHz > 130

E5080A 9 kHz/9 GHz > 135

E5072A 30 kHz/8.5 GHz > 120

E507 1C 9 kHz/20 GHz > 120

E5061B LF 5 Hz/3 GHz > 120 0.003

Wide dynamic range (dB)

Extended dynamic range by direct receiver access



 



Affordable cost



Trace noise at 1 kHz IFBW

(dB rms)

0.002

0.004

0.0005

0.0004

Unknown thru calibration

   

 

   

Adapter removal/ characterize function



Balanced S-parameters

Multiport solutions

Max # of full-port cal

> 4

Metrology option



E5061B RF100 kHz/3 GHz > 120

E5063A 100 kHz/18 GHz > 115

M937xA 300 kHz/

26.5 GHz

M9485A 1 MHz/9 GHz > 130

P937xA

FieldFox 30 kHz/50 GHz > 95

1. Calculated based on the specification at dif ferent IFBW set tings

2. 1-port differential measurements

3. A 4-por t net work analyzer can be configured with two P937x A USB VNAs.

4. Trace noise at 1 GHz with 300 kHz IFBW

300 kHz/26.5 GHz

> 115

 

> 115



0.003

0.0006

0.003

0.004

 

   

 

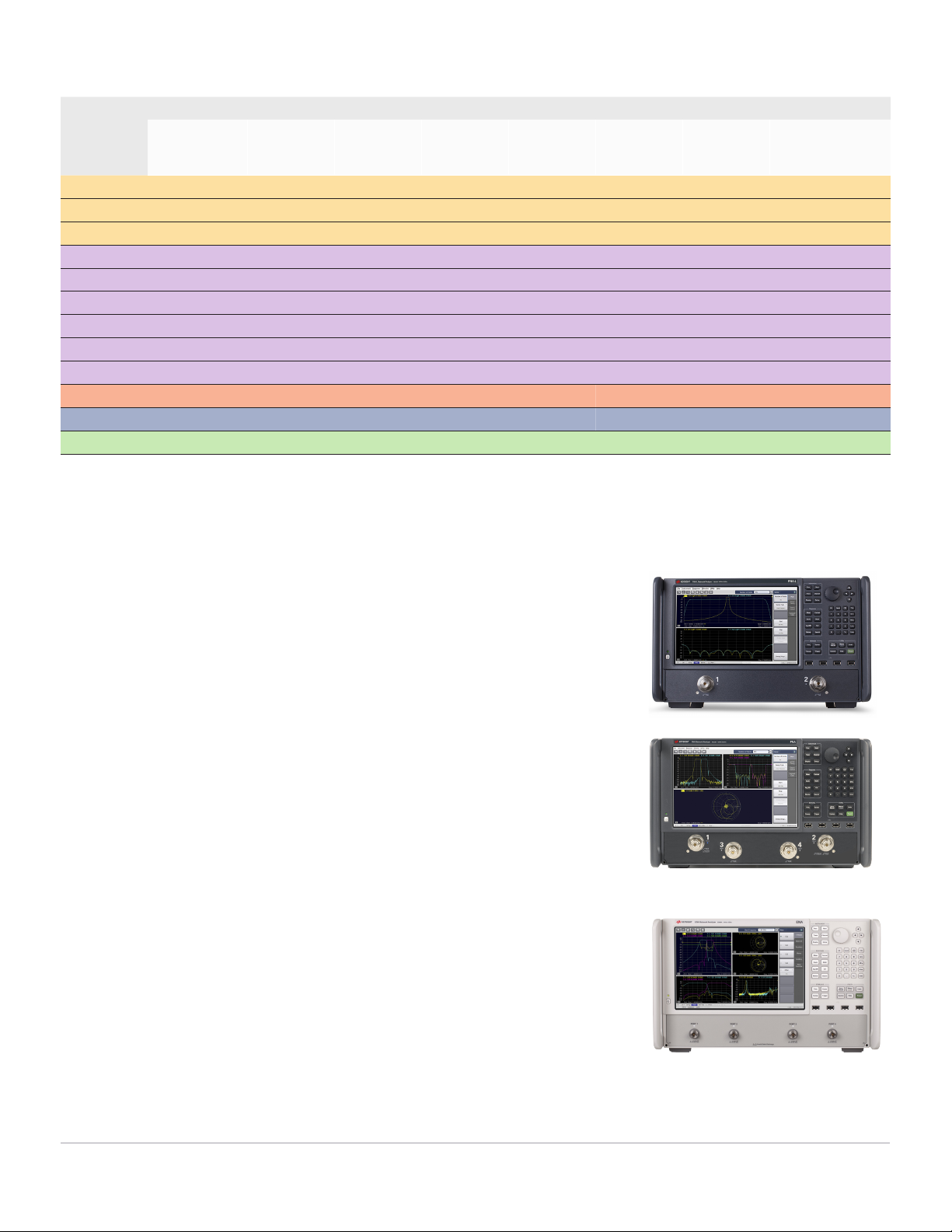

Typical solutions

Best accuracy up to microwave frequencies

N522xB PNA Series network analyzer

– 10 MHz to 13.5/26.5/43.5/50/67 GHz, 2- or 4-ports – Wide dynamic range (> 128 dB at 26.5 GHz, > 112 dB at 67 GHz)

– World’s highest accuracy. Metrology option for ultimate S-parameter measurements.

– Full N-port calibration support – Up to 1.5 THz by using millimeter-wave frequency extenders

Best accuracy for RF passive component test



Up to 32

Up to 24

2 / 4

E5080A ENA vector network analyzer

– 9 kHz to 4.5/6.5/9 GHz, 2- or 4-ports – Wide dynamic range (135 dB spec, 147 dB typical)

– Excellent trace noise (0.0015 dBrms with IFBW=10 kHz) and stability (0.005 dB/°C)

Best balance between price and performance

E5063A ENA vector network analyzer

– Wide frequency coverage up to 18 GHz, 2-ports – Lowest-cost Keysight benchtop VNA

Easy to reconfigure based on test needs

PXI vector network analyzer (M937xA & M9485A)

– Full N-port calibration support – 300 kHz to 4/6.5/9/14/20/26.5 GHz (M937xA) – Best PXI VNA performance on key specifications such as dynamic range, measurement

speed, and trace noise (M9485A)

Find us at www.keysight.com

Page 9

Page 10

General Purpose, Education

Measurement challenges

General-purpose vector network analyzers are essential in education institutions and many other RF labs. Users typically require measurements of S-parameters, power, and sometimes material parameters, for a broad range of passive and active components, with both single-ended and differential inputs and outputs. Devices typically have 2-, 3- and sometimes 4-ports, and must be measured in coaxial, in-fixture, or on-wafer environments. Active devices like amplifiers, mixers, and frequency-conver ters often require considerable time to measure all necessary parameters. Test equipment is not used every day and is often shared with other groups.

Our solutions

Keysight has a wide range of general-purpose VNAs, from powerful yet economical bench-top models covering the frequency range of a few GHz up to 100’s of GHz, to compact USB VNA models that are easily shared and give results on par with their benchtop equivalent.

– ENA and PNA-L benchtop models offer excellent speed and accuracy at

affordable prices

– PNA offers the highest S-parameter accuracy and can be used with

millimeter-wave extenders up to 1.5 THz

– PXI VNA offers best PXI performance using only a single slot in modular

test solutions – Guided calibration wizards and ECal modules make calibration easy – USB VNA's portability makes it easy to share among different groups

Key features

– 4-port models make it easy to test couplers, circulators, splitters, and other 3- and

4-port devices, as well as balanced/differential components – ECal modules replace mechanical calibration kits making calibration fast and easy to

perform, and much less prone to operator errors – Power-meter-based calibration yields accurate measurements of DUT input and

output power over a very broad range of powers – Built-in support for port ex tensions, port matching, de-embedding, and impedance

transformations extends coaxial accuracy to on-wafer and in-fixture measurements – Offsetting the frequency of the source and receivers allows measurements of

mixers and frequency converters – External millimeter-wave modules extend the frequency of operation up to 1.5 THz – Materials measurement software offers full characterization of dielectric properties

using a variety of measurement methods

Find us at www.keysight.com

Page 10

Page 11

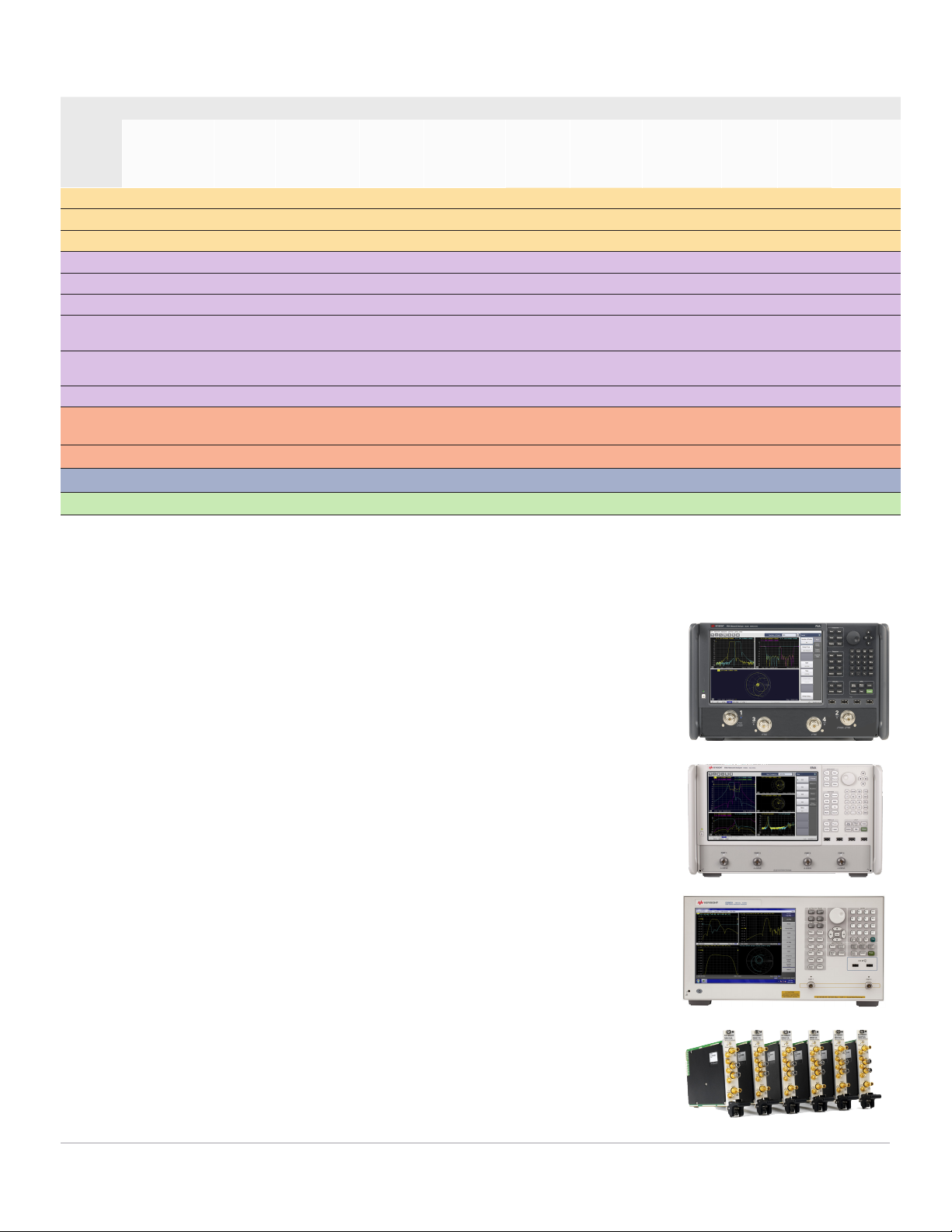

General Purpose, Education (continued)

Models Features

2-port models 4-port models ECal

support

PNA-X

PNA

PNA-L

E5080A

E5072A

E507 1C

E5061B LF

E5061B RF

E5063A

M937xA

P937xA

FieldFox

1. 13.5 and 20 GHz models only

2. Add additional modules to achieve up to 32-por t in a single PXI chassis.

3. Add additional module to achieve a 4-port network analyzer.

4. Scalar FOM using USB power sensor or spectrum analyzer functionality

       

 

   

     

    

     

 

  

Power meter cal

Frequency offset mode

Probe, fixture features

Support for mm-wave modules

Spectrum analysis and independent source



Typical solutions

Best value for microwave S-parameter measurements

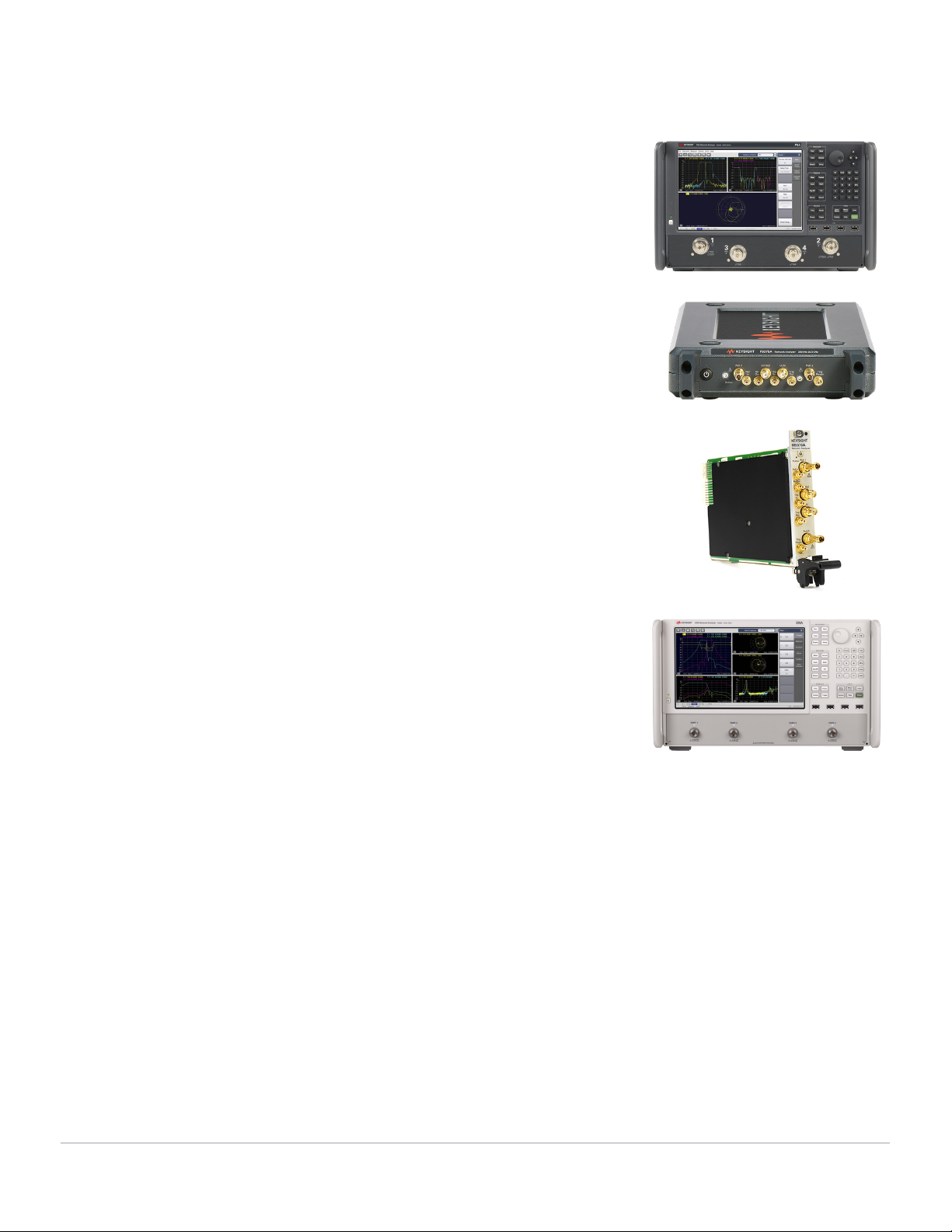

N523xB PNA-L Series microwave network analyzer

– 300 kHz to 8.5/13.5/20 GHz, 10 MHz to 43.5/50 GHz, 2-ports – 300 kHz to 13.5/20 GHz 4-ports – Basic S-parameters and materials measurements

Unsurpassed accuracy in S-parameter measurements

N522xB PNA Series microwave network analyzer

– 10 MHz to 13.5/26.5/43.5/50/67 GHz, 2- or 4-ports – Wide dynamic range (> 128 dB at 26.5 GHz, > 112 dB at 67 GHz) – Linear and non-linear measurement options – Up to 1.5 THz using millimeter-wave frequency extenders

The best-in-class performance and advanced usability

E5080A ENA vector network analyzer

– 9 kHz to 4.5/6.5/9 GHz, 2- or 4-port – Wide dynamic range (135 dB spec, 147 dB typical) – Modern GUI

Find us at www.keysight.com

Page 11

Page 12

General Purpose, Education (continued)

Easy to reconfigure based on test needs

M937xA PXIe vector network analyzer

– 300 kHz to 4/ 6.5/ 9/ 14/ 20/ 26.5 GHz – Competent performance on key specifications such as dynamic range,

measurement speed, and trace noise – RF and microwave balanced devices – Full N-port calibration support (up to 32-port)

Easily shared tool for quick evaluations

P937xA USB vector network analyzer

– Full 2-port VNA that fits in just one hand – Light weight of 1.9 kg – 300 kHz to 4.5/6.5/9/14/20/ 26.5 GHz – Plug & play USB connector to host PC for fast setup – Same GUI and measurement science with Keysight benchtop and PXI VNAs.

Find us at www.keysight.com

Page 12

Page 13

Manufacturing

Measurement challenges

Driving down the cost of test is the key challenge in manufacturing, and there are multiple factors that influence this. One key factor is throughput. The measurement time of a VNA can be divided into several dif ferent contributions such as sweep speed, data analysis, display processing, and data transfer. In many cases, the analyzer must send pass/fail results to an automated system. The sweep speed and data-analysis speed are critical for high-volume manufacturing. Being able to minimize the amount of operator intervention, as well as connection and calibration times will also affect measurement throughput. Initial procurement cost, system uptime, maintenance costs, and future performance upgrade costs for test stations also affect total cost of ownership.

Our solutions

Keysight of fers a broad range of VNAs with very fast data-acquisition speeds and excellent repeatability due to low trace noise and high temperature stability – essential elements to optimize manufacturing test. Many VNAs are equipped with a parts-handler interface to achieve fast throughput on an automated production line. You can find the optimum VNA for your manufacturing environment, and only pay for the capabilities you need to minimize your initial procurement costs.

Key features

– Fast processors and wide

bandwidths: very fast data

acquisition speeds – Fast data-transfer speeds for

maximum throughput – Segment sweeps: faster testing by

tailored stimulus conditions – Pass/fail limit testing: easy and fast

data analysis on the VNA – Test fixture de-embedding: measure

device’s true performance – Internal programming capability:

customize VNA operation and data

analysis

– ECal modules: simple and fast

calibration

– Parts-handler interface: fast

handshaking with an ATE system

– Multiport/Multi-site solutions:

multiple and multiport device test with minimal connections

– Direct-receiver access: obtain widest

possible dynamic range

– Upgradable processors: keep your

instrument up-to-date

– Hardware upgrade paths: support

your evolving measurement needs

Find us at www.keysight.com

Page 13

Page 14

Manufacturing (continued)

Models Features

Fast data process & transfer

PNA-X

PNA

PNA-L

E5080A

E5072A

E507 1C

E5061B LF

E5061B RF

E5063A

M937xA

M9485A

P937xA

FieldFox

1. Programming capability is available in the controller used to control the VNA.

2. The M9341A/B PXIe I/O module is required.

3. The central processor for this instrument is the controller, which is upgradable.

         

       

        

         

       

    

Segment sweeps

Pass/ fail limit testing

Test fixture de-embedding

Built-in programming capability

 

ECal support

 

Parts handler interface

Multiport/ Multi-site solutions

Direct receiver access

Hardware upgrade

  3

   

  

Processor upgrade

Typical solutions

The standard in RF manufacturing test

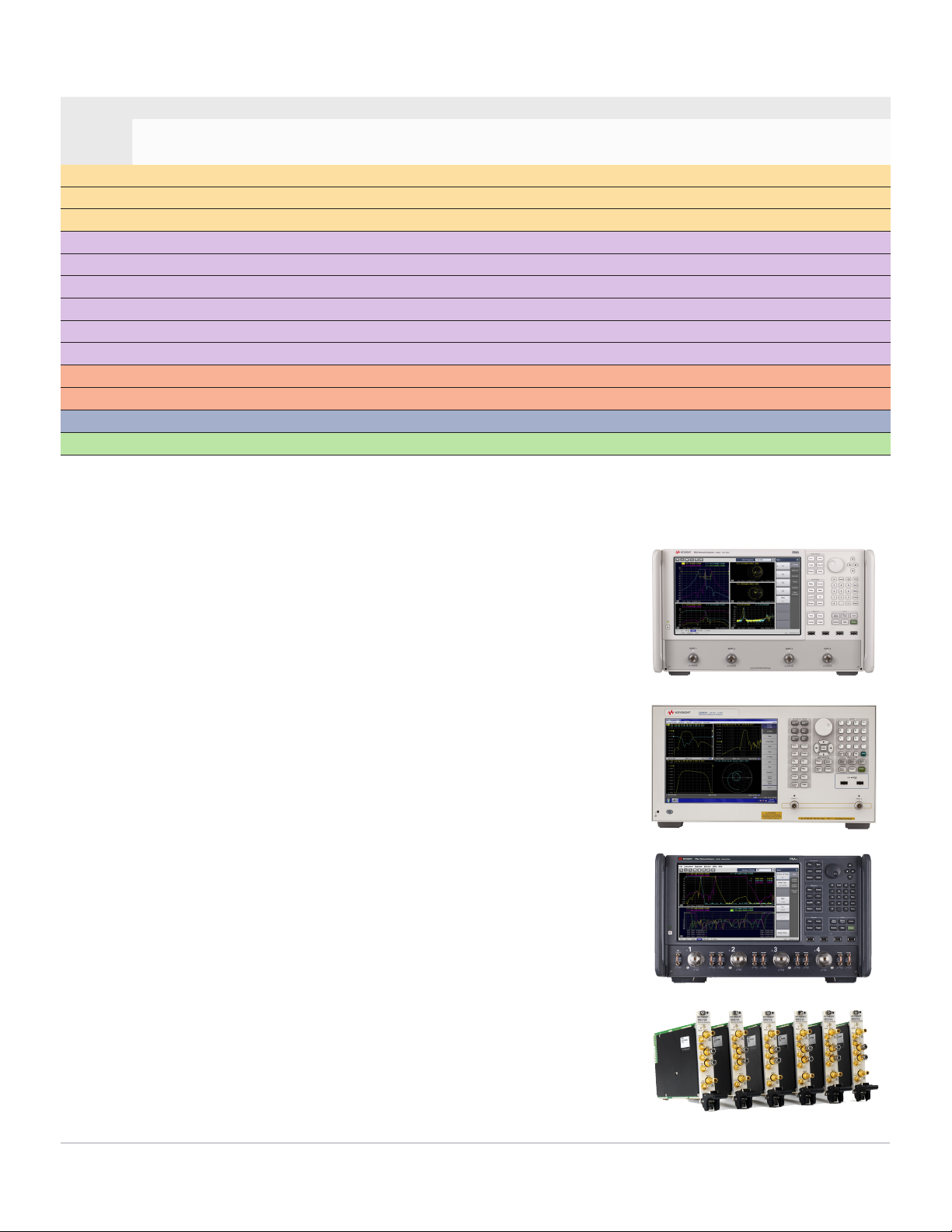

E5080A ENA vector network analyzer

– 9 kHz to 4.5/6.5/9 GHz, 2- or 4-ports – Fast measurement speed – Wide dynamic range (135 dB spec, 147 dB typical) – Excellent trace noise (0.0015 dBrms with IFBW=10 kHz) and stability (0.005 dB/°C)

Best balance between price and performance

E5063A ENA vector network analyzer

– 100 kHz to 4.5/8.5/18 GHz – > 117 dB dynamic range – 0.006 dB rms trace noise – PCB test function

Best value for microwave manufacturing

N523xB PNA-L Series microwave network analyzer

– 300 kHz to 8.5/13.5/20 GHz, 10 MHz to 43.5/50 Hz, 2-ports – 300 kHz to 13.5/20 GHz, 4-ports – Wide frequency range up to 50 GHz

Easy to reconfigure based on test needs

PXI vector network analyzer (M937xA & M9485A)

– True multiport VNA for full calibrated measurements – Up to 32-port VNA configuration in a single chassis (M937xA) – Best performance on key specifications such as dynamic range,

measurement speed, and trace noise (M9485A) – Multi-site parallel measurement capability

Find us at www.keysight.com

Page 14

Page 15

High-Speed Serial Interconnect Analysis

Measurement challenges

As data rates of digital systems increase, signal integrity of interconnects drastically affects system performance. The effects of physical layer components such as printed circuit board traces, connectors, cables, and IC packages can no longer be ignored. Fast and accurate analysis of interconnect performance in both time and frequency domains become critical to ensure reliable system performance. Because managing multiple test systems becomes difficult, a single test system that can fully characterize differential high-speed digital devices is a very powerful tool.

Our solutions

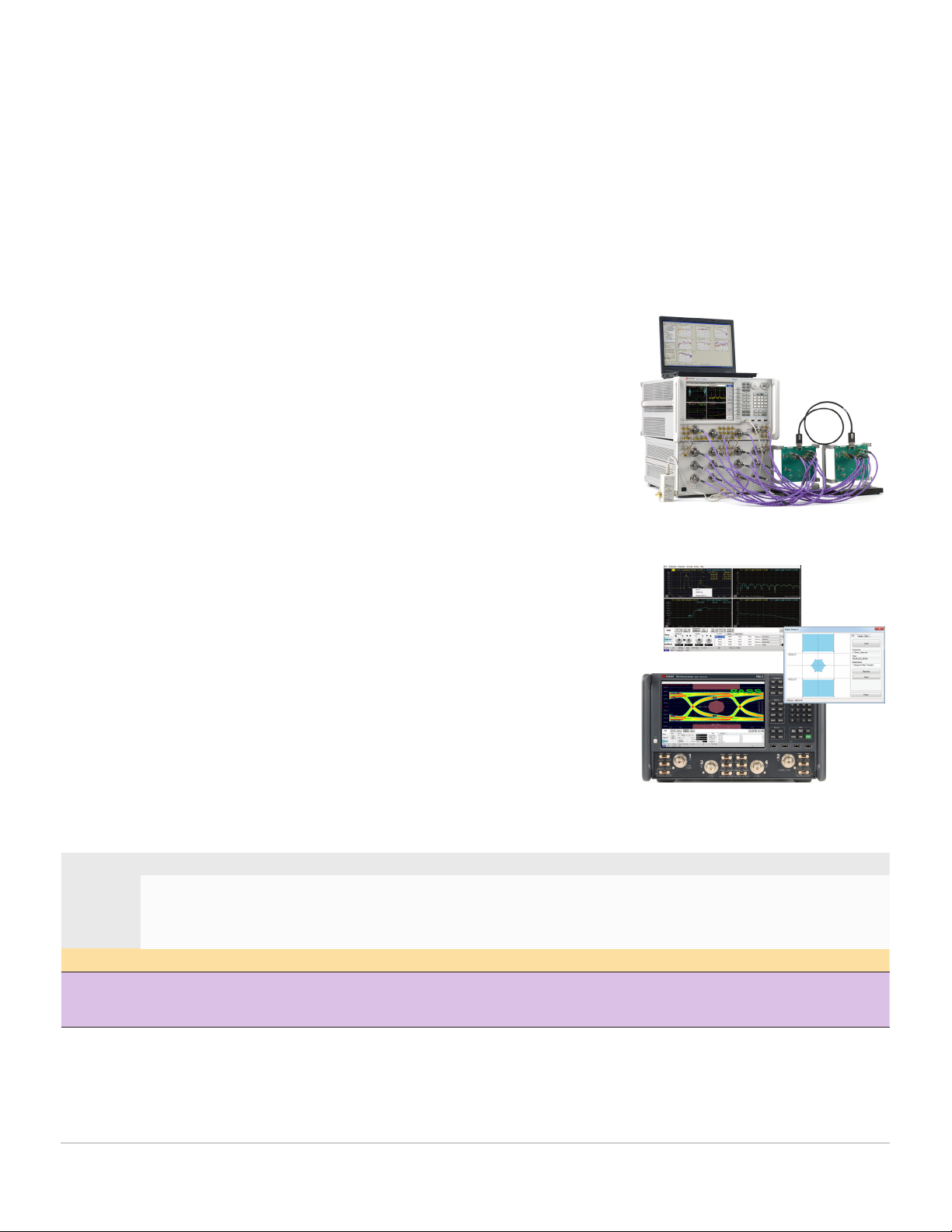

N1930B Physical Layer Test System (PLTS)

– Automatic Fixture Removal (AFR) for accurate, yet simple error correction and

de-embedding of unwanted structures inside channel path – Channel simulator provides user-defined pre-emphasis and equalization settings

for real-world channel analysis – MATLAB interface allows many aspects of testing to be customized and

automated which typically cuts test-plan development in half – Characterization report details all critical DUT performance parameters along with

specific test-system information to archive important technical test-plan data

Enhanced Time Domain Analysis (ENA option TDR, S93011A for PNA)

– Similar look-and-feel to traditional TDR oscilloscopes, for simple and intuitive

operation – Easily locate source of loss, reflections and crosstalk by simultaneous analysis of

both time and frequency domains – Internal protection circuits inside the instrument provide high robustness against

electrostatic discharge (ESD) – Determine optimal emphasis and equalization settings for your link – Simulate real-world signals through jitter insertion – Analyze impedance of active devices under actual operating conditions (Hot TDR)

to quantif y the multiple reflection effect

High-speed serial interconnect analysis

Models Features

Maximum bandwidth

PLTS Up to 67 GHz Up to 16

Enhanced time domain analysis

1. PLTS has automated test suite templates that assist R&D engineers with compliance-type testing

2. Advanced features: automatic fixture removal (AFR), differential TRL, multiport crosstalk

ENA: Up to 20 GHz PNA: Up to 67 GHz

Maximum # of ports

Up to 4

Frequency domain

Time domain

Eye diagram Stressed

eye diagram analysis

     

      

Hot TDR Compliance

test (MOI)

Real-time analysis

Advanced error correction methods

Find us at www.keysight.com

Page 15

Page 16

Installation and Maintenance

Measurement challenges

Network analyzer measurements made in the field are fundamentally similar to measurements in the lab users need to test S-parameters of devices such as cables and filters to determine their performance. The main difference is the requirements placed on the network analyzer hardware. Portability is a big challenge in the field. Carrying benchtop instruments on a cart or trying to fit a benchtop instrument in a tight space like an aircraft is difficult. Locating AC power can also be difficult, so a por table and battery-operated analyzer is often vital for field test. In addition, while indoor temperatures may be fairly stable, the weather conditions outdoors are quite variable, so the equipment has to be designed to handle these changes. Any VNA used outdoors also has to be rugged, as it is moved around of ten. Finally, the measurements made in the field need to match the measurements made in the lab, and have similar accuracy.

Our solutions

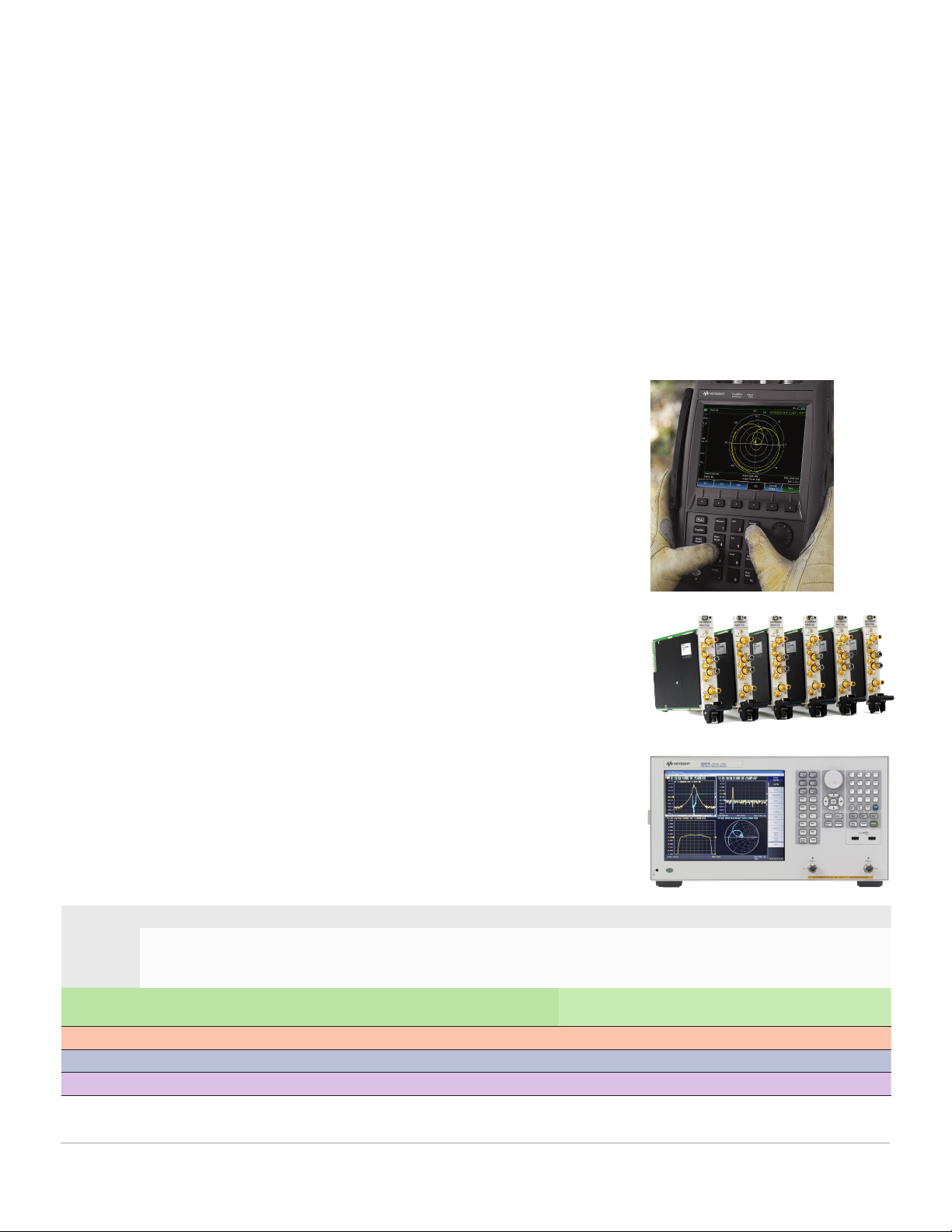

FieldFox analyzer family

– Designed for field use, batter y operated, portable, display viewable in sunlight – Completely sealed enclosure complaint with MIL-PRF-28800F Class 2 and type

tested; meets IEC/EN 60529 requirements for ingress protection – Large buttons are easy to operate even while wearing gloves – Network analyzer—measure all four S-parameters, and perform calibrations such as

full 2-port Cal and TRL; unique QuickCal for field calibration – Optional spectrum analyzer and GPS receiver for interference analysis

M937xA PXIe vector network analyzer

– Best PXI VNA performance on key specifications such as dynamic range,

measurement speed, and trace noise – Full two-port VNA that fits in just one slot – Full N-port calibration support

E5061B RF ENA vector network analyzer

– Benchtop light weight model up to 3 GHz – Suitable for measurements that require higher analog performance such as wide

dynamic range or fast sweep speed

Installation and maintenance

Models Features

Portability Battery

life

FieldFox 6.6 lb/3 kg 3.5

M937xA 1.3 lb/0.59 kg N/A

P937xA 4.5 lb/2.04 kg N/A

E5061B RF 30 lb/14 kg N /A

S-parameters Frequency range Dynamic



hours



30/300 kHz to 4/6.5/9/14/18/26.5/

32 /44/ 50 GHz

300 kHz to 4/6.5/9/ 14/20/26.5 GHz 115 dB

300 kHz 4.5/6.5/9/14/20/26.5 GHz 115 dB

100 kHz to 1.5/3 GHz 120 dB

range at 3 GHz

95 dB

Full 2-port calibration

Time domain

Spectrum analyzer

   

  

SCPI programmable

Find us at www.keysight.com

Page 16

Page 17

Related Network Analyzer Products and Accessories

USB VNA FieldFox

ENA PXI VNA USB VNA FieldFox

PNA

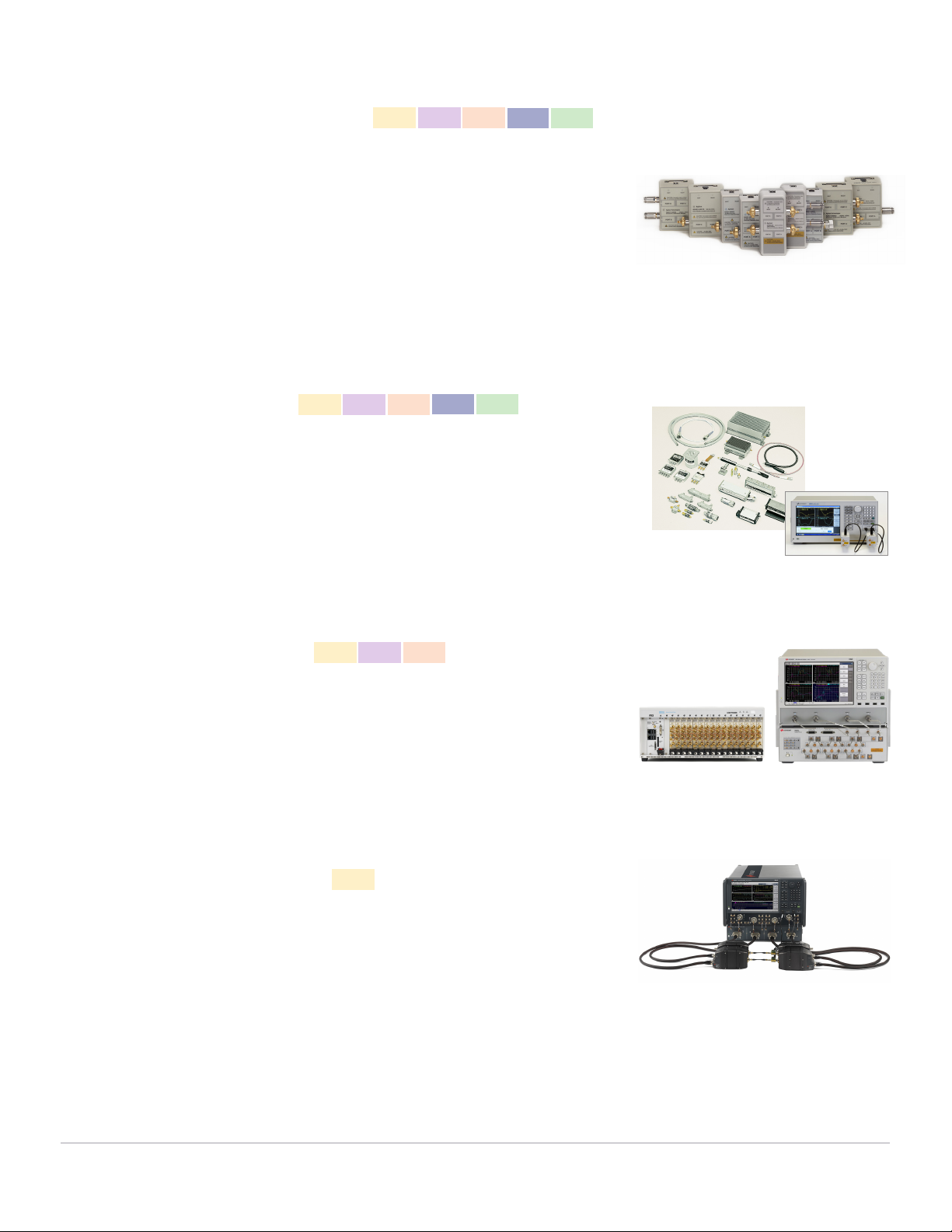

Electronic calibration (ECal) modules

Keysight ECal modules bring calibration to your vector network analyzers with just a single connection from DC up to 67 GHz. The ECal modules are state-of-the-art, solid-state devices with programmable and highly repeatable impedance states which are traceable via National Metrology Institute. ECal modules are controlled directly from the Keysight network analyzers; no external PC is required. Electronic calibration replaces traditional mechanical standard calibration, and provides consistent calibration and eliminating operator error while bringing convenience and simplicity to your calibration routine.

www.keysight.com/find/ecal

PNA

Microwave test accessories

Keysight provides a complete series of coaxial and waveguide RF and microwave test accessories – everything from adapters, power limiters, DC blocks, attenuators, and couplers, to switches and system amplifiers. These test accessories complete your test solutions by simplifying test setups and maximizing the equipment’s full potential to ensure the best possible measurement results.

ENA PXI VNA USB VNA FieldFox

www.keysight.com/find/mtacatalog

PNA

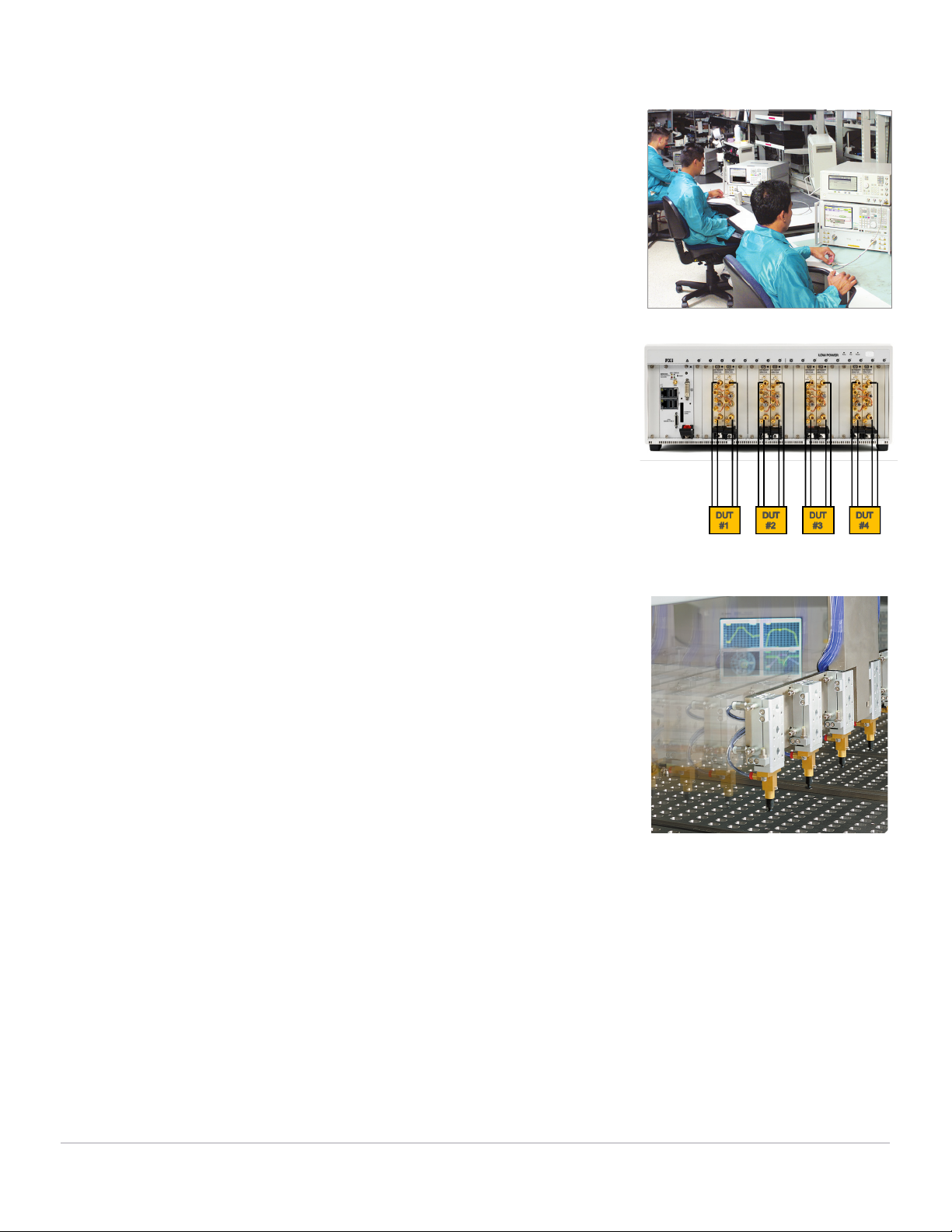

Multiport/multi-site solutions

ENA PXI VNA

Whether you’re measuring differential devices, highly integrated multiport components, or testing many 1-port devices, Keysight offers a variety of multipor t/multi-site solutions to suit your measurement needs and dramatically reduce test times.

www.keysight.com/find/multiport

Broadband and millimeter wave

PNA

The N5290A/91A millimeter-wave system is a single-sweep solution from 900 Hz to 110/120 GHz with built-in Kelvin bias tees and 2- and 4-por t S-parameter measurements. This is a direct replacement for the N5251A with improved performance with smaller size frequency extender heads. In particular, a new receiver-leveling function lets you set the source power accurately at the 1.0 mm test port. Keysight also offers a variety of banded millimeter-wave solutions that enable the PNA and PNA-X network analyzers to make S-parameter measurements up 1.5 THz.

Two U1810B USB coaxial switches, DC to 18 GHz, SPDT at the ENA test port

PXI VNA up to 32-por ts, multiport test set

N5290A/91A single sweep solution

E5080A EN A with E5092A configurable multiport test set

www.keysight.com/find/N5291A

Find us at www.keysight.com

Page 17

Page 18

Related Network Analyzer Products and Accessories (continued)

PXI VNA USB VNA FieldFox

ENA PXI VNA USB VNA FieldFox

PNA

ENA

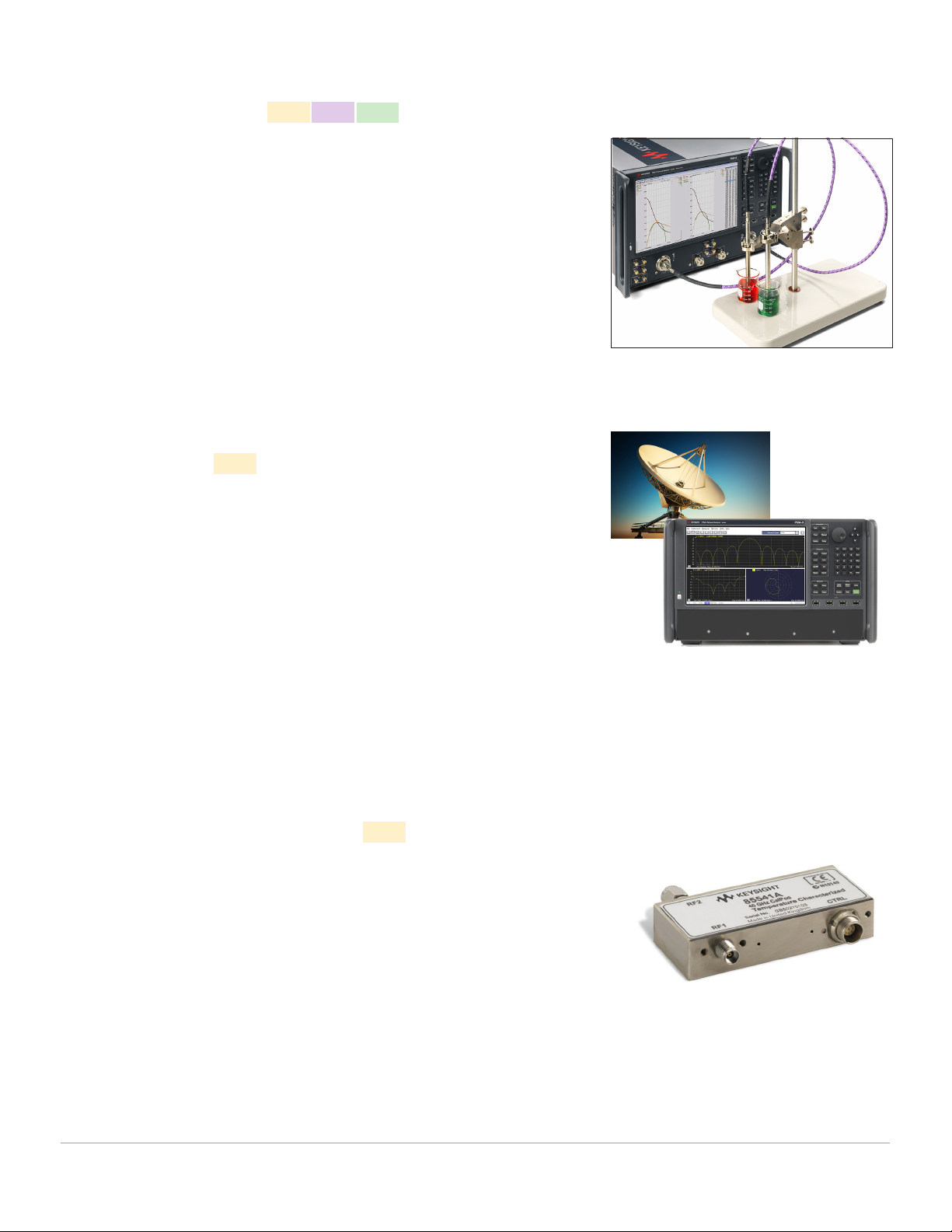

Materials measurement

Trust Keysight to deliver leading-edge techniques for measuring dielectric and magnetic properties of materials. The N1501A dielectric probe kit offers hardware for measuring complex permittivity of liquids and conformable solids from 200 MHz to 50 GHz. The N1500A materials measurement suite automates a variety of techniques across a wide frequency span, including transmission-line, free-space and resonant-cavity methods. The 85072A 10 GHz split-cylinder resonator measures complex permittivity and loss tangent of thin films, un-clad substrates, and other low-loss sheet materials as part of a turnkey solution for IPC standard TM 650

2.5.5.13. Measuring electromagnetic properties of materials is critical in all stages of a products lifecycle: design, incoming inspection, process monitoring and quality assurance. Keysight sets the measurement standard with more than 20 years of experience and innovative new products.

www.keysight.com/find/materials

FieldFox

Antenna receiver

PNA

Keysight Technologies provides many of the components you need to make accurate antenna and radar cross-section (RCS) measurements. The N5264B PNA-X measurement receiver is a dedicated antenna receiver with 400,000 point-per-second data acquisition on all five measurement channels. The N5264B provides twice as many receivers compared to any other antenna receiver on the market. The N5264B is compatible with MXG or PSG signal generators, the 85309B distributed frequency converter, and 85320A/B mixers. The receiver and an MXG source can completely replace the 8530A and 8360B sources for existing antenna ranges and typically results in a system-speed improvement that is 10 times faster. Additionally, the built-in 8510x/8530A code-emulation software provides a drop-in replacement for existing antenna ranges utilizing an 8530A. The N5264B is supported by major antenna-system integrators such as Microwave Vision Group, Nearfield Systems Inc., ETS-Lindgren, and the System Planning Corporation.

www.keysight.com/find/antenna

CalPod calibration-refresh modules

PNA

Keysight provides a new and unique way to quickly and easily refresh a calibration at the push of a button, without removing the DUT and without the physical connection of standards. CalPods are particularly useful in thermal or thermalvacuum chambers for removing environmental ef fects from your measurement results due to temperature changes of cables, connectors, and adaptors, or for removing variations due to cable movements or variations in switch matrices.

N5264B PNA-X measurement receiver

www.keysight.com/find/calpods

Find us at www.keysight.com

85541A 40 GHz temperature characterized CalPod

Page 18

Page 19

Key Performances and Functions Comparison

Models Performances Dimension

PNA-X N5249B

N5241B N5242B

N5244B N5245B

N5247B

PNA N5221B

N5222B N5224B

N5225B N5227B

PNA-L N5239B

N5231B

N5232B

N5231B

N5232B

N5234B N5235B

ENA E5080A

E5072A

E5 071C

E5 0 6 1B

E5063A

1. Option 425

2. Option 205

Frequency Dynamic range (dB)

at 3/20 GHz at 10 Hz IFBW

System

Direct receiver access

10 MHz to 8.5 GHz 124–128/

10 MHz to 13.5 GHz 10 MHz (900 Hz1) to 26.5 GHz

10 MHz to 43.5 GHz 10 MHz (900 Hz1) to 50 GHz

10 MHz (900 Hz1) to 67 GHz 124–130/

10 MHz to 13.5 GHz 10 MHz (900 Hz2) to 26.5 GHz

10 MHz to 43.5 GHz 10 MHz to 50 GHz

10 MHz (900 Hz2) to 67 GHz 127/

300 kHz to 8.5 GHz 300 kHz to 13.5 GHz (N5231B Option 2xx) 300 kHz to 20 GHz (N5232B Option 2xx)

300 kHz to 13.5 GHz (N5231B Option 4xx) 300 kHz to 20 GHz (N5232B Option 4xx)

10 MHz to 43.5 GHz 10 MHz to 50 GHz

9 kHz to 4.5 GHz (Option 245/445) 9 kHz to 6.5 GHz (Option 265/465) 9 kHz to 9 GHz (Option 295/495)

30 kHz to 4.5 GHz (Option 245) 30 kHz to 8.5 GHz (Option 285)

9 kHz to 4.5 GHz (Option 240, 440) 100 kHz to 4.5 GHz (Option 245, 445) 9 kHz to 6.5 GHz (Option 260, 460) 100 kHz to 6.5 GHz (Option 265, 4 65) 9 kHz to 8.5 GHz (Option 280, 4 80) 100 kHz to 8.5 GHz (Option 285, 4 85)

300 kHz to 14 GHz (Option 2D5, 4D5) 300 kHz to 20 GHz (Option 2K5, 4K5)

5 Hz to 3 GHz (LF-RF Option 3L5, S-parameter, port) 100 kHz to 3 GHz (RF Option 135, 235, 137, 237) 100 kHz to 1.5 GHz (RF Option 115, 215, 117, 217)

100 kHz to 4.5 GHz (Option 245) 100 kHz to 8.5 GHz (Option 285) 100 kHz to 18 GHz (Option 2H5)

124–129 124–128/

124–129

118–123/ 121–125

125 –130

127/ 124–127

125–12 7/ 124 –127

124–127 131–133 /

111–114

128/ 101–105

110/10 0 128 /117 −110/ −10 0 0 / 0 0.019/0.19 6 ms

135/ −130 / +15/ 0.0015/0.01 2 ms

123/ 151/ −117/ +16 / 0.0015/0.013 3

123/ NA −123 / +10/ 0.0011/0.013 3 ms

123/9 6 NA −12 3/−10 6 +1 0 / 0 0.0015/0.013 3 ms

120/ NA −120/ +10/ 0.0091/0.055 9 ms

117/ NA −127/ 0/ 0.0019/0.014 9 ms

136–140/ 133–141

130–135/ 133–137

136–142/ 136–140

139/ 136–139

137–139/ 136–139

138/ 135–138

144 /124 −120/ −10 6 +11–13 /

141/114 −120/−107 +8/

Noise floor (dBm) at 3/20 GHz

Max power at 3/20 GHz

(dBm) at 10 Hz IFBW

−114/ −114

−114/ −114 +8 –13/

−110/ −111 +8 –13/

−115/−118 +9–15 /

−114/ −114 +13/

−114/ −114 +11–13/

−114/ −116 +9 –13/

+8–13/

+5 –10

+10–14

+7–12

+10–13

+8 –11

+5–8

-6 −2

Best trace noise at 10 kHz 1 IFBW Mag (dBrms)/ Phase (degrms)

0.0063/0.047 5 ms

0.0063/0.094 6 ms

0.0063/0.063 9.7 ms

0.0063/0.047 5.6 ms

0.0095/0.063 4.7 ms

0.0063/0.063 6.3 ms

0.012/0.19 5.75 ms

0.0063/0.063 5.75 ms

Best speed at 201 point 1sweep, correction off

(600 kHz IFBW )

(500 kHz IFBW)

ms (50 0 kHz IFBW)

(500 kHz IFBW)

(300 kHz IFBW )

H (mm) x W (mm) x D (mm), weight (kg)

267 x 426 x 533, 27–37 kg

267 x 426 x 583, 47–49 kg

267 x 426 x 533, 27–37 kg

267 x 426 x 582, 4 0–42 kg

267 x 426 x 583, 43–45 kg

267 x 426 x 446, 24 kg

267 x 426 x 446, 25 kg

267 x 426 x 488, 21-2 3 kg

222 x 426 x 496, 20 kg

222 x 426 x 487, 19–20 kg

222 x 426 x 486, 20–22 kg

215 x 426 x 296, 14 kg

215 x 426 x 296, 11 kg

Find us at www.keysight.com

Page 19

Page 20

Key Performances and Functions Comparison (continued)

Models Performances Dimension

Frequency Dynamic range (dB)

at 3/20 GHz at 10 Hz IFBW

System

PXI VNA

USB VNA

FieldFox

M9370A 300 kHz to 4 GHz 115 /– – / – −108 /– +7/– 0.003/0.030 6 ms

M9371A 300 kHz to 6.5 GHz 115/– – / – −108/– +7/– 0.003/0.030 6 ms

M9372A 300 kHz to 9 GHz 115 /– – / – −108 /– +7/– 0.003/0.030 6 ms

M9373A 300 kHz to 14 GHz 115/– – / – −108/– +7/– 0.003/0.030 6 ms

M9 374A 300 kHz to 20 GHz 115 / 110 – / – −108/−108 +7/+2 0.003/0.030 6 ms

M9375A 300 kHz to 26.5 GHz 115/ 110 – / – −108 /−108 +7/+2 0.003/0.030 6 ms

M9485A 1 MHz to 9 GHz 140 (typical) / - 162 (typical)/- -125 / - +13 / - 0.003 / 0.02 2.8 ms

P9370A 300 kHz to 4.5 GHz 115/– – / – −108 /– +7/– 0.003/0.030 14 ms

P9371A 300 kHz to 6.5 GHz 115/– – / – −108/– +7/– 0.003/0.030 14 ms

P9372A 300 kHz to 9 GHz 115/– – / – −108/– +7/– 0.003/0.030 14 ms

P9373A 300 kHz to 14 GHz 115/– – / – −108/– +7/– 0.003/0.030 14 ms

P9 374A 300 kHz to 20 GHz 115/– – / – −108/−108 +7/+2 0.003/0.030 14 ms

P9375A 300 kHz to 26.5 GHz 115 /– – / – −108/−105 +7/+2 0.003/0.030 14 ms

N9913 A N9914A N9 915A N9916A N9 917A N9918 A

N9950A N9951A N9952A

30 kHz to 4 GHz 30 kHz to 6.5 GHz 30 kHz to 9 GHz 30 kHz to 14 GHz 30 kHz to 18 GHz 30 kHz to 26.5 GHz

300 kHz to 32 GHz 300 kHz to 44 GHz 300 kHz to 50 GHz

95 /74 (300 Hz IFBW)

100/10 2 (300 Hz IFBW)

1. Calculated to normalize 10 kHz IFBW equivalent noise

Direct receiver access

– / – – / – –1/–10 0.004/0.070

– / – – / – Port 1: +2,

Noise floor (dBm) at 3/20 GHz at 10 Hz IFBW

Max power at 3/20 GHz (dBm)

port 2: 0 / Port 1: +1, port 2: -2

Best trace noise at 10 kHz 1 IFBW Mag (dBrms)/ Phase (degrms)

(300 Hz IFBW)

0.004/0.070 (300 Hz IFBW)

Best speed at 201 point 1sweep, correction off

(600 kHz IFBW )

(1 MHz IFBW )

(600 kHz IFBW )

(600 kHz IFBW ) 300 ms

(10 kHz IFBW )

180 ms (10 kHz IFBW )

H (mm) x W (mm) x D (mm), weight (kg)

128.4 x 19.9 x

212.6, 0.59 kg

128.4 x 19.9 x

212.6, 0.59 kg

128.4 x 19.9 x

212.6, 0.59 kg

128.4 x 19.9 x

212.6, 0.59 kg

128.4 x 19.9 x

212.6, 0.59 kg

128.4 x 19.9 x

212.6, 0.59 kg n/a

48 x 176 x 333,

1.9 0 kg 48 x 176 x 333,

1.9 0 kg 292 x 188 x

72, 3 kg

292 x 188 x 72, 3.2 kg

Find us at www.keysight.com

Page 20

Page 21

Key Performances and Functions Comparison (continued)

Models Features and functions

Sweep type

PNA-X N5241B

N5242B

4-port test set option

Full N port cal option

     

N5244B N5245B N5247B N5249B

Linear, Log, Segment, CW, Power,

PNA N5221B

N5222B

DC source, Phase

  

N5224B N5225B N5227B

PNA-L N5234B

N5235B N5239B

N5231B N5232B

ENA E5080A

E5072A

E5071C

E5 061B LF-RF option

E5 061B RF option

E5063A

PXI VNA M9370A

M9371A

Linear, Log, Segment, CW, Power, DC source

Linear, Lo g, Segment, Power

Linear, Lo g, Segment, Power, DC bias

Linear, Lo g, Segment, Power

Linear, Lo g, Segment

 



 

  



M9372A M9373A M9 374A M9375A

M9485A

USB VNA P9370A

P9371A P9372A P9373A P93 74A

Linear, Lo g, Segment, CW, Power

Linear, Log, Segment, CW, Power





P9375A

1. N5231B and N5232B only.

2. Add additional modules to increase number of ports.

3. Programming capability is available in the controller.

Front jumpers for

direct receiver access

or high power handling

Built-in 2nd source

option

Receiver attenuators

option

Built-in bias tees

Frequency offset

mode

Internal pulse modula-

tor and generator

  

(Option)

  

(Option)

  



(Option)



(Option)

   



(Option)

 



(Option)



(M9377A) (Option)



(Option)



 

Built-in programing

environment

Noise figure

measurement option

Unique function/

feature

Nonlinear vector network analyzer

(Standard

low-noise

receiver)

(Standard

receiver)



(Standard

receiver)

option

and

Built-in combiner LFE (900 Hz - ) Enhanced time domain analysis Up to 24-port ex ternal tes t set mm-wave support Spectrum analysis option Metrology option LFE (900 Hz - ) Enhanced time domain analysis Up to 24-port ex ternal tes t set mm-wave support Spectrum analysis option Up to 24 port external test set Enhanced time domain analysis Spectrum analysis option

Modern GUI

Up to 22 port ex ternal test set

Deep ex tended dynamic range as 151 dB (SPD)

Enhanced time domain analysis Up to 22 port ex ternal tes t set

Gain-phase port (5 Hz to 30 MHz)

Impedance analysis (Option 005) Built-in DC bias source

75 Ω test set op tion

T/R test set option

PCB manufacturing test

Multiport up to 32 por ts, multi-site, modular

Multiport up to 24 ports, modular



Find us at www.keysight.com

Page 21

Page 22

Key Performances and Functions Comparison (continued)

Models Features and functions

Sweep type

4-port test set option

Full N port cal option

Front jumpers for

direct receiver access

or high power handling

Built-in 2nd source

option

Receiver attenuators

option

Built-in bias tees

Frequency offset

mode

Internal pulse modula-

tor and generator

Built-in programing

FieldFox N9913A

N9914 A N9 915A N9916A N9 917A N9918 A N9950A

Linear

N9951A N9952A

Microwave (combination)

analyzers

1. Combination analyzer = Cable and antenna tester (CAT) + Vector network analyzer (VNA) + Spectrum analyzer (SA)

environment

Noise figure

measurement option

Unique function/

feature

Handheld Spectrum analysis option T/R test set (Option 210) Full 2-port S-parameters

(Option 211) Mixed mo de S-parame ters

(Option 212)

Find us at www.keysight.com

Page 22

Page 23

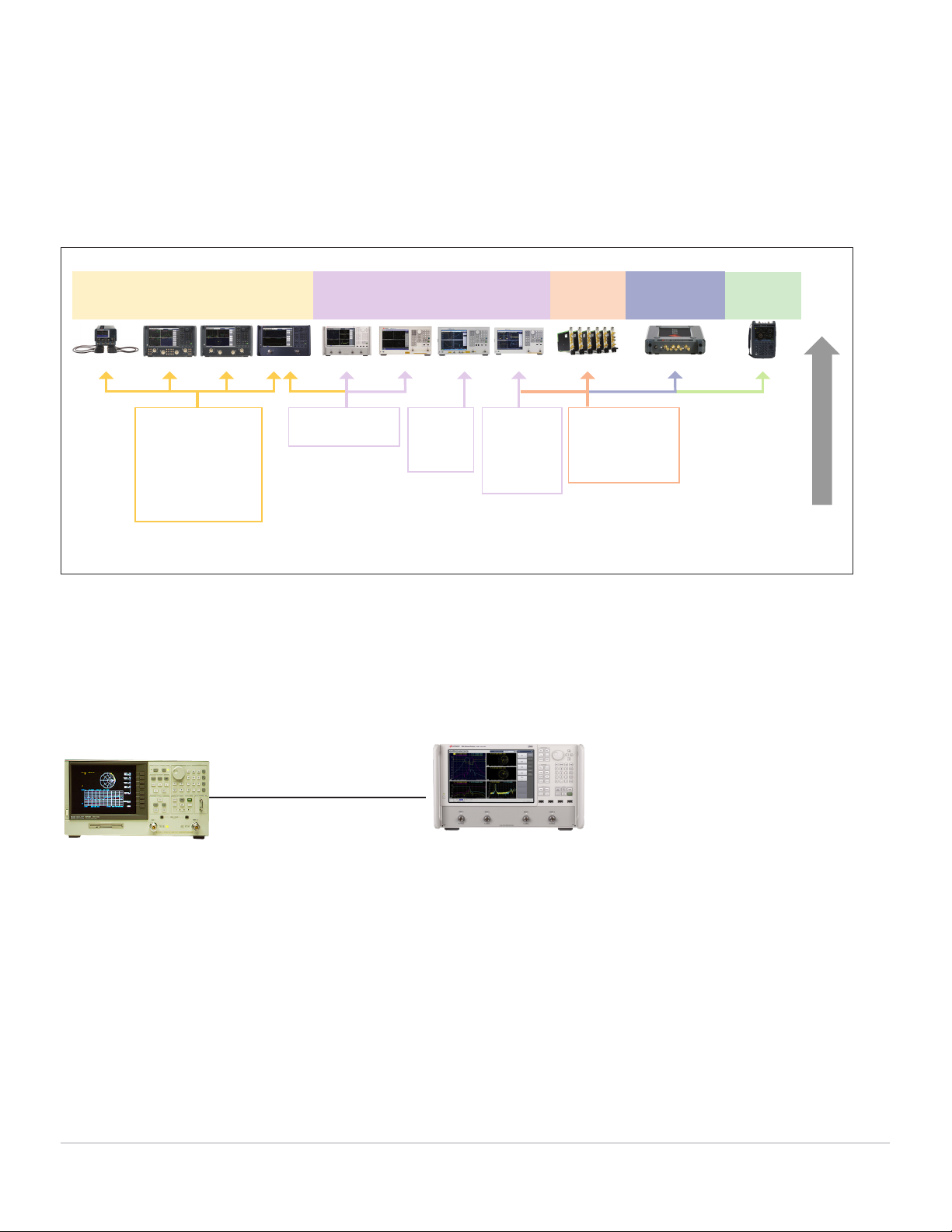

Migration and Upgrades

Migration path

Carefully planned instrument migration and modernization can maximize your test-system efficiency, performance, and readiness, while minimizing risk and potential disruptions, keeping you at the leading edge in the competitive marketplace. Keysight PNA, ENA, PXI VNA, USB VNA, and FieldFox are perfect replacements to their predecessors. Take advantage of the latest VNAs’ advanced performance and modern functions when replacing the legacy network analyzers.

Reach for unrivaled excellence

PNA mmWave E5080A/E5072A E5063A E5061B LF E5061B RF M937xA P937xA

E835xA N338xA E836xA/B/C N5230A/C 8719A/B/C/D/E/ET/ES 872xA/B/C/D/E/ET/ES 8510A/B/C system N522xA, N523xA, N524xA

PNA PNA-LPNA-X

8753A/B/C/D/E/ET/ES E5070A/B, 71A/B

Drive down the cost of test

PNA

ENA

3577A/B 8751A 4192A/94A 4195A/4395A

8711A/B/C 8713B/C 8712B/C/ES/ET 8714B/C/ES/ET 8752A/B/C E5061A/62A

PXI VNA USB VNA

Drive down the

size of test

8753A/B/C/D/E/ET/ES 8719A/B/C/D/E/ET/ES 872xA/B/C/D/E/ET/ES E5061A/62A E5070A/B, 71A/B

Compact form.

Zero compromise

Premium trade-in solutions

In many countries, Keysight offers a variety of trade-in solutions to give you advanced measurement capabilities, increased throughput and greater reliability—for less than list price. Please contact an Keysight sales representative or visit

www.keysight.com/find/savings.

FieldFox

Carry precision

with you

FieldFox

– Trade-in your legacy

network analyzer

– Receive credit toward the

purchase of a new VNA

Protect your VNA investment

Keysight of fers various VNA hardware and software upgrades to meet your future measurement needs. Keysight’s cXL code-translation software can also help you run your legacy 8753, 8720, and 8510 remote programs while controlling the latest VNAs. Contact Keysight or visit www.keysight.com/find/nadisco for more information.

Find us at www.keysight.com

Page 23

Page 24

Related Literature

Literature Number

Keysight PNA and PNA-L Series Microwave Network Analyzers – Brochure 5990-8290EN Keysight PNA-X Series Microwave Network Analyzers – Brochure 5990-4592EN PNA Family Microwave Network Analyzers – Configuration Guide 5992-1465EN E5080A ENA Vector Network Analyzer – Brochure 5992-0290EN E5072A ENA Vector Network Analyzer – Technical Overview 5990-8004EN E5071C ENA Vector Network Analyzer – Brochure 5989-5478EN S93011A Enhanced Time Domain Analysis with TDR - Technical Overview 59 9 2-2715EN E5061B ENA Vector Network Analyzer – Brochure 5990-6794EN E5071C ENA Option TDR Enhanced Time Domain Analysis – Technical Overview 5990-5237EN E5061B-3L5 LF-RF Network Analyzer with Option 005 Impedance Analysis Function – Data Sheet 5990-7033EN E5063A ENA Vector Network Analyzer – Brochure 5991-3614EN M937xA PXIe Vector Network Analyzer – Data Sheet M9370-90002 M937xA PXIe Vector Network Analyzer – Startup Guide M9370-90001 M937xA PXIe Vector Network Analyzer – Configuration Guide 59 91-4 8 85EN M937xA PXIe Vector Network Analyzer – Brochure 5992-0098EN M937xA PXIe Vector Network Analyzer – Flyer 5991-4883EN M9485A PXIe Multiport Vector Network Analyzer - Configuration Guide 5992-0758EN P937xA USB Vector Network Analyzer - Data Sheet 5992-2765EN P937xA USB Vector Network Analyzer - Configuration Guide 5992-2663EN FieldFox Handheld Analyzers – Technical Overview 5992-0772EN FieldFox Handheld Analyzers – Data Sheet 5990-9783EN FieldFox Handheld Analyzers – Configuration Guide 5990-9836EN Physical Layer Test System (PLTS) – Technical Overview 5989-6841EN Millimeter Wave Network Analyzer (N5290A/N5291A) – Configuration Guide 59 9 2-2179EN Banded Millimeter Wave Network Analysis to 1.5 THz – Technical Overview 59 9 2-2177EN Measuring Dielectric Properties Using Keysight’s Materials Measurement Solutions – Brochure 59 91-2171EN Keysight 855xxA Series Calibration Refresh Modules – Product Fact Sheet 5991-2450EN

Find us at www.keysight.com

Page 24

Page 25

Web Resources

Keysight Network Analyzer Family www.keysight.com/find/na PNA Series Network Analyzers www.keysight.com/find/pna ENA Series Network Analyzers www.keysight.com/find/ena PXI Vector Network Analyzers www.keysight.com/find/pxivna Keysight Streamline Series USB Network Analyzers www.keysight.com/find/usb-vna FieldFox Handheld RF and Microwave Analyzers www.keysight.com/find/fieldfox Millimeter-Wave Controllers www.keysight.com/find/mmwave Material Test Equipment www.keysight.com/find/materials Physical Layer Test System (PLTS) software www.keysight.com/find/plts RF & Microwave Test Accessories www.keysight.com/find/mta Antenna Measurements www.keysight.com/find/antenna Multiport/Multi-site Solutions www.keysight.com/find/multiport CalPod Calibration Refresh Module www.keysight.com/find/calpods Mechanical and Electronic Calibration Kits www.keysight.com/find/ecal PNA-X Nonlinear Vector Network Analyzer www.keysight.com/find/nvna

Learn more at: www.keysight.com

For more information on Keysight Technologies’ products, applications or services,

please contact your local Keysight office. The complete list is available at:

www.keysight.com/find/contactus

Find us at www.keysight.com

This information is subject to change without notice. © Keysight Technologies, 2014-2018, Published in USA, August 2, 2018, 5989-7603EN

Page 25
