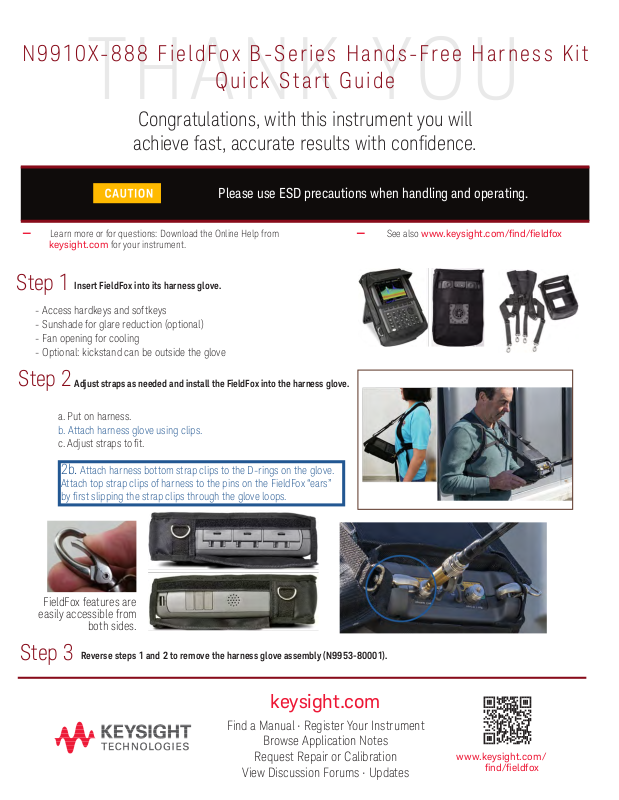

N9910X-888 FieldFox B-Series Hands-Free Harness Kit
Quick Start Guide
THANK YOU
Congratulations, with this instrument you will
achieve fast, accurate results with condence.
Please use ESD precautions when handling and operating.
Learn more or for questions: Download the Online Help from
-
keysight.com for your instrument.
Step 1
- Access hardkeys and softkeys
- Sunshade for glare reduction (optional)
- Fan opening for cooling
- Optional: kickstand can be outside the glove
Step 2
Insert FieldFox into its harness glove.
Adjust straps as needed and install the FieldFox into the harness glove.
a. Put on harness.
b. Attach harness glove using clips.
c. Adjust straps to t.
2b. Attach harness bottom strap clips to the D-rings on the glove.
Attach top strap clips of harness to the pins on the FieldFox “ears”
by rst slipping the strap clips through the glove loops.
See also www.keysight.com/nd/eldfox
-
FieldFox features are
easily accessible from
both sides.
Step 3
Reverse steps 1 and 2 to remove the harness glove assembly (N9953-80001).
keysight.com
Find a Manual • Register Your Instrument
Browse Application Notes
Request Repair or Calibration
View Discussion Forums • Updates
www.keysight.com/
nd/eldfox
This information is subject to change
without notice.
© Keysight Technologies 2014-2021
Edition 1, June 2021
