Keysight N9000B CXA Specification Guide

Keysight N9000B CXA Signal Analyzer

   

Specification Guide

Notices

No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Keysight Technologies, Inc. as governed by United States and international copyright laws.

Trademark Acknowledgments

Manual Part Number

N9000-90035

Edition

Edition 4, December 2020

Only available in electronic format

Published by: Keysight Technologies

No 116 Tianfu 4th street Chiengdu, 610041 China

Warranty

THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED “AS IS,” AND IS SUBJECT TO BEING CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY TERMS

COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE WARRANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software described in this document are furnished under a license and may be used or copied only in accordance with the terms of such license.

U.S. Government Rights

The Software is “commercial computer software,” as defined by Federal Acquisition Regulation (“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and Department of Defense FAR Supplement (“DFARS”) 227.7202, the U.S. government acquires commercial computer software under the same terms by which the software is customarily provided to the public. Accordingly, Keysight provides the Software to U.S. government customers under its standard commercial license, which is embodied in its End User License Agreement (EULA), a copy of which can be found at

http://www.keysight.com/find/sweula

The license set forth in the EULA represents the exclusive authority by which the U.S. government may use, modify, distribute, or disclose the Software. The EULA and the license set forth therein, does not require or permit, among other things, that Keysight: (1) Furnish technical information related to commercial computer software or commercial computer software documentation that is not customarily provided to the public; or (2) Relinquish to, or otherwise provide, the government rights in excess of these rights customarily provided to the public to use, modify, reproduce, release, perform, display, or disclose commercial computer software or commercial computer software

documentation. No additional government requirements beyond those set forth in the EULA shall apply, except to the extent that those terms, rights, or licenses are explicitly required from all providers of commercial computer software pursuant to the FAR and the DFARS and are set forth specifically in writing elsewhere in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With respect to any technical data as defined by FAR 2.101, pursuant to FAR 12.211 and 27.404.2 and DFARS 227.7102, the U.S. government acquires no greater than Limited Rights as defined in FAR 27.401 or DFAR 227.7103-5 (c), as applicable in any technical data.

Safety Notices

A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met.

A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in personal injury or death. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met.

Warranty

This Keysight technologies instrument product is warranted against defects in material and workmanship for a period of one year from the date of shipment. during the warranty period, Keysight Technologies will, at its option, either repair or replace products that prove to be defective.

For warranty service or repair, this product must be returned to a service facility designated by Keysight Technologies. Buyer shall prepay shipping charges to Keysight Technologies shall pay shipping charges to return the product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes for products returned to Keysight Technologies from another country.

Where to Find the Latest Information

Documentation is updated periodically. For the latest information about this analyzer, including firmware upgrades, application information, and product information, see the following URL:

http://www.keysight.com/find/cxa

To receive the latest updates by email, subscribe to Keysight Email Updates:

http://www.keysight.com/find/emailupdates

Information on preventing analyzer damage can be found at:

http://www.keysight.com/find/PreventingInstrumentRepair

1. Keysight CXA Signal Analyzer

Definitions and Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Conditions Required to Meet Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Frequency and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Frequency Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Standard Frequency Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Precision Frequency Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Frequency Readout Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Frequency Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Frequency Span. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sweep Time and Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Gated Sweep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Number of Frequency Display Trace Points (buckets) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Resolution Bandwidth (RBW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Power Bandwidth Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Analysis Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Video Bandwidth (VBW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Amplitude Accuracy and Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Maximum Safe Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Display Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Marker Readout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

IF Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

IF Phase Linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Input Attenuation Switching Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Absolute Amplitude Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Resolution Bandwidth Switching Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Reference Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Display Scale Switching Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Display Scale Fidelity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Available Detectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Gain Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

1 dB Gain Compression Point (Two-tone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Displayed Average Noise Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Spurious Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Second Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

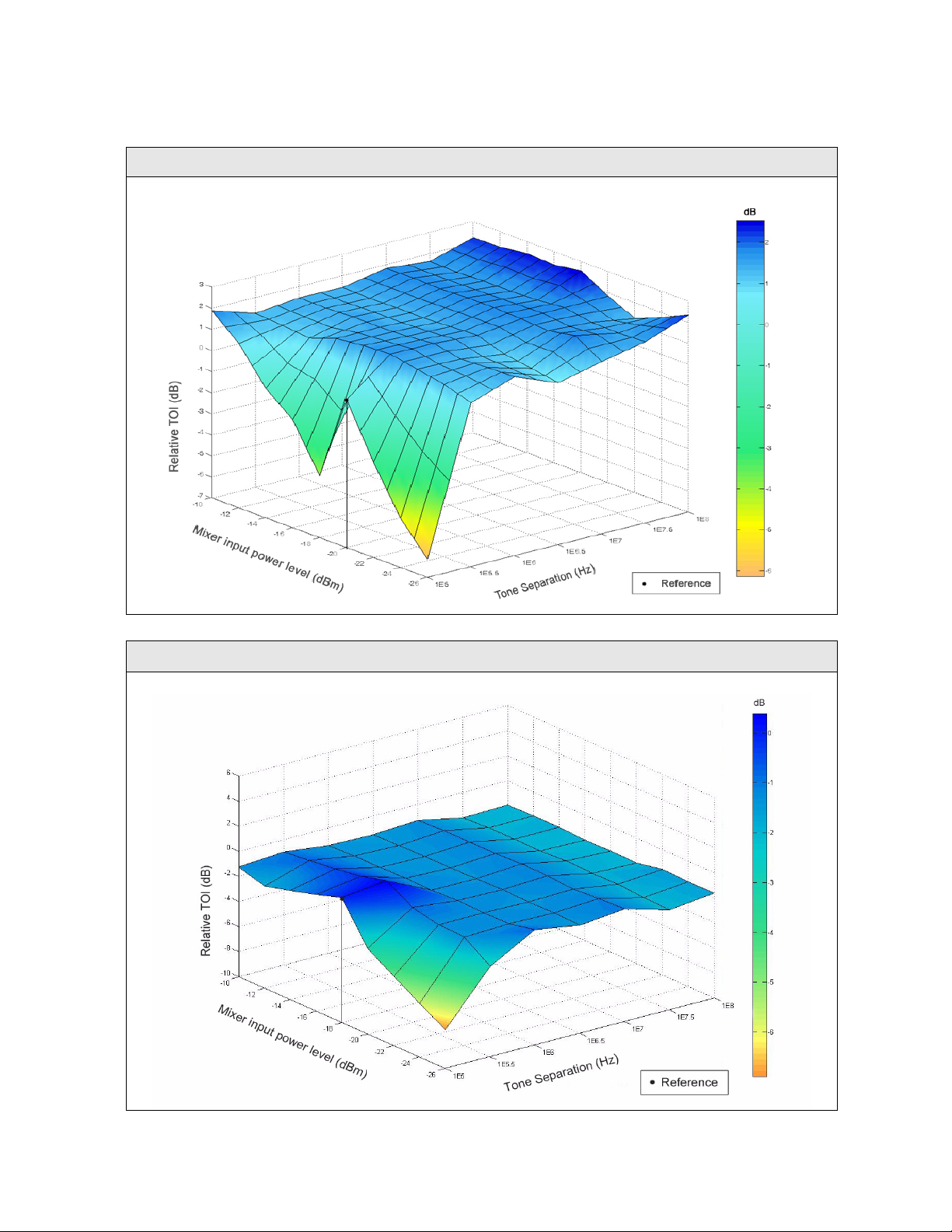

Third Order Intermodulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Phase Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Power Suite Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Channel Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Occupied Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Adjacent Channel Power (ACP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Power Statistics CCDF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Burst Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Spectrum Emission Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Contents

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Inputs/Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2. I/Q Analyzer

Specifications Affected by I/Q Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Clipping-to-Noise Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Data Acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

ADC Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3. Option CR3 - Connector Rear, Second IF Output

Specifications Affected by Connector Rear, Second IF Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Other Connector Rear, Second IF Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Second IF Out Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4. Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Specifications Affected by Connector, 75 Ohm Additional RF Input, 1.5 GHz . . . . . . . . . . . . . . . . . .64

Maximum Safe Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Second Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Third Order Intermodulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

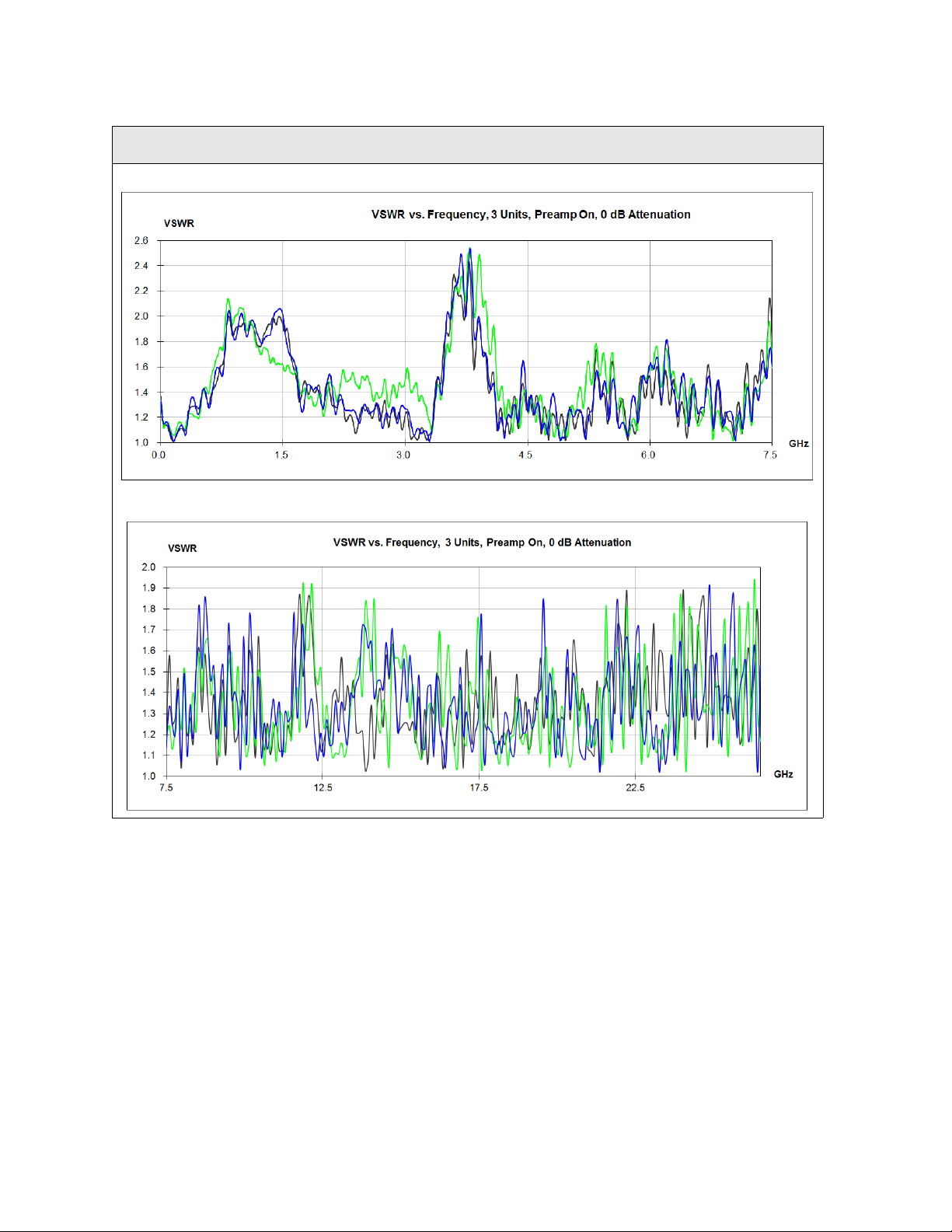

RF Input VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Other Connector, 75 Ohm Additional RF Input, 1.5 GHz Specifications . . . . . . . . . . . . . . . . . . . . . .67

5. Option EMC - Precompliance EMI Features

Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

RMS Average Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

6. Option B25 (25 MHz) - Analysis Bandwidth

Specifications Affected by Analysis Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Other Analysis Bandwidth Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

IF Spurious Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

IF Frequency Response. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

IF Phase Linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Full Scale (ADC Clipping) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Data Acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Time Record Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

7. Option P03, P07, P13 and P26 - Preamplifiers

Specifications Affected by Preamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Other Preamp Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Preamplifier (Option P03, P07, P13, P26). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Maximum Safe Input Level – Preamp On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

1 dB Gain Compression Point (Two-tone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Displayed Average Noise Level (DANL) Preamp On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

8. Options T03 and T06 - Tracking Generators

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Output Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Frequency Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Output Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Maximum Safe Reverse Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Output Power Sweep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Phase Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Spurious Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

RF Power-Off Residuals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Output VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9. Option ESC - External Source Control

Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Frequency Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Power sweep range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Measurement Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Supported External Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Contents

10. Options PFR - Precision Frequency Reference

Specifications Affected by Precision Frequency Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

11. Analog Demodulation Measurement Application

RF Carrier Frequency and Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Post-Demodulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Frequency Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Frequency Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Amplitude Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Amplitude Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Phase Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Phase Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Analog Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

FM Stereo/Radio Data System (RDS) Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

12. Phase Noise Measurement Application

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Maximum Carrier Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Measurement Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Measurement Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Amplitude Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Offset Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

13. Noise Figure Measurement Application

General Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Noise Figure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Contents

Noise Figure Uncertainty Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

14. W-CDMA Measurement Application

Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Channel Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Adjacent Channel Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Power Statistics CCDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Occupied Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Spectrum Emission Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Code Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

QPSK EVM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Modulation Accuracy (Composite EVM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

In-Band Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

15. LTE/LTE-Advanced Measurement Application

Supported Air Interface Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Channel Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Transmit On/Off Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Adjacent Channel Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Occupied Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Spectrum Emission Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Modulation Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

In-Band Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Operating Band, FDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Operating Band, TDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Keysight CXA Signal Analyzer

Specification Guide

1 Keysight CXA Signal Analyzer

This chapter contains the specifications for the core signal analyzer. The specifications and characteristics for the measurement applications and options are covered in the chapters that follow.

Keysight CXA Signal Analyzer Definitions and Requirements

Definitions and Requirements

This book contains signal analyzer specifications and supplemental information. The distinction among

specifications, typical performance, and nominal values are described as follows.

Definitions

• Specifications describe the performance of parameters covered by the product warranty (temperature =

0 to 55°C, also referred to as "Full temperature range" or "Full range", unless otherwise noted.

• 95th percentile values indicate the breadth of the population (»2s) of performance tolerances expected

to be met in 95% of the cases with a 95% confidence, for any ambient temperature in the range of 20 to 30°C. In addition to the statistical observations of a sample of instruments, these values include the effects of the uncertainties of external calibration references. These values are not warranted. These values are updated occasionally if a significant change in the statistically observed behavior of

production instruments is observed.

• Typical describes additional product performance information that is not covered by the product

warranty. It is performance beyond specification that 80% of the units exhibit with a 95% confidence level over the temperature range 20 to 30°C. Typical performance does not include measurement

uncertainty.

• Nominal values indicate expected performance, or describe product performance that is useful in the

application of the product, but is not covered by the product warranty.

Conditions Required to Meet Specifications

The following conditions must be met for the analyzer to meet its specifications.

• The analyzer is within its calibration cycle. See the General section of this chapter.

• Under auto couple control, except that Auto Sweep Time Rules = Accy.

• For signal frequencies < 10 MHz, DC coupling applied (Option 513/526 only).

• Any analyzer that has been stored at a temperature range inside the allowed storage range but outside

the allowed operating range must be stored at an ambient temperature within the allowed operating range for at least two hours before being turned on.

• The analyzer has been turned on at least 30 minutes with Auto Align set to Normal, or, if Auto Align is

set to Off or Partial, alignments must have been run recently enough to prevent an Alert message. If the Alert condition is changed from “Time and Temperature” to one of the disabled duration choices, the analyzer may fail to meet specifications without informing the user. If Auto Align is set to Light, performance is not warranted, and nominal performance will degrade to become a factor of 1.4 wider

for any specification subject to alignment, such as amplitude tolerances.

Certification

Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory. Keysight Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institute’s

calibration facility, and to the calibration facilities of other International Standards Organization members.

10 Chapter 1

Keysight CXA Signal Analyzer

Frequency and Time

Description Specifications Supplemental Information

Frequency Range

Maximum Frequency

Option 503 3.0 GHz Option 507 7.5 GHz Option 513 13.6 GHz Option 526 26.5 GHz

Preamp Option P03 3.0 GHz Preamp Option P07 7.5 GHz Preamp Option P13 13.6 GHz Preamp Option P26 26.5 GHz

Minimum Frequency Option 503, or 507

Preamp

Off 9 kHz On 100 kHz

Minimum Frequency Option 513, or 526

Preamp AC Coupled DC coupled

Off 10 MHz 9 kHz On 10 MHz 100 kHz

Band

Option 513, or 526 Option 503, or 507

0 (9 kHz to 3.0 GHz) x 1

0 (9 kHz to 3.08 GHz)

1 (2.95 to 3.8 GHz) x 1 2 (3.7 to 4.55 GHz) x 1 3 (4.45 to 5.3 GHz) x 1 4 (5.2 to 6.05 GHz) x 1 5 (5.95 to 6.8 GHz) x 1 6 (6.7 to 7.5 GHz) x 1

1 (2.95 to 7.58 GHz) 2 (7.45 to 9.55 GHz) x 2 3 (9.45 to 12.6 GHz) x 2 4 (12.5 to 13.05 GHz) x 2 4 (12.95 to 13.8 GHz) x 4 5 (13.4 to 15.55 GHz) x 4 6 (15.45 to 19.35 GHz) x 4 7 (19.25 to 21.05 GHz) x 4

LO Multiple (Na) Band Overlaps

x 1

x 2

Chapter 1 11

Keysight CXA Signal Analyzer Frequency and Time

Description Specifications Supplemental Information

8 (20.95 to 22.85 GHz)

x 4 9 (22.75 to 24.25 GHz) x 4 10 (24.15 to 26.55 GHz) x 4

a. N is the LO multiplication factor. b. In the band overlap regions, take option 513/526 for example, 2.95 to 7.5 GHz, the analyzer may use either band for measure-

ments, in this example Band 0 or Band 1. The analyzer gives preference to the band with the better overall specifications, but will choose the other band if doing so is necessary to achieve a sweep having minimum band crossings. For example, with CF = 2.98 GHz, with a span of 40 MHz or less, the analyzer uses Band 0, because the stop frequency is 3.0 GHz or less, allowing a span without band crossings in the preferred band. If the span is between 40 and 60 MHz, the analyzer uses Band 1, because the start frequency is above 2.95 GHz, allowing the sweep to be done without a band crossing in Band 1, though the stop frequency is above 3.0 GHz, preventing a Band 0 sweep without band crossing. With a span greater than 60 MHz, a band crossing will be required: the analyzer sweeps up to 3.0 GHz in Band 0; then executes a band crossing and continues the sweep in Band 1. Specifications are given separately for each band in the band overlap regions. One of these specifications is for the preferred band, and one for the alternate band. Continuing with the example from the previous paragraph (2.98 GHz), the preferred band is band 0 (indicated as frequencies under 3.0 GHz) and the alternate band is band 1 (2.95 to 7.5 GHz). The specifications for the preferred band are warranted. The specifications for the alternate band are not warranted in the band overlap region, but performance is nominally the same as those warranted specifications in the rest of the band. Again, in this example, consider a signal at 2.98 GHz. If the sweep has been configured so that the signal at 2.98 GHz is measured in Band 1, the analysis behavior is nominally as stated in the Band 1 specification line (2.95 to 7.5 GHz) but is not warranted. If warranted performance is necessary for this signal, the sweep should be reconfigured so that analysis occurs in Band 0. Another way to express this situation in this example Band0/Band 1 crossing is this: The specifications given in the “Specifications” column which are described as “2.95 to 7.5 GHz” represent nominal performance from 2.95 to 3.0 GHz, and warranted performance from 3.0 to 7.5 GHz.

Description Specifications Supplemental Information

Standard Frequency Reference

Accuracy [(time since last adjustment  aging

rate) + temperature stability +

calibration accuracy

]

Temperature Stability

20 to 30C

Full temperature range

Aging Rate

Achievable Initial Calibration

2  10

1  106/year

1.4  10

6

Accuracy

Settability Residual FM

2  10

8

(10 Hz) p-p in 20 ms (nominal)

(Center Frequency = 1 GHz 10 Hz RBW, 10 Hz VBW)

a. Calibration accuracy depends on how accurately the frequency standard was adjusted to 10 MHz. If the adjustment procedure is

followed, the calibration accuracy is given by the specification “Achievable Initial Calibration Accuracy”.

b. For periods of one year or more.

12 Chapter 1

Keysight CXA Signal Analyzer

Frequency and Time

Description Specifications Supplemental Information

Precision Frequency Reference

(Option PFR)

Accuracy [(time since last adjustment 

aging rate) + temperature stability + calibration accuracy

a]b

Temperature Stability

20 to 30C

Full temperature range

Aging Rate

1.5  10

5  10

8

5  10

10

/day (nominal)

Total Aging

1 Year

2 Years

Settability

Warm-up and Retrace

300 s after turn on 900 s after turn on

Achievable Initial Calibration Accuracy

1  10

1.5  10

2  10

4  10

7

9

8

7

Nominal

1  107 of final frequency

8

1  10

of final frequency

Stand by power to reference oscillator Not supplied

Residual FM

(Center Frequency = 1 GHz

 (0.25 Hz) p-p in 20 ms (nominal)

10 Hz RBW, 10 Hz VBW)

a. Calibration accuracy depends on how accurately the frequency standard was adjusted to 10 MHz. If the adjustment procedure is

followed, the calibration accuracy is given by the specification “Achievable Initial Calibration Accuracy.” b. The specification applies after the analyzer has been powered on for 15 minutes. c. Standby mode does not apply power to the oscillator. Therefore warm-up applies every time the power is turned on. The

warm-up reference is one hour after turning the power on. Retracing also occurs every time the power is applied. The effect of

retracing is included within the “Achievable Initial Calibration Accuracy” term of the Accuracy equation. d. The achievable calibration accuracy at the beginning of the calibration cycle includes these effects:

1) Temperature difference between the calibration environment and the use environment

2) Orientation relative to the gravitation field changing between the calibration environment and the use environment

3) Retrace effects in both the calibration environment and the use environment due to turning the instrument power off.

4) Settability

Chapter 1 13

Keysight CXA Signal Analyzer Frequency and Time

Description Specifications Supplemental Information

Frequency Readout Accuracy

Example for EMC

a. The warranted performance is only the sum of all errors under autocoupled conditions. Under non-autocoupled conditions, the

frequency readout accuracy will nominally meet the specification equation, except for conditions in which the RBW term domi-

nates, as explained in examples below. The nominal RBW contribution to frequency readout accuracy is 4 of RBW for RBWs

from 1 Hz to 3 MHz (the widest autocoupled RBW), and 30 of RBW for the (manually selected) 4, 5, 6 and 8 MHz RBWs.

Example: a 20 MHz span, with a 4 MHz RBW. The specification equation does not apply because the Span: RBW ratio is not auto-

coupled. If the equation did apply, it would allow 50 kHz of error (0.25) due to the span and 200 kHz error (5) due to the

RBW. For this non-autocoupled RBW, the RBW error is nominally 30, or 1200 kHz. b. Horizontal resolution is due to the marker reading out one of the trace points. The points are spaced by span/(Npts - 1), where

Npts is the number of sweep points. For example, with the factory preset value of 1001 sweep points, the horizontal resolution is

span/1000. However, there is an exception: When both the detector mode is “normal” and the span > 0.25  (Npts - 1)  RBW,

peaks can occur only in even-numbered points, so the effective horizontal resolution becomes doubled, or span/500 for the fac-

tory preset case. When the RBW is autocoupled and there are 1001 sweep points, that exception occurs only for spans > 750

MHz. c. In most cases, the frequency readout accuracy of the analyzer can be exceptionally good. As an example, Keysight has character-

ized the accuracy of a span commonly used for Electro-Magnetic Compatibility (EMC) testing using a source frequency locked to

the analyzer. Ideally, this sweep would include EMC bands C and D and thus sweep from 30 to 1000 MHz. Ideally, the analysis

bandwid th would be 120 kHz at 6 dB, and the spacing of the points would be half of this (60 kHz). With a start frequency of 30

MHz and a stop frequency of 1000.2 MHz and a total of 16168 points, the spacing of points is ideal. The detector used was the

Peak detector. The accuracy of frequency readout of all the points tested in this span was with 0.0032 of the span. A perfect

analyzer with this many points would have an accuracy of 0.0031 of span. Thus, even with this large number of display points,

the errors in excess of the bucket quantization limitation were negligible.

(marker freq.  freq. ref. accy. + 0.25  span + 5

 RBW

+ 2 Hz + 0.5  horizontal resolutionb)

Single detector only

0.0032 (nominal)

Description Specifications Supplemental Information

Frequency Counter

See note

Count Accuracy (marker freq.  freq. Ref. Accy. + 0.100 Hz)

Delta Count Accuracy (delta freq.  freq. Ref. Accy. + 0.141 Hz)

Resolution 0.001 Hz

a. Instrument conditions: RBW = 1 kHz, gate time = auto (100 ms), S/N  50 dB, frequency = 1 GHz. b. If the signal being measured is locked to the same frequency reference as the analyzer, the specified count accuracy is 0.100 Hz

under the test conditions of footnote a. This error is a noisiness of the result. It will increase with noisy sources, wider RBWs,

lower S/N ratios, and source frequencies > 1 GHz.

14 Chapter 1

Keysight CXA Signal Analyzer

Frequency and Time

Description Specifications Supplemental Information

Frequency Span

Range

Option 503 0 Hz, 10 Hz to 3 GHz

Option 507 0 Hz, 10 Hz to 7.5 GHz

Option 513 0 Hz, 10 Hz to 13.6 GHz

Option 526 0 Hz, 10 Hz to 26.5 GHz

Resolution 2 Hz

Span Accuracy

Swept

FFT

a. Horizontal resolution is due to the marker reading out one of the trace points. The points are spaced by span/(Npts  1), where

Npts is the number of sweep points. For example, with the factory preset value of 1001 sweep points, the horizontal resolution is span/1000. However, there is an exception: When both the detector mode is “normal” and the span > 0.25  (Npts  1)  RBW, peaks can occur only in even-numbered points, so the effective horizontal resolution becomes doubled, or span/500 for the factory preset case. When the RBW is auto coupled and there are 1001 sweep points, that exception occurs only for spans > 750 MHz.

(0.25  span + horizontal resolutiona)

(0.10  span + horizontal resolutiona)

Description Specifications Supplemental Information

Sweep Time and Trigger

Sweep Time Range

Span = 0 Hz 1 s to 6000 s

Span  10 Hz 1 ms to 4000 s

Sweep Time Accuracy

Span  10 Hz, swept 0.01 (nominal)

Span  10 Hz, FFT 40 (nominal)

Span = 0 Hz 1 (nominal)

Sweep Trigger Free Run, Line, Video, External 1, RF

Burst, Periodic Timer

Delayed Trigger

Range

Span  10 Hz, swept 1 s to 500 ms

Span = 0 Hz or FFT 150 ms to +500 ms

Resolution 0.1 s

a. Delayed trigger is available with line, video, RF burst and external triggers.

Chapter 1 15

Keysight CXA Signal Analyzer Frequency and Time

Description Specifications Supplemental Information

Triggers Add itional information on some of the triggers and

gate sources

Video

Independent of Display Scaling and Reference Level

Minimum settable level 170 dBm Useful range limited by noise

Maximum usable level

Highest allowed mixer levela + 2 dB (nominal)

Detector and Sweep Type relationships

Sweep Type = Swept

Detector = Normal, Peak, Sample or Negative Peak

Triggers on the signal before detection, which is similar to the displayed signal

Detector = Average Triggers on the signal before detection, but with a

single-pole filter added to give similar smoothing to that of the average detector

Sweep Type = FFT Triggers on the signal envelop in a band wid th wider

than the FFT width

RF Burst

Level Range

-50 to -10 dBm plus attenuation (nominal)

Level Accuracy ±2 dB + Absolute Amplitude Accuracy (nominal) Bandwidth (10 dB) 18 MHz (nominal) Frequency Limitations If the start or center frequency is too close to zero, LO

feedthrough can degrade or prevent triggering. How close is too close depends on the bandwidth.

External Triggers

See "Inputs/Outputs" on page 47.

a. The highest allowed mixer level depends on the attenuation and IF Gain. It is nominally 10 dBm + input attenuation for Preamp

Off and IF Gain = Low. b. Noise will limit trigger level range at high frequencies, such as above 13 GHz.

16 Chapter 1

Keysight CXA Signal Analyzer

Frequency and Time

Description Specifications Supplemental Information

Gated Sweep

Gate Methods Gated LO

Gated Video

Gated FFT Span Range Any span Gate Delay Range 0 to 100.0 s Gate Delay Settability 4 digits,  100 ns Gate Delay Jitter 33.3 ns p-p (nominal) Gate Length Range

(Except Method = FFT) Gated Frequency and

Amplitude Errors

Gate Sources External

100.0 ns to 5.0 s Gate length for the FFT method is fixed at

1.83/RBW, with nominally 2% tolerance. Nominally no additional error for gated

measurements when the Gate Delay is greater than the MIN FAST setting

Pos or neg edge triggered Line RF Burst Periodic

Description Specifications Supplemental Information

Number of Frequency Display Trace Points (buckets)

Factory preset 1,001 Range 1 to 40,001 Zero and non-zero spans

Chapter 1 17

Keysight CXA Signal Analyzer Frequency and Time

Description Specifications Supplemental Information

Resolution Bandwid th (RBW)

Range (3.01 dB bandwidth) 1 Hz to 8 MHz

Bandwidths above 3 MHz are 4, 5, 6, and 8MHz. Bandwidths 1 Hz to 3 MHz are spaced at 10% spacing using the E24 series (24 per decade):

1.0, 1.1, 1.2, 1.3, 1.5, 1.6, 1.8, 2.0, 2.2, 2.4, 2.7,

3.0, 3.3, 3.6, 3.9, 4.3, 4.7, 5.1, 5.6, 6.2, 6.8, 7.5,

8.2, 9.1 in each decade.

Power Band wid th Accuracy

RBW Range

1 Hz to 750 kHz 1.0% (0.044 dB) (nominal) 820 kHz to 1.2 MHz 2.0% (0.088 dB) (nominal)

1.3 to 2.0 MHz 0.07 dB (nominal)

2.2 to 3 MHz 0.15 dB (nominal) 4 to 8 MHz 0.25 dB (nominal)

Accuracy (3.01 dB bandwid th)

RBW Range

1 Hz to 1.3 MHz 2 (nominal)

1.5 to 3.0 MHz 7 (nominal) 4 to 8 MHz 15 (nominal)

Selectivity

(60 dB/3 dB)

4.1:1 (nominal)

a. The noise marker, band power marker, channel power and ACP all compute their results using the power bandwidth of the RBW

used for the measurement. Power bandwid th accuracy is the power uncertainty in the results of these measurements due only to bandwidth-related errors. (The analyzer knows this power bandwidth for each RBW with greater accuracy than the RBW width itself, and can therefore achieve lower errors.) The warranted specifications shown apply to the Gaussian RBW filters used in swept and zero span analysis. There are four different kinds of filters used in the spectrum analyzer: Swept Gaussian, Swept Flattop, FFT Gaussian and FFT Flattop. While the warranted performance only applies to the swept Gaussian filters, because only they are kept under statistical process control, the other filters nominally have the same performance.

b. Resolution Bandwidth Accuracy can be observed at slower sweep times than auto-coupled conditions. Normal sweep rates

cause the shape of the RBW filter displayed on the analyzer screen to widen by nominally 6. This widening declines to 0.6 nominal when the Swp Time Rules key is set to Accuracy instead of Normal. The true bandwidth, which determines the response to impulsive signals and noise-like signals, is not affected by the sweep rate.

c. The RBW filters are implemented digitally, and the selectivity is designed to be 4.1:1. Verifying the selectivity with RBWs above

100 kHz becomes increasing problematic due to SNR affecting the 60 dB measurement.

18 Chapter 1

Keysight CXA Signal Analyzer

Frequency and Time

Description Specification Supplemental information

Analysis Band wid th

Standard 10 MHz

With Option B25 25 MHz

a. Analysis bandwidth is the instantaneous bandwidth available around a center frequency over which the input signal can be

digitized for further analysis or processing in the time, frequency, or modulation domain.

Description Specifications Supplemental Information

Video Band wid th (VBW)

Range Same as Resolution Band width range plus

wide-open VBW (labeled 50 MHz)

Accuracy 6 (nominal)

in swept mode and zero span

a. For FFT processing, the selected VBW is used to determine a number of averages for FFT results. That number is chosen to give

roughly equival lay smoothing to VBW filtering in a swept measurement. For example, if VBW=0.1  RBW, four FFTs are averaged to generate one result.

Chapter 1 19

Keysight CXA Signal Analyzer Amplitude Accuracy and Range

Amplitude Accuracy and Range

Description Specifications Supplemental Information

Measurement Range

Option 513 or 526

Option 503 or 507

Preamp Off

100 kHz to 1 MHz x Displayed Average Noise Level to +20 dBm 1 MHz to 7.5 GHz x Displayed Average Noise Level to +23 dBm

100 kHz to 26.5 GHz

Preamp On

100 kHz to 7.5 GHz x Displayed Average Noise Level to +15 dBm

100 kHz to 26.5 GHz

Input Attenuation Range

Standard x 0 to 50 dB, in 10 dB steps

Standard

With Option FSA x 0 to 50 dB, in 2 dB steps

With Option FSA

x Displayed Average Noise Level to +23 dBm

x 0 to 70 dB, in 10 dB steps

x 0 to 70 dB, in 2 dB steps

Description Specifications Supplemental Information

Maximum Safe Input Level

Average Total Power

(input attenuation 20dB)

Average Total Power

(input attenuation 10dB)

Peak Pulse Power

(<10 s pulse wid th, <1 duty cycle input attenuation  30 dB)

AC Coupled 50 Vdc

DC Coupled 0.2 Vdc Option 513/526

+30 dBm (1 W) Option 503/507

+30 dBm (1 W) Option 513/526

+50 dBm (100 W)

20 Chapter 1

Keysight CXA Signal Analyzer

Amplitude Accuracy and Range

Description Specifications Supplemental Information

Display Range

Log Scale Ten divisions displayed;

0.1 to 1.0 dB/division in 0.1 dB steps, and 1 to 20 dB/division in 1 dB steps

Linear Scale Ten divisions

Scale units dBm, dBmV, dBV, dBmA, dBA, V, W, A

Description Specifications Supplemental Information

Marker Readout

Resolution

Log units resolution

Trace Averaging Off, on-screen 0.01 dB Trace Averaging On or remote 0.001 dB

Linear units resolution 1% of signal level (nominal)

a. Reference level and off-screen performance: The reference level (RL) behavior differs from previous analyzers (except PSA) in a

way that makes the Keysight CXA Signal Analyzer more flexible. In previous analyzers, the RL controlled how the measurement was performed as well as how it was displayed. Because the logarithmic amplifier in previous analyzers had both range and resolution limitations, this behavior was necessary for optimum measurement accuracy. The logarithmic amplifier in the CXA signal analyzer, however, is implemented digitally such that the range and resolution greatly exceed other instrument limitations. Because of this, the CXA signal analyzer can make measurements largely independent of the setting of the RL without compromising accuracy. Because the RL becomes a display function, not a measurement function, a marker can read out results that are off-screen, either above or below, without any change in accuracy. The only exception to the independence of RL and the way in which the measurement is performed is in the input attenuation setting: When the input attenuation is set to auto, the rules for the determination of the input attenuation include dependence on the reference level. Because the input attenuation setting controls the tradeoff between large signal behaviors (third-order intermodulation and compression) and small signal effects (noise), the measurement results can change with RL changes when the input attenuation is set to auto.

Frequency Response

Description Specifications Supplemental Information

Frequency Response Refer to the footnote for (Maximum error relative to reference

condition (50 MHz) Swept operation

Attenuation 10 dB)

Option 513 or 526

Option 503 or 507

20 to 30C Full Range 95th Percentile (2)

9 kHz to 10 MHz x ±0.6 dB ±0.65 dB ±0.45 dB

9 kHz to 10 MHz

x ±0.8 dB ±0.85 dB ±0.5 dB

10 MHz to 3 GHz x ±0.75 dB ±1.75 dB ±0.55 dB

"Band Overlaps" on page 11.

Freq Option 526 only: Modes above 18 GHz

Chapter 1 21

Keysight CXA Signal Analyzer Amplitude Accuracy and Range

Description Specifications Supplemental Information

10 MHz to 3 GHz

x ±0.65 dB ±0.85 dB ±0.4 dB

3 to 5.25 GHz x ±1.45 dB ±2.5 dB ±1.0 dB

5.25 to 7.5 GHz x ±1.65 dB ±2.60 dB ±1.2 dB 3 to 7.5 GHz

7.5 to 13.6 GHz

13.6 to 19 GHz 19 to 26.5 GHz

a. Signal frequencies between 18 and 26.5 GHz are prone to additional response errors due to modes in the Type-N connector used

with frequency Option 526. With the use of Type-N to APC 3.5 mm adapter part number 1250-1744, there are nominally six such modes. The effect of these modes with this connector are included within these specifications.

b. For Sweep Type = FFT, add the RF flatness errors of this table to the IF Frequency Response errors. An additional error source, the

error in switching between swept and FFT sweep types, is nominally 0.01 dB and is included within the “Absolute Amplitude Error” specifications.

x ±1.5 dB ±2.5 dB ±0.5 dB x ±2.0 dB ±2.7 dB ±0.8 dB x ±2.0 dB ±2.7 dB ±1.0 dB x ±2.5 dB ±4.5 dB ±1.3 dB

Description Specifications Supplemental Information

IF Frequency Response

Modes above 18 GHz

(Demodulation and FFT response relative to the center frequency)

Center

Freq (GHz)

Analysis

Width (MHz)

Max Error

(Exceptiond)

Midwidth Error

(95th Percentile)

Slope (dB/MHz)

(95th Percentile)

RMSe

(nominal)

3.0 10 0.40 dB 0.15 dB 0.10 0.03 dB

3.0, 26.5 10 0.25 dB

a. The IF frequency response includes effects due to RF circuits such as input filters, that are a function of RF frequency, in addition

to the IF pass-band effects.

b. Signal frequencies between 18 and 26.5 GHz are prone to additional response errors due to modes in the Type-N connector used

with frequency Option 526. With the use of Type-N to APC 3.5 mm adapter part number 1250-1744, there are nominally six such modes. These modes cause nominally up to –0.35 dB amplitude change, with phase errors of nominally up to ±1.2°.

c. The maximum error at an offset (f) from the center of the FFT width is given by the expression  [Midwidth Error + (f × Slope)], but

never exceeds Max Error. Usually, the span is no larger than the FFT width in which case the center of the FFT width is the center frequency of the analyzer. When the analyzer span is wider than the FFT width, the span is made up of multiple concatenated FFT results, and thus has multiple centers of FFT widths so the f in the equation is the offset from the nearest center. These specifications include the effect of RF frequency response as well as IF frequency response at the worst case center frequency. Perfor-

mance is nominally three times better than the maximum error at most center frequencies. d. The specification does not apply for frequencies greater than 3.0 MHz from the center in FFT Widths of 7.2 to 8 MHz. e. The "RMS" nominal performance is the standard deviation of the response relative to the center frequency, integrated across a 10

MHz span. This performance measure was observed at a single center frequency in each harmonic mixing band, which is repre-

sentative of all center frequencies; the observation center frequency is not the worst case center frequency.

22 Chapter 1

Keysight CXA Signal Analyzer

Amplitude Accuracy and Range

Description Specification Supplemental Information

IF Phase Linearity Deviation from mean phase linearity

Modes above 18 GHz

Freq

(GHz)

Span

(MHz)

Peak-to-Peak

(nominal)

RMS (nominal)

0.02,  3.0  10 0.5 0.2

3.0, 7.5  10 2.7 2.4

7.5, 26.5  10 1.5 0.4

a. Signal frequencies between 18 and 26.5 GHz are prone to additional response errors due to modes in the Type-N connector used

b. The listed performance is the r.m.s. of the phase deviation relative to the mean phase deviation from a linear phase condition,

where the r.m.s. is computed over the range of offset frequencies and center frequencies shown.

Description Specifications Supplemental Information

Input Attenuation Switching Uncertainty

(Relative to 10 dB (reference setting))

Refer to the footnote for

Overlaps" on page 11

"Band

50 MHz (reference frequency) 0.32 dB 0.15 dB (typical)

Attenuation > 2 dB, preamp off

100 kHz to 3 GHz 0.30 dB (nominal)

3 to 7.5 GHz 0.50 dB (nominal)

7.5 to 13.6 GHz 0.70 dB (nominal)

13.6 to 26.5 GHz 0.70 dB (nominal)

Description Specifications Supplemental Information

Absolute Amplitude Accuracy

At 50 MHz

20 to 30C 0.40 dB 0.30 dB (95th percentile)

5 to 50C 0.60 dB

At all frequencies

20 to 30C (0.40 dB + frequency response)

5 to 50C (0.60 dB + frequency response)

95th Percentile Absolute Amplitude Accuracy

(Wide range of signal levels,

RBWs, RLs, etc.,

Atten = 10 dB)

100 kHz to 10 MHz 0.6 dB

Chapter 1 23

Keysight CXA Signal Analyzer Amplitude Accuracy and Range

Description Specifications Supplemental Information

Preamp On

(Option P03/P07/P13/P26)

a. Absolute amplitude accuracy is the total of all amplitude measurement errors, and applies over the following subset of settings

and conditions: 1 Hz  RBW 1 MHz; Input signal 10 to 50 dBm; Input attenuation 10 dB; span < 5 MHz (nominal additional

error for span  5 MHz is 0.02 dB); all settings auto-coupled except Swp Time Rules = Accuracy; combinations of low signal level

and wide RBW use VBW 30 kHz to reduce noise. This absolute amplitude accuracy specification includes the sum of the following individual specifications under the conditions

listed above: Scale Fidelity, Reference Level Accuracy, Display Scale Switching Uncertainty, Resolution Bandwidth Switching

Uncertainty, 50 MHz Amplitude Reference Accuracy, and the accuracy with which the instrument aligns its internal gains to the

50 MHz Amplitude Reference. b. Absolute Amplitude Accuracy for a wide range of signal and measurement settings, covers the 95th percentile proportion with

95% confidence. Here are the details of what is covered and how the computation is made:

The wide range of conditions of RBW, signal level, VBW, reference level and display scale are discussed in footnote a. There are

108 quasi-random combinations used, tested at a 50 MHz signal frequency. We compute the 95th percentile proportion with

95% confidence for this set observed over a statistically significant number of instruments. Also, the frequency response relative

to the 50 MHz response is characterized by varying the signal across a large number of quasi-random verification frequencies

that are chosen to not correspond with the frequency response adjustment frequencies. We again compute the 95th percentile

proportion with 95% confidence for this set observed over a statistically significant number of instruments. We also compute the

95th percentile accuracy of tracing the calibration of the 50 MHz absolute amplitude accuracy to a national standards organiza-

tion. We also compute the 95th percentile accuracy of tracing the calibration of the relative frequency response to a national

standards organization. We take the root-sum-square of these four independent Gaussian parameters. To that rss we add the

environmental effects of temperature variations across the 20 to 30°C range. c. Same settings as footnote a, except that the signal level at the preamp input is 40 to 80 dBm. Total power at preamp (dBm) =

total power at input (dBm) minus input attenuation (dB). This specification applies for signal frequencies above 100 kHz.

(0.39 dB + frequency response) (nominal)

Description Specifications Supplemental Information

RF Input VSWR

Nominal

(Input attenuation 10 dB, 50 MHz) 1.1:1

Option 513 or 526

Option 503 or 507

Input Attenuation  10 dB

10 MHz to 3.0 GHz x < 1.5:1 (nominal)

10 MHz to 3.0 GHz

x < 1.3:1 (nominal)

3.0 to 7.5 GHz x < 2.0:1 (nominal)

3.0 to 7.5 GHz

7.5 to 26.5 GHz

a. The nominal SWR stated is given for the worst case RF frequency in three representative instruments.

x < 1.4:1 (nominal) x < 1.9:1 (nominal)

24 Chapter 1

Nominal Instrument Input VSWR (Option 503/507)

VSWR vs. Fre quency, 3 Uni ts, 10 dB Atte nuation

1.00

1.10

1.20

1.30

1.40

1.50

0.00.51.01.52.02.53.0

GHz

VSWR

VSWR v s. Frequency, 3 Units, 10 dB Attenuation

1.00

1.10

1.20

1.30

1.40

1.50

1.60

1.70

1.80

1.90

2.00

3.0 3.5 4.0 4. 5 5. 0 5.5 6.0 6.5 7.0 7.5

GHz

VSWR

Keysight CXA Signal Analyzer

Amplitude Accuracy and Range

Chapter 1 25

Keysight CXA Signal Analyzer

VSWR vs. Freque ncy, 3 Units, 10 dB Attenuation

1.0

1.2

1.4

1.6

1.8

2.0

7.5 11.5 15.5 19.5 23.5

GHz

VSWR

Amplitude Accuracy and Range

Nominal Instrument Input VSWR (Option 513/526)

26 Chapter 1

Keysight CXA Signal Analyzer

Amplitude Accuracy and Range

Description Specifications Supplemental Information

Resolution Bandwid th Switching Uncertainty Relative to reference BW of 30 kHz 1 Hz to 3 MHz RBW 0.15 dB Manually selected wide RBWs: 4, 5, 6, 8 MHz 1.0 dB

Description Specifications Supplemental Information

Reference Level

Range

Log Units 170 to +23 dBm in 0.01 dB steps

Linear Units 707 pV to 3.16 V with 0.01 dB resolution (0.11)

Accuracy

a. Because reference level affects only the display, not the measurement, it causes no additional error in measurement results from

trace data or markers.

0 dB

Description Specifications Supplemental Information

Display Scale Switching Uncertainty

Switching between Linear and Log

Log Scale Switching

a. Because Log/Lin and Log Scale Switching affect only the display, not the measurement, they cause no additional error in mea-

surement results from trace data or markers.

0 dB

Description Specifications Supplemental Information

Display Scale Fidelity

abc

Absolute Log-Linear Fidelity

(Relative to the reference condition of 25 dBm input through the 10 dB attenuation, or 35 dBm at the input mixer)

Input mixer level

Linearity

80 dBm  ML  15 dBm 0.15 dB

15 dBm  ML  10 dBm 0.30 dB 0.15 dB (typical)

Relative Fidelity

Applies for mixer leveld range from 10 to 80 dBm, preamp off, and dither on

Sum of the following terms:

high level term

Up to 0.045 dB

Chapter 1 27

Keysight CXA Signal Analyzer



320dB110

SN 3dB+20dB–

+log=

Amplitude Accuracy and Range

Description Specifications Supplemental Information

instability term Up to 0.018 dB

slope term

a. Supplemental information: The amplitude detection linearity specification applies at all levels below 10 dBm at the input mixer;

b. The scale fidelity is warranted with ADC dither set to Medium. Dither increases the noise level by nominally only 0.24 dB for the

c. Reference level and off-screen performance: The reference level (RL) behavior differs from some earlier analyzers in a way that

d. Mixer level = Input Level - Input Attenuator e. The relative fidelity is the error in the measured difference between two signal levels. It is so small in many cases that it cannot be

f. Errors at high mixer levels will nominally be well within the range of 0.045 dB × {exp[(P1  Pref)/(8.69 dB)]  exp[(P2 

g. Slope error will nominally be well within the range of 0.000

however, noise will reduce the accuracy of low level measurements. The amplitude error due to noise is determined by the sig-

nal-to-noise ratio, S/N. If the S/N is large (20 dB or better), the amplitude error due to noise can be estimated from the equation

below, given for the 3-sigma (three standard deviations) level.

he errors due to S/N ratio can be further reduced by averaging results. For large S/N (20 dB or better), the 3-sigma level can be

reduced proportional to the square root of the number of averages taken.

most sensitive case (preamp Off, best DANL frequencies). With dither Off, scale fidelity for low level signals, around 60 dBm or

lower, will nominally degrade by 0.2 dB.

makes this analyzer more flexible. In other analyzers, the RL controlled how the measurement was performed as well as how it was

displayed. Because the logarithmic amplifier in these analyzers had both range and resolution limitations, this behavior was nec-

essary for optimum measurement accuracy. The logarithmic amplifier in this signal analyzer, however, is implemented digitally

such that the range and resolution greatly exceed other instrument limitations. Because of this, the analyzer can make measure-

ments largely independent of the setting of the RL without compromising accuracy. Because the RL becomes a display function,

not a measurement function, a marker can read out results that are off-screen, either above or below, without any change in accu-

racy. The only exception to the independence of RL and the way in which the measurement is performed is in the input attenuator

setting: When the input attenuator is set to auto, the rules for the determination of the input attenuation include dependence on

the reference level. Because the input attenuation setting controls the tradeoff between large signal behaviors (third-order inter-

modulation and compression) and small signal effects (noise), the measurement results can change with RL changes when the

input attenuation is set to auto.

verified without being dominated by measurement uncertainty of the verification. Because of this verification difficulty, this speci-

fication gives nominal performance, based on numbers that are as conservatively determined as those used in warranted specifi-

cations. We will consider one example of the use of the error equation to compute the nominal performance.

Example: the accuracy of the relative level of a sideband around 60 dBm, with a carrier at 5 dBm, using attenuator = 10 dB,

RBW = 3 kHz, evaluated with swept analysis. The high level term is evaluated with P1 = 15 dBm and P2 = 70 dBm at the mixer.

This gives a maximum error within 0.025 dB. The instability term is 0.018 dB. The slope term evaluates to 0.050 dB. The sum

of all these terms is 0.093 dB.

Pref)/(8.69 dB)]}. In this expression, P1 and P2 are the powers of the two signals, in decibel units, whose relative power is being

measured. Pref is 10 dBm. All these levels are referred to the mixer level.

9 × (P1  P2). P1 and P2 are defined in

From equation

footnote f.

Description Specifications Supplemental Information

Available Detectors Normal, Peak, Sample, Negative

Peak, Average

Average detector works on RMS, Voltage and Logarithmic scales

28 Chapter 1

Keysight CXA Signal Analyzer

Dynamic Range

Gain Compression

Description Specifications Supplemental Information

1 dB Gain Compression Point (Two-tone)

abc

Maximum power at mixer

50 MHz to 7.5 GHz (Option 503, 507) +2.00 dBm (nominal)

50 MHz to 7.5 GHz (Option 513, 526) +7.00 dBm (nominal)

7.5 to 13.6 GHz (Option 513, 526) +3.00 dBm (nominal)

13.6 to 26.5 GHz (Option 526) +0.00 dBm (nominal)

a. Large signals, even at frequencies not shown on the screen, can cause the analyzer to incorrectly measure on-screen signals

because of two-tone gain compression. This specification tells how large an interfering signal must be in order to cause a 1 dB

change in an on-screen signal. b. Specified at 1 kHz RBW with 1 MHz tone spacing. c. Reference level and off-screen performance: The reference level (RL) behavior differs from some earlier analyzers in a way that

makes this analyzer more flexible. In other analyzers, the RL controlled how the measurement was performed as well as how it

was displayed. Because the logarithmic amplifier in these analyzers had both range and resolution limitations, this behavior was

necessary for optimum measurement accuracy. The logarithmic amplifier in this signal analyzer, however, is implemented digi-

tally such that the range and resolution greatly exceed other instrument limitations. Because of this, the analyzer can make mea-

surements largely independent of the setting of the RL without compromising accuracy. Because the RL becomes a display

function, not a measurement function, a marker can read out results that are off-screen, either above or below, without any

change in accuracy. The only exception to the independence of RL and the way in which the measurement is performed is in the

input attenuation setting: When the input attenuation is set to auto, the rules for the determination of the input attenuation

include dependence on the reference level. Because the input attenuation setting controls the tradeoff between large signal

behaviors (third-order intermodulation, compression, and display scale fidelity) and small signal effects (noise), the measure-

ment results can change with RL changes when the input attenuation is set to auto. d. Mixer power level (dBm) = input power (dBm)  input attenuation (dB).

Chapter 1 29

Keysight CXA Signal Analyzer Dynamic Range

Displayed Average Noise Level

Description Specifications Supplemental Information

Displayed Average Noise Level (DANL)

Option 513 or 526 Option 503 or 507

20 to 30°C Full range Typical 9 kHz to 1 MHz x –120 dBm (nominal)

9 kHz to 1 MHz

1 to 10 MHz

x -130 dBm -129 dBm -137 dBm

10 MHz to 1.5 GHz x -148 dBm -145 dBm -150 dBm

10 MHz to 1.5 GHz

1.5 to 2.5 GHz x -144 dBm -141 dBm -147 dBm

2.5 to 2.7 GHz x -142 dBm -139 dBm -145 dBm

2.7 to 3.0 GHz x -139 dBm -137 dBm -143 dBm

3 to 4.5 GHz x -137 dBm -136 dBm -140 dBm

4.5 to 6 GHz x -133 dBm -130 dBm -136 dBm

1.5 to 6 GHz

6 to 7.5 GHz x -128 dBm -125 dBm -131 dBm

6 to 7.5 GHz

7.5 to 13.6 GHz

13.6 to 20 GHz 20 to 24 GHz 24 to 26.5 GHz

Input terminated Sample or Average detector

Refer to the footnote for

Overlaps" on page 11

Averaging type = Log 0 dB input attenuation IF Gain = High

1 Hz Resolution Bandwidth

x -122 dBm

x -143 dBm -143 dBm -148 dBm

x -147 dBm -147 dBm -150 dBm

x -143 dBm -142 dBm -147 dBm

x -141 dBm -140 dBm -145 dBm x -139 dBm -138 dBm -142 dBm x -134 dBm -133 dBm -140 dBm x -132 dBm -131 dBm -138 dBm x -124 dBm -121 dBm -129 dBm

"Band

a. DANL for zero span and swept is measured in a 1 kHz RBW and normalized to the narrowest available RBW, because the

noise figure does not depend on RBW and 1 kHz measurements are faster. b. DANL below 10 MHz is affected by phase noise around the LO feedthrough signal. c. DANL below 10 MHz is affected by phase noise around the LO feedthrough signal. Specifications apply with the best set-

ting of the Phase Noise Optimization control, which is to choose the “Best Close-in f Noise" for frequencies below 25 kHz,

and “Best Wide Offset f Noise" for frequencies above 85 kHz.

30 Chapter 1

Keysight CXA Signal Analyzer

Dynamic Range

Spurious Response

Description Specifications Supplemental Information

Spurious Response See

Option 513 or 526 Option 503 or 507

Residual Responses

200 kHz to 7.5 GHzd (swept) Zero span or FFT or other frequencies

Input Related Spurious Response

Mixer Level

Response

90 dBm

x 30 dBm 60 dBc (typical)

Preamp Off

100 dBm (nominal)

(10 MHz to 7.5 GHz) Image Responses

10 MHz to 26.5 GHz

x -10 dBm -60 dBc (typical)

Other Spurious Responses

First RF Order

x -10 dBm -65 dBc

(f ³ 10 MHz from carrier)

High RF Order

x -30 dBm -65 dBc

(f ³ 10 MHz from carrier)

LO-Related Spurious Responses

x -10 dBm -64 dBc (typical)

(10 MHz to 3 GHz)

Sidebands, offset from CW signal

50 to 200 Hz 200 Hz to 3 kHz 3 kHz to 300 kHz 300 kHz to 10 MHz

50 dBc (nominal) 65 dBc (nominal) 65 dBc (nominal) 80 dBc (nominal)

"Band Overlaps" on page 11

a. Mixer Level = Input Level - Input Attenuation. b. The spurious response specifications only apply with the preamp turned off. When the preamp is turned on, performance is nom-

inally the same as long as the mixer level is interpreted to be: Mixer Level = Input Level  Input Attenuation  Preamp Gain. c. Input terminated, 0 dB input attenuation. d. The stop frequency varies according to the option 503/507/513/526 selected.

Chapter 1 31

Keysight CXA Signal Analyzer Dynamic Range

Second Harmonic Distortion

Description Specifications Supplemental Information

Second Harmonic Distortion

Distortion

(Input attenuation 10 dB) Option 513, or 526 Option 503, or 507 Preamp Off

10 MHz to 3.75 GHz

x –65 dBc +35 dBm –72 dBc +42 dBm

(Input level –20 dBm)

3.75 to 13.25 GHz

x –75 dBc +45 dBm –84 dBc +54 dBm

(Input level –20 dBm)

Preamp On (Option P03/P07)

x –60 dBc +10 dBm

(Input level –40 dBm)

a. SHI = second harmonic intercept. The SHI is given by the mixer power in dBm minus the second harmonic distortion level rel-

ative to the mixer tone in dBc.

SHI

Distortion

SHI (nominal)

(nominal)

Third Order Intermodulation

Description Specifications Supplemental Information

Third Order Intermodulation

(Two 20 dBm tones at the input, spaced by 100 kHz, input attenuation 0 dB)

Option 513, or 526 Option 503, or 507

20 to 30C

Intercept

10 to 500 MHz x +11 dBm -62 dBc +15 dBm

10 to 400 MHz x +10 dBm -60 dBc +14 dBm

500 MHz to 2 GHz 2 to 3 GHz

x +12 dBm -64 dBc +15 dBm x +11 dBm -62 dBc +15 dBm

400 MHz to 3 GHz x +13 dBm -66 dBc +17 dBm

3 to 7.5 GHz

x +12 dBm -64 dBc +17 dBm

3 to 7.5 GHz x +13 dBm -66 dBc +15 dBm

7.5 to 13.6 GHz

13.6 to 26.5 GHz

Preamp On (OptionP03, P07, P13, P26)

x +11 dBm -62 dBc +15 dBm x +10 dBm -60 dBc +14 dBm

x–8 dBm (nominal) (Two –45 dBm tones at the input, spaced by 100 kHz, input attenuation 0 dB)

Refer to the footnote for "Band

Overlaps" on page 11

Extrapolated Distortion

Intercept

(Typical)

a. TOI is verified with IF Gain set to its best case condition, which is IF Gain = Low. b. Intercept = TOI = third order intercept. The TOI is given by the mixer tone level (in dBm) minus (distortion/2) where distortion is

the relative level of the distortion tones in dBc.

c. The distortion shown is computed from the warranted intercept specifications, based on two tones at –20 dBm each, instead of

being measured directly.

32 Chapter 1

Nominal TOI vs. Mixer Level and Tone Separation [Plot] (Option 503, 507)

Keysight CXA Signal Analyzer

Dynamic Range

Nominal TOI vs. Mixer Level and Tone Separation [Plot] (Option 513, 526)

Chapter 1 33

Keysight CXA Signal Analyzer Dynamic Range

Phase Noise

Description Specifications Supplemental

Information

Phase Noise Noise Sidebands

(Center Frequency = 1 GHz Best-case Optimization

Internal Reference

) 1 kHz –98 dBc/Hz –97 dBc/Hz –103 dBc/Hz 10 kHz –106 dBc/Hz –105 dBc/Hz –110 dBc/Hz 100 kHz –108 dBc/Hz –107 dBc/Hz –110 dBc/Hz 1 MHz –130 dBc/Hz –129 dBc/Hz –130 dBc/Hz 10 MHz –145 dBc/Hz (nominal)

a. The nominal performance of the phase noise at center frequencies different than the one at which the specifica-

tions apply (1 GHz) depends on the center frequency, band and the offset. For low offset frequencies, offsets well under 100 Hz, the phase noise increases by 20  log[(f + 0.3225)/1.3225]. For mid-offset frequencies such as 10 kHz, band 0 phase noise increases as 20  log[(f + 5.1225)/6.1225]. For mid-offset frequencies in other bands, phase noise changes as 20  log[(f + 0.3225)/6.1225] except f in this expression should never be lower than 5.8. For wide offset frequencies, offsets above about 100 kHz, phase noise increases as 20  log(N). N is the LO Multiple as shown on page 11; f is in GHz units in all these relationships; all increases are in units of decibels.

b. Noise sidebands for lower offset frequencies, for example, 10 kHz, apply with the phase noise optimization

PhNoise Opt) set to Best Close-in  Noise. Noise sidebands for higher offset frequencies, for example, 1 MHz, as

( shown apply with the phase noise optimization set to Best Wide-offset  Noise.

c. Specifications are given with the internal frequency reference. The phase noise at offsets below 100 Hz is

impacted or dominated by noise from the reference. Thus, performance with external references will not follow the curves and specifications. The internal 10 MHz reference phase noise is about –120 dBc/Hz at 10 Hz offset; external references with poorer phase noise than this will cause poorer performance than shown.

20 to 30°C Full range Typical

34 Chapter 1

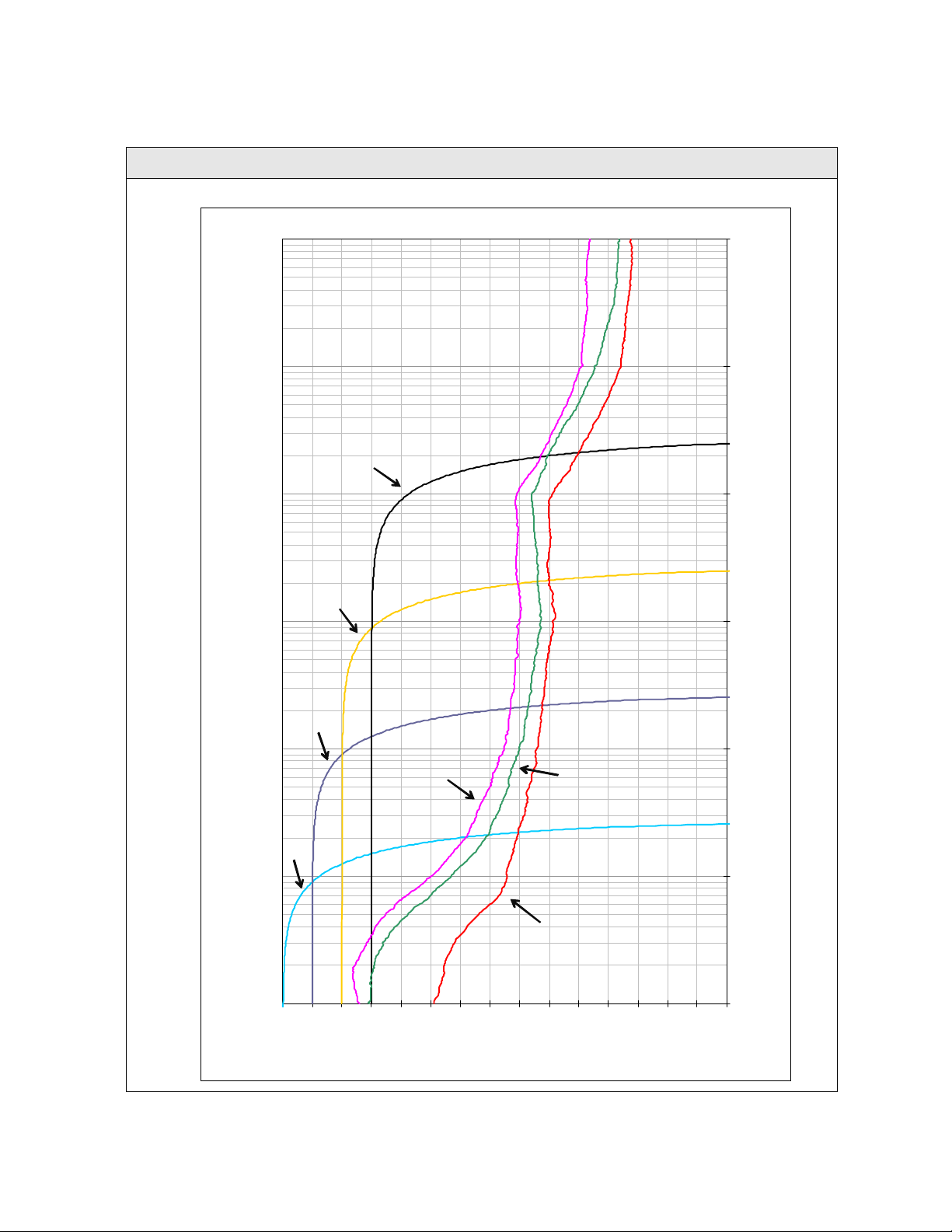

Nominal Phase Noise at Different Center Frequencies

With RBW Selectivity Curves, Optimized Phase Noise, Versus Offset Frequency

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

0.01 0.1 1 10 100 1000 10000

Freq (kHz)

SSB Phase Noise (dBc/Hz)

CF=600 MHz

CF=10.2 GHz

CF=25.2 GHz

RBW= 100kHz

RBW= 10kHz

RBW=1 kHz

RBW= 100Hz

Keysight CXA Signal Analyzer

Dynamic Range

Chapter 1 35

Keysight CXA Signal Analyzer Power Suite Measurements

Power Suite Measurements

Description Specifications Supplemental Information

Channel Power

Amplitude Accuracy

Amplitude Accuracya + Power Bandwidth Accuracy

Case: Radio Std = 3GPP W-CDMA, or IS-95

Absolute Power Accuracy

1.33 dB

0.61 dB (95th percentile)

(20 to 30C, Attenuation = 10 dB)

a. See "Absolute Amplitude Accuracy" on page 23. b. See "Power Bandwidth Accuracy" on page 18. c. Expressed in dB.

Description Specifications Supplemental Information

Occupied Band wid th

Frequency Accuracy (Span/1000) (nominal)

36 Chapter 1

Keysight CXA Signal Analyzer

Power Suite Measurements

Description Specifications Supplemental Information

Adjacent Channel Power (ACP)

Case: Radio Std = None

Accuracy of ACP Ratio (dBc)

Accuracy of ACP Absolute Power (dBm or dBm/Hz)

Accuracy of Carrier Power (dBm), or Carrier Power PSD (dBm/Hz)

Passband width

Case: Radio Std = 3GPP W-CDMA

Display Scale Fidelity

Absolute Amplitude Accuracyb + Power Bandwidth Accuracy

Absolute Amplitude Accuracy + Power Bandwidth Accuracy

3 dB

(ACPR; ACLR)

Minimum power at RF Input 36 dBm (nominal)

ACPR Accuracy

RRC weighted, 3.84 MHz noise bandwid th, method = IBW or Fast

Radio Offset Freq MS (UE) 5 MHz 0.76 dB At ACPR range of 30 to 36 dBc with

optimum mixer level

MS (UE) 10 MHz 0.73 dB At ACPR range of 40 to 46 dBc with

BTS

optimum mixer level

5 MHz

1.72 dB

At ACPR range of 42 to 48 dBc with optimum mixer level

BTS 10 MHz 1.96 dB At ACPR range of 47 to 53 dBc with

BTS 5 MHz 0.87 dB

optimum mixer level

At 48 dBc non-coherent ACPR Dynamic Range RRC weighted, 3.84 MHz noise bandwidth Option 513, or 526

Option 503, or 507

Noise Correction

Offset Freq

ACLR (typical)

Off 5 MHz x 63.0 dB Off 5 MHz

x 66.0 dB Off 10 MHz x 67.0 dB Off 10 MHz On 5 MHz x On 10 MHz x

x 69.0 dB

x 73.0 dB

x 78.0 dB

a. The effect of scale fidelity on the ratio of two powers is called the relative scale fidelity. The scale fidelity specified in the

Amplitude section is an absolute scale fidelity with 35 dBm at the input mixer as the reference point. The relative scale

fidelity is nominally only 0.01 dB larger than the absolute scale fidelity. b. See Amplitude Accuracy and Range section. c. See Frequency and Time section. d. Expressed in decibels.

Chapter 1 37

Keysight CXA Signal Analyzer

–

Power Suite Measurements

e. An ACP measurement measures the power in adjacent channels. The shape of the response versus frequency of those

adjacent channels is occasionally critical. One parameter of the shape is its 3 dB bandwidth. When the bandwidth (called the Ref BW) of the adjacent channel is set, it is the 3 dB bandwidth that is set. The passband response is given by the convolution of two functions: a rectangle of width equal to Ref BW and the power response versus frequency of the RBW filter used. Measurements and specifications of analog radio ACPs are often based on defined bandwidths of measuring receivers, and these are defined by their 6 dB widths, not their 3 dB widths. To achieve a passband whose 6 dB width

is x, set the Ref BW to be .

f. Most versions of adjacent channel power measurements use negative numbers, in units of dBc, to refer to the power in an

adjacent channel relative to the power in a main channel, in accordance with ITU standards. The standards for W-CDMA analysis include ACLR, a positive number represented in dB units. In order to be consistent with other kinds of ACP measurements, this measurement and its specifications will use negative dBc results, and refer to them as ACPR, instead of positive dB results referred to as ACLR. The ACLR can be determined from the ACPR reported by merely reversing the sign.

g. The accuracy of the Adjacent Channel Power Ratio will depend on the mixer drive level and whether the distortion prod-

ucts from the analyzer are coherent with those in the UUT. These specifications apply even in the worst case condition of coherent analyzer and UUT distortion products. For ACPR levels other than those in this specifications table, the optimum mixer drive level for accuracy is approximately 37 dBm  (ACPR/3), where the ACPR is given in (negative) decibels.

h. The Fast method has a slight decrease in accuracy in only one case: for BTS measurements at 5 MHz offset, the accuracy

degrades by 0.01 dB relative to the accuracy shown in this table.

i. To meet this specified accuracy when measuring mobile station (MS) or user equipment (UE) within 3 dB of the required

33 dBc ACPR, the mixer level (ML) must be optimized for accuracy. This optimum mixer level is 20 dBm, so the input attenuation must be set as close as possible to the average input power  (20 dBm). For example, if the average input power is 6 dBm, set the attenuation to 14 dB. This specification applies for the normal 3.5 dB peak-to-average ratio of a single code. Note that if the mixer level is set to optimize dynamic range instead of accuracy, accuracy errors are nomi-

nally doubled. j. ACPR accuracy at 10 MHz offset is warranted when the input attenuator is set to give an average mixer level of 10 dBm. k. In order to meet this specified accuracy, the mixer level must be optimized for accuracy when measuring node B Base

Transmission Station (BTS) within 3 dB of the required 45 dBc ACPR. This optimum mixer level is 18 dBm, so the input

attenuation must be set as close as possible to the average input power  (18 dBm). For example, if the average input

power is 5 dBm, set the attenuation to 13 dB. This specification applies for the normal 10 dB peak-to-average ratio (at

0.01 probability) for Test Model 1. Note that, if the mixer level is set to optimize dynamic range instead of accuracy,

accuracy errors are nominally doubled. l. Accuracy can be excellent even at low ACPR levels assuming that the user sets the mixer level to optimize the dynamic

range, and assuming that the analyzer and UUT distortions are incoherent. When the errors from the UUT and the ana-

lyzer are incoherent, optimizing dynamic range is equivalent to minimizing the contribution of analyzer noise and distor-

tion to accuracy, though the higher mixer level increases the display scale fidelity errors. This incoherent addition case is

commonly used in the industry and can be useful for comparison of analysis equipment, but this incoherent addition

model is rarely justified. This derived accuracy specification is based on a mixer level of 13 dBm.

Keysight measures 10

requires a near-ideal signal, which is impractical for field and customer use. Because field verification is impractical, Key-

sight only gives a typical result. More than 80% of prototype instruments met this “typical” specification; the factory test

line limit is set commensurate with an on-going 80% yield to this typical.

The ACPR dynamic range is verified only at 2 GHz, where Keysight has the near-perfect signal available. The dynamic

range is specified for the optimum mixer drive level, which is different in different instruments and different conditions.

The test signal is a 1 DPCH signal.

The ACPR dynamic range is the observed range. This typical specification includes no measurement uncertainty.

0.572 RBW

0% of the signal analyzers for dynamic range in the factory production process. This measurement

38 Chapter 1

Keysight CXA Signal Analyzer

Power Suite Measurements

Description Specifications Supplemental Information

Case: Radio Std = IS-95 or J-STD-008

Method

RBW method

ACPR Relative Accuracy

Offsets < 750 kHz

Offsets > 1.98 MHz

a. The RBW method measures the power in the adjacent channels within the defined resolution bandwidth. The noise band width of

the RBW filter is nominally 1.055 times the 3.01 dB bandwidth. Therefore, the RBW method will nominally read 0.23 dB higher adjacent channel power than would a measurement using the integration bandwidth method, because the noise bandwidth of the integration bandwid th measurement is equal to that integration bandwidth. For cdmaOne ACPR measurements using the RBW method, the main channel is measured in a 3 MHz RBW, which does not respond to all the power in the carrier. Therefore, the carrier power is compensated by the expected under-response of the filter to a full width signal, of 0.15 dB. But the adjacent channel power is not compensated for the noise bandwidth effect. The reason the adjacent channel is not compensated is subtle. The RBW method of measuring ACPR is very similar to the preferred method of making measurements for compliance with FCC requirements, the source of the specifications for the cdmaOne Spur Close specifications. ACPR is a spot measurement of Spur Close, and thus is best done with the RBW method, even though the results will disagree by 0.23 dB from the measurement made with a rectangular passband.

b. The specified ACPR accuracy applies if the measured ACPR substantially exceeds the analyzer dynamic range at the specified

offset. When this condition is not met, there are additional errors due to the addition of analyzer spectral components to UUT spectral components. In the worst case at these offsets, the analyzer spectral components are all coherent with the UUT components; in a more typical case, one third of the analyzer spectral power will be coherent with the distortion components in the UUT. Coherent means that the phases of the UUT distortion components and the analyzer distortion components are in a fixed relationship, and could be perfectly in-phase. This coherence is not intuitive to many users, because the signals themselves are usually pseudo-random; nonetheless, they can be coherent. When the analyzer components are 100 coherent with the UUT components, the errors add in a voltage sense. That error is a function of the signal (UUT ACPR) to noise (analyzer ACPR dynamic range limitation) ratio, SN, in decibels.

The function is error = 20  log(1 + 10 For example, if the UUT ACPR is 62 dB and the measurement floor is 82 dB, the SN is 20 dB and the error due to adding the analyzer distortion to that of the UUT is 0.83 dB.

c. As in footnote b, the specified ACPR accuracy applies if the ACPR measured substantially exceeds the analyzer dynamic range at

the specified offset. When this condition is not met, there are additional errors due to the addition of analyzer spectral components to UUT spectral components. Unlike the situation in footnote b, though, the spectral components from the analyzer will be non-coherent with the components from the UUT. Therefore, the errors add in a power sense. The error is a function of the signal (UUT ACPR) to noise (analyzer ACPR dynamic range limitation) ratio, SN, in decibels.

The function is error = 10  log(1 + 10 For example, if the UUT ACPR is 75 dB and the measurement floor is 85 dB, the SN ratio is 10 dB and the error due to adding the analyzer's noise to that of the UUT is 0.41 dB.

SN/20

SN/10

0.19 dB

0.2 dB

)

Description Specifications Supplemental Information

Power Statistics CCDF

Histogram Resolution

a. The Complementary Cumulative Distribution Function (CCDF) is a reformatting of a histogram of the power envelope. The width

of the amplitude bins used by the histogram is the histogram resolution. The resolution of the CCDF will be the same as the width of those bins.

0.01 dB

Chapter 1 39

Keysight CXA Signal Analyzer Power Suite Measurements

Description Specifications Supplemental Information

Burst Power

Methods Power above threshold

Power within burst width

Results Output power, average

Output power, single burst Maximum power Minimum power within burst Burst width

Description Specifications Supplemental Information

Spurious Emissions Table-driven spurious signals;

search across regions

Case: Radio Std = 3GPP W-CDMA

Dynamic Range

, relative (RBW=1MHz)

70.7 dB

75.9 dB (typical)

(1 to 2.7 GHz)

Sensitivityb, absolute (RBW=1 MHz)

76.5 dBm

82.5 dBm (typical)

(1 to 2.9 GHz)

Accuracy

100 kHz to 3.0 GHz

3.0 to 7.5 GHz

a. The dynamic is specified at 12.5 MHz offset from center frequency with the mixer level of 1 dB of compression point, which will

degrade accuracy 1 dB. b. The sensitivity is specified at far offset from carrier, where phase noise does not contribute. You can derive the dynamic range at

far offset 1 dB compression mixer level and sensitivity.

Attenuation = 10 dB

0.81 dB (95th percentile) 1.80 dB (95th percentile)

Description Specifications Supplemental Information

Spectrum Emission Mask Table-driven spurious signals;

measurement near carriers

Case: Radio Std = cdma2000

Dynamic Range, relative (750 kHz offset

)

Sensitivity, absolute (750 kHz offset

)

67.4 dB 72.7 dB (typical)

93.7 dBm 99.7 dBm (typical)

Accuracy (750 kHz offset)

Relative

0.11 dB

40 Chapter 1

Keysight CXA Signal Analyzer

Power Suite Measurements

Description Specifications Supplemental Information

Absolute

1.53 dB

0.65 dB (95th percentile)

(20 to 30°C)

Case: Radio Std = 3GPP W-CDMA

Dynamic Range, relative (2.515 MHz offset

)

Sensitivity, absolute (2.515 MHz offset

)

73.4 dB 80.2 dB (typical)

91.7 dBm 97.7 dBm (typical)

Accuracy (2.515 MHz offset)

Relative

Absolute

0.11 dB

1.53 dB

0.65 dB (95th percentile)

(20 to 30°C)

a. The dynamic range specification is the ratio of the channel power to the power in the offset specified. The dynamic range depends

on the measurement settings, such as peak power or integrated power. Dynamic range specifications are based on default measurement settings, with detector set to average, and depend on the mixer level. Default measurement settings include 30 kHz RBW.

b. This dynamic range specification applies for the optimum mixer level, which is about 16 dBm. Mixer level is defined to be the

average input power minus the input attenuation.

c. The sensitivity is specified with 0 dB input attenuation. It represents the noise limitations of the analyzer. It is tested without an

input signal. The sensitivity at this offset is specified in the default 30 kHz RBW, at a center frequency of 2 GHz.

d. The relative accuracy is a measure of the ratio of the power at the offset to the main channel power. It applies for spectrum emis-

sion levels in the offset s that are well above the dynamic range limitation.

e. The absolute accuracy of SEM measurement is the same as the absolute accuracy of the spectrum analyzer. See "Amplitude

Accuracy and Range" on page 20 for more information. The numbers shown are for 0 to 3.0 GHz, with attenuation set to 10

dB.

Chapter 1 41

Keysight CXA Signal Analyzer Options

Options

The following options and applications affect instrument specifications.

Option 503: Frequency range, 9 kHz to 3 GHz

Option 507: Frequency range, 9 kHz to 7.5 GHz

Option 513: Frequency range, 9 kHz to 13.6 GHz

Option 526: Frequency range, 9 kHz to 26.5 GHz

Option P03: Preamplifier, 3 GHz

Option P07: Preamplifier, 7.5 GHz

Option P13: Preamplifier, 13.6 GHz

Option P26: Preamplifier, 26.5 GHz

Option T03: Tracking Generator, 3 GHz

Option T06: Tracking Generator, 6 GHz

Option B25: Analysis Band wid th, 25 MHz

Option PFR: Precision Frequency Reference

Option ESC: External Source Control

Option EMC: Basic EMC Functionality

Option FSA: Fine Step Attenuator

Option C75: Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Option CR3: Connector Rear, Second IF Out

Option SSD: Additional Removable Solid State Drive

N9063C: Analog Demodulation measurement application

N9068C: Phase Noise measurement application

N9069C: Noise Figure measurement application

N9073C: W-CDMA/HSPA/HSPA+ measurement application

N9080C: LTE-FDD measurement application

N9082C: LTE-TDD measurement application

42 Chapter 1

Keysight CXA Signal Analyzer

General

Description Specifications Supplemental Information

Calibration Cycle 1 year

Description Specifications Supplemental Information

Temperature Range

Operating 0 to 55CStandard

Storage 40 to 70C

Altitude 3000 meters (approx. 10,000 feet)

Humidity

Relative Humidity Type tested at 95%, +40C (non-condensing)

Description Specifications Supplemental Information

Environmental and Military Specifications

Description Specifications

EMC Complies with the essential requirements of the European EMC Directive as well as

current editions of the following standards (dates and editions are cited in the Declaration of Conformity):

— IEC/EN 61326-1 or IEC/EN 61326-2-1 — CISPR 11, Group 1, Class A — AS/NZS CISPR 11 — ICES/NMB-001

This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme a la norme NMB-001 du Canada.

Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against the environmental stresses of Storage, Transportation and End-use; those stresses include but are not limited to temperature, humidity, shock, vibration, altitude and power line cond itions. Test methods are aligned with IEC 60068-2 and levels are similar to MIL-PRF-28800F Class 3.

Chapter 1 43

Keysight CXA Signal Analyzer General

Acoustic Noise Emission/Geraeuschemission

LpA <70 dB Operator position Normal position Per ISO 7779

Description Specifications Supplemental Information

Acoustic Noise-Further Information

Ambient Temperature

< 40C Nominally under 55 dBA Sound Pressure. 55 dBA is

 40C Nominally under 65 dBA Sound Pressure. 65 dBA is

LpA <70 dB Am Arbeitsplatz Normaler Betrieb Nach DIN 45635 t.19

Values given are per ISO 7779 standard in the "Operator Sitting" position

generally considered suitable for use in quiet office environments.

generally considered suitable for use in noisy office environments. (The fan speed, and thus the noise level, increases with increasing ambient temperature.)

Description Specifications

Safety Complies with European Low Voltage Directive 2006/95/EC

— IEC/EN 61010-1 2nd Edition — Canada: CSA C22.2 No. 61010-1 — USA: UL 61010-1 2nd Edition1

Description Specification Supplemental Information

Power Requirements

Low Range

Voltage 100/120 Vac

Frequency 50/60/400 Hz

High Range

Voltage 220/240 Vac

Frequency 50/60 Hz

Power Consumption, On 270 W Fully loaded with options

Power Consumption, Standby 20 W Standby power is not supplied to frequency reference

oscillator.

44 Chapter 1

Keysight CXA Signal Analyzer

General

Description Specifications Supplemental Information

Display

Resolution 1280  768 XGA

Size 1280 768 269 mm (10.6 in) diagonal (nominal)

Scale

Log Scale 0.1, 0.2, 0.3...1.0, 2.0, 3.0...20 dB per division

Linear Scale 10% of reference level per division

Units dBm, dBmV, dBmA, Watts, Volts, Amps, dBV,

dBA

a. The LCD display is manufactured using high precision technology. However, there may be up to six bright points (white, blue, red

or green in color) that constantly appear on the LCD screen. These points are normal in the manufacturing process and do not affect the measurement integrity of the product in any way.

Description Supplemental Information

Measurement Speed

Local measurement and display update rate

Remote measurement and LAN transfer rate

Nominal

11 ms (90/s)

6 ms (167/s)

Marker Peak Search 5 ms

Center Frequency Tune and Transfer 22 ms

Measurement/Mode Switching 75 ms

a. Sweep Points = 101 b. Factory preset, fixed center frequency, RBW = 1 MHz, and span >10 MHz and  600 MHz, Auto Align Off. c. Phase Noise Optimization set to Fast Tuning, Display Off, 32 bit integer format, markers Off, single sweep, Keysight I/O Libraries

Suite Version 14.1, one meter GPIB cable, National Instruments PCI-GPIB Card and NI-488.2 DLL.

Description Specifications Supplemental Information

Data Storage

Standard Internal Total

Internal User

Removable solid state drive ( 80 GB)  9 GB available for user data.

Chapter 1 45

Keysight CXA Signal Analyzer General

Description Specifications Supplemental Information

Weight Weight without options

Net 15.4 kg (34.0 lbs) (nominal)

Shipping 27.4 kg (60.4 lbs) (nominal)

Cabinet Dimensions Cabinet dimensions exclude front and rear

protrusions.

Height 177 mm (7.0 in)

Width 426 mm (16.8 in)

Length 368 mm (14.5 in)

46 Chapter 1

Keysight CXA Signal Analyzer

Inputs/Outputs

Front Panel

Description Specifications Supplemental Information

RF Input

Connector

Standard Type-N female

Impedance 50 (nominal)

Description Specifications Supplemental Information

Probe Power

Voltage/Current +15 Vdc, 7 at 150 mA max (nominal)

12.6 Vdc, 10 at 150 mA max (nominal)

GND

Description Specifications Supplemental Information

USB Host Ports See

Host (3 ports)

Connector USB Type “A” (female)

Output Current

Port marked with lightning bolt 1.2 A (nominal)

Port not marked with lightning bolt 0.5 A

Description Specifications Supplemental Information

Headphone Jack

Connector 3.5 mm (1/8 inch) miniature stereo audio jack

Output Power 90 mW per channel into 16W (nominal)

Rear Panel for other ports

Chapter 1 47

Keysight CXA Signal Analyzer Inputs/Outputs

Rear Panel

Description Specifications Supplemental Information

10 MHz Out

Connector BNC female Impedance 50 (nominal) Output Amplitude  0 dBm (nominal) Frequency 10 MHz  (1 + frequency reference

accuracy)

Description Specifications Supplemental Information

Ext Ref In

Connector BNC female Note: Analyzer noise sidebands and spurious

response performance may be affected by the

quality of the external reference used. Impedance 50 (nominal) Input Amplitude Range 5 to +10 dBm (nominal) Input Frequency 10 MHz (nominal)

(Selectable to 1 Hz resolution)

Lock range

5  106 of selected external reference input frequency

Description Specifications Supplemental Information

Sync Reserved for future use Connector BNC female

Description Specifications Supplemental Information

Trigger Inputs

(Trigger 1 In) Connector BNC female Impedance 10 k (nominal) Trigger Level Range 5 to +5 V 1.5 V (TTL) factory preset

48 Chapter 1

Keysight CXA Signal Analyzer

Description Specifications Supplemental Information

Trigger Outputs

(Trigger 1 Out) Connector BNC female Impedance 50 (nominal) Level 5 V TTL

Description Specifications Supplemental Information

Monitor Output

Connector

Format

VGA compatible, 15-pin mini D-SUB

XGA (60 Hz vertical sync rates, non-interlaced) Analog RGB

Inputs/Outputs

Resolution

Description Specifications Supplemental Information

Noise Source Drive +28 V (Pulsed)

Connector BNC female

Description Specifications Supplemental Information

SNS Series Noise Source For use with Keysight Technologies SNS Series

Description Specifications Supplemental Information

Analog Out

Connector BNC female Impedance 50 (nominal)

1280  768

noise sources

Chapter 1 49

Keysight CXA Signal Analyzer Inputs/Outputs

Description Specifications Supplemental Information

USB Ports See Front Panel for additional ports Host, super speed 2 ports (stacked with each other)

Connector USB Type “A” (female) Compatible with USB 3.0 Output Current 0.9 A (nominal)

Host 1 ports (stacked with LAN)

Standard USB 2.0 Connector USB Type “A” (female) Output Current 0.5 A (nominal)

Device Compatible with USB 3.0

Connector USB Type “B” (female)

Description Specifications Supplemental Information

GPIB Interface

Connector IEEE-488 bus connector GPIB Codes SH1, AH1, T6, SR1, RL1, PP0, DC1, C1, C2, C3

and C28, DT1, L4, C0

Mode Controller or device

Description Specifications Supplemental Information

LAN TCP/IP Interface

RJ45 Ethertwist

1000BaseT

50 Chapter 1

Keysight CXA Signal Analyzer

Regulatory Information

This product is designed for use in Installation Category II and Pollution Degree 2 per IEC 61010 2nd ed, and 664 respectively.

This product has been designed and tested in accordance with accepted industry standards, and has been supplied in a safe condition. The instruction documentation contains information and warnings which must be followed by the user to ensure safe operation and to maintain the product in a safe condition.

The CE mark is a registered trademark of the European Community (if accompanied by a year, it is the year when the design was proven). This product complies with all relevant directives.

ICES/NMB-001 “This ISM device complies with Canadian ICES-001.”

“Cet appareil ISM est conforme a la norme NMB du Canada.”

ISM 1-A (GRP.1 CLASS A)

This is a symbol of an Industrial Scientific and Medical Group 1 Class A product. (CISPR 11, Clause 4)

The CSA mark is the Canadian Standards Association. This product complies with the relevant safety requirements.

The C-Tick mark is a registered trademark of the Australian/New Zealand Spectrum Management Agency. This product complies with the relevant EMC regulations.

This symbol indicates separate collection for electrical and electronic equipment mandated under EU law as of August 13, 2005. All electric and electronic equipment are required to be separated from normal waste for disposal (Reference WEEE Directive 2002/96/EC).

To return unwanted products, contact your local Keysight office, or see for more

http://www.keysight.com/environment/product/index.shtml information.

Indicates the time period during which no hazardous or toxic substance elements are expected to leak or deteriorate during normal use. Forty years is the expected useful life of the product.

This equipment is Class A suitable for professional use and is for use in electromagnetic environments outside of the home.

To return unwanted products, contact your local Agilent office, or see

http://www.keysight.com/environment/product/ for more information.

Chapter 1 51

Keysight CXA Signal Analyzer Declaration of Conformity

Declaration of Conformity

A copy of the Manufacturer’s European Declaration of Conformity for this instrument can be obtained by

contacting your local Keysight Technologies sales representative.

52 Chapter 1

I/Q Analyzer

Specification Guide

2 I/Q Analyzer

This chapter contains specifications for the I/Q Analyzer measurement application (Basic

Mode).

I/Q Analyzer Specifications Affected by I/Q Analyzer

Specifications Affected by I/Q Analyzer

Specification Name Information

Number of Frequency Display Trace Points

Does not apply.

(buckets)

Resolution Band width See

Frequency specifications in this chapter.

Video Bandwidth Not available.

Clipping-to-Noise Dynamic Range See

Clipping-to-Noise Dynamic Range specifications in this chapter.

Resolution Bandwid th Switching Uncertainty Not specified because it is negligible.

Available Detectors Does not apply.

Spurious Responses The

"Spurious Response" on page 31 of core specifications still

apply. Additional band wid th-option-dependent spurious responses are given in the Analysis Bandwid th chapter for any optional bandwidths in use.

IF Amplitude Flatness See

"IF Frequency Response" on page 22 of the core specifications

for the 10 MHz bandwidth. Specifications for wider bandwidths are given in the Analysis Band wid th chapter for any optional bandwidths in use.

IF Phase Linearity See

"IF Frequency Response" on page 22 of the core specifications

for the 10 MHz bandwidth. Specifications for wider bandwidths are given in the Analysis Band wid th chapter for any optional bandwidths in use.

Data Acquisition See

"Data Acquisition" on page 57 in this chapter for the 10 MHz

bandwidth. Specifications for wider band wid ths are given in the Analysis Bandwidth chapter for any optional band wid ths in use.

54 Chapter 2

I/Q Analyzer

Frequency

Description Specifications Supplemental Information

Frequency Span

Standard instrument

Option B25

Resolution Bandwid th

(Spectrum Measurement)

Range

10 Hz to 10 MHz 10 Hz to 25 MHz

Overall

Span = 1 MHz

Span = 10 kHz

Span = 100 Hz

Window Shapes Flat Top, Uniform, Hanning, Hamming,

Analysis Band wid th (Span) (Waveform Measurement)

Standard instrument

Option B25

100 mHz to 3 MHz

50 Hz to 1 MHz

1 Hz to 10 kHz

100 mHz to 100 Hz

Gaussian, Blackman, Blackman-Harris, Kaiser Bessel (K-B 70 dB, K-B 90 dB & K-B 110 dB)

10 Hz to 10 MHz 10 Hz to 25 MHz

Chapter 2 55

I/Q Analyzer Clipping-to-Noise Dynamic Range

Clipping-to-Noise Dynamic Range

Description Specifications Supplemental Information

Clipping-to-Noise Dynamic Range

Excluding residuals and spurious responses

Clipping Level at Mixer Center frequency  20 MHz

IF Gain = Low 12 dBm (nominal)

IF Gain = High 22 dBm (nominal)

Noise Density at Mixer at center frequency

a. This specification is defined to be the ratio of the clipping level (also known as “ADC Over Range”) to the noise density. In decibel

units, it can be defined as clipping_level [dBm]  noise_density [dBm/Hz]; the result has units of dBfs/Hz (fs is “full scale”).

b. The noise density depends on the input frequency. It is lowest for a broad range of input frequencies near the center frequency,

and these specifications apply there. The noise density can increase toward the edges of the span. The effect is nominally well

under 1 dB. c. The primary determining element in the noise density is the "Displayed Average Noise Level" on page 30. d. DANL is specified for log averaging, not power averaging, and thus is 2.51 dB lower than the true noise density. It is also specified

in the narrowest RBW, 1 Hz, which has a noise bandwidth slightly wider than 1 Hz. These two effects together add up to 2.25 dB.

DANLc + 2.25 dB

56 Chapter 2

I/Q Analyzer

Data Acquisition

Description Specifications Supplemental Information

Time Record Length

Complex Spectrum

Waveform

Sample Rate 30 MSa/s for 10 MHz (standard) span

ADC Resolution 14 Bits 10 MHz (standard) span

131,072 samples (max)

4,000,000 samples (max)

Res BW = 540 Hz for 10 MHz (standard) span 4,000,000 samples  335 ms at 10 MHz span

Chapter 2 57

I/Q Analyzer Data Acquisition

58 Chapter 2

Option CR3 - Connector Rear, Second IF Output

Specification Guide

3 Option CR3 - Connector Rear, Second IF Output

This chapter contains specifications for the CXA Signal Analyzer Option CR3, Second IF Output.

This option is only available for Frequency Option 503 or 507.

Option CR3 - Connector Rear, Second IF Output Specifications Affected by Connector Rear, Second IF Output

Specifications Affected by Connector Rear, Second IF Output

No other analyzer specifications are affected by the presence or use of this option. New specifications are given in the following page.

60 Chapter 3

Option CR3 - Connector Rear, Second IF Output

Other Connector Rear, Second IF Output Specifications

Other Connector Rear, Second IF Output

Specifications

Second IF Out Port

Description Specifications Supplemental Information

Connector SMA female

Impedance 50 (nominal)

Second IF Out

Description Specifications Supplemental Information

Second IF Out

Output Center Frequency 322.5 MHz

Conversion Gain at 2nd IF output center frequency

Bandwidth

Low band Up to 120 MHz (nominal) at –6 dB

High band Up to 40 MHz (nominal) at –6 dB

Residual Output Signals

-4 to +7 dB (nominal) plus RF frequency response

-60 dBm or lower (nominal)

a. "Conversion Gain" is defined from RF input to IF Output with 0 dB attenuation. The nominal performance applies with zero

span.

b. Measured from 262.5 to 382.5 MHz for low band or 302.5 to 342.5 MHz for high band.

Chapter 3 61

Option CR3 - Connector Rear, Second IF Output Other Connector Rear, Second IF Output Specifications

62 Chapter 3

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Specification Guide

4 Option C75 - Connector Front, 75 Ohm Additional

RF Input, 1.5 GHz

This chapter contains the specifications for Option C75, Connector Front, 75 Additional RF Input, 1.5 GHz.

This option is only available for Frequency Option 503 or 507.

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz Specifications Affected by Connector, 75 Ohm Additional RF Input, 1.5 GHz

Specifications Affected by Connector, 75Ohm Additional RF Input, 1.5 GHz

Description Specifications Supplemental Information

Maximum Safe Input Level

Average continuous power or peak pulse power

(Input attenuation 20dB)

Preamp Off Preamp On (Option P03, P07)

DC voltage

AC Coupled 50 Vdc

+72.5 dBmV (0.25 W) +63 dBmV (25 mW)

Description Specifications Supplemental Information

Second Harmonic Distortion

(Source frequency, 10 to 750 MHz, input attenuation 10 dB)

Preamp Off 76.25 dBc 95 dBmV

(Input level = +28.75 dBmV)

Preamp On (Option P03, P07) 64.25 dBc 63 dBmV

(Input level = +8.75 dBmV)

a. SHI = second harmonic intercept. The SHI is given by the mixer power in dBm minus the second harmonic distortion level rela-

tive to the mixer tone in dBc.

Distortion

(nominal)

SHI

(nominal)

64 Chapter 4

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Specifications Affected by Connector, 75 Ohm Additional RF Input, 1.5 GHz

Description Specifications Supplemental Information

Third Order Intermodulation

Preamp Off

Intercept

+62 dBmV (nominal) (10 MHz to 1.5 GHz, two +28.75 dBmV tones at the input, spaced by 100 kHz, input attenuation 0 dB)

Preamp On (Option P03, P07)

+40 dBmV (nominal) (10 MHz to 1.5 GHz, two +3.75 dBmV tones at the input, spaced by 100 kHz, input attenuation 0 dB)

Description Specifications Supplemental Information

RF Input VSWR

nominal

10 dB attenuation, 50 MHz 1.1:1 Frequency Input Attenuation Preamp Off 10 dB 1 MHz to 1.5 GHz < 1.4:1 Preamp On (Option P03, P07) 0 dB

1 MHz to 1.5 GHz < 1.4:1

a. The nominal SWR stated is given for the worst case RF frequency in three representative instruments.

Description Specifications Supplemental Information

Frequency Response

(Maximum error relateive to reference condition (50 MHz), input attenuation 10 dB)

1 to 10 MHz 0.6 dB (nominal)

10 MHz to 1.5 GHz 0.75 dB (nominal)

Description Specifications Supplemental Information

1 dB Gain Compression Point (two tone)

abc

Maximum power at mixer

Preamp Off

50 MHz to 1.5 GHz +57 dBmV (nominal)

Preamp On (Option P03, P07)

50 MHz to 1.5 GHz +35 dBmV (nominal)

Chapter 4 65

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz Specifications Affected by Connector, 75 Ohm Additional RF Input, 1.5 GHz

a. Large signals, even at frequencies not shown on the screen, can cause the analyzer to incorrectly measure on-screen signals

because of two-tone gain compression. This specification tells how large an interfering signal must be in order to cause a 1 dB

makes this analyzer more flexible. In other analyzers, the RL controlled how the measurement was performed as well as how it

was displayed. Because the logarithmic amplifier in these analyzers had both range and resolution limitations, this behavior was

necessary for optimum measurement accuracy. The logarithmic amplifier in this signal analyzer, however, is implemented

digitally such that the range and resolution greatly exceed other instrument limitations. Because of this, the analyzer can make

measurements largely independent of the setting of the RL without compromising accuracy. Because the RL becomes a display

function, not a measurement function, a marker can read out results that are off-screen, either above or below, without any

change in accuracy. The only exception to the independence of RL and the way in which the measurement is performed is in the

input attenuation setting: When the input attenuation is set to auto, the rules for the determination of the input attenuation

include dependence on the reference level. Because the input attenuation setting controls the tradeoff between large signal

behaviors (third-order intermodulation, compression, and display scale fidelity) and small signal effects (noise), the

measurement results can change with RL changes when the input attenuation is set to auto. d. Mixer power level (dBm) = input power (dBm)  input attenuation (dB).

Description Specifications Supplemental

Information

Displayed Average Noise Level (DANL)

Input terminated Sample or Average detector, Average type = Log 0 dB attenuation IF Gain = High 1 Hz Resolution Bandwidth

Preamp Off

1 to 10 MHz 89 dBmV (nominal)

10 MHz to 1.5 GHz 97 dBmV (nominal)

Preamp On (Option P03, P07)

1 to 10 MHz 108 dBmV(nominal)

10 MHz to 1.5 GHz 113 dBmV(nominal)

a. DANL for zero span and swept is normalized in two ways and for two reasons. DANL is measured in a 1 kHz RBW and normalized

to the narrowest available RBW, because the noise figure does not depend on RBW and 1 kHz measurements are faster. The

second normalization is that DANL is measured with 10 dB input attenuation and normalized to the 0 dB input attenuation case,

because that makes DANL and third order intermodulation test conditions congruent, allowing accurate dynamic range

estimation for the analyzer.

66 Chapter 4

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Other Connector, 75 Ohm Additional RF Input, 1.5 GHz Specifications

Description Specifications Supplemental Information

Frequency Range

Option C75 1 MHz to 1.5 GHz

Description Specifications Supplemental Information

RF Input 2

Connector

Standard Type-N female

Impedance 75 (nominal)

Chapter 4 67

Option C75 - Connector Front, 75 Ohm Additional RF Input, 1.5 GHz

Other Connector, 75 Ohm Additional RF Input, 1.5 GHz Specifications

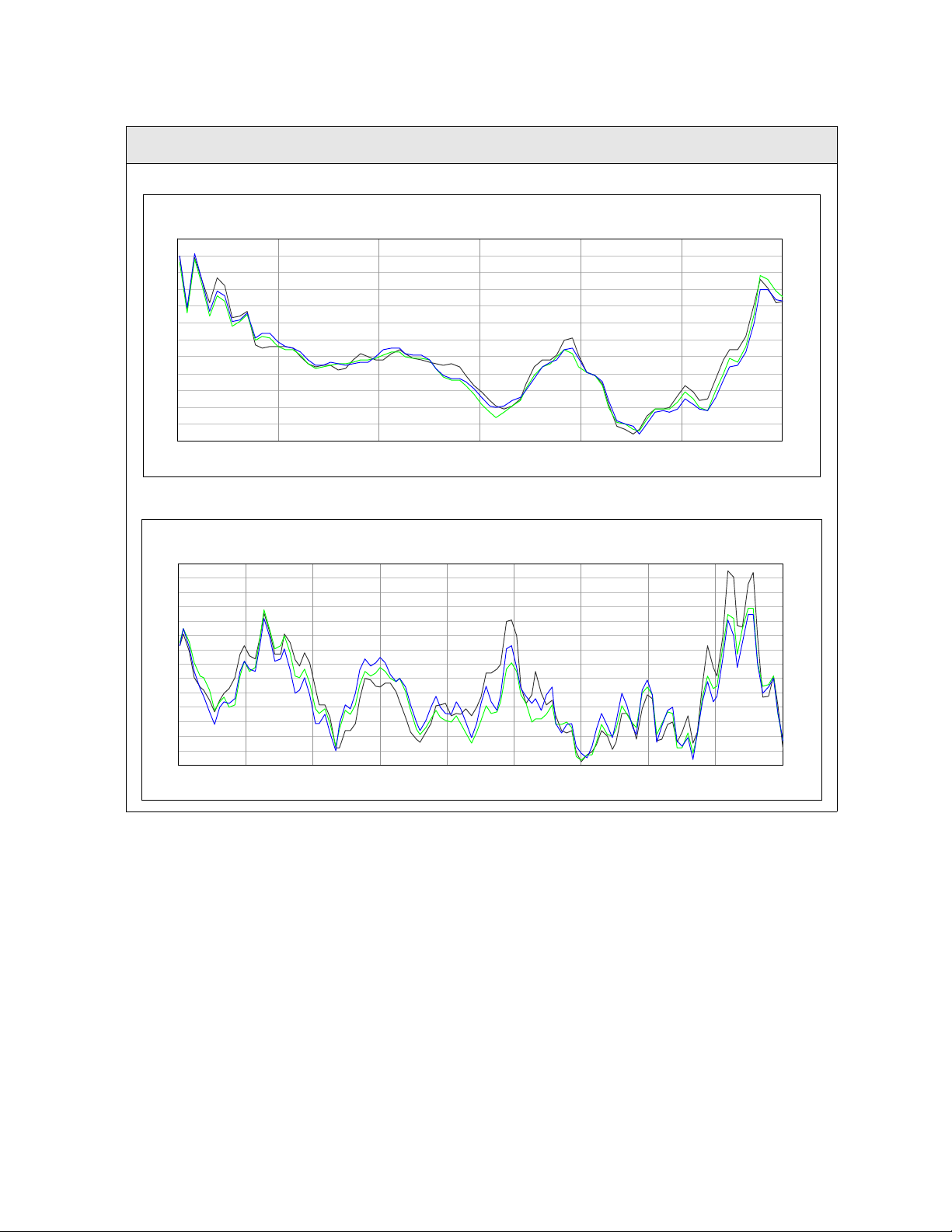

68 Chapter 4

Option EMC - Precompliance EMI Features

Specification Guide

5 Option EMC - Precompliance EMI Features

This chapter contains specifications for the Option EMC precompliance EMI feature.

Option EMC - Precompliance EMI Features Frequency

Frequency

Description Specifications Supplemental information

Frequency Range 9 kHz to 3.0, 7.5, 13.6, 26.5 GHz

depending on the frequency options.

EMI Resolution Bandwid ths See

CISPR Available when the EMC Standard is CISPR

200 Hz, 9 kHz, 120 kHz, 1 MHz 6 dB bandwidths, subject to masks; as

Non-CISPR bandwidths 10, 30, 100, 300 Hz, 1, 3,

30, 300 kHz, 3, 10 MHz

MIL STD Available when the EMC Standard is MIL

10, 100 Hz, 1, 10, 100 kHz, 1 MHz

Non-MIL STD bandwidths 30, 300 Hz, 3, 30,

300 kHz, 3, 10 MHz

Tabl e 5- 1and Table 5-2

specified by CISPR 16-1-1

6 dB bandwidths

6 dB bandwidths; as specified by

MIL-STD-461

6 dB bandwidths

Table 5-1 CISPR Band Settings

CISPR Band Frequency Range CISPR RBW Default Data Points

Band A 9 – 150 kHz 200 Hz 1413

Band B 150 kHz – 30 MHz 9 kHz 6637

Band C 30 – 300 MHz 120 kHz 4503

Band D 300 MHz – 1 GHz 120 kHz 11671

Band C/D 30 MHz – 1 GHz 120 kHz 16171

Band E 1 – 18 GHz 1 MHz 34001

Table 5-2 MIL-STD 461D/E/F Frequency Ranges and Bandwidths

Frequency Range 6 dB Bandwidth Minimum Measurement Time

30 Hz to 1 kHz 10 Hz 0.015 s/Hz

1 kHz to 10 kHz 100 Hz 0.15 s/kHz

10 kHz to 150 kHz 1 kHz 0.015 s/kHz

150 kHz to 30 MHz 10 kHz 1.5 s/MHz

30 MHz to 1 GHz 100 kHz 0.15 s/MHz

Above 1 GHz 1 MHz 15 s/GHz

70 Chapter 5

Option EMC - Precompliance EMI Features

Amplitude

Description Specifications Supplemental Information

EMI Average Detector Used for CISPR-compliant average

measurements and, with 1 MHz RBW, for frequencies above 1 GHz

Default Average Type All filtering is done on the linear (voltage)

scale even when the display scale is log.

Quasi-Peak Detector Used with CISPR-compliant RBWs, for

frequencies  1GHz

Absolute Amplitude Accuracy for reference spectral intensities

Relative amplitude accuracy versus pulse repetition rate

Quasi-Peak to average response ratio As specified by CISPR 16-1-1

RMS Average

Detector

As specified by CISPR 16-1-1

Chapter 5 71

Option EMC - Precompliance EMI Features Amplitude

72 Chapter 5

Option B25 (25 MHz) - Analysis Band wid th

Specification Guide

6 Option B25 (25 MHz) - Analysis Bandwidth

This chapter contains specifications for the Option B25 (25 MHz) Analysis Bandwidth,

and are unique to this IF Path.

Option B25 (25 MHz) - Analysis Band wid th Specifications Affected by Analysis Bandwidth

Specifications Affected by Analysis Bandwidth

The specifications in this chapter apply when the 25 MHz path is in use. In IQ Analyzer, this will occur when the IF Path is set to 25 MHz, whether by Auto selection (depending on Span) or manually.

Specification Name Information

IF Frequency Response See specifications in this chapter.

IF Phase Linearity See specifications in this chapter.

Spurious and Residual Responses The

bandwidth-option-dependent spurious responses are contained within this chapter.

Displayed Average Noise Level, Third-Order Intermodulation and Phase Noise

The performance of the analyzer will degrade by an unspecified extent when using this bandwid th option. This extent is not substantial enough to justify statistical process control.

"Spurious Response" on page 31 still apply. Further,

74 Chapter 6

Option B25 (25 MHz) - Analysis Bandwidth

Other Analysis Band wid th Specifications

Other Analysis Bandwidth Specifications

Description Specific

ation

IF Spurious Response

Supplemental Information

Preamp Off

IF Second Harmonic

Apparent Freq

Excitation Freq

Mixer Level

IF Gain

Any on-screen f (f + fc + 22.5)/2 15 dBm Low 50 dBc (nominal)

25 dBm High 50 dBc (nominal)

IF Conversion Image

Apparent Freq

Excitation Freq

Mixer LevelcIF Gain

Any on-screen f 2 × fc  f + 45 MHz 10 dBm Low 68 dBc (nominal)

20 dBm High 68 dBc (nominal)

a. To save test time, the levels of these spurs are not warranted. However, the relationship between the spurious response and its

excitation is described so the user can distinguish whether a questionable response is due to these mechanisms or is subject to the specifications in “Spurious Responses” in the core specifications. f is the apparent frequency of the spurious, fc is the measurement center frequency.

b. The spurious response specifications only apply with the preamp turned off. When the preamp is turned on, performance is

nominally the same as long as the mixer level is interpreted to be Mixer Level = Input Level  Input Attenuation  Preamp Gain

c. Mixer Level = Input Level - Input Attenuation.

Chapter 6 75

Option B25 (25 MHz) - Analysis Band wid th Other Analysis Bandwidth Specifications

Description Specifications Supplemental Information

IF Frequency Response

Modes above 18 GHz

(Demodulation and FFT response relative to the center frequency)

Center Freq

(GHz)

Analysis

Width (MHz)

Max Error

(Exceptionsd)

Midwidth Error

(95th Percentile)

Slope (dB/MHz)

(95th Percentile)

RMSe

(nominal)

3.0 10 to25 0.45 dB 0.15 dB 0.1 0.03 dB

>3.0, 26.5 10 to25 0.65 dB

a. The IF frequency response includes effects due to RF circuits such as input filters, that are a function of RF frequency, in addition

to the IF pass-band effects. b. Signal frequencies between 18 and 26.5 GHz are prone to additional response errors due to modes in the Type-N connector used

with frequency Option 526. With the use of Type-N to APC 3.5 mm adapter part number 1250-1744, there are nominally six such

modes. These modes cause nominally up to –0.35 dB amplitude change, with phase errors of nominally up to ±1.2°. c. The maximum error at an offset (f) from the center of the FFT width is given by the expression  [Midwidth Error + (f × Slope)], but

never exceeds Max Error. Usually, the span is no larger than the FFT width in which case the center of the FFT width is the cen-

ter frequency of the analyzer. When the analyzer span is wider than the FFT width, the span is made up of multiple concatenated

FFT results, and thus has multiple centers of FFT widths so the f in the equation is the offset from the nearest center. These spec-

ifications include the effect of RF frequency response as well as IF frequency response at the worst case center frequency. Perfor-

mance is nominally three times better than the maximum error at most center frequencies. d. The specification does not apply for frequencies greater than 3.6 MHz from the center in FFT Widths of 7.2 to 8 MHz. e. The "RMS" nominal performance is the standard deviation of the response relative to the center frequency, integrated across a 10

MHz span. This performance measure was observed at a single center frequency in each harmonic mixing band, which is repre-

sentative of all center frequencies; the observation center frequency is not the worst case center frequency.

Description Specifications Supplemental Information

IF Phase Linearity Deviation from mean phase linearity

RMS (nominal)

Center Freq

(GHz)

Span

(MHz)

Modes above 18 GHz

Peak-to-Peak

(nominal)

0.02,  3.0 10 to25 2.7° 0.9°

>3.0,  7.5 10 to25 4.7° 2.2°

>7.5,  26.5 10 to25 3.5° 1.0°

a. Signal frequencies between 18 and 26.5 GHz are prone to additional response errors due to modes in the Type-N connector

used with frequency Option 526. With the use of Type-N to APC 3.5 mm adapter part number 1250-1744, there are nominally six

such modes. These modes cause nominally up to –0.35 dB amplitude change, with phase errors of nominally up to ±1.2°.

b. The listed performance is the standard deviation of the phase deviation relative to the mean phase deviation from a linear

phase condition, where the RMS is computed across the span shown.

76 Chapter 6

Option B25 (25 MHz) - Analysis Bandwidth

Other Analysis Band wid th Specifications

Description Specifications Supplemental Information

Full Scale (ADC Clipping)

Default settings, signal at CF

(IF Gain = Low)

Band 0

Band 1 through 4

7 dBm mixer level

–6 dBm mixer levelb (nominal)

(nominal)

High Gain setting, signal at CF

(IF Gain = High)

Band 0

Band 1 through 4

Effect of signal frequency ≠ CF

a. This table is meant to help predict the full-scale level, defined as the signal level for which ADC overload (clipping) occurs. The

prediction is imperfect, but can serve as a starting point for finding that level experimentally. A SCPI command is also available

for that purpose. b. Mixer level is signal level minus input attenuation. c. The available gain to reach the predicted mixer level will vary with center frequency. Combinations of high gains and high

frequencies will not achieve the gain required, increasing the full scale level.

–17 dBm mixer levelb (nominal), subject to gain limitations

–15 dBm mixer levelb (nominal), subject to gain limitations

Up to 3 dB (nominal)

Chapter 6 77

Option B25 (25 MHz) - Analysis Band wid th Data Acquisition

Data Acquisition

Description Specifications Supplemental Information

Time Record Length

Complex Spectrum 131,072 samples (max) ResBW 1.3 kHz for 25 MHz span

Waveform

Sample Rate 100 MSa/s (ADC Samples) 90 MSa/s (IF Samples) ADC Resolution 14 bits

4,000,000 samples (max) 4,000,000 samples 88.89 ms at 25 MHz

span

78 Chapter 6

Option P03, P07, P13 and P26 - Preamplifiers

Specification Guide

7 Option P03, P07, P13 and P26 - Preamplifiers

This chapter contains specifications for the CXA Signal Analyzer Options P03, P07,

P13 and P26 preamplifiers.

Option P03, P07, P13 and P26 - Preamplifiers Specifications Affected by Preamp

Specifications Affected by Preamp

Specification Name Information

Frequency Range See

Nominal Dynamic Range vs. Offset Frequency vs. RBW

Measurement Range The measurement range depends on DANL.

Gain Compression See specifications in this chapter.

DANL See specifications in this chapter.

Frequency Response See specifications in this chapter.

RF Input VSWR See plot in this chapter.

Absolute Amplitude Accuracy See

"Frequency Range" on page 11 of the core specifications.

The graphic from the core specifications does not apply with Preamp On.

"Measurement Range" on page 20 of the core specifications.

See

"Absolute Amplitude Accuracy" on page 23 of the core specifications.

Display Scale Fidelity See

Second Harmonic Distortion See

Third Order Intermodulation Distortion

Gain See specifications in this chapter.

"Display Scale Fidelity" on page 27 of the core specifications.

"Second Harmonic Distortion" on page 32 of the core specifications.

"Third Order Intermodulation" on page 32 of the core specifications.

See

80 Chapter 7

Option P03, P07, P13 and P26 - Preamplifiers

Other Preamp Specifications

Description Specifications Supplemental Information

Preamplifier (Option P03, P07, P13, P26)

Gain

100 kHz to 26.5 GHz

Maximum 20 dB (nominal)

Noise figure

100 kHz to 26.5 GHz Noise Figure is

DANL + 176.24 dB (nominal) Note on DC coupling

a. Nominally, the noise figure of the spectrum analyzer is given by

NF = D . (K . L + N + B)

where, D is the DANL (displayed average noise level) specification (Refer to page 83 for DANL with Preamp),

K is kTB (.173.98 dBm in a 1 Hz bandwidth at 290 K),

L is 2.51 dB (the effect of log averaging used in DANL verifications)

N is 0.24 dB (the ratio of the noise bandwidth of the RBW filter with which DANL is specified to an ideal noise bandwidth)

B is ten times the base-10 logarithm of the RBW (in hertz) in which the DANL is specified. B is 0 dB for the 1 Hz RBW.

The actual NF will vary from the nominal due to frequency response errors. b. The effect of AC coupling is negligible for frequencies above 40 MHz. Below 40 MHz, DC coupling is recommended for the best

measurements. The instrument NF nominally degrades by 0.2 dB at 30 MHz and 1 dB at 10 MHz with AC coupling.

Description Specifications Supplemental Information

Maximum Safe Input Level – Preamp On

Average Total Power

+10 dBm (10 mW) Option P03/P07

(input attenuation 20dB)

Average Total Power

+30 dBm (1 W) Option P13/P26

(input attenuation 20dB)

Chapter 7 81

Option P03, P07, P13 and P26 - Preamplifiers Other Preamp Specifications

Description Specifications Supplemental Information

1 dB Gain Compression Point (Two-tone)

abc

(Preamp On (Option P03, P07, P13, P26)

Maximum power at the preamp

for 1 dB gain

compression)

50 MHz to 7.5 GHz (Option P03, P07, P13, P26)

7.5 to 26.5 GHz (Option P13, P26)
