Power Products Solutions

A guide to selecting power products to match your test and measurement needs.

SELECTION GUIDE

November 2021

Introduction

Power your next insight -

Today, your products are changing the way we all work and play — wearables, electric vehicles, and beyond. For more than 50 years, Keysight system and benchtop DC power supplies have been changing the way engineers prove their design, understand the issues and ensure product quality. On a bench or in a system, our supplies are ready for your application, offering optimal choices in voltage, current, capability and performance. Test with confidence with Keysight — and power your next insight.

Find us at www.keysight.com

Page 2

PathWave BenchVue Software: Control. Automate. Simplify.

Keysight PathWave BenchVue software for the PC eliminates many of the issues around bench testing. By making it simple to connect, control instruments, and automate test sequences, you can quickly move past the test development phase and access results faster than ever before. Dedicated instrument apps allow you to quickly configure the most commonly used measurements and setups for each instrument family. Rapidly build custom test sequences with the integrated Test Flow app to automate and visualize test results without the need for instrument programming. Powerful BenchVue apps enable you to significantly reduce test development time.

Use PathWave BenchVue apps to:

– Configure the most commonly used controls and measurements from your Keysight

instruments – Visualize multiple measurements simultaneously – Easily log and export data and screen images in just a few clicks for faster analysis – Quickly create automated test sequences with minimal instrument knowledge – Access deeper instrument controls and measurement solutions – Save time with software that offers multiple instrument apps in one platform

PathWave BenchVue sof tware works with hundreds of Keysight digital multimeters, power supplies, function/waveform generators, spectrum analyzers, data acquisition units, network analyzers, oscilloscopes, power meters, power sensors, electronic loads, universal counters and more — look for the BenchVue enabled icon for compatible products.

Star t accelerating your workflow today and download a 30-day trial version at

www.keysight.com/find/BenchVue

Look For This Icon

throughout the catalog to identify PathWave BenchVue software enabled products.

Find us at www.keysight.com

Page 3

Specific PathWave BenchVue software for power products

Software products Model number Key features Link

PathWave BenchVue Power Supply App

PathWave BenchVue Electronic Load App

PathWave BenchVue Advanced Power Control and Analysis – Single Instrument Connection

PathWave BenchVue Advanced Power Control and Analysis for Multiple Instrument Connections

PathWave BenchVue Advanced Battery Test And Emulation Software for a Single Instrument

PathWave BenchVue Advanced Battery Test And Emulation Software for Multiple Instruments

BV0003B Easily set parameters, build automated tests, and

visualize power output and voltage/current over time.

BV0012B Easily set parameters, build automated tests, and

visualize power output and voltage/current over time for better device characterization.

BV 9 2 0 1B Take full advantage of capabilities built-in to your

advance power supply. Characterize voltage and current usage, even generate power arbitrary waveforms. Supported N6705C, N7900 and RP7900 series.

BV9200B Take full advantage of capabilities built-in to your

advance power supply. Characterize voltage and current usage, even generate power arbitrary waveforms. Control and analyze voltage and current measurements from multiple N6705C, N7900 or RP7900 Series.

BV 9211B Achieve higher accuracy, repeatability, and safety

with an emulation based on a unique battery model. Your model will allow you to determine your device’s power consumption, emulate an actual battery, and import existing battery models.

BV9210B Achieve higher accuracy, repeatability, and safety

with an emulation based on a unique battery model. Your model will allow you to determine your device’s power consumption, emulate an actual battery, and import existing battery models.

https://www.keysight.com/my/en/product/ BV0003B/pathwave-benchvue-power-supply-app. html https://www.keysight.com/my/en/product/ BV0012B/pathwave-benchvue-electronic-loadapp.html https://www.keysight.com/my/en/product/ BV9201B/benchvue-advanced-power-controlanalysis-single-instrument-connection.html

https://www.keysight.com/my/en/product/ BV9200B/benchvue-advanced-power-controlanalysis-for-multiple-instrument-connections.html

https://www.keysight.com/my/en/product/ BV9211B/advanced-battery-test-and-emulationsoftware-for-a-single-instrument.html

https://www.keysight.com/my/en/product/ BV9210B/advanced-battery-test-and-emulationsoftware-for-multiple-instru.html

Find us at www.keysight.com

Page 4

In This Guide:

Power Supply Categories / 6

Selecting the Right System and Benchtop DC Power Supply For Your Application / 7 - 10

DC Voltage and Current At a Glance / 11 - 12

DC Power Supply Details /13 - 20

– E36300, E36100, E3600 and U8000 Series Bench Power Supplies / 13 – E36100B Series Bench Power Supplies / 13 – N5700 and N8700 Series ATE System DC Power Supplies / 14 – N8900 Series Autoranging System DC Power Supplies / 15

– NEW EDU36311A Smart Bench Essentials DC Power Supply / 16

– B2960 Series 6.5 Digit Low Noise Source Power Supplies / 17 – N6900 and N7900 Advanced Power System (APS) / 18 – N6700 Low-Profile Modular Power System / 19 – N6705C DC Power Analyzer / 20

DC Electronic Load Details / 21 - 22

– N6790 Series DC Electronic Loads / 21

– NEW EL30000 Series Electronic Loads / 22

– N3300 Series DC Electronic Loads / 23

AC Power Sources / 24 - 25

– AC6800B Series Basic AC Power Sources / 24 – 6800C Series Performance AC Power Sources/Analyzers / 24

– NEW AC6900 Series Three-Phase AC Power Sources / 25

Application-Specific Power Products / 26 - 38

– RP7900 Series Regenerative Power System / 26 – N6780 Series Source Measure Units (SMUs) / 27 – B2900A Series Precision Source/Measure Units (SMU) / 28 – U2720 USB Modular Source Measure Units / 29 – E5260A/E5270B Precision IV Analyzer/Source Monitor Unit Mainframe Series / 30 – B1500A Semiconductor Device Analyzer / 31 – B1505A Power Device Analyzer/Curve Tracer / 32 – B1506A Power Device Analyzer for Circuit Design / 33 – N6783A Application-Specific Modules / 34 – 66300 Mobile Communications DC Sources / 35

– NEW PV8900 Series Photovoltaic Array Simulator / 36

– E4360 Modular Solar Array Simulators / 37 – PA2201A and PA2203A IntegraVision Power Analyzers / 39 – CX3300A Series Device Current Waveform Analyzers / 39

DC Power Supply Discontinuance and Replacement Products / 40 - 42

– 6600 Series High-Performance DC Power Supplies / 40 – 66000 Modular Power System / 42

Find us at www.keysight.com

Page 5

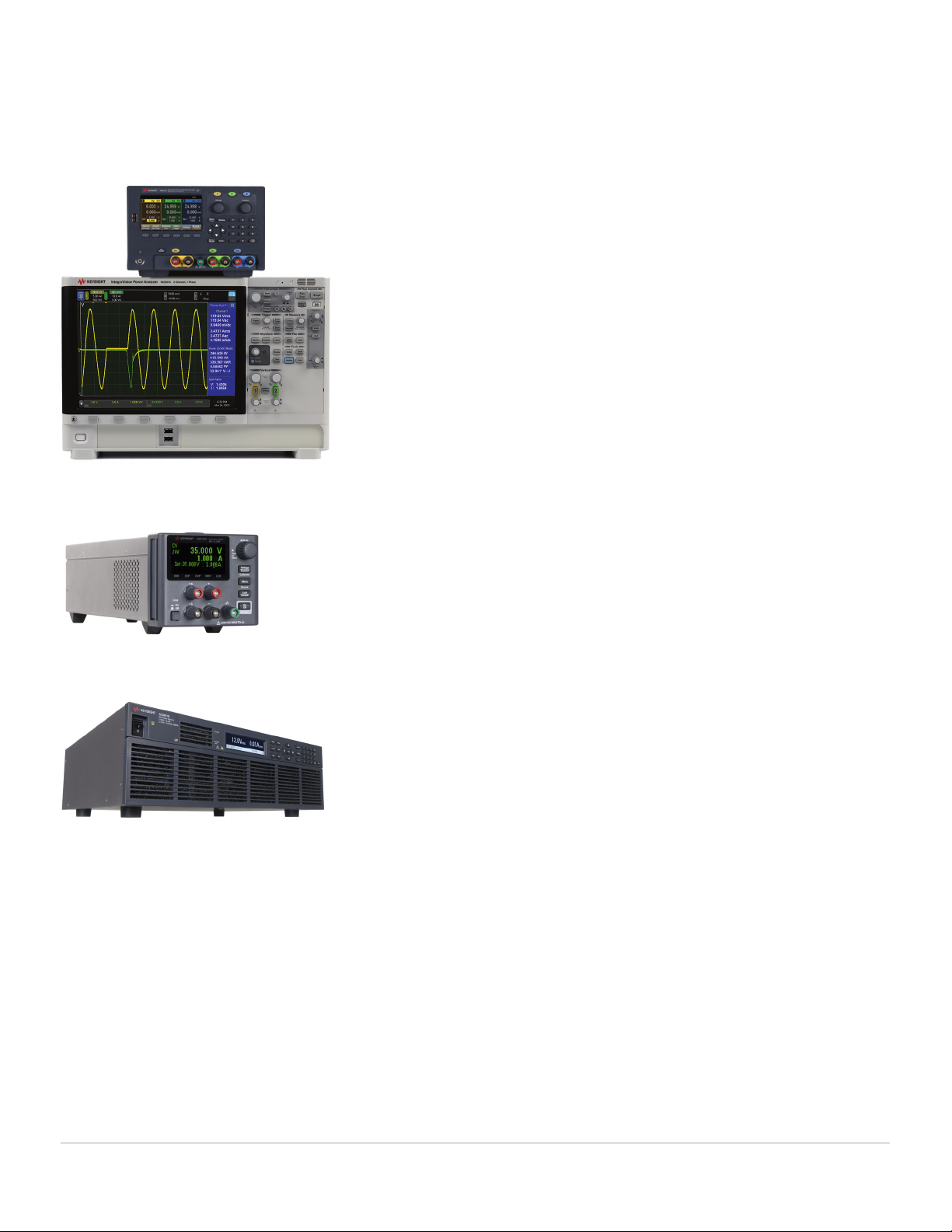

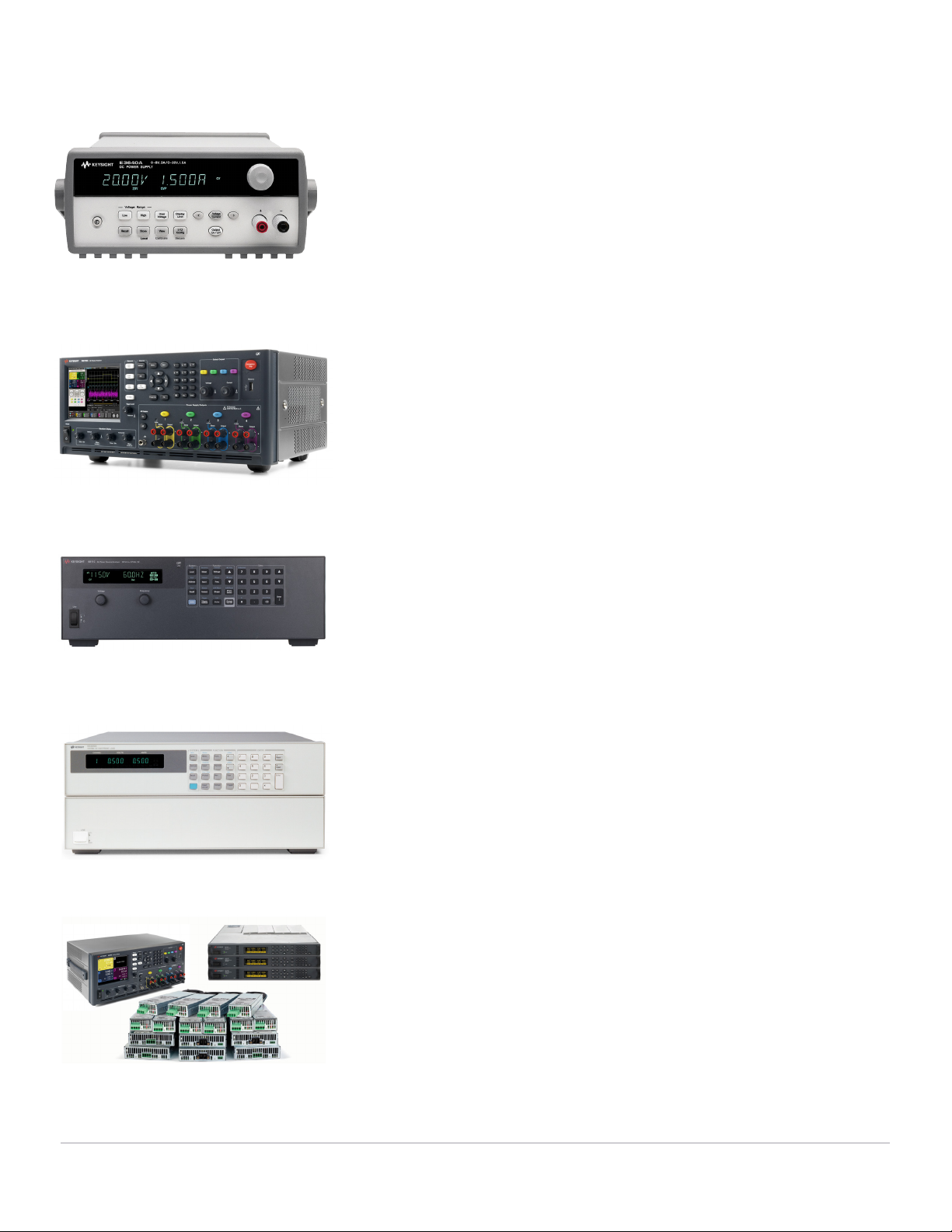

Power Supply Categories

Basic

Affordable, quiet and stable power supplies for both manual and simple computercontrolled operation. The Keysight line of basic bench power supplies is optimized to provide DC power in applications where speed and accuracy are a low consideration. These power supplies are a high-value fit for the bench and in a system rack.

Performance

E36340 DC power supply

N6705C DC power analyzer

6811C AC power source/analyzer

Speed, precision and advanced programming features make the performance power supplies the right choice when the DC power supply is a factor in test performance. With features such as DUT protection, fast programming times and downloadable V and I sequences, these DC power supplies can reduce your risk during test and system development.

Specialty

Sometimes it is best to have a power supply with unique capabilities that are tailored to a specific application. For example, the Keysight 66300 Mobile Communications DC Sources are designed to emulate the unique characteristics of a battery for mobile device testing and maintain those characteristics even when using long load leads, such as in an ATE system. The Keysight E4360 Solar Array Simulator simulates solar panel I-V characteristics for satellite development and testing.

Modular

Keysight offers fully programmable power supplies in a modular format: the N6700 lowprofile modular power system, N6705C DC power analyzer, and 66000 modular power system series. With this feature, you now have an extensive choice of power options—from basic through performance. Additionally, all modules interact in the same way at a single interface node, which simplifies system architecture and reduces cost when the test system inevitably changes.

AC sources

DC electronic load mainframe

N6790 Series DC Electronic Loads

Find us at www.keysight.com

Keysight provides a full line of basic and performance AC sources to help you test a variety of AC-powered devices. Basic sources provide reliable power while performance sources provide advanced measurements and waveform generation.

DC electronic loads

Electronic loads sink current and dissipate power in an accurate and controlled manner. Connected to circuit under test, an electronic load provides a convenient way to vary the load on the circuit’s output in order to understand the circuit’s performance.

Keysight of fers two families of electronic loads, the N3300 family which is a modular, multiple output family; and the new N6790 Series DC Electronic Load. The N6790A Series is available in the N6700C, N6701C, N6702C low profile modular mainframe system and the N6705C DC Power Analyzer mainframe for bench use.

Page 6

Selecting the Right System and Benchtop DC Power Supply For Your Application

We have designed the selection guide to make easy to pick the correct power supply based on your requirements. If your selection is driven by voltage and current requirements, please visit the tables found on pages 11 and 12. From there you can go to the product page(s) for more detail.

When you have specialized requirements that need features such as source and measure, it is quite easy to select from a set of power supplies that are designed exactly for those requirements. Refer to page 23 for specialty power products.

But when you have more complex requirements and you know the power supply is an important part of your test bench, where do you start and what do you need to consider?

Of course you need to select the right voltage and current, but there are other factors to consider when selecting a benchtop DC power supply for your applications. This guide gives a definition of the feature, states why it’s important, and tells you how to use that feature when specifying the right power supply. In addition, the product families are listed so you can quickly see which product best fits your application. With that information, you can go to the product pages for detailed specifications.

Use the following information to help select the features you need in a DC power supply. Then go to the product page(s) for more detail.

Output characteristics

Ripple and noise

Use the ripple and noise specification to determine what, if any, affects these variations will have on your circuit or device.

Programming accuracy

Use programming accuracy to determine if the power supply can produce a voltage and current within the precision needed by your device.

Ideally, an output is free from any variations in voltage. In practice, there are periodic variations, called ripple, and random variations, called noise. Typically specified as either Vrms or Vp-p, the most useful spec is Vp-p. With Vp-p you will know the maximum variation away from the DC setpoint.

Programming accuracy is a measure of how closely the output will be to the setpoint. Specified as a percent of output plus an offset, you can calculate whether or not the power supply has the precision required. In addition, many power supplies have built-in voltmeters and ammeters to measure its output.

Ripple and noise < 10 mVp-p

66309B-32A B2 9 6 1B- 62B E3600 Series E36300 Series N6751A-66A N6781A-84A N6900 Series N7900 Series U8031A-32A

Accuracy < 0.03% Accuracy > 0.05%

B2 9 6 1B- 62B E36300 Series N6751A-66A N6781A-82A N6784A-86A N6900 Series N7900 Series

p35 p17 p13 p13 p19 p27 p18 p18 p13

p17 p13 p19 p27 p35 p18 p18

Ripple and noise 10 to 500 mVp-p

E36100 Series N5700 Series N6731B-46B N6773A-77A N6785A-86A N8700 Series N8900 Series RP7900 Series U8001A-02A

E3600 Series E36100 Series N5700 Series N6731B-46B N6773A-77A N6783A N8700 Series N8900 Series RP7900 Series U8000 Series

p13 p14 p19 p19 p35 p14 p15 p26 p13

p13 p13 p14 p19 p19 p35 p15 p15 p26 p13

Find us at www.keysight.com

Page 7

Selecting the Right System and Benchtop DC Power Supply For Your Application (Continued)

Output characteristics (Continued)

Output response

Use this specification to select the power supply that is fast enough for your application.

Control

Computer interface

Specify power supplies with the appropriate hardware and software interface for computer control.

When the setpoint changes it will take some time before the output reaches the setting. How fast it reaches the setpoint is a result of its regulation design and the output bandwidth. The specifications are typically for a voltage change from 10 to 90% of its rated output or a load change of 50 to 100 %.

Many DC power supplies have both manual and computer control. Some are only manually controlled. Hardware interfaces for DC power supplies include GPIB, USB, and LAN (LXI Core). Software interfaces include the SCPI language and drivers such as IVI-C, IVI-COM, and VXI plug&play.

FAST output response < 15 ms

66300 Series B2 9 6 1B- 62B N6751A-66A N6781A-86A N6900 Series N7900 Series

Manual only Computer and manual

E3620A-30A U8000 Series

p35 p17 p19 p27 p18 p18

p13 p13

MEDIUM output response < 200 ms

E36100 Series E36300 Series N5700 Series N6731B-46B N6773A-77A N8700 Series N8900 Series RP7900 Series U8001A-02A

control

All others

p13 p13 p14 p19 p19 p14 p15 p25 p13

Analog voltage control signal

Specify a power supply with an analog input whenever you need to amplify the power or need to track an analog voltage.

Output measurements

Measure V & I output

Specify power supplies with built-in measurements whenever you need to check the actual voltage and current.

Some power supplies provide an analog voltage control input to cause the voltage output to follow this input. Essentially, it amplifies the power since the power supply can provide current up to its rated maximum.

Many power supplies have a built in voltmeter and ammeter to read back their own output. The measurements can be displayed on the front panel or queried by a computer connected to the interface. These measurements are particularly useful in computercontrolled systems. Measurement (or read back) accuracy is specified as a percent of full scale plus an offset.

WITH analog input

N5700 Series N8700 Series N8900 Series

p14 p14 p15

WITHOUT analog input

All others

Built-in measurement

All others

Find us at www.keysight.com

Page 8

Selecting the Right System and Benchtop DC Power Supply For Your Application (Continued)

Packaging

Physical size

Use the size specification to match bench or system use.

Front or rear output terminals

Select the model with its output terminals in the best location for your application on either the bench or in a system rack.

Number of outputs

Specify multiple outputs per unit when you need to save space on the bench or in a system rack.

Keysight power supplies have standard EIA 19-inch rack dimensions. The width is either half rack width or full rack width while the height ranges from 1U to 5U (1.75 to 8.57 in). While any size can be used on the bench or in a system rack, the half rack width is generally better for bench applications while the full rack width works well in system racks. Of special note is the 1U height of the N5700 and N6700 Series.

The output terminals can be located on the front of the power supply or the rear. System and high-current power supplies have their outputs located on the rear panel while bench and some low current power supplies have outputs on the front.

Keysight power supplies are configured with 1 to 8 outputs per unit. Multiple output power supplies can save space on the bench or in a rack. Of special note are the 66000 and N6700 modular mainframes that can hold up to 8 and 4 modules respectively.

QUARTER rack

E36100 Series p13 B2 9 6 1B- 62B

FRONT terminals

B2 9 6 1B- 62B E3620A-30A E36100 Series N6705C U8000 Series

SINGLE outputs

All others B2 9 6 1B- 62B

p17 p13 p13 p20 p13

HALF rack

E3600 Series E36300 Series U8000 Series

REAR terminals

All others

MULTIPLE outputs

E3620-31A E3646A-49A E36300 Series E4360 mfg N6700 mfr N6705C U8031A-32A

p17 p13 p13 p13

p17 p13 p13 p13 p36 p19 p20 p13

FULL rack

All others

Find us at www.keysight.com

mfr = mainframes for the E4360, N6700, N6707C, N6705C and 66000 modular power supplies

Page 9

Selecting the Right System and Benchtop DC Power Supply For Your Application (Continued)

Specialty

DUT protection

Select power supplies with DUT protection whenever your load may be damaged by over voltage or over current.

Computer Interface

Specify power supplies with the appropriate hardware and software interface for computer control.

Output disconnect or polarity reversal

Select power supplies with optional output relays when your application requires power to be physically disconnected from the device.

Many power supplies can be set for a maximum voltage and current to protect the device under test (DUT). When set, the power supply will limit the voltage and/or current regardless of the load. This feature provides a margin of safety when something goes wrong.

Automatic connect, disconnect, and polarity reversal can be accomplished with programmable output relays. By doing so, you will eliminate an external relay and have an easy method to programmatically actuate the relay.

WITH DUT protection

All others E3620A-31A p13

WITH LIST memory

B2 9 6 1B- 62B E4360 Series N6700 Series N6705C N6900 Series N7900 Series RP7900 Series

WITH optional relays

66300 Series N6700 Series N7900 Series

p17 p37 p19 p20 p18 p18 p26

p35 p19 p18

WITHOUT DUT protection

WITHOUT LIST memory

All others

WITHOUT optional relays

All others

Find us at www.keysight.com

Page 10

DC Voltage and Current At a Glance

Voltage ranges: 5 to 40 V

Model numbers Page Outputs 5 to 9 V 12 to 20 V 21 to 40 V

66309B-32A 35 1 to 2 0 to 15 V, 3 A (all 663xx) E36102B- 06B 13 1 0 to 6 V, 5 A (E36102B) 0 to 20 V, 2 A (E36103B) 0 to 35 V, 1A (E36104B) E3620A 13 2 0 to 25 V, 1 A (E3620A x2) E36311A-13A 13 3 0 to 6 V, 5 A (E36311A-12A)

0 to 6 V, 10 A (E36313A)

E3630A-31A 13 3 0 to 6 V, 2.5 (E3630A x1)

0 to ± 20 V, 0.5 A (E3630A x2) 0 to ± 25 V, 1 A (E3631A x2)

0 to 6 V, 5 A (E3631A x1)

E3632A-34A

13 1 0 to 8 V, 20 A (E3633A r1) 0 to 15 V, 7 A (E3632A r1)

0 to 20 V, 10 A (E3633A r2)

E3640A-45A

E3646A-49A

N5741A-52 A 14 1 0 to 6 V, 100 A (N5741A)

N5761A-72A 14 1 0 to 6 V, 180 A (N5761A)

N6731B-36B 19 1 to 4 10 to 5 V, 10 A (N6731B)

13 1 0 to 8 V, 3 A (E3640A r1)

0 to 8 V, 5 A (E3642A r1) 0 to 8 V, 8 A (E3644A r1)

13 2 0 to 8 V, 3 A (E3646A r1)

0 to 8 V, 5 A (E3648A r1)

0 to 20 V, 1.5 A (E3640A r2) 0 to 20 V, 2.5 A (E3642A r2) 0 to 20 V, 4 A (E3644A r2)

0 to 20 V, 1.5 A (E3646A r2) 0 to 20 V, 2.5 A (E3648A r2)

0 to 12.5 V, 60 A (N5743A)

0 to 8 V, 90 A (N5742A)

0 to 20 V, 38 A (N5744A) 0 to 12.5 V, 120 A (N5763A)

0 to 8 V, 165 A (N5762A)

0 to 20 V, 76 A (N5764A) 0 to 20 V, 2.5 A (N6733B) 0 to 35 V, 1.5 A (N6734B)

0 to 8 V, 6.25 A (N6732B)

N6 741B - 4 6B 19 1 to 4 10 to 5 V, 20 A (N6741B)

0 to 20 V, 5 A (N6743B) 0 to 35 V, 3 A (N6744B)

0 to 8 V, 12.5 A (N6742B)

N6751A-52A

19 1 to 4

0 to 20 V, 15 A (N6773A) 0 to 35 V, 8.5 A (N6774A) N6761A-62A N6773A-77A

N6753A-56A N6763A-66A

19 2

0 to 20 V, 50 A (N6753A)

0 to 20 V, 50 A (N6755A)

0 to 20 V, 50 A (N6763A)

0 to 20 V, 50 A (N6765A) N6781A-86A 26 1 to 4 10 to 6 V, +3 to-2 A

(N6783A-MFG) 0 to 8 V, +3 to-2 A

0 to 20 V, ± 3 A (N6781A-82A)

0 to ±20 V, ± 3 A (N6784A)

0 to 20V, ± 8 A (N6785-86A)

(N6783A-BAT)

N6950A-52A, N6970A-72A N7950A-52A, N7970A-72A181811

0 to 9 V, 100 A (N69/N7950A) 0 to 9 V, 200 A (N69/N7970A)

0 to 20 V, 50 A (N69/N7951A)

0 to 20 V, 100 A (N69/N7971A) N8731A-42A 14 1 0 to 8 V, 400 A (N8771A) 0 to 10 V, 300 A (N8732A)

0 to 15 V, 220 A (N8733A)

0 to 20 V, 165 A (N8734A) N8754A-62A 14 1 0 to 20 V, 250 A (N8754A) 0 to 30 V, 170 A (N8755A)

RP7931A-36A 26 21 0-20 V, ± 400 A (RP7931A/41A) RP7941A- 4 6 A 26 21 0-20 V, ± 800 A (RP7933A/43A) U8001A 13 1 0 to 30 V, 3 A U8002A 13 1 0 to 30 V, 5 A U8031A 13 3 0 to 30 V, 6 A (Output 1 and 2); 5 V,

B150 0A 31 1 to 10 350 to 80 V: 0 to ± 200 V, ± 0.1

A to ± 1 A

100 to 210 A: 0 to ± 200 V,

± 0.1 A to ± 1 A B2901A/02A/11A/12A 28 1 to 2 0 to ± 210 V, ± 0.105 A to ± 3 A 0 to ± 210 V, ± 0.105 A to ± 3 A B2 9 0 1BL 28 1 0 to 21 V, 0 to ±1.5 A B2910BL 28 1 0 to ±210 V, 0 to ±1.5 A 0 to ±210 V, 0 to ±1.5 A B2901B/02B/11B/12B 28 1 to 2 0 to ±210 V, 0 to ±3 A 0 to ±210 V, 0 to ±3 A

0 to ± 25 V, 1 A (E36311A x 2) 0 to 25 V, 1 A (E36312A x 2) 0 to 25 V, 2 A (E36313A x 2)

0 to 30 V, 4 A (E3632A r2) 0 to 25 V, 7 A (E3634A r1)

0 to 35 V, 0.8 A (E3641A r1) 0 to 35 V,1.4 A (E3643A r1) 0 to 35 V, 2.2 A (E3645A r1)

0 to 35 V, 0.8 A (E3647A r1) 0 to 35 V, 1.4 A (E3649A r1)

0 to 30 V, 25 A (N5745A) 0 to 40 V, 19 A (N5746A)

0 to 30 V, 50 A (N5765A) 0 to 40 V, 38 A (N5766A)

0 to 40 V, 25 A (N69/N7952A) 0 to 40 V, 50 A (N69/N7972A)

0 to 30 V, 110 A (N8735A) 0 to 40 V, 85 A (N8736A)

0 to 40 V, 125 A (N8756A)

3 A (Output 3)

1. Power modules that require a modular mainframe (66000 Series, N670 0 Series, N6705).

2. Dual range power supplies; r1 denotes range 1; r2 denotes range 2.

Find us at www.keysight.com

Page 11

DC Voltage and Current At a Glance (Continued)

Voltage ranges: 50 to 1500 V

Model numbers Page Outputs 30 to 80 V 100 to 210 V 1500 to 2000 V

EDU36311A 16 3 0 - 6 V, 5 A 0 - 30 V, 1 A 0 - 30 V, 1 A B2 9 61B-62B 17 1 to 2 0 to ±210 V, 0 to ±3 A 0 to ±210 V, 0 to ±3 A B29 61A-62A 17 1 to 2 0 to ± 210 V, ± 0.105 A to ± 3 A 0 to ± 210 V, ± 0.105 A to ± 3 A E36102B-06B 13 1 0 to 60 V, 0.6A (E36105B) 0 to 100 V, 0.4 A (E36106B) E3632A-34A E3640A-45A

E3646A-49A

E4361A-62A 37 1 to 2 10 to 65 V, 8.5 A (E4361A) 0 to 130 V, 5 A (E4362A) E5260/70 30 1 to 8 150 to 80V: 0 to ± 200 V, ± 0.1 A

E5262/63 30 2 50 to 80 V 0 to ± 200 V, ± 0.2 A (E5262A); 0 to ± 200 V, ± 0.2 A to ± 1 A (E5263A)

N5741A -52A 14 1 0 to 60 V, 12.5 A (N5747A)

N576 1A-72A 14 1 0 to 60 V, 25 A (N5767A)

N6731B-36B 19 1 to 4 10 to 60 V, 0.8 A (N6735B) 0 to 100 V, 0.5 A (N6736B) N6 741B - 4 6B 19 1 to 4 10 to 60 V, 1.6 A (N6745B) 0 to 100 V, 1 A (N6746B) N6751A-52 A

N6761A-62A N6773A-77A

N6753A-56A N6763A-66A

N6953A-54A N6 973A-77A N7953A-54A N7973A-7 7A

N8731A-42A 14 1 0 to 60 V, 55 A (N8737A)

N8754-62A 14 1 0 to 60 V, 85 A (N8757A)

N8 920 A-57A N8 937A P V/57APV

RP7931A-36A RP7941A-46A RP7951A-53A RP7961A-63A RP7951A-53A RP7961A-63A

RP7972A RP7982A RP7983ARP7985A

U8032A 13 3 0 to 60 V, 3 A (Output 1 and 2);

1. Power modules that require a modular mainframe (66000 Series, N670 0 Series, N6705).

2. Dual range power supplies; r1 denotes range 1; r2 denotes range 2.

3. Maximum number of modules depends on the configuration.

13 1 0 to 50 V, 4 A (E3634A r2) 13 1 0 to 60 V, 0.5 A (E3641A r2)

0 to 60 V, 0.8 A (E3643A r2) 0 to 60 V, 1.3 A (E3645A r2)

13 2 0 to 60 V, 0.5 A (E3647A r2)

0 to 60 V, 0.8 A (E3649A r2)

100 to 210 A: 0 to ± 200 V, ± 0.1 A to ± 1 A

to ± 1 A

100 to 210 A 0 to ± 200 V, + 0.2 A to 1 A

0 to ± 200 V, ± 0.2 A (E5262A); 0 to ± 200 V, ± 0.2 A to ± 1 A (E5263A)

0 to 80 V, 9.5 A (N5748A)

0 to 80 V, 19 A (N5768A)

19 1 to 4 10 to 50 V, 5 A (N6751A)

0 to 50 V, 10 A (N6752A)

0 to 100 V, 7.5 A (N5749A) 0 to 150 V, 5 A (N5750A)

0 to 100 V, 15 A (N5769A) 0 to 150 V, 10 A (N5770A)

0 to 100 V, 3 A (N6776A) 0 to 150 V, 2 A (N6777A)

0 to 300 V, 2.5 A (N5751A) 0 to 600 V, 1.3 A (N5752A)

0 to 300 V, 5 A (N5771A) 0 to 600 V, 2.6 A (N5772A)

0 to 50 V, 1.5 A (N6761A) 0 to 50 V, 3 A (N6762A) 0 to 60 V, 5 A (N6775A)

19 2

0 to 60 V, 20 A (N6754A) 0 to 60 V, 17 A (N6756A) 0 to 60 V, 20 A (N6764A) 0 to 60 V, 17 A (N6766A)

18 18 18 18

15151

1 1 1 1

0 to 60 V, 16.7 A (N69/N7953A) 0 to 60 V, 33.3 A (N69/N7973A) 0 to 80 V, 12.5 A (N69/N7954A) 0 to 80 V, 25 A (N69/N7974A)

0 to 80 V, 42 A (N8738A)

0 to 80 V, 42 A (N8738A) 0 to 80 V, 170 A (N8920A/40A)

0 to 80 V, 340 A (N8925A/45A) 0 to 80 V, 510 A (N8931A/51A)

0 to 120 V, 16.7 A (N69/N7976A) 0 to 160 V, 12.5 A (N69/N7977A)

0 to 100 V, 33 A (N8739A) 0 to 150 V, 22 A (N8740A)

0 to 100 V, 50 A (N8759A) 0 to 150 V, 34 A (N8760A)

0 to 200 V, 70 A (N8921A/41A) 0 to 200 V, 140 A (N8926A /46A) 0 to 200 V, 210 A (N8932A/52A)

0 to 300 V, 11 A (N8741A) 0 to 600 V, 5.5 A (N8742A)

0 to 300 V, 17 A (N8761A) 0 to 600 V, 8.5 A (N8762A)

0 to 500 V, 30 A (N8923A/43A) 0 to 500 V, 60 A (N8928A/48A) 0 to 500 V, 90 A (N8934A/54A) 0 to 750 V, 20 A (N8924A/44A) 0 to 750 V, 40 A (N8929A/49A) 0 to 750 V, 60 A (N8935A/55A) 0 to 1000 V, 30 A (N8930A/50A) 0 to 1500 V, 30 A (N8937A/57A/APV)

26 26 26 26 26 26

1 1 1 1 1 1

0-80 V, ± 125 A (RP7932A/42A) 0-80 V, ± 250 A (RP7935A/45A)

0-160 V, ± 125 A (RP7936A/46A) 0-500 V, ± 20 A (RP7951A/61A)

0-500 V, ± 40 A (RP7952A/62A)

0-950 V, ± 20 A (RP7953A/63A) 0 to 500 V, ± 20 A (RP7951A/61A) 0 to 500 V, ± 40 A (RP7952A/62A)

0 to 950 V, ± 20 A (RP7953A /63A) 26 26 26 26

1 1 1 1

0 to 1000 V ± 60A

0 to 1000 V ± 90 A

0 to 2000 V ± 30 A

5 V, 3 A (Output 3)

Find us at www.keysight.com

Page 12

E36300, E36200, E36100, E3600 and U8000 Series Bench Power Supplies

E36100B Series (Link)

The E36100B series will impress you from every angle, size, display and I/O.

– Small footprint 2U 1/4 rack – Up to 100V, up to 5A – Clean and stable DC power – Excellent programming and readback

accuracy – LAN (LXI Core), and USB – Rack mount up to 4 units

E36200 Series (Link)

The Keysight E36200 Series autoranging bench power supply can power devices that typically require higher- output power supplies with larger watt ratings.

– Autoranging outputs to provide

maximum current at all voltages. – 4.3-inch LCD color display – Intuitive, easy-to-use front panel

interface – Auto series/parallel connection

E36300 Series (Link)

The triple output E36300 Series gives you the performance of system power supplies at an affordable price.

– 4.3” color LCD Display – Intuitive, easy-to-use front panel

interface – Meter view to display more info on a

selected channel – Auto series/parallel connection

E3630 (Link), E3640 (Link) and U8000 (Link) Series

The E3630 and E3640 Series offers an extensive choice of voltages, programmability, and number of outputs.

The U8000 Series offers more affordable DC power and provides features typical only found in programmable power supplies (like output sequencing, save/recall, and more).

BenchVue software enabled

1. Output 1 / Output 2 / Output 3.

2. NOTE: RU refers to rack unit of a standard 19” EIA equipment rack. The width is either 1/2 or full The

Model

E36 311A E3 6 312A 80 6 V/25 V/25 V 5 A/1 A/1 A 3 1 LAN, E36313A 16 0 6 V/25 V/25 V 10 A/2 A/2 A 3 1 2 1

E36102B 30 6 5 1 1 LAN, E36103B 40 20 2 1 1 30 1 E36104B 35 35 1 1 1 60 2 E36105B 36 60 0.6 1 1 100 3 E36106B 40 100 0.4 1 1 150 6 E36231A 200 30 20 1 1 LAN, E36232A 200 60 10 1 1 3 3 E36233A E36234A 400 60 10 2 1 3 3 E3632A 120 15 V r1 / 30 V r2 7 A r1 / 4 A r2 1 2 GPIB 2 1 ½ RU w E3633A 200 8 V r1 / 20 V r2 20 A r1 / 10 A r2 1 2 3 1

Basic

E3634A 200 25 V r1 / 50 V r2 7 A r1 / 4 A r2 1 2 3 3 E3640A 30 8 V r1 / 20 V r2 3 A r1 / 1.5 A r2 1 2 GPIB 5 5 ½ RU w E36 41A 30 35 V r1 / 60 V r2 0.8 A r1 / 0.5 A r2 1 2 8 5 E3642A 50 8 V r1 / 20 V r2 5 A r1 / 2.5 A r2 1 2 5 5 E3643A 50 35 V r1 / 60 V r2 1.4 A r1 / 0.8 A r2 1 2 8 5 E3644A 80 8 V r1 / 20 V r2 8 A r1 / 4 A r2 1 2 5 5 E3645A 80 35 V r1 / 60 V r2 2.2 A r1 / 1.3 A r2 1 2 8 5 E3646A 60 8 V r1 / 20 V r2 3 A r1 / 1.5 A r2 2 2 GPIB 5 5 ½ RU w E3647A 60 35 V r1 / 60 V r2 0.8 A r1 / 0.5 A r2 2 2 8 5 E3648A 100 8 V r1 / 20 V r2 5 A r1 / 2.5 A r2 2 2 5 5 E3649A 100 35 V r1 / 60 V r2 1.4 A r1 / 0.8 A r2 2 2 8 5 U8001A 90 30 3 1 1 No 12 10 ½ RU w U8002A 150 30 5 1 1 12 10 U8031A 375 30 6 3 1 No 10 10 ½ RU w U8032A 375 60 3 3 1 10 10

height is in number of rack units which are 1.75” (44.4 mm) each. For example: a 3 RU h has a height of 5.25” (133.3 mm).

Power (W)

80 6 V/+25 V/-25 V

400 30 20 2 1 4 1

Maximum V (V)

5 A/1 A/1 A

Maximum I (A)

Number of outputs

3 1

Number of ranges

USB 2

USB, GPIB

USB

USB, GPIB

Computer interface

Ripple and noise mVp-p

2 1

10 1 ¼ RU w

4 1 ½ RU w

Program. or meter res. mV

Size

½ RU w x 3 RU h

x 2 RU h

x 3 RU h

x 2 RU h

x 3 RU h

x 2 RU h

x 4 RU h

Find us at www.keysight.com

Page 13

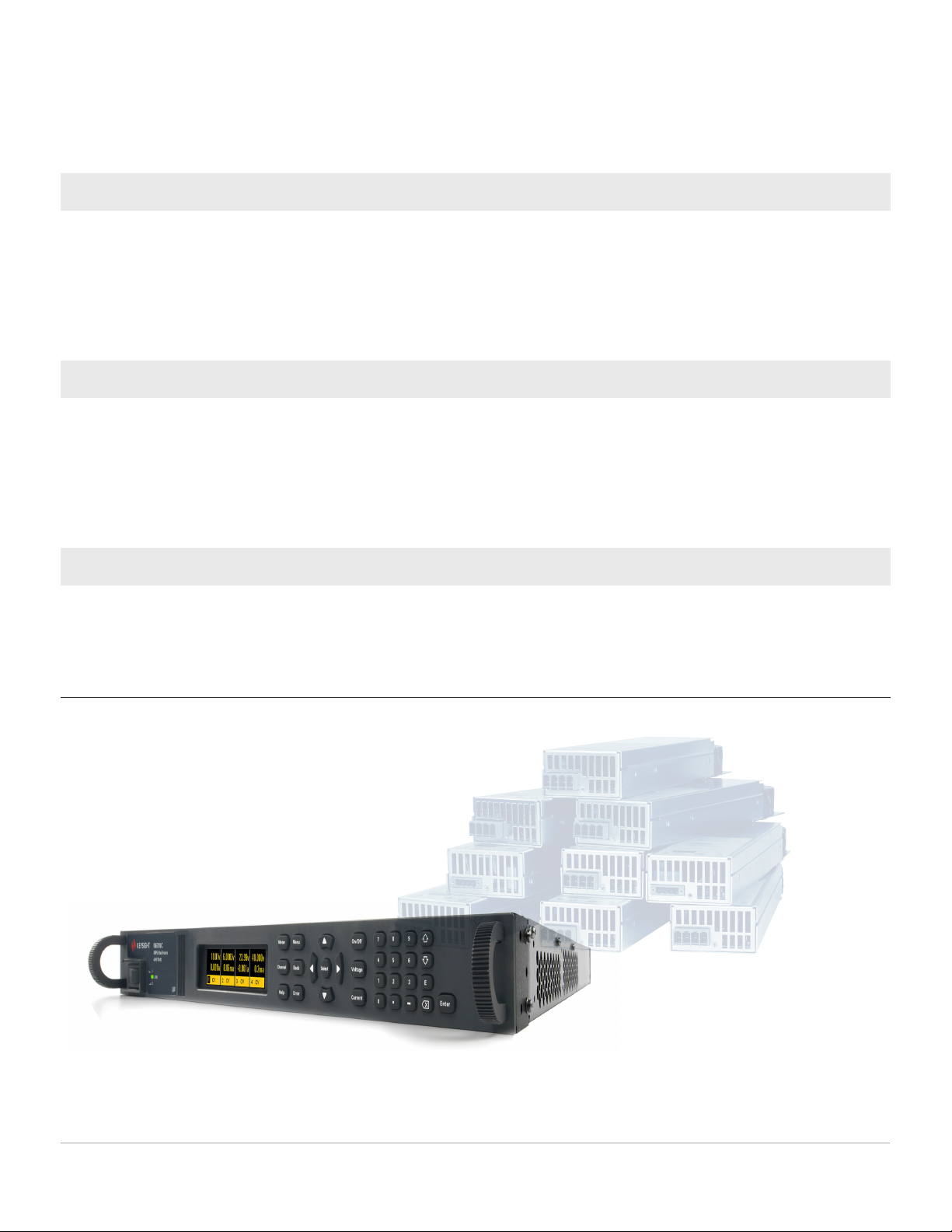

N5700 (Link) and N8700 (Link) Series ATE System DC Power Supplies

Space-saving power supplies with modern interfaces

Now get up to 5200 W in a compact, 2U package with the N8700 Series or up to 1560 W in a compact, 1U package with the N5700 Series. Both series offers solid performance and a variety of basic and enhanced capabilities.

– Remote programming via GPIB, L AN

and USB interfaces with the SCPI

command set (drivers available) – Analog control and monitoring of

output voltage and current – Connect multiple supplies in parallel

or series for greater output current or

voltage respectively – Built-in measurements – Front panel control and advanced

programmable features – Built-in protection features such as

OVP, OCP, UVL, and OTP – LXI Core compliant

BenchVue software enabled

N8731A: Front/back

N5749A: Front/back

1. RU refers to rack unit of a standard 19” EIA equipment rack. The width is either ½ or full. The height is in number of rack units which are

1.75” (44.4 mm) each. For example: a 3 RU h has a height of 5.25” (133.3 mm).

Model

Power (W)

Maximum V (V)

Maximum I (A)

Number of ranges

Number of outputs

Ripple and noise mVp-p

N5741A 600 6 100 1 1 60 0.5 + 3 ≤ 1.5 N5742A 720 8 90 1 1 60 0.5 + 4 ≤ 1.5 N574 3 A 750 12.5 60 1 1 60 0.5 + 6.25 ≤ 1.5 N574 4 A 760 20 38 1 1 60 0.5 + 10 ≤ 1 N5745A 750 30 25 1 1 60 0.5 + 15 ≤ 1 N574 6 A 760 40 19 1 1 60 0.5 + 20 ≤ 1 N5747A 750 60 12.5 1 1 60 0.5 + 30 ≤ 1 N574 8 A 760 80 9.5 1 1 80 0.5 + 40 ≤ 1 N5749A 750 100 7. 5 1 1 80 0.5 + 50 ≤ 1 N5750A 750 150 5 1 1 10 0 0.5 + 75 ≤ 2 N5751A 750 300 2.5 1 1 15 0 0.5 + 150 ≤ 2 N5752A 780 600 1.3 1 1 300 0.5 + 300 ≤ 2 N5761A 1080 6 180 1 1 60 0.5 + 3 ≤ 1.5 N5762A 1320 8 165 1 1 60 0.5 + 4 ≤ 1.5 N5763A 1500 12.5 12 0 1 1 60 0.5 + 6.25 ≤ 1.5 N5764A 1520 20 76 1 1 60 0.5 + 10 ≤ 1 N5765A 1500 30 50 1 1 60 0.5 + 15 ≤ 1 N5766A 152 0 40 38 1 1 60 0.5 + 20 ≤ 1 N5767A 150 0 60 25 1 1 60 0.5 + 30 ≤ 1 N5768A 1520 80 19 1 1 80 0.5 + 40 ≤ 1 N5769A 1500 100 15 1 1 80 0.5 + 50 ≤ 1 N5770A 150 0 150 10 1 1 100 0.5 + 75 ≤ 2

Basic

N5771A 1500 300 5 1 1 150 0.5 + 150 ≤ 2 N5772A 156 0 600 2.6 1 1 300 0.5 + 300 ≤ 2 N8731A 3200 8 400 1 1 60 0.05 + 4 < 1 N8732A 3300 10 330 1 1 60 0.05 + 5 < 1 N8733A 3300 15 220 1 1 60 0.05 + 7.5 < 1 N8734A 3300 20 165 1 1 60 0.05 + 10 < 1 N8735A 3300 30 110 1 1 60 0.05 + 15 < 1 N8736A 3400 40 85 1 1 60 0.05 + 20 < 1 N8737A 3300 60 55 1 1 60 0.05 + 30 < 1 N8738A 3360 80 42 1 1 80 0.05 + 40 < 1 N8739A 3300 100 33 1 1 100 0.05 + 50 < 1 N874 0 A 3300 150 22 1 1 100 0.05 + 75 < 2 N8741A 3300 300 11 1 1 300 0.05 + 150 < 2 N8742A 3300 600 5.5 1 1 500 0.05 + 300 < 2 N8754A 5000 20 250 1 1 75 0.025 + 15 < 1 N8755A 5100 30 170 1 1 75 0.025 + 22.5 < 1 N8756A 5000 40 125 1 1 75 0.025 + 30 < 1 N8757A 5100 60 85 1 1 75 0.025 + 45 < 1 N8758A 5200 80 65 1 1 100 0.025 + 60 < 1 N8759A 5000 10 0 50 1 1 100 0.025 + 75 < 1 N8760A 5100 150 34 1 1 120 0.025 + 112.5 < 2 N8761A 5100 300 17 1 1 300 0.025 + 225 < 2 N8762A 510 0 600 8.5 1 1 500 0.025 + 450 < 2

Programming

accuracy % + mV

Transient response (ms)

Size

Full RU w x

1 RU h

Full RU w x

1 RU h

Full RU w x 2 RU h

Find us at www.keysight.com

Page 14

N8900 Series Autoranging System DC Power Supplies (Link)

High-power, autoranging output does the job of multiple supplies

The N8900 Series autoranging DC power supplies provide unprecedented flexibility by offering a wide range of voltage and current combinations at full power. Just one N8900 does the job of multiple power supplies! It’s like having many power supplies in one!

– Up to 1500 V, up to 510 A – 5 kW, 10 kW and 15 kW models in a

small 3U package

– Easily parallel to create “one” power

supply with > 100 kW of power

– Protection from over-voltage, over-

current and over-temperature

– Control via GPIB, USB, L AN (LXI Core),

and analog programming

BenchVue software enabled

Model

Power (W)

N8920A 5000 80 170 1 1 200 ≤ 80 ≤ 1.5 208 N8921A 5000 200 70 1 1 300 ≤ 200 ≤ 1.5 208 N8923A 5000 500 30 1 1 350 ≤ 500 ≤ 1.5 208 N8924A 5000 750 20 1 1 800 ≤ 750 ≤ 1.5 208 N8925A 10000 80 340 1 1 200 ≤ 80 ≤ 1.5 208 N8926A 10000 200 14 0 1 1 300 ≤ 200 ≤ 1.5 208 N8928A 10000 500 60 1 1 350 ≤ 500 ≤ 1.5 208 N8929A 10000 750 40 1 1 800 ≤ 750 ≤ 1.5 208 N8930A 10000 1000 30 1 1 800 ≤ 1000 ≤ 1.5 208 N8931A 15000 80 510 1 1 200 ≤ 80 ≤ 1.5 208 N8932A 15000 200 210 1 1 300 ≤ 200 ≤ 1.5 208 N8934A 15000 500 90 1 1 350 ≤ 500 ≤ 1.5 208

Basic

N8935A 15000 750 60 1 1 800 ≤ 750 ≤ 1.5 208 N8 9 37A 15000 150 0 30 1 1 1000 ≤ 1500 ≤ 1.5 208 N8940A 5000 80 170 1 1 200 ≤ 80 ≤ 1.5 400 N8941A 5000 200 70 1 1 300 ≤ 200 ≤ 1.5 400 N8943A 5000 500 30 1 1 350 ≤ 500 ≤ 1.5 400 N8944A 5000 750 20 1 1 800 ≤ 750 ≤ 1.5 400 N8945A 10000 80 340 1 1 200 ≤ 80 ≤ 1.5 400 N8946A 10000 200 140 1 1 300 ≤ 200 ≤ 1.5 400 N8948A 10000 500 60 1 1 350 ≤ 500 ≤ 1.5 400 N8949A 10000 750 40 1 1 800 ≤ 750 ≤ 1.5 400 N8950A 10000 1000 30 1 1 800 ≤ 1000 ≤ 1.5 400 N8951A 15000 80 510 1 1 200 ≤ 80 ≤ 1.5 400 N8952A 15000 200 210 1 1 300 ≤ 200 ≤ 1.5 400 N8954A 15000 500 90 1 1 350 ≤ 500 ≤ 1.5 400 N8955A 15000 750 60 1 1 800 ≤ 750 ≤ 1.5 400

Maximum V (V)

Maximum I (A)

Number of ranges

Number of outputs

Ripple and noise mVp-p

Programming

accuracy 0.1% mV

Transient response (ms)

AC input voltage (VAC)

Size

Full RU w x 3 RU h

Find us at www.keysight.com

N8 9 5 7A 15000 1500 30 1 1 1000 ≤ 1500 ≤ 1.5 400

1. RU refers to rack unit of a standard 19” EIA equipment rack. The width is either ½ or full. The height is in number of rack units which are 1.75” (44.4 mm) each. For example: a 3 RU h has a height of 5.25” (133. 3 m m).

www.keysight.com/find/power

Page 15

NEW EDU36311A Smart Bench Essentials DC Power Supply (Link)

Combine Triple Outputs with Powerful Software for Deeper Insights

The Keysight EDU36311A triple-output DC bench power supply comes with a robust design and usability at an af fordable price. Its 90 W electrically isolated channels supply clean and reliable power. The 7-inch color wide video graphics array (WVGA) display gives you a clear view — from instrument set up to the output status. You can easily control the E36311A triple-output DC bench power supply remotely via USB or LAN. This solution includes Keysight’s PathWave BenchVue power supply application software for the PC.

Performance specifications ED U 3 6 311A

Key benefits

Clean, reliable power

– low output ripple and noise – excellent programming / readback

accuracy – exceptional line / load regulation – superior overvoltage, overcurrent, and

overtemperature protection

Convenient benchtop capabilities

– independent power supplies (three) in

one box – low acoustic noise – device protection against overvoltage

and overcurrent

Intuitive and easy-to-use interfaces

– 7-inch color display – distinctive color-coded channels – individual knobs for voltage and

current – flexible connection using LAN (L XI)

or USB

Power output 90 W

DC output rating (0 to 40ºC)

Load regulation ± (% of output + offset)

Voltage < 0.01% + 2 mV Current < 0.2% + 10 mA

Line regulation ± (% of output + offset)

Voltage < 0.01% + 2 mV Current < 0.2% + 10 mA

Accuracy 12 months (23 ºC ± 5 ºC) Programming accuracy ± (% of output + offset)

Voltage 0.1% + 5 mV 0.05% + 10 mV Current 0.1% + 10 mA 0.2% + 5 mA

Readback accuracy ± (% of output + offset)

Voltage 0.1% +5 mV 0.05% + 10 mV Current 0.1% +10 mA 0.2% + 5 mA

Load transient recovery time (Time to recover within the settling band following a load change from 50% to 100% and from 100% to 50% of full load)

Voltage settling band 15 mV Time < 50 µS

1 2 3 0 to 6 V 0 to 30 V 0 to 30 V 0 to 5 A 0 to 1 A 0 to 1 A

BenchVue software enabled

Find us at www.keysight.com

Page 16

B2960 Series 6.5 Digit Low Noise Source Power Supplies (Link)

The B2960 Series 6.5 Digit Low Noise Source Power Supplies is an advanced low cost power supply/source offering:

– 6.5 digit precision, wide and bipolar

(4-quadrant) output – Both voltage(100 nV to 210 V) and

current(10 fA – 3A DC/10.5 A pulsed)

source modes – 10 μVrms (1 nVrms/√Hz at 10 kHz)

output noise with external ultra-low

noise filter – 100 nV/10 fA sourcing resolution – Precision arbitrary waveform

generation capability (1 MHz to

10 kHz) – Programmable output resistance and

emulation – Time domain voltage/current

monitoring on the front panel

BenchVue software enabled

These superior capabilities allow tests and evaluation that conventional power supply/sources cannot do. They make the B2960 series an ideal companion instruments for use with other instruments such as oscilloscopes, network analyzers, spectrum analyzers, frequency counters, digital multi meters, nanovoltmeters, etc. The Keysight B2960 series can support the difficult measurement challenges faced by researchers, electronic development engineers and electronic technicians working on advanced devices and materials.

Since the Keysight B2960 series instruments are highly stable current/ voltage sources, ideal for evaluating the physical properties of materials and many types of samples, they ensure that you can detect all tiny signal variations emanating from materials under test.

B2962B

Model B2961A/

62A

Number of channels 1 or 2 1 or 2 1 or 2 1 or 2 Max output Voltage ± 210 V ± 21 V ± 42 V ± 210 V

Current DC ± 3.03 A ± 500 mA ± 105 mA ± 3.03 A

Pulsed ± 10.5 A ± 500 mA ± 105 mA ± 10.5 A

Power 31.8 W 10.5 W 4.4 W 31.8 W

Source Max digits Digits 6 ½ 6 ½ 6 ½ 6 ½

Performance

Min resolution

Noise 0.1 Hz to 10 Hz < 5 μVpp < 5 μVpp < 5 μVpp < 5 μVpp

10 Hz to 20 MHz 3 mVrms 10 μVrms 10 μVrms 350 μVrms

Measurement Max digits Digits 4 ½ 4 ½ 4 ½ 4 ½ Min programmable interval for arbitrary waveform

Voltage 100 nV 10 0 nV 10 0 nV 100 nV Current 10 pA 1 nA 10 pA 10 pA

< 1 pApp < 1 pApp < 1 pApp < 1 pApp

10 μs

(100,000 pts/s)

B2961A/62A with HC-ULNF (High current ultra low noise filter)

1 nVrms/√Hz

at 10 kHz

10 μs

(100,000 pts/s)

B2961A/62A with ULNF (Ultra low noise filter)

1 nVrms/√Hz

at 10 kHz

10 μs

(100,000 pts/s)

B2961A/62A with LNF (Low noise filter)

10 μs

(100,000 pts/s)

Find us at www.keysight.com

Page 17

N6900 (Link) and N7900 (Link) Advanced Power System (APS)

Overcome your toughest power test challenges

With Advanced Power System (APS) 1 kW and 2 kW system power supplies, you get a new level of power supply performance. VersaPower architecture delivers industryleading specifications and innovative features for today’s advanced ATE power testing needs—the fastest, most accurate, integrated power system.

– Accelerate test-system throughput

with industry-leading speed – Capture your DUT’s current profile

with accurate measurements – Reduce your ATE development time

and cost with highly integrated

capabilities

BenchVue software enabled

Need high performance in your ATE system?

Choose the Keysight N6900 Series APS DC Power Supply.

Need high speed dynamic sourcing and measurement?

Choose the Keysight N7900 Series APS Dynamic DC Power Supply.

Get lots of power in a small test-system footprint

Two power ranges deliver a large amount of power in a small test-system footprint.

Overcome a wide variety of power test challenges with the APS.

Building a continuous source and load

Increasing test system throughput

Protecting against power related damage

Model

N6950A 1000 9 10 0 1 1 9 0.03 + 1.5 100 N6951A 1000 20 50 1 1 9 0.03 + 3 100 N6952A 1000 40 25 1 1 9 0.03 + 6 100 N6953A 1000 60 16.7 1 1 9 0.03 + 9 100 N6954A 1000 80 12.5 1 1 9 0.03 + 12 100 N6970A 2000 9 200 1 1 9 0.03 + 1.5 10 0 N6971A 2000 20 100 1 1 9 0.03 + 3 100 N6972A 2000 40 50 1 1 9 0.03 + 6 100 N6973A 2000 60 33 1 1 9 0.03 + 9 100 N6 974 A 2000 80 25 1 1 9 0.03 + 12 100 N6976A 2000 120 16.7 1 1 30 0.03 + 17 100 N6 977A 2000 160 12.5 1 1 30 0.03 + 24 10 0

Performance

N7950A 1000 9 10 0 1 1 9 0.03 + 1 100 N7951A 1000 20 50 1 1 9 0.03 + 2 100 N7952A 1000 40 25 1 1 9 0.03 + 4 100 N7953A 1000 60 16.7 1 1 9 0.03 + 6 100 N7954A 1000 80 12.5 1 1 9 0.03 + 8 10 0 N7970A 2000 9 200 1 1 9 0.03 + 1 100 N7971A 2000 20 100 1 1 9 0.03 + 2 100 N7972A 2000 40 50 1 1 9 0.03 + 4 100 N7973A 2000 60 33 1 1 9 0.03 + 6 10 0 N7974A 2000 80 25 1 1 9 0.03 + 8 100 N7976A 2000 120 16.7 1 1 30 0.03 + 11 100 N7977A 2000 160 12.5 1 1 30 0.03 + 14 10 0

Power (W)

Maximum V (V)

Generating power transients

Characterizing inrush current

Characterizing dynamic current profiles

Number of ranges

Number of outputs

Maximum I (A)

Properly powering on/off a DUT

Tracking power events for rootcause analysis

Maintaining output integrity under dynamic load conditions

Ripple and noise mVp-p

Programming

accuracy % mV

Transient response (µs)

Size

Full RU w x 1 RU h

Full RU w x 2 RU h

Full RU w x 1 RU h

Full RU w x 2 RU h

Find us at www.keysight.com

1. RU refers to rack unit of a standard 19” EIA equipment rack. The width is either 1 or 2 or full. The height is in number of rack units which are 1.75” (44.4 mm) each. For example: a 3 RU h has a height of 5.25” (133.3 mm).

Page 18

N6700 Low-Profile Modular Power System (Link)

Extensive family of modular power in a 1U package

The N6700 Series 1U-high, multiple-output programmable DC power supply and DC electronic load systems which give you the flexibility to optimize performance, power and price to match your test needs.

– Small size: Up to 4 outputs in 1U of

rack space

– Mainframes are available with 400 W,

600 W, or 1200 W capability

– DC electronic load modules available

with 60 to 200 W capability

– Mix and match from 36 different DC

power modules, ranging 50 W, 100 W, 300 W, or 500 W

– Streamline your tasks with built-in

measurements, output sequencing, and optional LIST mode, built-in digitizer and disconnect relays

– Ultra fast command processing time

(< 1 ms) reduces test time

– Computer control via GPIB, USB, and

LAN (LXI Core)

BenchVue software enabled

N6702C

N6700 low-profile modular power system mainframe

Model Power (W) Max # modules Physical size

N6700C 400 4

Full RU w x 1 RU hN6701C 600 4

N6702C 120 0 4

Model

N6731B 50 5 10 1 1 1 10 0.1 + 19 < 200 N6732B 50 8 6.25 1 1 1 12 0.1 + 19 < 200 N6733B 50 20 2.5 1 1 1 14 0.1 + 20 < 200 N6734B 50 35 1.5 1 1 1 15 0.1 + 35 < 200 N6735B 50 60 0.8 1 1 1 25 0.1 + 60 < 200 N6736B 50 100 0.5 1 1 1 30 0.1 + 100 < 200 N6 741B 10 0 5 20 1 1 1 11 0.1 + 19 < 200 N6 742B 10 0 8 12.5 1 1 1 12 0.1 + 19 < 200

BasicPerformancePrecision

N6 74 3B 100 20 5 1 1 1 14 0.1 + 20 < 200 N6 74 4 B 100 35 3 1 1 1 15 0.1 + 35 < 200 N6 74 5B 100 60 1.6 1 1 1 25 0.1 + 60 < 200 N6 74 6B 100 100 1 1 1 1 30 0.1 + 100 < 200 N6773A 300 20 15 1 1 1 20 0.1 + 20 < 250 N6 774 A 300 35 8.5 1 1 1 22 0.1 + 35 < 250 N6775A 300 60 5 1 1 1 35 0.1 + 60 < 250 N6776A 300 100 3 1 1 1 45 0.1 + 100 < 250 N6777A 300 150 2 1 1 1 68 0.1 + 150 < 250

N6751A 50 50 5 1 1 Autoranging 4.5 0.06 + 19 < 100 N6752A 100 50 10 1 1 Autoranging 4.5 0.06 + 19 < 100 N6753A 300 20 50 1 2 Autoranging 5 0.06 + 10 < 100 N6754A 300 60 20 1 2 Autoranging 6 0.06 + 25 < 100 N6755A 500 20 50 1 2 Autoranging 5 0.06 + 10 < 100 N6756A 500 60 17 1 2 Autoranging 6 0.06 + 25 < 100

N6761A 50 50 1.5 1 1 Autoranging 4.5 0.016 + 6 < 100 N6762A 100 50 3 1 1 Autoranging 4.5 0.016 + 6 < 100 N6763A 300 20 50 1 2 Autoranging 5 0.03 + 5 < 100 N6764A 300 60 20 1 2 Autoranging 6 0.03 + 12 < 100 N6765A 500 20 50 1 2 Autoranging 5 0.03 + 5 < 10 0 N6766A 500 60 17 1 2 Autoranging 6 0.03 + 12 < 100

Specialty

Additional N6780 series source measure unit modules and application specif ic modules available, see page 23.

DC Electronic Loads

Additional N6790 Series DC electronic loads, see page 19

Maximum V (V)

Power (W)

Maximum I (A)

Number of slots

occupied

Number of outputs

Number of ranges

Ripple and noise

mVp-p

Programming

accuracy % + mV

Transient

response (µs)

Find us at www.keysight.com

Page 19

N6705C DC Power Analyzer (Link)

Quickly understand your device’s power consumption

Gain insight into your device’s power consumption in minutes without writing a single line of code. The N6705C combines one to four DC power supplies, or DC electronic loads, a DMM, an oscilloscope, an arbitrary waveform generator, and a data logger in one integrated package.

– Saves time—no programming required

and it eliminates the need to gather multiple instruments

– Flexible, modular system—mix and

match power modules to optimize your testing

– Uses the same modules as the N6700

Series low-profile modular power supply—see page 17

– DC electronic load modules available

with 60 to 200 W capability

– Computer control via GPIB, USB, and

LAN (LXI Core)

BenchVue software enabled

Function Description

Output speed Voltage changes as fast as 160 μs per step voltage change Voltmeter accuracy Up to 0.025% + 50 μV, up to 18-bit resolution Ammeter accuracy Up to 0.025% + 8 nA, up to 18-bit resolution Arbitrary waveform Bandwidth up to 100 kHz, output power up to 300 W Scope function Digitizes voltage and current at up to 200 kHz, up to 512 k points, up

to 18-bits resolution

Data logger function Measurement interval from 20 μs to 60 s, maximum of 500 Mreadings

per data log Non-volatile data storage

4 GB

Find us at www.keysight.com

Page 20

N6790 Series DC Electronic Loads (Link)

Programmable loads with measurements

The N6790 Series DC electronic loads give you flexibility for testing power supplies in a 1U footprint. The built-in measurement system provides both accuracy and convenience and eliminates the need for a DMM, external shunts and wiring. The N6790 multiple-input models are fast, accurate, and ideal for high-volume manufacturing.

– High speed digitizing capability – Increase test throughput with short

command processing time

– Test multiple power supply outputs

with up to 4 modules with 60 to 200 W capability

– Operate in constant current, constant

voltage, constant resistance and constant power modes

– Measure voltage and current

simultaneously

– Use in parallel for greater current

sinking capability

– Built-in arbitrary waveform generator

N6700 mainframes

Model Max # modules Physical size

N6791A in N6700 Low Profile Mainframe 4 1 RU h N6791A in N6705C Power Analyzer 4 4 RU h N6792A in N6700 Low Profile Mainframe N6792A in N6705C DC Power Analyzer

N6790 modules

2 1 RU h 2

4 RU h

BenchVue software enabled

Loads

Model

Input power, W

Maximum input, V

Maximum input, I

Constant current

accuracy, % + mA

Constant voltage

accuracy, % + mV

Current measurement

accuracy, % + mA

Voltage measurement

accuracy, % + mV

Width, slot

N6791A 100 60 20 0.04 + 0.46 0.03 + 7.2 0.04 + 0.40 0.03 + 7.2 1 N6792A 200 60 40 0.04 + 0.92 0.03 + 7.2 0.04 + 0.82 0.03 + 7.2 2

1. RU refers to rack unit of a standard 19” EIA equipment rack. The width is either ½ or full. The height is in number of rack units which are 1.75” (44.4 mm) each. For example, a 3 RU h has a height of 5.25” (133. 3 m m).

Find us at www.keysight.com

Page 21

NEW EL30000 Series Bench Electronic Loads (Link)

Visualize Your Test Insights in Real Time

The Keysight EL30000 Series Bench electronic load with a built-in data logger provides new levels of test insights for your devices like power supplies, batteries, DC to DC converters, and more. View voltage and current trends to make real-time decisions, rather than waiting hours for a test to complete. At the heart of the EL30000 is a highly accurate measurement system that provides realtime updates to the large display. Single and dual-channel models are available with up to 600 W for measurements that require more power. Start your test with confidence and finish with results you trust.

– Test voltages up to 150 V – Sink current up to 60 or 120 A – Use operating modes: constant

voltage (CV), constant current (CC), constant resistance (CR), constant power (CP)

– Save data internally or to an external

USB flash drive

– Improve load regulation with four-wire

remote sense

– Create dynamic load profiles with

device’s LIST function

– Connect with USB, L AN (LXI Core),

and optional GPIB

Performance specifications

EL33133A EL34143A EL34243A

(23 °C ± 5 °C)

Maximum input power 250 W 350 W 300 W 300 W Channel 1 1 1 2

Input ratings (0 to 43 °C)

Parallel mode current

0 to 150 V 0 to 150 V 0 to 150 V 0 to 150 V

0 to 40 A 0 to 60 A 0 to 60 A 0 to 60 A

NA NA 120A 120 A

Programming accuracy ± (% of output + offset)

Constant current

mode

Constant voltage mode

Low 0.05% + 820 μA 0.04% + 130 μA Medium

–

0.04% + 2 mA High 0.05% + 7.2 mA 0.04% + 12 mA Low, 15 V 0.03% + 4.2 mV 0.02% + 3 mV High, 150 V 0.03% + 15 mV 0.02% + 15 mV

Readback accuracy ± (% of output + offset)

Low 0.05% + 820 μA 0.04% + 120 μA

Current

Medium

–

0.04% + 1.8 mA

High 0.05% + 7.2 mA 0.04% + 9.6 mA

Voltage

1. Do not connect the dual inputs on EL34243A in series, parallel mode is only allowed for CC, CR, and CP.

2. Current ranges: EL33133A – Low = 4 A; High = 40 A EL34143A/EL34243A – Low = 0.6 A; Medium = 6 A; High = 60 A

Low, 15 V 0.03% + 4.2 mV 0.02% + 3 mV High 150 V 0.03% + 15 mV 0.02% + 15 mV

BenchVue software enabled

Find us at www.keysight.com

Page 22

N3300 Series DC Electronic Loads (Link)

Programmable loads with measurements

The N3300 Series DC electronic loads give you flexibility for testing power supplies and other devices requiring a load. The built-in measurement system provides both accuracy and convenience and eliminates the need for a DMM, external shunts and wiring. The N3300 multiple-input models are fast, accurate, and ideal for highvolume manufacturing.

– Increase test throughput with short

command processing time and stored command sequences

– Test multiple power supply outputs

with up to 6 modules with 150 to 600 W capability

– Operate in constant current, constant

voltage, or constant resistance modes

– Measure voltage and current

simultaneously

– Use in parallel for greater current

sinking capability

– Computer control with GPIB

N3300 mainframes

Model Max # modules Physical size

N3300A 6 Full RU w x 4 RU h N3301A 2 ½ RU w x 4 RU h

BenchVue software enabled

N3300 modules

Loads

Model

Input power, W

Maximum input, V

Maximum input, I

Constant current

accuracy, % + mA

Constant voltage

accuracy, % + mV

Current measurement

accuracy, % + mA

Voltage measurement

accuracy, % + mV

Width, slot

N3302A 15 0 60 30 0.1 + 10 0.1 + 8 0.05 + 6 0.05 + 8 1 N3303A 250 240 10 0.1 + 7.5 0.1 + 40 0.05 + 5 0.05 + 20 1 N3304A 300 60 60 0.1 + 15 0.1 + 8 0.05 + 10 0.05 + 8 1 N3305A 500 150 60 0.1 + 15 0.1 + 20 0.05 + 10 0.05 + 16 2 N3306A 600 60 120 0.1 + 37.5 0.1 + 8 0.05 + 20 0.05 + 8 2 N3 3 0 7A 250 150 30 0.1 + 15 0.1 + 20 0.05 + 6 0.05 + 16 1

Find us at www.keysight.com

Page 23

AC Power Sources

An integrated AC power solution

Keysight of fers two families of AC power sources to meet your AC test challenges —from basic to complex. The AC6800 Series of basic AC sources offer stable, reliable power with models available up to 4000 VA. The 6800C series of performance AC sources provide a complete AC test solution with built in arbitrary waveform generator to simulate many types of power waveforms, at power levels up to 1750 VA. Both families may also be used to produce DC power, either alone or as a DC offset to an AC waveform. All models are backed with global support.

AC6800B Series Basic AC Power Sources (Link)

6800C Series

The quality and capability you need.

– Models up to 4000 VA are available to

meet your basic AC power source and measurement requirements

– An intuitive user interface tested

over time

– LAN/L XI Core and USB (standard),

and GPIB (optional plug-in card)

– Built-in remote sensing

6800C Series Performance AC Power Sources/Analyzers (Link)

The complete AC power test solution.

– Models up to 1750 VA are available

to meet your performance AC source requirements

– Extensive built-in power measurement

capabilities – LAN, USB and GPIB – Integrated transient waveform

generation and harmonic capabilities

to simulate and analyze your AC

environment

AC6800B Series

RMS

Model

AC 6 801B 500 VA 310 V 5 A 500 Hz 7.5 A 400 W 380 V AC6802B 1000 VA 310 V 10 A 500 Hz 15 A 800 W 380 V AC6803B 2000 VA 310 V 20 A 500 Hz 30 A 1600 W 380 V AC6804B 4000 VA 310 V 40 A 500 Hz 60 A 3200 W 380 V

Performance

6811C 375 VA 300 V 3.25 A 1 kHz 40 A 285 W 425 V 6812C 750 VA 300 V 6.5 A 1 kHz 40 A 575 W 425 V 6813C 1750 VA 300 V 13 A 1 kHz 80 A 135 0 W 425 V

power

BenchVue software enabled

RMS voltage

RMS current

Output frequency

Peak current

DC power

DC voltage

Find us at www.keysight.com

Page 24

New AC6900 Series Three-Phase AC Power Solution (Link)

A Complete Three-Phase AC Power Solution

Keysight’s AC6900 Series AC power sources provide a complete AC and DC power solution by combining the capabilities of a multimeter, harmonic analyzer, and power analyzer in one instrument. You can easily produce DC power, either alone or as a DC offset to an AC waveform, in a compact form factor.

– AC, DC, or AC plus DC mode – maximum AC voltage at 320 Vrms – frequency up to 5 kHz – single-phase, single-phase three-wire,

or three-phase four-wire connections – power line disturbance tests – harmonic analysis – built-in waveform generation – USB, LAN (LXI Core), and optional

GPIB connectivity

BenchVue software enabled

NEW AC6900 Series

RMS

Model

AC6903H 3000 160 / 320 10 / 5 5000 30 / 15 ± 226 / ± 452 AC6903L 3000 160 / 320 10 / 5 550 30 / 15 ± 226 / ± 452 AC6906H 6000 160 / 320 20 / 10 5000 60 / 30 ± 226 / ± 452 AC6906L AC6912H

Performance

AC6912L AC6918H 18000 160 / 320 60 / 30 5000 180 / 90 ± 226 / ± 452 AC6918L 18000 160 / 320 60 / 30 550 180 / 90 ± 226 / ± 452

power VA

6000 160 / 320 20 / 10 550 60 / 30 ± 226 / ± 452 12000 12000

AC voltage (L/H) V

160 / 320 40 / 20 160 / 320 40 / 20

current/ Ph A

Maximum frequency Hz

5000 550

Max DC current A DC voltage V

120 / 60 ± 226 / ± 452 120 / 60 ± 226 / ± 452

Find us at www.keysight.com

Page 25

RP7900 Series Regenerative Power System (Link)

The RP7900 Series regenerative power system reduces the cost of test with highly integrated capabilities. The regenerative function enables the energy consumed to be put back onto the grid cleanly.

– Operate in a two-quadrant mode

as a power source and regenerative

electronic load. – Up to 2000 V, up to ± 800 A, up to

30 kW per instrument. – Fast output speed and sub-

millisecond command processing

time. – Create up to 600 kW power or loading

through easy parallel connection. – Regeneration returns 90% of power to

the grid, reducing cooling costs. – RP7970 & RP7980 Series offer

photovoltaic simulation capability. – Connectivity includes LAN (LXI Core),

USB, and GPIB. – Compact 3U-high size

RP7952A Regenerative Power System

Model

Power (W)

Maximum V (V)

RP7951A 5000 500 ± 20 RP7952A 10000 500 ± 40 500 0.03 + 60 RP7953A 10000 950 ± 20 1000 0.03 + 120 RP7961A 5000 500 ± 20 RP7962A 10000 500 ± 40 500 0.03 + 60 RP7963A 10000 950 ± 20 1000 0.03 + 120 RP7931A 5000 20 ± 400 RP7932A 5000 80 ± 125 80 0.02 + 8 RP7933A 10000 20 ± 800 30 0.02 + 2 RP7935A 10000 80 ± 250 80 0.02 + 8 RP7936A 10000 16 0 ± 125 200 0.02 + 16

Performance

RP7941A 5000 20 ± 400 RP7942A 5000 80 ± 125 80 0.02 + 8 RP7943A 10000 20 ± 800 30 0.02 + 2 RP7945A 10000 80 ± 250 80 0.02 + 8 RP7946A 10000 16 0 ± 125 200 0.02 + 16 RP7972A 20000 1000 ±60

RP7973A 20000 2000 ±30 3000 0.04% + 150 RP7982A 30000 1000 ± 90 150 0 0.03% + 75 RP7983A 30000 2000 ± 30 3000 0.03% + 150

Maximum I (A)

Number of outputs

1 -

Ripple and noise mVp-p

Number of ranges

500 0.03 + 60

≤ 0.5

Transient response (ms)

AC input voltage (VAC)

200/

208

400/

480

Size

Full RU

w x 3 RU h

Full RU

w x 3 RU h

Programming accuracy

% + mV

30 0.02 + 2

Full RU

1 1

≤ 0.3

200/

208

w x 3 RU h

30 0.02 + 2

Full RU

1 1

≤ 0.3

400/

480

w x 3 RU h

150 0 0.04% + 75

1 1

≤ 0.3

400/

480

ATE /

Find us at www.keysight.com

1. RU refers to rack unit of a standard 19” EIA equipment rack. The width is either ½ or full.The height is in number of rack units which are 1.75” (44.4 mm) each. For example: a 3 RU h has a height of 5.25” (133. 3 m m).

Page 26

N6780 Series Source Measure Units (SMUs) (Link)

Deliver exceptional battery life

The N6781A and N6785A are 2-quadrant SMUs for battery drain analysis. They offer advance features to accurately capture the power consumption of portable, battery-powered devices from 20 to 80 W. Whether the DUT is a mobile phone, “phablet,” tablet, or pacemaker, the N6781A and N6785A’s seamless measurement ranging, programmable output resistance, and auxiliar y DVM helps you deliver exceptional battery life.

N6781A N6782A

The N6782A and N6786A are 2-quadrant SMUs for function test of a device from 20 to 80 W. It has the ability to modulate its output up to 100 kHz along with the capability to source and sink current.

The N6784A is a 4-quadrant SMU that provides precise sourcing and measurement for general purpose applications.

The N6780 source measure units (SMUs) are modules for the N6705C DC power analyzer mainframe for R&D, and the N6700 low-profile mainframes for ATE.

– Seamless, dynamic measurements

down to nA and μV (N6781A/82 and

N6785A/86 only)

– Glitch-free operation—change

sourcing ranges or measurement ranges without any glitches

– Excellent transient response for stable

output voltage with dynamic loads

– 2 or 4-quadrant operation: use as a

DC power supply or electronic load

– Fast modulation of DC output to

create arbitrary waveforms up to 100 kHz

– Computer control via GPIB, USB, and

LAN (LXI Core)

BenchVue software enabled

N6705C

N6705C DC power analyzer

Flexible/reconfigurable

Available slots Mainframe accepts up to 4 DC power modules Power 600 W total DC module output power Instrument control GPIB, USB, LAN (LXI Class C Compliant)

N6780 SMU modules

Model Power

(W)

N6781A 20 20 ± 3 12 0.025 + 1800 ≤ 35 N6782A 20 20 ± 3 12 0.025 + 1800 ≤ 35 N6784A 20 ± 20 ± 3 12 0.025 + 1800 ≤ 35

Specialty

N6785A 80 20 ± 8 15 0.025 + 1800 ≤ 35 N6786A 80 20 ± 8 15 0.025 + 1800 ≤ 35

Max voltage (V)

Max current (A)

Ripple and noise (mVp-p)

Programming accuracy % + µV

N6785A

Transient response (µs)

14585A control and analysis software

The sof tware for the DC power analyzer compliments the front panel of the N6705 mainframe, offering advanced functionality and PC control. It is a flexible R&D tool for any application. When used to control an N6781A or N6785A SMU, it can be used for advanced battery drain analysis applications.

– Control and analyze data from up to four N6705 DC power analyzer and any

installed modules at once

– Easily create complex waveforms to stimulate or load down a DUT by inputting a

formula, choosing from built-in, or importing waveform data. – Data log (gapless) measurements directly to a PC – Perform statistical analysis of power consumption

Find us at www.keysight.com

Page 27

B2900 Series Precision Source / Measure Units (SMU) (Link)

The Keysight B2900 Series of Precision Source/Measure Units are compact and costeffective bench-top Source/Measure Units (SMUs). The SMU combines the capabilities of a current source, a voltage source, a current meter and a voltage meter along with the capability to switch easily between these various functions into a single instrument. It offers:

– Test capability up to 210 V and 3 A (DC) or 10.5 A (pulsed) with a single instrument – Best-in-class 6.5 digit source and measurement resolution down to 10 fA and 100 nV – 10 µs digitizing capability – Innovative GUI facilitate fast bench-top test, debug and characterization – Ultrafast throughput for lower cost-of-test – Four software control options

These capabilities are ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy. The innovative graphical user interface with four viewing modes (single view, dual view, graph view and roll view) improves usability and productivity of bench-top tests, debug and characterization dramatically. The Keysight B2900 series of SMU is also well-suited for production with the fast measurement speed.

BenchVue software enabled

B2901A B2901BL B2902A B2910BL B2911A B2912A

Number of channels 1 1 2 1 1 2 Max output Voltage ± 210 V ±21 V ± 210 V ±210 V ± 210 V ± 210 V

Current DC ± 3.03 A ±1. 5 A ± 3.03 A ±1.5 A ± 3.03 A ± 3.03 A

Pulsed ± 10.5 A N/A ± 10.5 A N/A ± 10.5 A ± 10.5 A

Power 31.8 W 31.8 W 31.8 W 31.8 W 31.8 W 31.8 W

Source Max digits Digits 5 ½ 5 ½ 5 ½ 5 ½ 6 ½ 6 ½

Min resolution Voltage 1 µV 1 µV 1 µV 1 µV 10 0 nV 100 nV

Current 1 pA 10 pA 1 pA 100 fA 10 fA 10 fA

Measurement Max digits Digits 6 ½ 5 1/2 6 ½ 5 1/2 6 ½ 6 ½

Max

Specialty

Min programmable interval for List sweep/AWG waveform Min trigger interval for digitizing (Max sample rate)

Find us at www.keysight.com

resolution

Voltage 100 nV 10 0 nV 100 nV 100 nV 100 nV 100 nV Current 10 0 fA 1 pA 100 fA 10 fA 10 fA 10 fA

20 µs 20 µs 10 µs 10 µs

20 µs (50,000 pts/s)

200 μs (5,000

pts/s)

20 µs (50,000 pts/s)

50 μs (20,000

pts/s)

10 µs (100,000 pts/s)

Page 28

U2720 USB Modular Source Measure Units (Link)

Source and measure DC voltage/current reliably

The Keysight USB modular source measure unit (SMU) allows you to perform sweeps and make measurements using a single device. The SMU offers voltage and current programming/readback with high accuracy measurement capabilities. You can configure each of the three channels separately or in a matrix—in series or parallel—for increased power. It comes bundled with Keysight Measurement Manager (AMM) software that includes a command logger function to help you convert SCPI commands into snippets of VEE, V, C+ and C# code.

– Three-channel, four-quadrant

operation (± 20 V, ± 120 mA)

– High measurement sensitivity of

100 pA with 16-bit resolution – 0.1% basic accuracy – Low current measurement capability

down to nA levels – Embedded test script able to support

three channels with coherent source

and measurement capabilities (for

U2723A) – IV Curve support in the Keysight

BenchVue USB Modular SMU

software application (for U2723A) – Faster rise/fall time (for U2723A) – Hi-Speed USB 2.0 (480 Mbps)

Model U2722A/23A

Number of outputs 3

Output ratings (at 0 to 50 °C)

Voltage –20 to 20 V per channel Current –120 to 120 mA per channel

Model U2722A/23A

Voltage programming/ readback Current programming/

SpecialtySpecialty

readback

Range Accuracy

Resolution

± 2 V 0.075% + 1.5 mV 0.1 mV ± 20 V 0.05% + 10 mV 1 mV ± 1 µA 0.085% + 0.85 nA 100 pA ± 10 µA 0.085% + 8.5 nA 1 nA ± 100 µA 0.075% + 75 nA 10 nA ± 1 mA 0.075% + 750 nA 100 nA ± 10 mA 0.075% + 7.5 µA 1 µA ± 120 mA 0.1% + 100 µA 20 µA

U2722A

Find us at www.keysight.com

Model U2722A U2723A

Rise/fall time (ms)

For resistive measurement

Range Accuracy

± 1 µA 170.0 15.0 ± 10 µA 18.0 5.0

Accuracy

± 100 µA 6.0 1.0 ± 1 mA 1.0 1.0 ± 10 mA 1. 0 1.0 ± 120 mA 1.0 1.0

1. Drive 50% of 1 V or 10 V output with a resistive load. Rise time is from 10 to 90% of program voltage change at maximum current. Fall time is from 90 to 10% of program voltage change at maximum current.

2. Measurements obtained are per default bandwidth set ting.

Page 29

E5260A/E5270B Precision IV Analyzer/Source Monitor Unit Mainframe Series (Link)

Keysight Precision IV Analyzer Series (E5262A, E5263A, E5260A and E5270B) is the complete solution for currentvoltage characterization. It supports multiple SMUs (Source/Monitor Units) for voltage/ current sourcing and voltage/current measurement with the best in the class current measurement performance. It’s modular architecture allows you to configure or upgrade SMU modules for available eight slots (E5260A/E5270B)

The EasyEXPERT group+ GUI based characterization software is furnished and available on your PC. It supports efficient and repeatable device characterization in the entire characterization process from measurement setup and execution to analysis and data management either by interactive manual operation or automation across a wafer in conjunction with a semiautomatic wafer prober. EasyEXPERT group+ makes it easy to perform currentvoltage characterization immediately with the ready-touse measurements (application tests) furnished, and allows you the option of storing test condition and measurement data automatically af ter each measurement in a unique built-in database (workspace), ensuring that valuable information is not lost and that measurements can be repeated at a later date.

Powerful integration of SMU’s versatile measurement capabilities and GUI based characterization software makes it the best solution for characterization and evaluation of devices, materials, semiconductors, active/passive components, or vir tually any other type of electronic device with uncompromised measurement reliability and efficiency.

The Precision IV Analyzer Series is also available as a system component SMU for a rack and stuck test system. It provides the scalability and the highest measurement accuracy in the class for current-voltage measurement. It can be controlled remotely by the FLEX command set supporting the powerful measurement capabilities.

8 slot mainframe SMU configurable model (E5260A/E5270B)

Two SMU pre-fixed configuration model (E5262A /E5263A)

MPSMU (Medium Power SMU) HPSMU (High Power SMU) HRSMU (High Resolution SMU) ASU (1) (Atto-sense Switch Unit)

1. One ASU requires one HRSMU module to connect it.

Find us at www.keysight.com

Max. output 100 V/200 mA 100 V/200 mA 100 V/200 mA 100 V/100 mA Min. resolution 5 pA/100 µV 5 pA/100 µV 5 pA/100 µV 10 fA/0.5 µV Max. output NA 200 V/1 A 200 V/1 A 200 V/1 A Min. resolution NA 5 pA/100 µV 5 pA/100 µV 10 fA/2 µV Max. output NA NA NA 100 V/100 mA Min. resolution NA NA NA 1 fA/0.5 µV Max. output NA NA NA 100 V/100 mA Min. resolution NA NA NA 0.1 fA/0.5 µV

Precision IV analyzer series

E5262A E5263A E5260A E5270B

Page 30

B1500A Semiconductor Device Analyzer (Link)

Keysight B1500A Semiconductor Device Analyzer of Precision Current-Voltage Analyzer Series is an all in one analyzer supporting IV, CV, pulse/dynamic IV and more, which is designed for all-round characterization from basic to cuttingedge applications. It provides a wide range of measurement capabilities to cover the electrical characterization and evaluation of devices, materials, semiconductors, active/passive components, or virtually any other type of electronic device with uncompromised measurement reliability and efficiency.

In addition, the B1500A’s modular architecture with ten available slots allows you to add or upgrade measurement modules if your measurement needs change over time.

Keysight EasyEXPERT group+ GUI based characterization software is available either on the B1500A’s embedded Windows 10 platform with 15-inch touch screen or on your PC to accelerate the characterization tasks. It supports ef ficient and repeatable device characterization in the entire characterization process from measurement setup and execution to analysis and data management either interactive manual operation or automation across a wafer in conjunction with a semiautomatic wafer prober. EasyEXPERT group+ makes it easy to perform complex device characterization immediately with hundreds of ready-to-use measurements (application tests) furnished, and allows you the option of storing test condition and measurement data automatically after each measurement in a unique built-in database (workspace), ensuring that valuable information is not lost and that measurements can be repeated at a later date. Keysight B1500A provides the complete solution for device characterization with these versatile capabilities.

B15 0 0 A

Test coverage Supported module Key specifications Key features

For DC and pulsed IV measurement

B1510A High Power Source/ Measure Unit (HPSMU)

B1511B Medium Power Source/Measure Unit (MPSMU)

B1517A High Resolution Source/Measure Unit (HRSMU)

B1514A 50 μs Pulse Medium

Current Source/Measure Unit

– Up to 200 V/1 A – Min 10 fA/2 μV resolution

– Up to 100 V/0.1 A – Min 10 fA/0.5 μV resolution – Optional ASU for 0.1 fA and IV/

CV switching – Up to 100 V/0.1 A – Min 1 fA/0.5 μV resolution – Optional ASU for 0.1 fA and IV/

CV switching – Up to 30 V/1 A (0.1 A DC) – Min 50 μs pulse width with 2 μs resolution

– Min 100 μs Sampling (time

domain) measurement

– Min 500 μs pulse width with

100 μs resolution

– Quasi-static capacitance

voltage (QSCV) measurement with leakage current compensation

– Oscilloscope view for precision pulsed measurement

(MCSMU)

For capacitance measurement

Specialty

For ultra-fast pulsed and transient IV measurement

B1520A Multi-Frequency Capacitance Measurement Unit (MFCMU)

B1530A Waveform Generator/ Fast Measurement Unit (WGFMU)

For pulse generation B1525A High Voltage

Semiconductor Pulse Generator Unit (HV-SPGU)

For ultra-fast pulsed high-k/SOI

B1542A 10 ns pulsed IV parametric test solution

evaluation

– 1 kHz to 5 MHz frequency

range – 25 V built-in DC bias and 100 V

DC bias with SMU and SCUU – 10 ns programmable resolution

for waveform generation – 200 MSa/s simultaneous

high-speed measurement – 10 V peak-to-peak output – Up to ± 40 V high voltage

output

– Min 10 ns gate pulse width with

2 ns rise and fall times – 1 μs current measurement

resolution

– AC impedance measurement (C-V, C-f, C-t) – Easy, fast and accurate IV and CV measurements with

automated switching via SCUU

– No load line ef fects; accurate pulsed IV measurement using

SMU-based technology

– Enabled for advanced applications, such as NBTI/PBTI,

RTN, etc.

– Two-level and three-level pulsing and arbitrar y waveform

generation capability on each channel

– Ideal for non-volatile memory testing – Accurate Id-Vd and Id-Vg measurement

– Easy switching between DC and pulsed measurements

– 4 quadrant operation – Kelvin (4-wire)

connection

– Spot, sweep and other

capabilities

Find us at www.keysight.com

Page 31

B1505A Power Device Analyzer/Curve Tracer (Link)

The B1505A Power Device Analyzer/Curve Tracer is a single box solution for power device evaluation. Its broad measurement range from sub-pA to 10 kV/1500 A enables

precise µΩ on-resistance measurements.

Additionally, its 10 µs fast pulse capability enables complete power device characterization. This allows evaluation of new power devices such as IGBT and wide band-gap materials such as silicon carbide (SiC) and gallium nitride (GaN).

– Very wide current, voltage operating

range up to 1500 A,10 kV

– Supporting package and on-wafer

device

– Accurate sub-picoamp level current

measurement and μΩ on-resistance

measurement

– 10 μs high power narrow pulse

measurement

– Three-terminal capacitance (Ciss,

Coss, Crss) measurement at up to 3000 V DC bias voltages and independent terminal capacitance (Cgs, Cgd, Cds) measurement

– Gate charge (Qg) measurement for NcH

MOSFET and IGBT – GaN current collapse measurement – Automated thermal test from –50 °C to

+25 0 °C – Upgradable and scalable hardware

architecture – Oscilloscope View for current and

voltage pulse verification – EasyEXPERT group+ software

simplifies data management and data

analysis

B1505A modules Description Key specification Max number

B1510A High power SMU 200 V, 1 A (DC) 4

10 fA resolution

B1511B Medium power SMU 100 V, 100 mA (DC) 10

10 fA resolution

B1512A High current SMU 20 V, 20 A (pulsed) 2

30 V, 1 A (DC)

B1513C High voltage SMU 3000 V, 8 mA (pulse and

DC)

B1514A Medium current SMU 30 V, 1 A (pulsed) 5

30 V, 100 mA (DC)

B1520A Multi-frequency CMU 1 kHz to 5 MHz, ± 25 V

(internal bias)

External modules Description Key specification

N1265A Ultra high current

expander/Fixture

N1266A HVSMU current

expander

N12 67A High voltage/high

current fast switch

N1268A Ultra high voltage unit 10 kV/10 mA (DC)

Accessories Description

N1258A Module selector N1259A Test fixture N1260A High voltage bias-T N1271A Thermal test enclosure N1272 A Device capacitance selector N1273 A Capacitance test fixture N1274A On-wafer gate charge measurement adapter for 20 A/3 kV N1275 A On-wafer gate charge measurement adapter for N1265A

± 1500 A/60 V (pulsed)

± 1500 V/2.5 A (pulsed) ± 2200 V/1.1 A (pulsed) ± 3000 V, ± 20 A (pulsed)

Minimum transition (OFF to ON): 20 μs

10 kV/20 mA (pulsed)

Find us at www.keysight.com

Page 32

B1506A Power Device Analyzer for Circuit Design (Link)

The B1506A Power Device Analyzer for Circuit Design is a complete solution that can help power electronic circuit designers maximize the value of their power electronics products by enabling them to select the correct power devices. It can evaluate all relevant device parameters under a wide range of operating conditions, including IV parameters such as breakdown voltage and onresistance, as well as three terminal FET capacitances, gate charge and power loss.

The prices of the IV packages (H20, H50, H70) are comparable to those of conventional curve tracers, and with the B1506A you get additional advanced features. You can also upgrade any of the B1506A IV packages (H20, H50, H70) to either increase the current range or add CV/Qg measurement capability (options H21, H51, H71).

– Wide current and voltage operating

range up to 1500 A, 3000 V – 10 μs high power narrow pulse

measurement – Automated thermal test from –50 °C

to +250 °C – Three-terminal capacitance (Ciss,

Coss, Crss) measurement at up

to 3000 V DC bias voltages and

independent terminal capacitance

(Cgs, Cgd, Cds) measurement – Gate charge (Qg) measurement for

NcH MOS and IGBT – Power loss calculation – Menu driven easy-to-use user

interface (Easy Test Navigator – ETN) – Quick and automatic device datasheet

generation – Oscilloscope view for current and

voltage pulse verification – Cost effective IV package (H20,

H50, H70)

Category Parameters

Threshold voltage V(th), Vge(th) Transfer characteristics Id-Vgs, Ic-Vge, gfs On resistance Rds-on, Vce(sat) Gate leakage current Igss, Iges Output leakage current Idss, Ices Output characteristics Id-Vds, Ic-Vce Breakdown voltage BVds, BVces Gate charge (for NcH MOS and IGBT) Device capacitance Power loss calculation

1. Only available on B1506A-H21/H51/H71.

Model

Option Description

Qg, Qg(th), Qgs, Qgd, Qsw, Qsync, Qoss Ciss, Coss, Crss, Cgs, Cgd, Cies, Coes, Cres Driving loss, Switching loss, Conduction loss

number

B1506A Power Device Analyzer for Circuit Design

H20 Opt H20 - 20 A/3 kV/Thermal Fixture Package H50 Opt H50 - 500 A/3 kV/Thermal Fixture Package H70 Opt H70 - 1500 A/3 kV/Thermal Fixture Package H21 Opt H21 - 20 A/3 kV/C-V/Gate Charge/Thermal Fixture Package H51 Opt H51 - 500 A /3 kV/C-V/Gate Charge/ Thermal Fixture Package H71 Opt H71 - 1500 A/3 kV/C-V/Gate Charge/Thermal Fixture Package T01 Thermal Test Enclosure (Thermostream Compatible)

Find us at www.keysight.com

Page 33

N6783A Application-Specific Modules (Link)

The Keysight N6783A-BAT Battery Charge/Discharge Module is a basic, 2-quadrant module designed to be used by battery-powered (mobile) device designers. The N6783A-BAT’s 2-quadrant operation allows it to act as a power supply to charge the battery or as an electronic load to discharge the battery. When used in the N6705C DC Power Analyzer mainframe along with the 14585A Control and Analysis software, short-and long-term measurements for battery validation are made easy.

N6700C

The Keysight N6783A-MFG Mobile Communications DC Power Module offers advanced features specifically for testing battery-powered (mobile) devices in manufacturing. The N6783A-MFG offers fast, accurate measurements and excellent voltage transient response to address the unique challenges associated with testing mobile wireless devices.

The N6783A-BAT and N6783A-MFG modules can be used with the N6700 low-profile mainframes for ATE and with the N6705C DC power analyzer mainframe for R&D.

– Optimized for basic battery charge/

discharge application (N6783A-BAT) – Optimized for mobile device

manufacturing test (N6783A-MFG) – Fast transient response ensures stable

power supply output voltage – Digitizing measurement system

for flexible, accurate current

measurements – USB, LAN (LXI Core), and GPIB

interfaces

N6783 application-specific modules

Model Power

(W)

Specialty

N6783A-BAT 24 8 +3 to –2 A 8 0.1 + 10000 ≤ 45 N6783A-MFG 18 6 +3 to –2 A 8 0.1 + 10000 ≤ 45

Max voltage (V)

Max current (A)

Ripple and noise (mVp-p)

N6705C

Programming accuracy % + µV

Transient response (µs)

BenchVue software enabled

Find us at www.keysight.com

Page 34

66300 Mobile Communications DC Sources (Link)

66300 mobile communications power supplies are designed and optimized to help you test mobile wireless devices. They provide the DC sourcing, current sinking, and measurement capabilities to address the unique challenges of simulating batteries and battery packs and measuring the current drawn by your device under test.

– Fast DC power source to replace and

simulate the battery during testing – Fast voltage transient response

ensures maximum test-system

throughput by minimizing device

shutdowns – Dynamic measurement system

enables accurate current

measurement from µA to A – When the 66319B/D and 66321B/D

are coupled with the 14565B

Software, it gives you a powerful

analysis tool to optimize your device

designs for long battery life

145 65B

6632 1B 66 319B

Keysight 14565B device characterization software

– Graphical user sof tware—no

programming required – 3 modes of operation: waveform

capture, data logging, CCDF

statistical analysis – Visualization and analysis tools to

help you identify anomalies and

characterize and quantify battery

drain to optimize your design – Automation capability allows

you to control the 14565B from

other programs to automate and

synchronize DUT activity with current

drain measurements

Power (W)

Model

Maximum V (V)

Maximum I (A)

Number of ranges

Ripple and noise

Number of outputs

mVp-p

Programming accuracy

% + mV

Transient response (µs)

Size

66309B/D 45 15 3 (5 A peak) 2 1 6 0.05 + 10 < 35 66311B 45 15 3 (5 A peak) 1 1 6 0.05 + 10 < 35

Specialty

66 319B/ D 45 15 3 (5 A peak) 2 1 6 0.05 + 10 < 20 66321B / D 45 15 3 (5 A peak) 1 1 6 0.05 + 10 < 20

½ RU w

x 2 RU h

66332A 100 20 5 2 1 3 0.05 + 10 < 100

Find us at www.keysight.com

Page 35

NEW PV8900 Series Photovoltaic Array Simulator (Link)

Maximize the performance of your inverter

Keysight’s photovoltaic (PV) simulator includes the hardware and software to test a single maximum power point tracking (MPPT) inverter accurately. Test PV voltages up to 2000 V and 60 A with a single supply. DG9000 Series software licenses are available to test string inverter with 4-, 8-, or 12-MPPT channels. Most string inver ter solutions test one MPPT channel at a time — leading to test inaccuracies. Keysight’s DG9000 advanced PV inverter software can test up to 12 MPPT channels simultaneously.

– Output up to 2000 V and 30 kW in a

3U package

– Test up to 600 kW channels with

parallel units

– Select built-in curves or create a

custom table using up to 1024 points

– DG9000 Series software simplifies

single and multi-MPPT inver ter tests

– Use as a standard 30 kW autoranging

supply for DC sourcing

– Connectivity includes LAN (LXI Core),

USB, and GPIB

Characteristic PV8921A / PV8922A PV8931A / PV8932A

AC input ratings Phase and range 3 phase; 380 – 480 VAC ±10%

Frequency 50 / 60 Hz

Input VA 23 kVA 34 kVA

Connections L1, L2, L3, N, PE

Output terminal isolation

Power factor

No output terminal may be more than ±2000 VDC from any other terminal or chassis ground.

Typical weight 82 lbs. (37.3 kg) 126 lbs. (57.2 kg)

0.99

Specification PV8921A PV8922A P V8931A PV8932A

DC output ratings Voltage 150 0 V 2000 V 1500 V 2000 V

Current 30 A 30 A 60 A 30 A

Power 20 kW 20 kW 30 kW 30 kW

CV rms

3 V 3 V 2.25 V 3 V

400 mV 400 mV 300 mV 400 mV

100 mV 100 mV 75 mV 10 0 mV

Output voltage ripple and noise CV p-p

Load regulation Voltage

Current 4 mA 4 mA 8 mA 4 mA

Programming & measurement accuracy

Voltage 0.04%+150mV 0.04%+150mV 0.03%+100mV 0.03%+150mV

Current 0.03%+3mA 0.03%+3mA 0.03%+6mA 0.03%+3mA

Transient response

Recovery time 300 µs 300 µs 300 µs 300 µs

Settling band 15 V 20 V 15 V 20 V

1. From 20 Hz to 20 MHz (-3dB bandwidth) with resistive load, terminals ungrounded, or either terminal grounded

2. From 20 Hz to 10 MHz (-3dB bandwidth) with resistive load, terminals ungrounded, or either terminal grounded

3. Also applies when remote sensing with a ≤1 V drop per load lead

4. Percent of value + offset; at 25°C ±5°C after a 30 minutewarm-up; measurement NPLC=1; valid for 1 year

5. Time to recover to within the set tling band following a step change from 40% to 90% and 90% to 4 0% of full load at Comp 0, with a 4 0 μs current rise and fall time

6. At nominal input and rated power

Find us at www.keysight.com

Page 36

E4360 Modular Solar Array Simulation (Link)

The modular solar array simulator (SAS) is a DC power source that simulates the output characteristics of a solar array. The SAS is primarily a current source with very low output capacitance. It is capable of simulating the I-V curve of different arrays under different environmental conditions (temperature, age, etc.). You can set the I-V curve from the front panel or program it over GPIB, L AN (LXI Core) or USB.

– Accurate simulation of any type of

solar array

– Small size: up to 2 outputs in 2U of

rack space

– High output power—up to 600 W per

output

– Fast I-V curve changes to simulate

eclipse or spin

– 14360A System Control Tools

software included to simplify control of multiple solar array simulators in a system

– Custom turn-key system or individual

instruments available

E4360A modules

E4360A SAS mainframe

E4360 modular solar array simulator mainframes

Model Power, W Modules Max # of

E4360A 1200 Choose from E4361A and

E4 3 6 7A 120 0 Pre-configured with 2x

Specialty

E4368A 1200 Pre-configured with 2x

E4362A

E4361A

E4362A

Physical size

modules

2 Full RU w x 2 RU h

2 Full RU w x 1 RU h

Find us at www.keysight.com

E4360 modules

Model Power, WMax

Voc

Max Isc

Number of outputs

Ripple and noise mVp-p

Programming accuracy % + mV

E4361A 510 65 8.5 1 125 0.075 + 10

Specialty

E4362A 600 130 5 1 195 0.075 + 20

Page 37

PA2201A (Link) and PA2203A (Link) IntegraVision Power Analyzers

PA2201A 2-channel

PA2203A 4-channel

The Keysight IntegraVision power analyzer is an intuitive combination of accurate power measurements and touch-driven oscilloscope visualization. Within a single instrument, it delivers the dynamic views you need to see, measure and prove the performance of your design.

Make all of your critical power measurements with one instrument

– Achieve power analyzer accuracies

and scope-like waveform visualization with reduced setup time

– Address multiple test scenarios with

the flexibility of wide-ranging, isolated inputs

– Visualize transients, in-rush currents

and state changes with a high-speed digitizer that captures voltage, current and power in real-time

– Analyze voltage, current and power in

the time and frequency domains

– Explore your design and gain new

insights through the 12.1”/310 mm high-resolution display with touch interface

– Save space on your bench with

minimum-depth form factor

BenchVue software enabled

Function Description

Basic power accuracy (50/60 Hz) 0.05% of reading + 0.05% of range Power channels (voltage and current) PA2201A: 2 channels

PA2203A: 4 channels Voltage measurement bandwidth (–3 dB) 2.5 MHz (–3 dB) Current measurement bandwidth (2 A or 50 A Input) Current measurement Bandwidth (External Input) 2.5 MHz (–3 dB) Maximum voltage 1000 Vrms (2000 V peak) Maximum current Direct input: 2 Arms (6 A peak) or 50 Arms

Record size Maximum 1.5 M points on each waveform

Digitizing speed Maximum 5 M samples/second at 16 bits on

Display size and type 12.1-inch capacitive multi-touch/gesture

100 kHz (–3 dB)

(100 A peak)

External transducer: 10 Vrms (30 V peak)

simultaneously

each waveform simultaneously

enabled display

Find us at www.keysight.com

Page 38

CX3300A Series Device Current Waveform Analyzers (Link)

Measure dynamic current and voltage with confidence

The Keysight CX3300A series is an all-in-one measurement and analysis solution to solve your power rail, power delivery network, and power integrity challenges. The CX3300A series integrates an oscilloscope’s bandwidth and sampling rate, a DMM’s sensitivity, and data logger’s extended duration measurement recording with waveform analytics to reveal accurate current and voltage waveforms.

– Wide bandwidth at 200 MHz – High-resolution/high-speed sampling

at 14-bit (1 GSa/s)/ 16-bit(75 MSa/s)

– Low noise and a wide dynamic range

with high sensitivity from sub-nA and

sub-μV

– Long-duration measurement

capabilities up to 100 hours maximum

– Waveform analytics, current profiler

and more efficient analysis functions on mainframe and PC

Number of analog channels 2 4 Number of digital channels N/A 8 with CX1152A Maximum analog bandwidth Maximum memory depth

Measurement mode

Scope mode Default Data logger mode Option

CX3322A CX3324A

50 MHz, 100 MHz, or 200 MHz

4 Mpts, 16 Mpts, 64 Mpts, or 256 Mpts

Find us at www.keysight.com

1. Maximum bandwidth and memory depth are selectable at ordering, upgradable by license.

2. Data logger mode is optional, upgradable by license

Page 39

DC Power Supply Discontinuance and Replacement Products (Link)

Keysight power products have been available for more than 50 years, and DC power supplies have been changing the way engineers prove their design, understand the issues and ensure product quality. Our power products are continually upgraded and ready for your application – and we are now offering optimal replacement choices in voltage, current, capability and performance.

6060 Series Move to the N3300 DC Electronic Load Mainframe and Modules

If you have a 6060B or 6063B, your replacement product is the N3301A with N3303/4A

6030 Series Move to the N8700 basic performance, N6900/7900 series advanced capabilities or

N6700 multiple output capabilities

If you have any 6030/1/2/3/4/5/8A models, your replacement product is:

– 6030A – recommended substitute products are N8761A, N8921A, N8 941A, N697 7A,

N797 7A

– 6031A – recommended substitut e products are N8920A, N8940A, N8734A, N8756A,

N6971A , N7971A

– 6032A – recommended substitute products are N8737A, N6972A, N6973A, N7972A,

N7973A

– 6033A – recommended substitute products are N574 4A, N6700C w/1 x N6753A – 6035A – recommended substitute product is N8742A – 6038A – recommended substitute products are N 5747A, N6700C w/1 x N6754A

6620 Series Move to the N6700 series offers a multiple output capability with range of performance

with modern I/O – LAN, USB, GPIB

If you have any 6621/2/3/4/5/6/7/8/9A models, your replacement product is:

– 6621A - recommended substitute products are N6700C w/2 x N6752A – 6622A - recommended substitute products are N6700C w/2 x N6752A – 6623A - recommended substitute products are N6700C w/2 x N6751A and N6752A – 6624A - recommended substitute products are N6700C w/4 x N6751A – 6625A - recommended substitute products are N6700C w/1 x N6 761A and 1 x N6762A – 6626A - recommended substitute products are N6700C w/2 x N6761A and 2 x N6762A – 6627A - recommended substitute products are N6700C w/4 x N6751A – 6628A - recommended substitute products are N6700C w/2 x N6762A – 6629A - recommended substitute products are N6700C w/4 x N6762A

Find us at www.keysight.com

Page 40

DC Power Supply Discontinuance and Replacement Products (Continued)

66000 Series Move to the N6700 series offers a multiple output capability with range of performance

with modern I/O – LAN, USB, GPIB

If you have any 66101A/102A/103A/104A/105A/106A models, your replacement product is:

– 66101A - recommended substitute products are N6700C w/N6753A, N6754A, N6763A or

N6764A

– 66102A - recommended substitute products are N6700C w/N6753A, N6754A, N6763A,

N6764A, N6773A or N6774A

– 66103A - recommended substitute products are N6700C w/N6754A, N6764A, N6774A or

N6775A – 66104A - recommended substitute products are N6700C w/N6754A, N6764A or N6775A – 66105 A - recommended substitute products are N6700C w/N6777A – 66106A - recommended substitute products are N6700C w/2 x N6776A in series

6600 Series (661X, 663X, 664X, 665X)

Move to the N6700 series offers a multiple output capability with range of performance with modern I/O – LAN, USB, GPIB

If you have any 661X/2X/3X/4X/5X models, your replacement product is:

– 66 11C - recommended substitute products are N6700C w/N6732B, N6751A – 6612C - recommended substitute products are N6700C w/N6733B, N6751A – 6613C - recommended substitute products are N6700C w/N6735B, N6751A – 6614C - recommended substitute products are N6700C w/N6776A – 66 31B - recommended substitute products are N6700C w/N6742B or N6752A – 6632B - recommended substitute products are N6700C w/N6743B or N6752A – 6633B - recommended substitute products are N6700C w/N6752A – 6634B - recommended substitute products are N6700C w/N6776A – 6641A - recommended substitute products are N6700C w/N6754A or N6764A – 6642A - recommended substitute products are N6700C w/N6753A, N6754A, N6763A,

N6764A, N6773A or N6774 A – 6643A - recommended substitute products are N6700C w/N6754A, N6764A, N6774A or

N6775A

– 6644A - recommended substitute products are N6700C w/N6754A, N6764A or N6775A – 6645A - recommended substitute products are N6700C w/N6777A – 6651A - recommended substitute products are N6700C w/N6755A or N6765A – 6652A - recommended substitute products are N6700C w/N6755A or N6765A – 6653A - recommended substitute products are N6700C w/N6756A or N6766A (500 W only) – 6654A - recommended substitute products are N6700C w/N6756A or N6766A (500 W only) – 6655A - recommended substitute products are N6700C w/2 x N6777A in parallel

Find us at www.keysight.com

Page 41

DC Power Supply Discontinuance and Replacement Products (Continued)

6600 Series (667X, 668X, 669X)

Move to: N8700 Series offering basic performance at lower cost with modern I/O LAN, USB, GPIB; or the N6900/7900 Series offers advanced capabilities and higher performance; or the N8900 Series offers high power and basic performance with modern I/O – LAN, USB and GPIB

If you have any 667X/8X/9X or E4356A models, your replacement product is:

– 6671A - recommended substitute products are N8731A, N8732A, N8733A, N8925A,

N8945A, N6970A or N7970A

– 6672A - recommended substitute products are N8734A, N8920A, N8940A, N6971A or

N7971A

– 6673A - recommended substitute products are N8736A, N8920A, N8940A, N6972A or

N7972A

– 6674A - recommended substitute products are N8737A, N8920A, N8940A, N6973A or

N7973A

– 6675A - recommended substitute products are N874 0A, N8921A , N8941A , N6976A or

N7976A

– 6680A - recommended substitute products are 2 x N8931A or 2 x N8951A in parallel – 6681A - recommended substitute products are 2 x N8925A or 2 x N8945A in parallel – 6682A - recommended substitute products are N8754A, N8925A or N8945A – 6683A - recommended substitute products are N8755A, N8920A or N8940A – 6684A - recommended substitute products are N8756A, N8920A or N8940A – 6690A - recommended substitute products are N8931A or N8 951A – 6691A - recommended substitute products are N8925A or N8945A – 6692A - recommended substitute products are N8920A or N8940A – E4356A - recommended substitute products are N6974A or N7974A

6800B Series Move to the 6800C series of performance AC sources that provides a complete AC test

solution at power levels up to 1750 VA with additional I/O – USB and LAN

If you have any 6811B, 6812B or 6813B models, your replacement product is:

– 6811B - recommended substitute product is 6811C – 6812B - recommended substitute product is 6812C – 6813B - recommended substitute product is 6813C

AC6800A Series

Move to the AC6800B series of basic AC sources that meet your basic AC power needs with stable, reliable power levels up to 4000 VA

If you have any AC6801A, AC6802A, AC6803A or AC6804A models, your replacement product is:

– AC6801A - recommended substitute product is AC6801B – AC6802A - recommended substitute product is AC6802B – AC6803A - recommended substitute product is AC6803B – AC6804A - recommended substitute product is AC6804B

E36100A Series

Move to the E36100B series of DC power supply that has improved ripple noise performance and is rackmount-able

If you have any E36102A, E36103A, E36104A, E36105A or E36106A models, your replacement product is

– E36102A - recommended substitute product is E3 6102B – E36103A - recommended substitute product is E 36103B – E36104A - recommended substitute product is E3 6104 B – E36105A - recommended substitute product is E 3610 5B – E36106A - recommended substitute product is E 36106B

For more product information, visit www.keysight.com/find/PowerDiscontinuance.

Find us at www.keysight.com

Page 42

Learn more at: www.keysight.com

For more information on Keysight Technologies’ products, applications, or services, please

contact your local Keysight office. The complete list is available at:

www.keysight.com/find/contactus

Find us at www.keysight.com

This information is subject to change without notice. © Keysight Technologies, 2012 - 2021, Published in USA, November 16, 2021, 5989-8853EN

Page 43

Keysight N8738A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
