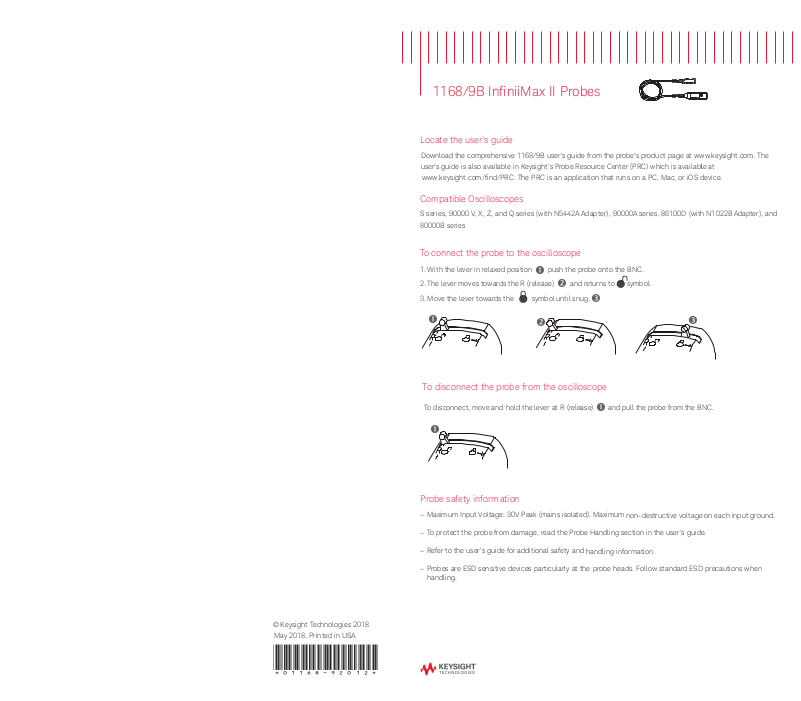

1168/9B InfiniiMax II Probes
Locate the user’s guide
Download the comprehensive 1168/9B user’s guide from the probe’s product page at www.keysight.com. The
user’s guide is also available in Keysight’s Probe Resource Center (PRC) which is available at l
www.keysight.com/find/PRC. The PRC is an application that runs on a PC, Mac, or iOS device.
Compatible Oscilloscopes
S series, 90000 V, X, Z, and Q series (with N5442A Adapter), 90000A series, 86100D (with N1022B A dapter), and
80000B series
To connect the probe to the oscilloscope
1. With the lever in relaxed position push the probe onto the BNC.
2. The lever moves towards the R (release) and returns to symbol.
3. Move the lever towards the symbol until snug.
To disconnect the probe from the oscilloscope
To disconnect, move and hold the lever at R (release) and pull the probe from the BNC.
Probe safety inform ation
– Maximum Input Voltage: 30V Peak (mains isolated). Maximum
– To protect the probe from damage, read the Probe
– Refer to the user’s guide for additional safety and
– Probes are ESD sensitive devices particularly at the
handling.
Handling section in the user’s guide.
handling information.
probe heads. Follow standard ESD precautions when
non-destructive voltage on each input ground.
© Keysight Technologies 2018
May 2018, Printed in USA
*01168-92012*
Recommended probe head configurations
(listed in order of best performance)
Recommended probe head configurations (continued)
(listed in order of best performance)
1. MX0100A InfiniiMax micro probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
MX0103A
bullet adapter
– Lowest input loading (0.17 pF differential).
– Light, flexible, small, and reusable.
– Micro solder-in head designed to access small
geometry target devices.
–
Accessory: MX0103A bullet adapter shipped with
MX0100A for easy connection
from the probe amplifier.
– MX0102A soldering tool kit (available separately)
with useful tools to make soldering easier.
3. N2839A differential browser probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
C
: 0.21 pF
diff
Cse: 0.34 pF
– Probe either differential or single-ended signals.
– Adjustable tip spacing (0 to 3 mm).
– Spring-loaded tips for secure connection.
– Compatible with N2784/5A or N2787A probe
positioners.
– For additional tips, order N2837A Replacement Tip Kit.
MX0100A
and disconnection
N2839A
2. N5381B differential solder-in probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
01169-81301
0.007 inch
tin-plated
nickel wire (2)
– Solder-in connection for differential and
single-ended signals.
– Very low input loading ( 0.21 pF differential).
– Wires must be cut to proper lengths
(see user’s guide).
4. N5380B SMA probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
– Preserves scope channels for measuring
differential signals (vs. A-B).
– Inherent cable loss compensation.
– Common mode termination voltage can be
supplied.
– Offset SMA cables adapt to variable spacing.
– Full bandwidth.
Probe either differential or
single-ended signals
N5381B
N5380B
7. N2851A QuickTip probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
– Easy, secure magnetic connection
between head and tip.
– Use N2848A and N2849A with InfiniiMax
III+ amp for InfiniiMode function.
– Accessory: N2849A QuickTip tips (qty 4)
9. N5451A long-wire ZIF tip (11 mm)
0º tip span: ~5 GHz BW
60º tip span: ~3.3 GHz BW
N5451A ZIF Tip
– 11 mm leads provide extra long reach.
– Accommodate variable-pitch targets.
– Soldered to circuit.
N2851A
N5425B
ZIF Head
11 mm Resistor Leads
N2849A
8. N5451A long-wire ZIF tip (7 mm)
0º tip span: ~9.9 GHz BW
60º tip span: ~4.4 GHz BW
N5451A ZIF Tip
7 mm Resistor Leads
– 7 mm leads provide long reach.
– Accommodate variable-pitch targets.
– Soldered to circuit.
10. E2677B differential solder-in probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
1NC3-1091
91Ω mini-axial
lead resistors (2)
– Acceptable solder-in connection for
differential and single-ended signals. N5381B
is preferred.
–
Higher capacitance than N5381B.
–
Resistors must be cut to proper lengths
(see user’s guide).
N5425B
ZIF Head
E2677B
Probe either
differential or
single-ended
signals
5. N5425B ZIF probe head / N5426A ZIF tip
1169B: 12 GHz BW
1168B: 10 GHz BW
N5425B
ZIF Head
N5426A ZIF Tip
– Very small fine-pitch targets.
– Low cost solder tips for probing multiple
test points.
– Full bandwidth.
– Slightly higher loading than solder-in head.
6. N2884A fine wire ZIF tip
1169B: 12 GHz BW
1168B: 10 GHz BW
22 Micron
Wires
– High fidelity, high bandwidth differential probing
of active IC.
– Flat frequency response over entire 12 GHz
bandwidth.
– Greater rejection of common-mode noise due
to use of local adjacent ground or node.
– Requires the N5425B ZIF head.
N2884A ZIF Tip
N5425B ZIF Head
11. E2678B differential socketed probe head
1169B: 12 GHz BW
1168B: 10 GHz BW
01130-81506
82
Ω mini-axial
lead resistors (2)
– Best socketed connection for differential and
single-ended signals.
– Slightly higher capacitance than solder-in
head.
– Resistors must be cut to proper lengths
(see user’s guide).
E2678B
Probe either
differential or
single-ended
signals
12. E2675B differential browser probe head
1169B: 5.2 GHz BW
1168B: 5.2 GHz BW E2675B
01131-62107
91Ω resistor
probe tips (2)
Lever to adjust probe
tip separation
