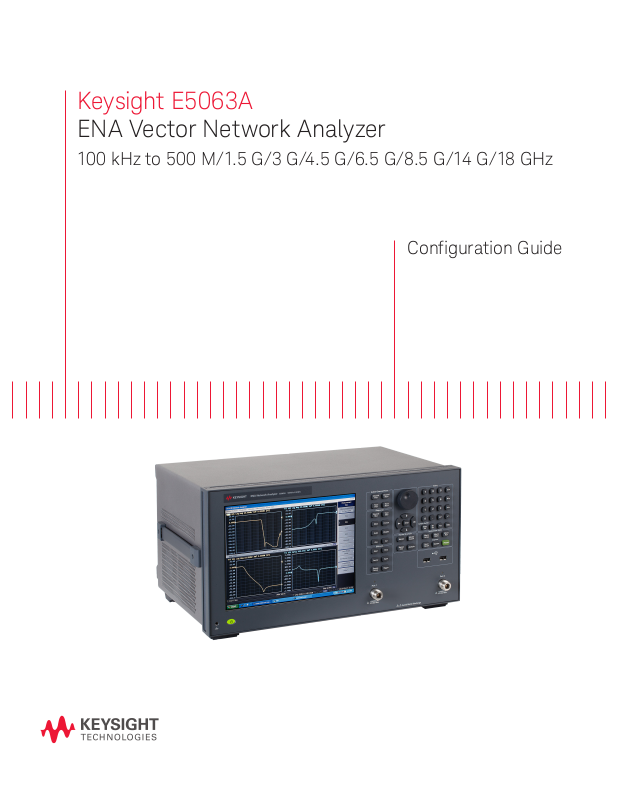

Page 1
Keysight E5063A
ENA Vector Network Analyzer
100 kHz to 500 M/1.5 G/3 G/4.5 G/6.5 G/8.5 G/14 G/18 GHz
Configuration Guide
Page 2
02 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
Ordering Guide
The following steps will guide you through configuring your Keysight Technologies’ E5063A.
Standard furnished item
Description Additional information
Installation guide Contains the information necessary to start up with the E5063A.
CD ROM IO libraries
Power Cable
Calibration of Certification
Step 1. Choose frequency option (must choose one of the eight frequency options.)
Description Option no.
Network Analyzer 100 kHz to 500 MHz, S-parameter test set, 50 Ω system impedance E5063A-205
Network Analyzer 100 kHz to 1.5 GHz, S-parameter test set, 50 Ω system impedance E5 0 6 3A-215
Network Analyzer 100 kHz to 3 GHz, S-parameter test set, 50 Ω system impedance E5063A-235
Network Analyzer 100 kHz to 4.5 GHz, S-parameter test set, 50 Ω system impedance E5063A-245
Network Analyzer 100 kHz to 6.5 GHz, S-parameter test set, 50 Ω system impedance E5063A-265
Network Analyzer 100 kHz to 8.5 GHz, S-parameter test set, 50 Ω system impedance E5063A-285
Network Analyzer 100 kHz to 14 GHz, S-parameter test set, 50 Ω system impedance E5063A-2D5
Network Analyzer 100 kHz to 18 GHz, S-parameter test set, 50 Ω system impedance E5063A-2H5
Step 2. Choose software option (If not required, go to step 4.)
Description Option no. Requires Not compatible Additional information
Time Domain/Test wizard E5063A-011 None None
Time Domain E5063A-010 None E5063A-011 Adds time domain transform and gating capabilities
Wireless power transfer
analysis
1. E5063A-011 is a superset of E5063A-010. E5063A-011 includes the capabilit y of E5063A-010.
E5063A-006 None None This option is required for wireless power transfer efficiency test of
1
This option is required for time domain analysis or PCB
measurements
wireless power transfer modules
Step 3. Choose hardware option
Description Option no. Requires Not compatible Additional information
Add GPIB interface E5 0 6 3A-721 None E5063A-722 Must choose either Option 721 or 722
Without GPIB interface E5063A-722 None E50 63A-721 Must choose either Option 721 or 722
Add handler I/O interface E5063A-731 None E5 0 6 3A-732 Must choose either Option 731 or 732
Without handler I/O interface E5063A-7 32 None E5 0 6 3A-731 Must choose either Option 731 or 732
Step 4. Choose storage drive option (mandatory option)
Description Option no. Requires Not compatible Additional information
Standard storage drive E5063A-019 None None Option 019 is the only storage drive option for the E5063A.
Must choose this option
www.keysight.com/find/vna
Page 3
03 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
Step 5. Add accessory option (If not required, go to step 6.)
Description Option no. Requires Not compatible Additional information
Keyboard E5063A-810 None None USB Keyboard for simplifying word inputs.
Mouse E5063A-820 None None USB Mouse for simplifying measurement operation.
Rackmount Kit E5063A-1C M None None Not installable simultaneously with E5063A -1CP.
Front Handle Kit E5063A-1C N None None Not installable simultaneously with E5063A -1CP.
Handle/Rack Mount Kit E5063A-1C P None None Not installable simultaneously with E5063A -1CM or 1CN.
Step 6. Add calibration certificate (If not required, go to step 7.)
Description Option no. Additional information
ISO 17025 Compliant Calibration E5063A-1A7 ISO 17025 compliant calibration
ANSI Z540 compliant calibration E5063A-A6J ANSI Z540 compliant calibration
www.keysight.com/find/vna
Page 4
04 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
E5063A Upgrade Kits
Upgrade kits are available to add any E5063A sof tware or hardware features af ter initial purchase. To upgrade your existing E5063A,
order the corresponding item number. For further information, visit: www.keysight.com/find/ena_support
Frequency Upgrades
Upgrade kit option no. Description From To Customer installable
E5063AU-210 Upgrade from 500 MHz to 1.5 GHz E5063A-205 E5063A-215 No
E5063AU-230 Upgrade from 500 MHz to 3 GHz E5063A-205 E5063A-235 No
E5063AU-240 Upgrade from 500 MHz to 4.5 GHz E5063A-205 E5063A-245 No
E5063AU-260 Upgrade from 500 MHz to 6.5 GHz E5063A-205 E5063A-265 No
E5063AU-280 Upgrade from 500 MHz to 8.5 GHz E5063A-205 E5063A-285 No
E5063AU-2D0 Upgrade from 500 MHz to 14 GHz E5063A-205 E5063A-2D5 No
E5063AU-2H0 Upgrade from 500 MHz to 18 GHz E5063A-205 E5063A-2H5 No
E5063AU-231 Upgrade from 1.5 GHz to 3 GHz E50 63A-2 15 E5063A-235 No
E5063AU-241 Upgrade from 1.5 GHz to 4.5 GHz E5063A-2 15 E5063A-245 No
E5063AU-261 Upgrade from 1.5 GHz to 6.5 GHz E5 0 6 3A-215 E5063A-265 No
E5063AU-281 Upgrade from 1.5 GHz to 8.5 GHz E5063A-215 E5063A-285 No
E5063AU-2D1 Upgrade from 1.5 GHz to 14 GHz E5063A -215 E5063A-2D5 No
E5063AU-2H1 Upgrade from 1.5 GHz to 18 GHz E5063A-215 E5063A-2H5 No
E5063AU-243 Upgrade from 3 GHz to 4.5 GHz E5063A-235 E5063A-245 No
E5063AU-263 Upgrade from 3 GHz to 6.5 GHz E5063A-235 E5063A-265 No
E5063AU-283 Upgrade from 3 GHz to 8.5 GHz E5063A-235 E5063A-285 No
E5063AU-2D3 Upgrade from 3 GHz to 14 GHz E5063A-235 E5063A-2D5 No
E5063AU-2H3 Upgrade from 3 GHz to 18 GHz E5063A-235 E5063A-2H5 No
E5063AU-265 Upgrade from 4.5 GHz to 6.5 GHz E5063A-245 E5063A-265 No
E5063AU-285 Upgrade from 4.5 GHz to 8.5 GHz E5063A-245 E5063A-285 No
E5063AU-2D5 Upgrade from 4.5 GHz to 14 GHz E50 63A-245 E5063A-2D5 No
E5063AU-2H5 Upgrade from 4.5 GHz to 18 GHz E5063A-245 E5063A-2H5 No
E5063AU-286 Upgrade from 6.5 GHz to 8.5 GHz E5063A-265 E5063A-285 No
E5063AU-2D6 Upgrade from 6.5 GHz to 14 GHz E5063A-265 E5063A-2D5 No
E5063AU-2H7 Upgrade from 6.5 GHz to 18 GHz E5063A-265 E5063A-2H5 No
E5063AU-2D8 Upgrade from 8.5 GHz to 14 GHz E5063A-285 E5063A-2D5 No
E5063AU-2H6 Upgrade from 8.5 GHz to 18 GHz E5063A-285 E5063A-2H5 No
E5063AU-2HD Upgrade from 14 GHz to 18 GHz E5063A-2D5 E5063A-2H5 No
Hardware Upgrades
Upgrade
model no.
E5063AU-721 Add GPIB interface E5063A -721 No None
E5 0 6 3AU-731 Add handler I/O interface E50 6 3A-731 No None
Description Option no. Customer
installable
Requires (Instrument must
already include the following)
Software Upgrades
Upgrade
model no.
E5063AU-011 Time Domain/Test wizard E5063A-011 Yes None This option is required for time domain
E5063AU-010 Time Domain E5063A-010 Yes None Adds time domain transform and
E5063AU-006 Wireless power transfer
Description Option no. Customer
installable
E5063A-006 Ye s None This option is required for wireless
analysis
Requires (Instrument must
already include the following)
Additional information
analysis or PCB measurements
gating capabilities
power transfer efficiency test of
wireless power transfer modules
www.keysight.com/find/vna
Page 5
05 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
OS Upgrades
Requires
Upgrade
model no. Description
E5063AU-040 Upgrade digital H/W from Windows
7 to Windows 10 for COMe CPU
E5063AU-041 Upgrade digital H/W form Windows
7 to Windows 10 for Flex-ATX CPU
Customer
installable
No None For units with older CPUs (serial-number prefixes
No None For units with newer CPUs (serial-number prefixes
(instrument must already
include the following) Additional information
of MY541/542, SG541/542 or lower), order this
upgrade model.
of MY543/544, SG543/544 or higher), order this
upgrade model.
Test Accessories and Calibration Kits
A complete list of RF test accessories and calibration kits are available on our Web site:
www.keysight.com/find/mta
www.keysight.com/find/ecal
Test accessories
Test accessories such as test port cable are necessary for a complete measurement system using the E5063A. Order test accessories
in accordance with the desired measurement system.
Category Product Number Description
Cables N6314A 50 Ω Type-N (m) to Type-N (m) cable, DC to 12.4 GHz, 61 cm (24 inches)
N6 315A 50 Ω Type-N (m) to Type-N (f) cable, DC to 12.4 GHz, 61 cm (24 inches)
11500E 3.5 mm (m) to 3.5 mm (m) cable, 61 cm (24 inches)
11500F 3.5 mm (m) to 3.5 mm (m) cable, 152 cm (60 inches)
N4 419AK20 Single, flexible: 3.5 mm (m) to 3.5 mm (f), 91.4 cm (26 inches)
Z5623A-K20 Single, flexible: 3.5 mm (m) to 3.5 mm (m), 91.4 cm (36 inches)
Adapters 11853A 50 Ω Type-N accessory kit
11878 A Type-N to 3.5 mm adapter kit
www.keysight.com/find/vna
Page 6
06 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
Calibration kits
Calibration is an accuracy enhancement procedure that effectively reduces the system errors that cause uncertainty in network
measurement. Calibration kit is necessary to perform the calibration.
– Mechanical calibration kits include standards, such as opens, shorts and loads, which are measured by the network analyzer.
Choose a calibration kit for each connector type to be used.
– Electronic calibration (ECal) modules replace mechanical calibration standards with one solid-state calibration module that is
controlled by the network analyzer via USB. ECal modules provide many different impedances to the test ports which enables a
full two-port calibration to be performed quickly with a single connection. This technique reduces operator errors and connector
wear and abrasion.
Category Product Number Description
Mechanical calibration kits 85032F Standard mechanical calibration kit, DC to 9 GHz, Type-N
85033E Standard mechanical calibration kit, DC to 9 GHz, 3.5 mm
85052D Economy mechanical calibration kit, DC to 26.5 GHz, 3.5 mm
85054D Economy mechanical calibration kit, DC to 18 GHz, Type-N
Electronic calibration (ECal) modules 85092C RF ECal module, 300 kHz to 9 GHz, Type-N, 2-port
85093C RF ECal module, 300 kHz to 9 GHz, 3.5 mm, 2-port
1
N7550A
1
N7551A
1
N7552A
1
N7553A
1
N7554A
2
N4690D
2
N4 691D
2
N4696D
1. The E5063A must have the firmware revision A.03.72 or above for the operation with the N755xA series ECal.
2. The E5063A must have the firmware revision A.05.04 or above for the operation with the N469xD series ECal.
Economy ECal module, DC to 4 GHz, Type-N or 3.5 mm, 2-port
Economy ECal module, DC to 6.5 GHz, Type-N or 3.5 mm, 2-port
Economy ECal module, DC to 9 GHz, Type-N or 3.5 mm, 2-port
Economy ECal module, DC to 14 GHz, Type-N or 3.5 mm, 2-port
Economy ECal module, DC to 18 GHz, Type-N or 3.5 mm, 2-port
Microwave ECal module, DC/300 kHz to 18 GHz, Type-N, 2-port
Microwave ECal module, DC/300 kHz to 26.5 GHz, 3.5 mm, 2-port
Microwave ECal module, DC/300 kHz to 18 GHz, 7 mm, 2-port
Literature Resources
Description Publication number
E5063A ENA Vector Network Analyzer, Data Sheet 5991-3615EN
E5063A ENA Vector Network Analyzer, Configuration Guide 5991-3616EN
E5063A PCB Analyzer, Technical Overview 5991-3617EN
Keysight Vector Network Analyzer Selection Guide 5989-7603EN
More literature is available on our web site.
Web Resource
www.keysight.com/find/vna
www.keysight.com/find/ena-pcb
www.keysight.com/find/ecal
www.keysight.com/find/mta
www.keysight.com/find/materials
www.keysight.com/find/benchvue
www.keysight.com/find/vna
Page 7
07 | Keysight | E5063A ENA Vector Network Analyzer - Configuration Guide
Evolving Since 1939
Our unique combination of hardware, software, services, and people can help you
reach your next breakthrough. We are unlocking the future of technology.
From Hewlett-Packard to Agilent to Keysight.
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
http://www.keysight.com/find/emt_product_registration
Register your products to get up-to-date product information and
find warranty information.
Keysight Services
www.keysight.com/find/service
Keysight Services can help from acquisition to renewal across your
instrument’s lifecycle. Our comprehensive service offerings—onestop calibration, repair, asset management, technology refresh,
consulting, training and more—helps you improve product quality
and lower costs.
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to ten years of protection and no budgetary surprises to ensure
your instruments are operating to specification, so you can rely on
accurate measurements.
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and
product breadth, combined with channel partner convenience.
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 11 2626
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-9-7-17)
DEKRA Certified
ISO9001 Quality Management System
www.keysight.com/go/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2015
Quality Management System
This information is subject to change without notice.
© Keysight Technologies, 2013 - 2018
Published in USA, April 8, 2018
5991-3616EN
www.keysight.com
Loading...
