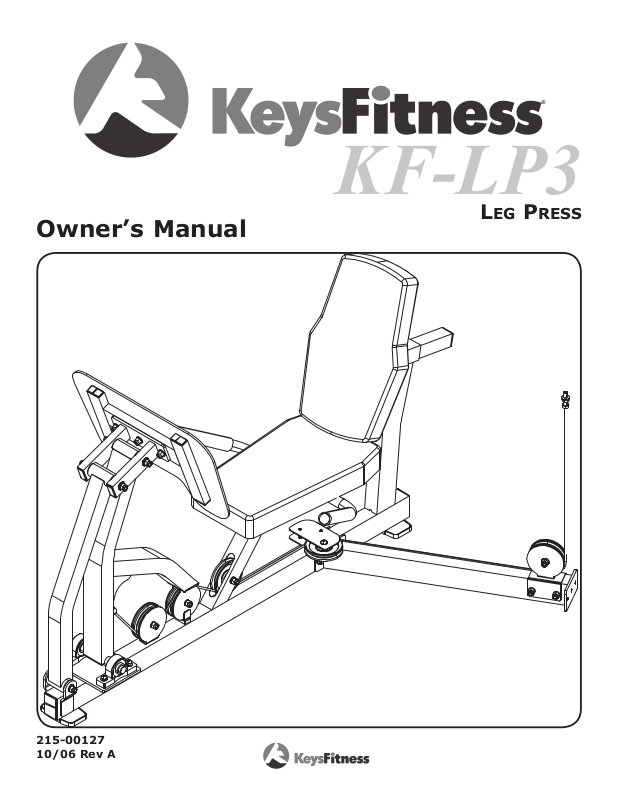

Keys Fitness KF-LP3 User Manual
Owner’s Manual
KF-LP3
L
eg
P
ress
215-00127
10/06 Rev A
Table Of Contents
Before You Start 3
Important Safety Information 4
Assembly 5-8
Parts List 9

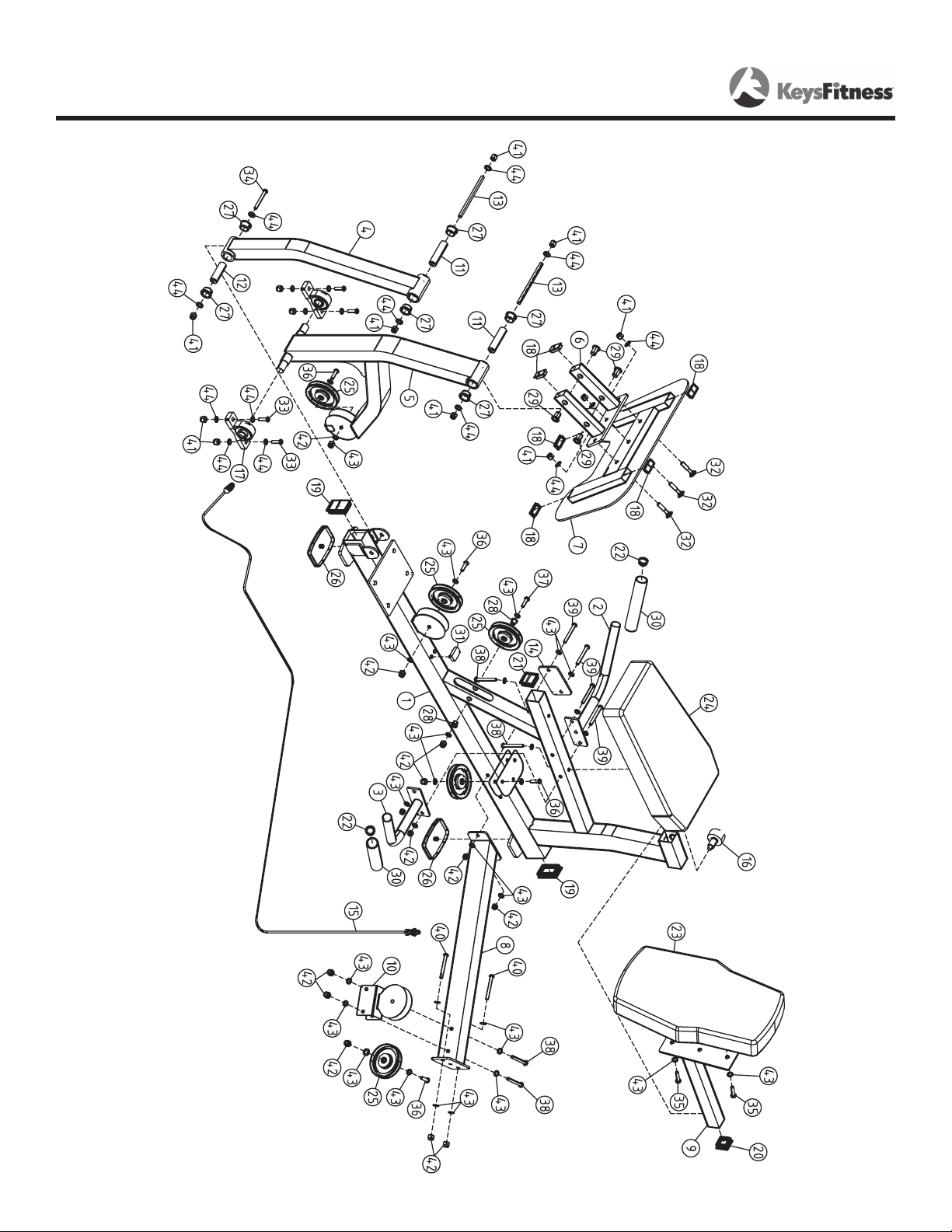

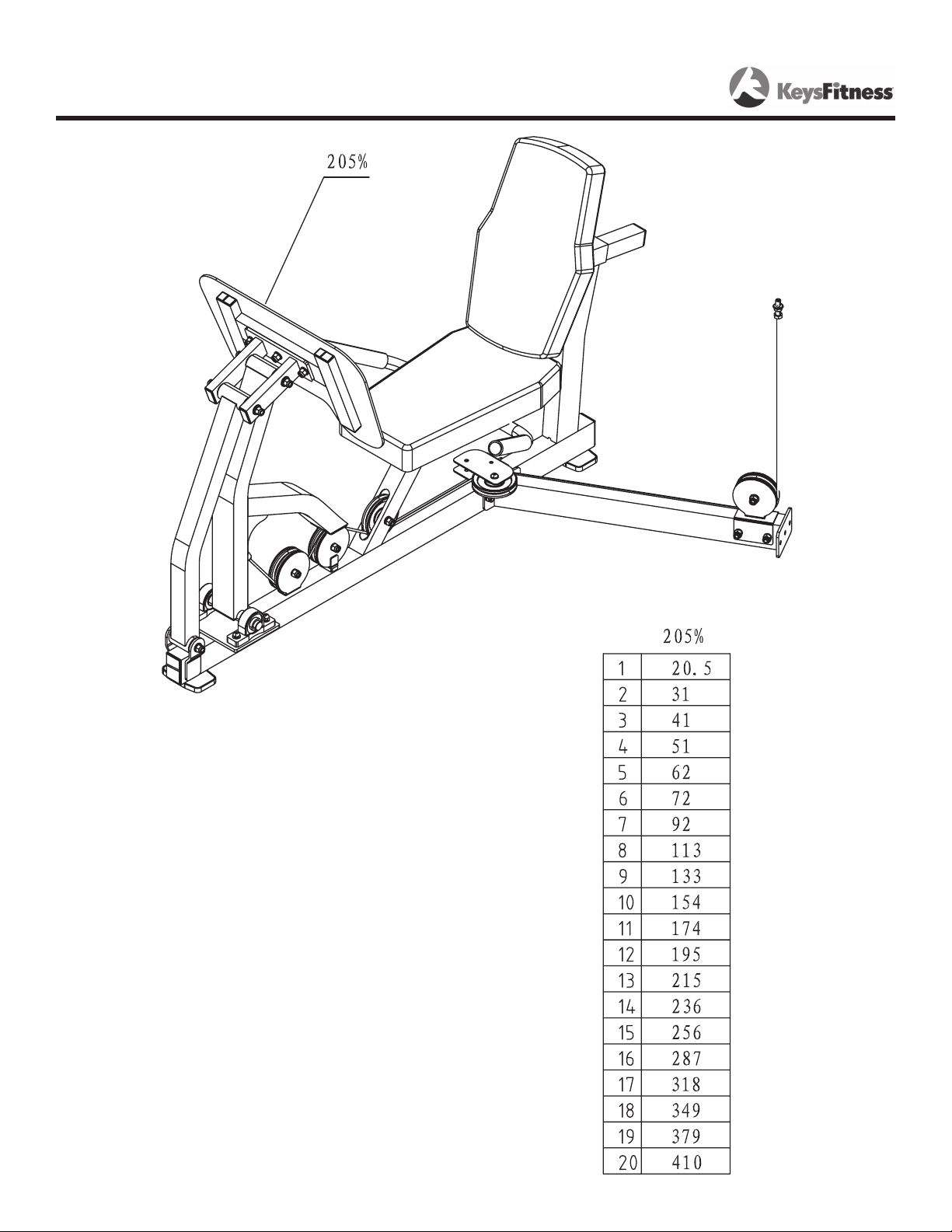

Exploded View 10
Warranty Information 11
2
Before You Start
THANK YOU for making this unit a part of your exercise program.
Keys Fitness assures the very best in value, appearance, durability
and biomechanics.
This manual will guide you through the assembly process. If at any time you are
having trouble with the assembly or use of this product, then please contact us
at our Keys Fitness Help line. We have trained service technicians on site to take
care of you, our valued customer.
REGISTRATION CARD
To avoid unnecessary delays in warranty parts and to insure that a permanent
record of your purchase is on file with our company, be sure to send in the warranty registration card or register on-line at www.keysfitness.com within 10 days
of purchase.
KEYS FITNESS SERIES
MODEL: KF-LP3
Q U E S T I O N S ?
CALL
1- 88 8- 34 0- 04 82
Mo nd ay -F ri da y
8: 30 -5 :3 0 C en tr al Time
When calling please have the following product information available:
Model Name :
Date Mfg.:
PO # :
Serial #:
Model Name Decal Location
3
Important Safety Information
Prior to assembly, remove components from the box and verify that all the listed parts were
supplied.
NOTE
Read all precautions and instructions in this manual before using this equipment.
:
Hand tighten bolts and nylon nuts until machine is fully assembled.
WARNING!
Before using this unit or starting any exercise program, consult your
physician. This is especially important for persons over the age of
35 and/or persons with pre-existing health problems. Keys Fitness
Products LP assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
It is the owner’s responsibility to ensure that all users of this unit have
read the Owner’s Manual and are familiar with safety information and
precautions.
SAFETY PRECAUTIONS
• This unit should only be used on a level surface and is intended for
indoor use only. Keys Fitness recommends an equipment mat be
placed under the unit to protect the floor or carpet and for easier
cleaning.
• Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use this unit with bare feet, sandals, socks or
stockings!
• Always examine your unit before using to ensure all parts are in
working order.
• Do not leave children unsupervised near or on the unit.
• Service to your unit should only be performed by an authorized
service representative, unless authorized and/or instructed by a
Keys Fitness technician. Failure to follow these instructions will void
the warranty.
4

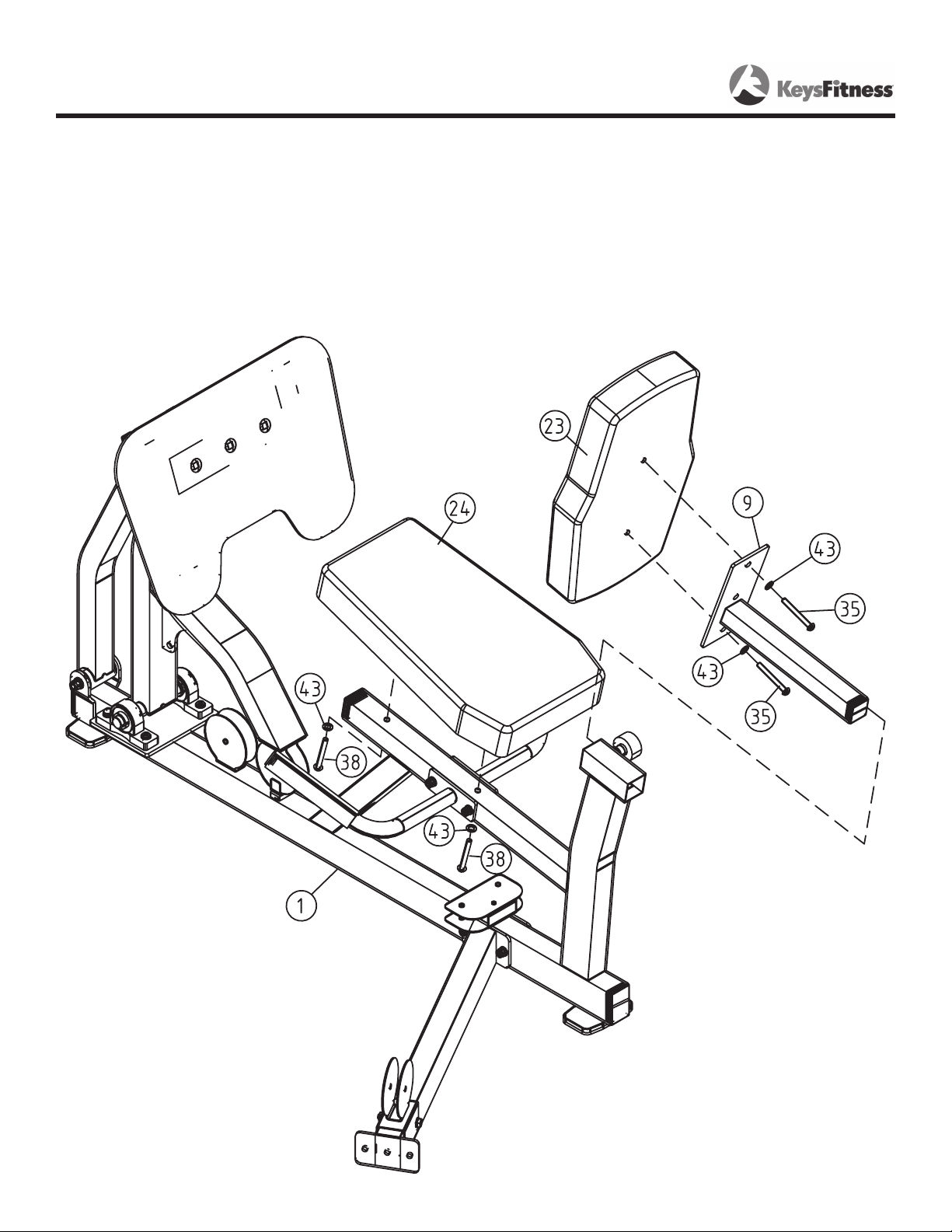

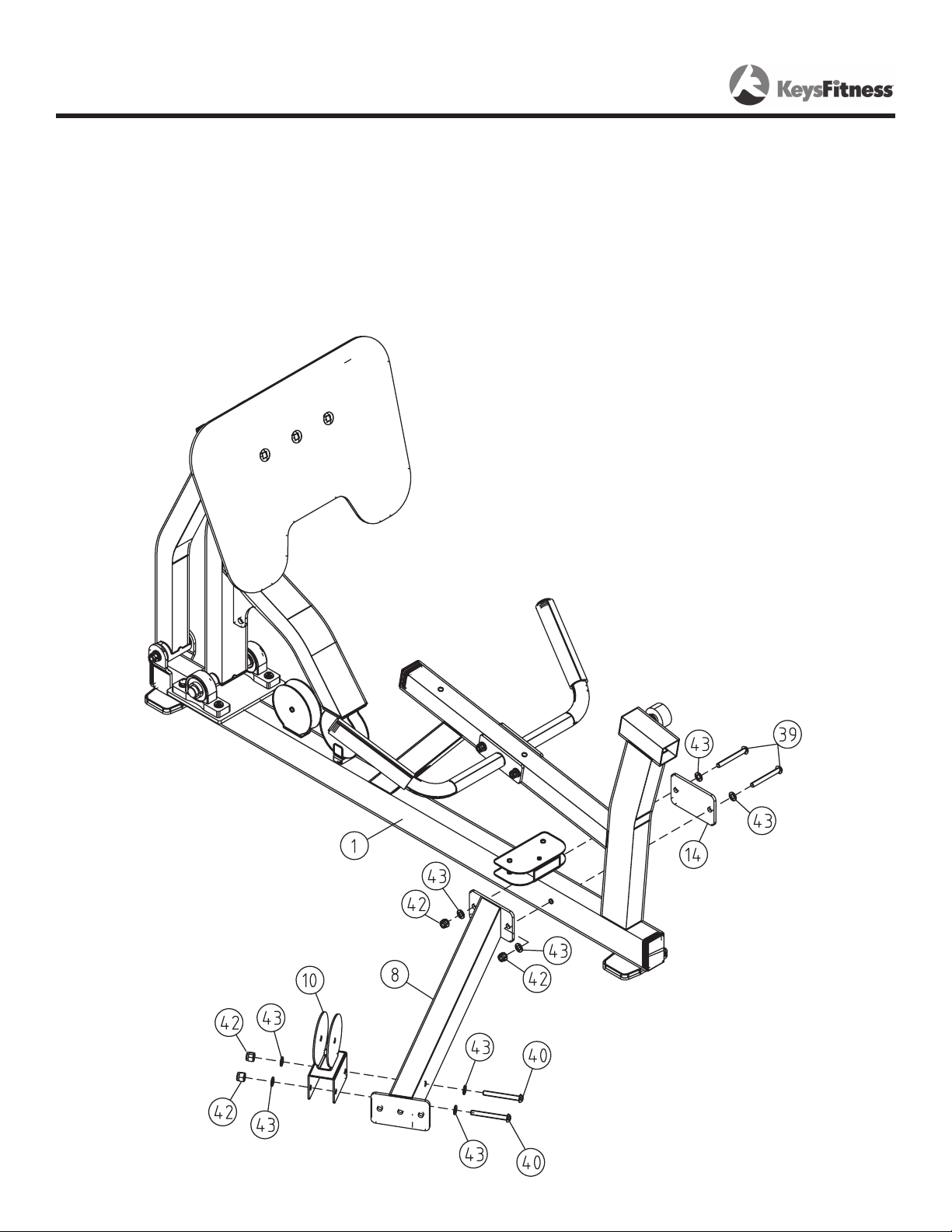

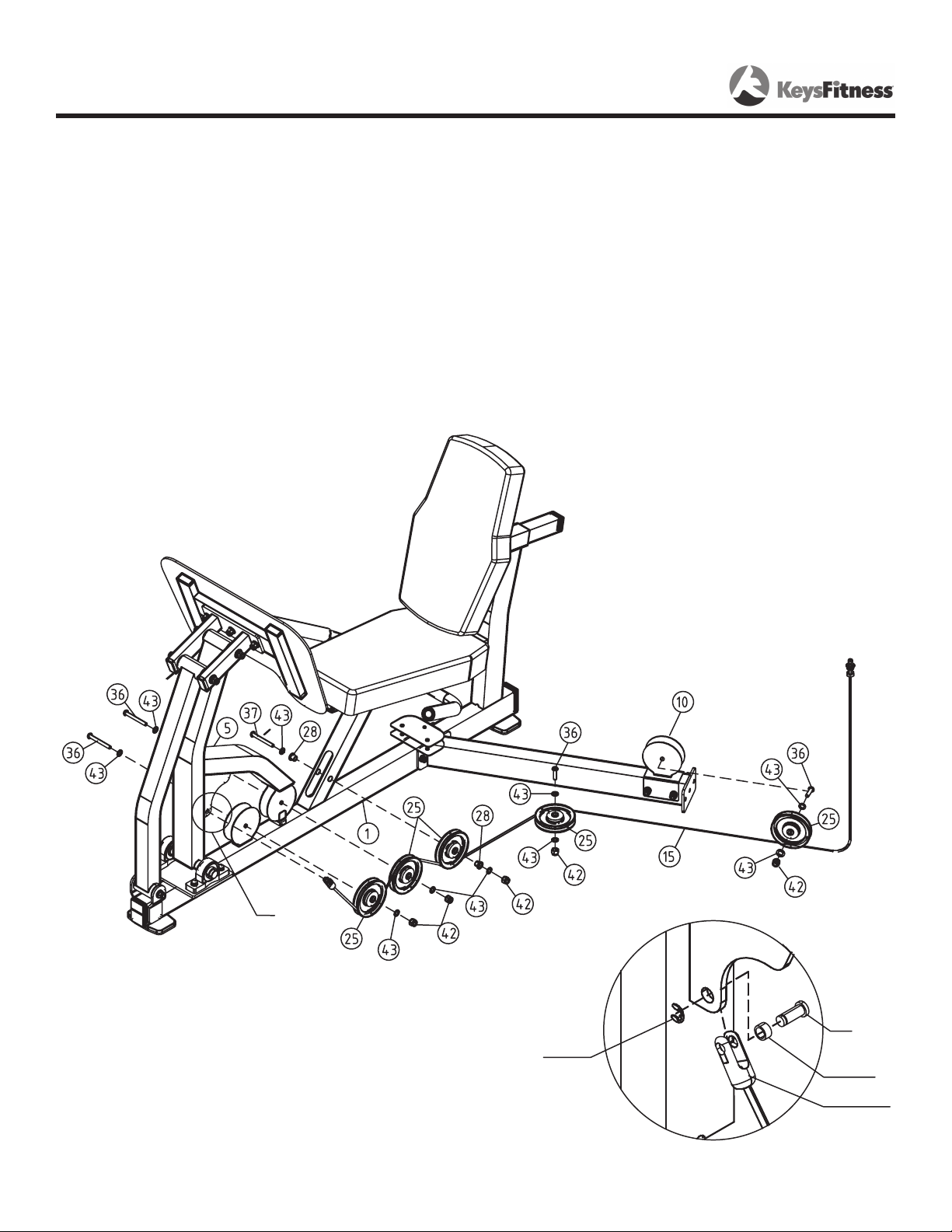

Assembly
Step 1
Slide one Pillow Block Bearing (17) onto each side of the Back Rocker (5). Use two Bolts
(33), four Washers (44), and two Nylon Locknuts (41) to attach each Pillow Block Bearings (17)
onto the Main Frame (1).
Slide Short Spacer Tube (12) into the Front Rocker (4). Attach the Front Rocker (4) to the
Main Frame (1) using one Bolt (34), two Washers (44), and one Nylon Locknut (41).
Insert Long Spacer Tubes (11) into the top of Front and Back Rocker (4 & 5). Attach the
Connect Frame (6) to the top of the Front and Back Rocker (4 & 5). Next, insert two Bushings
(29) into each side of the Connect Frame (6). Next, slide both Long Shafts (13) into Connect
Frame (6) and secure in place by using four Washers (44) and four Nylon Lock-nuts
(41).

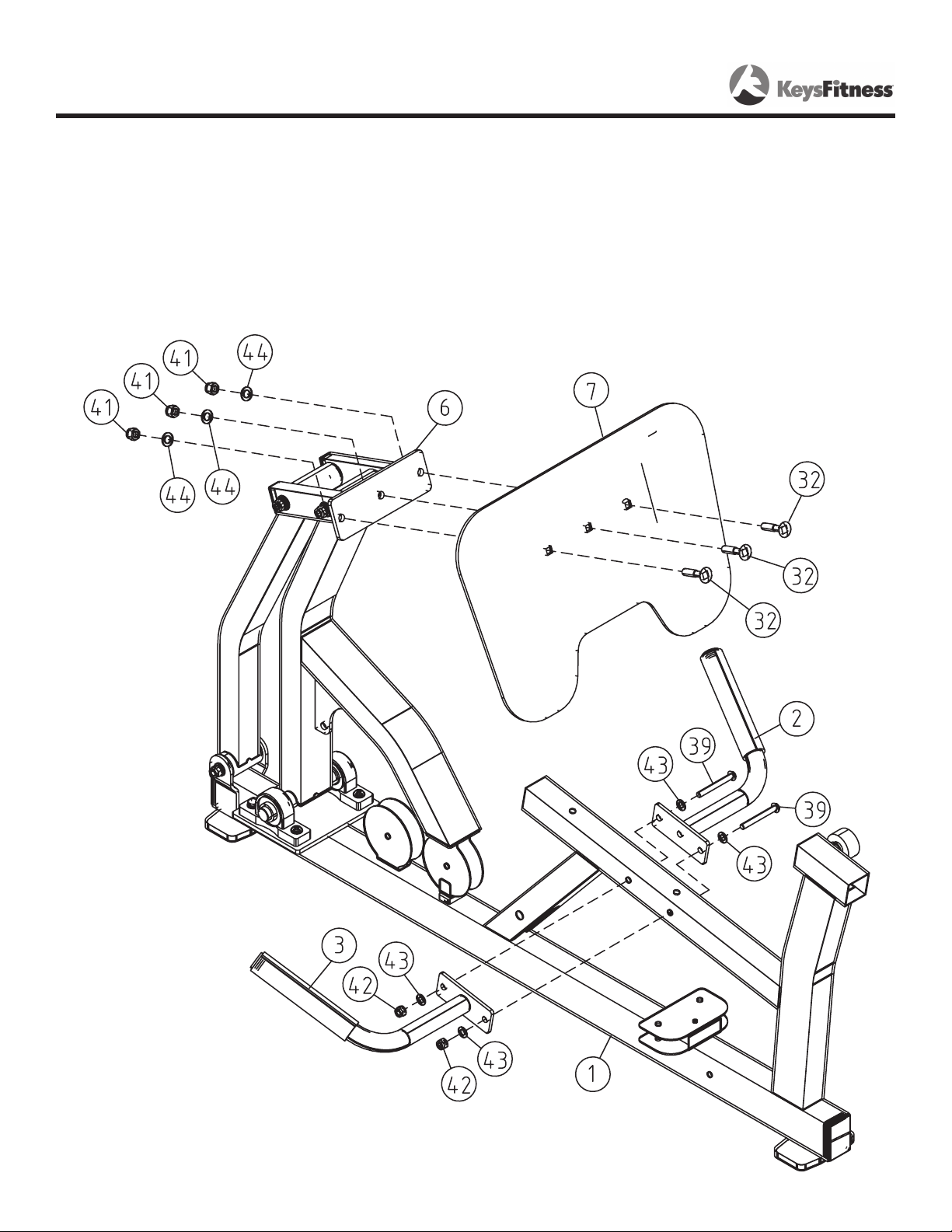

Figure 1
5
