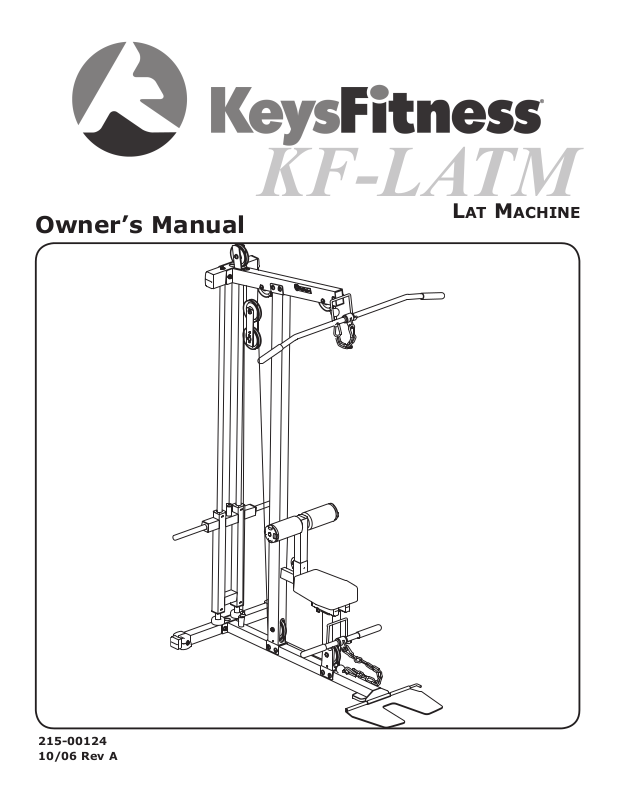

Keys Fitness KF-LATM User Manual

Owner’s Manual

KF-LATM

L

at

M

achine

215-00124
10/06 Rev A

Table of Contents

Before You Start 3

Important Safety Information 4

Assembly 5-9

Parts List 10

Exploded View 11

Warranty Information 12

2

Before You Start

THANK YOU for making this unit a part of your exercise program.

Keys Fitness assures the very best in value, appearance, durability
and biomechanics.

This manual will guide you through the assembly process. If at
any time you are having trouble with the assembly or use of this product, then
please contact us at our Keys Fitness Help line. We have trained service techni­cians on site to take care of you, our valued customer.

REGISTRATION CARD

To avoid unnecessary delays in warranty parts and to insure that a permanent
record of your purchase is on file with our company, be sure to send in the war­ranty registration card or register on-line at www.keysfitness.com within 10 days
of purchase.

KEYS FITNESS SERIES

MODEL: KF-LATM

Q U E S T I O N S ?

CALL

1- 88 8- 34 0- 04 82

Mo nd ay -F ri da y

8: 30 -5 :3 0 C en tr al Time

When calling please have the following product information available:

Model Name :

Date Mfg.:

PO # :

Serial #:

Model Name Decal Location

3

Important Safety Information

Prior to assembly, remove components from the box and verify that all the listed parts were
supplied.

NOTE

Read all precautions and instructions in this manual before using this equipment.

:

Hand tighten bolts and nylon nuts until machine is fully assembled.

WARNING!

Before using this unit or starting any exercise program, consult your
physician. This is especially important for persons over the age of
35 and/or persons with pre-existing health problems. Keys Fitness
Products LP assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

It is the owner’s responsibility to ensure that all users of this unit have
read the Owner’s Manual and are familiar with safety information and
precautions.

SAFETY PRECAUTIONS

• This unit should only be used on a level surface and is intended for
indoor use only. Keys Fitness recommends an equipment mat be
placed under the unit to protect the floor or carpet and for easier
cleaning.

• Wear comfortable, good-quality walking or running shoes and appro­priate clothing. Do not use this unit with bare feet, sandals, socks or
stockings!

• Always examine your unit before using to ensure all parts are in
working order.

• Do not leave children unsupervised near or on the unit.

• Service to your unit should only be performed by an authorized
service representative, unless authorized and/or instructed by a
Keys Fitness technician. Failure to follow these instructions will void
the warranty.

4

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 1

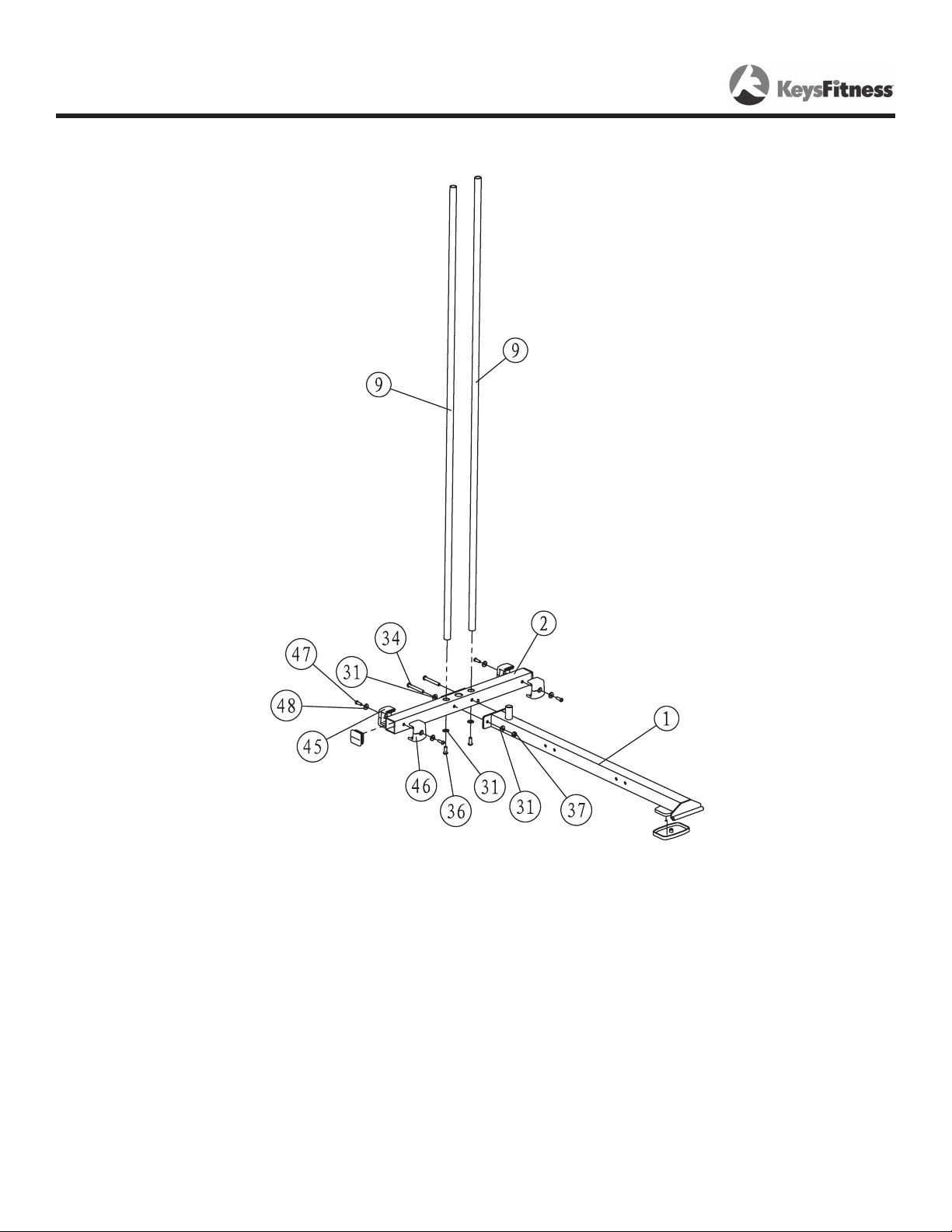

Connect Left and Right Foot Caps (45 and 46) to the Rear
Base (12) using:
2 x (47) Screw
2 x (48) Washer

Connect Main Base (1) to Rear Base (2) using:
2 x (34) Bolt 4 x (31) Washer
2 x (37) Nylon Lock Nut

Slide Guide Rods (9) down into Rear Base (2) and secure
using:
2 x (36) Bolt 2 x (31) Washer

5

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 2

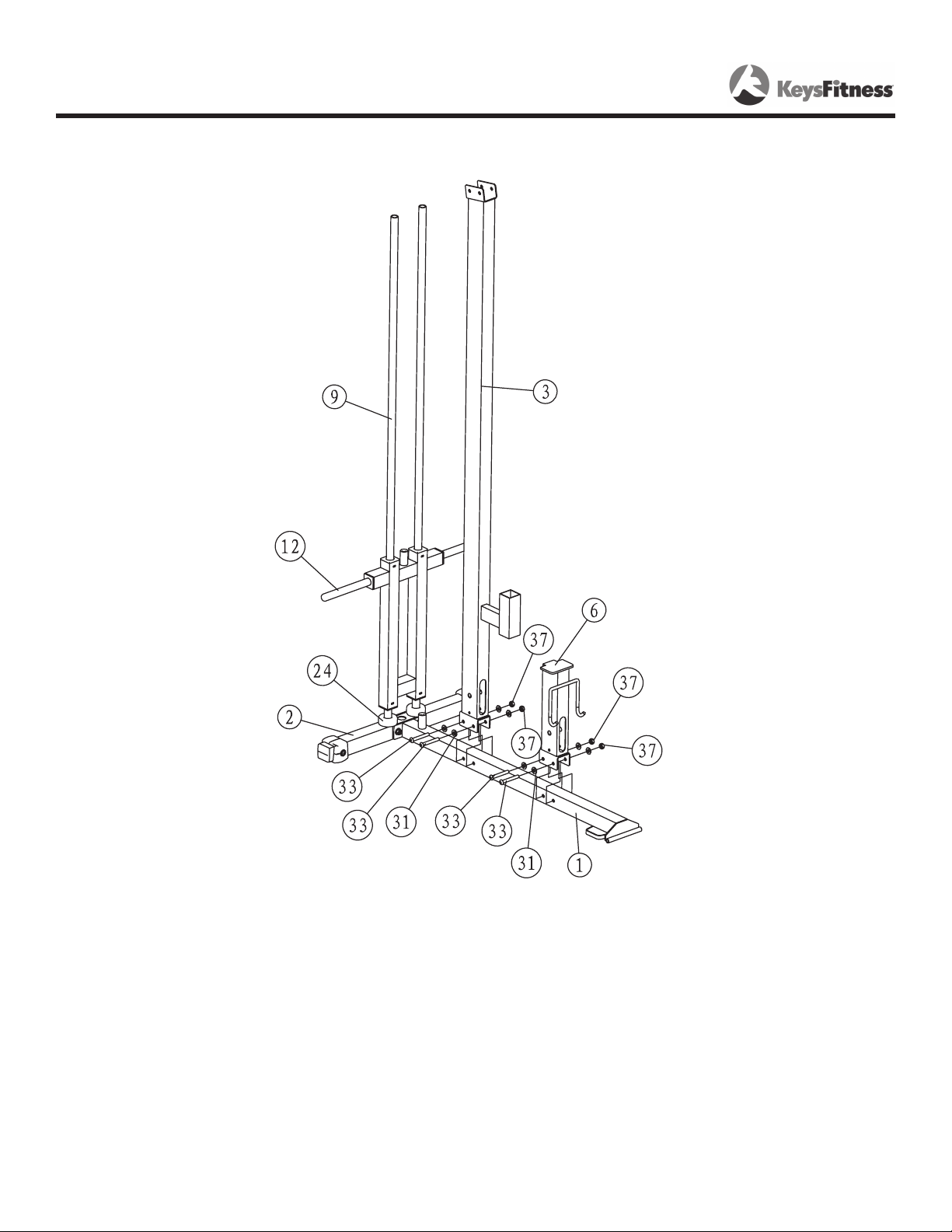

Slide Weight Stack Bumpers (24) and Weight Holder Slide
(12) onto guide rods as shown.

Connect Upright (3) to Main Base (1) using:
2 x (33) Bolt 4 x (31) Washer
2 x (37) Nylon Lock Nut

Attach Seat Support (6) to Main Base (1) using:
2 x (33) Bolt 4 x (31) Washer
2 x (37) Nylon Lock Nut

6

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 3

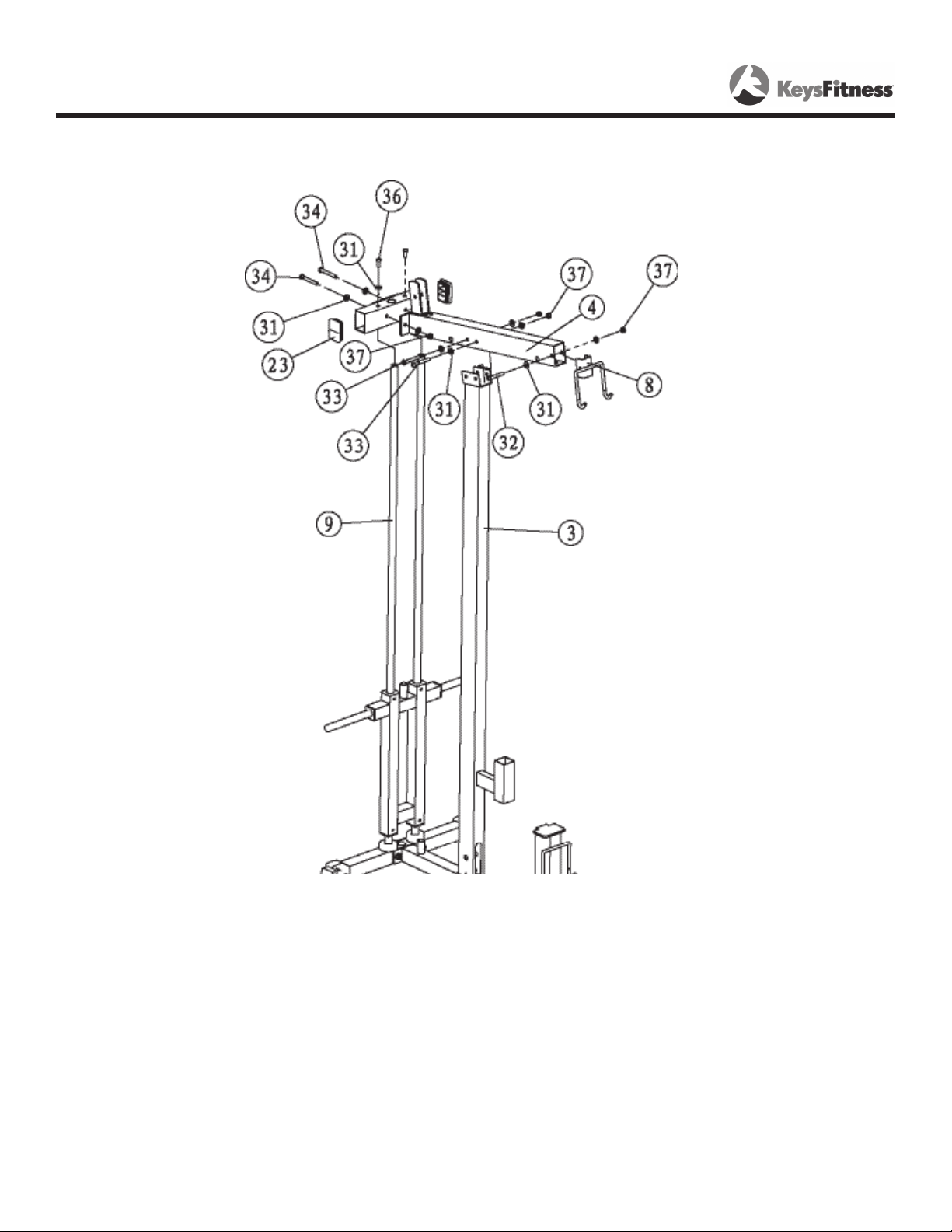

Slide Top Cross Frame (5) on top of Guide Rods and secure
using:
2 x (36) Bolt 2 x (31) Washer

Attach Top Frame (4) to Upright (3) and Top Cross Frame (5)
using: 2 x (33) Bolt 2 x (34) Bolt
8 x (31) Washer 4 x (37) Nylon Lock Nut

Attach Bar Holder (8) to Top Frame (4) using:
1 x (32) Bolt 2 x (31) Washer
1 x (37) Nylon Lock Nut

7

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 4

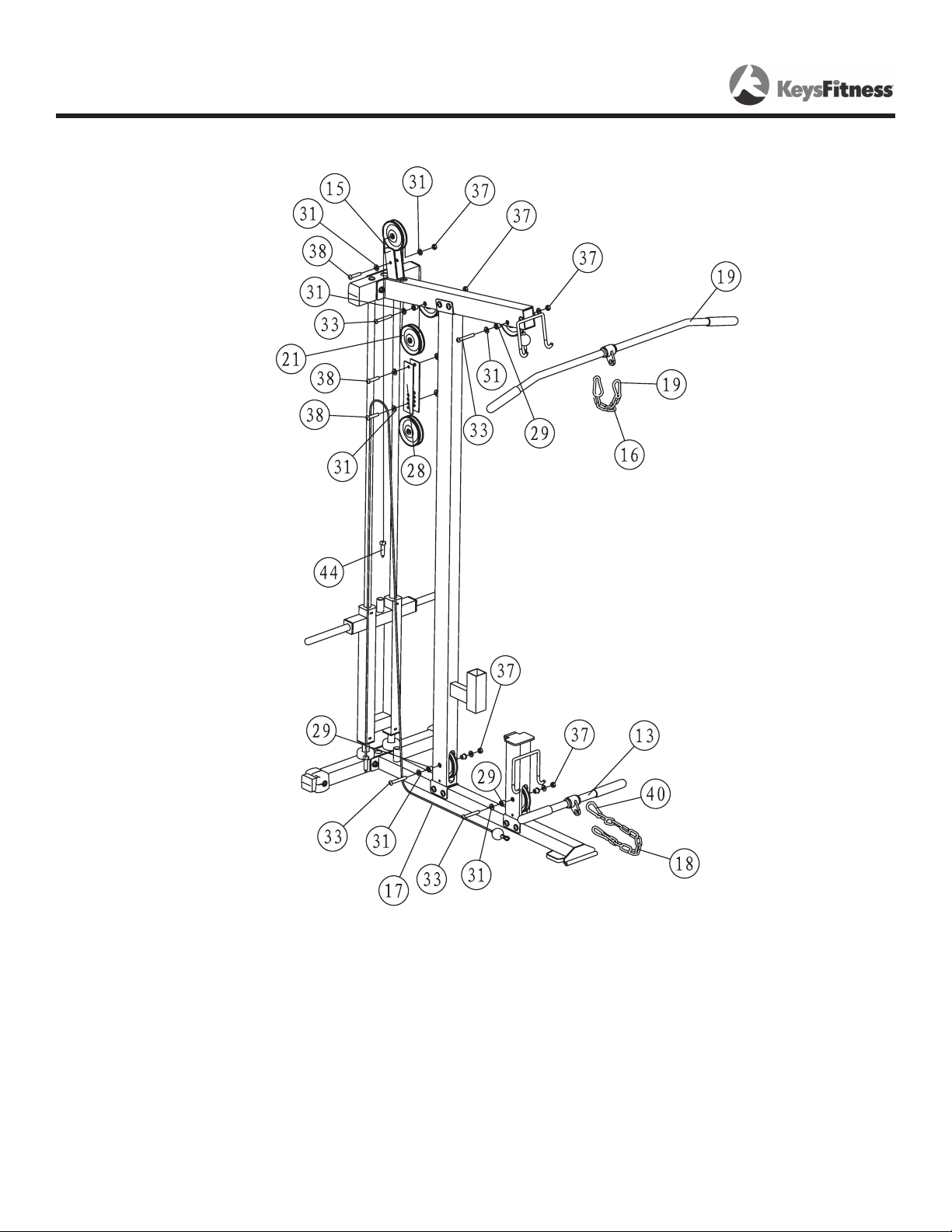

Complete Cable (15,17) assembly using:
7 x (21) Pulley 4 x (33) Bolt
14 x (31) Washer 8 x (29) Pulley Spacer
7 x (37) Nylon Lock Nut 3 x (38) Bolt
2 x (28) Pulley Plate

Attach Long Bar (19) and Short Bar (13) as shown.

8

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 5

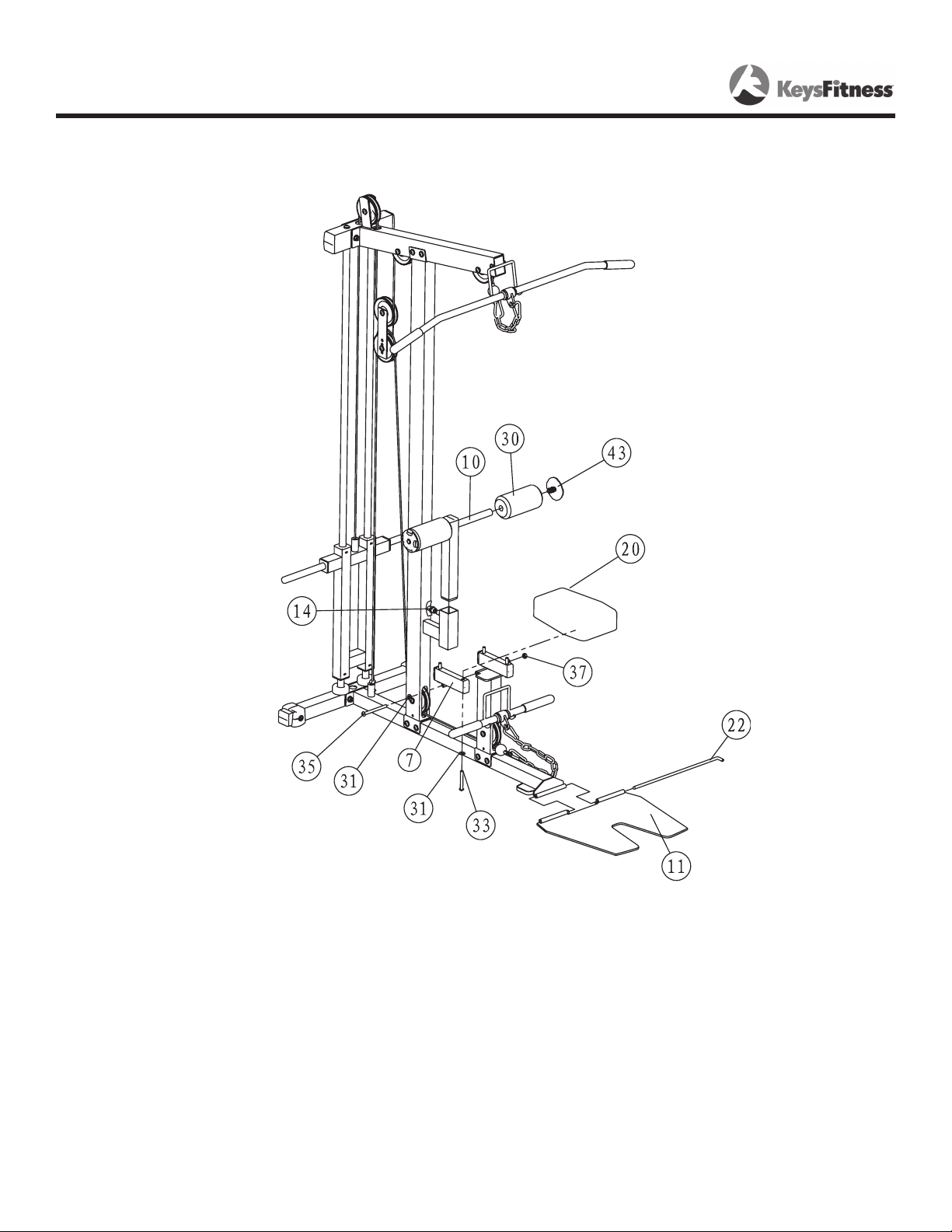

Complete leg hold down assembly using:
1 x (10) Roller Pad Frame 2 x (30) Foam
2 x (43) Big Plug 1 x (14) Pop Pin
Note: If needed, it is recommended that a rubber mallet be used to
secure Big Plug (43).

Complete Seat Pad (20) assembly using:
2 x (7) Seat Pad Tube 1 x (35) Bolt
5 x (31) Washer 4 x (33) Bolt

Slide L Pin (22) through holes in Foot Plate (11) and Main Base (1).

9

KF-LATM Parts List Rev A

Ref # Part # Description Qty

1 223-00979 MAIN BASE, KF-LATM 1

2 223-00980 REAR BASE, KF-LATM 1

3 223-00981 UPRIGHT, KF-LATM 1

4 223-00982 TOP FRAME, KF-LATM 1

5 223-00983 FRAME, TOP CROSS KF-LATM 1

6 219-00588 SUPPORT, SEAT KF-LATM 1

7 219-00589 SEAT PAD TUBE, KF-LATM 2

8 219-00249 LAT BAR HOOK KPS GYM 1

9 223-00689 GUIDE ROD, KPS-LATM 2

10 223-00984 FRAME, ROLLER PAD KF-LATM 1

11 223-00690 FOOT PLATE, KPS-LATM 1

12 223-00055 SLIDE WEIGHT SUPPORT 1

13 223-00099 SHORT BAR 1

14 210-00021 POP PIN 1

15 229-00015 HIGH PULLEY CABLE KPS-LATM P15 1

16 229-00037 SHORT CHAIN 1

17 229-00016 LOW PULLEY CABLE KPS-LATM P17 1

18 229-00038 LONG CHAIN 12 1

19 223-00092 LAT BAR KPS-GYM, 223-00574 1

20 228-00225 PAD, SEAT KF-LATM 1

21 223-00228 BIG PULLEY 4.5" 7

22 210-00013 "L" PIN KPS-LATM 1

23 206-00001 PLUG 50.8*76.2 2

24 206-00026 WEIGHT BUMPER KPS 2

25 206-00008 PLUG 25*50 4

26 206-00020 PLUG 44.5 2

27 206-00188 PLASTIC SLEEVE, 44.5X25 4

28 219-00011 PULLEY PLATE, KPS-LATM 2

29 202-00036 PULLEY SPACER 8

30 206-00395 FOAM PADDING, 100X22X180 KF SERIES 2

31 202-00093 WASHER, 10 46

32 202-00665 SCREW, BUTTON HEAD SOCKET CAP M10X65 1

33 202-00647 BUTTON HEAD SOCKET CAP SCREW M10X75 14

34 202-00634 SCREW, M10X80 BUTTON HEAD SOCKET CAP 4

35 202-00692 SCREW, BUTTON HD SOCKET CAP, M10X115 1

36 202-00662 SCREW, BUTTON HEAD SOCKET CAP M10X25 4

37 202-00091 NYLON NUT, M10 19

38 202-00664 SCREW, BUTTON HEAD SOCKET CAP M10X50 3

39 206-00468 BASE PAD, KF-LATM 1

40 210-00008 GEAR HOOK, KPS, 210-00008 4

41 206-00103 LAT BAR GRIP - KPS 4

42 206-00274 END CAP, 50.8 2

43 206-00390 PLUG, ROLLER PAD TUBE CAP, KF SERIES 2

44 202-00048 JAM NUT 1/2" 2

44 202-00048 JAM NUT 1/2" 2

45 206-00469 SLEEVE, EZ GLIDE 1 50.8 KF-LATM 2

46 206-00470 SLEEVE, EZ GLIDE 2 50.8 KF-LATM 2

47 202-00659 SCREW, BUTTON HEAD SOCKET CAP M8X25 4

48 202-00094 WASHER 8, 9*28*2 4

49 202-00216 ALLEN WRENCH S6 1

50 202-00217 Allen Wrench S4 1

Parts List

10

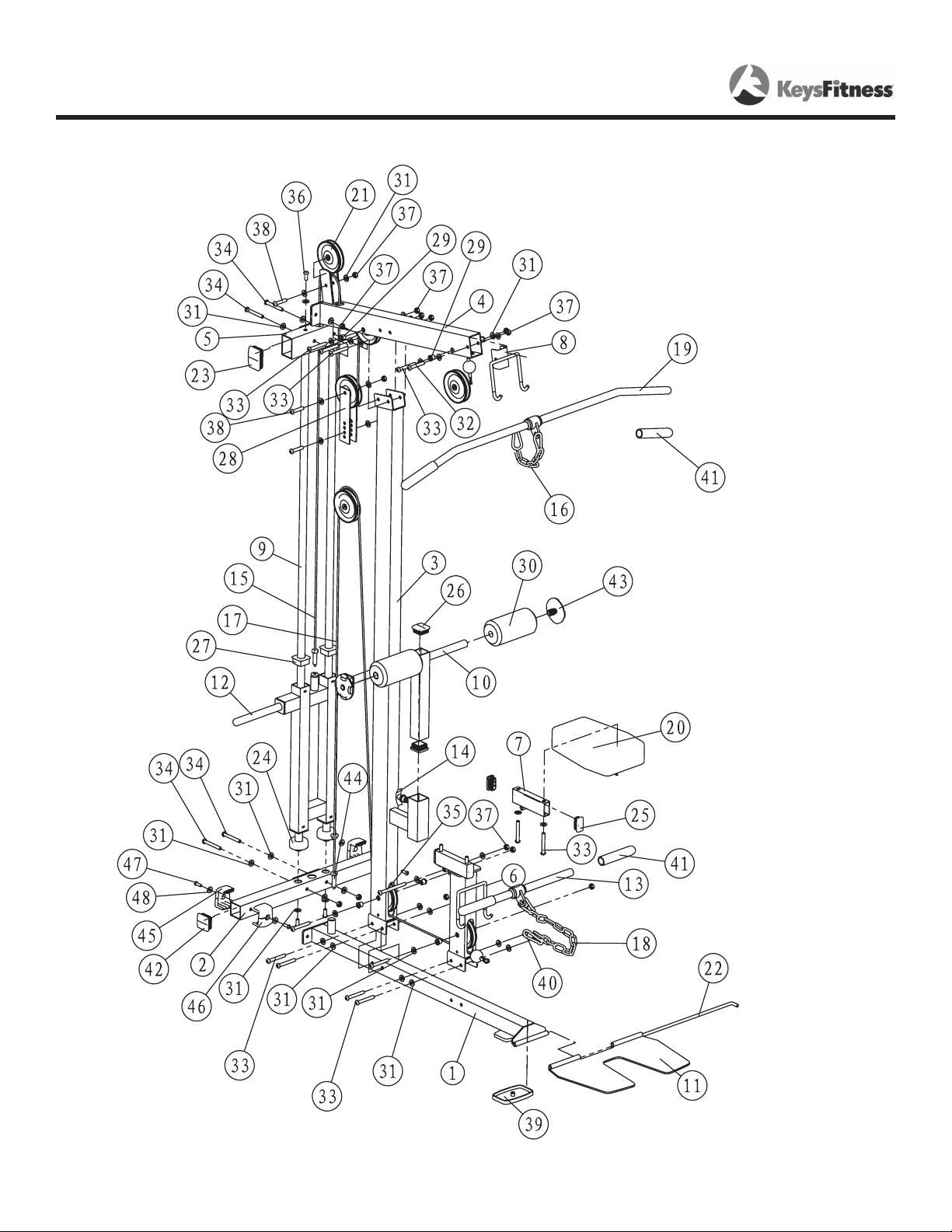

Exploded View

11

Warranty Information

KEYS FITNESS PRODUCTS, L.P.

LIFETIME WARRANTY

This Warranty applies in the United States and Canada to products manufactured or distributed by
Keys Fitness Products, LP (“Keys”) under the KEYS brand name. The warranty is non-transferable
and valid only to the original purchaser.

Keys warrants that the Product you have purchased for non-commercial, personal, family, or
household use from Keys or from an authorized Keys reseller is free from defects in materials or
workmanship under normal use during the warranty period. Your sales receipt, showing the date of
purchase of the Product, is your proof of purchase. This warranty only extends to you, the original
purchaser. It is not transferable to anyone who subsequently purchases or acquires the Product

from you. This Warranty becomes VALID ONLY if the product is purchased through a Keys Fitness
authorized dealer unless otherwise authorized by Keys Fitness in writing and must be assembled / installed according to
the instructions included with the Product.

In a light institutional setting, Keys will extend a one year limited warranty to the original purchaser.

During the warranty period Keys will repair or replace (at Keys' option) the product if it becomes defective, malfunctions, or
otherwise fails to conform with this Warranty under normal use. In repairing the Product, Keys may replace defective parts
with new or, at the option of Keys, serviceable used parts that are equivalent to new parts in performance. All exchanged
parts and Products replaced under this warranty will become the property of Keys. Keys reserves the right to change man­ufacturers of any part to cover any existing warranty.

This warranty DOES NOT COVER shipping charges, export taxes, custom duties and taxes, or any other charges associ­ated with transportation of the parts or Product. To obtain warranty service, you must contact a Keys authorized retailer,
service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must
be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and
taxes, or any other charges associated with transportation of the parts or Product. In addition, you are responsible for
insuring any parts or Product shipped or returned. You assume the risk of loss during shipment. You must present Keys
with proof-of-purchase documents (including the date of purchase). Any evidence of alteration, erasure or forgery of proof­of-purchase documents will be cause to void this Warranty.

This Warranty does not extend to any product not purchased from Keys or from an authorized Keys reseller. This Limited
Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, mis­use, or abuse; (b) by the use of parts not manufactured or sold by Keys; (c) by modification of the Product : (d) operation
on incorrect power supplies; or (e) as a result of service by anyone other than Keys, or an authorized Keys warranty ser­vice provider. Product on which the serial number has been defaced or removed is not eligible for warranty service. Should
any Product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair
will be made if requested by you upon Keys' receipt of payment or acceptable arrangements for payment.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, KEYS MAKES NO OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. KEYS EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY.
ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED
WARRANTY. NEITHER KEYS NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. This Limited Warranty gives you specific legal
rights and you may also have other rights that may vary from state to state. This is the only express warranty applicable to
Keys-branded products. Keys neither assumes nor authorizes anyone to assume for it any other express warranty.

PLEASE SEND IN THE INCLUDED WARRANTY CARD OR REGISTER ON-LINE AT www.keysfitness.com WITHIN
TEN (10) DAYS OF PURCHASE TO REGISTER YOUR UNIT WITH KEYS FITNESS PRODUCTS, LP. MAIL
WARRANTY CARD TO: KEYS FITNESS PRODUCTS, PO BOX 551239, DALLAS, TX 75355

12

Keys Fitness Products, L.P.

4009 Distribution Drive, Suite 250

Garland, Texas 75041

Customer Service: 1-888-340-0482
