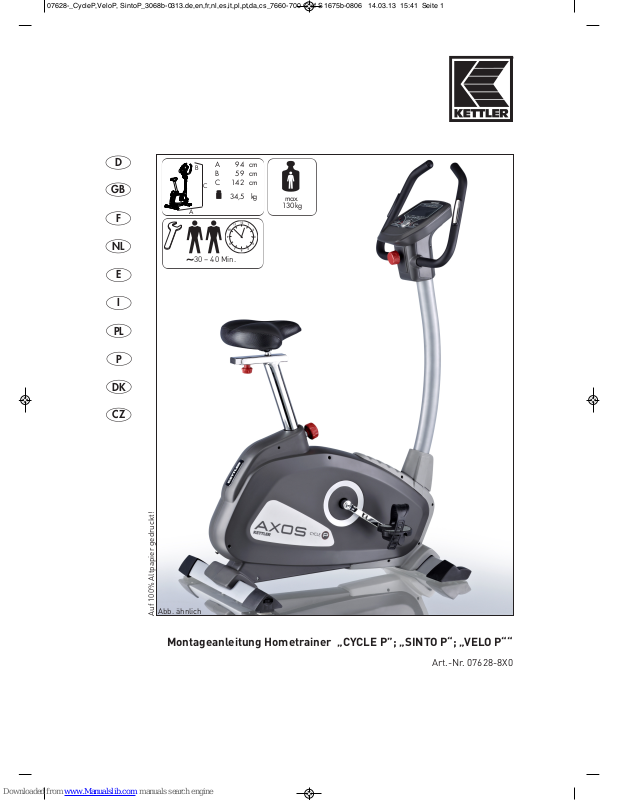

Montageanleitung Hometrainer „CYCLE P”; „SINTO P“; „VELO P““

Art.-Nr. 07628-8X0

Abb. ähnlich

Auf 100% Altpapier gedruckt!

30 – 40 Min.

A 94 cm
B 59 cm
C 142 cm

34,5 kg

max.

130 kg

A

C

B

07628-_CycleP,VeloP, SintoP_3068b-0313.de,en,fr,nl,es,it,pl,pt,da,cs_7660-700 Golf S 1675b-0806 14.03.13 15:41 Seite 1

4

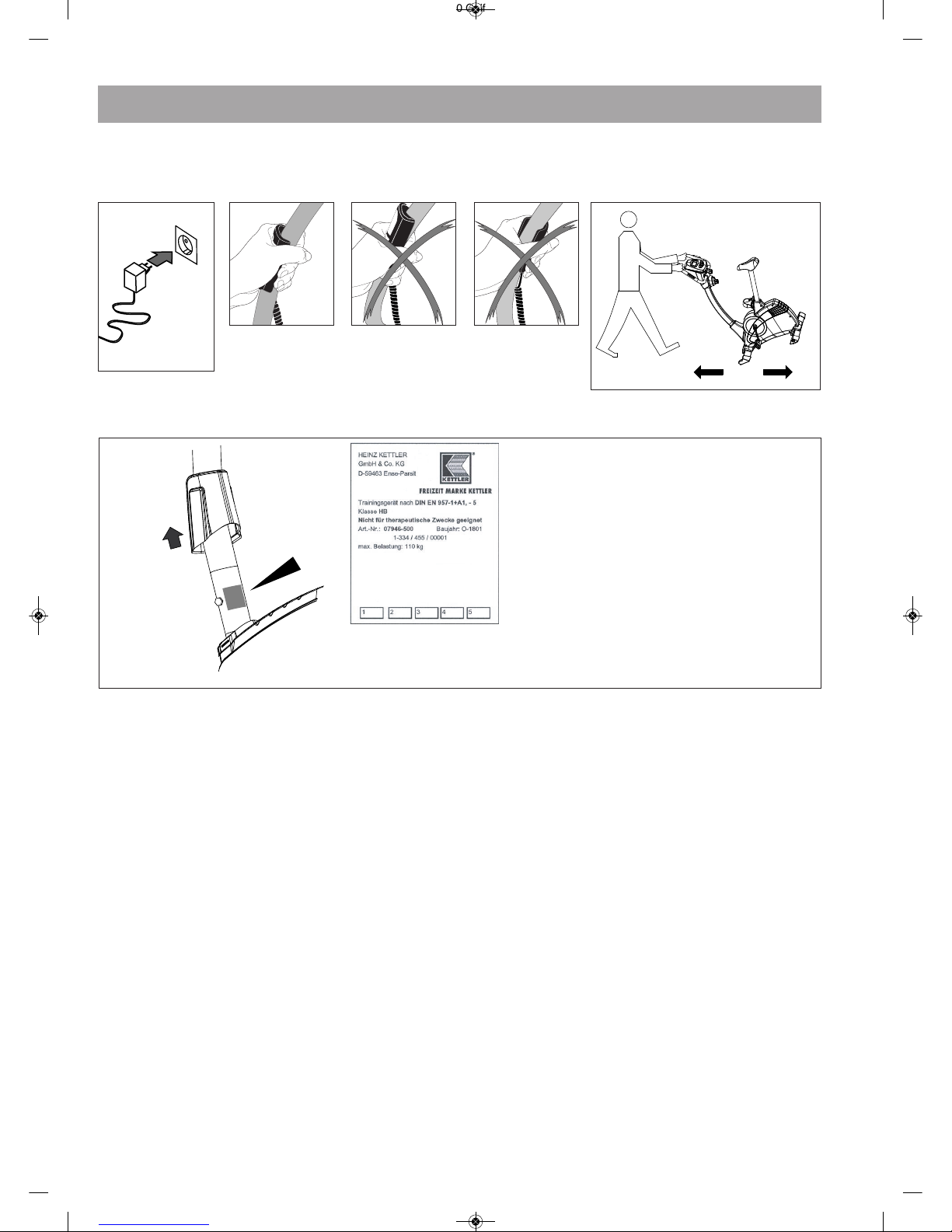

Handling the equipment

ATTENTION! It is not recommended to use or store the appa-

ratus in a damp room as this may cause it to rust. Please ensure
that no part of the machine comes in contact with liquids (drinks,
perspiration etc.). This may cause corrosion.

• Before using the equipment for exercise, check carefully to
ensure that it has been correctly assembled.

• Before beginning your first training session, familiarize yourself
thoroughly with all the functions and settings of the unit.

• The machine is designed for use by adults and children should
not be allowed to play with it. Children at play behave unpre­dictably and dangerous situations may occur for which the
manufacturer cannot be held liable. If, in spite of this, children
are allowed to use the equipment, ensure that they are instructed
in its proper use and supervised accordingly.

!

• A slight production of noise at the bearing of the centrifugal mass
is due to the construction and has no negative effect upon ope­ration. Possibly occurring noise during reverse pedalling result
from engineering and are absolutely safe.

• Use for your regular cleaning, maintenance and care our
appliance maintenance set (Article no. 07921-000) specifically
licensed for KETTLER Sports apparatus and available from the
Sport specialized trade.

• The exercise cycle has a magnetic brake system.

• The equipment is dependent of revolutions per minute.

• Please ensure that liquids or perspiration never enter the machine
or the electronics.

Assembly Instructions

G

B

For Your Safety

RISK! Instruct people using the equipment (in particular children)

o

n possible sources of danger during exercising.

RISK! While assembly of the product keep off children’s reach

(Choking hazard - contains small parts).

RISK! Heart rate monitoring systems can be imprecise. Excessive

training may lead to serious health damage or death. If you feel
giddy or weak, please stop the training immediately.

WARNING! The training device should be used only for its

intended purpose, i.e. for physical exercise by adult people.

WARNING! Any other use of the equipment is prohibited

and may be dangerous. The manufacturer cannot be held liable
for damage or injury caused by improper use of the equipment.

WARNING! B

efore beginning your program of training, study

the instructions for training carefully.

WARNING! All electric appliances emit electromagnetic

radiation when in operation. Please do not leave especially
radiation-intensive appliances (e.g. mobile telephones) directly
next to the cockpit or the electronic controlsystem as otherwise
values displayed might be distorted (e.g. pulse measurement.

WARNING! Ensure that the power cable is not pinched and

that no-one can trip over it.

• The device requires a supply voltage of 230V, 50 Hz.
Connect the power cord with a protective contact socket.

• Do not use a multiple power socket for the running belt. If an
extension cable is being used, ensure that it complies with the
VDE regulations.

• Unplug the power cord of the device from the socket if not used
for a longer period.

• Exercise has been designed in accordance with the latest stan­dards of safety. Any features which may have been a possible
cause of injury have been avoided or made as safe as possible.

• Incorrect repairs and structural modifications (e.g. removal or
replacement of original parts) may endanger the safety of the
user.

• Damaged components may endanger your safety or reduce the
lifetime of the equipment. For this reason, worn or damaged parts
should be replaced immediately and the equipment taken out
of use until this has been done. Use only original KETTLER spare
parts.

!!!!!!!

!

• If the equipment is in regular use, check all its components tho­roughly every 1 -2 months. Pay particular attention to the
tightness of bolts and nuts.This applies especially to the securing
bolts for saddle and handelbars.

• To ensure that the safety level is kept to the highest possible­standard, determined by its construction, this product should be
serviced regulary (once a year) by specialist retailers.

• Before beginning your program of exercise, consult your doctor
to ensure that you are fit enough to use the equipment. Base your

program of exercise on the advice given by your doctor. Incorrect
or excessive exercise may damage your health!

• Any interference with parts of the product that are not des­cribed within the manual may cause damage, or endanger the
person using this machine. Extensive repairs must only be carried
out by KETTLER service staff or qualified personnel trained by
KETTLER.

• Our products are subject to a constant innovative quality assu­rance. We reserve the right to perform technical modifications.

• In case of enquiry, please contact your KETTLER dealer.

• In choosing the location of the apparatus, ensure a sufficient safety
distance from any obstacles. The apparatus must not be mounted
in the immediate vicinity of main passageways (paths, doorways,
corridors).

• For a comfortable training position please adjust the handlebar
andsaddle position to your body height.

• When mounting the product please take the recommended
torque information into account (M = xx Nm).

• The exercise cycle complies with the DIN EN 957 - 1/5, class
HB. It is therefore unsuitable for therapeutic use.

Before assembling or using the exercise cycle , please read the following instructions carefully. They contain important
information for use and maintenance of the equipment as well as for your personal safety. Keep these instructions in a
s

afe place for maintenance purposes or for ordering spare parts.

07628-_CycleP,VeloP, SintoP_3068b-0313.de,en,fr,nl,es,it,pl,pt,da,cs_7660-700 Golf S 1675b-0806 14.03.13 15:41 Seite 4

5

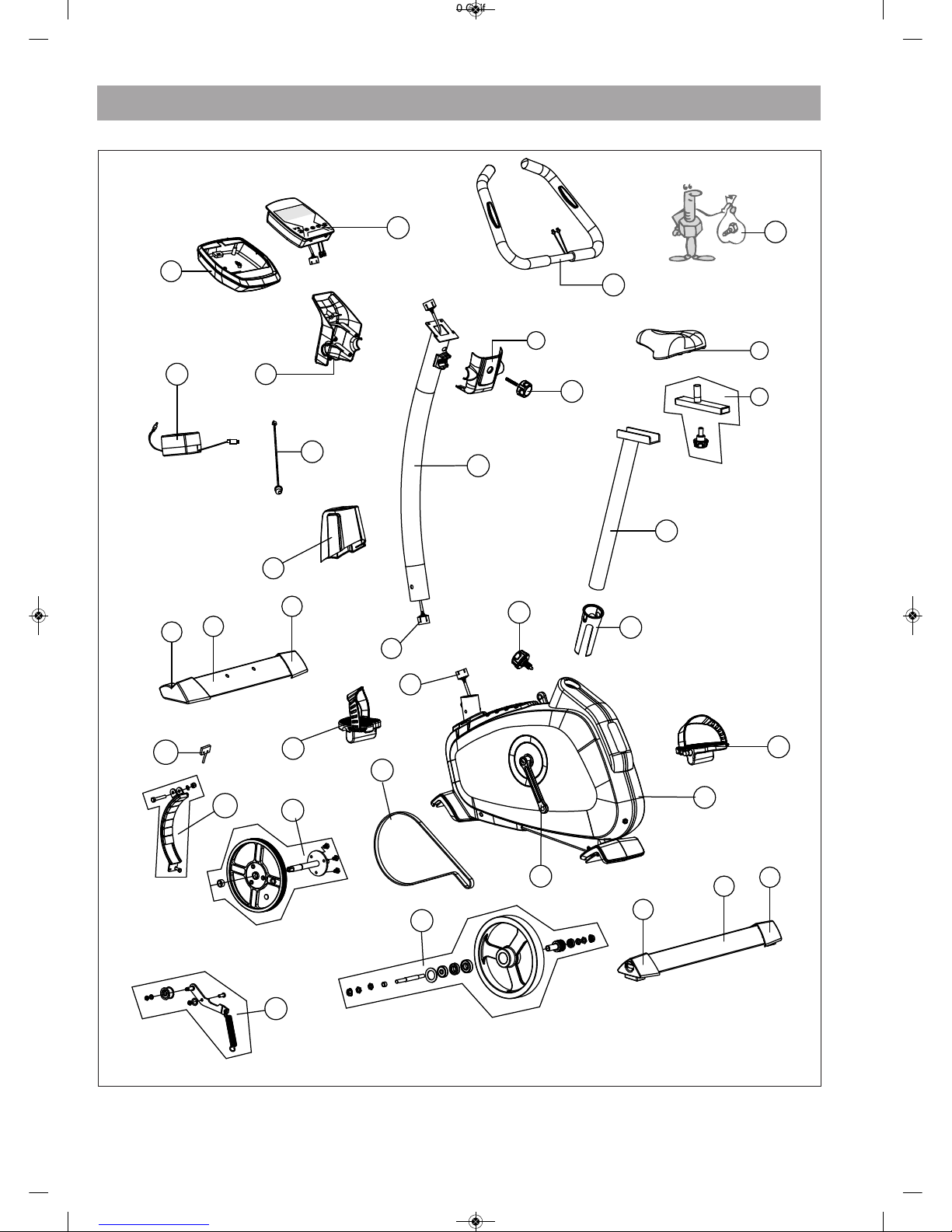

List of spare parts page 28-29

When ordering spare parts, always state the full article number,
spare-partnumber, the quantity required and the S/N of the product
(see handling).

Example order: Art.no. 07628-800 / spare-part no. 68009040

/ 1 pieces / S/N ....................

Please keep original packaging of this article, so that it may be
used for transport at a later date, if necessary.

Goods may only be returned after prior arrangement and in
(internal) packaging, which is safe for transportation, in the original
box if possible.

It is important to provide a detailed defect description / damage
report!

Important: spare part prices do not include fastening material; if
fastening material (bolts, nuts, washers etc.) is required, this should
be clearly stated on the order by adding the words „with fastening

material“.

Waste Disposal

KETTLER products are recyclable. At the end of its useful life please
dispose of this article correctly and safely (local refuse sites).

KETTLER GB Ltd.

Kettler House, Merse Road
North Moons Moat
Redditch, Worcestershire B98 9HL

[phone] [phone]

www.kettler.co.uk Mail: [e-mail]

KETTLER International Inc.

1355 London Bridge Road [phone]
Virginia Beach, VA 23453 [phone]

www.kettlerusa.com

USA



GB

Instructions for Assembly

RISK! Ensure that your working area is free of possible sources

of danger, for example don’t leave any tools lying around.
Always dispose packaging material in such a way that it may
not cause any danger. There is always a risk of suffocation if
children play with plastic bags!

• Ensure that you have received all the parts required (see check
list) and that they are undamaged. Should you have any cause
for complaint, please contact your KETTLER dealer.

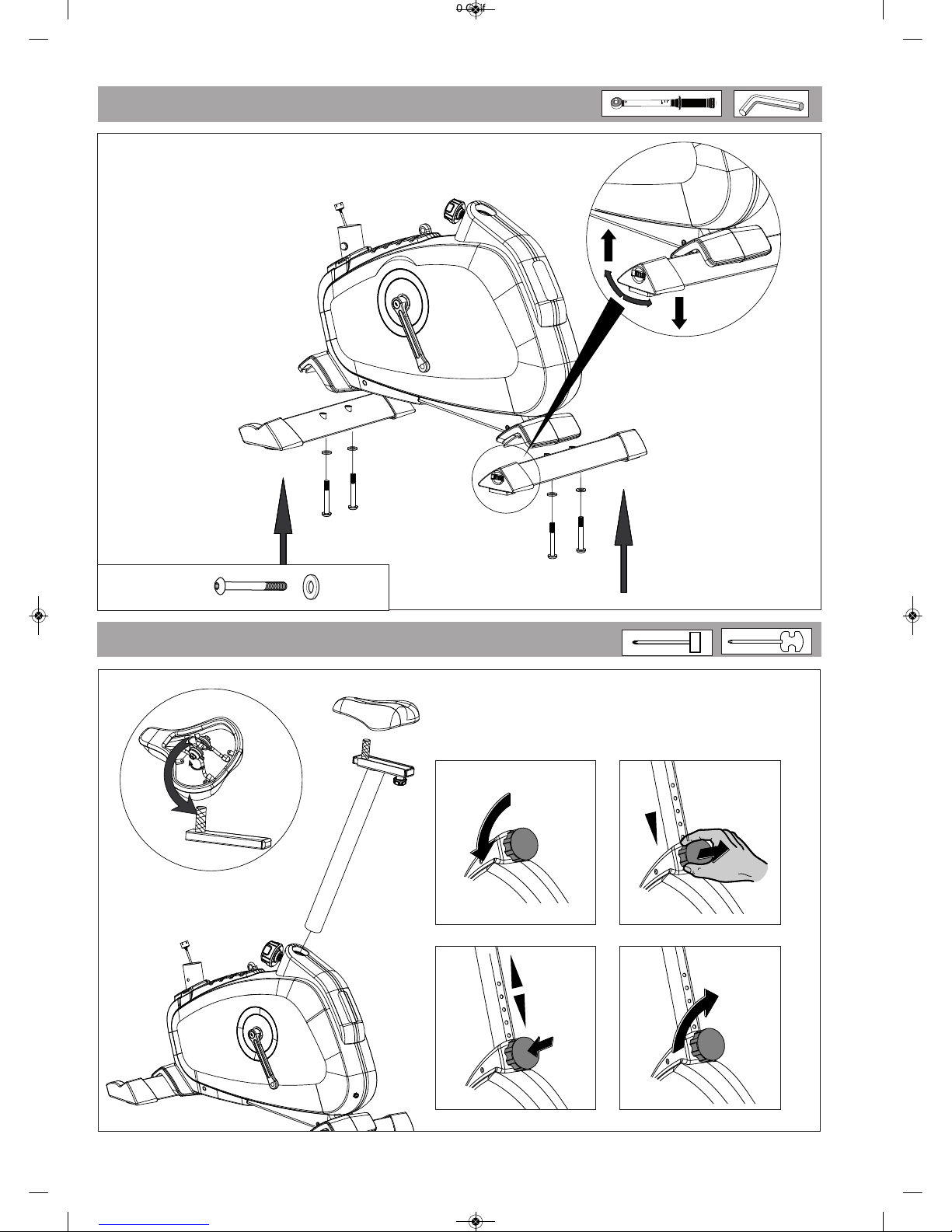

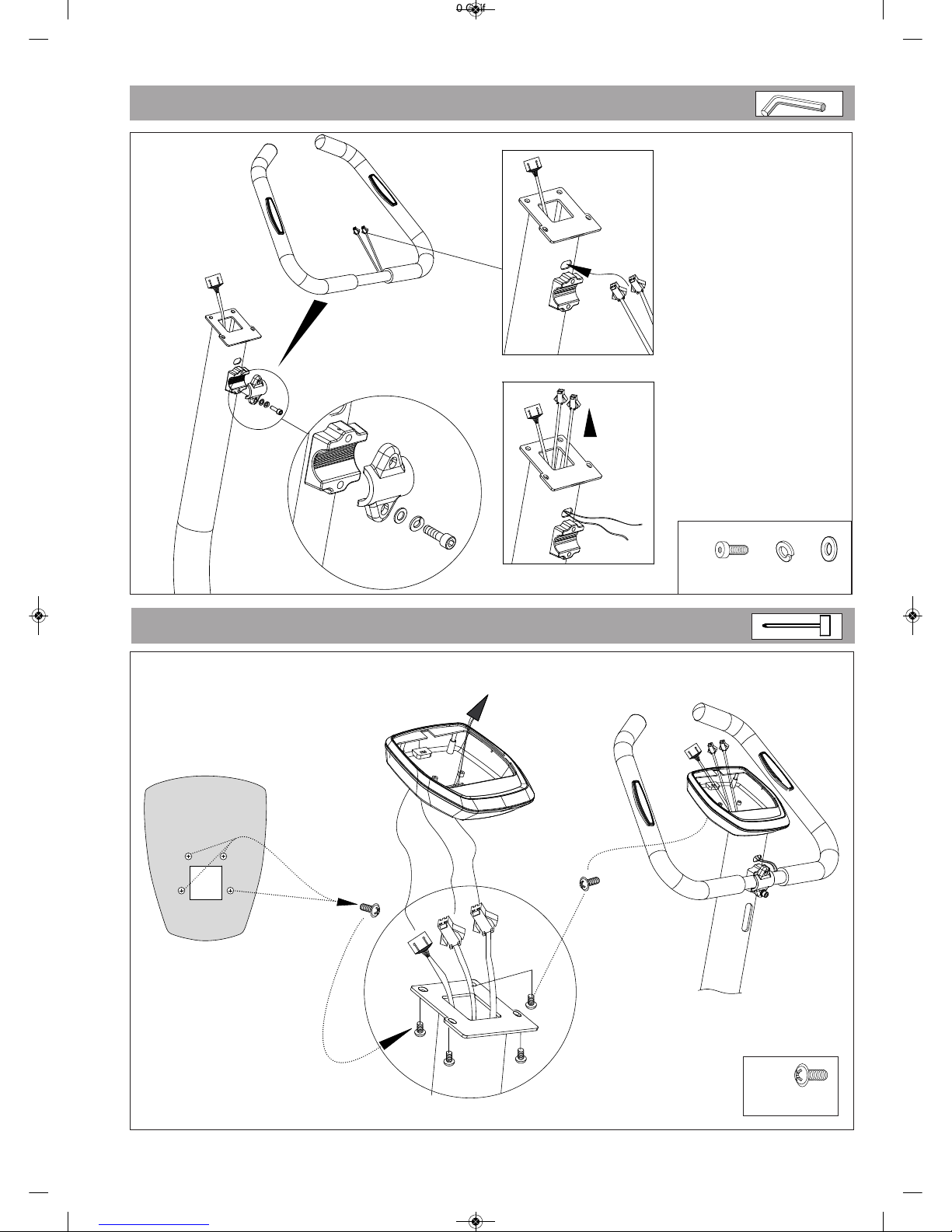

• Before assembling the equipment, study the drawings carefully
and carry out the operations in the order shown by the diagrams.
The correct sequence is given in capital letters.

• The equipment must be assembled with due care by an adult
person. If in doubt call upon the help of a second person, if pos­sible technically talented.

• Please note that there is always a danger of injury when working
with tools or doing manual work. Therefore please be careful
when assembling this machine.

!

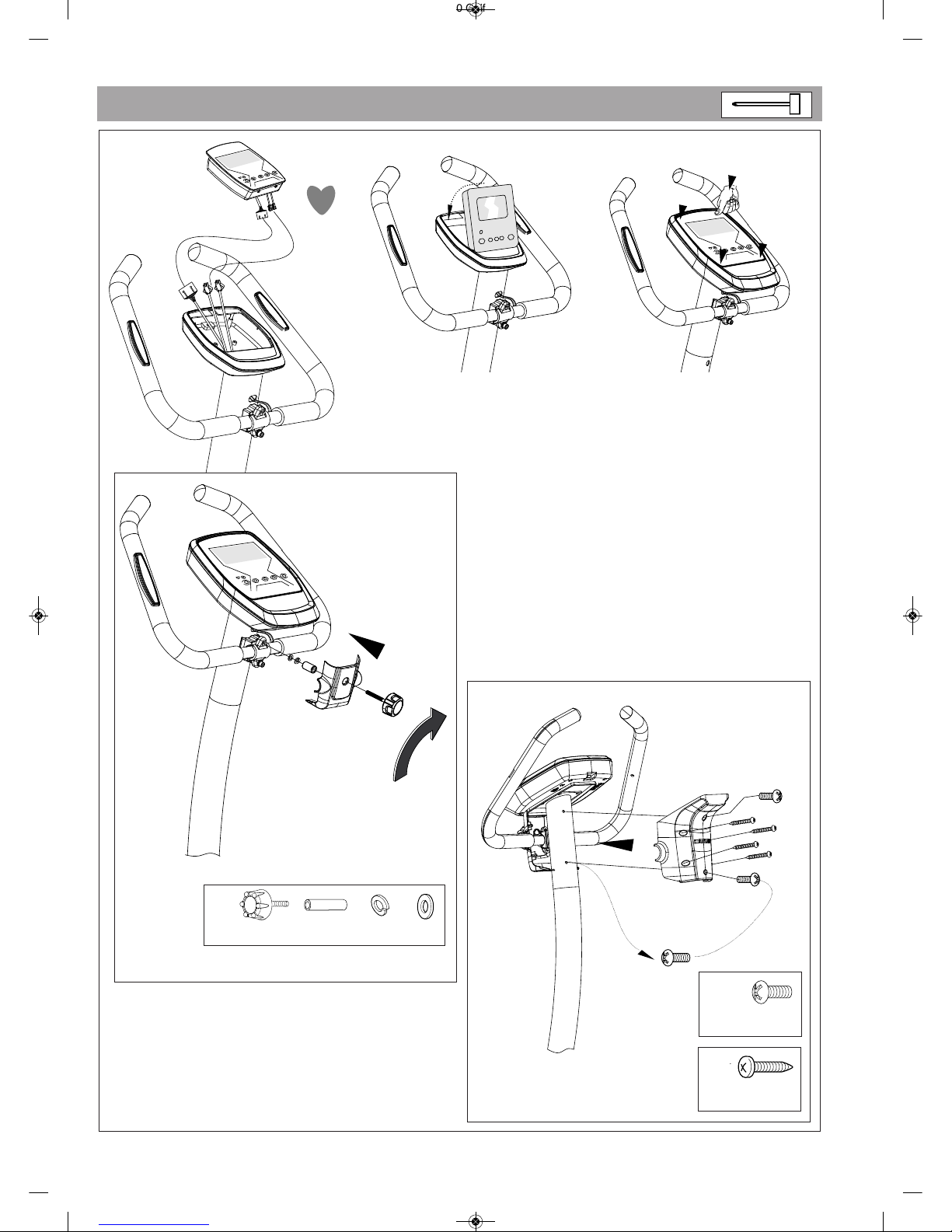

• The fastening material required for each assembly step is shown
in the diagram inset. Use the fastening material exactly as
instructed.

• Bolt all the parts together loosely at first, and check that they have
been assembled correctly. Tighten the locknuts by hand until resis­tance is felt, then use spanner to finally tighten nuts completely
against resistance (locking device). Then check that all screw con­nections have been tightened firmly. Attention: once locknuts have
been unscrewed they no longer function correctly (the locking
device is destroyed), and must be replaced.

• For technical reasons, we reserve the right to carry out preliminary
assembly work (e.g. addition of tubing plugs).

• Before use, always check all screws and plug-in connections as
well as respective safety devices fit correctly.

•

Always wear suitable shoes when using.

•

Nobody may be in the moving range of a training person during
t

raining

07628-_CycleP,VeloP, SintoP_3068b-0313.de,en,fr,nl,es,it,pl,pt,da,cs_7660-700 Golf S 1675b-0806 14.03.13 15:41 Seite 5

22

Messhilfe für Verschraubungsmaterial

– GB – Measuring help for screw connections

– F – Gabarit pour système de serrage

– NL – Meethulp voor schroefmateriaal

– E – Ayuda para la medición del material de atornilladura

– I – Misura per materiale di avvitamento

– PL – Wzornik do połączeń śrubowych

– P – Auxiliar de medição para materiais de aparafusamento
– DK – Hjælp til måling af skruer
– CZ – Měřící pomůcka pro materiál k přišroubování

– D – Beispiele; – GB – Examples; – F – Examples; – NL – Bij voorbeeld; – E – Ejemplos; –
I – Esempio; – PL – Przyktady; – P – Exemplo; – DK – Eksempel; – CZ – Příklad

– D – Gehört nicht zum Lieferumfang.

– GB – Not included.

– F – Ne fait pas partie du domaine de livraison.

– NL – Is niet bij de levering inbegrepen.

– E – No forma parte del volumen de entrega.

– I – Non in dotazione alla fornitura.

– PL – Nie należy do zakresu dostawy.

– P – Não está incluído nas peças fornecidas
– DK – Er ikke inkluderet i leveringsomfanget.
– CZ – Hjælp til måling af skruer

07628-_CycleP,VeloP, SintoP_3068b-0313.de,en,fr,nl,es,it,pl,pt,da,cs_7660-700 Golf S 1675b-0806 14.03.13 15:41 Seite 22

23

Checkliste (Packungsinhalt)

– GB – Checklist (contents of packaging)

– F – Checklist (verpakkingsinhoud)

– NL – Checklist (verpakkingsinhoud)

– E – Lista de control (contenido del paquete)

– I – Lista di controllo (contenuto del pacco)

– PL – Lista kontrolna (zawartość opakowania)

– P – Lista de verificação (conteúdo da embalagem)
– DK – Checkliste (pakkens indhold)
– CZ – Kontrolní seznam (obsah balení)

1

1

Stck.

29

Pos. 34

1

1

1

1

1

1

1

1

1

1

4

ø 7

1

ø 8x19

2

M 8x60

ø 7x25

M 7x30

4

ø 7

4

3x16

2

1

4x M8x20

2x M5x12

4x M5x16
