KETTLER
CAVALIER OUTDOOR
FOOSBALL TABLE
Model 7199-200
Adult Assembly Required Made in Italy
Picture Similar
1 reqd.
KETTLER® International Inc. • 1355 London Bridge Road • Virginia Beach, VA 23453 USA
www.kettlerusa.com
info@kettlerusa.com
All KETTLER® products are designed in accordance with the latest safety regulations and undergo a constant
process of quality control during manufacturing. The knowledge gained in this process is used to constantly improve
and develop our products. In order to offer our customers the very best in product quality, we reserve the right to
make technical changes at any time. In spite of this, should you have any cause for complaint, please contact
KETTLER®.
Before assembling or using the foosball table, please read the following instructions carefully. They contain
important information for use and maintenance of the equipment as well as for your personal safety. Keep
these instructions in a safe place for maintenance purposes or for ordering spare parts.
• The foosball table should be used only for its
intended purpose, i.e. for playing with suitable
balls.
• All other uses are prohibited and may be
dangerous. The manufacturer cannot be held
liable for damage or injury caused be improper
use of the table.
• Damaged or worn components may endanger
your safety or shorten the lifespan of the foosball
table. Replace worn or damaged components
immediately and remove the table from use until
this has been done. Use only spare parts
manufactured by KETTLER®.
• The foosball table complies with all safety
regulations. Incorrect repairs, alterations to the
design (removal of original parts, addition of
other components etc.) may endanger the safety
of the user.
• Instruct other persons (in particular children)
using the table in its correct use, and draw their
attention to any potential source of danger,
especially when setting up or dismantling the
table.
• Caution: During assembly, keep all items out of
children’s reach (choking hazard-contains small
parts).
• Regularly check all screws, bolts etc. to ensure
they are in good condition.
• Warning: This is a heavy product. Do not
attempt to move or maneuver without
adequate help and safety measures. May result
in injury. Children should not move table.
• Do not use the foosball table until it has been
fully and correctly assembled and checked.
• Set the table up on a level surface.

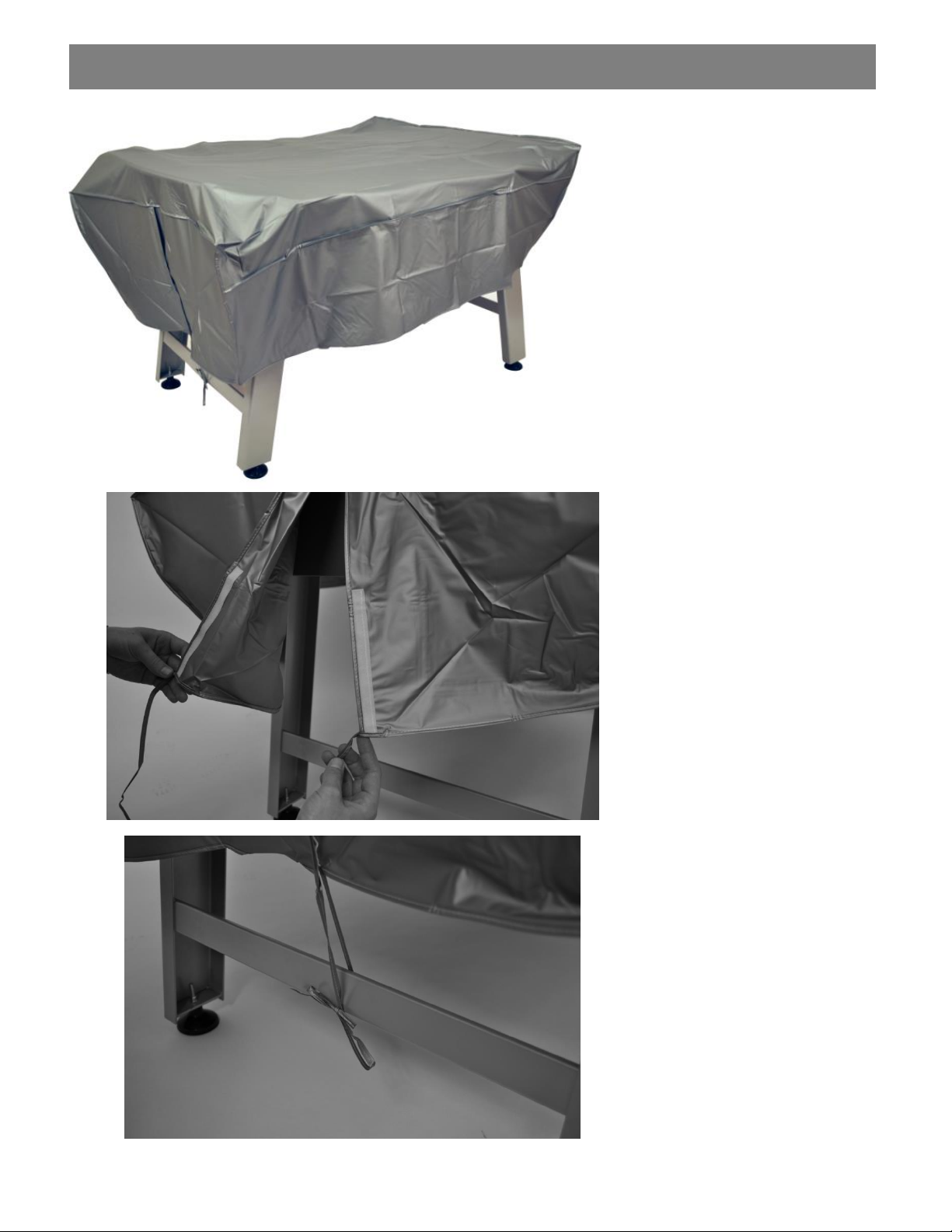

• When not playing or storing the table, always
use the included protective cover.
• Do not use corrosive or abrasive materials to
clean the equipment. Ensure that such
materials are not allowed to pollute the
environment. In most cases a damp cloth is
sufficient.
• Waste disposal: KETTLER® products are
recyclable. At the end of its useful life, please
dispose of correctly and safely complying with
your local facilities and guidelines.
• Once the table is assembled it may not fit
through your doorways. For this reason you
should assemble the table where you intend to
use the table. Should you wish to move the
table some disassembly may be required.
1

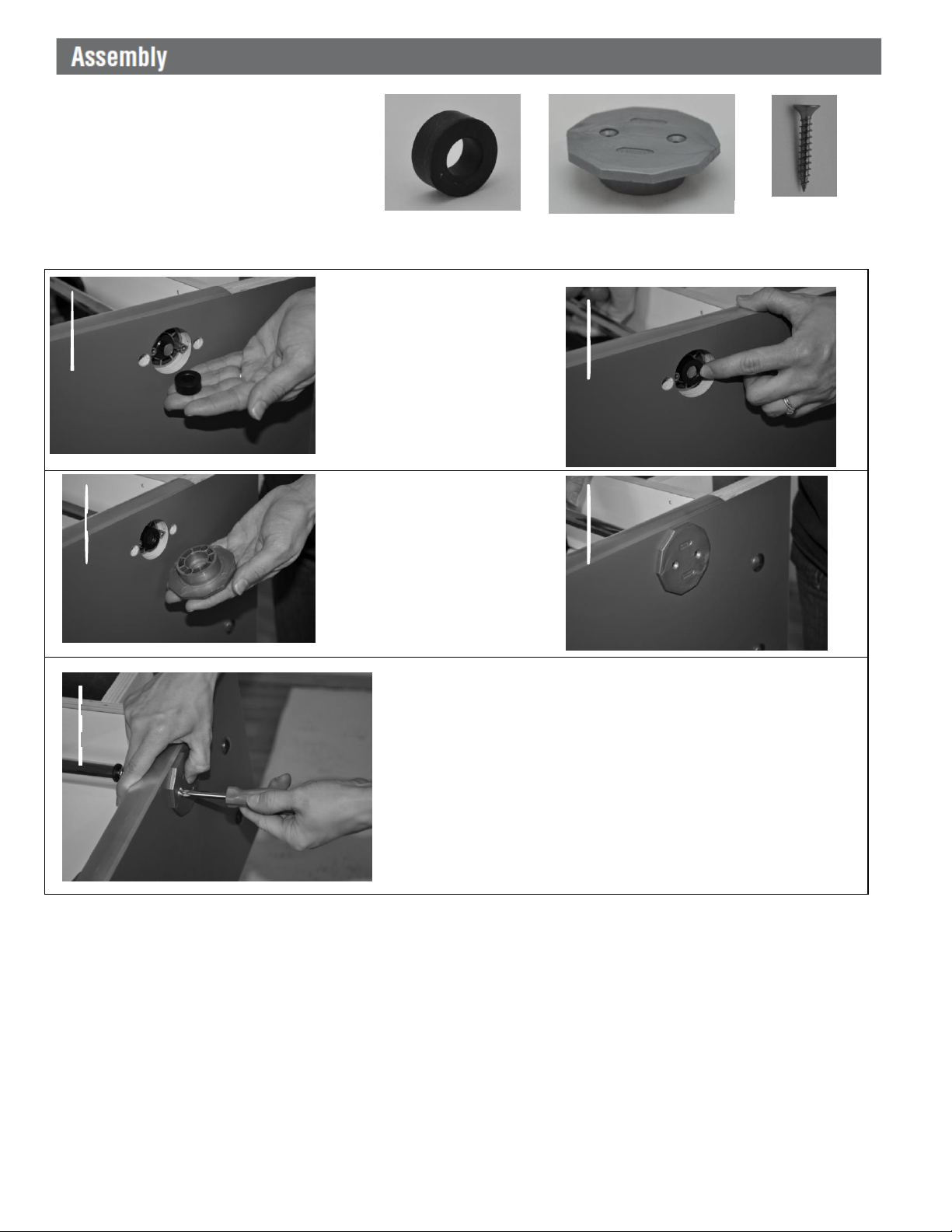

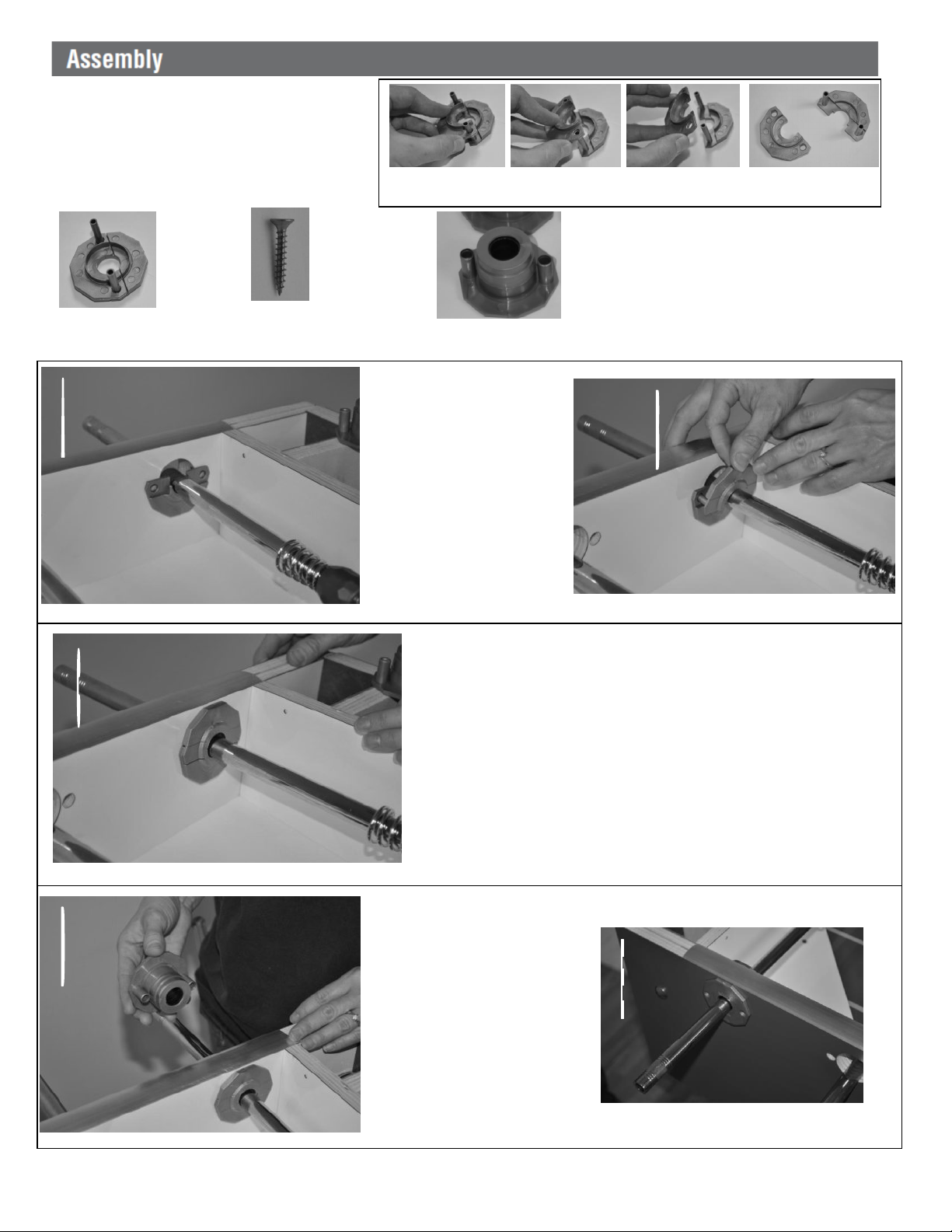

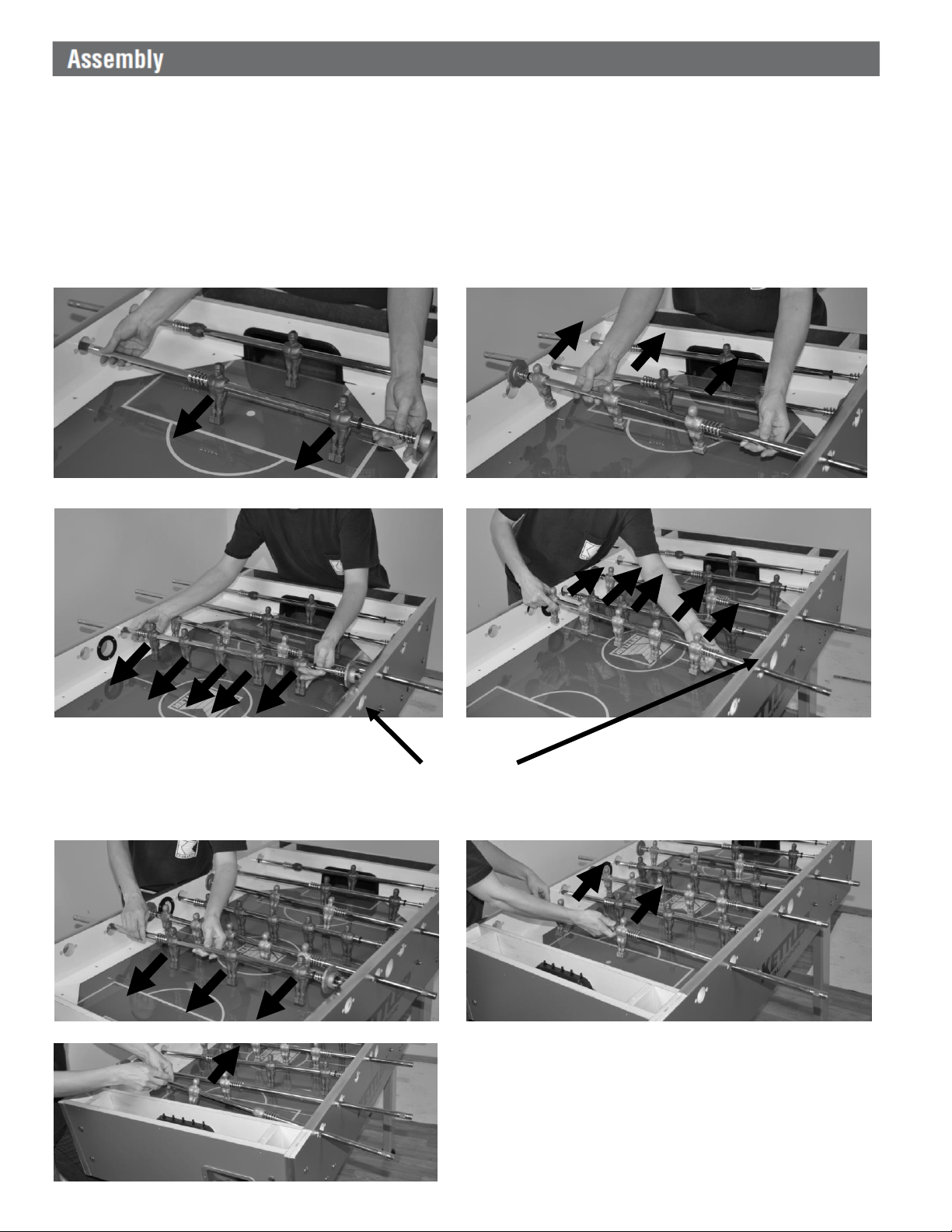

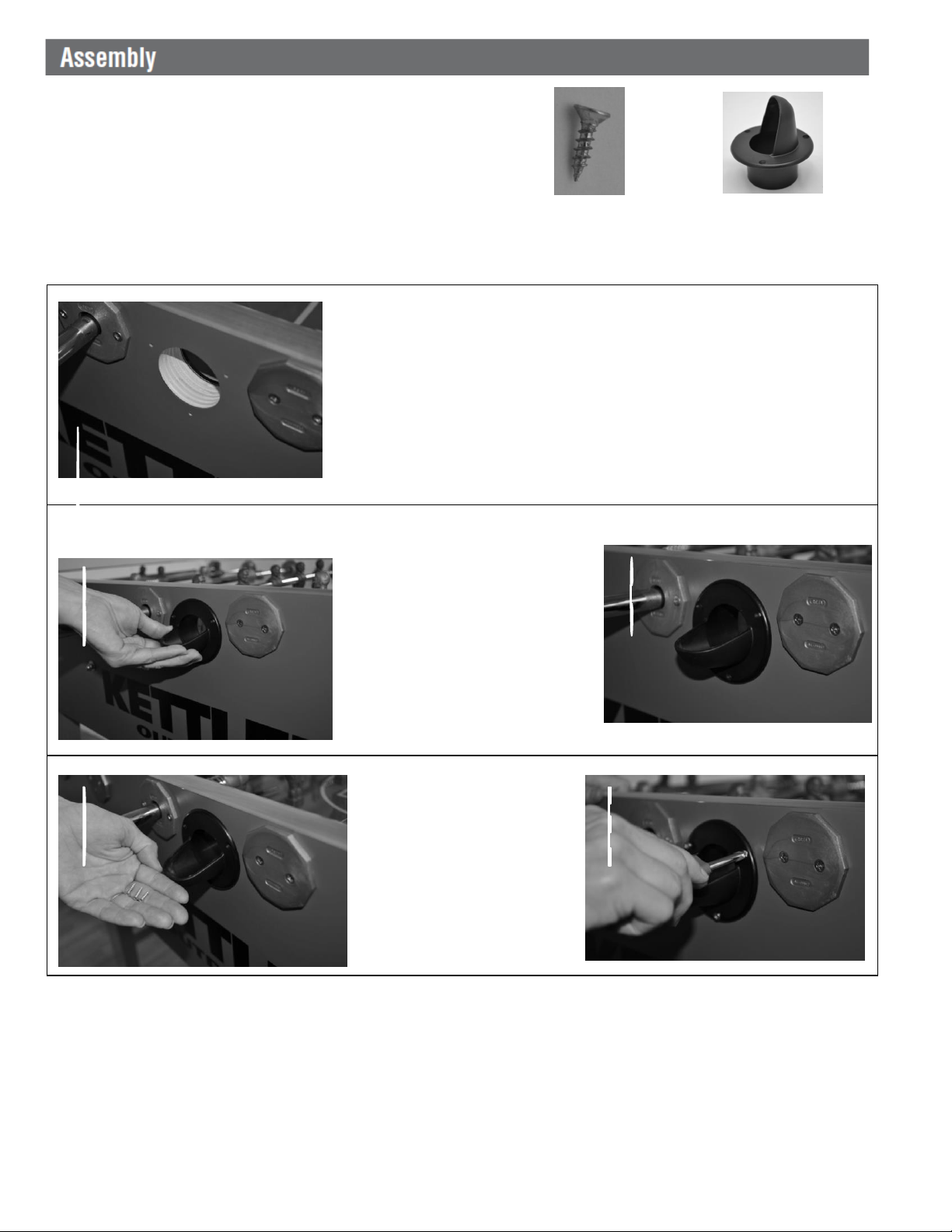

Number Included-1
Number Included-2
Number Included-8
Number Included-1
Number Included-2
Number Included-5
Number
Included-2
2
Number Included-2
Number Included-4
Number Included-8
Number Included-6
(M2.8 X 11.5 Screw)
Number Included-44
(M4 X 25 Screw)
Number Included-
10 Blue
10 Silver
Number Included-
2 Blue
2 Silver
Number Included-8
Number Included-8
Number
Included-8
(M8x40 Carriage Bolt)
Number Included-8
Number Included-4
(M3.9X35 Screw)
Number Included-
1 Set Blue
1 Set Silver
Number Included-8
(M8 Lockwasher)
Number Included-8
(M8 Hexnut)
3
May come
assembled as
one piece or
separately as
two pieces.
Step 1
Leg Assembly
1 required
1 required
Place legs inside cabinet at an
outward angle. Horizontal bar
between legs should be
toward table end. (A)
Ensure holes in side of cabinet
align with holes in leg. Insert
two M8 x 40 Carriage Bolts
from the outside in towards
leg. (B)
Using hammer, lightly tap bolt
heads into side (C), ensuring
they are flush with cabinet (D).
4
2 each required
1 required
Step 1 (continued)
REPEAT STEP 1 A-G FOR EACH LEG
Step 2
Setting the table upright
From inside of cabinet, place M8
Lockwashers then M8 hexnuts
onto Carriage Bolt ends (E) and
tighten (F).
Screw floor leveler into leg post. (G)
Turn the table onto its feet to
prepare for the next assembly
step.
Warning: This is a heavy product.
Do not attempt to move or
maneuver without adequate help
and safety measures. May result in
injury.
5
IMPORTANT: Have two
people complete Step 2.
