Operating manual
Pallet truck scales
KERN VFB
Version 1.0
07/2013
GB
VFB-BA-e-1310
GB
KERN VFB
Version 1.0 07/2013
Operating instructions Pallet truck scale
Contents
1 Technical data ................................................................................................... 4
2 Basic instructions about weighing system ..................................................... 5
2.1 Proper use .................................................................................................................................. 5
2.2 Improper Use .............................................................................................................................. 6
2.3 Warranty ..................................................................................................................................... 6
2.4 Monitoring of Test Resources ..................................................................................................... 6
3 Basic safety notes about weighing system .................................................... 7
3.1 Pay attention to the instructions in the Operation Manual .......................................................... 7
3.2 Personnel training ....................................................................................................................... 7
4 Transport and storage ...................................................................................... 7
4.1 Testing upon acceptance ........................................................................................................... 7
4.2 Packaging / return transport ....................................................................................................... 7
5 Unpacking, Setup and Commissioning ........................................................... 8
5.1 Assembly of the pallet truck scale .............................................................................................. 8
5.1.1 Drawbar ...................................................................................................................................... 8
5.1.2 Display Unit ............................................................................................................................... 10
5.2 Proper use of the lifting device ................................................................................................. 10
5.3 Installation site, location of use of the weighing system ........................................................... 11
5.4 Scope of delivery ...................................................................................................................... 13
5.5 Mains connection ...................................................................................................................... 13
5.6 Rechargeable battery operation ............................................................................................... 13
5.7 Commissioning ......................................................................................................................... 13
5.8 Appliance overview ................................................................................................................... 14
5.9 Overview of display ................................................................................................................... 15
5.10 Keyboard overview ................................................................................................................... 16
5.10.1 Numerical input via the navigation buttons ........................................................................... 17
6 Linearization .................................................................................................... 18
7 Adjustment ....................................................................................................... 21
7.1 Zero-setting............................................................................................................................... 21
8 Functions of display unit ................................................................................ 23
8.1 Prior to weighing ....................................................................................................................... 23
8.1.1 Zero-point check ....................................................................................................................... 23
8.1.2 Net weighing: Taring by button ................................................................................................. 23
8.2 Numerical tare input (PRETARE) ............................................................................................. 24
8.2.1 Enter tare weight ....................................................................................................................... 24
8.2.2 Delete pretare value ................................................................................................................. 24
8.3 Weighing ................................................................................................................................... 25
8.3.1 Gross weighing ......................................................................................................................... 25
8.3.2 Net weighing ............................................................................................................................. 25
8.4 Weighing units switch-over ....................................................................................................... 26
8.5 Weighing with tolerance range ................................................................................................. 27
8.6 Manual totalizing ....................................................................................................................... 29
8.7 Automatic adding-up ................................................................................................................. 31
8.8 Animal weighing ........................................................................................................................ 32
8.9 Peak value function .................................................................................................................. 33
VFB-BA-e-1310 2
9 Menu ................................................................................................................. 34
9.1 Navigation in the menu ............................................................................................................. 34
9.2 Menu overview .......................................................................................................................... 35
10 Servicing, maintenance, disposal .............................................................. 38
10.1 Clean ........................................................................................................................................ 38
10.2 Servicing, maintenance ............................................................................................................ 38
10.3 Disposal .................................................................................................................................... 38
11 Error messages ............................................................................................ 39
12 Instant help ................................................................................................... 40
3 VFB-BA-e-1310
1 Technical data
KERN
VFB 2T-3
Readability (d)
1 kg
Weighing range (max)
2000 kg
Reproducibility
1 kg
Linearity
± 2 kg
Warm-up time
10 min
Recommended
adjustment weight (not
added) class
1 t
( M1 )
Allowable ambient
temperature
-10° C .... + 40° C
Humidity of air
max. 95 %
(not condensing)
Weighing Units
kg, lb
Electric Supply
110V-230V AC
12 V, 500 mA
Rechargeable battery
7.2 V 2000 mAh
Operating period background illumination OFF: 40h
Service life background illumination ON: 20h
Loading time: 12 h
Auto Off
Options: 0, 3, 5, 10, 30 min
Net weight
126 kg
Fork height
max: 200 mm
min: 85 mm
LCD-display
cipher height
22 mm
VFB-BA-e-1310 4
Dimensions in mm:
2 Basic instructions about weighing system
2.1 Proper use
The weighing system you purchased is intended to determine the weighing value of
material to be weighed. It is intended to be used as a “non-automatic balance”, i.e.
the material to be weighed is manually and carefully placed in the centre of the
loading fork. As soon as a stable weighing value is reached the weighing value can
be read.
5 VFB-BA-e-1310
2.2 Improper Use
The weighing system is not suitable for dynamic weighing. In the event that small
quantities are removed or added to the material to be weighed, incorrect weighing
results can be displayed due to the “stability compensation“ in the weighing system.
(Example: Slowly draining fluids from a container on the weighing system.)
Do not leave permanent load on the loading fork. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the weighing
system, minus a possibly existing tare load, must be strictly avoided. The weighing
system could be damaged.
Never operate the weighing system in an explosive environment. The serial version
is not explosion protected.
Changes to the weighing system's design are not permitted. This may lead to
incorrect weighing results, safety-related faults and destruction of the weighing
system.
The weighing system unit may only be operated in accordance with the described
default settings. Other areas of use must be released by KERN in writing.
2.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage and damage caused by media, liquids
Natural wear and tear
Improper setup or incorrect electrical connection
The measuring system is overloaded
2.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
weighing system and, if applicable, the testing weight, must be checked regularly.
The responsible user must define a suitable interval as well as type and scope of this
test. Information is available on KERN’s home page (www.kern-sohn.com) with
regard to the monitoring of balance test substances and the test weights required for
this. In KERN’s accredited DKD calibration laboratory test weights and balances may
be calibrated (return to the national standard) fast and at moderate cost.
VFB-BA-e-1310 6
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN
balances.
All language versions contain a non-binding translation.
The original German is binding.
Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the
weighing platform, power unit etc. against shifting and
damage.
3 Basic safety notes about weighing system
3.1 Pay attention to the instructions in the Operation Manual
3.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
4 Transport and storage
4.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
4.2 Packaging / return transport
7 VFB-BA-e-1310
5 Unpacking, Setup and Commissioning
Loosen the screw for adjustment
of hydraulics
Pass the draw chain of the drawbar through the opening and after that through
the bolt in the pallet truck scale
5.1 Assembly of the pallet truck scale
5.1.1 Drawbar
The drawbar is delivered separated from the hydraulic lifting device. Prior to
commissioning the two components must be connected to each other. Details see
below.
VFB-BA-e-1310 8
Fix the grab handle using 3 screws
Insert rod at the lower end of the
draw chain at the oblong hole of
the hydraulic lever till to the
stopper
To start-up the lifting mechanism
screw down the adjustment screw
till to the preset stopper
9 VFB-BA-e-1310
5.1.2 Display Unit
Fasten the display device with both
turning knobs (1) on the pallet truck
scale and screw-in the load cell
cable (2) into the connection of the
display device.
Lower the loading fork
Move the load
Lift the loading fork
5.2 Proper use of the lifting device
VFB-BA-e-1310 10
Incorrect lifting of a load
Correct lifting of a load
5.3 Installation site, location of use of the weighing system
The weighing system is designed to achieve reliable weighing results under normal
conditions of use.
You will work accurately and fast, if you select the right location for your weighing
system.
Therefore, observe the following for the installation site:
The load must be lifted clear of the display unit’s case and other pallets.
The accuracy of the weighing system is falling by approximately 0.1 % per
degree if there is a slant of more than 2°. Holes and unevenness, too, have
this effect. A smooth floor is ideal.
Optimum accuracy in weighing results is achieved if the load centre is
between the forks. The forks are easily bent and twisted when the load is offcentre. This may result in diminished accuracy.
In verifiable models off-centre loads, or slants affecting accuracy, activate the
inclination switch which in turn disconnects the display.
11 VFB-BA-e-1310
Non-optimal positioning of load
Optimal positioning of load
Pallet
Load
Temperature range: The maximum deviation for 0.1% of the weighed load is
between -10 and +40°C. Outside this temperature range deviations of up to
0.3% may occur.
Avoid jarring during weighing
Protect the weighing system against high humidity, vapours and dust
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
Major display deviations (incorrect weighing results) may be experienced
should electromagnetic fields (e.g. due to mobile phones or radio equipment),
static electricity accumulations or instable power supply occur. Change
location or remove source of interference.
VFB-BA-e-1310 12

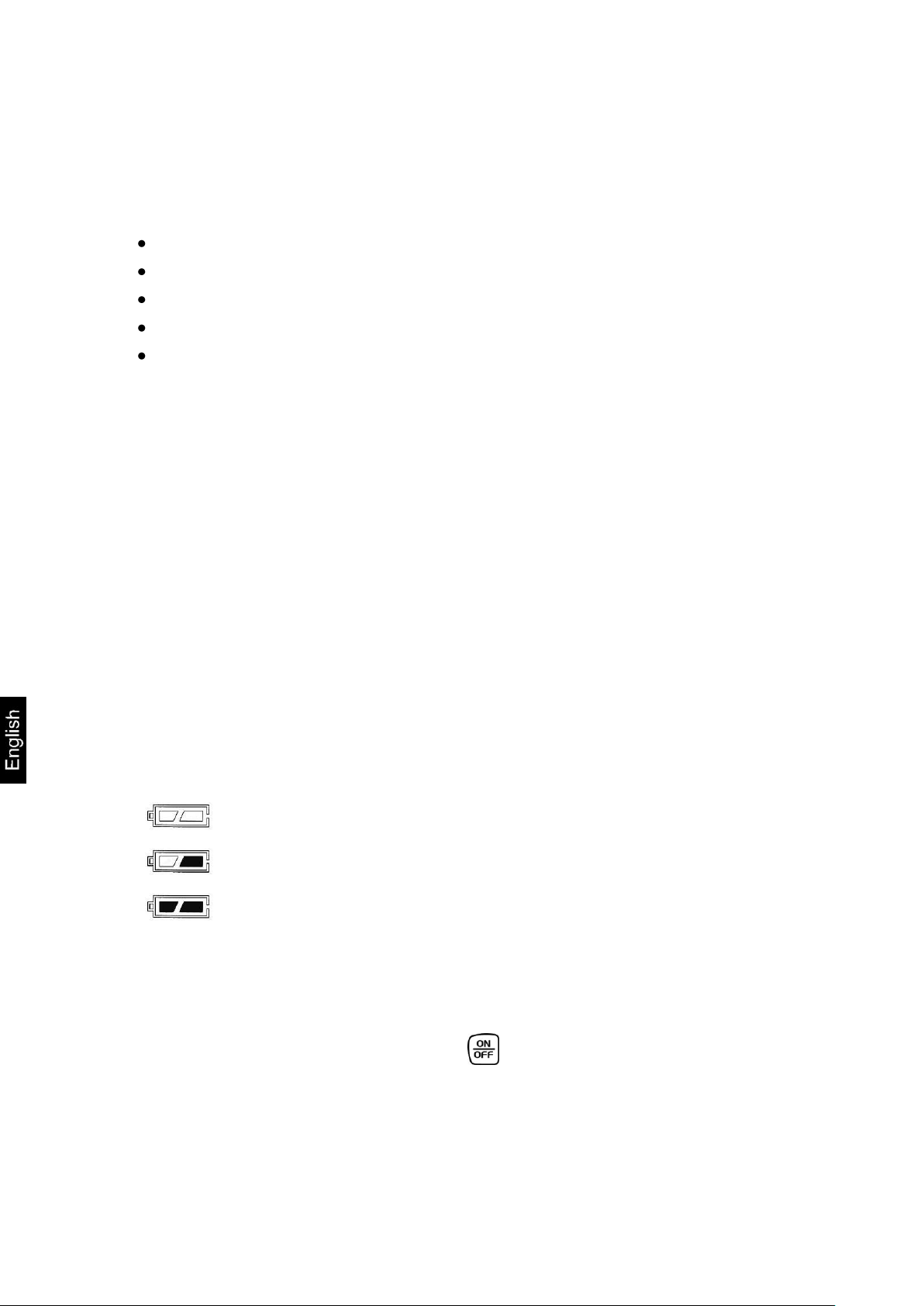

Voltage has dropped below prescribed minimum.
Rechargeable battery very low.
Rechargeable battery is completely charged (rechargeable battery
symbol flashes while loading)
5.4 Scope of delivery
Serial accessories:
Pallet truck scales
Battery 7.2V/2000 mAh
Mains adapter
Hexagon screw driver
Operating manual
5.5 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage. Only use original KERN mains adapters. Using other
makes requires consent by KERN.
5.6 Rechargeable battery operation
Before the first use, the battery should be charged by connecting it to the mains
power supply for at least 12 hours.
The appearance of the rechargeable battery symbol in the weight display indicates
that the battery is almost exhausted. The unit will be ready for operation for approx.
another 10 hours before switching off automatically. Charge the battery with the help
of the supplied power pack. During the loading process the rechargeable battery
symbol is displayed flashing.
The rechargeable battery symbol shows the charge status of the rechargeable
battery:
5.7 Commissioning
Prior to starting-up the weighing system, load the rechargeable battery completely.
To activate the weighing system, press the key.
The operating temperature for the electronic system and the weighing cells will have
been reached after three to five minutes. . Prior to this, deviations of c. 0.3% are
possible.
Loads should not be lifted before this zero adjust is complete.
13 VFB-BA-e-1310
5.8 Appliance overview
1
Manual lever
2 Drawbar
3 Display Unit
4 Load forks
5 Connection of mains adapter
6 Turning knobs
7 Load cell cables
Manual lever
(Hand lever + Drawbar = Lifting device)
VFB-BA-e-1310 14
Display
Significance
Charging status of rechargeable battery
STABLE
Stability display
ZERO
Zero indicator
GROSS
Gross weight
NET
Net weight
AUTO
Automatic add-up enabled
M+
Totalization
HI
OK
LO
Indicators for weighing with tolerance range
5.9 Overview of display
15 VFB-BA-e-1310
Key
Function
Turn on/off
Zeroing
Navigation button
Confirm entry
Taring
Invoke pre-tare-function (press button long time)
Navigation button
At numeric input increase flashing digit
Scroll forward in menu
Add weighing value to summation memory
Display sum total
Calculate weighing data via interface
C
Delete
Change between gross and net weight
Navigation button
Digit selection to the right
Switch-over weighing unit
ESC
Back to menu/weighing mode
5.10 Keyboard overview
VFB-BA-e-1310 16
Actuation of a button is only accepted, when the load is stable (and
the stability display „STABLE“ is illuminated). The display unit only
carries out functions as long as the load is stable.
Key
Navigation
keys
Function
Arrow key
Increase flashing digit
Arrow key
Digit selection to the left
Delete
Arrow key
Digit selection to the right
Arrow key
Terminate input
5.10.1 Numerical input via the navigation buttons
17 VFB-BA-e-1310
6 Linearization
Carrying out linearization is restricted to specialist staff possessing well
acquainted with the workings of weighing scales.
The test weights to be used must be adapted to the weighing scale’s
specifications; see chapter 2.4 “Testing instruments control”.
Observe stable environmental conditions. Stabilisation requires a
certain warm-up time.
After successful linearization you will have to carry out an adjustment.
Linearity shows the greatest deviation of a weight display on the scale to the value of
the respective test weight according to plus and minus over the entire weighing
range.
If linearity deviation is discovered during a testing instrument control, you can
improve this by means of linearization.
VFB-BA-e-1310 18

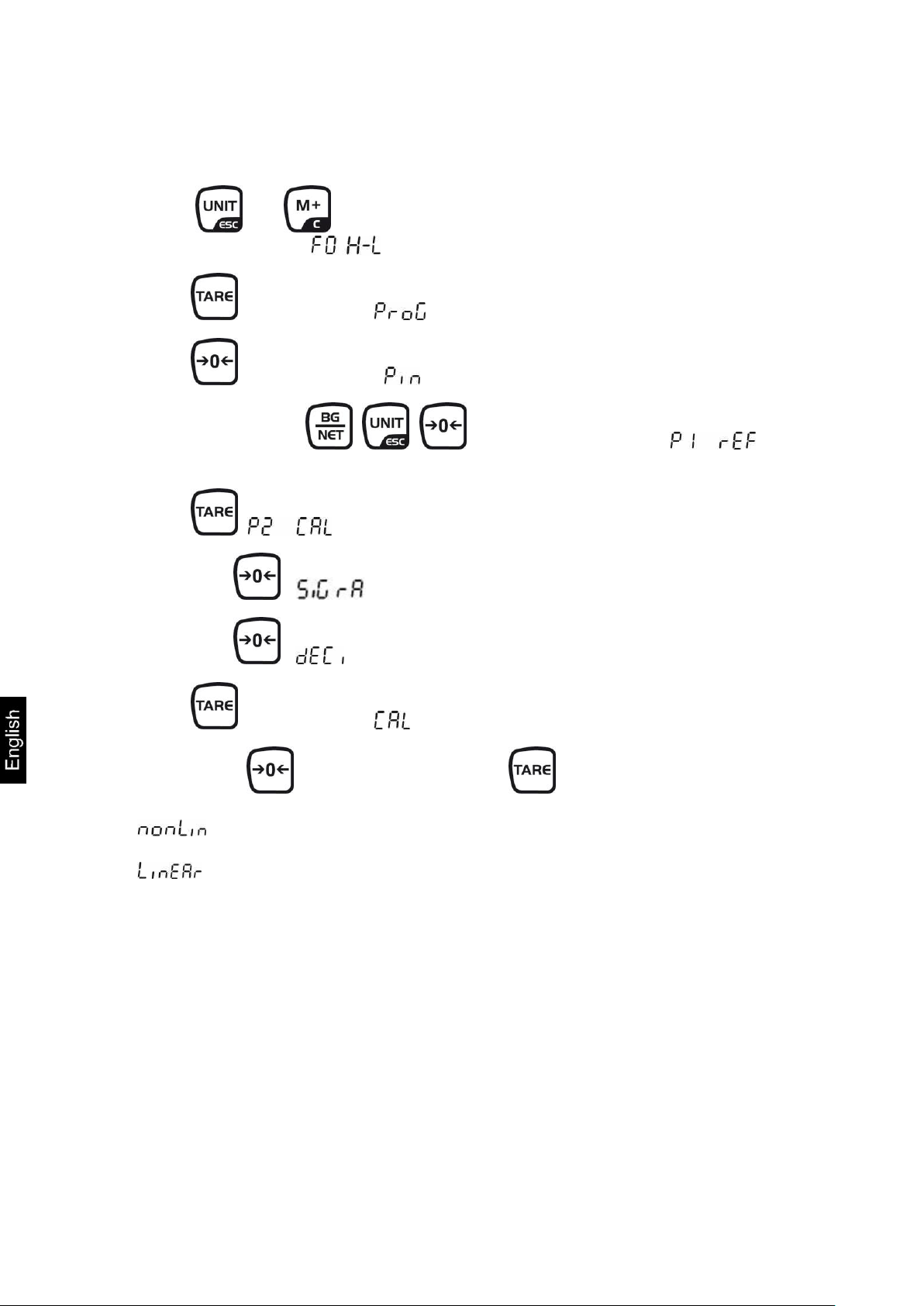

Call up menu
Press and at the same time in weighing mode.
The first menu block is displayed.
Press repeatedly until is displayed.
Press , password query will appear.
Press subsequently , , until the first menu item is
shown.
Press , will be shown.
Confirm by , will be displayed.
Confirm by , will be displayed.
Press repeatedly until is displayed.
Confirm with , select desired setting by
= adjustment see chap. 7
= linearization, see chap. 6
19 VFB-BA-e-1310
How to carry out linearization:
Call up menu item
Acknowledge with .
Ensure that there are no objects on the weighing plate.
Wait for stability display, then press . When “LoAd 1“ is
displayed, put the first adjustment weight (1/3 max) carefully
in the centre of the weighing platform.
Wait for stability display, then press . . When “LoAd 2“
is displayed, put the second adjustment weight (2/3 max)
carefully in the centre of the weighing platform.
Wait for stability display, then press . When “LoAd 3“ is
displayed, put the third adjustment weight (1/3 max) carefully
in the centre of the weighing platform.
Wait for stability display, then press .
After the adjustment the balance will carry out a self-test. Err
4 will appear briefly, followed by weighing value. The system
is now in weighing mode.
Remove weight, „0“ is displayed.
An adjusting error or incorrect adjusting weight will be
indicated by the error message; repeat adjustment
procedure.
After the linearization the weighing system should be adjusted as
follows:
VFB-BA-e-1310 20
7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of
location (only if the balance has not already been adjusted to the location in the
factory). This adjustment process must be carried out for the first commissioning,
after each change of location as well as in case of fluctuating environment
temperature. To receive accurate measuring values it is also recommended to
adjust the balance periodically in weighing operation.
Observe stable environmental conditions. A warming up time (see chapter 1) is
required for stabilization. Ensure that the system is not loaded. The system should
be lifted by approximately 2 lifting index markings and stand absolutely free.
7.1 Zero-setting
Unload the weighing system and switch-on by .
If the weighing system does not display „0“, press
21 VFB-BA-e-1310
Invoke menu item , see chapter 9.1 “How to invoke a menu“.
How to carry out adjustments
Acknowledge with .
Ensure that there are no objects on the weighing plate.
Wait for stability display, then press . The currently set
adjustment weight will be displayed.
(example)
To change by using the navigation buttons (see chap.
5.10.1) select the desired setting, the active digit is flashing.
Acknowledge by .
Carefully place adjusting weight in the centre of the weighing
plate. Wait for stability display, then press .
After the adjustment the balance will carry out a self-test. Err
4 will appear briefly, followed by weighing value. The system
is now in weighing mode.
Remove weight, „0“ is displayed.
An adjusting error or incorrect adjusting weight will be
indicated by the error message; repeat adjustment
procedure.
VFB-BA-e-1310 22
8 Functions of display unit
8.1 Prior to weighing
8.1.1 Zero-point check
Prior to each weighing process ensure that the system is unloaded and clear of
obstructions. The display device must show „0“, should this not be the case, press
the button.

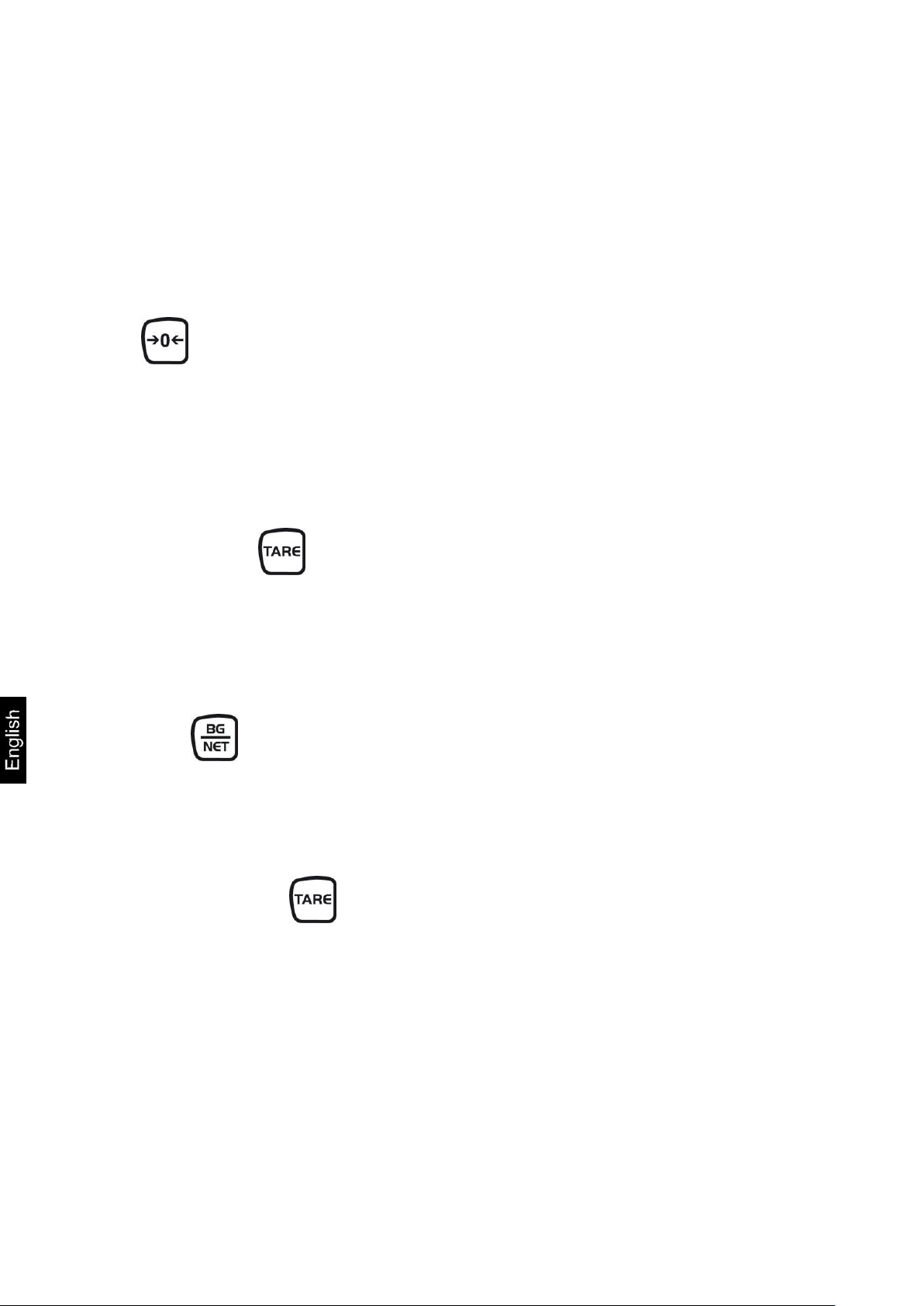

8.1.2 Net weighing: Taring by button
The display unit offers an option that allows tare weights to be reset to zero by
pressing a button. In this way net weight changes can be traced. After taring, the
display unit will once again start at the smallest display step.
Lifting a load, e.g. a pallet. The weight value of the pallet is displayed.
Press button The weight value is stored as tare value.
The display unit goes to zero.
The lit up display “NET“, indicates that a tare weight is active.
Place the sample, only the weight of the sample is displayed.
Withdraw sample for other weighing and proceed with the new samples as
described before.
Press to switch over between gross and net weight
When the pallet is removed, the display shows the weight of the pallet as a negative
value.
Press the button anew, the system changes to the zero display.
23 VFB-BA-e-1310
When the balance is unloaded the saved taring value is displayed with
negative sign.
To delete the stored tare, unload the weighing plate and press the
button, the zero display appears.
The taring process can be repeated any number of times. The limit is
reached when the whole weighing range is exhausted.
Note:
8.2 Numerical tare input (PRETARE)
The system has the possibility to enter the tare weight.
A tare weight which is bigger than the maximum of the weighing system, will not be
accepted.
8.2.1 Enter tare weight
Enter the pretare value or invoke the stored pretare value:
In weighing mode press the button for approx.3 sec., the tare value saved
as last will be displayed, the left digit flashes.
Press the navigation buttons (see chap. 5.10.1) to enter the desired value, the
active digit is flashing.
Acknowledge with . The entered value is displayed as negative pretare
value.
Lift-off load, the net weight is displayed, moreover „NET“ will appear
8.2.2 Delete pretare value
When entering the pretare value, set all decimal digits to „0“.
VFB-BA-e-1310 24
This function may only be carried out, after the system having been
tared. “NET“ will be displayed
8.3 Weighing
Press downwards the hand lever of the lifting device, the weighing system is
lowered.
Switch-on by , after a concluded self-test the system changes to zero
display „0“
If „0“ is not displayed, press
Place the loading fork under the pallet in a way that the pallet is in the center of
the loading fork.
Move upwards the loading fork with help of the lifting device until the load has
completely detached from the floor
If the stability display „STABLE“ lights up, the gross weight will be displayed.
8.3.1 Gross weighing
After the load was lifted, e.g. on a pallet, the display shows the gross value of the
weighed weight.
8.3.2 Net weighing
Use the button to switch over between the display of the net weight and the
display of the gross weight.
25 VFB-BA-e-1310

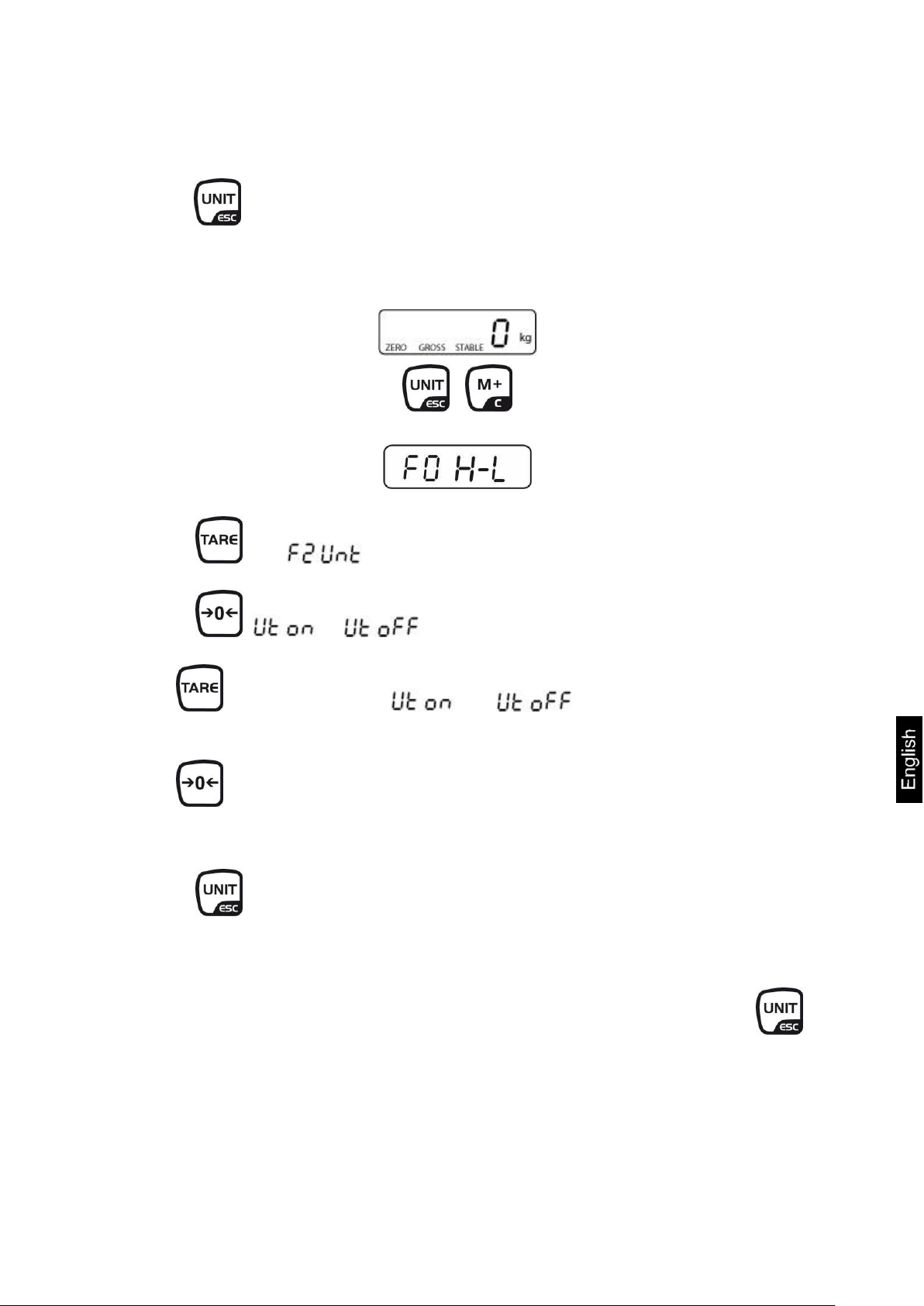

How to enable weighing units:
+
Press until is displayed
Press , or is displayed with the respective weighing unit.
Use to change between and , thus activating [on] /
deactivating [off] the displayed weighing unit.
Use to save the selected setting
Repeat sequence for each desired weighing unit.
Press repeatedly and the device will return to weighing mode.
How to change weighing units:
To return to the previously enabled weighing units go to weighing mode by
8.4 Weighing units switch-over
Press the button to set the different weighing units.
These must be activated before in the menu (chap. 9.2).
VFB-BA-e-1310 26
Selectable mode
Description
bP 1
Acoustic signal turned off
bP 2
If load is within tolerance range, [ok] will be displayed
and audio signal will be sounded.
bP 3
If the load is beyond the tolerance range [ok] will be
shown and the audio signal will sound.

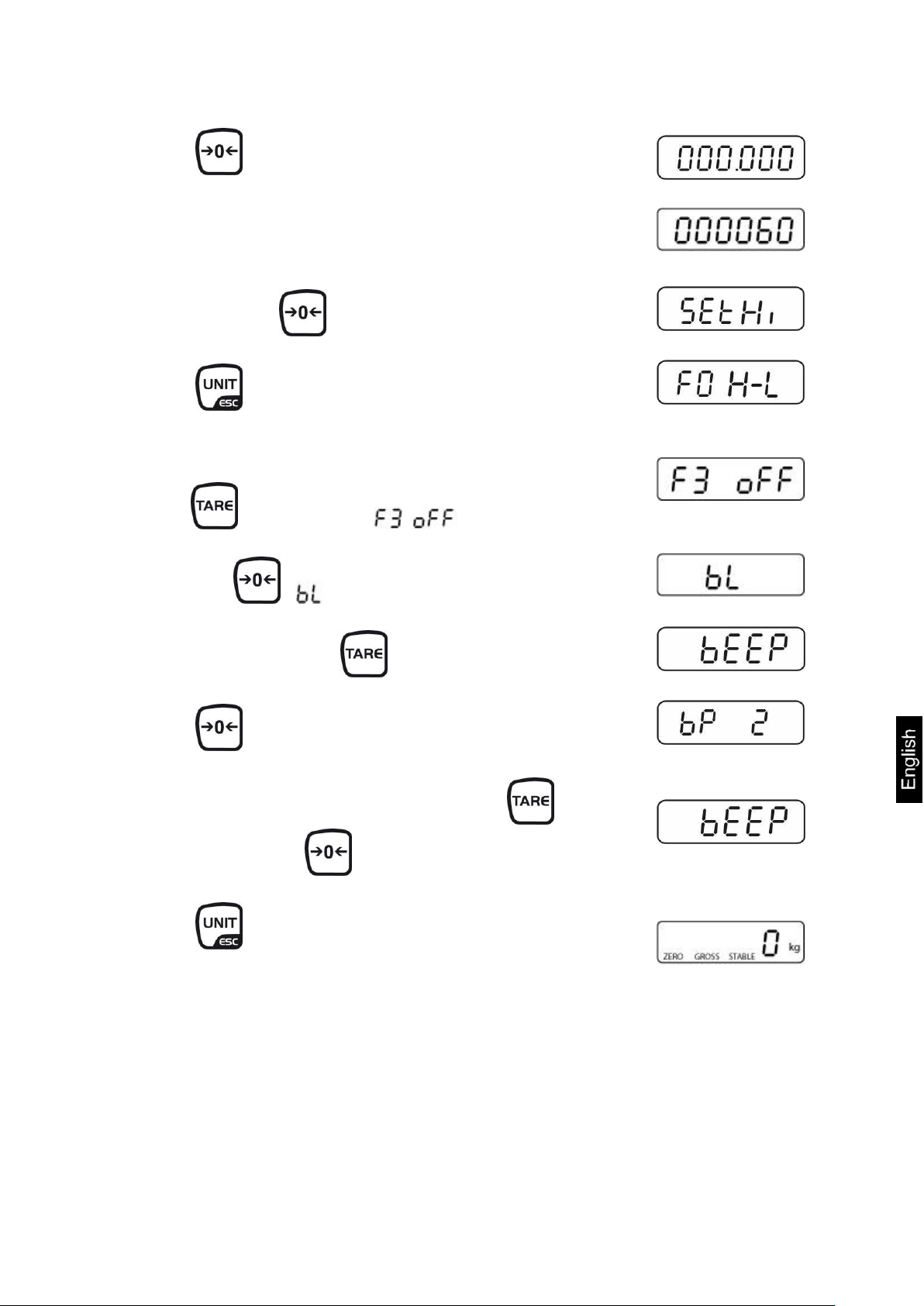

1. Call up menu
In weighing mode press und at the same time
and the first menu block will appear.
2. Set limit values
Keep on pressing until the display used for entering
the lower limit SET LO appears.
Press , the current setting will be displayed.
Press the navigation buttons (see chap. 5.10.1) to enter the
lower limit value, the active digit is flashing.
(example)
Confirm input by .
Select SET HI by pressing .

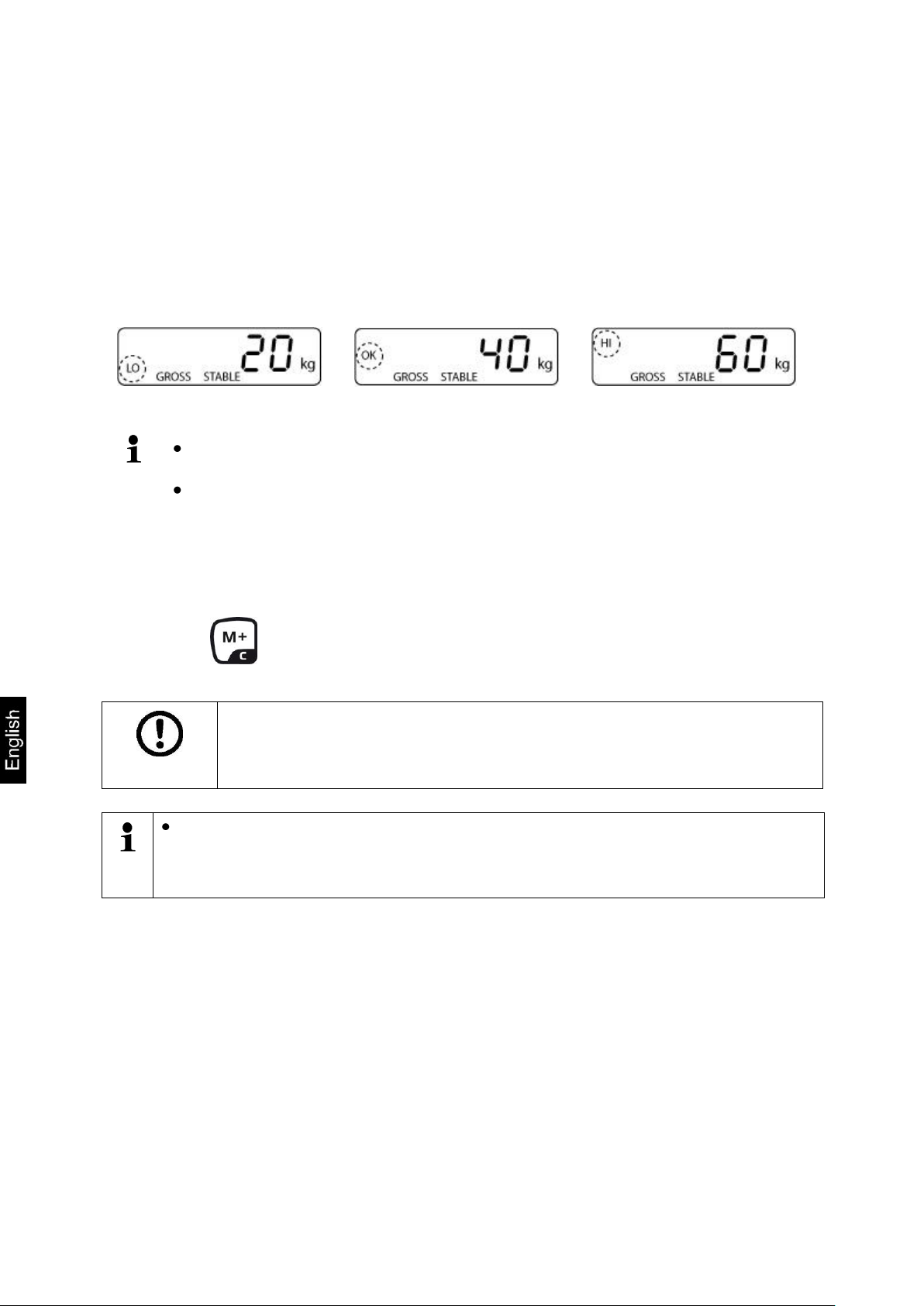

8.5 Weighing with tolerance range
You can set an upper or lower limit when weighing with tolerance range and thus
ensure that the weighed load remains exactly within the set limits.
During tolerance controls such as dispensing, portioning or sorting the unit will
indicate whether a value exceeds or falls short of limits with an optical [ok] as well as
an audio signal according to the setting in the menu block “ “; see chapter
9.2.
27 VFB-BA-e-1310
Press , the current setting for the upper limit will be
displayed.
Press the navigation buttons (see chap. 5.10.1) to enter the
upper limit value, the active digit is flashing.
(example)
Confirm input by .
Press , the unit will return to the menu
3. How to set tolerance weighing mode
Press repeatedly until is displayed.
Confirm by , will be displayed.
Select BEEP by pressing
Press , the current setting will be displayed.
Select desired setting (bp 1, bp 2, bp 3) with and
confirm by pressing .
Press repeatedly; weighing system is in tolerance
weighing mode. From here evaluation takes place whether
the goods to be weighed are within the two tolerance limits.
VFB-BA-e-1310 28
4. Weighing with tolerance range
Tare when using a weighing container.
Put on goods to be weighed, tolerance control is started.
Load below specified
tolerance
Load within specified
tolerance
Load exceeds specified
tolerance
(example)
(example)
(example)
The tolerance control is not active when the weight is under 20d.
To delete limits, enter “00000 kg“.
No load may be on the loading fork
The system should be stable (stability display „STABLE“
illuminated)
The added-up weighing value must be more than 20d.
Menu settings:
„F4 Prt“ „P Prt“

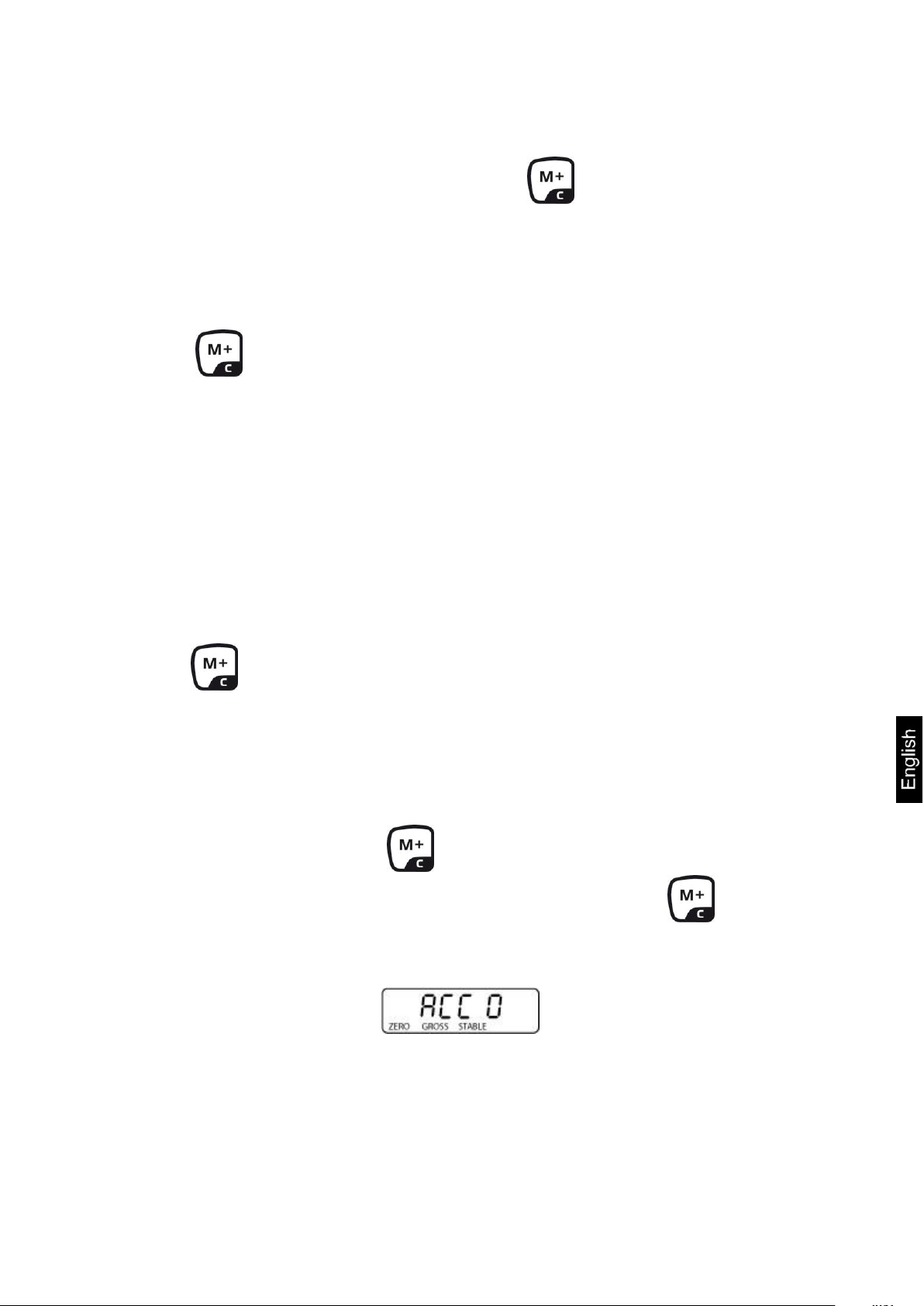

8.6 Manual totalizing
With this function the individual weighing values are totalized into the sum memory
by pressing .
29 VFB-BA-e-1310
Loading the system with the load to be added
Wait for stability display „STABLE“, then press , the weight value will be
added into a sum memory
„ACC 1“ is displayed for approx. 2 sec., after that the system returns into the
standard weighing mode. Next to the weight display „M+“ appears
Unload the system, the display returns to „0“
Charge with the second load, wait for the stability display „STABLE“
Press anew, the weight value will also be saved
„ACC 2“ will be displayed, the total weight will be displayed for approx. 2 sec.
before the system changes into the weighing mode.
Carry out further weighings in the same way. Ensure that the system is unloaded
between the weighing procedures.
You can repeat this process until the capacity of the weighing system is
exhausted.
Display of the saved weighing data:
The system must be in zero display („ZERO“-is displayed)
Press , number of weighing, followed by the total weight will be displayed for
2 sec.
Delete weighing data:
When zero is displayed press , the number of weighings followed by the
total weight will be displayed for 2 sec. During this display press again.
The data in the summation memory are deleted. The „M+“ in the display
disappears.
VFB-BA-e-1310 30
Menu settings:
„ “
The indicator „AUTO“ will appear.

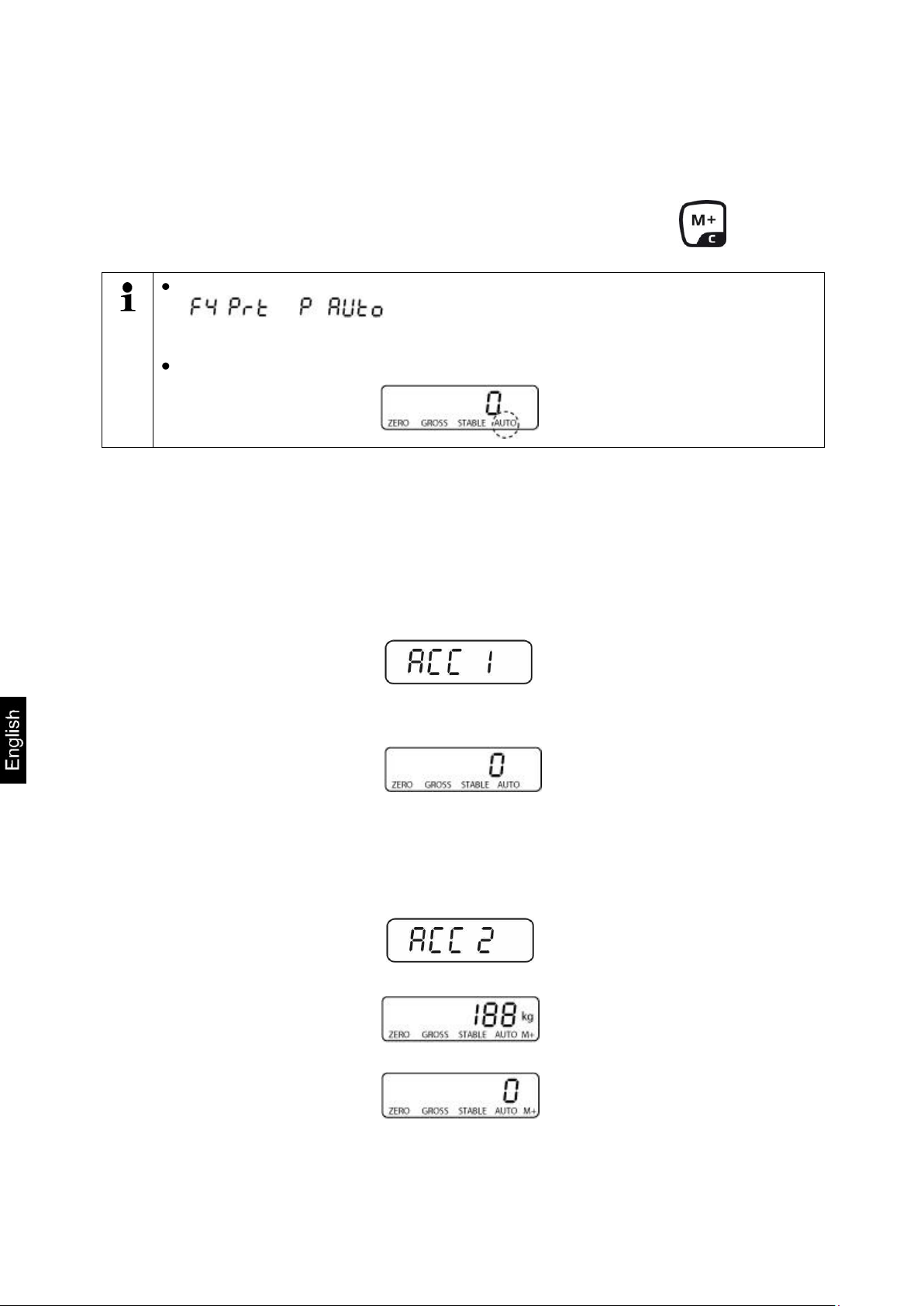

8.7 Automatic adding-up
This function is used to issue and add individual weighing values automatically to the
summation memory on unloading of weighing scale without pressing .
Add up:
Charge the system with the load which shall be added
After a successful standstill control you will hear an audio sound.
Unload the weighing good, the weighing value is added into the summation
memory. „ACC 1“ will be displayed shortly, then the balance changes into the
weighing mode
than the balance changes into the weighing mode. „M+“ will be displayed.
More weighed goods can only be added when the display ≤ zero.
Charge with the second load.
After the standstill control sounds a signal tone. Unload the weighing good, the
weighing value is added into the summation memory. Number of weighing,
followed by the total weight will be displayed for 2 sec.
Add more weighed goods as described before.
Please note that the weighing system must be unloaded between the individual
weighing procedures.
31 VFB-BA-e-1310
(example)
Display and delete weighing data see chap. 8.6
Menu setting:
The indicator ANIMAL will be displayed.
Move load onto weighing system.
When the load has somewhat calmed down, you will hear an audio sound. The
mean value achieved will be shown.
Whilst averaging is taking place you can add or remove loads as the measuring
value will be constantly updated.
To deactivate the animal weighing function / return into the weighing mode
select menu setting .
You can repeat this process until the capacity of the weighing system is
exhausted.
8.8 Animal weighing
The mean value function is suitable for weighing restless loads.
VFB-BA-e-1310 32
Menu setting:
8.9 Peak value function
This function displays the highest load value (peak value) of a weighing.
The peak value remains in the display until it will be deleted.
In weighing mode press and at the same time, in the display appears
„HOLD“
To exit the peak value function, press, and anew
33 VFB-BA-e-1310
Call up menu
In weighing mode press und at the same
time and the first menu block will appear.
Select menu block
With help of , the individual menu blocks can be
selected one after the other.
Select setting
Confirm selected menu item by pressing .
The current setting will be displayed.
Change settings
To change to the available settings, press the
navigations keys as described in chap. 5.10.1.
Acknowledge setting /
exit the menu
Either save by pressing or cancel by pressing
.
Return to weighing
mode
Press repeatedly to exit menu.
9 Menu
In the menu the settings of the weighing system can be modified and functions can
be activated. With that the weighing system may be adapted to individual weighing
requirements.
Four menu items can be selected to change settings. Moreover there is an other
menu item for adjustment.
9.1 Navigation in the menu
VFB-BA-e-1310 34
Menu block
Menu item
Available settings / explanation
Weighing with
tolerance range,
see chap. 8.5
SET Lo
Upper limit value, input
(factory setting 000.000)
SET Hi
Lower limit value, input
(factory setting 000.000)
to Clr
Not documented
to P-C
to Prt
Weighing units
see chap. 8.4
glboztJ hJ
Factory setting „kg“
bl
EL on
Background lighting of display is switched on
permanently
EL AU
Display background illumination off
EL off
Automatic background illumination on when
weighing pate is loaded or key pressed.
bEEP
see chap.
8.5
bp 1
Audio signal switched off during tolerance
weighing
bp 2
If load is within tolerance, [ok] will be displayed
and audio signal will be sounded
bp 3
If the load is beyond the tolerance range, [ok]
will be shown and the audio signal will sound.
SetoF
oF 0
Automatic switch-off function switched off
oF 3
Automatic switch-off after 3 minutes
oF 5
Automatic switch-off after 5 minutes
oF 15
Automatic switch-off after 15 minutes
oF 30
Automatic switch-off after 30 minutes
9.2 Menu overview
35 VFB-BA-e-1310
Select desired setting with and acknowledge by .
Manual totalizing:
After pressing the weighing value will be added
into the summation memory.
not documented
Automatic adding-up:
This function is used to add the individual weighing
values automatically to the summation memory on
unloading of weighing scale.
Enter password: press , and
successively
Menu block
Main menu
Menu
item
Submenu
Available settings / explanation
not documented
Zero setting range
Load range where the display after switching-on the
balance is set to zero. Selectable 0 %, 2 %, 5 %, 10
%, 20 %, 50%
Zero setting range
Load range where the display is set to zero by
pressing .
Selectable 2 %, 4 %, 10 %, 20 %, 50%, 100 %.
Not documented
VFB-BA-e-1310 36
Position decimal point available selection
0, 0.0, 0.00, 0.000, 0.0000
Readability:
Selectable 1, 2, 5, 10, 20, 50
Balance capacity (max)
Linearization
Adjustment
not documented
not documented
Not documented
Internal A/D converter value
Reset to default setting
Not documented
Weighing mode (tolerance weighing, add-up)
Animal weighing mode
Not documented
Peak value function
37 VFB-BA-e-1310
10 Servicing, maintenance, disposal
10.1 Clean
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device
and wipe with a dry soft cloth.
10.2 Servicing, maintenance
The same maintenance guidelines apply to the chassis of the mobile weighing
system as those for simple manual pallet trucks. Experience has taught us that the
integrated weighing system continues to function even if the chassis was damaged
by overloading.
General rules:
As the steering wheels are mounted at the front, it is better to pull rather than
push the pallet truck scale.
If the lifting device is not used, the manual lever should be left in centre
position. This prolongs the life span of the seals.
To prevent damages to the electronic system and weighing cells it is
necessary that welding work on the entire weighing system is carried out
exclusively by technical specialists.
The bearings of the wheels (with the exception of polyurethane) as well as the
joints in the load roller section should be regularly cleaned and greased.
10.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
VFB-BA-e-1310 38
11 Error messages
Error message
Possible cause
Remedy
-----
Weighing range exceeded
To unload the weighing
system
Err 4
System out of zero range
during switching-on or by
pressing the button
Unload weighing system
and tare again using .
Err 6
Internal A/D value outside
the normal range
To unload the weighing
system
Check connectors
If the error message appears repeatedly, please contact your retailer.
39 VFB-BA-e-1310
Fault
Possible cause
The displayed weight does not glow.
Weighing system is not switched on.
Rechargeable battery empty
The displayed weight is permanently
changing
Draught/air movement
-
Sites with vibration.
Loading fork is in contact with foreign
matter.
Electromagnetic fields / static charging
(choose different location/switch off
interfering device if possible)
The weighing value is obviously
The display of the balance is not at zero
wrong
Adjustment is no longer correct.
Great fluctuations in temperature.
Electromagnetic fields / static charging
(choose different location/switch off
interfering device if possible)
12 Instant help
In case of an error in the program process, briefly turn off the weighing system and
disconnect from power supply. The weighing process must then be restarted from
the beginning.
Help:
Should other error messages occur, switch weighing system off and then on again. If
the error message remains inform manufacturer.
VFB-BA-e-1310 40
Loading...
