Operating instructions
Stainless steel scale
KERN SFB
Version 2.4
12/2013
GB
SFB-BA-e-1324
2
GB
KERN SFB
Version 2.4 12/2013
Operating instructions stainless steel scale
Table of Contents
1 Technical Data ................................................................................................... 4
2 Appliance overview ......................................................................................... 10
2.1 Keyboard overview ...................................................................................................11
2.1.1 Numeric input via navigation keys ................................................................................... 12
2.2 Overview of displays .................................................................................................12
3 Basic Information (General) ........................................................................... 13
3.1 Proper use ................................................................................................................13
3.2 Improper Use ............................................................................................................13
3.3 Warranty ...................................................................................................................13
3.4 Monitoring of Test Resources ...................................................................................14
4 Basic Safety Precautions ................................................................................ 14
4.1 Pay attention to the instructions in the Operation Manual .........................................14
4.2 Personnel training ................................ ................................................................ .....14
5 Transportation & Storage ............................................................................... 14
5.1 Testing upon acceptance .......................................................................................... 14
5.2 Packaging / return transport .....................................................................................14
6 Unpacking and implantation .......................................................................... 15
6.1 Installation Site, Location of Use ...............................................................................15
6.2 Unpacking/implantation ............................................................................................15
6.2.1 Tripod ............................................................................................................................... 17
6.3 Mains connection ................................................................................................ ......20
6.4 Rechargeable battery operation ................................................................................20
6.5 Protection type IP65 .................................................................................................20
6.6 Adjustment................................................................................................................21
6.6.1 Verified models ................................................................................................................ 22
6.6.2 Non verifiable models ...................................................................................................... 24
6.7 Linearization .............................................................................................................25
6.7.1 Verified models ................................................................................................................ 25
6.7.2 Non-verified models ......................................................................................................... 26
6.8 Verification ................................................................................................................27
SFB-BA-e-1324
3
7 Operation ......................................................................................................... 28
7.1 Start-up .....................................................................................................................28
7.2 Switching Off ............................................................................................................28
7.3 Zeroing .....................................................................................................................28
7.4 Simple weighing ........................................................................................................28
7.5 Switch-over weighing unit (only not verifiable models) ..............................................29
7.6 Weighing with tare ....................................................................................................30
7.7 Weighing with tolerance range .................................................................................30
7.7.1 Tolerance check for target weight .................................................................................... 31
7.7.2 Tolerance check for target quantity.................................................................................. 33
7.8 Manual totalizing .......................................................................................................35
7.9 Automatic adding-up .................................................................................................37
7.10 Parts counting ...........................................................................................................38
7.11 Animal weighing ........................................................................................................39
7.12 Lock keyboard ..........................................................................................................40
7.13 Display background illumination ................................................................................40
7.14 Automatic switch-off function “AUTO OFF“ ..................................................................41
8 Menu ................................................................................................................. 42
8.1 Overview non verifiable models ................................................................................43
8.2 Overview verified models ..........................................................................................45
9 Service, maintenance, disposal ..................................................................... 48
9.1 Cleaning ...................................................................................................................48
9.2 Service, maintenance ...............................................................................................48
9.3 Disposal ....................................................................................................................48
9.4 Error messages ........................................................................................................49
10 Data output RS 232C (optional) .................................................................. 50
10.1 Technical Data ..........................................................................................................50
10.2 Technical data ..........................................................................................................50
10.3 Printer mode .............................................................................................................50
10.4 Output log (continuous output) ..................................................................................51
10.5 Remote control instructions ......................................................................................51
11 Instant help ................................................................................................... 52
12 Declaration of Conformity ........................................................................... 53
SFB-BA-e-1324
4
1 Technical Data
KERN
SFB 10K1HIP
SFB 15K5HIPM
SFB 20K2HIP
Readability (d)
1 g
5 g
2 g
Weighing range (max)
10 kg
15 kg
20 kg
Minimum load (Min)
-
100 g
-
Verification value (e)
-
5 g
-
Verification class
-
III
-
Reproducibility
1 g
5 g
2 g
Linearity
± 1 g
± 5 g
± 2 g
Recommended
adjustment weight, not
added (class)
10 kg
(M1)
15 kg
(M1)
20 kg
(M1)
Warm-up time
30 minutes
10 minutes
30 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 12 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
300 x 240
IP protection
IP 65 (Only during operation on battery power)
Interface
RS 232 optional
Tripod
SFB-BA-e-1324
5
KERN
SFB
30K10HIPM
SFB
50K5HIP
SFB
50K5LHIP
SFB
50K-3XL
Readability (d)
10 g
5 g
5 g
5 g
Weighing range (max)
30 kg
50 kg
50 kg
50 kg
Minimum load (Min)
200 g
- - -
Verification value (e)
10 g - -
-
Verification class
III - -
-
Reproducibility
10 g
5 g
5 g
5 g
Linearity
± 10 g
± 5 g
± 5 g
± 10 g
Recommended
adjustment weight, not
added (class)
30 kg
(M1)
50 kg
(M1)
50 kg
(M1)
50 kg
(M1)
Warm-up time
10 minutes
30 minutes
30 minutes
30 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 12 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
300 x 240
300 x 240
400 x 300
500 x 400
IP protection
IP 65 (Only during operation on battery power)
Interface optional
RS232
Tripod
SFB-BA-e-1324
6
KERN
SFB
60K20HIPM
SFB
60K20LHIPM
SFB
60K-2XLM
Readability (d)
20 g
20 g
20 g
Weighing range (max)
60 kg
60 kg
60 kg
Minimum load (Min)
400 g
400 g
400 g
Verification value (e)
20 g
20 g
20 g
Verification class
III
III
III
Reproducibility
20 g
20 g
20 g
Linearity
± 20 g
± 20 g
± 20 g
Recommended
adjustment weight, not
added (class)
60 kg
(M1)
60 kg
(M1)
60 kg
(M1)
Warm-up time
10 minutes
10 minutes
10 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V, AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 8 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
300 x 240
400 x 300
500 x 400
IP protection
IP 65 (Only during operation on battery power)
Interface optional
RS232
Tripod
optional
SFB-BA-e-1324
7
KERN
SFB
100K10HIP
SFB
100K-2L
SFB
100K-2HM
SFB
100K-2LM
Readability (d)
10 g
10 g
50 g
50 g
Weighing range (max)
100 kg
100 kg
150 kg
150 kg
Minimum load (Min)
- - 1 kg
1 kg
Verification value (e)
- - 50 g
50 g
Verification class
- - III
III
Reproducibility
10 g
10 g
50 g
50 g
Linearity
± 10 g
± 20 g
± 50 g
± 50 g
Recommended
adjustment weight, not
added (class)
100 kg
(M1)
100 kg
(M1)
120 kg
(M1)
150 kg
(M1)
Warm-up time
30 minutes
30 minutes
10 minutes
10 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V, AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 12 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
400 x 300
500 x 400
400 x 300
500 x 400
IP protection
IP 65 (Only during operation on battery power)
Interface optional
RS232
Tripod optional
optional
SFB-BA-e-1324
8
KERN
SFB
100K-2XL
SFB
100K-2XLM
SFB
120K50HIPM
Readability (d)
10 g
50 g
50 g
Weighing range (max)
100 kg
150 kg
120 kg
Minimum load (Min)
-
1 kg
1 kg
Verification value (e)
-
50 g
50 g
Verification class
-
III
III
Reproducibility
10 g
50 g
50 g
Linearity
± 20 g
± 50 g
± 50 g
Recommended
adjustment weight, not
added (class)
100 kg
(M1)
150 kg
(M1)
120 kg
(M1)
Warm-up time
30 minutes
10 minutes
10 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V, AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 12 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
650 x 500
400 x 300
IP protection
IP 65 (Only during operation on battery power)
Interface optional
RS232
Tripod
optional
optional
SFB-BA-e-1324
9
KERN
SFB
200K-2XL
SFB
300K-1LM
Readability (d)
20 g
100 g
Weighing range (max)
200 kg
300 kg
Minimum load (Min)
-
2 kg
Verification value (e)
-
100 g
Verification class
-
III
Reproducibility
20 g
100 g
Linearity
± 40 g
± 100 g
Recommended
adjustment weight, not
added (class)
200 kg
(M1)
300 kg
(M1)
Warm-up time
30 minutes
10 minutes
Stabilization time (typical)
2 sec.
Weighing unit
kg
Auto Off
Available options
Ambient temperature
-10°C – 40°C
Moist environment
0 % - 95 % (non-condensing)
Electric Supply
Input voltage 110 V – 230 V, AC
Power pack secondary voltage 12 V, 500 mA
Rechargeable battery
(Standard)
Service life background light on for 40 h
Service life background light off 80 h
Charge time 12 h
Dimensions display unit
(B x D x H) mm
266 x 165 x 96
Weighing surface mm
650 x 500
IP protection
IP 65 (Only during operation on battery power)
Interface optional
RS232
Tripod
optional
SFB-BA-e-1324
10
2 Appliance overview
1. Battery status display
2. Keyboard
3. Weight display
4. Tolerance tag, see chap. 7.7
5. Weighing unit
6. Levelling screw
7. Spirit level (underneath weighing platform)
SFB-BA-e-1324
11
2.1 Keyboard overview
Button
Function
Turn on/off
Zeroing
Navigation key
Confirm entry
Taring
Navigation key
At numeric input increase flashing digit
Scroll forward in menu
Display sum total
Navigation key
Digit selection to the right
Add weighing value in summation memory
Navigation key
Digit selection to the left
Calculate weighing data via interface
C
Delete
Switch-over gross weight net weight
ESC
Back to menu/weighing mode
Activate animal weighing function
Activate weighing with tolerance limits
Delete total added memory
SFB-BA-e-1324
12
2.1.1 Numeric input via navigation keys
Press current setting appears. The first digit is flashing and can be
changed.
If the first digit is not to be changed, press and the second digit will start
flashing. Each time you press , the display unit jumps to the subsequent
digit, returning to the first digit after the last digit has been pressed.
To change the selected (flashing) digit, press repeatedly until the desired
value appears. Then select by using additional digits and change these by using
Finish entry with .
Display
Significance
Rechargeable battery very low
STABLE
Stability display
ZERO
Zero display
GROSS
Gross weight
NET
Net weight
AUTO
Automatic add-up enabled
Kg
Weighing unit
M+
Adding
LED
+ / / -
Indicators for weighing with tolerance limits
2.2 Overview of displays
SFB-BA-e-1324
13
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the
measuring system.
Impacts and overloading exceeding the stated maximum load (max) of the weighing
plate, minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage or damage by media, liquids, natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded
SFB-BA-e-1324
14
3.4 Monitoring of Test Resources
Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as glass wind screen, weighing
platform, power unit etc. against shifting and damage.
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this
test. Information is available on KERN’s home page (www.kern-sohn.com with
regard to the monitoring of balance test substances and the test weights required for
this. In KERN’s accredited DKD calibration laboratory test weights and balances may
be calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
SFB-BA-e-1324
15
6 Unpacking and implantation
Balance, see chap. 2
Transit Securing
Mains adapter
Rechargeable battery
Instruction Manual
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
On the installation site observe the following:
Place the balance on a firm, level surface;
Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and doors;
Avoid jarring during weighing;
Protect the balance against high humidity, vapors and dust;
Do not expose the balance to strong humidity for extended periods. Non-
permitted condensation (condensation of air humidity on the appliance) may
occur if a cold appliance is taken to a considerably warmer environment. In
this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
Avoid static charge of goods to be weighed or weighing container.
Being of protection type IP 67 as per DIN EN 60529, the weighing scale is
suitable for short-term use in wet conditions.
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking/implantation
Scope of delivery / serial accessories:
Carefully remove the balance from the packaging, remove plastic cover, assemble
the tripod and the display unit (see chap. 6.2.1) and setup balance at the intended
workstation.
SFB-BA-e-1324
16
Remove the transportation lock:
As the air bubble is located under
the weighing plate, remove it.
Level balance with foot screws until
the air bubble of the water balance
is in the prescribed circle.
1. Models platform size 300 x 240 mm
Remove the marked screws.
2. Models platform size 400 x 300 mm
Remove the screw marked by the label .
Attention: The sealed screws must not be unscrewed.
Accurate weighing results require a weighing bridge with perfect horizontal
alignment. During initial installation and after each change of work area it is
necessary to level the weighing bridge.
SFB-BA-e-1324
17

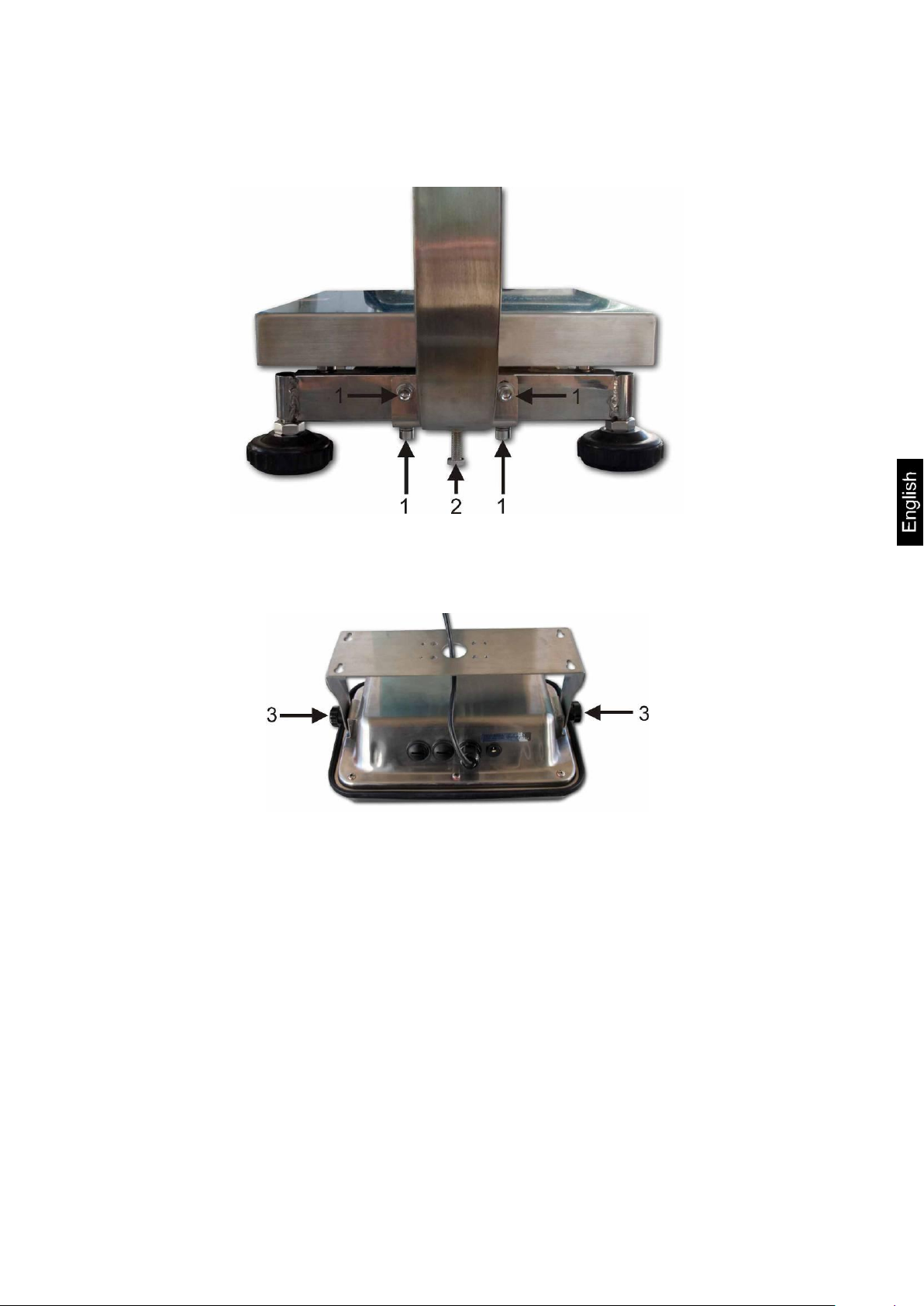

6.2.1 Tripod
Attach the tripod to the platform acc. to fig. using the 4 screws [1], securing disks
and washers. Ensure that the cable is not damaged nor squeezed. Screw-in support
screw [2] till it is safely fixed.
Assemble example models platform size 300 x 240 mm:
SFB-BA-e-1324
18
Remove display unit from holder, for that remove the turning knobs [3] on the side.
Attach the tripod with the four raised counter-sunk head screws [4] and the nuts on
the holder of the display unit.
Re-attach and position display unit using the turning knobs [3].
SFB-BA-e-1324
19
Scope of delivery models platform size 400 x 300 mm:
Tripod tube
Adapter display unit
Tripod foot
SFB-BA-e-1324
20
6.3 Mains connection
red:
Voltage has dropped below prescribed minimum.
green:
Rechargeable battery is completely charged
yellow:
Charging storage battery
IP65 protection is only ensured during operation on battery
power.
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage. Only use original KERN mains adapters. Using other
makes requires consent by KERN.
6.4 Rechargeable battery operation
Before the first use, the battery should be charged by connecting it to the mains
power supply for at least 12 hours.
The symbol appearing on the weight display indicates that the battery is
getting low. Approximately 10 h of instrument usage are left; afterwards it will shut
off automatically. Use the supplied battery charger for charging the battery.
Charge status of rechargeable battery is indicated by the LED display.
To save battery life, you can enable the automatic switch-off function "AUTO OFF",
see chap. 7.14.
6.5 Protection type IP65
Designed for temporary contact with liquids. Use a damp cloth for cleaning.
Dustproof.
SFB-BA-e-1324
21
In weighing systems with a resolution of < 15 000 dividing steps an
adjustment is recommended.
In weighing systems with a resolution of > 15 000 dividing steps a
linearisation is recommended (see chap. 6.6).
Prepare the required adjustment weight. The weight to be used
depends on the capacity of the scale. Carry out adjustment as near as
possible to the scale’s maximum weight. Info about test weights can be
found on the Internet at: http://www.kern-sohn.com.
Observe stable environmental conditions. Stabilisation requires a
certain warm-up time.
6.6 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each display unit with connected weighing plate must be coordinated - in compliance
with the underlying physical weighing principle - to the existing acceleration due to
gravity at its place of location (only if the weighing system has not already been
adjusted to the location in the factory). This adjustment process must be carried out
for the first commissioning, after each change of location as well as in case of
fluctuating environment temperature. To receive accurate measuring values it is also
recommended to adjust the display unit periodically in weighing operation.
SFB-BA-e-1324
22
6.6.1 Verified models
In verified weighing systems the menu item for adjustment „P2 mode“ is
blocked.
To override the blocked access you will have to destroy the seal before calling
up the menu and to short-circuit the two contacts on the circuit board [K2],
using a jumper (See chap.6.7).
Attention:
After destruction of the seal the weighing system must be re-verified by an
authorised agency and a new verification wire/seal mark fitted before it can be
reused for applications subject to verification.
1. Switch-on balance and during the selftest press .
2. Press , , subsequently, the first menu block
„PO CHK“ will be displayed.
3. Press repeatedly until „P2 mode“ will be displayed.
4. Press and select the set weighing scales type by .
= Single-range balance
= Dual range balance
= Multi-interval balance
5. Acknowledge with .
6. Press repeatedly until „CAL“ will be displayed.
7. Confirm with and select setting „noLin“ by .
Call up menu:
SFB-BA-e-1324
23
How to carry out an adjustment:
Confirm menu setting „noLin“ by .
Ensure that there are no objects on the weighing plate.
Wait for stability display, then press .
The currently set adjustment weight will be displayed.
To change by using the navigation buttons (see chap. 2.1.1)
select the desired setting, the active digit is flashing.
Acknowledge with .
Carefully place adjusting weight in the centre of the weighing
plate. Wait for stability display, then press .
After the adjustment the balance will carry out a self-test.
Remove adjusting weight during selftest, balance will return
into weighing mode automatically.
An adjusting error or incorrect adjusting weight will be
indicated by the error message; repeat adjustment
procedure.
SFB-BA-e-1324
24
6.6.2 Non verifiable models
Call up menu:
1. Switch-on balance and during the selftest press .
2. Press subsequently , , the first menu block
„PO CHK“ will be displayed.
3. Press repeatedly until „P3 CAL“ will be displayed.
4. Confirm with ; press repeatedly until „CAL“
appears.
5. Acknowledge using , the current setting is displayed.
Press to confirm; press to select setting.
noLin = adjustment
LineAr = linearization, see chap. 6.6
How to carry out adjustment:
Confirm menu setting „noLin“ by .
Ensure that there are no objects on the weighing plate.
Wait for stability display, then press .
The currently set adjustment weight will be displayed.
To change by using the navigation buttons (see chap. 2.1.1)
select the desired setting, the active digit is flashing.
Acknowledge with .
Carefully place adjusting weight in the centre of the weighing
plate. Wait for stability display, then press .
After the adjustment the balance will carry out a self-test.
Remove adjusting weight during selftest, balance will return
into weighing mode automatically. An adjusting error or
incorrect adjusting weight will be indicated by the error
message; repeat adjustment procedure.
SFB-BA-e-1324
25
6.7 Linearization
In balances with a resolution of > 15 000 dividing steps carrying out a
linearisation is recommended.
Carrying out linearization is restricted to specialist staff possessing
well acquainted with the workings of weighing scales.
The test weights to be used must be adapted to the weighing scale’s
specifications; see chapter “testing instruments control”.
Observe stable environmental conditions. Stabilisation requires a
certain warm-up time.
After successful linearisation you will have to carry out calibration;
see chapter “testing instruments control”.
The adjustment is locked for verified balances. To disable the access
lock, destroy the seal and actuate the adjustment switch. Position of
the adjustment switch see chap. 6.7
Menu item P2 modeCalCall up liner, see chap. 6.5.1
Confirm by , the password query „Pn“ will be displayed.
Press subsequently , , or , , .
Ensure that there are no objects on the weighing pan.
Wait for stability display, then press .
When “Ld 1“ is displayed, put the first adjustment weight (1/3
max) carefully in the centre of the weighing platform. Wait
for stability display, then press .
When “Ld 2“ is displayed, put the second adjustment weight
(2/3 max) carefully in the centre of the weighing platform.
Wait for stability display, then press .
When “Ld 3“ is displayed, put the third adjustment weight
(max) carefully in the centre of the weighing platform. Wait
for stability display, then press .
After linearisation the balance will carry out a self-test.
Remove adjusting weight during selftest, balance will return
into weighing mode automatically.
Linearity shows the greatest deviation of a weight display on the scale to the value of
the respective test weight according to plus and minus over the entire weighing
range. If linearity deviation is discovered during a testing instrument control, you can
improve this by means of linearization.
6.7.1 Verified models
SFB-BA-e-1324
26
6.7.2 Non-verified models
Call-up menu item P3 CALCalLiner, see chap. 6.5.1
Confirm by , the password query „Pn“ will be displayed.
Press subsequently , , or , , .
Ensure that there are no objects on the weighing pan.
Wait for stability display, then press .
When “Ld 1“ is displayed, put the first adjustment weight (1/3
max) carefully in the centre of the weighing platform. Wait
for stability display, then press .
When “Ld 2“ is displayed, put the second adjustment weight
(2/3 max) carefully in the centre of the weighing platform.
Wait for stability display, then press .
When “Ld 3“ is displayed, put the third adjustment weight
(max) carefully in the centre of the weighing platform. Wait
for stability display, then press .
After a successful linearisation the balance will carry out a
self-test. Remove adjusting weight during selftest, balance
will return into weighing mode automatically.
SFB-BA-e-1324
27
6.8 Verification
Verification of the weighing system is invalid without the "seal".
[K1]
[K2]
General introduction:
According to EU directive 90/384/EEC or 2009/23EG balances must be officially
verified if they are used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing.
b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory.
c) For official purpose.
d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard.
Verification notes:
An EU Qualification Approval is in existence for verified weighing systems. If a
balance is used where obligation to verify exists as described above, it must be
verified and re-verified at regular intervals.
Reverification is carried out according to the relevant national statutory regulations.
The validity for verification of balances in Germany is e.g. 2 years.
The legal regulation of the country where the balance is used must be observed!
Notes on verified models
Access to conductor plate:
Remove seal
Open display unit
The application of the display unit as a weighing system able to be verified
requires that the contacts of the circuit board are short-circuited with the help
of a jumper [K1]. For non verifiable models remove the jumper.
To adjust, short-circuit the contacts of the circuit board, using a jumper [K2].
SFB-BA-e-1324
28
7 Operation
Overload warning
Overloading exceeding the stated maximum load (max) of the device, minus
a possibly existing tare load, must be strictly avoided. The instrument may be
damaged by overloading.
Exceeding of maximum load is indicated by “----“ as well as a signal sound.
Remove load from weighing system or reduce preload.

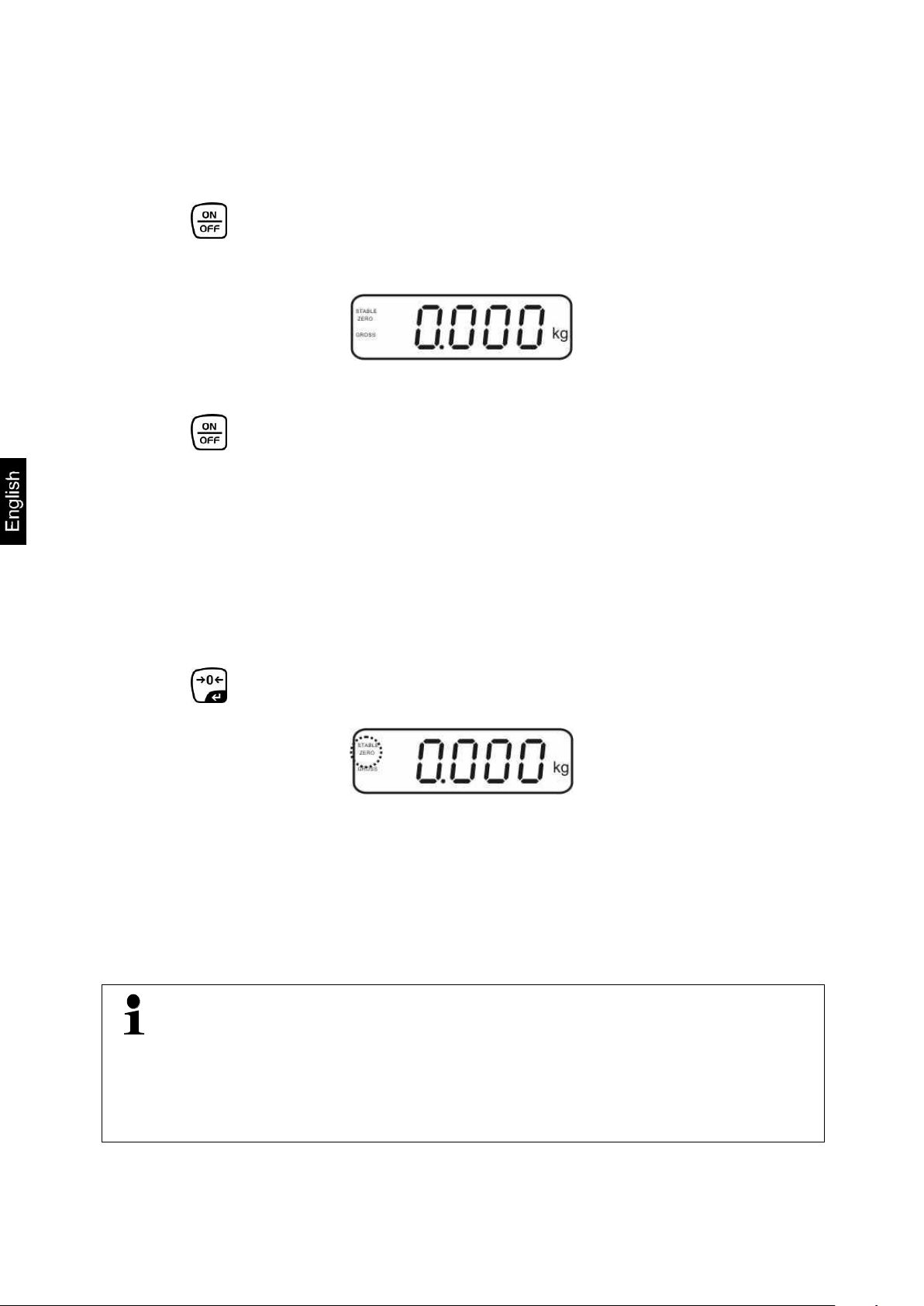

7.1 Start-up
Press , and the instrument will carry out a self-test. The instrument is ready
for weighing when a weight display appears.
7.2 Switching Off
Press until the display disappears.
7.3 Zeroing
Resetting to zero corrects the influence of light soiling on the weighing plate.
Resetting range ± 2 % max.
The instrument comprises an automatic zero setting function, however, the
instrument can be reset to zero whenever needed as described below.
Remove load from weighing system
Press , and the zero display as well as the ZERO indicator will appear.
7.4 Simple weighing
Place goods to be weighed on balance.
Wait for stability display STABLE.
Read weighing result.
SFB-BA-e-1324
29
7.5 Switch-over weighing unit (only not verifiable models)
Call-up menu item P5 Unt, see chap. 8
Press and the first weighing unit with the current setting
will be displayed.
To enable [on] / disable [off] the displayed weighing unit,
press .
Acknowledge with . The next unit with the current setting
will be displayed.
To enable [off] / disable [on] the displayed weighing unit,
press .
Acknowledge with .
Repeat sequence for each weighing unit.
Note: „tj“ and „Hj“ cannot be activated at the same time, only
either ... or ... .
Return to weighing mode using
Keep pressed, the display changes over to the
weighing units activated before (e.g. kg lb)
How to enable weighing units:
Switch-over weighing unit:
SFB-BA-e-1324
30
7.6 Weighing with tare
no
Acoustic signal turned off
ok
Acoustic signal sounds when load is within tolerance
limits
ng
Acoustic signal sounds when load is beyond tolerance
limits
Deposit weighing vessel. After successful stop check press the button.
The zero display and the indicator NET appear.
The weight of the container is now internally saved.
Weigh the material, the net weight will be indicated.
The weight of the weighing container will be displayed as a minus number after
removing the weighing container.
The tare procedure can be repeated as many times as necessary, for example
with initial weighing of several components for a mix (add-on weighing). The limit
is reached when the taring range (see type plate) capacity is full.
Switch between gross weight and net weight by pressing the key.
To delete the tare value, remove load from weighing plate and press .
7.7 Weighing with tolerance range
You may determine an upper and lower limit for weighing with tolerance limits in
order to ensure that the weighed load remains exactly within the fixed tolerance
limits.
During tolerance checks such as dispensing, portioning and sorting, the instrument
will indicate any lower deviation or exceeding of limits with the help of a visual signal
or audio sound.
Acoustic signal:
The audio sound depends on the setting of the menu block “BEEP“.
Options:
SFB-BA-e-1324
31
Optical signal:
+
Goods to be weighed above tolerance limit
Red signal lamp
glowing
Goods to be weighed within tolerance range
Green signal lamp
glowing
-
Goods to be weighed below tolerance limit
Red signal lamp
glowing
Settings
Press and at the same time in weighing mode.
Press until the display for entering the lower limit value
appears.
Press , the current setting will be displayed.
To enter the lower limit, e. g. 1000 Kg, press the navigation
keys (See chap. 2.1.1); the currently enabled digit will be
flashing.
Confirm input by .
Press repeatedly until is displayed.
Press , the current setting for the upper limit will be
displayed.
Three colour pilot lamps indicate whether load is within the two tolerance limits.
The signal lamps provide the following information:
Settings for tolerance weighing may be set either by calling up menu block “P0 CHK“
(See chap. 8) or by applying the faster option of pressing the key combination
7.7.1 Tolerance check for target weight
SFB-BA-e-1324
32
Press the navigation keys (See chap. 2.1.1) to enter the
upper limit, e.g. 1,100 kg; the currently enabled digit will be
flashing.
Confirm input by .
Press repeatedly until is displayed.
Press and the current setting for the acoustic signal will
be shown.
Select desired setting (no, ok, ng) by .
Confirm input by .
Press ; weighing system is in tolerance weighing mode.
From here evaluation takes place whether the goods to be
weighed are within the two tolerance limits.
Weighing with tolerance range
Tare when using a weighing container.
Put on goods to be weighed, tolerance control is started. The signal lights
indicate whether the load is within the two set limits.
Load below specified
tolerance
Load within specified
tolerance
Load exceeds specified
tolerance
Red signal light
next to „-“ ON illuminated
Green signal light
next to „„ illuminated
Red signal light
next to „+“ ON illuminated
The tolerance control is not active when the weight is under 20d.
To delete limits, enter “00.000 kg“.
SFB-BA-e-1324
33
7.7.2 Tolerance check for target quantity
Settings
Press and at the same time in weighing mode.
Press until the display for entering the lower limit value
appears.
Press , the current setting will be displayed.
To enter the lower limit, e. g. 75 items, press the navigation
buttons (see chap. 2.1.1); the currently enabled digit will be
flashing.
Confirm input by .
Press repeatedly until is displayed.
Press , the current setting for the upper limit will be
displayed.
To enter the upper limit, e. g. 100 items, press the
navigation buttons (see chap. 2.1.1); the currently enabled
digit will be flashing.
Confirm input by .
Press repeatedly until is displayed.
Press and the current setting for the acoustic signal will
be shown.
Select desired setting (no, ok, ng) by .
Confirm input by .
SFB-BA-e-1324
34
Press ; weighing system is in tolerance weighing mode.
From here evaluation takes place whether the goods to be
weighed are within the two tolerance limits.
Weighing with tolerance range
Set item weight, see chap. 7.10.
Tare when using a weighing container.
Put on goods to be weighed, tolerance control is started. The signal lights
indicate whether the load is within the two set limits.
Load below specified
tolerance
Load within specified
tolerance
Load exceeds specified
tolerance
Red signal light
next to „-“ ON illuminated
Green signal light
next to „„ illuminated
Red signal light
next to „+“ ON illuminated
The tolerance control is not active when the weight is under 20d.
To delete limits, enter „00000 PCS“.
SFB-BA-e-1324
35
7.8 Manual totalizing
Menu settings:
„P1 COM“ or „P2 COM“ „MODE“ „PR2““, see chap. 8
The totalisation function is not active when the weight is under 20d.
Add up:
Place goods to be weighed A.
Wait until the stability display STABLE appears, then press . The weight value
will be saved and a printout received if an optional printer is connected.
Remove the weighed good. More weighed goods can only be added when the
display = zero.
Place goods to be weighed B.
Wait until the stability display appears, then press . The weight value will be
added to the summation memory and possibly printed. The number of weighing
processes followed by the total weight will be shown for 2 sec.
Add more weighed goods as described before.
Please note that the weighing system must be unloaded between the individual
weighing procedures.
This process may be repeated 99 times or till such time as the capacity of the
weighing system has been exhausted.
Display and output sum „Total“:
Press and the number of weighings followed by the total weight will be
shown for 2 sec. To receive a printout, press during this display.
With this function the individual weighing values are added into the summation
memory by pressing and edited, when an optional printer is connected.
SFB-BA-e-1324
36
Delete weighing data:
Press and at the same time. The data in the summation memory are
deleted.
Printout example KERN YKB-01N, verified weighing system:
Menu setting
„P1 COM“ or „P2 COM“ „Lab 2“ / Prt 7“
Menu setting
„P1 COM“ or „P2 COM“ „Lab 0“ / Prt 0“
1
First weighing
2
Second weighing
3
Third weighing
4
Number of weighings / total
+
SFB-BA-e-1324
37
7.9 Automatic adding-up
Menu settings:
„P1 COM“ or „P2 COM“ „MODE“ „AUTO““, see chap. 8
Indicator AUTO is displayed.
Add up:
Place goods to be weighed A.
After the standstill control sounds a signal tone. The weighing value is added to
the summation memory, followed by printing.
Remove the weighed good. More weighed goods can only be added when the
display = zero.
Place goods to be weighed B.
After the standstill control sounds a signal tone. The weighing value is added to
the summation memory, followed by printing. The number of weighings, followed
by the total weight, will be shown for 2 sec.
Add more weighed goods as described before.
Please note that the weighing system must be unloaded between the individual
weighing procedures.
This process may be repeated 99 times or till such time as the capacity of the
weighing system has been exhausted.
Display and delete the weighing data, as well as printout examples
see chap. 7.8.
With this function the individual weighing values are automatically added into the
summation memory when the balance is unloaded without pressing and edited,
when an optional printer is connected.
SFB-BA-e-1324
38
7.10 Parts counting
In weighing mode , press and hold until the message „P
10“ appears that is used to set the reference quantity.
Use to set the desired reference quantity (such as 100),
options include P 10, P 20, P 50, P100, P 200.
Place as many items to be counted (such as 100 items) as
demanded by the set reference quantity and confirm by
The weighing scales calculate the reference weight. The
current quantity (such as 100 items) will be displayed.
Remove reference weight. The balance is from now in parts
counting mode counting all units on the weighing plate.
Back to Weighing mode by .
Before the balance can count parts, it must know the average part weight (i.e.
reference). Proceed by putting on a certain number of the parts to be counted. The
balance determines the total weight and divides it by the number of parts, the socalled reference quantity. Counting is then carried out on the basis of the calculated
average piece weight.
As a rule:
The higher the reference quantity the higher the counting exactness.
SFB-BA-e-1324
39
7.11 Animal weighing
Place the load onto the weighing system and wait until it is fairly stable.
Press and at the same time, a signal sounds, meaning that the animal
weighing function is enabled.
During the calculation of a mean average you can add or remove loads as the
mean average will be continuously updated.
To disable the animal weighing function press and at the same time.
The animal weighing function is ideal for unstable loads.
The weighing system calculates and displays a stable mean average from several
weighing values.
The animal weighing program may either be enabled by calling up menu block
“P3 OTH“ or “P4 OTH“ „ANM“ „ON“ (See chap. 8) or by using the faster option of
a key combination.
The indicator shows HOLD as long as the animal weighing function remains enabled.
SFB-BA-e-1324
40
7.12 Lock keyboard
bl on
Background lighting is on continuously
bl off
Background illumination off
bl Auto
Automatic background illumination on when weighing plate is
loaded
Go to menu item “P3 OTH“ or “P4 OTH“ „LOCK“, see chap. 8, and enable/disable
the keyboard interlock. The enabled function will be locked after 10 minutes of
inactivity. “K-LCK“ will be displayed as soon as a key is pressed.
To cancel locking, keep pressed , and at the same time (2s) until “U
LCK“ appears.
7.13 Display background illumination
Keep pressed (3s) until “setbl“ appears.
Press again and the current setting will be displayed.
Use to select desired setting.
Save entry by or cancel using .
SFB-BA-e-1324
41
7.14 Automatic switch-off function “AUTO OFF“
of 0
AUTO OFF - function disabled
of 3
Weighing system will be turned off after 3 min.
of 5
Weighing system will be turned off after 5 min.
of 15
Weighing system will be turned off after 15 min.
of 30
Weighing system will be turned off after 30 min.
The instrument will switch off automatically after a set time when the display unit or
weighing bridge has been idle.
Keep pressed (3s) until “setbl“ appears.
Call up AUTO OFF function using
Press - current setting appears.
Use to select desired setting.
Save entry by or cancel using .
SFB-BA-e-1324
42
8 Menu
Call up menu
Switch-on balance and during the selftest press .
Press , , subsequently, the first menu
block „PO CHK“ will be displayed.
Select menu block
With help of , the individual menu items can be
selected one after the other.
Select setting
Confirm selected menu item by pressing . The
current setting will be displayed.
Change settings
To change to the available settings, press the
navigations keys as described in chap. 2.1.
Acknowledge setting /
exit the menu
Either save by pressing or cancel by pressing .
Return to weighing
mode
Press repeatedly to exit menu.
Navigation in the menu:
SFB-BA-e-1324
43
8.1 Overview non verifiable models
Menu block
Main menu
Menu item
Submenu
Available settings / explanation
PO CHK
Weighing with
tolerance range,
see chap. 7.7
SET H
Upper limit value „Tolerance check weighing“, input see
chap. 7.7.1
SET LO
Lower limit value „Tolerance check weighing“, input see
chap. 7.7.1
PCS H
Upper limit value „Tolerance check counting“, input see
chap. 7.7.2
PCS L
Lower limit value „Tolerance check counting“, input see
chap. 7.7.2
BEEP
no
Acoustic signal for weighing with tolerance range
switched off
ok
Audio sound when load is within tolerance limits
nG
Audio sound when load is beyond tolerance limits
P1 REF
Zero point
settings
A2n0
Automatic zero point correction (Autozero) by changing
the display, digits selectable (0.5d, 1d, 2d, 4d)
0AUto
Zero setting range
Load range where the display after switching-on the
balance is set to zero. Selectable 0, 2, 5, 10, 20, 50, 100
%
0rAGE
Zero setting range
Load range where the display is set to zero by pressing
. Selectable 0, 2, 4, 10 , 20* , 50, 100%.
0tArE
Automatic taring „on / off“, taring range adjustable in menu
item „0Auto“.
SPEEd
Not documented
Zero
Zero point setting
P2 COM
Interface
parameter
MODE
CONT
Continuous data output
ST1
One output for stable weighing value
STC
Continuous data output of stable weighing
values
PR1
Output after pressing
PR2
Manual totalizing, see chap. 7.8.
Press and the weighing value will be
added to the summation memory and issued.
AUTO*
For automatic add-up see chap. 7.9.
This function is used to issue and add individual
weighing values automatically to the summation
memory on unloading of weighing scale.
ASK
For remote control commands, see chap. 10.4
wirel
Not documented
kit 1
BAUD
Available Baudrate: 600, 1200, 2400, 4800, 9600*
SFB-BA-e-1324
44
Pr
7E1
7 bits, even parity
7o1
7 bits, odd parity
8n1*
8 bits, no parity
PTYPE
tPUP*
Standard printer setting
LP50
Not documented
Lab
Lab x
(Lab 0*)
For data output format, see chap.8.2, tab. 1
Prt
Prt x
(Prt 0*)
LAnG
eng*
Standard settings English
chn
P3 CAL
Configuration
data
COUNT
Display internal resolution
DECI
Position of the decimal dot
DUAL
Setting balance type, capacity (Max) and readability (d)
off
Single-range balance
R1 inc
Readability
R1 cap
Capacity
on
Dual range balance
R1 inc
Readability 1st weighing range
R1 cap
Capacity 1st weighing range
R2 inc
Readability 2nd weighing range
R2 cap
Capacity 2nd weighing range
CAL
noLin
For adjustment, see chap. 6.5.2
Liner
For linearization, see chap. 6.6.2
GrA
Not documented
P4 OTH
LOCK
on
Keyboard lock enabled, see chap. 7.12
off*
Keyboard lock disabled
ANM
on
Animal weighing enabled, see chap. 7.11
off*
Animal weighing disabled
P5 Unt
Switch-over
weighing unit,
see chap. 7.5
kg
on* off
g on off*
lb
on off*
oz
on off*
tJ
on off
HJ
on off
P6 xcl
Not documented
P7 rst
Use to reset balance settings to factory default.
P8 uwb
Not documented
Factory settings are marked by *.
SFB-BA-e-1324
45
8.2 Overview verified models
Menu block
Main menu
Menu item
Submenu
Available settings / explanation
PO CHK
Weighing with
tolerance range,
see chap. 7.7
SET H
Upper limit value „Tolerance check weighing“, input see chap. 7.7.1
SET LO
Lower limit value „Tolerance check weighing“, input see chap. 7.7.1
PCS H
Upper limit value „Tolerance check counting“, input see chap. 7.7.2
PCS L
Lower limit value „Tolerance check counting“, input see chap. 7.7.2
BEEP
no
Acoustic signal for weighing with tolerance
range switched off
ok
Audio sound when load is within tolerance
limits
ng
Audio sound when load is beyond tolerance
limits
P1 COM
Interface
parameter
MODE
CONT
Continuous data output
ST1
One output for stable weighing value
STC
Continuous data output of stable weighing
values
PR1
Output after pressing
PR2
Manual totalizing, see chap. 7.8
Press and the weighing value will be
added to the summation memory and issued.
AUTO
For automatic totalizing see chap. 7.9. This
function is used to issue and add individual
weighing values automatically to the
summation memory on unloading of weighing
scale.
ASK
For remote control commands, see chap. 10.4
wireless
Not documented
Kit 1
baud
Available Baudrate: 600, 1200, 2400, 4800, 9600
Pr
7E1
7 bits, even parity
7o1
7 bits, odd parity
8n1
8 bits, no parity
PtYPE
tPUP
Standard printer setting
LP50
Not documented
Lab
Lab x
Details see following table 1
Prt
Prt x
In verified weighing systems the access to „P2 mode and „P4 tAr“ is locked.
In order to unlock the access, the seal must be destroyed and both contacts of the
printed circuit board [K2] must be short-circuited by a jumper, see chap. 6.11.
Attention:
After destruction of the seal the weighing system must be re-verified by an
authorised agency and a new verification wire/seal mark fitted before it can be
reused for applications subject to verification.
SFB-BA-e-1324
46
P2 mode
Konfigurations-
daten
SiGr
Single-range balance
COUNT
Display internal resolution
DECI
Position of the decimal dot
Div.
Readability [d] / verification value[s]
CAP
Balance capacity [Max]
CAL
noLin
Adjustment, see chap. 6.5
LinEr
Linearisation, see chap. 6.7
GrA
Not documented
dUAL 1
Dual range balance
Balance with two weighing ranges and different maximum load
and weighing ranges and interval sizes but only one loadsupporting pan, whereby each range extends from zero to the
respective maximum capacity. When load is removed, weighing
scales will remain in 2nd range.
COUNT
Display internal resolution
DECI
Position of the decimal dot
div.
div 1
Readability [d] / verification value [e]
1. weighing range
div 2
Readability [d] / verification value [e]
2. weighing range
CAP
CAP 1
Weighing scale capacity [max]
1. Weighing range
CAP 2
Weighing scale capacity [max]
2. Weighing range
CAL
noLin
Adjustment, see chap. 6.5.1
LinEr
For linearization, see chap. 6.6.1
GrA
Not documented
dUAL 2
Multi-interval balance
Weighing scales with one weighing range subdivided into partial
weighing ranges, each providing a different scale interval. The
scale interval depends on the applied load and is automatically
changed during loading and unloading.
COUNT
Display internal resolution
DECI
Position of the decimal dot
div.
div 1
Readability [d] / verification value [e]
1. weighing range
div 2
Readability [d] / verification value [e]
2. weighing range
CAP
CAP 1
Weighing scale capacity [max]
1. Weighing range
CAP 2
Weighing scale capacity [max]
2. Weighing range
CAL
noLin
Adjustment, see chap. 6.5.1
LinEr
Linearisation, see chap. 6.6.1
GrA
Not documented
P3 OTH
s. Kap. 7.11 / 7.12
LOCK
on
Keyboard lock enabled
off
Keyboard lock disabled
ANM
on
Animal weighing enabled
off
Animal weighing disabled
SFB-BA-e-1324
47
P4 tAr
Restricted taring
range
Press , the current setting will be displayed. Using the
navigation buttons (see chap. 2.1.1) select the desired setting, the
active digit is flashing.
Confirm input by .
P5 St
Follow up tare
St on
Follow up tare switched on
St off
Follow up tare switched off
P6 SP
7.5, 15, 30
Not documented
Lab
Prt
0 1 2
3
0~3
*******************
GS: 5.000kg
*******************
*******************
NT: 5.000kg
TW: 5.000kg
GW: 10.000kg
*******************
**********************
GS: 5.000kg
TOTAL: 10.000kg
**********************
**********************
NT: 5.000kg
TW: 5.000kg
GW: 10.000kg
TOTAL: 10.000kg
**********************
4~7
*******************
No.: 1
GS: 5.000kg
*******************
*******************
No.: 1
NT: 5.000kg
TW: 5.000kg
GW: 10.000kg
*******************
**********************
No.: 1
GS: 5.000kg
TOTAL: 10.000kg
**********************
**********************
No.: 1
NT: 5.000kg
TW: 5.000kg
GW: 10.000kg
TOTAL: 10.000kg
**********************
GS / GW
Gross weight
NO
Number weighing processes
NT
Net weight
TOTAL
Total of all individual weighings
TW
Tare weight
Tab. 1. Printout examples Standard printer
SFB-BA-e-1324
48
9 Service, maintenance, disposal
9.1 Cleaning
Before cleaning, disconnect the appliance from the operating voltage.
Cleaning is possible by water jet and short-time immersion.
Do not apply aggressive detergents (solvents etc.).
9.2 Service, maintenance
The appliance may only be opened by trained service technicians who are
authorized by KERN.
Before opening, disconnect from power supply.
9.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
SFB-BA-e-1324
49
9.4 Error messages
Error
message
Description
Possible causes
- - - - -
Maximum load exceeded
Unload weighing system or reduce
preload.
- - ol - -
Err 1
Incorrect data input
Follow format “yy:mm:dd“
Err 2
Incorrect time entry
Follow format “hh:mm:ss“
Err 4
Zeroing range exceeded due
to switching-on balance or
pressing (normally 4%
max)
Object on the weighing plate
Overload when zeroing
Err 5
Keyboard error
Err 6
Value outside the A/D
changer range
Weighing plate not installed
Damaged weighing cell
Damaged electronics
Err 9
Stability display does not
appear
Check the environmental
conditions.
Err 10
Communication error
No data
Err 15
Gravitation error
Range 0.9 ~ 1.0
Err 17
Taring range exceeded
Reduce load
Fai l h /
Fai l l
Adjustment error
Repeat adjustment.
Err P
Printer error
Check communication parameters
Ba lo /
Lo ba
Battery very low
Recharge battery
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
SFB-BA-e-1324
50
10 Data output RS 232C (optional)
Connection
9 pin d-subminiature bushing
Pin 2 input
Pin 3 output
Pin 5 signal earth
Baud rate
Optional 600/1200/2400/4800/9600
Parity
8 bits, no parity / 7 bits, even parity / 7 bits, odd parity
ST, GS 1.000kg
Weighing data can be issued according to menu settings either via the RS 232C
interface or by pressing via the interface.
This data exchange is asynchronous using ASCII - Code.
The following conditions must be met to provide successful communication between
the weighing balance and the printer.
Use a suitable cable to connect the weighing balance to the interface of the
printer. Faultless operation requires an adequate KERN interface cable.
Communication parameters (baud rate, bits and parity) of balance and printer
must match. For detailed description of interface parameters see chap. 8,
menu block „P1 COM“ or „P2 COM“.
10.1 Technical Data
10.2 Technical data
10.3 Printer mode
Printout examples (KERN YKB-01N):
Weighing
SFB-BA-e-1324
51
Symbols:
ST
Stable value
US
Instable value
GS / GW
Gross weight
NT
Net weight
TW
Tare weight
NO
Number weighing processes
TOTAL
Total of all individual weighings
<lf>
Space line
<lf>
Space line
Command
Function
Printout examples
S
Stable weighing value for the weight is
sent via the RS232 interface
ST,GS 1.000KG
W
Weighing value for the weight (stable or
unstable) is sent via the RS232 interface
US,GS 1.342KG
ST,GS 1.000KG
T
No data are sent, the balance carries out
the tare function.
-
Z
No data are sent, the zero-display
appears.
-
P
Quantity will be sent via the RS232interface
10PCS
****************************
PCS 100
****************************
Counting
10.4 Output log (continuous output)
Weighing
HEADER1: ST=STABLE， US=UNSTABLE
HEADER2: NT=NET， GS=GROSS
10.5 Remote control instructions
SFB-BA-e-1324
52
11 Instant help
Fault
Possible cause
The displayed weight does
not glow.
The balance is not switched on.
Mains power failure (mains cable defective).
Power supply interrupted.
(Rechargeable) batteries are inserted incorrectly or
empty
No (rechargeable) batteries inserted.
The displayed weight is
permanently changing
Draught/air movement
Table/floor vibrations
Weighing plate has contact with other objects.
Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is
obviously incorrect
The display of the balance is not at zero
Adjustment is no longer correct.
Great fluctuations in temperature.
Warm-up time was ignored.
Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
In case of an error in the program process, briefly turn off the balance and
disconnect from power supply. The weighing process must then be restarted from
the beginning.
Help:
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
SFB-BA-e-1324
53
12 Declaration of Conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postbox 4052
E-Mail: info@kern-sohn.de
Phone: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
D
Konformitätserklärung
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht,
mit den nachstehenden Normen übereinstimmt.
EN
Declaration of
conformity
We hereby declare that the product to which this declaration refers conforms
to the following standards.
CZ
Prohlášení o
shode
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
E
Declaración de
conformidad
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
F
Déclaration de
conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la
présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di
conformità
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si
riferisce è conforme alle norme di seguito citate.
NL
Conformiteitverklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de
conformidade
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy,
jest zgodny z poniższymi normami.
RUS
Заявление о
соответствии
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
EU Directive
Standards
2004/108/EC
EN55022: 2006 A1:2007
EN61000-3-3:1995+A1:2001+A2:2005
EN55024: 1998+A1:2001+A2:2003
2006/95/EC
EN 60950-1:2006
EN 60065:2002+A1:2006
Signatur
Signature
Datum
Date
08.04.2013
Ort der Ausstellung
Place of issue
72336 Balingen
Albert Sauter
KERN & Sohn GmbH
Geschäftsführer
Managing director
KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0
Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com
Declaration of conformity
EC Declaration of Conformity EC-Declaration of -Conformity
EC- Déclaration de conformité EC-Declaración de Conformidad
EC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление о соответствии
Electronic Balance:
KERN KFB-TM, KFN-TM, BFB, BFN, IFB, NFB, SFB, UFA, UFB, UFN
SFB-BA-e-1324
Loading...
