KERN & SOHN RPB D User Manual

KERN & Sohn GmbH
Ziegelei 1
E-Mail: info@kern-sohn.com
Internet: www.kern-sohn.com
Instruction Manual Price computing scales
KERN RPB_D
Version 2.5
05/2014
GB
D-72336 Balingen
Fax: +49-[0]7433-9933-149
RPB_D-BA-e-1425
KERN RPB_D
Price computing scales
GB
Version 2.5 05/2014
Instruction Manual
Contents
1 Technical data ................................................................................................ 4
1.1 Dimensions ................................................................................................................................. 5
2 Appliance overview ....................................................................................... 6
2.1 Overview of display ..................................................................................................................... 7
2.2 Keyboard overview ..................................................................................................................... 9
3 Basic Information (General) ........................................................................ 10
3.1 Proper use ................................................................................................................................ 10
3.2 Improper Use ............................................................................................................................ 10
3.3 Warranty ................................................................................................................................... 10
3.4 Monitoring of Test Resources ................................................................................................... 10
4 Basic Safety Precautions ............................................................................ 11
4.1 Pay attention to the instructions in the Operation Manual ........................................................ 11
4.2 Personnel training ..................................................................................................................... 11
5 Transport and storage ................................................................................. 11
5.1 Testing upon acceptance ......................................................................................................... 11
5.2 Packaging / return transport ..................................................................................................... 11
6 Unpacking, Setup and Commissioning ..................................................... 12
6.1 Installation Site, Location of Use .............................................................................................. 12
6.2 Unpacking ................................................................................................................................. 12
6.3 Transport screw ........................................................................................................................ 13
6.3.1 Placing ...................................................................................................................................... 13
6.3.2 Scope of delivery / serial accessories:...................................................................................... 14
6.4 Mains connection ...................................................................................................................... 14
6.5 Battery power supply (option) ................................................................................................... 14
6.6 Initial Commissioning ................................................................................................................ 14
6.7 Adjustment ................................................................................................................................ 15
6.8 Verification ................................................................................................................................ 17
6.8.1 Adjustment controls and seals .................................................................................................. 18
6.9 Checking the balance verification settings ............................................................................... 18
6.9.1 Service mode ............................................................................................................................ 19
7 Operation Mode ........................................................................................... 22
7.1 Turn on/off ................................................................................................................................ 22
7.2 Zeroing ...................................................................................................................................... 22
7.3 Weighing with taring ................................................................................................................. 22
7.4 Overload warning ...................................................................................................................... 22
8 Weighing with price determination ............................................................ 23
8.1 Basic price entry via keyboard .................................................................................................. 23
8.1.1 Unit switch over €/kg to €/100 g................................................................................................ 24
8.2 Memory for basic price (PLU = Price look up) .......................................................................... 26
9 Additional useful functions ......................................................................... 28
9.1 AUTO CLEAR ........................................................................................................................... 28
9.2 Display background illumination ............................................................................................... 28
9.3 AUTO POWER OFF ................................................................................................................. 29
RPB_D-BA-e-1425 2
10 RS 232 interface ........................................................................................... 30
10.1 Technical data .......................................................................................................................... 30
10.2 Pin allocation of balance output bushing: ................................................................................. 30
10.3 Fernsteuerbefehle .................................................................................................................... 30
10.4 Printout example: ...................................................................................................................... 30
11 Service, maintenance, disposal .................................................................. 31
11.1 Cleaning .................................................................................................................................... 31
11.2 Service, maintenance ............................................................................................................... 31
11.3 Disposal .................................................................................................................................... 31
12 Instant help ................................................................................................... 32
12.1 Error messages ........................................................................................................................ 32
13 Declaration of -Conformity .......................................................................... 33
RPB_D-BA-e-1425 3

1 Technical data

Models without vertical display:
KERN RPB 6K1DM RPB 15K2DM RPB 30K5DM
Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g 5 g / 10 g Minimum load (Min) 20 g 40 g 100 g Verification value (e) 1 g / 2 g 2 g / 5 g 5 g / 10 g Verification class III III III Reproducibility 1 g / 2 g 2 g / 5 g 5 g / 10 g Linearity ± 1 g / ±2 g ± 2 g /± 5 g ± 5 g / ±10 g Recommended adjusting
weight (not supplied) Stabilization time 2 s Heating time (operating
temperature) Net weight (kg) 3.3 kg Basic price, can be
switched over Admissible
ambient temperature Allowable air humidity 0 % - 80 % (non-condensing)
Electric Supply
Rechargeable battery (Option)
5 kg; 1 kg (F2) 15 kg (M1)
10 min
€/kg; €/100 g
-10° C to 40° C
Mains adapter 220 V – 240 V AC 50 Hz
balance 12 V, 500 mA
6 V, 4 Ah
Operating time – background lighting on 40 hrs. Operating time – background lighting off 80 hr s.
20 kg; 10 kg
(M1)
Loading time approx. 14 hrs.
RPB_D-BA-e-1425 4
Models with post-mounted display:
6 V, 4 Ah
KERN RPB 6K1 DHM RPB 15K2DHM RPB 30K5DHM
Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g 5 g / 10 g Minimum load (Min) 20 g 40 g 100 g Verification value (e) 1 g / 2 g 2 g / 5 g 5 g Verification class III III III Reproducibility 1 g/2 g 2 g/5 g 5 g/10 g Linearity ± 1 g / ±2 g ± 2 g /± 5 g ± 5 g / ±10 g Recommended adjusting
weight (not supplied)
5 kg; 1 kg (F2) 10 kg; 5 kg (M1) 20 kg; 10 kg(M1)
Stabilization time 2 s Heating time (operating
temperature)
10 min
Net weight (kg) 4.8 kg Basic price, can be
switched over Admissible
ambient temperature
€/kg; €/100 g
-10° C to 40° C Allowable air humidity 0 % - 80 % (non-condensing) Electric Supply
Mains adapter 220 V – 240 V AC 50 Hz
balance 12 V, 500 mA
Rechargeable battery (Option)
Operating time – background lighting on 40 hrs. Operating time – background lighting off 80 hr s.
Loading time approx. 14 hrs.

1.1 Dimensions

RPB_D-BA-e-1425 5

2 Appliance overview

Models without vertical display:
Models with post-mounted display:
1. Weighing plate / rechargeable battery compartment (under weighing plate)
2. Bubble level
3. Post-mounted display
4. RS 232 interface
5. Foot screws
6. ON/OFF switch
7. Mains adapter connection
8. Adjustment switch
RPB_D-BA-e-1425 6
Weight

2.1 Overview of display

Weight
Basic price
Sales price
Storage battery status display
Operator and secondary display (standard on the backside of mode ls without post-mounted display):
Post-mounted display for models with tripod:
Basic price
Sales price
RPB_D-BA-e-1425 7
Display weight
Here, the weight of your goods is displayed.
Indicator  next to symbol displays:
GROSS
NET
a
Display basic price
Basic price, can be switched over from € / kg or € / 100 g.
Indicator  next to symbol displays:
€/kg Basic price in €/kg €/100 g Basic price in €/100 g
Display sale price
Here the sales price is displayed in Euro [€].
Battery very low
Gross weight Net weight Stability display Zeroing display
Indicator  next to symbol displays:
AUTO CLE AR
BAR
Storage battery status display
red green
Set basic price is deleted automatically when balance is unloaded
Calculating the change (see chap. 8.2)
Charging storage battery Battery is completely discharged
RPB_D-BA-e-1425 8

2.2 Keyboard overview

Bubble level
Save basic price (press and hold key for a long time) see
see chap. 8.2
Selection Function
~
3 Numerical keys, PLU-keys
Delete
chap. 8.2
Call-up basic price (press and hold key for a short time),
Switch-over unit € / kg € / 100g
Issue to external device
Parameter selection
Calculating the change, see chap. 8.2
Taring, see chap. 7.3
Storing settings
Background illumination of the display, see chap. 9.2
If function is activated, the set basic price is automatically
RPB_D-BA-e-1425 9
deleted when the balance is unloaded, see chap. 9.1
Zeroing
Back to weighing mode

3 Basic Information (General)

3.1 Proper use

The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.

3.2 Improper Use

Do not use balance for dynamic weighings. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing plate. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.

3.3 Warranty

Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage or damage by media, liquids, natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded

3.4 Monitoring of Test Resources

In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.
RPB_D-BA-e-1425 10

4 Basic Safety Precautions

Carefully read this operation manual before setup and commis even if you are already familiar with KERN balances.
Versions in other languages are non The only binding version is the original document in German.

4.1 Pay attention to the instructions in the Operation Manual

sioning,

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel.
-binding translations.

5 Transport and stora ge

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

5.2 Packaging / return transport

Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning. Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
RPB_D-BA-e-1425 11

6 Unpacking, Setup and Comm issioning

6.1 Installation Site, Location of Use

The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface;
Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and doors;
Avoid jarring during weighing;
Protect the balance against high humidity, vapours and dust;
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.
Avoid static charge of goods to be weighed or weighing container.
If electro-magnetic fields or static charge occur, or if the power supply is unstable major deviations on the display (incorrect weighing results) are possible. In that case, the location must be changed.

6.2 Unpacking

Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation.
RPB_D-BA-e-1425 12
1

6.3 Transport screw

Remove the transport screw essential (available only at 6 kg model)
To loosen the transportation lock, unscrew transportation screw [1] anti-clockwise.
For transport
with lock nut.
, transport screw gently until it stops turning clockwise and then secure

6.3.1 Placing

Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.
RPB_D-BA-e-1425 13

6.3.2 Scope of delivery / serial accessories:

Balance, see chap. 2
Mains adapter
Protective cover
Instruction Manual

6.4 Mains connection

Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN.

6.5 Battery power supply (option) The rechargeable battery is charged via the delivered power supply.

Before the first use, the battery should be charged by connecting it to the mains power supply for at least 15 hours.
If an arrow appears on the weight display [] above the battery symbol , this is an indication that the capacity of the rechargeable battery will soon be exhausted. The balance will be ready to operate for about another 10 hours, then it will switch off automatically. Charge the battery with the help of the supplied power pack.
If in the weight display appears „bat Lo“ followed by a flickering display, the capacity of the rechargeable battery is below the prescribed minimum. The balance will be ready to operate for about another 5 minutes, then it will switch off automatically. Charge the battery with the help of the supplied power pack.
The LED display informs you during loading about the loading status of the rechargeable battery.
red: green:
Battery is almost discharged Battery is completely discharged

6.6 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. During this warming up time the balance must be connected to the power supply (mains, accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.
RPB_D-BA-e-1425 14

6.7 Adjustment

The adjustment is locked for verified balances. Carrying out adjustment
be reused for applications subject to verification.
As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.
requires that the seal is destroyed and the adjusting switch is confirmed in step 3 when turning on the scale. For position of adjusting switch, see chpt.
6.8.1 Attention: After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can
Procedure when a djusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing plate. Arrange adjustment weight, details see chap.1 „Technical data“

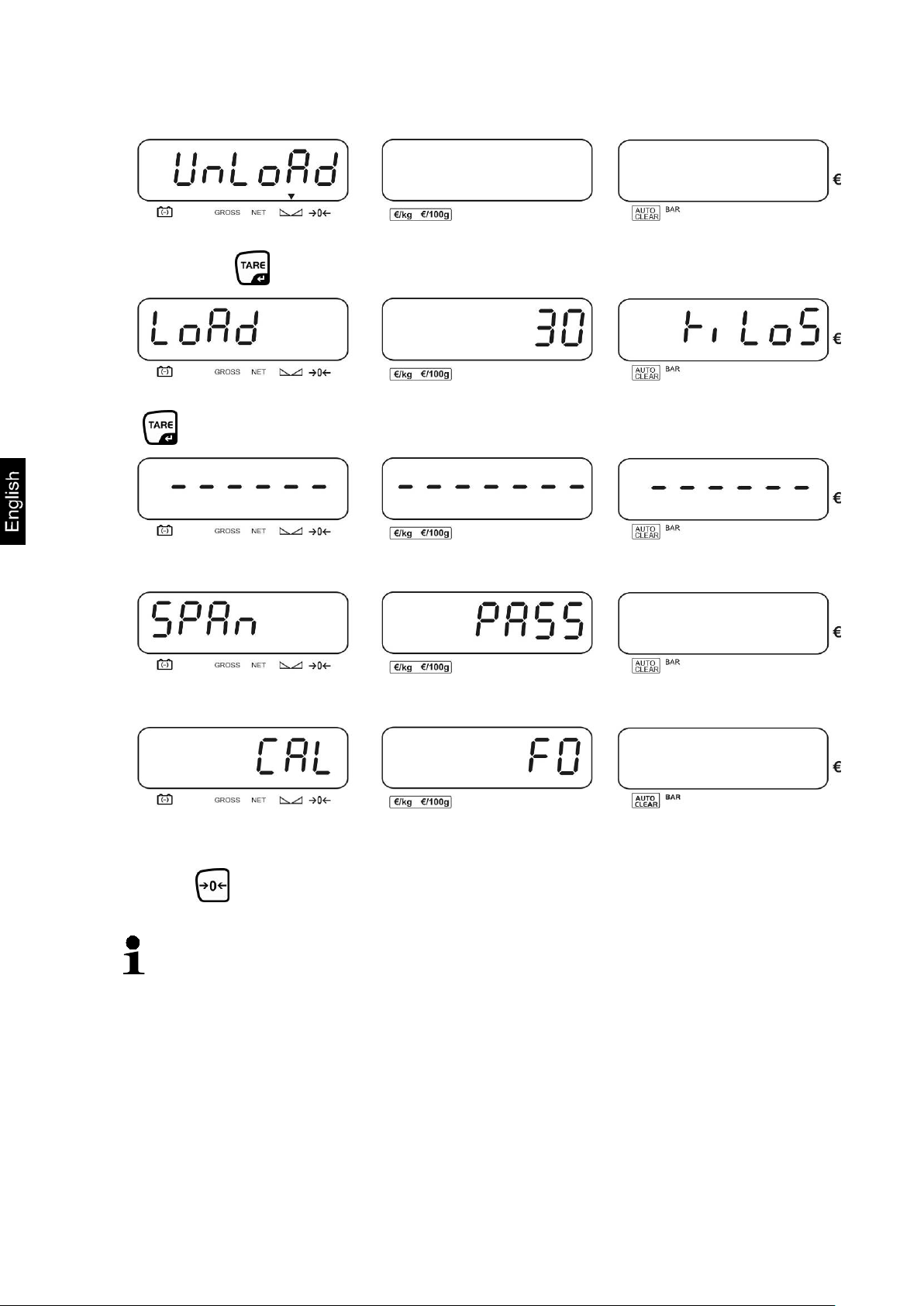

1. Switch-on balance and during the selftest press .
2. Use the numeric keys to enter „0000“ for a password and confirm by pressing .
3. The adjustment function „CAL F0“ is displayed. Press the adjusting switch and confirm by pressing .
RPB_D-BA-e-1425 15
show an error message (
/
), repeat adjustment process.
4. Ensure that there are no objects on the weighing plate. Wait for stability display, then press . The required adjustment weight is shown.
5. Place the adjustment weight carefully in the centre of the weighing pan, press
and the adjusting process will be started.
6. The adjustment process has been successfully completed. Take away adjustment weight.
7. Press and the scales will return to weighing mode.
In case of an adjustment error or incorrect adjusting weight the display will
SPAN
FAKL
RPB_D-BA-e-1425 16

6.8 Verification

UUGeneral:
According to EU directive 90/384/EEC balances must be officially verified if they are used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing. b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory. c) For official purpose. d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard. After verification the balance is sealed at the indicated positions.
Verification of the balance is invalid without the "seal".
Verification notes: An EU type approval exists for balances described in their technical data as
verifiable. If a balance is used where obligation to verify exists as described above, it must verified and re-verified in regular intervals. Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years. The legal regulation of the country where the balance is used must be observed!
Balances wi th obl i gation to verify must be taken out of operation if:
The weighing re sult of the balance is outside the error limit. Therefore, in
regular intervals load balance with known test weight (ca. 1/3 of the max. load)
and compare with displayed value.
The reverification deadline has been exceeded.
RPB_D-BA-e-1425 17

6.8.1 Adjustme nt c ontrols and seals

In the service mode the parameters of the balance can be modified. If this happened accidentally, please contact KERN.
Possible seals: enforced, and or
1. Seal mark 1
2. Cover
3. Verification switch
4. Verification wire

6.9 Checking the balance verification settings

For the adjustment, the balance must be switched over to service mode.
In calibrated scales the service mode is locked individually for each switch. To disable the access lock, destroy the seal and confirm the swatch. For position of switch see chpt. 6.8.1. Attention: After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification.
RPB_D-BA-e-1425 18

6.9.1 Service mode

This overview of the service parameters is merely for checking the parameters set by the appropriate Bureau of Standards. No changes may be made.
Access to menu:
1. Switch-on balance and during the selftest press .
2. Use the numeric keys to enter „0000“ for a password and confirm by .
3. Confirm password with
4. The first function „F0 CAL“ is displayed. Press adjusting switch.
Select function:
You can select individual functions containing the current settings one after the
other by using or a numeric key (i.e. for F0 or 2 for F2).
Change / save settings:
Confirm selected function by pressing . Select desired setting by pressing
and confirm by pressing or cancel by pressing .
Exit menu:
Using the balance returns into the weighing mode.
RPB_D-BA-e-1425 19
Overview for service parameter:
Factory settings are marked by [*].
Function
Settings
Description
CAL F0
CAL F1
CAL F2
CAL F3
rES 1 3000 rES 1 6000 rES dual rAnge* Always use this setting
Price Unit 1* Always use this setting Price Unit 2
CAPA 6
CAPA 15
CAPA 30
Adjustment function, see chpt. 6.7
Resolution
€ / kg can be switched over to € / 100g
Weighing range (max) Factory setting
RPB 6K1DM, RPB 6K1DHM Factory setting
RPB 15K2DM, RPB 15K2DHM Factory setting
RPB 30K5DM, RPB 30K5DHM
CAL F4
CAL F5
0.000 Point
0.00 Point
0.0 Point 0 Point
Point 0 0
0.0 0.0
0.00 0.00* Always use this setting
0.000 0.000
0.0000 0.0000
Position decimal point ”weight display“
Factory setting RPB 6K1DM, RPB 6K1DHM, RPB 15K2DM, RPB 15K2DHM
Factory setting RPB 30K5DM, RPB 30K5DHM
Position decimal point “price displays”
RPB_D-BA-e-1425 20
CAL F6
Display internal resolution
CAL F7 Coin
CAL F8
CAL F9
CAL F10
XXX A-d CoUntS
Min Coin 1* Always use this setting Min Coin 2 Min Coin 5 Min Coin 10
Printer Settings rS-232 tYPE PRINTER On rS-232 tYPE oFF Off
bAUd rAtE 2400 bAUd rAtE 4800* bAUd rAtE 9600 bAUd rAtE 19200
Not documented
Interval size currency
Baudrate
CAL F11
CAL F12
CAL F13
rS-232 mode 8 n 1* rS-232 mode 7 E 1 rS-232 mode 7 o 1
Not documented PErCnt tArE on PErCnt tArE off* Always use this setting
Not documented Grv rAte X.XXXX
Calculation of credit
CHAnGE
on
off Off
On -
Always use this setting
RPB_D-BA-e-1425 21

7 Operation M ode

7.1 Turn on/off

To turn on/off confirm forward at the underneath on the right of the scale and
keep pressed for a little while. The balance will carry out a self-test. As soon as the weight display shows "0" in all the three display windows your balance is ready to weigh.
To switch-off push backward the switch-on/switch-out on the right lower side of
the balance.

7.2 Zeroing

Resetting to zero corrects the influence of light soiling on the weighing plate.
Unload the balance
Press , the balance starts resetting to zero.
The indicator [] above appears.

7.3 Weighing with taring

Deposit weighing vessel. After successful stop check press the button. Zero
display and the indicator [] above [NET] appear.
Weigh the material, the net weight will be indicated. The weight of the weighing container will be displayed as a minus number after
removing the weighing container.
To delete the TARE value unload the weighing plate and press , the indicator
[] above [GROSS] appears.

7.4 Overload warning

Overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. This could cause damage to the balance. Exceeding maximum load is indicated by the display of “„-OL-“, and an audio sound. Unload balance or reduce preload.
RPB_D-BA-e-1425 22

8 Weighing with price determinat ion

As soon as the goods to be weighed are placed on the balance and the basic price has been set the price is calculated automatically and displayed in the provided field.

8.1 Basic price entry via keyboard

When using the weighing container, tare by using , see chpt. 7.3.
Place goods to be weighed on balance.
Enter basic price via numeric keys ~ and the sales price will be
automatically computed and displayed.
The set basic price is deleted by .
Using switch over basic price from € / kg to € / 100g (see chapter
8.1.1).
Calculating the change, see chap. 8.2
RPB_D-BA-e-1425 23

8.1.1 Unit switch over €/kg to €/100 g

The following parameters should be set for this:
To carry out these settings please proceed as follows: Switch-on balance and during the selftest press .
(should „oFF“ not be displayed, press )
RPB_D-BA-e-1425 24
Press
(should „oFF“ not be displayed, press )
Press
(should „on“ not be displayed, press )
Press again
(should „on“ not be displayed, press )
Confirm by After a short acoustic signal the balance returns automatically into weighing mode.
The function is activated. Use button to switch over between €/kg and €/ 100g.
RPB_D-BA-e-1425 25

8.2 Memory for basic price (PLU = Price look up)

The balance is able to store up to 10 basic prices.
Save:
Enter basic price via the numeric keys ~ .
Keep pressed for about 3 seconds
Enter the desired PLU key via the numeric keys ~ .
The basic price is saved at the entered PLU.
Retrieve / show sales price:
Place goods to be weighed
Press
Press desired PLU ~ and the saved basic price as well as the sales
prices computed from it will be shown.
RPB_D-BA-e-1425 26
Before calling-up an other PLU, the displayed basic price has to be deleted by .
Calculating the change:
Press at the display sales price (e.g. 2.25 €).
Enter the given amount of money, e.g. 5.00 € using the numeric keys ~
. The balance calculates the change and displays it, e.g. 2.75 €.
Using or the balance returns into the weighing mode.
RPB_D-BA-e-1425 27

9 Additional useful functions

loaded

9.1 AUTO CLE AR Enable:

To enable the AUTO-CLEAR function press ; the arrow above „“AUTO
CLEAR“ will start flashing on the display at the same time. The set basic price is deleted automatically when balance is unloaded.
Disable:
Press anew, the AUTO-CLEAR function will be deactivated, the arrow
above „AUTO CLEAR“ will extinguish. When the load is removed, the set basic price will be retained.

9.2 Display background illumination

Press , „backlight“ with the current setting will appear.
Press repeatedly until the desired setting is displayed.
on off Auto
Either save by pressing or cancel by pressing . The balance returns to
weighing mode.
Background illumination on Background illumination off Automatic background illumination on when weighing pate is
RPB_D-BA-e-1425 28

9.3 AUTO POWER OFF

To save the rechargeable battery (option), the automatic switch-off function can be activated, switch-off time selectable after 0, 3, 5 or 10 minutes.
Switch-on balance and during the selftest press . „Auto off“ with the current
setting will appear.
Press repeatedly until the desired setting is displayed.
0
3 5 10
Either save by pressing or cancel by pressing . The balance returns to
weighing mode.
Automatic switch off deactivated
Automatic switch off after 3 min Automatic switch off after 5 min Automatic switch off after 10 min
RPB_D-BA-e-1425 29
Pin 2
RXD
Input
Receiving data
Pin 5
GND ― Signal ground
Balance
Computer
Pin 5
Pin 5
Remote control command
Computer
Z
Zeroing
S
Output of stable weighing values
W
Output of stable or unstable weighing results
N:
0,583 kg
Item to be weighed
3.33 EUR/kg
Price per kg
1.94 EUR
Price of load placed
2 3 4
6 7 8

10 RS 232 interface

10.1 Technical data

RS 232 connection to output of weighing data ASCII code Baud rate 600, 1200, 2400, 4800, 9600 8 data bits No parity

10.2 Pin allocation of balance output bushing:

Pin 3 TXD Output Transmission data
9pin D Connector:

10.3 Fernsteuerbefehle

T Taring
Pin 2 Pin 3 Pin 3 Pin 2

10.4 Printout example:

RPB_D-BA-e-1425 30

11 Service, maintenance, disposal

11.1 Cleaning

Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry sof t cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.
Spilled weighing goods m ust be removed immediately.

11.2 Service, maintenance

The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.

11.3 Disposal

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
RPB_D-BA-e-1425 31

12 Instant hel p

In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Fault Possible cause
The displayed weight does not glow.
The displayed weight is permanently changing
The weighing result is obviously incorrect
The balance is not switched on.
The mains supply connection has been interrupted
(mains cable not plugged in/faulty).
Power supply interrupted.
Batteries are inserted incorrectly or empty
No batteries inserted.
Draught/air movement
Glass doors not closed
Table/floor vibrations
Weighing plate has contact with other objects.
Electromagnetic fields / static charging (choose
different location/switch off interfering device if possible)
The display of the balance is not at zero
Adjustment is no longer correct.
The balance is on an uneven surface.
Great fluctuations in temperature.
Electromagnetic fields / static charging (choose
different location/switch off interfering device if possible)
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.

12.1 Error messages

ERR 4 Zero range exceeded ERR 5 Invalid entry ERR 6 Damaged electronics
RPB_D-BA-e-1425 32

13 Declarat ion of -Conformity

KERN & Sohn GmbH
D-72322 Balingen-Frommern
E-Mail: info@kern-sohn.de
Tel: 0049-[0]7433- 9933-0
Internet: www.kern-sohn.de
D
Konformitäts­erklärung
Wir erk lären hiermit, dass das Produkt, auf das sich diese Erk lärung bezieht, mit den nachstehenden Normen übereinstimmt.
GB
Declaration of conformity
We hereby declare that the product to which this declaration refers conf orms with the following standards.
CZ
Prohlášení o shode
Tímto prohlašujem e, že výrobek, kterého se toto prohlášení týká, je v souladu s níže uvedenými normami.
E
Declaración de conformidad
Manifestamos en la presente que el producto al que se refiere esta declaración está de acuerdo con las normas siguientes
F
Déclaration de conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapport e la présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di conformità
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.
NL
Conformiteit­verklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de conformidade
Declaramos por meio da presente que o produto no qual se refere esta declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy,
jest zgodny z poniższymi normami.
RUS
Заявление о
соответствии
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
EN55022: 2006 A1:2007 EN55024: 1998+A1:2001+A2:2003
EN 60950-1:2006 EN 60065:2002+A1:2006
Signature
Datum
08.04.2013
Ort der Ausstellung
Place of issue
72336 Balingen
Albert Sauter KERN & Sohn GmbH
Geschäftsführer
Managing director
KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0 Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com
Postfach 4052
Fax: 0049-[0]7433-9933-149
Declaration of -Conformity
EG-Konformitätserklärung EC-Declaration of -Conformity
Déclaration de conformité EC-Declaración de Conformidad
EC­EC-Dichiarazione di conformità EC-Conformiteitverklaring EC- Declaração de conformidade EC- Prohlášení o shode EC-Deklaracja zgodności EC-Заявление о соответствии
Electronic Balan ce: KERN RPB-D
EU Directive Standards
2004/108/EC
2006/95/EC
Date
RPB_D-BA-e-1425 33
EN61000-3-3:1955+A1:2001+A2:2005
Signatur
Loading...
