Operating instructions
Medical Chair scale
KERN MCC-M
Version 1.2
10/2013
GB
MCC-M-BA-e-1312
GB
KERN MCC-M
Version 1.2 10/2013
Operating manual chair
Contents
1 Technical data ................................................................................................ 4
2 Declaration of conformity ............................................................................. 5
2.1 Explanation of the graphic symbols ............................................................................................ 5
3 Appliance overview ....................................................................................... 7
3.1 Overview of display .................................................................................................................... 9
3.2 Keyboard overview ................................................................................................................... 10
4 Basic Information (General) ........................................................................ 11
4.1 Specific function ....................................................................................................................... 11
4.2 Proper use ................................................................................................................................ 11
4.3 Improper Use ............................................................................................................................ 12
4.4 Warranty ................................................................................................................................... 12
4.5 Monitoring of Test Resources .................................................................................................. 12
5 Basic Safety Precautions ............................................................................ 13
5.1 Pay attention to the instructions in the Operation Manual........................................................ 13
5.2 Personnel training ..................................................................................................................... 13
5.3 Preventing contamination ......................................................................................................... 13
6 Electromagnetic compatibility (EMC) ......................................................... 14
6.1 General hints ............................................................................................................................ 14
6.2 Electromagnetic interferences .................................................................................................. 15
6.3 Electromagnetic noise immunity ............................................................................................... 16
6.3.1 Crucial features of performance ............................................................................................... 18
6.4 Minimum distances ................................................................................................................... 18
7 Transport and storage ................................................................................. 19
7.1 Testing upon acceptance ......................................................................................................... 19
7.2 Packaging / return transport ..................................................................................................... 19
2 MCC-M-BA-e-1312
8 Unpacking, Setup and Commissioning ..................................................... 20
8.1 Place of installation / place of operation ................................................................................... 20
8.2 Unpacking ................................................................................................................................. 20
8.3 Scope of delivery ...................................................................................................................... 20
8.4 Installing the chair scales ......................................................................................................... 21
8.4.1 Levelling ................................................................................................................................... 22
8.5 Mains connection ...................................................................................................................... 23
8.6 Rechargeable battery operation ............................................................................................... 24
8.7 Initial Commissioning ................................................................................................................ 24
9 Operation ...................................................................................................... 25

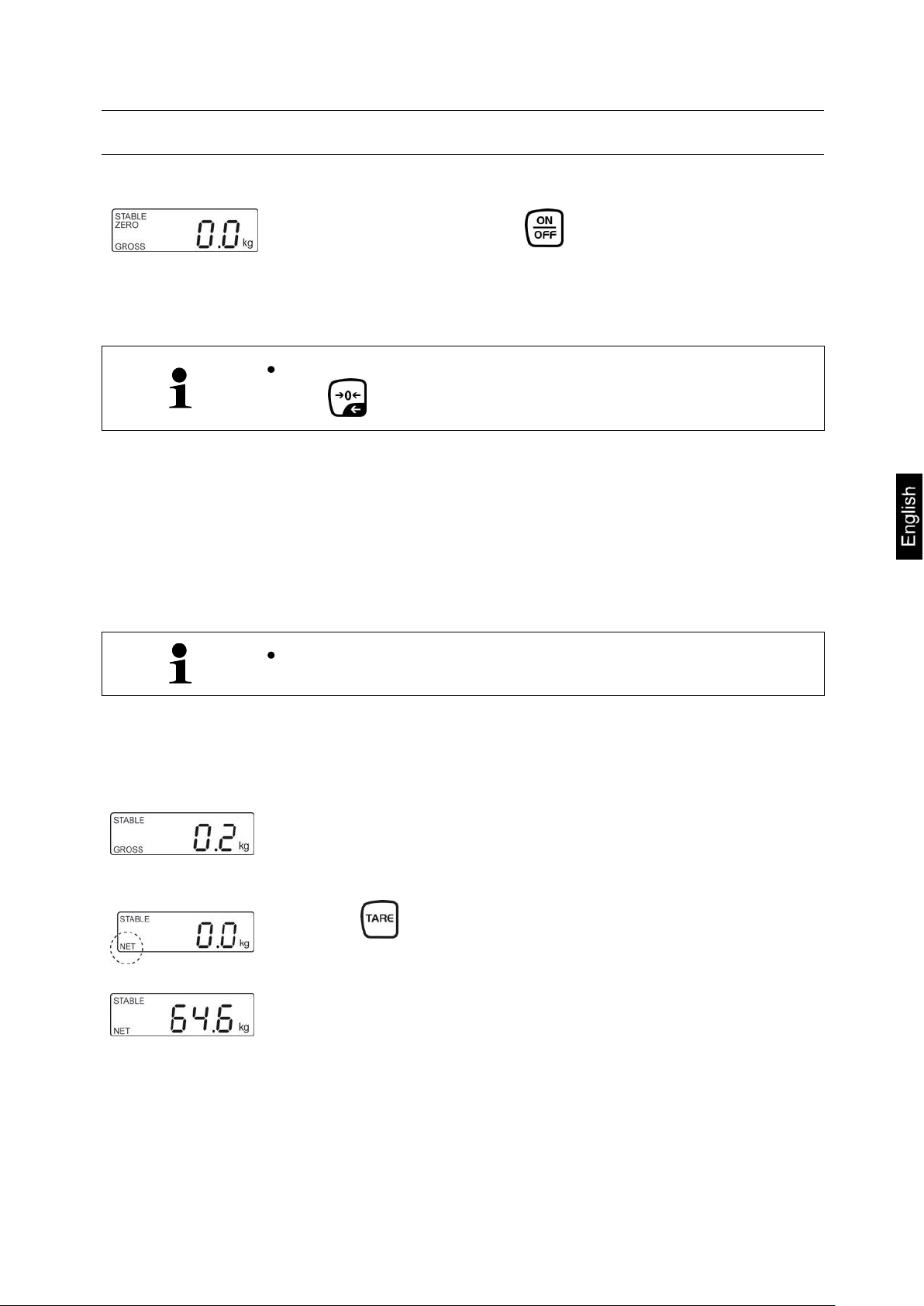

9.1 Weighing ................................................................................................................................... 25
9.2 Taring........................................................................................................................................ 25

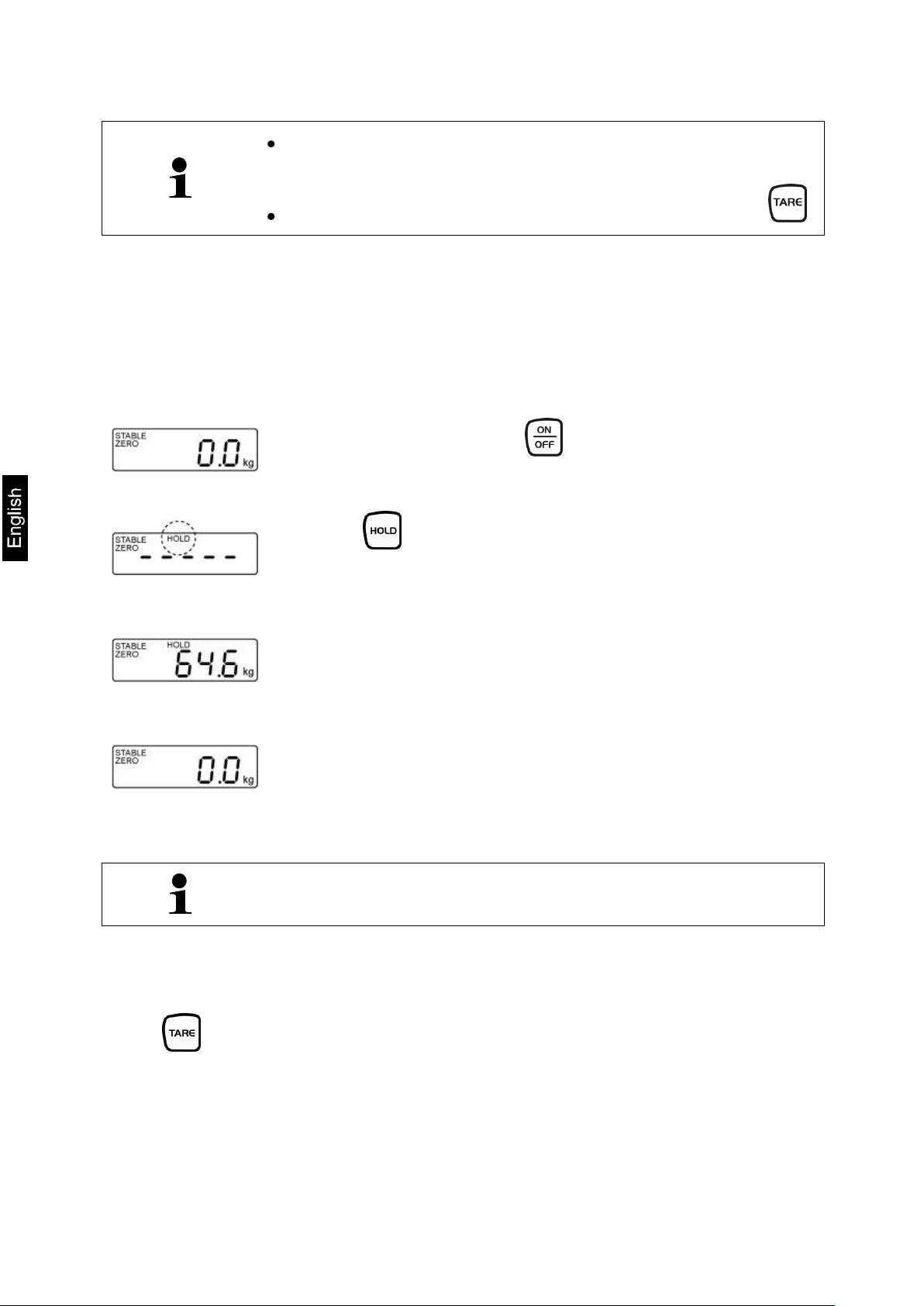

9.3 HOLD function .......................................................................................................................... 26
9.4 See second decimal point (not verified value) ......................................................................... 26
9.6 Calculation of the Body Mass Index ......................................................................................... 27
9.6.1 Classification of BMI values ..................................................................................................... 27
9.7 Automatic switch-off function „AUTO OFF“ .............................................................................. 28
9.8 Display background illumination ............................................................................................... 29
10 Menu ............................................................................................................. 30
10.1 Navigation in the menu ............................................................................................................. 30
10.2 Menu overview MPC models .................................................................................................... 31
11 Error messages ............................................................................................ 32
12 Service, maintenance, disposal .................................................................. 33
12.1 Cleaning ................................................................................................................................... 33
12.2 Cleaning / disinfecting .............................................................................................................. 33
12.3 Service, maintenance ............................................................................................................... 33
12.4 Disposal .................................................................................................................................... 33
13 Instant help ................................................................................................... 34
14 Verification ................................................................................................... 35
14.1 Verification validity period (current status in G) ........................................................................ 36

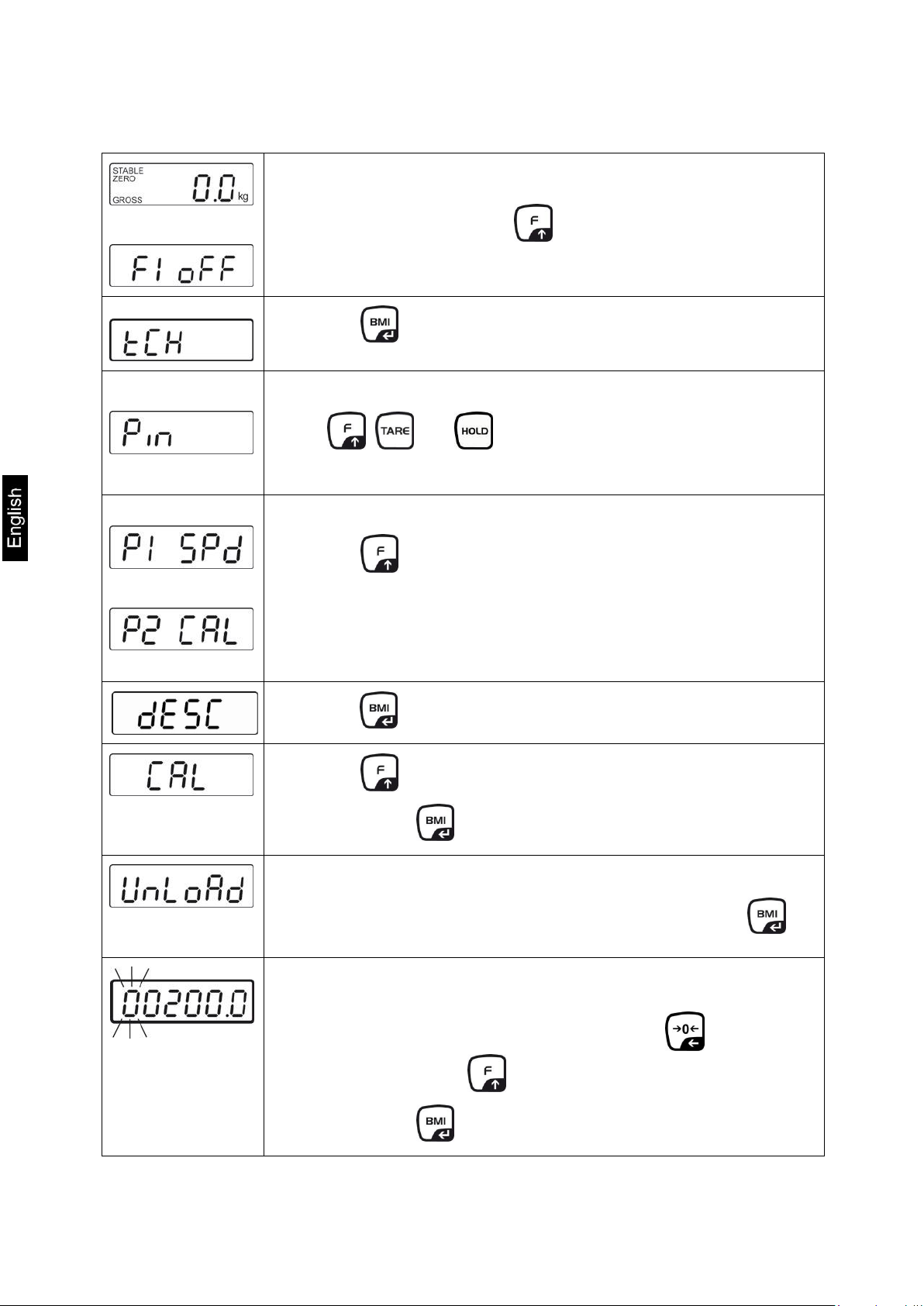

15 Adjustment ................................................................................................... 37
MCC-M-BA-e-1312 3
1 Technical data
KERN
MCC 250K100M
Readability (d)
0.1 kg
Weighing range (max)
250 kg
Minimum weight (min)
2 kg
Verification value (e)
100 g
Verification class
III
Reproducibility
0.1 kg
Linearity
±0.1 kg
Recommended adjustment
weight (Class)
200 kg
(M1)
Weighing Units
kg
Warm-up time
10 min
Electric Supply
Input voltage: 220 V - 240 V AC 50 Hz
Operating temperature
0°C … + 40°C
Humidity of air
max. 80 % (not condensing)
Dimensions (W x D x H) mm
625 x 990 x 935
Dimensions
Weighing surface
435 x 380 x 410
Weight kg (net)
19
Rechargeable battery operation
Series
Medical product in accordance
with 93/42/EEC
Category I with measuring function
4 MCC-M-BA-e-1312
2 Declaration of conformity
0297
93/42/EEC
2009 / 23 / EG
Non-automatic Weighing Instruments Directive
This EC verification mark indicates that these scales are in
conformity with EC Directive 2009 / 23 / EC for NonAutomatic Weighing Instruments. Weighing instruments
bearing this mark are approved for medical purposes within the
European Union.
WF 1334331
Designation of the serial number of every device, applied at the
device and on the packaging
Number here as example
2012-10
Identification of the manufacturing date of the medical product.
Year and month here as example
“Please note the accompanying documents“
or “Please note operating instructions”
“Please note operating instructions”
“Please note operating instructions”
M
year
0103
Declaration of conformity: see separate document showing serial number of device
CE marking:
2.1 Explanation of the graphic symbols
MCC-M-BA-e-1312 5
Kern & Sohn GmbH
D–72336 Baligen,Germany
www.kern-sohn.com
Identification of manufacturer of medical product including
address
“Electro-medical appliance“
with attachment for type B
Device protection category II
Dispose of old appliances separately from your household
waste!
Instead, take them to communal collection points.
Temperature limit indicating the upper and the lower limit
(storage temperature on packaging)
(Temperature serving as an example)
12 V DC / 500 mA
Display of supply voltage for scales with polarity display.
6 MCC-M-BA-e-1312
3 Appliance overview
1. Seat pan
2. Bubble level
3. Display Unit
4. Manipulations
5. Parking brake
6. Adjustment switch
7. Terminal power supply unit
8. Connection cable "Display - Chair"
9. Battery compartment
MCC-M-BA-e-1312 7
Details:
Parking brake
Foot rests
Accessory bag
Folding arm rests
8 MCC-M-BA-e-1312
3.1 Overview of display
Display
Description
Description
GROSS
Gross weight display
Lights up during indication of the gross
weight of the baby (after drinking)
NET
Net weight display
Lights up during indication of the net weight
of the baby (before drinking)
Illuminated after weighing scale was tared
ZERO
Zeroing display
Should the balance not display exactly
zero despite empty scale pan, press the
button. Your balance will be set to zero
after a short standby time.
STABLE
Stability display
Scales are in a steady state
BMI
Body Mass Index
Is actively displayed during active BMI
function
HOLD
HOLD function
Is displayed with active hold function
Rechargeable battery
symbol
Lights when the voltage drops below the
prescribed minimum.
Lights when the rechargeable battery
capacity is almost exhausted.
Lights when the rechargeable battery is
fully charged.
MCC-M-BA-e-1312 9
3.2 Keyboard overview
Key
Description
Function
ON/OFF-switch
Turn on/off
HOLD button
Hold function
BMI key
Calculation of the Body Mass Index
In menu:
Confirm selection
For numeric entry:
Confirm numerical value
Function key
In menu:
Call up menu
How to select menu items
For numeric entry:
Increase numerical value
Zero setting key
Weighing scale will be reset to „0.0“
For numeric entry:
Change decimal place
TARE key
Tare balance
10 MCC-M-BA-e-1312
4 Basic Information (General)
Weighing instruments have to be verified for the purposes stated
below in accordance with Directive 2009/23/EC. Article 1,
paragraph 4. “Determination of mass in the practice of medicine
that is, weighing patients for reasons of medical supervision
during medical surveillance, examination and treatment.”
Indication
Determining the body weight in the medical practice area.
Use as „non-standalone weighing scale“, that is, a person
sits carefully onto the seating surface’s centre. Once a
steady display value is shown, you can read the weight
value.
Contraindication
No contraindication known
The instruments shall only be used by people who can sit still.
The chair scales may not be used for the transport of people!
As long as the patient is sitting on the chair scales, the wheel
brakes must be locked without fail.
Do not step onto the foot rests when stepping or leaving the
chair scales!
4.1 Specific function
4.2 Proper use
These scales are used to determine weight of people sitting at rest in medical
treatment rooms. The scales are suitable for recognising, preventing and controlling
illnesses.
The person should be weighed carefully and have contact with the center of the seat,
sit and stay calm.
As soon as a stable weighing value is reached the weighing value can be read.
The scales are designed for long-term usage.
The balances should be checked for correct condition prior to each utilisation by a
person familiar with proper operation of the balance.
MCC-M-BA-e-1312 11
4.3 Improper Use
Do not use these scales for dynamic weighing processes.
No permanent load on the seat area. This may damage the measuring system.
Impacts and overloading exceeding the stated maximum load (max) of the seating
surface, minus a possibly existing tare load, must be strictly avoided. This could
cause damage to the balance.
Never operate balance in explosive environment. The serial version is not explosion
protected. It should be noted that a flammable mixture of anaesthetics and oxygen or
laughing gas may occur.
Do not modify the construction of the scales. This may lead to incorrect weighing
results, safety-related faults and destruction of the balances.
The balances may only be used according to the described conditions. Other areas
of use must be released by KERN in writing.
4.4 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
Modification or opening of appliances
Mechanical damage and damage caused by media, liquids,
Natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded
Dropping of scales
4.5 Monitoring of Test Resources
In the framework of quality assurance the measuring-related weighing properties of
the balances and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
12 MCC-M-BA-e-1312
Loading...
