KERN & SOHN KFP V20 User Manual

KERN & Sohn GmbH
Ziegelei 1
E-Mail: info@kern-sohn.com
Internet: www.kern-sohn.com
Installation instructions platform
KERN KFP_V20
Version 1.9
10/2014
GB
D-72336 Balingen
Fax: +49-[0]7433-9933-149
KFP_V20-BA-e-1419
KERN KFP
Platforms
GB
Version 1.9 10/2014
Operating Instruction
Tabel of contents
1 Safety precautions ......................................................................................... 3
2 Setting up the weighing platform ................................................................. 4
2.1 Selecting the site of installation .............................................................................................. 4
2.2 Package volume ....................................................................................................................... 4
2.3 Protect screw (Exemplification) .............................................................................................. 5
2.4 Packaging / return transport ................................................................................................... 6
2.5 Ambient conditions .................................................................................................................. 6
2.6 Levelling .................................................................................................................................... 6
2.7 Connecting to the weighing terminal ..................................................................................... 7
3 Operating limits ............................................................................................. 7
4 Cleaning .......................................................................................................... 8
5 Technical data ................................................................................................ 8
5.1 Dimensions in mm .................................................................................................................... 8
5.2 Technical data of the weighing cell ........................................................................................ 8
5.3 Preload, Deadload and Overload settings ............................................................................. 9
2 KFP_V20-BA-e-1419
These installation instructions cover all information required for the installation
KERN KFP600V20AM

1 General

and start-up of the following platforms:
KERN KFP 6V20M, KFP 6V20LM KERN KFP 15V20M KERN KFP 30V20M KERN KFP 60V20M, KFP 60V20LM KERN KFP150V20M, KFP 150V20LM
KERN KFP300V20M

2 Safety precautions

Product safety plays an important role at KERN & Sohn. Non-observance of the following instructions can lead to damage to the weighing platform and/or injuries.
Before using the weighing platform read these instructions. Store these
nstructtions for future use.
Take care when transporting or lifting heavy devices. Only qualified personnel may install and maintain the weighing platform. Disconnect the weighing terminal from the power supply before carrying out
cleaning, installation and maintenance.
The weighing platform must have stabilized to room temperature before the sup-
ply voltage is switched on.
Do not use the weighing platform in hazardous environments.
KFP_V20-BA-e-1419 3

3 Setting up the weighing platform

The surface must be able to bear

3.1 Selecting the site of installation

3.2 Package volume
the weighing platform under maxi­mum load at the points of support. At the same time it should be so stable that no vibrations arise dur­ing weighing. This is also to be ob­served when installing the weighing platform in conveyor and similar systems.
If possible, vibrations from neigh- boring machines should not occur at the site of installation.
Weighing plate (stainless steel)
Protect screw
Operation Manual
4 KFP_V20-BA-e-1419
KERN KFP KFP 6V20M, KFP 6V20LM, KFP 15V20M:
Sealed Screws may not be loosened (see figure).
3.3 Protect screw (Exemplification) ≤ 30 kg
1.
3.
2.
4.
KFP_V20-BA-e-1419 5

3.4 Packaging / return transport

Observe the following ambient conditions:
Keep all parts of the original packaging for a pos-

3.5 Ambient conditions

Do not use the weighing platform in wet or corrosive environments. Never immerse electronic products into liquids.
sibly required return.
Only use original packaging for returning. Reattach supplied transport securing devices. Secure all parts against shifting and damage.

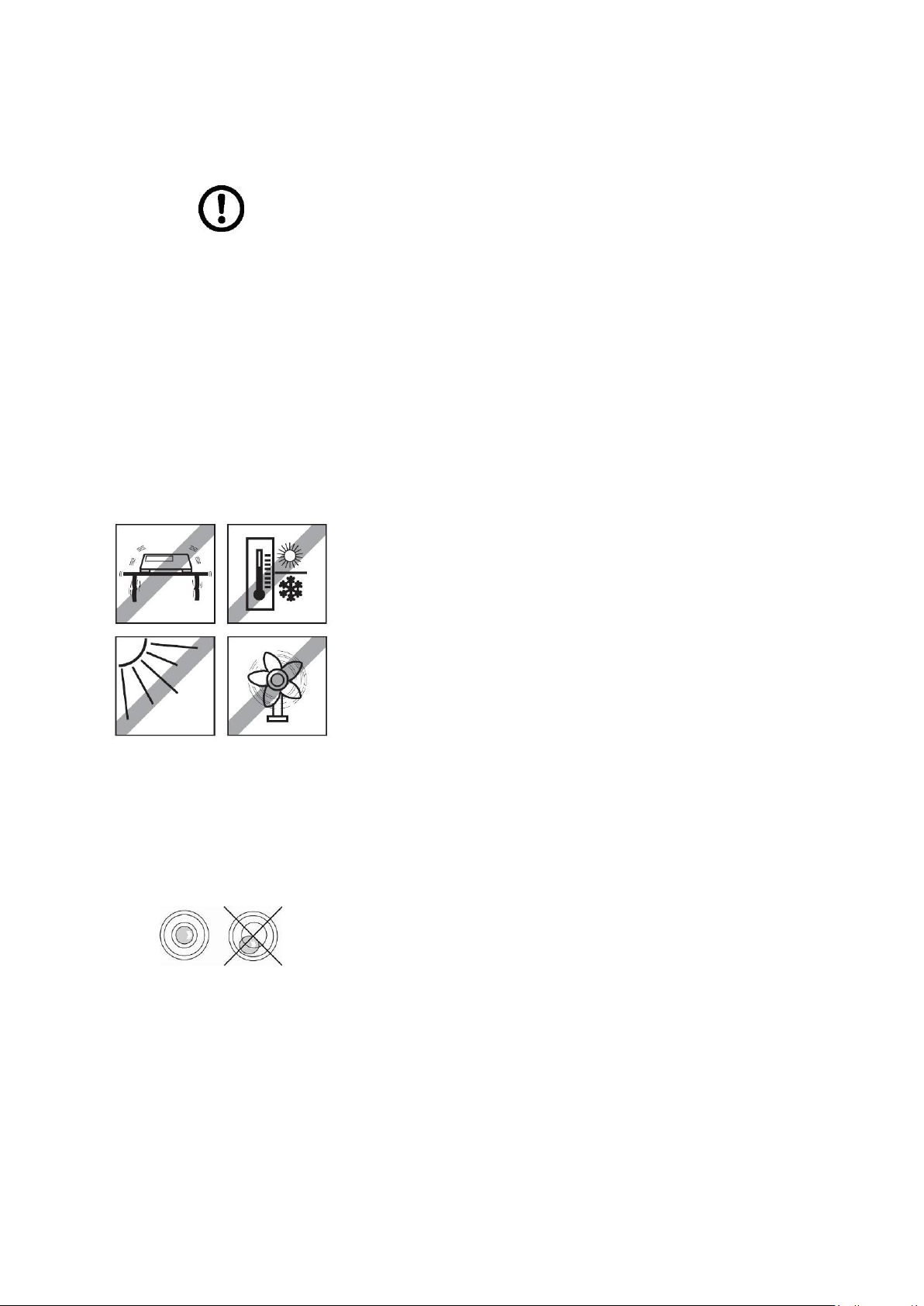

No direct sunshine No strong draught No excessive temperature fluctuations Temperature range –10 °C to +40 °C.

3.6 Levelling

Only a weighing platform which is aligned exactly horizontally supplies exact weigh­ing results. The weighing platform has to be levelled during the initial installation and whenever its location is changed.
As the spirit level is underneath the weighing plat-
form it has to be removed.
Level balance with foot screws until the air bubble of
the water balance is in the prescribed circle.
6 KFP_V20-BA-e-1419

3.7 Connecting to the weighing term i nal

KFP 15V20M
22 kg
15 kg
7 kg
Deadweight cell output KERN KFP weighing platform connection EXC+(5V) See marking of the deadweight cell EXC-(0) SIG­SIG+

4 Operating limits

The weighing platform is designed so robustly that an occasional exceeding of the maximum weighing load does not lead to damage. The static bearing capacity, i.e. the maximum permissible load, depends on the type of load carrying (position A – C). The maximum static bearing capacity may not be exceeded.
Avoid falling loads, shock loads as well as impacts from the side.
Model A B C
KFP 6V20M, KFP 6V20LM 9 kg 6 kg 3 kg
KFP 30V20M 45 kg 30 kg 15 kg KFP 60V20M, KFP 60V20LM 90 kg 60 kg 30 kg KFP150V20M, KFP 150V20LM 225 kg 150 kg 75 kg KFP300V20M 450 kg 300 kg 150 kg KFP600V20AM
900 kg 600 kg 300 kg
KFP_V20-BA-e-1419 7

5 Cleaning

Model
a b c d e f h
KFP 6V20M
163
230
78
108
172
230
56
KFP 6V20LM KFP 15V20M
175
240
78
105
242
300
56
KFP 30V20M KFP 60V20M
234
300
92
118
340
400
56
KFP 60V20LM KFP150V20M
333
400
105
130
441
500
56
KFP 150V20LM KFP300V20M
420
500
110
135
588
650
56
KFP600V20AM
750
800
160
150
530
600
70
Clean the weighing platform with a soft cloth soaked with a mild cleaning agent. Take off the load panel and remove any dirt and foreign substances which may
have collected underneath it. Do not use any hard objects to do so. Do not open the weighing platform.

6 Technical data

6.1 Dimensions in mm

Front view Side view

6.2 Technical data of the weighing cell

Sensitivity 2mV/V Input resistance Output resistance 350 Ω Supply voltage 10VDC OIML approval C3
8 KFP_V20-BA-e-1419
409 Ω

6.3 Preload, Deadload and Overload s ettings

KFP 6V20 M
2.28
1.72
8.5 5 10
KFP 6V20 LM
KFP 15V20 M
2.86
2.14
23
12
30
KFP 30V20 M
10.52
4.48
46
30
50
KFP 60V20 M
35.52
4.48
85
50
100
KFP 60V20 LM
KFP 150V20 M
90.98
9.02
200
130
200
KFP 150V20 LM
136.14
13.86
270
130
300
KFP 300V20 M
186.14
13.86
550
230
500
KFP600V20AM
Platform type
Platform
Loadcell TC
Class
Max
E
E
Y V
n Dead-
load
T
T
Z
Cable-
PLc
Typ
Nr.
Preload
-1
-4 -2
-3
(kg) -5 -6
oder
length
(kg)
(kg)
(g) (g)
DR
(m)
KFP 6V20M
L6D
D09-03.20
C3
10 0 5000
2
3000
-10
40
nLC
2
KFP 6V20LM
L6D
D09-03.20
C3
10 0 5000
2
3000
-10
40
nLC
2
KFP 15V20M
L6D
D09-03.20
C3
30 0 5000
10
3000
-10
40
nLC 2 0,7
KFP 30V20M
L6E
D09-03.21
C3
50 0 6000
10
3000
-10
40
nLC 2 0,7
KFP 60V20M
L6E
D09-03.21
C3
100 0 6000
20
3000
-10
40
nLC 2 0,7
KFP 60V20LM
L6G
D09-03.22
C3
100 0 6000
20
3000
-10
40
nLC 2 0,7
KFP 150V20M
L6G
D09-03.22
C3
200 0 6000
50
3000
-10
40
nLC 2 0,7
KFP 150V20LM
650x500x142
L6G
D09-03.22
C3
136.14
300 0 6000
50
3000
13.86
-10
40
nLC 2 0,7
KFP 300V20M
650x500x142
L6G
D09-03.22
C3
186.14
500 0 6000
100
3000
13.86
-10
40
nLC 2 0,7
KFP 600V20AM
800x600x150
PW12B
TC5259
C3
340
750
0
6000
100
3000
38
-10
40
nLC 2 0.7
Kern model
max. Preload* (kg)
* = additional initial load
1.86 2.14 8.5 5 10
30.98 9.02 85 50 100
Deadload** (kg)
**= initial load placed
earlier
Center Overload Protection circa (kg)
Corner Overload Protection circa (kg)
Loadcell Capacity (kg)
dimension
(mm)
230x230x100 300x240x100 300x240x100 400x300x128 400x300x128 500x400x137 500x400x137
340 22.8 900 450 750
max
min
2.28
1.86
2.86
10.52
35.52
30.98
90.98
min
1.72
2.14
2.14
4.48
4.48
9.02
9.02
min
max
0,7 0,7
KFP_V20-BA-e-1419 9
