KERN & Sohn GmbH
Ziegelei 1
email: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Internet: www.kern-sohn.com
Operating Manual
Compact balance
KERN FKB_A
Version 1.3
01/2015
GB
D-72336 Balingen
Fax: +49-[0]7433-9933-149
FKB_A-BA-e-1513
KERN FKB_A
Compact balance
GB
Version 1.3 01/2015
Operating M a nua l
Table of Contents
1 Technical Data ............................................................................................... 4
2 Declaration of conformity ............................................................................. 8
3 Basic Information (General) .......................................................................... 9
3.1 Proper use ................................................................................................................................. 9
3.2 Improper Use............................................................................................................................. 9
3.3 Warranty .................................................................................................................................... 9
3.4 Monitoring of Test Resources ................................................................................................. 9
4 Basic Safety Precautions ............................................................................ 10
4.1 Pay attention to the instructions in the Operation Manual ................................................ 10
4.2 Personnel training .................................................................................................................. 10
5 Transportation & Storage ............................................................................ 10
5.1 Testing upon acceptance ...................................................................................................... 10
5.2 Packaging ................................................................................................................................ 10
6 Unpacking, Setup and Commissioning ..................................................... 10
6.1 Installation Site, Location of Use .......................................................................................... 10
6.2 Unpacking/erection ................................................................................................................ 11
Scope of delivery / serial accessories ............................................................................................... 11
6.3 Mains connection ................................................................................................................... 11
6.4 Operation using a (recha rgeable) battery (op tional) ........................................................... 12
6.5 Connection of peripheral devices ......................................................................................... 12
6.6 Initial Commissioning ............................................................................................................ 13
6.7 Adjustment .............................................................................................................................. 13
6.8 Adjustment .............................................................................................................................. 13
6.9 Underfloor weighing ............................................................................................................... 14
7 Operation elements ..................................................................................... 15
7.1 Overview of display ................................................................................................................ 15
7.2 Keyboard overview ................................................................................................................. 15
FKB_A-BA-e-1513 2
8 Basic Operation ........................................................................................... 16
Start-up ................................................................................................................................................. 16
Switching Off ....................................................................................................................................... 16
Weighing............................................................................................................................................... 16
Taring .................................................................................................................................................... 16
PRE-TARE-Function ............................................................................................................................ 17
Plus/minus weighings ......................................................................................................................... 18
Parts counting...................................................................................................................................... 18
Net-total weighings ............................................................................................................................. 19
Percent determination ......................................................................................................................... 20
9 Menu ............................................................................................................. 21
9.1 Navigation in the menu .......................................................................................................... 21
9.2 Menu overview ........................................................................................................................ 24
9.3 Description of individual menu items .................................................................................. 26
Weighing Units .................................................................................................................................... 26
Dosing and Zero-tracking ................................................................................................................... 27
Selection adjustment weight .............................................................................................................. 27
Filter ...................................................................................................................................................... 29
Display background illumination ....................................................................................................... 30
Animal weighing function ................................................................................................................... 31
Reset to factory setting ...................................................................................................................... 32
9.4 Interface parameters .............................................................................................................. 33
Data transfer mode .............................................................................................................................. 33
printout ................................................................................................................................................. 34
Baud rate .............................................................................................................................................. 35
10 Data output RS 232 C .................................................................................. 35
10.1 Technical Data ........................................................................................................................ 35
10.2 Pin allocation of balance output bushing: ........................................................................... 35
10.3 Explanation of the data transfer ............................................................................................ 36
10.4 Output on bar code printer .................................................................................................... 38
11 Service, maintenance, disposal .................................................................. 38
11.1 CLEANING ............................................................................................................................... 38
11.2 Service, maintenance ............................................................................................................. 38
11.3 Disposal ................................................................................................................................... 38
12 Instant help ................................................................................................... 39
FKB_A-BA-e-1513 3
1 Technical Data
KERN FKB 8K0.1A FKB 15K0.5A FKB 15K1A
Readability (d) 0,1 g 0,5 g 1 g
Weighing range (max) (d) 8 kg 15 kg 15 kg
Taring range (subtractive) 8 kg 15 kg 15 kg
Reproducibility 0,1 g 0,5 g 1 g
Linearity 0,3 g 1,5 g 3 g
Minimum unit weight at
piece counting
Warm-up time 2 hours 2 hours 30 minutes
Reference quantities at
piece counting
Weigh ing Units
Recommended adjustment weight,
not added (class)
Details for „Selection of the
Adjustment weight“ in ch. 9.3
Stabilization time (typical) 3 sec.
Operating temperature +5°C... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 350 x 390 x 120
0,2 g 1 g 2 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
8 kg ( F2 ) 15 kg ( F2 ) 15 kg ( M1 )
Weighing plate mm 340 x 240
Weight kg (net) 6,5
Electric Supply 220V-240V AC, 50 Hz / 9 V DC, 300 mA
Battery operation 9 V compound battery (optional)
Rechargeable battery (optional)
Interface RS232
Underfloor weighing standard
Operating time 48 h with display background
illumination/ loading time 10 h
FKB_A-BA-e-1513 4
KERN FKB 16K0.2A FKB 30K1A FKB 30K2A
Readability (d) 0,2 g 1 g 2 g
Weighing range (max) (d) 16 kg 30 kg 30 kg
Taring range (subtractive) 16 kg 30 kg 30 kg
Reproducibility 0,2 g 1 g 2 g
Linearity 0,6 g 3 g 6 g
Minimum unit weight at
piece counting
Warm-up time 2 hours 2 hours 30 minutes
Reference quantities at
piece counting
Weigh ing Units
Recommended adjustment weight,
not added (class)
Details for „Selection of the
Adjustment weight“ in ch. 9.3
Stabilization time (typical) 3 sec.
Operating temperature +5°C... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 350 x 390 x 120
0,4 g 2 g 4 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
15 kg ( F2 ) 30 kg( F2 ) 30 kg ( M1 )
Weighing plate mm 340 x 240
Weight kg (net) 6,5
Electric Supply 220V-240V AC, 50 Hz / 9 V DC, 300 mA
Battery operation 9 V compound battery (optional)
Rechargeable battery (optional)
Interface RS232
Underfloor weighing standard
FKB_A-BA-e-1513 5
Operating time 48 h with display background
illumination/ loading tim e 10 h
KERN FKB 30K5DA FKB 36K0.5A FKB 60K2A
Readability (d) 5 g/10 g 0.5 g 2 g
Weighing range (max) (d) 15 kg/30 kg 36 kg 60 kg
Taring range (subtractive) 15 kg/30 kg 36 kg 60 kg
Reproducibility 5 g/10 g 0.5 g 2 g
Linearity 15 g/30 g 1.5 g 6 g
Minimum unit weight at
piece counting
Warm-up time 10 minutes 2 hours 2 hours
Reference quantities at
piece counting
Weigh ing Units
Recommended adjustment
weight, not added (class)
Details for „Selection of the
Adjustment weight“ in ch. 9.3
Stabilization time (typical) 2 sec. 3 sec. 3 sec.
Operating temperature +5°C... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 350 x 390 x 120
2 g 1 g 4 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
30 kg ( F2 ) 30 kg ( F1 ) 60 kg ( F2 )
Weighing plate mm 340 x 240
Weight kg (net) 6,5
Electric Supply 220V-240V AC, 50 Hz / 9 V DC, 300 mA
Battery operation 9 V compound battery (optional)
Rechargeable battery (optional)
Interface RS232
Underfloor weighing standard
Operating time 48 h with display background
illumination/ loading tim e 10 h
FKB_A-BA-e-1513 6
KERN FKB 60K5A FKB 60K10DA FKB 65K1A
Readability (d) 5 g 10 g/20 g 1 g
Weighing range (max) (d) 60 kg 30 kg/60 kg 65 kg
Taring range (subtractive) 60 kg 30 kg/60 kg 65 kg
Reproducibility 5 g 510 g/20 g 1 g
Linearity 15 g 30 g/60 g 3 g
Minimum unit weight at
piece counting
Warm-up time 30 minutes 10 minutes 2 hours
Reference quantities at
piece counting
Weigh ing Units
Recommended adjustment weight,
not added (class)
Details for „Selection of the
Adjustment weight“ in ch. 9.3
Stabilization time (typical) 3 sec. 2 sec. 3 sec.
Operating temperature +5°C... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 350 x 390 x 120
10 g 20 g 2 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
60 kg ( M1 ) 60 kg ( F2 ) 60 kg ( F2 )
Weighing plate mm 340 x 240
Weight kg (net) 6,5
Battery operation 9 V compound battery (optional)
Operating time 48 h with display background
Rechargeable battery (optional)
Interface RS232
Underfloor weighing standard
FKB_A-BA-e-1513 7
illumination
loading time 10 h
2 Declaration of c onf ormity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
email: info@kern-sohn.de
Phone: 0049-[0]7433- 9933-0
Internet: www.kern-sohn.de
D
Konformitätserklärung
Wir erk lären hiermit, dass das Produkt, auf das sich diese Erk lärung bezieht,
mit den nachstehenden Normen übereinstimmt.
GB
Declaration of
conformity
We hereby declare that the product to which this declaration refers conf orms
to the following standards.
CZ
Prohlášení o
shode
Tímto prohlašujem e, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
E
Declaración de
conformidad
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
F
Déclaration de
conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapport e la
présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di
conformitá
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si
riferisce è conforme alle norme di seguito citate.
NL
Conformiteitverklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de
conformidade
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy,
jest zgodny z poniższymi normami.
RUS
Заявление о
соответствии
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
EU Directive
Standards
2004/108/EC
EN 61326-1: 2013
EN 61000-3-3: 2013
2006/95/EC
EN 60950-1: 2006/A2: 2013
2011/65/EU
EN 50581:2012
Signature
Datum
07.10.2014
Ort der Aus stellung
Place of issue
72336 Balingen
Albert Sauter
KERN & Sohn GmbH
Geschäftsführer
Managing director
KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0
Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com
Postbox 4052
Fax: 0049-[0]7433-9933-149
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity
Déclaration de conformité EC-Declaración de Conformidad
ECEC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление о соответствии
Electronic Balance: KERN ECB, ECE FCB,FCE-N,FKB-A,PCB
EN 61326-2-2: 2013
EN 61000-3-2: 2006 + A2: 2009
Date
Signatur
FKB_A-BA-e-1513 8
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance). Do not leave permanent load on the
weighing plate. This may damage the measuring system. Impacts and overloading
exceeding the stated maxim um load (max) of the balance, minus a possibly existing
tare load, must be strictly avoided. Balance may be damage by this.
Never operate balance in explosive environment. T he serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage and damage caused by media, liquids
• Natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this
test. Information is available on KERN’s home page (www.kern-sohn.com) with
regard to the monitoring of balance test substances and the test weights required for
this. In KERN’s accredited DKD calibration laboratory test weights and balances may
be calibrated (return to the national standard) fast and at moderate cost.
FKB_A-BA-e-1513 9
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging
Keep all parts of the original packaging in case you need to return the appliance.
Only use original packaging for returning.
Before sending, disconnect all connected cables and loose/movable parts.
Attach possibly existing transport safeguards. Secure all parts, e.g. weighing plate,
mains adapter etc., to prevent slipping and damage.
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing next to
a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapors and dust;
• Do not expose the device to extreme dampness for longer periods of time. Non-
permitted condensation (condensation of air humidity on the appliance) may
occur if a cold appliance is taken to a considerably warmer environment. In this
case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed and weighing container.
FKB_A-BA-e-1513 10
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking/erection
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
The balance must be installed in a way that the weighing plate is exactly in horizontal
position.
• Place the balance on a horizontal and solid base.
• Remove the transport security on the 4-point support.
• Pull off the protection foil from the weighing plate if existing.
• Attach the weighing plate.
Scope of delivery / serial accessories
• Balance
• Weighing plate
• Transit Securing
• Mains power supply
• Protective cover
• Operating Manual
6.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
FKB_A-BA-e-1513 11
6.4 Operation using a (rechargea bl e) battery (optional)
„AF on“:
In order to save the battery, the balance switches automatically
„AF off“:
Switch-off function deactivated.
Lift-off the battery cover on the lower side of the balance. Connect 9 V compound
battery.
Replace the battery compartment cover.
For battery operation the balance has an automatic switch-off function which can be
activated or deactivated in the menu (chapter 9).
In weighing mode keep the PRINT-key pressed until [Unit] appears.
Press MODE key repeatedly until „AF“ appears.
Use the SET key, to confirm.
Use the MODE key to choose between the two following settings:
off after 3 minutes without weighing.
Use the SET key to confirm. The balance returns to weighing mode.
If the batteries are run down, "LO" appears in the display. Press ON/OFF-key and
replace the batteries immediately.
If the balance is not used for a longer time, take out the batteries and store them
separately. Leaking battery liquid could dam age the balance.
If there exists an optional rechargeable battery, it has to be connected in the battery
compartment via a separate plug-in socket. Now the mains adapter delivered with
the rechargeable battery m ust be applied.
6.5 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
FKB_A-BA-e-1513 12
6.6 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1). During this
warming up time the balance must be connected to the power supply (mains,
accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
6.7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
6.8 Adjustment
The adjustment should be made with the recommended adjustment weight (see
chap. 1 "Technical data"). Adjustment is also possible with the weights of other
nominal values (see table 1), but not the optimum for measuring technique.
Procedure when a djusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is
required for stabilization.
Turn on balance by pressing the ON/OFF key.
Press the MODE key and keep it pressed, in the display appears shortly
„CAL“. After that the exact size appears flashing in the display (see
chapter.9.3) of the adjustment weight.
Now set the adjusting weight in the centre of the weighing plate.
Press the SET key. Short time later there appears „CAL F“, then the
automatic return to the weighing mode. In the display there appears the
value of the adjustment weight.
An error during adjustment or the use of an incorrect adjusting weight will
result in an error message „CAL E“. Repeat adjustment.
Keep the adjustment close to the balance. Daily control of the weighing exactness is
recommended for quality-relevant applications.
FKB_A-BA-e-1513 13
6.9 Underfloor weighing
▬ Always ensure that all suspended objects are stable enough to
might be damaged underneath the load.
After completing the underfloor weighing the opening on the bottom of
the balance must always be closed (dust protection).
Objects unsuitable for placing on the weighing scale due to size or shape may be
weighed with the help of the flush-mounted platform.
Proceed as follows:
• Switch off the balance
• Open closing cover at the balance bottom.
• Suspend hook for underfloor weighing carefully and completely.
• Place weighing balance over an opening.
• Attach load to hook and carry out weighing procedure.
Fig. 1: Setup of balance for underfloor weighing
hold the desired goods to be weighed safely (danger of breaking).
▬ Never suspend loads that exceed the stated maximum load (m ax)
CAUTION
(danger of breaking)
▬ Always ensure that there are no persons, animals or objects that
FKB_A-BA-e-1513 14
7 Operation elements
7.1 Overview of display
7.2 Keyboard overview
Key Designation Function
• Calculate weighing data via interface
PRINT-key
• Call up menu (keep key pressed until UNIT appears)
• Confirm settings in the menu
SET key
• Save and exit menu
• How to select menu items
MODE key
• Change settings in the menu
• Adjustment
TARE key
ON/OFF switch
• Taring
• Turn on/off
FKB_A-BA-e-1513 15
8 Basic Operation
ON
OFF
8888
0.0
g
ON
OFF
0.0
g
will show "Error" (=Overload), and a whistle is sounded.
10.0
g
TA R E
0.0
g
Start-up
Switching Off
Weighing
Press ON button.
The balance will carry out a self-test The balance is ready
for weighing when the weight display appears.
Press OFF button, the display disappears
Place goods to be weighed on balance
Taring
Wait for standstill control, after the standstill control, the
weighing unit appears right hand in the display (e.g. g or
kg)
Read weighing result.
If the goods are heavier than the weighing range, the display
Place an empty weighing container, the weight of the
weighing container will be displayed.
Press the TARE button, the zero display disappears. The
tare weight is saved until it is deleted.
FKB_A-BA-e-1513 16
47.2
g
TA R E
0.0
g
MODE
CAL
Using this function the weight of a tare vessel is stored. Even
MODE
CAL
Delete tare
Weigh the material, the net weight will be indicated.
The taring process can be repeated any number of times,
e.g. when adding several components for a mixture
(adding). The limit is reached when the whole weighing
range is exhausted.
The weight of the weighing container will be displayed as a
minus number after removing the weighing container.
The tare weight is saved until it is deleted.
Unload the balance and press the TARE button, the zero
display appears.
PRE-TAREFunction
Delete PRE-TARE
value
after turning off/on the weighing balance will continue working
with the saved tare value.
In weighing mode put tare vessel on the weighing plate
Press repeatedly the MODE key until „PtArE“ flashing
appears.
Use SET key to store the current weight on the weighing
plate as a PRE-TARE value.
Remove all loads from the balance and press repeatedly
the MODE key until „PtArE“ flashing appears.
Use the SET key to confirm. The PRE-TARE value is
deleted, the zero display appears.
FKB_A-BA-e-1513 17
TA R E
MODE
CAL
SET
M
During piece counting parts can either be counted into a
To count a greater number of
parts the average weight per part has to be determined with a
The larger the reference quantity, the higher the counting
High reference must be selected for small parts or
The larger the reference quantity, the more accurate the parts
Plus/minus weighings
For example unit weight control, fabrication control etc.
Put the nominal weight on the weighing plate and tare using
the TARE button.
Remove the nominal weight
Put the test objects subsequently on the weighing plate, the
respective deviation from the nominal weight is displayed
with the respective sign to „+“ and „-“.
According to the same procedure also packages with the
same weight can be produced, referring to a nominal
weight.
Back to weighing mode by pressing the TARE button.
Parts counting
container or out of a container.
small quantity (reference quantity).
exactness.
parts with considerably different sizes.
counting.
The process has four steps:
Tare the weighing container
Determine the reference unit
Original weighing of reference weight
Count the items
In weighing mode press MODE key shortly. Reference
piece number „5
PCS
“ appears flashing.
By pressing the MODE button several times other reference
quantities 10, 25 and 50 can be called up. Place as many
pieces to count on the weighing plate as the set reference
quantity requires.
Use the SET key to confirm. The balance is now in parts
counting mode counting all units on the weighing plate.
FKB_A-BA-e-1513 18
• Back to weighing mode by
pressing the MODE button.
• Error message „Er 1“
reference determination.
• Taring
button to tare out the container.
SET
M
It is useful if a mixture of several components is weighed into a
the sum weight of all weighed
total, i.e.
Piece below minimum weight of piece (See chpt. 1
“Technical specifications“): Press MODE key and restart
The tare vessels can also be used for piece counting.
Before starting piece counting use the TARE
Net-total weighings
tare vessel and finally
components is necessary for control purposes (netthe weight of the tare vessel).
Example:
1. Place tare container on the weighing plate. Press the TARE
button, the zero display disappears.
2. Weigh-in component . Press the SET button, the zero
display disappears. [] is displayed on the right border of
the display.
3. Weigh-in component and press SET key. Net-total (sum
weight of the components and ) is displayed.
4. Press the SET button, the zero display disappears.
5. Weigh-in component and press SET key. Net-total (sum
weight of the components and and .) is displayed.
If necessary, also fill the formula up to the desired final
value. For every component more repeat the steps 4-5.
FKB_A-BA-e-1513 19
Back to weighing mode by pressing the TARE button.
MODE
CAL
SET
M
Percent determination
Percentage calculation facilitates weight display in percent
related to a reference weight equivalent to 100 %.
In weighing mode press MODE key repeatedly,
until [100 %] is displayed.
Put a reference weight which corresponds to 100 %.
Store by pressing the SET key. Remove reference weight.
Place goods to be weighed on balance.
The weight of the sample is displayed in percentage in
terms of the reference weight.
Back to weighing mode by pressing the MODE button.
FKB_A-BA-e-1513 20
9 Menu
P R IN T
0.0
g
Vn�
T
MODE
CAL
Vn�
T
PR�
SET
M
MODE
CAL
PR�
RE CR�
Pl PC�
SET
M
0.0
g
9.1 Navigation in the menu
Access to menu
In weighing mode keep the PRINT key
pressed until [Unit] appears.
How to select menu items
How to change settings
Using the MODE key the individual menu
items can be selected one after the
other.
Acknowledge selected menu item using
SET key, the current setting is displayed.
Change the settings using the MODE
key. At any pressing of the MODE key,
the next setting is displayed, see chapter
9.2 „Menu Overview“.
1. Save change of a menu item and
exit the menu
FKB_A-BA-e-1513 21
Press the SET key; balance will
return to weighing mode.
SET
M
MODE
CAL
PR�
RE CR�
Pl PC�
TA R E
E�
T
m
i
SET
M
STQRE
2. Change settings of several menu
items
Acknowledge selected menu item using
SET key, the current setting is displayed.
Use the MODE key to change settings.
Press the TARE key, „Exit“ is displayed.
Either
Acknowledge with SET key (yes),
„StorE“ is displayed. Save (SET key) or
reject (PRINT key) and exit the menu,
or
Press PRINT key (no) and make the
changes on the other menu items as
described above
FKB_A-BA-e-1513 22
SET
M
E�
T
m
i
STQRE
SET
M
0.0
g
PRINT
0.0
g
Save/reject and exit the menu
Save
Reject
Either
Any changes carried out are stored by
pressing the SET key (yes). The balance
returns automatically into weighing
mode.
or
To cancel changes, press the PRINT key
(no). The balance returns automatically
into weighing mode.
FKB_A-BA-e-1513 23
9.2 Menu overview
Weighing units switching
UNIT
g*
Gram
kg
Kilogram (dependent on model)
oz
Pound
ozt
Ounce
lb
Troy ounce
tlh
Tael Hongkong
tlt
Tael Taiwan
gn
Grain (dependent on model)
Pennyweight (dependent on
model)
mo
Momme
Tol
Tola
ct
Carat (dependent on model)
FFA
Freely selectable factor
Data transfer mode (see
PR
Data output via remote control
commands (see chapter 10.3)
Data output by pressing the
PRINT key (see chapter 10.3)
Continuous data output (see
chapter 10.3)
chapter 10.4)
Autom. Data output of stable
10.3)
Selection printer output
LAPr
Hdr*
Edition of the headlines
GrS
Edition of the total weight
Net
Edition of the net weight
tAr
Edition of the tare weight
N7E
Edition of the stored weight
PCS
Edition of quantity
AUJ
Edition of the unit weight
Rqt
Edition of the reference quantity
Edition of a page feeding
at start printer output
Edition of a page feeding
at end printer output
Description of function Function Parameter Description of options
over (see chapter 9.3).
dwt
chapter 9.4)
(see chapter 9.4)
rE CR*
Pr PC
AU PC
bA Pr
AU Pr
FFd
Printout on barcode printer (see
weighing values (see chapter
FFE
FKB_A-BA-e-1513 24
19200
9600*
4800
2400
1200
3 min without changing load ON
3 min without changing load OFF
on*
On
off
Off
100
200
300
1
2
Normal display
3
Slow display
on*
Background illumination on
off
Background illumination off
weighing value.
off*
Off
3
5
10
15
no*
no
yes
yes
Baud rate
(see chapter 9.4).
Auto off
(battery operation), see
chap. 6.4
Auto Zero
(see chapter 9.3)
Selection adjustment
weight (see chapter 9.3)
Filter function
(see chapter 9.3).
bAUd
AF
tr
CAL
StAbiL
on*
off
Automatic switch-off function after
Automatic switch-off function after
*dependent on model
Fast display
Background illumination
of the display, (see chap.
9.3)
Animal weighing function
(see chapter 9.3)
Reset to factory setting
(see chap. 9.3)
* = default setting
bL
ANL
rSt
CH
The background illumination will
be switched off
automatically 10 sec after
having reached a stable
Period 3 seconds
Period 5 seconds
Period 10 seconds
Period 15 seconds
FKB_A-BA-e-1513 25
9.3 Description of individual menu items
Weighing Units
0.0
g
Vn�
T
Display
Conversion factor
1 g =
Gram
g
1. Ounce
oz
0.035273962
Troy ounce
ozt
0.032150747
Pound
lb
0.0022046226
Tael Hongkong
tlh
0.02671725
Tael Taiwan
tlt
0.0266666
Grain (dependent on model)
gn
15.43235835
Pennyweight
(dependent on model)
dwt
0.643014931
Momme
(mom)
0.2667
Tola
tol
0.0857333381
Carat (dependent on model)
ct 5
Freely selectable factor *)
FFA
xx.xx
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press SET key, the selected unit is displayed.
Use the MODE key to select between the different units (see
following table).
Use the SET key to confirm the selected unit
*) Input conversion fac tor
As specified above, press repeatedly the MODE key until „FFA“
appears.
To enter the factor, press the SET key; the enabled digit starts
flashing.
Using the MODE button, the displayed value is increased by 1,
with the PRINT button it is reduced by 1.
With the TARE key selection of the number to the left.
Confirm input by pressing the SET key.
Press repeatedly the SET key to take over the „Freely
selectable factor“ as current weighing unit.
FKB_A-BA-e-1513 26
Dosing and
0.0
g
Vn�
T
Tl
The Auto-Zero function is used to tare small variations in weight
In the event that small quantities are removed or added to the
material to be weighed, incorrect weighing results can be
When apportioning involves small variations of weight, it is
however is switched off, the weighing display
Selection
0.0
g
Vn�
T
CAL
In the model series KERN FKB_A, the adjustment weight can be
set nominal values (approx.1/3; 2/3; max)
r also to following table, factory setting with grey
quality weighing results in
the sense of the measuring technology, it is recommended to
The non delivered
Zero-tracking
automatically.
displayed due to the “stability compensation“ in the balance.
(Example: Slowly draining fluids from a container on the balance).
advisable to switch off this function.
If Zero-Tracking
becomes more busy.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „tr“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key.
tr on
Function activated
tr off
adjustment
weight
Use the SET key to confirm selection.
selected from three pre(refe
background). In order to achieve high-
select the nominal value as high as possible.
adjustment weights can be purchased from KERN as option.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE key several times until „CAL“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key.
Function deactivated
Use the SET key to confirm selection.
FKB_A-BA-e-1513 27
FKB 8K0.1A
FKB15K0.5A
FKB15K1A
FKB 16K0.2A
2000
5000
5000
5000
5000
10000
10000
10000
8000
15000
15000
15000
FKB30K1A
FKB30K2A
FKB 30K5DA
FKB 36K0.5A
10000
10000
10000
10000
20000
20000
20000
20000
30000
30000
30000
30000
FKB60K2A
FKB60K5A
FKB 60K10DA
FKB 65K1A
20000
20000
20000
20000
40000
40000
40000
40000
60000
60000
60000
60000
FKB_A-BA-e-1513 28
1
Filter 1:
up location.
2
Filter 2:
The scale reacts normally, normal installation site
3
Filter 3:
location
Filter
only models:
FKB 8K0.1A
FKB 65K1A
(Example)

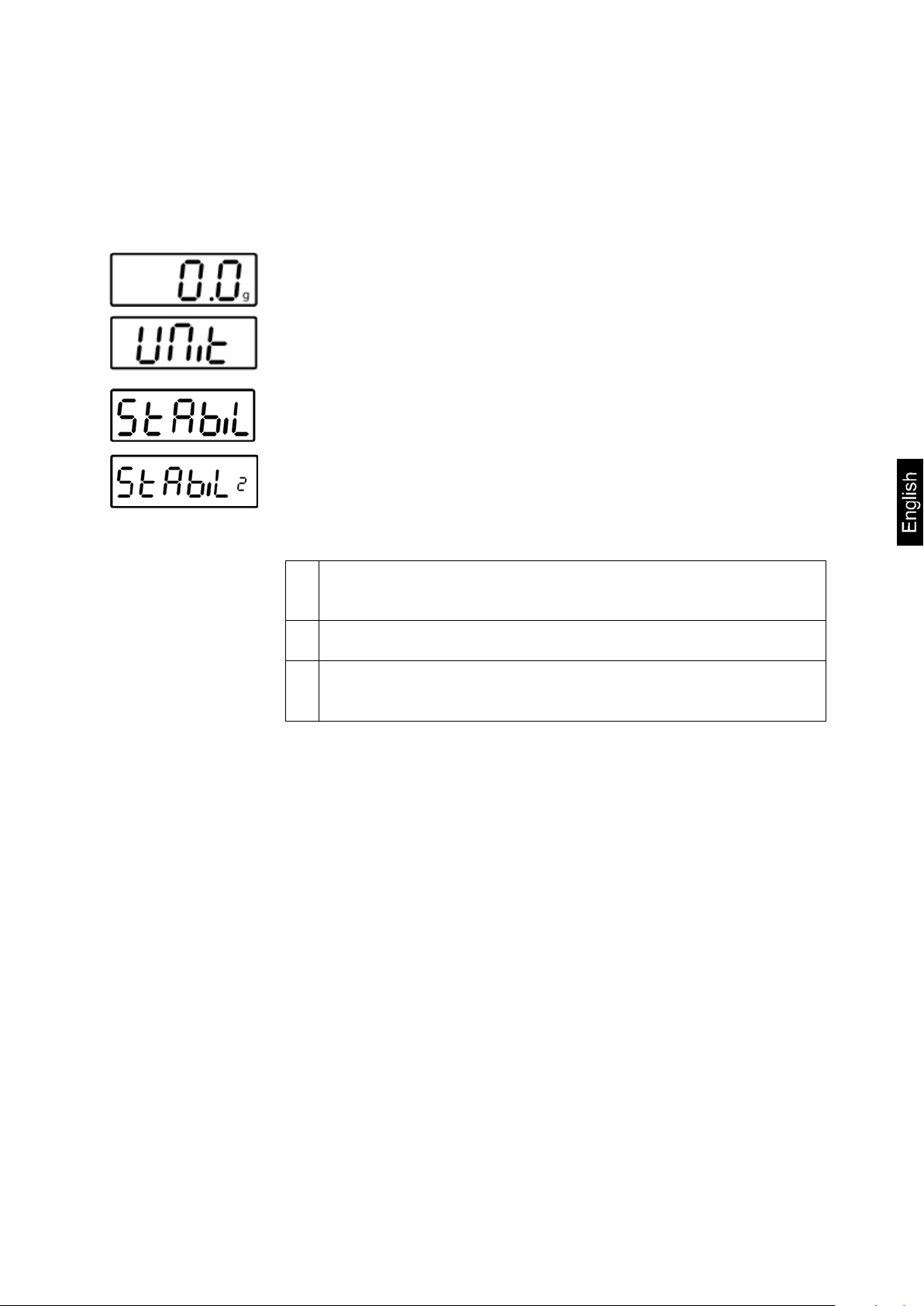

This menu item allows the balance to be set according to
specific ambient conditions and measuring purposes.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „StAbiL“ is
displayed.
Acknowledge using SET button, the current setting is
displayed.
Select the desired settings by pressing the MODE button.
The balance reacts quickly and in a sensitive manner, q uiet set-
The balance reacts slowly and in a robust manner, busy set-up
Use the SET key to confirm selection.
FKB_A-BA-e-1513 29
0.0
g
Vn�
T
BL
bl
on
Background illumination
switched on
Contrastful display which can
also be red in the darkness.
bl
off
Background illumination
Battery saving
bl
Ch
The background illumination
weighing value.
Battery saving
Display
background
illumination
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „bl“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key.
switched off
will be switched off
automatically 10 sec after
having reached a stable
Use the SET key to confirm selection.
FKB_A-BA-e-1513 30
Animal
0.0
g
Vn�
T
ANL
The animal weighing function can be applied for busy weighing.
During a defined period the average value of the weighing results
The more unquiet the weighed item, the longer the period should
weighing
function
is formed.
be selected.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „ANL“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key
ANL 3
ANL 5
ANL 10
ANL 15
ANL off
Use the SET key to confirm selection.
Put the weighing good (animal) on the weighing plate and press
the SET button. In the display runs a „Countdown“.
The average value of the weighing results is displayed and
remains displayed on the screen.
Use the SET key to change between animal weighing and
normal weighing.
Press the SET key to restart the weighing cycle for animal
weighing.
Period 3 seconds
Period 5 seconds
Period 10 seconds
Period 15 seconds
Animal weighing not active
FKB_A-BA-e-1513 31
Reset to
factory setting
0.0
g
Vn�
T
RST�
rSt
yes
Balance will be reset to factory setting.
rSt
no
The balance keeps its individual setting
This function resets all balance settings to factory setting.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „rSt“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key
Use the SET key to confirm selection. The balance returns to
weighing mode.
FKB_A-BA-e-1513 32
9.4 Interface parameters
Data transfer
0.0
g
Vn�
T
PR�
rE CR
AU PC
bA Pr
AU Pr
Data output is carried out via interface RS 232 C.
General
The previous condition for the data transfer between balance and a peripherical
device (e.g. printer, PC ...) is that the appliances are set to the same interface
parameters (e.g. baud rate, transfer mode ...).
mode
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE button several times until „Pr“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired settings by pressing the MODE key
Data output via remote control commands
Pr PC Data output using the PRINT key
Continuous data output
Output on bar code printer
Autom. data output of stable weighing values
Use the SET key to confirm selection. The balance returns to
weighing mode.
FKB_A-BA-e-1513 33
printout
0.0
g
Vn�
T
LAPR�
Using this function data are selected which are to be sent via the
Hdr*
Edition of the headlines
GrS
Edition of the total weight
Net
Edition of the net weight
tAr
Edition of the tare weight
N7E
Edition of the stored weight
PCS
Edition of quantity
AUJ
Edition of the unit weight
Rqt
Edition of the reference quantity
FFd
Edition of a page feeding at start printer output
FFE
Edition of a page feeding at end printer output
By that way the user can configurate his own data block, which then
is sent to a printer or to a PC.
RS232C (not valid for data transfer mode BAPr ).
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE key several times until „LAPr“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Select the desired output parameter by pressing the MODE key
After actuating the SET button, the current state is displayed ( on
/ off ).
Use MODE and PRINT key to change the status
„on off“.
Use the SET key to confirm selection. The balance returns to
weighing mode.
FKB_A-BA-e-1513 34
Baud rate
0.0
g
Vn�
T
BAUD�
The baud rate defines the transfer speed vie the interface, 1 Baud =
5 1
9 6
1 Bit/second.
In weighing mode keep the PRINT key pressed until [Unit]
appears.
Press the MODE key several times until „bAUd“ is displayed.
Acknowledge using SET key, the current setting is displayed.
Use MODE key select the desired settings
9600 4800 2400 1200 19200
Use the SET key to confirm selection. The balance returns to
weighing mode.
10 Data output RS 232 C
10.1 Technical Data
• 8-bit ASCII Code
• 1 start bit, 8 data bits, 1 stop bit, no parity bit
• Baud rate selectable at 1200, 2400, 4800 , 9600 and 19200 baud
• Miniature plug-in necessary (9 pole D-Sub)
• For operation with interface faultless operation is only ensured with the correct
KERN – interface cable (max. 2m)

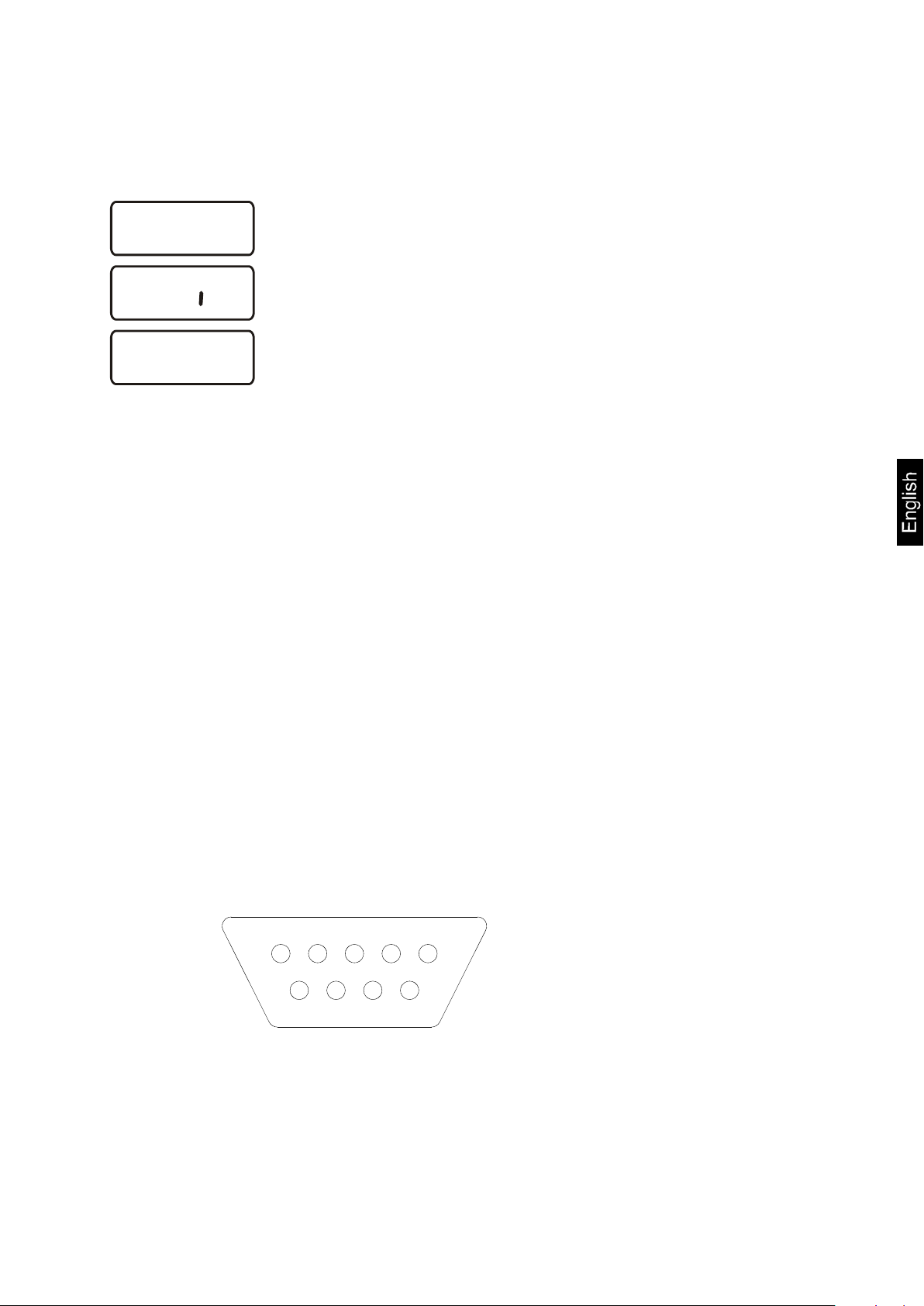

10.2 Pin all ocation of balance output bushing:
Front view:
Pin 2: Transmit data
Pin 3: Receive data
Pin 5: Signal ground
FKB_A-BA-e-1513 35
10.3 Explanation of the data transfer
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
18
B* B B B B B B B B 0 . 0 B g B B
CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14 B B B B B B B E r r
o r CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
18
B* B B B B B B B B 0 . 0 B g B B
CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14 B B B B B B B E r r
o r CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
18
B* B B B B B B B B 0 . 0 B g B B
CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14 B B B B B B B E r r
o r CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
B* B B B B B B B B 0 . 0 B CR
LF
Pr PC:
Press the PRINT key, at stable weight the format is transferred from LAPR.
a. Format for stable values for weight/quantity/percentage
b. Format in case of fault
AU Pr:
As soon as the weighing value is stable, the format is automatically transferred from
LAPR.
c. Format for stable values for weight/quantity/percentage
d. Format in case of fault
AU PC:
The weighing values are sent automatically and continuously, no matter if the value
is stable or unstable.
e. Format for stable values for weight/quantity/percentage
f. Format in case of fault
g. Format for unstable values for weight/quantity/percentage
FKB_A-BA-e-1513 36
rE Cr:
s
Function:
Stable weighing value for the weight is sent via the RS232
interface
w
Function:
Weighing value for the weight (stable or unstable) is sent
via the RS232 interface
t
Function:
No data are sent, the balance carries out the tare function.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
18
B* B B B B B B B B 0 . 0 B g B B
CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14 B B B B B B B E r r
o r CR
LF
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
B* B B B B B B B B 0 . 0 B CR
LF
The remote control commands s/w/t are sent from the remote control unit to the
balance as ASCII code. After the balance having received the s/w/t commands, it will
send the following data.
Take into account that the following remote control commands must be sent
without a subsequent CR LF.
h. Format for stable values for weight/quantity/percentage
i. Format in case of fault
j. Format for unstable values for weight/quantity/percentage
Symbols
B* Blank or M
B / 0 /. Blank / weight values / decimal dot, depending on weighing value
g Weight unit / pcs / %
E, o, r ASCII code or “E, o, r”
CR Carriage return symbol
LF Line feed symbol
FKB_A-BA-e-1513 37
10.4 Output on bar code pr i nter
The data transfer mode has to be set on „BA Pr “ (chapter 9.4).
As bar code printer the Zebra printer model LP2824 is provided.
Take into account that the output format of the balance is fixedly defined and cannot
be changed.
The printer format is stored in the printer, i.e. in case of a failure the printer cannot be
changed with a new one from factory, previously it is necessary that K ERN installs
the respective software.
The Zebra printer and the balance must be connected to the delivered interface
cable when they are switched off.
After switching-on both appliances, and after reaching the status ready-for-operation,
a label will be printed out when pressing the PRINT button.
11 Service, maintenance, disposal
11.1 CLEANING
Before cleaning, disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Take care that the device is not penetrated by
fluids and polish it with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods m ust be removed immediately.
11.2 Service, maintenance
The appliance may only be opened by trained service technicians who are
authorized by KERN.
Before opening, disconnect from power supply.
11.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
FKB_A-BA-e-1513 38
12 Instant help
• Batteries are inserted incorrectly or em pty
• No batteries inserted.
The displayed weight is permanently
In case of an error in the program process, briefly turn off the balance and
disconnect from power supply. T he weighing process must then be restarted from
the beginning.
Help:
Fault Possible cause
The displayed weight does not glow.
changing
The weighing value is obviously
• The balance is not switched on.
• The mains supply connection has been
interrupted (mains cable not plugged
in/faulty).
• Power supply interrupted.
• Draught/air movement
• Table/floor vibrations
• The weighing plate is in contact with
foreign matter.
• Electromagnetic fields / static charging
(choose different location/switch of f
interfering device if possible)
• The display of the balance is not at zero
wrong
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
FKB_A-BA-e-1513 39
• Adjustment is no longer correct.
• Great fluctuations in temperature.
• Electromagnetic fields / static charging
(choose different location/switch of f
interfering device if possible)
Loading...
