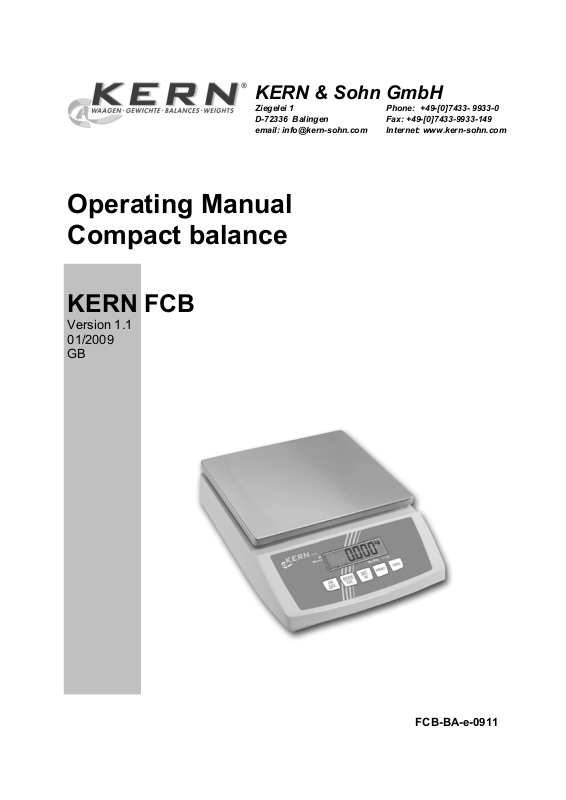

KERN & SOHN FCB 24K2 User Manual
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
email: info@kern-sohn.com
Operating Manual
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Compact balance
KERN FCB
Version 1.1
01/2009
GB
FCB-BA-e-0911
GB
KERN FCB
Version 1.1 01/2009
Operating Manual
Compact balance
Table of Contents
1 Technical Data ............................................................................................... 4
2 Declaration of conformity ............................................................................. 8
3 Basic Information (General).......................................................................... 9
3.1 Proper use................................................................................................................................. 9
3.2 Improper Use ............................................................................................................................ 9
3.3 Warranty .................................................................................................................................... 9
3.4 Monitoring of Test Resources................................................................................................. 9
4 Basic Safety Precautions ............................................................................ 10
4.1 Pay attention to the instructions in the Operation Manual ................................................ 10
4.2 Personnel training.................................................................................................................. 10
5 Transportation & Storage............................................................................ 10
5.1 Testing upon acceptance ...................................................................................................... 10
5.2 Packaging................................................................................................................................ 10
6 Unpacking, Setup and Commissioning ..................................................... 10
6.1 Installation Site, Location of Use.......................................................................................... 10
6.2 Unpacking/erection ................................................................................................................ 11
Scope of delivery / serial accessories............................................................................................... 11
6.3 Mains connection ................................................................................................................... 11
6.4 Operation using a (rechargeable) battery (optional) .......................................................... 12
6.5 Connection of peripheral devices......................................................................................... 12
6.6 Initial Commissioning ............................................................................................................ 13
6.7 Adjustment.............................................................................................................................. 13
6.8 Adjustment.............................................................................................................................. 13
7 Operation elements ..................................................................................... 14
7.1 Overview of display................................................................................................................ 14
7.2 Keyboard overview................................................................................................................. 14
2
FCB-BA-e-0911
8 Basic Operation ........................................................................................... 15
Start-up................................................................................................................................................. 15
Switching Off ....................................................................................................................................... 15
Weighing .............................................................................................................................................. 15
Taring.................................................................................................................................................... 15
PRE-TARE-Function............................................................................................................................ 16
Plus/minus weighings......................................................................................................................... 17
Parts counting ..................................................................................................................................... 17
Net-total weighings ............................................................................................................................. 18
Percent determination ........................................................................................................................ 19
9 Menu ............................................................................................................. 20
9.1 Navigation in the menu..........................................................................................................20
9.2 Menu overview........................................................................................................................ 23
9.3 Description of individual menu items .................................................................................. 25
Weighing Units .................................................................................................................................... 25
Dosing and Zero-tracking................................................................................................................... 26
Selection adjustment weight.............................................................................................................. 26
Display background illumination....................................................................................................... 27
Animal weighing function................................................................................................................... 28
Reset to factory setting ..................................................................................................................... 29
9.4 Interface parameters .............................................................................................................. 30
Data transfer mode.............................................................................................................................. 30
printout ................................................................................................................................................. 31
Baud rate .............................................................................................................................................. 32
10 Data output RS 232 C .................................................................................. 32
10.1 Technical Data ........................................................................................................................ 32
10.2 Pin allocation of balance output bushing:........................................................................... 32
10.3 Explanation of the data transfer ........................................................................................... 33
10.4 Output on bar code printer.................................................................................................... 35
11 Service, maintenance, disposal.................................................................. 35
11.1 CLEANING............................................................................................................................... 35
11.2 Service, maintenance............................................................................................................. 35
11.3 Disposal................................................................................................................................... 35
12 Instant help................................................................................................... 36
FCB-BA-e-0911
3
1 Technical Data
KERN FCB 3K0.1 FCB 6K0.5 FCB 6K1
Readability (d) 0.1 g 0.5 g 1 g
Weighing range (max) 3 kg 6 kg 6 kg
Taring range (subtractive) 3 kg 6 kg 6 kg
Reproducibility 0.1 g 0.5 g 1 g
Linearity 0.3 g 1.5 g 3 g
Minimum unit weight at
piece counting
Warm-up time 2 hours 30 minutes 30 minutes
Reference quantities at
piece counting
Weighing Units
Recommended adjustment weight,
not added (class).
Details for „Selection of the
Adjustment weight“ in chpt. 9.3
Stabilization time (typical) 3 sec.
Operating temperature + 5° C ... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 270 x 345 x 106
0.2 g 1 g 2 g
5, 10, 20,25, 50
Details „Weighing units“ see chpt. 9.3
3 kg (M1) 6 kg (F2) 6 kg (M2)
Weighing plate mm 252 x 228
Weight kg (net) 3
4
FCB-BA-e-0911
KERN FCB 8K0.1 FCB 12K1 FCB 15K5
Readability (d) 0.1 g 1 g 5 g
Weighing range (max) 8 kg 12 kg 15 kg
Taring range (subtractive) 8 kg 12 kg 15 kg
Reproducibility 0.1 g 1 g 5 g
Linearity 0.3 g 3 g 10 g
Minimum unit weight at
piece counting
Warm-up time 2 hours 30 minutes 10 minutes
Reference quantities at
piece counting
Weighing Units
Recommended adjustment weight,
not added (class).
Details for „Selection of the
Adjustment weight“ in chpt. 9.3
Stabilization time (typical) 3 sec.
Operating temperature + 5° C ... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 270 x 345 x 106
0.2 g 2 g 10 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
8 kg (F2) 12 kg (M1) 15 kg (M2)
Weighing plate mm 252 x 228
Weight kg (net) 3
FCB-BA-e-0911
5
KERN FCB 16K0.2 FCB 24K1 FCB 24K2
Readability (d) 0.2 g 1 g 2 g
Weighing range (max) 16 kg 24 kg 24 kg
Taring range (subtractive) 16 kg 24 kg 24 kg
Reproducibility 0.2 g 1 g 2 g
Linearity 0.6 g 3 g 6 g
Minimum unit weight at
piece counting
Warm-up time 2 hours 30 minutes 30 minutes
Reference quantities at
piece counting
Weighing Units
Recommended adjustment weight,
not added (class).
Details for „Selection of the
Adjustment weight“ in chpt. 9.3
Stabilization time (typical) 3 sec.
Operating temperature + 5° C ... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 270 x 345 x 106
0.4 g 2 g 4 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
16 kg (M1) 20 kg (M1) 20 kg (M1)
Weighing plate mm 252 x 228
Weight kg (net) 3
6
FCB-BA-e-0911
KERN FCB 24K10 FCB 30K0.5 FCB 30K1
Readability (d) 10 g 0.5 g 1 g
Weighing range (max) 24 kg 30 kg 30 kg
Taring range (subtractive) 24 kg 30 kg 30 kg
Reproducibility 10 g 0.5 g 1 g
Linearity 20 g 1.5 g 3 g
Minimum unit weight at
piece counting
Warm-up time 10 minutes 2 hours 30 minutes
Reference quantities at
piece counting
Weighing Units
Recommended adjustment weight,
not added (class).
Details for „Selection of the
Adjustment weight“ in chpt. 9.3
Stabilization time (typical) 3 sec.
Operating temperature + 5° C ... + 35° C
Humidity of air max. 80 % (not condensing)
Housing (B x D x H) mm 270 x 345 x 106
20 g 1 g 2 g
5, 10, 20, 25, 50
Details „Weighing units“ see chpt. 9.3
20 kg (M3) 30 kg (M1) 30 kg (M1)
Weighing plate mm 252 x 228
Weight kg (net) 3
FCB-BA-e-0911
7
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postbox 4052
email: info@kern-sohn.de
Phone: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity
Déclaration de conformité EC-Declaración de Conformidad
ECEC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление о соответствии
D
GB
CZ
E
F
I
NL
P
PL
RUS
Konformitätserklärung
Declaration of
conformity
Prohlášení o
shode
Declaración de
conformidad
Déclaration de
conformité
Dichiarazione di
conformitá
Conformiteitverklaring
Declaração de
conformidade
Deklaracja
zgodności
Заявление о
соответствии
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht,
mit den nachstehenden Normen übereinstimmt.
We hereby declare that the product to which this declaration refers conforms
to the following standards.
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la
présente déclaration, est conforme aux normes citées ci-après.
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si
riferisce è conforme alle norme di seguito citate.
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie
dotyczy, jest zgodny z poniższymi normami.
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
Electronic Scale: KERN NDE, PCB, FCB, FKB…A, FCE
Mark applied EU Directive Standards
2004/108/EC EN 55022 : 1998+A1+A2
Date: 27.10.2008 Signature:
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
8
EN 61000-3-2 : 2000+A2
EN 61000-3-3 : 1995+A1
EN 55024 : 1998+A1+A2
Gottl. KERN & Sohn GmbH
Management
FCB-BA-e-0911
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance). Do not leave permanent load on the
weighing plate. This may damage the measuring system. Impacts and overloading
exceeding the stated maximum load (max) of the balance, minus a possibly existing
tare load, must be strictly avoided. Balance may be damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage and damage caused by media, liquids
• Natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com) with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
FCB-BA-e-0911
9
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging
Keep all parts of the original packaging in case you need to return the appliance.
Only use original packaging for returning.
Before sending, disconnect all connected cables and loose/movable parts.
Attach possibly existing transport safeguards. Secure all parts, e.g. weighing plate,
mains adapter etc., to prevent slipping and damage.
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing next to
a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapors and dust;
• Do not expose the device to extreme dampness for longer periods of time. Non-
permitted condensation (condensation of air humidity on the appliance) may occur
if a cold appliance is taken to a considerably warmer environment. In this case,
acclimatize the disconnected appliance for ca. 2 hours at room temperature.
• Avoid static charge of goods to be weighed and weighing container.
10
FCB-BA-e-0911
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking/erection
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
The balance must be installed in a way that the weighing plate is exactly in horizontal
position.
• Place the balance on a horizontal and solid base.
• Remove the transport security on the 4-point support.
• Pull off the protection foil from the weighing plate if existing.
• Attach the weighing plate.
Scope of delivery / serial accessories
• Balance
• Weighing plate
• Transit Securing
• Mains power supply
• Protective cover
• Operating Manual
6.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
FCB-BA-e-0911
11
Loading...
