Operating instructions Counting balance/counting system

KERN CFS/CCS

Version 2.0

08/2012 GB

CFS/CCS-BA-e-1220

KERN CFS/CCS

Version 2.0 08/2012

Operating instructions Counting balance/counting system

Contents

1 Technical data .......................................................................................... 4

1.1 KERN CFS .......................................................................................................................... 4

1.2 KERN CCS .......................................................................................................................... 7

2 Declaration of conformity ........................................................................ 8

3 Basic Information (General) .................................................................... 9

3.1 Proper use .......................................................................................................................... 9

3.2 Improper Use ...................................................................................................................... 9

3.3 Warranty ............................................................................................................................. 9

3.4 Monitoring of Test Resources ........................................................................................ 10

4 Basic Safety Precautions ...................................................................... 10

4.1 Pay attention to the instructions in the Operation Manual ......................................... 10

4.2 Personnel training ........................................................................................................... 10

5 Transport and storage ........................................................................... 10

5.1 Testing upon acceptance ............................................................................................... 10

5.2 Packaging / return transport........................................................................................... 10

6 Unpacking, Setup and Commissioning ................................................ 11

6.1 Installation Site, Location of Use ................................................................................... 11

6.2 Unpacking/installation .................................................................................................... 11

6.3 Transport Securing.......................................................................................................... 12

6.3.1 Counting balance ............................................................................................................... 13

6.3.2 Counting system ................................................................................................................ 15

6.3.3 Scope of delivery / serial accessories ................................................................................ 16

6.4 Overview of display ......................................................................................................... 17

6.4.1 Display weight .................................................................................................................... 18

6.4.2 Display average piece weight ............................................................................................ 18

6.4.3 Display quantity .................................................................................................................. 19

6.5 Keyboard overview .......................................................................................................... 20

6.6 Mains connection ............................................................................................................ 24

6.7 Rechargeable battery operation (optional) ................................................................... 24

6.8 Connection of peripheral devices .................................................................................. 24

6.9 Initial Commissioning ..................................................................................................... 24

7 Adjustment.............................................................................................. 25

7.1 Adjustment reference balance CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 ....... 25

7.2 Adjustment reference balance CFS 50K-3 models ....................................................... 27

7.3 Adjustment bulk material scales CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 ... 28

7.4 Adjustment bulk material scales CFS 50K-3 models ................................................... 29

8 Linearisation ........................................................................................... 30

8.1 Linearisation CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models: .................... 30

8.1.1 Table Linearization points .................................................................................................. 31

8.2 Linearisation CFS 50K-3 models .................................................................................... 32

8.2.1 Table linearisation points CFS 50K-3 models.................................................................... 33

2 CFS/CCS-BA-e-1220

9 Basic Operation ...................................................................................... 34

9.1 Switching on/off ............................................................................................................... 34

9.2 Zeroing .............................................................................................................................. 34

9.3 Switch over balance/weighing bridge ............................................................................ 34

9.4 Weighing with tare ........................................................................................................... 36

9.4.1 Taring ................................................................................................................................. 36

9.4.2 Numeric entering of tare weight ......................................................................................... 36

10 Totalization ............................................................................................. 37

10.1 Manual totalizing .............................................................................................................. 37

10.1.1 Manual totalizing CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models .................... 37

10.1.2 Manual Adding CFS 50K-3 models .................................................................................... 39

10.2 Automatic adding-up ....................................................................................................... 42

11 Counting ................................................................................................. 43

11.1 Determination of the average piece weight by weighing ............................................. 44

11.1.1 CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models: ............................................... 44

11.1.2 CFS 50K-3 models: ............................................................................................................ 45

11.2 Numeric input of the average piece weight ................................................................... 46

11.3 Automatic reference optimization .................................................................................. 46

11.4 Counting with counting system...................................................................................... 47

12 Weighing to a certain target weight /target quantity and tolerance control 48

12.1 Tolerance control in weighing mode ............................................................................. 48

12.2 Tolerance control in counting mode .............................................................................. 51

12.2.1 Delete limit values: ............................................................................................................. 54

12.3 Store data .......................................................................................................................... 54

12.3.1 Store in indirect memories ................................................................................................. 54

12.3.2 Call up stored values .......................................................................................................... 59

12.3.3 Printing ............................................................................................................................... 61

12.4 Storing into indirect memory locations (only CFS 50K-3 models) .............................. 62

12.4.1 Save ................................................................................................................................... 62

12.4.2 Calling up ........................................................................................................................... 63

13 Menu ........................................................................................................ 64

13.1 Navigation in the menu .................................................................................................... 64

13.2 Menu overview ................................................................................................................. 65

14 Configuration bulk material balance / technical parameters ............. 68

15 Second balance interface ...................................................................... 76

16 RS 232C interface ................................................................................... 76

16.1 Pin allocation of balance output bushing: .................................................................... 76

16.2 Technical data .................................................................................................................. 77

16.3 Remote control instructions ........................................................................................... 78

16.3.1 Control commands ............................................................................................................. 78

16.3.2 Printing commands ............................................................................................................ 78

17 Service, maintenance, disposal ............................................................ 79

17.1 Clean .................................................................................................................................. 79

17.2 Service, maintenance....................................................................................................... 79

17.3 Disposal ............................................................................................................................ 79

18 Instant help ............................................................................................. 80

18.1 Error messages ................................................................................................................ 81

CFS/CCS-BA-e-1220 3

KERN

CFS 3K-5

CFS 6K0.1

Readability (d)

0.01 g

0.1 g

Weighing range (max)

3 kg

6 kg

Reproducibility

0.02 g

0.1 g

Linearity

± 0.04 g

± 0.2 g

Stabilization time

2 s

Weighing Units

kg, lb

Recommended adjusting weight (not supplied)

2 kg (F1) + 1 kg (F1)

6 kg (F2)

Warm-up time

2 h

Minimum unit weight at piece count

10 mg

100 mg

Reference unit weights at piece counting

freely selectable

Net weight (kg)

3.8 kg

Permissible ambient condition

0° C to 40° C

Humidity of air

max. 80 % relative (not condensing)

Weighing plate, stainless steel

300 x 225 mm

294 x 225 mm

Dimensions of the housing (B x D x H)

320 x 350 x 125 mm

Mains connection

Mains adapter 230 V AC, 50 Hz; 12 V DC balance, 500

Rechargeable battery (optional)

Operating duration approx. 70 h / loading time approx.

12 hours

1 Technical data

1.1 KERN CFS

4 CFS/CCS-BA-e-1220

KERN

CFS 15K0.2

CFS 30K0.5

Readability (d)

0.2 g

0.5 g

Weighing range (max)

15 kg

30 kg

Reproducibility

0.2 g

0.5 g

Linearity

± 0.4 g

± 1 g

Stabilization time

2 s

Weighing Units

kg, lb

Recommended adjusting weight (not supplied)

15 kg (F2)

30 kg (F2)

Warm-up time

2 h

Minimum unit weight at piece count

200 mg

500 mg

Reference unit weights at piece counting

freely selectable

Net weight (kg)

3.8 kg

Permissible ambient condition

0° C to 40° C

Humidity of air

max. 80 % relative (not condensing)

Weighing plate, stainless steel

294 x 225 mm

Dimensions of the housing (B x D x H)

320 x 350 x 125 mm

Mains connection

Mains adapter 230 V AC, 50 Hz; 12 V DC balance, 500 mA

Rechargeable battery (optional)

Operating duration approx. 70 h / loading time approx.

12 hours

CFS/CCS-BA-e-1220 5

KERN

CFS 50K-3

Readability (d)

1 g

Weighing range (max)

50 kg

Reproducibility

1 g

Linearity

± 2 g

Stabilization time

2 s

Weighing Units

kg, lb

Recommended adjusting weight (not supplied)

50 kg (F2)

Warm-up time

2 h

Minimum unit weight at piece count

1 g

Reference unit weights at piece counting

freely selectable

Net weight (kg)

3.8 kg

Permissible ambient condition

0° C to 40° C

Humidity of air

max. 80 % relative (not condensing)

Weighing plate, stainless steel

(B x D x H)

370 x 240 x 20 mm

Dimensions of the housing (B x D x H)

370 x 360 x 125 mm

Mains connection

Mains adapter 230 V AC, 50 Hz; 12 V DC balance, 500

Rechargeable battery (optional)

Operating duration approx. 70 h / loading time approx.

14 hours

6 CFS/CCS-BA-e-1220

Dimensions of models

CFS 3K-5 CFS 6K0.1 CFS 15K0.2 CFS 30K0.5

Dimensions of models

CFS 50K-3

Counting system

KERN

Bulk material balance

KERN

Weighing

range (Max)

Readabili ty (d)

Weighing

plate

stainless

steel

Recommended adjustment weight, not added, kg (class)

CCS 30K0.1

KFP 30V20M

400x300x78

30 (M2)

CCS 60K0.1

KFP 60V20M

400x300x78

50 (M2)

CCS 60K0.1L

KFP 60V20LM

500x400x79

50 (M2)

CCS 150K0.1

KFP150V20M

150

500x400x79

150 (M3)

CCS 150K0.1L

KFP 150V20LM

150

650x500x115

150 (M3)

CCS 300K0.1

KFP300V20M

300

100

650x500x115

300 (M3)

1.2 KERN CCS

CFS/CCS-BA-e-1220 7

KERN & Sohn GmbH

D-72322 Balingen-Frommern Postbox 4052 E-Mail: info@kern-sohn.de

Tel: 0049-[0]7433- 9933-0 Fax: 0049-[0]7433-9933-149 Internet: www.kern-sohn.de

Konformitätserklärung

Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden Normen übereinstimmt.

Declaration of conformity

We hereby declare that the product to which this declaration refers conforms with the following standards.

Prohlášení o

shode

Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu s níže uvedenými normami.

Declaración de conformidad

Manifestamos en la presente que el producto al que se refiere esta declaración está de acuerdo con las normas siguientes

Déclaration de conformité

Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente déclaration, est conforme aux normes citées ci-après.

Dichiarazione di conformitá

Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.

Conformiteitverklaring

Wij verklaren hiermede dat het product, waarop deze verklaring betrekking heeft, met de hierna vermelde normen overeenstemt.

Declaração de conformidade

Declaramos por meio da presente que o produto no qual se refere esta declaração, corresponde às normas seguintes.

Deklaracja

zgodności

Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy,

jest zgodny z poniższymi normami.

RUS

Заявление о

соответствии

Мы заявляем, что продукт, к которому относится данная декларация,

соответствует перечисленным ниже нормам.

Mark applied

EU Directive

Standards

2004/108/EC EMC

EN 61000-6-1 :2007 EN 61000-6-3 :2007 EN 61000-3-3 : 1995+A1 :2001+A2 :2005 EN 61000-3-2 :2006

Date: 14.07.2010

Signature:

KERN & Sohn GmbH

Management

KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149

2 Declaration of conformity

Declaration of conformity

EC-Konformitätserklärung EC-Declaration of -Conformity EC- Déclaration de conformité EC-Declaración de Conformidad EC-Dichiarazione di conformità EC-Conformiteitverklaring EC- Declaração de conformidade EC- Prohlášení o shode EC-Deklaracja zgodności EC-Заявление о соответствии

Electronic Scale: KERN CFS

8 CFS/CCS-BA-e-1220

3 Basic Information (General)

3.1 Proper use

The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balcance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing pan.. As soon as a stable weighing value is reached the weighing value can be read.

3.2 Improper Use

Do not use balance for dynamic weighings. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing pan. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.

3.3 Warranty

Warranty claims shall be voided in case

Our conditions in the operation manual are ignored The appliance is used outside the described uses The appliance is modified or opened Mechanical damage or damage by media, liquids, natural wear and tear The appliance is improperly set up or incorrectly electrically connected The measuring system is overloaded

CFS/CCS-BA-e-1220 9

 Carefully read this operation manual before setup and

commissioning, even if you are already familiar with KERN balances.

 All language versions contain a non-binding translation.

The original German is binding.

 Keep all parts of the original packaging for a possibly required

return.

 Only use original packaging for returning.  Prior to dispatch disconnect all cables and remove loose/mobile

parts.

 Reattach possibly supplied transport securing devices.  Secure all parts such as the glass wind screen, the weighing

platform, power unit etc. against shifting and damage.

3.4 Monitoring of Test Resources

In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.

4 Basic Safety Precautions

4.1 Pay attention to the instructions in the Operation Manual

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel.

5 Transport and storage

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

5.2 Packaging / return transport

10 CFS/CCS-BA-e-1220

6 Unpacking, Setup and Commissioning

6.1 Installation Site, Location of Use

The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.

Therefore, observe the following for the installation site:

Place the balance on a firm, level surface; Avoid extreme heat as well as temperature fluctuation caused by installing

next to a radiator or in the direct sunlight; Protect the balance against direct draughts due to open windows and doors; Avoid jarring during weighing; Protect the balance against high humidity, vapours and dust; Do not expose the device to extreme dampness for longer periods of time.

Non-permitted condensation (condensation of air humidity on the appliance)

may occur if a cold appliance is taken to a considerably warmer

environment. In this case, acclimatize the disconnected appliance for ca. 2

hours at room temperature. Avoid static charge of goods to be weighed or weighing container.

Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference.

6.2 Unpacking/installation

Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. Level balance with foot screws until the air bubble of the water balance is in the

prescribed circle. When using as counting system balance and weighing bridge must be levelled.

CFS/CCS-BA-e-1220 11

Ensure that transport guard has been removed (only existing in 6 kg models)

6.3 Transport Securing

To loosen the transport guard screw out transport screw [1] anticlockwise. For transportation carefully screw-in transport screw clockwise till to the stopper

and then fix it using locknut.

12 CFS/CCS-BA-e-1220

6.3.1 Counting balance

(CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models)

KERN CFS

1. Weighing plate / rechargeable battery compartment (under weighing plate)

2. Bubble level

3. RS 232 interface

4. Second balance interface

5. Footscrews

6. ON/OFF switch

7. Mains adapter connection

CFS/CCS-BA-e-1220 13

KERN CFS

(CFS 50K-3 models)

1. Weighing plate

2. Bubble level

3. RS 232 interface

4. Second balance interface

5. Footscrews

6. Mains adapter connection

7. ON/OFF switch

14 CFS/CCS-BA-e-1220



Bulk material balance KERN KFP

Reference balance KERN CFS

Reference scales Models CFS 50K-3

Bulk material balance KERN KFP

Reference balance KERN CFS

In factory the counting system KERN CCS is preconfigured in a way that no more changes will be necessary.

When connecting a weighing bridge (not preconfigured by KERN) the following must be observed:  Connect weighing bridge with a suitable cable via the second-balance

interface. Allocation of the interface connection see chapter 16.

 Configure weighing bridge, see chapter 14  Adjust balance / weighing bridge, see chapter 7

6.3.2 Counting system

KERN CCS

Reference balance CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS/CCS-BA-e-1220 15

KERN CFS

KERN CCS

Scales (s. Chap. 6.3.1)

Reference balance KERN CFS, see chap.

6.3.1

Power cable

Bulk material balance KERN KFP, see chap.

6.3.2

Protective cover

Operating instructions KERN CFS/CCS

Operating instructions

Operating instructions KERN KFP

6.3.3 Scope of delivery / serial accessories

16 CFS/CCS-BA-e-1220

Weight

Average piece weight

Quantity

Weight

Average piece weight

Quantity

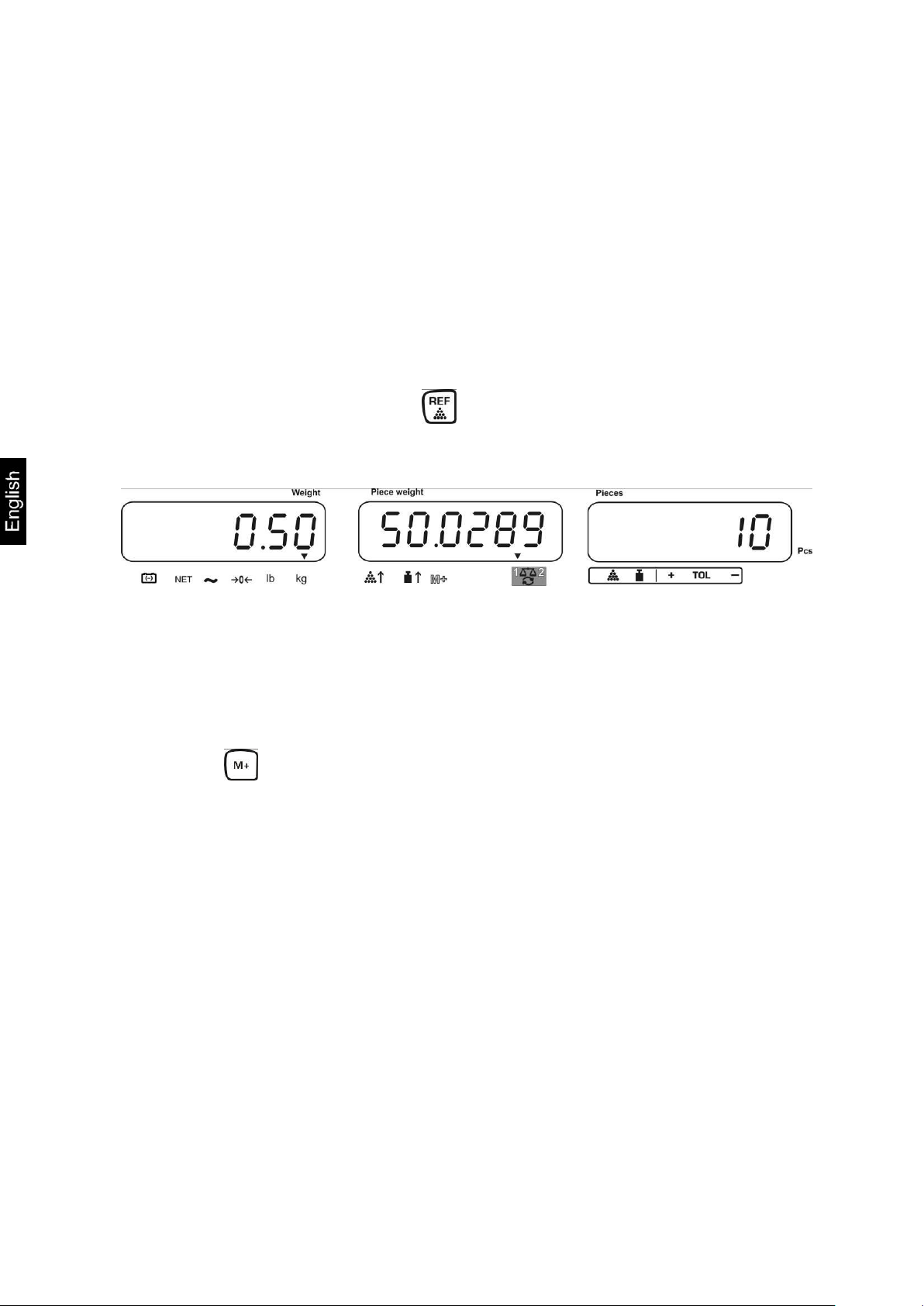

6.4 Overview of display CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS 50K-3 models:

CFS/CCS-BA-e-1220 17

The arrows [] above the symbols show:

Storage battery status display

NET

Net weight

Stability display

Zeroing display

lb/kg

Current weighing unit

The arrows [] above the symbols show:

Number of parts placed on balance too small

Piece below minimum weight of piece

M+

Data in summation memory

1 2

Active balance:

1. Reference balance KERN CFS

2. Bulk material balance KERN KFP

6.4.1 Display weight

Here the weight of your goods is displayed in [kg].

6.4.2 Display average piece weight

Here the average reference weight of a sample is displayed in [g]. This value is either numerically entered by user or calculated by weighing on balance.

18 CFS/CCS-BA-e-1220

The arrows [] above the symbols show:

Tolerance control in counting mode

Tolerance control in weighing mode

Goods to be weighed above tolerance limit

TOL

Goods to be weighed within tolerance range

Goods to be weighed below tolerance limit

6.4.3 Display quantity

Here the current piece quantity (PCS = pieces) or in totalizing mode the sum Sum of the placed parts is displayed, see chapter 10

CFS/CCS-BA-e-1220 19

Selection

Function in Weighing mode

Function in Menu

…..

 Numeric keys

 Decimal point

At numeric input digit

selection to the left

Delete key

Addition in summation

memory

Display total weight

/number of weighings / total quantity

At numeric input digit

selection to the right

Data output

(menu setting see chapter 13.2)

Set or call-up PLU,

see chap. 12.3

Tolerance control,

see chap. 11

Call up menu

Switch-over balance,

see chap. 9.3

Input of the average piece

weight by weighing, see chap. 11.1

6.5 Keyboard overview CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

20 CFS/CCS-BA-e-1220

 Numeric input of the

average piece weight see chapter 11.2

Function /parameter

selection

Switch-over weighing unit

Taring key

Confirm

Zeroing key

Back to menu/weighing

mode

CFS/CCS-BA-e-1220 21

Selection

Function in Weighing mode

Function in Menu

…..

 Numeric keys

Indirect memories

(s. chap. 12.3.1)

Decimal point

Delete key

Addition in summation

memory Printout Display total weight

/number of weighings / total

quantity Call up delete memory

Data output

(menu setting see

chapter 13.2)

…..

Direct memory locations

(s. chap. 12.4)

Modelle CFS 50K-3

22 CFS/CCS-BA-e-1220

 Tolerance control,

see chap. 12

Call up menu

Select memory locations

Switch-over balance,

see chap. 9.3 At numeric input digit

selection to the left

Input of the average piece

weight by weighing, see

chap. 11.1

Function /parameter

selection

Numeric input of the

average piece weight see

chapter 11.2 Switch-over weighing unit

Taring key

Confirm

Zeroing key At numeric input digit

selection to the right

Back to menu

or in weighting mode

CFS/CCS-BA-e-1220 23

red:

Voltage has dropped below prescribed minimum. Connect mains adapter to load the rechargeable battery.

green:

Battery is completely discharged

yellow:

Battery very low. Connect mains adapter as soon as possible to load the rechargeable battery.

6.6 Mains connection

Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN.

6.7 Rechargeable battery operation (optional) The rechargeable battery is charged via the delivered power cable.

Before the first use, the rechargeable battery should be charged by connecting it to the mains power cable for at least 15 hours. The operation time of the rechargeable battery is approx. 70 hours. When connecting a second balance, the operation time will be reduced. The charging period for total charge is c. 12 hours To save the rechargeable battery, in the menu (see chap.12.2) the automatic switch-off function [„ “  „ „] can be activated, switch-off time selectable after 0, 3, 5, 15, 30 minutes.

If an arrow appears on the weight display  above the battery symbol or "bat lo" when turning on the balance, this is an indication that the capacity of the rechargeable battery will soon be exhausted. The balance will be ready to operate for about another 10 hrs., then it will switch off automatically. Connect the power cable as soon as possible to load the rechargeable battery.

The LED display informs you during loading about the loading status of the rechargeable battery.

6.8 Connection of peripheral devices

Before connecting or disconnecting of additional devices (printer, PC) to the data interface, always disconnect the balance from the power supply. With your balance, only use accessories and peripheral devices by KERN, as they are ideally tuned to your balance.

6.9 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1). During this warming up time the balance must be connected to the power supply (mains, accumulator or battery). The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.

24 CFS/CCS-BA-e-1220

Information about test weights you will find in the internet under

http://www.kern-sohn.com

In order to avoid errors at the piece quantity determination, both balances

must be adjusted with the same acceleration due to gravity. In case of non-compliance counting errors will result!

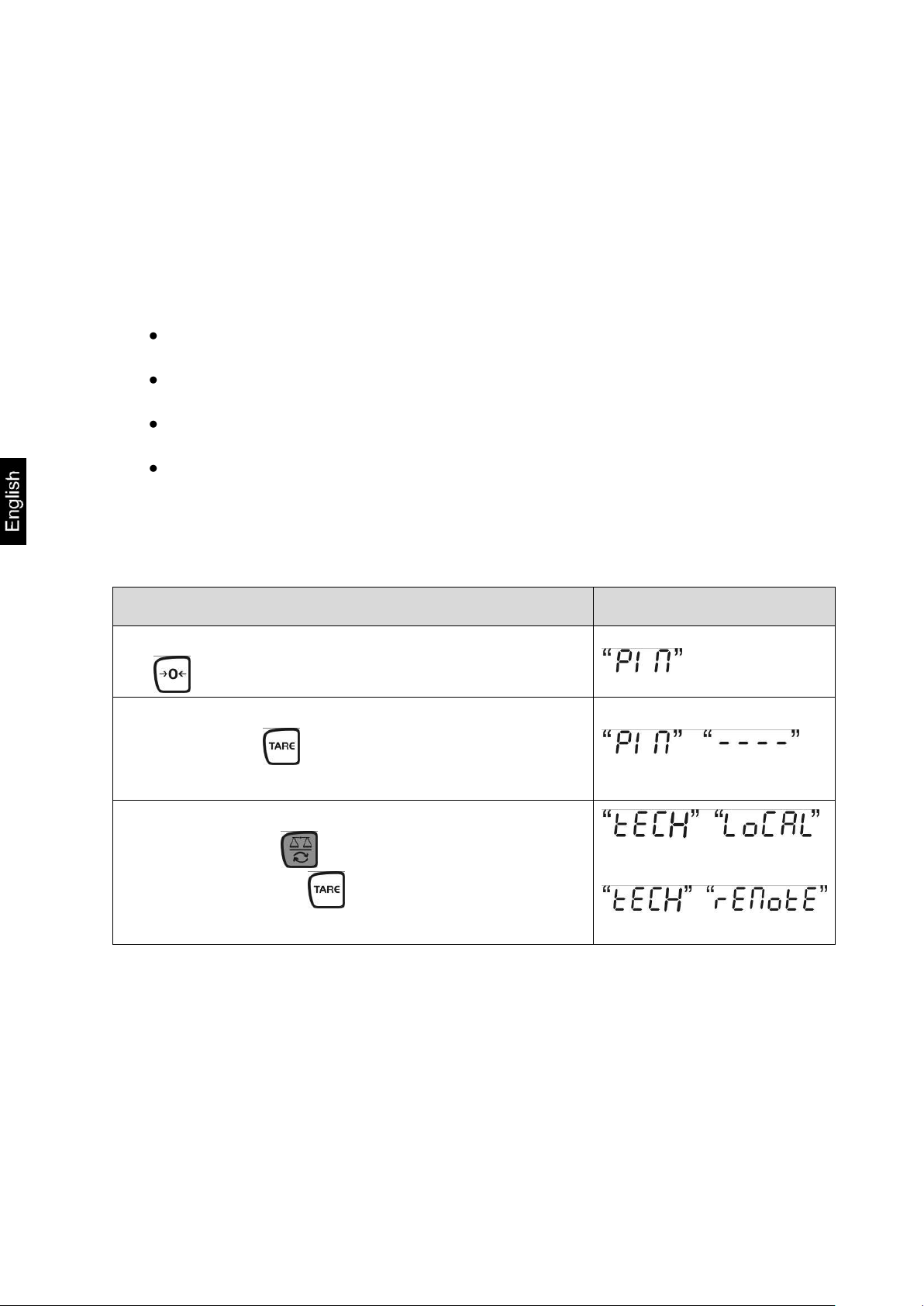

Operation

Display

 Switch-on balance and during the selftest press

 Use the numeric keys to enter password:  Input the standard password „0000“

 Confirm input by .

 When using as counting system, the bulk material

balance as well as the reference balance must be adjusted. The adjustment process must be carried out on both balances.

Select bulk material or reference balance via . The appeared [] displays the current balance.

Acknowledge with .



7 Adjustment

As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.

Procedure when adjusting:

Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing pan.

7.1 Adjustment reference balance CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5

CFS/CCS-BA-e-1220 25

 If necessary, at balance zero display using

select the weighing unit [kg or lb], which shall be used for adjustment. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing

pan. After successful standstill control press the

button.

 The weight value of the adjustment weight appears.

Acknowledge with .

 Place the adjusting weight carefully in the centre of

the weighing plate and press to confirm.

 Enter the desired value of the adjustment weight

using numeric keyboard and acknowledge with

In order to achieve high-quality weighing results in the sense of the measuring technology, it is recommended to select the nominal value as high as possible. We recommend 80 % max.

 Place the adjusting weight carefully in the centre of

the weighing plate and press to confirm.

 After the adjustment the balance will carry out a

self-test. Remove adjusting weight during selftest, balance will return into weighing mode automatically. In case of an adjustment error or incorrect adjusting weight the display will show an error message ( ), repeat adjustment process.

26 CFS/CCS-BA-e-1220

Operation

Display

 Switch-on balance and during the selftest press .

 Use the numeric keys to enter password:  Enter sandard password „0000“

 Confirm input by .

 When using as counting system, the bulk material

balance as well as the reference balance must be adjusted. The adjustment process must be carried out on both balances.

With select reference balance („LoCAL“). The appeared [] displays the current balance.

Acknowledge with .



 If necessary, at balance zero display using select

the weighing unit [kg or lb], which shall be used for adjustment. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing pan.

After successful standstill control press the button.

 Place the required adjusting weight carefully in the

centre of the weighing plate and press to confirm.

 After the adjustment the balance will carry out a self-test.

Remove adjusting weight during selftest, balance will return into weighing mode automatically. In case of an adjustment error or incorrect adjusting weight the display will show an error message ( ), repeat adjustment process.

7.2 Adjustment reference balance CFS 50K-3 models

CFS/CCS-BA-e-1220 27

Operation

Display

 Switch-on balance and during the selftest press .

 Use the number keys to enter password:

standard password „0000“

 Confirm input by .

 Use to select bulk material scales („remote“).

The appeared [] displays the current balance. Acknowledge with .



 If necessary, at balance zero display using

select the weighing unit [kg or lb], which shall be used for adjustment. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing pan.

After successful standstill control press the button.

 Enter value of the necessary adjustment weight using

numeric keyboard and acknowledge with . In order to achieve high-quality weighing results in the sense of the measuring technology, it is recommended to select the nominal value as high as possible. We recommend 80 % max.

 Place the required adjusting weight carefully in the

centre of the weighing plate and press to confirm.

 After the adjustment the balance will carry out a self-test.

7.3 Adjustment bulk material scales CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5

Not pre-configured by KERN

28 CFS/CCS-BA-e-1220

Operation

Display

 Switch-on balance and during the selftest press .

 Use the numeric keys to enter password:  Default password "0000"

 Confirm input by .

 Use to select bulk material scales („ Remote“).

The appeared [] displays the current balance. Acknowledge with .



 If necessary, at balance zero display using select

the weighing unit [kg or lb], which shall be used for adjustment. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing pan.

After successful standstill control press the button.

 Enter value of the necessary adjustment weight using

 Place the required adjusting weight carefully in the

centre of the weighing plate and press to confirm.

 After the adjustment the balance will carry out a self-test.

7.4 Adjustment bulk material scales CFS 50K-3 models Not pre-configured by KERN

CFS/CCS-BA-e-1220 29

Operation

Display

 Switch-on balance and during the selftest press

 With the numerical keys input the password „ 9999“:

Confirm with .

 „tECH LoCAL“ is displayed, should it not be

displayed, with select „tECH LoCAL“. Acknowledge with .

The appeared [] displays the current balance.



8 Linearisation

Linearity shows the greatest deviation of a weight display on the scale to the value of the respective test weight according to plus and minus over the entire weighing range. If linearity deviation is discovered during a testing instrument control, you can improve this by means of linearization.

Carrying out linearization is restricted to specialist staff possessing well

acquainted with the workings of weighing scales.

The test weights to be used must be adapted to the weighing scale’s

specifications; see chapter 3.4 “testing instruments control”.

Observe stable environmental conditions. Stabilisation requires a certain

warm-up time.

After successful linearisation you will have to carry out calibration;

see chapter 3.4 “testing instruments control”.

8.1 Linearisation CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

30 CFS/CCS-BA-e-1220

 If necessary, at balance zero display using

select the weighing unit [kg or lb], which shall be used for linearisation. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing

pan. After successful standstill control press the

button.

 The weighing value of the first weight will be

displayed.

 Place weight 1 carefully in the centre of the

weighing plate, wait for the stability display and confirm by .

(example)

 The weighing value of the second weight will be

displayed.

 Remove weight 1  Place weight 2 carefully in the centre of the

weighing plate, wait for the stability display and confirm by .

(example)

 After the adjustment the balance will carry out a

self-test. Remove adjusting weight during selftest, balance will return into weighing mode automatically. In case of fault or a wrong weight an error message ( ) will appear, then repeat the linearization procedure.

Max

Display

Weight 1

Weight

Display

Weight 2

Weight

6 kg

„A 2 kg“

2 kg

„A 6 kg“

6 kg

15 kg

„A 5 kg“

5 kg

„A 15 kg“

15 kg

30 kg

„A 10 kg“

10 kg

„A 30 kg“

30 kg

8.1.1 Table Linearization points

CFS/CCS-BA-e-1220 31

Operation

Display

 Switch-on balance and during the selftest press

 With the numerical keys enter the password „

9999“:

Confirm input with .

 „tECH LoCAL“ is displayed, should it not be

displayed, with select „tECH LoCAL“. Acknowledge with .

The appeared [] displays the current balance.



 If necessary, at balance zero display using

select the weighing unit [kg or lb], which shall be used for adjustment. The appeared [] displays the current weighing unit.

Acknowledge with .

 Ensure that there are no objects on the weighing

pan. After successful standstill control press the

button.

 „LoAd 1“ will be displayed  15 kg adjustment weight placed carefully in the

centre of the weighing plate, wait for stability display and confirm with .

 „LoAd 2“ will be displayed,  30 kg adjustment weight placed carefully in the

centre of the weighing plate, wait for stability display and confirm with .

8.2 Linearisation CFS 50K-3 models

32 CFS/CCS-BA-e-1220

 „LoAd 3“ will be displayed  50 kg adjustment weight placed carefully in the

centre of the weighing plate, wait for stability display and confirm with .

After the adjustment the balance will carry out a self-

test. Remove adjusting weight during selftest, balance will return into weighing mode automatically. In case of fault or a wrong weight an error message ( ) will appear, then repeat the linearization procedure.

Display

Weight

„L0Ad 0“

0 kg

„L0Ad 1“

15 kg

„L0Ad 2“

30 kg

„L0Ad 3“

50 kg

8.2.1 Table linearisation points CFS 50K-3 models.

Max: 50 kg

CFS/CCS-BA-e-1220 33

9 Basic Operation

9.1 Switching on/off

 to switch-on actuate forward the switch-on/switch-out on the right lower side of

the balance. The balance will carry out a self-test As soon as the weight display appears, the balance is ready for weighing.

 To switch off press the on/off switch on the right bottom side of the balance at

the back in the CFS 50K-3 models also press forwards.

9.2 Zeroing

Resetting to zero corrects the influence of light soiling on the weighing plate. The resetting range of the balance was adjusted to ± 2% max. by factory. Further adjustments are possible in the menu, see chapter 13.

When using as counting system the zeroing range of both balances can be set in the menu, see chapter 13.

Manual

 Unload the balance  Press the ZERO button, the balance begins to reset to zero.

The [] symbol over a appears.

Automatic

In the menu the automatic zero point correction can be switched off or the amount can be changed, see chapter 13.

9.3 Switch over balance/weighing bridge

For piece counting a weighing bridge can be connected via the second balance interface. In the counting system KERN CCS the quantity counting is made on the bulk material balance KERN KFP. The reference balance KERN CFS permits due to its high resolution a very precise determination of the average piece weight.

The second balance can be operated in the same manner like the first balance.

34 CFS/CCS-BA-e-1220

(1) Reference balance KERN CFS

(2) Bulk material scales

Example: KERN KFP (Counting system CCS)

(1) Reference balance KERN CFS

(2) Bulk material scales

Example: KERN KFP (Counting system CCS)

By pressing the display changes from one to the other balance. In the display appears or .

The appeared [] displays the current balance.

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS 50K-3 models:

CFS/CCS-BA-e-1220 35

The tare value will be rounded up according to the readability of the balance, e.g. at a balance 60 kg max/5 g readability the input value of 103 g will be displayed as -105 g.

9.4 Weighing with tare

A tare value can be entered for the reference as well as for the bulk material balance. Before setting a tare values select active balance, s. chap. 9.3.

9.4.1 Taring

 Deposit weighing vessel. After successful stop check press the TARE button.

The zero display and the symbol [] above NET will appear. The weight of the container is now internally saved.

 Weigh the material, the net weight will be indicated.  After removing the weighing container, the weight of the weighing container

appears as negative display.

 To delete the tare value, remove load from weighing pan and press the TARE-

key.

 The tare procedure can be repeated as many times as necessary, for example

with initial weighing of several components for a mix (add-on weighing). The limit is reached when the total weighing range capacity is full.

9.4.2 Numeric entering of tare weight

 Unload and reset to zero the balance  Input known tare weight numerically with decimal point and press key TARE.

The entered weight will be stored as tare weight and displayed with negative sign. The [] symbol over NET appears.

 Put the filled weighing container on the balance, the net weight will be

displayed.

 The tare value remains stored until it will be deleted by TARE.

36 CFS/CCS-BA-e-1220

Preparing:

 When using as counting system select using the balance, on which will be

totalized. The appeared [] displays the current balance.

 When totalizing in counting mode set the average piece weight.

(see chap. 10.1 or 10.2)

 If necessary, tare the empty balance container.

Menu settings:

„F1 off“  „ACC“  „ON“ and „F2 Prt“  „P mode“  „Print“  „Au OFF“ (see chap. 13.2)

When using as counting system there can be totalized on the reference as

well as on the bulk material balance. Before the totalizing process select the active balance, see chap. 9.3.

10 Totalization

The balance can totalize weight values or piece quantities. When using in the counting system, no matter, if the weighed goods are on the reference or on the bulk material balance.

10.1 Manual totalizing

10.1.1 Manual totalizing CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models

With this function the individual weighing values are added into the summation memory by pressing and edited, when an optional printer is connected.

CFS/CCS-BA-e-1220 37

Add up:

 Place weighing goods A.

Wait until the stability display appears, then press . The weight value or the number of items are stored and printed out.

 Remove the weighed good. More weighed goods can only be added when the

display ≤ zero.

 Place goods to be weighed B.

Wait until the stability display appears, then press . The weight value or the number of items are added in the summation memory and printed out. Total weight, number of weighing procedures as well as total parts counting appear 2 sec.

 Add more weighed goods as described before. Please note that the balance

must be unloaded between the individual weighing procedures.

 This process can be repeated 99 times or until the weighing range of the balance

is exhausted.

Display of the saved weighing data:

 Press , the total weight, number of weighing procedures as well as total

number of items are displayed.

Total weight placed on balance:

Number of weighing procedures:

Total number of pieces:

Delete weighing data:

 Press , the total weight, number of weighing procedures as well as total

number of items are displayed. During this display press . The data in the summation memory are deleted.

38 CFS/CCS-BA-e-1220

10.1.2 Manual Adding CFS 50K-3 models

With this function the individual weighing values are added into the summation memory by pressing and edited, when an optional printer is connected.

Add up:

 Place weighing goods A.

Wait until the stability display appears, then press . The weight value or the number of items are stored and printed out.

 Remove the weighed good. More weighed goods can only be added when the

display ≤ zero.

 Place goods to be weighed B.

 Add more weighed goods as described before.

Please note that the balance must be unloaded between the individual weighing procedures.

 This process can be repeated 99 times or until the weighing range of the

balance is exhausted.

 This operation can be repeated until 999999 or 199999 is shown on the display

CFS/CCS-BA-e-1220 39

Display of the saved weighing data:

Press , the total weight, number of weighing procedures as well as total

number of items are displayed.

Total weight placed on balance:

Number of weighing procedures:

(example)

Total number of pieces

Delete weighing data:

 Press , the total weight, number of weighing procedures as well as total

number of items are displayed. During this display press . The data in the summation memory are deleted.

40 CFS/CCS-BA-e-1220

1 2

3 4

6 7

Printout example:

LOCAL/REMOTE SCALE

Active balance, see chap. 9.3.

User identification number, see chapter 13.2

NET

Currently placed net weight

U. W.

Average piece weight (Unit weight)

PCS

Currently placed number of pieces (Pieces)

Placed total weight (Total weight)

TPC

Total number of pieces (Total pieces)

Number weighing processes

LOCAL SCALE ID: 123ABC

0.9997 kg NET 10 g U.W.

100 PCS

TOTAL _ _ _ _ _ _ _ _ _ _ _ _

4.400 kg TW 80 TPC 4 NO

CFS/CCS-BA-e-1220 41

Menu settings:

„F1 off“  „ACC“  „ON“ and „F2 Prt“  „P mode“  „Print“  „Au ON“, (see chap. 13.2)

When using as counting system there can be totalized on the reference as

well as on the bulk material balance. Before the totalizing process select the active balance, see chap. 9.3.

Menu settings:

„F1 off“  „F2 Prt“  „P mode“  „Print“  „Au on“, see chap. 13.2

When using as counting system there can be totalized on the reference as

well as on the bulk material balance. Before the totalizing process select the active balance, see chap. 9.3.

Add up:

 Place weighing goods A.

After the standstill control sounds a signal tone. Unload the weighing good, the weighing value is added into the summation memory and printed out.

 Place goods to be weighed B.

After the standstill control sounds a signal tone. Unload the weighing good, the weighing value is added into the summation memory and printed out.

 Add more weighed goods as described before. Please note that the balance

must be unloaded between the individual weighing procedures.

 This process can be repeated 99 times or until the weighing range of the balance

is exhausted.

Display and deletion of weighing data as well as print example (see chap.

10.1.1 and/or 10.1.2 (CFS 50K-3)

10.2 Automatic adding-up

With this function the individual weighing values are automatically added into the summation memory when the balance is unloaded without pressing and edited, when an optional printer is connected.

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS 50K-3 models:

42 CFS/CCS-BA-e-1220

The average piece weight can only be determined by stable weighing

values.

If weighing values are under zero, the piece counter display shows a

negative number of items.

The precision of the average unit weight can be increased at any time

while units are being counter by inputting the displayed number of units and confirming by or (in CFS 50K-3 models). After the reference

optimization sounds a signal tone. As the additional pieces increase the base for the calculation, the reference also becomes more exact.

11 Counting

During piece counting parts can either be counted into a container or out of a container. To count a greater number of parts the average weight per part has to be determined with a small quantity (reference quantity). The larger the reference quantity, the higher the counting exactness. High reference must be selected for small parts or parts with considerably different sizes.

CFS/CCS-BA-e-1220 43

Set reference

 Reset balance to zero or tare the empty weighing container if necessary.

 Place on the weighing plate a known number (e.g. 10 items) of individual pieces

as a reference. Wait for the stability display, than enter the number of individual items via the numeric keypad.

Confirm within 5 sec by pressing . The balance determines the average piece weight.

Count the items

 Tare if necessary, place weighing good and read off the number of items.

When an optional printer is connected, the displayed value can be edited by pressing (menu settings „P mode“  „Print“  „Au OFF“, chap. 13.2).

11.1 Determination of the average piece weight by weighing

11.1.1 CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

44 CFS/CCS-BA-e-1220

Set reference

 Reset balance to zero or tare the empty weighing container if necessary.

 Place on the weighing plate a known number (e.g. 10 items) of individual pieces

as a reference. Wait for the stability display, than enter the number of individual items via the numeric keypad.

Confirm within 5 sec by pressing . The balance determines the average piece weight.

Count the items

 Tare if necessary, place weighing good and read off the number of items.

When an optional printer is connected, the displayed value can be edited by pressing (menu settings „P mode“  „Print“  „Au OFF“, chap. 13.2).

Delete reference value

 Press

11.1.2 CFS 50K-3 models:

CFS/CCS-BA-e-1220 45

Set reference

 Input known average unit weight with numerical keys and confirm within 5 secs.

with or (CFS 50K-3 models). If in the weight display as weighing unit [kg] is active, the average piece weight

will be displayed in [g]. If as weighing unit [lb] is active, the average piece weight is also displayed in [lb].

Count the items

 Tare if necessary, place weighing good and read off the number of items.

When an optional printer is connected, the displayed value can be edited by

pressing (menu settings „P mode“  „Print“  „Au OFF“, chap. 13.2).

Delete unit weight

 Press

11.2 Numeric input of the average piece weight

11.3 Automatic reference optimization

If at the reference determination the placed weight or the placed piece number is too small, in the display of the average piece weight the triangle symbol will appear

over [ ] or [ ]. To optimize the calculated average piece weight automatically, add further parts whose number is smaller than that of the first reference determination. After the reference optimization sounds a signal tone. For each reference optimization the average piece weight is newly calculated. As the additional pieces increase the base for the calculation, the reference also becomes more exact.

By pressing or (CFS 50K-3 models) recalculation can be avoided and thus the reference weight locked.

Automatic reference optimization will be deactivated as soon as the number of added parts exceeds the saved reference quantity.

46 CFS/CCS-BA-e-1220

(Display example)



Bulk material balance e.g. KERN KFP

Reference balance KERN CFS

Here pieces of huge quantities will

be counted.

Due to its high resolution it is useful

for accurate determination of the average piece weight.

Big parts (max > 3kg) are counted

on the weighing bridge.

Smallest parts (max < 3kg) are

counted on the precise KERN CFS.

If in the determination of the

average piece weight no such high resolution is asked for as that of the KERN CFS, the reference formation can also be made in the bulk material balance.

In order to avoid errors at the piece number determination, both balances must be adjusted with the same acceleration due to gravity (see chap. 7). In case of non-compliance counting errors will result!

11.4 Counting with counting system

Counting with bulk material balance:

1. On the reference balance KERN CFS set average piece weight, see chap. 11.1.

or chap. 11.2.

2. Switch over balance with (s. chap. 9.3)

3. Put empty vessel on the weighing plate of the bulk material balance KERN KFP

and tare.

4. Fill counted quantity in the vessel on the bulk material balance. The piece

number is shown in the display.

CFS/CCS-BA-e-1220 47

Operation

Display

 Press , the active tolerance weighing mode is

indicated.

 If necessary select with or (CFS 50K-3

models) „Tolerance control weighing mode“ [ ].

 Press the key TARE, which shows the currently set

upper threshold.

 Using numeric keyboard enter desired value or

delete using .



 Press the key TARE which shows the currently set

lower threshold.

 Using numeric keyboard enter desired value or

delete using .



12 Weighing to a certain target weight /target quantity and

tolerance control

The balance allows weighing of goods to a certain target weight (net weight) or target piece number within defined tolerances. With this function one can also check if the weighing good is within a defined tolerance range. Tolerance control is possible in weighing or target mode. Reaching the target value is indicated by an acoustic (if activated in menu) and an optic signal (tolerance mark ).

12.1 Tolerance control in weighing mode

48 CFS/CCS-BA-e-1220

 Press , tolerance control is started. The  symbol over appears.  Place the weighing goods and with help of the tolerance mark  check if the net

weight of the weighed goods is under, within or over the specified tolerance.

Display of tolerance mark , if weighing goods are under the specified tolerance:

Display of tolerance mark , if weighing goods within the specified tolerance:

Display of tolerance mark , if weighing goods above the specified tolerance:

The information if the goods to be weighed are within the tolerance limits, can additionally be given by an acoustic signal (menu item „ „ see chap. 13.2)

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS/CCS-BA-e-1220 49

 Press , tolerance control is started. The  symbol over appears.  Place the weighing goods and with help of the tolerance mark  check if the net

weight of the weighed goods is under, within or over the specified tolerance.

Display of tolerance mark , if weighing goods are under the specified tolerance:

Display of tolerance mark , if weighing goods within the specified tolerance:

Display of tolerance mark , if weighing goods above the specified tolerance:

Modelle CFS 50K-3 models:

50 CFS/CCS-BA-e-1220 The information if the goods to be weighed are within the tolerance limits, can additionally be given by an acoustic signal (menu item „ „ see chap. 13.2)

For tolerance control, also only one limit value can be set. If both limit values are deleted, the tolerance control is deactivated.

Operation

Display

 Press , the active tolerance weighing mode is

indicated.

 If necessary select with . or (CFS 50K-3

models) „Tolerance control counting mode“ [ ].

 Press , the currently set upper limit value is

displayed.

 Using numeric keyboard enter desired value e.g. 50

items or delete using .



 Press , the currently set lower limit value is

displayed.

 Using numeric keyboard enter desired value e.g. 40

items or delete using .



12.2 Tolerance control in counting mode

CFS/CCS-BA-e-1220 51

 Press , tolerance control is started. The  symbol over appears.  Determine the average piece weight (see chap. 11.1 or 11.2), place the weighing

goods and check using the tolerance mark , if the number of the placed pieces is under, within or above the specified tolerance.

Display of tolerance mark , if weighing goods are under the specified tolerance

Display of tolerance mark , if weighing goods within the specified tolerance

Display of tolerance mark , if weighing goods above the specified tolerance:

The information if the goods to be weighed are within the tolerance limits, can additionally be given by an acoustic signal (menu item „ „ see chap. 13.2)

For tolerance control, also only one limit value can be set. If both limit values are deleted, the tolerance control is deactivated.

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

52 CFS/CCS-BA-e-1220

 Press , tolerance control is started. The  symbol over appears.  Determine the average piece weight (see chap. 11.1 or 11.2), place the weighing

goods and check using the tolerance mark , if the number of the placed pieces is under, within or above the specified tolerance.

Display of tolerance mark , if weighing goods are under the specified tolerance

Display of tolerance mark , if weighing goods within the specified tolerance

Display of tolerance mark , if weighing goods above the specified tolerance:

CFS 50K-3 models:

CFS/CCS-BA-e-1220 53 The information if the goods to be weighed are within the tolerance limits, can additionally be given by an acoustic signal (menu item „ „ see chap. 13.2)

 For tolerance control, also only one limit value can be set.  If both limit values are deleted, the tolerance control is deactivated.

Operation

Windows

 If necessary set balance to zero using

 Tare, as required.

If it’s used as counting system, observe if bulk material or counting balance shall be tared. Select using bulk material or reference balance accordingly by .

The appeared [] displays the current balance.

Or place the weighing container and tare with (see chap. 9.4.1) or enter tare value numerically (see chapter 9.4.2). Tare values can only be saved when they are situated in the admitted taring range (factory setting > 2 % max).

At values < 2 % max, reset balance with .

12.2.1 Delete limit values:

When entering upper and lower threshold, press key and confirm with .

12.3 Store data

The balance has over 100 indirect memories and 5 direct memories (only CFS 50K-3 models) for frequently used tare values, average unit weights and additional texts. These data can be accessed by calling up the corresponding number of a certain article.

12.3.1 Store in indirect memories

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

Buttons ~ :

54 CFS/CCS-BA-e-1220

 If used as a counting system select reference balance using .  Determine the average piece weight or by weighing (see chap. 11.1) or enter via

numeric keyboard (see chap. 11.2).

 Input memory location, for example, PLU 27

press

 Via numeric keys "2" and "7" enter memory

location "27".

 Press , the currently stored additional text

will appear. The first digit is flashing.

 Delete additional text with if necessary.

 Enter the additional text as follows (max. 12

characters, e.g. "KERN 1234 AB").

For input of numbers, actuate shortly the numeric button

For input of letters press the numeric button and keep it pressed until the desired letter is displayed. The characters according to keyboard assignation run through.

CFS/CCS-BA-e-1220 55

- / \ 2

A B C

D E F

G H I

J K L

M N O

P Q R S

T U V

W X Y Z

_ [ ]

_ = Space

Overview data input / data output:

Use to move number selection to the left, the respective active position flashes.

Use to move the number selection to the right, the respective active position flashes.

 Confirm input by . The data are stored under the entered PLU-number; the data can

be called-up at any time by calling the respective PLU-number.

56 CFS/CCS-BA-e-1220

Operation

Windows

 If necessary set balance to zero using

 Tare, as required.

If it’s used as counting system, observe if bulk material or counting balance shall

be tared. Select bulk material or reference balance accordingly by . The appeared [] displays the current balance.

At values < 2 % max, reset balance with .

If used as a counting system select reference balance using .  Determine the average piece weight or by weighing (see chap. 11.1) or enter via

numeric keyboard (see chap. 11.2).

 Press button for approx. 3 seconds.

 Via numeric keys "2" and "7" enter memory

location "27".

 Press , the currently stored additional

text will appear. The first digit is flashing.

 Delete additional text with if

necessary.

 Enter the additional text as follows (max.

12 characters, e.g. "KERN 1234 AB").

CFS 50K-3 models:

Buttons ~ :

CFS/CCS-BA-e-1220 57

For input of numbers, actuate shortly the numeric button

For input of letters press the numeric button and keep it pressed until the desired letter is displayed. The characters according to keyboard assignation run through.

- / \

A B C

D E F

G H I

J K L

M N O

P Q R S

T U V

W X Y Z

_ [ ]

_ = Space

Overview data input / data output:

 Confirm input by .

The data are stored under the entered PLU-number; data can be called-up at any time by calling the respective PLU-number (see chap. 12.3.2) .

The stored unit weight is displayed.

58 CFS/CCS-BA-e-1220

Operation

Windows

 When using as counting system select

using the balance, on which the tare value is stored. The appeared [] displays the current balance.

 Press

 Via numeric keys "2" and "7" enter memory

location "27".

 Press anew, the memory location

and the stored additional text are displayed for 1 s. If the data shall be displayed longer

time, keep pressed. The display changes into the counting

mode, the stored tare value e.g. 100 g and the average piece weight e.g. 10g /pce. are displayed.

 Place load on pan and read the number of

pieces.



12.3.2 Call up stored values

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS/CCS-BA-e-1220 59

Operation

Windows

 When using as counting system select

the balance using , on which the tare value is stored. The appeared [] displays the current balance.

 Press

 Via numeric keys "2" and "7" enter

memory location "27".

 Press anew, the memory location

and the stored additional text are displayed for 2 s.

 The display changes into the counting

mode, the stored tare value e.g. 100 g and the average piece weight e.g. 10g /pce. are displayed.

 Place load on weighing pan and read

the number of pieces..



CFS 50K-3 models:

60 CFS/CCS-BA-e-1220

1 2

3 4 5

LOCAL/REMOTE SCALE

Active balance, see chap. 9.3

User identification number, see chapter 13.2

NAME

Additional text

NET

Placed net weight

U. W.

Average piece weight (Unit weight)

PCS

Placed number of pieces (Pieces)

LOCAL SCALE ID: 123ABC NAME: KERN 1234 AB

1.9003 kg NET 10 g U.W.

190 PCS

12.3.3 Printing

When connecting an optional printer, the data can be edited by pressing .

Printout example:

CFS/CCS-BA-e-1220 61

Operation

Windows

 When using as counting system use

to select the balance, on which the tare value is stored. The appeared [] displays the current balance.

 Input average unit weight using the

numerical keys and confirm with .

(example)

 Desired direct key ~ (for

example ) keep pressed for about 3

seconds, „1“ and „ _“ are displayed or the

last input product name is displayed. The first digit is flashing.

 If necessary, also delete product name

with and with the keys ~ input a new product name (keep key pressed to show characters)

With move number selection to the right, the active area blinks.

With move number selection to the left, the active area blinks.

(example)

 Press . Product name and item weight

are stored under the selected direct key. In the display the input unit weight is displayed.

(example)

12.4 Storing into indirect memory locations (only CFS 50K-3 models)

Buttons ~ .

12.4.1 Save

62 CFS/CCS-BA-e-1220

1 2

3 4 5

LOCAL/REMOTE SCALE

Active balance, see chap. 9.3

User identification number, see chapter 13.2

NAME

Additional text

NET

Placed net weight

U. W.

Average piece weight (Unit weight)

PCS

Placed number of pieces (Pieces)

LOCAL SCALE ID: 123ABC NAME: bAnAnEn

1.9003 kg NET 10 g U.W.

190 PCS

12.4.2 Calling up

Put on the goods, press direct keys ~ , and in the display the product

name and the unit weight are displayed for some two seconds.

By pressing data are printed

Printout example:

CFS/CCS-BA-e-1220 63

Balance and application settings

Settings serial interface

Setting user identification number

Setting balance identification number

Configuration balance or balance bridge

Call up menu

 Turn on balance and during the self-test press

PRE-SET The first menu block is displayed.

Select menu block

 Using or in CFS 50K-3 models the separate

menu blocks can be accessed in succession.

Select menu item

 Confirm selected menu block with TARE. The first menu

item is displayed, e.g.z.B. 

 Using or in CFS 50K-3 models the separate

menu items can be accessed in succession.

Select setting

 Confirm selected menu point with TARE. The current

setting will be displayed.

Change settings

 Using or in CFS 50K-3 models one can switch

to the available settings.

Acknowledge setting / exit the menu

 Press TARE , the balance will return to submenu

 Set further settings either in the menu or with or

in CFS 50K-3 models return to the main menu.

Return to weighing mode

 Press again or in CFS 50K-3 models

13 Menu

The menu is structured in the following menu blocks.

13.1 Navigation in the menu

64 CFS/CCS-BA-e-1220

Menu block Main menu

Menu item Submenu

Available Settings

Explanation

Signal tone switched off

Signal tone on, if weighing value within tolerance limits

Signal tone on, if weighing value outside tolerance limits

Display background illumination off

Display background illumination on

Background illumination switches on automatically when loaded or a button is pressed

Balance switchable kg  lb

Weighing unit "kg"

Weighing unit "lb"

Auto-off function, balance will switch off automatically after the set time. Selectable 0/3/5/15/30 minutes.

Totalizing mode on

Totalizing mode off

Data output of stable weighing values after pressing

Automatic data output of stable weighing values after unloading the balance

Continuous data output of all weighing data, (totalizing deactivated)

Continuous data output only weight value.

Baud rate 600

Baud rate 1200

Baud rate 2400

Baud rate 4800

Baud rate 9600

13.2 Menu overview

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

CFS/CCS-BA-e-1220 65

8 bits, no parity

7 bits, even parity

7 bits, odd parity

Standard printer setting

Not documented

Shows the current user identification number, max. 6 digits

Shows the current balance identification number, max. 6 digits

Details s.Chap. 14

password-protected

Menu block Main menu

Menu item Submenu

Available Settings

Explanation

Signal tone switched off

Signal tone on, if weighing value within tolerance limits

Signal tone on, if weighing value outside tolerance limits

Display background illumination on

Background illumination switches on automatically when loaded or a button is pressed

Display background illumination off

Auto-off function, balance will switch off automatically after the set time. Selectable 0/3/5/15/30 minutes.

CFS 50K-3 models:

66 CFS/CCS-BA-e-1220

Data output of stable weighing values after pressing

Automatic data output of stable weighing values after unloading the balance

Continuous data output of all weighing data, (totalizing deactivated)

Continuous data output only weight value.

Baud rate 600

Baud rate 1200

Baud rate 2400

Baud rate 4800

Baud rate 9600

8 bits, no parity

7 bits, even parity

7 bits, odd parity

Standard printer setting

Not documented

Shows the current user identification number, max. 6 digits

Shows the current balance identification number, max. 6 digits

Details s.Chap. 14

password-protected

CFS/CCS-BA-e-1220 67

 Changes should only be carried out by trained specialized personnel.  Navigation in menu see chap. 13.1

Supply voltage:

5 VDC

Max. signal voltage

0-20 mV

Zeroing range

0-5 mv

Sensitivity

> 0.02 μv

Resistance parameter

87 O Min., 4 x 350 Ω load cell

Connection

4 poles

Max. cable length

6 meter

Connection plug

9 pin d-subminiature bushing

14 Configuration bulk material balance / technical parameters

In factory the balance KERN CFS or the counting system KERN CCS are preconfigured in a way that normally no more changes will be necessary. But if there are special conditions of use or if as bulk material balance an other weighing bridge (not preconfigured by KERN) is connected, in the menu block " " the required settings can be made.

Technical data

68 CFS/CCS-BA-e-1220

Call up menu

 Switch-on balance and during the selftest press .

The first menu block is displayed.

 Press repeatedly or (in CFS 50K-3 models) press

again until is displayed.

   

 Confirm with TARE. The request to enter the password

appears.

 Or as standard password enter four times zero "0000" or the

stored password (input see parameter ). Any other password can be overwritten with "9999".

 Confirm with TARE

 Use to select the balance which should be configured

(bulk material/reference balance). The appeared [] displays the current balance. Confirm with TARE.



 Use UNIT to select the weighing unit [kg or lb], where the

adjustment shall be made. The appeared [] displays the current weighing unit.

Confirm with TARE , the first menu item is displayed.



Menu settings:

CFS/CCS-BA-e-1220 69

Navigation in the menu

 With help of , the individual menu items can be selected

one after the other.

 Confirm selected menu item by pressing . The current

setting will be displayed.

 Switch into the available settings using .

 Either save by pressing or cancel by pressing .

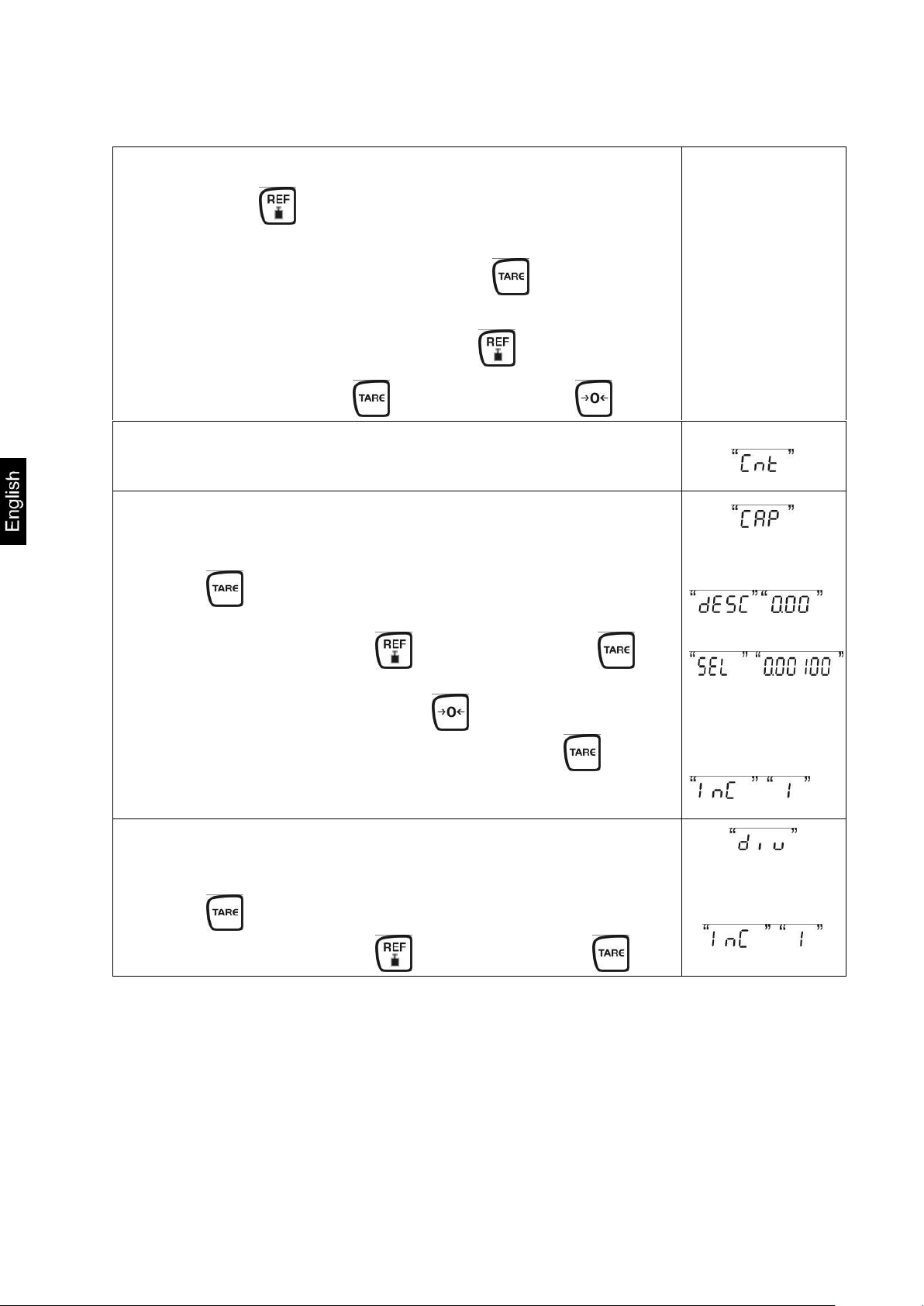

Parameter selection

 Display internal resolution

 Balance capacity.

Settings only possible on the bulk material balance.



 Press , the currently set position of the decimal dot is

displayed. Select desired setting with and acknowledge by .

The currently set capacity is displayed. For changes delete display using and enter the desired value via the numeric keyboard. Confirm input by .

The currently set readability is displayed, for changes see step 3 "Readability".



 Readability

Display at selection

reference balance

 Press , the currently set readability is displayed.

Select desired setting with and acknowledge by .



CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

70 CFS/CCS-BA-e-1220

 Automatic zero point correction (Autozero) by changing the

display, digits selectable (0.5d, 1d, 2d, 4d)

 Press , the currently set value is displayed.

Press to select the desired setting (0.5d, 1d, 2d, 4d) and acknowledge by pressing .



 Zero setting range

Load range where the display after switching-on the balance is set to zero

 Press , the currently set zero setting range is displayed.

Press to select the desired setting (0 %, 2 %, 5 %, 10 %,

20 %) and acknowledge by pressing .



 Zero setting range

Load range where the display is set to zero by pressing .

 Press , the currently set auto-zero range is displayed.

Press to select the desired setting (0 %, 2 %, 5 %, 10 %, 20 %) and acknowledge by pressing .



 Password input for menu block „

“

 Press , will be shown. Use the numeric

keyboard to enter the desired code and acknowledge with



 is displayed, request to repeat the password

input.

Enter code anew and press to acknowledge. If entry was successful, is displayed, if false,

appears. In this case repeat the code input.



CFS/CCS-BA-e-1220 71

Navigation in the menu

 With help of , the individual menu items can be selected

one after the other.

 Confirm selected menu item by pressing . The current

setting will be displayed.

 Switch into the available settings using .

 Either save by pressing or cancel by pressing .

Parameter selection

 Display internal resolution

 Press , „CAP.“ is displayed

Balance capacity. Settings only possible on the bulk material balance.

 Press „rES“ is displayed

 Press , the current setting for resolution are displayed

 Select desired resolution by pressing .

 Acknowledge by .



(example)

 Press , „A2t“ is displayed

Automatic zero point correction (Autozero) by changing the display, digits selectable (0.5d, 1d, 2d, 4d)

 Press , the currently set value is displayed.

Press to select the desired setting (0.5d, 1d, 2d, 4d) and acknowledge by pressing .



CFS 50K-3 models: Reference balance: „tECH LoCAL“

72 CFS/CCS-BA-e-1220

 Press , „0 Auto“ is displayed  Zero setting range

Load range where the display after switching-on the balance is set to zero

 Press , the currently set zero setting range is displayed.

With select desired setting (0 %, 2 %, 5 %, 10%, 20%, 30%, 40%, 50 %) and confirm.



(example)

 Press , „0 mAnL“ is displayed  Zero setting range

Load range where the display is set to zero by pressing .

 Press , the currently set auto-zero range is displayed.

With select desired setting (0 %, 2 %, 4 %, 10 %, 50 %, 100 %) and confirm with .



(example)

 Press , „Pin“ is displayed

Password input for menu block „

“

 Press , will be shown. Use the numeric

keyboard to enter the desired code and acknowledge with



 is displayed, request to repeat the password

input.

Enter code anew and press to acknowledge. If entry was successful, is displayed, if false,

appears. In this case repeat the code input.



CFS/CCS-BA-e-1220 73

Navigation in the menu

 With help of , the individual menu items can be selected

one after the other.

 Confirm selected menu item by pressing . The current

setting will be displayed.

 Switch into the available settings using .

 Either save by pressing or cancel by pressing .

Parameter selection

 Display internal resolution

 Press ,“dESC“ is displayed

 Press , the currently set position of the decimal dot is

displayed. Select desired setting with and acknowledge by .



 Press , „CAP.“ is displayed  Balance capacity.  Settings only possible on the bulk material balance.

 Press

The currently set capacity is displayed. For changes delete display using and enter the desired value via the numeric keyboard. Confirm input by .



Bulk material scales: „tECH rEmotE“

74 CFS/CCS-BA-e-1220

 Press , „div“ is displayed  Press , the currently set legibility is displayed,  Using select the desired readibility  Acknowledge by .



(example)

 Press , „A2t“ is displayed

Automatic zero point correction (Autozero) by changing the display, digits selectable (0.5d, 1d, 2d, 4d)

 Press , the currently set value is displayed.

Press to select the desired setting (0.5d, 1d, 2d, 4d) and acknowledge by .



 Press , „0 mAnL“ is displayed  Zero setting range: Load range where the display is set to

zero by pressing .

 Press , the currently set auto-zero range is displayed.

Press to select the desired setting (0 %, 2 %, 5 %, 10 %, 20 %) and acknowledge by pressing .



 Press , „Pin“ is displayed  Password input for menu block „

“

 Press , will be shown. Use the numeric

keyboard to enter the desired code and acknowledge with .



 is displayed, request to repeat the password

input. Enter code anew and press to acknowledge. If entry was

successful, is displayed, if false, appears. In this case repeat the code input.



CFS/CCS-BA-e-1220 75

9 pin d-subminiature bushing of the balance

Connection of weighing bridge KERN KFP

Pin no.:

Balance connection

Pin 1 or 2

EXC+ (5V)

see labelling of load cell

Pin 4 or 5

EXC- (0)

Pin 7

SIG–

Pin 8

SIG+

Pin 2: TXD - Output Pin 3: RXD - Input Pin 5: GND - Signal ground

15 Second balance interface

When using as counting system, the weighing bridge must be connected with a suitable cable via the second-balance interface.

16 RS 232C interface

The balance is typically equipped with a RS 232C interface. The weighing data can be output depending on the setting in the menu either automatically or by pressing

(or in CFS 50K-3) via the interface. This data exchange is asynchronous using ASCII - Code. The following conditions must be met to provide successful communication between the weighing balance and the printer.

Use a suitable cable to connect the weighing balance to the interface of the

printer. Faultless operation requires an adequate KERN interface cable.

Communication parameters (baud rate, bits and parity) of balance and

printer must match. Detailed description of the interface parameters see chap. 13.2, Menu block " ".

16.1 Pin allocation of balance output bushing:

CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

76 CFS/CCS-BA-e-1220

Pin 2: RXD - Input Pin 3: TXD - Output Pin 5: GND - Signal ground

Connection

D-Sub 9 poles jack Pin 2 output Pin 3 input Pin 5 signal earth

Baud rate

600/1200/2400/4800/9600

Parity

8 bits, no parity / 7 bits, even parity / 7 bits, odd parity

Connection

D-Sub 9 poles jack Pin 2 input Pin 3 output Pin 5 signal earth

Baud rate

600/1200/2400/4800/9600

Parity

8 bits, no parity / 7 bits, even parity / 7 bits, odd parity

CFS 50K-3 models:

16.2 Technical data CFS 3K-5, CFS 6K0.1, CFS 15K0.2, CFS 30K0.5 models:

bold printed = factory setting

CFS 50K-3 models:

bold printed = factory setting

CFS/CCS-BA-e-1220 77

PLUxx

Call-up PLU from data memory

Tare placed weighing vessel

T123.456

Numeric tare value

Zeroing

Printing

M+

Add and print weighing data in the summation memory

Call-up data from memory

Delete memory

U123.456

Save the average piece weight 123.456 [g] or [lb]

S123

Input number of pieces e.g. 123 pieces

Switch over to reference balance

Switch over to bulk material scales

Selection reference or bulk material balance

User identification number

Balance identification number

Net weight

Gross weight

Average piece weight

Tare value

Counting

Total number of pieces

Total weight

Number weighing processes

Insert space line

16.3 Remote control instructions

All inputs finish with <CR><LF> (carriage return / line feed). At wrong inputs the command will be preceded by "ER", e.g. order "NN<CR><LF>", error message "ER NN<CR><LF>".

16.3.1 Control commands

16.3.2 Printing commands

78 CFS/CCS-BA-e-1220

17 Service, maintenance, disposal

17.1 Clean

Before cleaning, disconnect the appliance from the operating voltage.

Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Take care that the device is not penetrated by fluids and polish it with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.

Spilled weighing goods must be removed immediately.

17.2 Service, maintenance

The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.

17.3 Disposal

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.

CFS/CCS-BA-e-1220 79

Fault

Possible cause

The displayed weight does not glow.

The balance is not switched on.

The mains supply connection has been interrupted

(mains cable not plugged in/faulty).

Power supply interrupted.

(Rechargeable) batteries are inserted incorrectly or

empty

No (rechargeable) batteries inserted.

The displayed weight is permanently changing

Draught/air movement

Table/floor vibrations

Weighing pan has contact with other objects. Electromagnetic fields / static charging (choose

different location/switch off interfering device if possible)

The weighing result is obviously incorrect

The display of the balance is not at zero

Adjustment is no longer correct.

Great fluctuations in temperature. Warm-up time was ignored. Electromagnetic fields / static charging (choose

different location/switch off interfering device if possible)

18 Instant help

In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.

80 CFS/CCS-BA-e-1220

Error message

Description

Possible causes

Zeroing range exceeded due to switching-on balance

or pressing (normally 4% max)

Object on the weighing

plate Overload when zeroing Inappropriate

adjustment Damaged weighing cell Damaged electronics

Keyboard error

Improper use of the

balance

Value outside the A/D changer range

Weighing plate not

installed Damaged weighing cell Damaged electronics

Adjustment error

Inappropriate adjustment

18.1 Error messages

Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.

CFS/CCS-BA-e-1220 81

KERN & SOHN CCS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
