KERN CXB, CXP Operating Instruction

Operating instruction Counting scales
CXB/CXP
CXB/CXP-BA-e-0711
CXB/CXP-BA-e-0711
Table of Contents
1 Technical data__________________________________________________ 4 2 Declaration of conformity ________________________________________ 6 3 Appliance overview _____________________________________________ 7
3.1 Overview of display _______________________________________________ 9
3.1.1 Display weight _______________________________________________________ 10
3.1.2 Display reference weight _______________________________________________ 10
3.1.3 Display quantity ______________________________________________________ 10
3.1.4 Battery charge status display ____________________________________________ 10
3.2 Keyboard overview_______________________________________________ 11
4 Basic Information (General)______________________________________ 13
4.1 Proper use______________________________________________________ 13
4.2 Improper Use ___________________________________________________ 13
4.3 Warranty _______________________________________________________ 13
4.4 Monitoring of Test Resources______________________________________ 14
5 Basic Safety Precautions________________________________________ 14
5.1 Pay attention to the instructions in the Operation Manual_______________ 14
5.2 Personnel training _______________________________________________ 14
6 Transport and storage __________________________________________ 14
6.1 Testing upon acceptance _________________________________________ 14
6.2 Packaging ______________________________________________________ 14
7 Unpacking, Setup and Commissioning ____________________________ 15
7.1 Installation Site, Location of Use ___________________________________ 15
7.2 Unpacking ______________________________________________________ 15
7.2.1 Setup ______________________________________________________________ 16
7.2.2 Scope of delivery _____________________________________________________ 17
7.3 Mains connection ________________________________________________ 17
7.4 Battery power supply_____________________________________________ 17
7.5 Initial Commissioning ____________________________________________ 17
7.5.1 Start-up_____________________________________________________________ 18
7.5.2 Turn off – CXB models _________________________________________________ 18
7.5.3 Turn off/standby mode – CXP models _____________________________________ 18
7.5.4 Balance zero display __________________________________________________ 18
7.5.5 Stability display_______________________________________________________ 18
7.6 Adjustment with external weight ___________________________________ 19
CXB/CXP-BA-e-0711
3
8 Parts counting_________________________________________________ 20
8.1 Determination of the reference weight by weighing ____________________ 20
8.2 Numeric entering of the reference weight ____________________________ 21
8.3 Automatic reference optimization___________________________________ 21
8.4 Store/call reference weight ________________________________________ 22
8.4.1 Save _______________________________________________________________ 22
8.4.2 Call-up _____________________________________________________________ 23
8.5 Count with tolerance control - Fill to target___________________________ 23
8.5.1 Set tolerance value for target number of pieces______________________________ 23
8.5.2 Set tolerance value for target weight ______________________________________ 24
9 Taring________________________________________________________ 25
9.1 Determination of the tare weight by weighing_________________________ 25
9.2 Numerical input of tare (PRE-TARE)_________________________________ 26
10 Add ________________________________________________________
28
10.1 Add up “number parts" ___________________________________________ 28
10.2 Add up “weight" _________________________________________________ 29
10.3 Delete stored values______________________________________________ 30
11 Application menu ____________________________________________ 30
11.1 Navigation in the menu ___________________________________________ 30
11.2 Menu overview [USER]____________________________________________ 31
12 Configurations menu _________________________________________ 32
12.1.1 Display background illumination________________________________________ 32
12.1.2 Setting the display speed_____________________________________________ 33
13 Data output _________________________________________________ 34
13.1 RS 232C interface________________________________________________ 34
13.2 Description of interface ___________________________________________ 35
13.2.1 Example: Setting an output format______________________________________ 39
14 Service, maintenance, disposal_________________________________
40
14.1 Cleaning _______________________________________________________ 40
14.2 Service, maintenance_____________________________________________ 40
14.3 Disposal________________________________________________________ 40
15 Instant help _________________________________________________ 41 16 Appendix ASCII CODE table____________________________________ 42
CXB/CXP-BA-e-0711
1 Technical data
CXB models:
KERN CXB 3K0.2 CXB 6K0.5 CXB 15K1 CXB 30 K2
Readability (d) 0.2 g 0.5 g 1 g 2 g Weighing range (max) 3 kg 6 kg 15 kg 30 kg Reproducibility 0.2 g 0.5 g 1 g 2 g Linearity ± 0.4 g ± 1.0 g ± 2 g ± 4 g Stabilization time 2 sec. 2 sec. 2 sec. 2 sec. Recommended adjustment
weight, not added (class)
3 kg (M1) 5 kg (M1) 15 kg (M1) 30 kg (M1)
Weighing unit g g g g Minimum piece weight 0.1 g 0.2 g 0.5 g 1 g Warming up time (operat-
ing temperature)
30 min
Reference quantity freely selectable Net weight (kg) 4 kg Permissible ambient
condition
-10° C to 40° C
Humidity of air 15% - 85% (non-condensing) Weighing plate, stainless
steel
300 x 225 mm
Dimensions of the housing (B x D x H)
300 x 330 x 110 mm
Mains connection Mains adapter 230 V, 50/60 Hz ; 9 V DC balance, 800 mA
Without backlit display:
Service life c. 200 hours / loading time ca. 8 hrs.
Rechargeable battery
With backlit display:
Operating time ca. 60h. / loading time ca. 8 hrs.
CXB/CXP-BA-e-0711
5
CXP models:
KERN CXP 30K2 CXP 75K5 CXP 150K10
Readability (d) 2 g 5 g 10 g Weighing range (max) 30 kg 75 kg 150 kg Reproducibility 2 g 5 g 10 g Linearity ± 4 g ± 10 g ± 20 g Stabilization time 2 sec. 2 sec. 2 sec. Recommended adjustment
weight, not added (class)
20 kg (M1) 50 kg (M1) 100 kg (M1)
Weighing unit g g g Minimum piece weight 0.5 g 1 g 2.5 g Warming up time (operat-
ing temperature)
30 min
Reference quantity freely selectable Net weight (kg) 8.9 kg Permissible ambient
condition
-10° C to 40° C
Allowable air humidity 15 % - 85 % (non-condensing) Weighing plate, stainless
steel
400 x 300 mm
400 x 300 x 100 mm (platform) Dimensions of the housing
plastic material (B x D x H)
290 x 140 mm (terminal)
Voltage 230 V (AC)
Without backlit display:
Service life c. 200 hours / loading time ca. 16 hrs.
With backlit display:
Operating time ca. 60h. / loading time ca. 16 hrs.
Rechargeable battery
with back light + RS 232:
Operating time ca. 56h. / loading time ca. 16 hrs.
Data interface RS 232C
CXB/CXP-BA-e-0711
7
3 Appliance overview

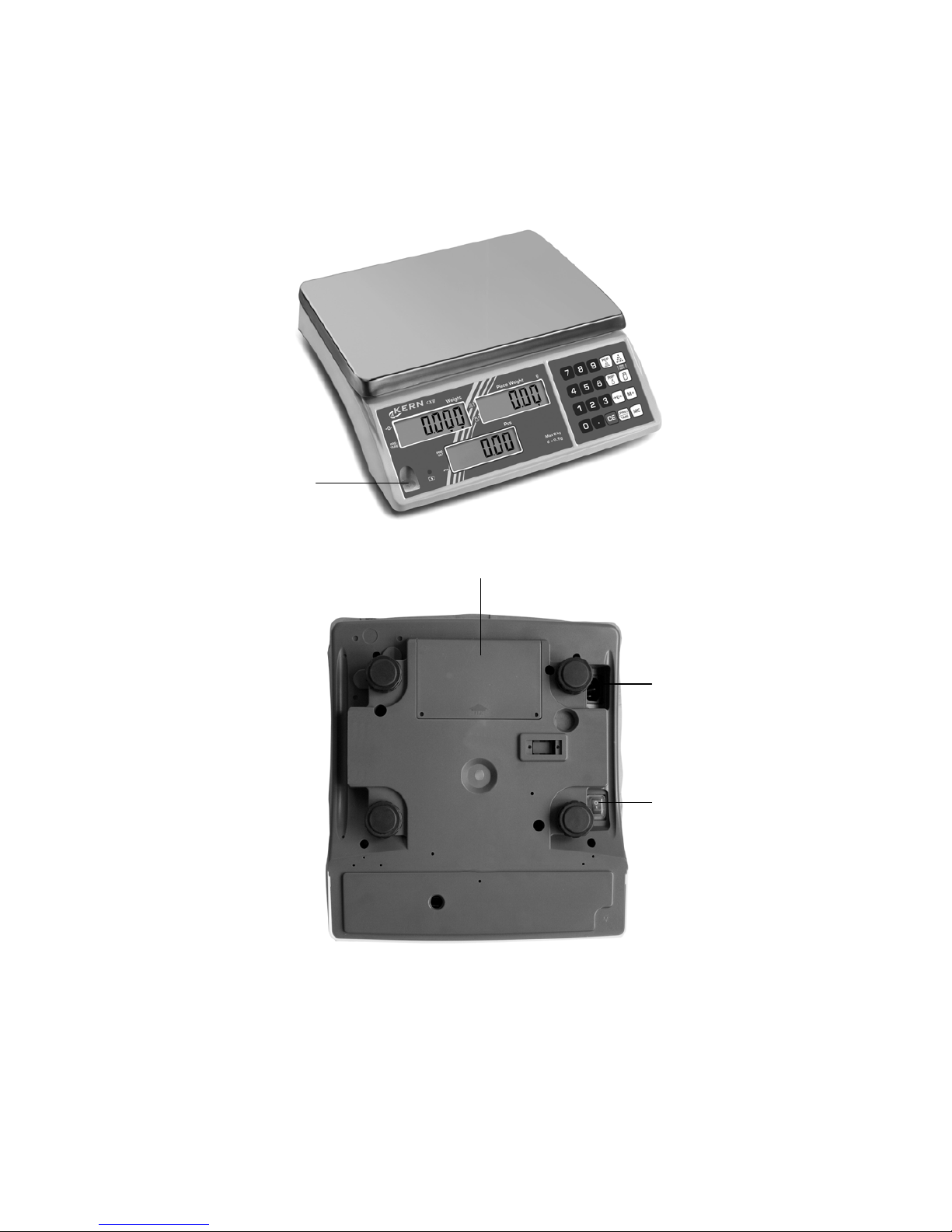

CXB models:
1. Bubble level
2. Battery compartment
3. Mains cable connection
4. ON/OFF switch
1
3
4
2
CXB/CXP-BA-e-0711
3
2
1

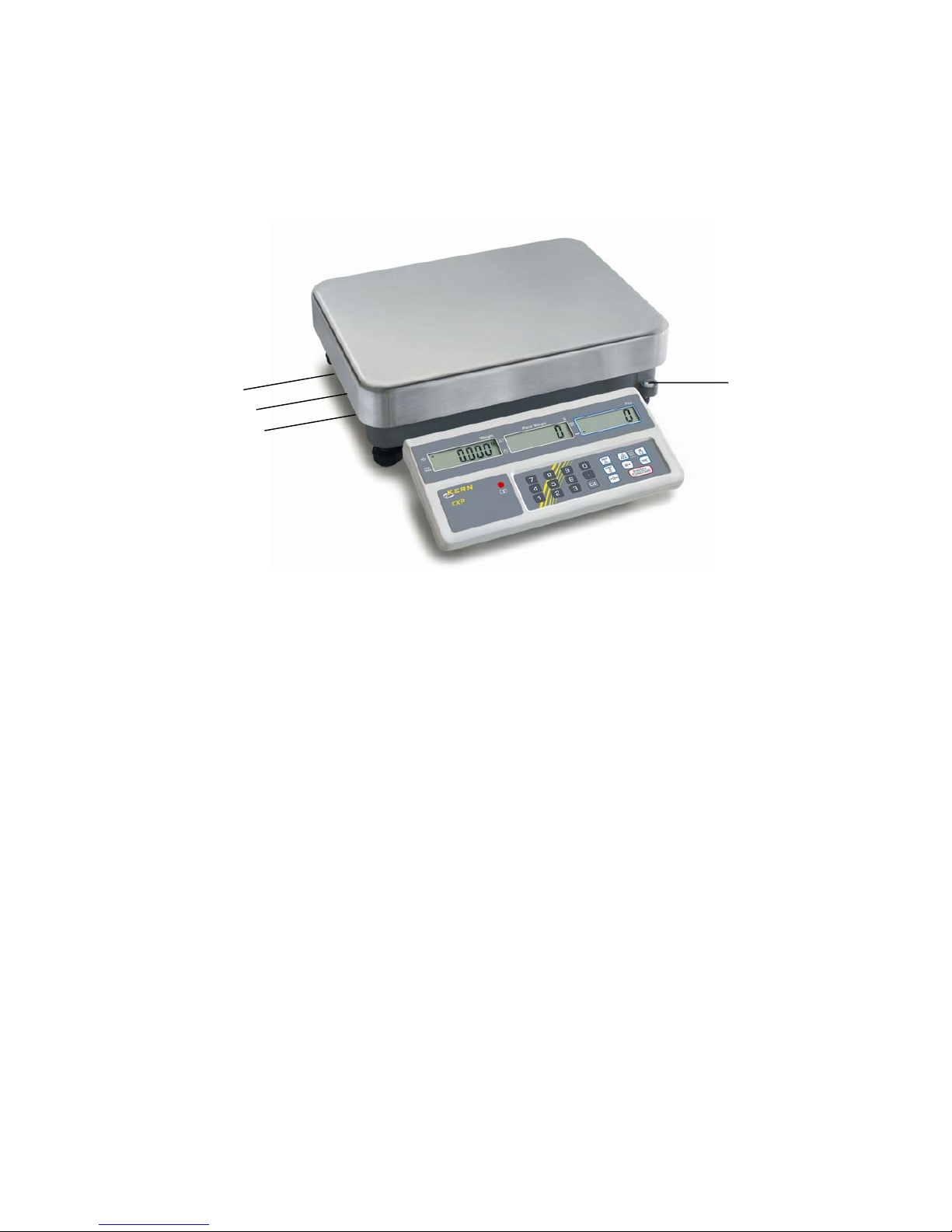

CXP models:
1. ON/OFF switch
2. Mains cable connection
3. RS 232 interface
4. Bubble level
CXB/CXP-BA-e-0711
9
Loading status display
3.1 Overview of display
CXB models:
Weight Reference weight
Loading status display Pieces
CXP models:
Weight Reference weight Pieces
CXB/CXP-BA-e-0711
10
3.1.1 Display weight
Here, the weight of your goods is displayed.
Overlay W indicates:
a
Zeroing display
PRE-
TARE
Tare in memory
Battery very low
3.1.2 Display reference weight
The reference weight of a sample is shown here. This value is either entered by user of calculated by balance.
Overlay W indicates:
Placed number of pieces insufficient for reference calculation Placed reference weight insufficient for reference calculation
3.1.3 Display quantity
Here, all the parts placed on balance are immediately displayed by number.
Overlay W indicates:
M+
Data in summation memory Stability display
3.1.4 Battery charge status display
red
Battery is almost discharged
green
Battery is completely discharged
CXB/CXP-BA-e-0711
11

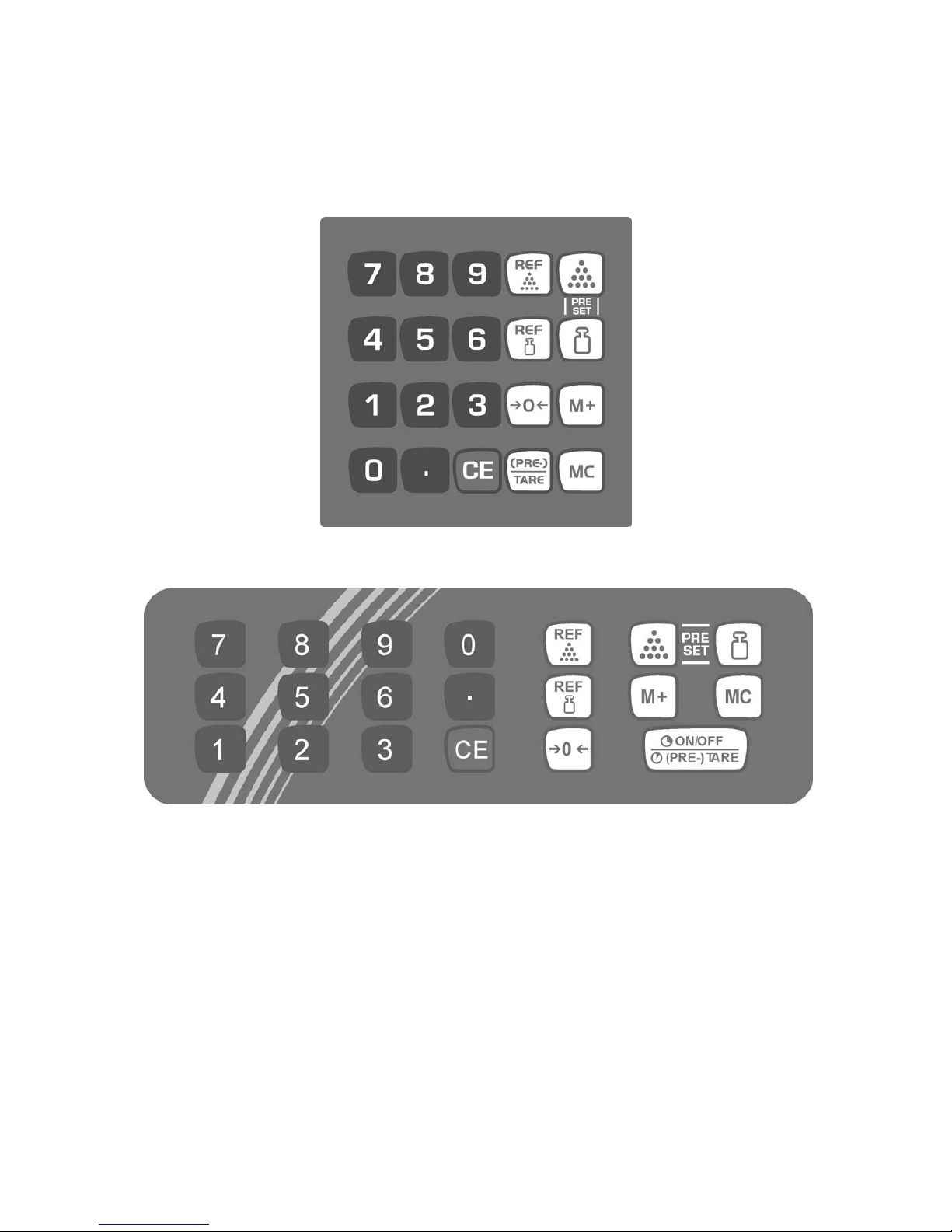

3.2 Keyboard overview
CXB models:
CXP models:
CXB/CXP-BA-e-0711
12
Choice Function
-
Number keys
Delete key
Call counting with tolerance control
Store reference weights in memory
Call stored reference weights
Addition in total memory
Call up total memory
Delete summation memory
Enter reference weight through weighing
Display reference weight stored last
Enter target number of pieces
Numeric entry reference weight
Display reference weight stored last
Enter target weight
Zeroing key
Back to weighing mode
CXB models
Taring key
Enter numerical tare
CXP models
ON/OFF standby
Taring key
Enter numerical tare
CXB/CXP-BA-e-0711
13
4 Basic Information (General)
4.1 Proper use
The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the mate­rial to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.
4.2 Improper Use
Do not use balance for dynamic weighings. In the event that small quantities are re­moved or added to the material to be weighed, incorrect weighing results can be dis­played due to the “stability compensation“ in the balance. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing plate. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be dam­age by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weigh­ing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.
4.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage or damage by media, liquids, natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded
CXB/CXP-BA-e-0711
14
4.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the bal­ance and, if applicable, the testing weight, must be checked regularly. The responsi­ble user must define a suitable interval as well as type and scope of this test. Infor­mation is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.
5 Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.
5.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
6 Transport and storage
6.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the appli­ance itself when unpacking for possible visible damage.
6.2 Packaging
Keep all parts of the original packaging in case you need to return the appliance. Only use original packaging for returning. Before sending, disconnect all connected cables and loose/movable parts. Attach possibly existing transport safeguards. Secure all parts, e.g. weighing plate, power unit etc., to prevent slipping and damage.
CXB/CXP-BA-e-0711
15
7 Unpacking, Setup and Commissioning
7.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface;
Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and doors;
Avoid jarring during weighing;
Protect the balance against high humidity, vapours and dust;
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.
Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electric­ity accumulations or instable power supply occur. Change location or remove source of interference.
7.2 Unpacking
Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation.
CXB/CXP-BA-e-0711
16

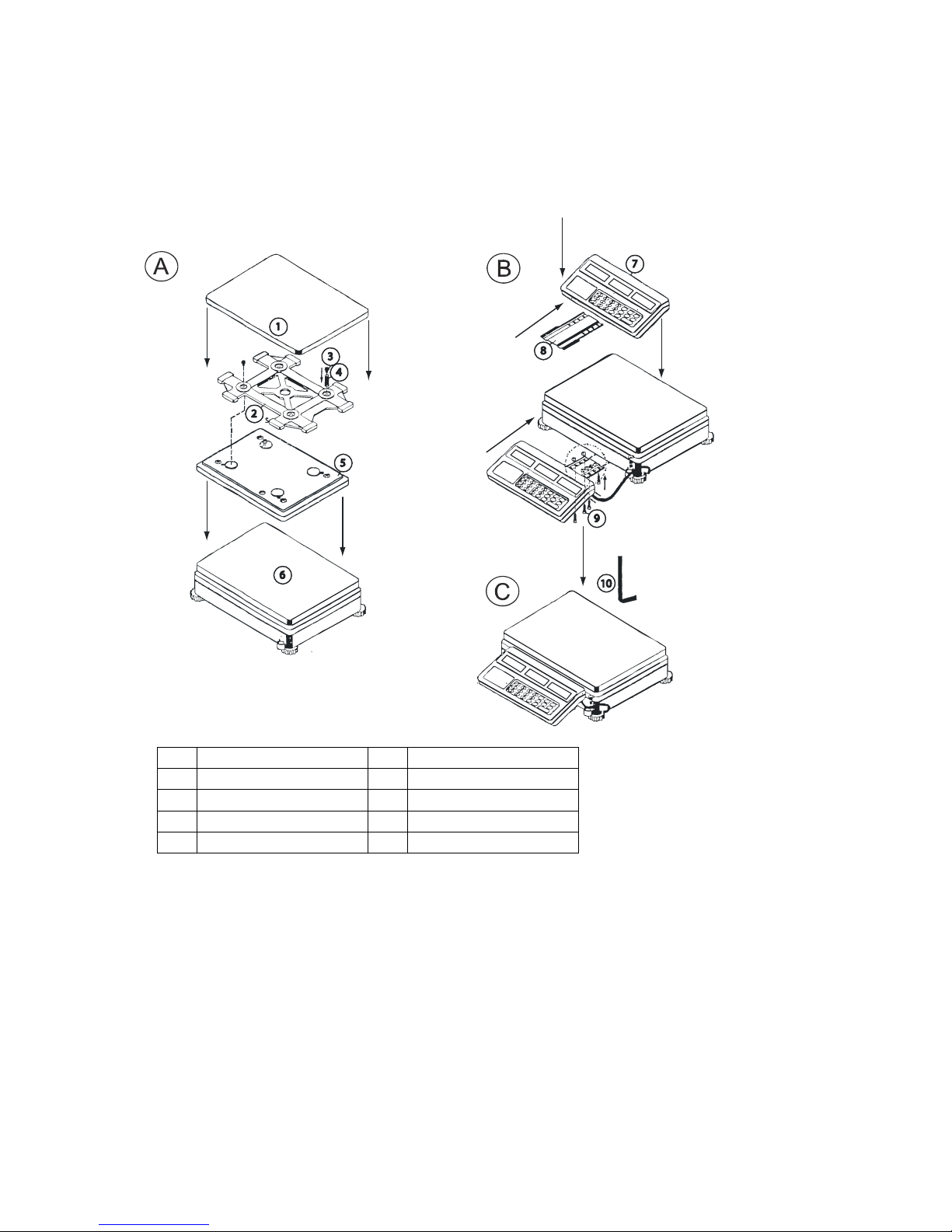

7.2.1 Setup
Level balance with foot screws until the air bubble of the water balance is in the pre­scribed circle.
Models CXP:
1 Weighing plate 6 Platform 2 Cantilever 7 Display part 3 Screws (x 2) 8 Support 4 Spring 9 Screws (x 4) 5 Substructure 10 Allen keys
A) Insert screw (3) in eye of spring (4) and screw it down.
Screw down second screw (3) as well.
B) Push the holder (8) into the guide rail of the display part (7). Attach the display part (7) to the weighing balance, using the four screws (9). Use an
Allen key (10) to tighten the screws.
CXB/CXP-BA-e-0711
17
7.2.2 Scope of delivery
Serial accessories:
CXB models CXP models
Balance Platform Weighing plate  Terminal Mains power supply Mains power supply Protective cover  Protective cover Internal battery  Internal battery Operating Manual  Operating Manual
7.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN.
7.4 Battery power supply The optionally supplied battery is charged with the supplied power supply.
Before the first use, the battery should be charged by connecting it to the mains power supply for at least 15 hours. The battery has a service life of c. 200 hours without background lighting or 60 hours with background lighting. The charging pe­riod for total charge is c. 8 hours
The appearance of the battery symbol in the weight display indicates that the battery is almost exhausted. If no weighing process is carried out during the red LED display, the balance will switch off automatically after about 20-30 minutes. Connect the power adaptor as soon as possible to change the battery.
The LED display provides information about the battery's charging status. red: Battery is almost discharged green: Battery is completely discharged
7.5 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1). During this warm­ing up time the balance must be connected to the power supply (mains, accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.
CXB/CXP-BA-e-0711
18
7.5.1 Start-up
Turn on scales with ON/OFF switch (left). The balance will carry out a self-test As soon as the weight display shows "0" in all
the three display windows your balance is ready to weigh. On CXP models (with RS 232) an internal number appears before the balance counts
down to zero.
0
W
a
PRE­TARE
0
0
M+
W
7.5.2 Turn off – CXB models
Turn off balance by operating the ON/OFF switch (left)
7.5.3 Turn off/standby mode – CXP models
To turn off the balance for a long period of time use the ON/OFF switch (left).
To turn off the balance for a short period of time use the key. To do this, press the key until "OFF" is displayed. Balance is in
standby mode (this avoids the required warm-up time). Restart the balance by pressing the key.
7.5.4 Balance zero display
Environmental influences can lead to the exact figure of zero not being displayed in spite of an empty weighing dish. It is, however, possible to reset your balance to zero at any time and thus ensure that weighing really does commence at zero. Setting to zero when a weight is applied is only possible within a certain type-dependent range. In the event that the balance cannot be reset to zero with an applied weight, this range has been exceeded (± 0,2 % max).
To reset the balance to zero, press key . A triangle [W ] pops up next to the [ a ] symbol on the display.
7.5.5 Stability display
If a triangle [W ] pops up next to the [ ] symbol on the display, the balance is in a stable state. If the status is instable the [W ] display disappears.
CXB/CXP-BA-e-0711
19
7.6 Adjustment with external weight
As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each chan­ge of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.
Procedure when adjusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is re­quired for stabilization. Ensure that there are no objects on the weighing plate.
Operation
Ensure that there are no objects on the weighing plate.
0
W
a
PRE­TARE
Press the key and keep it pressed down whilst simultaneously operating the key
Weight value of adjustment weight is flashing on display. However, you may enter a value of your choice via the number keys. *
3000
W
a
PRE­TARE
CAL
Carefully place adjusting weight in the centre of the weighing plate. Adjustment will be carried out automatically after dead stop control.
Remove adjustment weight during count down to zero. The balance returns automatically into weighing mode. An error message will ap-
pear on the display should a adjustment error occur or should the adjustment weight be incorrect. Turn balance off, then restart it and repeat the adjustment process.
* The adjustment should be made with the recommended adjustment weight (see chap. 1 "Technical data"). Weights of different nominal values may be used for ad­justment but are not optimal for technical measuring. Info about adjustment weights can be found on the Internet at: http://www.kern­sohn.com
Note Use the key to exit adjustment mode. The balance returns to weighing mode.
CXB/CXP-BA-e-0711
20
8 Parts counting
With parts counting you can either count parts into a container or remove parts from a container. To count a greater number of parts the average weight per part has to be determined with a small quantity (reference quantity). The larger the reference quantity, the higher the counting exactness. High reference must be selected for small parts or parts with considerably different sizes.
8.1 Determination of the reference weight by weighing
Set balance to zero and tare, as required.
0
W
a
PRE­TARE
0
0
M+
Place a known number of parts on the balance as reference weight
118.3
a
PRE­TARE
0
0
M+
If the "Weight" display is stable, enter the number of parts via number keys.
118.3
a
PRE­TARE
Weight
100
Pieces
1
M+
While the “number of pieces” display is flashing (3 sec) confirm by pressing the key.
118.3
a
PRE­TARE
SAnnP
------
M+
Dead stop control is carried out and the calculated reference weight appears on the display.
118.3
a
PRE­TARE
Weight
1.1833
Reference weight
100
M+
W
Pieces
Now you can place the parts to be counted onto the weighing plate. All quantity parameters of your goods to be weighed are displayed:
CXB/CXP-BA-e-0711
21
8.2 Numeric entering of the reference weight
If you know the reference weight/piece you can enter this via number keys.
Enter reference weight via number keys
0
W
a
PRE­TARE
1.833
0
M+
W
Confirm with key
0
W
a
PRE­TARE
1.833
Reference weight
0
M+
W
Now you can place the parts to be counted onto the weighing plate. All quantity pa­rameters of your goods to be weighed are displayed:
8.3 Automatic reference optimization
If it was impossible to determine a reference due to instable goods to be weighed or an insufficient reference weight, the [W ] display will appear in the reference weight window during reference calculation.
Overlay W indicates:
Placed number of pieces insufficient for reference calculation CXB models < 40 d CXP models < 20 d Placed reference weight insufficient for reference calculation CXB models < 4/5 d CXP models < 1/5 d
Add additional parts until the [W ] display disappears. An audio signal indicates that reference optimization has been carried out. At every reference optimisation, the reference weight is calculated anew. As the addi­tional pieces increase the base for the calculation, the reference also becomes more exact.
CXB/CXP-BA-e-0711
22
8.4 Store/call reference weight
There are 10 memory locations at your disposal (occupied via number keys 0 -9).
8.4.1 Save
Enter the reference weight to be stored
0.0
a
PRE­TARE
W
100
0
M+
W
Press button
PlSET
W
a
PRE­TARE
M+
W
Press button
PlSET
W
a
PRE­TARE
SET
M+
W
Enter the storage location for the reference weight via the number keys (0 - 9)
0.0
a
PRE­TARE
W
100
0
M+
W
CXB/CXP-BA-e-0711
23
8.4.2 Call-up
When the reference weight is required at a later point in time it can be called by pressing the key and entering the relevant storage location number.
Press button
PlSET
W
a
PRE­TARE
M+
W
Enter memory location (0 - 9) via number keys and the stored reference weight will appear.
0.0
a
PRE­TARE
W
100
0
M+
W
8.5 Count with tolerance control - Fill to target
This function can be used to program a target number of pieces or target weight. Reaching the target value is indicated by an audio-visual signal.
8.5.1 Set tolerance value for target number of pieces [ -0.TX- ] is flashing in reference weight window.
Press
button
-----
a
PRE­TARE
0
300
M+
W
Last value stored
Use number keys to enter desired target number of pieces
-----
a
PRE­TARE
100
Entered target value.
Corrections possible by
pressing key
300
M+
W
Last value stored
CXB/CXP-BA-e-0711
24
Press button
-----
a
PRE­TARE
100
100
M+
W
Press button
0.0
a
PRE­TARE
W
0
0
M+
W
8.5.2 Set tolerance value for target weight
Reaching the target value will be indicated by an audio signal and [-efPST-] will be flashing in the reference window
Press
button
-----
a
PRE­TARE
0
300
M+
W
Last value stored
Use number keys to enter target value
-----
a
PRE­TARE
100
Entered target value.
Corrections possible by
pressing key
300
M+
W
Last value stored
Press button
-----
a
PRE­TARE
100
100
M+
W
Press button
0.0
a
PRE­TARE
W
0
0
M+
W
Information:
To delete stored target values enter "0".
CXB/CXP-BA-e-0711
25
9 Taring
The dead weight of any weighing container may be tared away by pressing a button, so that the following weighings show the net weight of the goods to be weighed.
9.1 Determination of the tare weight by weighing
Place empty tare container on the weighing plate. The total weight of the container is displayed.
6.8
W
a
PRE­TARE
0
0
M+
Press TARE key
-----
a
PRE­TARE
TAlE
-----
M+
After dead stop control was carried out, the display is reset to "0". The weight of the container is now internally saved. The zero display and the arrow next to the "PRE- TARE" symbol appear.
0.0
a
PRE­TARE
W
W
0
0
M+
W
Place the goods to be weighed into the tare container. Read the weight of the goods on the display.
Information:
The balance is able to only store one taring value at a time.
When the balance is unloaded the saved taring value is displayed with negative sign. To delete the stored tare, unload the weighing plate and then press the TARE key; the [W ] display next to "PRE-TARE" disappears.
The taring process can be repeated any number of times. The limit is reached when the whole weighing range is exhausted.
CXB/CXP-BA-e-0711
26
9.2 Numerical input of tare (PRE-TARE) Pre-setting PRE-TARE mode
Press key, [CEnTR] appears on the weight display.
------
CEnTR ------
Press the key during this display
USER
Press button
USER
PTTXP
X
Use the keys or to select the desired setting:
PRE-TARE setting "0" = no input of tare possible when weighing plate is loaded PRE-TARE setting "1*" = input of tare possible regardless whether weighing plate
is loaded or unloaded * = default setting
PRE-TARE setting „1“: Objects present on weighing plate.
177.5
a
PRE­TARE
1.7752
100
M+
W
Enter your tara weight via number keys.
177.5
a
PRE­TARE
1.0
177
M+
Press the TARE key. The net weight of the goods to be weighed is displayed
176.5
a
PRE­TARE
W
1.7752
99
M+
CXB/CXP-BA-e-0711
27
Information:
To delete the stored tare, unload the weighing plate and then press the TARE key; the [W ] display next to "PRE-TARE" disappears.
PRE-TARE setting „0“:
Remove all objects from weighing plate.
0
W
a
PRE­TARE
0
0
M+
W
Press TARE key
0.0
a
PRE­TARE
W
PlETA
-----
M+
Enter tare via number keys.
6.8
W
a
PRE­TARE
PlETA
-----
M+
Press TARE key, tare weight is indicated as negative value
-6.8
W
a
PRE­TARE
0
-----
M+
Put on tare container + goods to be weighed. The net weight of the goods to be weighed is displayed
CXB/CXP-BA-e-0711
28
10 Add up
The balance is equipped with a summation memory used for adding up of identical counted parts to total quantity and total weight.
10.1 Add up “number parts"
Select reference weight and place number of parts for first weighing.
118.3
a
PRE­TARE
1.1833
100
M+
W
The display value is added to the summation memory by pressing the key.
-----
a
PRE­TARE
ADD
-----
M+
The [W ] display next to "M+" indicates the stored value. After dead stop control was carried out the balance will return automatically to counting mode.
118.3
a
PRE­TARE
1
100
M+
W
W
118.3
a
PRE­TARE
1.1833
100
M+
W
W
Place number of parts for second weighing and add to memory. Add and weigh more parts if needed as described above. Please note that the bal-
ance must be unloaded between the individual weighing procedures. This process can be repeated 99 times or until the weighing range of the balance is
exhausted.
Display of you saved weighing data:
With balance unloaded, press the key: Total weight, number of weighing procedures as well as total parts counting appear 2 sec.
118.3
a
PRE­TARE
Total weight placed on bal-
ance
1
Number weighing proc-
esses
100
M+
W
W
Total parts counting placed
on balance
CXB/CXP-BA-e-0711
29
10.2 Add up “weight"
Place weight on weighing plate.
118.3
a
PRE­TARE
0
0
M+
W
The display value is added to the summation memory by pressing the key.
-----
a
PRE­TARE
ADD
-----
M+
The [W ] display next to "M+" indicates the stored value. After dead stop control was carried out the balance will return automatically to counting mode.
118.3
a
PRE­TARE
1
100
M+
W
W
118.3
a
PRE­TARE
0
0
M+
W
W
Place goods to be weighed for second weighing and add to memory. Repeat sequence of operations, as required. Please note that the balance must be
unloaded between the individual weighing procedures. This process can be repeated 99 times or until the weighing range of the balance is
exhausted.
Display of you saved weighing data:
With balance unloaded, press the
key:
The total weight as well as the number or weighings will pop up for 3 sec.
118.3
a
PRE­TARE
Total weight placed on
balance
1
Number weighing
processes
0
M+
W
W
Information:
Turning off the balance will result in a loss of all stored values.
CXB/CXP-BA-e-0711
30
10.3 Delete stored values
Unload balance and press the key. Stored values, total weight, total number of pieces and number of weighings will be set to zero. The [W ] display next to "M+" disappears.
11 Application menu
To adjust the balance to individual requirements, use the application menu to change settings for the balance
11.1 Navigation in the menu
Press key, [CEnTR] appears on the weight display. During this
display press the key, on the weight display appears [USER].
To select function, press number keys To select parameters, press number keys Setting will be imported automatically
To exit the menu, press the key
Example: Presetting "PRE-TARE mode":
Press key, [CEnTR] appears on the weight display
------
CEnTR ------
Press the key during this display
USER
Press button
USER
PTTXP
X
Use the keys or to select the desired setting:
PRE-TARE setting "0" = no input of tare possible when weighing plate is loaded PRE-TARE setting "1*" = input of tare weight possible regardless whether weighing
plate is loaded or unloaded * = default setting
CXB/CXP-BA-e-0711
31
11.2 Menu overview [ USER]
Function Choice Parame-
ter selec-
tion
Description of function
Key Display Key
Weighing data pop up for 3 sec. after key was pressed
Weighing data remain popped up after
key was pressed until key is op-
erated
Display weighing data in summation memory (Kap.10)
nnPLU
Weighing data will not pop up after key was pressed, only an audio signal is sounded
Input of tare only possible when weigh­ing plate is unloaded.
PRE-TARE mode (Chpt.
9.2)
PTTXP
Input of tare only possible when weigh­ing plate is loaded.
Only stable weighing values are allowed for the target number of pieces
PRE-TARE mode (Chpt.
8.5)
0.TXTP All weighing values (stable/instable) are
allowed for the target number of pieces M+ for stale weighing values only
nnPTP
M+ for stable/instable weighing values The balance must be reset to zero be-
tween individual weighings
Import weighing value adding up (chap.10)
nnPB0
The balance needs not to be reset be­tween individual weighings
CXB/CXP-BA-e-0711
32
12 Configurations menu
12.1.1 Display background illumination
The back light for the display can be adjusted as follows:
Adjustment Function
Auto back­light
Press
key, [CEnTR] appears on the
weight display Press the
key during
this display.
This display will appear backlit for weight value > 10 d or after key was pressed.
When the display moves towards zero, or when the weight value is < 10d, the display will be extin­guished 5 seconds later.
Backlight on
Press key, [CEnTR] appears on the weight display Press the key during
this display.
Background illumination on. Display rich of contrast which can also be red in the darkness.
Backlight off
Press key, [CEnTR] appears on the weight display Press the key during
this display.
Backlight switched off to save battery.
The set mode will remain after the balance was turned off.
CXB/CXP-BA-e-0711
33
12.1.2 Setting the display speed
You may set values ranging from 01 to 15 as a display speed:
01 = slow and sensitive 15 = fast and insensitive
Adjustment
Press key, [CEnTR] appears on the weight display. Press the key during this display.
20
a
PRE­TARE
5PEED
X X
PRE­SET
Display speed Use the key, to in-
crease and the key to decrease the number
value Store setting by using the key. The balance returns automatically into weighing mode.
CXB/CXP-BA-e-0711
34
13 Data output
(CXP models only)
The balance is typically equipped with a RS 232C interface.
13.1 RS 232C interface
The RS 232C interface allows a bi-directional data exchange from the balance to ex­ternal devices. This data exchange is asynchronous using ASCII - Code.
Pin allocation of balance output plug:
RxD TxD
SG
2
3 4 5
7
Technical specifications of interface:
Baud rate
9600; 4800; 2400;1200
Start bit
0
Stop bit
2, 1
Parity
nOnE, odd, even
DATA
8,7
FLOW
nOnE
Default settings in bold print.
CXB/CXP-BA-e-0711
35
13.2 Description of interface
The selection of a certain operating mode allows you to set the output format, the output control, the transmission speed and the parity bit.
Navigation in the menu:
Press key, [CEnTR] appears on the reference weight display.
During this display press the key, on the weight display appears [FVnCT].
To select function, press number keys To select parameters, press number keys:
= up, = down, = left, = right
Use the key to store To exit the menu, press the key
Function selection Parame-
ter se-
lection
Description of function
Key Weight
display
Display
refer-
ence
weight
Display
number of
pieces
LEn B
-
SERLE
LEn C
-
Not documented
XXX
XXXXX -
Not documented
XXX
XXXXX -
Not documented
-
DATE
061210 Setting date
-
TKnnE
151707
hrs/min/s
Setting time
STl XX
XX = see table 1
- -
For display format, see also example in chpt. 13.2.1
Confirm setting by pressing the
key, then enter the number of output
values (max. 15)
CXB/CXP-BA-e-0711
36
STl XX
X -
Number of output values X: 0 – F (0-15)
Confirm setting X by pressing the key, then enter settings according to table 2. See also delineation 1 (example for input)
STl XX 40 XX
XXXXXX Type of output values
PAlAL
Not documented
K0SET
R232
RS 232 interface, to be used at
all times
Confirm setting by pressing the key, then carry out further settings
9600
4800 2400
BAUD
1200
Baud rate
Confirm setting by pressing the key, then carry out further settings
NONE ODD
PARKH
EVEN
Parity
Confirm setting by pressing the key, then carry out further settings
8
DAHA
7
Data bit
Confirm setting by pressing the key, then carry out further settings
1
STQP
2
Stop bit
Confirm setting by pressing the key, then carry out further settings
rtCtS
FLOef
NONE
Always use this setting
0
Output after pressing
1
Continuous serial output
2
Output after stabilisation (weight >0)
SETC
3
Output of all weighing values after sta­bilisation
CXB/CXP-BA-e-0711
37
Table 1:
Code Significance
00 Output after pressing M+ 0E Printout header line 01 Printout last line
Table 2:
Code Description
Pre -character
code
End -character code
00 Gross 02 03 01 Tare 04 05 02 Net 06 07 03 Reference weight 08 09 04 Weighing unit 2A 2B 05 Memory # 0C 0D 06 Pieces 0A 0B 07 Stability display 08 None 09 User defined input in ASCII Cod#1 11 12 0A User defined input in ASCII Cod#2 14 15
0B Decimal point weight 16 17 0C Decimal point reference weight 18 19 0D Space line 0E Date 22 23 0F Time 24 25
10 Space line
11 Total number of pieces 1C 1D
12 User defined input in ASCII Code #1
13 User defined input in ASCII Code #2
14 Weight unit of reference weight 20 21
15 None
16 None
17 None
18 None
19 None 1A None 1B None 1C User defined input in ASCII Code #3 1D User defined input in ASCII Cod #4 1E User defined input in ASCII Cod #5 1F User defined input in ASCII Cod #6
See delineation 1/chpt. 16
CXB/CXP-BA-e-0711
38
Delineation 1:
Number of positions (max. 15)
0 : 1.- 4. Position
1 : 5. - 8. Position
Code (Tab. 1) 2 : 9.- 12. Position
3 :13.-15. Position
Net (Tab. 2)
Gross
Piece number
Reference weight
( For codes see table 2)
Output of this setting: c Net d Reference weight e Number pcs. f Gross
(02) (03) (06) (00)
CXB/CXP-BA-e-0711
39
13.2.1 Example: Setting an output format
Call up function
Weight Reference weight
Piece number
STl XX
Use number keys , , , to select desired code (XX, see table 1). Example 00 = Output after pressing M+
STl 00
Confirm setting by pressing the key, reference display is flashing. Set number of output values (e. g. 7) with number keys , , ,
[0 - F (0-15) ], max. 15 values available
STl 00
7
Confirm setting by pressing the key, first output value in reference weight win­dow is flashing. Set type of first 4 output values with number keys , , ,
(For code see table 2).
STl 00
70 02 040314
02=Net 04=Weighing unit 03=Reference weight
14=Weight unit
Reference
After entering fourth value keep tapping key until fifth value appears. Further values are entered accordingly
STl 00
71 05 040314
Confirm setting by pressing the key
CXB/CXP-BA-e-0711
40
14 Service, maintenance, disposal
14.1 Cleaning
Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.
Spilled weighing goods must be removed immediately.
14.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.
14.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
CXB/CXP-BA-e-0711
41
15 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Fault Possible cause
The balance is not switched on.
The mains supply connection has been
interrupted (mains cable not plugged in/faulty).
Power supply interrupted.
Batteries are inserted incorrectly or empty
The displayed weight does not glow.
No batteries inserted.
Draught/air movement
Table/floor vibrations
The displayed weight is permanently changing
Weighing plate has contact with other objects.
Electromagnetic fields / static charging (choose different location/switch off inter­fering device if possible)
The display of the balance is not at zero
Adjustment is no longer correct.
The weighing result is obviously in­correct
Great fluctuations in temperature. Electromagnetic fields / static charging
(choose different location/switch off inter­fering device if possible)
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.
CXB/CXP-BA-e-0711
42
16 Appendix ASCII CODE table
DEC HEX symbol key DEC HEX symbol key
0 00
(ZERO)
Ctrl 2
38
26
&
&
1 01
_
Ctrl A
39
27
'
'
2 02
Ctrl B
40
28
(
(
3 03
Ctrl C
41
29
)
)
4 04
Ctrl D
42
2A
*
*
5 05
Ctrl E
43
2B
+
+
6 06
Ctrl F
44
2C
,
,
7 07
Ctrl G
45
2D
-
-
8 08
Backspace
46
2E
.
.
9 09
Tab
47
2F
/
/
10 0A
Ctrl J
48
30
0
0
11 0B
Ctrl K
49
31
1
1
12 0C
Ctrl L
50
32
2
2
13 0D
Enter
51
33
3
3
14 0E
Ctrl N
52
34
4
4
15 0F
Ctrl O
53
35
5
5
16 10
Ctrl P
54
36
6
6
17 11
Ctrl Q
55
37
7
7
18 12
Ctrl R
56
38
8
8
19 13
Ctrl S
57
39
9
9
20 14
Ctrl T
58
3A
:
:
21 15
§
Ctrl U
59
3B
;
;
22 16
Ctrl V
60
3C
<
<
23 17
Ctrl W
61
3D
=
=
24 18
Ctrl X
62
3E
>
>
25 19
Ctrl Y
63
3F
?
?
26 1A
Ctrl Z
64
40
@
@
27 1B
Esc
65
41
A
A
28 1C
Ctrl \
66
42
B
B
29 1D
Ctrl ]
67
43
C
C
30 1E
Ctrl 6
68
44
D
D
31 1F
Ctrl -
69
45
E
E
32 20
SPACE BAR
70
46
F
F
33 21
!
!
71
47
G
G
34 22
72
48
H
H
35 23
#
#
73
49
I
I
36 24
$
$
74
4A
J
J
37 25
%
%
75
4B
K
K
CXB/CXP-BA-e-0711
43
DEC HEX symbol key DEC HEX symbol key
76 4C
L
L 116
74
t
t
77 4D
M
M 117
75
u
u
78 4E
N
N 118
76
v
v
79 4F
O
O 119
77
w
w
80 50
P
P 120
78
x
x
81 51
Q
Q 121
79
y
y
82 52
R
R 122
7A
z
z
83 53
S
S 123
7B
{
{
84 54
T
T 124
7C
¦
¦
85 55
U
U 125
7D
}
}
86 56
V
V 126
7E
~
~
87 57
W
W 127
7F
Δ
Ctrl
88 58
X
X 128
80
Ç
Alt 128
89 59
Y
Y 129
81
ü
Alt 129
90 5A
Z
Z 130
82
é
Alt 130
91 5B
[
[ 131
83
â
Alt 131
92 5C
\
\ 132
84
ä
Alt 132
93 5D
]
] 133
85
à
Alt 133
94 5E
^
^ 134
86
å
Alt 134
95 5F
_
_ 135
87
ç
Alt 135
96 60
`
` 136
88
ê
Alt 136
97 61
a
a 137
89
ë
Alt 137
98 62
b
b 138
8A
è
Alt 138
99 63
c
c 139
8B
ï
Alt 139
100 64
d
d 140
8C
î
Alt 140
101 65
e
e 141
8D
ì
Alt 141
102 66
f
f 142
8E
Ä
Alt 142
103 67
g
g 143
8F
Å
Alt 143
104 68
h
h 144
90
É
Alt 144
105 69
i
i 145
91
æ
Alt 145
106 6A
j
j 146
92
Æ
Alt 146
107 6B
k
k 147
93
ô
Alt 147
108 6C
l
l 148
94
ö
Alt 148
109 6D
m
m 149
95
ò
Alt 149
110 6E
n
n 150
96
û
Alt 150
111 6F
o
o 151
97
ù
Alt 151
112 70
p
p 152
98
ÿ
Alt 152
113 71
q
q 153
99
Ö
Alt 153
114 72
r
r 154
9A
Ü
Alt 154
115 73
s
s 155
9B
¢
Alt 155
CXB/CXP-BA-e-0711
44
DEC HEX symbol key DEC HEX symbol key
156 9C
£
Alt 156 196
C4
Alt 196
157 9D
¥
Alt 157 197
C5
Alt 197
158 9E
P
Alt 158 198
C6
Alt 198
159 9F
ƒ
Alt 159 199
C7
Alt 199
160 A0
á
Alt 160 200
C8
Alt 200
161 A1
í
Alt 161 201
C9
Alt 201
162 A2
ó
Alt 162 202
CA
Alt 202
163 A3
ú
Alt 163 203
CB
Alt 203
164 A4
ñ
Alt 164 204
CC
Alt 204
165 A5
Ñ
Alt 165 205
CD
Alt 205
166 A6
ª
Alt 166 206
CE
Alt 206
167 A7
º
Alt 167 207
CF
Alt 207
168 A8
¿
Alt 168 208
D0
Alt 208
169 A9
¬
Alt 169 209
D1
Alt 209
170 AA
¬
Alt 170 210
D2
Alt 210
171 AB
½
Alt 171 211
D3
Alt 211
172 AC
¼
Alt 172 212
D4
Alt 212
173 AD
¡
Alt 173 213
D5
Alt 213
174 AE
«
Alt 174 214
D6
Alt 214
175 AF
»
Alt 175 215
D7
Alt 215
176 B0
¦
Alt 176 216
D8
Alt 216
177 B1
¦
Alt 177 217
D9
Alt 217
178 B2
¦
Alt 178 218
DA
Alt 218
179 B3
Alt 179 219
DB
¦
Alt 219
180 B4
Alt 180 220
DC
_
Alt 220
181 B5
Alt 181 221
DD
¦
Alt 221
182 B6
Alt 182 222
DE
¦
Alt 222
183 B7
Alt 183 223
DF
¯
Alt 223
184 B8
Alt 184 224
E0
a
Alt 224
185 B9
Alt 185 225
E1
ß
Alt 225
186 BA
Alt 186 226
E2
G
Alt 226
187 BB
Alt 187 227
E3
p
Alt 227
188 BC
Alt 188 228
E4
S
Alt 228
189 BD
Alt 189 229
E5
s
Alt 229
190 BE
Alt 190 230
E6 µ Alt 230
191 BF
Alt 191 231
E7
t
Alt 231
192 C0
Alt 192 232
E8
F
Alt 232
193 C1
Alt 193 233
E9
T
Alt 233
194 C2
Alt 194 234
EA
O
Alt 234
195 C3
Alt 195 235
EB
d
Alt 235
CXB/CXP-BA-e-0711
45
DEC HEX symbol key DEC HEX symbol key
236 EC
8
Alt 236
246 F6 ÷
Alt 246
237 ED
f
Alt 237
247 F7
˜
Alt 247
238 EE
e
Alt 238
248 F8 º
Alt 248
239 EF
n
Alt 239
249 F9 •
Alt 249
240 F0
=
Alt 240
250 FA ·
Alt 250
241 F1
±
Alt 241
251 FB
v
Alt 251
242 F2
=
Alt 242
252 FC
n
Alt 252
243 F3
=
Alt 243
253 FD ²
Alt 253
244 F4
(
Alt 244
254 FE
¦
Alt 254
245 F5
)
Alt 245
255 FF (blank)
Alt 255
Loading...
