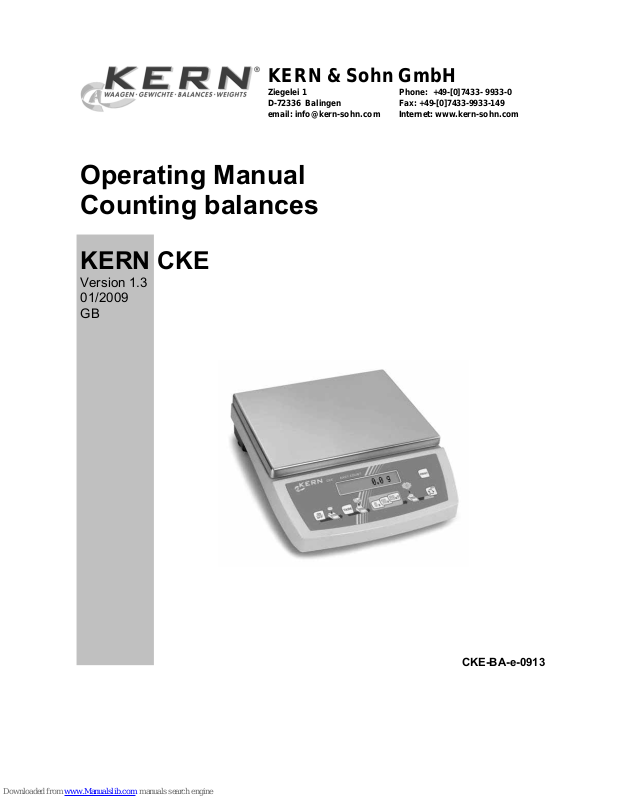

Operating Manual
Counting balances
KERN CKE
Version 1.3
01/2009
GB
CKE-BA-e-0913
CKE-BA-e-0913
2
GB
KERN CKE
Version 1.3 01/2009
Operating Manual
Counting balances
Table of Contents
1 MODE – MENÜ...............................................................................................................4
2 Technical Data ..............................................................................................................5
2.1 KERN CKE.......................................................................................................................... 5
3 Basic Information (General).........................................................................................7
3.1 Proper use.......................................................................................................................... 7
3.2 Improper Use...................................................................................................................... 7
3.3 Warranty ............................................................................................................................. 7
3.4 Monitoring of Test Resources.......................................................................................... 7
4 Basic Safety Precautions.............................................................................................8
4.1 Pay attention to the instructions in the Operation Manual............................................ 8
4.2 Personnel training ............................................................................................................. 8
5 Transport and storage..................................................................................................8
5.1 Testing upon acceptance.................................................................................................. 8
5.2 Packaging........................................................................................................................... 8
6 Unpacking, Setup and Commissioning ......................................................................9
6.1 Installation Site, Location of Use ..................................................................................... 9
6.2 Unpacking .......................................................................................................................... 9
6.2.1 Placing ............................................................................................................................................ 9
6.3 Mains connection .............................................................................................................. 9
6.4 Connection of peripheral devices.................................................................................... 9
6.5 Initial Commissioning ....................................................................................................... 9
6.6 Adjustment....................................................................................................................... 10
6.7 Adjusting (see chapter 7.4.1).......................................................................................... 10
6.8 Verification ....................................................................................................................... 10
7 Operation.....................................................................................................................11
7.1 Control panel CKE........................................................................................................... 11
7.2 Operation.......................................................................................................................... 12
7.2.1 Volume assessment - KERN QKE only !!!................................................................................... 14
7.2.1.1 Volume assessment without manual input .......................................................................... 14
7.2.1.2 Volume assessment with manual tare input ........................................................................ 14
7.2.1.3 Volume assessment with manual tare and gross input ....................................................... 14
7.2.2 Display background illumination................................................................................................... 14
7.3 Data output RS 232 C ...................................................................................................... 15
CKE-BA-e-0913
3
7.4 Interface RS 232C............................................................................................................. 16
7.4.1 There are 4 kinds of data output via RS 232C ............................................................................. 16
7.4.2 Explanation of the data transfer....................................................................................................16
7.4.3 Numerator ..................................................................................................................................... 16
7.5 Printer................................................................................................................................17
7.6 Underfloor weighing ........................................................................................................17
8 Service, maintenance, disposal ................................................................................18
8.1 Cleaning ............................................................................................................................18
8.2 Service, maintenance.......................................................................................................18
8.3 Disposal ............................................................................................................................18
9 Instant help .................................................................................................................18
10 Declaration of conformity.......................................................................................19
CKE-BA-e-0913
4
1 MODE – MENÜ
How to invoke the mode menu: Turn on balance, press and hold the tare key and press the ON/OFF
key.
Let go of the tare key.
Factory settings:
9600bd: YES
Fast: 3
Keyboard overview / Function
No Yes
CKE-BA-e-0913
5
2 Technical Data
2.1 KERN CKE
KERN CKE 6k0.02 CKE 8k0.05 CKE 16k0.05 CKE 16k0.1
Readability (d) 0,02 g 0,05 g 0,05 g 0,1 g
Weighing range (max) 6.100 g 8.100 g 16.100 g 16.100 g
Taring range (subtractive) 6.100 g 8.100 g 16.100 g 16.100 g
Reproducibility 0,02 g 0,05 g 0,05 g 0,1g
Linearity ± ±0,06 g ±0,15 g ±0,15 g ± 0,3 g
Smallest piece weight 0,02 g 0,05 g 0,05 g 0,1 g
Adjustment point 2/4/5/6 kg 2/4/5/7/8 kg 5/10/15/16 kg 5/10/15/16 kg
Recommended
adjustment weight (F1),
not added
5 kg 5 kg + 2 kg 10 kg + 5 kg 10 kg + 5 kg
Appropriate for verification max. 80% rel. (non-condensing)
Stabilization time (typical) 3 sec.
Allowable ambient
temperature
+10 °C ... + 40 °C
Housing (B x D x H) mm 350 x 390 x 120
Vibration filter ja
Weighing plate, stainless steel
mm
340 x 240
Units
see menu
Weight kg (net) 6,5
Data interface ja (RS232)
CKE-BA-e-0913
6
KERN CKE 36k0.1 CKE 36k0.2 CKE 65k0.2 CKE 65k0.5
Readability (d) 0,1 g 0,2 g 0,2 g 0,5 g
Weighing range (max) 36.100 g 36.100 g 65.100 65.100
Taring range (subtractive) 36.100 g 36.100 g 65.100 65.100
Reproducibility 0,1 g 0,2 g 0,2 g 0,5 g
Linearity ±0,5 g ±0,6 g ±0,6 g ± 1,5 g
Smallest piece weight 0,1 g 0,2 g 0,2 g 0,5 g
Adjustment point 10/20/30/36 kg 10/20/30/36 kg 20/30/50/60 kg 20/30/50/60 kg
Recommended
adjustment weight (F1),
not added
20 kg + 10 kg 20 kg + 10 kg 50 kg 50 kg
Appropriate for verification max. 80% rel. (non-condensing)
Stabilization time (typical) 3 sec.
Allowable ambient
temperature
+10 °C ... + 40 °C
Housing (B x D x H) mm 350 x 390 x 120
Vibration filter ja
We i g h i n g p l a t e , s t a i n l e s s s t e e l 340 x 240
Units
see menu
Weight kg (net) 6,5
Data interface ja (RS232)
