Keri has modified its PXL-500P Tiger Controller and SB-593 Satellite Board to tailor a system for
Proximity elevator control applications. The LC-502 Elevator Control Panel is made up of an LC500P Tiger Elevator Controller Board and an SB-500 Elevator Satellite Board, together in a
standard PXL-500 enclosure. The LC-508 Elevator Control Panel combines four LC-500 panels
with four SB-500 boards in a rugged enclosure.
The LC-502P provides two floor increments of elevator control at an economical price. Users can
mount a single MS Series Proximity Reader inside an elevator cab and connect it to up to 12 LC502Ps to control floor access for up to 24 floors. Used in conjunction with Doors software, this
combination can be a very cost-effective elevator control solution.
The LC-508P provides eight floors of elevator control in a small, integrated package. As with the
LC-502P, a single MS Series Proximity Reader is mounted inside an elevator cab and then is
connected to the LC-508P, providing controlled access for up to eight floors in a single enclosure.
Any combination of LC-502Ps and LC-508Ps may be combined to control greater than eight floors.
Check with local authorities when installing Elevator Control panels. Your elevator
control application must meet all local and national safety codes. The Main or
Lobby Floor cannot have access control applied – all people must be able to exit the
elevator at all times on at least one common, ground-level access floor.
1.0Important Considerations
To ensure proper operation, the following considerations apply when using Doors software for
elevator control.
•Up to 24 floors can be controlled using any combination of LC-502Ps and LC-508Ps.

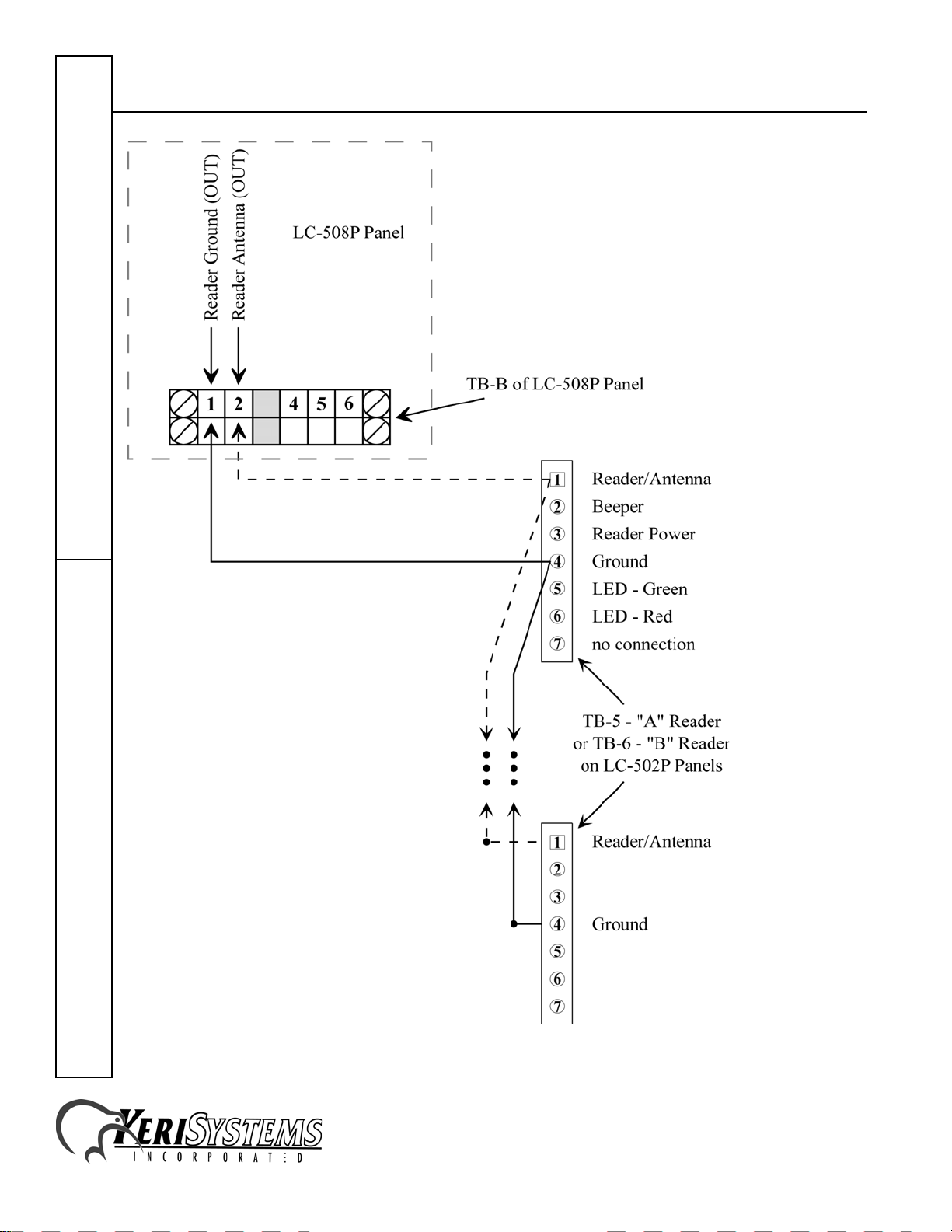

•One reader in the elevator cab controls access for all floors. This reader is attached to all
antenna inputs at all controllers in the elevator control system. This wiring scheme results in the
one reader being responsible for access requests for all floors. Since the reader’s signal is being
shared between multiple controller antenna inputs the reader's read range is reduced, possibly
up to 25%.
•User card presentation to the reader is critical. T o ensure that all controllers have the opportunity
to respond to a presented card, the card must be presented to the reader for a greater period of
time – up to 2 seconds depending upon the length of the cable run and the number of controllers
attached to the network. This allows all antenna inputs on all controllers the time necessary to
respond to the card. If a card is not presented correctly, controllers that have not recognized the
card will not allow access to the floors they control.
•The reader's LED and beeper are used to indicate correct card presentation only, and does not
indicate if all controllers have recognized the card or if access has been granted or denied (as
done by a standard PXL-500 Tiger Controller).
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 1 of 22
Proximity Elevator Control Panel
2.0Hardware and Software Operating Requirements
All standard hardware and software requirements for Doors software apply (refer to the Doors
Users Guide – P/N 01914-100). To support elevator control, the following additional software and
firmware requirements must be met.
•The Doors software must be at revision 4.10 or greater.
•The controller firmware must be at revision 8.4.12 or greater.
3.0Specifications
3.1Unit Dimensions
•LC-500P Controller PCB
-7.00 inches high by 6.00 inches wide by 1.25 inches deep, including wiring connectors
-(17.78 cm by 15.24 cm by 3.18 cm)
•LC-500P Controller PCB with an LCD-1 Alpha/Numeric Display
Quick Start GuideLC-502P/LC-508P
-7.00 inches high by 6.00 inches wide by 1.5 inches deep, including wiring connectors
-(17.78 cm by 15.24 cm by 3.81 cm)
•LC-500P Controller PCB with an SB-500 Satellite Board (with or without an LCD-1 Alpha/
Numeric Display
-7.00 inches high by 6.00 inches wide by 2.00 inches deep, including wiring connectors
-(17.78 cm by 15.24 cm by 5.08 cm)
•LC-502P Enclosure
-13.00 inches high by 9.00 inches wide by 4.00 inches deep
-(33.02 cm by 22.86 cm by 10.16 cm)
•LC-508P Enclosure
-18.50 inches high by 15.25 inches wide by 4.00 inches deep
-(47.00 cm by 38.75 cm by 10.16 cm)
3.2Operating Temperature and Humidity Range
•0°F to 140°F (-18°C to 60°C)
•0% to 90% Relative Humidity, non-condensing

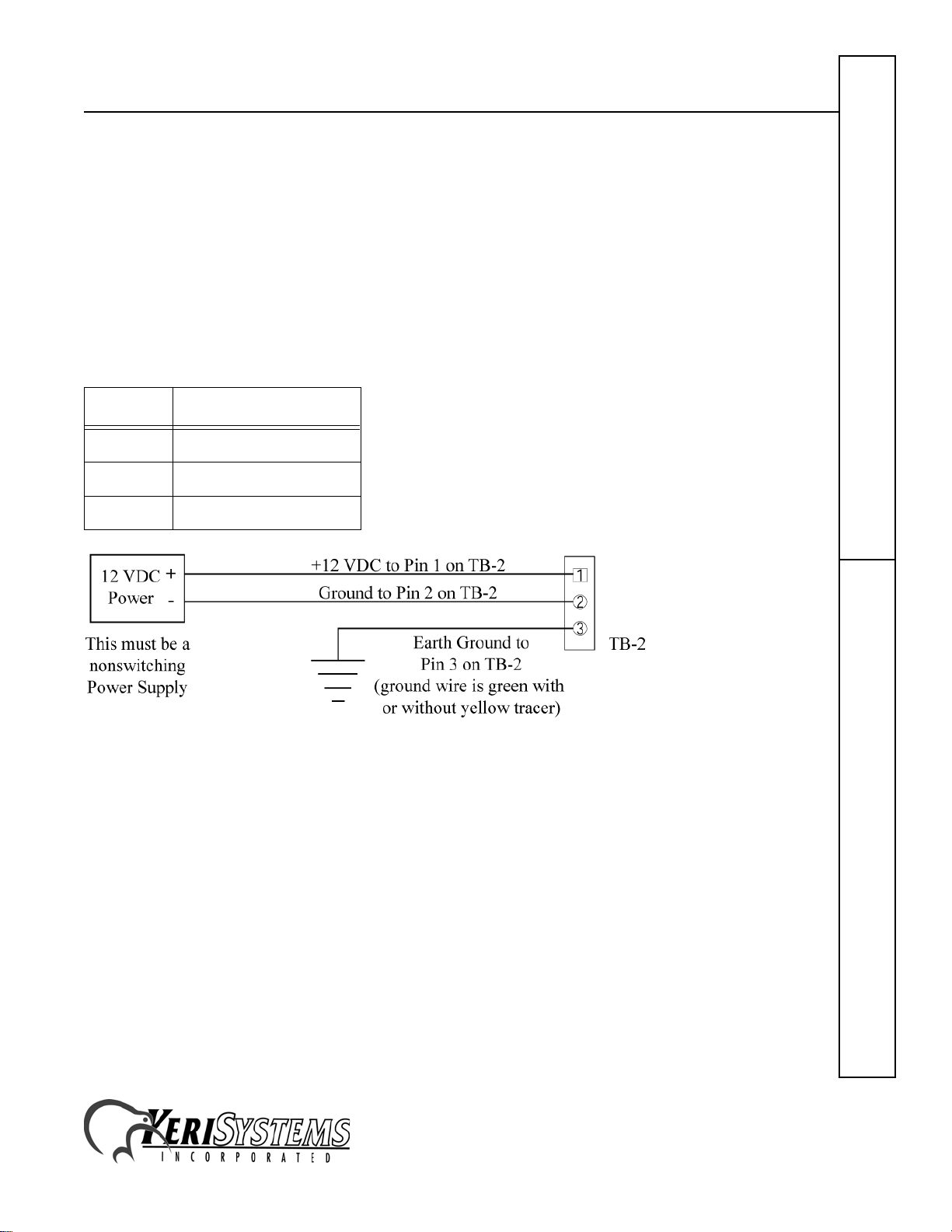

3.3Power Requirements
•12 VDC @ 750 mA for the LC-502P panel
•12 VDC @ 3 A for the LC-508P panel
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 2 of 22
Proximity Elevator Control Panel
3.4Current Draw
•500 mA maximum current draw for a Controller with all options installed (SB-500, LCD-1, and
Reader)
•120 mA maximum for a LC-500P Controller
•150 mA maximum for an SB-500 Satellite Board
•refer to Table 1 on page 3 for Reader current draw
Table 1: Current Draw by Reader Type
MS-3000MS-4000MS-5000
50 mA50 mA100 mA
3.5Controller Memory Retention
•5 year lithium battery backup to support controller RAM and real-time clock
3.6Floor Control Relay Contact Rating
•24 VDC @ 1 Amp
When connecting to elevator control systems and the floor selection buttons, please
verify the elevator system voltages. Most elevator systems operate on DC or AC
voltages higher than the 24 VDC @ 1 Amp rating at which Keri Systems’ elevator
controllers are rated. Each installation should use isolation relays.
Keri Systems recommends establishing an interconnection point at which the access control system
and elevator control system connect, and to which both the access control company and the elevator
company have access. This assists in making the connections between the systems and in allowing
for independent system troubleshooting.
•If the system voltages are different (or if you wish to fully protect the access control system
from transient voltage spikes), these connections should be made via isolation relays or relay control boards.
•If the system voltages are the same and both systems are fully protected, or if the system
connections are made between dry relay contacts, you may only need to use a terminal strip for
these connections.
Please consult your local building codes for proper installation requirements and check with local
permit departments to verify compliance. Elevator systems have Life Safety requirements and may
also require a connection to a fire control system.
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 3 of 22
Proximity Elevator Control Panel
3.7Cable Requirements
•RS-232 Serial Cable
-four conductor (for direct connect) or five conductor (for modem connection), shielded,
stranded AWG 24 wire (Belden 9534 or a heavier gauge)
-50 foot maximum length (per RS-232 industry specification – greater lengths are not
recommended)

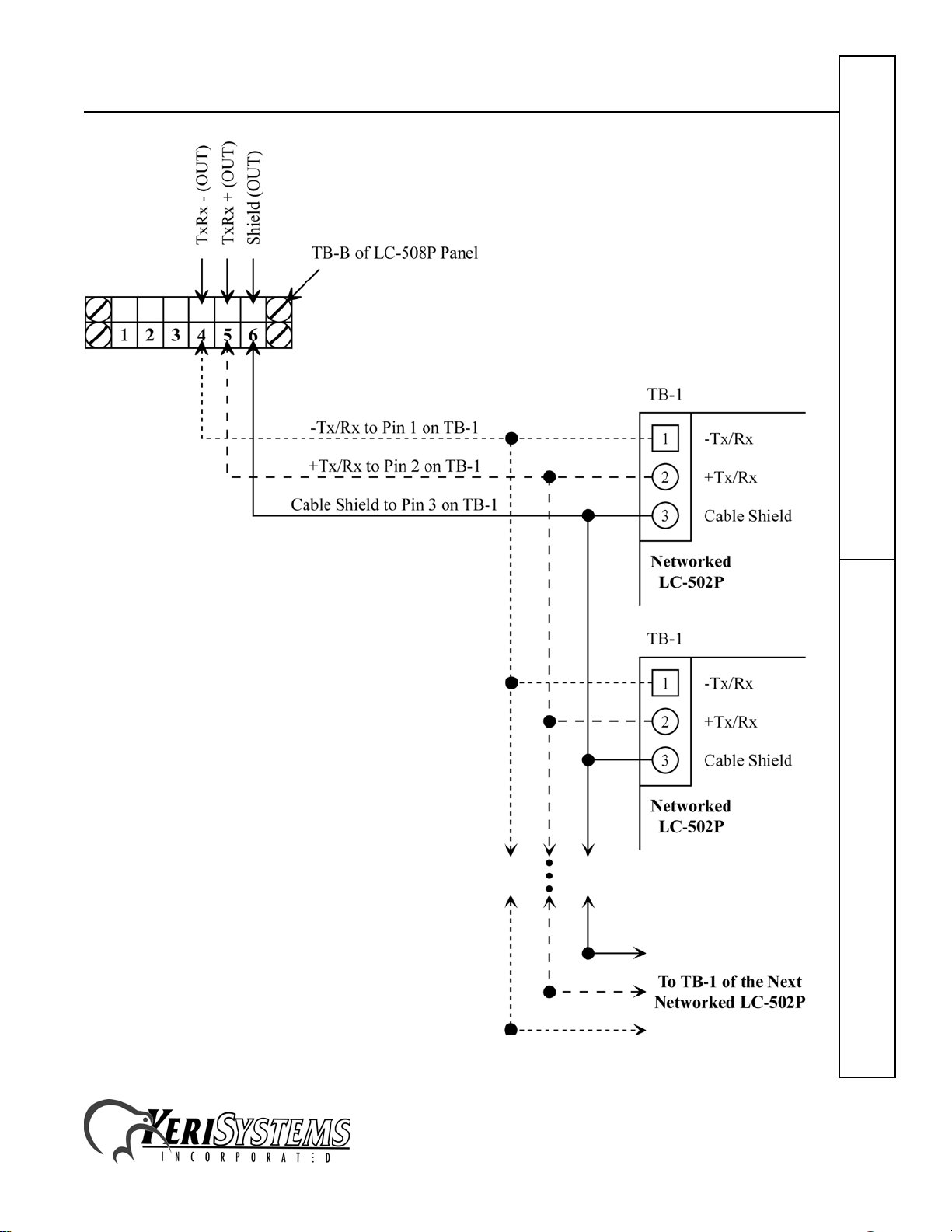

•RS-485 Network Cable
-two conductor, shielded, twisted pair, stranded, AWG 24 wire (Belden 9501 or a larger
gauge)
-16,000 foot total network length
-refer to the Network Wiring Application Note (P/N 01824-002) for specific network wiring
information
•Input Power
-two conductor, stranded, AWG 18 wire (Belden 8461 or a heavier gauge)
-200 foot maximum length
Quick Start GuideLC-502P/LC-508P
NOTE: On long power cable runs, the cable resistance causes a drop in voltage at the end of the
cable run. Be sure your power supply provides 12 VDC at the end of the cable run.
•Reader to Panel
-six conductor, shielded, stranded AWG 24 wire (Belden 9536 or a heavier gauge)
•Output Connections
-two conductor, stranded AWG 22 (Belden 9532 or a heavier gauge)
NOTE: The Floor Control Relay may require a heavier gauge of wire depending upon the current
demands of the elevator panel and the length of the wiring run.
NOTE: If plenum cable is required, please reference the Belden equivalent to the cable listed above.
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 4 of 22
Proximity Elevator Control Panel
4.0Controller Installation
Sections 4.1 and 4.2 are quick lists of things to do and to not do when installing LC-502P and LC508P panels.
4.1Do
•Plan ahead to meet power and telephone requirements for your system (1 phone line for the host
computer and one for each master LC-500P controller in each network).
•Mount controllers in environmentally suitable areas – they require protection from weather and
from temperature/humidity extremes.
•Mount the controller at least 3 feet away from the controller's power supply to prevent EMI
radiated from the power supply from affecting the controller.
•Use isolation relays where needed.
•Use the enclosure as a mounting template to mark drilling holes for permanent mounting.
•Consider mounting requirements - central versus distributed.
-Central mounting places all controllers in one location, running lengths of cables out to each
door to support readers, inputs and outputs.
-Distributed mounting places each controller near the door it supports running short lengths
of cable out to each door, but running a long network communication cable.
•Note the locations of the knockouts in the enclosures and remove the appropriate knockout for
the easiest cable routing into the controller.
•Route all controllers in a network in a single, continuous daisy-chain.
•Route cables in accessible areas for ease of maintenance.
•Connect all controllers to a quality earth ground.
•Add transient suppression across electric devices attached to a controller output.
•Verify the controller's supply voltage is 12 VDC – long power line runs cause a drop in voltage
at the end of the run.
•Verify proper operation of the host computer's COM port.
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 5 of 22
Proximity Elevator Control Panel
4.2Do Not
•Make modem phone line connections through PBX telephone switching systems - most
modems are not compatible with PBX systems leading to disconnection problems with the
modem.
•Locate a LC-500P controller near EMI sources - EMI sources can affect the performance of the
controller.
•Locate a reader near EMI sources - EMI sources can affect the performance of the reader.
•Use non-approved switching power supplies, or high noise/high ripple current - they are EMI
sources.
•Route network and reader cables beside power cables - transients on the power cables may be
picked-up by network and reader cables.
•Stretch or over-tension cables.
•Route cables over sharp objects.
•Let the cables get tangled.
•Mix LC-500Ps with PXL-100s in the same network.
•Connect earth ground to the network cable shield - the LC-500P automatically connects earth
Quick Start GuideLC-502P/LC-508P
ground to the shield at one point on the network to prevent ground loops.
•Use gender changer plugs when making RS-232 serial communication connections (unless you
know it is a "straight-through" plug) - gender changers may have internal wiring changes that
can disrupt communications.
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 6 of 22
Proximity Elevator Control Panel
5.0Wiring Connections
Before performing any wiring or connection operations, ensure that controller power is OFF.
Serious damage to sensitive components on the controller may occur if wiring changes are made
while controller power is on.
•Refer to Figure 1 on page 7 and Figure 2 on page 8 when reviewing the information throughout
Section 5.2 beginning on page 10.
•Refer to Figure 4 on page 9 when reviewing the information throughout Section 5.3 beginning
on page 15.
Figure 1: The LC-500P Elevator Controller
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 7 of 22
Proximity Elevator Control Panel
Figure 2: The SB-500 Satellite Board
Quick Start GuideLC-502P/LC-508P
Figure 3: The LC-502 Elevator Control Panel
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 8 of 22
Proximity Elevator Control Panel
Figure 4: The LC-508P Elevator Control Panel
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 9 of 22
Proximity Elevator Control Panel
5.1Connecting Wires - Removing Terminal Blocks
Follow the instructions in Figure 5 when connecting wires to the controller or when removing
terminal blocks from the controller.
Figure 5: Connecting Wires and Removing Terminal Blocks
Quick Start GuideLC-502P/LC-508P
5.2LC-502P Wiring Connections
The following connections are made to install the LC-502P Elevator Control panel (see Figure 3 on
page 8).
•Floor Control Relay
•RS-485 Controller Network
•Reader Daisy-Chain
•Earth Ground and Power
5.2.1Floor Control Relay
The Floor Control Relay is connected to the floor controls at the elevator panel. If a controller has
an SB-500 Satellite Board attached to control two floors, connect the lower floor to the A-Floor
Control Relay and connect the higher floor to the B-Floor Control Relay. Make the floor control
relay connections per the information in Table 2 and Figure 6 on page 11.
Table 2: Floor Control Relay
Connection
LC-500P TB-3 Pin
SB-500 TB-7 Pin
1Normally-Open
2Common
Description
3Normally-Closed
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 10 of 22
Proximity Elevator Control Panel
Figure 6: Floor Control Relay Connection
5.2.2RS-485 Controller Network
All of the controllers in the elevator network communicate through an RS-485 serial
communication network. Per the RS-485 industry specification, this network must be daisychained, with a total network cable length of no more than 16,000 feet. Make the RS-485 network
connections per the information in Table 3 and Figure 7 on page 12.
NOTE: Connect shield ground at the master controller ONLY. The LC-500P controller
automatically connects earth ground to the shield at one point on the network. This single
connection minimizes the effects of ground loops that can affect controller performance.
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 11 of 22
Proximity Elevator Control Panel
Quick Start GuideLC-502P/LC-508P
Figure 7: Daisy-Chained RS-485 Controller Network
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 12 of 22
Proximity Elevator Control Panel
5.2.3Reader Daisy-Chain
One Proximity reader is shared by all elevator control panels in an elevator control application. The
main reader connections are made to a primary LC-502P elevator panel. All other reader
connections to the remaining LC-502P/LC-508P panels are made per the following rules.
1. The reader antenna line must be daisy-chained to all other elevator panel antenna inputs – Pin 1
of TB-5 and TB-6 on the LC-502P/LC-508P panels.
2. The reader ground line must be daisy-chained to all other elevator panel antenna grounds to
provide a standard ground reference for all panels – Pin 4 of TB-5 and TB-6 on the LC-502P/
LC-508P panels.
3. The reader’s positive power line must be connected to the master elevator panel ONLY (Pin 3 of
TB-5 on the master LC-502P/LC-508P panel).
Make the reader connections per the information in Figure 8 on page 14.
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 13 of 22
Proximity Elevator Control Panel
Quick Start GuideLC-502P/LC-508P
Figure 8: Daisy-Chained Reader Connections
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 14 of 22
Proximity Elevator Control Panel
5.2.4Earth Ground and Power
The LC-502P panel requires 12 VDC power at 750 mA. You must make a quality earth ground
connection to the controller prior to connecting the DC power lines. The earth ground provides
protection for the controller and ensures the best possible operating conditions. Possible sources for
earth ground are a ground rod, a cold water pipe, a steel building frame, the electrical system
ground at the breaker/fuse box, or the telephone system ground. Make the earth ground and power
connections per the information in Table 4 and Figure 9.
Table 4: Earth Ground and Power
Connections
TB-2 PinDescription
1+ 12 VDC Power Line
2- 12 VDC Power Line
3Earth Ground
Figure 9: Earth Ground and Power Connections
5.3LC-508 Wiring Connections
The connections between the individual LC-500P/SB-500 controllers in the LC-508 Elevator
Control panel are already wired. All user connections are brought out to three terminal strips.
•one strip on the left side of the enclosure for all Floor Control Relay connections
•one strip on the bottom-right of the enclosure for the controller power, the controller network
daisy-chain input, and the proximity reader daisy-chain input connections
•one strip on the bottom-left of the enclosure for the controller network daisy-chain output and
the proximity reader daisy-chain output connections
Figure 10 on page 16 provides a diagram of these terminal strip connections.
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 15 of 22
Proximity Elevator Control Panel
Quick Start GuideLC-502P/LC-508P
Figure 10: LC-508 Elevator Panel Wiring Connections
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 16 of 22
Proximity Elevator Control Panel
5.4Wiring Multiple Panels Together
As many as 24 floors may be controlled using a combination of LC-502Ps and LC-508Ps; the first
eight floors must be controlled by an LC-508P. After that, any combination of LC-502Ps and LC508Ps can be added to meet your floor requirements.
5.4.1LC-508P/LC-502P Combination
Perform the following wiring instructions to accommodate an elevator application using an LC508P and one or more LC-502P panels (9 to 16 floors).
1. Make a complete set of connections to the LC-508P panel. Refer to Section 5.3 on page 15 and
Figure 10 on page 16 for all connections to the LC-508P.
2. Daisy-chain the Antenna and Ground reader connections from the LC-508P panel to the LC502P panel(s). Make the connections per the information in Table 5 and Figure 11 on page 18.
Table 5: LC-508P to LC-502P
W-TB-B (Out)
W-TB-C (In)
Pin 2Reader AntennaPin 1
Pin 1Reader GroundPin 4
3. Daisy-chain the TxRx+, TxRx-, and Shield Network Communication connections from the
terminal strip on the LC-508P to each of the LC-502P panels. Make the connections per the
information in Table 6 and Figure 12 on page 19.
Table 6: LC-508P to LC-502P Panel Network
Communication Wiring
W-TB-B (Out)
W-TB-C (In)
Pin 4TxRx-Pin 1
Pin 5TxRx+Pin 2
Pin 6ShieldPin 3
LC-508P Reader Terminal StripLC-502P TB-5 or TB-6
ConnectionLC-502P TB-1
LC-502P/LC-508PQuick Start Guide
4. Refer to Section 5.2.1 on page 10 for the LC-502P floor relay connections.
5. Refer to Section 5.2.4 on page 15 for the LC-502P panel power connections.
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 17 of 22
Proximity Elevator Control Panel
Quick Start GuideLC-502P/LC-508P
Figure 11: LC-508P to LC-502P Reader Wiring Connections
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 18 of 22
Proximity Elevator Control Panel
Figure 12: LC-508P to LC-502P Network Communication Wiring
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 19 of 22
Proximity Elevator Control Panel
5.4.2LC-508P/LC-508P Combination
Perform the following wiring instructions to accommodate an elevator application using two LC508P panels; up to 16 floors (for 24 floors, add a third LC-508P and continue the daisy-chain wiring
to the third panel).
1. Make a complete set of connections to the first LC-508P panel. Refer to Section 5.3 on page 15
for all connections to the LC-508P. This panel must have the master elevator controller (the
controller with address 1).
2. Daisy-chain the Antenna and Ground reader connections from the terminal strip on the first
panel to the terminal strip on the second panel. Make the connections per the information in
Table 7 and Figure 13.
Table 7: LC-508P to LC-508P
First LC-508P Reader
Quick Start GuideLC-502P/LC-508P
Terminal Strip
Reader AntennaReader Antenna
Reader GroundReader Ground
Second LC-508P Reader
Terminal Strip
Figure 13: LC-508P to LC-508P Wiring Connections
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 20 of 22
Proximity Elevator Control Panel
3. Daisy-chain the TxRx+, TxRx-, and Shield Network Communication connections from the
terminal strip on the first panel to the terminal strip on the second panel. Make the connections
per the information in Table 8 and Figure 14.
Table 8: LC-508P to LC-508P Nework Communication
Wiring
TB-B on First LC-508PTB-C on Second LC-508P
TxRx-TxRx-
TxRx+TxRx+
ShieldShield
Figure 14: LC-508P to LC-508P Nework Communication Wiring
4. The floor/relay connections for the second LC-508P are made according to the floor/panel
association. Refer to Section 5.3 on page 15 for all floor/relay connections to the LC-508P.
Power connections are made per the instructions in Section 5.2.4 on page 15.
LC-502P/LC-508PQuick Start Guide
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 21 of 22
Proximity Elevator Control Panel
5.5Host Computer Wiring Connections
The wiring connections between the Host Computer and the access control/elevator control network
are thoroughly described in the PXL-500/PXL-510 Quick Start Guide (P/N 01918-001). Please
refer to these documents for information regarding host computer/network connections.
6.0Elevator Reader Responses to Access Control Events
During day-to-day activity, the reader in the elevator car will respond to access control events in a
specific manner. Refer to Table 9 for a summary of the Reader’s LED and beeper actions during
access control events.
Table 9: Reader Responses to Access Control Events
EventLED StatusBeeper Status
waiting for card presentationdisplays a steady Amber LEDsilent
upon card presentationflashes a Green LEDone short beep
Quick Start GuideLC-502P/LC-508P
2305 Bering Drive01941-001 Rev. B
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.comPage 22 of 22
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
