INSTRUCTION MANUAL

KEPCO

An ISO 9001 Company.

KIT

DIN ERD

-60P

DIN-RAIL MOUNTING KIT

FOR SERIES ERD 60W

DESCRIPTION. Kepco KIT, Models DIN ERD-60P contains a mounting bracket with left and right preassembled

mounting clips and associated hardware used to install ERD Series power supplies on a DIN rail. The -60 suffix is for
the 60 Watt Series; the “P” suffix is for mounting the power supply perpendicular to the DIN rail as shown in Figure 1.
Outline Dimensions are shown in Figure 5

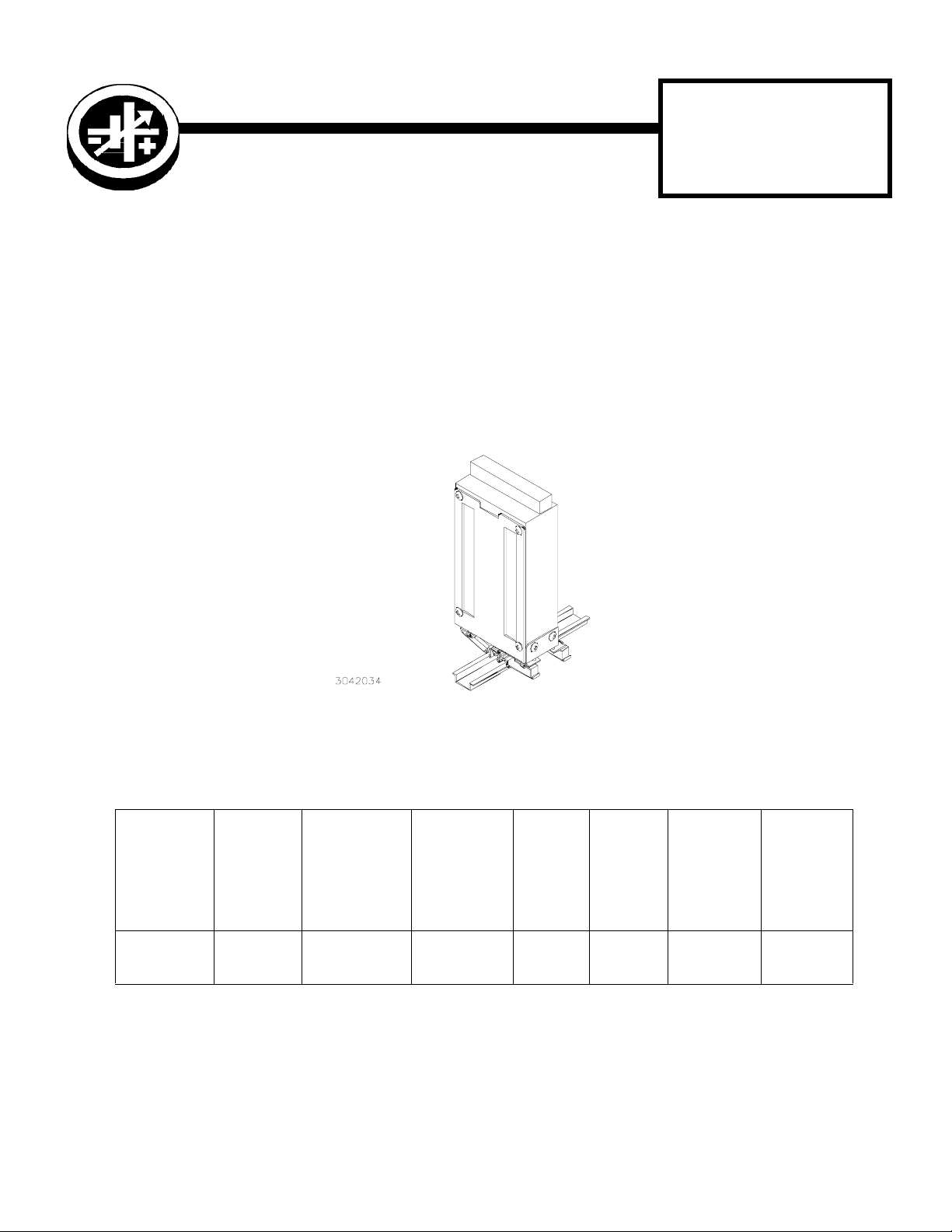

FIGURE 1. P SUFFIX ORIENTATION

TABLE 1. COMPONENTS SUPPLIED

SCREW

KIT

MODEL NO.

DIN ERD-60P 128-2013

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

©1999, KEPCO, INC
Data subject to change without notice 228-1393

MOUNTING

BRACKET

PART NO.

(QTY 6)

(Power Supply

To Mounting

Bracket)

PART NO.

101-0383

(8-32 X 3/16

BHPH)

http://www.kepcopower.com " email: [e-mail]

WASHER

(QTY 6)

(Power Sup-

ply To Mount-

ing Bracket)

PART NO.

103-0017

(NO. 8, INT.

TOOTH)

CLIP

(QTY 2)

PART

NO.

108-0362 128-1938

CLIP

PLATE

(QTY 2)

PART NO.

SCREW

Thread-form

(QTY 4)

(Clip To

Mounting

Bracket)

PART NO.

101-0443

(4-40 X 1/4

BHPH)

FAX [phone]

WASHER

(QTY 4)

(Clip To

Mounting

Bracket)

PAR T N O .

103-0014

(NO. 4, INT.

TOOTH)

1

INSTALLATION

1. INSTALL COVER. Attach the cover to the power supply per instruction manual supplied with the cover.

2. INSTALL MOUNTING BRACKET. Attach the mounting bracket to the power supply using the hardware
supplied (see Figure 2).

FIGURE 2. INSTALLING MOUNTING BRACKET ON POWER SUPPLY

3. INSTALL CLIPS. Attach preassembled mounting clips into the mounting bracket holes using hardware
supplied (see Figure 3).

FIGURE 3. INSTALLING CLIPS ON MOUNTING BRACKET

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

2

http://www.kepcopower.com " email: [e-mail]

228-1393 061801

FAX [phone]

4. INSTALL POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both
mounting clips under one edge of the rail, then snap the other end of the two clips into place (see Figure 4A).

INSTALLATION

A

FIGURE 4. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL

B

REMOVAL

REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, Insert a screwdriver

into the access holes provided and apply leverage towards the left as shown in Figure 4B to disengage each clip from
the rail. Where mounting clips are close together, it may be necessary to apply leverage with two screwdrivers simul­taneously.

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

http://www.kepcopower.com " email: [e-mail]

061801 228-1393

FAX [phone]

3

FIGURE 5. ERD 30W POWER SUPPLY WITH KIT INSTALLED, OUTLINE DIMENSIONS
