INSTRUCTION MANUAL

KEPCO

An ISO 9001 Company.

KIT

DIN ERD

-150P

DIN-RAIL MOUNTING KIT

FOR SERIES ERD 150W

DESCRIPTION. Kepco Kit, Model DIN ERD 150-P,

contains a preassembled mounting plate and associ­ated hardware used to install ERD 150 Watt Series
power supplies on a DIN rail. The “P” suffix is for
mounting perpendicular to the long dimension
(length) as shown in Figure 1. Outline dimensions
are shown in Figure 4.

FIGURE 1. P SUFFIX ORIENTATION

INSTALLING KIT. Attach the preassembled mounting plate to the power supply using the hardware supplied (see Fig-

ure 3). The plate may be mounted with the release lever on either side to facilitate removal.

INSTALLING POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of the clip under
one edge of the rail, then snap the other end of the clip into place (see Figure 2A).

NOTE: For applications where the installed power supply may be subject to unusual levels of shock or vibration, the

use of two DIN rail end stops (Kepco P/N 108-0367) is recommended. After installing the power supply on the
rail, the end stops are installed by clearing the DIN rail of other components and sliding the end stops over the
rail. When the end stops are secure against the power supply, tighten the two integral screws of each end stop.

REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, use a screwdriver to
apply leverage towards the left as shown in Figure 2B to disengage the clip from the rail. .

INSTALLATION

A -

B -

REMOVAL

FIGURE 2. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

©1998, KEPCO, INC
Data subject to change without notice 228-1394

http://www.kepcopower.com " email: [e-mail]

FAX [phone]

1

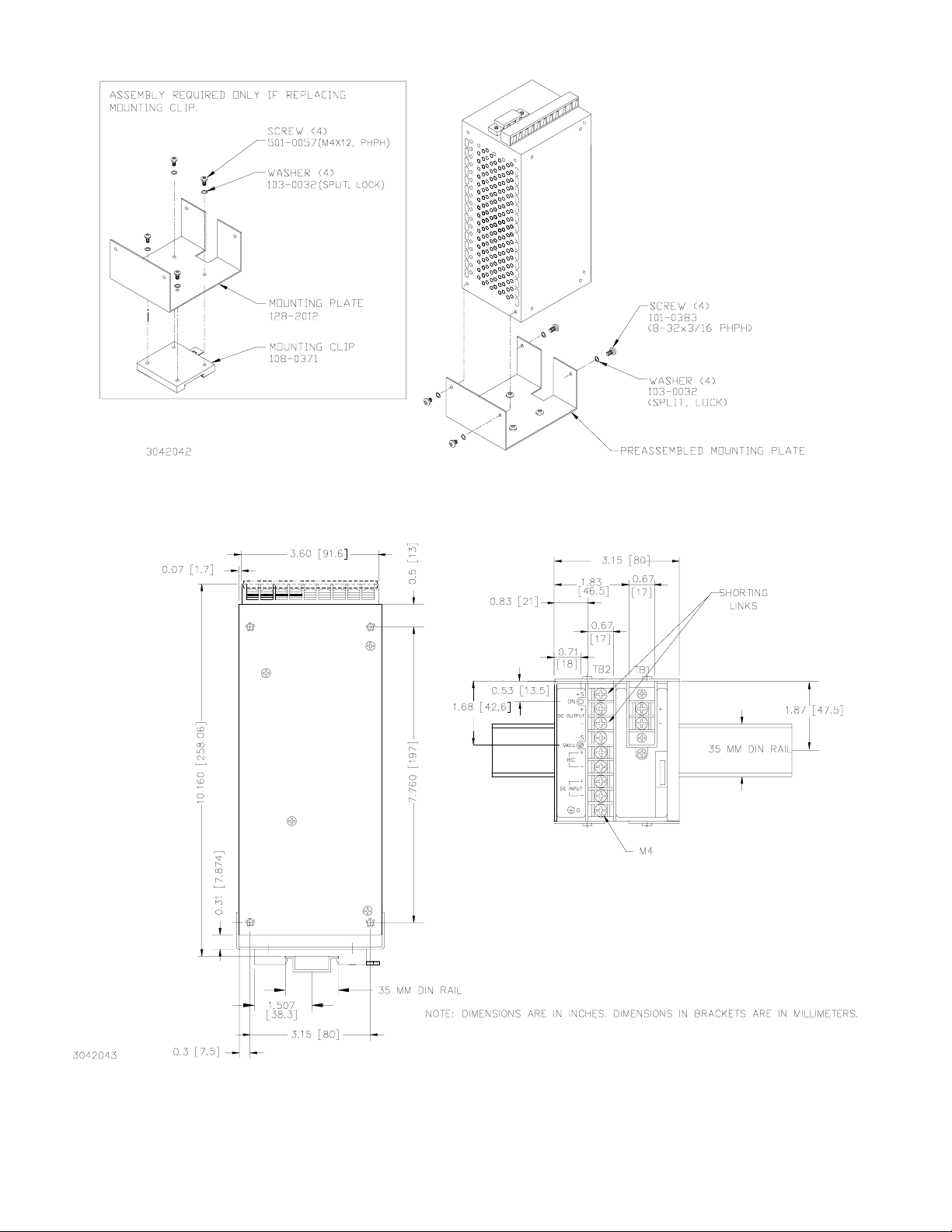

FIGURE 3. INSTALLATION OF KIT ON ERD 150W POWER SUPPLY

FIGURE 4. ERD 150W POWER SUPPLY WITH KIT INSTALLED, OUTLINE DIMENSIONS
