KEPCO DIN MRW-160P, DIN MRW-150P, DIN MRW-170P, DIN MRW-161KV, DIN MRW-151KV Instruction Manual

INSTRUCTION MANUAL

KEPCO

An ISO 9001 Company.

KIT

DIN MRW-150P,

-160P, -170P

DIN-RAIL MOUNTING KIT

FOR SERIES MRW 150/151KV, 160/161KV, 170/171KV

DESCRIPTION. Kepco KITs, Models DIN MRW-150P, MRW-160P and MRW-170P each contain a cover, a cable kit, a

mounting bracket with left and right preassembled mounting clips and associated hardware used to install MRW Series
power supplies on a DIN rail. The -150P suffix is for the 35 Watt MRW 150/151KV models. The -160P suffix is for the

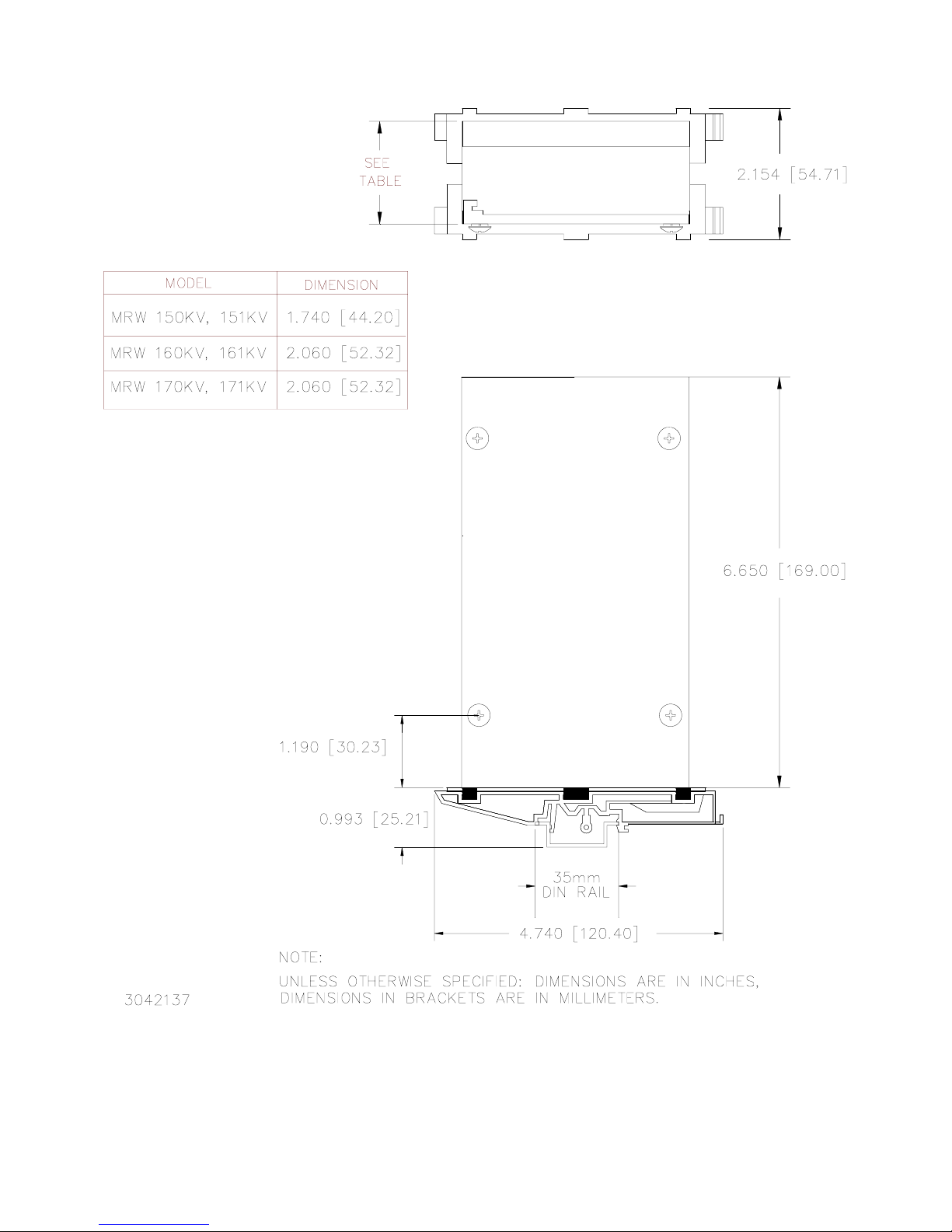

50 Watt 160/161KV models. The -170P suffix is for the 65 Watt MRW 170/171KV models. The “P” suffix is for mount­ing the power supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in Figure 5

FIGURE 1. P SUFFIX ORIENTATION

TABLE 1. COMPONENTS SUPPLIED

CABLE

KIT

MODEL NO.

DIN MRW-150P 219-0184 CA 19

DIN MRW-160P 219-0184 CA 20

DIN MRW-170P 219-0239 CA 20

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

©2000, KEPCO, INC
Data subject to change without notice 228-1405

KIT

PART

NO.

COVER

PAR T

MOUNTING

BRACKET

NO.

PART NO.

128-2048

http://www.kepcopower.com " email: [e-mail]

SCREW
(QTY 4)

(Power Supply

To Mounting

Bracket)

PART NO.

101-0383

(8-32 X 3/16

PHPH)

WAS HE R

(QTY 4)

(Power Supply

To Mounting

Bracket)

PART NO.

103-0017

(NO. 8, INT.

TOOTH)

CLIP

(QTY 2)

PART

NO.

108-0362 128-1938

CLIP

PLATE

(QTY 2)

PART

NO.

SCREW

Thread-form

(QTY 4)

(Clip To

Mounting

Bracket)

PAR T N O .

101-0443

(4-40 X 1/4

BHPH)

FAX [phone]

WASHE R

(QTY 4)

(Clip To

Mounting

Bracket)

PART NO.

103-0014

(NO. 4, INT.

TOOTH)

1

INSTALLATION

1. INSTALL COVER. Attach the cover to the power supply per instruction manual supplied with the cover.

2. INSTALL MOUNTING BRACKET. Attach the mounting bracket to the power supply using the hardware
supplied (see Figure 2).

FIGURE 2. INSTALLING MOUNTING BRACKET ON POWER SUPPLY

3. INSTALL CLIPS. Attach preassembled mounting clips into the mounting bracket holes using hardware
supplied (see Figure 3).

FIGURE 3. INSTALLING CLIPS ON MOUNTING BRACKET

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] "

http://www.kepcopower.com " email: [e-mail]

2

FAX [phone]

228-1405 061901
