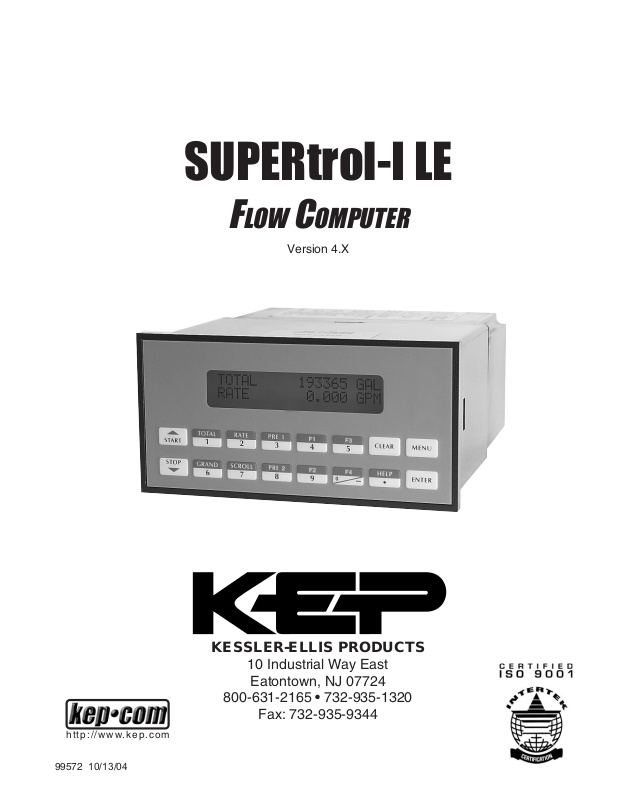

SUPERtrol-I LE

FLOW COMPUTER

Version 4.X

http://www.kep.com

99572 10/13/04

KESSLER-ELLIS PRODUCTS

10 Industrial Way East

Eatontown, NJ 07724

800-631-2165 • 732-935-1320

Fax: 732-935-9344

Proprietary Notice

The information contained in this publication is derived in part from proprietary and patent data. This information has been prepared for the expressed purpose of assisting operating and maintenance personnel in the efficient use of the instrument described herein. Publication of this information does not convey any rights to use or reproduce it or to use for any purpose other than in connection with the installation, operation and maintenance of the equipment described herein.

This instrument contains electronic components that are susceptible to damage by static electricity. Proper handling* procedures must be observed during the removal, installation, or handling of internal circuit boards or devices.

*Handling Procedure

1. Power to unit must be removed.

2. Personnel must be grounded, via wrist strap or other safe, suitable means, before any printed circuit board or other internal device is installed, removed or adjusted.

3. Printed circuit boards must be transported in a conductive bag or other conductive container. Boards must not be removed from protective enclosure until the immediate time of installation. Removed boards must be placed immediately in protective container for transport, storage, or return to factory.

Comments

This instrument is not unique in its content of ESD (electrostatic discharge) sensitive components. Most modern electronic designs contain components that utilize metal oxide technology (NMOS, CMOS, etc.). Experience has proven that even small amounts of static electricity can damage or destroy these devices. Damaged components, even though they appear to function properly, may exhibit early

The following instructions must be observed.

• This instrument was designed and is checked in accordance with regulations in force EN 60950 (“Safety of information

technology equipment, including electrical business equipment”). A hazardous situation may occur if this instrument is not used for its intended purpose or is used incorrectly. Please note operating instructions provided in this manual.

WARNING!

failure.

SAFETY INSTRUCTIONS

• The instrument must be installed, operated and maintained by personnel who have been properly trained. Personnel must

read and understand this manual prior to installation and operation of the instrument.

• This instrument is internally fused. Replace the internal fuse with the following specified type and rating only:

Disconnect power supply before replacing fuse!

• The manufacturer assumes no liability for damage caused by incorrect use of the instrument or for modifications or changes

made to the instrument.

Input Power Recommended Fuse

115 VAC 160 mA slow blow fuse 230 VAC 80 mA slow blow fuse

12-24 VDC 800 mA slow blow fuse

Symbols Used On Unit

Number Symbol Publication Description

IEC 417, No. 5031 Direct current

IEC 417, No. 5172 Equipment protected throughout by DOUBLE

INSULATION or REINFORCED INSULATION (equivalent to Class II of IEC 536–see annex H)

ISO 3864, No. B.3.1 Caution (refer to accompanying documents)

Technical Improvements

• The manufacturer reserves the right to modify technical data without prior notice.

1. DESCRIPTION

1.1 Unit Description ........................................................................................................................... 1

1.2 Unit Features ............................................................................................................................... 1

1.3 Specifications .............................................................................................................................. 2

2. INSTALLATION

2.1 General Mounting Hints ............................................................................................................... 6

2.2 Mounting Diagrams ..................................................................................................................... 6

3. APPLICATIONS

3.1 Liquid Volume .............................................................................................................................. 7

3.2 Batching ....................................................................................................................................... 8

4. WIRING

4.1 Typical Batcher Wiring ................................................................................................................. 9

4.2 Typical Rate/Total Wiring ............................................................................................................. 9

5. UNIT OPERATION

5.1 Front Panel Operation Concept for Run Mode .......................................................................... 10

5.2 General Operation ..................................................................................................................... 11

5.3 Ratemeter/Totalizer Operation ................................................................................................... 11

5.3.1 Password Protection for Rate/Total mode ................................................................ 11

5.3.2 Relay Operation in Rate/Total mode ........................................................................ 11

5.3.3 Pulse Output in Rate/Total mode ............................................................................. 11

5.3.4 Analog Output in Rate/Total mode ........................................................................... 11

5.3.5 RS-232 Serial Port Operation in Rate/Total mode .................................................. 12

5.3.6 RS-485 Serial Port Operation in Rate/Total mode .................................................. 12

5.4 Batcher Operation ..................................................................................................................... 13

5.4.1 Batcher Configuration .............................................................................................. 13

5.4.2 Password Protection for Batcher mode .................................................................... 14

5.4.3 Relay Operation in Batcher mode ............................................................................ 14

5.4.4 Pulse Output in Batcher mode ................................................................................ 14

5.3.5 Analog Output in Batcher mode .............................................................................. 14

5.4.6 RS-232 Serial Port Operation in Batcher mode ...................................................... 15

5.4.7 RS-485 Serial Port Operation in Batcher mode ...................................................... 15

CONTENTS

6. PROGRAMMING

6.1 Front Panel Operation Concept for Program Mode ................................................................... 16

6.2 EZ Setup .................................................................................................................................... 17

6.3 Setup Menus ............................................................................................................................. 18

6.4 Setup Sub-Menus ...................................................................................................................... 19

6.4.1 SELECT EZ SETUP ................................................................................................. 19

6.4.2 INSTRUMENT TYPE ............................................................................................... 19

6.4.3 SETUP INDICATORS (Total) ................................................................................... 21

6.4.4 SETUP INDICATORS (Rate) ................................................................................... 21

6.4.5 SETUP FLOW INPUT (Pulse - chA & chA=chB) ...................................................... 22

6.4.6 SETUP FLOW INPUT (Pulse - Quadrature, Qx1 or Qx2) ........................................ 23

6.4.7 SETUP PULSE OUTPUT ......................................................................................... 24

6.4.8 SETUP ANALOG OUTPUT ...................................................................................... 25

6.4.9 SETUP RELAYS ...................................................................................................... 25

6.4.10 SETUP CONTROL INPUTS (RATE/TOTAL) ......................................................... 27

6.4.11 SETUP CONTROL INPUTS (BATCH) .................................................................... 27

6.4.12 SETUP REALTIME CLOCK (Time) ........................................................................ 28

6.4.13 SETUP REALTIME CLOCK (Date) ........................................................................ 28

6.4.14 SERIAL USAGE ..................................................................................................... 29

6.4.15 SET DATALOG/PRINT (Configure) ........................................................................ 30

6.4.16 SET DATALOG/PRINT (Select_list) ....................................................................... 31

6.4.17 ADMINISTRATIVE SETUP ..................................................................................... 31

6.4.18 SETUP NETWORK CARD ..................................................................................... 32

CONTENTS

7. PRINCIPLE OF OPERATION

7.1 General ...................................................................................................................................... 33

7.2 Flow Equations .......................................................................................................................... 33

7.3 Linearization Table ..................................................................................................................... 34

8. TEST, SERVICE and MAINTENANCE

8.1 Test Menus ................................................................................................................................ 35

8.2 Test Sub-Menus ......................................................................................................................... 36

8.3 Internal Fuse Replacement ....................................................................................................... 40

7.6.1 Linearization Table General Information ................................................................... 34

7.6.2 Linearization Table for Pulse Inputs ......................................................................... 34

7.6.3 Linearization Table Interpolation ............................................................................... 34

8.2.1 Audit Trail ................................................................................................................. 36

8.2.2 Error History .............................................................................................................36

8.2.3 Print System Setup .................................................................................................. 36

8.2.4 Keypad test .............................................................................................................. 37

8.2.5 Display test ............................................................................................................... 37

8.2.6 Calibrate 0mA out ..................................................................................................... 37

8.2.7 Calibrate 20mA out ................................................................................................... 37

8.2.8 Pulse input test ......................................................................................................... 38

8.2.9 Analog out test ......................................................................................................... 38

8.2.10 Excitation out test ................................................................................................... 39

8.2.11 Pulse out test .......................................................................................................... 39

8.2.12 Relay test ..............................................................................................................39

8.2.13 Control input test .................................................................................................... 39

8.2.14 Data logger utility ................................................................................................... 39

9. RS-232 SERIAL PORT

9.1 RS-232 Serial Port Description .................................................................................................. 41

9.2 Instrument Setup by PC Over Serial Port .................................................................................. 41

9.3 Operation of Serial Communication Port with Printers .............................................................. 41

9.4 SUPERtrol-I LE RS-232 Port Pinout .......................................................................................... 41

10. RS-485 SERIAL PORT

10.1 RS-485 Serial Port Description ................................................................................................ 42

10.2 General .................................................................................................................................... 42

10.3 Operation of Serial Communication Port with PC .................................................................... 42

10.4 SUPERtrol-I LE RS-485 Port Pinout ........................................................................................ 42

11. FLOW COMPUTER SETUP SOFTWARE

11.1 System Requirements .............................................................................................................. 43

11.2 Cable and Wiring Requirements ..............................................................................................43

11.3 Installation for Windows™3.1 or 3.11 ...................................................................................... 43

11.4 Using the Flow Computer Setup Software ............................................................................... 43

11.5 File Tab .................................................................................................................................... 44

11.6 Setup Tab ................................................................................................................................. 44

11.7 View Tab .................................................................................................................................. 45

11.8 Misc. Tab .................................................................................................................................. 45

12. GLOSSARY OF TERMS

12 Glossary Of Terms ...................................................................................................................... 46

13. DIAGNOSIS AND TROUBLESHOOTING

13.1 Response of SUPERtrol-I LE on Error or Alarm: ..................................................................... 50

13.2 Diagnosis Flow Chart and Troubleshooting ............................................................................. 51

13.3 Error & Warning Messages:..................................................................................................... 52

13.3.1 Sensor/Process Alarms .......................................................................................... 52

13.3.2 Self Test Alarms ...................................................................................................... 52

APPENDIX A

Setup Menu Flowchart ..................................................................................................................... 52

SUPERtrol-I LE Flow Computer

1. Description

1.1 Unit Description:

The SUPERtrol-I LE Flow Computer satisfies the rate, total and batching instrument requirements for a variety of pulse producing flowmeter types in liquid applications. Multiple flow equations and instrument functions are available in a single unit with many advanced features.

The alphanumeric display shows measured and calculated parameters in easy to understand format. Single key direct access to measurements and display scrolling is supported.

The versatility of the SUPERtrol-I LE permits a wide measure of versatility within the instrument package. The various hardware inputs and outputs can be “soft” assigned to meet a variety of common application needs. The user “soft selects” the usage of each input/output while configuring the instrument. Consider the following illustrative examples.

The user can assign the standard RS-232 Serial Port for data logging, transaction printing, or for connection to a modem for remote meter reading.

1.2 Unit Features:

The SUPERtrol-I LE Flow Computer offers the following features:

• Compatible with Pulse Producing Flowmeters

• Multiple Instrument Functions; Rate, Total, Batching

• Menu Selectable Hardware & Software Features

• Two Line LCD Display

• Automatic Batch Overrun Compensation

• Isolated Pulse Output Standard

• Isolated Analog Output Standard

• Versatile RS-232 Port Standard

• Linearization Capability Standard

• DIN Enclosure with Two Piece Connectors

• EZ Setup Feature

• Advanced Batching Features

SUPERtrol-I LE Flow Computer

1.3 Specifications:

Specifications: Environmental

Indoor Use Altitude up to 2000m Operating Temperature: 0°C to +50°C

(-20°C to 55°C optional) Storage Temperature: -40°C to +85 C Maximum Relative Humidity : 80% for temperatures

up to 31°C decreasing linearly to 50% RH at

40°C Main supply voltage fluctuations not to exceed ±10% of the nominal voltage Transient overvoltage according to INSTALLATION

CATEGORY II (see UL 3101-1 Annex J) POLLUTION DEGREE 2 in accordance with

IEC 664 (see 3.7.3) Materials: UL, CSA, VDE approved

Approvals: CE Compliant Light Industrial,

UL File #: E192404, C/UL

Display

Type: 2 lines of 20 characters Types: Backlit LCD Character Size: 0.3" nominal User selectable label descriptors and units of measure

Keypad

Keypad Type: Membrane Keypad Keypad Rating: Sealed to Nema 4 Number of keys: 16

Enclosure

Size: See Dimensions Depth behind panel: 6.5" including mating connector Type: DIN Materials: Plastic, UL94V-0, Flame retardant Bezel: Textured per matt finish Equipment Labels: Model, safety, and user wiring

Flow Inputs:

Pulse Inputs:

Number of Flow Inputs: one Configurations supported: single input with or

without quadrature (menu selectable) Input Impedance: 10 KΩ nominal Pullup Resistance: 10 KΩ to 5 VDC (menu

selectable) Pull Down Resistance: 10 KΩ to common Trigger Level: (menu selectable)

High Level Input

Logic On: 3 to 30 VDC

Logic Off: 0 to 1 VDC

Low Level Input (mag pickup)

Selectable sensitivity: 10 mV & 100 mV Minimum Count Speed: User selectable down to 1 pulse in 99 sec. Maximum Count Speed: Selectable: 0 to 20kHz Overvoltage Protection: 50 VDC Fast Transient: Protected to 500 VDC

(Capacitive Clamp)

Control Inputs

Switch Inputs are menu selectable for Start, Stop, Reset, Lock, Inhibit, Alarm Acknowledge, Print or Not Used. Control Input Specifications

Input Scan Rate: 10 scans per second Logic 1: 4 - 30 VDC Logic 0: 0 - 0.8 VDC Transient Suppression: 500 V fast transient

(Capacitive Clamp) Input Impedance: 100 KΩ Control Activation: Positive Edge or Pos. Level based on product definition

Excitation Voltage

110/220 VAC Powered Units

Menu Selectable: 5, 12 or 24 VDC @ 100mA

24 VDC Powered Units

Menu Selectable: 5 or 12 VDC @ 100mA

12 VDC Powered Units

5 VDC @ 100mA

Power Input

The factory equipped power option is internally fused. An internal line to line filter capacitor is provided for added transient suppression. Order Option 1: 110VAC: 85 to 127 Vrms, 50/60 Hz Order Option 2: 220VAC: 170 to 276 Vrms, 50/60 Hz Order Option 3: 12VDC: 10.5 to 14 VDC Order Option 4: 24VDC: 18 to 24 VDC

SUPERtrol-I LE Flow Computer

Relay Outputs

The relay outputs are menu assignable to (Individually for each relay) Low Rate Alarm, Hi Rate Alarm, Prewarn Alarm, Preset Alarm, General purpose warning (security), overrun or not used.

Number of relays: 2 (4 optional) Contact Style: Form C contacts Contact Ratings: 250 VAC @ 5 amps

30 VDC @ 5 amps

Fast Transient Threshold: 1000 V

Serial Communication

The serial port can be used for printing, datalogging, modem connection and communication with a computer. RS-232:

Device ID: 01-99 Baud Rates: 300, 600, 1200, 2400, 4800, 9600,

19200 Parity: None, Odd, Even Handshaking: None, Software, Hardware Print Setup: Configurable print list and

formatting

RS-485:

Device ID: 01-247 Baud Rates: 2400, 4800, 9600, 19200 Parity: None, Odd, Even Protocol: Modbus RTU (Half Duplex)

Analog Output

The analog output is menu assignable to correspond to the Rate or Total. Type: Isolated Current Sourcing Isolated I/P/C: 500 V Available Ranges: 4-20 mA, 0-20 mA Resolution: 12 bit Accuracy: 0.05% FS at 20 Degrees C Update Rate: 1 update/sec minimum Temperature Drift: Less than 200 ppm/C Maximum Load: 1000 ohms (at nominal line voltage) Compliance Effect: Less than .05% Span 60 Hz rejection: 40 dB minimum Calibration: Operator assisted Learn Mode Averaging: User entry of DSP Averaging constant

to cause an smooth control action.

Isolated Pulse output

The isolated pulse is assigned to Volume Total.

Isolation I/O/P: 500 V Pulse Output Form: Isolated Photomos Relay Maximum On Current: 125 mA Maximum Off Voltage: 30 VDC Saturation Voltage: 1.0 VDC Maximum Off Current: 0.1 mA Pulse Duration: User selectable: 10mSec, 100mSec Pulse output buffer: 8 bit Fault Protection

Reverse polarity: Shunt Diode Transient Protection: 500 VDC

(Capacitive Clamp)

SUPERtrol-I LE Flow Computer

Operating Mode

The Flow Computer can be thought of as making a measurement of flow and then performing calculations which are then updated periodically on the display as rate and total. The pulse output, analog output and the alarm relays are also updated. The cycle then repeats itself.

Step 1:Update the measurements of input signals-

Raw Input Measurements are made at each input.

Step 2 : Compute the Volumetric Flow-

Uncompensated flow is the term given to the flow in volume units. The value is computed based on the flowmeter input type selected and augmented by any performance enhancing linearization that has been specified by the user.

Step 3: Check Flow Alarms-

The flow alarm functions have been assigned to flow rate during the setup of the instrument. A comparison is now made by comparing the current flow rates against the specified hi and low limits.

Step 4: Compute the Flow Totals by Summation-

A flow total increment is computed for each flow rate. This increment is computed by dividing the pulses by the K-Factor and then summing. The totalizer format also includes provisions for total rollover.

Step 5: Total Preset Comparisons-

The total associated with a preset function is then compared against the corresponding preset value and any required control actions taken.

Step 6: Pulse Output Service-

The pulse output is next updated by scaling the total increment which has just been determined by the pulse output scaler and summing it to any residual pulse output amount.

Step 7: Compute the Analog Output-

This designated flow rate value is now used to compute the analog output.

Step 8: Update Display and Printer Output-

The instrument finally runs a task to update the various table entries associated with the front panel display and serial outputs.

Setup Mode

The setup mode is password protected by means of a numeric lock out code established by the user. In addition, a secret, manufacturers numeric unlock entry sequence is available.

The system also provides a minimum implementation of an “audit trail” which tracks significant setup changes to the unit. This feature is increasingly being found of benefit to users or simply required by Weights and Measurement Officials in systems used in commerce, trade, or “custody transfer” applications.

A Worksheet is provided to assist the user in setting up the instrument. An Easy Setup (EZ Setup) feature is offered in the setup menu. The EZ Setup routine is a quick and easy way to configure the unit for the most commonly used instrument functions.

The setup mode has numerous subgrouping of parameters needed for flow calculations. There is a well conceived hierarchy to the setup parameter list. Selections made at the beginning of the setup affect offerings further down in the lists.

In the setup mode, the flow computer activates the correct setup variables based on the instrument configuration, the flow equation, and the hardware selections, the flow transmitter type, and meter enhancements (linearization) options selected. All required setup parameters are enabled. All setup parameters not required are suppressed.

A help line prompt is provided for each entry. In addition a help message is available which may be accessed by depressing the “HELP” key.

Also note that in the setup mode are parameter selections which have preassigned industry standard values. The unit will assume these values unless they are modified by the user.

SUPERtrol-I LE Flow Computer

Maintenance (Test) Mode:

The Maintenance Mode of the SUPERtrol-I LE provides a number of specialized utilities required for instrument checkout on start-up, setup documentation and data logger access.

A password is required to gain access to this specialized mode of operation. Quality and maintenance personnel will find this mode of operation very useful. It is also useful for factory testing.

Many of these tests may be used during start-up of a new system. Inputs signals may be read, and output signals may be exercised to verify the electrical interconnects before the entire system is put on line.

The following action items may be performed in the Maintenance Mode:

Print Setup Report Examine Audit Trail Examine Error History Perform Keypad Checkout Perform Display Checkout Perform Pulse Input Checkout Perform Pulse Output Checkout Perform Control Input Checkout Perform Relay Output Checkout

Perform Analog Output Checkout Calibrate Analog Output using the Learn Feature

Perform Excitation Output Test Examine or Dump Data Logger

Operation of Serial Communication Port with Printers

SUPERtrol-I LE's RS-232 channel supports a number of operating modes. One of these modes is intended to support operation with a printer in metering applications requiring transaction printing, data logging and/or printing of maintenance reports.

For transaction printing, the user defines the items to be included in the printed document. The user can also select what initiates the transaction print generated as part of the setup of the instrument. The transaction document may be initiated via a front panel key depression, a remote contact closure, upon completion of a batch, time of day or at a timed interval.

In data logging, the user defines the items to be included in each data log as a print list. The user can also select when or how often he wishes a data log to be made. This is done during the setup of the instrument as either a time of day or as a time interval between logging.

The system setup and maintenance report lists all the instrument setup parameters and usage for the current instrument configuration. In addition, the Audit trail information is presented along with a status report listing any observed malfunctions which have not been corrected.

The user initiates the printing of this report at a designated point in the menu by pressing the requested key on the front panel.

RS-232 Serial Port

The SUPERtrol-I LE has a general purpose RS232 Port which may be used for any one of the following purposes:

Transaction Printing Data Logging Remote Metering by Modem (optional) Computer Communication Link Configuration by Computer Print System Setup Print Malfunction History

Operation of Serial Port with Modems (optional)

The SUPERtrol-I LE RS-232 channel supports a number of operating modes. One of these modes is intended to support operation with a modem in remote metering applications.

An external modem is intentionally being used with the SUPERtrol-I LE. This permits use with the variety of modem standards worldwide while avoiding the specialized approvals required for equipment that is deemed to fall under the category of telecommunication equipment.

In the modem mode, the SUPERtrol-I LE is assumed to be operating in a remote metering role. In addition, the SUPERtrol-I LE will be capable of initiating a call to a designed telephone number in the event of a metering malfunction.

SUPERtrol-I LE Flow Computer

2. Installation

2.1 General Mounting Hints:

The SUPERtrol-I LE Flow Computer should be located in an area with a clean, dry atmosphere which is relatively free of shock and vibration. The unit is installed in a 5.43" (138mm) wide by 2.68" (68mm) high panel cutout. (see Mounting Dimensions) To mount the Flow Computer, proceed as follows:

a. Prepare the panel opening. b. Slide the unit through the panel cutout until the it touches the panel. c. Install the screws (provided) in the mounting bracket and slip the bracket over the rear of the

case until it snaps in place.

d. Tighten the screws firmly to attach the bezel to the panel. 3 in. lb. of torque must be applied

and the bezel must be parallel to the panel.

Termination Connectors:

Minimum Wire Gauge: 22 AWG Maximum Wire Gauge: 14 AWG Voltage/current limits are limited by unit specifications.

Permanently Connected Equipment: UL 3101-1, Section 6.12.2.1 specifies that:

•A switch or circuit breaker shall be included in the building installation;

• It shall be in close proximity to the equipment and within easy reach of the OPERATOR;

• It shall be marked as the disconnecting device for the equipment.

NOTE: Ensure that the switch or circuit breaker chosen is suitable for the power

requirements of the unit.

2.2 Mounting Diagrams:

Standard Mounting Bezel Kit Mounting

IMPORTANT!

To provide protection type IP65/NEMA 4X, the unit must be mounted with the bezel adaptor and the gasket (supplied with the mounting kit). The bezel must be glued to the unit with silicon. (see Instructions supplied with the mounting kit)

Dimensions

RATE

START

STOP

TOTAL

GRAND6SCROLL7PRE 2

3.43 (87)

Mounting Bracket

5.67 (144)

GPM

147.43 GAL

267395.749

PRE 13RATE2TOTAL

CLEAR•MENU

HELP

TIME

–

6.18 Dotted Line Shows Optional Bezel Kit

SUPERtrol-I LE

0.28 (7.2)

2.83 (72)

ENTER

0.4 (10)

Dimensions are in inches (mm)

6.15

(156)

SUPERtrol-I LE

Bezel Adaptor

Mounting Bracket

0.5

(13)

Panel

Cutout

Gasket

5.43

(138)

2.68 (68)

SUPERtrol-I LE Flow Computer

3. Applications

3.1 Liquid Volume

Measurements:

A flowmeter measures the actual volume in a liquid line.

Calculations:

• For Flowmeters with Pulse Outputs, Volume flow is calculated using the flowmeter frequency output and the user entered K-Factor or Linearization Table.

Output Results:

• Display Results

Flow Rate, Resettable Total, Non-Resettable Total

• Pulse Output

Total

• Analog Output

Rate or Total

• Relay Outputs

Rate or Total Alarms

Applications:

The Flow Computer can monitor actual volume flow and total of any liquid. Flow alarms are provided via relays and datalogging is available via serial outputs.

Liquid Volume Illustration

PRE 1

RATE

TOTAL

START

GRAND6SCROLL7PRE 28F2

STOP

Flowmeter

CLEAR•MENU

HELP

–

ENTER

Calculations

Pulse Input; Average K-Factor or Linearization Table

input frequency * time scale factor

Volume Flow =

K-Factor

SUPERtrol-I LE Flow Computer

3.2 Batching

Measurements:

A flowmeter measures the actual volume in a liquid line.

Calculations:

• For Flowmeters with Pulse Outputs, Volume flow is calculated using the flowmeter frequency output and the user entered K-Factor or Linearization Table.

Output Results:

• Display Results

Flow Rate, Batch Total, Non-Resettable Total

• Pulse Output

Total

• Analog Output

Rate or Total

• Relay Outputs

Batch Total, Rate, or Alarms

Applications:

Batching and monitoring flow and total of any liquid. Batching is accomplished via relays and datalogging is available via serial outputs.

Batching Illustration

PRE 1

RATE

TOTAL

START

GRAND6SCROLL7PRE 2

STOP

–

CLEAR•MENU

HELP

ENTER

Calculations

Flowmeter Solenoid Valve

Pulse Input; Average K-Factor or Linearization Table

input frequency * time scale factor

Volume Flow =

K-Factor

4 WIRING

SUPERtrol-I LE Flow Computer

4.1 Typical Batcher Wiring:

FLOW METER

with Pre Amp

MOV recommended

(+) V Signal

Common

StartStop

123456

Remote Electronic Counter

115 VAC

115 VAC SOLENOID VALVE

115 VAC

DC OUTPUT

PULSE IN 1

PULSE IN 2

COMMON

NOT USED

NOT USED NOT USED

8 9

CNTR IN 1

CNTR IN 2

CNTR IN 3

COMMON 13 PULSE OUTPUT + 14

PULSE OUTPUT – 15

ANALOG OUT + 16

ANALOG OUT –

17 NC 18 COM

COM

AC LINE

AC LINE24

RLY1

RLY2

25 NC 26 27 28 29 30

DC + DC -

FLOW

SEE USER MANUAL

COM RLY3 NO NC COM RLY4 NO

POWER IN

4.2 Typical Rate/Total Wiring:

FLOW SENSOR

with magnetic pickup

Remote Electronic Counter

Signal

Common

123456

Alarm Relay 1

Alarm Relay 2

115 VAC

DC OUTPUT

PULSE IN 1

PULSE IN 2

COMMON

NOT USED

NOT USED NOT USED

CNTR IN 1

CNTR IN 2

CNTR IN 3

COMMON

12 13 PULSE OUTPUT + 14

PULSE OUTPUT -

ANALOG OUT +

ANALOG OUT –

17 NC

{ {

18 COM 19 20 21 22

RLY1 NO NC COM

RLY2 NO

AC LINE AC LINE24

25 NC 26 27 28 29 30

DC + DC -

FLOW

SEE USER MANUAL

COM RLY3 NO NC COM RLY4 NO

POWER IN

SUPERtrol-I LE Flow Computer

5. UNIT OPERATION

5.1 Front Panel Operation Concept for Run Mode

The SUPERtrol-I LE is fully programmable through

PRE 1

RATE

the front panel. Please review the following usage summary before attempting to use the instrument.

TOTAL

START

GRAND6SCROLL7PRE 2

STOP

HELP

On-line help is provided to assist the operator in using this product. The help is available during RUN and SETUP modes simply by pressing the HELP key. The HELP key is used to enter decimals when entering numeric values.

FUNCTION KEYS

In the RUN mode, several keys have a special, direct access feature, to display an item of interest (i.e. RATE, TOTAL, PRE 1, etc.). Press the key to view your choice. Press the SCROLL key to return to scrolling display.

CLEARING TOTALIZER

To clear the total, you must press the TOTAL Function Key 3 times quickly to select the total. Once the total is selected, press the CLEAR key to reset the total. The operator will be prompted to enter password if the unit is locked. NOTE: In the Batcher Mode, simply press the CLEAR key to reset the total (the batcher must be stopped or finished

batching). It is not necessary to press the TOTAL Function Key first.

–

CLEAR•MENU

HELP

ENTER

CLEARING GRAND TOTAL

To clear the grand total, you must press the GRAND Function Key 3 times quickly to select the grand total. Once the grand total is selected, press the CLEAR key to reset the grand total. The operator will be prompted to enter password if the unit is locked.

PRESET KEYS

In the RUN mode, PRE 1, PRE 2, F1 and F2 keys are used to view and/or change the preset setpoints. To view the Presets, simply press the desired Preset key once. Rapidly press the Preset keys 3 times, then press the Clear key for direct editing of the preset setpoints.

SCROLL

Rapidly press the Scroll key 3 times to setup a display list. Press the CLEAR key to remove old scroll list. Press the function key for the item you wish to add Use the ∆ ∇ keys to assign the line. Press the ENTER key to save scroll list.

The PRINT key is used to print on demand. When the PRINT key is pressed, a user defined list of data (TOTAL, RATE, PRE 1, etc.) is sent to the RS232 port. A timed message of "PRINTING" will be displayed to acknowledge the print request.

SPECIAL BATCHING KEYS

The START and STOP keys are used only when batching to start and stop batches. The CLEAR key will clear the total without first pressing the TOTAL key (unit must be stopped). All other keys work the same in both Rate/Total mode and Batch mode. The Start and Stop keys operation are set by the control input settings. The Start options are: START or RESET/START. The Stop options are: STOP or STOP/RESET.

MENU KEY

The MENU key is used to enter the Setup and Test modes. Press the MENU key to enter the Setup and Test modes. The user will be prompted to enter a password if the unit is locked. (See section 6 for Setup mode, section 8 for Test mode). The MENU key is also used as "escape" in Setup and Test Programming. Pressing the MENU key while programming in the Sub-Menu groups will backup the display to that Sub-Menu group heading. Pressing the MENU key while viewing the Sub-Menu groups will backup the display to the Top Level Menu.

ACKNOWLEDGING ALARMS

Most alarm messages are self-clearing. Press the ENTER key to acknowledge and clear alarms.

NOTE: Some keys and functions are password protected. Enter the password to gain access. The passwords are

factory set as follows: Operator = 0; Supervisor = 2000

TIME/DATE

The TIME key is reserved for displaying Time and Date. To View the Time or Date, press the TIME key once.

SUPERtrol-I LE Flow Computer

5.2 General Operation

The unit can display: Rate, Total, Grand Total, Presets and Time of Day. The unit can be programmed to perform Ratemeter/Totalizer or Batching functions.

5.3 Ratemeter/Totalizer Operation

The Ratemeter/Totalizer mode is used primarily to monitor flowrate and accumulated total. The relays can be used to trigger on flow rate, total, or alarms.

5.3.1 Password Protection for Rate/Total mode

After an Operator and/or Supervisor Password is entered in the setup mode (see section 6.3, SETUP PASSWORD submenu), the unit will be locked. The unit will prompt the user for the password when trying to perform the following functions:

Clear Total Clear Grand Total Enter Menu Edit Preset 1 (PRE 1 Key) Edit Preset 2 (PRE 2 Key) Edit Preset 3 (4 Key) Edit Preset 4 (9 Key)

The Supervisor password should be reserved for supervisors. The Supervisor password will allow access to restricted areas of the Setup and Test menus.

5.3.2 Relay Operation in Rate/Total mode

Up to four relays are available (two standard) for alarm outputs. The relays can be assigned to trip according to rate, total or general system alarms. The relays can be programmed for low or high alarms. Preset 1 (RLY1) and Preset 2 (RLY2) are easily accessible by pressing the PRE 1 or PRE 2 key on the front panel. Preset 3 and Preset 4 are accessible by pressing the 4 or 9 keys.

5.3.3 Pulse Output in Rate/Total mode

The isolated pulse output (open collector) is assigned to Volume Total. The pulse output duration can be set for 10mS (50 Hz max) or 100mS (5 Hz max). A pulse output scale factor (pulse value) can be set to scale the pulse output. The pulse output is ideal for connecting to remote totalizers or other devices such as a PLC. See section 1.3 for electrical specifications.

5.3.4 Analog Output in Rate/Total mode

The analog output is menu assignable to correspond to the Volume Rate or Volume Total. The analog output is ideal for "trend" tracking using strip chart recorders or other devices.

SUPERtrol-I LE Flow Computer

5.3.5 RS-232 Serial Port Operation in Rate/Total mode

The RS-232 serial port can be used for programming (using the Setup Disk) or for communicating to printers and computers in the Operating Mode (Run Mode).

PC Communications:

The Setup Disk also allows the user to query the unit for operating status such as Flow Rate, Flow Total, Presets, etc.

Operation of RS-232 Serial Port with Printers:

Transaction Printing For transaction printing, the user defines the items to be included in the printed document (see section

6.3.20 SET DATA OUTPUT, Select_list). The transaction document can be initiated by pressing the PRINT key or by a remote contact closure.

Data Logging In data logging, the user defines the items to be included in each data log (see section 6.3.20 SET PRINTER OUTPUT, Select_list). The user can also select when (time of day) or how often (print interval) the data log is to be made (see section 6.3.19 SET PRINTER OUTPUT, Configure).

System Setup and Maintenance Report The system setup and maintenance report lists all of the instrument setup parameters and usage for the current instrument configuration. The audit trail information and a status report is also printed. This report is initiated in the Test menu (see section 8.2.3 PRINT SYSTEM SETUP).

5.3.6 RS-485 Serial Port (optional)

RS-485 Port Description:

The optional RS-485 card utilizes Modbus RTU protocol to access a variety of process parameters and totalizers. The Relays can be controlled via Modbus. In addition, action routines can be executed. For further information, contact factory and request RS-485 Protocol manual.

Operation of Serial Communication Port with PC

The flow computer's RS-485 channel supports a number of Modbus RTU commands. Modbus RTU drivers are available from third party sources for a variety of Man Machine Interface software for IBM compatible PC's.

The user reads and writes information from/to the RS-485 using the Modbus RTU commands. The SUPERtrol-I LE then responds to these information and command requests.

Process variables and totalizers are read in register pairs in floating point format. Time and date are read as a series of integer register values. Alarms are individually read as coils. Action routines are initiated by writing to coils.

SUPERtrol-I LE Flow Computer

5.4 Batcher Operation

The Batcher mode is used primarily to control batches. The main difference between the Batch mode and Rate/Total mode is the relay operation. The Batch mode allows the operator to "START" the unit via the front panel or remote input. Once started, the relays (RLY1 & RLY2) will energize and send a contact to a flow control device (i.e. solenoid valve or pump). The flow sensor will send a signal to the unit and total accumulation will begin. Just before the end of batch, when the Prewarn value (PRE 2) is reached, Relay 2 will drop out (this is ideal for flow slow down). When the final Batch amount (PRE 1) is reached, Relay 1 will drop out and the Batch is complete.

Several messages will be displayed during normal batch operation (i.e. Batch Fill, Batch Stopped). The keypad is disabled for the duration of these timed messages (approx. 2 sec).

5.4.1 Batcher Configuration.

When the unit is programmed for batch mode, several batch operation choices are available. These choices include: EZ Preset, Up or Down Counting, Maximum Batch Preset, Batch Overrun Compensation, Auto Batch Restart, Time Delay, Flow Signal Timeout, Maximum Drain Time, Slow Start Quantity, Start or Reset/ Start, and Stop or Stop/Reset.

EZ Preset

A selectable mode of batching where user can press "PRE 1", then "ENTER" then the quantity to be batched, then "START" for a quick enter-start sequence.

Batch Count Mode

The Batch Count Mode allows the user to choose whether the unit will batch up to a preset value or batch down from a preset value to zero.

Maximum Batch Preset

The Maximum Batch Preset allows the user to program the Maximum Batch value allowed to be entered by the operator. If an operator should try to program a batch higher then this value, the unit will not allow the value to be entered and will prompt the user with an error message saying that the permitted Maximum Batch Preset size has been exceeded.

Batch Overrun

The Batch Overrun is used for batch applications that have slow responding valves and a consistent batching flowrate. When the Batch Overrun is set, the unit will compensate for batch overruns by computing an averaged overrun value from the last four batches. This average is used to internally adjust the batch setpoint to minimize overrun. The maximum drain time must be set greater than the slowest valve response time for proper operation of this feature.

Auto Batch Restart

The Auto Batch Restart function allows the user to set an amount of time to automatically restart a batch after the completion of a batch. This time can be set from 1 to 99 seconds.

Flow Signal Timeout

The Flow Signal Timeout allows the user to enter a timeout of 0 to 99 seconds. If a batch is “Filling” and zero flow persists for more than the user entered time then the batch will be aborted. This prevents over flows due to faulty flow sensors and/or wiring.

Maximum Drain Time

The unit declares that a batch is “done” when the flow rate equals “0”. A flow rate may be present long after the Preset Relay de-energizes due to slow reacting valves or leaky valves. The Maximum Drain Time allows the user to enter an amount of time (0 to 99 seconds) to wait before declaring “Batch Done”. After the Preset Batch quantity is reached, the unit will declare “Batch Done” when the flow rate is “0” or the Maximum Drain Time has expired. The batch data will then be available for printing and datalogging.

Slow Start Quantity

The Slow Start Quantity is a function that allows an amount to be entered for a Slow Start of fill. This function requires two stage valve control. RLY 1 (slow flow) will energize for Slow Start and RLY 2 (fast flow) will energize after the Slow Start Quantity has been delivered. This helps reduce turbulence when filling an empty container.

SUPERtrol-I LE Flow Computer

START, RESET/START and STOP, STOP/RESET

When configuring the control inputs, Control Input1 can be set for START or RESET/START. When set for START, the unit will start batching when a signal is applied to Control Input 1 or the front panel Start key is pressed. A separate Reset signal or CLEAR key depression must be used to clear the previous batch total. When set for RESET/START, the unit will automatically reset then start when a signal is applied to Control Input1 or the front panel Start key is pressed (provided that the pervious batch was completed). If a previous batch was stopped during a batch cycle, the unit will Start from where it was stopped. Control Input 2 can be set for STOP or STOP/RESET. When set for STOP, the unit will stop batching when a signal is applied to Control Input 2 or the front panel Stop key is pressed. A separate Reset signal or CLEAR key depression must be used to clear the batch total. When set for STOP/RESET, a running batch will stop when a signal is applied to Control Input 2 or the front panel Stop key is pressed. If the unit is Stopped or after a completed batch, the unit will reset when a signal is applied to Control Input 2 or the front panel Stop key is pressed.

NOTE: Applying a voltage level to Control Input 2 will inhibit and override all Start inputs in either mode.

5.4.2 Password Protection for Batcher Mode

After an Operator and/or Supervisor Password is entered in the setup mode (see section 6.3, SETUP PASSWORD Sub-menu), the unit will be locked. The unit will prompt the user for the password when trying to perform the following functions:

Clear Grand Total Enter Menu

The Supervisor password should be reserved for supervisors. The Supervisor password will allow access to restricted areas of the Setup and Test menus.

The passwords are factory set as follows:

Operator = 0 Supervisor = 2000

NOTE: A password of "0" should not be used since it will leave the unit unlocked and open to accidental

changes.

5.4.3 Relay Operation in Batcher mode

Up to four relays are available (two standard) for alarm outputs. Preset 1 (RLY1) is reserved for batch amount, Preset 2 (RLY2) is reserved for prewarn. (see section 5.4 Batcher Operation for Relay 1 & Relay 2 functions) Preset 1 (RLY1) and Preset 2 (RLY2) are easily accessible by pressing the PRE 1 or PRE 2 key on the front panel. Preset 3 and Preset 4 are accessible by pressing the 4 or 9 keys. Relays 3 and 4 can be assigned to trip according to rate, total, overrun or alarm. When Rate is selected the relays can be programmed for low or high alarms. When N.A (not assigned) is selected, the relays may be tripped via serial commands. Alternately, Preset 2, 3 or 4 may be used to enter alternate information and can be printed in the print list for transaction history.

5.4.4 Pulse Output in Batcher mode

5.4.5 Analog Output in Batcher mode

The analog output is menu assignable to correspond to the Volume Rate or Volume Total. The analog output is ideal for "trend" tracking using strip chart recorders or other devices.

SUPERtrol-I LE Flow Computer

5.4.6 RS-232 Serial Port Operation in Batcher mode

The RS-232 serial port can be used for programming (using the Setup Disk) or for communicating to printers and computers in the Operating Mode (Run Mode).

PC Communications:

The Setup Disk also allows the user to query the unit for operating status such as Flow Rate, Flow Total, Presets, etc.

Operation of RS-232 Serial Port with Printers:

Transaction Printing For transaction printing, the user defines the items to be included in the printed document (see section

6.3.20 SET DATA OUTPUT, Select_list). The transaction document can be initiated by pressing the PRINT key, by a remote contact closure or print at end of batch.

5.4.7 RS-485 Serial Port (optional)

RS-485 Port Description:

The optional RS-485 card utilizes Modbus RTU protocol to access a variety of process parameters and totalizers. Batches/Relays can be controlled remotely via Modbus. In addition, action routines can be executed. For further information, contact factory and request RS-485 Protocol manual.

Operation of Serial Communication Port with PC

The user reads and writes information from/to the RS-485 using the Modbus RTU commands. The SUPERtrol-I LE then responds to these information and command requests.

SUPERtrol-I LE Flow Computer

6. PROGRAMMING

6.1 Front Panel Operation Concept for Program Mode

The SUPERtrol-I LE is fully programmable through the front panel. Please review the following usage summary before attempting to use the instrument.

START

STOP

TOTAL

GRAND6SCROLL7PRE 2

RATE

PRE 1

CLEAR•MENU

HELP

–

ENTER

Setup Mode:

MODE CHANGES

Pressing the MENU key will offer selections of RUN, SETUP, TEST. RUN is the normal operating mode for the instrument. SETUP offers various sub-menus used for instrument setup. TEST offers various sub-menus for Test, Calibration and System Start-up testing.

Sub-menu GROUP NAVIGATION

Use the UP and DOWN arrow keys to navigate up and down through the Sub-Menu groups when in the SETUP or TEST mode. Press the ENTER key to enter a desired setup or test Sub-Menu group.

SELECTION OF ITEM

During setup, the unit will often offer multiple choices for a given topic. The topic prompt appears on the top line of the display. The choices are shown on the lower line of the display.

To select an item, press the key (in top row) beneath the desired choice. The selected choice will blink. Press the ENTER key to accept the selected choice.

NUMERIC ENTRY

The keys labeled "0 - 9", "–", ".", CLEAR and ENTER are used to enter numerical values. A leading 0 will assume that you intend to enter a minus "–" sign. Press the CLEAR key to clear the existing value and to enable editing. Enter the digits of your desired values, press ENTER to accept the value.

TEXT CHARACTER ENTRY

Some setup items (i.e. Descriptors, Units Label) require the user to enter text characters. Press CLEAR to enable editing. The UP and DOWN arrow keys are used to scroll through the available character sets for each individual character. Press the ENTER key to accept the character and advance to the next character.

SUPERtrol-I LE Flow Computer

6.2 EZ Setup

The EZ Setup routine is a quick and easy way to configure the unit for the most commonly used instrument functions. This setup assumes that you are measuring Volumetric Flow using a high level, DC Pulsing flow sensor. Entering the EZ Setup mode automatically sets many features. This may cause any previously programmed information to be lost or reset. For a complete customized configuration, see sections 6.3 and 6.4.

Menus Display Notes

6.2.1 TOP LEVEL SETUP MENU

6.2.2 EZ Setup Sub-menu Groups

SELECT OPERATE STATE Run Setup Test

ENTER

SELECT EZ SETUP

ENTER

CHANGES ALL SETUPS ! No Yes

ENTER

INSTRUMENT TYPE Rate/Tot Batch

ENTER

RATE TIME BASE Sec Min Hour Day

ENTER

RATE DEC PLACES(0-4)

ENTER

TOTAL VOLUME UNITS

gal

ENTER

TOT DEC PLACES (0-3)

ENTER

K_FACTOR TYPE Avg LinTbl

ENTER

AVERAGE KA-FACTOR ####### P/gal

Select Setup to enter the instrument setup routine.

Press ENTER to begin EZ Setup routine.

Confirm that you want to run EZ Setup. Caution: Any previous program settings may be lost or reset.

Instrument Type.

Select the appropriate rate time base.

Enter the desired rate decimal location. 0-4 decimal places allowed.

Enter the desired totalizer units label.

Enter the desired totalizer decimal location. 0-3 decimal places allowed.

Enter the desired K-Factor Type.

If Average selected, Enter the desired Average K-Factor.

LINEAR TABLE KA Fre01:######## Hz

ENTER

LINEAR TABLE KA

Through

16 Points

KA--01:##########

ENTER

FS ANALOG OUT 20mA #######gal/m

ENTER

RATE 00.0 gal/m TOTAL 0 gal

If LinTbl selected, Enter the desired frequency/ K-Factor pair for each point in the Linearization Table. Enter a frequency of 0 for any point other than Fre01 to exit Linearization Table setup.

Enter the desired full scale setting for the analog output.

Return to Run Mode

SUPERtrol-I LE Flow Computer

6.3 Setup Menus

Sub-menus

6.3.1 Top Level Setup Menu

6.3.2 Sub-menu Groups

START

Display Notes

SELECT OPERATE STATE Run Setup Test

ENTER

SELECT EZ SETUP

STOP

INSTRUMENT TYPE

STOP

SETUP INDICATORS

STOP

SETUP FLOW INPUT

STOP

SETUP PULSE OUTPUT

STOP

SETUP ANALOG OUTPUT

START

Select Setup to enter the instrument setup routine.

Refer to Page 17 for Details.

Refer to Page 19 for Details

Refer to Page 21 for Details.

Refer to Page 22 & 23 for Details.

Refer to Pages 24 for Details.

STOP

START

SETUP RELAYS

STOP

START

SETUP CONTROL INPUTS

STOP

START

SETUP REALTIME CLOCK

STOP

START

SERIAL USAGE

STOP

START

SETUP DATALOG/PRINT

STOP

START

ADMINISTRATIVE SETUP

STOP

START

SETUP NETWORK CARD

Refer to Page 25 & 26 for Details.

Refer to Page 27 for Details.

Refer to Page 28 for Details.

Refer to Page 29 for Details.

Refer to Pages 30 & 31 for Details.

Refer to Page 31 for Details.

Refer to Page 32 for Details. (Setup Network Card menu will only appear on units equipped with a network card)

6.4 Setup Sub-Menus

6.4.1 SELECT EZ SETUP

SELECT EZ SETUP

STOP

START

Advance To

INSTRUMENT TYPE

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

Refer to page 17 for EZ Setup routine.

Press the DOWN (stop) key to advance to Instrument Type. Press the UP (start) key to advance to Administrative Setup.

6.4.2 INSTRUMENT TYPE

Rate/Tot

Batch

INSTRUMENT TYPE

ENTER

INSTRUMENT TYPE Rate/Tot Batch

STOP

ENTER

START

Advance To

SELECT FLOW EQUATION

INSTRUMENT TYPE

ENTER

INSTRUMENT TYPE Rate/Tot Batch

STOP

ENTER

START

SELECT PRESET TYPE Standard EZ-Preset

STOP

ENTER

START

BATCH COUNT MODE Up Down

STOP

ENTER

START

Continue On Next Page

Press ENTER to enter Instrument Type sub-menus.

Press ENTER when Rate/Total is flashing to configure the instrument as a Ratemeter/Totalizer.

If Rate/Tot selected, advance to Setup Indicators.

Press ENTER to enter Instrument Type sub-menus.

Press ENTER when Batch is flashing to configure the instrument as a Batcher.

Select Standard for standard preset operation. Select EZ-Preset for quick preset editing mode. (see section

5.4.1 Batcher Configuration.)

Select UP to Reset to 0 and count up to preset. Select DOWN to reset to Preset and count down to 0.

SUPERtrol-I LE Flow Computer

NotesSub-menus

6.4.2 INSTRUMENT TYPE (continued)

See Section 5.4, see also Max. Drain Time note.

NOTE: Max Drain time value must be greater than the slowest valve response time when using Batch Overrun Comp.

MAXIMUM BATCH PRESET

1000.0 gal

STOP

ENTER

START

BATCH OVERRUN COMP Off On

STOP

ENTER

START

AUTO BATCH RESTART Off On

STOP

ENTER

START

TIME DELAY (1-99sec) 10

STOP

ENTER

START

FLOW SIGNAL TIMEOUT 10

STOP

ENTER

START

MAXIMUM DRAIN TIME 10

ENTER

SLOW START QUANTITY 10

ENTER

Advance To

SETUP INDICATORS

Enter the maximum allowable Batch Preset. The operator will not be able to enter a batch preset larger than this value.

Select ON to set the unit to operate using a Batch Overrun Compensation routine. Select OFF to inhibit Batch Overrun Compensation routine.

Select On to enable the Auto Batch Restart. This will automatically restart the unit at the end of each batch run (after programmed timeout). Select Off to disable.

Enter Time Delay for Auto Batch Restart. When a batch is completed, the next batch will start automatically after the amount of time entered here has elapsed.

Enter a timeout of 0 to 99 seconds. If a batch is “Filling” and zero flow persists for more than this time, the batch filling will be stopped.

Enter time (0-99 sec.) for Max. Drain Time. After batch quantity is reached, “Batch Done” is declared when the flow rate is “0” or the Maximum Drain Time has expired.

Enter a quantity for a Slow Start up. RLY 1 (slow flow) will energize for Slow Start and RLY 2 (fast flow) will energize after the Slow Start Quantity has been delivered. Both RLY 1 and RLY 2 are energized during "fast fill".

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.3 SETUP INDICATORS

(Total)

6.4.4 SETUP INDICATORS

(Rate)

SETUP INDICATORS

ENTER

SETUP INDICATORS Total Rate

ENTER

TOTAL DESCRIPTOR

TOTAL

ENTER

TOTAL VOLUME UNITS gal

ENTER

TOT DEC PLACES (0-3)

ENTER

Advance To

SETUP INDICATORS

(Rate)

SETUP INDICATORS Total Rate

ENTER

RATE TIME BASE Sec Min Hour Day

ENTER

Press ENTER to begin setup of the Indicators

Press ENTER when Total is flashing to configure the Totalizer Indicators

Enter the desired Total Descriptor text

Enter the desired Volume Units Label text for the Totalizer.

Select the desired Total Decimal Place. 0-3 decimal places allowed.

Press ENTER when Rate is flashing to configure the Ratemeter Indicators

Select the desired Rate Time Base.

RATE DESCRIPTOR

RATE

ENTER

RATE DEC PLACES(0-4)

ENTER

RATE AVG FILTER

ENTER

QUICK UPDATE %

ENTER

Advance To

SETUP FLOW INPUT

Enter the desired Descriptor text for the Ratemeter.

Select the desired Rate Decimal Place. 0-4 decimal places allowed.

Enter desired Rate Averaging Filter. (see Definitions for more details)

Enter desired Percent of Change for Quick Update. If the current flowrate deviates by an amount greater than the percentage value entered, the Rate Averaging is inhibited. (See Definitions for more details.)

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.5 SETUP FLOW INPUT

(Pulse - chA & chA=chB)

NOTE:

chA = Single Pulse chA=chB = Pulse

checking for missing

pulses Qx1 = Quadrature Qx2 = Quadrature x 2

SETUP FLOW INPUT

ENTER

EXCITATION VOLTAGE 5v 12v 24v

ENTER

PULSE INPUT TYPE chA chA=chB Qx1 Qx2

ENTER

PULSE TRIGGER LEVEL 10mV 100mV 2.5V

ENTER

LOW PASS FILTER 40Hz 3KHz 20KHz

ENTER

INPUT TERMINATION Pullup Pulldown None

ENTER

MAX WINDOW (1-99)

ENTER

Press ENTER to begin setup of Flow Input.

Select the desired Excitation Voltage for your flow sensor. Caution: Improper selection may cause damage to sensor

Enter the desired Pulse type. See side note.

Select the desired Input Pulse Trigger Level.

Select the desired Low Pass Filter. (Max. Count Speed). Use 3kHz with turbine flowmeters.

Select the proper input termination.

Enter the desired Maximum Sample Window Time (1-99

sec) that can occur at the lowest flowrate. Use 1 second for turbine flowmeters.

K_FACTOR TYPE Avg LinTbl

ENTER

AVERAGE KA-FACTOR

####### P/gal

ENTER

LINEAR TABLE KA Fre01:######## Hz

LINEAR TABLE KA KA--01:####### P/gal

Through

16 Points

ENTER

LOW FLOW RATE ALARM

####### gal/m

ENTER

HIGH FLOW RATE ALARM

####### gal/m

ENTER

Advance To

SETUP PULSE OUTPUT

Enter the desired K-Factor Type.

If Avg selected, Enter the desired Average K-Factor in the units requested.

If LinTbl selected, Enter the desired frequency/ K-Factor pair for each point in the Linearization Table. NOTE: Enter 0 for Fre value of any point (other than

Fre01) to exit the routine and use the values entered up to that point.

Enter the desired volumetric Low Rate Alarm. This will trigger an alarm message if alarm conditions occur. The relays are not affected.

Enter the desired volumetric High Rate Alarm. This will trigger an alarm message if alarm conditions occur. The relays are not affected.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.6 SETUP FLOW INPUT

(Pulse - Quadrature, Qx1 or Qx2)

NOTE:

chA = Single Pulse chA=chB = Pulse

checking for missing

pulses Qx1 = Quadrature Qx2 = Quadrature x 2

SETUP FLOW INPUT

ENTER

EXCITATION VOLTAGE 5v 12v 24v

ENTER

FLOW INPUT TYPE

Pulse

ENTER

PULSE INPUT TYPE chA chA=chB Qx1 Qx2

ENTER

PULSE TRIGGER LEVEL 10mV 100mV 2.5V

ENTER

LOW PASS FILTER 40Hz 3KHz 20KHz

ENTER

INPUT TERMINATION Pullup Pulldown None

ENTER

MAX WINDOW (1-99)

ENTER

K_FACTOR TYPE Avg LinTbl

ENTER

AVERAGE KA-FACTOR

####### P/gal

Press ENTER to begin setup of Flow Input.

Select the desired Excitation Voltage.

Press ENTER when Pulse is flashing to configure the flow input for Pulse signals.

Enter the desired Pulse type. See side note.

Select the desired Input Pulse Trigger Level.

Select the desired Low Pass Filter. (Max. Count Speed). . Use 3kHz with turbine flowmeters.

Select the proper input termination.

Enter the desired Maximum Sample Window Time (1-99

sec) that can occur at the lowest flowrate. Use 1Hz for turbine flowmeters.

Enter the desired K-Factor Type.

If Avg selected, Enter the desired Average K-Factor (KA for channel A).

AVERAGE KB-FACTOR

####### P/gal

LINEAR TABLE KA Fre01:######## Hz

ENTER

LINEAR TABLE KA

Through

16 Points

KA--01:####### P/gal

ENTER

LINEAR TABLE KB Fre01:######## Hz

ENTER

LINEAR TABLE KB

Through

16 Points

KA--01:####### P/gal

ENTER

LOW FLOW RATE ALARM

####### gal/m

ENTER

HIGH FLOW RATE ALARM

####### gal/m

ENTER

Advance To

SETUP PULSE OUTPUT

Enter the desired Average K-Factor (KB for channel B).

If LinTbl selected, Enter the desired frequency/ K-Factor pair for each point in the Linearization Table. (channel A) NOTE: Enter 0 for Fre value of any point (other than

Fre01) to exit the routine and use the values entered up to that point.

Enter the desired frequency/ K-Factor pair for each point in the Linearization Table. (channel B) NOTE: Enter 0 for Fre value of any point (other than

Fre01) to exit the routine and use the values entered up to that point.

Enter the desired volumetric Low Rate Alarm. This will trigger an alarm message if alarm conditions occur. The relays are not affected.

Enter the desired volumetric High Rate Alarm. This will trigger an alarm message if alarm conditions occur. The relays are not affected.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.7 SETUP PULSE OUTPUT

6.4.8 SETUP ANALOG OUTPUT

SETUP PULSE OUTPUT

ENTER

PULSE OUTPUT USAGE Off Volume

ENTER

PULSE WIDTH 10mS 100mS

ENTER

PULSE VALUE 1000 gal/P

ENTER

Advance To

SETUP ANALOG OUTPUT

ENTER

ANALOG OUTPUT USAGE Rate Total

ENTER

Press ENTER at this prompt to setup the Pulse Output.

Select the desired Pulse Output Usage.

Select the desired Pulse Width for the Pulse Output.

Enter the desired Pulse Value for the Pulse Output (Volume Units per Pulse).

Press ENTER when Analog is flashing to setup the Analog Output.

Select the desired Analog Output Usage.

ANALOG OUTPUT RANGE 4-20mA 0-20mA

ENTER

LS ANALOG OUTPUT

0.0 gal/m

ENTER

FS ANALOG OUT 20mA

1000.0 gal/m

ENTER

ANALOG OUT DAMPING

0.0

ENTER

Advance To

SETUP RELAYS

Select the desired current range for the Analog Output.

Enter desired Analog Output Low Scale Value. NOTE: Units label will correspond with output usage

type selected.

Enter desired Analog Output Full Scale Value.

Enter the desired Analog Output Damping Constant. See Definitions for additional information.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.9 SETUP RELAYS (Relay 1 & Relay 2)

NOTE:

In Batch mode, Relay 1 is reserved for Preset, Relay 2 is reserved for Prewarn or NA (not assigned).

SETUP RELAYS Rly1 Rly2 Rly3 Rly4

ENTER

RELAY 1 USAGE RATE TOTAL NA

ENTER

RELAY 1 DELAY sec 0

ENTER

RELAY 1 DURATION

#####

ENTER

RELAY 1 MODE LO_ALARM HI_ALARM

ENTER

RELAY 1 SETPOINT

####### gal

ENTER

RELAY 1 HYSTERESIS

##### gal/m

ENTER

Select the desired Relay for setup. (Relays 3 & 4 Optional, menus will always appear even if option not installed)

If Relay 1 or Relay 2 Selected, Select Rate, Total or NA.

If Rate selected, enter desired relay activation delay value. Alarm condition must be continuously present for this amount of time before alarm will activate.

If Total Selected, Enter desired Relay Duration.

Select the desired Relay Activation. Low: Relay activates when reading is below setpoint. High: Relay activates when reading is above setpoint.

Enter the desired Setpoint. The Setpoint can be edited in run mode using the PRE 1 key (PRE 2 key for Relay 2).

If Rate, selected, Enter desired Relay Hysteresis.

Advance To

SETUP RELAYS 3, 4

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.9 (Continued) SETUP RELAYS (Relay 3 & Relay 4)

NOTE:

Settings for Relays 3 & 4 may be entered even if relays are not supplied. The settings will still trigger display alarm messages if applicable.

SETUP RELAYS Rly1 Rly2 Rly3 Rly4

ENTER

RELAY 3 USAGE Rate Tot Alrm Ovr NA

RELAY 4 USAGE Rate Tot Alrm NA

ENTER

RELAY 3 DELAY sec 0

ENTER

RELAY 3 DURATION

#####

ENTER

RELAY 3 MODE LO_ALARM HI_ALARM

ENTER

RELAY 3 SETPOINT

####### gal

ENTER

RELAY 3 HYSTERESIS

##### gal/m

ENTER

Select the desired Relay for setup. (Relays 3 & 4 Optional)

If Instrument Type is set for BATCHER, Choose Rate, Total, Alrm, Ovr or NA.

If Instrument Type is set for RATE/TOTAL, Choose Rate, Total, Alrm or NA.

If Rate / Alrm selected, enter desired relay activation delay value.

If Total Selected, Enter desired Relay Duration.

Select the Relay Activation for Rate/Alrm. Low: Relay activates when reading is below setpoint. High: Relay activates when reading is above setpoint.

Enter the desired Setpoint. The setpoint 3 can be edited in the "Run Mode" using the 4 key (9 key for Relay 4).

If Rate, selected, Enter desired Relay Hysteresis.

Advance To

SETUP CONTROL INPUTS

RELAY NOTES & CONSIDERATIONS

1. Relay activation is based on the computed readings not the displayed value. Therefore the display damping factor will not affect the relay response time. The RELAY DELAY feature allows the user to enter a time delay for relay activation. This feature is very useful in applications where short over/ under range conditions are not considered alarm conditions.

2. When INSTRUMENT TYPE is set to batcher, Relay 1 is reserved for PRESET and Relay 2 is reserved for PREWARN or NA (not assigned).

3. Setting the relays to NA (Not Assigned), will allow the relay activation to be controlled via the RS232 Serial and/or RS-485 Modbus ports. It also allows the Presets to be used for other numeric entry values via serial commands which can be part of the print list.

4. Relay 3 and Relay 4 settings may be used to trigger display alarm conditions even if the relays are not supplied.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.10

SETUP CONTROL INPUTS

(RATE/TOTAL)

6.4.11

SETUP CONTROL INPUTS

(BATCH)

SETUP CONTROL INPUTS

ENTER

SETUP CONTROL INPUTS Input1 Input2 Input3

ENTER

CONTROL INPUT1 USAGE INHIBIT_TOTAL NA

CONTROL INPUT2 USAGE RESET_TOTAL NA

CONTROL INPUT3 USAGE Prn Ack KeyLk NA

ENTER

Advance To

SETUP REALTIME CLOCK

SETUP CONTROL INPUTS Input1 Input2 Input3

ENTER

CONTROL INPUT1 USAGE Start Rst/Start NA

Press Enter to begin setup of the Control Inputs.

Select the desired Control Input for setup.

If Control Input 1 Selected, Select Inhibit Total or NA (Not Assigned).

If Control Input 2 Selected, Select Reset Total or NA (Not Assigned).

If Control Input 3 Selected, Select Prn (Print), Ack (acknowledge), KeyLk (Keylock) or NA (Not Assigned). ACK will acknowledge and clear alarms and warning messages. Note: Alarms may reassert themselves if alarm conditions are still present.

Select the desired Control Input for setup.

If Control Input 1 Selected, Select Start ,Reset/Start, NA (Not Assigned).

CONTROL INPUT2 USAGE Stop Stop/Rst NA

CONTROL INPUT3 USAGE Rst Prn KeyLk Ack NA

ENTER

Advance To

SETUP REALTIME CLOCK

If Control Input 2 Selected, Select Stop, Stop/Reset, NA (Not Assigned).

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.12 SETUP REALTIME CLOCK

(Time)

6.4.13 SETUP REALTIME CLOCK

(Date)

SETUP REALTIME CLOCK

ENTER

SETUP REALTIME CLOCK Time Date

ENTER

CLOCK TYPE 24HR 12HR

ENTER

SELECT CLOCK AM/PM AM PM

ENTER

TIME OF DAY HH:MM:SS ##:##:##

ENTER

Advance To

SETUP REALTIME CLOCK

(Date)

SETUP REALTIME CLOCK Time Date

ENTER

DATE: MONTH,DAY,YEAR ##/##/####

ENTER

Press Enter to begin setup of the Realtime Clock.

Select Time to set the time.

Select 24Hr or 12Hr clock

If 12Hr Clock, Enter AM or PM

Enter time of day.

Select Date to enter the date.

Enter the date. (Month, Day, Last two digits of Year, first two digits of year will adjust accordingly)

Advance To

SERIAL USAGE

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.14 SERIAL USAGE

SERIAL USAGE

ENTER

SERIAL HARDWARE RS232 RS485

ENTER

DEVICE ID ##

ENTER

BAUD RATE 300 600 1200 <more>

BAUD RATE 2400 4800 9600 19200

ENTER

PARITY None Odd Even

ENTER

HANDSHAKING None Softwre Hardwre

ENTER

DEVICE LINE FEED <CR> <CR+LF>

ENTER

Press Enter to begin setup of the Serial Port.

Select Serial Hardware type for standard port. RS-232 is standard. (See SETUP NETWORK CARD for RS485 Modbus option)

Select the Device ID (0-99).

Select the desired Baud Rate.

(If <more> selected, additional baud rates are offered. 9600 is standard)

Select the desired Parity. (NONE is standard)

Set the Handshake. (NONE is standard)

Choose end of line termination. Only choose <CR> if your external device automatically assigns a line feed for every <CR> carriage return.

MODEM CONTROL No Yes

ENTER

MODEM AUTO ANSWER No Yes

ENTER

CALL OUT PHONE # 0

ENTER

CALL OUT TIME ##:##:##

ENTER

CALL ON ERROR/ALARM No Yes

ENTER

NUMBER OF REDIALS 0

ENTER

HANGUP IF 2MIN INACT No Yes

ENTER

Select "Yes" if the serial port will be used to control a Hayes compatible modem.

Select the desired Modem Auto Answer mode. Select YES to setup modem to answer incoming calls.

Enter the Call Out Phone Number to be dialed at "Call Out Time" or upon "Call On Error/Alarm".

Enter the time of day to perform Call Out transmission.

Select "Yes" to have the unit perform a Call Out transmission upon error/alarm condition.

Enter the number of redials to be performed on call out time if busy or no answer. (error/alarm tries until connected)

Select "Yes" to perform hang-up if there is inactivity for more than 2 minutes for calls initiated by the SUPERtrol-I LE

Advance To

SETUP DATALOG/PRINT

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.15 SETUP DATALOG/PRINT

(Configure)

SETUP DATALOG/PRINT

ENTER

SETUP DATALOG/PRINT Config Select_list

ENTER

OUTPUT FORMAT Printer Term Dbase

ENTER

PAGE LENGTH [99 max] 99

ENTER

TOP MARGIN [99 max] 3

ENTER

DATALOG ONLY No Yes

ENTER

PRINT TIME HH:MM:SS 00:00:00

ENTER

Press Enter to setup the Datalog/Print information.

Select Config to configure the Datalog/Print information.

Select the type of Output Format.

Enter the desired Page Length. If Printer selected above.

Enter the desired Top Margin. If Printer selected above.

Select Yes to record events to the datalogger only. Events will not be sent to the serial port. Select NO to output immediately and also log data.

Enter Print Time, printer will print at this time every day. Enter 00:00:00 to inhibit print time.

PRINT INTERVAL 00:00:00

ENTER

ENABLE PRINT KEY NO YES

ENTER

PRINT END OF BATCH NO YES

ENTER

Advance To

SETUP DATALOG/PRINT

(Select_list)

Enter Print Interval, (HH:MM:SS) Enter 00:00:00 to inhibit print interval.

Select YES to enable Print Key. Select NO to disable Print Key

Batch mode only. Select Yes to print at end of batch.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.16

SETUP DATALOG/PRINT

(Select_list)

List Items:

TOTAL RATE PRE1 PRE3 GRAND PRE2 PRE4 TIME

6.4.17 ADMINISTRATIVE SETUP

STOP

START

SET DATALOG/PRINT

ENTER

SET DATALOG/PRINT Config Select_list

PRINT LIST ITEMS TOTAL YES

PRINT LIST ITEMS RATE YES

PRINT LIST ITEMS PRE 1 YES

ENTER

PRINT LIST ITEMS DataLog size =001489

ENTER

Advance To

ADMINISTRATIVE SETUP

ENTER

Press enter to begin Setup Datalog/Print routine.

Press enter when Select_list is selected to setup print list.

Use Up and Down arrow keys to view list status. Press the PRINT key to add or remove items from the list. Items marked with Yes will be added to the list, items marked with No will be removed from the list. Press ENTER to accept list when ready

The Select Print List Information display shows the current possible Datalog size after your list has been entered.

Press Enter to begin Administrative Setup.

NOTE: Accessed only with supervisor password.

OPERATOR PASSWORD

****

ENTER

SUPERVISOR PASSWORD

****

ENTER

SOFTWARE VERSION

vxx.xx

ENTER

PRODUCT ORDER CODE SL90xxxxxxx

ENTER

UNIT SERIAL NUMBER 00000

ENTER

SENSOR SERIAL NUMBER 00000

ENTER

Advance To

SETUP NETWORK CARD

Enter Operator Password. (Factory Set to 0) Define a nonzero value for each unit to lock unit and prevent accidental menu changes.

Enter Supervisor Password. (Factory Set to 2000)

This display is used to show the software version of the installed software.

This display is used to show the product order code (model number). Factory set.

This display is used to show the unit's serial number. Factory set.

This display is used to edit and show the sensor's serial number.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

6.4.18 SETUP NETWORK CARD (optional)

SETUP NETWORK CARD

ENTER

SELECT NETW PROTOCOL Mod

ENTER

NETWORK DEVICE ID 1

ENTER

BAUD RATE 2400 4800 9600 19200

ENTER

PARITY None Odd Even

ENTER

Advance To

DO EZ SETUP?

Press Enter to setup Network Card

Select desired Network Protocol. (only Modbus RTU is supported)

Enter the device address on network (00-247).

Select the desired Baud Rate.

Select the desired Parity.

SUPERtrol-I LE Flow Computer

7. Principals Of Operation

7.1 General:

The SUPERtrol-I LE Flow Computer uses several internal calculations to compute the input frequency based on specific data input. Several computations are performed to yield flow or linearized flow.

7.2 Flow Equations:

Uncompensated Flow Computation:

Pulse Input; Average K-Factor

input frequency • time scale factor

Volume Flow =

K-Factor

Pulse Input; Linear Table

input frequency • time scale factor

Volume Flow =

K-Factor (Hz)

Where K-Factor (Hz) is the K-Factor returned at frequency (Hz) from interpolation of the 16 point table.

SUPERtrol-I LE Flow Computer

7.3 Linearization Table

7.3.1 Linearization Table General Information

The Linearization Table is used when the flow input device gives a nonlinear input signal. The unit uses up to 16 different points, as entered by the operator, to form a curve for linearizing the input signal.

Notes:

1) A minimum of three points must be set up.

2) If "0" is entered for the frequency of any point other than point 1, the Flow Computer assumes there are no more points above the points that preceded them. The display will advance to the next setup prompt.

3) If the input frequency is above the highest or below the lowest frequency programmed, the unit will use the last known point for the K factor in computing the resulting actual flow.

4) Frequency- Point pairs should be entered in ascending order of frequency.

7.3.2 Linearization Table for Pulse Inputs

The linearization table for pulse inputs programming is quite simple when values of frequency and K-Factors are known. The Flow Computer asks for 16 different frequencies (Freq) and 16 corresponding K factors (K). It then uses this data to determine what the actual flow is for any given input frequency. Usually the necessary data is provided with the flowmeter.

7.3.3 Linearization Table Interpolation

The Linearization Table routine uses the entered data to determine the K factor for any given input frequency signal. This is done by taking the closest data points above and below the input signal, then using those points to interpolate the K factor (correction factor), then calculating the flow from the data. Below are the formulas.

Parameters: Determine closest point above input signal signal = X, K factor (correction factor) = KA

Determine closest point below input signal signal = Y, K factor (correction factor) = KB

Let input signal = H, unknown K factor (correction factor) = KN

KA KN KB

K factor

Y H

To find KN use this formula:

H - Y X - Y

x (KA - KB) + KB = KN

Input

8. Test, Service and Maintenance

8.1 Test Menus

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

8.1.1

TOP LEVEL TEST MENUS

START

SELECT OPERATE STATE Run Setup Test

ENTER

Audit Trail

STOP

START

Error history

STOP

START

Print System Setup

STOP

START

Keypad Test

STOP

START

Display test

STOP

START

Calibrate

STOP

START

Pulse input test

Select Test to enter the instrument test & calibration routine. NOTE: Supervisor (Service) password required to gain

access to this mode.

Refer to Page 36 for Details.

Refer to Page 37 Details.

Refer to Page 37 for Details.

Refer to Page 37 Details.

Refer to Page 38 Details.

STOP

START

Analog out test

STOP

START

Excitation out test

STOP

START

Pulse out test

STOP

START

Relay Test

STOP

START

Control inputs test

STOP

START

Data logger utility

Refer to Page 38 for Details.

Refer to Page 39 for Details.

SUPERtrol-I LE Flow Computer

8.2 Test Sub-Menus

NotesDisplaySub-menus

8.2.1 Audit Trail Sub-menu Group

8.2.2 Error History Sub-menu Group

Audit Trail

ENTER

Config_Audit nnnnn hh:mm:ss mm/dd/yy

ENTER

Cal_Audit nnnnn hh:mm:ss mm/dd/yy

ENTER

Audit Trail

Error history

ENTER

Error history Flow rate alarm low

ENTER

Error history

Press Enter to view the audit trail information.

The configuration audit trail format: nnnnn= number of critical menu changes, hh:mm:ss; mm/dd/yy = time and date of last change.

The calibration audit trail format: nnnnn= number of calibration changes, hh:mm:ss; mm/dd/yy = time and date of last change.

Press Menu to get back to audit trail top-level menu.

Press Enter to view error history. NOTE: Press Print Key to print Error History. Printout will include time/date of each errors first occurrence.

Press Up/Down arrow keys to scroll through error message history. Press CLEAR to clear entire error log.

Press Menu to get back to error history top-level menu.

8.2.3 Print System Setup Sub-menu Group

Print System Setup

ENTER

Print System Setup Press ENTER to print

ENTER

Print System Setup —— Printing ——-

ENTER

Print System Setup

Press enter key to enter print system setup Sub-menu

Press enter to begin printing the system setup.

This message will display as the data transmission takes place.

Press Menu to get back to print system setup top-level menu.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

8.2.4

Keypad test Sub-menu Group

8.2.5

Display test Sub-menu Group

Keypad test

ENTER

Keypad test Key pressed—> ENTER

ENTER

Keypad test

Display test

ENTER

00000000000000000000 00000000000000000000

ENTER

Display test

Calibrate

Press Enter to enter keypad test

Press the various keys and the display will show the key that was pressed. Press Menu to exit the test

Press Menu to get back to Keypad test top-level menu.

Press Enter to enter display test.

Upon pressing enter the each digit on the display will scroll 0-9 then A-Z. Press menu to exit the test.

Press Menu to get back to Display test top-level menu.

Calibrate Sub-menu group

8.2.6

Calibrate 0 mA Out Sub-menu Group

8.2.7

Calibrate 20mA Out Sub-menu Group

ENTER

Calibrate 0mA out + TB1-15 - TB1-16

ENTER

Calibrate 0mA out Enter mA: 0.00000

ENTER

Calibrate 0mA out + TB1-15 - TB1-16

ENTER

Calibrate 20mA out + TB1-15 - TB1-16

ENTER

Calibrate 20mA out Enter mA: 20.00000

ENTER

Calibrate 20mA out + TB1-15 - TB1-16

ENTER

Calibrate

Connect ammeter to (+) TB1-15, (-) TB1-16. Press enter.

To trim 0mA output: Press CLEAR to enable editing and enter a small negative number (i.e. -0.100) to force a display reading, then clear and enter small quantity measured on your meter.

The display will return to Calibrate 0mA out. Press the down arrow key to advance to Cal. 20mA out or repeat above if necessary.

Connect ammeter to (+) TB1-15, (-) TB1-16. Press enter.

To trim 20mA output: Press CLEAR to enable editing and enter the current reading that is on the ammeter display. Press enter.

The display will automatically return to the Calibrate 20mA out Sub-menu. Calibration is complete.

Press the Menu key to go back to Calibrate top-level menu.

SUPERtrol-I LE Flow Computer

NotesDisplaySub-menus

8.2.8 Pulse input test Sub-menu Group

100mV

20kHz

8.2.9 Analog out test Sub-menu Group

2.5V 10mV

40Hz 3KHz

START

STOP

START

STOP

Pulse input test

ENTER

Pulse input test Trigger level 2.5V

ENTER

Pulse input test count speed 3kHz

ENTER

Pulse input test F1: 0 F2: 0

ENTER

Pulse input test

Analog out test

ENTER

Analog out test *0 4 10 15 20 mA

ENTER

Press Enter key to test the pulse input.

Use the Up/Down arrow keys to select the appropriate trigger level.

Use the Up/Down arrow keys to select the appropriate frequency range.

To check Pulse input accuracy: Use TB1-4 as reference ground, input a frequency F1 on TB1-2, frequency F2 on TB1-3. The display should show frequency being input. Use a frequency counter to verify input.

Press Menu key to return to Pulse input test top-level menu.

Press Enter to test the analog output.

To simulate analog output: Connect an ammeter to (+) TB1-15, (-) TB1-16. Press the key under the desired current setting to move the asterisk (*). The unit should output the selected current.

8.2.10 Excitation out test Sub-menu Group

Analog out test

Excitation out test

ENTER

Excitation out test *5v 12v 24v

ENTER

Excitation out test

Press Menu key to return to Analog out test top-level menu.

Press Enter to test the excitation output.

To test the excitation output: Connect a voltmeter to (+) TB1-1, (-) TB1-4. Press the key under the desired voltage setting to move the asterisk (*). The unit should output the selected voltage.

Press Menu key to return to Excitation out test top-level menu.

SUPERtrol-I LE Flow Computer

8.2.11

Pulse out test Sub-menu Group

8.2.12 Relay test Sub-menu Group

8.2.13

Control inputs test Sub-menu Group

Pulse out test

ENTER

Pulse out test *0Hz 1Hz 10Hz 20Hz

ENTER

Pulse out test

Relay Test

ENTER

Rly1 Rly2 Rly3 Rly4 Off Off Off Off

ENTER

Relay Test

Control inputs test

ENTER

TB1-9 TB1-10 TB1-11 Off Off Off

ENTER

Press Enter key to test the pulse output.

To simulate a frequency on the pulse output: Connect a frequency counter to (+)TB1-13, (-)TB1-14. Press the key under the desired frequency setting to move the asterisk (*). The unit should output the selected frequency.

Press Menu key to return to Pulse out test top-level menu.

Press Enter to test the relays.

To manually control the relay outputs: Press the key under the desired relay to toggle the relays On/Off. Use an ohmmeter to check the relay contacts.

Press Menu key to return to Relay Test top-level menu.

Press Enter to test the control inputs.

To check the control inputs: Use TB1-12 as reference, input a DC voltage (4-24VDC) signal to TB1-9, TB1-10 and/or TB1-11, The Display will show ON when input is active, OFF when inactive.

8.2.14

Data logger utility Sub-menu Group

Control inputs test

Data logger utility

ENTER

Data logger utility Log 10 958 Max

ENTER

Data logger utility Log 00001 PRT CLR

ENTER

Data logger utility

Press Menu key to return to control input test top-level menu.

Press Enter to access data logger utility.

The displays shows the number of Data Logs. Press the Down arrow key to advance to PRT (print) or CLR (clear) to clear datalog contents.

Press PRINT key to output data logger logs to printer, Press CLEAR key to clear the data logger contents.

Press Menu key to return to Data logger utility top-level menu.

SUPERtrol-I LE Flow Computer

8.3 Internal Fuse Replacement

Instructions:

1. Make sure you follow proper E.S.D. Precautions. All persons performing this replacement must follow proper grounding procedures.

2. Turn the power to the unit off.

3. Disconnect the two piece connector rear terminal block, leaving all connections in place.

4. Remove the unit from the panel.

5. Remove the four machine screws (see fig. 1) which hold the two sections of the case together.

6. The rear section of the case should detach from the rest of the case. With the rear section of the case removed the fuse will be exposed (located near the rear terminal, AC connection).

7. Locate the Fuse F1 (see fig. 2) and unplug the fuse from its socket.

8. Insert the new fuse into the socket. Insure that the pins are fully inserted and straight.

9. Reassemble the case and install the four machine screws which join the two sections of the case.

10.Reinstall the unit into the panel.

11. Reconnect the rear terminal block.

12.Turn the unit back on.

Fuse Specifications:

110 VAC Power: 160mA/250V, TD Wickman 19372-030-k or equivalent 220 VAC Power: 80mA/250V, TD Wickman 19372-026-k or equivalent 12/24 VDC Power: 800mA/250V, TD Wickman 19374-046-k or equivalent

fig. 1 fig. 2

Screws (4 places)

fuse

FUSE

SUPERtrol-I LE Flow Computer

9. RS-232 Serial Port

9.1 RS-232 Port Description:

The SUPERtrol-I LE has a general purpose RS-232 Port which may be used for any one of the following purposes:

Transaction Printing

Data Logging

Remote Metering by Modem (optional)

Computer Communication Link

Configuration by Computer

Print System Setup

Print Calibration/Malfunction History

9.2 Instrument Setup by PC’s over Serial Port

A Diskette program is provided with the SUPERtrol-I LE that enables the user to rapidly configure the SUPERtrol-I LE using a Personal Computer. Included on the diskette are common instrument applications which may be used as a starting point for your application. This permits the user to have an excellent starting point and helps speed the user through the instrument setup.

9.3 Operation of Serial Communication Port with Printers

SUPERtrol-I LE’s RS-232 channel supports a number of operating modes. One of these modes is intended to support operation with a printer in metering applications requiring transaction printing, data logging and/or printing of calibration and maintenance reports.

The system setup and maintenance report list all the instrument setup parameters and usage for the current instrument configuration. In addition, the Audit trail information is presented as well as a status report listing any observed malfunctions which have not been corrected.

The user initiates the printing of this report at a designated point in the menu by pressing the print key on the front panel.

9.4 SUPERtrol-I LE RS-232 Port Pinout

1 Handshake Line

2 Transmit

3 Receive

4 Do Not Use

5 Ground

6 Do Not Use

7 Do Not Use

8 Do Not Use

9 Do Not Use

12345

6789

RS-232 RS-485

12345

6789

12345678910111213141516171819202122

12345

6789

23 24

SUPERtrol-I LE Flow Computer

10. RS-485 Serial Port (optional)

10.1 RS-485 Port Description:

The SUPERtrol-I LE has a an optional general purpose RS-485 Port which may be used for any one of the following purposes:

Accessing Process Parameters

Rate, Temperatures, Density, Setpoints, Month, Day, Year, Hour, Minutes, Seconds, etc.

Accessing System Alarms

System, Process, Self Test, Service Test Errors

Accessing Totalizers

Totalizer and Grand Totalizer

Executing Various Action Routines

Reset Alarms, Reset Totalizers, Print Transaction, Reset Error History, Start, Stop, Clear

10.2 General

The optional RS-485 card utilizes Modbus RTU protocol to access a variety of process parameters and totalizers. In addition, action routines can be executed. For further information, contact factory and request RS-485 Protocol manual for SUPERtrol-I LE.

10.3 Operation of Serial Communication Port with PC

The flow computer's RS-485 channel supports a number of Modbus RTU commands. Refer to port pinout (below) for wiring details. Modbus RTU drivers are available from third party sources for a variety of Man Machine Interface software for IBM compatible PC's.

The user reads and writes information from/to the RS-485 using the Modbus RTU commands. The SUPERtrol-I LE then responds to these information and command requests.

10.4 SUPERtrol-I LE RS-485 Port Pinout

1 Ground

2 Ground

3 Ground

4 TX/RX (+)

5 TX/RX (-)

6 Do Not Use

Connect terminal 7 to either terminal 4 or 8 to provide required cable termination

7 Terminating Resistor (180 Ω)

12345

6789

RS-232 RS-485

12345

6789

12345678910111213141516171819202122

12345

6789

23 24

8 TX/RX (+)

9 TX/RX (-)

SUPERtrol-I LE Flow Computer

11. Flow Computer Setup Software

The SUPERtrol-I LE setup program provides for configuring, monitoring and controlling a SUPERtrol-I LE unit.

Sample applications are stored in disk files. The setup program calls these setup from the program’s memory to either the SUPERtrol-I LE ( (

Saving Opening

(

the file) for later usage. Similarly you can load the setup in program memory from either a disk file

a file) or from the SUPERtrol-I LE unit (Up

Downloading

a file).

Templates

. You can store the

the file) or to a disk file

The program can monitor outputs from the unit while it is running.

The program can reset alarms and totalizers.

For assistance there are mini-helps at the bottom of each screen in the program. There is also context sensitive help available for each screen accessible by pressing the F1 key.

11.1 System Requirements:

IBM PC or compatible with 386 or higher class microprocessor

4 MB RAM

3 MB free disk space

VGA or higher color monitor at 640 x 480

Microsoft

Windows™ 3.1 or 3.11 or Windows 95/98™ or higher

Communication Port - RS-232

RS-232 Cable

11.2 Cable and Wiring Requirements:

The serial communication port on your PC is either a 25 pin or 9 pin connector. No cabling is supplied with the setup software. A cable must be purchased separately or made by the user. It is recommended to purchase a modem cable which matches the available communication port on you PC and a 9 pin male connection for the SUPERtrol-I LE serial port.

11.3 Installation for Windows™

The Setup Software includes an installation program which copies the software to your hard drive.

Insert Setup Disk 1 in a floppy drive.

In the Program Manager, click File, and then select Run.

NOTE: For Windows 95™ Click the Start button, select Run and proceed as follows:

Type the floppy drive letter followed by a colon (:) and a backslash (\), and the word setup. For Example:

a:\setup

Follow the instructions on your screen.

11.4 Using the Flow Computer Setup Software

The setup software window consists of several menu “Tabs”. Each tab is organized into groups containing various configuration and/or monitoring functions. To view the tab windows, simply click on the tab. The previous tab window will be hidden as the new tab window is brought to the foreground.

SUPERtrol-I LE Flow Computer

11.5 File Tab

The File Tab has three sections. Any of the options on this tab can also be accessed from the File Submenu.

The Template Section provides for opening and saving templates. The

Save

and

Save As

buttons provide the standard Windows functionality for dealing with files. The Open button is used to open existing templates.

There are two additional menu items available

only

from the File pulldown menu: Open Existing File and

Open Template.

The

Open Existing File

option allows for creating custom templates using the existing template in memory

as the starting point.

The

Open Template

option will bring up a list of predefined templates that can be loaded into the program.

These predefined templates are useful as a starting point when defining custom templates.

A typical scenario using the setup program would be the following:

• Open up a predefined template from the supplied list

• Choose ‘Save As’ to save this to a new file name

• Proceed to customize the template by making any changes that are needed

• Save the template to disk (if you want to reuse this template)

• Download the template to an attached unit.

The Communications with Flow Computer Section allows the user to upload a template file from the unit or download the program’s current template to the unit.

The Print (report) Section allows the user to:

1. Configure the current Windows printer through the Select Printer option.

2. Print a Maintenance Report through the PC's printer using the Print Maintenance option.

3. Print the current template through the PC's printer using Print Setup option.

11.6 Setup Tab

The Setup tab is where majority of the SUPERtrol-I LE instrument setup modifications are done. The Setup tab is divided into five sections.

System Section: Instrument, Indicators

Input Section: Flow, Control Inputs

Output Section: Pulse, Currents

Relay Section: Relays

Other Settings Section: Administration, Serial Usage, Datalog/Printing, Time Clock

NOTE: Many setup items are enabled or disabled depending on previous setup selections, It is important

to work your way through the above list in the order shown. Be sure to verify your selections when you are through programming to insure that no settings were changed automatically.

SUPERtrol-I LE Flow Computer

11.7 View Tab

The View Tab screen allows for viewing selected group items on the PC in a similar format as shown on the unit display. Data from the following groups can be viewed in the List of Values section:

Process Parameters (i.e. rate, input frequency, K-Factor, mA output)

Totalizers (i.e. total, grand total)

Version

Error Log

The setup software assumes the current setup has been uploaded from the flow computer into the PC. It is important that the setup program and the SUPERtrol-I LE unit are using the same setup information at all times or the data will be inconsistent. It is best to upload or download the setup before using this feature.

To start the viewer, first check the boxes of items to view and then click the start button. The data will appear in the appropriate sections and will be continuously updated. The refresh rate is dependent on the number of items that are being viewed and the baud rate of the connection. Data in the List of Values section can be collapsed by clicking on the ‘minus’ sign in front of the group title. The data can be expanded by clicking on the ‘plus’ sign in front of the group title. If a group is collapsed and data in the group changes on refresh, the group will automatically expand. Changing the view items requires stopping the current viewing, checking the new selections and then restarting the viewer.

If communication errors occur while reading data from the SUPERtrol-I LE device, the word ‘Error’ will appear in place of the actual value. If the connection to the SUPERtrol-I LE is lost, the viewer will time out with a message saying the device is not responding.

The viewer will attempt to communicate with the SUPERtrol-I LE device matching the device ID set in the communications screen. If you are having trouble establishing communication, compare settings for the PC and the flow computer. Also verify the connections between the PC and flow computer.

11.8 Misc. Tab

This tab has three sections: Tools, Actions and Options.

The tools section contains various system administration activities such as creating/modifying the initial sign-on screen and/or print header:

Create Sign-on, Create Print Header

The Actions section is used to send commands to the SUPERtrol-I LE unit:

Reset Totalizers, Reset Alarms, Reset Alarm History

The Options section has the following selections:

Network Card Enable, Network Card Setup

SUPERtrol-I LE Flow Computer

12. Glossary Of Terms

Acknowledge & Clear Alarms

Acknowledge is used to clear alarm relays and remove any visual alarm messages from the display. In the run mode, press the ENTER key or activate CONTROL INPUT 3 (if set for ACK) to momentarily clear alarms and alarm messages. Alarms will reassert themselves if alarm conditions are still present.

Analog Output

The analog signal (4-20mA) that is generated by the SUPERtrol-I LE. It can correspond to the Rate or Total. This output is used primarily for transmission of process information to remote systems.

Audit Trail

The audit trail is used to track the number of changes made to the units setup program and calibration.

Auto Batch Restart

The Auto Batch Restart function allows the user to set an amount of time to automatically restart a batch after the completion of a batch. This time can be set from 1 to 99 seconds.

Batch Count Mode

Batch Count Mode specifies the user preference for count direction. The "Up" selection begins with a value of "0" and counts up until the batch size is reached. The "Down" selection begins with a value equal to the desired batch size and counts down to "0".

Batch Overrun

The SUPERtrol-I LE offers a batch overrun compensation routine. If batch overrun occurs due to slow valve response time, the unit will compensate for the overrun amount on the next batch. This feature can be disabled if desired.

NOTE: A nonzero MAX DRAIN TIME value is also required.

Batcher

An instrument which controls the dispensing of desired batch amounts. Liquid batching systems are usually comprised of a batch controller (batcher), flowmeter and control valve. The batcher opens and closes the valve through the use of relays and measures the amounts of liquid being dispensed via the flowmeter.

Baud Rate

The speed of serial communication transmissions, expressed in bits per second.

Custody Transfer

Weights and Measure metering codes often specify several requirements for instruments and mechanisms to prevent and track changes in the setup of an instrument which may be used in the commercial sale of goods. The SUPERtrol-I LE tracks changes via the Audit Trail.

Data Logger

The capturing of information for later use and the mechanism for specifying the conditions where a capture should be made.

DC Output / Excitation Voltage

An on-board DC power supply used to power peripheral sensors. The SUPERtrol-I LE offers excitation voltages of 5VDC, 12VDC or 24VDC when powered by AC voltage.

Default Value

The value to be used by the instrument if a sensor failure or out of range signal is detected.

EZ Setup

A utility that provides for rapid configuration of an instrument. The SUPERtrol-I LE EZ Setup provides the following:

1) Prompts the user for only critical information.

2) Automatically sets specifications to common uses. After following the EZ Setup procedure, the unit will be operational to perform the basic measurement. The setup can be further customized using the setup menus.

SUPERtrol-I LE Flow Computer

Flow Alarm

A visual indication that the volumetric flowrate is above or below the flow alarm setpoint specified by the user.

Flow Signal Timeout

Flow Equation

A flow control expression or algorithm describing a mathematical equation to be solved by a flow computer in the desired application.

Follow Alarm

Alarm relays which are non latching and whose output state is based solely on the comparison of the current process value, the alarm setpoint (trip point) and hysteresis.

Function Key

A key on a push-button panel or keyboard (whose function is described by the key label) used to perform an instrument function or special routine.

Handshake

A means of controlling the information flow between two pieces of equipment to prevent the sending device from transmitting information at a rate faster than what can be accepted by the receiver.

Hysteresis

The relay hysteresis is a "dead band" setting which allows the relay to remain energized for a given amount below the setpoint. This is used to prevent relay chatter when the process value is near the setpoint value. Example: If the Preset is set at 100, and the hysteresis is set at 10, the relay will energize when the rate, temp or dens. reaches 100, the relay will remain energized until the reading falls below 90.

Input Termination

Input signal lines on digital inputs often require pullup or pulldown resistor configurations to operate properly with different sensor configurations. The SUPERtrol-I LE contains such resistors and may be enabled via the setup menu.

Inhibit Totalizer

"Inhibit Total" is a Control Input 1 setting that is used to stop the totalization. If enabled, a voltage level on control input 1 will inhibit the total as long as the voltage is present. This feature is useful during meter proving and in applications that provide a sensor to signal the flow computer when liquid is present.

K-Factor

A scaling factor derived from the pulses produced by a flowmeter output, expressed in pulses per unit (i.e. pulses/ gallon)

LCD

Abbreviation for: Liquid Crystal Display

Limit Setpoint

An alarm trip point setting which specifies the value or magnitude of a process parameter necessary to activate an alarm indicator or control relay.

Linear Flowmeter

A flow measurement device whose output is proportional to flow.

Linearization

The mathematical correction of a nonlinear device. The SUPERtrol-I LE uses a linearization Table which is made up of input frequency and K-Factor values and makes interpolations of the table to arrive at a "linearized" measurement.

SUPERtrol-I LE Flow Computer

LinTbl

Abbreviation for Linearization Table.

Low Flow Cutoff

A value set at which any flow measurements read below this value will be ignored.

Low Pass Filter

A low pass filter passes low input frequencies while blocking high frequencies. In the SUPERtrol-I LE, this is the maximum input count speed to be encountered in an application. It is expressed in counts per second (Hz).

Maximum Batch Preset

Maximum Drain Time

NOTE: A nonzero MAX DRAIN TIME value must be entered when using batch overrun compensation.

Max Window

The max. window time sets the maximum sample time (1 to 99 sec) for the ratemeter.

Operator Code

An operator password code which authorizes changes to the setup of the instrument but blocks access to the Service/Calibration/Test mode. The operator code also blocks the clearing of the Grand Total.

Parity

A method for detecting errors in transmissions of serial communications data.

Preset

A set point used to trigger the relay outputs of the SUPERtrol-I LE.

Print Interval

The print interval allows the SUPERtrol-I LE to transmit information to the serial port at selectable time intervals.

Process Parameters

Any sensor information which has been scaled to engineering units including Flow, Temperature and Density.

Pulldown (Input Termination)

The termination of an input at which the input is pulled down to ground through a resistor. Inputs that are terminated by this method need to be driven high with a positive voltage pulse.

Pullup (Input Termination)

The termination of an input at which the input is pulled up to a positive voltage through a resistor. Inputs that are terminated by this method need to be pulled low with a sinking current or contact to ground .

Pulse Output

The pulse output of the SUPERtrol-I LE is available for remote accumulation of the total or sent to peripheral devices, such as a PLC. The output can be scaled using the Pulse Output Scaling Constant.

Quad

Abbreviation for Quadrature. Quadrature signals are used for direction control. Two flowmeter signals are output with a 90° phase shift. The counter counts UP when channel A precedes channel B, and counts DOWN when Channel A lags Channel B.

SUPERtrol-I LE Flow Computer

Quick Update %

This feature is used to disable the rate averaging filter when a significant change in the flow rate occurs. The user can enter the percent of change needed to be detected to disable the averaging feature. This is especially useful during start-up and shutdown of flow.

Rate Averaging Filter

The rate averaging filter is used to stabilize fluctuating rate displays. Higher settings provide more averaging for a more stable display. Derived from the equation:

((OLD DATA x "Avg. Filter") + NEW DATA)

("Avg. Filter" + 1)

Ratemeter

Any device used to display the speed of a process. The ratemeter in the SUPERtrol-I LE displays flow rate.

Reset/Start Control Input

In a batching system, a single operator activation of the START key or Control Input 1 will reset the total then start the batch process.

Select Preset Type

This menu selection allows the user to choose between Standard Preset or EZ Preset. Select Standard for standard preset operation. Select EZ-Preset for quick preset editing mode. (see section 5.4.1 Batcher Configuration.)

Single_Pulse

The Single_Pulse setting is used for flowmeters with single pulse outputs.

Slow Start Quantity

The Slow Start Quantity is a function that allows an amount to be entered for a Slow Start up. This function requires two stage valve control. RLY 1 (slow flow) will energize for Slow Start and RLY 2 (fast flow) will energize after the Slow Start Quantity has been delivered. This helps reduce turbulence when filling an empty container.

Stop/Reset Control Input

In a batching system, a single operator activation of the STOP key or Control Input 2 will stop the batch process then reset the total.

Totalizer

Any device which accumulates and displays a total count.

Volume Flow

The measurement of volumetric flow.

SUPERtrol-I LE Flow Computer

13. Diagnosis and Troubleshooting

13.1 Response of SUPERtrol-I LE on Error or Alarm:

Error and warning indications which occur during operation are indicated in the RUN mode alternately with the measured values. The SUPERtrolI LE Flow Computer has three types of error:

TYPE OF ERROR DESCRIPTION

Sensor/Process Alarms Errors detected due to sensor

Self Test Errors Errors detected during self test.

System Alarms Errors detected due to system

failure or process alarm conditions

failure

Some alarms are self clearing. Other alarms require the user to acknowledge and clear the alarm. Press the ENTER button to acknowledged and clear alarms. Alarms may reassert themselves if the alarm condition is still present.

NOTE: A historical error alarm log is available in the "Test Mode".

The following descriptions suggest possible causes and corrective actions for each alarm message.

13.2 Diagnosis Flow Chart and Troubleshooting

All instruments undergo various stages of quality control during production. The last of these stages is a complete calibration carried out on state-of-the-art calibration rigs.

A summary of possible causes is given below to help you identify faults.

SUPERtrol-I LE Flow Computer

Is there an input power supply voltage across Terminals 23 and 24?

Yes

Is the Display Backlight Visible?

Yes

Are the Display Characters Visible?

Yes

Is there a black bar across the display?

Yes

Check the connections according to the circuit diagrams.

Check junction box fuses.

Check/Replace internal fuse. If fuse is OK, Factory Service Required.

The display may not be visible with ambient temperatures below -10 °C Allow the instrument to warm up. Contact factory if necessary

Check line voltage. If voltage is OK, Factory Service Required.

Does the display alternate between blank and sign on message?

Does the display show an error message?

No system or process errors present.

Yes

Check line voltage. If voltage is OK, Factory Service Required.

See section 12.3 for cause and remedy.

SUPERtrol-I LE Flow Computer

13.3 Error & Warning Messages:

13.3.1 Sensor/Process Alarms

Error/Warning Message

TOTALIZER ROLLOVER

RATE OVERFLOW ERROR

PULSE OUT OVERFLOW

FLOW RATE ALARM LOW FLOW RATE ALARM HIGH

BATCH OVERRUN ALARM

MODEM NOT PRESENT

Cause

Displayed when totalizer rolls over

Pulse counter overflowed. The totalizer may have lost counts.

Calculated pulse frequency too large:

• Pulse width setting too long

• Larger pulse scaler needed

Limit value exceeded.

Batch size exceeded by more than set limit.

The setup expects modem usage and a modem is not responding.

Remedy

Acknowledge Rollover, Remedy not required

• Report error to factory

• Check application conditions

• Check wiring

• Adjust pulse value

• Adjust pulse width

• Check process conditions

• Check application if necessary

• Check limit value

• Adjust the limit value if required

• Check valves in system for proper operation and/or leaks

• Check limit value

• Adjust the limit value if required

• Check setup for proper baud rate, parity, etc.

• Check modem connection and cycle power to SUPERtrol-I LE

• Replace modem

13.3.2 Self Test Alarms

SOFTWARE ERROR RESET

EXTENDED PFI LOCKUP

Error/Warning Message

BATTERY LOW WARNING

TIME CLOCK ERROR

CAL CHECKSUM ERROR

SETUP CHECKSUM ERROR

Software error

Unit was operated with an input power level lower than safe operating range for an extended period of time.

Cause

Battery voltage too low

The correct time/date is no longer shown

Calibration constants have been corrupted

The units setup has been corrupted

• Report error to factory

• Check data in unit. Totalizer may have inaccuracies

• Investigate brownout cause.

Remedy

• Replace Battery

• Consult Factory for service information

• Re-enter time and date.

• If error occurs again contact factory

• Report error to factory

Appendix A - Setup Menus

SUPERtrol-I LE Flow Computer

QUANTITY

SLOW START

MAX. DRAIN TIME

TIMEOUT

FLOW SIGNAL

TIME DELAY

QUICK

UPDATE %

RATE

AVERAGE FILTER

PLACES

RATE DECIMAL

HIGH FLOW

RATE ALARM

LOW FLOW

RATE ALARM

CHANGE TABLE

AVERAGE

KB-FACTOR

AVERAGE

KA-FACTOR

HANG-UP IF

2MIN. INACTIVE

REDIALS

NUMBER OF

CALL ON

ERROR/ALARM

CALL OUT TIME

These functions will only appear with appropri-

ate settings in other functions.

CALL OUT NO

ANSWER

MODEM AUTO

RELAY

HYSTERESIS

MODEM CONTROL

LIST ITEMS

SELECT PRINT

CLEAR TOTAL IF

BATCH

PRINT END OF

KEY

ENABLE PRINT

PRINT INTERVAL

RESTART

AUTO BATCH

SETUP MENUS

COMP.

BATCH OVERRUN

PRESET

MAX. BATCH

MODE

BATCH COUNT

TYPE

SELECT PRESET

TYPE

INSTRUMENT

DESCRIPTOR

RATE TIME BASE RATE

PLACES

TOTAL DECIMAL

VOLUME UNITS

TOTAL

DESCRIPTOR

SETUP

INDICATORS

MAX WINDOW K-FACTOR TYPE

INPUT

TERMINATION

FILTER

LOW PASS

TYPE

PULSE TRIGGER

TYPE

PULSE INPUT

VOLTAGE

EXCITATION

PULSE WIDTH PULSE VALUE

USAGE

PULSE OUPUT

DAMPING

ANALOG OUT

FULL SCALE

ANALOG OUT

SCALE

ANALOG OUT LOW

RANGE

ANALOG OUTPUT

USAGE

ANALOG OUPUT

RELAY SETPOINT

RELAY MODE

RELAY

DURATION

RELAY

DELAY

RELAY USAGE

SETUP

RELAYS

1, 2, 3, 4

USAGE

CONTROL INPUT 3

USAGE

CONTROL INPUT 2

USAGE

CONTROL INPUT 1

1, 2, 3

SETUP

CONTROL INPUTS

ENTER DATE

TIME OF DAY

AM/PM

SELECT CLOCK

CLOCK TYPE

TIME CLOCK

SETUP REAL

PARITY HANDSHAKE DEVICE LINE FEED

DEVICE ID BAUD RATE

SERIAL

HARDWARE

PRINT TIME

ONLY

DATALOG

PAGE LENGTH TOP MARGIN

OUTPUT FORMAT

SETUP

DATALOG/PRINT

NUMBER

SENSOR SERIAL

UNIT

SERIAL

NUMBER

CODE

PRODUCT ORDER

VERSION

SOFTWARE

PASSWORD

SUPERVISOR

OPERATOR

PASSWORD

PARITY

BAUD RATE

DEVICE ID

NETWORK

SELECT

NETWORK

PROTOCOL

SELECT

EZ SETUP

INSTRUMENT

START HERE

TYPE

SETUP INDICATORS

SETUP FLOW INPUT

SETUP PULSE OUTPUT

SETUP ANALOG OUTPUT

SETUP RELAYS

SETUP CONTROL INPUTS

SETUP REAL TIME CLOCK

SETUP

SERIAL USAGE

DATALOG/PRINT

ADMINISTRATIVE SETUP

SETUP NETWORK CARD

WARRANTY

DECODING PART NUMBER

Example ST1LE L 1 A 0 P Series:

ST1LE= SUPERtrol-I LE

This product is warranted against defects in materials and workmanship for a period of two (2) years from the date of shipment to Buyer.

The Warranty is limited to repair or replacement of the defective unit at the option of the manufacturer. This warranty is void if the product has been altered, misused, dismantled, or otherwise abused.

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, ARE EXCLUDED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Display Type:

L= LCD V= VFD

Input Type:

1= 110 VAC 2= 220 VAC 3= 12 VDC 4= 24 VDC

Relays:

A= 2 SPDT Relays B= 4 SPDT Relays

Network Card:

0= None (STD) 2= RS-485 Serial Interface

Mounting:

P= Panel Mount N= NEMA 4 Wall Mount E= Explosion Proof W= Wall Mount with Clear Cover

Options:

ET= Extended Tempertaure

-4°F to 131°F (-20°C to 55°C)

Kessler-Ellis Products

10 Industrial Way East

Eatontown, NJ 07724

Toll Free: 800-631-2165

Phone: (732) 935-1320

Fax: (732) 935-9344

http://www.kep.com

KEP SUPERtrol-ILE Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
