Page 1

SQUIRT-R

LOOP POWERED INDICATOR

INSTRUCTION MANUAL

http://www.kep.com

99357 11/28/01

KESSLER-ELLIS PRODUCTS

10 Industrial Way East Eatontown, NJ 07724 800-631-2165 • 732-935-1320 Fax 732-935-9344

Page 2

INDEX

SPECIFICATIONS.............................................................................1

DIMENSIONS....................................................................................2

TYPICAL WIRING .............................................................................2

DEFINITIONS....................................................................................3

PROGRAMMING FLOWCHART.......................................................5

ERROR CODES................................................................................7

BATTERY REPLACEMENT ..............................................................7

DECODING PART NUMBER ............................................................7

WARRANTY ......................................................................................7

Page 3

SPECIFICATIONS

Description:

Featuring up to 4 1/2 digits of display, the Squirt-R is a loop powered indicator capable of accepting either linear or square root 4-20 mA inputs. Numeric password protection prevents unauthorized access to the menu. The easy to read menu prompts make the Squirt-R so easy to program that you will feel comfortable programming it without the use of a manual.

Specifications: POWER:

Loop powered 4-20 mA Internal Battery (Memory only): 3 V 250 mA-H Lithium (2 yr. Standby life)

DISPLAY:

Display: (selectable decimal)

3.5 or 4.5 Digits (selectable), 0.35" High, Display updates once every two seconds.

Rate Descriptors: /SEC, /MIN, /HR or "blank" Units (totalizer) Descriptors: GAL, LIT, FT3, M3, "blank" Low Battery Error Detection: "BAT" descriptor & flashing

display Under/Over range Indication: Display flashes when out

of range

ENVIRONMENTAL:

OPERATING TEMPERATURE

-4°F (-20°C) to + 158°F (70°C) Extended Temp: -22°F (-30°C) to + 158°F (70°C)

HUMIDITY

0 - 90% Noncondensing

ACCURACY: (Rate @ 20°C)

0.1% Full Scale Resolution, ±1 count Temperature Drift:

50 ppm/°C Typical

200 ppm/°C Worst Case

LOCKOUT:

Password: Unauthorized menu changes can be pre-

vented by entering a user selectable password (5 digit number).

Jumper: An internal jumper shunt is provided for applica-

tions requiring a "sealed" menu lockout. Install the jumper to enable the lock. (see Typical Wiring, Pg. 2)

INPUTS:

Signal Input:

Full Scale Range: 4 to 20 mA DC Loop Voltage Drop: 6 Volts Maximum Reverse Polarity Protected Over Current Protection to 60 mA 16 Bit resolution; 1 sample every 2 seconds Low Cutoff supplied to inhibit indications at low flow rates.

CALIBRATION & OPERATION:

Input Scaling: Via front keypad Calibration: Via front keypad Decimal Point: Via front keypad Keypad: 4 tactile feedback keys

MOUNTING: 0- Circuit Board - OEM option (consult factory) 1- Panel Mount - NEMA 4 Front 2- Wall Mount - NEMA 4X Box (SquirtR behind

clear cover)

3- Explosion Proof - Class I, Division I, Groups B, C & D

Class II, Division I, Groups E, F & G

5- Wall Mount - NEMA 4X Box (SquirtR outside

opaque cover)

Page 4

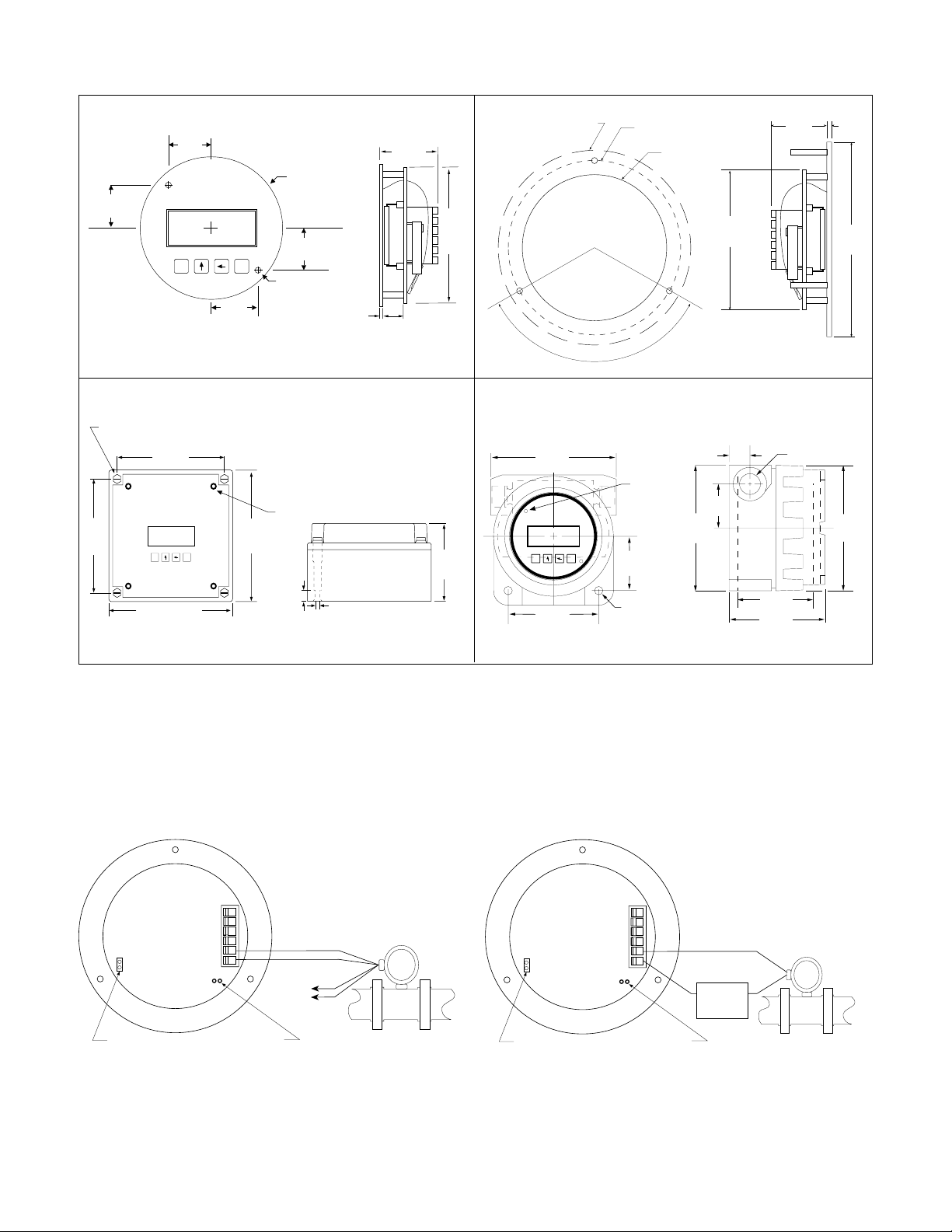

DIMENSIONS

SquirtR-0 SquirtR-1

.992

(25.2)

3.0120 DIAMETER

.900

(22.8)

.900

(22.8)

.992

(25.2)

Mounting holes .125 Drill (2 places) .375 Nylon Spacer Supplied

To access terminals, remove cover and 4 panel screws. Terminals are on bottom side of PC board.

Panel Screws (4 places)

5.125

(130.2)

0.43 (11)

Mounting holes molded directly under cover screws. Max. screw head .29" (Typ. 4 places)

4.47 (113.5)

4.47

(113.5)

5.125 (130.2) TOP VIEW

.10

(2.5)

0.18 (5) SIDE VIEW

.438

(11.1)

1.20

(30.5)

2.875 (73)

3.125 (79.4)

Outside Dotted Line Shows Outside Panel Dimension (4.00" Diameter)

3.582" Dia. Bolt Circle .125" Holes to be 120° Apart

3.062" (77.77) Dia. Cutout

1.20

(30.5)

Panel

4.50

(114.3)

1.44

(36.6)

2.875 (73)

.75

(19)

Connector

Female Plug-In

1/2 NPT (2) HLS. (feed thru hubs)

2.50

(63.5)

3.44

(87.4)

(109.5)

Cutout

120°

SquirtR-3SquirtR-2 & SquirtR-5

To access terminals, unscrew cover and loosen 2 panel screws. Terminals are on bottom side of PC board.

4.50

(114.3)

Panel Screws (2 Places)

(82.55)

3.25

1.95

(49.53)

2 MTG LUGS .31 DIA. HOLES

.10

(2.54)

4.00

(101.6)

4.31

Rear View

Do Not Use 6 Do Not Use 5 Do Not Use 4 Do Not Use 3 Input + (+I) 2

Input - (-I) 1

Install jumper to enable front panel lockout.

1 2 3 4 5 6

4-20mA Loop

To Power Supply

Jump momentarily to initialize unit. Use only after battery replacement.

Loop power must be applied when initializing.

TYPICAL WIRING

Flowmeter

(4-20mA T ransmitter)

Rear View

Do Not Use 6 Do Not Use 5 Do Not Use 4 Do Not Use 3 Input + (+I) 2

Input - (-I) 1

Install jumper to enable front panel lockout.

2-Wire Transmitter4-Wire Transmitter

1 2 3 4 5 6

DC Power Supply 24V Typ.

Jump momentarily to initialize unit. Use only after battery replacement.

Loop power must be applied when initializing.

Flowmeter

(4-20mA T ransmitter)

Page 5

DEFINITIONS

ent code

: (enter code) This prompt will only appear if the panel lock is ON. Enter the password code to enter the program menu. Press the ↑ key to increment each digit. Press the ← key to step to the next digit to the left. Press the E key to enter the 4 digit code. If the entered code is correct, the display will advance to the next menu prompt (CLr tot). If incorrect, the display will return to the run mode.

clr tot

: (clear total) Clears (resets) the totalizer. Press the E key to clear the total and return to

the run mode. Press the M key to skip and advance to the next menu selection.

3 or 4

: (3.5 or 4.5 digits) Choose between 3.5 or 4.5 digit rate display. Press the ↑ key to step to

the desired choice. Press the E key to enter the displayed choice.

dec loc

: (Decimal Location) Sets the decimal location for the display and the

rate lo

& settings. Press the ← key to move the decimal. Press the E key to enter the displayed decimal location.

tot desc

: (totalizer descriptor) This allows you to display one of the available descriptors on the display (GAL, LIT, FT3, M3 or "blank"). Press the ↑ key to select the descriptor. Press the E key to enter the selected descriptor.

rat desc

: (ratemeter descriptor) Sets the rate descriptor. Choose rate per hour, minutes, seconds or "blank". Press the ↑ key to step to the desired choice. Press the E key to enter the displayed descriptor.

rate hi

input

: (input type) Choose between linear (

lin

) or Square Root Extraction (

SQ.u

) . Press the ↑ to

step to the desired input type. Press the E key to enter the displayed choice.

rate lo

: (rate low) Sets the low setting for the 4-20 mA analog input. Key in the low rate value which corresponds to the 4mA input. Press the ↑ key to increment each digit. Press the ← key to step to the next digit to the left. Press the E key to enter the displayed rate lo value.

rate hi

: (rate high) Sets the high setting for the 4-20 mA analog input. Key in the high rate value which corresponds to the 20mA input. Press the ↑ key to increment each digit. Press the ← key to step to the next digit to the left. Press the E key to enter the displayed rate hi value.

lo cut

: (low cutoff) Percent of input span (0.1 to 9.9) below which all inputs will assume the rate

lo value. (With

LoCut

set at 9.9, and

rAteLo

set to 0, all inputs below 5.6mA will read 0) CALCULATION EXAMPLE: Given: Cutoff desired at 9.9% span Compute: mA corresponding to 9.9% = ((9.9%*16mA)/100%) + 4mA = 5.6mA

Page 6

DEFINITIONS

(continued)

cal

: (calibrate; yes or no) Select

YES

to calibrate the unit, select

to skip the calibration procedure. Press the ↑ key to select YES or NO. Press the E key to enter the displayed selection.

cal LO

cal hi

loc code

: (calibrate low) Apply an accurate 4 mA signal to the input and press the E key. If the calibration is successful the unit will display " the display will read "

DONE cal err

" see error codes page 7. Press the M key to continue.

DONE cal lo

". If the calibration is not successful

: (calibrate high) Apply an accurate 20 mA signal to the input and press the E key. If the calibration is successful the unit will display " the display will read "

DONE cal err

" see error codes page 7. Press the M key to continue.

: (lock code) Sets the 4 digit lock code to be entered when the unit prompts

DONE cal hi

". If the calibration is not successful

ent code

This allows the user to gain access to the menu when the unit is locked. Press the ↑ key to increment each digit. Press the ← key to step to the next digit to the left. Press the E key to enter the displayed code. (Factory Default Code = 1000)

Record this number for later use!

loc unit

: (lock unit) Sets the panel lock ON or OFF. Press the ↑ key to select

yes

(ON) or (OFF). Press the E key to enter the displayed selection. NOTE: A hardware jumper menu lockout is also available. (see Typical Wiring Pg. 2)

Page 7

PROGRAMMING FLOWCHART

4.5

0000

234

3.5

NOTE: All menu selections are saved upon exiting the program menu and returning to the run mode. When making

menu changes, do not remove loop power until returning to the run mode.

RUN MODE

ENTER CODE

3.5 or 4.5 DIGITS

DECIMAL LOCATION

If panel lock OFF

4.5

RATE

TOTAL

If panel lock ON

ent code

If code correct

3 or 4

dec loc

If code incorrect

Press the M key to enter the programming menu.

If the panel lock is on, you must enter the 4 digit lock code to gain

access to the menu. (Factory Default Code = 1000)

Press the key to increment each individual digit of the code. Press the Press the E key to enter the displayed code. If the code is correct, display advances to "

returns to run mode

Press the key to step to the desired number of digits. Press the E key to enter the displayed choice. Press the M key to skip and keep the existing choice.

Press the key to step the decimal to the next digit. Press the E key to enter the displayed decimal location. Press the M key to skip and keep the existing decimal location.

key to advance to the next digit.

clr tot

", if not, display

TOTAL

DESCRIPTOR

RATE

DESCRIPTOR

(scaling)

INPUT TYPE

GAL

LIT

FT3

"blank"

SEC

MIN

HRS

"blank"

lin

sq.U

TOT DESC

rat desc

lin

input

Continue On

Press the key to step to the desired totalizer descriptor.

Press the E key to enter the displayed descriptor. Press the M key to skip and keep the existing descriptor.

Press the Press the E key to enter the displayed descriptor. Press the M key to skip and keep the existing descriptor.

Press the Press the E key to enter the displayed choice. Press the M key to skip and keep the existing input type.

key to step to the desired rate descriptor.

key to step to the desired input type.

Page 8

PROGRAMMING FLOWCHART

0000

9999

9.9

yes

0000

yes

Continued From

(continued)

RATE LOW

(4mA)

RATE HIGH

(20mA)

LOW CUTOFF

CALIBRATE

YES or NO

CALIBRATE LOW

(input 4mA, press E)

rate LO

RATE HI

LO CUT

cal

CAL LO

If YES

If NO

Press the key to increment each individual digit of the rate low setting. Press the key to advance to the next digit. Press the E key to enter the displayed value. Press the M key to skip and keep the existing value.

Press the key to increment each individual digit of the rate high setting. Press the Press the E key to enter the displayed value. Press the M key to skip and keep the existing value.

Press the key to increment each individual digit of the low cutoff setting. Press the Press the E key to enter the displayed value. Press the M key to skip and keep the existing value.

Press the Press the E key to enter the displayed choice. Press the M key to skip and proceed to loc code.

Press the E key when 4mA is supplied to the input. Press the M key to skip and proceed to cal hi.

key to advance to the next digit.

key to step to cal YES or cal NO.

CALIBRATE LOW

DONE

CALIBRATE HIGH

(input 20mA, press E)

CALIBRATE HIGH

DONE

LOCK CODE

DON

cal LO

CAL HI

DON

cal HI

loc code

loc unit

Done will appear to signal that the cal lo was successful. Press the M key to advance to cal hi.

Press the E key when 20mA is supplied to the input. Press the M key to skip and proceed to loc code.

Done will appear to signal that the cal hi was successful. Press the M key to advance toloc code.

Press the key to increment each individual digit of the lock code. Press the key to advance to the next digit. Press the E key to enter the displayed code. Press the M key to skip and keep the existing code.

Press the key to step to the desired lock setting. Press the E key to enter the displayed lock setting. Press the M key to skip and keep the existing setting.

RUN MODE

Page 9

ERROR CODES

0000

This error message is displayed when the "RATE LO" value is set equal to or higher than the "RATE HI" value. Press M to re-enter the "RATE LO" and "RATE HI" values.

RATE ERR

This error message is displayed when the "CAL LO" or "CAL HI" input is set at a value which

done

cal ERR

e battry

is out of range (see "CAL LO" and "CAL HI" in programming section for calibrating input

ranges). Press

to re-enter the "CAL LO" and/or "CAL HI" procedure.

If a low battery / invalid memory condition is detected, the display will flash and the "BAT" descriptor will come on. Press displayed. Replace the battery, reinitialize and recalibrate the unit. (see "Battery Replacement" below).

Battery Replacement

Suggested Battery: Panasonic BR2330

The polarity of the battery must be correct. Plus (+) must be on top as signified on the conductor arm.

Note: The unit must be powered by the loop and reinitialized immediately after battery replacement to prevent early battery discharge. All menu items must be re-entered and the unit must be recalibrated.

to acknowledge the condition, E BATTERY will be

DECODING PART NUMBER

Example: SQUIRTR 3

SQUIRTR

Loop powered; Rate Only

Mounting:

0 = OEM 1 = Panel Mount 2 = NEMA 4X Box (SquirtR behind clear cover) 3 = Explosion Proof Housing 5 = NEMA 4X Box (SquirtR outside opaque cover)

Options:

ET = Extended Temp.: -22°F to 158°F (-30°C to 70°C) H2 = 0.875" Hole for mounting styles 2 and 5 HF2 = 0.5" Female NPT Hub fitting H3 = 1.125" Hole for mounting styles 2 and 5 HF3 = 0.75" Female NPT Hub fitting

WARRANTY

This product is warranted against defects in materials and workmanship for a period of two (2) years from the date of shipment to Buyer.

The Warranty is limited to repair or replacement of the defective unit at the option of the manufacturer. This warranty is void if the product has been altered, misused, dismantled, or otherwise abused.

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, ARE EXCLUDED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
