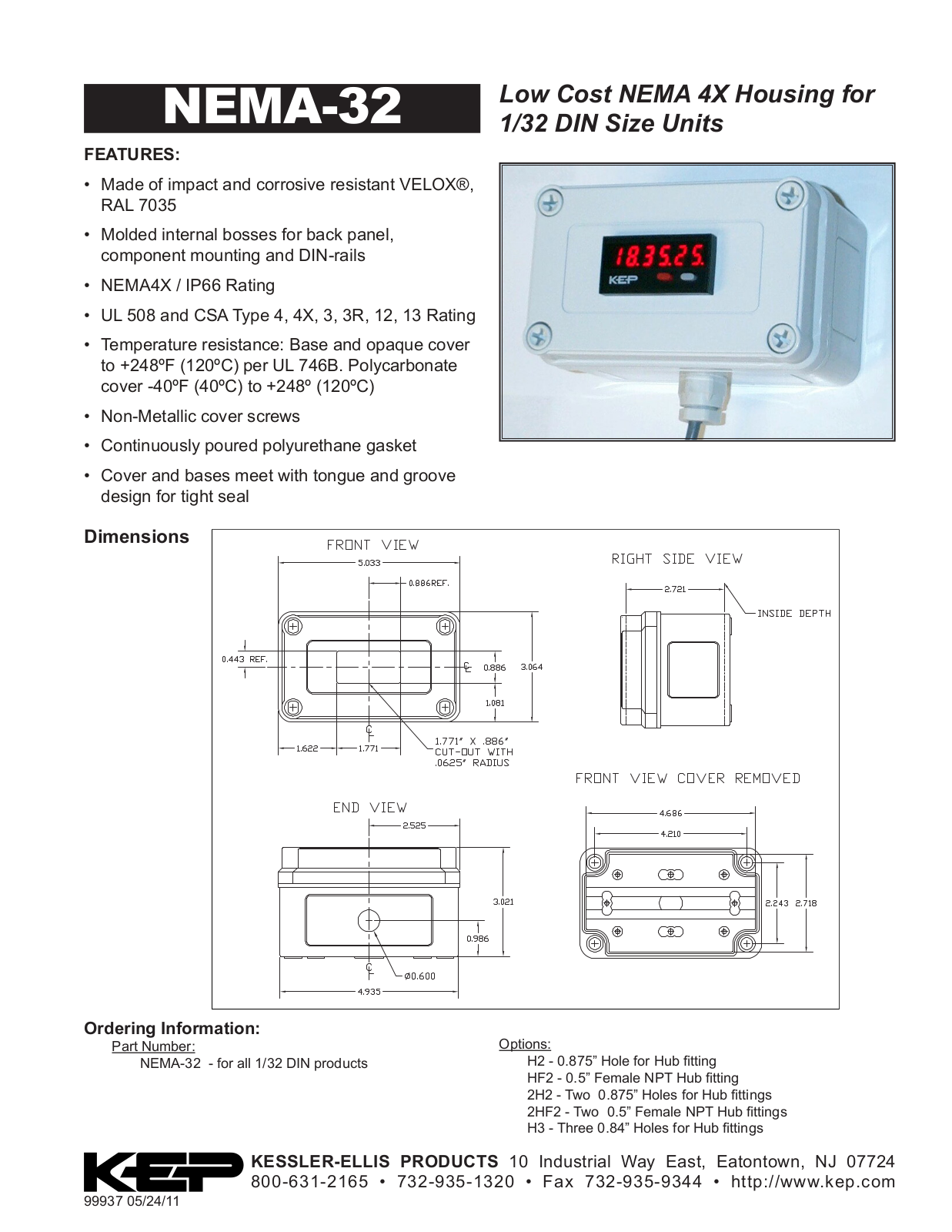

KEP NEMA-32 Data sheet
NEMA-32
FEATURES:
• Made of impact and corrosive resistant VELOX®,
RAL 7035
• Molded internal bosses for back panel,
component mounting and DIN-rails
• NEMA4X / IP66 Rating
• UL 508 and CSA Type 4, 4X, 3, 3R, 12, 13 Rating
• Temperature resistance: Base and opaque cover
to +248ºF (120ºC) per UL 746B. Polycarbonate
cover -40ºF (40ºC) to +248º (120ºC)
• Non-Metallic cover screws
• Continuously poured polyurethane gasket
• Cover and bases meet with tongue and groove
design for tight seal
Dimensions
Low Cost NEMA 4X Housing for
1/32 DIN Size Units
Ordering Information:
Part Number:
NEMA-32 - for all 1/32 DIN products
KESSLER-ELLIS PRODUCTS 10 Industrial Way East, Eatontown, NJ 07724
800-631-2165 • 732-935-1320 • Fax 732-935-9344 • http://www.kep.com
99937 05/24/11
Options:
H2 - 0.875” Hole for Hub tting
HF2 - 0.5” Female NPT Hub tting
2H2 - Two 0.875” Holes for Hub ttings
2HF2 - Two 0.5” Female NPT Hub ttings
H3 - Three 0.84” Holes for Hub ttings
