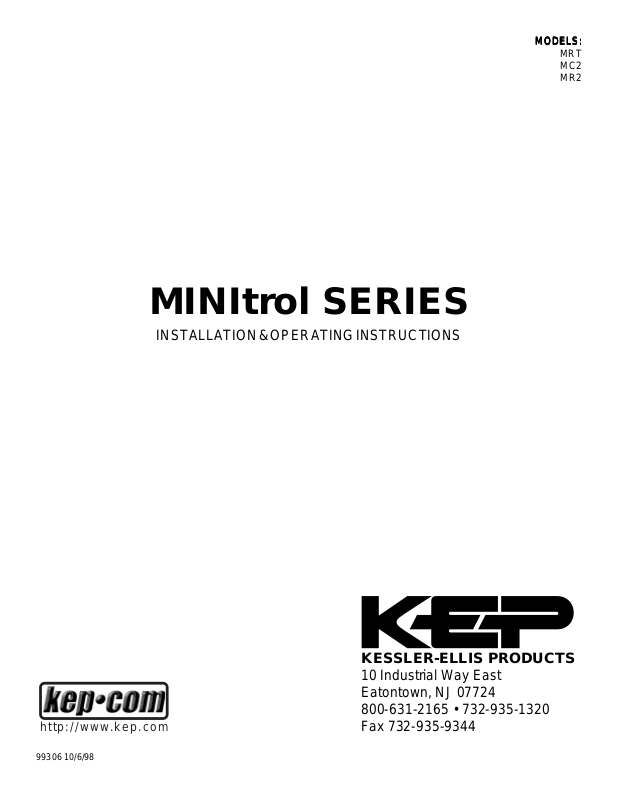

MINItrol SERIES
MODELS:MODELS:
MODELS:
MODELS:MODELS:
MRT
MC2
MR2
INSTALLATION & OPERATING INSTRUCTIONS
http://www.kep.com
99306 10/6/98
KESSLER-ELLIS PRODUCTS
10 Industrial Way East
Eatontown, NJ 07724
800-631-2165 • 732-935-1320
Fax 732-935-9344
Proprietary Notice
The information contained in this publication is derived in part from proprietary and patent data of the Kessler - Ellis
Products Company. This information has been prepared for the expressed purpose of assisting operating and maintenance personnel in the efficient use of the instrument described herein. Publication of this information does not convey any
rights to use or reproduce it or to use for any purpose other than in connection with the installation, operation and
maintenance of the equipment described herein.
Copyright 1989, Kessler-Ellis Products Co.
Printed in USA. All Rights Reserved.
WARNING
This instrument contains electronic components that are susceptible to damage by static electricity. Proper handling*
procedures must be observed during the removal, installation or handling of internal circuit boards or devices.
*Handling Procedure
1. Power to unit must be removed.
2. Personnel must be grounded, via wrist strap or other safe, suitable means, before any printed circuit board or other
internal device is installed, removed or adjusted.
3. Printed circuit boards must be transported in a conductive bag or other conductive container. Boards must not be
removed from the protective enclosure until the immediate time of installation. Removed boards must be placed immediately in a protective container for transport, storage or return to factory.
Comments:
This instrument is not unique in its content of EDS (electrostatic discharge) sensitive components. Most modern electronic
designs contain components that utilize metal oxide technology (NMOS, CMOS, etc.). Experience has proven that even
small amounts of static electricity can damage or destroy these devices. Damaged components, even though they appear
to function properly, exhibit early failure.
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
SPECIFICATIONS ..................................................................................................1
DECODING PART NUMBER..................................................................................2
HOW TO MOUNT THE UNIT..................................................................................3
WIRING MINITROL.................................................................................................4
UP/DOWN CONTROL AND QUADRATURE INPUTS ...........................................4
WHAT CAN YOU VIEW ..........................................................................................6
OUTPUT JUMPER SELECTIONS..........................................................................6
MILLIVOLT INPUT OPTION JUMPER SELECTIONS............................................6
OPERATING FRONT PANEL.................................................................................7
PROGRAMMING FLOW CHART ...........................................................................7
PROGRAM CODES & DESCRIPTIONS ................................................................8
MINITROL TERMINATIONS...................................................................................9
CALCULATING SCALE FACTORS ........................................................................10
MINITROL PROGRAMMING PROCEDURE ..........................................................11
SETTING SCALING FACTORS..............................................................................11
SETTING THE COUNTER......................................................................................12
SETTING THE RATE..............................................................................................13
SETTING THE LOCK CODE & LOCKING THE UNIT............................................14
SETTING THE RELAYS & PRESETS ....................................................................15
OUTPUT WIRING ...................................................................................................16
ANALOG OUTPUT OPTION...................................................................................17
RS232/RS422 SERIAL COMMUNICATIONS.........................................................18
TROUBLESHOOTING GUIDE................................................................................21
WARRANTY
THIS PAGE IS BLANK
DESCRIPTION & SPECIFICATIONS DESCRIPTION & SPECIFICATIONS
DESCRIPTION & SPECIFICATIONS
DESCRIPTION & SPECIFICATIONS DESCRIPTION & SPECIFICATIONS
DESCRIPTION:DESCRIPTION:
DESCRIPTION:
DESCRIPTION:DESCRIPTION:
The Minitrol is a dual input (channel A and B) counter/ratemeter,
each with its own 5 digit dividing scale factor. The two 10AMP
preset relay outputs can be programmed by the user to apply to the
"A" total counter, the "A" ratemeter, or the "B" counter or the net
total of A and B inputs. The user can view the Net Total of "A+B",
the Net Total of "A-B", the rate of A, or A and B counters separately. The "MRT" version shows rate and total (as described
above). The "MC2" is exclusively a counter and the "MR2" is
exclusively a ratemeter.
SPECIFICATIONS:SPECIFICATIONS:
SPECIFICATIONS:
SPECIFICATIONS:SPECIFICATIONS:
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
6 digit, 0.55" High LED
INPUT POWER:INPUT POWER:
INPUT POWER:
INPUT POWER:INPUT POWER:
110 VAC ± 15% or 12 to 15 VDC
220 VAC ± 15% or 12 to 15 VDC
24 VAC ± 15% or 12 to 15 VDC
CURRENT:CURRENT:
CURRENT:
CURRENT:CURRENT:
250 mA DC max. or 6.5 VA AC
OUTPUT POWER OUTPUT POWER
OUTPUT POWER (AC powered units only)
OUTPUT POWER OUTPUT POWER
+12 VDC @ 50 mA, unregulated -10 + 50%
TEMPERATURE:TEMPERATURE:
TEMPERATURE:
TEMPERATURE:TEMPERATURE:
Operating:
+32°F (0°C) to +130 F (+54°C)
Storage:
-40 F (-40°C) to +200°F (93°C)
MEMORYMEMORY
MEMORY
MEMORYMEMORY
EEPROM stores data for 10 years if power is lost.
INPUTS:INPUTS:
INPUTS:
INPUTS:INPUTS:
3: High Impedance DC pulse input 4-30 VDC (high), Open or 0-
1 VDC (low),10 KΩ imp. 10 kHz max. speed. Accepts simul-
taneous inputs. May be used with KEP 711 series or 715-1
encoders or PD & D series sensors.
3M: Mag. Input, Input A only, accepts 30mV input (50 V max. P/P)
signals 10 KΩ imp. 5 kHz max. (Input B, 4-30V)
3MB: Mag. Input, Inputs A & B, accepts 30mV input (50 V max. P/
P) signals 10 KΩ imp. 5 kHz max.
5: 4-30 V Count pulses on Input A, 4-30 V Direction Control
input (level) on Input B. May be used with KEP 715-2 Encoder.
5M: 30 mV Count pulses on Input A (50 V max. P/P) 4-30 V
Direction Control input (level) on Input B
9: Quadrature, accepts 4-30 V pulses with 90° phase shift for
direction detection. May be used with KEP 716 encoder.
9MB: Quadrature, accepts 30 mV (50 V max. P/P) pulses with 90°
phase shift for direction detection.
NOTE:NOTE:
NOTE: The Mag. inputs have filtering as follows: up to 300hz
NOTE:NOTE:
@30mV, 5KHz @ .25V to 50V max.
RESET:RESET:
RESET:
RESET:RESET:
Front Panel: Resets displayed value and control output
Remote: 4-30 VDC (75-240 V AC/DC, Input 8) negative
edge resets COUNTER "A" and control output
K FACTOR/SCALINGK FACTOR/SCALING
K FACTOR/SCALING
K FACTOR/SCALINGK FACTOR/SCALING
In the standard unit a fixed K-Factor is used to convert the input
pulses to engineering units. The 5 digit K-Factor dividers, with
decimal keyed into any position, allow easy direct entry of any KFactor from 0.0001 to 99999. Separate factors may be entered for
the 2 separate input channels.
CONTROL OUTPUTS:CONTROL OUTPUTS:
CONTROL OUTPUTS:
CONTROL OUTPUTS:CONTROL OUTPUTS:
Relays:
2 each N.O. Relay; 10 Amps120/240 VAC or 28 VDC.
(N.C. relay contacts and NPN transistor output
available with solder jumpers. Transistor output is
internally pulled up to 10 VDC through relay coil, sinks
from 10 VDC to .5 V @ 100 mA)
Analog Output:
An optional 4-20mA (0-20mA) output is available for
the Minitrol series. The output can be programmed
to track rate or total. This feature is available by
adding suffix A to the part number. Connections are
via a 2 terminal pluggable screw connector.
Programming is accomplished by using the front panel
in conjunction with rear dip switches.
Accuracy: 50uA worst case.
Compliance Voltage: 3 to 30 VDC non inductive.
RS232/RS422SERIAL INTERFACERS232/RS422SERIAL INTERFACE
RS232/RS422SERIAL INTERFACE
RS232/RS422SERIAL INTERFACERS232/RS422SERIAL INTERFACE
If the serial interface option is supplied, up to 99 units can be linked
together. (The terminal addressing the unit must be capable of
driving all loads in the loop.) Unit status and new set points can be
communicated by serial communication. Mode changes, however,
must always be made on the front panel. Data is transmitted at
selected baud rates using standard seven bit ASCII characters and
parity with two additional bits of Start and Stop to make up the
standard ten bit character.
Data is received and transmitted over standard EIA RS232 or
RS422 levels. Each 10 bit character is made up of a start bit, 7 bit
ASCII code, parity bit and stop bit. Unit number, baud rate and
parity are entered in the Program Setting set up mode and remain
in memory even if power is off.
Note that the input impedance of RS232 is 3K or 7K Ohm worst
case. The terminal addressing the unit must be capable of driving
all loads in the loop. RS422 input impedance is much higher and
there is usually no problem driving 25 units. Unit serial transmit line
remains in a high impedance OFF state until addressed.
1
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
(continued)
PRESETSPRESETS
PRESETS
PRESETSPRESETS
Two control outputs are provided. To set relay values, press
menu button until Relay appears on the display, the A and B
outputs can be assigned to the ratemeter (high/low), one preset for
rate and one for total, or two presets (2 stage shut off) on the A and
B counters. A 5 digit value can be entered for both presets and the
decimal point location is the same as the counter. The outputs can
be set to energize from 0.1 to 99.9 seconds or latch (0.0). If a
value other than 0.0 is entered, the counters will auto reset at the
preset . In the A-B or A+B versions, the relays will be assigned to
either net total or A rate.
LOCKOUTLOCKOUT
LOCKOUT
LOCKOUTLOCKOUT
Unauthorized front panel changes can be prevented by entering a
user selected 5 digit code, in the LOC , . mode. The front panel
can be completely locked out or the presets can remain accessible.
RATEMETERRATEMETER
RATEMETER
RATEMETERRATEMETER
Accurate to 4 1/2 digits (±1 display digit). The rate meter can be
programmed to accept almost any number of pulses per unit of
measurement, sample from 2 to 24 seconds maximum, and autorange up to 5 digits of significant information. In the RPS mode,
the ratemeter displays in units per second, and in the scale mode,
units per hour or per minute. The unit will display the rate of the A
Input only.
COUNTERCOUNTER
COUNTER
COUNTERCOUNTER
The two 6-digit counters can count at 10Khz speed. Each can
have a 5-digit dividing scale factor. The counter advances on the
positive edge of each pulse. Count up or down modes available,
as are quadrature inputs from encoders for position or length
measurement. The unit can be programmed to view the net value
of "A+B" or "A-B", or A and B as separate counters.
DECODING PART NUMBERDECODING PART NUMBER
DECODING PART NUMBER
DECODING PART NUMBERDECODING PART NUMBER
MINItrol MINItrol
MINItrol (MRT, MC2, MR2)
MINItrol MINItrol
Example:Example:
Example:
Example:Example:
Series:Series:
Series:
Series:Series:
MRTMRT
MRT= 6 digits, counter / ratemeter
MRTMRT
MC2MC2
MC2= 6 digits, counter only with
MC2MC2
MR2MR2
MR2= 5 digits, rate only with
MR2MR2
Operating Voltage:Operating Voltage:
Operating Voltage:
Operating Voltage:Operating Voltage:
AA
A= 110 VAC ± 15% or 12 to 15 VDC
AA
BB
B= 220 VAC ± 15% or 12 to 15 VDC
BB
CC
C= 24 VAC ± 15% or 12 to 15 VDC
CC
Count Inputs:Count Inputs:
Count Inputs:
Count Inputs:Count Inputs:
3 =3 =
3 = Standard, 4-30 VDC simultaneous inputs.
3 =3 =
3M =3M =
3M = Mag. Input, Input A only, 30mV input
3M =3M =
3MB =3MB =
3MB = Mag. Input, Inputs A & B, 30mV input
3MB =3MB =
5 =5 =
5 = 4-30 V pulses on Input A,
5 =5 =
5M =5M =
5M = 30 mV pulses on Input A,
5M =5M =
9 =9 =
9 = Quadrature, accepts 4-30 V pulses
9 =9 =
9MB =9MB =
9MB = Quadrature, accepts 30 mV pulses (A & B)
9MB =9MB =
Options Options
Options (Multiple Options Available)
Options Options
1= 1=
1= RS232 Communications
1= 1=
2=2=
2= RS422 Communications
2=2=
A=A=
A= Analog Output (4-20/0-20 mA)
A=A=
MRTMRT
MRT
MRTMRT
with presets and scaling.
presets and scaling.
presets and scaling.
(Input B, 4-30V)
4-30 V Direction Control input on Input B.
4-30 V Direction Control input on Input B
A A
A
A A
33
3
33
1 A1 A
1 A
1 A1 A
2
HOW TO MOUNT THE UNITHOW TO MOUNT THE UNIT
HOW TO MOUNT THE UNIT
HOW TO MOUNT THE UNITHOW TO MOUNT THE UNIT
The unit is designed to be mounted with a gasket providing a water tight seal. Two mounting brackets are provided to
secure the unit to the panel. A panel less than .1" may distort if the clamps are screwed too tightly.
Slide the body of the unit through the rubber gasket. Insert the unit into the panel. As shown in "FIG. A", slide the brackets
up the groove to press against the back of the panel. Insert screws into rear of brackets and tighten them evenly and
alternately. Do not over tighten! A normal level of torque is required. Maximum torque should be 3" pounds.
This product is designed to be panel mounted and is NEMA 4 rated if proper mounting procedures are followed and the
required and supplied hardware is correctly used.
If the panel in which the unit is mounted is less than .125 of an inch thick, the possibility exists that there will be some
flexing. Should this flexing occur, the resulting deformation of the panel could cause a loss of the water tight seal. In case
this should occur, the use of silicone or other sealant would be recommended.
This product is designed to the NEMA 4 rated. However, the fact that we are unable to control either the location in which
the device is installed or the actual installation itself requires that the company’s liability shall extend only to the repair or
replacement of a defective product.
We are prepared to offer additional assistance in those special situations where normal mounting methods do not seem to
satisfy the customers needs. This assistance may be obtained by calling the factory and asking for Application Engineering.
DIMENSIONSDIMENSIONS
DIMENSIONS
DIMENSIONSDIMENSIONS
3.925
(99.7)
FIG. A
4.437
(112.7)
2.625
(66.68)
0.587
(14.91)
BEZEL
GASKET
4.245
(107.8)
CUSTOMER PANEL
Panel Thickness 0.062" (1.5)
to 0.187" (4.7) max.
3.622
(92)
1.772
(45)
3
WIRING MINITROLWIRING MINITROL
WIRING MINITROL
WIRING MINITROLWIRING MINITROL
The rear terminal contains 12 screw terminals for connecting #14 to #28 gauge wire.
The unit is controlled by a microprocessor and, therefore, an electrically "noisy" environment could cause operating
problems. The input power line should not be common to power lines for motors, pumps, contactors, etc.
The unit is designed to be immune from line or RF voltage interference. In some environments voltage spikes of over 100
volts, even 1000 volts, can occur. When common to a power line driving motors voltage fluctuations can be extreme and
rapid. Lines driving DC or AC solenoids, relays, or actuators can also cause problems.
Four sources of noise can occur:
1) AC power line noise - If the unit cannot be connected to a clean power source, an inductive load suppressing device
(MOV as GE # V130LA1 or Resistor Capacitor as Paktron # .2 uf/220 ohm @ 400V) can be installed. Although locating
the suppressor across the AC supply at the unit should help, best results are obtained by connecting the suppressor
across the leads of the "load" at the device causing the spike.
2) Input line noise -The noise is carried on the input and D.C. ground lines. Make sure the input wires are never run into
the unit in a bundle with power input lines. Also, keep these input lines isolated from inductive lines from devices
drawing heavy loads. If there is a possibility of electrical noise, we recommend using shielded cable, with the shield
being hooked to the D.C. ground terminal on the instrument, and to "earth" at one point in the circuit, preferably at the
D.C. ground terminal of the unit.
3) Output lines - The unit has two relay outputs. When these outputs are used to run external relays or solenoids, spikes
can be generated upon activation. This noise can spread through the instrument causing operating problems. If the
source is a D.C. operated device, a general purpose diode (IN4004) placed across the solenoid prevents electrical
noise spikes. Connect the cathode (banded side) to the more positive side of the coil. If the source is an A.C. operated
device, use a MOV or Resistor Capacitor across the coil.
4) 12 VDC output supply - Noise can be generated on the 12 VDC output supply if it is used to drive inductive loads or if
the current draw exceeds 50 mA. Insure that all inductive loads have a diode (such as IN4004) across the coil and that
the current does not exceed 50 mA.
UP/DOWN CONTROL AND QUADRATURE INPUTSUP/DOWN CONTROL AND QUADRATURE INPUTS
UP/DOWN CONTROL AND QUADRATURE INPUTS
UP/DOWN CONTROL AND QUADRATURE INPUTSUP/DOWN CONTROL AND QUADRATURE INPUTS
QUADRATURE INPUT:
When programming the counter section for quadrature input, you must set the unit for A net B and A sub B (see step 2 in
programming section). This insures proper operation. The rate can only be viewed in one direction. If the unit is a
ratemeter only (MR2), connect only one of the quadrature channels to Input A (pin 5).
UP/DOWN CONTROL:
When using the up/down control option, Input A (pin 5) is the count input and Input B (pin 6) is the up/down control
(direction) input. The counter must be set for A net B and A sub B (see step 2 in programming section).
When the direction input is high (4-30VDC) the count inputs will count up, when the direction input is low (open or less than
1VDC) the count inputs will count down. The direction input must precede the count input by 1 msec when the unit is set for
low CPS and 1 usec when set for high CPS.
4
CONNECTING AC / DC POWERCONNECTING AC / DC POWER
CONNECTING AC / DC POWER
CONNECTING AC / DC POWERCONNECTING AC / DC POWER
NOTE: Connect power only after other connections are finished. Do not touch the live AC power terminals! The unit has
been designed with an isolated AC input. Thus, polarity is not a concern for the AC input. The chassis is plastic, therefore
earth ground is not used. For D.C. operation, connect + 12V to pin 7 and - D.C. to pin 8.
CONNECTING SENSOR INPUTSCONNECTING SENSOR INPUTS
CONNECTING SENSOR INPUTS
CONNECTING SENSOR INPUTSCONNECTING SENSOR INPUTS
These diagrams show how to hook typical input sensors to the unit. The unit supplies an unregulated 12 Volt (50mA)
output to power these sensors (Pin 7).
A valid pulse is one which makes a transition from the off-state (0 to 1V) to the on-state (4 to 30V): a positive going edge.
The input impedance is 10K Ohms to ground. The unit can be programmed from the front panel for slow switch closure
inputs up to 40Hz (select "Lo CPS"), or solid state switches (select "hi CPS") up to 9.99KHz. No rear terminal jumpers are
required. Use PNP (sourcing) type pulsers.
TYPICAL SENSOR HOOKUPTYPICAL SENSOR HOOKUP
TYPICAL SENSOR HOOKUP
TYPICAL SENSOR HOOKUPTYPICAL SENSOR HOOKUP
RELAYS
A
B
1 COMMON
2 N.O. (N.C./NPN)
3 COMMON
4 N.O. (N.C./NPN)
5 A INPUT
6 B INPUT
7 12 V OUTPUT/ + DC INPUT
8 - DC (GROUND)
9 RESET INPUT
10 NOT USED
11 AC INPUT
12 AC INPUT
COUNT
POWER
GROUND
*
* PULLUP RESISTANCE
4.7K TYPICAL
POWER
COUNT
GROUND
TYPICAL QUADRATURE HOOKUPTYPICAL QUADRATURE HOOKUP
TYPICAL QUADRATURE HOOKUP
TYPICAL QUADRATURE HOOKUPTYPICAL QUADRATURE HOOKUP
When the unit has the quadrature input, the counter must
be set at:
A net B, A sub B (for "set to preset", A add B) and the
scaling factors for A & B must be of equal value.
RELAYS
A
B
1 COMMON
2 N.O. (N.C./NPN)
3 COMMON
4 N.O. (N.C./NPN)
5 A INPUT
6 B INPUT (90° out of phase)
7 12 V OUTPUT/ + DC INPUT
8 - DC (GROUND)
9 RESET INPUT
10 NOT USED
11 AC INPUT
12 AC INPUT
GROUND
+12 VDC
716 12VDC 100PPR 300RPM A1
D08N
D12P
5
WHAT CAN YOU VIEW?WHAT CAN YOU VIEW?
WHAT CAN YOU VIEW?
WHAT CAN YOU VIEW?WHAT CAN YOU VIEW?
1) "A sub B" - If you have selected the "A sub B" mode, pressing "view" shows:
A) The net result of subtracting input B from input A. Pulses on input B will subtract (count down). Pulses on input A
will add (count up) if "reset to 0" is selected, if "set to preset" is selected, input A will subtract (count down).
B) The rate of input A.
2) "A add B" - If you have selected "A add B" mode, pressing "view" shows:
A) The net result of adding "A" and "B" inputs. Pulses on input B will add (count up). Pulses on input A will add
(count up) if "reset to 0" is selected, if "set to preset" is selected input A will subtract (count down).
B) The rate of input A.
3) "A sep B" - If you have selected " A sep B" mode, pressing "view" shows:
A) The total counts of input A. If "reset to 0" is selected A counts up, if "set to preset" is selected A will count down.
B) The rate of input A.
C)* The total counts of input B. B will always count up.
NOTE: In "A sep B" mode, B can be used in 3 ways:
1) As a separate totalizing counter
2)**As a Batch Total Counter for input A
3)**As a Grand Total Counter for input A
NOTE:
* All decimal points are inverted when "B total" is being displayed.
** See below on how to modify for Batch Count and "B" as a Grand Total Counter.
OUTPUT JUMPER SELECTIONSOUTPUT JUMPER SELECTIONS
OUTPUT JUMPER SELECTIONS
OUTPUT JUMPER SELECTIONSOUTPUT JUMPER SELECTIONS
FUNCTION
"A" RELAY
N.C. OUTPUT
"B" RELAY
N.C. OUTPUT
"A" PRESET
*
TRANSISTOR (NPN)
*
"B" PRESET
TRANSISTOR (NPN)
"B" AS BATCH
COUNTER
"B" AS GRAND
TOTAL COUNTER
MODIFICATION
CUT JUMPER
AT "A" "B" TO "2"
CUT JUMPER
AT "D" "E" TO "4"
CUT JUMPER
AT "A" "C" TO "2"
CUT JUMPER
AT "D" "F" TO "4"
SELECT JUMPER
"A SEP B" "H" TO "G"
SELECT CONNECT
"A SEP B" PULSES TO
"A" & "B"
BOTTOM VIEW AT TERMINAL
FC
MILLIVOLT INPUT OPTIONMILLIVOLT INPUT OPTION
MILLIVOLT INPUT OPTION
MILLIVOLT INPUT OPTIONMILLIVOLT INPUT OPTION
JUMPER SELECTIONSJUMPER SELECTIONS
JUMPER SELECTIONS
JUMPER SELECTIONSJUMPER SELECTIONS
J3
U1
P1
U6
C2
REV
20229
J6
J5
B
J4
U3
J2
J1
C3
CR5
C8R7R5
C7
R1
R10R6C6
R8
U5
R2
R9
U4
C4
C5
C1
C9
CR6
CR3
U2
CR2
R3
CR4
CR1
R4
If the unit has the millivolt input bd.# 20229, A & B inputs can be
separately solder jumper programmed to accept either a low millivolt or 4-30 V input. Each unit shipped is programmed according
to part number. If solder jumpers are made, the part number
should be modified to reflect the changes made
DE
L
20192
H
G
4
AB
2
12 11 10 9 8 7 6 5 4 3 2 1
* The unit must be removed from the case to access jumpers C & F, all
other jumpers can be accessed by removing the plastic extender.
NOTE:NOTE:
NOTE: All three pads at jumpers 2 and 4 are connected.
NOTE:NOTE:
C=CLOSE, O=OPEN
4-30V4-30V
4-30V INPUT
4-30V4-30V
MillivoltMillivolt
Millivolt INPUT
MillivoltMillivolt
Input A J1-O, J2-C, J3-O J1-C, J2-O, J3-C
InputB J4-O, J5-C, J6-O J4-C, J5-O, J6-C
6
OPERATING THE FRONT PANEL
Press to "reset"
in operating
mode.Press to
"enter" in
programming
mode.
Start HereStart Here
Start Here
Start HereStart Here
PRGM
4
Press to
view or
change
preset B.
3
21
Press to alternately
view A rate & net
total or A rate,
A total & B total.
Press to enter
lock code for
panel lock.
65
RST
ENTER
LOCK PRE A PRE B VIEW PRGM
Press to
view or
change
preset A.
PROGRAMMING FLOWCHART
NOTE: NOTE:
NOTE: Several programming selections will not appear with MC2 and MR2 units.
NOTE: NOTE:
Press this key to step through menu choices.
PRGM
RST
ENTER
Press this key to enter displayed value
Press to cycle
through PROGRAM
choices. Press to
toggle between
choices in program
mode.
FACToR
ENTER
DP F A
ENTER
#####
ENTER
DP F B
ENTER
#####
ENTER
RUN MODE
Hi
PRGM
CPS
ENTER
RUN MODE
PRGM
ENTER
Lo
CPS
RATE METER
(MR2) ONLY
RST
0
A
NET
B
A
ADD
B
Hi
CPS
CouNT
ENTER
PRGM
ENTER
DPLoC
ENTER
PRGM
PRGM
ENTER
PRGM
ENTER
RUN MODE
PRGM PRGM
SET
PR
SCALE RPS
ENTER
Z3600
A
SEP
ENTER
B
RATE
ENTER
PRGM
PRGM
ENTER
NoR ##
ENTER
FiguR#
A
SuB
B
Lo
CPS
ENTER
DLY #
ENTER
RUN MODE
Z60
ENTER
LC
PRg
#####
RUN MODE
LoC
ENTER
PRGM
ENTER
CoDE
ENTER
A
ToT
RELAY
ENTER
PRGM
LC
ENTER ENTER
ALL
A ##.#
B
ToT
ENTER ENTER
B ##.#
RUN MODE
PRGM
ENTER
PRGM
ENTER
A
RATE
B
RATE
7
The following is a list of abbreviations as they appear on the display and front panel of the unit.
ABBREVIATION DESCRIPTION
FACTOR
DP F A
DP F B
COUNT
RST 0
SET PR
DP LOC
A NET B
A SEP B
A SUB B
SCALING FACTOR - For A and B Inputs. Each input has a separate 5 digit dividing scale factor.
DECIMAL POINT FOR FACTOR A - Enter location of decimal point for scaling Factor A by pressing the
button under the digit where the decimal is desired.
DECIMAL POINT FOR FACTOR B - Enter location of decimal point for scaling Factor B by pressing the
button under the digit where the decimal is desired.
PORTION OF MENU FOR SETTING COUNTER VARIABLES
RESET TO 0 - Counter will reset to 0. Input A will count up from 0. Input B will subtract (count down) in A
Sub B mode. Input B will add (count up) in A Add B mode.
SET TO PRESET - Counter will reset to preset A. Input A will count down from preset A. Input B will count
up (add) in "A add B" mode and input B will count down (subtract) in "A sub B" mode.
DECIMAL POINT LOCATION - Enter desired location of decimal by pushing the button under the digit where
the decimal is desired. Changing the decimal will change the decimal location in the A & B counters as well
as the rate display.
NET RESULT OF ADDING OR SUBTRACTING A & B INPUTS
A & B INPUTS ARE SEPARATE - A & B are not added or subtracted.
A SUBTRACT B - The number of scaled pulses from Input B are subtracted from the number of scaled pulses
from Input A. (-99999 TO 999999)
A ADD B
HI CPS
LO CPS
RATE
RPS
SCALE
Z 60
Z 3600
NOR##
FIGUR ##
DLY##
A ADD B - The number of scaled pulses from the A Input are added to the number of scaled pulses from the
B Input.
HIGH COUNTS PER SECOND - This sets the unit for high count speeds (0-9.99KHz)
LOW COUNTS PER SECOND — This sets the unit for contact debounce filtering (0-40Hz)
PORTION OF MENU FOR SETTING RATE VARIABLES
RATE PER SECOND - The display will read in rate per second.
SCALING - Allows unit to display rate per minute or rate per hour.
DIVIDE K FACTOR BY 60 - This sets the unit for rate per minute; equal to 60 times rate per second.
DIVIDE K FACTOR BY 3600 - This sets the unit for rate per hour; equal to 3600 times rate per second.
NORMALIZING FACTOR - Normalizes (averages) the data being received. Higher settings provide more
normalizing (averaging) for a more stable display. Derived from the equation:
(Old Data x "NOR" + New Data)
("NOR" + 1)
SIGNIFICANT FIGURE - This sets the amount (1-5) of meaningful figures the unit will display. (RATE DIS
PLAY ONLY). FOR EXAMPLE: If "2" is set as the figure, a rate of 273.45 will be displayed as 270.
DELAY FACTOR - The amount of time (02 to 24 sec.) the unit will "look" for valid data, before the display
defaults to zero. (RATE DISPLAY ONLY)
8
LOC
LOCK - This portion of the menu allows you to:
1) lock the program (presets are still accessible)
2) lock all (presets and program are locked).
LC PRG
LC ALL
CODE
RELAY
A TOT
A RATE
A##.#
B TOT
LOCK PROGRAM - This will lock the program and allow the presets to be changed when the unit is in the
lock mode.
LOCK ALL - This will lock the program and the presets when the unit is in the locked mode. The presets can
be viewed, but not changed.
LOCK CODE - This message (code) will flash on display for approximately 3 seconds. It will be followed by a
5 digit number (xxxxx). The number you enter here will be the code to lock and unlock the unit.
RELAY - This portion of the menu allows you to set your relay operation variables.
RELAY A FOR TOTALIZER - When this is selected relay A will activate when the net total has reached
Preset A ("A NET B" Mode ). Relay A will activate when the total of input A reaches preset A ("A SEP B"
Mode).
RELAY A FOR RATE - When this is selected relay A will activate when the Rate of input A equals or exceeds
preset A when in "A NET B" or "A SEP B" mode. The relay will drop out when the rate of A falls below preset
A.
RELAY A DURATION - This message will appear when "A TOT" is selected. It is the duration which the
relay will remain energized (00.1 to 99.9 sec). If 00.0 is selected, the relay will latch until reset. When the
duration is not at 00.0, the unit will autorecycle.
RELAY B FOR TOTALIZER - When this is selected relay B will activate when the net total has reached preset
B ("A NET B" Mode). Relay B will activate when the total of input B has reached preset B ("A SEP B" Mode).
B RATE
B##.#
RELAY B FOR RATE - When this is selected relay B will activate when the rate of input A equals or exceeds
preset B when in "A NET B" or "A SEP B" mode. The relay will drop out when the rate of A falls below preset
B.
RELAY B DURATION - Follow same procedure as A ##.#.
MINITROL TERMINATIONSMINITROL TERMINATIONS
MINITROL TERMINATIONS
MINITROL TERMINATIONSMINITROL TERMINATIONS
ANALOG
1- COMMON
2- N.O.(N.C./NPN)
3- COMMON
4- N.O.(N.C./NPN)
5- A INPUT
A
B
RELA YS
13- V+
14- I SINK
OUTPUT
Analog Out Setup SwitchesSerial Port
13 14
6- B INPUT
7- 12VDC OUT/+DC IN
8- -DC (GROUND)
9- RESET INPUT
10- NOT USED
11- A.C. INPUT
SWITCH
ON
OFF
RUN
4-20mA
RATE
RUN
1 2 3 4
ON
CAL.
0-20mA
COUNT
SET
1 2 3 4 5 6 7 8 9 10 11 12
REAR VIEW
12- A.C. INPUT
1 2 3 4
ON
9
CALCULATING SCALE FACTORSCALCULATING SCALE FACTORS
CALCULATING SCALE FACTORS
CALCULATING SCALE FACTORSCALCULATING SCALE FACTORS
There are two separate dividing scale factors, one for input "A" and one for input "B". The factor to enter is the number of
pulses per the desired unit of measurement. The factor ranges from 0.0001 to 99999. The factor is the same for rate and
count on input "A". Because the "units per second", "minute", or "hour" are field programmable from the keypad, scale
factor calculations for the ratemeter are easy. Here are some examples:
SCALING FACTOR EXAMPLES:SCALING FACTOR EXAMPLES:
SCALING FACTOR EXAMPLES:
SCALING FACTOR EXAMPLES:SCALING FACTOR EXAMPLES:
BATCHINGBATCHING
BATCHING: You want to count the number of batches (10 boxes each) being loaded onto a pallet.
BATCHINGBATCHING
Solution Solution
Solution - Dial in a scale factor of 10.
Solution Solution
UNIT COUNTING:UNIT COUNTING:
UNIT COUNTING: You pick up a notch on a paper roll (1 pulse per shaft revolution). Each revolution equals 3 feet. To
UNIT COUNTING:UNIT COUNTING:
find the number of pulses per foot, simply divide "1 pulse" by "3 feet" (1÷ 3 = .3333).
Solution Solution
Solution - One foot equals 0.3333 pulses, enter this as the scale factor and the display will read in feet.
Solution Solution
RATERATE
RATE: The shaft of a motor has a flywheel with 10 spokes. The KEP DO series prox switch is mounted to
RATERATE
sense 10 pulses per revolution. RPM of the shaft is the desired readout.
SolutionSolution
Solution: Enter a Factor of 10 and for every 10 pulses, "1" will appear on the display. Set rate per
SolutionSolution
second, minute or hour as desired.
A conveyor carrying bottles must be controlled for bottle speed. For each revolution of the front roller, three bottles
travel by. Thus, one revolution equals 3 bottles. A wheel with seven spokes is mounted on the roller. The user
can’t sense bottles because they are traveling through a washer, so a sensor is placed at the roller, sensing seven
pulse per revolution of the shaft, which equals 3 bottles per revolution.
To calculate the scale factor (7 ppr ÷ 3 bottles) = 2.3333 scale divider. Set rate per second, minute or hour as
desired.
A flow meter is generating 52.6 pulses per gallon. The desired readout is in liters. Since there are 3.785 liters per
gallon, divide 52.6 by 3.785 to find the number of pulses per liter (52.6 ÷ 3.785 = 13.897).
Enter 13.789 as the scale factor so the display will read in liters.
An aluminum sheeting plant has a cut to length application to customer specification. A ten pulse per revolution
encoder with a 12" wheel is used to sense. The travel of aluminum sheets is in inches. Thus, after 10 pulses, you
want 12 to appear on the display. Thus, 10 ÷ 12 = .8333. Enter .8333 as your scale factor.
10
RR
RR
RR
RR
RR
RR
RR
RR
RR
RR
STEP
1
SETTINGSETTING
SETTING
SETTINGSETTING
SCALINGSCALING
SCALING
SCALINGSCALING
FACTORSFACTORS
FACTORS
FACTORSFACTORS
PRESSPRESS
PRESS
PRESSPRESS
MM
PPPPRRRRGGGGMM
EE
EEEENNNNTTTTEE
EE
EEEENNNNTTTTEE
PROGRAMMINGPROGRAMMING
PROGRAMMING
PROGRAMMINGPROGRAMMING
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
This section of the menu is used to set
factor
up the scaling factors for inputs A & B.
This sets the decimal for factor A.
dp f a
Press the arrow key under the digit
where the decimal is desired. To clear
the decimal, press the arrow key furthest to the right (PRGM) .
This is the scaling factor for input A. To
#####
change, press the arrow key under the
digit(s) to change. Press ENTER to
enter the displayed value.
REMARKSREMARKS
REMARKS
REMARKSREMARKS
THIS SECTIONTHIS SECTION
THIS SECTION
THIS SECTIONTHIS SECTION
WILL ONLYWILL ONLY
WILL ONLY
WILL ONLYWILL ONLY
APPEAR IN THEAPPEAR IN THE
APPEAR IN THE
APPEAR IN THEAPPEAR IN THE
RATE METERRATE METER
RATE METER
RATE METERRATE METER
ONLY VERSIONONLY VERSION
ONLY VERSION
ONLY VERSIONONLY VERSION
EEEENNNNTTTTEE
EEEENNNNTTTTEE
EEEENNNNTTTTEE
This section will only appear in the
hi cps
or
EE
lo cps
RATE only version. Press the PRGM
key to choose HIGH CPS (0-9.99KHz)
or LOW CPS (0-40Hz). Press the
ENTER key to enter the displayed
choice.
This sets the decimal for factor B.
dp f b
EE
Press the arrow key under the digit
where the decimal is desired. To clear
the decimal, press the arrow key furthest to the right (PRGM) .
This is the scaling factor for input B. To
#####
EE
change, press the arrow key under the
digit(s) to change. Press ENTER to
enter the displayed value.
11
PRESSPRESS
RR
RR
RR
RR
RR
RR
RR
RR
RR
RR
PRESS
PRESSPRESS
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
REMARKSREMARKS
REMARKS
REMARKSREMARKS
STEP
2
SETTINGSETTING
SETTING
SETTINGSETTING
THETHE
THE
THETHE
COUNTERCOUNTER
COUNTER
COUNTERCOUNTER
PPPPRRRRGGGGMM
PPPPRRRRGGGGMM
EE
EEEENNNNTTTTEE
EE
EEEENNNNTTTTEE
EE
EEEENNNNTTTTEE
MM
MM
factor
count
rst 0
or
set pr
dp loc
a net b
or
a sep b
This section of the menu sets up the
counter information.
Press the PRGM key to choose RST 0
(reset to 0, count up) or SET PR (set to
preset, count down), press the ENTER
key to enter the displayed choice.
This sets the decimal location for the A
& B counters. Press the arrow key
under the desired digit location. To
clear the decimal, press the arrow key
furthest to the right. Press the ENTER
key to enter the displayed location.
Press the program key to choose A
NET B (add or subtract A & B) or A SEP
B (view A & B as separate counters).
Press the ENTER key to enter the
displayed choice.
EEEENNNNTTTTEE
EEEENNNNTTTTEE
This section will only appear if A NET B
a sub b
or
EE
a add b
hi cps
or
EE
lo cps
was selected. Choose A SUB B (A
subtract B) or A ADD B. Press the
ENTER key to enter the displayed
choice.
Press the PRGM key to choose HIGH
CPS (0-9.99KHz) or LOW CPS (040Hz). Press the ENTER key to enter
the displayed choice.
12
RR
RR
STEP
RR
RR
RR
RR
RR
RR
RR
RR
3
SETTINGSETTING
SETTING
SETTINGSETTING
THE RATETHE RATE
THE RATE
THE RATETHE RATE
PRESSPRESS
PRESS
PRESSPRESS
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
factor
count
REMARKSREMARKS
REMARKS
REMARKSREMARKS
MM
PPPPRRRRGGGGMM
EEEENNNNTTTTEE
EEEENNNNTTTTEE
EEEENNNNTTTTEE
EEEENNNNTTTTEE
rate
This section of the menu is used to set up
the rate information.
rps
or
EE
scale
z 60
or
EE
z 3600
Press the PRGM key to choose RPS (rate
per second) or SCALE (RPM, RPH). Press
ENTER to enter displayed choice.
Press PRGM to choose ÷60 (RPM) or
÷3600 (RPH). Press ENTER to enter displayed choice.
This sets the normalizing (averaging) fac-
nor ##
EE
tor. Press the arrow keys under the desired digits to change. Press ENTER to
enter displayed value.
This sets the number of significant figures
figur #
EE
to be displayed. Press the arrow key under the digit to change. Press ENTER to
enter displayed value.
EEEENNNNTTTTEE
This sets the delay time (2 to 24 sec.) that
the unit will "look" for valid input data be-
EE
dly #.#
fore the display falls to 0. Press the arrow
key under the digits to change. Press ENTER to enter displayed value.
13
RR
RR
RR
RR
RR
RR
PRESSPRESS
PRESS
PRESSPRESS
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
REMARKSREMARKS
REMARKS
REMARKSREMARKS
STEP
4
SETTINGSETTING
SETTING
SETTINGSETTING
LOCKLOCK
LOCK
LOCKLOCK
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
EEEENNNNTTTTEE
EEEENNNNTTTTEE
factor
count
rate
loc
This section of the menu is used to set up
the lockout type and code.
LC PG = Locks program but presets and
LC PG
or
EE
LC ALL
reset are accessible.
LC ALL= Locks entire keypad.
Press the PRGM button to toggle between
choices; Press ENTER to enter displayed
choice.
CoDE
Flashes
EE
followed by:
#####
After CODE flashes the display will show the
existing lock code. To change the code press
the key under each digit to be changed. Press
ENTER to enter displayed value.
SETTINGSETTING
SETTING
SETTINGSETTING
THETHE
THE
THETHE
LOCKLOCK
LOCK
LOCKLOCK
STATUSSTATUS
STATUS
STATUSSTATUS
LLLLOOOOCCCCKK
EEEENNNNTTTTEE
CoDE
Flashes
followed by:
KK
0
Key in the lock code (see programming step
4) by pressing the keys under the digits to be
changed. Press the ENTER key to enter the
displayed code.
After the code is entered the unit will display
LoC
or
EE
uN LoC
LOC (unit is locked) or UN LOC (unit is unlocked). This message will be displayed for
approximately 3 seconds before the unit returns to the run mode.
14
PRESSPRESS
RR
RR
RR
RR
RR
RR
RR
RR
AA
AA
BB
BB
PRESS
PRESSPRESS
DISPLAYDISPLAY
DISPLAY
DISPLAYDISPLAY
REMARKSREMARKS
REMARKS
REMARKSREMARKS
STEP
5
SETTINGSETTING
SETTING
SETTINGSETTING
THETHE
THE
THETHE
RELAYSRELAYS
RELAYS
RELAYSRELAYS
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
MM
PPPPRRRRGGGGMM
EEEENNNNTTTTEE
EEEENNNNTTTTEE
EEEENNNNTTTTEE
factor
count
rate
loc
relay
a tot
or
EE
a rate
This section sets up the relay information.
Press the PRGM key to choose A TOT (A
assigned to total) or A RATE (A assigned to
rate). Press enter when the desired choice is
displayed.
This is the duration (.1 to 99.9 sec) that relay
A ##.#
EE
b tot
or
EE
b rate
A will remain energized. If 00.0 is selected,
the relay will latch until reset
Press the PRGM key to choose B TOT (B
assigned to total) or B RATE (B assigned to
rate). Press enter when the desired choice is
displayed.
SETTINGSETTING
SETTING
SETTINGSETTING
THETHE
THE
THETHE
PRESETSPRESETS
PRESETS
PRESETSPRESETS
EEEENNNNTTTTEE
PPPPRRRREEEE
PPPPRRRREEEE
This is the duration (.1 to 99.9 sec) that relay
b ##.#
EE
PRE A
Followed by
last PRE A
entered
PRE B
Followed by
last PRE A
entered
B will remain energized. If 00.0 is selected,
the relay will latch until reset
PRE A = Preset A (Final Preset); The set point
at which output A will trigger. If the displayed
value is not the desired preset, press the
key(s) under the digit to be changed.
PRE B = Preset B (Prewarn); The set point at
which output B will trigger. If the displayed
value is not the desired preset, press the
key(s) under the digit to be changed.
15
OUTPUT WIRINGOUTPUT WIRING
OUTPUT WIRING
OUTPUT WIRINGOUTPUT WIRING
The following diagrams detail the connection of the relay and analog output options. Each relay consist of a form A contact
(Normally Open). NPN transistor or Normally Closed contacts are available with solder jumpers (see Jumper Options).
SOLENOID SOLENOID
SOLENOID (Single Stage)
SOLENOID SOLENOID
Use Relay A (pins 1 & 2) for single stage preset. When the count or rate (selectable) reaches Preset A, Relay A will
energize. When Relay A closes, current passes through the solenoid for activation. When operating AC solenoids,
we recommend the use of an MOV to reduce inductive kickback (use a diode for DC solenoids).
ANALOG
OFF
RUN
RUN
OUTPUT
ON
CAL.
0-20mA
COUNT
SET
ANALOG OUTPUTANALOG OUTPUT
ANALOG OUTPUT
ANALOG OUTPUTANALOG OUTPUT
SOLENOID
MOV
recommended
D08P
Prox Sensor
BLK
BRN
BLU
1- COMMON
2- N.O.(N.C./NPN)
3- COMMON
4- N.O.(N.C./NPN)
5- A INPUT
6- B INPUT
7- 12VDC OUT/+DC IN
8- -DC (GROUND)
9- RESET INPUT
10- NOT USED
11- A.C. INPUT
12- A.C. INPUT
RELAYS
A
B
SWITCH
ON
13- V+
14- I SINK
4-20mA
RATE
1 2 3 4
The analog output can be selected to output 4-20 mA or 0-20 mA and can be selected to track the rate or count.
Pin 13 supplies 12 to 18V to power the current loop. Pin 14 supplies the current sinking driver. When connecting
a strip chart recorder, make connections as follows:
ALARMSALARMS
ALARMS
ALARMSALARMS
STRIP CHART
ANALOG
RECORDER
TURBINE FLOWMETER
+
-
PULSE OUTPUT
+12V
GND
1- COMMON
2- N.O.(N.C./NPN)
3- COMMON
4- N.O.(N.C./NPN)
5- A INPUT
6- B INPUT
7- 12VDC OUT/+DC IN
8- -DC (GROUND)
9- RESET INPUT
10- NOT USED
11- A.C. INPUT
12- A.C. INPUT
RELAYS
A
B
SWITCH
ON
13- V+
14- I SINK
OFF
RUN
4-20mA
RATE
RUN
1 2 3 4
OUTPUT
ON
CAL.
0-20mA
COUNT
SET
The relays can be used to trigger alarms which warn the operator that a batch is complete or the rate has
exceeded a set speed. The outputs are programmable to be assigned for rate or count. When assigned to the
count, the relays can have a user selectable on time (duration) or can be latched until reset.
ANALOG
OUTPUT
ON
CAL.
0-20mA
COUNT
SET
LIGHT
BELL
1- COMMON
2- N.O.(N.C./NPN)
3- COMMON
4- N.O.(N.C./NPN)
5- A INPUT
6- B INPUT
7- 12VDC OUT/+DC IN
8- -DC (GROUND)
9- RESET INPUT
10- NOT USED
11- A.C. INPUT
12- A.C. INPUT
RELAYS
A
B
SWITCH
ON
13- V+
14- I SINK
OFF
RUN
4-20mA
RATE
RUN
1 2 3 4
16
ANALOG OUTPUT OPTIONANALOG OUTPUT OPTION
ANALOG OUTPUT OPTION
ANALOG OUTPUT OPTIONANALOG OUTPUT OPTION
Description:Description:
Description:
Description:Description:
An optional 4-20mA (0-20mA) output has been added to the Minitrol
series. The output can be programmed to track rate or total. This
feature is available by adding suffix A to the part number. Connections are via a 2 terminal pluggable screw connector.
Connections: Connections:
Connections: (see FIG. 1)
Connections: Connections:
PIN13 supplies the 12 to 18 VDC to power the current loop.
PIN14 is the control sink driver
Accuracy:Accuracy:
Accuracy:
Accuracy:Accuracy:
50uA worst case
Compliance Voltage:Compliance Voltage:
Compliance Voltage:
Compliance Voltage:Compliance Voltage:
3 to 30 VDC non conductive
Setup:Setup:
Setup:
Setup:Setup:
The optional analog output feature uses 4 dip switches on the back
for setup. These switches are used as follows:
SW1 -SW1 -
SW1 - View or change "set low" and/or "set high" values
SW1 -SW1 SW2 - SW2 -
SW2 - Select output for rate or total
SW2 - SW2 SW3 - SW3 -
SW3 - Select 4-20mA or 0-20mA
SW3 - SW3 SW4 - SW4 -
SW4 - Calibrate the unit.
SW4 - SW4 After the regular parameters shown in the programming flowchart
have been set, locate the 4 switches on the back of the unit. (see
FIG. 1)
Switch Settings:Switch Settings:
Switch Settings:
Switch Settings:Switch Settings:
SWITCH 1:SWITCH 1:
SWITCH 1: Enter Analog Low & High (normally off)
SWITCH 1:SWITCH 1:
Switch 1 is used to load in the low (4mA or 0mA) and/or the high
(20mA) output settings. With power on, set switch 1 ON (up).
SWITCH 4: SWITCH 4:
SWITCH 4: Calibrate (normally off)
SWITCH 4: SWITCH 4:
Switch 4 is used for calibration. Calibration is done at the factory
and should not be needed (see SWITCH 1 to enter high and low
values). If recalibration is desired, a calibrated 20mA ammeter
with 1uA resolution is needed. Attach the "+" lead of the meter to
pin 13 and the "-" lead to pin 14. Set switch 4 ON (up). The unit
will output approximately 20.000mA and a decimal will light in the
third position. Read the output using the ammeter. Press PRE A.
If the display is the same as the ammeter reading, press ENTER.
If not, press buttons A through E to step to ammeter reading and
ENTER. (Disregard display which now shows the last count reading with decimal point in third position) Return switch 4 to OFF
(down) position.
RS232 & RS422 Operation:RS232 & RS422 Operation:
RS232 & RS422 Operation:
RS232 & RS422 Operation:RS232 & RS422 Operation:
When the unit is suppled with RS232 or RS422, the analog output
"low" and "high" settings can be accessed and changed through
the serial port. The codes are as follows:
AL AL
AL Unit will display (transmit) analog out "low" value.
AL AL
AL(S)XXXXXAL(S)XXXXX
AL(S)XXXXX Unit will load analog out "low" with entered
AL(S)XXXXXAL(S)XXXXX
number. (S) = space
AH AH
AH Unit will display (transmit) analog out "high" value.
AH AH
AH(S)XXXXXAH(S)XXXXX
AH(S)XXXXX Unit will load analog out "high" with entered
AH(S)XXXXXAH(S)XXXXX
number. (S) = space
FIG. 1FIG. 1
FIG. 1
FIG. 1FIG. 1
Analog Out Setup SwitchesSerial Port
13 14
1 2 3 4
ON
LOW SETTING is viewed or changed by pressing PRE A. If the
displayed value is correct, press ENTER. If not, press buttons A
through E to step to the desired value and press ENTER. (disregard the display which will show the last count reading).
HIGH SETTING is viewed or changed by pressing PRE B. If the
displayed value is correct, press ENTER. If not, press buttons A
through E to step to desired value and press ENTER.
Return switch 1 to OFF (down) position, PRE A and PRE B buttons
now function to view or change relay trip values.
SWITCH 2: SWITCH 2:
SWITCH 2: Select Count or Rate
SWITCH 2: SWITCH 2:
SW2 OFF (down): Analog output follows rate
SW2 ON (up): Analog output follows count
SWITCH 3: SWITCH 3:
SWITCH 3: Select 4-20mA or 0-20mA
SWITCH 3: SWITCH 3:
SW3 OFF (down): Selects 4-20mA output range
SW3 ON (up): Selects 0-20mA output range
1 2 3 4 5 6 7 8 9 10 11 12
Typical Wiring:Typical Wiring:
Typical Wiring:
Typical Wiring:Typical Wiring:
RELA Y A COMMON
RELA Y A N.O.
RELAY B COMMON
RELAY B N.O.
INPUT A
12 to 18V OUT/ +DC IN
ANALOG OUT (SINK)
INPUT B
-DC (GROUND)
RESET INPUT
NOT USED
110 / 220 VAC
110 / 220 VAC
12 to 18V OUT
REAR VIEW
1
2
3
4
PULSE OUTPUT
5
6
7
8
9
10
11
12
13
14
+12V
GND
+
-
TURBINE FLOWMETER
STRIP CHART
RECORDER
17
INTERFACE CARD RS 232/422 OPERATIONINTERFACE CARD RS 232/422 OPERATION
INTERFACE CARD RS 232/422 OPERATION
INTERFACE CARD RS 232/422 OPERATIONINTERFACE CARD RS 232/422 OPERATION
RS 232/422 SET-UP:RS 232/422 SET-UP:
RS 232/422 SET-UP:
RS 232/422 SET-UP:RS 232/422 SET-UP:
All serial communication mode changes must be done
through serial communications. Mode changes cannot be
done through the front panel. To initialize the unit, place a
jumper between pin 7(+12V )[bottom board] and pin 1(init) [DB
-9 connector] on initial power up. The unit defaults to: 300
baud rate,"MARK" parity and device number 01. To enter the
program mode you must set your terminal for 300 baud rate
and "MARK" parity. Next, type D1(s),
unit will echo back "DEVICE #1:". Now type EP (enter
program) and a carriage return (enter). The unit will echo back
"PROGRAM SETTING". You are now in the programming
mode.
SETUP PROCEDURE:SETUP PROCEDURE:
SETUP PROCEDURE:
SETUP PROCEDURE:SETUP PROCEDURE:
The following sections consist of the communications setup
options as they appear in the menu. (If you wish to exit the
program mode, at any time you can hit the "escape key" (Hex
Code: 1B) and the unit will save the changes made but not
effect the remaining data values.) When each section of the
setup menu is displayed, the current data will appear in the <
> signs. If you wish to change the data, type in the number
of the desired choice and press return (enter). If you wish to
keep the current data, simply press return.
DEVICE NUMBER:DEVICE NUMBER:
DEVICE NUMBER:
DEVICE NUMBER:DEVICE NUMBER:
Each unit in the hook-up must be assigned it’s own device
number (1 to 99). Zero is reserved for a dedicated hook-up to
only one terminal, and it’s transmit output line remains in an
"on" active state. The device number is entered in the
program mode. The unit will prompt you:
DEVICE# <XX>?
If XX is the desired device number press return (enter), if not
enter the desired number after the question mark and press
return (enter).
BAUD RATE:BAUD RATE:
BAUD RATE:
BAUD RATE:BAUD RATE:
The baud rate is the speed at which data is transmitted,
expressed in bits per second. Baud rates of 300, 600, 1200,
2400, 4800 or 9600 are available. When in the baud rate
section of the menu, the unit will list :
BAUD RATES:
1:300 2:600 3:1200
4:2400 5:4800 6:9600
then prompt you:
BAUD RATE <300>?
Press return (enter) if this is the desired baud rate or enter the
assigned number of one of the six possible baud rates. If an
invalid baud rate is entered the unit will prompt you to choose
another baud rate. This will occur until a valid baud rate is
entered or escape is pressed.
PARITY:PARITY:
PARITY:
PARITY:PARITY:
Parity is a bit of information that is inserted before the stop bit
and is used to help check if the transmission is correct. When
setting the parity you may select "ODD" (parity bit is logic 0 if
total number of logic 1’s in the first seven data bits is odd),
(s)= space bar(s)= space bar
(s)= space bar. The
(s)= space bar(s)= space bar
"EVEN" (parity bit is logic 0 if total number of logic 1’s in the first
seven data bits is even), "MARK" (parity bit is always logic 1
- High / Mark) or "SPACE" (parity bit is always logic 0 - Low /
Space). If a "MARK" parity is chosen, it will appear that two
stop bits are used. Use the "MARK" parity with terminals using
parity "OFF" or "NONE". These terminals ignore the parity.
The unit does not check the parity but does transmit the parity
chosen. When setting the parity, the unit will print:
PARITIES:
MARK-0 SPACE-1 EVEN-2 ODD-3
Then the unit will prompt you:
PARITY<MARK>?
If this is the desired parity press return (enter), if it isn’t enter
the number of the desired parity then press return (enter).
STROBE LIST:STROBE LIST:
STROBE LIST:
STROBE LIST:STROBE LIST:
The serial interface card is also equipped with a strobe line.
When the strobe line is triggered, a chosen set of data will be
transmitted to be displayed or printed. The selections for the
display list are entered in the program mode. Enter "1" to add
selections to the list and enter "0" to delete selections from the
list. The seven available items for the strobe display list are:
(1) Preset A, (2) Preset B, (3) K-Factor A, (4) K-Factor B, (5)
Rate of A, (6) Count A, (7) Count B. In the "A net B" mode
Count A will display the Net Count and Count B is an invalid
command and the unit will transmit useless data. When
setting the strobe list the unit will print :
ENTER STROBE LIST:
DO NOT DISPLAY-0 DISPLAY-1
The unit will prompt you:
PRESET A<DISPLAY>?
PRESET B<DISPLAY>?
K-FACTOR A<DISPLAY>?
K-FACTOR B<DISPLAY>?
RATE<DISPLAY>?
COUNT A<DISPLAY>?
COUNT B<DISPLAY>?
If the above choices are entered, when the strobe line is
triggered (3-30V positive pulse) the unit will transmit:
DEVICE# 1:
PA XXXXX
PB XXXXX
KA XXXXX
KB XXXXX
DR XXXXXX
DA XXXXXX
DB XXXXXX
(SEE COMMANDS BELOW FOR DESCRIPTION OF COMMAND CODES).
Each time the strobe line gets triggered the unit will transmit
this data unless the program mode is entered and the strobe
list altered.
After these four items have been entered they will remain
unaltered unless the program mode is entered again and the
values changed. The unit is now set and must be addressed
by it’s device number to come on line again.
18
SERIAL INPUT COMMANDS:SERIAL INPUT COMMANDS:
SERIAL INPUT COMMANDS:
SERIAL INPUT COMMANDS:SERIAL INPUT COMMANDS:
To get a unit on line you must address it by it’s device number.
This is done by typing DXX(S), XX= device number. The unit
comes on line and echoes back DEVICE# XX. Insure that
"DEVICE# XX:" is received before requests are sent. The unit
is now ready to receive a command or string of commands
separated by a space. A carriage return (enter) will enter the
commands and processing of requests begins. The carriage
return (Hex Code "D") puts the unit "off line" after data is
processed.
COMMANDS:
EP...........Unit will enter program mode.
DA..........Unit will display (transmit) Count A.
DB..........Unit will display (transmit) Count B.
DR..........Unit will display (transmit) rate A.
KA..........Unit will display K-factor A.
*KA(S)XXXXX....Unit will load K-factor A
with entered number.
KB..........Unit will display K-factor B
*KB(S)XXXXX....Unit will load K-factor B
with entered number.
PA...........Unit will display Preset A.
PA(S)XXXXX....Unit will load Preset A with
entered number.
PB...........Unit will display Preset B
PB(S)XXXXX....Unit will load Preset B with
entered number.
RA..........Counter A will reset
*RA(S)XXXXXX...Unit will set Counter A to
entered number.
RB..........Counter B will reset.
*RB(S)XXXXXX...Unit will reset Counter B to
entered number.
*THE UNIT WILL RECOGNIZE A DECIMAL IF ONE IS*THE UNIT WILL RECOGNIZE A DECIMAL IF ONE IS
*THE UNIT WILL RECOGNIZE A DECIMAL IF ONE IS
*THE UNIT WILL RECOGNIZE A DECIMAL IF ONE IS*THE UNIT WILL RECOGNIZE A DECIMAL IF ONE IS
PLACED IN ANY OF THESE DATA VALUES.PLACED IN ANY OF THESE DATA VALUES.
PLACED IN ANY OF THESE DATA VALUES.
PLACED IN ANY OF THESE DATA VALUES.PLACED IN ANY OF THESE DATA VALUES.
THE UNIT WILL ONLY RECOGNIZE THE LAST FIVETHE UNIT WILL ONLY RECOGNIZE THE LAST FIVE
THE UNIT WILL ONLY RECOGNIZE THE LAST FIVE
THE UNIT WILL ONLY RECOGNIZE THE LAST FIVETHE UNIT WILL ONLY RECOGNIZE THE LAST FIVE
DIGITS ENTERED (SIX DIGITS FOR RA & RB).DIGITS ENTERED (SIX DIGITS FOR RA & RB).
DIGITS ENTERED (SIX DIGITS FOR RA & RB).
DIGITS ENTERED (SIX DIGITS FOR RA & RB).DIGITS ENTERED (SIX DIGITS FOR RA & RB).
The following is an example of requests and responses:
Transmit from terminal Receive from unit
(s)=Space
D5(s) [Unit #5 Activated] DEVICE# 5:
PA(s)12345(s)PA PA 12345 PA
KA(s)1576(s)KA KA 1576 KA
KB(s)6751(s)KB KB 6751 KB
RA(s)RB[RETURN] RA RB
(UNIT PRESETS AND A & B K-FACTORS ARE SET AND
BOTH COUNTERS ARE RESET)
12345
1576
6751
SERIAL INTERFACE OPERATION:SERIAL INTERFACE OPERATION:
SERIAL INTERFACE OPERATION:
SERIAL INTERFACE OPERATION:SERIAL INTERFACE OPERATION:
Data is received and transmitted over standard EIA RS232 or
RS422 levels. Each ten bit character is made up of a start bit,
seven bit ASCII code, a parity bit and a stop bit. Device
number, baud rate, parity and strobe list are entered in the
program setup mode and will remain in memory even if power
is lost.
The input impedance of RS232 is 3KΩ to 7KΩ worst case. The
terminal addressing the unit must be capable of driving all
loads in the loop. The input impedance of RS422 is much
higher and there should be no problem driving as many as 99
units. The transmit line remains in a high impedance "off"
state until addressed. Only one unit is to be on line at a time!!!
More than one unit on line could damage the unit or destroy the
transmitted data.
When the unit is active (on line) it will operate in a full duplex,
echo back mode, so that data sent from the terminal will be
transmitted back for verification. When the unit is "on line",
use the proper serial transmit commands to request data or
set a new value. Up to 80 characters of data can be linked
together and transmitted to the unit in a string as long as there
is a space between the commands. If an error is made, a
correction can be made by back spacing and retyping correct
data before the return (enter) is sent. Once a return (enter) is
sent, the unit begins processing the data and will transmit the
requested data on a non-priority basis over the data transmit
line. A keypad entry or incoming data will halt the data
communication cycle. Therefore, there should be a pause
after data is requested to insure that all data has been
transmitted before making another request or addressing
another unit. If the unit is not busy, it should not take longer
than 300 msec to process each request. To find the cycle time
to process and transmit a request, calculate the bit transmit
time by using this formula: [(1÷ baud rate) x (80) + .005] x
number of requests made. This time will be extended if the unit
must service the front keypad. If transmission has not started
within two seconds after data is requested, it can be assumed
that there is a problem. The unit transmits a carriage return
and line feed after each data value. Any new communication
must be started with DXX(S) (device number and space).
RS232/RS422 - IBM-PC INTERFACE:RS232/RS422 - IBM-PC INTERFACE:
RS232/RS422 - IBM-PC INTERFACE:
RS232/RS422 - IBM-PC INTERFACE:RS232/RS422 - IBM-PC INTERFACE:
The following program is for IBM basic to set up RS232/RS422
on serial port (#1) at 300 baud. Run this program after
connecting the serial interface connections.
10 SCREEN 0,0:WIDTH 80
20 CLS:CLOSE
30 OPEN "COM1:300,n,7,1,CS,DS,CD" AS #1
40 ON ERROR GOTO 110
50 B$=INKEY$
60 IF B$< >"" THEN PRINT #1,B$;
70 IF EOF (1) THEN 50
80 A$=INPUT$ (LOC(1),#1)
90 PRINT A$;
100 GOTO 50
110 RESUME
19
RS232 / RS422 WIRINGRS232 / RS422 WIRING
RS232 / RS422 WIRING
RS232 / RS422 WIRINGRS232 / RS422 WIRING
COMPUTER HOOKUP:COMPUTER HOOKUP:
COMPUTER HOOKUP:
COMPUTER HOOKUP:COMPUTER HOOKUP:
RS 232:RS 232:
RS 232: When connecting the unit to a computer with RS 232
RS 232:RS 232:
communication, only three connections are needed. These
connections are: Receive data, Transmit data and Ground.
The connections should be made as follows:
DP -9 CONNECTOR COMPUTER
Transmit data (pin 2) Receive data
Receive data (pin 3) Transmit data
Ground (pin 5) Ground
RS 422:RS 422:
RS 422: When connecting the unit to a computer with RS 422,
RS 422:RS 422:
five connections are needed. These connections are: Receive data A (+), Receive data B (-), Transmit data A (+),
Transmit data B (-) and Ground. The connections should be
made as follows:
RST
B C
D E
A
ENTER LOCK PRE A PRE B VIEW PRGM
RST
B C
D E
A
ENTER LOCK PRE A PRE B VIEW PRGM
RS 232
RECEIVE PIN (3)
TRANSMIT PIN (2)
GROUND PIN (5)
RS 422
RECEIVE A (+) PIN (3)
RECEIVE B (-) PIN (8)
TRANSMIT A (+) PIN (2)
TRANSMIT B (-) PIN (7)
GROUND PIN (5)
6789
12345
DP -9 CONNECTOR COMPUTER
Transmit data A(+) (pin 2 Receive data A(+)
Transmit data B(-) (pin 7) Receive data B(-)
Receive data A(+) (pin 3) Transmit data A(+)
Receive data B(-) (pin 8) Transmit data B(-)
Ground (pin 5) Ground
PRINTER HOOKUP:PRINTER HOOKUP:
PRINTER HOOKUP:
PRINTER HOOKUP:PRINTER HOOKUP:
When connecting the unit to a printer, you must first program
the desired baud rate, parity and strobe list with a computer.
After the unit is programmed it can be connected to the printer.
Connect the transmit line(s) of the unit to the receive line(s) of
the printer and be sure that both devices have common
grounds. When the strobe line is triggered the unit will transmit
the selected strobe list which you had previously programmed.
RS 232RS 232
RS 232
RS 232RS 232
1. INITIALIZE
2. TRANSMIT
3. RECEIVE
4. N/C
5. GROUND
6. STROBE
7. N/C
8. N/C
9. N/C
RST
B C
D E
A
ENTER LOCK PRE A PRE B VIEW PRGM
RS 232
STROBE PIN (6)
+12V PIN (7)
(BOTTOM BOARD)
TRANSMIT PIN (2)
GROUND PIN (5)
RS 422
STROBE PIN (6)
+12V PIN (7)
(BOTTOM BOARD)
RS 422RS 422
RS 422
RS 422RS 422
1. INITIALIZE
2. TRANSMIT A (+)
3. RECEIVE A (+)
4. N/C
5. GROUND
6. STROBE
7. TRANSMIT B (-)
8. RECEIVE B (-)
9. N/C
20
RST
B C
D E
A
ENTER LOCK PRE A PRE B VIEW PRGM
TRANSMIT A (+) PIN (2)
TRANSMIT B (-) PIN (7)
GROUND PIN (5)
TROUBLESHOOTING GUIDETROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDETROUBLESHOOTING GUIDE
PROBLEMPROBLEM
PROBLEM
PROBLEMPROBLEM
Power is applied to unit but the display
does not light.
Unit works, but occasionally the display
freezes or skips counts.
Input signal is connected but the unit
does not count or display rate.
Rate is displaying: r FFFFF.
POSSIBLE CAUSESPOSSIBLE CAUSES
POSSIBLE CAUSES
POSSIBLE CAUSESPOSSIBLE CAUSES
1. AC or DC power wiring is incorrect.
1. Line noise is affecting the processor
due to a current spike or surge.
1. Input wiring is incorrect.
2. Scale factors are incorrect.
3. Transmitting device is defective.
4. Wrong debounce filtering selected.
5. Minitrol is defective.
1. The unit is trying to display a
number which it can’t (too small or
too large).
2. Line noise affected unit on power
up.
SOLUTIONSSOLUTIONS
SOLUTIONS
SOLUTIONSSOLUTIONS
1. Recheck power wiring
1. Use a different power supply or
install a surge suppressor.
1. Recheck input wiring.
2. Recheck scale factors and factor
calculations.
3. Replace transmitting device.
4. Recheck debounce filtering selection
"hi cps" or "lo cps".
5. To confirm set scale factors at one
and connect a wire to pin #7 and
touch it to pin # 5 (input A). Each
time pin #5 is touched counter A
should count once. If not, call
factory for RMA. (this test will not
work on units with quadrature input)
1. Check scaling factor, if it is correct,
lower the number of significant
figures.
2. Reprogram the unit and be sure to
enter a decimal (enter one and re
move it if a decimal is not desired).
Relays are not activating properly.
Counter resets before reaching 999999.
Various menu items are not being displayed.
1. Wrong relay duration.
2. Relay set for wrong activation
i.e. count instead of rate.
1. Relay duration is set at a value other
than 00.0. This causes the counter
to auto-reset at the preset.
1. The menu flow chart and the setup
steps show the setup for the units
with rate and total (MRT). When
using a unit which has only count
(MC2) or only rate (MR2,) several
menu items will not be displayed.
1. Recheck programmed relay duration.
2. Recheck programmed relay
activation mode.
1. If relay outputs are not being used,
set the relays for rate (MRT only).
2. Set the relay durations to 00.0.
1. The menu items which do not
appear are not used for the models
without the ratemeter (MC2) or
without the counter (MR2).
Therefore, disregard any menu items
which appear on the flowchart and
setup steps, but do not appear on
the unit’s display.
21
NOTE TO OUR CUSTOMERNOTE TO OUR CUSTOMER
NOTE TO OUR CUSTOMER
NOTE TO OUR CUSTOMERNOTE TO OUR CUSTOMER
KEP is dedicated to providing complete customer service and customer satisfaction. If you
have any comments or criticisms about how to improve this manual, please make a note
of the problem/improvement and notify us. We are always open to new ideas and
improvements. So please let us know your ideas and comments.
Call us toll free: 800-631-2165
WARRANTYWARRANTY
WARRANTY
WARRANTYWARRANTY
This product is warranted against defects in materials and workmanship for a period
of two (2) years from the date of shipment to Buyer.
The Warranty is limited to repair or replacement of the defective unit at the option of
the manufacturer. This warranty is void if the product has been altered, misused,
dismantled, or otherwise abused.
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, ARE EXCLUDED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Loading...
