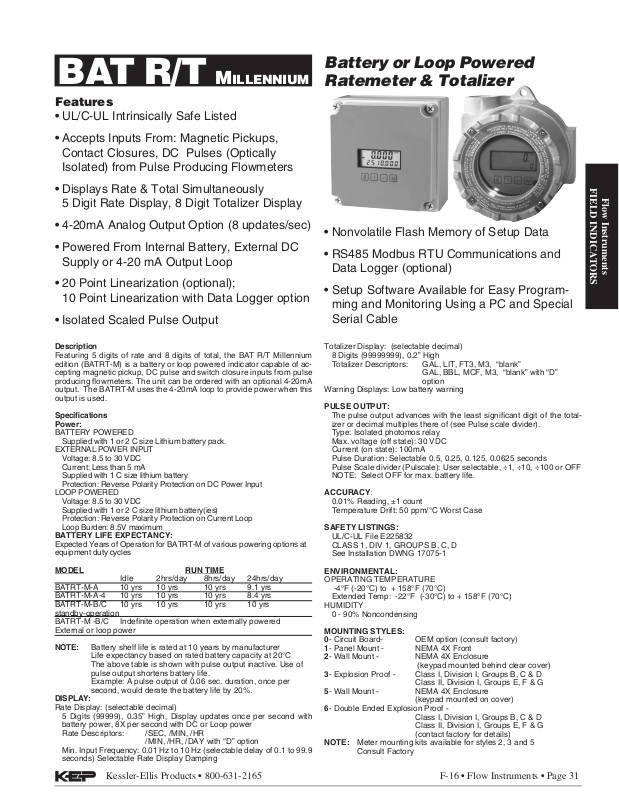

KEP BAT R-T-M Specifications
Kessler-Ellis Products • 800-631-2165 F-16 • Flow Instruments
• Page 31
• UL/C-UL Intrinsically Safe Listed
• Accepts Inputs From: Magnetic Pickups,
• Displays Rate & Total Simultaneously
5 Digit Rate Display, 8 Digit Totalizer Display
• 4-20mA Analog Output Option (8 updates/sec)
• Powered From Internal Battery, External DC
• 20 Point Linearization (optional);
10 Point Linearization with Data Logger option
• Isolated Scaled Pulse Output
Supplied with 1 or 2 C size Lithium battery pack.
Voltage: 8.5 to 30 VDC
Current: Less than 5 mA
Supplied with 1 C size lithium battery
Protection: Reverse Polarity Protection on DC Power Input
Voltage: 8.5 to 30 VDC
Supplied with 1 or 2 C size lithium battery(ies)
Protection: Reverse Polarity Protection on Current Loop
Loop Burden: 8.5V maximum
Idle 2hrs/day 8hrs/day 24hrs/day
Battery shelf life is rated at 10 years by manufacturer
Life expectancy based on rated battery capacity at 20°C
The above table is shown with pulse output inactive. Use of
Example: A pulse output of 0.06 sec. duration, once per
5 Digits (99999), 0.35” High, Display updates once per second with
Rate Descriptors: /SEC, /MIN, /HR
/MIN, /HR, /DAY with “D” option
Min. Input Frequency: 0.01 Hz to 10 Hz (selectable delay of 0.1 to 99.9
BAT R/T MILLENNIUM
Totalizer Display: (selectable decimal)
8 Digits (99999999), 0.2” High
Totalizer Descriptors: GAL, LIT, FT3, M3, “blank”
GAL, BBL, MCF, M3, “blank” with “D”
option
Warning Displays: Low battery warning
The pulse output advances with the least signifi cant digit of the total-
Type: Isolated photomos relay
Max. voltage (off state): 30 VDC
Current (on state): 100mA
Pulse Duration: Selectable 0.5, 0.25, 0.125, 0.0625 seconds
Pulse Scale divider (Pulscale): User selectable, ÷1, ÷10, ÷100 or OFF
NOTE: Select OFF for max. battery life.
ACCURACY
0.01% Reading, ±1 count
Temperature Drift: 50 ppm/°C Worst Case
CLASS 1, DIV 1, GROUPS B, C, D
See Installation DWNG 17075-1
-4°F (-20°C) to + 158°F (70°C)
Extended Temp: -22°F (-30°C) to + 158°F (70°C)
0 - 90% Noncondensing
(keypad mounted behind clear cover)
3
Class II, Division I, Groups E, F & G
5
(keypad mounted on cover)
Class I, Division I, Groups B, C & D
Class II, Division I, Groups E, F & G
(contact factory for details)
Meter mounting kits available for styles 2, 3 and 5
Consult Factory
• Nonvolatile Flash Memory of Setup Data
• RS485 Modbus RTU Communications and
• Setup Software Available for Easy Program-
Idle 2hrs/day 8hrs/day 24hrs/day
FIELD INDICATORS
Flow Instruments
Page 32 • Flow Instruments • F-16
Kessler-Ellis Products • 800-631-2165
Flow Instruments
Remote
Reset Switch
12 VDC
Power
Supply
+
-
1 Mag Input 1
2 Mag Input 2
3 Shield/Common
4 Reset Input
5 Contact Input
6 Common/ DC In (-)
Turbine Meter with
Mag Pickup
6 5 4 3 2 1
MAG INPUT / DC POWERED
DC In (+) 12
Not Used (-) 11
Opto Input (+) 10
Opto Input (-) 9
Opto Out (+) 8
Opto Out (-) 7
789101112
KEP
115-12
or
Ext. Battery
A
Flowmeter with
Switch Closure Output
DC In (+) 12
Not Used 11
Opto Input (+) 10
Opto Input (-) 9
Opto Out (+) 8
Opto Out (-) 7
1 Mag Input 1
2 Mag Input 2
3 Shield/Common
4 Reset Input
5 Contact Input
6 Common/ DC In (-)
6 5 4 3 2 1
CONTACT INPUT / PULSE OUTPUT / BATTERY POWERED
123456
789101112
(Power option
or B)
Remote
Reset Switch
1 Mag Input 1
2 Mag Input 2
3 Shield/Common
4 Reset Input
5 Contact Input
6 Common/ DC In (-)
Turbine Meter with
Mag Pickup
6 5 4 3 2 1
MAG INPUT / BATPACK POWERED
DC In (+) 12
Not Used(-) 11
Opto Input (+) 10
Opto Input (-) 9
Opto Out (+) 8
Opto Out (-) 7
789101112
BATPACK PLUGIN
CONNECT
OR
BATPACK
(Power option
A
or B)
Frequency Range: 0 to 3500 Hz
Trigger Sensitivity: 10 mV p-p
Over Voltage Protected: ± 30 VDC
High (logic 1): 4-30 VDC
Low (logic 0): Less Than 1 VDC
Minimum Current: .5 mA
Hysteresis: 0.4 VDC
Frequency Range: 0 to 5 kHz
Min. Pulse Width: 0.1 msec
Internal Pullup Resistor: 100 K
to +3.6 VDC
High (logic 1): Open or 4-30 VDC
Low (logic 0): Less Than .5 VDC
Internal Switch Debounce Filter: 0 to 40 Hz
Internal Pullup Resistor: 100 K
to +3.6 VDC
High (logic 1): Open or 4-30 VDC
Low (logic 0): Less Than .5 VDC
Minimum On : 25 msec
Range: 0.001 to 99999999
Decimal Point Locations: XXXX.XXXX to XXXXXXXX
20 Point Linearization Option (10 Point with Data Logger option)
This feature allows the user to enter 20 different frequencies with 20
ANALOG OUTPUT OPTION:
Type: 4-20 mA follows rate display, Two wire hookup
Accuracy: 0.025% Full Scale at 20° C
Temperature Drift:
50 ppm/°C Typical
Reverse Polarity Protected
Update Rate: 8 times/second
The BATRT-M uses the 4-20 mA loop power as its primary pow-
for standby battery operation.
Setup Information: Stored in fl ash memory
Totalizer: Stored in battery backed RAM but can be saved to fl ash
This option enables you to access a variety of process parameters
through serial communications. PC compatible communications soft-
ware is included with this option. With this software and a BAT R/T-M
through your PC.
The optional RS-485 card utilizes Modbus RTU protocol to access a
variety of process parameters. The Data Logger stores the totalizer
to fl ash memory once every 24 hours at the time you set. The data
the logger is dropped. Requires external DC power: 6-28VDC (input is
Current Draw:
Receiving: 2 mA
Transmitting: 125 mA (instantaneous peak)
(Power option C or
AC)
Turbine Meter with
Mag Pickup
1 Mag Input 1
2 Mag Input 2
3 Shield/Common
4 Reset Input
5 Contact Input
6 Common
6 5 4 3 2 1
+
-
Strip Chart
Recorder
MAG INPUT / 4-20 mA LOOP POWERED
4-20mA (+)(+) 12
4-20mA (-) 11
Opto Input (+) 10
Opto Input (-) 9
Opto Out (+) 8
Opto Out (-) 7
789101112
24 VDC
Power
Supply
+
-
18
17
16
15
14
13
18
17
16
15
14
13
BATRT-M
Unit
1
BA
TRT-M
Unit
2
Co
nnect 16 to 14
fo
r optional
Terminating Resistor
115 VAC
Model
115-24
24 VDC
Power Supply
(+)
(–)
G
T
+
Model
CA285
115 VAC
CA285
Po
wer Adaptor
PC with
RS-232 Port
