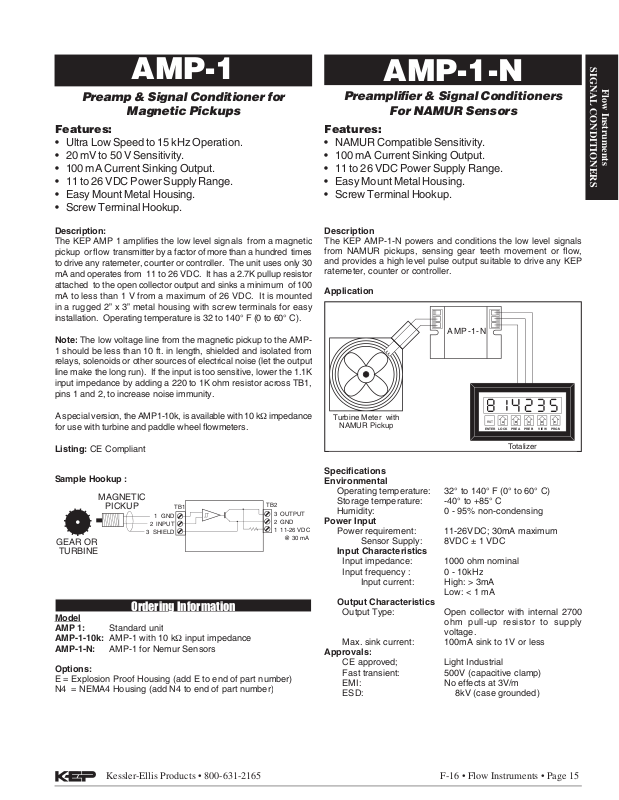

KEP AMP-1-N Operating Manual

Kessler-Ellis Products • 800-631-2165 F-16 • Flow Instruments

• Page 15

Operating temperature: 32° to 140° F (0° to 60° C)

Storage temperature: -40° to +85° C

Humidity: 0 - 95% non-condensing

Power requirement: 11-26VDC; 30mA maximum

Sensor Supply: 8VDC ± 1 VDC

Input impedance: 1000 ohm nominal

Input frequency : 0 - 10kHz

Input current: High: > 3mA

Low: < 1 mA

Output Type: Open collector with internal 2700

Max. sink current: 100mA sink to 1V or less

CE approved; Light Industrial

Fast transient: 500V (capacitive clamp)

EMI: No effects at 3V/m

ESD: 8kV (case grounded)

Totalizer

Turbine Meter with

NAMUR Pickup

AMP-1

The low voltage line from the magnetic pickup to the AMP-

impedance

CE Compliant

3 OUTPUT
2 GND
1 11-26 VDC

@ 30 mA

TB2

1 GND

2 INPUT

3 SHIELD

TB1

GEAR OR

TURBINE

MAGNETIC

PICKUP

Standard unit

AMP-1 with 10 k

input impedance

AMP-1 for Nemur Sensors

AMP-1-N

SIGNAL CONDITIONERS

Flow Instruments

Ordering Information
