This instruction manual is used to describe multiple models listed above.
Model availability and features (functions) may differ depending on the country and sales
area.
Europe and U.K.........................................................................AC 230 V only
China and Russia .....................................................................AC 220 V only
*Other countries ................................ AC 110-120 / 220-240 V switchable
*AC voltage selection
The AC voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before connecting the power cord to your AC outlet, make sure that the setting
position of this switch matches your line voltage. If not, it must be
set to your voltage in accordance with the following direction.
Move switch lever to match your line voltage
with a small screwdriver or other pointed tool.
AC voltage selector switch
%AC220-240V
fiAC110-120V
~
~
%AC220-240V
~
fiAC110-120V
~
Note:
Our warranty does not cover damage caused by excessive line voltage due to improper setting of the AC voltage selector switch.
Safety precautions
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILA TERAL TRIANGLE, IS INTENDED
TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THA T MA Y BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO
THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
REQUIREMENT BY NEDERLAND GAZETTE
Batteries are supplied with this product. When
they empty, you should not throw away . Instead,
hand them in as small chemical waste.
The marking of products using lasers
(Except for some areas)
CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means
that the unit is utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
Contents
Preparation sectionApplication section
Caution : Read the pages marked
carefully to ensure safe operation.
Before applying power
XD-SERIES (En)
3
Before applying power ............................................ 2
The easy to see graphical display features a large spectrum analyzer. A running indicator shows the operations such as CD playback and skipping at a glance.
Easy to operate, new multi control jog dial(
The jog dial makes possible easy setup of CD playback, timer recording/playback and other operations while
monitoring the displayed information. The same operation is also available on the remote control unit.
Built in sub woofer (XD-7....series only)¡
Each 3-way speaker incorporates an additional sub woofer to reproduce heavy bass more powerfully than
conventional system speakers.
3-Disc carousel CD player™
Three discs can be set. There are various ways for enjoyment at the time of program playback, repeat
playback, random playback, etc.
When the power supply is restored after a power failure or the power
cord is unplugged and plugged in again during use, this unit automatically starts the demonstration function (display only). During the
demonstration, the display changes in sequence but the audio does
not change. The demonstration can be canceled with the following
procedure.
÷ Press the key during demonstration to stop it.
Versatile tone and sound field adjustmentp
Equalizer patterns can not only be selected from preset patterns, but patterns also can be created and
registered. It is possible to recreate a feeling of presence and to recreate a sound field.
To switch over the demonstration:
Turn the unit OFF (STANDBY mode) and
press the key.
MODE
/DEMO
Each press of the key switches the demonstration as shown below.
1 DEMO (Demonstration executed)
2 OFF (Demonstration canceled)
Unpacking
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your
unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the
unit) can file a claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.
Accessories
FM indoor antenna (1)
Europe and U.K.Other countries
Loop antenna stand (1)AM loop antenna (1)
Speaker cords (4)
XD-7....Series
Speaker cords (2)
XD-5....Series
(Provided in the speaker package)
Remote control unit (1)
Speaker cushion (8)
Batteries (R6/AA) (2)
Handling of discs and tapes
Disc handling precautions
Before applying power
XD-SERIES (En)
5
Handling
Hold compact discs so that you do not
touch the playing surface.
Label side
Playing side
Sticker, etc
Do not attach paper or tape to either
the playing side or the label side of compact discs.
Sticky paste
Discs which can be played with this unit
Caution on disc used
Cleaning
If fingerprints or foreign matter become attached to the disc, lightly wipe the disc with a
soft cotton cloth (or similar) from the center of
the disc outwards in a radial manner.
Storage
When a disc is not to be played for a long period of time, remove it from the CD player and
store it in its case.
CD accessories
The CD accessories (stabilizer, protection sheet, protection ring, etc.)
which are marketed for improving the sound quality or protecting discs
as well as the disc cleaner should not be used with this system because they may cause malfunction.
CD (12 cm, 8 cm), CDV (only the audio part)
÷ With CD-G (CD Graphics) discs, this unit can play only the audio.
÷ Please do not use discs which are not round because they may
cause a malfunction.
Never play cracked or warped disc.
During playback, the disc rotates at high speed in the player.
Therefore, to avoid malfunction, never use a cracked or deformed disc
or a disc repaired with tape or adhesive agent.
Do not use cleaning discs.
Please do not use commercially available cleaning discs, they may
damage the internal mechanism.
After an important recording has been finished, break the safety tab,
to prevent the recorded contents from being erased or recorded on
accidentally.
For A side
For B side
To re-record
Notes
Notes
1. Longer tape than 110 minutes cassette tape
Since longer tape than 110 minutes cassette tape is very
thin, the tape could adhere to the pinch roller or be easily cut.
It is recommended that these tapes not be used with this
unit to prevent possible damage.
Apply tape only to the position where
the tab has been removed.
To store cassette tapes
Do not store the tapes in a place which is subject to direct sunlight, or
near equipment that generates heat. Keep the cassette tapes away
from any magnetic field.
N
S
When there is slack in the tape
In such a case, insert a pencil into the reel hole and wind the reel hub
to remove the slack.
2. Endless tapes
Do not use an endless tape, as this could damage the mechanism of
the unit.
6
System connection (XD-7...series)
XD-SERIES (En)
Connection of the System Accessories
This is the connection method for system and accessories.
Please look carefully at the illustration and connect correctly in the order of the numbers.
AM loop antenna
The supplied antenna is for indoor use. Place it as far as
possible from the main system, TV set, speaker cords and
power cord, and set it to a direction which provides the
best reception.
If operation is not possible or erroneous display appears even though
all connections have been made
properly, reset the microcomputer
referring to “In case of difficulty”.
Europe and U.K.
FM
ANTENNA
75Ω
AM
FM
75Ω
+
L
GND
FM
300Ω
–
AM
–
R
+
SUB WOOFER
SPEAKERS
(12-16Ω)
GND
SPEAKERS
+
–
–
+
FRONT
(6-16Ω)
Other countries
ANTENNA
% ON
SURROUND
OFF
fi
L
SURROUND
R
SPEAKERS
(6-16Ω)
+–
GND
FM
300Ω
L
R
75Ω
FM
AM
P
−
+
Main Unit
33
Black
Black
Blue
Red
+
L
–
–
R
+
SUB WOOFER
SPEAKERS
(12-16Ω)
DIGITAL
OUT
OPTICAL
+
–
–
+
FRONT
SPEAKERS
(6-16Ω)
4
4
Power cord
To wall AC outlet
L
R
Speaker cord
Twist
3214
System connection (XD-7...series)
WOOFER
SUPER
WOOFER
SUPER
XD-SERIES (En)
7
Speaker and TV installation
If there is a magnet or other device generating magnetic force
nearby, interaction between the magnet and speaker may cause
color blotching onthe TV. If this happens, move the speaker at
least 20 cm away from the TV set.
FM indoor antenna
The accessory antenna is for temporary indoor use only. For stable
signal reception we recommend using an outdoor antenna. Remove
the indoor antenna if you connect one outdoors.
11
Speaker (left)
Caution regarding placement
To maintain proper ventilation, be sure to leave a space around
the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below.
1 Strip the coating from the tip of cord and twist the
conductor.
2Connect to the antenna terminal.
3Locate the position providing good reception condition.
4Fix the antenna.
33
+
−
The external view is variable depending on the model and
marketing destination area.
+
−
Notes
Notes
1. In case an associated system component is connected, also read the instruction manual of the component.
2. Never short-circuit the + and – speaker
Before connecting the Front
Speakers
Stick the supplied front speaker pads to
the bottom of the front speakers to stabilize the speakers and prevent them from
slipping.
Speaker cushion
cords.
3. If the left and right speaker connections
or the + and – polarity are inverted, the
sound will be unnatural with unclear
positioning of musical instruments, etc.
Be sure to connect them without mistake.
Notes
Notes
Speaker Unit
Twist
1. Be sure to insert all connection cords
securely. If their connections are imper-
3214
fect, the sound may not be produced or
noise may interfere.
2. Before plugging or unplugging a connection cord, be sure to unplug the
power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged
in, malfunction or damage may result.
8
System connection (XD-7...series)
XD-SERIES (En)
Connection of Options
(Optional Parts)
Connect separately sold parts as shown in the figure.
Do not plug the power cord into the power outlet until all
of the required connections have been made.
This switch can be used only when the separately sold
surround (rear) speakers are connected. When the switch
is set to ON, surround playback can be enjoyed. When
this switch is set to OFF, normal playback is executed.
÷ Please operate this switch while the power is switched off.
÷ We recommend to keep this switch set to OFF when no
surround (rear) speakers are connected to obtain a better
sound quality.
÷ When the switch is set to OFF, no sound will come from the
surround (rear) speakers.
Surround (rear) speakers
R
−+−+
L
L
R
AUX
OUTPUT
L
R
AUX
INPUT
AUX
INPUT
LEVEL
MIN. MAX.
Optical-fiber cable
(Provided with the MD recorder)
L
R
L
R
AUX
INPUT
LEVEL
MIN. MAX.
(Except for some areas)
ANTENNA
AUX
OUTPUT
AUX
INPUT
FM
75Ω
+
GND
L
FM
300Ω
–
AM
–
R
+
SUB WOOFER
SPEAKERS
(12-16Ω)
SPEAKERS
+
+
FRONT
(6-16Ω)
% ON
SURROUND
OFF
fi
L
–
–
R
+–
L
R
SURROUND
SPEAKERS
(8-16
Ω)
DIGITAL
OUT
OPTICAL
Surround switch
% ON
SURROUND
OFF
fi
SURROUND
SPEAKERS
(8-16Ω)
+–
L
R
DIGITAL OUT jack (OPTICAL)
If necessary, remove the cap and plug
the optical-fiber cable (optional).
DIGITAL
OUT
Optical-fiber cable
OPTICAL
Cap
Other countries
ANTENNA
FM
75Ω
System connection (XD-7...series)
XD-SERIES (En)
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna
into the room and connect it to the FM 75Ω termimal.
1. All of the optical-fiber cables sold in audio stores cannot always be
used. If the cable you purchased cannot be connected to this unit,
please consult your dealer or KENWOOD distributor.
2. Insert the optical-fiber cable straight into the connector until it clicks.
3.Be sure to attach the protection cap when the connector is not
used.
4.Never band or bundle the optical-fiber cable.
10
System connection (XD-5...series)
XD-SERIES (En)
Connection of the System Accessories
This is the connection method for system and accessories.
Please look carefully at the illustration and connect correctly in the order of the numbers.
AM loop antenna
The supplied antenna is for indoor use. Place it as far as
possible from the main system, TV set, speaker cords and
power cord, and set it to a direction which provides the
best reception.
If operation is not possible or erroneous display appears even though
all connections have been made
properly, reset the microcomputer
referring to “In case of difficulty”.
FM
FRONT
SPEAKERS
(6-16Ω)
SUPER
WOOFER
PRE OUT
75Ω
AM
L
R
GND
+
–
–
+
Other countries
ANTENNA
FM
75Ω
GND
FM
300Ω
AM
% ON
SURROUND
fi OFF
+–
L
R
SURROUND
SPEAKERS
(6-16Ω)
P
−
+
Main Unit
33
Black
Red
FRONT
SPEAKERS
(6-16Ω)
SUPER
WOOFER
PRE OUT
4
4
Power cord
DIGITAL
OUT
OPTICAL
+
L
To wall AC outlet
–
–
R
+
Speaker cord
Twist
3214
FM indoor antenna
The accessory antenna is for temporary indoor use only. For stable
signal reception we recommend using an outdoor antenna. Remove
the indoor antenna if you connect one outdoors.
11
System connection (XD-5...series)
XD-SERIES (En)
Caution regarding placement
To maintain proper ventilation, be sure to leave a space around
the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below.
rear panel: 10 cm
1 Strip the coating from the tip of cord and twist the
conductor.
2Connect to the antenna terminal.
3Locate the position providing good reception condition.
4Fix the antenna.
The external view is variable depending on the model and
marketing destination area.
Before connecting the Front
Speakers
Stick the supplied front speaker pads to
the bottom of the front speakers to stabilize the speakers and prevent them from
slipping.
BASS REFLEX SPEAKER SYSTEM
Notes
Notes
1. In case an associated system component is connected, also read the instruction manual of the component.
2. Never short-circuit the + and – speaker
cords.
3. If the left and right speaker connections
or the + and – polarity are inverted, the
sound will be unnatural with unclear
positioning of musical instruments, etc.
Be sure to connect them without mistake.
Speaker Unit
Twist
Speaker cushion
3214
Notes
Notes
1. Be sure to insert all connection cords
securely. If their connections are imperfect, the sound may not be produced or
noise may interfere.
2. Before plugging or unplugging a connection cord, be sure to unplug the
power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged
in, malfunction or damage may result.
12
System connection (XD-5...series)
XD-SERIES (En)
Connection of Options
(Optional Parts)
Connect separately sold parts as shown in the figure.
Do not plug the power cord into the power outlet until all
of the required connections have been made.
This switch can be used only when the separately sold
surround (rear) speakers are connected. When the switch
is set to ON, surround playback can be enjoyed. When
this switch is set to OFF, normal playback is executed.
÷ Please operate this switch while the power is switched off.
÷ We recommend to keep this switch set to OFF when no
surround (rear) speakers are connected to obtain a better
sound quality.
÷ When the switch is set to OFF, no sound will come from the
surround (rear) speakers.
Surround (rear) speakers
R
−+−+
L
L
R
AUX
OUTPUT
L
R
AUX
INPUT
AUX
INPUT
LEVEL
MIN. MAX.
Optical-fiber cable
(Provided with the MD recorder)
L
R
L
R
AUX
INPUT
LEVEL
MIN. MAX.
(Except for some areas)
SUPER
WOOFER
PRE OUT
Surround switch
% ON
SURROUND
OFF
fi
SURROUND
SPEAKERS
(8-16Ω)
+–
L
R
ANTENNA
AUX
OUTPUT
AUX
INPUT
FM
75Ω
+
SPEAKERS
(6-16Ω)
SUPER
WOOFER
PRE OUT
L
–
FRONT
–
R
+
GND
FM
300Ω
AM
% ON
SURROUND
OFF
fi
+–
L
R
SURROUND
SPEAKERS
(8-16Ω)
DIGITAL
OUT
OPTICAL
DIGITAL OUT jack (OPTICAL)
If necessary, remove the cap and plug
the optical-fiber cable (optional).
DIGITAL
OUT
Optical-fiber cable
OPTICAL
Cap
Super woofer
Extremely low sound is played back powerfully. This can be used with any type of
playback.
Other countries
ANTENNA
FM
75Ω
System connection (XD-5...series)
XD-SERIES (En)
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna
into the room and connect it to the FM 75Ω termimal.
1. All of the optical-fiber cables sold in audio stores cannot always be
used. If the cable you purchased cannot be connected to this unit,
please consult your dealer or KENWOOD distributor.
2. Insert the optical-fiber cable straight into the connector until it clicks.
3.Be sure to attach the protection cap when the connector is not
used.
Press to select the input source. When TAPE or CD is selected,
playback starts automatically provided that a tape or disc has already
been loaded.
5MIC 1, MIC 2 terminal (Except for some areas)
For connection of a microphone (optional).
6MIC VOL. knob (Except for some areas)
At the time of mic mixing , this knob controls the volumes of the
microphones.
7MODE/DEMO key
Used for setting or selection of various modes.
The items which can be selected differ according to the status at that
time.
When power is STANDBY: Switches the demonstration on and
off.
8TIMER key
Used for time adjustment, timer setting, etc.
9SET key
Used for setting of various modes or establishing a selection.
0SOUND key/Indicator
Used for the equalizer mode setting, etc.
4¡oW
RI
pQ
)
¡
p
)
E
E
¡
!DISPLAY
@MULTI CONTROL jog dial
Used for selection of various modes.
#SRS 3D key/Indicator
Switches the SRS 3D play on and off.
$ENTER key
Used for entering a selected mode in memory or executing it.
1 RDS-related indicators (Provided except for some areas)
2Tuner and applied CD operation indicators
This section contains the indicators of the tuner operations and
applied CD operations.
3Character information display
Displays the input selection, frequency, volume level, etc.
4Tone and sound field-related indicators
5Timer-related indicators
6780
6Cassette deck indicators
This section contains the cassette deck operation indicators. The
indicated information includes the tape reverse mode and tape transport direction.
7CD player indicators
This section displays the CD playback and pause mode information as
well as the disc number being played.
8Track number indicator
Indicates the CD track number being played.
9Spectrum analyzer display
0RUNNING INDICATOR
This indicator rotates according to the operation modes during operation of the CD player, cassette deck, etc. It also shows the approximate sound level during volume control.
!Guideline
Blinks during the setting of an item using the jog dial.
(
Remote control Unit
The keys on the remote control unit with the same names as
on the main unit have the same function as the keys on the
main unit.
Controls and indicators
XD-SERIES (En)
17
TA/NEWS
1
2
3
4
5
6
/INFO.
123
456
789
DISC SKIP
TIMERANDOM REPEATBAND
TUNINGP.CALL
TAPE
7
A/B
8
SET
9
ENTER
0
Europe and U.K. : RC-701R
Other countries : RC-701
RDS DISP. PTY
0
+10
CD
VOLUME
MULTI CONTROL
REMOTE CONTROL UNIT
RC-701R
POWER
SRS 3D
EX.BASS
EQ ON/OFF
INPUT
MUTE
MENU
Model: See left.
Infrared ray system.
!
@
#
$
%
^
&
*
(
)
2Numeric keys
Used as number keys when the input is CD or TUNER.
3DISC SKIP key
4TIME key
Press to switch the time information on the CD player unit.
5RANDOM key
For CD playback, switching is executed between random playback
and normal playback.
6TUNING (1 ¡) keys (TUNER/CD)
7TAPE play (
2 32 3
2 3) keys
2 32 3
8A/B key
•£
¢¤
9SET key
0ENTER key
!ON/STANDBY ( POWER) key
Power ON/OFF switching is executed.
@Tone and sound field-related keys
SRS 3D key
EX. BASS key
EQ. ON/OFF key
Press to switch the equalizer ON and OFF.
#INPUT key
$BAND key
%REPEAT key
Used for repeated playback of a CD.
^P.CALL (Preset Call) (4¢) keys (TUNER/CD)
Used to recall a preset radio station.
During CD playback, press to skip CD tracks.
&MUTE key
This is used to mute the sound temporarily.
*MENU key
Used to switch the function of the MULTI CONTROL keys.
The function items that can be selected with the MULTI CONTROL
keys are variable depending on the current operation status.
Items such as CD PGM, DUBBING, SOUND, DISPLAY, TIMER and
MODE are selected using keys ).
(CD play/pause (6) key
Stop (7) key
)MULTI CONTROL/VOLUME keys
The left and right keys have the same functions as the MULTI
CONTROL jog dial on the amplifier/tuner unit.
The top and bottom keys are used to adjust the volume.
To turn power off, press the on/standby (
key again. The system enters the standby mode in which
only the time display is lit.
POWER) key of the remote control
POWER)
Remote sensor
6m
30
1
30
˚
˚
÷ When pressing more than one remote control keys successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
1. The provided batteries are intended for use in operation checking, and their service life may be short.
Notes
Notes
2. When the remote controllable distance becomes short, replace both of the batteries with new ones.
3. If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote sensor, malfunction may occur.
In such a case, change the installation position to avoid malfunction.
CHANNEL SPACE setting
(Except for the U.S.A., Canada, U.K. Europe and Australia)
The space between radio channels has been set to the one that prevails in the area to which the system is shipped. However, if the
current channel space setting does not match the setting in the area
where the system is to be used, for instance when you move from
area 1 or area 2 shown in the following table or vice versa, proper
reception of AM/FM (SW/MW/FM) broadcasts cannot be expected.
In this case, change the channel space setting in accordance with
your area by referring to the following table.
Area
USA, Canada and South
1
American countries
2
Other countries
CHANNEL
SPACE freq.
FM : 100 kHz
AM: 10 kHz
FM : 50 kHz
AM:9 kHz
Operating range (approx.)
1Turn power off.
ON/STANDBY
2Select the channel space.
Each press switches the space frequency alternately.
1 “FM100/AM10 kHz”....... STEP,
2 “FM 50 /AM 9 kHz”....... STEP,
÷ The “AM” display is variable depending on the model (country or
area), and “MW” may be displayed in some areas.
3Establish the selection.
TUNIN
ENTER
XD-SERIES (En)
G
MULTI CONTROL jog dial
The MULTI CONTROL jog dial (or the MULTI CONTROL keys on the remote control unit) allows you to set (or enter) a variety
of functions with an easy operation.
19
The mode for setting (using) MULTI CONTROL is initiated when any of
the CD PGM, DUBBING, SOUND, DISPLAY, TIMER and MODE/DEMO
keys is pressed.
In the setting mode, select the operation mode with the MULTI CON-
With the remote control unit, pressing the
MENU key makes it possible to select the
same items as those available on the main
unit using the MULTI CONTROL keys.
TROL jog dial and press the SET and/or ENTER key(s) to set, establish,
enter or execute the function.
(The ENTER key is always pressed at the end.)
CD
ON/STANDBY
EX. BASS
DISPLAY
INPUT
TIMER
MODE
/DEMO
SOUND
DOWN
AUTO
TUNING
BAND
PHONES
MULTI
CONTROL
SET
ENTER
SRS 3D
CD PGM
DUBBING
TAPE
A/B
SET
ENTER
REMOTE CONTROL UNIT
RC-701R
÷ During the setting of an item (while the guideline is blinking), other keys are defeated except for the basic control keys such as the VOLUME
CONTROL and ON/STANDBY keys.
÷ To cancel the mode for setting (using) MULTI CONTROL, read the description of each item in this manual.
The power can also be turned ON by pressing the play key of the CD player, the
play key of the cassette deck or the BAND key of the tuner.
When the ON/STANDBY key is pressed while the power is ON, the power will be
switched OFF.
11
22
SETENTER
33
Listening through headphones
Insert the headphone plug into
the PHONES jack.
÷ The sounds from all speakers are
cut off.
÷ The display part becomes dark when the power
is switched OFF. (DIMMER function)
2. Selecting the desired output
TUNER (Radio)•
PUT
22
CD™
TAPE¢
AUX (External input) 8@
÷ When you select the AUX input, be also sure to
read the instruction manual of the component
connected to the AUX input jacks.
(AUX INPUT LEVEL adjustment
÷ When CD or TAPE is selected, playback will
start when a disc or a tape already has been
inserted into deck B.
o)
3. Volume adjustment
UP
DOWN
VOLUME
CONTROL
33
÷ Quick turning produces a larger change amount.
(AI VOLUME control function)
÷ The display shows a reference value.
Muting the sound temporarily (Remote control unit only)
Let's put out some sound
XD-SERIES (En)
Sub woofer level adjustment
(Except for the XD-5...series)
Adjust the sub woofer level according to the category of music and
your liking.
21
0
Blinks
1
1
2
3
MUTE
D
C
Remote control unit
÷ Press again to resume the original volume.
÷ The sound muting is also canceled when the volume is controlled.
Bass compensation (EX.BASS)
EX. BASS
÷ Each press switches EX.BASS on and off alternately.
÷ The EX.BASS is switched off automatically during recording.
1 Press the MODE/DEMO key.
MODE
/DEMO
2 Select “S.W.” and press the SET key.
MULTI
CONTROL
SET
Go to step 3 within 15 sec.
3 Select the desired level and press the ENTER key.
MULTI
CONTROL
ENTER
SRS LEVEL
(Only when SRS 3D is ON)
S.W.
L/R BALANCE
When the display shows the time or “- - : - -”, a small amount of
current is supplied to the unit to back up the internal memory.
This status is referred to as the STANDBY mode, and the unit in
the STANDBY mode can be turned ON from the remote control
unit.
When CD has been selected.
D
C
1
0
3
12
Volume display
L
O
V
3
12
0
0
5
7
0
AUTO POWER SAVE function
When the power is ON and neither recording nor playback is
executed for 30 minutes or more, the power is switched off automatically by this function. This function can be made active
or not active by the following operation.
1Press the TIMER key.
TIMER
2 Select “AUTO POWER SAVE” and press the SET key.
MULTI
CONTROL
SET
3 Select “ON” or “OFF” and press the ENTER key.
MULTI
CONTROL
ENTER
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
T
P
O
W
E
O
T
U
A
| Scrolled display
(AUTO POWER SAVE)
ON .....Auto power save is used.
OFF .... Auto power save is not
used.
RETURN
R
÷ This function is not available when the AUX input is selected. When
the TUNER input is selected, it is available only when the volume is
set to 0.
22
Playback of CD
Let's put out some sound
XD-SERIES (En)
If a disc has already been loaded in the CD player and the
power is OFF, simply pressing the CD play key turns power
automatically ON and starts playback.
÷ Do not touch the played side of disc.
÷ Rotate the tray with the DISC SKIP key to insert the third disc.
÷ The tray of the disc to be played should come to the left position when
the unit is seen from the front.
The selected disc is indicated.
1
0
0
0
D
C
3
12
Lights when a disc is inserted at
the time of playback.
If you load a tape in a cassette deck (deck B) while the power
is off, simply pressing the tape play key turns power automatically ON and starts playback with deck B.
To wind tape at high speed
To stop playback
1111
0
PUSH
OPEN
A/B
22
To stop playbackStart playback
Selection of reverse mode
33
Selection of Dolby NR
1. Load a cassette tape.
1 Open the door.
2Insert a tape and close the door.
1
11
AA
2. Select the deck to be used for playback.
22
2
1
7
3
¡
3. Start playback.
Press the play key of the desired direction.
33
Let's put out some sound
DOLBY NR
REV.MODE
XD-SERIES (En)
25
To wind tape at high speed
To fast wind in direction |
2
1
÷ Press the & key to stop fast winding.
To fast wind in direction \
3
7
¡
Selection of reverse mode.
Each press switches the modes as follows.
1 “[”... Both sides are played back (recorded), and
then the tape stops.
2 “”” .. Both sides are played back endlessly.
(The tape stops after recording onto both
sides.)
3 ““” .. Only one side is played back (recorded),
and then the tape stops.
To stop playback
7
÷ Do not take out the cassette tape until the tape transport has
stopped completely.
Selection of DOLBY NR (Noise Reduction)
The Dolby NR system minimizes the hiss noise heard when
playing tape. When playing a tape prerecorded with Dolby
NR ON, be sure to set the DOLBY NR ON for playback.
Lit when “DOLBY NR” is ON.
B
E
P
A
T
Each press switches the modes as follows.
1 “1 NR” ON .................DOLBY NR is used.
2 “1 NR” OFF ................DOLBY NR is not used.
÷ Select the Dolby NR mode according to the recording condition of
÷ Normal (TYPE ), high (TYPE ), or metal (TYPE ) tape selection is
set automatically.
÷ Remove tape slack before loading.
÷ Close the door securely.
Displays the selected deck.
B
0
0
0
E
P
A
T
Reverse mode indication
NR
0
Displayed when the deck is loaded with a tape.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Transport direction indicators
The indicators (2 , 3) indicate the current direction in which the
tape advances when playback or recording is started automatically by the easy operation function, etc. This direction is the
direction stored in memory when the tape was last stopped.
(To switch the tape transport direction, press the play key corresponding to the desired direction then press the stop (7) key.)
B
0
0
0
E
P
A
T
NR
Transport direction indicators
÷ Only the tape transport direction of deck B is shown when the
selected input is other than TAPE.
÷ To see the tape transport direction of deck A, press the A/B key to
switch to deck A.
0
÷ If the tape transport direction is opposite to the desired direction, press
the play key corresponding to this.
Please play back tapes recorded with equalizer etc. without
applying any effect.
Note
Note
26
Let's put out some sound
XD-SERIES (En)
Relay play
When tapes are set in the decks A and B and the reverse mode is
set to “[” (play of both sides), play of the second deck will be
started automatically after play of the first deck has been completed. Tape play will be repeated alternately.
÷ Relay play is not possible in the reverse modes “”” and ““”.
A tip for use of the tape counter
The tape counter is set to “0000” when a cassette tape is loaded.
By writing down the counter reading in case you want to interrupt recording (playback) in the middle of the tape, the memo
will be helpful as a reference for locating the same position when
continuing the recording (playback) the next time. The tape coun-
ter figure decrements during recording or playback of the back
side (while the 2 tape transport indicator is lit).
To set the tape counter to “0000”, open the cassette holder once.
Then the counter will be reset.
AA
P
A
T
E
B
0
0
0
0
NR
Let's put out some sound
XD-SERIES (En)
27
Searching for the desired music program
The DPSS (Direct Program Search System) is capable of detecting non-recorded spaces of more than 4 seconds as “blanks
between programs” and, based on this information, can return to the beginning of the music program being played or the
beginning of a desired program by skipping up to 16 other programs.
During play in direction 3
1
To return to the beginning
of the current program: Press once.
To play the 4th program
before the current program : Press 5 times.
2
(DPSS)
7
To play the next program : Press once.
To play the 4th program
after the current program : Press 4 times.
To play the next program: Press once.
To play the 4th program
after the current program: Press 4 times.
2
To return to the beginning
of the current program: Press once.
To play the 4th program
before the current program : Press 5 times.
7
3
¡
Notes
Notes
The DPSS may not function normally with the following kinds of tape.
÷ Tapes containing several no-sound intervals of more than 4 seconds, such as conversation and talk tapes.
÷ Tapes containing pianissimo sections, such as classical music tape.
÷ Tapes in which large noise is recorded in blanks between programs.
÷ Tapes containing blanks between programs that are shorter than 4 seconds.
÷ Tapes recorded at low level.
÷ Tapes recorded by cross-fade recording (in which the beginning of next program is overlapped on the end of previous program).
28

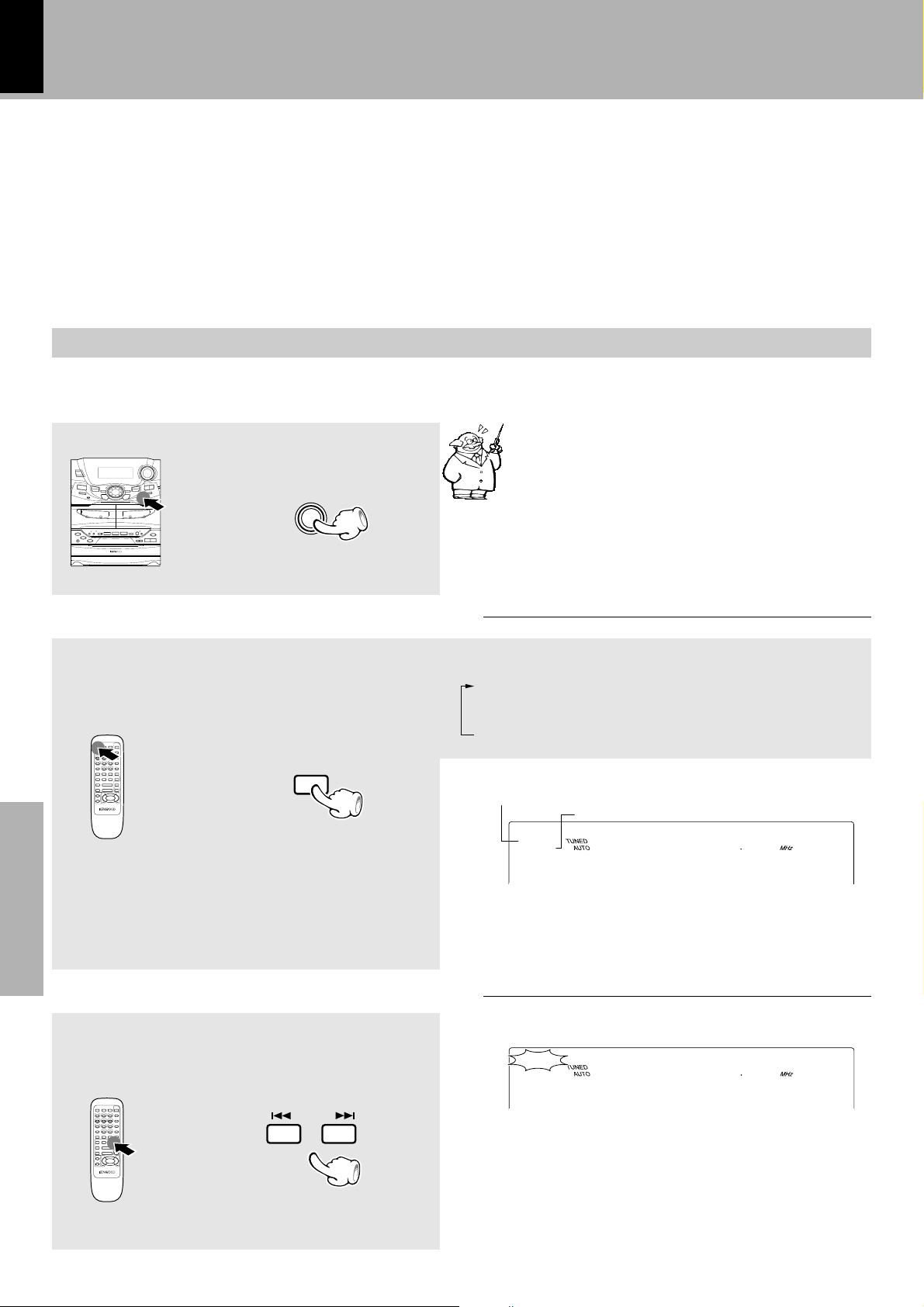

Receiving broadcast station
It is also possible to receive them by one-touch operations
by storing up to 40 stations in the preset memory.
BAND
Let's put out some sound
XD-SERIES (En)
When the BAND key is pressed, this unit will be switched
on automatically.
Note that this cassette deck cannot record onto Metal tapes.
Note
Note
When equalizer or another effect is applied to the sound, the sound
with the applied effect can be recorded.p
44
11
22
55
0
PUSH
OPEN
1. Load a tape in deck B.
A
11
1 Open the door of deck B.
2Insert a tape.
3Close the door.
÷ Differentiation between normal (TYPE ) and
high (TYPE
÷ Remove tape slack before loading.
(Except for some areas)
÷ When the microphone is not used, set the MIC
VOL. control knob fully counterclockwise to
the minimum position.
) tape is set automatically.
2. Select the tape transport direction.
Check the tape transport direction
indicator.
B
0
0
0
T
A
P
E
NR
Transport direction
0
2
7
3
22
To reverse the transport direction
1 Press the play key corresponding to
the desired direction.
2Stop playback (by pressing the &
key).
÷ When recording is started, the tape is trans-
ported in the direction selected in this step.
÷ Wind the tape to the position where recording
is to be started.
3. Set the recording condition.
1Select the reverse mode.
2Select the Dolby NR mode.
Let's record
REC/ARM
IN
DOLBY NR
REV.MODE
XD-SERIES (En)
31
Selection of the reverse mode
Each press switches the modes as follows.
1 “[”... Both sides are played back (recorded), and
then the tape stops.
2 “”” .. Both sides are played back endlessly.
(The tape stops after recording onto both
sides.)
3 ““” .. Only one side is played back (recorded),
and then the tape stops.
Selection of DOLBY NR (Noise Reduction)
The Dolby NR system minimizes the hiss noise heard when
playing tape. When playing a tape prerecorded with Dolby
NR ON, be sure to set the DOLBY NR ON for playback.
The input source component to be recorded should be displayed.
1TUNER (Radio)
2 CD
3 TAPE
4 AUX (External input)
(AUX INPUT LEVEL adjustment o)
÷ When the CD input is selected and if a disc has
been set in the CD player, its playback starts
immediately.
5. Start recording.
1Play (or tune) the input source to be
recorded.
2Start recording.
÷ Recording stops automatically when the tape
side(s) to be recorded have been fully recorded.
÷ The beat cancel function can be used when
recording MW broadcasts.
¤
C
D
C
D
0
12
0
12
1
3
1
3
Lights
0
0
1
0
0
2
÷Pressing the key pauses recording after leaving a non-recorded space of about 4 seconds.
÷If the key is pressed again in less than 4 seconds after it has been pressed, recording resumes
from that instant.
32
Beat cancel function
There may be cases in which beat noise interferes with recording of MW/LW broadcasting.
In such a case, press the A/B key during recording to reduce or
suppress the beat noise. The A/B key acts as the demonstration
key except during tuner recording.
When recording CD tracks onto a tape, if you leave the cassette
deck in record-pause mode beforehand, the cassette deck recording can be started at the same time as the CD starts to be
played. (Synchro recording function)
1Put the CD player in pause mode.
2Select the track to be recorded with the skip (4, ¢)
keys.
(The CD player pauses at the beginning of the selected
track.)
3Put the cassette deck in Record-pause mode.
(Press the REC/ARM key twice.)
4Start playing the CD.
(Synchro recording starts)
÷ Recording stops when the stop key of the CD player is pressed.
⁄
Let's record
AA
I
REV.MODE
REC/ARM
XD-SERIES (En)
33
Copying tape
The contents of the tape in deck A can be copied onto the
tape in deck B.
(Tape dubbing)
1 Select the “TAPE” input.
NPUT
2Select “[” (double-side recording)
or ““” (one-side recording).
3Press the DUBBING key.
DUBBING
4Select “TAPE DUBBING” and press
the SET key.
1. Select.2. Press SET.
MULTI
CONTROL
SET
5Use the same tape transport direc-
tions.
Load tapes in the decks.
Playing tapeRecording tape
CD RECORD
CD EDIT
CD PGM RECORD
TAPE DUBBING
D
U
B
B
W
I
D
E
P
A
T
| Scrolled display
(TAPE DUBBING)
÷ When recording is started, the tape will be transported in the direction
For “ONE DISC RANDOM” playback, select
the disc in advance.
RANDOM
To select another track in the middle of playing one
÷ Pressing the 4 key once returns to the beginning of the track
being played.
To repeat random playback
Press the key repeatedly to switch the display.
1 ONE DISC RANDOM.......Random play of one disc
2 ALL RANDOM .................Random play of all discs
3 RANDOM OFF (Normal playback)
Random play of one discRandom play of all discs
| Scrolled display
(ONE DISC RANDOM)
R
A
N
D
C
I
D
s
D
M
N
R
D
÷ Playback stops after each title has been played once.
0
T
O
2
| Scrolled display
L
L
A
N
R
A
R
D
To cancel random playback
A
N
D
O
M
M
T
O
2
Select “RANDOM REPEAT”.
Select “RANDOM OFF”.
REPEAT
RANDOM
Press the key repeatedly to switch the
display.
1 REPEAT OFF
2 RANDOM REPEAT
R.D.S.
STEREO
TP
NEWS INFO.
PTY
R.D.S EON
C
B
B
RDS is a system which transmits useful information (digital data) for FM broadcasts together with the broadcast
signal. Tuners and receivers designed for RDS reception
can extract the information from the broadcast signal for
use with various functions such as automatic display of
the station name.
(Radio Data System) (Except for some areas)
This unit is equipped with the following functions utilizing RDS data:
PTY (Program Type Identification) Search :‚
The tuner automatically searches for a station which is currently broadcasting a specified program type (genre).
PS (Program Service Name) Display : (See below.)
When an RDS broadcast is received, the station name is automatically
displayed.
The “RDS” indicator lights up when an
RDS broadcast (signal) is received.
When the information to be received is set in advance and any RDS
station in the same network starts broadcasting of such information, the
reception automatically will be switched to that station.
÷ Some functions may not be provided or be given different names
depending on countries or areas.
Note before the use of RDS
To receive RDS stations, you have to preset RDS stations using the auto preset function. The auto preset function presets the RDS
stations in priority. Flashing “NO DATA” will be displayed when no RDS station has been preset with this function.
Set the receiving band to FM and preset RDS stations with the auto preset function.
To switch the display contents
Pressing the RDS DISPLAY key
changes the display contents.
RDS DISP.
Display mode priority ranking
When an RDS broadcast is received :
1 PS (Program Service Name) Display :
When an RDS broadcast is received, the station name
is automatically displayed.
If no PS data was sent,
“NO PS” is displayed.
2 Frequency Display :
The frequency of the current station is displayed.
M
1
0
2
5
STEREO
0
1
F
0
40
R.D.S.
XD-SERIES (En)
Searching for a desired program type
(PTY search)
By specifying the type of program (genre) you want to listen to, the tuner automatically searches for a station which
is currently broadcasting a program of the specified type.
Set the reception band to FM. Preset RDS stations with the auto preset function.
Use program type table on the right for your convenience.
ATo select using the P.CALL (4 ¢)
BTo select using the numeric keys
PTY
keys
P.CALL
Select while “PTY” is lit.
The P.CALL (4 ¢) keys can be used to
select one of the 29 program types by displaying them in sequence.
Press and hold the key and release it when
the desired program type appears.
123
456
789
0
+10
The numeric keys can be used to specify the
desired program type directly by selecting
a number between 01 and 28.
PTY
STEREO
When an RDS broadcast is received, the program type is shown on
the display. If no PTY data is available, or if the station is not an
RDS station, “NONE” is displayed.
Program type table
A 4 ¢ keysBProgram Type NameDisplay
409InformationINFO
DOWN
UP
¢19ReligionRELIGION
W
E
N
01Pop MusicPOP M
02Rock MusicROCK M
03*M.O.R. MusicM.O.R. M
04Light ClassicalLIGHT M
05Serious ClassicalCLASSICS
06Other MusicOTHER M
07NewsNEWS
08Current AffairsAFFAIRS
÷ No sound is heard while “PTY” is blinking.
÷ If a program of the desired type cannot be found, “NO PROG” is
displayed, then after several seconds the display returns to the original
display.
÷ If a program of the desired type is found, that program is received and the
program type name display changes temporarily to the frequency dis-
play, and then to the station name display.
42
TO
STEREO
TP
NEWS INFO.
PTY
R.D.S EON
M
1
0
2
5
0
F
1
0
To be able to listen to the desired information at any time
By using the EON function, which manages the information of other stations, listening to desired information like
traffic information or news etc. can be reserved even when
it is not being transmitted at the present. When listening
to a station with the “EON”display lit and another station
of the same network starts to broadcast an information
program for which a reservation has been made, then that
station will be selected automatically. When the desired
information program ends, return is made to the original
program.
Waiting for information while a RDS station without
EON function is tuned
If the EON indicator does not light with the RDS station in steps
3 and 4, the tuner will wait for only the desired information
broadcast from the tuned RDS station provided that the desired
information has been selected in the previous step.
TP (Traffic Program) indicator
The lighting of the TP indicator indicates that the currently tuned
station or a station in the same network as it broadcasts traffic
announcement programs. If the TP indicator already lights with
the current station, you can listen to the traffic announcement
program through the station without making reservation with
the EON function.
44
Convenient CD recording
Selection of the convenient CD recording type
With this unit, the following edit recording is possible according to the purpose.
Note that this cassette deck cannot record onto Metal
Note
Note
tapes.
XD-SERIES (En)
If you want to select the track to be recorded while
playing a CD
CD ONE TRACK RECORD
CD RECORD
CD EDIT
CD PGM RECORD
N
O
D
C
| Scrolled display
(CD ONE TRACK RECORD)
÷ Playback restarts from the beginning of the track being played and
recording starts at the same time.
E
0
T
1
2
R
A
To end recording in the middle
When recording has been completed, a non-recorded portion of
4 seconds will be produced and the cassette deck part will stop.
The CD player will enter temporary stop condition.
To record a different track, repeat the steps 1 to 4.
7
÷ Both the cassette deck and CD player stop.
46
Convenient CD recording
XD-SERIES (En)
Recording of an entire CD
Perform the following operation while the CD player is in
stop mode to start recording at the same time as the start
of playback.
When equalizer or another effect is applied to the
sound, the sound with the applied effect can be recorded.
CD RECORD
CD EDIT
CD PGM RECORD
TAPE DUBBING
(Only when the selected input is TAPE and tapes
are present in both decks A and B)
Select the disc.
3
Start recording.
4
Press the ENTER Key.
ENTER
MULTI
CONTROL
E
C
O
R
R
D
C
s
I
D
÷ Recording of CD starts at the same time as playback.
÷ At the end of tape, the music is not recorded on the leader tape portion.
If you do not want any music to be interrupted in the middle, refer to
“Recording” and start recording of side B with the interrupted track.
C
2
D
º
To end recording in the middle
7
÷ Both the cassette deck and CD player stop.
Convenient CD recording
XD-SERIES (En)
Giving preference to the tape length over the title sequence
(CD EDIT)
When the tape recording time is specified, recording is executed with changing the title sequence so that no title
will be interrupted when the tape direction is changed at
the end of one side.
When equalizer or another effect is applied to the
sound, the sound with the applied effect can be recorded.
p
47
Recording preparations are required.
Press the DUBBING key.
1
DUBBING
Select “CD EDIT” and press the SET key.
2
1
Select a disc and press the SET key.
3
1
MULTI
CONTROL
MULTI
CONTROL
2
2
º º
º (Steps 1 to 3) (For the reverse mode, select “ p” (two-way recording).)
º º
CD ONE TRACK RECORD (Only during CD playback)
CD RECORD
SET
SET
CD EDIT
CD PGM RECORD
TAPE DUBBING
(Only when the selected input is TAPE and tapes are
present in both decks A and B)
CD ONE TRACK RECORD (Only during CD playback)
CD RECORD
CD EDIT
CD PGM RECORD
TAPE DUBBING
(Only when the selected input is TAPE and tapes are
present in both decks A and B)
Program the desired tracks.
3
1Select tracks in the order you want
to play them.
(Perform step 3 on page 34.)
2Check, replace, add or delete the
programmed tracks as required.
(Perform step 4 on page 35.)
Start recording.
4
Press the ENTER Key.
ENTER
G
M
P
D
C
| Scrolled display (CD PGM RECORD)
To end recording in the middle
R
E
C
7
Effective Sound Adjustment
XD-SERIES (En)
This unit permits selection of equalizer and sound field playback. Please select the equalizer as desired according to the
music genre. Select the sound field mode according to the desired atmosphere.
Adjustment of balance and input level
Balance...........Adjusts the balance of left and right volume.
Input level.......Adjusts the volume of external equipment (video deck etc.) connected to the AUX terminal. Please adjust as
required when the volume from external equipment is too high etc.
Balance adjustment :
49
Press the MODE/DEMO key.
1
Select “L/R BALANCE”.
2
1. Select.
Adjust.
3
1 Adjust.
/DEMO
MULTI
CONTROL
MODE
2. Press SET.
SET
MULTI
CONTROL
SRS LEVEL
S.W. (Except for the XD-5...series)
L/R BALANCE
| Scrolled display (L/R BALANCE)
B
A
L
A
N
R
/
L
÷ When SRS 3D is ON, “SRS LEVEL” (strength of the 3D effect) also is
Adjusts the volume of external equipment (video deck etc.) connected to the AUX terminal. Please adjust as required when the
volume from external equipment is too high etc.
÷ Sound is not output at the MIN. position.
R
50
1
0
0
1
2
0
V
D
C
1
0
0
3
4
0
V
D
C
1
0
0
5
6
0
V
D
C
Effective Sound Adjustment
XD-SERIES (En)
Listening with the desired sound
In addition to the 4 kinds of equalizer patterns which have
been preset at the factory, 3 equalizer patterns created
manually by the user can be stored in memory and recalled
any time.
A SOURCE DIRECT mode is provided for simple audio reproduction by defeating the EX.BASS and SRS 3D circuits.
(equalizer function)
Selecting an equalizer pattern
It is possible to select the desired equalizer pattern according to the category of the played music. The graphic equalizer
effect can be recorded together with the sound.
The LOW, MID and HIGH frequency bands
can be adjusted independently by repeating step 3 for each of them.
4Store the pattern in memory.
ENTER
To increase
the level
SET
L
E
V
E
+
8
L
W
O
L
L
E
V
E
L
3
12
÷ Each frequency band can be adjusted in the range between -8 and +8.
A
E
T
N
E
÷Wait until “LEVEL ??” or “ENTER” is dis-
played before pressing the key. (?? = -8 to +8)
52
Enjoying Sound Field Effects
Effective Sound Adjustment
XD-SERIES (En)
Experiencing SRS 3D
The Sound Retrieval System is an epochal system which produces a three-dimensional sound space by applying the most
suitable processing to the sound signal on the basis of the human listening mechanism. This permits real depth and sound
location, considered as difficult to realize with conventional 2-channel stereo (general stereo). A sufficient effect can be
obtained for any source (CD, tape, broadcasts, etc.). Recording with applied SRS 3D also is possible.
Each press of the key switches SRS 3D on
and off alternately.
2Press the MODE/DEMO key.
3Select “SRS LEVEL”.
1. Select.
(Sound Retrieval System)
SRS 3D
MODE
/DEMO
MULTI
CONTROL
| Scrolled display (SRS 3D ON)
s
s
3
D
O
R
SRS LEVEL
S.W. LEVEL (Except for the XD-5...series)
L/R BALANCE
N
2. Press SET.
SET
4Adjust the effect strength (level).
1. Adjust.
The level
decreases.
2. Press ENTER.
ENTER
MULTI
CONTROL
The level
increases.
÷ SRS 3D ON/OFF switching is not possible during recording.
s
L
E
V
E
+
L
5
R
s
L
E
V
E
L
Level display
÷ Adjustment is possible in the range from -8 to +8.
÷ Please set as desired according to the titles being played back etc.
Effective Sound Adjustment
XD-SERIES (En)
53
Enjoying Karaoke
When CDs or tapes with recorded voice and instrument
music are played, it is possible to lower the volume only
for the voice part. In combination with mic mixing, this
permits easy enjoyment of Karaoke.
After the above steps, you can record your karaoke singing onto a tape. However, note that the karaoke singing
using a tape cannot be recorded onto a tape.
To increase
microphone
volume
÷ Set the MIC VOL. control knob to the fully counterclockwise position
when the microphone is not used.
÷ The microphone audio cannot be reproduced while the DPSS function
of the cassette deck is in use.
¶
54
A
M
8
O
0
A
M
8
4
5
Clock adjustment
This unit incorporates a clock function. Be sure to adjust
the correct time before using the timer function.
The time is displayed only while the power is off.
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
÷ The time display starts to blink.
Example: Adjustment to 8:45
AM12ÔAM1ÔAM2...PM1ÔPM2...ÔRETURNÔAM12...
s
C
L
O
C
T
E
A
M
K
1
2
O
0
Enter the figure of minute.
4
1
To decrease
the figure
2Press the ENTER key.
SET
ENTER
MULTI
CONTROL
To increase
the figure
÷ The time of the day is represented in 12-hour AM/PM method.
÷ Press the SET key. The hour is entered and the minute display starts
to blink.
00Ô01Ô02...59ÔRETURNÔ00Ô01...
÷ If you made a mistake, select “RETURN” and press the ENTER key and
restart the entry.
÷ To adjust correct time, press the ENTER key at the same moment as
a time announcement.
÷ The “- - : - -” display appears after a power failure or when the power
cord has been unplugged from the AC outlet and plugged again. In such
a case, adjust the clock again.
Timer operation
Sleep timer (SLEEP)
The power is turned OFF automatically after the specified period has elapsed.
Operate easy To use Timer (O.T.T.)
Playback of the selected input source starts at the specified time, and the power is switched off after one hour. This timer
operates only once directly after setting.
Timer playback, timer recording (PROG.1, PROG.2)
With each of the two timer programs, a selected source can be played (or radio broadcast can be recorded) in the previously set
time period.
AI timer playback (PROG.1, PROG.2)
When timer playback starts, the volume increases gradually.
AUTO POWER SAVE
When the power is ON and neither recording nor playback is executed for 30 minutes or more, the power is switched off
automatically by this function.
Adjust the clock before setting the timer.
Adjust the clock before setting the timer.
55
XD-SERIES (En)
Sleep timer
Set the number of minutes after which the power is to be turned OFF.
(SLEEP)
1Press the TIMER key.
TIMER
2Select “SLEEP” and press the SET
key.
3Set the time and press the ENTER
key.
MULTI
CONTROL
MULTI
CONTROL
SET
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
10Ô20Ô30...80Ô90ÔRETURNÔSLEEP OFFÔ10Ô20...
÷ The displayed time changes in 10-minute steps. The maximum time
that can be set is 90 minutes.
÷ The power is turned OFF automatically after the set time has elapsed.
s
s
P
T
I
M
E
E
L
P
E
E
L
E
9
0
SLEEP
To cancel
ENTER
Operate easy To use Timer
Timer playback can be set with a simple operation of just setting the time. With this function, the last source selected before
turning power off can be played by the timer . The power turned ON by the timer is switched off automatically in an hour after
the timer playback starts.
1 Select the desired source and adjust
the volume.
2Press the TIMER key.
(Operate easy To use Timer : O.T.T.)
Turn the unit off or select “SLEEP OFF” and press the
ENTER key.
The program timer does not operate until O.T.T. operation
has ended.
At the time of tape playback by timer operation, the B deck
has priority.
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
÷ The ON time can be set in steps of 5 minutes.
O
T
T
A
M
7
O
0
To cancel
If you are in the middle of time setting, press the TIMER
key.
If the O.T.T. operation has already been started, turn the
unit off.
O.T.T.
56
Adjust the clock before setting the timer.
Timer operation
Timer programming
Two 24-hour timer systems (PROG.1, PROG.2) (which can be used every day) and a sleep timer system (which works only
once) are available.
In each of PROG.1 and PROG.2, the timer data including the operating period and played contents can be set and selected to
be activated or not as required.
XD-SERIES (En)
÷ Timer reservation is possible for the two types PROG.1 and PROG. 2
at the same time.
÷ Please make reservations with an interval of at least one minute, so that
the operation times of PROG. 1 and PROG. 2 do not overlap.
÷ The selected contents of the timer programming will be displayed in
sequence.
(ON TIME = OFF TIME = Mode = Input source = Preset channel)
The reservation contents cannot be cleared. The contents are
cleared only when they are changed.
Note
Note
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
PROG.1 .......... Program 1 operates.
PROG.2 .......... Program 2 operates.
PROG.1 / 2 .... Programs 1 and 2 operate.
PROG. OFF .... No program operates.
| Scrolled display (PROG. ON/OFF)
O
N
P
R
O
G
/
O
To set the same timer program again
1Press the TIMER key.
TIMER
2Select “PROG. ON/OFF” and press
the SET key.
MULTI
CONTROL
SET
3Select the program to be set and
press the ENTER key.
MULTI
CONTROL
ENTER
÷ The reservation contents are held in memory.
SLEEP
TIME SET
O.T.T.
PROG. ON/OFF
PROG. 1
PROG. 2
AUTO POWER SAVE
PROG.1 .......... Program 1 operates.
PROG.2 .......... Program 2 operates.
PROG.1 / 2 .... Programs 1 and 2 operate.
PROG. OFF .... No program operates.
÷ Also prepare the disc or tape and adjust the listening volume.
| Scrolled display (PROG. ON/OFF)
O
N
P
R
O
G
/
O
Important Items
Maintenance
Cleaning the head section
Cotton swab
Capstan
Head
Pinch roller
Cleaning the heads and peripheral components
For maintaining the best condition of the deck and
for longer service life, always keep the heads (recording / playback / erase), capstan and pinch roller
clean. To clean them, perform the following:
1. Open the cassette holder.
2. Using a cotton swab dipped in alcohol, clean the
head (recording / playback / erase), capstan and
pinch roller carefully.
59
XD-SERIES (En)
Demagnetizing the head
When the recording / playback head is magnetized,
the sound quality will deteriorate. In such a case,
demagnetize the head using a commercially available demagnetizer (head eraser).
Tape guides
There are precisely aligned parts around the heads, including the tape guides.
When cleaning, pay special attention so as not to apply shock to them.
Note
Note
Maintenance of the set
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
Reference
Sound Retrieval System manufactured under licence from SRS Labs,
Inc. “SOUND RETRIEVAL SYSTEM” and the SRS
Symbol
SRS
Purchase of this product does not convey the right to sell recordings
mode with the SOUND RETRIEVAL SYSTEM.
Note related to transportation and movement
(CD player)
Before transporting or moving this unit, carry out the following
operations.
1. Turn the power ON but do not load a disc.
2. Press the 6 key.
3. Wait a few seconds, and ensure that the display is as shown
below.
4. Wait for a few seconds then turn power off.
R
are trademarks of SRS Labs, Inc.
O
D
I
C
D
N
12
3
s
C
In regardto contact cleaner
Do not use contact cleaners because it could cause a malfunction.
Be specially careful not to use contact cleaners containing oil, for
they may deform the plastic component.
Caution on condensation
Condensation (of dew) may occur inside the unit when there is a
great difference in temperature between this unit and the outside.
This unit may not function properly if condensation occurs. In this
case, leave the unit for a few hours with the power left ON, and
restart the poeration after the condensation has dride up.
Be specially cautious against condensatin in a following
circumsatance:
When this unit is carried from a place to another across a large
difference in temperature, when the humidity in the room where
this unit is installed increases, etc.
Memory backup function
Stored contents which are
cleared immediately when
power plug is unplugged from
power outlet
Stored contents which are
cleared in at least a day after
power plug is unplugged from
power outlet
Clock display
Amplifier
POWER status (ON or OFF)
Input selection
Volume control value
Equalizer’s manual memory created by the user
SRS 3D level
Tuner unit
Receiving band
Frequency
Preset stations
Program timer setting contents
When your unit needs to be repaired, bring the entire set (Speakers
excluded) to your dealer.
60
In case of difficulty
What seems to be a malfunction is not always so. Before calling for service, check the following table according to the
symptom of your trouble.
XD-SERIES (En)
Operation to reset
The microcomputer may fall into malfunction (impossibility to
operate, erroneous display, etc.) when the power cord is unplugged while power is ON or due to an external factor. In this
case, execute the following procedure to reset the microcomputer and return it to normal condition.
÷ Please note that resetting the microcomputer clears the contents
stored in and returns and to condition when it left the factory.
÷ The disc is placed upside down.
÷ The disc position is displaced.
÷ The disc is extremely dirty.
÷ The disc is scratched.
÷ Dew is condensed on the optics lens.
÷ The disc has not been placed.
÷ The player is not put to the play mode.
÷ The disc is extremely dirty.
÷ The disc is scratched.
÷ The disc is dirty.
÷ The disc is scratched.
÷ The player is subject to vibration.
WARNING NOTICE:
IN MOST CASES IT IS AN INFRINGEMENT OF COPYRIGHT TO
MAKE COPIES OF TAPES OR DISCS WITHOUT THE PERMISSION
OF THE COPYRIGHT OWNERS. ANYONE WISHING TO COPY COMMERCIALLY AVAILABLE TAPES OR DISC SHOULD CONTACT THE
MECHANICAL COPYRIGHT PROTECTION SOCIETY LIMITED OR
THE PERFORMING RIGHTS SOCIETY LIMITED.
÷ Fully turn the MIC VOL. control knob to the
left.
RemedyCauseSymptom
÷ Place the disc properly, with the label side
facing upward.
÷ Place the disc properly.
÷ Clean the disc referring to “Disc handling
precautions”.
÷ Try another disc.
÷ Refer to “Caution on condensation” and
remove the condensation by evaporation.
÷ Place a disc in the CD player.
÷ Press the play key.
÷ Clean the disc referring to “Disc handling
precautions”.
÷ Try another disc.
÷ Clean the disc referring to “Disc handling
precautions”.
÷ Try another disc.
÷ Install the unit in a place not subject to
vibrations.
º
™
™
5
O
™
™
5
5
Specifications
Main unit
[ Amplifier section ]
(RXD-A8/RXD-7...Series)
Rated power output (U.S.A. and Canada)
100 watts per channel minimum RMS, both channels driven, at
6 Ω form 40 Hz to 14 kHz with no more than 0.9 % total harmonic distortion.
Effective output power during STEREO operation
U.S.A. and Canada
FRONT (1 kHz, 0.9 % T.H.D., 6 Ω )..........................100 W + 100 W
Sub woofer (60 Hz, 0.9 % T.H.D., 12 Ω // 12 Ω) .................. 100 W
Other countories
FRONT (1 kHz, 10 % T.H.D., 6Ω ) ............................135 W + 135 W
Sub woofer (60 Hz, 10 % T.H.D., 12 Ω // 12 Ω) ................... 135 W
Rated output power during STEREO operation
Europe, U.K. and Russia
(DIN) 1 kHz, 0.7 % T.H.D., 6 Ω ................................... 100 W + 100 W
Other countories
1 kHz, 1.0 % T.H.D., 6 Ω .............................................. 115 W + 115 W
(RXD-A5/RXD-5...Series)
Rated power output (U.S.A. and Canada)
70 watts per channel minimum RMS, both channels driven, at
6 Ω form 40 Hz to 14 kHz with no more than 0.9 % total harmonic distortion.
Effective output power during STEREO operation
1 kHz, 10 % T.H.D., 6 Ω ............................................... 100 W + 100 W
Rated output power during STEREO operation
Europe, U.K. and Russia
(DIN) 1 kHz, 0.7 % T.H.D., 6 Ω ........................................ 80 W + 80 W
Other countories
1 kHz, 1.0 % T.H.D., 6 Ω ................................................... 95 W + 95 W
Signal to noise ratio
AUX........................................................................................ 90 dB
Weight (net)..................................................... 4.0 kg (8.8 lb) (1 piece)
Notes
Notes
1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
2. Sufficient performance may not be possible at very low temperatures (0°C or less).
64
This instruction manual is used to describe multiple models listed above. Model availability and features (functions) may differ depending on
the country and sales area.
Record the serial number, found on the back of the unit, in the spaces
designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer
for information or service on this product.
ModelSerial Number
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
