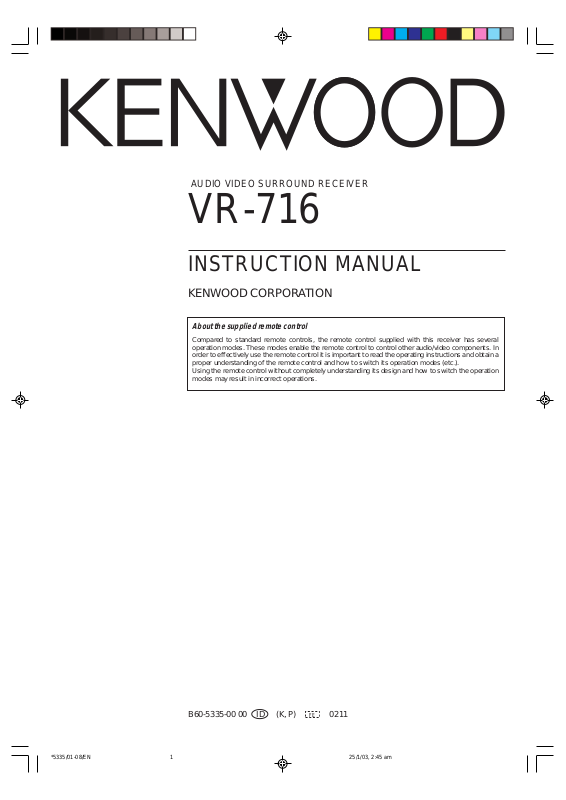

Kenwood VR-716 User Manual
AUDIO VIDEO SURROUND RECEIVER
VR-716
INSTRUCTION MANUAL
KENW OOD CORPORATION
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this receiver has several
operation modes. These modes enable the remote control to control other audio/video components. In
order to effectively use the remote control it is important to read the operating instructions and obtain a
proper understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
B60-5335-00 00 ID (K, P) FE 0211
Before applying the power
Caution : Read this page carefully to ensure safe
operation.
Units are designed for operation as follows.
U.S.A. and Canada........................................... AC 120 V only
Australia ........................................................... AC 240 V only
Europe and U.K. ............................................... AC 230 V only
China and Russia ............................................. AC 220 V only
Other countries .......... AC 110-120 / 220-240 V switchable*
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaner because it could cause a malfunction. Be
specially careful not to use contact cleaners containing oil, for they
may deform the plastic component.
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to the
receiver and prepare the surround processor.
Since this receiver works with all of your audio and video components,
we will guide you in setting up your system to be as easy as possible.
Operations
Shows you how to operate the various functions available on the
receiver.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have registered your components with the proper setup codes, you’ll
be able to operate both this receiver and your other AV components (TV,
VCR, DVD player, CD player, etc.) using the remote control supplied with
this receiver.
Additional Information
Shows you additional information such as “In case of difficulty”
(troubleshooting) and “Specifications”.
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
• Power mode. •SUBWOOFER ON/OFF.
• Input selector settings. •SW RE-MIX ON/OFF.
• Picture output. •Distance setting.
• Speaker ON/OFF. • Input mode setting.
• Volume level. •Midnight mode setting.
• BASS, TREBLE, INPUT level. •PRO LOGIC II mode setting.
• TONE ON/OFF. • Broadcast band.
• LOUDNESS ON/OFF. •Frequency setting.
• Dimmer level. •Preset stations.
• MD/TAPE settings. •Tuning mode.
• Listen mode setting. •ACTIVE EQ mode.
• SP SYSTEM. •DSP mode.
• Speaker settings.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
EN
2
Before applying the power
Contents
Caution : Read the pages marked carefully to ensure
Preparations
Operations
safe operation.
Before applying the power ..............................2
Safety precautions ............................................. 2
How to use this manual.....................................2
Unpacking ..........................................................3
Preparing the remote control ............................ 4
Special features .................................................5
Names and functions of parts .........................6
Main Unit ........................................................... 6
Remote control unit ........................................... 7
Setting up the system........................................ 8
Connecting audio components..........................9
Connecting video components........................10
Digital connections .......................................... 11
Connecting a DVD player (6-channel input).....12
Connecting the speakers................................. 13
Connecting the terminals ................................ 14
Connecting the antennas.................................14
Connecting the system control .......................15
Preparing for surround sound .......................16
Speaker settings ..............................................16
Normal playback..............................................18
Preparing for playback .....................................18
Listening to a source component.................... 18
Adjusting the sound......................................... 19
Recording ..........................................................20
Recording audio (analog sources) ................... 20
Recording video ...............................................20
Recording audio (digital sources) .................... 20
Listening to radio broadcasts ....................... 21
Tuning radio stations ....................................... 21
Presetting radio stations manually ..................21
Receiving preset stations ................................22
Receiving preset stations in order (P.Call) ......22
Ambience effects............................................. 23
Surround modes .............................................. 23
Surround play ................................................... 25
DVD 6-channel playback .................................. 26
Convenient functions....................................... 26
Unpacking
Unpack the unit carefully and make sure that all accessories are
present.
FM indoor antenna (1) AM loop antenna (1)
Remote control unit (1) Batteries (R6/AA) (2)
RC-R0824
+
4
¢
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped to you directly,
notify your shipper immediately. Kenwood recommend that you retain
the original carton and packing materials in case you need to move or ship
the unit in the future.
Keep this manual handy for future reference.
Remote
Control
Additional
Information
Basic remote control operations for other
components....................................................... 28
Registering setup codes for other components
.........................................................................28
Searching for your code...................................28
Checking the codes .........................................28
Re-assigning device keys ................................ 29
Operating other components ..........................29
Setup code chart..............................................30
CASSETTE deck, CD player & MD recorder
operations ........................................................34
Other components’ operations ....................... 35
In case of difficulty.......................................... 37
Specifications .................................................. 39
EN
3
Before applying the power
Preparing the remote control
Loading the batteries
1 Remove the cover. 2 Insert the batteries.
3 Close the cover.
• Insert two AA-size (R6) batteries as indicated by the polarity markings.
Operation
When the STANDBY indicator is lit, the power turns ON when you press
the POWER RCVR key on the remote control. When the power comes
ON, press the key you want to operate.
Operating range
(Approx.)
Remote sensor
For the U.S.A.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment may
cause harmful interference to radio communications, if it is not
installed and used in accordance with the instructions. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– – Reorient or relocate the receiving antenna.
– – Increase the separation between the equipment and receiver.
– – Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– – Consult the dealer or an experienced radio / TV technician for help.
For the U.S.A.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the
point of cable entry as practical.
6 m
POWER
RCVR
¢
+ +
+
Infrared ray system
4
• When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2.When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3.Placing the remote sensor in direct sunlight, or in direct light from
a high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
As an ENERGY STAR
Corporation has determined that this product
meets the
energy efficiency. This product can save
energy. Saving energy reduces air pollution and lowers utility bills.
ENERGY STAR
®
Partner, Kenwood
®
guidelines for
EN
4
Before applying the power
Special features
True home theater sound
This receiver incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy! £
Dolby Digital
The DOLBY DIGITAL mode lets you enjoy full digital surround from
software processed in the Dolby Digital format. Dolby Digital provides up
to 5.1 channels of independent digital audio for better sound quality and
more powerful presence than conventional Dolby Surround.
Dolby PRO LOGIC
DOLBY PRO LOGIC II, whilst totally compatible with its predecessor
PRO LOGIC, provides greater advantages in surround sound. It allows
user to enjoy the conventional stereo or Dolby Surround with a convincing
“5.1 like” presentation. PRO LOGIC
the overall spatial, dimensionality and frontal sound field imaging. PRO
II produces an impressive surround sound from video software
LOGIC
marked
When listening to music, you will be able to enjoy the experience of sheer
STEREO surround sound.
II
II offers special features for controlling
and three-dimensional space from music CD.
DTS
DTS (Digital Theater System) is a 5.1 channel digital audio format that
provides five full-spectrum channels and one low-frequency (subwoofer)
channel for unprecedented clarity, optimum channel separation and a
(wide) dynamic range.
In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD
disc (carrying the “DTS” marking) can be played in Digital Surround.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be
output from the analog output. It is recommended that you connect the
digital output of the player to the digital input of this unit.
DSP surround modes
The DSP (Digital Signal Processor) used for this receiver incorporates a
variety of high quality adjustable sound fields, like “ARENA”, “JAZZ
CLUB”, “THEATER”, “STADIUM” and “DISCO”. It is compatible with
almost any kind of program source.
DVD 6-channel input
If you own a DVD player equipped with 6-channel output, this receiver
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround sound
systems.
ACTIVE EQ
Active EQ mode will produce a more dynamic sound quality in any
conditions. You can enjoy a more impressive sound effect when you
switch ACTIVE EQ ON during Dolby Digital and DTS playback.
Universal IR (InfraRed) remote control
In addition to the basic receiver, the remote control supplied with this
receiver can also operate almost all of your remote controllable audio and
video components. Just follow the simple setup procedure to register
the components you have connected.
EN
5
Names and functions of parts
Main Unit
Speaker indicator
CLIP indicator
TONE indicator
LOUDNESS indicator
96kHzfs indicator
ON
SPEAKERS ON OFF
POWER
STANDBY
STANDBY
PHONES
MUTE indicator
Speaker selection indicators
Input channel indicators
Output channel indicators
DIMMER
LISTEN MODE
ACTIVE EQ DTS
ACTIVE EQ
INPUT MODE BAND AUTO MEMORY
Frequency display,
Input display,
Preset channel display,
Surround mode display
Display
DOLBY DIGITAL
DTS indicator
Band indicators
DOLBY DIGITAL
indicator
PRO LOGIC
indicator
MULTI CONTROL INPUT SELECTOR
SOUND
SETUP
AUTO DETECT
indicator
6CH INPUT indicator
DOWN
DIGITAL indicator
AUTO indicator
MEMO. indicator
ST. indicator
TUNED indicator
DSP indicator
STEREO indicator
VOLUME CONTROL
UP
MUTE
1 POWER ON/STANDBY key ^
Use to turn the power ON/STANDBY.
STANDBY indicator
2 DIMMER key
Use to select the REC MODE. )
Use to adjust the brightness of the display.
¶
3 LISTEN MODE key ∞
Use to select the listening mode.
4 Surround LED (light-emitting diode)
indicators
ACTIVE EQ mode LED indicator (
Lights when the receiver is in the ACTIVE EQ
mode.
DTS mode LED indicator ∞
Lights when the receiver is in the DTS mode.
DOLBY DIGITAL mode LED indicator
5 SOUND key §
Use to adjust the sound quality and the
ambience effects.
6 MULTI CONTROL knob ^
Use to control a variety of settings.
7 INPUT SELECTOR knob *
Use to select the input sources.
8 VOLUME CONTROL knob *
9 PHONES jack (
Use for headphone listening.
0 SPEAKERS ON/OFF key *
Use to turn the speakers ON/OFF.
! ACTIVE EQ key (
Use to select ACTIVE EQ setting.
@ INPUT MODE key 8
Use to switch between full auto, digital and
analog inputs.
# BAND key ¡
Use to select the broadcast band.
$ AUTO key
Use to change “TAPE” indication to “MD”.
*
Use to select the auto tuning mode. ¡
% MEMORY key ¡
Use to store radio stations in the preset
memory.
^ SETUP key ^
Use to select the speakers' settings etc.
& MUTE key (
Use to temporarily mute the sound.
∞
Lights when the receiver is in the Dolby
Digital mode.
Standby mode
While the standby indicator is lit, a small amount of power is supplied to the system to back-up the memory. This is called standby mode. Under the
condition, the system can be turned ON by the remote control unit.
EN
6
Names and functions of parts
Remote control unit
This remote control unit can be use not only for Kenwood products but also for non-Kenwood products by setting the appropriate manufacturer’s setup
codes. º
^
MD
&
*
w
e
r
(
7
)
¡
™
£
¢
∞
§
¶
If the name of a function is different on
•
the receiver and on the remote control,
ª
the name of the remote control key in
this manual is indicated in parentheses.
º
⁄
¤
TV Mute key
Use to temporarily mute the TV sound.
¡ Page ∞/5 keys
Use to operate other components.
™ OSD (on screen display) key
Use to operate the DVD component.
Guide key
Use to operate other components.
£ Menu key
Use to operate other components.
¢ Mute key (
Use to temporarily mute the sound.
∞ VOL +/– keys
Use to adjust the receiver’s volume.
§ TV Input key
Use when in TV operation.
¶ Bass Boost key (
Use to select the maximum adjustment
setting for the low frequency range.
• 1 /¡ key
If CD, MD or TAPE is selected as the input
source, these keys function as search key.
Tune –/+ key
Use to operate the tuner mode.
ª ¶ key
If MD or TAPE is selected, this key functions
as record key.
If VCR is selected, this key functions as
record key when it is pressed twice
sequentially.
Top Menu key
Use to operate other components.
Setup key ^
Use to select the speakers' settings etc.
º Loudness key (
Use to switch the status of LOUDNESS.
⁄ Remote Setup key
Use to register other components.
¤ 7 key
If CD, MD or TAPE is selected as the input
source, this key functions as the stop key.
Auto key ¡
Use to select the auto tuning mode.
1 Source keys (AUX, VID2, VID1, TUNER,
DVD/6CH, CD/DVD, MD/TAPE) •
When press and hold for more than 3
seconds, they are used to select the
registered component.
Input Selector keys (AUX, VID2, VID1,
TUNER, DVD/6CH, CD/DVD, MD/TAPE)
When press and release in less than 3
seconds, they are used to select the input
sources.
2 SRC (source) Power key
Use to turn the other source components
on and off.
3 Numeric keys •
Provide functions identical to those of the
original remote control supplied with the
component you are controlling.
Multi (multi control) %/fi keys ^
Use to control a variety of settings.
Use to operate other components.
P.Call @/# keys ™
If tuner is selected as the input source, these
keys function as preset channel call keys.
Enter key
Use to operate other components.
4 Return key
Use to operate the DVD component.
Exit key
Use to operate other components.
5 Disc Skip key
If CD is selected as the input source, this
key functions as the multi-CD player disc
skip key.
Last/A/B key
If TAPE is selected as the input source, this
is A and B deck of a double cassette deck.
Use to operate other components.
6 Disc Sel. key
Use to operate other components.
Input Sel. key
Use to operate other components.
7 CH +/– keys
Use to select the channels.
*
DVD
TUNER
6CH
POWER
RCVR
Multi
Enter
Multi
Page
Tone
Sound
Info
Active
EQ
CD
DVD
TAPE
TV
o
P
V
T
5
6
P. Call
8
9
TV Mute
OSD
Guide
Menu
Mute
VOL
Bass
TV Input
Boost
Tune +Band
Top MenuAuto
Setup
/
Flip
Loudness
Remote
Setup
1
2
3
4
5
6
7
8
9
0
!
@
#
VID1
VID2
AUX
P
o
w
C
e
R
r
S
4
3
2
P. Call
1
0
+ 10 + 100
Return
Last / A/B
Exit
Disc Skip
Disc Sel.
Input Sel.
¢
CH
4
TV
VOL
Tune —
Dimmer
Input
Mode
Listen
Mode
$
%
4/¢ keys
If CD, MD or DVD is selected as the input
source, these keys function as skip keys.
8 Tone key (
Use to switch the status of TONE control.
Sound key §
Use to adjust the sound quality and ambience
effects.
9 TV VOL +/– keys
Use to adjust the TV’s volume.
0 8 key
Use to operate other components.
Dimmer key ¶
Use to adjust the brightness of the display.
! 6 key
If CD is selected as the input source, this
key functions as the play/pause key.
If MD or TAPE is selected as the input
source, this key functions as the play key.
Band key ¡
Use to select the broadcast band.
@ Input Mode key 8
Use to switch between full auto, digital and
analog inputs.
# Listen Mode key ∞
Use to select the listening mode.
$ 2 key
If TAPE is selected, this key functions as
reverse play key.
Info/Flip key
Use to operate the DVD component.
% Active EQ key (
Use to select ACTIVE EQ setting.
^ LED (light-emitting diode) indicator
Blinks to show that signals are being
transmitted.
& TV key
Use to select the TV equipment.
* POWER RCVR (receiver) key ^
Use to turn the receiver on and off.
( TV Power key
Use to turn the TV on and off.
) +100 key
Use to select the disc number with the
multi-CD player.
7
EN
Setting up the system
Make connections as shown in the following pages.
When connecting the related system components, be
sure to refer to the instruction manuals supplied with
the components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Notes
1. Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or there will be noise
interference.
2. Be sure to remove the power cord from the AC outlet before plugging
or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctions
and may damage the unit.
3. Do not connect power cords from components whose power
consumption is larger than what is indicated on the AC outlet at the
rear of this unit.
Analog connections
Audio connections are made using RCA pin cords. These cables transfer
stereo audio signal in an “analog” form. This means the audio signal
corresponds to the actual audio of two channels. These cables usually
have 2 plugs at each end, red for the right channel and white for the left
channel. These cables are usually packed together with the source unit,
or are available at your local electronics retailer.
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the
microcomputer by referring to “In case of difficulty”. ‡
Input mode settings
CD/DVD, VIDEO 2 and DVD/6CH inputs each include jacks for digital
audio input and analog audio input.
After completing connections and turning on the receiver, follow the
steps below.
INPUT SELECTORLISTEN MODE
INPUT MODE
1 Use the INPUT SELECTOR knob to select CD/DVD, VIDEO 2,
DVD/6CH.
2 Press the INPUT MODE key.
Each press switches the setting as follows:
In DTS play mode
1 F-AUTO (digital input, analog input)
2 D-MANUAL (digital input)
In CD/DVD, VIDEO 2, DVD/6CH play mode
1 F-AUTO (digital input, analog input)
2 D-MANUAL (digital input)
3 6CH INPT (DVD/6CH input)
4 ANALOG (analog input)
Digital input:
Select this setting to play digital signals from a DVD, CD, or LD
player.
Analog input:
Select this setting to play analog signals from a cassette deck, VCR,
or record player.
Auto detect:
In “F-AUTO” (full auto) mode (AUTO DETECT and DIGITAL
indicators light up), the receiver detects the digital or analog input
signals automatically. Priority is given to digital signal during input
mode selection. The receiver will select the input mode and listening
mode automatically during playback to match the type of input
signal (Dolby Digital, PCM, DTS ) and the speaker setting. The initial
factory setting is full auto.
To keep the receiver set to the currently selected listening mode,
use the INPUT MODE key to select “D-MANUAL” (digital manual).
However, even when this setting is selected, there may be cases
in which the listening mode is selected automatically to match a
Dolby Digital source signal depending on the combination of listening
mode and source digital.
In D-MANUAL mode, if the audio reproduction stops in the middle
due to change in the input signals, etc, press the LISTEN MODE
key. If the INPUT MODE key is pressed quickly, sound may not be
produced. Press the INPUT MODE key again.
EN
8
Setting up the system
Connecting audio components
SYSTEM CONTROL
jacks %
L
R
AUX CD/DVD
AUDIO
REC OUT PLAY IN
MD/TAPE
REC OUT PLAY IN
VIDEO1
OUTIN
Video component )
+
-
+
-
To AC wall outlet
IN
OUT
Cassette deck or MD
recorder
OUT
CD or DVD player
Other components
OUT
EN
9
Setting up the system
Connecting video components
VIDEO 2INDVDINMONITOR
OUT
S-VIDEO
S-VIDEO jacks
About the S-VIDEO
jacks
S-VIDEO
Use the S-VIDEO jacks to
make connections to
video components with
S-VIDEO IN/OUT jacks.
If you use the S-VIDEO
•
+
-
+
-
jacks to connect your video
playback components, be
sure to use the S-VIDEO
jacks when connecting
your monitor and video
recording components.
VIDEO
IN/ OUT
DVD
IN
VIDEO 2
IN
VIDEO
VIDEO 1
IN
MONITOR
OUT
VIDEO 1
OUT
IN
AUDIO
REC OUT PLAY IN
VIDEO
IN
Monitor TV
Video inputs
(Yellow RCA pin cords)
VIDEO 1
PLAY IN
VIDEO 2
IN
AUDIO
IN/ OUT
Video deck
OUT
Video inputs and
outputs
(Yellow RCA pin cords)
OUT
Audio inputs
and outputs
DVD player or LD player
OUT OUT
A video component with digital audio outputs should be connected to the VIDEO 2 jacks.
EN
10
Setting up the system
Digital connections
The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD)
format digital signals.
If you have connected any digital components to the receiver, be sure to read the “Input mode settings” section carefully. 8
COAXIAL
VIDEO 2
DVD / 6CH
DIGITAL IN
OPTICAL
CD/DVD
+
-
+
-
Optical fiber cable
OPTICAL DIGITAL OUT (AUDIO)
CD or DVD player
COAXIAL DIGITAL OUT
(AUDIO)
Component with DTS,
Dolby Digital, or PCM
COAXIAL
DIGITAL
OUT
(AUDIO)
RF digital
demodulator
(DEM-9991D)
(sold separately)
DOLBY DIGITAL RF
OUT (AUDIO)
COAXIAL DIGITAL OUT
Connect the video signal and analog
audio signals to the VIDEO 2 jacks.
(See “Connecting video components”.)
0
PCM OUT
LD player
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.
Connect the video signal and analog audio signals to the VIDEO 2 jacks. (See “Connecting video components”.)
11
EN
Setting up the system
Connecting a DVD player (6-channel input)
If you have connected a DVD player to the receiver with digital connection, be sure to read the “Input mode settings” section carefully. 8
DVD
IN
DVD
IN
VIDEO 2
IN
VIDEO
VIDEO 1
IN
MONITOR
OUT
VIDEO 1
OUT
DVD/6CH INPUT
SURROUND
FRONT
CENTER
SUB
WOOFER
+
-
+
-
COAXIAL
VIDEO 2
DVD/6CH
DIGITAL IN
OPTICAL
CD/DVD
VIDEO OUT
(Yellow RCA
pin cord)
FRONT
OUT L/R
DVD player
S-VIDEO
OUT
SURROUND
OUT L/R
COAXIAL
DIGITAL
OUT
(AUDIO)
SUBWOOFER
OUT
CENTER OUT
S-VIDEO cord
CAUTION
Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.
• Do not place any object impairing heat radiation onto the top of the unit.
• Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm
EN
12
Loading...
