Kenwood DV-S701 User Manual

DVD / VCD / CD PLAYER

DV-S701

INSTRUCTION MANUAL

KENWOOD CORPORATION

This player has been designed to play back the DVD software which has been encoded for specific region areas. It cannot play back the DVD software encoded for other region areas than the region areas for which it has been designed.

COMPACTCOMPACT

DIGITAL VIDEODIGITAL VIDEO

B60-4026-00 00 J (M2,T,E) MC 98 / 8

COMPACTCOMPACT

DIGITAL AUDIODIGITAL AUDIO

TEXT

Introduction

DV-S701 (En/E)

Before applying power

Units are designed for operation as follows.

This unit is intended for

Preparations

................................

AC 110-240 V

Caution : Read this section carefully to ensure safe operation.

For the United Kingdom

Factory fitted moulded mains plug

1. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS1362) fuse.

2. The fuse cover must be refitted when replacing the fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer.

Operations

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

IMPORTANT :

The wires in the mains lead are colouRed in accordance with the following code :

Blue : Neutral Brown : Live

Do not connect those leads to the earth terminal of a three - pin plug.

Safety precautions

Caution : Read this section carefully to ensure safe operation.

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Other

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The marking of products using lasers

(Except for some areas)

CLASS 1

LASER PRODUCT

The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

REQUIREMENT BY NEDERLAND GAZETTE

Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste.

Introduction

DV-S701 (En/E)

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.

Keep this manual handy for future reference.

Accessories

Audio cord (Red, White) ...... (3)

Remote control unit ............. (1) Batteries (R6/AA) ................. (2)

Video cord (Yellow).............. (1)

Digital cord (Orange)......... (1)

System control cord ......... (1)

Preparations

Operations

Other

IMPORTANT SAFEGUARDS

Caution : Read this page carefully to ensure safe operation.

Please read all of the safety and operating instructions before operating this appliance. Adhere to all warnings on the appliance and in the instruction manual. Follow all the safety and operating instructions. These safety and operating instructions should be retained for future reference.

1. Power sources – The appliance should be connected to a power supply only of the type described in the instruction

Preparations

manual or as marked on the appliance. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For appliances intended to operate from battery power, or other sources, refer to the instruction manual.

2. Power-cord protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

Never pull or stretch the cord.

DV-S701 (En/E)

6. Temperature – The appliance may not function properly if used at extremely low, or freezing temperatures. The ideal ambient temperature is above +5°C (41°F).

7. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

8. Electric shock – Care should be taken so that objects do not fall and liquid is not spilled into the enclosure through openings. If a metal objects, such as a hair pin or a needle, comes into contact with the inside of this appliance, a dangerous electric shock may result. For families with children, never permit children to put anything, especially metal, inside this appliance.

CAUTION – Polarization – This appliance may be

Operations

Other

equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

4. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The appliance should be situated so that its location or position does not interfere with its proper ventilation. To maintain good ventilation, do not put records or a tablecloth on the appliance. Place the appliance at least 10 cm away from the walls. Do not use the appliance on a bed, sofa, rug or similar surface that may block the ventilation openings. This appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

9. Enclosure removal – Never remove the enclosure. If the internal parts are touched accidentally, a serious electric shock might occur.

10. Magnetic fields – Keep the appliance away from sources of magnetic fields such as TV sets, speaker systems, radios, motorized toys or magnetized objects.

11. Cleaning – Unplug this appliance from the wall outlet before cleaning. Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth.

12. Accessories – Do not place this appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

5. Water and moisture – The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

13. Lightning – For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.

IMPORTANT SAFEGUARDS

DV-S701 (En/E)

18. Power lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

14. Abnormal smell – If an abnormal smell or smoke is detected, immediately turn the power OFF and unplug the appliance from the wall outlet. Contact your dealer or nearest service center.

POWER OFF!

15. Damage requiring service – The appliance should be ser-

viced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged. B. Objects have fallen, or liquid has been spilled into the

appliance.

C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally by

following the instruction manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation. E. The appliance has been dropped, or the enclosure damaged.

F. The appliance exhibits a marked change in performance.

16. Servicing – The user should not attempt to service the

appliance beyond that described in the instruction manual. All other servicing should be referred to qualified service personnel.

19. AC outlets – Do not connect other audio equipment with a power consumption larger than that specified to the AC outlet on the rear panel. Never connect other electrical appliances, such as an iron or toaster, to it to prevent fire or electric shock.

20. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

21. Attachment – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

22. Replacement parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety check – Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.

Preparations

Operations

17. Outdoor antenna grounding – If an outside antenna is

connected to the appliance, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMPS

ANTENNA DISCHARGE UNIT

ELECTRIC SERVICE EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21) GROUND CLAMP POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

Notes

1. Item 3 is not required except for grounded or polarized equipment.

2. Item 17 and 18 are not required except for units provided with antenna terminals.

3. Item 17 complies with UL in the U.S.A.

Other

DV-S701 (En/E)

Preparations

Operations

Caution : Read the pages marked carefully to ensure safe operation.

Introduction

Before applying power Safety precautions

Accessories

IMPORTANT SAFEGUARDS Contents Special features Region codes

Region codes of this player Region codes of the DVD discs that can be played with this player Region codes in the world Restrictions due to difference between discs

Playable Disc

Recording systems and types of playable discs Unplayable discs Icons on the DVD discs

Video formats

Video formats of DVD discs that can be played on this unit Video formats of VCD discs that can be played on this unit Examples of TV screen display of each video format

Important items

Maintenance Reference

System Connections

Connection with TV with S-VIDEO jacks and general stereo system Connection with an AV receiver

Controls and indicators

Display / Main unit Remote control unit

Operation of remote control unit

Loading batteries Operation Basic operation of cursor keys

Graphical remote control unit (GRC unit)

Basic Operations for the Graphical Remote Control Unit (GRC)

...........................................................................................................................................

....................................................................................................................................................

...........................................................................................................................................................

......................................................................................................................................................................

...............................................................................................................

.................................................................................................................................................

...................................................................................................................................

........................................................................................................................................

...........................................................................................................................................

........................................................................................................

......................................................................................................................................

.....................................................................................................

...........................................................................................................................................................

.................................................................................................................................................

......................................................................................................................................

............................................................................................

...................................................................................................................................

...................................................................................................................................................................

........................................................................................................................................................................

..........................................................................................................................

................................................................................................................................

....................................................................................................................

........................................................................................................................................................

.......................................................................................................................................................

.....................................................................................................

...........................................................................................................................................................

.........................................................................................................................................................................

...................................................................................................................................

......................................................................................

...................................................................

................................................................................

................................................................

........................................................................

2 2 3

4 6 8 9

9 10 10

11 11 11

12 13 13

14 14

15 16

19 20

21 21 21

Other

Operations

Playback

Operations using the GUI screen

..............................................................................................................................................

Playing a disc from the beginning Forward search and reverse search (Manual search) Skipping tracks or chapters Frame-by-frame playback Slow playback Playing tracks in a random order (Random playback) Letting playback pause Stopping playback FL DISPLAY key STEREO key

................................................................................................................................................................

................................................................................................................................................

.........................................................................................................................................................

..............................................................................................................................................................

.....................................................................................................................................................................

.............................................................................................................................

........................................................................................................................................

............................................................................................................................................

....................................................................................................

Basic operations on the GUI screen Icons on the TV screen

.................................................................................................................................................

..........................................................................................................................

Storing scenes in memory (Memory function)

Storing a scene in memory Recalling/clearing a scene in memory

Programming

Programming tracks in the desired order Adding tracks (chapters) in the program Clearing tracks (chapters) from the program Returning to normal playback

.......................................................................................................................................

..........................................................................................................................................

.....................................................................................................................

................................................................................................................

.................................................................................................................

..........................................................................................................

.....................................................................................................................................

..........................................................................................

.............................................................................

25 27 27 27 27 28 28 28 28 28

29 30

32 32

33 34 34 34

Contents

DV-S701 (En/E)

Operations

Repeating tracks, chapters or titles (Repeat playback, A-B repeat)

Repeating a single track (chapter or title) (Repeat playback) Repeating entire disc (Repeat playback) Repeating a desired section (A-B repeat) Repeating program playback (Program repeat)

Versatile DVD play features

Switching the voice language (Multi-audio function) Displaying/switching the subtitle language (Multi-subtitle function) To switch the viewing angle (Angle function)

Menu playback

Hierarchical structure of VCD menus Playback without using the menu playback function Menu playback (DVD) Title selection using the title menu (Title function) Enjoying Virtual Surround sound (VIRTUAL SURR.)

...................................................................................................................................

Changing the initial setup

Basic operation for changing the initial setup Changing initial setup [1 Disc Languages] Changing initial setup [2 Ratings] Changing initial setup [3 Menu Language] Changing initial setup [4 On-Screen Messages] Changing initial setup [5 FL Display] Changing initial setup [6 TV Aspect] Changing initial setup [7 Digital Audio Output] Changing initial setup [8 Speaker Setting] Changing initial setup [9 Other Settings] DVD menu language code list

CD-TEXT operation

Searching for tracks by title (TITLE SEARCH) Selecting the text information display (TEXT DISPLAY) Displaying all the text information (ALL INFO.)

.............................................................................................................................

.............................................................................................................

...................................................................................................................................................

................................................................................................................

.....................................................................................................................................

.................................................................................................................

................................................................................................................

......................................................................................................

........................................................................................................

.......................................................................................................................

..............................................................................................

...............................................................................................

.......................................................................................................

.............................................................................................................

.............................................................................................................................

.............................................................................................................

...................................................................................................

........................................................................................................................

.....................................................................................................

.............................................................................................................

................................................................................................................

.........................................................................................................

......................................................................................................

............................................................................

..........................................................................................

..............................................................

...........................................................................................

.......................................................................................

.......................................

35 35 36 36

37 38 39

40 40 41 42 43

44 45 46 48 48 49 50 51 53 55 56

57 58 58

Preparations

Operations

Other

Glossary

...............................................................................................................................................

In case of difficulty Specifications

.....................................................................................................................................

............................................................................................................................

59 60 62

Other

Special features

This document classifies the applications of each feature using the following icons.

DVD

Description of a feature that can be used with DVD.

Higher video quality than S-VHS video and LaserDisc

Preparations

Higher audio quality than music CD

Graphical user interface (GUI) compatibility

6-Channel independent outputs using built-in Dolby Digital (AC-3)/MPEG multi-channel surround decoders

Operations

VCD

Description of a feature that can be used with VIDEO CD.

The horizontal resolution of 500 lines or more is far above that of the S-VHS video (400 lines) and LaserDisc (430 lines). The picture quality is more noticeable when the screen size is larger.

The ultrahigh audio quality design can play discs with higher quality than CDs, such as a recording with 48 kHz sampling frequency and 16-bit quantization up to 96 kHz sampling frequency and 24-bit quantization. A recording with the 96 kHz sampling frequency can reproduce as high frequencies as above 40 kHz!

The information related to the player and disc can be displayed on the TV screen by pressing the ON SCREEN key of the remote control unit. The remote control unit also has cursor keys for simple operations and settings of the player.

A Dolby Digital (AC-3) surround decoder and MPEG multi-channel surround decoder as well as 6 output channels are built in to bring movie theater-class powerfulness and presence to home theaters.

DVD

CD VCD

DVD

DV-S701 (En/E)

Description of a feature that can be used with CD.

Versatile DVD playback features

Other

CD-TEXT compatibility

24-bit D.R.I.V.E. II, an advanced technology in pursuit of quality and safety

DVD

Multi-audio function:

Icons on a DVD disc means that the spoken voice language

can be selected from up to 8 languages. (The number of available voice languages is variable depending on discs.)

Multi-subtitle function:

Icons on a DVD disc means that the subtitle language can be selected from up to 32 languages. (The number of available subtitle languages is variable depending on discs.)

Angle function:

Icons on a DVD disc means that some objects can be viewed

from up to 9 different camera angles, as if switching the video shot with multiple cameras. (The number of available angles is variable depending on discs.)

Ratings function:

When a DVD disc contains scenes that should be protected from viewing of children, playback of such scenes can be prohibited based on the assigned restriction levels. (This feature is available only with discs containing the recording of viewing restriction levels.)

Text information recorded in CD (disc title, track titles, musician names, verse writer names, composer names, etc.) can be recalled and displayed in alphanumeric characters. (Certain character types may not be able to be displayed.)

The 24-bit D.R.I.V.E. II is an advancement of the KENWOOD-original D.R.I.V.E. (Dynamic Resolution Intensive Vector Enhancement) technology.

‡

Region codes

DV-S701 (En/E)

Region codes of this player

Every player of this model has a certain region code assigned to it based on the country where the player is used. When the player is used to play back DVD discs, it can only play the DVD discs carrying the region codes matching the region code of the player. See the following table for details. (The table shows the data as of October 1997.)

Region Code of

Player

Canada, United States, American Samoa, Bermuda, Johnston Island, Midway Islands, Puerto Rico, St. Pierre and Miquelon, United States Virgin, Wake Island

Albania, Andorra, Austria, Bahrain, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech, Denmark, Egypt, Finland, France, Germany, Greece, Hungary, Iceland, Iran, Iraq, Ireland, Israel, Italy, Japan, Jordan, Kuwait, Lebanon, Lesotho, Liechtenstein, Luxembourg, Macedonia, Malta, Monaco, Netherlands, Norway, Oman, Poland, Portugal, Qatar, Romania, San Marino, Saudi Arabia, Slovakia, Slovenia, South Africa, Spain, Swaziland, Sweden, Switzerland, Syrian Arab Republic, Turkey, United Arab Emirates, United Kingdom, Vatican City State, Yemen, Yugoslavia, Channel Islands, Faeroe Islands, Gibraltar, Greenland, Isle of Man, Svalbard and Jan Mayen Islands

Brunei Darussalam, Cambodia, Indonesia, Korea, Laos, Malaysia, Myanmar, Philippines, Singapore, Thailand, Viet Nam, East Timor, Hong Kong, Macau, Taiwan

Antigua and Barbuda, Argentina, Australia, Bahamas, Barbados, Belize, Bolivia, Brazil, Chile, Colombia, Costa Rica, Cuba, Dominica, Dominican Republic, Ecuador, El Salvador, Fiji, Grenada, Guatemala, Guyana, Haiti, Honduras, Jamaica, Kiribati, Marshall Islands, Mexico, Micronesia, Nauru, New Zealand, Nicaragua, Palau, Panama, Papua New Guinea, Paraguay, Peru, Saint Christopher and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, Solomon Islands, Suriname, Tonga, Trinidad and Tobago, Tuvalu, Uruguay, Vanuatu, Venezuela, Anguilla, British Virgin Islands, Cayman Islands, Christmas Island, Cocos Islands, Cook Islands, Falkland Islands, French Guiana, French Polynesia, Guadeloupe, Guam, Martinique, Montserrat, Netherlands Antilles, New Caledonia, Niue, Norfolk Island, Northern Mariana Islands, Pitcairn, Tokelau, Turks and Caicos Islands, Wallis and Futuna Islands

Usable Country or Area

Preparations

Operations

Afghanistan, Algeria, Angola, Armenia, Azerbaijan, Bangladesh, Belarus, Benin, Bhutan, Botswana, Burkina Faso, Burundi, Cameroon, CapeVerde, Central Africa, Chad, Comoros, Congo, Cote d'Ivoire, Djibouti, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Gabon, Gambia, Georgia, Ghana, Guinea, GuineaBissau, India, Kazakhstan, Kenya, Kyrgyz Republic, Latvia, Liberia, Libya, Lithuania, Madagascar, Malawi,

Maldives, Mali, Mauritania, Mauritius, Moldova, Mongolia, Morocco, Mozambique, Namibia, Nepal, Niger, Nigeria, North Korea, Pakistan, Russia, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, Sri Lanka, Sudan, Tadzhikistan, Tanzania, Togo, Tunisia, Turkmenistan, Uganda, Ukraine, Uzbekistan, Zaire, Zambia, Zimbabwe, British Indian Territory, Jammu and Kashmir, Mayotte, Reunion, St. Helena ex. dep., Western Sahara

China

Region codes of the DVD discs that can be played with this player

This player can play back a DVD disc which carries the corresponding code to the region code of the player shown in the table above, a marking containing the region code of the player or the “ALL” marking shown below. Even when a DVD disc does not carry any indication of the region code, it may sometimes unable to be played on this player due to certain restrictions.

ALL

Other

Region codes

,

Region codes in the world

The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.

DV-S701 (En/E)

Preparations

Operations

Restrictions due to difference between discs

Some DVD and VCD discs can be played only in certain playback modes according to the intentions of the software producers. As this player plays discs according to their intentions, some functions may not work as intended by you. Please be sure to read the instructions provided with each disc. When an inhibition icon is displayed on the TV screen connected to the player, it indicates that the disc being played is under the restriction as described above.

Other

Inhibition icon

Playable Disc

DIGITAL AUDIODIGITAL AUDIO

COMPACTCOMPACT

DV-S701 (En/E)

Recording systems and types of playable discs

The system using this unit does not only play music from CD but can also play the discs listed below to offer you high-quality entertainment of video of movies and live concerts.

Playable Disc

Logo mark on disc

Disc size

Played sides

Contents

Video + Audio

8cm

One or both One or both

Approx. 41 min.

(1 side, 1 layer)

Approx. 75 min.

(1 side, 2 layers)

Approx. 82 min.

(2 sides, 1 layer)

Approx. 150 min.

(2 sides, 2 layers)

DVD CD VCD

COMPACTCOMPACT

DIGITAL VIDEO

12cm12cm

One side only

Max. 74 min.

12cm

Approx. 133 min.

(1 side, 1 layer)

Approx. 242 min.

(1 side, 2 layers)

Approx. 266 min.

(2 sides, 1 layer)

Approx. 484 min.

(2 sides, 2 layers)

COMPACTCOMPACT

DIGITAL AUDIODIGITAL AUDIO

8cm

One side only One side only

Preparations

Audio

Max. 20 min., digital Max. 74 min., digital

Unplayable discs

This player cannot play back any of the following discs.

÷ DVD-ROM discs ÷ DVD-R/DVD-RAM discs ÷ CD-ROM discs ÷ VSD discs

Icons on the DVD discs

Icon Description

ALL

Indicates the region code where the disc can be played.

Number of voice languages recorded with the audio function. The number in the icon indicates the number of voice languages. (Max. 8 languages)

Number of subtitle languages recorded with the subtitle function. The number in the icon indicates the number of subtitle languages. (Max. 32 languages)

Operations

÷ CDV discs (Only the audio part can be reproduced.) ÷ CD-G/CD-EG/CD-EXTRA discs (Only the audio can be

reproduced.)

÷ CD-R/CD-RW discs (Never attempt to play them.) ÷ Photo CD discs (Never attempt to play them.)

Other

16:9 LB

Note

NoteNote

Number of angles provided by the angle function. The number in the icon indicates the number of angles. (Max. 9 angles)

Aspect ratios that can be selected. “LB” stands for Letter Box and “PS” for Pan/Scan. In the example on the left, the 16:9 video can be converted into letter box video.

See “Glossary” for detailed description on the terms such as aspect ratio, letter box and pan/scan. O

Video formats

The video signals used to display TV pictures and video disc pictures are mainly based on two types of signal formats

(PAL and NTSC), which are assigned to each country or area as shown on the right. As a result, it is required to select discs according to the video format used with your TV monitor (in your country or area).

Preparations

Video formats of DVD discs that can be played on this unit

Set the video formats of the DVD discs to be played on this unit as described below.

Check the video format(s) used by your TV monitor.

÷Refer to the operating instructions of your TV monitor for details.

Select DVD discs recorded with the playable video format by referring to the following

TV formats of major countries

TV Format

NTSC

PAL

Japan, Taiwan, Korea, U.S.A., Canada, Mexico, Philippines, Chile, etc.

China, North Korea, U.K., Germany, Australia, New Zealand, Kuwait, Singapore, etc.

Major Countries & Areas

DV-S701 (En/E)

table.

÷See the region code table on the bottom of this page for details on districts 1 to 6.

Your TV

format

District 1

District 2-1

District 2-2

District 2-3

Playable Disc Formats

District 3

District 4-1

District 4-2

District 5

District 6

NTSC only

Operations

PAL only

NTSC/PAL

switchable

Note

NoteNote

Other

NTSC

NTSC*

NTSC

Normal video may not be reproduced when a disc recorded with the video format marked * in the above table is played. See “Examples of TV screen display of each video format” for details.

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

NTSC

NTSC*

NTSC

NTSC PAL*

NTSC*

PAL

NTSC

PAL

NTSC PAL*

NTSC*

PAL

NTSC

PAL

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

NTSC

NTSC*

NTSC

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

NTSC

PAL*

NTSC*

PAL

NTSC

PAL

When your TV is switchable between NTSC and PAL,

÷Districts 1, 2-2 and 4-2: Set the TV to NTSC. ÷Districts 2-1, 4-1 and 5: Set the TV to PAL. ÷Districts 2-3, 3 and 6: Set the TV according to each disc to be played.

Now play the disc.

Region code table

District 2-1

Europe

Area or Country Name, Region Code

District 1

North

America

District 2-2

Japan

District 2-3

Middle East

District 3

Southeast

Asia

District 4-1

Oceania

District 4-2

South

America

District 5

Russia

District 6

China

654432221

Video formats

DV-S701 (En/E)

Video formats of VCD discs that can be played on this unit

Set the video formats of the VCD discs to be played on this unit as described below.

Check the video format(s) used by your TV monitor.

÷Refer to the operating instructions of your TV monitor for details.

Select VCD discs recorded with the playable video format by referring to the following table.

÷See the region code table on the bottom of the previous page for details on districts 1 to 6.

Your TV

format

NTSC only

PAL only

NTSC/PAL

switchable

Normal video may not be reproduced when a disc recorded with the video format marked * in the above table is played. See “Examples of

TV screen display of each video format” for details.

Note

NoteNote

District 1

NTSC

PAL

NTSC*

PAL*

NTSC

PAL

District 2-1

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

District 2-2

NTSC

PAL

NTSC*

PAL*

NTSC

PAL

District 2-3

Playable Disc Formats

District 3

NTSC PAL*

NTSC*

PAL

NTSC

PAL

NTSC PAL*

NTSC*

PAL

NTSC

PAL

District 4-1

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

District 4-2

NTSC

PAL

NTSC*

PAL*

NTSC

PAL

District 5

NTSC*

PAL*

NTSC

PAL

NTSC

PAL

District 6

NTSC

PAL*

NTSC*

PAL

NTSC

PAL

Preparations

When your TV is switchable between NTSC and PAL,

÷Districts 1, 2-2 and 4-2: Set the TV to NTSC. ÷Districts 2-1, 4-1 and 5: Set the TV to PAL. ÷Districts 2-3, 3 and 6: Set the TV according to each disc to be played.

Now play the disc.

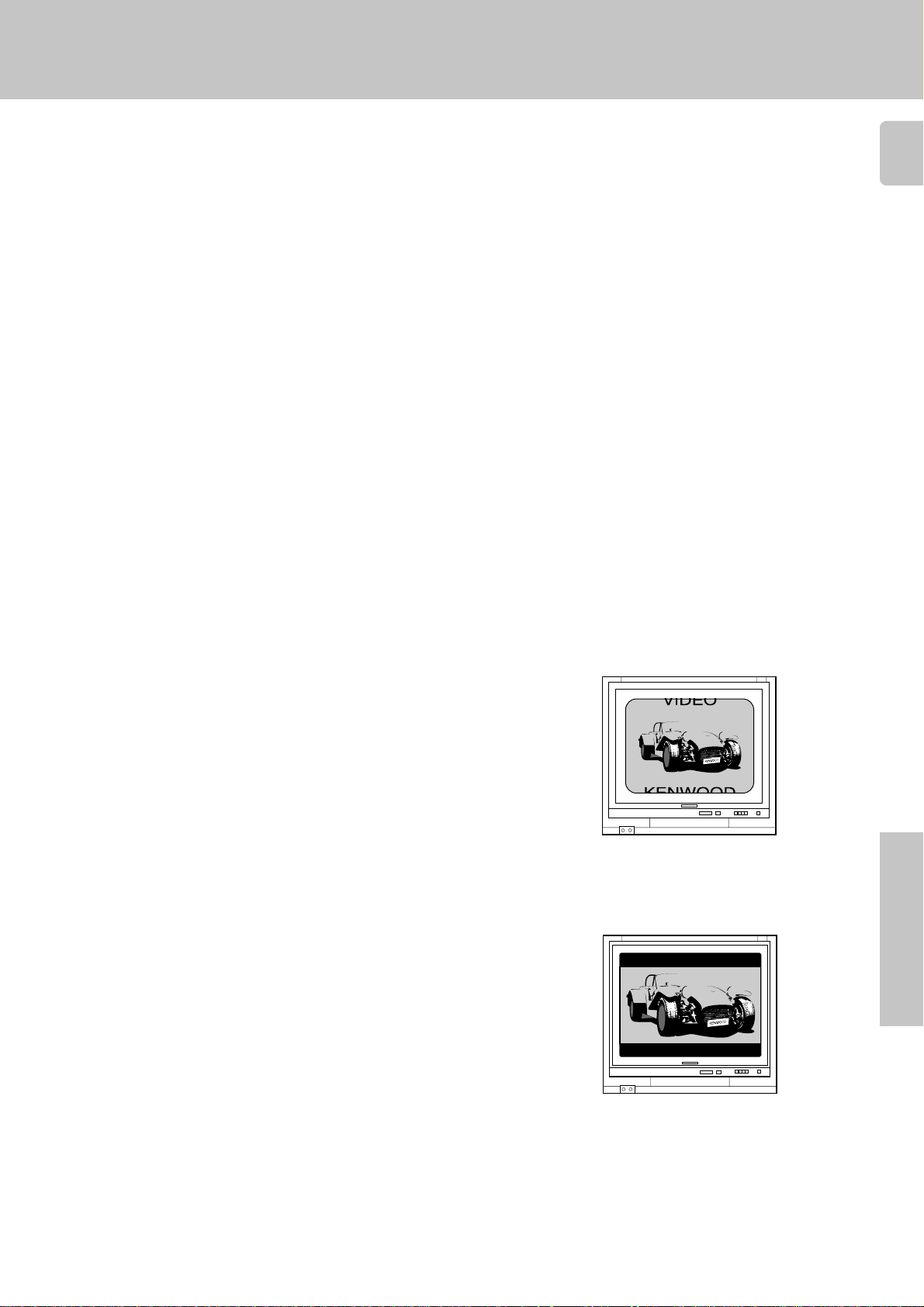

Examples of TV screen display of each video format

When your TV is switchable between PAL/ NTSC

Try play a disc. If the picture is black and white or as shown on the right, stop playback and switch the screen display formats of this unit and the TV to another format. This will improve the played picture quality.

When your TV is compatible only with the PAL format

When your TV is compatible only with the NTSC format

Operations

Other

With certain discs, the playback picture may have black spaces above and below it (as shown on the right). This is because the disc has been recorded in the NTSC format. The screen may be somewhat hard to see but this is not malfunction.

With certain discs, the playback picture may be cut above and below it (as shown on the right). This is because the disc has been recorded in the PAL format. The screen may be somewhat hard to see but this is not malfunction.

Important items Maintenance

DV-S701 (En/E)

Cleaning

Unplug this appliance from the wall outlet before cleaning. Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth.

Preparations

Reference

Discs which can be played with this unit

DVD (12 cm, 8 cm), CD (12 cm, 8 cm), VCD, and the audio part of CDV, CD-G, CD-EG and CD-EXTRA.

÷Use discs that comply with the IEC standard, for example a disc

carrying the

Never play a cracked or warped disc

During playback, the disc rotates at high speed in the player. Therefore, to avoid danger, never use a cracked or deformed disc or a disc repaired with tape or adhesive agent. Please do not use discs which are not round because they may cause a malfunction.

Operations

Disc accessories

The disc accessories (stabilizer, protection sheet, protection ring, etc.) which are marketed for improving the sound quality or protecting discs as well as the disc cleaner should not be used with this system because they may cause malfunction.

COMPACTCOMPACT

marking on the label surface.

DIGITAL AUDIODIGITAL AUDIO

Caution against contact revitalizer

Do not use contact cleaners because it could cause a malfunction. Be specially careful against contact cleaners containing oil, for they may deform the plastic component.

Disc handing precautions

Handling

Hold the discs so that you do not touch the

Label side␣

Playing side

Sticker

Sticky paste

playing surface.

Do not attach paper or tape to either the playing side or the label side of the discs.

Cleaning

If fingerprints or foreign matter become attached to the disc, lightly wipe the disc with a soft cotton cloth (or similar) from the center of the disc outwards in a radial manner.

Storage

When a disc is not to be played for a long period of time, remove it from the player and store it in its case.

Note related to transportation and movement

Before transporting or moving this unit, be sure to remove any disc from it and carry out the following operation.

1. Press the POWER key to the ON position.

2. Press the ON/STANDBY (

Other

3. Wait a few seconds and verify that the display shown appears.

4. Set the POWER key to OFF.

DVD VCD CD

P.B.C. DOLBY DIGITAL RANDOM PROG.

TITLE CHAPTER TRACK CD TEXT

) key to ON.

ANGLE REPEAT ALL

A B

   NO  DISC

STEREO

KARAOKE

Beware of condensation

When the difference between the internal temperature of the unit and external atmosphere is large, dew (mist) may be produced on the internal parts of the unit. In such a case, turn the unit ON and leave it for a few hours until the condensation has dried up.

Be especially careful in the following conditions:

When the unit is brought into a place where there is a large difference in temperature between the previous location, when the humidity of the listening room is high, etc.

System Connections

Make connection as shown below. When connecting the

DV-S701 (En/E)

related system components, refer also to the instruction manuals of the related components.

Caution: Do not plug in the power lead until all connec-

tions are completed.

Malfunction of microprocessor

If operation is not possible or erroneous display appears even though all connections have been made properly, reset the microprocessor referring to “In case of difficulty”.

Caution regarding placement (Except for U.S.A., Canada)

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below. Left and right panels: 10 cm, rear panel: 10 cm

Connection with TV with S-VIDEO jacks and general stereo system

Connection with VCR

The VIDEO OUTPUT jacks should be connected directly to the TV. Do not connect them to the TV via a VCR. Otherwise the played video may be disturbed due to the copy protection function.

6CH. OUTPUT

FRONT SURROUND

CENTER

SUB

WOOFER

MIX LINE OUTPUT

VIDEO

OUTPUT

S VIDEO OUTPUT

Initial setup

Set initial setup [6. TV Aspect] according to the aspect ratio (4:3 or 16:9) of your TV.

DV-S701

To wall AC outlet

Preparations

Audio cord (provided)

Connection with general stereo system

6CH. OUTPUT

FRONT SURROUND

Audio cord (provided)

CENTER

SUB

WOOFER

MIX LINE OUTPUT

AUX IN

VIDEO

OUTPUT

S-VIDEO cord (commercially available)

S VIDEO OUTPUT

Video cord (75Ωcoaxial) (provided)

S-VIDEO IN

AUDIO IN

DV-S701

VIDEO IN

Monitor TV (commercially available)

To wall AC outlet

Operations

Other

Notes

Stereo system (commercially available) * The connected components shown here are typical examples.

1. Connect all cords firmly. If connections are loose, there could be loss of sound or noise produced.

2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging connection cords without removal of the power cord can cause malfunctions or damage to the unit.

System Connections

DV-S701 (En/E)

Connection with an AV receiver

This unit incorporates a Dolby Digital (AC-3) decoder and MPEG multi-channel decoder. As a result, it can play DVD discs encoded with Dolby Digital (AC-3) or MPEG multi-channel without the need of purchasing a commercially available Dolby Digital (AC-3) decoder. A DTS-encoded CD or DVD disc cannot be played. Noise may be produced if such a disc is played.

The output audio is variable depending on the played discs and setups. By referring to the following table, perform initial setup and other settings according to your system. (“Changing the initial setup”

Preparations

Played Disc

Audio Recording

System

Analog Output Digital Output

Output Audio

Dolby Digital (AC-3)

Linear PCM

MPEG Multi

MPEG 1

Linear PCM

Operations

DVD

VCD

(*1) When the [7 Digital Audio Output] of the initial setup is set to “1 Off”, a DVD with a sampling frequency of 48 kHz (20 bit/

24 bit) or 96 kHz cannot be played back. (Changing initial setup [7 Digital Audio Output]

To connect with an AV receiver with 6-channel input jacks

Connect the 6ch OUTPUT jacks of this unit with the 6ch INPUT jacks of the AV receiver using audio cords.

Other

In this case, make initial setup [8 Speaker Setting] according to the speakers as shown below.

When the center speaker is not used:

CENTER \ No speaker displayed.

When the surround speakers are not used:

SURROUND \ No speaker displayed.

When the subwoofer is not used:

SUBWOOFER \ No speaker displayed.

6ch

2ch

6ch (max.)

2ch

•Bitstream

•PCM (48kHz/16bit) 2ch

(*1) PCM (48kHz/16bit) 2ch

•Bitstream

•PCM (48kHz/16bit) 2ch

PCM (44.1kHz)

To connect with an AV receiver with built-in Dolby Digital (AC-3) decoder and digital input

Connect the DIGITAL OUTPUT jack of this unit with the DIGITAL INPUT jack of the AV receiver using an optical fiber cable or digital cord.

NOTE: Some DVD and CD discs contain DTS data in the PCM

area. When such a disc is played, the MIX LINE OUTPUT jack does not output correct audio.

About the linear PCM audio

To connect with an ordinary amplifier with 2 input channels

Set initial setup [8 Speaker Setting] as shown below. E

CENTER \ No speaker displayed. SURROUND \ No speaker displayed. SUBWOOFER \ No speaker displayed.

This is the signal recording format used with music CD discs. While music CDs use 44.1 kHz/16-bit recording format, DVDs use from 48 kHz/16-bit to 96 kHz/24-bit formats so they can reproduce audio with a higher quality than music CDs.

Make connection as shown below. When connecting the related system components, refer also to the instruction manuals of the related components.

Caution: Do not plug in the power lead until all connec-

tions are completed.

DV-S701

System Connections

DV-S701 (En/E)

The VIDEO OUTPUT jacks should be connected directly to the TV. Do not connect them to the TV via a VCR. Otherwise the played video may be disturbed due to the copy protection function.

Initial setup

Set initial setup [6. TV Aspect] according to the aspect ratio (4:3 or 16:9) of your TV.

6CH. OUTPUT

DIGITAL OUTPUT

(PCM/BIT STREAM)

SYSTEM

CONTROL

COAXIAL OPTICAL

SURROUNDFRONT

SURROUND L/R IN/Audio cord (provided)

FRONT L/R IN/Audio cord (provided)

OPTICAL IN/Optical fiber cable (commercially available)

COAXIAL IN/Digital cord (75Ωcoaxial) (provided)

SYSTEM CONTROL IN/System control cord (provided)

CENTER

WOOFER

SUB

MIX LINE OUTPUT

VIDEO

OUTPUT

S VIDEO OUTPUT

S-VIDEO OUT/S-VIDEO cord (commercially available)

VIDEO OUT/Video cord (75Ωcoaxial) (commercially available)

S-VIDEO IN/S-VIDEO cord (commercially available)

VIDEO IN/Video cord (75Ωcoaxial) (provided)

CENTER IN/Audio cord (provided)

SUBWOOFER IN/Audio cord (provided)

VIDEO IN

S-VIDEO IN

Monitor TV (commercially available)

To wall AC

outlet

*If you want to use

the macro function of a KENWOOD AV CONTROL CENTER (sold separately), connect this player to a wall AC outlet. Be sure to set the POWER switch on the front panel of this unit to OFF when you are going to leave the unit unattended for going out of the house, etc.

Preparations

Operations

Notes

Connect the cords and cables according to the jacks available on the connected AV receiver.

AV CONTROL CENTER (sold separately) or receiver (sold separately)

Stereo system (commercially available) * The connected components shown here are typical examples.

1. Connect all cords firmly. If connections are loose, there could be loss of sound or noise produced.

Other

System Connections

DV-S701 (En/E)

Connection of S-VIDEO jacks

The S-VIDEO connection offers clear video because it transmits the video signal by separating it into the color (C) component and luminance (Y) component. It is recommended to use an S-VIDEO cord when the connected TV has an S-VIDEO input. For details, refer to the instruction manual of your TV.

Digital output jacks (OPTICAL)

Remove the protective cap before using a digital output jack.

Remove cap.

Note on connection of optical-fiber cable

÷Insert the optical-fiber cable straight into the connector until it clicks.

Preparations

÷Be sure to attach the protection cap when the connector is not used. ÷Never bend or bundle the optical-fiber cable. ÷All of the commercially-available optical fiber cables cannot be used with these units.

If there is an optical fiber cable which cannot be connected to your component, please consult your dealer or nearest KENWOOD agent.

Optical-fiber cable

SYSTEM CONTROL CONNECTIONS

After hooking this unit up with the KENWOOD System “SERIES 21” connect the system control cords for convenient system control operations between the connected devices.

When hooking this unit up with the System “SERIES 21” read the instruction manuals supplied with the AV CONTROL CENTER (sold separately) or the receiver (sold separately).

1. Do not connect system control cords to any components other than those specified by

Notes

KENWOOD. It may cause a malfunction and damage your equipment.

2. Be sure the system control plugs are inserted all the way in to the system control terminals.

OPTICAL

Operations

SYSTEM CONTROL OPERATIONS

Remote Control

Lets you operate this unit with the system remote control unit supplied with the AV CONTROL CENTER (sold separately) or receiver (sold separately).

Automatic Operation

Automatically switches the input selector on the AV CONTROL CENTER (sold separately) or receiver (sold separately) when you start playback from this unit.

Synchronized Recording

Lets you synchronize the start of recording with the start of playback when recording audio from a CD, VCD or DVD. Refer to the operating instructions supplied with your cassette deck for details.

Other

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories . Confidential Unpublished Works. c1992-1997 Dolby Laboratories. All rights reserved.

It is prohibited by laws to duplicate, broadcast, perform in public or rent a disc without the permission of the copyright owners.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Revers engineering or disassembly is prohibited.

This product is compatible with the MacroVision type copy protection. Some discs contain the recording of copy inhibit signals, and the video may be disturbed when the video of such discs is recorded onto a VCR and played back.

Controls and indicators

DV-S701 (En/E)

Display / Main unit

32 4 5

ON / STANDBY

POWER

- ON – OFF

TEXT

DISPLAY

ALL

INFO.

TITLE

SEARCH REPEAT

0 ! @ #

VCD and CD related indicators

DVD, VCD, CD indicators

DISPLAY

DVD related indicators

Display

¢4

$ % ^ &

Special playback related indicators

L, STEREO, R indicators

SHUTTLE

¡1

w∑

Preparations

P.B.C. DOLBY DIGITAL RANDOM PROG.

Operation indicators

3 :Play 8 : Pause

DVD VCD CD

TITLE CHAPTER TRACK CD TEXT

• • • • • • • • • • • • • • •

1 ON/STANDBY ( ) key ∞

Press to turn power of the unit from on to standby or vice versa.

2 Standby indicator 3 Remote control sensor 4 FL DISPLAY key • 5 DVD indicator

Lights when a DVD disc is played.

6 Disc tray ∞ 7 Open/Close (0) key ∞ 8 SHUTTLE (1, ¡) keys ¶ 9 POWER key ∞

Press to turn the power of the unit between the standby and off modes.

MPEG

PCM

ANGLE

REPEAT ALL

A B

STEREO

Character information display

0 TEXT DISPLAY key I ! ALL INFO. key I @ TITLE SEARCH key U # REPEAT key ﬁ $ Skip down (4) / up (¢) keys ¶ % Still/Pause ( ) key ¶• ^ Stop (7) key • & Play (3) key ∞

Operations

Other

About the standby mode

While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called the standby mode. Under that condition, the system can be turned ON by the remote control unit.

Controls and indicators

DV-S701 (En/E)

Remote control unit

The remote control unit incorporates the basic operation keys as well as a variety of applied operation keys so that it can be used in a wide range of purposes. Use care to store the remote control unit in a safe place so as not to lose it.

Preparations

1 VIRTUAL SURR. key e 2 POWER ( ) key ∞ 3 CD, VCD and DVD related control keys

§y

§ª

Operations

DISPLAY

TITLE

OPEN

/CLOSE

STEREO

A-B REPEAT

REPEAT

ON SCREEN

SET UP

VIRTUAL

SURR.

POWER

CLEAR P.MODE

TITLE MENU

1¡

RETURN

ANGLE AUDIO MEMORY

DISPLAY

TEXT

ENTER

¢

SUB TITLE

ALL INFO.

CD TEXT

Numeric (0 to 9) keys CLEAR key ¤ P.MODE key •‹ A-B REPEAT key ﬂ REPEAT key ﬁ STEREO key •

4 CD, VCD and DVD related control keys

Cursor (%, ﬁ, @, #) keys ENTER key §ª Pause (8) key ¶• Forward and reverse search (1, ¡) keys ¶ TITLE key w MENU key q RETURN key ‚t ON SCREEN key ª Skip down (4) and Skip up (¢) keys ¶ Stop (7) key • Play (3) key ∞

5 TV monitor related control keys

ANGLE key AUDIO key ‡ SUB TITLE key ° MEMORY key ¤ SET UP key r

6 CD-TEXT related control keys

TEXT DISPLAY key ALL INFO. key I TITLE SEARCH key U

7 DISPLAY key • 8 OPEN/CLOSE (0) key ∞

Other

Model: RC-D0703 Infrared ray system

Operation of remote control unit

DV-S701 (En/E)

Loading batteries

1 Remove the cover.

2 Insert batteries. 3 Close the cover.

÷Insert two R6 (“AA”-size) batteries follow-

ing the polarity indications.

Operation

Insert the power plug into a power outlet, press the POWER key of the main unit to ON, then press the desired remote control key. Press the POWER ( turn power ON. Pressing the POWER ( the unit in standby mode, in which the standby indicator lights up.

) key of the remote control unit to

) key again puts

Preparations

Remote sensor

÷When pressing more than one remote control keys successively, press

the keys securely by leaving an interval of 1 second or more between pressing of keys.

Notes

1. The provided batteries are intended for use in operation checking, and their service life may be short.

2. When the remote controllable distance becomes short, replace both of the batteries with new ones.

3. If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.

Basic operation of cursor keys

The cursor keys allows you to select or enter an icon or item displayed on the TV screen.

Operations

30° 30°

Reference operating range

Other

Basic operation

1 Press one of the cursor (%, ﬁ, @, #) keys to select an

icon displayed on the TV screen.

2 Press the ENTER key to enter the selection.

ENTER

Graphical remote control unit (GRC unit)

This unit can also be controlled using the Graphical Remote Control (GRC) unit provided with the AV CONTROL CENTER (sold

DV-S701 (En/E)

separately) or receiver (sold separately) in the KENWOOD SERIES 21 system.

The remote control using the GRC unit is possible provided that SERIES 21 components are connected through system control cords and are in standby mode. The description in this manual is limited to the basic operations centered around the DVD player. For details, refer also to the instruction manual of the AV CONTROL CENTER (sold separately) or receiver (sold separately) in the SERIES 21 system.

Preparations

Main Menu

Confirm

Return

DVD (Skip)

Scan

F1 F2 F3 F4

TapeBTapeA

Tuner

Tape1

LDMDDVD

REMOTE CONTROL UNIT

Sat.Cable

10key

Mode

Ret.

VCR2VCR1

Set Up

ENTER

Model: GRC-151,

Infrared ray system

GRC-101, GRC-102

Operations

If the GRC unit in use is the GRC-100 or GRC150

If your GRC unit is the GRC-100 or GRC-150, it cannot be used to remote control this unit. Please use the remote control unit provided with this unit.

VOLUME

MUTE

ON /STANDBY

1 Segment screen␣

Shows the icons which are mainly used to select the controlled components.

2 Menu screen␣

Shows the icons used to select the operation modes.

3 (Play icon)

Starts playback.

7 (Stop icon)

Stops playback.

Scan icon

Switches the menu screen contents between skip screen and search

screen.

8 (Pause icon),

Moves the cursor upward or lets playback pause temporarily. When a VCD or DVD disc is used, select to freeze the video or advance it frame by frame.

4 ¢ (Skip icons)

Skips tracks, etc. when locating the beginning of a track, etc.

10 key icon

Switches the screen to the numeric icon menu screen.

Mode icon

Selects the play mode.

Ret. (Return) icon

Returns to the previous menu (or hierarchy level).

F1 to F4 icons

Any of these icons switches the screen to one of the menu screens represented by F1 to F4.

3 Icons

Icons are displayed according to the controlled component and operation mode.

4 Joystick

Used to select the icons. (Lightly press the edge of 5.)

5 ENTER key

Press to set or enter the selected icon (operation mode, etc.).

This key turns ON/STANDBY this unit or the equipment connected with the system control cords.

(Still) and 5 (up icon)

(ON / STANDBY) key

Other

Hints on Using the GRC

All of the procedures for the GRC operations start from the basic operation screen. Although the explanation for going back to this screen is omitted on each page, you can easily go to the basic operation screen if you remember the following procedure.

Main Menu

Return

Confirm

Tuner

TapeBTapeA

Tape1

LDMDDVD

DVD (Scan)

Skip

F1 F2 F3 F4

Sat.Cable

10key Mode

Ret.

VCR2VCR1

Set Up

Basic operation screen.

1Use the joystick to select the DVD icon.

DVD

2Press the ENTER key to set the entry.

ENTER

Graphical remote control unit (GRC unit)

DV-S701 (En/E)

DVD menu structure

Skip menu screen Scan menu screen

* Select the Skip or

Scan icon to display the respective operation menu.

DVD (Skip)

Scan

F1 F2 F3 F4

10key Mode

Ret.

DVD (Scan)

Skip

F1 F2 F3 F4

ENTER

Return

DVD Function1

Title Menu

Enter

Return 10key

10key Mode

Ret.

DVD Mode (Scan)

Scan / Skip

Stereo

Text Karaoke

DVD Function2

S.title Audio

On/Off Angle

Return

Enter

ENTER

RepeatA-BRepeat

ENTER

Return

DVD Mode (Skip)

Scan / Skip

Stereo

Text Karaoke

CD Text (DVD)

Title Search

Text Display

DVD Function3

Setup On Scrn

Return 10key

Return

RepeatA-BRepeat

ENTER

Enter

All

Info.

Return

10key Pad (DVD)

Return

Karaoke

Return

iÈI

Echo

Return

DVD Function4

Memory P.mode

Enter

Clear 10key

Enter

Clear

ENTER

Enter

ENTER

1 4 7 0

2 5

Preparations

2 5

Notes on the remote control operating instructions in this text

In this manual, the illustrations (icons) accompanying the instructions related to the remote control operations represent the operations of both the RC and GRC units. It should also be noted that the text simply describes the operations of the provided RC unit to avoid complication and improve the ease of reading. Based on the above, please read this manual by referring to the differences in the RC and GRC unit shown in the following.

Operations with the general remote control unit are indicated by RC . Operations with the GRC unit (optional GRC-151, GRC-101 or GRC-102) are indicated by GRC .

Example of instruction text in this manual.

Press (select) the *** key.

Press (select) the P.MODE key.

RC operation

Illustration

P.MODE

Illustration of GRC

operation in this manual

P.mode

GRC operation (GRC-151,GRC-101 or GRC-102)

Actual GRC operation

1 Select *** by using joystick.

ENTER

2 Press the ENTER key.

1 Select the “F4” icon. 2 Press the ENTER key. 3 Select the “P.mode” icon. 4 Press the ENTER key.

÷When using the GRC, you can return to the previous

menu screen (level) at any time by selecting the

ENTER

Return icon, and the ENTER key.

ENTER

Operations

Other

*1: Icons without shading send you to another menu screen (level) for the next operation. At the new screen, you can select the desired icon.

Graphical remote control unit (GRC unit)

Once the settings have been made in Steps 1 to 4, you do not need to repeat these steps until you replace the batteries. The GRC beginning on page 25 are written assuming that the basic operations below have been completed.

DV-S701 (En/E)

Preparation

Turn the system devices ON.

Preparations

Basic Operations for the Graphical Remote Control Unit (GRC)

At the initial screen, select the Model Type to be used. (You may skip if the settings for

the AV CONTROL CENTER have already been made.)

1 Use the joystick to select the model

type. Example:

ENTER

Model 4

2 Press the ENTER key to set the entry.

Operations

The arrow ( ) shows the direction that the cursor moves when selecting icons.

Select DVD/6ch Input at the Setup menu screen.

Other

ENTER

Select DVD or 6ch Input at the DVD/6ch Input menu screen.

ENTER

1 Use the joystick to select the DVD/

6ch Input icon.

DVD/6ch Input

2 Press the ENTER key to set the entry.

1 Use the joystick to select the DVD or

6ch Input icon.

DVD

6ch Input

For more information about the Model Type settings, please refer to the instructions accompanying the AV CONTROL CENTER (sold separately) or the receiver (sold separately).

Select Screen after selection

Main Menu

Return

Confirm

Model

Tuner

LDMDDVD

Type Setu

Model 1 Model 4 Model 2 Model 3

TapeBTapeA

Tape1

Model 5 Model 6

VCR2VCR1

Set Up

Sat.Cable

Main Menu

Return

Setup

C D

Sat.

Confirm

Tuner

L D T V

DVD/6ch Input

Sound Speaker

LDMDDVD

TapeBTapeA

Tape1

Tape1 Cable

÷The selected icon is highlighted.

(C-V550, C-V700 and C-V750 only)

Select Screen after selection

Main Menu

Return

Setup

C D

Sat.

Confirm

Tuner

LDMDDVD

L D T V

DVD/6ch Input

Sound Speaker

Select Screen after selection

Main Menu

Return

Tuner

Confirm

Setup DVD / 6ch Input

DVD

6ch Input

Tape1

Cable

LDMDDVD

TapeBTapeA

Tape1

Set Up

Sat.Cable

VCR2VCR1

VCR1

VCR2

Reset

(C-V550, C-V700 and C-V750 only)

VCR2VCR1

TapeBTapeA

Tape1

Set Up

Sat.Cable

Main Menu

Return

Tuner

Confirm

Setup DVD / 6ch Input

LDMDDVD

DVD

6ch Input

Main Menu

Return

Tuner

Confirm

Setup DVD / 6ch Input

LDMDDVD

DVD

6ch Input

TapeBTapeA

Tape1

TapeBTapeA

Tape1

Sat.Cable

VCR1 VCR2

Reset

Sat.Cable

VCR2VCR1

Set Up

VCR2VCR1

Set Up

VCR2VCR1

Set Up

Sat.Cable

2 Press the ENTER key to set the entry.

Select DVD at the Segment screen.

1 Use the joystick to select the DVD

icon.

ENTER

2 Press the ENTER key to set the entry.

DVD

÷The DVD analog input of the AV CONTROL CENTER (sold separately)

can be switched between 2-channel (DVD) or 6-channel input.

÷If “6ch Input” is selected, the output from the AV CONTROL CENTER

(sold separately) cannot be recorded on a recording component.

Main

Select Screen after selection

Return

Tuner

Confirm

Setup DVD / 6ch Input

LDMDDVD

DVD

6ch Input

TapeBTapeA

Tape1

Set Up

Sat.Cable

VCR2VCR1

Main Menu

Confirm

Return

DVD (Scan)

TapeBTapeA

Tuner

Tape1

LDMDDVD

Skip

F1 F2 F3 F4

Sat.Cable

10key Mode

Ret.

VCR2VCR1

Set Up

Playback

The following procedure shows how to play a disc, such as a CD, VCD or DVD, from the beginning. When playing a VCD with P.B.C. (Play-Back Control) capability, please read “Menu playback”.

Preparation

Press the POWER key to ON.

Main unit

POWER

- ON – OFF

Playing a disc from the beginning

Turn power ON.

When using the system connections:

1 Turn on the AV CONTROL CENTER (sold separately) or

the receiver (sold separately).

÷Read also the instruction manual supplied with the AV CONTROL

CENTER (sold separately) or the receiver (sold separately).

2 Switch to DVD operation.

÷Playback will start if a disc is already loaded.

When not using the system connections:

Press the ON/STANDBY ( ) key to ON.

Main unit

ON / STANDBY

DV-S701 (En/E)

‚

Preparations

Insert (Remove) the disc.

Main unit

1Open the tray.

OPEN

/CLOSE

2Insert (Remove) the disc.

3Close the tray.

OPEN

/CLOSE

With certain discs, playback starts now. If a menu screen appears on the TV screen, select the desired items as described in steps 4 and 5 before playing the disc.

Start playback.

Main unit RC GRC

Label side up

Disc tray

÷Place the disc to be played properly by aligning it with the groove on the

tray. (If the disc is not placed horizontally, malfunction will result.)

÷Do not touch the played side. ÷Load only one disc. ÷This unit cannot use a commercially available CD single (8 cm) disc

adapter.

For CD single (8 cm) or

DVD single (8 cm)

Other disc (12 cm)

Display during disc play

Operations

Other

CD playback DVD playback

P.B.C. DOLBYDIGITAL

DVD VCD

3



ENTER

TITLE CHAPTER

TRACK

VCD playback

DVD

P.B.C.

VCD

TITLE CHAPTERCDTRACK

DOLBYDIGITAL

P.B.C.

TITLE CHAPTER

DOLBYDIGITAL

TRACK

VCD

DVD

01 01

Playback

DV-S701 (En/E)

Select the desired items from the menu screen.

Menu screen: When an interactive DVD (DVD software containing multiple viewing angles or stories, for example) or a P.B.C.-

compatible VIDEO CD is played, a menu screen is displayed in the beginning.

Example: Menu screen of a DVD

with menu recording

TITLE MENU

Dogs

Lovers

Castles

Birds

÷The display, operation method and usable keys of the menu screen are

variable depending on software. For details, read the instructions provided with the played software.

Preparations

RC GRC

Selection using cursor (%, ﬁ, @, #) keys (DVD only)

ENTER

1 When a DVD is played, press the MENU key.

Operations

ENTER

÷When the menu has a hierarchical structure, the menu at the lower

level appears.

÷ If there are more than one menu (scene) that can be selected, the

menus (scenes) can be switched using the ¢ (NEXT) and 4 (PREV.) keys.

Press numeric keys in the following order...

To select “5” : 5 ENTER To select “17” : 17 ENTER

TITLE MENU

Dogs

Lovers

Castles

Birds

of the world

2 Select an item with the numeric keys.

Press the ENTER key to start playback.

Other

ENTER

GRC

10key

ENTER

5 8

7 0

ENTER

Enter

ENTER

GRC

Be sure to press the ENTER key of the joystick every time

3 6 9

after selecting a numeric icon.

To select “5” : 5

To select “17” : 1

ENTER

Playback

DV-S701 (En/E)

Forward search and reverse search (Manual search)

Main unit RC

SHUTTLE

¡1

GRC

ENTER

¡

¡ : Forward search 1 : Reverse search

÷With the main unit operation, turning the SHUTTLE control slightly

starts fast forward or fast reverse at a relatively low speed; press the play (3) key when the section where you want to play comes. Turning the SHUTTLE control once again increase the speed while the control knob is held; release the control knob when the section where you want to play comes.

÷Press once to start and continue forward or reverse search at a low

speed. The search speed can be adjusted in 5 steps. (RC, GRC only)

÷ Audio is not output during forward or reverse search. (DVD, VCD) ÷ The video may be disturbed during forward or reverse search.

When the 1 or ¡ key is pressed during menu playback of a VCD, the screen may sometimes return to the menu screen.

Skipping tracks or chapters

Main unit

¢ 4

4¢

¢: Skip up 4: Skip down

Preparations

GRC

Skip

ENTER

Frame-by-frame playback

Software with which this function is available:

VCD

RCMain unit

Press the 8 key during pause.

w∑

DVD

÷Tracks are skipped in the direction corresponding to the pressed key,

and playback resumes from the beginning of the track (chapter) reached after skipping.

÷ Pressing the 4 key once during playback returns to the beginning of

the current track (chapter).

When the 4 or ¢ key is pressed during menu playback of a VCD, the screen may sometimes return to the menu screen.

Slow playback

Software with which this function is available:

DVD

Slow playback is possible in 5 speed steps. Press the ¡ key or 1 key during pause.

VCD

GRC

Operations

Other

GRC

ENTER

÷Each press advances to the next frame. ÷Press the 3 key to resume normal playback.

÷Press the 3 key to resume normal playback.

Reverse slow playback (1) of a DVD consists of playing frame by frame backward and discontinuously. Reverse slow playback is not available with a VCD.

¡

ENTER

Playing tracks in a random order (Random playback)

Tracks in a CD or VCD can be played in a random order.

Playback

DV-S701 (En/E)

GRC

1 Enter stop mode. 2 Select the random play mode.

P.MODE

Preparations

ENTER

P.mode

ENTER

3 Start playback.

ENTER

The following operation may not be available with certain DVD discs.

Letting playback pause

Main unit Main unit RC GRC

w∑

Operations

GRC

ENTER

÷This operation may be invalid with certain software or scenes. ÷ Press the 3 key to resume normal playback.

÷Before performing random playback of a P.B.C.-compatible VCD,

cancel the P.B.C. function by pressing the 7 key.

Each press switches the play mode as follows.

1 Track mode : PROG./RANDOM goes off 2 Program mode : PROG. lights up 3 Random play mode : RANDOM lights up

To return to normal playback

1Press the 7 key. 2Press the P.MODE key so that the RANDOM indicator

goes out.

Stopping playback

÷Press the 7 key twice to cancel playback. ÷Pressing the 7 key once during playback stops it and the position

where it is stopped is stored in memory. When you press the 3 key the next time, playback restarts from the position where it was stopped.

÷Pressing the 7 key during P.B.C. playback of a VCD switches it off

and stops playback.

ENTER

‚

FL DISPLAY key

Each press of the FL DISPLAY key switches the main unit display on and off alternately. However, even when the display is off, the 3 or 8 indicator lights up during playback or pause.

Each press switches the mode as follows.

1 Main unit display : lights up

Other

2 Main unit display : goes off

STEREO key

Software with which this function is available:

DVD

The STEREO key switches alternately the surround play (playback according to the surround speaker setup made in the initial setting) and the normal play (2-channel stereo playback using the front speaker and MIX LINE OUTPUT only).

Main unit RC

DISPLAY

RC GRC

STEREO

Mode

ENTER

Stereo

ENTER

Press in stop mode.

Each press of the STEREO key switches the mode as follows.

1 STEREO indicator on : Normal 2-channel stereo play 2 STEREO indicator off : Surround play according to the ini-

tial setting

35 1:07:48 3

LPCM

FRA

196k 24

ENG

Operations using the GUI screen

DV-S701 (En/E)

Basic operations on the GUI screen

The icons displayed on the TV screen can be selected easily by using the ON SCREEN key and cursor (%, ﬁ, @, #) keys of the provided remote control unit.

Press the ON SCREEN key.

During playback or stop

ON SCREEN

The GUI screen appears.

GRC

On Scrn

ENTER

Each press switches the TV screen display as follows.

Example: With a DVD

1 Normal playback screen

2 Disc information screen

3 Player information screen

4 Shuttle information screen

÷The displayed items are variable depending on discs.

1 2 3 4 5

OFF

Preparations

Select the item to be changed.

RC GRC

Select an item with the cursor (@, #) keys.

ENTER

Change the content of the selected item.

RC GRC

Select the desired option with the cursor (%, ﬁ) keys.

ENTER

Operations

Other

÷Some of the changes are executed immediately while some are

executed after the ENTER or 3 key is pressed. Certain functions cannot be operated from the GUI screen displayed in stop mode.

÷The item consisting of a number, such as a title, can be changed using

numeric keys. When an item has been changed using numeric keys, press the ENTER key to execute the change.

7:48

L R

OFF

PBC

Operations using the GUI screen

T PRG

1 2 3 4 5

Information related to the disc (title, chapter, time, voice language, subtitle language, angle, etc.) or the player (repeat mode, video quality, etc.) can be displayed and changed as required. The icons displayed on the TV screen are as shown below.

DV-S701 (En/E)

Software with which this function is available:

DVD

CD VCD

Icons on the TV screen

Preparations

The % and ﬁ markings in the icon frames indicate that the icon can be changed with the cursor keys on the main unit or remote control unit.

During DVD playback

Disc information screen

35 1:07:48 3

Elapsed time Angle No.

Chapter No.

Title No.

Player information screen

Operations

Repeat

A-B repeat

Voice (No., language, attribute)

1 2 3 4 5

Memory

LPCM

FRA

Subtitle (No., language, ON/OFF)

Picture mode

ENG

OFF

Virtual Surround

196k 24

During VCD playback

Disc information screen

Elapsed time

Track No.

Player information screen

Play mode

Repeat

A-B repeat

Voice mode

Memory

Playback control

Picture mode

Shuttle information screen

Reverse slow playback

Reverse search

Other

Voice language icons of DVD

Icon Language Icon Language ENG English POR Portuguese FRA French RUS Russian DEU German JPN Japanese ITA Italian CHI Chinese ESP Spanish KOR Korean NLD Dutch MAL Malay SVE Swedish VIE Vietnamese NOR Norwegian THA Thai DAN Danish ÷ Others

Picture mode (DVD and VCD only)

N Normal quality

S Soft quality F Fine quality

Still/pause

Play

Forward slow playback

Forward search

Shuttle information screen

Forward slow playbackStill/pause

Reverse search Play Forward search

Audio mode (VCD only)

LR Audio L + Audio R

L Audio L R Audio R

During CD playback

Disc information screen

Operations using the GUI screen

DV-S701 (En/E)

Track No.

7:48

Elapsed time

Player information screen

A-B repeat

T PRG

Play mode

Repeat

1 2 3 4 5

Memory

Shuttle information screen

Pause

Reverse search

Play

Forward search

Preparations

Operations

Other

Storing scenes in memory (Memory function)

By storing scenes that you want to check later, subsequent playback can be started from any of the stored scenes any time. Up to 5 scenes can be stored (using the remote control unit only). This operation may not be available with certain DVD discs.

DV-S701 (En/E)

Software with which this function is available:

DVD

CD VCD

Storing a scene in memory

Preparations

Press the MEMORY key during playback.

MEMORY

Press the ENTER key at the scene you want to store in memory.

Operations

To store other scenes in memory, repeat following steps

1 and 2 for each.

1 Select a scene with the cursor (@, #) keys. 2 Press the ENTER key.

ENTER

GRC

Memory

GRC

Enter

ENTER



÷“ ” is displayed in positions where no scene is stored in memory.

132 4

Recalling/clearing a scene in memory

Press the MEMORY key during playback.

RC GRC

MEMORY

Other

Select the memory number to be recalled or canceled.

RC GRC

To recall and play

1Select a scene with the cursor (@, #) keys. 2 Press the % key.

ENTER

To clear

Press the CLEAR key.

CLEAR

ENTER

Memory

ENTER

Clear

ENTER

÷The scene corresponding to the selected memory number is searched

and playback starts from it.

÷The scene in the selected memory number is cleared.

1234

134

Programming

Desired tracks or chapters can be programmed and played back in a desired order. Up to 18 tracks (chapters) can be programmed

DV-S701 (En/E)

but the attempt to program a 19th track (chapter) is rejected.

Software with which this function is available:

With a VCD, there is no relationship between the divisions in recording and the track numbers, except of certain software such as karaoke discs. As a result, the programming operation may not be usable depending on software.

CD VCD

Programming tracks in the desired order

Enter stop mode.

Select the program mode.

P.MODE

GRC

P.mode

ENTER

÷To perform program playback of a P.B.C.-compatible VCD, first press

the 3 key then the 7 key to cancel the P.B.C. function.

Each press of the P.MODE key switches the play mode as follows.

1 Track mode : PROG./RANDOM goes off 2 Program mode : PROG. lights up 3 Random play mode : RANDOM lights up

Preparations

Select the desired tracks (chapters) in the order you want to play them later.

GRC

1 Select a track (chapter) number with the cursor (%, ﬁ,

@, #) keys.

2 Press the ENTER key.

ENTER

Enter

ENTER

3 Program other tracks (chapters) by repeating steps 1

and 2 for each of them.

Choose a track, then press ENTER.

11319 2 2 315 41610 51711 61218

Tracks (chapters) can also be selected with numeric keys.

To select track (chapter) No. 8 : 8 ENTER To select track (chapter) No. 18 : 18 ENTER

GRC Be sure to press the ENTER key of the joystick every time after selecting a numeric icon.

To select “8” : 8

To select “18” : 1

÷Select “Clear last” with the cursor keys and press the ENTER key to

clear the currently last track (chapter) in the program one by one.

÷The entire program can also be cleared by selecting “Clear all” with the

cursor keys then pressing the ENTER key.

÷If you made a mistake, press the CLEAR key and select the correct track

(chapter).

Select Entry

14 20

8 9

Clear last Clear all

Press PLAY to start

ENTER

Enter

ENTER

Choose a track, then press ENTER.

11319 2

2 14 20

3315

21 41610 5 61218

Clear last Clear all

Press PLAY to start

ENTER

Enter

ENTER

181711

Operations

Other

Play the program.

GRC

ENTER

÷Tracks (chapters) will be played in the order you programmed them (i.e.

in order of program numbers).

÷Pressing the 4 or ¢ key during program playback skips to the

previous or next track (chapter) in the program.

Adding tracks (chapters) in the program

GRC

1 Select a track (chapter) number with the cursor (%, ﬁ,

@, #) keys.

2 Press the ENTER key.

Preparations

Choose a track, then press ENTER.

11319 2 2 3315 41610 5 61218

Select Entry

14 20

88 9

Clear last Clear all

Press PLAY to start

Programming

DV-S701 (En/E)

Remote control unit only

Choose a track, then press ENTER.

11319 2

14 20

3315

9 41610 5

1711

61218

Clear last Clear all

Press PLAY to start

181711

ENTER

Tracks (chapters) can also be selected with numeric keys.

To select track (chapter) No. 7 : 7 ENTER To select track (chapter) No. 10 : 1) ENTER

Enter

ENTER

3 If you want to add more tracks (chapters), repeat steps

1 and 2 for each of them.

GRC Be sure to press the ENTER key of the joystick every time after selecting a numeric icon.

To select “7” : 7

To select “10” : 1

÷The track is added to the last of the program.

Operations

Clearing tracks (chapters) from the program

GRC

To clear the last track in the program

CLEAR

Clear

ENTER

÷Each press of the CLEAR key clears the last track (chapter) in the

current program.

÷The entire program can also be cleared by selecting “Clear all” with the

cursor keys then pressing the ENTER key.

ENTER

)

Enter

ENTER

Enter

ENTER

Returning to normal playback

Other

Press in stop mode.

Press so that the PROG./RANDOM indicator turns off.

P.MODE

GRC

P.mode

ENTER

Repeating tracks, chapters or titles (Repeat playback, A-B repeat)

Desired scenes or audio can be played repeatedly.

Software with which this function is available:

DVD

CD VCD

Repeating a single track (chapter or title)

Before performing repeat playback of a P.B.C.-compatible VCD, cancel the P.B.C. function by pressing the 7 key.

1 Select the track mode.

P.MODE

2 Start playback.

GRC

P.mode

ENTER

(Repeat playback)

Each press of the P.MODE key switches the play mode as follows.

1 Track mode : PROG./RANDOM goes off 2 Program mode : PROG. lights up 3 Random play mode : RANDOM lights up

Each press of the REPEAT key switches the play mode as follows. With a DVD:

1 CHAPTER REPEAT : Repeats a chapter. 2 TITLE REPEAT : Repeats a title. 3 NORMAL PLAY : Repeat off.

C T OFF

DV-S701 (En/E)

Preparations

3 Press the REPEAT key to select CHAPTER REPEAT,

TITLE REPEAT or TRACK REPEAT.

REPEAT

Mode

ENTER

Repeat

ENTER

With a CD or VCD:

1 TRACK REPEAT : Repeats a track. 2 ALL REPEAT : Repeat the entire disc. 3 NORMAL PLAY : Repeat off.

T A OFF

To stop repeat playback

Press the REPEAT key repeatedly until “OFF” is displayed.

Repeating entire disc

Before performing repeat playback of a P.B.C.-compatible VCD, cancel the P.B.C. function by pressing the 7 key.

1 Select the track mode.

P.MODE

2 Start playback.

GRC

P.mode

(Repeat playback)

ENTER

Each press of the P.MODE key switches the play mode as follows.

1 Track mode : PROG./RANDOM goes off 2 Program mode : PROG. lights up 3 Random play mode : RANDOM lights up

Each press of the REPEAT key switches the play mode as follows. With a DVD:

1 CHAPTER REPEAT : Repeats a chapter. 2 TITLE REPEAT : Repeats a title. 3 NORMAL PLAY : Repeat off.

Operations

Other

3 Press the REPEAT key to select ALL REPEAT.

REPEAT

Mode

ENTER

Repeat

ENTER

With a CD or VCD:

1 TRACK REPEAT : Repeats a track. 2 ALL REPEAT : Repeat the entire disc. 3 NORMAL PLAY : Repeat off.

To stop repeat playback

Press the REPEAT key repeatedly until “OFF” is displayed.

STEREO

ANGLE

TOTAL

MPEG

CD TEXT

PCM

VCD

P.B.C. DOLBY DIGITAL

KARAOKE

ALL

INDEX

RANDOM

01 01   1:23:45

TRACK

DVD

TITLE CHAPTER

REPEAT

STEREO

ANGLE

TOTAL

MPEG

CD TEXT

PCM

VCD

P.B.C. DOLBY DIGITAL

KARAOKE

ALL

INDEX

RANDOM

01 01   1:23:45

TRACK

DVD

TITLE CHAPTER

Repeating tracks, chapters or titles (Repeat playback, A-B repeat)

DV-S701 (En/E)

Repeating a desired section

(A-B repeat)

A section specified during playback can be played repeatedly. With a CD or VCD disc, the A-B repeat playback is possible only

inside a single track.

1 Select the track mode.

P.MODE

Preparations

GRC

ENTER

P.mode

ENTER

Each press of the P.MODE key switches the play mode as follows.

1 Track mode : PROG./RANDOM goes off 2 Program mode : PROG. lights up 3 Random play mode : RANDOM lights up

2 Start playback.

ENTER

3 Press the key at the point you want to start repeating.

A-B REPEAT

Point A

Mode

ENTER

RepeatA-B

ENTER

4 Press the key again at the point you want to end

Operations

repeating.

A-B REPEAT

Point B

Mode

ENTER

÷Start point A is specified.

A B

MPEG

DVD

VCD

TITLE CHAPTER

P.B.C. DOLBY DIGITAL

TRACK

CD TEXT

PCM

ANGLE

TOTAL

RANDOM

REPEAT

ALL

INDEX

01 01   1:23:45

KARAOKE

RepeatA-B

ENTER

÷End point B is specified and repeated playback of the section between

A and B starts.

STEREO

To stop repeat playback

Press the A-B REPEAT key again.

Repeating program playback

Programmed tracks can be played repeatedly by pressing the REPEAT key during program playback.

Perform steps 1 to 4 of the procedure in “Programming tracks in the desired order”.

Other

Select the all-program repeat mode.

REPEAT

GRC

Mode

ENTER

Repeat

ENTER

(Program repeat) (CD, VCD only)

Each press switches the repeat mode as follows.

1 Normal play screen 2 Track repeat screen

PRG

3 All-program repeat screen

PRG

4 Repeat off screen

PRG

OFF

‹

÷The display contents are variable depending on discs.

Versatile DVD play features

The following operations may not be available with certain DVD discs.

DV-S701 (En/E)

Software with which this function is available:

DVD

Remote control unit only

Switching the voice language

When a DVD disc contains recording of voices in multiple languages, the languages can be switched during playback.

Press the AUDIO key during playback.

AUDIO

The language selected in the initial setup is used immediately after turning power on or replacing disc. If the initially set language does not exist in the disc, the priority language defined for each disc is used.

GRC

ENTER

Audio

ENTER

(Multi-audio function)

LPCM

ENG

96k 24

÷The voice language display becomes “ ” when no voice is recorded

in the disc.

Preparations

Select the voice language with the cursor (%, ﬁ) keys.

ENTER

Press the AUDIO key or ENTER key to switch the display off.

GRC

ENTER

÷If the desired language cannot be displayed by pressing a cursor keys

repeatedly, the desired language may not be recorded in the current disc.

Switching the vocal of karaoke software on and off

Press the AUDIO key during playback.

AUDIO

Select the voice language with the cursor (%, ﬁ) keys.

ENTER

GRC

ENTER

Audio

ENTER

DVD karaoke (1-vocal disc)

ON - - - (OFF)

DVD karaoke (2-vocal disc)

1+2 V1 V2 ---(OFF)

LPCM

FRA

Vocal

96k 24

Operations

Other

Vocal

- - -

ENTER

Press the AUDIO key or ENTER key to switch the display off.

÷Select an option with the cursor keys (@, #).

VCD karaoke (2-vocal disc)

LRLR

÷Select an option with the cursor keys (%, ﬁ).

L R

FRA

The following operation may not be available with certain DVD discs.

Software with which this function is available:

DVD

Versatile DVD play features

DV-S701 (En/E)

Remote control unit only

Displaying/switching the subtitle language

Preparations

When a DVD disc contains recording of subtitles in multiple languages, the languages can be switched during playback.

Press the SUB TITLE key during playback.

SUB TITLE

GRC

ENTER

(Multi-subtitle function)

ENG

S.title

ENTER

The language selected in the initial setup is used immediately after turning power on or replacing disc. If the initially set language does not exist in the disc, the priority language defined

Operations

for each disc is used.

Select the subtitle language with the cursor (%, ﬁ) keys.

ENTER

GRC

ENTER

Press the SUB TITLE key or ENTER key to switch the display off.

Other

Switching the subtitle on and off

The subtitle display can be switched on and off with the cursor (@, #) keys.

RC GRC

ENTER

On/Off

ENTER

÷If the desired language cannot be displayed by pressing a cursor keys

repeatedly, the desired language may not be recorded in the current disc.

PROG.

STEREO

KARAOKE

REPEATBALL

INDEX

TOTAL

RANDOM

MPEG

CD TEXT

PCM

VCD CD

P.B.C.

TRACK

01 01 1:23:45

DVD

DOLBY DIGITAL

TITLE CHAPTER

ANGLE

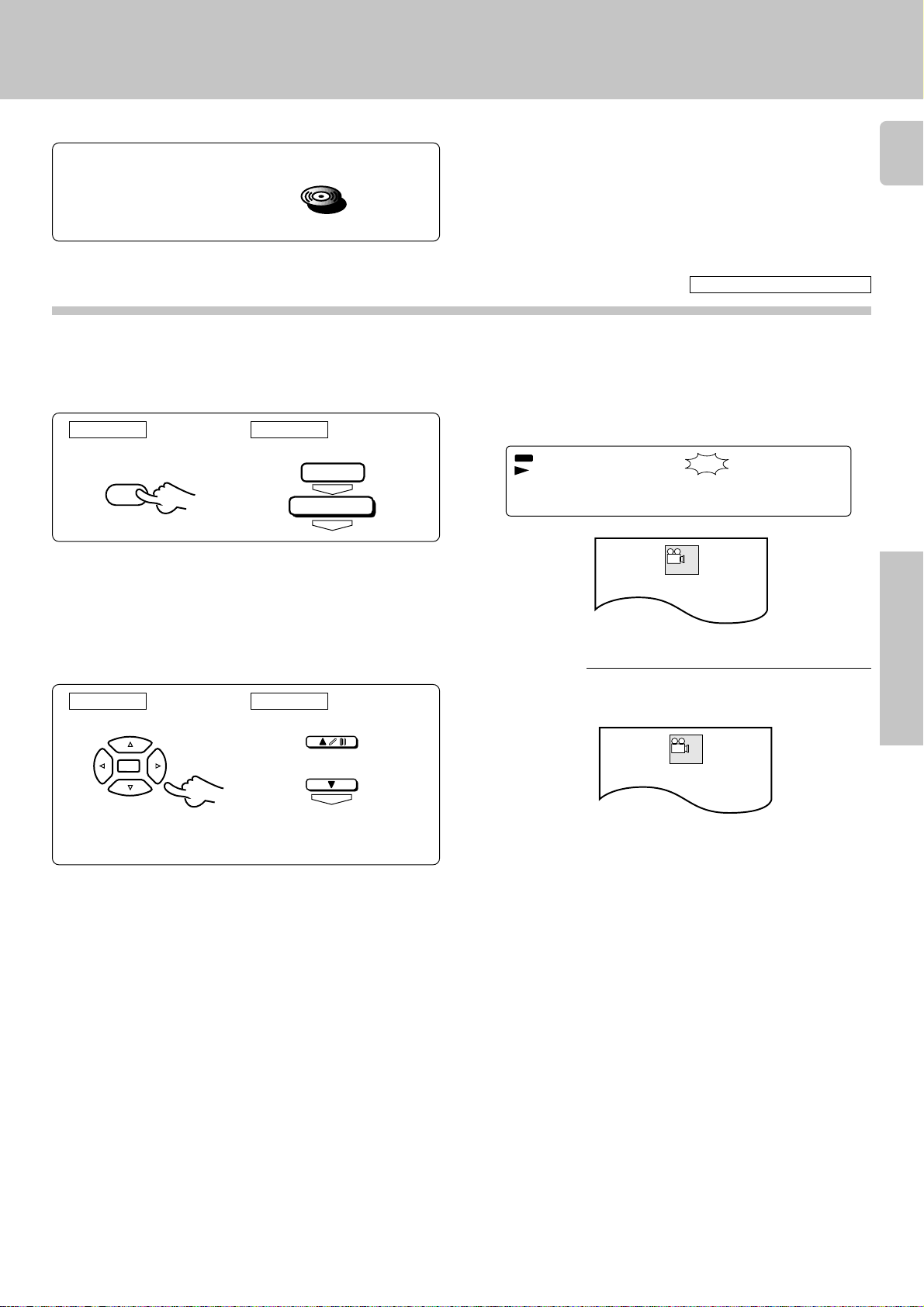

The following operation may not be available with certain DVD discs.

Versatile DVD play features

DV-S701 (En/E)

Software with which this function is available:

DVD

To switch the viewing angle

(Angle function)

When the DVD disc being played contains the scenes recorded from multiple viewing angles, the angle can be switched while

the ANGLE indicator is lit.

Press the ANGLE key while the ANGLE indicator is lit during playback.

ANGLE

GRC

ENTER

Angle

ENTER

Remote control unit only

Press ANGLE key while this is lit.

Preparations

Select the viewing angle with the cursor (%, ﬁ) keys.

ENTER

GRC

ENTER

Press the ANGLE key or ENTER key to switch the display off.

Operations

Other

Menu playback

DV-S701 (En/E)

Software with which this function is avail-

able:

VCD

Hierarchical structure of VCD menus

When an item is selected on the menu screen during playback of a P.B.C.-compatible VCD, another menu with more details items

may be displayed. When a number of menus are connected in multiple layers in this way, it is said that the menus have a

Preparations

hierarchical structure. In this structure, the desired scene can be reached by repeating item selections on the menu screens.

Example for a hierarchical structure

PLAY

RETURN

First level (menu)

Second level (submenu)

Third level (scenes)

Operations

SELECT

Advancing

When an item is selected on the menu screen with the 3 key or the numeric keys, advance is made to the next lower menu level. When the advance destination is the “scene” to be played, the contents will be played.

÷When several menus (scenes) can be selected in each level, screen

switching is possible with the keys ¢ (NEXT) and 4 (PREV.).

NEXT NEXT NEXT

PREV.

PREV. PREV.

Returning

Each time the RETURN key is pressed, return is made to the next higher menu.

Examples of operation keys and indications used during VCD playback

Soft jacket indication

KENWOOD operation key Play RETURN

Other

÷Depending on the software, the jacket indication may differ from the above.

SKIP

DOWN

SKIP

Playback without using the menu playback function (In case of a P.B.C.-compatible VCD)

1 Press the 7 key while a menu is displayed. 2 Enter the desired track number using the numeric keys

or the 4 and ¢ keys.

3 Press the 3 key to start playback.

÷For the track numbers, refer to the disc jacket or other material. ÷Press numeric key “1” if you want to play the disc from the beginning.

To return to menu playback

Press the 7 key twice then the 3 key.

Menu playback

DV-S701 (En/E)

When a DVD disc containing the menu recording is played, the menu screen is displayed. You can select the playback contents in an interactive manner.

Software with which this function is available:

DVD

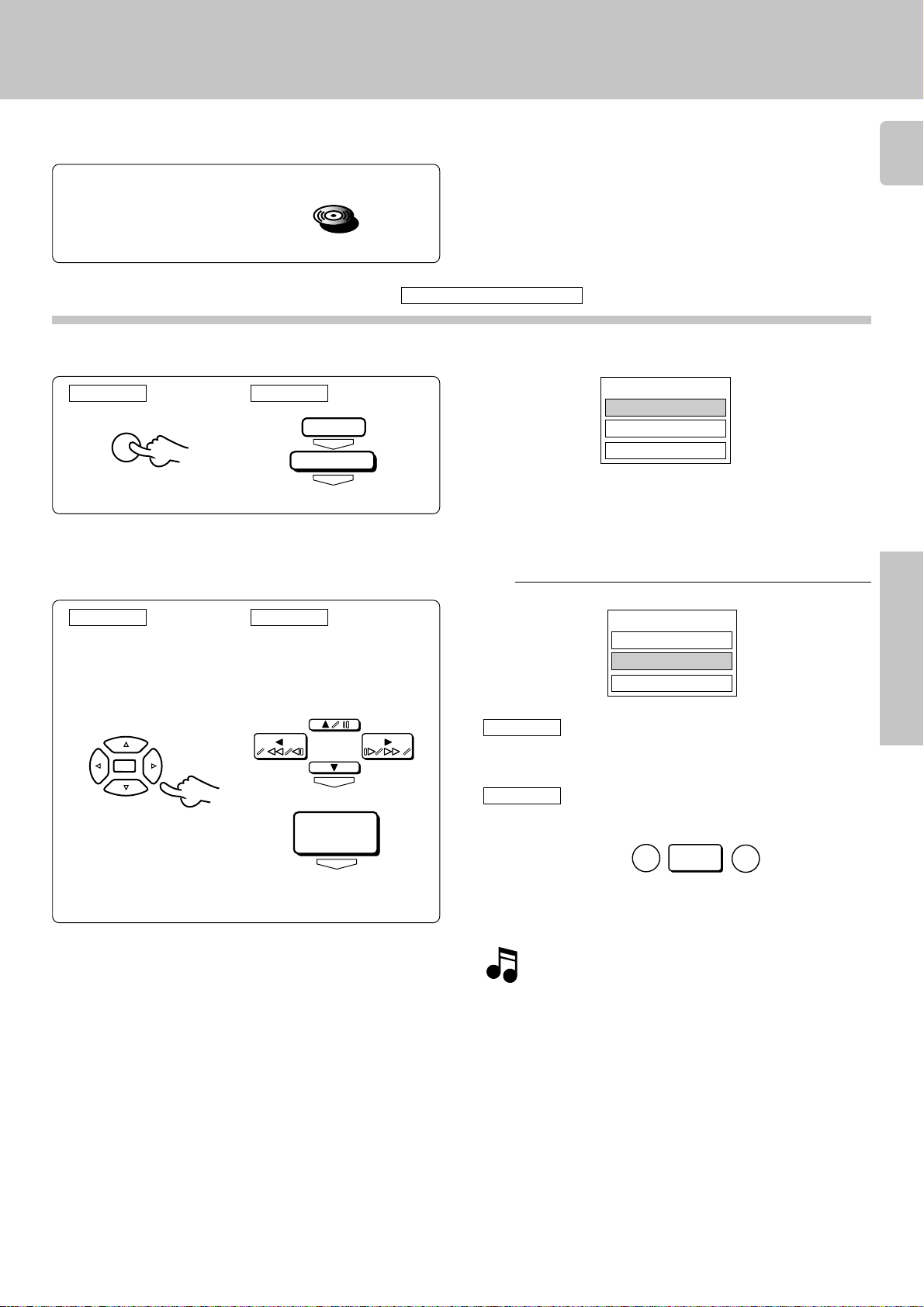

Menu playback (DVD)

Remote control unit only

Press the MENU key.

The DVD menu appears.

Select the desired item from the menu screen.

1 Select an item with the cursor (%, ﬁ, @, #) keys.

2 Press the ENTER key to start playback.

ENTER

GRC

ENTER

Enter

ENTER

DVD MENU

1. SUB TITLE

2. AUDIO

3. ANGLE

÷Pressing the MENU key again returns to the screen from which you

recalled the DVD menu and starts playback from there.

DVD MENU

1. SUB TITLE

2. AUDIO

3. ANGLE

Menu items can also be selected with numeric keys.

To select “2” : 2 ENTER

GRC Be sure to press the ENTER key of the joystick every time after selecting a numeric icon.

To select “2” : 2

ENTER

Enter

ENTER

Preparations

Operations

To display other menus, perform steps 1 and 2 above.

÷When the menu has a hierarchical structure, the menu at the lower

level appears.

The display, operation method and usable keys of the menu screen are variable depending on software. For details, read the instructions provided with the played software.

Other

Software with which this function is available:

DVD

Menu playback

DV-S701 (En/E)

Remote control unit only

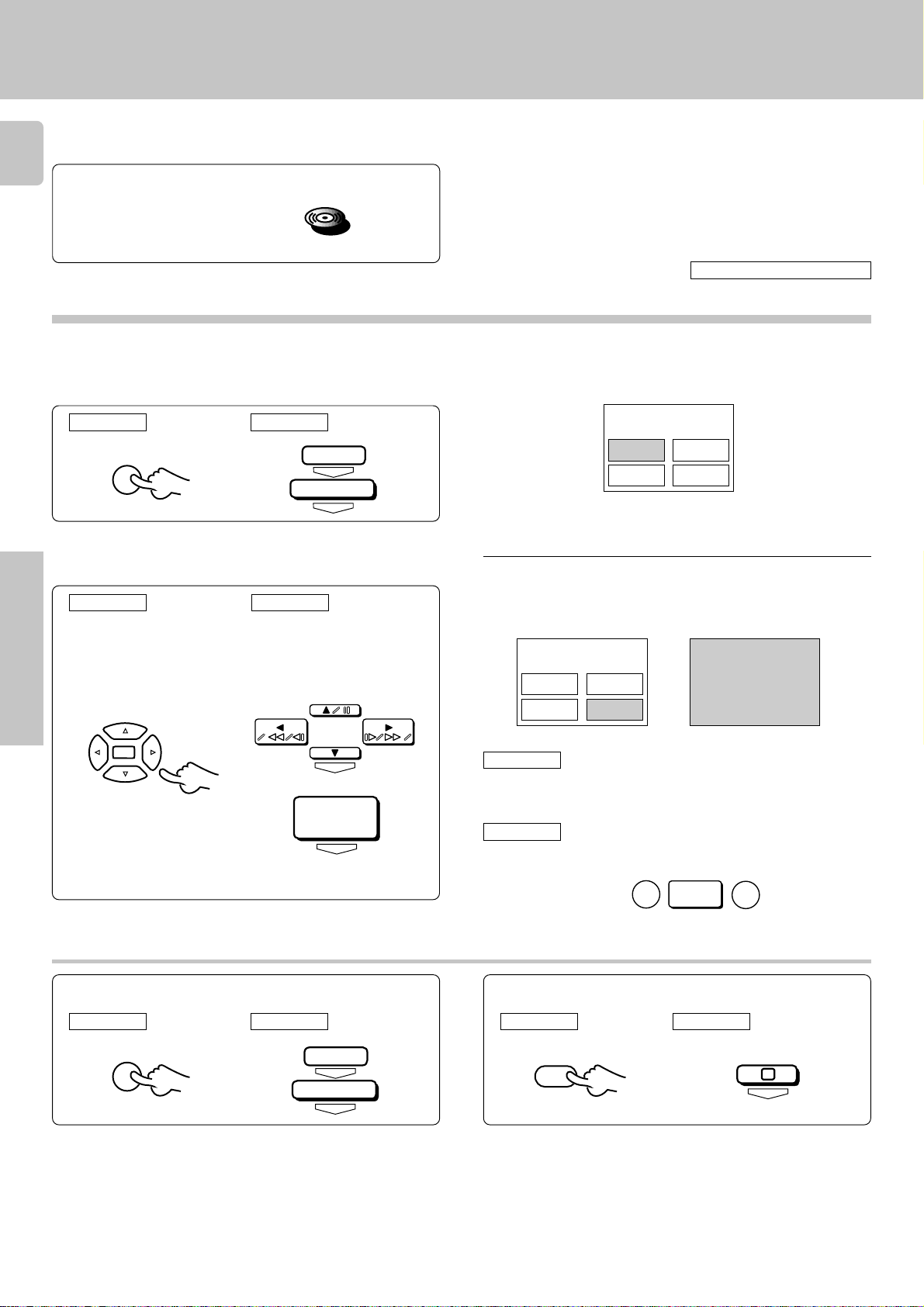

Title selection using the title menu

Preparations

When a disc contains multiple titles, the desired title can be selected and played from the title menu.

Press the TITLE key during playback.

TITLE

GRC

ENTER

(Title function)

TITLE MENU

Dogs

Lovers

Title

ENTER

Select the desired title.

Operations

1 Select a title with the cursor (%, ﬁ, @, #) keys.

2 Press the ENTER key to start playback.

ENTER

GRC

ENTER

Enter

ENTER

To display other menus, perform steps 1 and 2 above.

TITLE MENU

Dogs

Lovers

Menu items can also be selected with numeric keys.

To select “4” : 4 ENTER

GRC Be sure to press the ENTER key of the joystick every time after selecting a numeric icon.

To select “4” : 4

Castles

Birds

ENTER

Castles

Birds

Enter

Birds

of the world

ENTER

Other

To return to the menu screen

RC RC

TITLE

To stop playback

GRC GRC

ENTER

Title

ENTER

PROG.PROG.

TRACK CD TEXT

STEREO

ANGLE

TOTAL

MPEG PCM

VCD

P.B.C. DOLBY DIGITAL

TITLE CHAPTER

KARAOKE

REPEATBALL

INDEX

RANDOM

VIRTUAL SURR. 2

DVD

PROG.

STEREO

ANGLE

TOTAL

MPEG PCM

VCD

P.B.C. DOLBY DIGITAL

TITLE CHAPTER

KARAOKE

REPEATBALL

INDEX

RANDOM

VIRTUAL SURR. 1

DVD

STEREO

ANGLE

TOTAL

MPEG

CD TEXT

PCM

VCD

P.B.C. DOLBY DIGITAL

TITLE CHAPTER

KARAOKE

REPEATBALL

INDEX

RANDOM

 OFF

DVD

Menu playback

DV-S701 (En/E)

Even when your system uses only two speakers, a DVD recorded with Dolby Digital 5.1-channel surround audio can be played

as if there were rear speakers on your sides, by simply switching the Virtual Surround function on.

Software with which this function is available:

DVD

Enjoying Virtual Surround sound

Start playback.

Press the VIRTUAL SURR. key.

VIRTUAL

SURR.

Each press switches the Virtual Surround as follows.

(VIRTUAL SURR.)

1 Off

2 Standard

Preparations

Operations

3 Enhanced

÷This function is available only with DVD software encoded with Dolby

Digital 5.1-channel surround audio.

÷Switch this function off when the played disc uses other surround

function.

Other

Changing the initial setup

The initial setup of the player, which has been made at the factory, can be changed to the desired setup.

[1 Disc Languages]

This sets the language to be used when playing a disc. (If a disc does not contain the recording the selected language, it is played in the priority language set for each disc.)

[2 Ratings]

This can restrict playback of adult-oriented DVD discs that you do not want to be seen by children. However, even when a DVD disc is marked “Adult-oriented” or so on the label, its viewing cannot be restricted unless the restriction level is recorded in the disc itself.

Preparations

[3 Menu Language]

This sets the initial setup of language as well as the language used in on-screen messages such as “PLAY”.

[4 On-Screen Messages]

This sets whether the on-screen messages such as “PLAY” are to be displayed on the TV screen or not.

[5 FL Display]

This sets the brightness of the main unit display.

[6 TV Aspect]

This sets the screen size (4:3 or 16:9 aspect ratio) according to the connected TV.

[7 Digital Audio Output]

This sets the type of audio output from the digital audio output jack.

[8 Speaker Setting]

This sets the type of the speaker system used in surround playback.

[9 Other Settings]

This sets special settings such as the audio dynamic range compression.

[0 Exit]

This exits the initial setup screen.

These operations may not be available depending on DVD discs.

DV-S701 (En/E)

Basic operation for changing the initial setup

Operations

Press the SET UP key in stop mode.

Other

SET UP

Select the item to be set.

GRC

ENTER

Setup

ENTER

Fixed icons

Disc icons

Unit icons

Connector icons

Initial setup screen

1 Disc Languages 2 Ratings 3 Menu Language 4 On-Screen Messages 5 FL Display 6 TV Aspect 7 Digital Audio Output 8 Speaker Setting 9 Other Settings 0 Exit

Each press of the cursor (%, ﬁ) key switches the item as

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

Enter

ENTER

follows.

1 1 Disc Languages : To change setup, see t

2 2 Ratings : To change setup, see y

3 3 Menu Language : To change setup, see i

4 4 On-Screen Messages : To change setup, see i

5 5 FL Display : To change setup, see o

6 6 TV Aspect : To change setup, see p

7 7 Digital Audio Output : To change setup, see Q

8 8 Speaker Setting : To change setup, see E

9 9 Other Settings : To change setup, see T

0 0 Exit : Exits the setup screen.

See subsequent pages for the actual setup change procedures.

Level 8 English On Bright 4:3

Menu items

Changing the initial setup

DV-S701 (En/E)

Changing initial setup [1 Disc Languages]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

ENTER

Select the desired option.

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

ENTER

The setup completes and the initial setup screen appears again.

If you commit a mistake in the language number input

Each press of the CLEAR key clears the currently last digit. Be sure to input the correct digit(s) after clearing.

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 AUDIO

: Sets the voice language output from the speakers.

2 2 Subtitle

: Sets the subtitle language displayed on the TV screen.

3 3 Menus

: Sets the language used in on-screen messages including

title menus (menus recorded in each disc).

4 0 Exit

: Exits the current screen.

Setting options

When [1 AUDIO] is selected

1~5 English/French/German/Italian/Spanish

Select the desired voice language.

6 Original (Factory setup)

Select this option when you want to play discs in their priority languages.

7 Other

Select this option when you want other language than the above.

÷Enter the 4-digit language code with numeric keys.

See “DVD menu language code list”.

When [2 Subtitle] is selected

1 Automatic (Factory setup)

The subtitle language is set automatically according to the voice language.

÷ No subtitle is displayed if the voice is played in the language set with

“1 AUDIO”.

÷ If the voice is not played in the language set with “1 AUDIO”, the

subtitle is displayed in that language.

2~6 English/French/German/Italian/Spanish

Select the desired subtitle language.

7 Other

Select this option when you want other language than the above.

÷Enter the 4-digit language code with numeric keys.

See “DVD menu language code list”.

Disc Languages

1 AUDIO Original 2 Subtitle Automatic

3 Menus English

0 Exit

Preparations

Operations

Other

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

When [3 Menus] is selected

1~5 English/French/German/Italian/Spanish

Select the desired menu language.

6 Other

Select this option when you want other language than the above.

÷Enter the 4-digit language code with numeric keys.

See “DVD menu language code list”.

Changing the initial setup

DV-S701 (En/E)

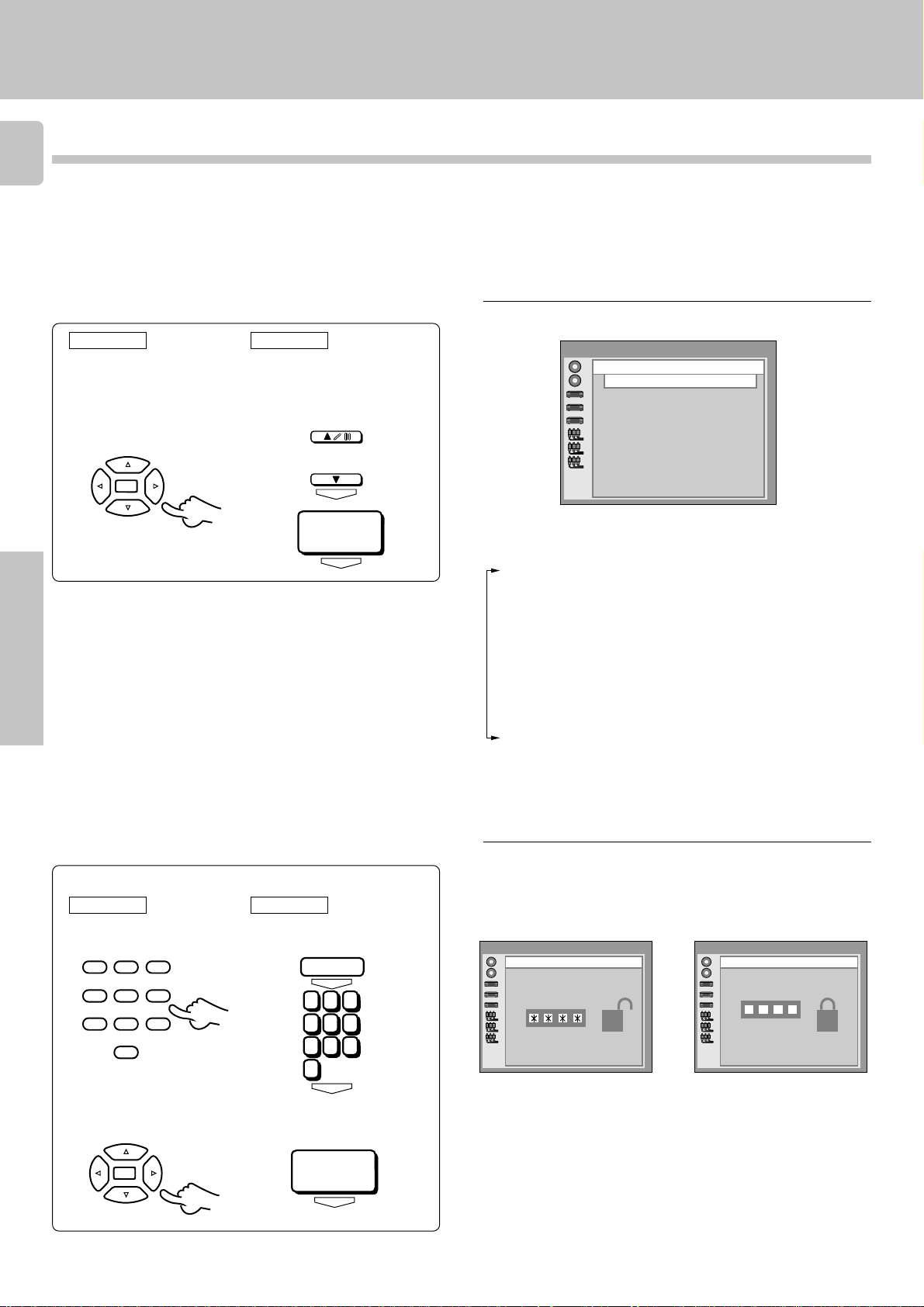

Changing initial setup [2 Ratings]

When the restriction level of the disc is [Level 8], i.e. without any restriction

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

Preparations

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Please set a rating limit

8 No Limit 7 6 5 4 3 2 1 0 Lock All

Press RETURN to cancel

Enter

ENTER

Operations

Enter the password.

The password should be set if you selected level 7 or less.

1 Input the 4-digit password with numeric keys.

Other

GRC

10key

ENTER

5 8

7 0

ENTER

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 8 No Limit (Factory setup)

: Plays any software (including adult-, general- and children-

oriented).

2 Levels 7 to 2

: Plays general- and children-oriented DVD software.

÷Restricts playback of adult-oriented DVD software.

3 Level 1

: Plays children-oriented software.

÷Restricts playback of adult and general-oriented DVD

software.

4 0 Lock All

: Inhibits playback of any DVD software. Select this item

when you want to restrict playback of adult-oriented DVD software without viewing restriction level recording.

Password input Entry

Ratings

Enter a 4-digit password, then press ENTER

Ratings

The player is locked. Remember the password.

0412

6 9

Press RETURN to cancel

Press ENTER to continue

2 Press the ENTER key.

ENTER

Enter

ENTER

÷Write down the 4-digit password and retain the memo carefully. ÷ If you locked the setup, it can no longer be changed except by inputting

the correct password.

Changing the initial setup

DV-S701 (En/E)

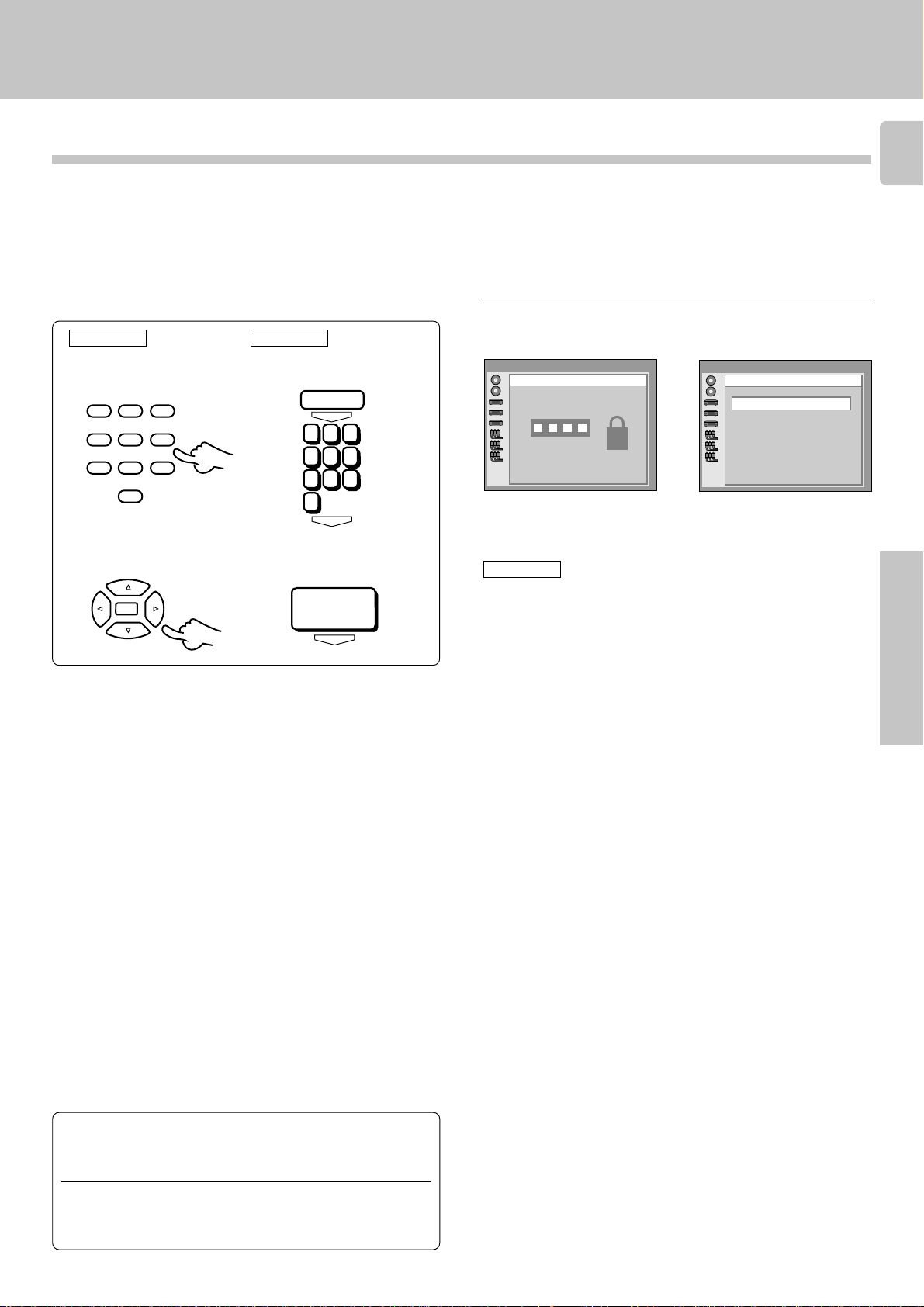

When the restriction level of the disc is [Level 0 to 7], i.e. with certain restriction

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Input the correct password.

1 Input the 4-digit password with numeric keys.

2 Press the ENTER key.

ENTER

GRC

10key

ENTER

5 8

7 0

ENTER

Enter

ENTER

3 6 9

Password input Entry

Ratings

Enter your 4-digit password. then press ENTER.

0412

Press RETURN to cancel

Ratinge

1 Unlock Player 2 Change Password 3 Change Level 4 Temporary Unlock

0 Exit

Setting details

To release viewing restriction

Press numeric key “1” then the ENTER key.

To change the password

1 Press numeric key “2”. 2 Input a password with numeric keys and press the ENTER key. 3 Press the ENTER key.

To change the viewing restriction level

1 Press numeric key “3”. 2 Select a level with the cursor (%, ﬁ) keys and press the ENTER

key.

Preparations

Operations

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

To release the viewing restriction level temporarily

1 Press numeric key “4”. 2 Press the ENTER key.

To exit without changing the restriction level

Press numeric key “0”.

Other

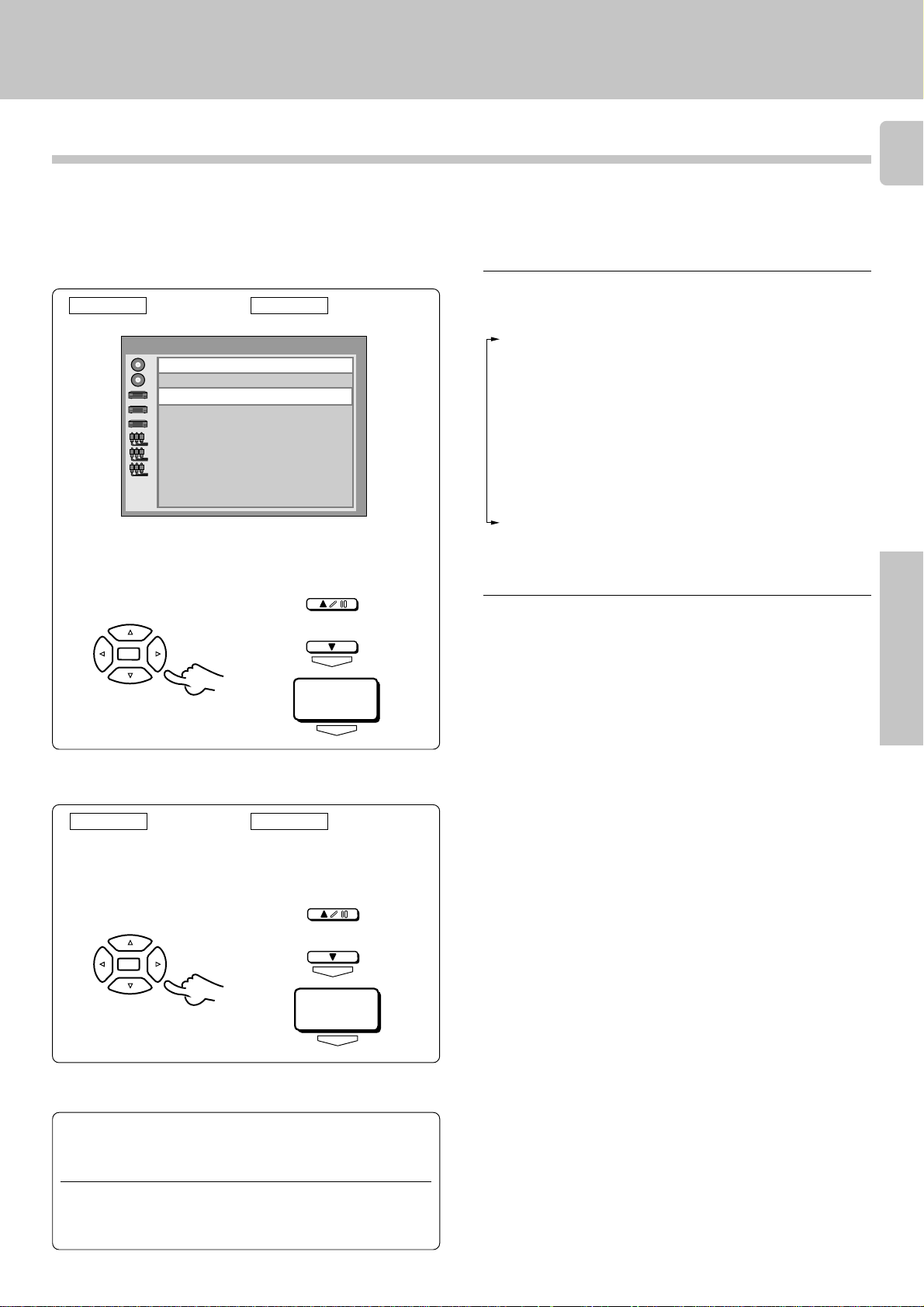

Changing initial setup [3 Menu Language]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

Changing the initial setup

DV-S701 (En/E)

Preparations

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

The setup completes and the initial setup screen appears again.

Operations

To return to the previous menu screen

Press the RETURN key.

GRC

ENTER

Enter

ENTER

Select the language for these Menus.

1 English 2 Français 3 Deutsch 4 Italiano

5 Español

Press RETURN to cancel

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 English

2 2 Français

3 3 Deutsch

4 4 Italiano

5 5 Español

To exit initial setup

Select “0 Exit” in the initial setup screen.

Changing initial setup [4 On-Screen Messages]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

1 Select an item with the cursor (%, ﬁ) keys.

Other

2 Press the ENTER key.

ENTER

The setup completes and the initial setup screen appears again.

To return to the previous menu screen

GRC

ENTER

Enter

ENTER

On-Screen Messages

1 On 2 Off

Press RETURN to cancel

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 On

2 2 Off

To exit initial setup

Press the RETURN key.

Select “0 Exit” in the initial setup screen.

Changing the initial setup

DV-S701 (En/E)

Changing initial setup [5 FL Display]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the brightness item.

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

The setup completes and the initial setup screen appears again.

GRC

ENTER

Enter

ENTER

FL Display

1 Bright 2 Dim 3

Dim During DVD/VCD Play(Auto)

Press RETURN to cancel

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 Bright

: Sets the FL display always bright.

2 2 Dim

: Sets the FL display always dim.

3 3 Dim During DVD/VCD Play (Auto)

: Sets the FL display dim only during playback of a DVD or

VCD.

Preparations

÷The FL display becomes temporarily bright during slow playback,

forward search and reverse search.

Operations

Other

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

Changing initial setup [6 TV Aspect]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the aspect ratio of your TV.

Changing the initial setup

DV-S701 (En/E)

Preparations

Operations

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

ENTER

Select your TV aspect

1 4:3 2 16:9

Press RETURN to cancel

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 4:3

2 2 16:9

Setting details

[1 4:3] (Factory setup) Select this item when the player is connected to a TV with standard aspect ratio.

÷Wide-screen software with pan & scan specification is played in a

panned & scanned screen (with the left and right sides cut off).

Other

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

÷Wide-screen software with pan & scan specification is played in a

letterbox screen (with black stripes on the top and bottom).

[2 16:9] Select this item when the player is connected to a widescreen TV. Wide-screen software is played in a full widescreen.

÷Set the picture mode of the wide-screen TV to “FULL”.

Changing the initial setup

DV-S701 (En/E)

Changing initial setup [7 Digital Audio Output]

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

Select the desired option.

ENTER

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 LPCM (DVD)

: When playing a DVD with linear PCM recording, whether

the playback signal is to be converted into a 48 kHz/16-bit signal and output at the digital audio output (optical/ coaxial) or not can be selected.

2 2 Dolby Digital

: When playing a DVD with Dolby Digital (AC-3) recording,

the format of the signal output from the digital audio output (optical/coaxial) can be selected (from bitstream and PCM).

3 3 MPEG

: When playing a DVD with MPEG recording, the format of

the signal output from the digital audio output (optical/ coaxial) can be selected (from bitstream and PCM).

4 0 Exit

: Exits the current screen.

Digital Audio Output

1 LPCM(DVD) Off 2 Dolby Digital Bitstream

3 MPEG PCM

0 Exit

Preparations

Operations

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

ENTER

The setup completes and the initial setup screen appears again.

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

Setting details

When [1 LPCM (DVD)] is selected:

1 Off (Factory setup)

Only the linear PCM audio digital signal with 48 kHz/16-bit recording is output. No digital signal is output during playback of a DVD with 48 kHz/ 20-bit or 24-bit or 96 kHz linear PCM recording.

2 PCM

When a DVD with 48 kHz/20-bit or 24-bit or 96 kHz linear PCM recording is played, the signal is converted into a 48 kHz/16-bit signal and output at the digital outputs.

÷The digital output of the PCM audio becomes a 48 kHz/16-bit or lower

signal because of the consideration for the copyright.

When [2 Dolby Digital] is selected:

1 Bitstream (Factory setup)

When a DVD with Dolby Digital (AC-3) recording is played, the Dolby Digital (AC-3) bitstream (2- to 6-channel) audio is output. Select this option when a Dolby Digital (AC-3) decoder is connected to the player.

2 PCM

When a DVD with Dolby Digital (AC-3) recording is played, the signal is converted into a 48 kHz/16-bit signal and output at the digital outputs.

When [3 MPEG] is selected:

1 PCM (Factory setup)

The PCM (2-channel) signal is output.

2 Bitstream

The bitstream is output.

Other

Changing the initial setup

Recommended setup for [7 Digital Audio Output]

The recommended setup for [7 Digital Audio Output] is variable depending on the equipment connected to the digital audio

output. Set up this item by referring to the following table.

DV-S701 (En/E)

Digital Audio Output Connection

[7 Digital Audio Output] Setup

When no equipment is connected

1 LPCM (DVD) 2 Dolby Digital

Off (Factory setup)

Bitstream (Factory setup)

3 MPEG

PCM

Preparations

When an amplifier having a digital input but not incorporating a Dolby Digital (AC-3) decoder is connected

When a Dolby Digital (AC-3) decoder is connected

When a MPEG multi-channel decoder is connected PCM (*1) PCM Bitstream (*4)

(*1) The signal from the audio output of the player is converted into a 48 kHz/16-bit signal just like the signal output from the digital audio output. Therefore,

if you want to play high audio quality software with 48 kHz/20-bit or 24-bit or 96 kHz recording, do not connect the equipment such as an amplifier or decoder to the digital audio output (i.e. set [1 LPCM (DVD)] to “1 Off”) and connect the equipment directly to the audio output jacks.

PCM (*1)

PCM (*2)(*3)

Bitstream

PCM

Operations

(*2) Set to “PCM” when connecting the equipment other than a Dolby Digital (AC-3) decoder. If this item is set to “Bitstream”, loud noise may be produced

and speakers may be damaged.

(*3) When this item is set to “PCM”, any other speaker than the front speakers is set to other option than “Off” in [8 Speaker Setting] and a DVD with

Dolby Digital 6-channel surround recording is played, the digital audio output outputs only the front 2-channel components. If this occurs, set other speakers than the front speakers to “Off” in [8 Speaker Setting].

(*4) Noise may interfere with the speaker output if the player is connected to a piece of equipment which does not incorporate an MPEG multi-channel

decoder. Never connect the player to equipment without a built-in MPEG multi-channel decoder.

Other

Changing the initial setup

DV-S701 (En/E)

Changing initial setup [8 Speaker Setting]

The speaker setting made in the following is applicable only for Dolby Digital (AC-3) playback.

Perform steps 1 and 2 of the procedure in “Basic operation for changing the initial

setup”. Select the item to be set.

GRC

1 Select an item with the cursor (%, ﬁ, @, #) keys.

2 Press the ENTER key.

ENTER

Enter

ENTER

Setting details

[Speaker mode setting]

This item allows you to set up whether each speaker type is used or not in your system as well as the size of each speaker type. The factory setup is as shown below.

÷ Front speakers (L/R) : Speakers displayed (Normal) ÷ Center speaker : Speaker displayed (Normal) ÷ Subwoofer : Speaker displayed ÷ Surround speakers (L/R) : Speakers displayed (Normal)

[Delay time setting]

This item allows you to provide the audio from the center and surround speakers with delay effects to set their positions virtually to the ideal positions. The factory setup is “0 ms” for both types of speakers.

[Test]

This item allows you to output the built-in test signal from the speakers. Use the test signal for setting the balance between channels.

Preparations

[Channel balance setting]

This item allows you to adjust the output level of each type of speaker using the built-in test signal. The output level must be adjusted from the listening position. The factory setup is “0 dB” for all types of speakers.

Center speaker

Delay time (Center speaker)

Front speaker (L)

Speaker Setting

3.9 ms

Exit

Test

SL SR

Press RETURN to cancel

Surround speaker (L)

Channel balance (Surround L) Channel balance (Surround R)

Delay time L/R (Surround speakers)

Channel balance (Center speaker)

-3

5.3 ms

Surround speaker (R)

Front speaker (R)

Subwoofer

Channel balance (Subwoofer)

Operations

Other

Select the desired option.

Changing the initial setup

DV-S701 (En/E)

Setting details

GRC

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

Preparations

ENTER

Enter

ENTER

The setup completes and the initial setup screen appears again.

When [Delay time setting] is selected

The ideal listening position for 6-channel surround playback is the

point at equal distance from all speakers.

By setting the delay time for the center and surround speakers, this

item realizes the ideal listening position virtually.

(The center and surround speakers can be set as if they are laid out

on the dotted line circle shown below.)

Operations

Ideal center speaker position

(A)

When [Speaker mode setting] is selected

1 Select “Used (Large)” when a speaker with the capability of

reproducing lower frequencies than 100 Hz is connected.

2 Select “Used (Normal)” when a speaker without the capability of

reproducing lower frequencies than 100 Hz is connected.

3 Select “Not used” when the corresponding speaker is not con-

nected.

Example: With Surround speaker (L)

Used (Large) Used (Normal) Not used

[Center speaker setting]

(A) = Df - Dc

Distance A Setting Approx. 50 cm 1.3 ms Approx. 100 cm 2.6 ms Approx. 150 cm 3.9 ms Approx. 200 cm 5.3 ms

÷When Df = Dc or Df< Dc in the figure under “Delay time setting”, set

this value to 0 ms.

[Surround speaker setting]

(B) = Df - Ds

Distance B Setting Approx. 200 cm 5.3 ms Approx. 400 cm 10.6 ms Approx. 600 cm 15.9 ms

÷When Df = Ds in the figure under “Delay time setting”, set this value

to 0 ms.

(B)

Ideal surround speaker position

Other

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

When [Test] is selected

The built-in test signal of the player is output in the clockwise direction starting with the front speaker (L). Adjust the channel balance so that the volumes of the test signal from all speakers sound identical. The test signal output continues until the ENTER key is pressed.

Changing the initial setup

DV-S701 (En/E)

Changing initial setup [9 Other Settings]

Perform steps

setup”. Select the item to be set.

Other Settings 1

Still Mode Automatic

Audio during Search On

TV Mode(4:3) Pan&Scan

D.Range Control On

0 Exit

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

and 2 of the procedure in “Basic operation for changing the initial

GRC

Each press of the cursor (%, ﬁ) key switches the items as follows.

1 1 Still Mode

: Reduces image blur which tends to be observed on still

images.

2 2 Audio During search

: Switches the audio during forward search at the 1st speed

on or off.

3 3 TV Mode (4:3)

: Sets the TV screen mode when wide-screen software is

played through a standard-screen TV.

4 4 D. Range Control

: Sets the range of the audio output when a disc is played.

5 0 Exit

: Exits the current screen.

Preparations

ENTER

Enter

Select the desired option.

1 Select an item with the cursor (%, ﬁ) keys.

2 Press the ENTER key.

ENTER

GRC

ENTER

Enter

ENTER

Setting details

When [1 Still Mode] is selected

1 Automatic (Factory setup)

Usually select this option, with which frame still image or field still image are switched automatically.

2 Field

Select this option when image blur is observed when this item is set to “Automatic”.

When [2 Audio During Search] is selected

1 On (Factory setup)

Select this option if you want to output audio during forward

search at the 1st speed.

÷ Select “Off” if noise during search disturbs you.

2 Off

Select this option if you want to mute audio during forward

search at the 1st speed.

When [3 TV Mode (4:3)] is selected

1 Pan & Scan (Factory setup)

Select this option if you need a panned & scanned screen (which is cut on the left and right sides) when playing wide-screen software. However, even when this option is selected, software without pan & scan specification is played in a letterbox screen.

2 Letterbox

Select this option if you need a letterbox screen (which has black stripes on the top and bottom) when playing wide-screen software.

Operations

Other

To return to the previous menu screen

Press the RETURN key.

To exit initial setup

Select “0 Exit” in the initial setup screen.

When [4 D. Range Control] is selected

1 Off

Returns to the standard setup.

2 On (Factory setup)

This option reproduces a DVD with Dolby Digital recording in a powerful sound even when the volume is low.

÷This effect may not be available depending on the combination of

speakers.

DVD menu language code list

Changing the initial setup

DV-S701 (En/E)

Cord No. Language

6565 6566 6570 6577 6582 6583

Preparations

6588 6590 6665 6669 6671 6672 6678 6679 6682 6765 6779 6783 6789

Operations

6865 6869 6890 6976 6978 6979 6983 6984 6985 7065 7073 7074 7079 7082 7089 7165

Other

7168 7176 7178 7185 7265 7273 7282 7285 7289 7365 7378 7383 7384 7387 7465

Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bengali; Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish German Bhutani Greek English Esperanto Spanish Estonian Basque Persian Finnish Fiji Faroese French Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Indonesian Icelandic Italian Hebrew Japanese

Cord No. Language

7473 7487 7565 7575 7576 7577 7578 7579 7583 7585 7589 7665 7678 7679 7684 7686 7771 7773 7775 7776 7778 7779 7782 7783 7784 7789 7865 7869 7876 7879 7982 8065 8076 8083 8084 8185 8277 8279 8285 8365 8368 8372 8373 8375 8376 8377 8378 8379 8381 8382

Yiddish Javanese Geogian Kazakh Greenlandic Cambodian Kannada Korean Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian Latvian; Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Malay Maltese Burmese Nauru Nepali Dutch Nowegian Oriya Punjabi Polish Pashto; Pushto Portuguese Quechua Rhaeto-Romance Romanian Russian Sanskrit Sindhi Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian

Cord No.

8385 8386 8387 8465 8469 8471 8472 8473 8475 8476 8479 8482 8484 8487 8575 8582 8590 8673 8679 8779 8872 8979 9072 9085

Language

Sundanese Swedish Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Tonga Turkish Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapük Wolof Xhosa Yoruda Chinese Zulu

TRACK

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

STEREO

ANGLE REPEAT ALL

INDEX

KARAOKE

TITLE CHAPTER

TOTAL

A B

02 I Did Not kn

CD TEXT

TRACK

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

STEREO

ANGLE REPEAT ALL

INDEX

KARAOKE

TITLE CHAPTER

TOTAL

A B

01 Good Morning

CD TEXT

CD-TEXT operation

When playing a CD-TEXT disc, the text information recorded in the disc (disc title, verse writer names, music composer names,

DV-S701 (En/E)

etc.) can easily be recalled and displayed in alphanumeric characters.

Preparation

1 Load a disc (with CD-TEXT compatibility) in the player.

Software with which this function is available:

2 Start normal playback (track mode).

Searching for tracks by title

Any track in a CD-TEXT disc can be search based on the title.

Press the TITLE SEARCH key in stop mode.

TITLE

GRC

Mode

ENTER

Text

ENTER

(TITLE SEARCH)

Blinks

Track title

Title Search

ENTER

To abort operation, press the TITLE SEARCH key again.

÷If the current disc is not a CD-TEXT disc, “NO CD TEXT” is displayed

for about 3 seconds.

Preparations

Select the desired track title.

To increase track No.

GRC

4¢

To decrease track No.

Start playback.

ENTER

GRC

ENTER

Scrolled display

When an item of character information such as a track title is too long to be accommodated in the display, the characters flow from the left to the right to show the characters which have been invisible in the beginning. This movement is referred to as the scrolled display.

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

TITLE CHAPTER

TRACK

CD TEXT

ANGLE REPEAT ALL

TOTAL

A B

STEREO

KARAOKE

INDEX

02 I Did Not kn

When no key has been pressed for a second, the track title starts to scroll in the display.

| Characters scroll toward the left.

Example

01 A

BCDEFGHIJKLMNOPQ...

| Scrolled display

Operations

Other

M N O P Q ...



CD-TEXT operation

DV-S701 (En/E)

Selecting the text information display

In the case of a CD-TEXT disc, the displays shown below can be selected.

GRC

Press the TEXT DISPLAY key.

Mode

ENTER

Text

ENTER

Preparations

TEXT

DISPLAY

Text Display

ENTER

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

TITLE CHAPTER

TRACK

CD TEXT

ANGLE REPEAT ALL

TOTAL

A B

STEREO

KARAOKE

INDEX

Track01 Title :

|Scroll display

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

TITLE CHAPTER

TRACK

CD TEXT

ANGLE REPEAT ALL

TOTAL

A B

STEREO

KARAOKE

INDEX

: Here's That R

÷In the case of a non-CD-TEXT disc, the ”NO CD TEXT“ display will

Operations

appear for approx. 3 seconds.

(TEXT DISPLAY)

In the stop mode

When the TEXT DISPLAY key is pressed once, the 1 “Disc Title” is scrolled on the display; when it is pressed repeatedly, the display is changed.

1 Disc Title : Disc title 2 Disc Artist : Singer (or performer) 3 TIME : Track No., time display

÷If the key is released while 2 ”Disc Artist“ is displayed, 1 ”Disc Title“

returns to the display.

In the play mode

When the TEXT DISPLAY key is pressed once, the 1 “Track Title” is scrolled on the display; when it is pressed repeatedly, the display is changed.

1 Track Title : Track title 2 Track Artist : Singer (or performer) 3 Disc Title : Disc title 4 Disc Artist : Singer (or performer) 5 TIME : Track No., time display

÷If the key is released at any point while 2 ”Track Artist“ to 4 ”Disc

Artist“ is displayed, 1 ”Track Title“ returns to the display.

Displaying all the text information

(ALL INFO.)

In the case of a CD-TEXT disc, the text information shown below is displayed automatically. (This does not operate during

program setup.)

Press the ALL INFO. key.

GRC

Each item is displayed in turn each time the ALL INFO. key is pressed. When the key is repeatedly pressed while an item

Other

ALL INFO.

Mode

ENTER

Text

ENTER

All

Info.

ENTER

DVD VCD

P.B.C. DOLBY DIGITAL MPEG PCM RANDOM PROG.

TITLE CHAPTER

TRACK

CD TEXT

ANGLE REPEAT ALL

TOTAL

A B

STEREO

KARAOKE

INDEX

Arranger : Mich

|Scroll display

is being displayed, the display is forcibly moved to the next item.

1 Disc/Track Title : Disc and track titles 2 Disc/Track Artist : Singer (or performer) 3 Disc/Track Songwriter : Songwriter 4 Disc/Track Composer : Composer 5 Disc/Track Arranger : Arranger 6 Disc/Track Message : Message from sponsor or artist 7 ID INFO. : Record company, release date, etc. 8 Genre INFO. : Genre information 9 ALL INFO. END : (Release)

÷Items from 1 to 6 are displayed in the sequence of disc and track. ÷In the case of a non-CD-TEXT disc, the ”NO CD TEXT“ display will

appear for approx. 3 seconds.

To skip to the next track while the items are being displayed:

Press the ¢ key.

÷The display can be returned to a previous item by pressing the 4

key.

÷ALL INFO. is released when any other key is pressed while items

are being displayed.

Glossary

DVD: Digital Versatile Disc

A type of disc which contains recording of audio/video packaged media with high video and audio quality, such as a movie, featuring large recording capacity and digital signal processing capability.

VIDEO CD (VCD)

A type of CD which contains the recording of moving images. It compresses image information by about 1/120 and audio information by about 1/6 and accommodates up to 74 minutes of recording in a disc with the same diameter as ordinary music CD of 12 cm. Some VCDs do not have the P.B.C. compatibility and are capable of playback only, while some are P.B.C.-compatible and are capable of various special playback control operations. This player can play both of these VCDs.

MPEG: Moving Picture Expert Group (DVD, VCD)

This is an international standard for digital video and audio compression and decompression in media.

Dolby Digital (AC-3)

This is a digital audio compression technology developed by Dolby Laboratories. It is compatible with 5.1-channel surround audio as well as normal stereo (2-channel) audio and can accommodate a large amount of audio data efficiently in a disc.

GUI: Graphical User Interface

An operation method with which the user can interface the machine in an interactive manner with the help of displayed graphics.

Title menu/DVD menu (DVD)

Some DVDs display more than one title in a screen. This screen is referred to as the title menu. The DVD menu is the item display (menu screen) for use in setting operations. The DVD menu can be recalled any time during playback to perform settings according to the current software, including the audio switching between Dolby Digital and PCM, switching of language used in the subtitles and spoken voice.

Track/track number (CD, VCD)

DV-S701 (En/E)

A track is also a section of video and audio recorded in a disc. The numbers assigned to individual tracks are referred to as the track numbers. With most of music CDs, a track is assigned to a piece of music. However, with a VCD, the sections of the contents do not always correspond to the assigned tracks. As (special) playback functions such as skipping and programming of ordinary CDs are based on track number data, such playback functions are sometimes impossible with some VCDs.

TOC: Table Of Contents (CD, VCD)

The TOC consists of information on the number of tracks and playing time and corresponds to the table of contents of a book. In addition to audio (and video) data, all discs contain the recording of TOC data in the beginning of disc.

P.B.C.: Play-Back Control (VCD)

When a VIDEO CD carries “Play Back Control capable” or similar message on the disc or jacket, desired scenes and information can be played back in an interactive manner using a hierarchical structure while viewing the menu screens displayed on the TV screen.

Aspect ratio

This is the ratio between the horizontal and vertical sizes of the picture displayed on the TV screen. The aspect ratio of a standard-screen TV is 4:3 and that of a wide-screen or HDTV is 16:9.

Pan & scan (DVD)

A method of displaying a wide-screen picture, recorded with an aspect ratio of 16:9, on a standard, 4:3 TV screen by trimming parts of the picture. In general, the trimmed parts of a panned & scanned screen is determined according to the player component. However, the DVD discs can also record the specification by the software producer related to the trimmed positions.

Preparations

Operations

Title/title number (DVD)

The title is the largest unit of video and audio recorded in a DVD. It usually corresponds to a single movie of video software or an album (sometimes a piece of music) of music software. The numbers assigned to individual titles are referred to as the title numbers.

Chapter/chapter number (DVD)

The chapter is a section of video and audio recorded in a DVD. A title is composed of several chapters. The numbers assigned to individual chapters are referred to as the chapter numbers.

Subtitles (DVD)

Some DVD discs contains the recording of more than one subtitle language. This player allow you to select one of the recorded subtitle languages during playback. If the subtitle language is set to “Automatic” in the initial setup, subtitles are displayed only when the spoken voice is in other language than the initial set language.

Letterbox (DVD)

This method of displaying a wide-screen 16:9 picture on a standard 4:3 TV screen displays a horizontally long image on the screen center and black stripes on the top and bottom of it.

Other

Bitstream (DVD)

This is the generic name representing flow of data in accordance with various standards, other than the standardized audio data.

In case of difficulty

What appears to be a malfunction may not always be serious. If your unit should not perform as expected, consult the table

below to see if the problem can be corrected before seeking help from your dealer or service representative.

Operation to reset

The microprocessor may fall into malfunction (impossibility to operate erroneous display, etc.) when the power cord is unplugged while power is ON or due to an external factor. In this case, execute the following procedure to reset the microprocessor and return it to normal condition.

÷Please note that resetting the microprocessor clears the contents

stored in, it returns the microprocessor to the condition when it left the factory.

Preparations

DVD player unit

Symptom

Playback does not start when the play (3) key is pressed.

Playback starts but no image/sound is seen/ heard.

The picture is disrupted when the image is fast forwarded or fast reversed.

÷There is no disc in the player. ÷There are no signals recorded on the side of the

disc being played.

÷The TV is not turned on. ÷The connection cords are not properly con-

nected.

÷The picture is slightly disrupted during fast

forward and fast reverse operations.

Perform the following operation.

1 Press the POWER key to the ON position. 2 Press the ON/STANDBY ( ) key to ON. 3 Wait for a few seconds to ensure that the display shows “NO

DISC”.

4 While holding the 7 key, press and hold the ON/STANDBY

(

) key until “INITIAL OK!” appears.

RemedyCause

÷Load a disc and press the play (3) key. ÷Turn the disc over and properly place it on the

disc tray.

÷Turn on the TV. ÷Properly reconnect the connection cords.

÷This is not a malfunction.

DV-S701 (En/E)

No sound is heard.

Operations

The picture does not look good or the picture/sound quality is poor.

It takes a while for the disc to start playing.

The tray opens automatically.

The top and bottom of the screen cannot be seen.

Other

A VCD cannot be played using menus.

The subtitle is not displayed.

÷The audio output cords are not properly con-

nected.

÷The volume control of the TV or amplifier is not

adjusted properly.

÷The player is in a special playback mode.

÷A nearby device is generating noise.

÷The disc is dirty.

÷The disc is damaged. ÷There is condensation on the optical lens.

÷Time is required for the unit to detect the disc

type and size and for the rotation of the motor to stabilize. This is not a malfunction.

÷The disc is not placed horizontally.

÷The video format of the disc being played does

not match that of the connected TV monitor.

÷The VCD disc being played is not compatible

with P.B.C.

÷The DVD disc being played does not contain the

recording of subtitles.

÷The subtitle mode is set to off.

÷Properly connect the audio cords.

÷Set the sound volume to an appropriate level.

÷Press the play (3) key to resume normal

playback mode.

÷Separate this unit as far as possible from the

device you think is generating the noise.

÷Refer to the “Disc handling precautions” sec-

tion and wipe dirt from the disc.

÷Use a new disc. ÷Refer to the “Beware of condensation” sec-

tion and evaporate the condensation.

÷Approximately 10 to 20 seconds are required

for a disc to start playing, although the time differs depending on the disc.

÷Properly place the disc on the tray.

÷Refer to the “Video formats” section ,and use

a disc with the appropriate video format for your TV or a TV with the appropriate video format for the disc.

÷Menu playback is available only with VCD

discs recorded with P.B.C.

÷The subtitle cannot be displayed when the

DVD disc being played does not contain the recording of subtitles.

÷Press the SUB TITLE key to switch on the

subtitle mode.

The voice (or subtitle) language cannot be changed.

The viewing angle cannot be changed.

÷The DVD disc being played does not contain the

recording of more than one audio (or subtitle) language.

÷The DVD disc being played does not contain the

recording of more than one angle.

÷You are attempting to switch the angle in a DVD

section where more than one angle is not recorded.

÷The voice (or subtitle) language cannot be

changed when the DVD disc being played does not contain the recording of more than one voice (or subtitle) language.

÷The viewing angle cannot be changed when

the DVD disc being played does not contain the recording of more than one angle.

÷More than one viewing angle may be re-

corded only in limited sections in a disc.

In case of difficulty

DV-S701 (En/E)

DVD player unit

Playback will not start even after a title is selected.

The viewing restriction level (RATING) cannot be changed.

The voice or subtitle language selected in the initial setting is not played.

No message appears on the TV screen after a key is pressed.

Menu screen messages are not shown in the desired language.

Audio is not reproduced in surround sound.

÷A viewing restriction (RATING) has been set for

the disc.

÷You have forgotten the viewing restriction (RAT-

ING) password.

÷The DVD disc being played does not contain the

recording of the selected voice or subtitle language.

÷The function for displaying message on the TV

screen (On-Screen Messages) is set to off.

÷The menu language function (MENU) is not set.

÷The surround speakers are set to “Not used” in

the speaker mode [8 Speaker Setting].

Remote control unit

Symptom Cause Remedy

Remote control operation is not possible. ÷ Batteries are exhausted.

÷The remote control is too far away from the

system, the controlling angle is deviated or there is an obstacle in between.

RemedyCauseSymptom

÷Check the viewing restriction level (RATING)

setting.

÷Reset the initial setup to the factory setup.

÷Use a DVD disc containing the recording of

the selected voice or subtitle language.

÷Set On-Screen Messages to on.

÷Set the disc menu language function (MENU)

as required.

÷Set the surround speakers to “Used” in the

speaker mode setting of initial setup [8 Speaker Setting].

÷Replace with new batteries. ÷Operate the unit inside the remote control-

lable range.

Preparations

Inhibition icon

Symptom Cause Remedy

The inhibition icon is displayed and remote control is not possible.

÷Playback is restricted intentionally by the soft-

ware producer.

Operations

÷The operation is inhibited. Please try another

operation.

Other

Specifications

[Type]

System................................................. DVD video player system

Signal read system ..................................... Semiconductor laser

[D/A Conversion Section]

D/A conversion ..................................................................... 24 Bit

Oversampling .............. 8 fs (Sampling frequency; 44.1, 48 kHz)

[Audio section]

Preparations

Frequency response

Sampling frequency; 44.1 kHz (CD only) ....... 4 Hz ~ 20 kHz

Sampling frequency; 48 kHz ............................ 4 Hz ~ 22 kHz

Sampling frequency; 96 kHz ............................ 4 Hz ~ 44 kHz

Signal to noise ratio (CD only) ....................... More than 105 dB

Dynamic range (CD only) .................................. More than 97 dB

Total harmonic distortion (CD only)

........................................................Less than 0.003 % (1 kHz)

Channel separation (CD only)

....................... More than 90 dB (1 kHz, MIX LINE OUTPUT)

Wow and flutter (CD only)

...................... Below measurable limit (±0.001 % W. PEAK)

Analog output level/impedance

2ch .................................................................. 1.2 V

5.1ch ........ 1.2 V

Digital output level/impedance

COAXIAL ......................................................... 0.5 Vp-p / 75 Ω

OPTICAL ............ -21 dBm ~ -15 dBm (Wave length 660 nm)

4 fs (Sampling frequency; 96 kHz)

rms / 330 Ω

rms / 330 Ω (compression off:max 3.4 Vrms)

DV-S701 (En/E)

[Video Section]

Video output format ................................................................ PAL

Video compression

VCD ............................................................................... MPEG-1

DVD .............................................................................. MPEG-2

Composite video output level

......................................... 1 Vp-p (75 Ω load, sync. negative)

S-video output level

(Y-signal) ......................... 1 Vp-p (75 Ω load, sync. negative)

(C-signal)

PAL ......................................................... 0.300 Vp-p (75 Ω)

Horizontal resolution ................................... More than 500 lines

Video signal to noise ratio ................................ More than 62 dB

[General]

Power consumption.............................................................. 35 W

Dimensions .............................................. W: 400 mm (15-3/4”)

H: 106 mm (4-3/16”) D: 377 mm (14-13/16”)

Weight (net) ............................................................. 4.5 kg (9.9 lb)

Operations

Notes

Other

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.

÷Sufficient performance may not be exhibited at extremely cold locations (Where water freezes).

MEMO:

DV-S701 (En/E)

Preparations

Operations

Other

For your records

Record the serial number, found on the back of the unit, in the spaces

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer

designated on the warranty card, and in the space provided below. Refer

designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for

to the model and serial numbers whenever you call upon your dealer for

to the model and serial numbers whenever you call upon your dealer for information or service on this product.

information or service on this product.

Model Serial Number

Kenwood DV-S701 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Before applying power

Safety precautions

IMPORTANT SAFEGUARDS

Contents

Special features

Region codes

Region codes of this player

Region codes in the world

Playable Disc

Recording systems and types of playable discs

Unplayable discs

Icons on the DVD discs

Video formats

Video formats of DVD discs that can be played on this unit

Video formats of VCD discs that can be played on this unit

Examples of TV screen display of each video format

Reference

System Connections

Connection with TV with S-VIDEO jacks and general stereo system

Connection with an AV receiver

Controls and indicators

Display / Main unit

Remote control unit

Operation of remote control unit

Loading batteries

Operation

Graphical remote control unit (GRC unit)

Basic Operations for the Graphical Remote Control Unit (GRC)

Playback

Playing a disc from the beginning

Operations using the GUI screen

Basic operations on the GUI screen

Icons on the TV screen

Storing scenes in memory (Memory function)

Storing a scene in memory

Recalling/clearing a scene in memory

Programming

Programming tracks in the desired order

Adding tracks (chapters) in the program

Clearing tracks (chapters) from the program

Returning to normal playback

Repeating tracks, chapters or titles (Repeat playback, A-B repeat)

Versatile DVD play features

Menu playback

Hierarchical structure of VCD menus

Menu playback (DVD)

Changing the initial setup

Basic operation for changing the initial setup

Changing initial setup [1 Disc Languages]

Changing initial setup [2 Ratings]

Changing initial setup [3 Menu Language]

Changing initial setup [4 On-Screen Messages]

Changing initial setup [5 FL Display]

Changing initial setup [6 TV Aspect]

Changing initial setup [7 Digital Audio Output]

Changing initial setup [8 Speaker Setting]

Changing initial setup [9 Other Settings]

CD-TEXT operation

Glossary

In case of difficulty

Specifications
