Kenwood DPC-42 User Manual
Specifications and Main Features
- Model: DPC-42
- Tracking System: Three Beam Tracking
- D/A Converter: 16 Bit Linear
- Filter: Digial 2 times oversampling filter
- Frequency Response: 20Hz-20KHz + 1 dB
- Total harmonic distortion: 0.04% at 1kHz
- Output Terminals
- Headphone jack(distortion): 3.5mm stereo mini jack
- LINE OUT jack: 3.5 mm stereo mini jack
- Input Terminal: DC IN(external power source)
- Output Level: 42 mW + 172 mW(16 Ω, 1 kHz)
- Line Output: 0.7V(47 kΩ at 1 kHz)
- Power Consumption: 1.3 Watts
- Power Requirement:
- 6V DC: by supplied rechargeables
- 120V AC 60Hz: USA, Canada by supplied AC adaptor
- 240V AC 50Hz: UK by supplied AC adaptor
- 110 to 120V/220 to 240V AC 60Hz: all other, by supplied AC adaptor
- Battery life: fully charged and on continuous Repeat Play condition; 2 hours.
- Size: 131W x 37.5H x 168D mm
- Weight: 370 G without rechargeable battery
- Accessories:
- Audio connection cord x1 (USA Canada Type)
- AC adapter x1
– 4 x AA rechargeable batteries
– 4 x AA batteries
- 4* Battery Charger
Frequently Asked Questions
Question: How does a rechargeable battery work?
Answer: In order to recharge your device and ensure the RAVPower is turned on, connect the AC adapter and press the charge button on your device.
Question: My device will not turn on, any solutions?
Answer: If your device does not turn on then check the power source to make sure it connects properly; also check to make sure the HOLD switch is off. If you are using batteries: Then please ensure the batteries are charged.
Question: Can I use any batteries for this devise?
Answer: Only the rechargeable batteries that were given to you with the device can be used or size AA alkaline dry batteries.
Question: How long does the battery last?
Answer: Five hours of minimal resource use, one hour of high resource use and 2 hours of resource use if using a rechargeable battery.
Question: How to playback a CD?
Answer: If you want to playback a cd then the lid must be opened and the disc placed inside of the player sticker-side up followed by closing the lid and pressing play/pause.
Question: My sounds are skipping, what can I do to stop it?
Answer: Make sure your device is placed on a flat surface away from any vibrations if sounds are still skipping: then clean the laser lens and the disc.

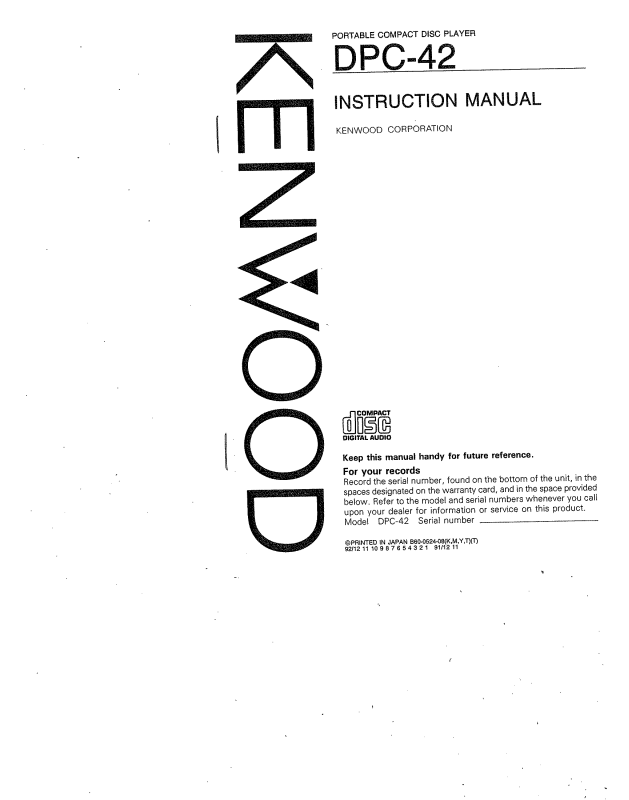

User Manual
