Kenmore Elite 40554530410, 40554550410, 40554570410, 40554570411 Owner’s Manual

Use & Care Guide Manual de Uso y Cuidado

English / Espa_ol

I(enmore,

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

WWW_Sea rs.corrl

www.kmart.com

Read this guide. It will help you to operate your new Kenmore dehumidifier in the safest and most effective way.

Keep this book and your sales check (receipt) in a safe place for future reference.

Kenmore One Year Limited Warranty When installed, operated and maintained according to al1 supplied instructions, if this appliance fails due to a defect in material and workmanship within

one year from the date of purchase, call 1-800-4-MY-HOME _ to arrange for free repair, if this appliance is ever used for other than private family purposes, this warranty applies for only 90

days from the date of purchase. This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, incandescent light bulbs and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,

including warranties of merchantability or fitness for a particular purpose, are limited to one

year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or

consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States. This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60"179

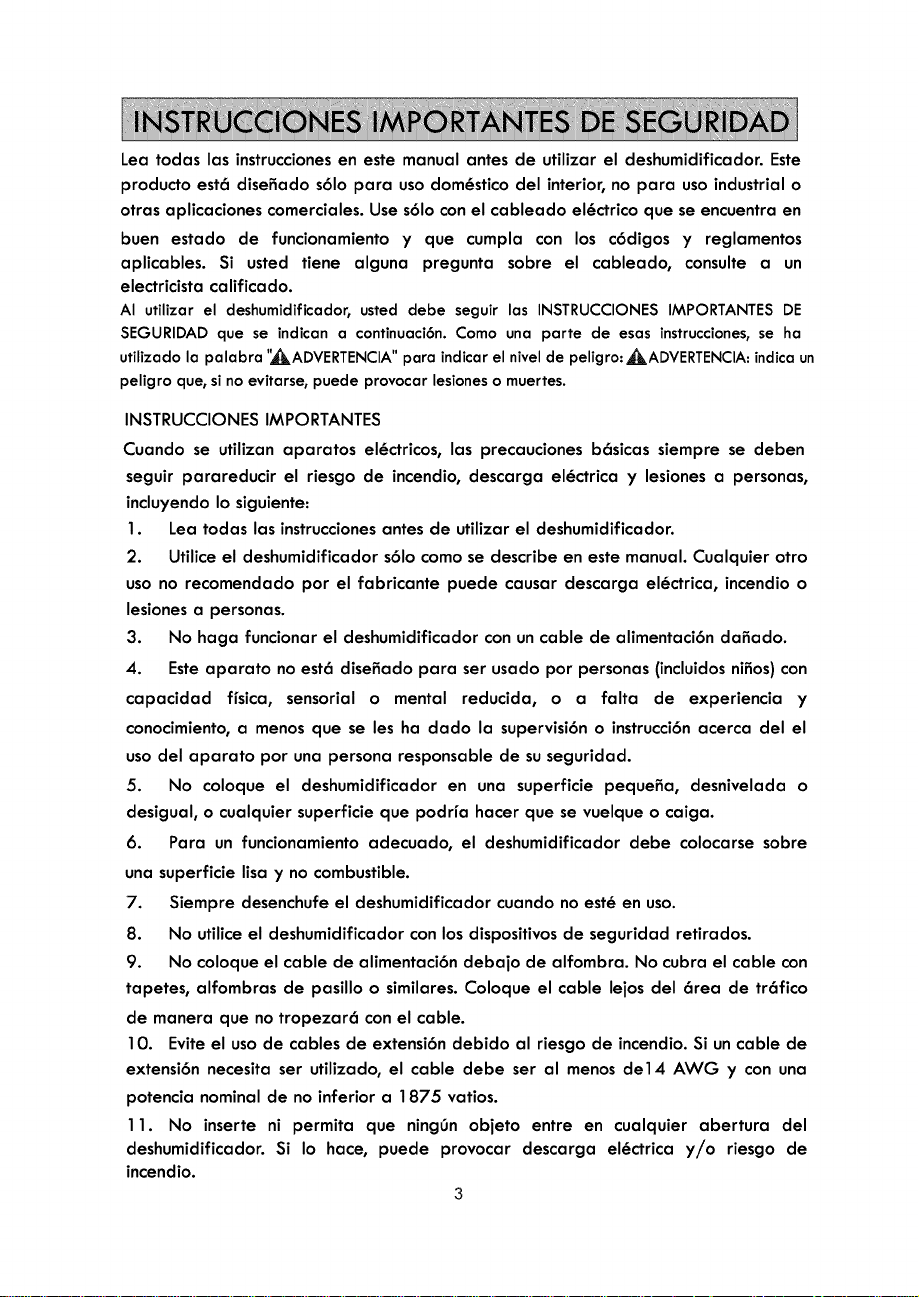

Readallinstructionsinthisguidebeforeusingyourdehumidifier.Thisproductis

intended for indoor residential use only, not for industrial or other commercial applications. Use only with electrical wiring that is in good working order and that meets applicable codes and ordinances. If you have any questions whether your wiring is adequate, consult a qualified electrician.

While using your dehumidifier, you should follow the IMPORTANT SAFETY

INSTRUCTIONS listed below. As part of those instructions, we have used the word "_t:_WARNING " to indicate the level of hazard: _'kWARNING:

indicates a hazard which, if not avoided, could result in injury or death.

IMPORTANT INSTRUCTIONS When using electrical appJiances_ basic precautions should always be followed to

reduce the risk of fireI electric shock_ and injury to personsI including the following:

1. Read all instructions before using this dehumidifier.

2. Use this dehumidifier only as described in this manual. Any other use not recommended by the manufacturer may cause electrical shock_ fire_ or injury

to persons.

3. Do not operate the dehumidifier with a damaged power cord.

4. This appliance is not intended for use by persons (including children) with reduced physical_ sensory or mental capabilities_ or lack of experience and knowledg% unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

5. Do not place the dehumidifier on a small_ unlevel_ uneven or any surface which might allow it to tip or fall.

6. For proper operation_ dehumidifier should be placed on a smooth_ non combustible surface.

7. Always unplug dehumidifier when not in use.

8. Do not operate dehumidifier with any safety devices removed.

9. Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area where it will not be

tripped over.

10. Avoid the use of extension cords due to risk of fire. If an extension cord must be used_the cord must be a minimum 14AWG and rated not less than 1875 watts.

11. Do not insert or allow any object to enter any openings on the dehumidifier. Doing so may cause electric shock and/or fire hazard.

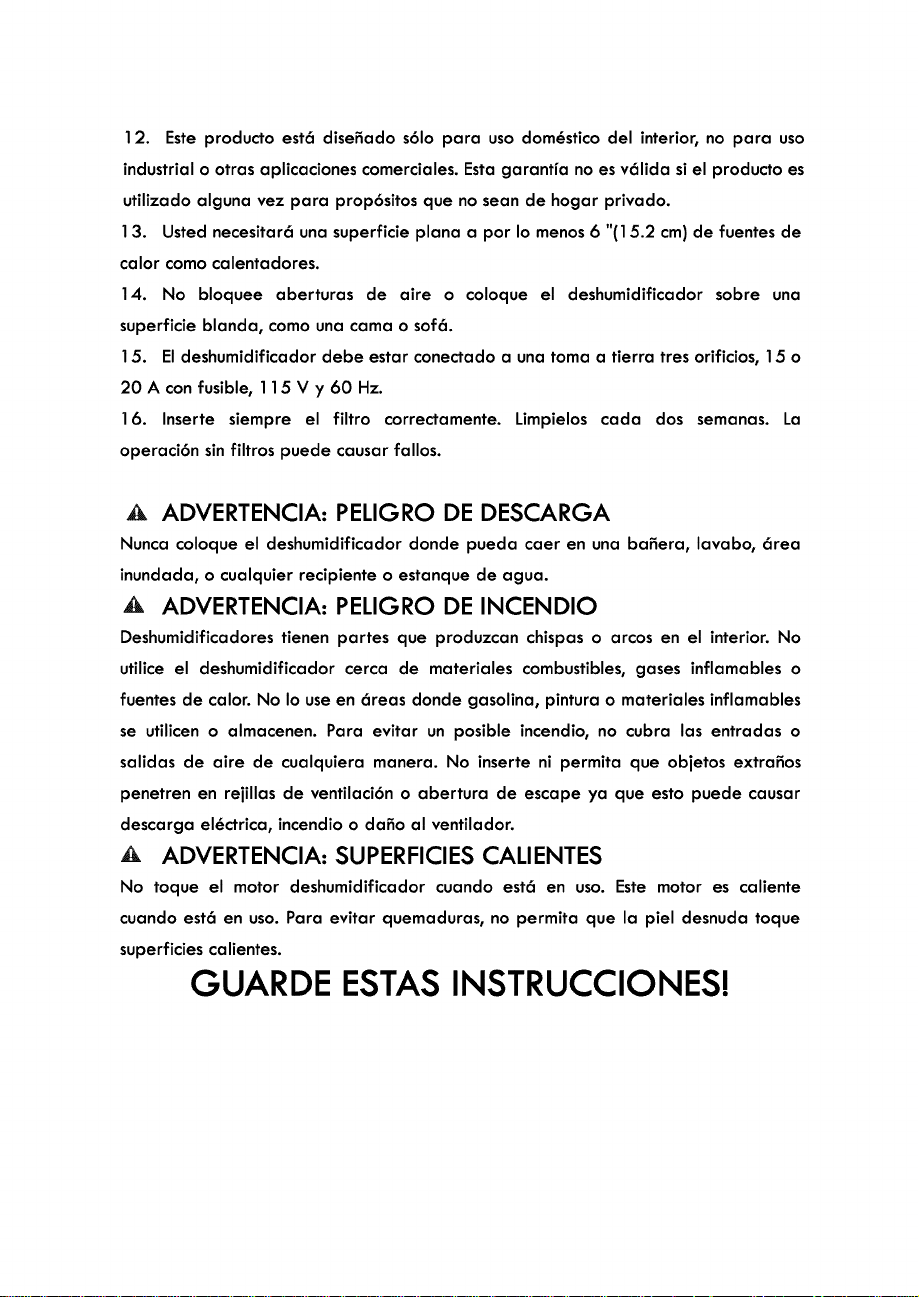

12. This product is intended for indoor residential use only, not for industrial or

other commercial applications. This warranty is void if this product is ever

used for other than private household purposes.

13. You will need a level surface at least 6" (15.2 cm) from heat sources such as ranges or heaters.

14. Donotblockairopeningsorplacedehumidifieronasoftsurfacesuchasa bedorsofa.

15.Thedehumidifiershould be connected to a 115VI 60 Hz115- or 20-amp fused

3 prong grounded outlet.

16. Always insert the filters securely. Clean them every two weeks. Operation without filters may cause failures.

WARNING: SHOCK HAZARD

Never pJace dehumidifier where it may faJJ into a bathtub I sink I flooded area l

or any receptacJe or pool of water.

WARNING: FiREHAZARD

Dehumidifiers have arcing or sparking parts inside. Do not use near combusfibJe materials or fiammabJe gases or sources of heat. DO NOT USE in areas where gasoNne I paint or fiammabJe materiaJs are used or stored. To prevent a possibJe fire I do not bJock air intakes or exhaust in any manner. Do not insert or aJJow foreign objects to enter any intakes or exhaust opening as this may cause an eJecfric shockl fire I or damage the fan.

WARNING: HOT SURFACES

Do not touch dehumidifier motor when in use. This motor is hot when in use. To avoid burns I do not Jet bare skin touch hot surfaces.

SAVE THESE INSTRUCTIONS!

OBSERVE ALL LOCAL CODES AND ORDI NANCESo

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD

GROUND PRONG.

ELECTRICAL GROUND iS REQUIRED ON THIS APPLIANCE

A ItS=VOLT 60Hz, AC ONLY, 15A or 20A

FUSED AND PROPERLY GROUNDED

ELECTRICALSUPPLYiS REQUIRED.

A time delay fuse or time delay circuit breaker is recommended. Use a dedicated

circuit serving only this appliance.

RECOMMENDED GROUNDING

METHOD

For your personal safety_ this appliance must be grounded. This appliance has a

power supply cord with a 3-prong ground- ed plug. To minimize possible shock haz- ard the cord must be plugged into a

matching grounded electrical outlet that complies with the latest edition of the

National Electrical Codes and all local codes and ordinances.

if a grounded 3-prong electrical outlet is not available, it is the personal responsibil-

ity and obligation of the customer to have one installed by a qualified electrician.

ELECTRICAL SHOCK HAZARD

3-prong grounded plug

_WARNING

• Plug into a grounded 3=prong outlet. e Do not remove the ground pin from the

Power supply cord

Grounded 3=prong electrical outlet

If an extension cord must be used, the cord must be a minimum 14AWG and rated not

Jess than 1875 watts.

iTEM # 405.54530 405.54550 405.54570

Moisture Removal per 24 hours 30 Pints per day 50 Pints per day 70 Pints per day

Power Consumption (W) 310 Watts 520 Watts 720 Watts

Bucket Capacity 6.34 Pints(3 Liters) 12.68 Pints(6 Liters) 12.68 Pints(6 Liters)

Power Source 115 V / 60 HZ 115V / 60 HZ 115V / 60 HZ

Rated Current (Amps) 3.OA 4.7A 6.9A

Sound Pressure Level dB 53 55 55

Weight 29.54 Ibs 38.36 Ibs 41.89 Ibs

(14,2 Liters per day) (23.6 Liters per day) (33.1 Liters per day)

plug.

o Do not use an adapter.

• Failure to follow these instructions can result in death, fire or electrical shock.

Dimensions (W x D x H) 14.17" x 10.24"x 19.92" 15.35"x 10.94"x 23.15" 15.35"x 10.94"x 23.15"

FRONT

REAR

Control panel

Air filter

(behind the grille)

Water

Figure 1

Band (Used only when storingthe unit.)

Drain Hose Outlet

ACCESSORIES

Continuous Drain Tube (1 pc)

Length: 7.0 Inch (178 ram) ID: 0.53 Inch (13.5 ram)

Screw (2 pc)

Figure 2

POSffJON[NG THE UNff A dehumidifier operating in a basement wii[ have little or noeffect in drying an

adjacent enclosed storage area, suchas a closet, unlessthere is adequate circulation of air in and out of the area.

• Do not useoutdoors.

• This dehumidifer isintended for indoor residential applications only. Thisdehumidifier should not be used for commercial or industrial applications.

• Place the dehumidifier on a smooth, level floor strong enough to support the unit with a full bucket of water.

• Allow at least8" of air space on all sidesof the unit for good air circulation.

• Place the unit in an area where the temperature will not fall below 41°F(5°C). Thecoils can become covered with frost at temperatures below 41°F(5°C), which

may reduce performance.

• Place the unit away from a clothes dryer, heater or radiator.

• Usethe unit to prevent moisture damage anywhere books or valuables are stored.

• Usethe dehumidifier in a basement to help prevent moisturedamage.

• Thedehumidifier must be operated inan enclosed area to be most effective.Close

all doors, windows and other outside openings to the room.

Air Grill

8 inch or more

8 inch or more 8 inch or more

Casters (At four points on the bottom of unit)

• Casters can move freely.

• Do not force casters to move over carpet,

16inches ]or more

nor move the unit with water in the bucket. (The unit may tip over and spill water.)

Air Outlet Grill

8 inch or more

Figure 3

Itis important to know your dehumidifier's controls and features to ensure its

proper and safe use. Review these instructionsbefore using the product.

CONTROL PANEL

Clean Filter Operation On Operation On Bucket Full Turbo Timer On/Off Indicator Light Indicator Light Indicator Light Indicator Light Indicator Light Indicator Light

C°mf°rt M°de S___I !_

When you push the button to change operation modes, the unit will make a beep sound to indicate that it is changing modes.

0 Continuous Buffon O Power Buffon

Pressto activate continuous Press to turn the dehumidifier on

dehumidifying operation, and off:. The humidity setting controls will _/_/An'_/L'_Up'D°wn

be inoperative.

0 Filter Buffon

The check filter feature is a reminder to clean the Air Filter

for more efficient operation. The Filter light (Clean filter light)

will illuminate after 250 hours of operation. To reset after cleaning

filter, press the Filter button for one

second and the light will go off:.

0 Comfort dehumldiNing mode

In the Comfort dehumidifying mode, the unit will automatically control

room humidity in a comfortable range 45°/0~55°/0, according to the room temperature. The humidity setting function will be disabled.

Continuous Auto Defrost

TURBO TIMER

Figure 4

Buffons

° Humidity Set Control Buffons

The humidity levelcan be set within a range of 35% RH (Relative

Humidity) to 85°/0 RH(Relative Humidity) in5°/0increments. Fordrier air, pressthe < Button and

set to a lowerpercent value (%).

Fordamper air, pressthe > Button

and seta higher percent value (°/0).

* TIMER SetControlBuffons

Usethe Up/Down Buttonsto setthe

Auto start and Auto stop time from

0 to 24 hours.

0 Timer Button

Press to initiate the Auto start and Auto stop feature, in conjunction with

the > and < buttons.

O Display

Shows the set % humidity level from 35°/0 to 85°/0 or auto start/stop time (0~24) while setting, then shows the actual (+5°/0 accuracy) room % humidity level in a range of 30°/0 RH (Relative Humidity) to 90°/0 RH (Relative Humidity).

Error Codes and Protection Code: AS- Humidity sensor error--Unplug the unit and plug it back in. If error repeats,

arrange for service.

ES- Temperature sensor error-- Unplug the unit and plug it back in. If error repeats, arrange for service. P2- Bucket isfull or bucket is not in right position-- Empty the bucket and replace it in the right position.

EC- Unit Malfunction--Check to verify that the surrounding temperature is within the range of 41°F (5 °C) to 95 °F (35 °C). If the temperature is not within range,

take action to correct the surrounding temperature. If the EC code persists,

there is a malfunction that requires you to call for service. Some causes of this EC error code could be a refrigerant leak, an overload or failure of the compressor, or blockage in the sealed system.

OTHER FEATURES

Bucket Full Light - Lights up when the bucket is full and ready to be emptied, or when the bucket is removed or not replaced in the proper position.

Auto Shut Off - The dehumidifier shuts off: after 30 seconds when the bucket is full, or when the bucket is removed or not replaced in the proper position. When

the set humidity level is reached, the compressor will shut off, and the fan will continue to run for another 3 minutes, and then shut off.

Auto Defrost - When frost builds up on the evaporator coils, the compressor will cycle off: and the fan will continue to run until the frost disappears.

3 Minute Compressor Delay- Any time the compressor stops running for any reason, such as when the humidity set point has been reached, it will not restart

again for a minimum of 3 minutes. This is a safety design to prolong the life of the compressor. If the fan has also stopped, it will not restart again for 3

minutes or until the compressor starts. Check Filter Feature -The unit tracks the amount of time that the fan runs. The

Filter light will start to flash once a second after 250 hours of operation. After cleaning the air filter, press the Filter button for one second to reset this timer.

Auto-Restart - If there is a power failure, the unit will return to the same operating condition when the power is restored.

Setting the Timer

• With the unit on, press the Timer button, and the Off: light indicates that the Auto Stop function may be programmed. Within 5 seconds press the UP or DOWN

buttons to select a period of time after which operation will stop. Press the Timer

button twice and the On light indicates that the Auto Start function may be programmed. Within 5 seconds press the UP or DOWN buttons to select a period of time after which operation will resume.
