Kenmore Elite 11172692910, 11172695910, 11172697910, 11172699910 Owner’s Manual

Download

Use & Care Guide Manual de Uso y Cuidado

English / Español

Kenmore Elite

Bottom Freezer Refrigerator

Refrigerador Congelador Inferior

Models, Modelos: 111.7269* * color number, número de color

P/No.: 60139-0023300-00 Transform SR Brands Management LLC Hoffman Estates, IL 60179 U.S.A. www.kenmore.com

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 1 2020-02-26 오전 11:53:46

Code : F840-1

TABLE OF CONTENTS

Warranty Product Record Important Safety Instructions Parts and Features Refrigerator Installation

.................................................................. 3

.......................................................4

......................... 5-8

................................................9

............................... 10-20

Unpacking Your Refrigerator ............................ 10

Prior to Use ........................................................... 11

Installation ............................................................ 11

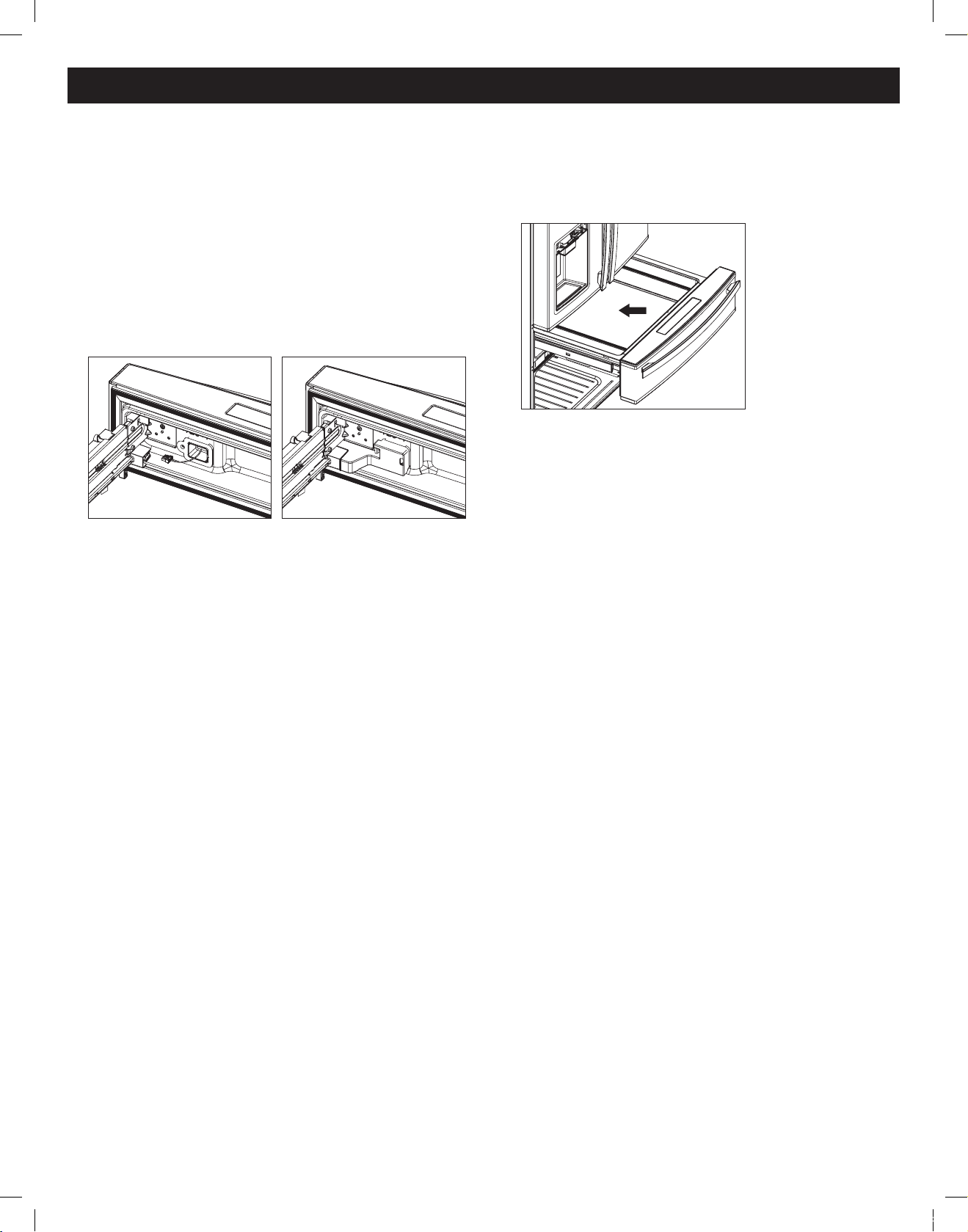

Removing/Replacing Your Refrigerator and Freezer Handles,

Doors and Drawers ....................................... 12-19

Refrigerator Leveling & Door Adjustment ......20

Using Your Refrigerator

.................................21-33

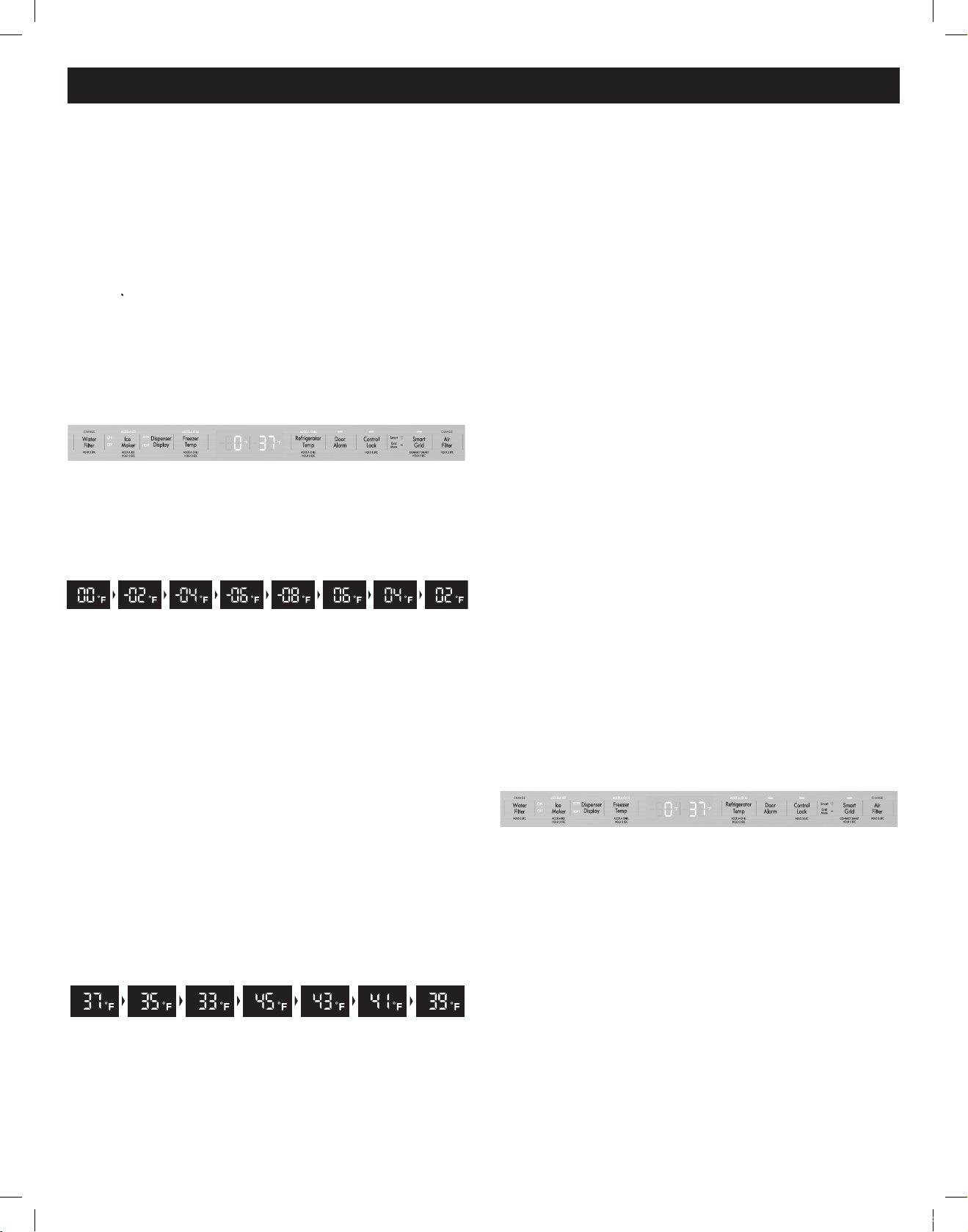

Setting the Controls .............................................21

Connecting the Water Line Water Filter Care and Cleaning Troubleshooting Guide Service

............................................................ 35

........................................36-37

................................38-45

.................................................... Back Cover

.................................34

Control Panel ....................................................... 22

Smart Features .................................................... 23

Instructions for Smart Grid ...............................24

FCC Notice .......................................................... 25

Pantry Control Panel...........................................26

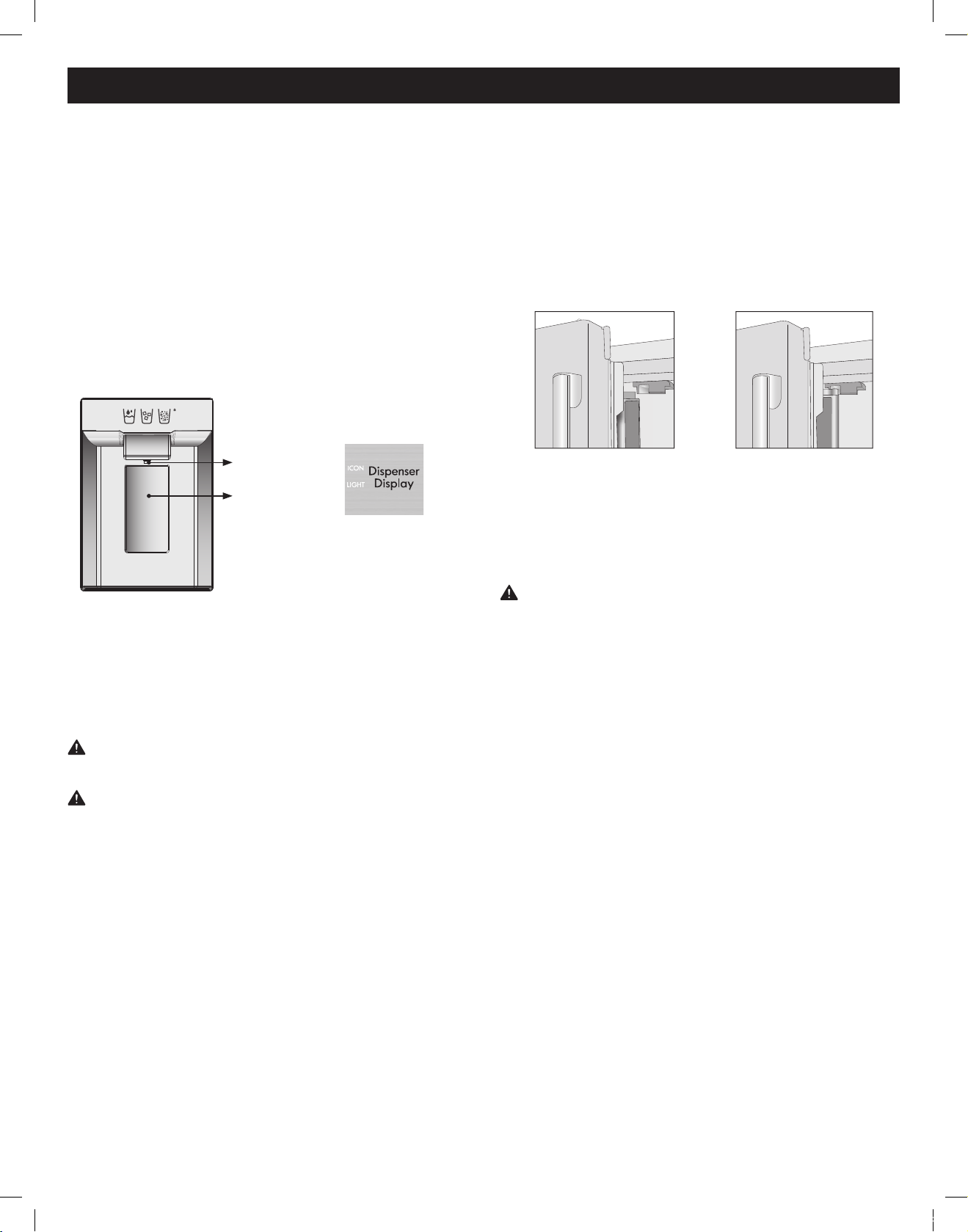

Dispenser Control Panel ..................................... 26

Icemaker ....................................................... 27-29

Food Storage Guide ..........................................30

Storing Frozen Food ...........................................30

Refrigerator Section ...................................... 31-33

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 2 2020-02-26 오전 11:53:46

KENMORE ELITE LIMITED WARRANTY

REFRIGERATOR WARRANTY

KENMORE ELITE LIMITED WARRANTY

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions.

One Year on Appliance

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive free repair. If the appliance cannot be repaired it will be replaced free of charge.

Five Years on Sealed Refrigerant System

FOR FIVE YEARS from the date of sale, the sealed refrigerant system of this appliance is warranted against defects in material or workmanship.* If a system part is defective within the first year, a new part will be supplied and installed at no charge. If a system part is defective after the first year, a new part will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only one year from the sale date if the appliance is ever used for other than private household purposes. *Defects must be verified by a Sears authorized service representative.

Lifetime on Storage Bins

FOR AS LONG AS IT IS USED from the date of sale, a free replacement will be supplied for a defective refrigerator or freezer compartment storage bin.* If the defect appears within the first year, a new bin will be installed at no charge. If the defect appears after the first year, a new bin will be supplied but not installed at no charge. This Lifetime warranty covers only storage bins, and does not apply to any other related component or mechanism. You are responsible for the labor cost of bin installation after the first year from the date of sale. This warranty coverage applies for only 90 days from the date of sale if the appliance is ever used for other than private household purposes. *Warranty coverage applies to door bins, drawer bins and basket bins. Defects must be verified by a Sears authorized service representative.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty All warranty coverage applies for only 90 days from the sale date if the appliance is ever used for other than private household

purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.

5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.

6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.

7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year on the appliance and for as long as used on the storage bins, or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Transform SR Brands Management LLC, Hoffman Estates, IL 60179

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 3 2020-02-26 오전 11:53:46

PRODUCT RECORD

In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No.___________________ Date of Purchase ___________________

Serial No.___________________

Save these instructions and attach your sales receipt for future reference.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 4 2020-02-26 오전 11:53:46

IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

To reduce the risk of re, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the

following.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:

You

Indicates an imminently hazardous situation which, if not avoided,

may

be killed or seriously injured if you do not follow instructions.

will

be killed or seriously injured if you do not follow instructions.

can

result in minor or moderate injury, or product damage.

WARNING

read and obey

• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

all safety messages.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

• Do not modify or extend the power cord length. It could cause electric shock or fire.

• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any repairs.

NOTE:

• Keep ventilation openings, in the appliance enclosure

• Do not use mechanical devices or other means to

• Do not damage the refrigerant circuit

• Do not use electrical appliances inside the food storage

• Connect to potable water supply only.

It is strongly recommended that any service be

performed by a qualified technician.

or in the built-in structure, clear of obstruction.

accelerate the defrosting process, other than those recommended by the manufacturer

compartments of the appliance unless they are of the type recommended by the manufacturer

SAVE THESE INSTRUCTIONS

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 5 2020-02-26 오전 11:53:46

WARNING

• Before replacing a burned-out or broken light bulb, unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (A burned-out light bulb may break when being replaced exposing the wire filament.)

• When you are finished, reconnect the refrigerator to

• This refrigerator must be properly installed in

• After your refrigerator is in operation, do not touch the

• Do not plug several appliances into the same wall

• Never hold the power cord or plug with wet hands. -

• Never use a damaged power cord or plug, or loose

• Be sure to ground. Check if your wall outlet is grounded

• Do not install the refrigerator on a wet floor or in a

• Never let the power cord touch or pass over heating

• Make sure plug is fully inserted into socket to prevent

• Do Not store or use gasoline or other flammable

: Some models have LED interior lighting and

NOTE

service should be performed by a qualified technician.

WARNING

position does not remove power to the light circuit.

the electrical source and reset the controls (Thermostat, Refrigerator Control, and or Freezer Control, depending on the model) to the desired setting.

accordance with the Attention Installer Instructions.

cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

outlet. - It can be a cause of overheating and/or fire. Use an exclusive grounding receptacle for the refrigerator.

There is a risk of electric shock

main socket. - There is a risk of fire, electric shock or serious injury.

(earthed). - There is a risk of electric shock hazards.

place with excessive humidity and moisture. - Electric insulation gets weakened, resulting in a risk of electric shock hazards.

appliances. - Power cord can be damaged, resulting in a risk of electric shock hazards.

the risk of electrical shock.

vapors and liquids in the vicinity of this or any other appliance.

: Setting either or both controls to the OFF

• Never pour or spray water into the refrigerator (both interior and exterior). - Electric insulation gets weakened, resulting in a risk of electric shock hazards.

• Do not place containers with water or liquid on top of refrigerator. - Water can spill into the refrigerator and can cause electric shock hazards or damage.

• Do not move or remove compartment shelves/pockets while foods and containers are on them. - Hard containers (of glass, metal etc.) can fall to hurt you and can break glass shelf and interior parts.

• Never repair, disassemble or alter the refrigerator on your own. - There is a risk of personal injury or damage to the refrigerator. It is recommended that any service be carried out by a qualified person.

• If a gas leak is found near the refrigerator or in the kitchen, ventilate it immediately without touching the power plug or refrigerator.

• Do not store medicine, academic research samples which require strict temperature control in the refrigerator.

• Never insert fingers or hands into the bottom of the refrigerator, especially into the bottom back. - You can be hurt by sharp metal edges or can receive an electric shock.

• When you find the power cord damaged or cut, call the service agent immediately.

• When you get rid of your old refrigerator, be sure to remove the door packings first. - Children can be entrapped and suffocated in an abandoned refrigerator.

• It is recommended to unplug the refrigerator when it is not going to be used for a long period of time.

• Never touch foods and containers especially of metal with wet hands in the freezer compartment. - You can be hurt by chilblains or cold burns.

• Never eat any decayed or deteriorated food at all. - Foods stored too long in the refrigerator can deteriorate and become decayed.

• Never place bottles and containers of glass in the freezer compartment. - Glass containers and bottles can break and hurt you.

• When moving the refrigerator (horizontally or tilted), more than 2 persons are required to hold it.(One to hold top back handles, the other to hold the bottom holder). If other parts are held instead, it is very dangerous and likely to slip.

SAVE THESE INSTRUCTIONS

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 6 2020-02-26 오전 11:53:46

WARNING

• Be sure to turn up the wheel first before moving the refrigerator - Be sure to turn up the wheel first before moving the refrigerator, Otherwise, the parts can collide and break each other.

• DO NOT touch the automatic ice making mechanism while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold— below 39°F (4°C).

WARNING

: The use of this appliance can expose you to chemicals known to the state of California

to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov

SAVE THESE INSTRUCTIONS

…Thawed ground meats, poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

DANGER: RISK OF CHILD ENTRAPMENT

Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents (child entrapment and suffocation).

BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 7 2020-02-26 오전 11:53:46

CFC/HCFC DISPOSAL

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere

ELECTRICAL & GROUNDING REQUIREMENTS

IMPORTANT TO CONNECT ELECTRICITY

FOR PERSONAL SAFETY,

properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

: Please read carefully.

WARNING

Electrical Shock Hazard

this appliance must be

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, the use of an extension cord is not

recommended.

extension cord, it is absolutely necessary that it be a ULlisted (USA), 3-wire grounding type appliance extension cord having a grounding type plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

However, if you still elect to use an

3-prong grounding type wall receptacle

3-prong grounding plug

Ensure proper ground exists before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 8 2020-02-26 오전 11:53:46

❸

❺

Slim IceMaker

PARTS AND FEATURES

ACCELA CHILL ACCELA CHILL

ACCELA CHILL

HOLD 3 SEC

⓰

CLOSEOPEN

❻

❽

❾

❼

❾

❿

❶

⓱

❷

❹

⓫ ⓫

⓬

⓯

⓭

⓮

1. Covered Dairy Bin or Covered Storage Bin

for storing butter and cheese.

2. Gallon door storage bin

for items of medium to large size.

3. Multi storage bin or Covered Storage Bin

for storing butter and cheese.

4. Narrow door storage bin

for small items.

5. Icemaker/Ice cube bin

for making and holding ice for through-the-door

dispenser.

6. Air filter

7. Water filter

8. Narrow Top Shelf

❷

⓲

9. Adjustable glass shelf

10. Slide-in Shelf

11. Humidity controlled crisper bin

for storage of fruits and vegetables

12. Temperature Control full width pantry drawer

for storage of meat and fresh vegetables

13. Pull out freezer drawer

14. Lower freezer basket for general freezer storage

15. Freezer Ice Storage Bin

16. Control and display panel

17. Ice/Water Dispenser

18. Removable Convenience Bin

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 9 2020-02-26 오전 11:53:47

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard:

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning- type labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

WARNING

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard:

Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

Refrigerator shelves are installed in the shipping position. Please reinstall shelves according to your individual storage needs.

Remove all cantilevered refrigerator compartment shelves and remove the protective shipping tape found on the attachment hooks at back of shelves. For shelf removal instructions, see Refrigerator Shelves in USING YOUR REFRIGERATOR section of this Use & Care Guide.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 10 2020-02-26 오전 11:53:47

REFRIGERATOR INSTALLATION

PRIOR TO USE

Clean your refrigerator thoroughly and wipe off all

dust that accumulated during shipping.

Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.

Allow your refrigerator to run for at least two to three

hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

INSTALLATION

WARNING

INSTALLATION (continued)

To avoid noise and vibration, the unit must be leveled

and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs to the left to raise the unit or to the right to lower it. (See Leveling and door AlIgnment.)

NOTE:

a platform or weakly supported structure is not recommended.

Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

Select a place where a water supply can be easily

connected for the automatic icemaker.

NOTE:

or 207-862 kPa or 2.1-8.8 kgf/cm². If the refrigerator is installed in an area with low water pressure below 30 psi, you can install a booster pump to compensate for the low pressure.

Installing on carpeting, soft tile surfaces,

The water pressure must be from 30 to 125 psi

Shock Hazard:

To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

For sufficient door opening clearance, allow at least

4 inches between the side of the refrigerator and an adjacent wall or surface that extends fully to or past the front door of the refrigerator. For complete door opening, allow at least 14.8 inches between the side of refrigerator and a wall or surface that extends to or past refrigerator front door.

Too small of a distance from adjacent surfaces may

result in lowered freezing capability and increased electricity consumption charges. Provide the following unobstructed clearance for sufficient air flow around the refrigerator:

- At least 2 inches between refrigerator back and wall.

- At least 2 inches between refrigerator top and overhead surface.

49.6"

35.7"

37.5"

30.6"

14.8"

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 11 2020-02-26 오전 11:53:48

REFRIGERATOR INSTALLATION

NOTE:

when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below.

Removing the doors is always recommended

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE:

illustrations on this page.

Use the provided 2.5 mm hex key to loosen the

Handle appearance may vary from the

Removing Refrigerator Handle

2 set screws located on the inside top ends of the handle. Remove the handle from the underlying handle mounting bolts on the door.

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

Set Screw

Mounting Bolts

NOTE:

illustrations on this page.

Place the handle ends onto the handle mounting

Handle appearance may vary from the

Replacing Refrigerator Handle

bolts on the door. Use the 2.5 mm hex key to tighten the 2 set screws to secure the handle in place.

Hex Key

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 12 2020-02-26 오전 11:53:48

REFRIGERATOR INSTALLATION

NOTE:

opening. If it is necessary to remove the handles, follow the directions below.

Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

HOW TO REMOVE PANTRY DRAWER AND FREEZER DRAWER HANDLES

NOTE:

illustrations on this page.

Use the provided 2.5 mm hex key to loosen the

Handle appearance may vary from the

2 set screws located on the inside top ends of the handle. Remove the handle from the underlying handle mounting bolts on the drawer.

HOW TO REPLACE PANTRY DRAWER AND FREEZER DRAWER HANDLES

NOTE:

illustrations on this page.

Handle appearance may vary from the

Mounting Bolts

Place the handle ends onto the handle mounting

bolts on the drawer. Use the 2.5 mm hex key to tighten the 2 set screws to secure the handle in place.

When assembling or disassembling the handles:

• Grasp the handle firmly to ensure it will not drop or

• Prevent the handle from swinging toward nearby

• Insert the handle footprints over the door mounting

• Check for any gap between the door and handle after

: If the handle mounting fasteners need to be

NOTE

tightened or removed, use a ¼ in. Allen wrench.

cause injury.

people or animals.

fasteners and tighten the hex screws to fix the handle in place.

the handle is fixed in place.

WARNING

Set Screw

Hex Key

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 13 2020-02-26 오전 11:53:48

REFRIGERATOR INSTALLATION

REMOVING AND REPLACING REFRIGERATOR DOORS

WARNING

Risk of electric shock!

Before removing top hinge cover

• Shut off the water supply to the appliance.

• Unplug the appliance or switch off power from the breaker or fuse panel.

To remove the left refrigerator door:

Remove top hinge cover using a phillips screwdriver by

removing 5 screws.

Lift the door from the middle hinge pin and remove

the door. Place the door, inside facing up, on a nonscratch surface.

NOTE :

through a narrow door or hallway, remove the left and right door middle hinges. Use a 10mm wrench to loosen and remove the two bolts attaching the hinge to the cabinet.

To remove the right refrigerator door:

If necessary to be able to move the unit

Remove the hinge grounding wire screw and pull the

two grounding wire connections away from the hinge. Disconnect the two wire harnesses and the water tube. Push in the small first ring on the connection collar to remove the tube.

Push In

Using a 10mm box end or socket wrench, turn top

hinge fastener counterclockwise to remove the top hinge plate.

CAUTION:

fall down forward. Hold the door to prevent it from falling.

After the hinge is removed, the door can

Remove top hinge cover using a phillips screwdriver by

removing 5 screws.

Using a 10 mm box end or socket wrench, turn top

hinge fastener counterclockwise to remove the top hinge plate. Disconnect the wire harness.

CAUTION:

fall down forward. Hold the door to prevent it from falling.

After the hinge is removed, the door can

Lift the door from the middle hinge pin and remove

the door. Place the door, inside facing up, on a nonscratch surface.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 14 2020-02-26 오전 11:53:48

REFRIGERATOR INSTALLATION

Reinstalling the Left Refrigerator Door

Lower the door onto the middle hinge.

Fit the top hinge over the mounting holes and align to

proper position before tightening.

Use a 10 mm box end or socket wrench to turn top

hinge fastener to secure the hinge.

Reinstalling the Right Refrigerator Door

Lower the door onto the middle hinge.

Fit the top hinge over the mounting holes and align to

proper position before tightening. Use a 10 mm box end or socket wrench to turn top hinge clockwise to secure the hinge. Securely reconnect the wire harness.

Screw top hinge cover into place with a screwdriver.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 15 2020-02-26 오전 11:53:49

REFRIGERATOR INSTALLATION

HOW TO REMOVE THE FREEZER DRAWER

WARNING

install the freezer drawer. Failure to do so can result in personal injury, product or property damage.

Take out the ice bin first, and then take out the upper

freezer drawer by lifting it up.

Remove lower freezer basket by pulling up and tilting

toward refrigerator until it can be removed from the freezer drawer/door assembly.

Push down on the rail locking tabs while pulling the

freezer drawer outwards to release the inner rail tracks from the cabinet. With the aid of an assistant, continue to pull the drawer outwards until the inner and outer rail tracks are fully extended and the drawer is completely removed from the cabinet.

: Use two or more people to remove and

Pull exterior freezer drawer to fully disengage the rail

assembly from the unit. Use 2 people for this task as the door is heavy and awkward to handle.

CAUTION

replacing the drawer. The handle may come off and it could cause personal injury.

Place the door on a non-scratch surface.

: Do not hold the handle when removing or

Locking Tab

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 16 2020-02-26 오전 11:53:49

REFRIGERATOR INSTALLATION



HOW TO INSTALL THE FREEZER DRAWER

Retract the inner rail track fully into the outer rail track

before installing freezer drawer. With the aid of an assistant, align the rail ends with the rail guides located on the sides of the cabinet. Make sure that the gear teeth are engaged to the rail guides the same amount on both sides.

Fully push in and close freezer drawer to engage rails

with rail support locking tab, applying a bit of pressure after the door is closed to seat the tabs to the rail.

CAUTION

: Make sure the tabs are completely engaged to the rail or the refrigerator drawer could be pulled out of the refrigerator by the user. Fully open the freezer door to check and see if the locking tabs are fully engaged. If they are not engaged, gently push each freezer rail with a flat head screwdriver towards the freezer compartment until the locking tabs snap to the locked position.

Replace the lower freezer drawer basket.

Insert the upper freezer drawer above the lower basket.

Open and close the freezer drawer several times to

make sure operation is smooth and seal is consistent all the way around the freezer compartment.

CAUTION

: Do not hold the handle when removing or replacing the drawer. The handle may come off and could cause personal injury.

This shows that

the tab is not

fully locked

If the tab is not fully engaged,

use a flat screwdriver to push on the rail as shown to allow

the tab to snap into position

This shows that the

tab is fully in the

locked position

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 17 2020-02-26 오전 11:53:50

REFRIGERATOR INSTALLATION

HOW TO REMOVE THE PANTRY DRAWER FRONT

Slide pantry drawer out until it stops. Remove pantry

drawer basket by pulling up and tilting toward refrigerator until can be removed from the pantry drawer assembly.

Pull back on the harness cover locking tab on left back

side of pantry drawer front and remove the harness cover. Push down on tab on top of wire harness to disconnect it.

Use a 10 mm open end or socket wrench to remove

the bolt connecting the rail to each side of the pantry drawer front. Tilt pantry drawer front up and remove from rails. Set pantry drawer front face up on a nonscratch surface.

CAUTION

replacing the pantry drawer. The handle may come off and could cause personal injury.

: Do not hold the handle when removing or

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 18 2020-02-26 오전 11:53:50

REFRIGERATOR INSTALLATION

HOW TO REPLACE THE PANTRY DRAWER FRONT

Extend pantry drawer rails out far enough to reconnect

rail to each side of pantry drawer front. Position pantry drawer front between rails and align each side with attachment hole on rail.

Insert attachment bolts and use a 10 mm open end or

socket wrench to secure the pantry drawer front to the rails.

Reconnect the harness and reassemble the harness

cover.

Slide pantry drawer out until it stops. Replace the

pantry drawer basket.

Open and close the pantry drawer several times to

make sure operation is smooth and seal is consistent all the way around the pantry compartment.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 19 2020-02-26 오전 11:53:50

REFRIGERATOR INSTALLATION

(Pull and rotate the Position Knob)

REFRIGERATOR LEVELING & DOOR ADJUSTMENT

The refrigerator must be level in order to maintain optimal performance and desirable front appearance. (If the floor beneath the refrigerator is uneven, the freezer and refrigerator doors look unbalanced.)

Leveling Refrigerator

Pull open the freezer compartment and remove the

upper drawer and lower drawer basket to gain access.

Using the wrench provided, turn the leveling leg

clockwise to lower and counterclockwise to raise the front corners of the refrigerator.

Rais

ower

Adjusting the freezer drawer

If the freezer drawer is lower on one side than the other, perform the steps listed below to raise that side. To access the adjustment components, first pull the drawer out to full extension. then remove the pullout drawer and the freezer basket.

Loosen the four screws on the rail bracket on the side

where adjustment is needed.

Unscrew and remove Stopper from the lower position

(left picture) and screw Stopper into the upper position (right picture). The stopper will serve as a fixed edge against which to turn the Position Knob to adjust the height of the rail bracket.

Slightly pull the Position Knob forward and firmly

rotate it to a different position, then release the knob back into place. The knob surfaces push against the edge of the stopper ring to vary the height of the rail bracket. The maximum adjustment variance is approximately 1/8 inch.

If the Stopper does not jut out far enough to

Note:

make contact with the Position Knob, insert one or two flat washers beneath the Stopper

Install the lower drawer basket and upper drawer,

then open and close the freezer compartment several times to make sure operation is smooth and without hindrance.

Adjusting a refrigerator door

If the height is uneven, use the wrench provided to turn the screw nut on the middle hinge to adjust the refrigerator door.

To raise a refrigerator door turn the screw

counterclockwise.

To lower a refrigerator door turn the screw clockwise.

Retighten the four rail bracket screws.

Reinsert the freezer basket and pullout drawer.

When inserting the basket, make sure that the tabs at the front of the basket fit into the slots on the freezer drawer rails.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 20 2020-02-26 오전 11:53:51

SETTING THE CONTROLS

USING YOUR REFRIGERATOR

Temperature Control

NOTE:

before making additional adjustments. The controls are set correctly when milk or juice is as cold as you would like and when ice cream is firm. If the temperature in either compartment is too cold or too warm, change the setting one increment at a time. Wait 24 hours for the change to stabilize before adjusting again.

• The refrigerator temperature control is preset to

Freezer Compartment

Push the Freezer button and the temperature setting changes in the sequence as shown below:

When changing control settings, wait 24 hours

37 deg F (3 deg C) and the freezer control is preset to 0 deg F (-18 deg C). These are recommended temperature settings for normal use conditions.

>>> Sequential Temperature Change <<<

Accela Chill Refrigerator function:

To activate refrigerator Accela Chill, press and hold the Refrigerator button for 3 seconds. Accela Chill LED will turn on. Push the button again to cancel.

The Accela Chill function is useful to help quickly cool the refrigerator compartment when needed. For example: If a large quantity of warm food is placed inside the refrigerator, or if loading the refrigerator with new groceries which may not be as cold as normal refrigerator temperatures.

Accela Chill refrigerator function will automatically cancel (Accela Chill LED will turn off) after 6 hours

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When Demo Mode is active, the icons for the various refrigerator functions will light up in sequence across the face of the panel.

Accela Chill Freezer function:

To activate freezer Accela Chill, press and hold the Freezer button for 3 seconds. Accela Chill LED will turn on. Push the button again to cancel.

The Accela Chill function is useful to help quickly chill the freezer compartment when needed. For example: If a large quantity of warm food is placed inside the freezer, or if loading the freezer with new groceries which may not be as cold as normal freezer temperatures.

Accela Chill will automatically cancel (Accela Chill LED will turn off) after 50 hours.

Refrigerator Compartment

Push the Refrigerator button and the temperature setting changes in the sequence as shown below:

>>> Sequential Temperature Change <<<

To activate:

Push and hold Control Lock button for 3 seconds to

lock control panel. The Locked icon will appear on the Dispenser panel on the left refrigerator door.

While pressing and holding the Water Filter and

Dispenser Display buttons, press the Refrigerator Temp button 5 times. Continue to press and hold the Water Filter and Dispenser Light buttons for 5 more seconds to start Demo Mode sequence and disable cooling functions.

To deactivate:

While pressing and holding the Water Filter and

Dispenser Display buttons, press the Refrigerator Temp button 5 times to stop Demo Mode sequence and enable cooling functions.

Push and hold Control Lock button for 3 seconds to

unlock control panel. The Locked icon will disappear.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 21 2020-02-26 오전 11:53:51

Control Panel

USING YOUR REFRIGERATOR

1. Water Filter

When the Filter Change icon turns on, you need to

change the water filter.

After changing the water filter, press and hold the

Water Filter button for three seconds to turn the indicator light off. You need to change the water filter approximately every six months.

2. Ice Maker

Press to turn the Ice maker on or off. (On is default

setting.)

Press and hold the Ice maker button for 3 seconds to

turn the Accela Ice on.

This function increases icemaking capabilities for

24 hours.

3. Dispenser Display

With Dispenser Display button off and one dispenser

icon on (dim):

Press button once: button reads ICON, three dispenser

icons on (active function bright, two inactive functions dim), dispenser light off

Press button twice: button reads LIGHT, one dispenser

icon on (active function bright), dispenser light on

Press button three times: button reads ICON and

LIGHT; three dispenser icons on (active function bright, inactive functions dim), dispenser light on

Press button four times: return to button light off, one

dispenser icon on (dim)

4. Freezer Temp

Selection button for freezer compartment temperature. Press and hold the Freezer Temp button for 3 seconds

to turn The Accela Chill mode on.

6. Door Alarm

When power is connected to the refrigerator, the door

alarm will always be functional. Pressing the Door Alarm button will not deactivate the alarm function. Any time that the refrigerator door or freezer drawer remains open for more than 60 seconds, the Door Alarm button LED illuminutes and an alarm tone of 5 double beeps sounds to alert you of the open status. The 5 double beeps will sound every 60 seconds while the door remains open.

Pressing the Door Alarm button or closing the door or

drawer will turn the tone off. Pressing the Door Alarm button will not turn off the LED. The LED will remain lit until you close the door or drawer.

7. Control Lock

Press and hold the Control Lock button for 3 seconds to

turn the Control Lock on.

8. Smart Grid

Press to turn the Smart Grid on or off. Press and hold the Smart Grid button for 5 seconds to

turn Wi-Fi on or off.

9. Air Filter

When the Air Change icon turns on, you need to

change the Air filter.

After changing the Air filter, press and hold the Air

Filter button for three seconds to turn the indicator light off. You need to change the Air Filter approximately every six months.

10. Temperature Mode Switch Function (°F ↔°C)

If you want to convert °F to °C or vice Versa:

1. Press and hold the Control Lock button for

5. Refrigerator Temp

Selection button for Refrigerator Temp compartment

temperature.

Press and hold the Refrigerator Temp button for

3 seconds to turn The Accela Chill mode on.

2. Press and hold Freezer Temp and Refrigerator

NOTE:

3 seconds. The lock icon will illuminate.

Temp buttons at same time for 5 seconds until temperature mode changes.

If the lock icon is illuminated after performing this

function, press and hold Lock button for 3 seconds to turn control lock OFF.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 22 2020-02-26 오전 11:53:51

SMART FEATURES

USING YOUR REFRIGERATOR

OVERVIEW

Kenmore Smart connectivity transforms your relationship with your home. You can personalize the way Kenmore Smart products operate based on your schedule and daily routines, making life easier and providing greater peace of mind. It does this by letting you link with and manage your Kenmore Smart products on one app, all from trusted brands, from a smart phone, tablet or computer.

This appliance is a connected-ready appliance, allowing you to remotely monitor and control it from your smart phone via the Kenmore® Smart app. To get started, you will need the following:

• Kenmore Elite® Smart Appliance

• WI-FI home router connected to the internet

• Smart phone

• Kenmore Smart app For more information about your Kenmore Elite® Smart appliance, please visit www.Kenmore.com/smart.

The Smart Grid function controls energy usage which helps you save energy during peak usage periods. You can override the SMART GRID function at any time (using the Smart Grid button or application).

Smart Grid responds to notification events from your utility company to run high energy-consuming tasks only during off-peak times when electrical demand is lower. These notification events are known as Demand Response (DR) signals. If the refrigerator receives a DR signal from the utility company, the refrigerator will turn on the GRID MODE LED on the refrigerator control panel and regulate power consumption according to the signal received. The refrigerator will respond to the signals received from the utility company as long as the appliance is connected to the internet and Smart Grid is enabled.

DEFINITIONS SMART LED (blue):

Notifies the user that the appliance is connected to the internet.

Smart Grid LED (white):

Notifies the user that the appliance is capable of receiving a signal, known as a Demand Response event, from a utility company’s energy management system.

GRID MODE LED (red):

Notifies the user that the appliance is reducing or delaying energy use based on the signal received from a utility company energy management system. The LED will remain illuminated during critical peak pricing (CPP) and real time pricing (RTP) or during a high demand for electricity.

GETTING CONNECTED

You need the following devices and application to use the Smart Grid and other smart features on your refrigerator. Required Devices: A wireless router, Kenmore Elite Smart Refrigerator, and a mobile device. Required Application: Kenmore Smart App.

CONNECTING THE REFRIGERATOR

Refer to the Quick Start Guide that came with your smart appliance for detailed instructions on creating a Kenmore account and setting up the appliance for connected operation from your mobile device. For additional assistance, visit http://www.kenmore.com/smart

NOTE:

When successfully connected to the internet, the

SMART icon LED on the unit control panel will turn ON.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 23 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

INSTRUCTIONS FOR SMART GRID

IMPORTANT:

You must connect your Kenmore Smart appliance to the internet and then register the appliance to your account in order to use the Smart Grid function.

Consult the Quick Start Guide supplied with the appliance for instructions on how to register your appliance using the Kenmore application (app).

The Smart Grid Button serves two purposes:

1) internet connection or disconnection, 2) enable or disable/override the appliance Demand Response capability.

NOTE:

allowing you to remotely monitor and control it from your smart phone via the Kenmore® Smart app.

To connect the refrigerator to the Internet: Refer to the Quick Start Guide that came with your smart appliance for detailed instructions on creating a Kenmore account and setting up your appliance for connected operation from your smart phone. This Use & Care Guide contains information and instructions for operating your appliance from the appliance control panel. For additional assistance, visit http://www.kenmore.com/ smart

This appliance is a connected-ready appliance,

Smart Grid Operation: Once connected and registered, the appliance is capable of accepting a signal from your electrical company. The signal, known as a Demand Response (DR), will adjust refrigerator operation to reduce power consumption for a period of time ranging from a few minutes up to a maximum of 4 hours. Ice making will be delayed during this time. Opening the refrigerator door may cancel certain DR signals.

The Grid Mode LED (red) will be steadily lit when the signal is in effect. To disable the signal and prevent further signal acceptance, press and release the Smart Grid button. Both the Grid Mode and Smart Grid LED will turn off. Press and release the Smart Grid button again to enable DR signal acceptance capability. The Smart Grid button LED will relight. The Grid Mode LED will light when another DR signal is sent.

NOTE:

blinking SMART GRID button LED will turn off.

If no connection is made after ten minutes, the

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 24 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

FCC notice (for transmitter module contained in this product)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

− Reorientorrelocatethereceivingantenna.

− Increasetheseparationbetweentheequipmentand

the receiver.

− Connecttheequipmenttoanoutletonacircuit

different from that to which the receiver is connected.

− Consultthedealeroranexperiencedradio/TV

technician for help.

FCC rf radiation exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Wireless LAN Module Specications

Model LCW-004

Frequency Range 2412 to 2462 MHz

Output Power (Max) < 30 dBm

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference and

2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Open source software notice

To obtain the source code that is contained in this product under LGPL and other open source licenses, visit http:// kenmore.com/opensource. In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 25 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

Pantry Control Panel

Press the Select button and the Temperature setting changes in the sequence as shown below :

>>> Sequential Temperature Change <<<



Press and hold the Lock button for 3 seconds to turn the Control Lock on. The Lock Icon turns on.

Press and hold the Lock button for 3 seconds to turn the Control Lock off.



Dispenser Control Panel

Touch the Water, Cube Ice or Crushed Ice Icon according to your needs.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 26 2020-02-26 오전 11:53:52

ICEMAKER

USING YOUR REFRIGERATOR

Turning on the icemaker

Whenever the refrigerator is plugged in after being unplugged, icemaking is automatically set to On. To turn icemaking Off or On, see the instructions in Shutting icemaking off.

NOTE:

panel, if an icemaker stops production because the ice bin becomes full, production will resume operation once the ice bin is cleared of ice.

As long as icemaking is turned On in the control

Dispenser Icemaker Alternate On/Off

The dispenser icemaker is equipped with an On/Off button in the Inner Control Panel. You may turn the icemaker On or Off by pressing the button. When turned On, the indicator light next to the button will illuminate.

In case the icemaker doesn’t work

• Did you wait for 24 hours after installation of the water

supply line before making ice?

• Is the water line connected and the shut-off valve

opened?

• Did you manually stop the icemaking function?

• Is the freezer temperature too warm? Try setting the

freezer temperature lower.

Shutting icemaking off

Important !

If you do not intend to use any ice cubes for longer than one week (e.g. because you are going on holiday), shut off icemaking for that period to prevent ice cubes from freezing together.

To turn icemaker ON or OFF: Press the control panel

Ice Maker button. ON or OFF illuminates in the control panel display.

Empty and clean the ice cube bin.

To remove ice bin from dispenser icemaker, grasp front

of ice bin and pull forward.

NOTE:

bin for ease of bin removal.

Return the ice cube bin into position.

NOTE:

icemaker is turned off.

There is a handle in front of the dispenser ice

The ice bin should be emptied any time the

In case of power failure

In the event of a lengthy power failure, remove ice cubes in the storage bin as the ice may melt and flow down to the ice dispenser and leak out. Place bin back in the icemaker assembly.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 27 2020-02-26 오전 11:53:52

ICEMAKER (continued)

USING YOUR REFRIGERATOR

CAUTION

• The first ice and water dispensed may include particles or odor from the water supply line or the water tank.

• Throw away the first few batches of ice. This is also necessary if the refrigerator has not been used for a long time.

• Never store beverage cans or other items in the ice bin for the purpose of rapid cooling. Doing so may damage the icemaker or the containers may burst.

• If discolored ice is dispensed, check the water filter and water supply. If the problem continues, contact a Sears or other qualified service center. Do not use the ice or water until the problem is corrected.

• Keep children away from the dispenser. Children may play with or damage the controls.

• The ice passage may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice can also help prevent frost buildup.

• Never use thin crystal glass or crockery to collect ice. Such containers may chip or break resulting in glass fragments in the ice.

• Dispense ice into a glass before filling it with water or other beverages. Splashing may occur if ice is dispensed into a glass that already contains liquid.

WHEN TO SET ICEMAKER TO OFF

• When the water supply will be shut off for several hours.

• When the ice bin is removed for more than one or two minutes.

• When the refrigerator will not be used for several days.

NOTE:

icemaker is turned off.

The ice bin should be emptied any time the

PREPARING FOR VACATION

Press the refrigerator control panel Ice Maker button to read OFF. Shut off the water supply to the refrigerator.

To turn icemaker ON or OFF: Press the control panel Ice Maker button. ON or OFF illuminates in the control panel display.

NOTE:

icemaker is turned off.

If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

The ice bin should be emptied any time the

• Never use a glass that is exceptionally narrow or deep. Ice may jam in the ice passage and refrigerator performance may be affected.

• Keep the glass at a proper distance from the ice outlet. A glass held too close to the outlet may prevent ice from dispensing.

• To avoid personal injury, keep hands out of the ice door and passage.

• Never remove the dispenser cover.

• If ice or water dispenses unexpectedly, turn off the water supply and contact Sears Home Services at 1-844-469-6667.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 28 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

How to use the Automatic Icemaker

The dispenser icemaker will produce 12 cubes per cycle.

• The dispenser icemaker will produce approximately 216 - 288 cubes (20 - 24 cycles a day) in a 24 hour period, depending on freezer compartment temperature, room temperature, number of door opening and other user conditions.

• It is normal for the icemaker to make banging sounds when the ice cubes are falling into the ice storage bin

• To prevent bad odor smell, regularly clean the ice cube storage bin.

• If the amount of ice in the storage bin is not sufficient, the ice may not be dispensed. Wait a day or so to make more ice.

• If the ice does not dispense easily, ensure the dispenser outlet is not blocked.

• Throw away the first few batches of ice to allow the water line to clear. Be sure nothing interferes with the level of the optical sensor space at the dispenser icemaker base.

Optical Sensor Space

Dispenser Icemaker

Icemaking will stop when the dispenser ice bin fills to the level of the optical sensor, or when the freezer ice bin fills and pushes the shutoff arm all the way up. Clear the bin of excessive ice. If you remove bin for clearing, return bin correctly into place. Icemaking will resume after the ice bin is cleared to below the optical sensor in the dispenser icemaker, or cleared to allow the shutoff arm to lower in the freezer icemaker.

It is normal for several ice cubes to be joined together. If ice is not used frequently, old ice cubes will become shrunken, cloudy and taste stale. If you won't use ice frequently, shut icemaking off.

To shut icemaker off, press the Ice Maker pad on the refrigerator main control panel so that OFF illuminates in the panel display.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 29 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Items How to

Butter or margarine

Cheese

Milk

Eggs

Fruit

Leafy vegetables

Vegetables with skins

(carrots,

peppers)

Fish

Keep opened butter in a covered



dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Store in the original wrapping



until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Wipe milk cartons. For best



storage, place milk on interior shelf, not on door shelf.

Store in original carton on interior



shelf, not on door shelf.

Do not wash or hull the fruit



until it is ready to be used. Sort and keep fruit in its original container, in a crisper, or store in a completely closed paper bag on a refrigerator shelf.

Remove store wrapping and trim



or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.

Place in plastic bags or plastic



container and store in crisper.

Store fresh fish and shellfish in



the freezer section if they are not being consumed the same day of purchase. It is recommended to consume fresh fish and shellfish the same day purchased.

STORING FROZEN FOOD

NOTE:

further information about preparing food for freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE:

for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags Follow package or container instructions for proper freezing methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

Check a freezer guide or a reliable cookbook for

Allow hot foods to cool at room temperature

CAUTION

food containers in the freezer compartment. They may break or burst if they freeze.

: Do not keep beverage cans or plastic

Leftovers

Cover leftovers with plastic wrap



or aluminum foil, or store in plastic containers with tight lids.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 30 2020-02-26 오전 11:53:52

REFRIGERATOR SECTION

USING YOUR REFRIGERATOR

WATER OR ICE DISPENSER

To dispense water or ice, press the Water, Cube Ice or Crushed Ice icon on the Dispenser Control panel. Push on the dispenser lever with the side of your glass. To avoid spills when dispensing water, make sure to place the brim of the glass close beneath the water spout, which is located to the back of the dispenser.

NOTE:

The dispenser is equipped with a light that turns on when the dispenser lever is pressed, and the Dispenser Light Icon is turned on.

Water Sprout

Water & Ice Dispenser

NOTE:

Switch

Some ice may drop outside of cup during Ice

Inner Control Panel

dispensing. Slowly remove glass from dispenser Lever before full to help prevent ice spillage. A few uncrushed ice cubes may mix in with Crushed Ice when you dispense Crushed Ice.

Foldaway door bar (mullion bar)

- When closing the left refrigerator door, the mullion bar folds behind the right refrigerator door, forming a seal between the refrigerator doors.

- When opening the left refrigerator door, the mullion bar folds back to the left door automatically.

Opening: Mullion bar

folds back

Closing: Mullion bar folds

to right

- The mullion bar may become damaged upon closing if it has been extended to the right while the door left door is open.

CAUTION

: Before closing the left refrigerator door, make sure the mullion bar is folded back to the left door position or product damage may result.

WARNING

: Do not put your fingers up the ice chute

opening. Doing so can result in severe injury.

CAUTION

: Do not dispense ice into fine china or

crystal glasses. China or crystal can break.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 31 2020-02-26 오전 11:53:52

USING YOUR REFRIGERATOR

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Adjusting the shelves to fit different heights of items will make finding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy.

IMPORTANT:

while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

CAUTION

when removing them.

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace shelves in the position you want.

To remove a shelf

hand and with other hand push up on back of shelf to release attachment hooks from attachment slots. Pull the shelf out.

Do not clean glass shelves with warm water

: Glass shelves are heavy. Use special care

: Lift up on front of shelf with one

Slide-in Glass Shelf

To create space for tall item storage, grasp edge of front half of shelf and slide down and under the back half of shelf.

REMOVABLE CONVENIENCE BINS

Store small amounts of fresh food or leftovers in the two convenience bins recessed into the front of the refrigerator compartment. You can remove the covered bins for use outside of the refrigerator.

To remove bin :

1. Remove lid to access bin.

2. Lift bin out of its recsssed space.

To reinstall a shelf:

up, engage hooks on back of shelf into attachment slots, and then lower front of shelf into place.

With front of shelf angled slightly

CAUTION

side to the other. Failure to do so may result in the shelf falling or spilling food.

: Make sure that shelves are level from one

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 32 2020-02-26 오전 11:53:53

USING YOUR REFRIGERATOR

HUMIDITY CONTROLLED CRISPER

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture sealed crispers crispers by adjusting the control to any setting between

- Slide the Humidity Control toward “hi” to keep moist air in crisper for best storage of fresh, leafy vegetables.

- Slide the Humidity Control toward “lo” to release moist air from crisper for best storage of fruit.

VEGETABLES

and

FRUIT

REMOVING THE HUMIDITY CONTROLLED CRISPER

DOOR BIN

The door bins are removable for easy cleaning and adjustment.

To remove the bin, simply lift the bin up and pull

straight out. To replace the bin, slide it in above the desired support

and push down until it snaps into place.

NOTE:

only fit in one location.

CAUTION

into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.

Some bins may vary in appearance and will

: Do not overfill or pack items too tightly

To remove, pull the drawer

out to full extension.

Lift the front of the crisper

up, then pull it straight out.

To install, slightly tilt up the front, insert the drawer into

the frame and push it back into place.

TEMPERATURE CONTROLLED PANTRY DRAWER

The Temperature Controlled Pantry Drawer provides storage space with a variable temperature control that can keep the compartment colder than the refrigerator section. This drawer can be used for large party trays, deli items, and beverages. (This drawer should not be used for vegetables that require high humidity).

Press Select button to choose between Meat & Seafood, Cold Drinks, Deli Snacks or Chilled Wine.

FREEZER SECTION

PULLOUT FREEZER DRAWER

To remove, pull the freezer

drawer out to full extension. Lift out the ice bin if present. Tilt the front of the pullout freezer drawer up and then lift drawer out.

CAUTION

of the bottom of the freezer drawer when opening and closing.

To replace, hold pullout freezer drawer with back

angled down. Insert the back rollers over the front edge of the runers built into the sides of the freezer cabinet. Slide the drawer back and into place. Fit ice bin back into pullout freezer drawer.

: Pinch hazard! Keep hands and feet clear

WARNING

is enough room in the lower freezer drawer for a child or pet to crawl inside. To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow children or pets to touch or go near the lower freezer drawer.

: When the pullout drawer is removed, there

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 33 2020-02-26 오전 11:53:54

CONNECTING THE WATER LINE

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding. Call a qualified plumber to correct water hamme

CAUTION

only connect the refrigerator water line to a cold water supply.

IMPORTANT:

connecting the water line, make sure the icemaker is turned OFF at the control panel.

CAUTION

where temperatures fall below freezing.

: To prevent burns and product damage,

If you use your refrigerator before

: Do not install the icemaker tubing in areas

WATER PRESSURE

The water pressure must be from 30 to 125 psi or 207-862 kPa or 2.1-8.8 kgf/cm an area with low water pressure “below 30 psi”, you can install a booster pump to compensate for the low pressure.

. If the refrigerator is installed in

WATER SUPPLY KIT

* Connecting the water line to the refrigerator.

(Necessary parts are available at local service agents.)

Connect water line to the compression fitting.

- If you are using copper tubing (not supplied), slip the compression nut (not supplied) and ferrule (not supplied) on copper tubing.

- If you are using plastic tubing (not supplied), insert the molded ending of the plastic tubing into the compression fitting.

Tighten the compression nut onto the compression

fitting. Turn the water on and check for any leakage.

WARNING

To reduce the risk associated with ingestion of contaminants: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. EPA Establishment Number 10350-MN-005

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 34 2020-02-26 오전 11:53:54

WATER FILTER

Installation

Turn off the water supply to the refrigerator. Dispense

✳

water for 3 seconds to prevent water drops from falling while installing filter.

The water filter is located in

the top of the refrigerator compartment. Pull the water filter cover toward you and down.

Remove the locking cap by turning 1/2

counterclockwise. Save locking cap for possible future use. Always install locking cap if no filter is in place.

Insert water filter and rotate

clockwise 1/2 turn to secure in place. Raise the water filter cover and slide back into place.

Before proceeding, use a cloth

to wipe up any water droplets that may have fallen.

Dispense water over the course of 5 minutes in cycles

of 30 seconds ON and 60 seconds OFF. Do not dispense water continuously for 5 minutes.

NOTE :

Perform this step each time a new water filter

is installed.

✳ One filter is supplied with the refrigerator.

A replacement filter can be purchased at a Sears store or by calling 1-844-553-6667.

Information concerning the water  lter

- After use, the water system is subject to low pressure.

Proceed with caution when removing the filter. Dispenser water 1-3 seconds before water filter change to prevent water drops from falling.

Flush the water system if the appliance has not been in use for a long period of time, or if the ice/water has an unpleasant taste or smell. To do this, dispense water through the water dispenser for several minutes. If the unpleasant taste or smell remains, replace the filter.

To protect from frost, remove the filter cartridge if you expect the temperature to drop below freezing.

- If pressure surges could occur in the water pipe, do not

install the water filter without a suitable surge eliminator. Contact an installation expert if you are not sure whether pressure surges could occur in the water pipe.

- After installing a new filter : Discard any ice produced

in the first 24 hours after switching on.

- If no ice has been removed for a long period of time,

empty the ice cube bin and discard any ice produced over the next 24 hours.

WARNING

Air Filter

ACCELA CHILL ACCELA CHILL

ACCELA CHILL

HOLD 3 SEC

CLOSEOPEN

NOTE:

Air Filter should be changed every 6 months.

Rotate filter cover

counterclockwise about 15 degrees to release from underlying duct cover. Pull filter cover toward you to remove. Slide used filter up out of back

of filter cover. Slide new filter down into back of filter cover.

Align filter cover at about

a 15 degree angle to duct cover. Push filter cover down onto duct cover and rotate clockwise to secure. After changing the water filter

or air filter, be sure to press the Water Filter or Air Filter button for 3 seconds turn indicator light off.

Replacing the water filter at same time as air filter is recommended.

CAUTION

To reduce the risk associated with property damage due to water leakage:

•

Read and follow

the Water Filter instructions before

installation and use of this system.

• Installation and use

comply with all state and

MUST

local plumbing codes.

•

Do not

install if water pressure exceeds 125 psi (862 kPa). Contact a plumbing professional if you are uncertain of how to check your water pressure.

•

Do not

install where water hammer conditions may occur. If water hammer conditions exist, you must install a water hammer arrester. Contact a plumbing professional if you are uncertain of how to check for this condition.

•

Do not

install on hot water supply lines. The maximum operating water temperature of this water filter system is 100°F (38°C).

•

Protect water  lter from freezing

. Do not operate refrigerator in ambient conditions below 55°F (12.7°C). Drain water filter when storing unit in temperatures below 40°F (4.4°C).

• The disposable water filter must be replaced every six months, at the rated capacity, or if a noticeable reduction in flow rate occurs.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 35 2020-02-26 오전 11:53:57

CARE AND CLEANING

ACCELA CHILL ACCELA CHILL

ACCELA CHILL

HOLD 3 SEC

CLOSEOPEN

Slim IceMaker

1. Water Dispenser

• Clean the water collecting tray with a sponge or absorbent cloth.

2. Ice Storage Bin

• Removing: Pull out and remove the ice cube bin. Make sure the refrigerator door is open completely before pulling out the ice cube bin.

• Replacing: Push the ice cube bin all the way back onto the supports until it locks into position. If the bin cannot be pushed all the way back, rotate the ice auger a quarter turn and insert again. Make sure the refrigerator door is open completely before replacing the ice cube bin.

3. Freezer & Refrigerator Bins

• Hold both ends and pull up.

4. Refrigerator Shelves

To remove a shelf: Lift up

on front of shelf with one hand and with other hand push up on back of shelf

to release attachment hooks from attachment slots. Pull the shelf out.

To reinstall a shelf: With

front of shelf angled slightly up, engage hooks on back of shelf into attachment slots, and then lower front of shelf into place.

CAUTION

: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 36 2020-02-26 오전 11:53:59

CARE AND CLEANING

LIGHT BULB REPLACEMENT

WARNING

Electrical Shock Hazard

Before replacing a Compartment Lamp, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE:

lights have LED interior lighting, and service should be performed by a qualified technician.

POWER INTERRUPTIONS

The refrigerator and freezer compartment

If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and frozen.

If the power will be out for more than 24 hours,

remove all frozen food and store it in a frozen food locker.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

Remove all food from the refrigerator and pack all

frozen food in dry ice.

Unplug the refrigerator.

Clean, wipe and dry thoroughly.

Take out all removable parts, wrap them well and tape

them together so they do not shift and rattle during the move. Refer to the removing instructions.

Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and refer to the preparation instructions.

Using your Refrigerator

Refrigerator Installation

section for

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away,

before you leave.

Use up any perishables and freeze other items.

Turn off the icemaker and empty the ice bin.

If you choose to turn the refrigerator off before you

leave,

Remove all food from the refrigerator.

Clean the refrigerator, wipe it and dry well.

Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This stops odor and mold from building up.

follow these steps to prepare your refrigerator

follow these steps.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 37 2020-02-26 오전 11:53:59

COOLING

Problem Possible Causes Solutions

Refrigerator and Freezer section are not cooling.

Cooling System runs too much.

TROUBLESHOOTING GUIDE

Power cord unplugged. Plug into a known properly grounded 3-prong outlet. Refrigerator is set to demo mode. Demo Mode allows the lights and control display to work

normally while disabling cooling to save energy while on the showroom floor. Refer to the Setting the Controls section for instructions on how to disable Demo Mode.

Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each

compartment may raise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Refrigerator was recently relocated. If the refrigerator was stored for a long period of time or

moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Refrigerator is replacing an older model.

Refrigerator was recently plugged in or power restored.

Door opened often or a large amount of food / hot food was added.

Doors are not closed completely. Firmly push the doors shut. If they will not shut all the

Refrigerator is installed in a hot location.

Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the

Modern refrigerators require more operating time but use less energy due to more efficient technology.

The refrigerator will take up to 24 hours to cool completely.

Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)

way, see the Doors will not close completely or pop open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions. At normal room temperatures (70°F) expect your compressor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110°F.

condenser cover and vents. Do not remove the panel covering the condenser coil area.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 38 2020-02-26 오전 11:53:59

Problem Possible Causes Solutions

Refrigerator or Freezer section is too warm.

Interior moisture buildup.

TROUBLESHOOTING GUIDE

COOLING

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Doors are opened often or for long periods of time.

Unit is installed in a hot location. The refrigerator should not be operated in temperatures

A large amount of food or hot food was added to either compartment.

Doors not closed correctly. See the Doors will not close correctly or pop open

Temperature control is not set correctly.

Defrost cycle has recently completed. During the defrost cycle, the temperature of each

Doors are opened often or for long periods of time.

Doors not closed correctly. See the Doors will not close correctly section in the

Weather is humid. Humid weather allows additional moisture to enter the

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.

above 110F. Adding food warms the compartment requiring the

cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.

section in Parts & Features Troubleshooting If the temperature is too warm, adjust the control one

increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.

compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Troubleshooting section.

compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.

Defrost cycle recently completed. During the defrost cycle, the temperature of each

compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.

Food is not packaged correctly. Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 39 2020-02-26 오전 11:53:59

COOLING/ICE & WATER

Problem Possible Causes Solutions

Food is freezing in the refrigerator compartment.

Frost or ice crystals form on frozen food (outside of package).

Refrigerator or Freezer section is too cold.

Frost or ice crystals on frozen food (inside of sealed package).

Icemaker is not making enough ice.

TROUBLESHOOTING GUIDE

Food with high water content was placed near an air vent.

Refrigerator temperature control is set incorrectly.

Refrigerator is installed in a cold location.

Door is opened frequently or for long periods of time.

Door is not closing properly. Refer to the Doors will not close correctly or pop open

Incorrect temperature control settings. If the temperature is too cold, adjust the control one

Condensation from food with a high water content has frozen inside of the food package.

Food has been left in the freezer for a long period of time.

Demand exceeds ice storage capacity.

House water supply is not connected, valve is not turned on fully, or valve is clogged.

Water filter has been exhausted. It is recommended that you replace the water filter:

Low house water supply pressure.

Reverse Osmosis filtration system is used.

Rearrange items with high water content away from air vents.

If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.

When the refrigerator is operated in temperature below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55°F (13°C).

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.

section in the Troubleshooting section.

increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls sect;ion for more information.

This is normal for food items with a high water content.

Do not store food items with high water content in the freezer for a long period of time.

The dispenser icemaker will produce approximately 216-288 cubes in a 24 hour period.

Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open.

If the problem persists, it may be necessary to contact a plumber.

Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

NOTE:

The water pressure must be from 30 to 125 psi or 207-862 kPa or 2.1-8.8 kgf/cm². If the refrigerator is installed in an area with low water pressure below 30 psi, you can install a booster pump to compensate for the low pressure.

If the problem persists, it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 40 2020-02-26 오전 11:53:59

TROUBLESHOOTING GUIDE

ICE & WATER

Problem Possible Causes Solutions

Icemaker is not making enough ice (continued).

Dispensing water slowly.

Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors

Tubing connecting refrigerator to house supply valve is kinked.

Doors are opened often or for long periods of time.

Doors are not closed completely. If the doors are not properly closed, ice production

The temperature setting for the freezer is too warm.

Water filter has been exhausted. It is recommended that you replace the water filter:

Low house water supply pressure.

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.

If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.

will be affected. See the Doors will not close completely or pop open section in Parts & Features Troubleshooting for more information.

The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer, ice production will be affected.

Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

NOTE:

If the problem persists, it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.

are left open.

Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes

to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/sticking together. If they are, break up the ice cubes to allow for proper operation.

The delivery chute is clogged with frost or ice fragments.

The dispenser display is locked. Press and hold the Lock button for three seconds to

Ice bin is empty. It may take up to 24 hours for each compartment to

Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup.

unlock the control panel and dispenser.

reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/ sensor) is not obstructed.

Once the ice supply in the bin has been completely exhausted, it my take up to 90 minutes before additional ice is available, and approximately 24 hours to completely refill the bin.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 41 2020-02-26 오전 11:53:59

TROUBLESHOOTING GUIDE

ICE & WATER

Problem Possible Causes Solutions

Icemaker is not making ice.

Not dispensing water. New installation or water line recently

Refrigerator was recently installed or icemaker recently connected.

Icemaker not turned on. Locate the icemaker on/of button and confirm that

The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on.

Icemaker shutoff

1. Dispenser icemaker optical sensor is blocked by ice.

2. Freezer icemaker shutoff arm is

pushed all the way up by ice.

connected.

The dispenser panel is locked. Press and hold the Lock button for three seconds to

The dispenser is not set for water dispensing.

Refrigerator or freezer doors are not closed properly.

Water filter has been recently removed or replaced.

Tubing connecting refrigerator to house supply valve is kinked.

It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.

it is turned ON. Connect refrigerator to the water supply and turn the

water shutoff valve fully open.

1. Remove enough ice from bin so that the optical sensing space is not blocked.

2. Remove enough ice from bin to allow shutoff arm to

lower from shutoff position.

Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

unlock the control panel and dispenser. On the control panel press the Water button.

Water will not dispense if any of the refrigerator doors are left open.

After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.

The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.

Connect refrigerator to the water supply and turn the water shutoff valve fully open.

If the problem persists, it may be necessary to contact a plumber.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 42 2020-02-26 오전 11:53:59

Problem Possible Causes Solutions

Ice has bad taste or odor.

Dispensing warm water.

TROUBLESHOOTING GUIDE

ICE & WATER

Water supply contains minerals such as sulfur.

Icemaker was recently installed. Discard the first few batches of ice to avoid discolored

Ice has been stored for too long. Ice that has been stored for too long will shrink,

The food has not been stored properly in either compartment.

The interior of the refrigerator needs to be cleaned.

The ice storage bin needs to be cleaned.

Refrigerator was recently installed. Allow 24 hours after installation for the water storage

The water dispenser has been used recently and the storage tank was exhausted.

Dispenser has not been used for several hours.

Refrigerator is connected to the hot water supply.

A water filter may need to be installed to eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.

or bad tasting ice.

become cloudy, and may develop a stale taste. Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.

See the Care and Cleaning section for more information.

Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it.

tank to cool completely. Depending on your specific model, the water storage

capacity will range from approximately 20 to 30 oz.

If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10 oz.

Make sure that the refrigerator is connected to a cold water pipe.

Water has bad taste or odor.

WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker.

Water supply contains minerals such as sulfur.

Water filter has been exhausted. It is recommended that you replace the water filter:

Refrigerator was recently installed. Dispense 2.5 gallons of water (flush for approximately

A water filter may need to be installed to eliminate taste and odor problems.

Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 43 2020-02-26 오전 11:53:59

TROUBLESHOOTING GUIDE

NOISE

Problem Possible Causes Solutions

Clicking The defrost control will click when

the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.

Rattling

Whooshing Evaporator fan motor is circulating

Gurgling

Popping

Sizzling

Vibrating

Dripping Water running into the drain pan

Pulsating or HighPitched Sound

Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.

Refrigerator is not resting solidly on the floor.

Refrigerator with linear compressor was jarred while running.

air through the refrigerator and freezer compartments.

Air is being forced over the condenser by the condenser fan.

Refrigerant flowing through the cooling system.

Contraction and expansion of the inside walls due to changes in temperature.

Water dripping on the defrost heater during a defrost cycle.

If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.

during the defrost cycle. Your refrigerator is designed to run

more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or highpitched sound.

Normal Operation

Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.

Normal Operation

To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.

Normal Operation

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 44 2020-02-26 오전 11:53:59

Problem Possible Causes Solutions

Doors will not close correctly or pop open.

Doors are difficult to open.

Refrigerator wobbles or seems unstable.

Lights do not work.

The interior of the refrigerator is covered with dust or soot.

The refrigerator compartment has an unpleasant odor.

TROUBLESHOOTING GUIDE

PARTS & FEATURES

Food packages are blocking the door open.

Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.

The doors were removed during product installation and not properly replaced.

Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation

The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.

Door was recently closed. When you open the door, warmer air enters the

Leveling legs are not adjusted properly.

Floor is not level. It may be necessary to add shims under the leveling

LED interior lighting failure. The refrigerator compartment lamp is LED interior

The refrigerator is located near a fire source, such as a fireplace, chimney or candle.

1. Food may be producing unpleasant odor.

2. The Air Filter may need to be

replaced.

Rearrange food containers to clear the door and door shelves.

Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section for more information.

Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.

section to level refrigerator.

Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.

refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.

Refer to the Leveling and Door Alignment section.

legs or rollers to complete installation.

lighting, and service should be performed by a qualified technician. Refer to the Light Bulb Replacement section.

Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.

1. Remove odor producing food. Place box of baking soda in refrigerator compartment to absorb odors.

2. To replace, see Air Filter information in WATER FILTER

section of this Use & Care Guide.

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 45 2020-02-26 오전 11:53:59

Kenmore ®

Customer Care Hotline

To schedule in-home repair service

or order replacement parts

Para pedir servicio de reparación

a domicilio, y ordenar piezas

1-844-553-6667

www. kenmore. com

FDR 30Cuft_UCG(영+스)(Kenmore)_F840-1.indd 90 2020-02-26 오전 11:54:11

Kenmore Elite 11172692910, 11172695910, 11172697910, 11172699910 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
