Kenmore ULTRASOFT 250 625.38826, ULTRASOFT 250 625.38827, UltraSoft 250, 625.388260, UltraSoft 275 Owner's Manual

...
OWNER'S
MANUAL
MODEL NOS.
UltraSoft 250
625.388260
UltraSoft 275
625.388270
Caution:
All Safety Rules and Operating Instructions
Before First Use of
This Product.
If you have questions when installing, operating or main- taining your softener, and when setting the timer, call
this toll-free number...
1-800-426-9345
www.KenmoreWater.com
SAVE THIS MANUAL
Water Softeners
with Deluxe Valve
Warranty
Start Up / Setting Timer
How It Works
Care Of
Specifications
Repair Parts
Use the plastic bag and tie provided, to hang manuals
nearby the softener for future reference.
I Sears, Roebuck and 3333 IL 60179 USA I
Co.,
Beverly Road,
Hoffman
Estates,
PRINTED IN US A 7259024 (Rev. A 4/3/03)
!
W
Y
JJJJJJJJJJ_JJJ_J, _JJJJJ_JJJJJJJJJ_
JJJJJJJJJ_JJJJJ_J JJJ_JJJJJJ_JJJJ JJ_JJ_JJJJJ_JJJ_ JJJJJJJJJJ_J_J_JJ JJ_JJ_JJJJ_J_JJJJ J_JJJJJJJJJJ_JJJ
_JJ_JJ_JJJJ_J_JJ _JJJ_JJJJ_JJJJ_
JJJJJJ_JJJ_JJJJJJ JJJJJJJJ_JJJ_J_JJ JJJJJ_JJ_JJJJJJJJ
SEARS RESIDENTIAL WATER SOFTENER
FULL ONE YEAR WARRANTY ON WATER SOFTENER
For one year from the date of purchase, when this water softener is installed and maintained in accordance with our instructions, Sears will repair, free of charge,
defects in material or workmanship in this water softener.
FULL TEN YEAR WARRANTY AGAINST LEAKS
For ten years from the date of purchase, Sears will furnish and install a new current model water softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.
TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SERVICE CENTER THROUGHOUT THE UNITED STATES. This war-
ranty applies only while this product is in use in the United States. This warranty gives you specific legal rights, and you may have other rights which
vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
I I
If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a
prompt, quality installation by Sears Authorized Installers.
SEARS INSTALLATION POLICY SEARS INSTALLATION WARRANTY
All installation labor arranged by Sears shall be per- formed in a neat, workmanlike manner in accor-
dance with generally accepted trade practices. Fur- ther, all installations shall comply with all local
laws, codes, regulations, and ordinances. Custom-
ers shall also be protected, during installation, by in- surance relating to Property Damage, Workman's Compensation and Public Liability.
In addition to any warranty extended to you on the Sears merchandise involved, which warranty be-
comes effective the date the merchandise is installed, should the workmanship of any Sears ar-
ranged installation prove faulty within one year, Sears will, upon notice from you, cause such faults to be corrected at no additional cost to you.
FACTS AND FIGURES TO KEEP
Fill in the blanks below and keep this book in a safe place so you always have these facts.
Water Softener Model No.± Serial Number Date Installed Water Hardness Iron Content
pH Water Pressure
Water Flow Rate
Taste And/Or Odor
Grains Per Gallon
Parts Per Million
Pounds/Square Inch
Gallons Per Minute
_ The model number is on the ra ring decal, loca ted on the rim, under the salt hole cover.
A
salt hole cover
rating
decal
E
O
F
N T
E N
JJJJJJ_JJJ_JJJ_.
JJJ_ JJJJJ_JJJ_
JJ_JJJJ_J_JJJ
_J _JJJJ_J_J _J_ JJJjjJJJ_J _J JJJ_jJJJ_J_ _J JJJ_JJ_JJ _J_JJ_JJJ_JJJ_JJ_
A,
B.
C. D. E.
a.
B,
a.
B,
C. D,
A*
A.
iWATER SOFTENER START UP PAGE NO.
Safety Guides 1-1 Check List of Step-By-Step Guides To Install 1-2
Program The _mer --:-- 1-3, 1-4 Sanitizing The Water Softener 1-5
Fill The Storage Tank With Salt .......................... 1-6
HOW YOUR WATER SOFTENER WORKS
Faceplate Timer Features
Soft Water Service and Regeneration
CARE OF YOUR WATER SOFTENER
Salt: Refilling Storage Tank / Salt Bridge Keeping The Water Softener Clean
Protect The Water Softener From Freezing
Checklist (Not Getting Soft Water)
ABOUT YOUR WATER SOFTENER
Dimensions / Specifications
2-1 to 2-3 2-4 to 2-6
3-1 3-2 3-3 3-4
4-1, 4-2
B*
C.
A,
SERVICE TECH. INFORMATION
Troubleshooting ...................................... 5-1 to 5- 4
Rotary Valve Service 5-5
Water Flow Through The Softener Valve ................. 5-6 to 5-8
B,
C.
IREPAIR PARTS FOR WATER SOFTENER
Water Softener Complete
Brine Valve Assembly ......
Valve Assembly -
6-1, 6-2 6-3, 6- 4
6-5, 6-6
B
S
E
C
T
N
iJJJ_JJJJJJJJJJJJ_
tJJJJJJ_J_JJJJJJ_
tJJ _JJJJJJJ_J. tJJ _J_JJJJ_.
iJJJJ J_JJJJ_J= tJJ J_JJJJJJJJ.
tJJJ_J_JJJJJJJJJJ_
iJJ_JJJJJ_JJJJJ_
A. SAFETY GUIDES
Read all steps, guides and rules carefully before installing and using your new water softener. Follow all steps exactly to correctly install. Failure to follow them could cause personal injury or property damage. Reading this book will also help you to get all of the benefits from your water softener.
Your water softener will remove hardness minerals and "clear water" iron* from water, up to the limits
shown on page 4-1. It will not remove other types of iron, acids, tastes and odors, etc. It will not purify pol- luted water or make it safe to drink.
Protect the softener and piping from freezing. Dam- age from freezing voids the softener warranty. See page 3-3.
CAUTIONS
PLEASE READ AND COMPLY WITH THE FOLLOWING GUIDES TO PREVENT DAMAGE TO THE SOFTENER
OR OTHER PROPERTY, PERSONAL INJURY, OR POSSIBLE FATAL SHOCK.
THIS SOFTENER WORKS ON 24 VOLTS ONLY. BE SURE TO USE ONLY THE TRANSFORMER IN-
CLUDED, AND PLUG IT INTO A NOMINAL 120V, 60 CYCLE HOUSEHOLD OUTLET THAT IS GROUNDED
AND PROPERLY PROTECTED BY AN OVERCUR- RENT DEVICE SUCH AS A CIRCUIT BREAKER OR
FUSE. IF TRANSFORMER IS REPLACED, USE ONLY THE AUTHORIZED SERVICE, CLASS II, 24 VOLT, 10 VA TRANSFORMER.
Unplug the transformer right away if the power cable should become damaged or frayed. Make re- pairs, or replace transformer, before plugging back
into the power outlet.
Always unplug the softener from electrical power before removing outer valve covers.
This system is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
* Capacity to remove clear water iron was tested in the
field by the manufacturer.
1-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_ii_'_!!_!i_i_ii_i SECTION 1 _i_d_J!ii_,_iii_i_'iil WATER SOFTENER START UP
B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL
To be sure you have done all the steps to install the
softener, read the following list. Refer to the Installa-
tion Manual, part no. 7258997, for step-by-step
guides.
Page numbers referred to are in the Installation
Manual unless otherwise noted.
_-" Is the house water flow going INTO the softener
valve INLET? Trace piping to be sure. See pages 2-4 and 2-5.
Is the plumbing bypass valve (or 3 valves) set for SERVICE? Bypass valve(s) should always re-
main in soft water service position. Position in "bypass" only if needed for softener repairs. See
FIG. 14, page 4-1 of this manual.
_," Is the valve drain hose connected the right way,
and without sharp bends or kinks that could stop or reduce water flow? See page 3-5 in the
installation manual.
INLET
Page numbers referred to are in the Installation
Manual unless otherwise noted.
_" Is the transformer plugged into an inside, al-
ways live, grounded, 120V-60Hz electrical out- let? See pages 3-8 and 3-9 in the installation
manual, and the wiring schematic on page 5-1 of this manual.
_-" Be sure to restart the water heater. See page
3-9.
plastFc
JI
3-valve t P-_-r_. !
Bypass Valve(s)
NOTE: Codes in the state of Massachusetts require installation by a licensed plumber. For installation, use plumbing code
248-CMR of the Commonwealth of Massachusetts.
1-2
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
C. PROGRAM THE TIMER
f
signal light adjust_ salt level\ adjust display
_=\
R_CHARGE _ Customer Assistance
TONIGHT 1-800-426-9345
RECHARG_ ww_KeftmoreWate_co_
"=" ©
LOW
SALT
!
ON/OFF-HOLD button
{Recharge Tonight-Now)
UP button SELECT button
I /
@
DOWN button
When the transformer is plugged in, a model code, and a test number (example: k20) show in the face plate display for 4 seconds. Then, 12:00 AM and
PRESENT TIME begin to flash.
UltraSoft 250
5'- _C_ _2_ IC,UU'_ 17'7A'
pREREIqT _ME
UltraSoft 275
I 717f7 'v'
S,-33 h20 c,w
PRESENT TIME
a change in the face plate display. Repeated beeps mean the timer will not accept a change from the
button you have pressed, telling you to use another
button. For example, while setting the hardness (step 2), the beeper sounds repeatedly when the dis- play reaches I using the DOWN button, or the high- est hardness setting using the UP button.
[]SET PRESENT TIME OF DAY
Notes:
If SR - - shows in the display, press the UP_ or-
DOWN[_ button until SR29 shows for the Ultra-
Soft 250 or SR33 shows for the UltraSoft 275. Then,
press the SELECT button to set, and change to the
flashing PRESENT TIME display.
To check the model code, unplug the transformer at
the wall outlet and plug in again, if other than these
codes show, see page 5-3 to reset.
SOUND "BEEPER": A "beeper" sounds while
pressing buttons for timer set-up. One beep signals
If the words PRESENT TIME do not show in the dis- play, press the SELECTbutton (FIG. 2) until they do,
or see the previous notes.
Press the UP / DOWN buttons to set the present time. Press UP to move the display ahead; press
DOWN to move the time backward.
If the present time is between noon and midnight, be sure PM
shows.
If the present time is between midnight and noon, be sure AM
shows.
4'58"
PRESEP+IT_ME
_71-"_,,t
I 1'_70 1
PRESENT'ME )
Each press of the UP /DOWN buttons changes the time by 1 minute. Holding the buttons in changes the time 32 minutes each second.
1-3
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
C. PROGRAM THE TIMER
_SET WATER HARDNESS NUMBER eE! SET RECHARGE (REGENERATION) TIME
Press the SELECT button once to display 25 (flashing) and HARDNESS.
The grains per gallon (gpg) hard- ness of your water supply is on
your water analysis report. Be sure to enter water test results on
page A, for future reference.
If your water supply contains iron, compensate for it by adding to the water hardness number. For ex-
ample, assume your water is 20 gpg hard and contains 2 ppm iron. Add 5 to the hardness number for each I ppm of iron. In this example, you would use 30for your hard-
ness number.
20 gpg hardness
2 ppm iron x 5 = 10 +l.___fl0
(times) 30 HARDNESS NUMBER
Press the UP / DOWN buttons to set your water hardness number in the display. The DOWN button
moves the display to 1. The UP button moves the display to the highest setting (see maximum setting
for your model in the specifications). Note:
Each press of the UP / DOWN button changes the display by I between I and 25. Between 25 and the
highest number, the display changes 5 at a time... 25, 30, 35, etc. Holding the UP or DOWN but-
ton in changes the display twice each second.
Press the SELECT button to display 2:00 AM (flashing) and RECHARGE TIME.
At the 2:00 AM recharge time
setting, the softener begins re- generation (see pages 2-4 and
2-5) at 2:00 AM. This is a good time in most households because water is not being
used (see Automatic Bypass, page 2-6). If a differ- ent recharge time setting would be better for your
household, do the following.
Press the UP / DOWN buttons to set the desired
recharge starting hour. Be sure to observe the AM- PM as you did when setting the present time of day.
Note: Each press of the UP / DOWN buttons changes the
display one hour. Holding the buttons in changes the display twice each second.
Press the SELECT button once again, to com- plete initial programming, and RECHARGE TO-
NIGHT shows in the display.
BIB,
w, R
IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE,
NUMBER 1 -800 -426 - 9345.
SEE PAGES 2-1, 2-2 AND 2-3 FOR OTHER FACE PLATE TIMER FEATURES.
1-4
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
D. SANITIZE THE WATER SOFTENER
Care is taken at the factory to keep your water soft- ener clean and sanitary. Materials used to make the
softener will not infect or contaminate your water supply, and will not cause bacteria to form or grow.
However, during shipping, storage, installing and operating, bacteria could get into the softener. For
this reason, sanitizing as follows is suggested ® when installing.
_The first time you sanitize your softener, be sure
to do all steps in the installation manual, and on pages 1-2, 1-3 and 1-4 of this manual first. Note: Be certain the bypass valve is pulled out to "service" position.
_J| Lift the salt hole cover and use a pat to fill the
salt storage tank with up to 3 gallons of water.
_ Remove the bfineweU cover (FIG. 3) and pour
about 3/4 ounce, or 1 to 2 tablespoons, of com- mon 5.25%, unscented, household bleach (Clo- rox, Linco, BoPeep, White Sat, Eagle, etc.) in the
softener brinewell. Replace the brinewell cover. Press the ON/OFF-HOLD button and hold for 3
seconds to start a recharge. This first recharge does several things.
It draws the bleach into and through the softener to sanitize it.
water,
about 3 gallon.:
It fills the salt tank to the water level needed.
It gets all the air out of the resin tank.
It prepares the resin bed (see page 2-4) for ser- vice and flushes residual chlorine from the soften-
er. Notes:
This recharge takes about 2-1 / 2 or 2- 3/ 4 hours, de- pending on the salt type setting (page 1-4).
You can sanitize the softener with or without salt in the storage tank.
brinewe{I cover
about 3/4 oz.
bleach)
brinewell
q) Recommended by the Water Quality Association. On some water supplies, the water softener may need periodic
disinfecting.
1-5
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
E. FILL THE STORAGE TANK WITH SALT
Brine (salt dissolved in water) is needed for each and every regeneration. The water for makingbrine is me- tered into the salt storage tankby the softener. Howev- er, you must keep salt in the tank but it is not necessary to keep it full. In humid areas, it is best to fill the stor- age tank one quarter to one half full, and to refill it more often. Salt bridging (see page 3-1) occurs more
often when conditions are humid.
WATER SOFTENING SALT WITH IRON REMOVING ADDITIVES -- Some sahs have an additive to help the
softener handle iron in the water supply. These salts may be used if your water supply has a high iron con-
tent. It is recommended to use Sears Resin Bed Clean- er 42 - 34426, for periodic treatments to keep your resin
bed clean. This is available at your local Sears store.
Fill the tankwith NUGGET or PELLET water softener salt. DO NOT use rock salts, as they have dirt and sedi-
ments that will stop the softener from working.
Before filling, be sure the brinewell cover is in place on
the top of the brinewell. Salt storage capacity is shown on page 4-1. Be sure to set the salt monitor system
(see page 2-1).
Note: The salt monitor system, page 2-1, is calibrated
to the density of nugget or pellet water softener salt.
The monitor will not work as accurately with other types of salt including rock and solar.
If you choose Potassium Chloride (KC1) as a regener-
ant, following these suggestions will help give you
years of maintenance free service.
1) Place only one bag of KC1 in your softener at a time (the salt storage tank should contain no more than 60
pounds of KC1 at any one time).
2) A softener using KC1 should not be placed in areas with temperature fluctuations and high humidity (KC1 will harden in these environments and may make the softener inoperable).
3) Check the brine tank and brine well (black tube in salt storage tank) monthly. If hardening is present,
pour small amounts of warm water on hardened areas until they loosen.
4) If your softener does not have a KC1 salt setting you must increase your hardness setting by 25% to ensure continuous soft water as in example below.
Raw Water Hardenss
(grains per gallon)
Softener setting when
using KCI
5 gpg 7 gpg
10 gpg 13 gpg 15 gpg 19gpg
2O gpg 25 gpg
+ 25 %-
25 gpg 32 gpg
30 gpg 38 gpg
35 gpg 44 gpg
40 gpg 50 gpg
II I
li
brinewell
cover
bdnewell
salt
storage
tank
Sodium information: Water softeners using sodium chloride for regeneration add sodium to the water.
Persons who are on sodium restricted diets should consider the added sodium as part of their overall so- dium intake. For example, if your water supply is 15
grains hard, you would have to drink 3 quarts of soft- ened water to consume 335 milligrams of sodium.
That is equivalent to eating 2-1 / 2 slices of white bread.
Persons who are concerned about their drinkingwater should consider a Kenmore Drinking Water System
that will remove or reduce in excess of 90% of the so- dium and other drinking water contaminants.
1-6
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_iiii_i_ii_i SECTION2 _J_J_J:,_:,_] HOW YOUR WATER SOFTENER WORKS
A. FACEPLATE TIMER FEATURES
S
C
T
N
JJJJJJJJJJJJJJJJ. J_JJJJJJJJJJJ_JJJ
JJJ_JJJ_JJ_JJ_
JJ JJJJ_JJJJ_
JJ JJJJJJJ_J
JJ J_JJJJJJJJ
J_ _JJJJJJJJ_
JJ _J_JJJJJJJ_ JJ _J_JJ
JJ _JJJJJ_JJ JJJ_JJJJJJJJJJ_J_
JJJJ_JJ_JJ_JJ_JJ
EXTRA RECHARGE
Sometimes, a manually started regeneration (recharge) may be
desired, or needed. Two exam- ples are:
- You have used more water than
usual (guests visiting) and you may run out of soft water before the next timer started regenera-
tion.
- You did not refill the softener
with salt before it was gone. After you refill with salt:
You can start a regeneration right away, or you can set the timer to
regenerate at the next 2:00 AM (or other preset recharge time). Do the following.
RECHARGE NOW '_' _ _'_1" "
Press the ON/OFF-HOLD but- ; ton and hold until *RECHARGE, ',
Serv and Fill begin to flash in the display. Upon reaching fill, the first cycle of regeneration, the flash- ing Serv goes off and Fill is on steady. RECHARGE
continues to flash. This regeneration will last for about 2 hours. After the 2 hours, you will have soft water again.
*Note:
If the CLEAN feature is set to ON, a cleaning back- wash (CLEAN and Bkwsh or Rinse flashes in the dis-
play, along with the minutes of the clean cycle re- maining) precedes the recharge.
RECHARGE TONIGHT i /.uo / Press and release (do not hold) the _,_ _o.,o.
ON / OFF-HOLD button. RE- CHARGE TONIGHT flashes in the display, and the softener begins regeneration at the next preset re-
charge time. Press and release the ON/OFF-HOLD button once more if you decide to cancel the regen-
eration, and RECHARGE TONIGHZ
SALT MONITOR SYSTEM
The face plate timer has a low salt monitor with an
indicator light to remind you to refill the storage tank with salt. To set this monitor system:
_Lift the salt hole cover and level the salt in the
storage tank.
m
The salt level decal, on the brineweU inside the tank, has numbers from 0 to 8 (see drawing be- low). Observe the number the leveled salt is at
or closest to.
_I Now, press the SALT LEVEL ADJUST button
until black bars display up to the salt level num-
ber. For example, the pictures below show the
salt level at 6.
_ Finally, set the level you want the low salt indi-
cator light to come on. Press the SIGNAL LIGHT ADJUST button until a (÷) shows opposite this
number. In the example below, the light will come on when the stored salt drops to level 2. At level 2, the storage tank is about 1/3 full. This is the lowest you should allow the stored salt level to drop to (see note on page 1-6).
_ If you wish to turn the salt monitor off, press the
SIGNAL LIGHT ADJUST button until OFF shows above.
Note: Your salt monitor is an estimate of your salt level; ac-
curacy depends on the type of salt used and other regeneration characteristics.
salt
level
LEVEL u_V_
bars, salt SALT
level LEVEL 8
11116
brinewell
_4
decal _ 3
12_
_13($
RECI_ARGE
TONIGHT
RECHARGE
NOW
indicator light LOW
SALT
2-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
A. FACEPLATE TIMER FEATURES
_1_OPTIONAL SETTINGS - SALT EFFICIENCY, CLEAN FEATURE, CLEAN FEATURE MINUTES, MAXIMUM DAYS BETWEEN REGENERA- TIONS and 12 / 24 HOUR CLOCK:
1. To set any of the following options, press and hold
SELECT for 3 seconds until 000 shows in the display. Then press once until the SALT EFFICIENCY dis- play shows. Use the UP / Down buttons to change the ON / OFF displays.
OFF
o
_SALTEFFICIENCY'O When this feature is ON, the unit will operate at salt efficiencies of 4000 grains of hardness per pound of salt or higher, which will
reduce the softeners salt usage. (May recharge more often using smaller salt dosage and less water).
2. Press SELECT again to show the CLEAN display.
UFF
_CLEAN: This feature is beneficial on water sup- plies containing iron and/or high amounts of sedi- ments (sand, silt, dirt, etc.). When set to ON, a back- wash and fast rinse cycle will occur first, preceeding the normal regeneration sequence (see page 2-4). This provides extra cleaning of the resin bed before it is regenerated with the salt brine. To conserve wa- ter, if your water supply does not contain iron or sediments, be sure this feature is set to OFF.
3. Press SELECT again until the CLEAN TIME dis- play shows.
_es example: time set to 3 minutes
_CLEANfeature minutes: If you are using this fea- ture, the length of the extra backwash cycle auto- matically sets to 7 (9minutes on UltraSoft 250) min- utes. However, you can adjust this time from I to 15
minutes in length. To change this cycle time, use the
UP button to increase the time, or the DOWN button to shorten the time. If no change is desired, continue
below.
2-2
4. Press SELECT again to show the following RE-
CHARGE display.
RECHARG£ _t
default display
example: set to 4 days maxi- mum between regenerations
_Maximum days between regenerations: The face-
plate timer automatically controls regeneration fre-
quency (see page 2-5). This provides the greatest
operating efficiency, and under most conditions this
feature will be left in its default mode. However, you can modify this feature if you want to force a regeneration every set number of days. For exam- ple, if your water supply contains iron and you want the softener to regenerate at least once every
few days to keep the resin bed clean, set the display
as typically shown above. Setting is available from
1 to 15 days by using the UP and DOWN buttons.
5. Press SELECT to show the 12 HOUR display.
_12 or 24 hour clock: All time
displays are shown in standard
clock time (1 to 12 PM; and 1 to
12 AM) at the 12 hr default set-
ting. If military time displays are
desired, set to 24 hr by pressing
the UP button.
I J
riME
6. Press SELECT to return to the present time dis-
play.
WATER FLOW THROUGH THE SOFTENER
If soft water is in use, the water
flow bars continually scroll
across the display. The bars
scroll slowly when water flow is
slow, and move faster as water
flow increases. The flow bars do not show when all faucets and
water using appliances are off.
=i 2,3B"
Flow bars scroll when I_,; { _LQ"_ _"
SOft water is in use _==1,:_
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
_._-_-_,_,_,.!_'_:SECTION 2 _,_J HOW YOUR WATER SOFTENER WORKS
RECHARGE TIME REMAINING and VALVE POSITION INDICATORS
One of the valve positionindi- valve recharge
position time
cators (Serv, Fill, Brine, indicators remaining
while the softener is recharg-
ing (See *Note on page 2-1 if J the CLEAN feature is ON). °
RECHARGE flashes in the display and, beginning with Brine, the minutes of
recharge remaining before return to service appears in place of the present time. When the valve is mov-
ing from one cycle to another, both position indica- tors are flashing.
PROGRAM MEMORY If electrical power to the softener goes off, the time
display is blank but the face plate timer keeps the
correct time for about 12 hours. When electrical power comes on again, you have to reset the present
time only if the display is flashing. The HARDNESS
and RECHARGE TIME never require resetting un- less a change is desired.Even if the timer is incorrect after a long power outage, the softener works as it should to keep your water soft. However, regenera-
tions may occur at the wrong time of day until you reset the timer to the correct time of day (page 1-3).
ERROR CODE
An error code could appear in the face plate display if a prob-
lem occurs in the softener elec- tronics. Turn to page 5-2 under
"Troubleshooting" to resolve
the problem.
E
I-I- [
2-3
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_,_=_+ SECTION2 ",':,_,_,y,y'_t'_lHOW YOUR WATER SOFTENER WORKS
B. SOFT WATER SERVICE and REGENERATION
SERVICE
When the softener is giving you soft water, it is called "Service". During service, hard water comes
from the house main water pipe into the softener.
Inside the softener resin tank is a bed made up of thousands of tiny, plastic resin beads (FIG. 5). As
hard water passes through the bed, each bead at- tracts and holds the hardness minerals. This is
called ion-exchanging. Water without the hardness minerals (soft water) flows out of the softener and into the house soft water pipes.After a period of
time, the resin beads hold all of the hardness miner- als they can, and deaning with salt brine is needed.
This cleaning is called regeneration or recharge. Re-
generation is started at 2:00 a.m. by the electronic timer (see page 2-6). It takes place in 5 stages or.
cycles. These are:
I ILL i BACKWASH
BRINING FAST RINSE
[] BRINE RINSE
Note: If the Clean feature is set to ON, additional back-
wash and fast rinse cycles occur before the fill cycle.
Water Flow Through
the Softener in Service
salt storage
tank (salt
brine valve
\
soft water hard water
OUT IN
resin tank
resin bed
REGENERATION
[] FILL: Salt, dissolved in water, is called brine.
Brine is needed to dean the hardness minerals from the resin beads. To make the brine, water flows into
the salt storage area during the fill stage as shown
in FIG. 6. Fil! cycle length depends on how much
soft water making capacity you have used since the last regeneration. As you use more water, fill time
increases so more brine is made. The greater amount of brine deans more hardness minerals
from the resin bed.
Water Flow Through
the Softener in Fill
salt storage
tank
brine valve
\
soft water hard water
OUT IN
\
fillwater
2-4
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
' B. SOFT WATER SERVICE and REGENERATION
[] BRINING: During brining, the brine is moved
from the salt storage area, into the resin tank. Inside
the resin tank brine deans hardness minerals from the resin beads and they are discharged out the
drain. How much brine is needed to clean the resin depends on:
- - the amount of service water used between regen- erations,
-- the amount of resin in the softener,
--how fast the brine goes through the bed.
The nozzle and venturi (FIG. 7) makes suction to
take brine from the salt tank and put it into the resin tank. They keep the brine flow down to a very slow
rate to get the best resin cleaning with the least salt.
[] BRINE RINSE: After all of the brine is moved
into the resin tank, the brine valve closes. Water keeps flowing the same way it did during brining
except the brine flow has stopped. Hardness miner- als and brine flush from the resin tank to the drain.
Brining and brine rinse together vary in the length of time they take, relative to the fill cycle length.
Water Flow Through the Softener
in Brining and Brine Rinse
hard water
bypass OUT_ _,IN
nozzle& II It
venturi_
bdneva_ : i!l!iil
hard water
drain
brine
[] BACKWASH: During backwash, water flows
UP through the resin tank (FIG. 8) at a fast rate to flush iron minerals, dirt and sediments from the bed
and to the drain. The bed lifts and expands for good cleaning.
Water Flow Through the
Softener in Backwash
hard water
bypass OUT t _, IN
hard water
drain
resin bed lifted
and expanded
[] FAST RINSE: Backwash is followed by a fast
flow of water down through the resin tank. The fast flow packs the resin bed and gets it ready for return
to service (FIG. 9).
After fast rinse, the softener returns to service. Hard
water goes into the resin tank where the resin bed
again takes out the hardness minerals. Soft water goes to the house soft water pipes.
Water Flow Through the
Softener in Fast Rinse
soft water hard water
drain
Z2Z..... :i
2-5
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_;_;: SECTION2 _J_,,,,J,_l HOW YOUR WATER SOFTENER WORKS
B. SOFT WATER SERVICE and REGENERATION
AUTOMATIC BYPASS
Dunng the brining, brine rinse and backwash cycles
of regeneration, HARD water goes through the soft- ener valve and to the house pipes. If a faucet is
opened, hard water is there for your needs. Howev- er, you should not use hot water, if possible, because
the water heater will refill with hard water. The soft- ener, as factory programmed, regenerates from 2:00
AM to about 4:00 AM, a time when not much water is used.
If you start your day prior to 4 AM, you may need to change the recharge starting time. Set the re-
charge time to 12:00 AM or 1:00 AM (page 1-4). Then regeneration will start and end that much ear- lier and your water heater will not refill with hard water if a hot faucet is opened.
ELECTRONICS
Two main parts of the softener's electronics are [] a WATER METER, and [] a COMPUTER.
[] WATER METER--The water meter is in the soft-
ener valve outlet. As water flows through the meter, it sends electric pulses to the computer. The com-
puter changes the pulses to a measure in gallons of water.
[] COMPUTER -- The computer is part of the
faceplate timer circuit board. It is programmed to know the softener's capacity (how many grains of
hardness minerals it will take out of the water before a regeneration is needed). When starting the soften-
er, page 1- 4, you set it for the grains per gallon (gpg) hardness of the water.
To find a regeneration pattern best for your needs, the computer uses: (1) water usage from the meter,
(2) hardness setting, (3) softener capacity, and (4) time since the last regeneration. The computer always adjusts this pattern to your water using
habits. It works toward providing you with soft water for the longest time and at the most efficient
salt usage. Softening capacity is used as hard water goes
through the softener and hardness minerals are removed. When the computer determines that only
enough capacity remains to provide soft water up to the next regeneration starting time (2:00 AM, or as
otherwise set) it will schedule a regeneration. RECHARGE TONIGHT displays until the
regeneration begins. When the regeneration begins, RECHARGE TONIGHT goes off and *RECHARGE
or RECHARGE TIME REMAINING flashes during the regeneration.
* Note:
If the CLEAN feature is set to ON, a cleaning back- wash (CLEAN and Bkwsh or Rinse flashes in the dis-
play, along with the minutes of the clean cycle re- maining), precedes the recharge.
2-6
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
A. SALT: REFILLING STORAGE TANK, SALT BRIDGE
S C
T
N
j_JJJJJJJJJJJJ_J.
_JJJJJJJJJJJ_J_J
WHEN TO REFILL WITH SALT: The Salt Monitor System (see
page 2-1) will turn the low salt light on to warn you when to refill
with salt. Check for a low salt light a few weeks after you install
the softener, and every week after that. Always refill at about the #2
salt monitor level. At this level,
the tank is about 1/ 3 full. Never let the softener use all the salt before refilling. Without salt, you will
soon have hard water. After filling, reset the Salt Monitor System, page 2-1.
Note:
You will have a loss in softening capacity and may get partly hard water if less than 10 inches (salt mon-
itor level 2) of salt is in the storage tank.
PLEASE SEE PAGE 1- 6 FOR SALT FILLING DIRECTIONS.
BE SURE TO RESET THE SALT MONITOR, PAGE 2-1.
SALT BRIDGE
Sometimes, a hard crust or salt bridge forms in the salt storage tank. It is usually caused by high hu- midity or the wrong kind of salt. When the salt bridges, an empty space forms between the water
and salt. Then salt will not dissolve (melt) in the wa- ter to make brine. Without brine, the resin bed does
not regenerate and you will have hard water.
If the storage tank is full of salt, it is hard to tell if you have a salt bridge. Salt is loose on top, but the bridge
is under it. The following is the best way to check for a salt bridge.
Salt should be loose all the way to the bottom of the tank. Hold a broom handle, or like tool, up to the
softener as shown in FIG. 10. Make a pencil mark on the handle, 1" or 2" below the top height of the rim.
Then, carefully push it straight down into the salt. If a hard object is felt before the pencil mark gets to the top of the tank, it's most likely a salt bridge. Carefully push into the bridge in a few places to
break it. Do not try to break the salt bridge by
pounding on the outside of the salt tank. You may damage the tank.
push tool into salt bridge to break
I
1" _ 2" I
pencil
mark
J
broom handle
Salt Bridge
salt
salt bridge
water }evef
If the wrong kind of salt made the bridge, take it out. Then fill the tank with nugget or pellet salt only.
3-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_iii_ii_ii_ii_i SECTION3 _ii_iiiiJ_J_JJ_J_,_i_CARE OF YOUR WATER SOFTENER
B. KEEPING THE WATER SOFTENER CLEAN
NOZZLE & VENTURI
A clean nozzle and venturi (FIG. 11) is a must for the
softener to work right. This small unit moves brine from the salt storage tank to the resin tank during re-
generation. If it becomes plugged with sand, silt, dirt, etc., the softener will not work and you will get
hard water.
To get to the nozzle and venturi, remove the softener top coven Be sure the softener is in service cycle (no water pressure at nozzle and venturi).
1) Turn off the cap from the nozzle and venturi hous- ing.
2) Lift out the screen support and screen, do not lose
the large o-ring seal.
3) Then the nozzle and venturi. Wash and rinse the parts in warm water unti! clean. If needed, use a small brush to remove iron or dirt. Also check and clean the gasket, flow plugs and screens.
Carefully replace all parts in the correct order. Lu- bricate the o-ring seal with silicone grease or Vase- line and place in position. Install and tighten the cap, by hand only. Do not overtighten and break
the cap or housing.
Cleaning Nozzle & Venturi
O-dng Seal _ 0
Screen Support _@
Screen
2_
"_--.._ /t *Flow Plug
Nozzle & Ventud _ _,/
Gasket _ _ iereen
tered directly over the small holes in the nozzle & venturi
housing.
*Flow Plug
(HVDC)
Nozzle & Ventud
Housing
*Install with numbered side up concave side down. Be sure thelargest flow plug is located in the nozzle & ventud housing.
IRON FROM RESIN BED
Your water softener takes hardness minerals (cal- cium and magnesium) out of the water. It can also
control some "clear water" iron. See maximum al- lowed in the specifications on page 4-1. With clear
water iron, water from a faucet is clear when first put into a glass. After 15 to 30 minutes, the water be- gins to cloud or turn rust colored. A water softener WILL NOT remove any iron which makes the water cloudy or rusty as it comes from the faucet (called red water iron). To take red water iron out of water, or over the maximum of clear water iron, an iron ill-
ter or other equipment is needed. Your local Sears store has trained people to help you with iron water problems.
If your water supply has clear water iron, even
though less than the maximum allowed, regular resin bed cleaning is needed. Your local Sears store
has resin bed cleaner, Item No. 42-34426 for this.
Clean the bed at least every 6 months. If iron shows
up in the soft water before 6 months, clean more
often. Printed instructions are on the resin bed
cleaner bottle.
3-2
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_!!_ii_i!i_ SECTION3 _i_ii_i_i_i_J_i_l CARE OF YOUR WATER SOFTENER
C. PROTECT THE WATER SOFTENER FROM FREEZING
If the softener is installed where it could freeze
(summer cabin, lake home, etc.), you must drain all
water from it to stop possible freeze damage. To
drain the softener:
[]Close the shut-off valve on the house main wa-
ter pipe, near the water meter or pressure tank.
[]Open a faucet in the soft water pipes to vent
pressure in the softener.
[]Refer to FIG. 14 on page 4-1. Move the stem in
a single bypass valve to bypass. Close the inlet and outlet valve in a 3-valve bypass system, and
open the bypass valve. If you want water in the house pipes again, reopen the shut-off valve on the main water pipe.
[]Unplug the transformer at the wall outlet. Re-
move the salt hole cover and the main cover. Take off both drain hoses.
_-_ Carefully remove the large holding clips at the
softener inlet and outlet (see Key No. 67, on page 6-5). Separate the softener from the copper tubes, or from the bypass valve.
Drain All Water From Softener
drain
wood block
I
[]Looking at FIG. 12, lay a piece of 2 inch thick
board near the floor drain. Move the softener
close to the drain. SLOWLY and CAREFULLY, tip it over until the rim rests on the wood block
with the inlet and outlet over the drain. Do not
allow the softener's weight to rest on the inlet and outlet fittings or they will break.
[]Remove the brinewell cover and disconnect the [ Tip the bottom of the softener up a few inches
brine valve tubing at the nozzle and venturi as- and hold until all water has drained. Leave the
sembly (see page 3- 2). Lift the brine valve out of softener laying like this until you are ready to the brinewell. Tip the brine valve upside down use it. Plug the inlet and outlet with rags to keep to drain water, dirt, bugs, etc. out.
3-3
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
D. CHECKLIST ... TO HELP YOU SAVE MONEY
If your water softener fails to work make the following easy checks. Often, you will find what's wrong your- self and you won't have to call and wait for service. If you do not find anything wrong, while making the checks, and your softener still does not work, call your Sears Service Department.
Note:
1. Also read ERROR CODE, page 2-3.
2. If an error code is not displayed, press and hold the SELECT button until the display changes. Then, press the SELECT button again and hold until a flashing SR code appears. It must show SR29 for UltraSoft 250 or SR33 for UltraSoft 275. If any other number shows, the face plate computer is working on incorrect input and would probably be the cause of the problem. To set SR29 or SR33, press either the UPI_ or DOWN(_ button. When correct model code shows, press SELECT to return a flashing 12:00 AM display. Reset the present time,
hardness number, etc., pages 1-3 and 1-4.
PROBLEM
No soft water
Water hard sometimes
Brine tank flooded
CAUSE
No salt (or salt bridged) in the storage t'ank
Transformer unplugged at the wall outlet, or power cable leads loose from the electronic board, fuse blown, circuitl breaker popped, or circuit switched off.
Manual bypass valve(s) in bypass position
Dirty, plugged or damaged nozzle & venturi
Valve drain hose plugged
Hardness number setting too low
Using hot water when softener is regenerating
Increase in the grains of hardness in your
water supply
Restricted drain line
Plugged or dirty nozzle & venturi
Valve-rotor disc & seals
CORRECTION
Refill with salt, or break the salt bridge (page
3-1). Press ON/OFF-HOLD (RECHARGE
NOW) button and hold for 3 seconds to start a regeneration (see page 2-1).
Check for loss of power due to any of these and correct. With the power back on, look at the time display and read PROGRAM
MEMORY, page 2-3.
Look at FIG.14 on page 4-1. Move the stem in a single valve to service. In a 3-valve bypass, open the inlet and outlet valves, and be sure to fully close the bypass valve.
Take apart and clean or replace damaged parts (see page 3-2).
The drain hose must not have kinks, sharp bends, or be raised too high above the softener (see page 16 in your installation
manual).
Press and release the SELECT button until HARDNESS shows in the display. Read the hardness number in the display and be sure the same grains per gallon number is shown on your water analysis report. See page 1-4 to
reset. Press and release the SELECT button until the present time shows in the display.
Avoid using hot water during this time because the water heater refills with hard water (see Automatic Bypass, page 2-6).
Ask your Sears retail store for a new water
;analysis. Then make a new hardness number i setting (page 1-4).
Check for kinks, bends or obstructions (see page 16 in your installation manual)•
Take apart and clean or replace damaged
parts (see page 3-2). Check for scratches or grooves, replace if
needed.
3-4
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
,J.=JJ,=,_a.=._aaaJ a_._.=a_3a,i333,Ja
_,_,, SECTION4 _j KNOW ABOUT YOUR WATER SOFTENER
A. DIMENSIONS / SPECIFICATIONS
S
C
T
N
JJJJJJJ_J_JJ_JJ. JJJJJJ_JJ_JJJ_JJ
_JJJ JJ_JJJ_JJ _JJi _J_JJJJJ_
J_J JJ_JJJ_JJJ J_ J_iJJ_J_J J_ J_J_JJJJJ J_JJJ _J_JJJJ_J JJ _J_JJJdJ J_JJJJ_J_J_JJJJJ
JJJJJJ_J_dJJJJJJJ
A
A
B
C
D
E
F1 F2
CM

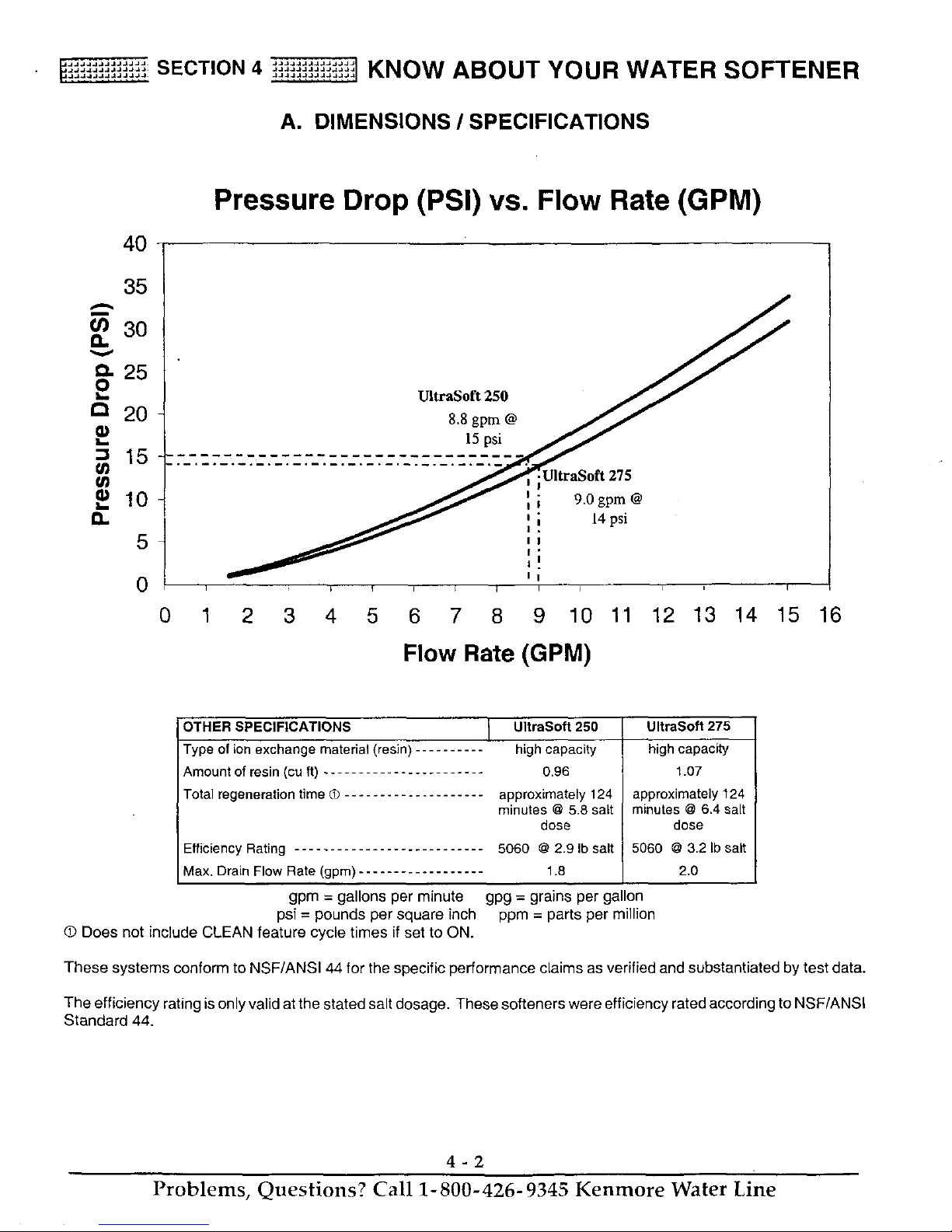

Salt Tank Height 40-1/4 102.2
Resin Tank Diameter 9 22.7 (nominal) UltraSoft 250
Resin Tank Diameter 10 25.4 (nominal) UltraSoft 275 Resin Tank Height 40 101.6 (nominal)
Inlet-Outlet Height 41-1/2 105.4 Overall Height 47-3/4 121.3 Length 19-3/4 50.2
Width 16-1/2 41.9
Distance between inlet- 3-3/8 8.6 outlet center lines
ULTRASOFT 250
BYPASS VALVES
Bypass valve(s) should always remain in soft water service position, Position in "bypass" only if needed for softener repairs.
SINGLE BYPASS
PULL STEM
OUTWARD
FOR
SERVICE
Inward
For
Bypass
3 - VALVE BYPASS Bypass
FOR SERVICE " Valve
close bypass valve
open inlet& outletvalves Outlet
Valve
,4 Inlet
FOR BYPASS Valve
open bypass valve
close inlet & outlet v
TIMER SR CODE SR29
ULTRASOFT 275 TIMER SR CODE SR33
Note: Please see the rating decal for operating capacity, salt usage and service flow rate/pressure loss
performance spedfications. Performance specifications are validated by the Water Quality Association (WQA). The rating decal is located on the rim, under the salt hole cover (see page A, inside front cover).
WATER SUPPLY TO WATER SOFTENER | UltraSoft 250
L
Minimum water system flow (gpm) ............................ 3
Minimum-Max. water pressure (psi)........................... 20 - 125
Minimum-Max. water temperature (°F) ........................ 40 - 120
Maximum water hardness (gpg) .............................. 100
Maximum "clear water" iron (ppm) ........................... 7
UltraSoff 275
3 20-125 40-120
100
7
SALT FOR WATER SOFTENER
Type of salt needed ........................................ nugget or pellet
Alternate type of salt ....................................... pure, evaporated, compacted
water softener salt
Salt storage capacity (Ibs) ................................... 200 t 200
4-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
A. DIMENSIONS / SPECIFICATIONS
40
Pressure Drop (PSI) vs. Flow Rate (GPM)
35
++0
8-25
UltraSoft 250
20 8.8gm+ //
= %_//
15 ......................... _._7"_Ul_Sof,_75
8 10 // ', ; 9_)gpm@
_" // :i 1.4psi
+ i!
I I
i + I I t I I I I I
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Flow Rate (GPM)
iOTHER SPECIFICATIONS UltraSoft 250
Type of ion exchange material (resin) high capacity
Amount of resin (cuft) ....................... 0.96
Total regeneration time O .................... approximately 124
minutes @ 5.6 salt
dose
Efficiency Rating ........................... 5060 @ 2.9 Ib salt
Max, Drain Flow Rate (gpm) 1.8
gpm = gallons per minute
psi = pounds per square inch
(b Does not include CLEAN feature cycle times if set to ON.
UltraSoft 275
high capacity
1.07
approximately 124
minutes @ 6.4 salt
dose
5060 @ 3.2 Ib salt
2.0
gpg = grains per gallon
ppm = parts per million
These systems conform to NSF/ANS144 for the specific performance claims as verified and substantiated by test data.
The efficiency rating is onlyvalid at the stated salt dosage. These softeners were efficiency rated according to NSF/ANSl Standard 44.
4-2
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_.i_i_iii_ SECTION 5 ii_i_!ii_i_!iiiiiiiii_ SERVICE TECH. INFORMATION
S
E
C
T
N
JJ_JJJJJJJJJJJJJ
b_JJJJJJJJJ4JJJJJJ
J_Jj_j_jjJJJJJJ_JJ_
J_ JJJJJJJJJJ JJ _JJJJ_JJJJJJ JJ JJJJJJJJJJ
JJ _JJJJJJJJ
JJ J JJJJJJJJJJ
JJ J_J_JJJ_JJ JJ JJJJJ_JJJJ
A. TROUBLESHOOTING
WIRING SCHEMATIC BACK OF TIMER
(PwA)
Transform
Turbine _
Sensor
gm
_j_NO Position
bm ON C Switch
valve motor
FACEPLATE
®[
Cult°met A'ssist_nce
o
Keep this manual with your water softener. If repairs are needed, the service technician must have the information on the following 8 pages. For telephone assistance, call toll free, 1-800-426-9345.
ALWAYS MAKE THESE INITIAL CHECKS FIRST
_Does the time display show the correct time of
day?
-- If display is blank check power source to the softener.
--If time is flashing, power was off for over 24 hours. The softener resumes normal operation
but regenerations occur at the wrong time.
--If an error code (Example: Err3) shows in the
faceplate display, go to AUTOMATIC ELEC- TRONIC DIAGNOSTICS, page 5-2.
B Plumbing bypass valve(s) must be fully in ser-
vice position.
_The inlet and outlet pipes must connect to the
softener inlet and outlet respectively.
B Is the transformer plugged into a "live",
grounded wall outlet, and the power cable fas- tened securely to the controller?
i
The valve drain hose must be free of kinks and
sharp bends, and not elevated over 8 ft. above the floor.
l s there salt in the storage tank?
Is the brine tubing connected? Brine tubing con- nects to nozzle venturi and brine valve assembly.
(See page 6-3, key #83)
Is the brine valve float set right? (See page 5-4).
Press the SELECT button two times to display the hardness setting. Be sure it is the correct set- ting for the household's water supply. (Make a
hardness test of the raw water and compare with
the hardness setting. Also test a soft water sam- ple to verify if a problem exists.) Press the SE- LECT button twice more to return to present time in the display.
If you do not find the problem after making initial checks, do the MANUAL INITIATED ELEC- TRONIC DIAGNOSTICS, and the MANUAL AD-
VANCE REGENERATION CHECK.
5-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
A. TROUBLESHOOTING
AUTOMATIC ELECTRONIC DIAGNOSTICS The faceplate timer (PWA) computer has a self- diagnostic function for the electrical system, except for input power and water meter. The computer
monitors electronic components I
and circuits for correct opera- _l-I- I
L
tion, If a malfunction occurs, an error code appears in the face-
_late display,
The chart below shows the error codes that could appear, and the possible defects for each code.
While an error code appears in the display, all face plate buttons are inoperable except the SELECT but-
ton. SELECT remains operational so the service per- son can make the MANUAL INITIATED ELEC-
TRONIC DIAGNOSTICS (below) to further isolate
the defect, and check the water meter.
POSSIBLE DEFECT
MOST LIKELY _ _ LESS LIKELY
CODE
Err1, Err3, motor inoperative / wiring harness or connection to switch / position switch / valve defect causing Err4 hiplh torque Err5 faceplate timer (PWA)
PROCEDURE FOR REMOVING ERROR CODE FROM FACEPLATE: 1. Unplug transformer from outlet 2. Correct defect 3. Plug in transformer 4. Wait for 6 minutes. The error code will return if the defect was not corrected.
MANUAL INITIATED ELECTRONICS
DIAGNOSTICS
I To enter diagnostics, press the SELECT button
and hold for three seconds.
You will see the following display, showing valve cycle position, position switch status (open or
closed), and turbine operation.
valve position indicator
i l uuoq
position switch
indicator (open)
turbine count (water flowing) _N_
I "_"_ /_'7,n I
22
turbine count (no water flowing)
TURBINE OPERATION: If no water is flowing through the softener, the turbine indicator displays three zeros. When water is flowing, the flow bar
scrolls across the display, and a 000 to 199 count re- peats for each gallon of water passing through the turbine. To check for positive operation of the tur- bine if zeros are shown, open a nearby soft water
faucet and observe the turbine count and flow bar.
If you don't get a reading in the display, with faucet open, pull the sensor from the valve outlet port.
Pass a small magnet back and forth in front of the sensor. You should get a reading in the display. If you get a reading, unhook the in and out plumbing and check the turbine for binding.
(
POSITION
SWITCH _ -" -- T.
_" SENSOR
HOUSING
I_-TURBINE _TURBINE
SUPPORT AND
SHAFT
VALVE
OL
POSITION SWITCH STATUS: With the valve in ser- vice, or any of the recharge cycles, the switch indica-
tor will show open -'_-. While the valve is rotating
from 1 position to another, the indicator will show
the switch closed -"---. A defect is probable if indica-
tions vary from this pattern.
5-2
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_i_ii_i!_i_i SECTION 5 ]_i!_!!_i_!iiiiiii!_ SERVICE TECH. INFORMATION
A. TROUBLESHOOTING
VALVE POSITION INDICATORS: Depending on the valve position, the following indicators show in
the display:
INDICATOR VALVE POSITION
S .......................... service
F .......................... fill
BR ........................ brining/brine rinse
BW ........................ backwash
R .......................... fast rinse
When the valve is rotating from one cycle to another, both indicators flash. For example, if the valve is in transition between fill and brining, both Fill and Brine flash. Upon reaching brining position, Fill
goes off and Brine is on steady. The time display shows the minutes of the cycle remaining.
NOTE: If the faceplate is left in a diagnostic display (or a flashing display when setting times
or hardness), present time automatically returns if a button is not pressed within 4 minutes. To
return to the diagnositc display, repeat step 2.
OTHER 1NFO_TION: While in this diagnostic screen, the following information is available and
may be beneficial for various masons. This informa- tion is retained by the computer from the first lirne electrical power is applied to the faceplate.
... Press [] to display the number of days this face
plate has had electrical power applied.
... Press [] to display the number of regenerations
initiated by this faceplate since the SR code number was entered.
_1 Press the ON/OFF-HOLD button to advance the
valve to each position and observe the switch and position indicators to verify component op- eration, or to possibly isolate a defect.
_1_ Press and hold the SELECT button for 3 seconds
until ...
...SR29 shows for UltraSoft 250
...SR33 shows for UltraSoft 275
I"- 7 n
71--I_-- 7
I b,- dd
This code identifies the softener nominal capacity size. If the wrong number shows, the softener will operate on incorrect programming. Do the follow- ing as needed.
SR29 or SR33 does show-- Press the sELECT but- ton to return to the present time display.
To change SR number -- Press the UP or DOWN button until the correct SR code shows. Then, press the SELECT button and reset the timer ... page 1-3.
TIMER PWA REPLACEMENT: Be sure the
valve is in service position when replacing the timer PWA (observe valve cycle indicator).
If, after installing and programming the re- placement timer PWA, the valve isnot in ser-
vice position, do the following to assure correct
cycle orientation, or timing, between the face-
plate and valve. Use the MANUAL ADVANCE procedures,
page 5-4. With the RECHARGE NOW button, advance through the recharge cycles until the valve stops in service position, and RE- CHARGE no longer flashes in the display.
NOTE: The valve motor may automatically drive through several valve positions while
searching for service. If an error code occurs, unplug the transformer, then plug in again.
JJ'lO NI
position markers
(valveln
service)
CAM
MOTOR
5-3
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_i_ii_ii_i_ SECTION 5 i_i_i_i_iii_i_i] SERVICE TECH. INFORMATION
A. TROUBLESHOOTING
MANUAL ADVANCE REGENERATION CHECK This check verifies proper operation of the valve
motor, brine tank fill, brine draw, regeneration flow rates, and other controller functions. Always make
the initial checks, and the manual initiated diag- nostics.
Notes: The faceplate display must show a steady time (not
flashing). If an error code shows, first press the SE-
LECT button to enter the diagnostic display.
_q Press the ON/OFF-HOLD button and hold in for
3 seconds. *RECHARGE and Fill begin to flash
(or clean backwash begins, if set) as the softener
enters the fill cycle of regeneration. When FILL is
on steady, remove the brinewell cover and, using a flashlight, observe fill water entering the tank.
*Note:
If the CLEAN feature is set to ON, a cleaning back- wash (CLEAN and Bkwsh or Rinse flashes in the dis-
play, along with the minutes of the clean cycle re- maining), precedes the recharge.
a. If water does not enter the tank look for an ob- structed nozzle, venturi, fill flow plug, brine tubing,
or brine valve riser pipe.
UltraSoft 250
CYCLE FLOW RATES (GALLONS PER MIN.) FILL (flow to salt storage tank) 0.3 (1.1 liters) BRINING _ .15 - .16 (.61 liters)
BRINE RINSE I (flow .11 (.45 liters)
to 1.8 (6.8 liters)
BACKWASH drain) FAST RINSE 1.8 (6.8 liters)
UltraSoft 275
CYCLE FLOW RATES (GALLONS PER MIN.)
FILL (flow to salt storage tank) 0.3 (1.1 liters) BRINING '_ .21 (.79 liters)
BRINE RINSE I (flow .15 (.57 liters)
to 2.0 (7.6 liters)
BACKWASH drain) FAST RINSE 2.0 (7.6 liters)
_ After observing fill, press the ON/OFF-HOLD
button to move the softener into brining. A slow flow of water to the drain will begin. Verify brine
draw from the brine tank by shining a flashlight into the brinewell and observing a noticeable drop in the liquid level.
Note:
Be sure a salt bridge is not preventing water with salt contact.
a. If the softener does not draw brine ...
...nozzleand/orventuridirtyordefective. Seepage 3-2
..nozzle and venturi not seated properly on gasket. See page 3-2
...restricted drain (check drain fitting and hose). ...defective nozzle and venturi seal. See page 3-2 ...other inner valve defect (rotor seal rotor & disc,
wave washer, etc.).
Note: If water system pressure is low, an elevated drain hose may cause back pressure, stopping brine
draw.
[]Again press ON/OFF-HOLD to move the
soft-
ener into backwash. Look for a fast flow of water
from the drain hose.
a. An obstructed flow indicates a plugged top dis- tributor, backwash flow plug, or drain hose.
[ Press ON/OFF-HOLD to move the softener into
fast rinse. Again look for a fast drain flow. Allow the softener to rinse for a few minutes to flush out
any brine that may remain in the resin tank from the brining cycle test.
_-_To return the softener to service, press ON/OFF-
HOLD.
n BRINE VALVE
,. FLOAT SETTING
5-4
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_,iii_i_._ii_,_iiJi_'i SECTION 5 !_ii!!!i!_ii_i!i_iiii!!_ SERVICE TECH. INFORMATION
B. ROTARY VALVE SERVICE
Before working on the valve, turn off the water sup- ply and disconnect from electrical power. TO RE-
LIEVE PRESSURE:
3 VALVE BYPASS: Close the inlet valve and open a soft water faucet. Then close the outlet valve and
open the bypass valve.
SEARS SPECIAL BYPASS: Slide the bypass valve stem to bypass position. Loosen three hex head
screws toward the back side of the valve to allow pressure water to bleed out. Catch water with a rag.
Then, turn the rotor (clockwise only) to service posi- tion. Tighten the screws using a criss-cross pattern.
If a torque wrench is available, torque to 3040 inch pounds. Do not over tighten.
Lubricate the gear on the motor, and the valve cam gear with Molykote grease, or other high quality
gear lubricant.
Be sure to orient switch as shown, with lever toward the cam.
DISASSEMBLY To remove a part or group of parts, refer to the valve
drawing. A common screwdriver or nut driver, Phillips screwdriver and pliers are the only tools
needed to completely disassemble.
SERVICING THE VALVE Inspect all o-rings, seals and gaskets for wear or de-
fects.
Inspect the bottom surface of the rotor for scratches, chips or wear.
Note: If replacement is needed, be sure to use the current
replacement part. ASSEMBLY
Be sure all parts are in place and in the proper posi- tion. Lubricate ALL o-rings and seals with FDA ap-
proved sihcone grease. To install the rotor seal, first place the seal into the valve groove, rounded side down (see cross-section). Apply a hght coating of
siheone grease to the seal's crossing ribs. Then, care- fully center the wear strip on the seal, and push it
downward onto the seal.
Install the nozzle and venturi seal and drain seal. Assemble wave washer bearing, the wave washer,
and two o-rings onto the rotor top shaft. Then center the rotor in the valve body, on the rotor seal.
Lower the cover onto the valve body and rotor shaft. Then install the cover holding screws. Before tight- ening the screws, install the valve cam and gear.
o-nng seals _
wave washer -..._..._
q
rotor&disc
see Nozzle
assembly
service,
page 3- 2
motor
motor plate
o- ring
/ rotorseal
_S drainseal
nozzle&venturi seal
5-5
Problems, Questions? Call 1- 800- 426- 9345 Kenrnore Water Line

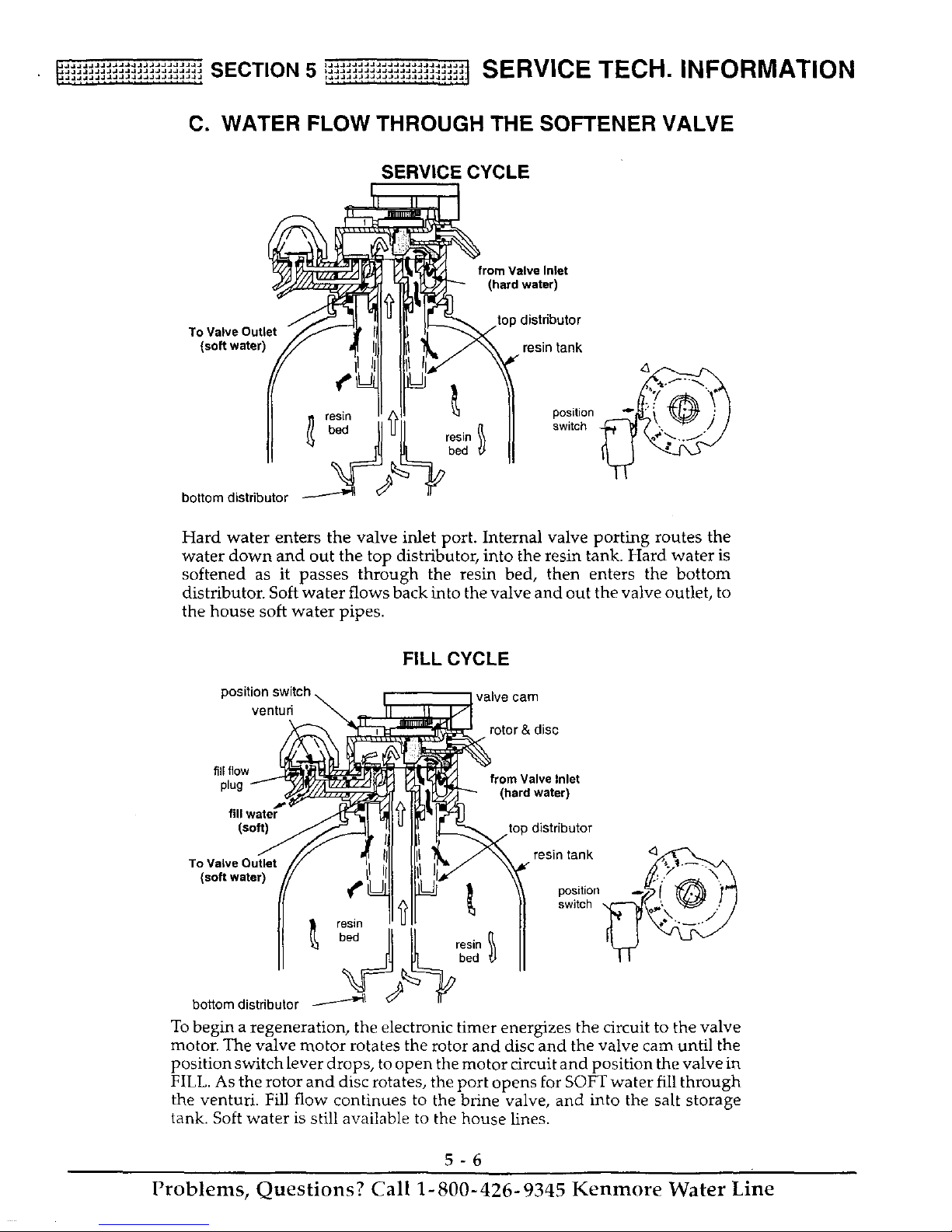

C. WATER FLOW THROUGH THE SOFTENER VALVE
SERVICE CYCLE
To Valve Outlet
(soft water)
bottom distributor
from Valve Inlet
(hard water)
top distributor
resin tank
resin position
b_d __ switch
Hard water enters the valve inlet port. Internal valve porting routes the
water down and out the top distributor, into the resin tank. Hard water is
softened as it passes through the resin bed, then enters the bottom distributor. Soft water flows back into the valve and out the valve outlet, to
the house soft water pipes.
FILL CYCLE
position switch valve cam
venturi
rotor & disc
fill flow
plug from Valve Inlet
(hard water)
fill water
Isoft) top distributor
To Valve Outlet
(soft water)
l_:_n _ _]L r_s_n
To begin a regeneration, the electronic timer energizes the circuit to the valve motor. The valve motor rotates the rotor and disc and the valve cam until the
position switch lever drops, to open the motor circuit and position the vane in FILL. As the rotor and disc rotates, the port opens for SOFT water fill through
the venturi. Fill flow continues to the brine valve, and into the salt storage tank. Soft water is still available to the house lines.
5-6
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_;_;;_ SECTION 5 !_;__,_ SERVICE TECH. INFORMATION
C. WATER FLOW THROUGH THE SOFTENER VALVE
BRINING AND BRINE RINSE CYCLES
venturi
n
nozzle
from Valve Inlet
brine from sa_. (hard water)
storage tank
water
to valve outlet
switch
After fill, timer/switch action allows the motor to turn the rotor and disc into BRINING position. Water flow is directed to the nozzle. Suction, created by the
nozzle and venturi, draws brine from the salt storage tank and injects it into the
resin bed via the bottom distributor. Flow continues out the top distributor and to the drain. Hard water is available at the valve outlet.
When the brine valve closes to end brine draw, water flow continues in the same
directions to slowly RINSE brine from the resin bed and to the drain.
bypass
water
to valve out-
let
BACKWASH CYCLE
flow plug
drain
_mer/switch action again allows the motor to turn the rotor & disc to place the valve in BACKWASH, stopping water flow to the nozzle. Water is routed down and out the bottom distributor, up through the bed, and out the top distributor to the drain. The fast flow (controlled by a flow plug in the drain fitting) flushes dirt, sediments, iron deposits, remainingbrine
and hardness to the drain.
f \
ositi
switch
5-7
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_j_j_j SECTION 5 iii!i_!!!ii_i_!!i!i!_ SERVICE TECH. INFORMATION
C. WATER FLOW THROUGH THE SOFTENER VALVE
FAST RINSE CYCLE
soft water
to valve outlet
!
\
positio_
switch
During FAST RINSE, the rotor & disc is positioned so water flow enters the resin tank through the top distributor, and exits through the bottom
distributor, to the drain.
The electronic timer again energizes the motor to return the valve to service. As the valve rotates, the position switch lever drops to open the circuit. The valve remains positioned in service until the electronic timer
initiates the next regeneration.
5-8
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_,i_ii_i_ SECTION6 _J_J;_J_l REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388260 and 625.388270
S C
T
N
JJ_JJJJ_JJJJJJ_. JJJJ_JJJJJJ_JJJ.
,J JJJJJJJ_JJ
J J_JJJ_J_JJ
JJj_jJjJJJJJJJJJJ_
JJ JJJJJJJ_J JJ JJJJJJJJ_J
J_ J_J_JJJJ JJJJJJ_JJJ_JJJJ
aJJJJJJJJJJJJ_JJJJ
2
3\
26
Rating
Decal Location
8_ _. _ _! _.--_--19
_ 6-1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_._ SECTION 6 _,_;_ REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388260 and 625.388270
KEY
NO.
1
1 2 3 4 5
6
7
8
9
10 11 12 13 14 15 16 17 18
19
20
21
22
23 24
25
26
27
28
,e.
A. WATER SOFTENER COMPLETE
PART DESCRIPTION
NUMBER
7230020
7229998 7252373
7249532
7255737
7230038 7247417 7253133 7231571 7232080 7082150 7100819 7137913 7257307 7232250 0900431
1103200 9003500
7116488 7105047 0502272
7144952 7235478 7170270 7077870 7170254
7170296 7141001 7176292
7088033 7003847
3442699 7144821
7258997 7259024
Cover Lock (req'd for ship. only)
iRim Insert (req'd for shipping only)
Cover (main) Salt Hole Cover
Transformer, 24V-1OVA
Timer Repl. (PWA), UltraSoft 250 Timer Repl. (PWA), UltraSoft 275 Faceplate (order following decal) Faceplate Decal, UItraSoft 250
Faceplate Decal, UltraSoft 275 Rim
Brinewell Cover
Wing Nut, 1/4"
Brinewell Decal, Salt Level (_
Salt Storage Tank Plastic Screw, 1/4" x 5/8"
Tube Clamp Tube Adaptor
Grommet Brine Valve Asm. (also see pages 6-3, 6-4)
Replacement Distributor
Resin
Resin Tank, UltraSoft 250 (incl. Key No. 19)
Resin Tank, UItraSoft 275 (incl. Key No. 19) O-Ring, 2-3/4" x 3" Top Distributor
O-Ring, 13/16" x 1-1/16"
O-Ring, 2-7/8" x 3-1/4" Vapor Barrier
Clamp Section (2 req.)
Clamp Retainer (2 req.)
O-Ring
Resin Bed Cleaner
Parts Bag, (includes parts marked with a •, pages 6-2, 6-4 & 6-6) - order manuals
separtately if needed.
Installation Manual Owners Manual
not illustrated. d) Aligns with top of brinewell.
included in parts bag.
6-2
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_ SECTION 6 _._;I REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388260 and 625.388270
48
INLET - OUTLET
GROUNDING CLAMPS
47
I
30
46 31
32
33
34
35
_ 36
37 g8
44
j49
6-3
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_ SECTION 6 _ REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388260 and 625.388270
B. BRINE VALVE ASSEMBLY
KEY PART
NO. NUMBER
30 7168647
31 0513860
32 7097202
33 0516947 34 7093216 35 7092278 36 7170288 37 0516211 38 0516924 39 7116713 40 7092252 41 7080653 42 7131365 43 7094979 44 7092294 45 7176161 46 7095470 47 7113016 48 7171349
49 7248706
DESCRIPTION
Ceramic Weight
,Float Stop
Float (includes Key No. 33)
Float Seal
Float Rod & Stem
Guide Cap O-Ring 15/16 x 1-3/16 Seal
Retainer, Bottom Seal
Clip
Brine Valve Body
Clip Screen
Insert
Retaining Ring
O-Ring, 5/16 x 9/16
Brine Tube Tubing Assy. (includes Key Nos. 43, 44 & 45)
Cone Screen
Grounding Kit (2)
included in parts bag, see page 6-2.
6-4
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
_ii_ii_i I SECTION 6 _i_iiiii_ REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388260 and 625.388270
9_
97 0
i
95
9o-----__ 0
88
82
92
\
54
53
55
56
61
94 _ 62
63
64
66
_ 72
6O 59
67
80
/
81
71
70
_ 69
68
76
77
6-5
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
KEY
NO.
51 52
53
54 55 56
57 58
59 60 61
62 63
64 65 66 67
68
69 7O
71 72 73 74
75
76
77
78
79 8O 81 82
83
Kenmore MODEL NOS. 625.388260 and 625.388270
C. VALVE ASSEMBLY
PART
NUMBER
7224087 7250622
7231385
0900857
0503288 7113927
7142942 0900431
7024160
7170327
0501228 7092618
7170238
7170212
7082087 7199232
7170246 7116713
2207800
7170335 O5O7615
0507369 7134224 7170204 7092642 7129889 2204101 7117858
7082053 7081764 7081201 7170319 7081104
1202600
DESCRIPTION
Screw, #8-32 x 1" (2 req.)
Motor (incl. 2 ea. of Key No. 51) Motor Plate
Screw, #6-20 x 3/8 (2 req.) Bearing
Cam and Gear Clip (Drain)
Tubing Clamp Drain Hose Adaptor O-Ring, 5/8 x 13/16
Flow Plug, 1.8 (UltraSoft 250) Flow Plug, 2.0 (UitraSoft 275)
O-Ring, 7/16 x 5/8 O-Ring, 3/4 x 15/16
Wave Washer
Rotor & Disc O-Ring, 3-3/8 x 3-5/8 Clip (2 req.)
Plastic Installation Adaptor, 1"
Male Thread (2 req.) [] Washer (2 req.) Installation Tube (2 req.)
Installation Nut (2 req.)
Rotor Seal
O-Ring, 3/8 x 9/16
Plug (Drain Seal)
Spring
Turbine Support and Shaft
Turbine
Valve Body
Sear (Nozzle & Venturi)
Retainer (Nozzle & Venturi)
O-Ring, 1/4 x 3/8 (2 req.)
Nozzle & Venturi Housing
Nut - Ferrule
KEY PART
NO. NUMBER
84 7095030 85 1148800
86 7187772
- 7190547
- 7114533
- 7204362
87 0521829
- 7084607
88 7146043 89 7167659 90 7170262 91 7199729 92 7248714 93 0900060
94 7085263 95 7074123
96 7077472
97 7030713 98 7117816
99 7070412
7187065
7253808
7129716
42-3433
42-34401
42-34403
notillustr_ed
DESCRIPTION
Cone Screen
Flow Plug, .3 gpm Nozzle & Venturi Gasket Kit (UItraSoft 250)
Gasket, UltraSoft 250 (only) Nozzle & Venturi Gasket Kit
(UitraSoft 275) Gasket, UltraSoft 275 (only)
Flow Plug, .1 gpm (UltraSoft 250) Flow Plug, .15 gpm (UltraSoft 275)
Screen Screen Support
O-Ring, 1-1/8 x 1-3/8 Cap Sensor Housing
O-Ring Valve Cover
Screw, #10-14 x 2 (5 req.) Expansion Pin
Switch Spacer
Screw, #4-24 x 1-1/8 (flat head) Nozzle & Venturi Asm, UltraSoft 250 (incl. Key Nos. 82 & 84 - 91) Nozzle & Venturi Asm, UltraSoft 275 (incl. Key Nos. 82 & 84 - 91)
Seal Kit (incl. Key Nos. 62, 63, 66, 72, 73 & 79)
Drain Tubing, 3/8" I.D. x 20' Flexible Connectors, 3/4" Flexible Connectors, 1"
included in parts bag, see page 6-2. [] NOT included with softener, order as needed.
BYPASS INSTALLATION VALVE
KEY PART
DESCRIPTION
NO. NUMBER 100 0502206 Retainer Ring
101 7129863 Bypass Body 102 7105013 O-Ring, 13/16x 1 (4 req.)
103 7130911 Stem 104 7170288 O-Ring, 15/16 x 1-3/16 (2 req.)
7129871 Bypass Valve (Complete)
103
/
102
/
104
101
1oo
6-6
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
OWNER'S
MANUAL
MODEL NOS.
UltraSoft 250
625.388260
UltraSoft 275
625.388270
The model number of your water softener is
found on the rating de- cal. This decal is on the
rim, under the salt cover.
When requesting service or ordering parts, always provide the following in-
formation:
4) Product Type
Model Number
41) Part Number
Part Description
www.KenmoreWater.com
Water Softeners
For the repair or replacement parts you
need delivered directly to your home
Call 7 am - 7 pm, 7 days a week
1 - 800 - 366 - PART
(1 - 800 - 366 - 7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1 - 800 - 4 - REPAIR
(1 - 800 - 473 - 7247)
For the location of a
Sears Parts and Repair Center in your area
Call 24 hours a day, 7 days a week
1 - 800 - 488 - 1222
For information on purchasing a Sears
Maintenance Agreement, or to inquire
about an existing Agreement
Call 9 am - 5 pro, Monday - Saturday
1 - 800 - 827 - 6655
SEARS
America's Repair Specialists
======
ii.
I Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. I
Loading...
