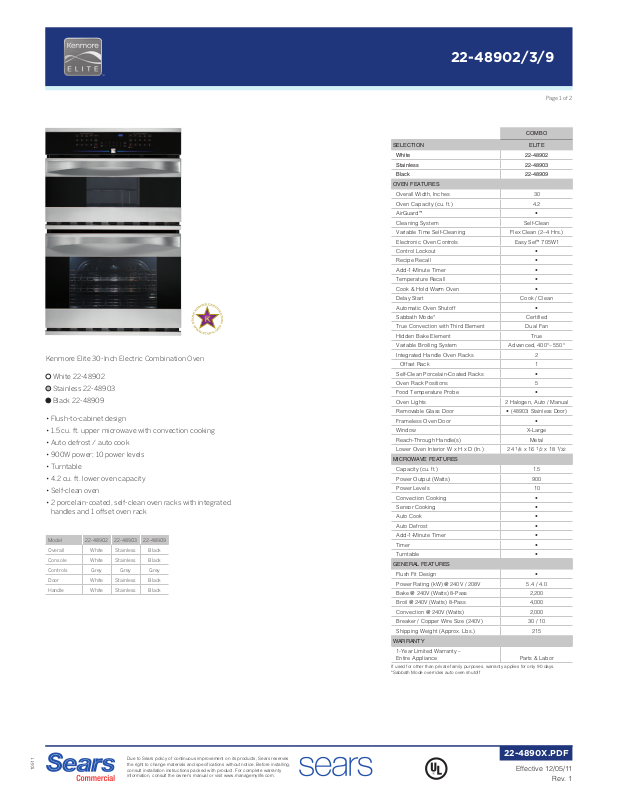

Kenmore Elite 3 Electric Specifications
Kenmore Elite 30-Inch Electric Combination Oven
White 22-48902
Stainless 22-48903
Black 22-48909
• Flush-to-cabinet design
• 1.5 cu. ft. upper microwave with convection cooking
• Auto defrost / auto cook
• 900W power; 10 power levels
• Turntable
• 4.2 cu. ft. lower oven capacity
• Self-clean oven
• 2 porcelain-coated, self-clean oven racks with integrated
handles and 1 offset oven rack
Model 22-48902 22-48903 22-48909
Overall White Stainless Black
Console White Stainless Black
Controls Grey Grey Grey
Door White Stainless Black
Handle White Stainless Black
22-48902/3/9
Page 1 of 2
COMBO
SELECTION ELITE
White 22-48902
Stainless 22-48903
Black 22-48909
OVEN FEATURES
Overall Width, Inches 30
Oven Capacity (cu. ft.) 4.2
AirGuard™ •
Cleaning System Self-Clean
Variable Time Self-Cleaning Flex Clean (2–4 Hrs.)
Electronic Oven Controls Easy Set™ 705W1
Control Lockout •
Recipe Recall •
Add-1-Minute Timer •
Temperature Recall •
Cook & Hold Warm Oven •
Delay Start Cook / Clean
Automatic Oven Shutoff •
Sabbath Mode* Certified
True Convection with Third Element Dual Fan
Hidden Bake Element True
Variable Broiling System Advanced, 400°– 550°
Integrated Handle Oven Racks 2
Offset Rack 1
Self-Clean Porcelain-Coated Racks •
Oven Rack Positions 5
Food Temperature Probe •
Oven Lights 2 Halogen, Auto / Manual
Removable Glass Door •
Frameless Oven Door •
Window X-Large
Reach-Through Handle(s) Metal
Lower Oven Interior W x H x D (In.) 24
MICROWAVE FEATURES
Capacity (cu. ft.) 1.5
Power Output (Watts) 900
Power Levels 10
Convection Cooking •
Sensor Cooking •
Auto Cook •
Auto Defrost •
Add-1-Minute Timer •
Timer •
Turntable •
GENERAL FEATURES
Flush Fit Design •
Power Rating (kW) @ 240V / 208V 5.4 / 4.0
Bake @ 240V (Watts) 8-Pass 2,200
Broil @ 240V (Watts) 8-Pass 4,000
Convection @ 240V (Watts) 2,000
Breaker / Copper Wire Size (240V) 30 / 10
Shipping Weight (Approx. Lbs.) 215
WARRANTY
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only 90 days.
*Sabbath Mode overrides auto oven shutoff
(48903: Stainless Door)
1
/8 x 16 1/2 x 18 1/32
10511
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
22-4890X.PDF
Effective 12/05/11
Rev. 1
Dimensions, Inches
A B C
1
22-4890X 30 28
NOTES:
1. Base must be capable of supporting 225 pounds.
2. Cutout depth is critical to the proper installation of the built-in oven. If the oven
decorative trim does not butt against the cabinet, or if noise is heard on convection
models, verify the dimension to assure it is the required depth.
3. For a cutout height greater than 41
appropriate height to each side of the opening under the appliance rails.
/2 – 29 30 1/8
11
/16", add one 2" wide wood shim of
44 7/8"
21"
22-48902/3/9
Page 2 of 2
C
1
1
/2"
Min.
B
1/2"
44
1/4" -
1
/8"
Spacer
44 1/2"
1
/2"
11
Suggested,
4 1/2" min.
2" Wide Wood
Spacer if Needed
41
A
1
/2"
24
23
Hole for Cable
(Right or Left
Side Depending
on Model)
3"
max.
2"
min.
Electrical Junction Box
(Right or Left Side)
10511
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
22-4890X.PDF
Effective 12/05/11
Rev. 1
